Assembly Instructions
OWNER’S MANUAL
V. GFID100-110614
GFID100

Warning, Safety & Maintenance
2
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.

Table of Contents
3
• SAFETY INSTRUCTIONS.............................. PAGE 4
• PREPARATION............................................... PAGE 5
• HARDWARE ILLUSTRATION......................... PAGE 6
• PART / HARDWARE LIST............................... PAGE 10
• ASSEMBLY INSTRUCTIONS......................... PAGE 12
• EXPLODED VIEW.......................................... PAGE 19
• CONTACT PAGE............................................ PAGE 20

Important Safety Instructions
4
Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m ReadallinstructionsbeforeusingtheGFID100.
Theseinstructionsarewrittentoensureyoursafety
andtoprotecttheunit.
m Do not remove any safety labels from the
machine.
m Donotallowchildrenonorneartheequipment.
m Usetheequipmentonlyforitsintendedpurpose
asdescribedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcause
injuries.
m Wearproperexerciseclothingandshoesforyour
workout,nolooseclothing.
m Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts.
m Usecarewhengettingonorofftheunit.
m Donotoverexertyourselforworktoexhaustion.
m Ifyoufeelanypainorabnormalsymptoms,stop
yourworkoutimmediatelyandconsultyour
physician.
m Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservice
centerforexaminationandrepair.
m Neverdroporinsertobjectsintoanyopeningin
theequipment.
m Alwayschecktheunitanditscablesbeforeeach
use.Makesurethatallfastenersandcablesare
secureandingoodworkingcondition.
m Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
m Beforebeginningassembly,pleasetakethetime
toreadtheinstructionsthoroughly.
m Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.
Ifyouskipahead,youmaylearnlaterthatyou
havetodisassemblecomponentsandthatyou
mayhavedamagedtheequipment.
m Assembleandoperatethe
GFID100onasolid,level
surface.Locatetheunitafewfeetfromthewalls
orfurnituretoprovideeasyaccess.
TheGFID100 isdesignedforyourenjoyment.By
followingtheseprecautionsandusingcommonsense,
youwillhavemanysafeandpleasurablehoursof
healthfulexercisewithyourBody-SolidFLAT INCLINE
DECLINE BENCH.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouareunable
tocorrecttheproblem,callthedealerfromwhomyou
purchasedthemachineorcall1-800-556-3113forthe
dealernearestyou.
Obtaining Service
PleaseusethisOwner’sManualtomakesurethatall
partshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromthisOwner’sManual.Useonly
Body-Solidreplacementpartswhenservicingthis
machine.Failuretodosowillvoidyourwarrantyand
couldresultinpersonalinjury.
Forinformationaboutproductoperationorservice,
checkouttheofcialBody-Solidwebsiteat
www.bodysolid.comorcontactanauthorized
Body-SoliddealeroraBody-Solidfactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description

Preparation
5
ThankyouforpurchasingtheGFID100.ThisProductispartoftheBody-Solidlineofqualitystrengthtraining
machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody
conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.
Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly
superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions
containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery
contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even
thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors
in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered
bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.
inForestPark,Illinois.
Required Tools
Thebasictoolsthatyoumustobtainbeforeassembling
the
GFID100includebutarenotlimitedto:
m StandardWrenchSet
m MetricWrenchSet
m AdjustableWrench
Installation Requirements
Followtheseinstallationrequirementswhenassembling
the
GFID100:
Setupthe
GFID100onasolid,atsurface.Asmooth,
atsurfaceunderthemachinehelpskeepitlevel.A
levelmachinehasfewermalfunctions.
Provideamplespacearoundthemachine.Open
spacearoundthemachineallowsforeasieraccess.
Insertallboltsinthesamedirection.Foraesthetic
purposes,insertallboltsinthesamedirectionunless
specied(intextorillustrations)todootherwise.
Leaveroomforadjustments.Tightenfastenerssuchas
bolts,nuts,andscrewssotheunitisstable,butleave
roomforadjustments.Donotfullytightenfasteners
untilinstructedintheassemblystepstodoso.
Fill out and mail the warranty card.
Assembly Tips
Readall“Notes”oneachpagebeforebeginningeach
step.
Whileyoumaybeabletoassemblethe
GFID100using
theillustrationsonly,importantsafetynotesandother
tipsareincludedinthetext.
Somepiecesmayhaveextraholesthatyouwillnotuse.
Useonlythoseholesindicatedintheinstructionsand
illustrations.
NOTE: Withsomanyassembledparts,proper
alignmentandadjustmentiscritical.While
tighteningthenutsandbolts,besuretoleave
roomforadjustments.
NOTE: Thebottlesthataremarked“Poison”isyour
touchuppaint.Keepawayfromchildren.
CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t
assemblethe
GFID100byyourselfthendo
notattempttodosoasthiscouldresultin
inju
ry.Reviewtheinstallationrequirements
beforeproceedingwiththefollowingsteps.
YourS/N#can
befoundhere
↑

45
6

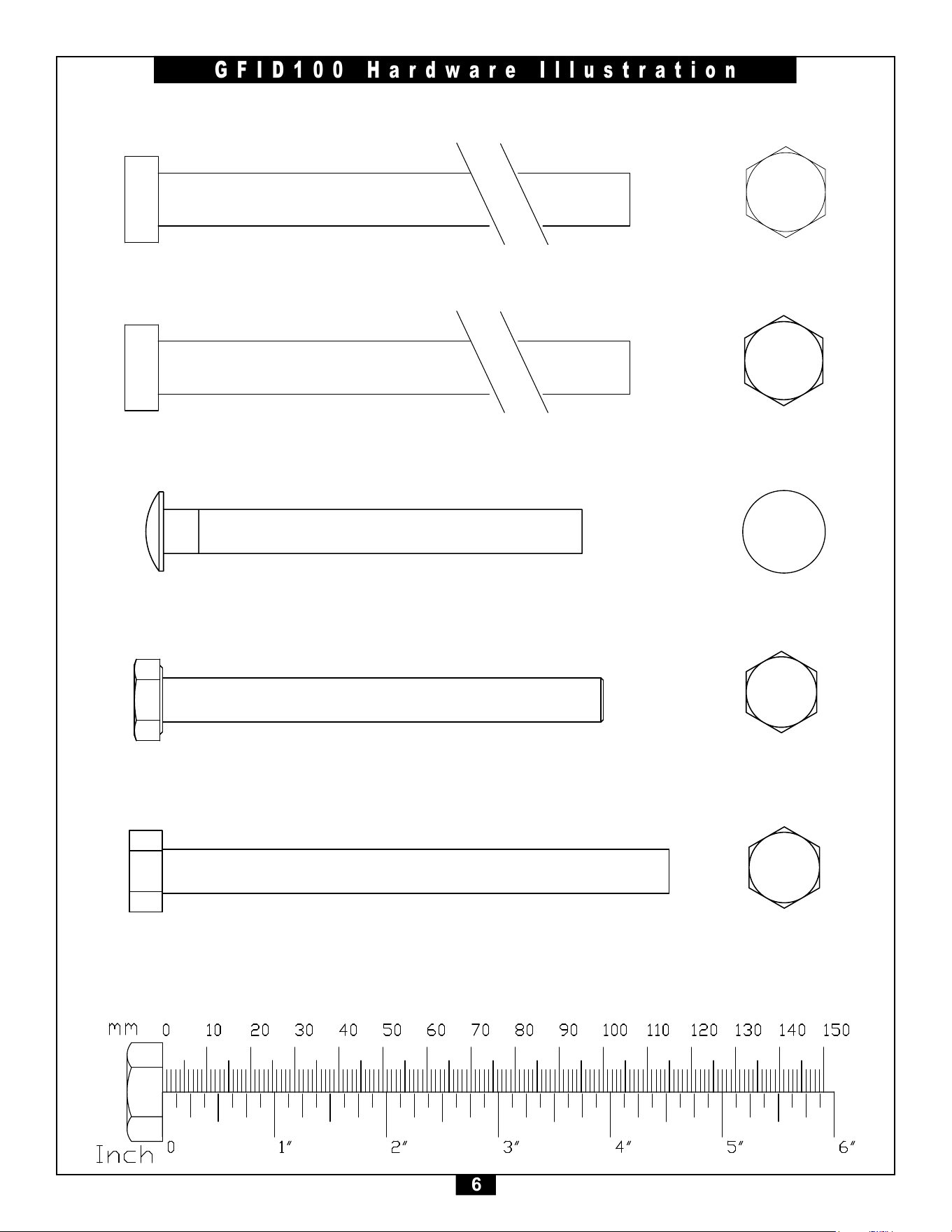

GFID100 Hardware Illustration
Part#2 HEXHEADBOLTM12x220mm QTY. 1
Part#1 HEXHEADBOLTM12x165mm QTY. 1
Part#3 CARRIAGEBOLTM10x95mm QTY. 4
Part#4 HEXHEADBOLTM10x100mm QTY. 1
Part#5 HEXHEADBOLTM10x115mm QTY. 1

45
7

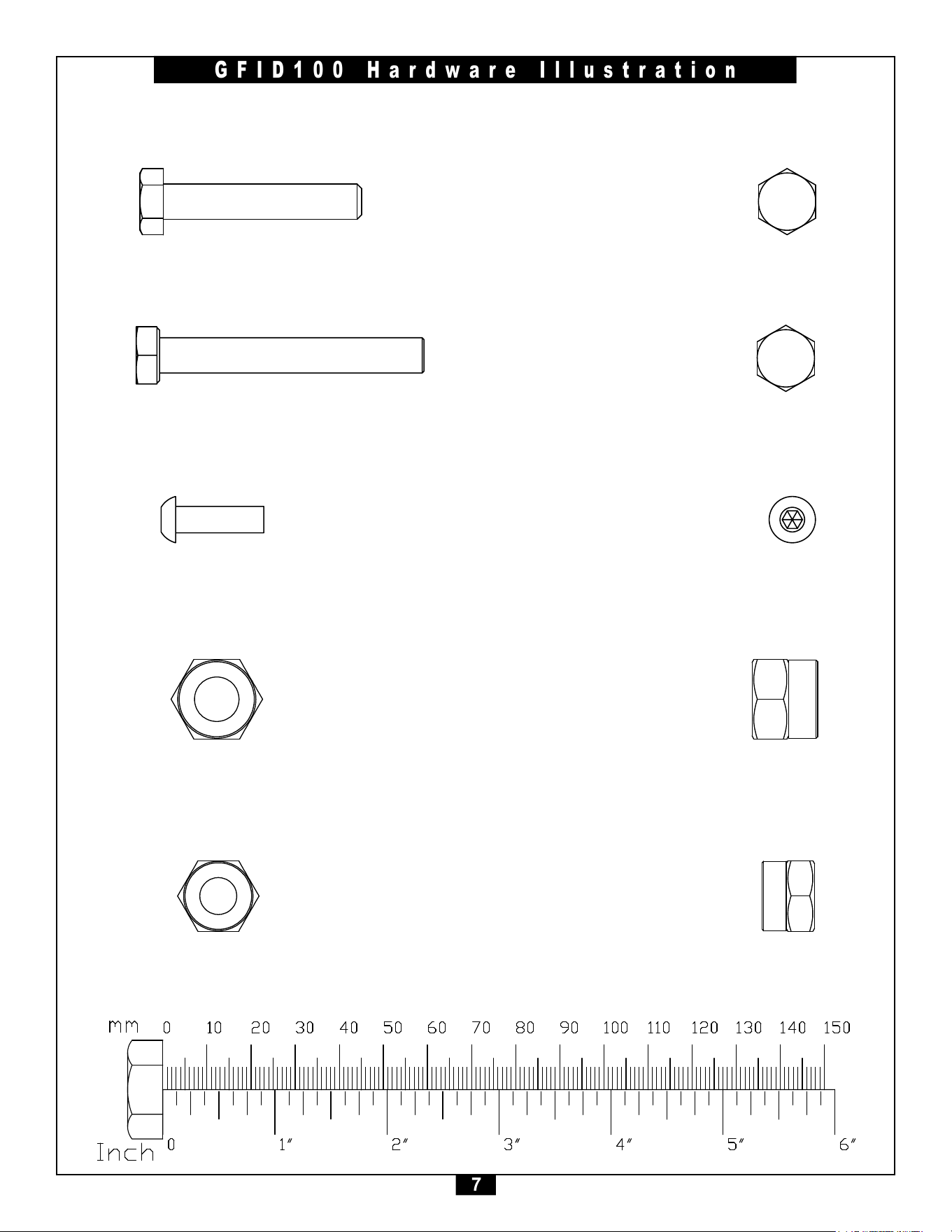

GFID100 Hardware Illustration
Part#6 HEXHEADBOLTM8x45mm QTY. 2
Part#7 HEXHEADBOLTM8x60mm QTY.8
Part#8 BUTTONHEADCAPSCREWM6x20mm QTY. 1
Part#9 NYLONLOCKNUTM12 QTY. 2
Part#10 NYLONLOCKNUTM10 QTY. 6

45
8

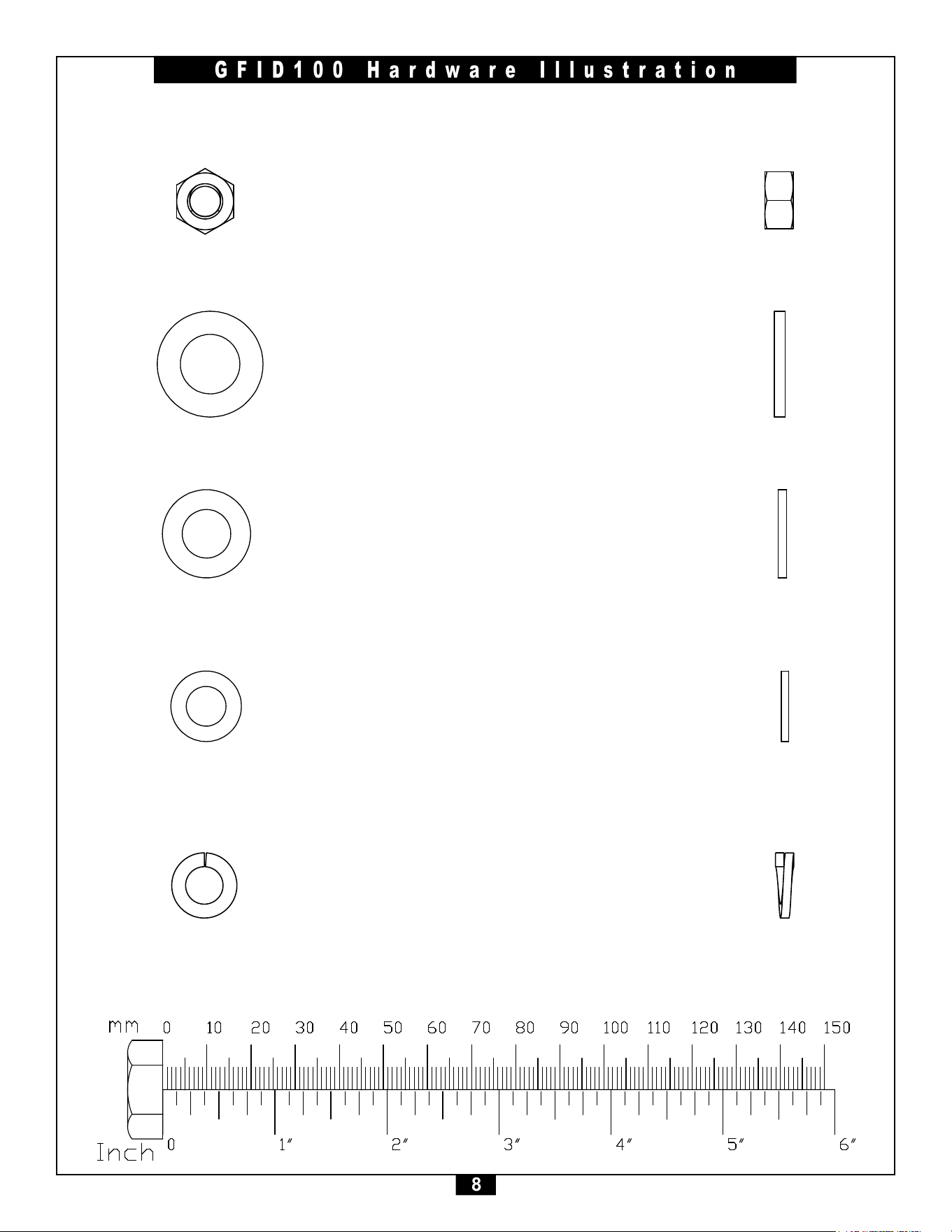

GFID100 Hardware Illustration
Part#11 NYLONLOCKNUTM8 QTY. 2
Part#12 FLATWASHERM12 QTY. 4
Part#13 FLATWASHERM10 QTY. 10
Part#14 FLATWASHERM8 QTY. 12
Part#15 LOCKWASHERM8 QTY.8

45
9
NOTE

10
GFID100 Parts &Hardware List
Part# Qty Description
A 1 MAIN FRAME
B 1 FRONT LEG
C 1 BACK LEG
D 1 U BRACKET
E 1 SEAT FRAME
F 2 BACK FRAME
G 1 ADJUSTMENT BRACKET
1 1 M12x165mmHEXHEADBOLT
2 1 M12x220mmHEXHEADBOLT
3 4 M10x95mmCARRIAGEBOLT
4 1 M10x100mmHEXHEADBOLT
5 1 M10x115mmHEXHEADBOLT
6 2 M8x45mmHEXHEADBOLT
7 8 M8x60mmHEXHEADBOLT
8 1 M6x20mmBUTTONHEADCAPSCREW
9 2 M12 NYLON LOCK NUT
10 6 M10 NYLON LOCK NUT
11 2 M8NYLONLOCKNUT
12 4 M12 FLAT WASHER
13 10 M10FLATWASHER
14 12 M8FLATWASHER
15 8 M8LOCKWASHER
16 4 BUSHING,ø21xø12.5x10mm
17 8 BUSHING,ø16xø12.5x8mm
18 8 ENDCAP,40x20mm
19 1 RUBBER BUMPER
20 1 T-KNOBLOCKPIN,ø12.5x48mm
21 1 POPPIN,ø12.5x56mm
22 1 ROUNDENDCAP,ø75mm
23 2 FOAMROLLER
24 2 FOAM ROLLER COVER
25 2 ROUNDENDCAP,ø95mm

11
GFID100 Parts &Hardware List
Part# Qty Description
26 1 SEAT PAD
27 1 BACKREST
28 1 TUBE,ø16xø12x74mm
29 1 PAD WRAP
30 2 FOOTPAD
31 2 TRANSPORTWHEEL

12
STEP
1
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
1A. AttachFrontLeg(B)toMainFrame(A)using:
2 - (#3) M10x95mm Carriage Bolt
2 - (#13) M10 Flat Washer
2 - (#10) M10 Nylon Lock Nut
1B. AttachBackLeg(C)toMainFrame(A)using:
2 - (#3) M10x95mm Carriage Bolt
2 - (#13) M10 Flat Washer
2 - (#10) M10 Nylon Lock Nut
1C. AttachUBracket(D)toMainFrame(A)using:
1 - (#5) M10x95mm Hex Head Bolt
2 - (#13) M10 Flat Washer
1 - (#10) M10 Nylon Lock Nut

STEP
1
AboveshowsStep1assembledandcompleted.
13

14
STEP
2
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
2A. AttachSeatandBackFrames(E & F)toMainFrame(A)using:
1 - (#2) M12x220mm Hex Head Bolt
2 - (#12) M12 Flat Washer
1 - (#9) M12 Nylon Lock Nut
2 - (#16)
ø21xø12.5x10mm Bushing
8 - (#17) ø16xø12.5x8mm Bushing
2B. AttachAdjustmentBracket(G)toBackFrames(F) using:
1 - (#1) M12x165mm Hex Head Bolt
2 - (#12) M12 Flat Washer
1 - (#9) M12 Nylon Lock Nut
2 - (#16)
ø21xø12.5x10mm Bushing
2C. AttachTube(28)toAdjustmentBracket(G) using:
1 - (#4) M10x100mm Hex Head Bolt
2 - (#13) M10 Flat Washer
1 - (#10) M10 Nylon Lock Nut
2D. AttachT-KnobLockPin(20)andPopPin(21)toMainFrame(A)

STEP
2
AboveshowsStep2assembledandcompleted.
15

16
STEP
3
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Wrench tighten ALL hardware at the end of STEP 3B. Some components may be
pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench
tighten to fully go on.
3A. AttachSeatPad(26)toSeatFrame(E)using:
4 - (#7) M8x60mm Hex Head Bolt
4 - (#14) M8 Flat Washer
4 - (#15) M8 Lock Washer
3B. AttachBackRest(27)toBackFrames(F)using:
4 - (#7) M8x60mm Hex Head Bolt
4 - (#14) M8 Flat Washer
4 - (#15) M8 Lock Washer
3C. InserttwoFoamRollers(23)andtwoRoundEndCaps(25)
ontoU-Bracket(D).

STEP
3
AboveshowsStep3assembledandcompleted.
17

45
18
Notes

19
GFID100 Exploded View

1900S.DesPlainesAve.
ForestPark,IL60130
Phone:(708)427-3555
Fax:(708)427-3556
Hours:M-F8:30-5:00CST
www.bodysolid.com
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW
S/N#
009691-��-��-����-����
GFID100
