Assembly Instructions
OWNER’S MANUAL
v. SAB500-042815
SAB500

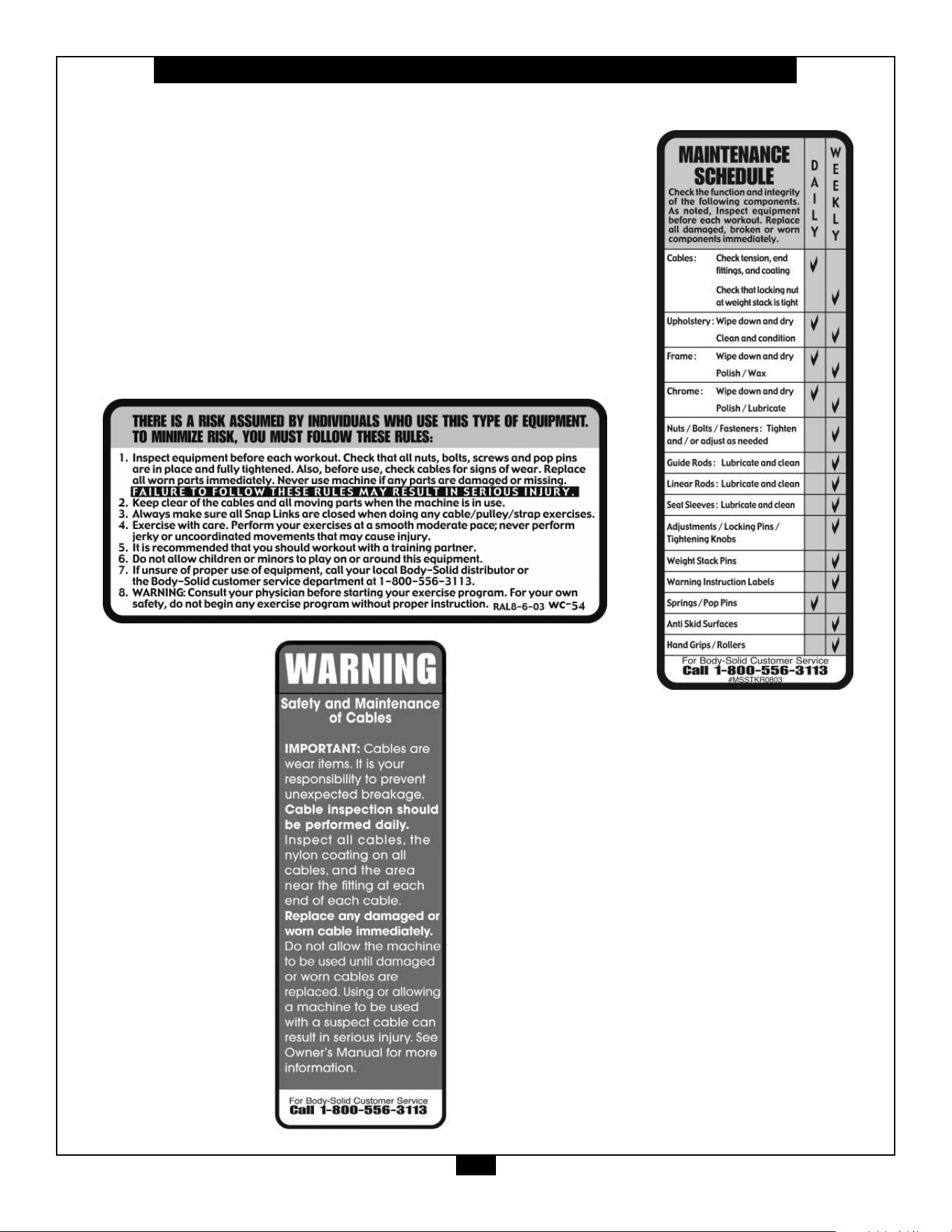

Warning, Safety & Maintenance
2
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.
#DWSM-5

Table of Contents
3
• SAFETY INSTRUCTIONS.............................. PAGE 4
• PREPARATION............................................... PAGE 5
• HARDWARE LIST........................................... PAGE 6
• PARTS LIST.................................................... PAGE 7
• HARDWARE ILLUSTRATION........................ PAGE 8
• ASSEMBLY INSTRUCTIONS........................ PAGE 10
• EXPLODED VIEW......................................... PAGE 18
• CONTACT PAGE........................................... PAGE 20

Important Safety Instructions
4
Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m ReadallinstructionsbeforeusingtheSAB500.
Theseinstructionsarewrittentoensureyoursafety
andtoprotecttheunit.
m Do not remove any safety labels from the
machine.
m Donotallowchildrenonorneartheequipment.
m Usetheequipmentonlyforitsintendedpurpose
asdescribedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcause
injuries.
m Wearproperexerciseclothingandshoesforyour
workout,nolooseclothing.
m Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts.
m Usecarewhengettingonorofftheunit.
m Donotoverexertyourselforworktoexhaustion.
m Ifyoufeelanypainorabnormalsymptoms,stop
yourworkoutimmediatelyandconsultyour
physician.
m Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservice
centerforexaminationandrepair.
m Neverdroporinsertobjectsintoanyopeningin
theequipment.
m Alwayschecktheunitanditscablesbeforeeach
use.Makesurethatallfastenersandcablesare
secureandingoodworkingcondition.
m Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
m Beforebeginningassembly,pleasetakethetime
toreadtheinstructionsthoroughly.
m Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.
Ifyouskipahead,youmaylearnlaterthatyou
havetodisassemblecomponentsandthatyou
mayhavedamagedtheequipment.
m Assembleandoperatethe
SAB500onasolid,level
surface.Locatetheunitafewfeetfromthewalls
orfurnituretoprovideeasyaccess.
TheSAB500 isdesignedforyourenjoyment.Byfollow-
ingtheseprecautionsandusingcommonsense,youwill
havemanysafeandpleasurablehoursof
healthfulexercisewithyourBody-Solid Pro Club Ab
Bench.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouareunable
tocorrecttheproblem,callthedealerfromwhomyou
purchasedthemachineorcall1-800-556-3113forthe
dealernearestyou.
Obtaining Service
PleaseusethisOwner’sManualtomakesurethatall
partshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromthisOwner’sManual.Useonly
Body-Solidreplacementpartswhenservicingthis
machine.Failuretodosowillvoidyourwarrantyand
couldresultinpersonalinjury.
Forinformationaboutproductoperationorservice,
checkouttheofcialBody-Solidwebsiteat
www.bodysolid.comorcontactanauthorized
Body-SoliddealeroraBody-Solidfactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description

Preparation
5
Thankyouforpurchasingthe
SAB500
.ThisbenchispartoftheBody-Solidlineofqualitystrengthtraining
machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody
conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.
Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly
superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions
containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery
contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even
thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors
in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered
bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.
inForestPark,Illinois.
Required Tools
Thebasictoolsthatyoumustobtainbeforeassembling
the
SAB500includebutarenotlimitedto:
m MetricAllenKeySet
m StandardAllenKeySet
m StandardWrenchSet
m MetricWrenchSet
m AdjustableWrench
m Screwdriver(standardand/orphillips)
Installation Requirements
Followtheseinstallationrequirementswhenassembling
the
SAB500:
Setupthe
SAB500onasolid,atsurface.Asmooth,at
surfaceunderthemachinehelpskeepitlevel.A
levelmachinehasfewermalfunctions.
Provideamplespacearoundthemachine.Open
spacearoundthemachineallowsforeasieraccess.
Insertallboltsinthesamedirection.Foraesthetic
purposes,insertallboltsinthesamedirectionunless
specied(intextorillustrations)todootherwise.
Leaveroomforadjustments.Tightenfastenerssuchas
bolts,nuts,andscrewssotheunitisstable,butleave
roomforadjustments.Donotfullytightenfasteners
untilinstructedintheassemblystepstodoso.
Fill out and mail the warranty card.
Assembly Tips
Readall“Notes”oneachpagebeforebeginningeach
step.
Whileyoumaybeabletoassemblethe
SAB500using
theillustrationsonly,importantsafetynotesandother
tipsareincludedinthetext.
Somepiecesmayhaveextraholesthatyouwillnotuse.
Useonlythoseholesindicatedintheinstructionsand
illustrations.
NOTE: Withsomanyassembledparts,proper
alignmentandadjustmentiscritical.While
tighteningthenutsandbolts,besuretoleave
roomforadjustments.
NOTE: Thebottlesthataremarked“Poison”isyour
touchuppaint.Keepawayfromchildren.
CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t
assemblethe
SAB500byyourselfthendo
notattempttodosoasthiscouldresultin
inju
ry.Reviewtheinstallationrequirements
beforeproceedingwiththefollowingsteps.
YourS/N#can
befoundhere
↑

6
SAB500 Hardware List
Part# Size Description Quantity
1
2
3
4
5
6
7
8
9
10
11
12
32
M12X75mm
M10X20mm
M8X60mm
M8X45mm
M8X25mm
M4X5mm
M12
M10
M8
M8
M12
M8
M8X20mm
CARRIAGE BOLT
BUTTON HEAD CAP SCREW
HEX HEAD BOLT
HEX HEAD BOLT
BUTTON HEAD CAP SCREW
SET SCREW
FLAT WASHER
FLAT WASHER
FLAT WASHER
LOCK WASHER
NYLON LOCK NUT
NYLON LOCK NUT
FLAT HEAD CAP SCREW
4 PCS.
6 PCS.
2 PCS.
2 PCS.
8 PCS.
4 PCS.
4 PCS.
6 PCS.
16 PCS.
8 PCS.
4 PCS.
4 PCS.
2 PCS.

7
SAB500 Parts List
Part# Description Quantity
A
B
C
D
E
F
G
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
BASE FRAME
FRONT STABILIZER
REAR STABILIZER
PIVOT ADJUSTMENT FRAME
ANGLE ADJUSTMENT FRAME
TOP FRAME
ROLLER BAR
FOOT PAD
BASE PAD
TRANSPORT WHEEL
BUSHING,
ø25xø18x20mm
POP PIN
SPACER,
ø8.5xø12x7mm
END FITTING EYELET
GAS SPRING
OVAL TUBE BUSING
SHAFT,
ø18x132mm
ENDRING,ø32xø26x9.5mm
GRIP,ø32x150mm
END CAP
GRIP,
ø32x125mm
PLASTIC END RING
FOAMROLLER,
ø125x203mm
HEAD REST PAD
BACK REST PAD
STEEL PLATE
1 PCS.
1 PCS.
1 PCS.
1 PCS.
1 PCS.
1 PCS.
2 PCS.
4 PCS.
1 PCS.
2 PCS.
6 PCS.
1 PCS.
4 PCS.
2 PCS.
1 PCS.
1 PCS.
3 PCS.
2 PCS.
2 PCS.
6 PCS.
1 PCS.
4 PCS.
4 PCS.
1 PCS.
1 PCS.
1 PCS

45
8

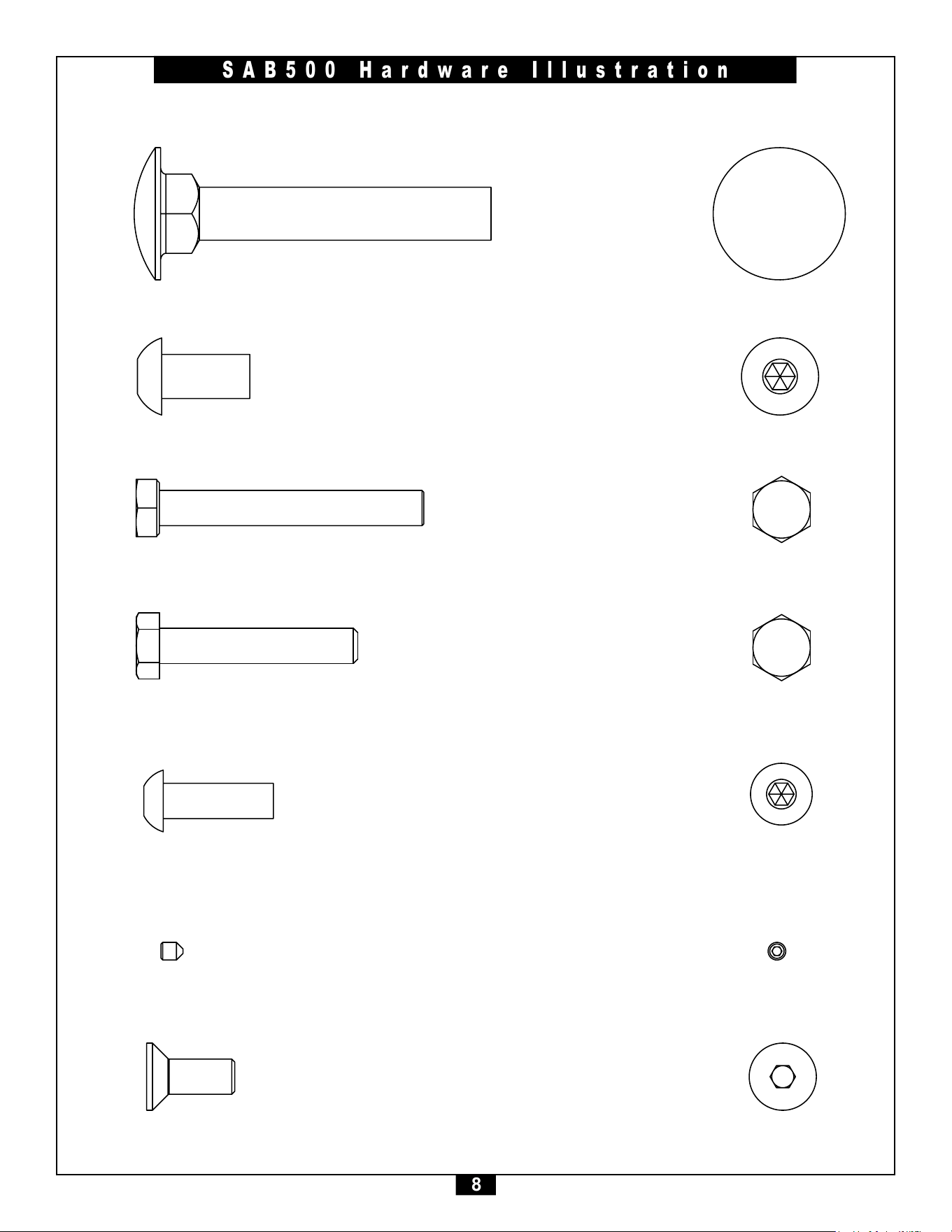

SAB500 Hardware Illustration
Part#1 CARRIAGE BOLTM12x75mm QTY.4
Part#2 BUTTONHEADCAPSCREWM10x20mm QTY.6
Part#3 HEXHEADBOLTM8x60mm QTY.2
Part#4 HEXHEADBOLTM8x45mm QTY.2
Part#5 BUTTONHEADCAPSCREWM8x25mm QTY.8
Part#6 SETSCREWM4x5mm QTY.4
Part#32 FLATHEADCAPSCREWM8x20mm QTY.2

45
9

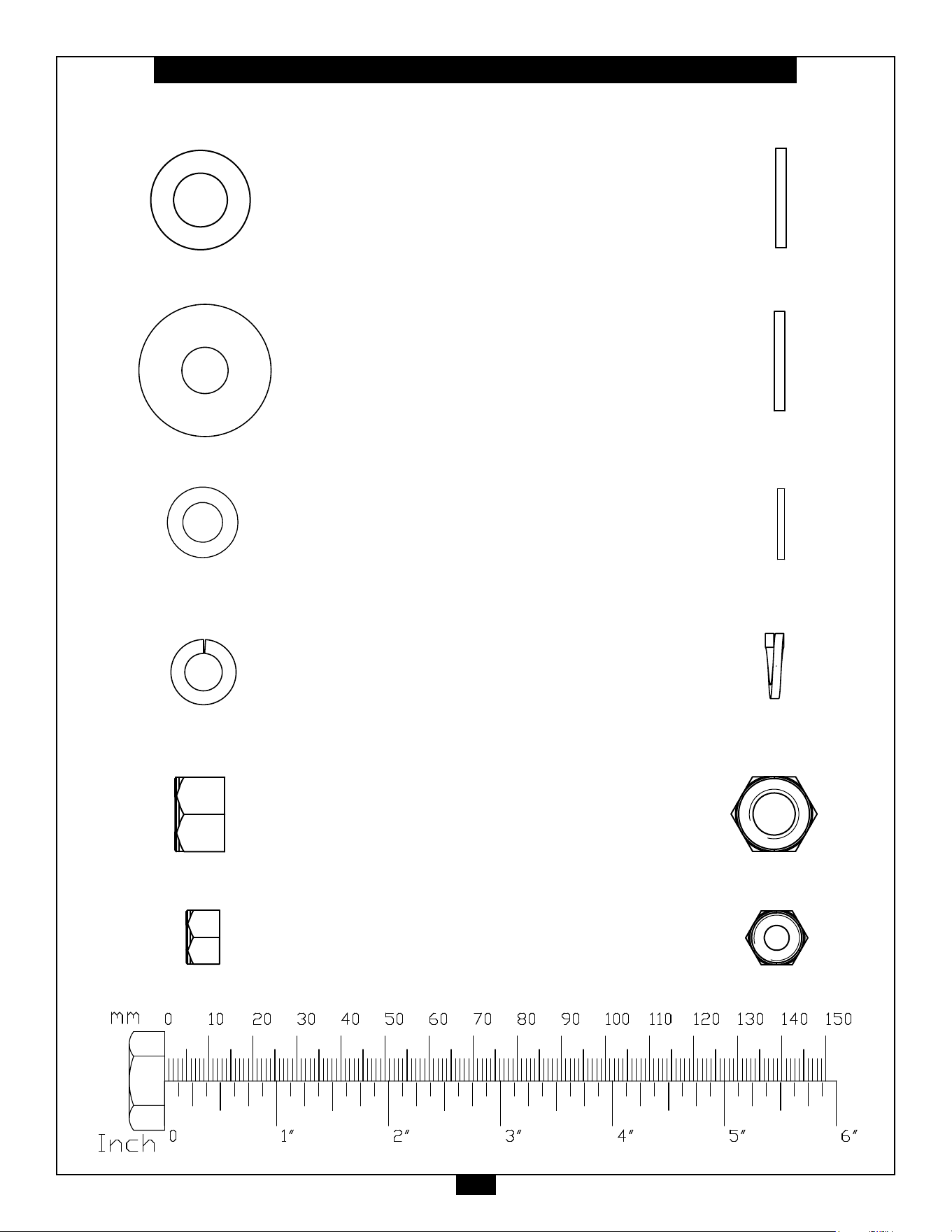

SAB500 Hardware Illustration
Part#7 FLATWASHERM12 QTY.4
Part#8 FLATWASHERM10 QTY.6
Part#9 FLATWASHERM8 QTY.16
Part#10 LOCKWASHERM8 QTY.8
Part#11 NYLONLOCKNUTM12 QTY.4
Part#12 NYLONLOCKNUTM8 QTY.4
ijij
ijij
ijij
ijij
ij
ijij
ijij
ijij
ijij
ij
ijij
ijij
ijij
ijij
ij

10
STEP
1
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
1A. AttachBaseFrames(A)toFrontStabilizer(B)using:
2 - (#1) M12x75mm Carriage Bolt
2 - (#7) M12 Flat Washer
2 - (#11) M12 Nylon Lock Nut
1A. AttachBaseFrames(A)toRearStabilizer(C)using:
2 - (#1) M12x75mm Carriage Bolt
2 - (#7) M12 Flat Washer
2 - (#11) M12 Nylon Lock Nut

STEP
1
AboveshowsStep1assembledandcompleted.
11
B
A
C
1
7
11
1
7
7
11

12
STEP
2
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end of
and after STEP 2D. Some components may be pre-assembled. Nylon lock nuts will not
fully screw onto bolts, they must be wrench tighten to fully go on.
2A. AttachTopFrame(F)toBaseFrame(A)using:
2 - (#2) M10x20mm Button Head Cap Screw
2 - (#8) M10 Flat Washer
2 - (#16) ø25xø18x20mm Bushing
1 - (#22) ø18x132mm Shaft
2B. AttachoneendoftheGasSpring(#20)toBaseFrame(A)using:
1 - (#4) M8x45mm Hex Head Bolt
2 - (#9) M8 Flat Washer
1 - (#12) M8 Nylon Lock Nut
2 - (#18) ø8.5xø12x7mm Spacer
2C. AttachanotherendofGasSpring(#20)toTopFrame(F)using:
1 - (#4) M8x45mm Hex Head Bolt
2 - (#9) M8 Flat Washer
1 - (#12) M8 Nylon Lock Nut
2 - (#18) ø8.5xø12x7mm Spacer
2C. AttachPivotAdjustmentFrame(D)toBaseFrame(A)using:
2 - (#2) M10x20mm Button Head Cap Screw
2 - (#8) M10 Flat Washer
2 - (#16) ø25xø18x20mm Bushing
1 - (#22) ø18x132mm Shaft
2D. AttachAngleAdjustmentFrame(E)toTopFrame(F)using:
2 - (#2) M10x20mm Button Head Cap Screw
2 - (#8) M10 Flat Washer
2 - (#16) ø25xø18x20mm Bushing
1 - (#22) ø18x132mm Shaft

13
STEP
2
AboveshowsStep2assembledandcompleted.
A
9
9
12
4
8
16
2
22
2
8
20
82
16
16
16
18
16
16 4
9
9
18
18
18
12
8
2
22
8
2
F
D
E

14
STEP
3
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end of
and after STEP 3B. Some components may be pre-assembled. Nylon lock nuts will not
fully screw onto bolts, they must be wrench tighten to fully go on.
3A. AttachHeadRestPad(#29)toTopFrame(F)using:
2 - (#5) M8x25mm Button Head Cap Screw
2 - (#9) M8 Flat Washer
2 - (#10) M8 Lock Washer
3B. AttachBackRestPad(#30)toTopFrame(F)using:
6 - (#5) M8x25mm Button Head Cap Screw
6 - (#9) M8 Flat Washer
6 - (#10) M8 Lock Washer

15
STEP
3
AboveshowsStep3assembledandcompleted.
9
F
5
10
29
30

16
STEP
4
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts,
they must be wrench tighten to fully go on.
4A. InserttwoRollerBars(G)ontoTopFrame(F).
4B. InsertfourFoamRollers(#27),FourPlasticEndRings(#28)onto
RollerBars(G)andscrewinfourEndCaps(#25).

17
STEP
4
AboveshowsStep4assembledandcompleted.
G
27
28
25
F

45
18
SAB500 Exploded View
1
A
23
B
C
D
G
E
F
2
3
4
5
6
7
8
9
10
11
12
9
14
16
1
2
2
3
G
2
2
7
7
11
4
9
9
9
9
9
9
12
8
8
8
10
5
10
5
9
10
5
8
6
13
12
9
9
15
13
13
13
8
16
16
16
16
16
17
18
19
20
22
18
18
18
19
21
23
24
25
26
22
25
25
25
25
25
27
27
27
27
28
28
28
28
29
30
31
32
32

19
Notes

1900S.DesPlainesAve.
ForestPark,Il60130
Phone:(708)427-3555
Fax:(708)427-3556
Hours:M-F8:30-5:00CST
www.bodysolid.com
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW
S/N#
010345-��-��-����-����
