USER INSTRUCTION
RF Mini LED Controller
1.Product features
：
The products of this series can be used to control four types of light bars:
Dimmer,CCT,RGB, RGBW.
The main features of the controller are:
1.Compact body and convenient wiring;
2.Simple and clear operation, comfortable button feel;
3.Diversi fied dynamic mode;
4.Soft dimming effect.
2.Technical Parameters:
● Working temperature
：
-20-60
℃
● Input voltage
：
DC5~24V

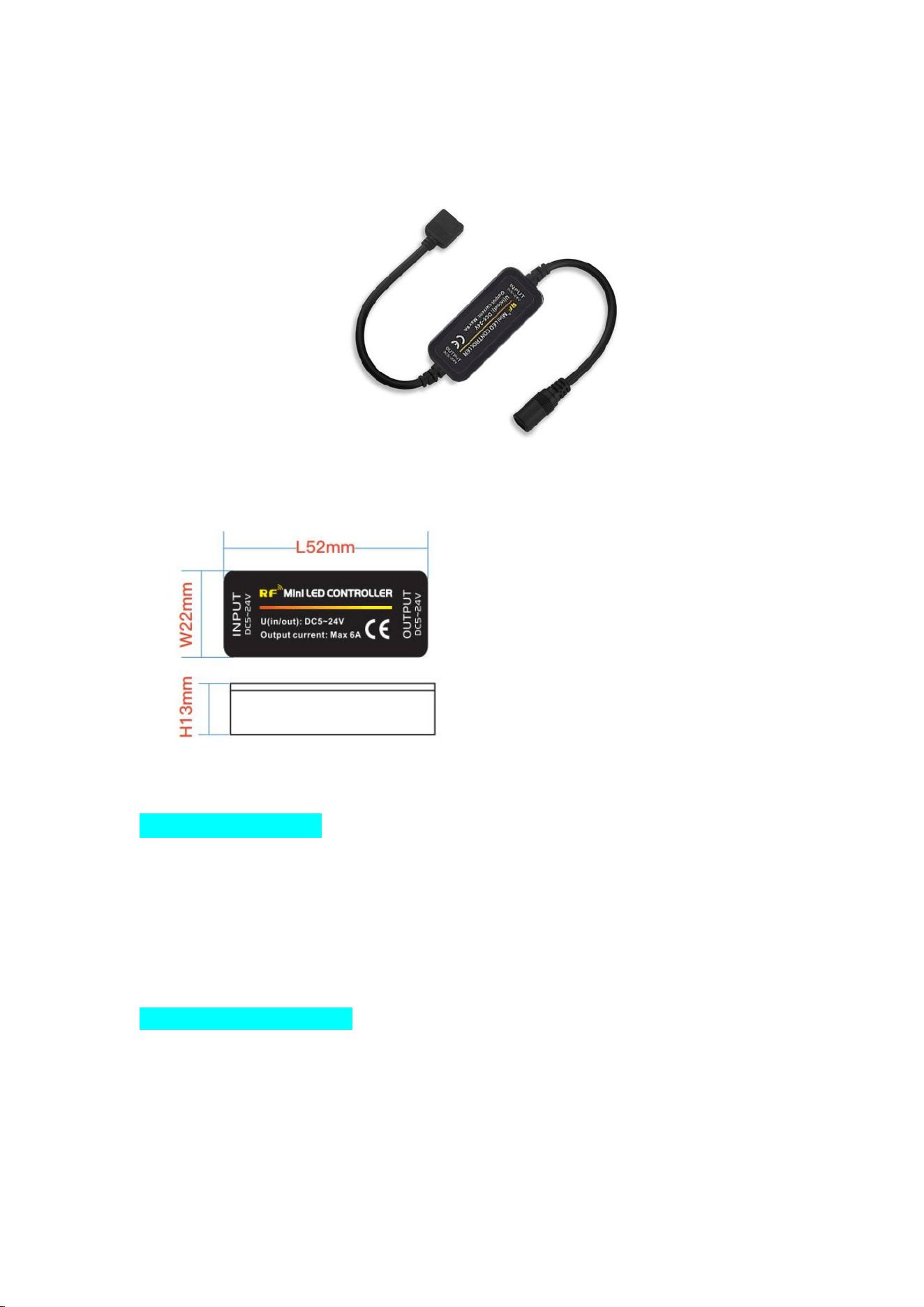

● controller size
：
L52×W22×H13mm
● Net weight
：
14/17/21 keys 30g
，
28keys 40g
● Gross weight
：
14/17/21keys 32g
，
28keys 42g
● RF frequency
：
Controller, 433.92MHz (RX); Remote, 433.92MHz (TX)
● Output current
：
max:6A
●Single color: 1CH*6A,CCT:2CH*3A, RGB: 3CH*2A, RGBW : 6A
● Output power: 5V:<30W,12V:<72W, 24V:<144W
●Remote battery:1PCS*CR2025 aluminum cell

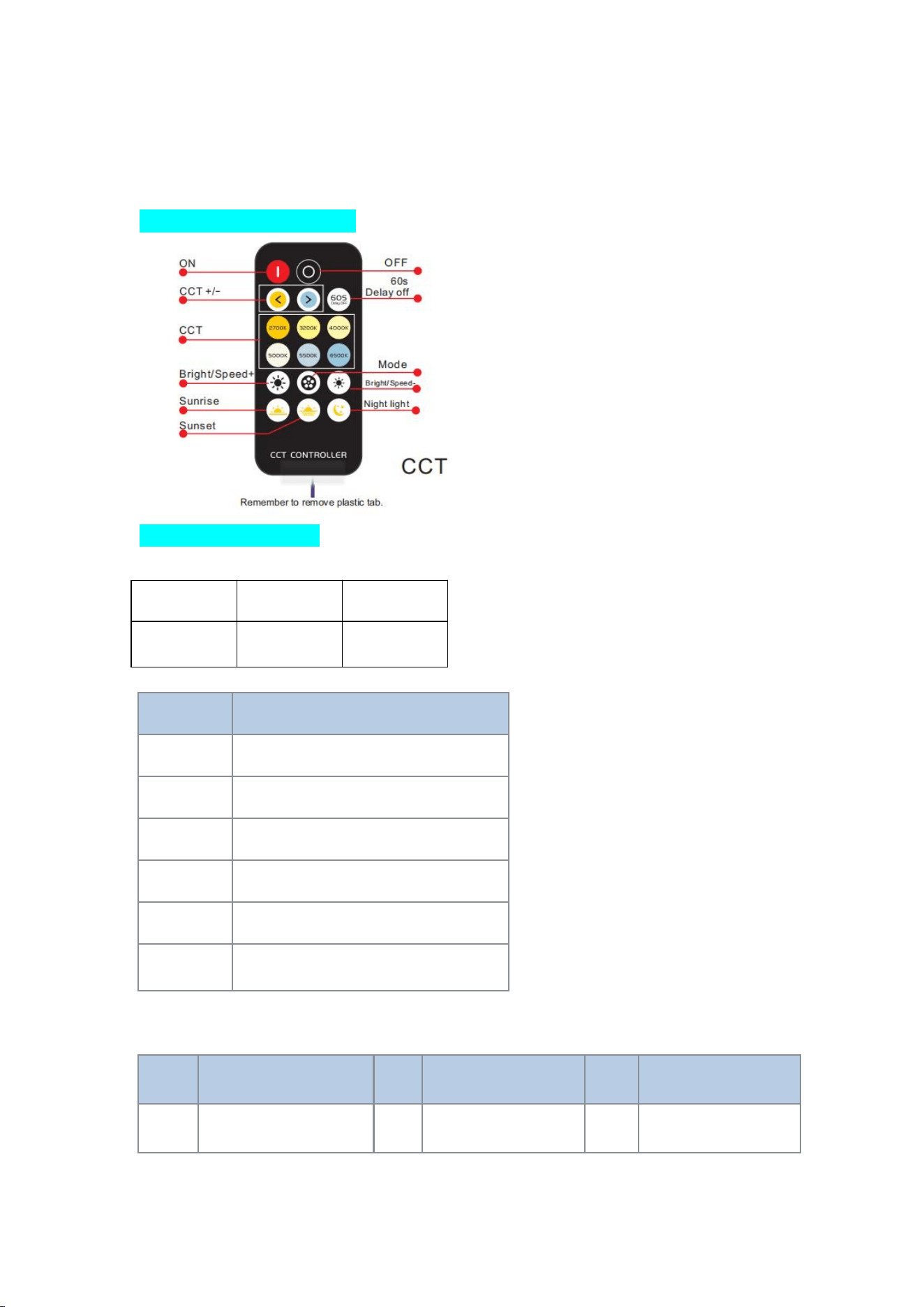

3.Products key diagram:
4. CCT Mode sheet
（1）Dimmer mode list(3):
Mode 1
Mode 2
Mode 3
Jump
Fade
Strobe
（2）CCT Controller
No.
Dynamic modes
1
Warm white fade
2
Neutral white fade
3
Cool white fade
4
Warm white Jump
5
Neutral white Jump
6
Cool white Jump
（
3
）
21 Key RGB Controller(19):
No.
Dynamic modes
No.
Dynamic modes
No.
Dynamic modes
1
Red fade
8
Red fade+jump
15
7 colors jump
2
Green fade
9
Greed
fade+jump
16
3 colors flash
3
Blue fade
10
Blue fade+jump
17
Full color fade
4
Yellow fade
11
Red flash
18
3 colors fade
5
Purple fade
12
Green flash
19
7 colors fade
6
Cyan fade
13
Blue flash
7
White fade
14
3 colors jump
（
4
）
21 Key RGBW Controller(18):
No.
Dynamic
modes
No.
Dynamic
modes
No.
Dynamic modes
1
Red fade
7
White fade
13
7+W colors fade
2
Green fade
8
Red flash
14
4 colors flash
3
Blue fade
9
Green flash
15
7+W colors flash
4
Yellow fade
10
Blue flash
16
4 colors jump
5
Purple fade
11
W flash
17
7+W colors jump
6
Cyan fade
12
4 colors fade
18
Full color fade
（
5
）
28 Key RGB Controller(5):
（
6
）
28 Key
RGBW Controller(11):
No.
Dynamic modes
No.
Dynamic modes
1
W+Red
7
3 colors jump
2
W+Green
8
3 colors fade
No.
Dynamic modes
1
3 colors jump
2
3 colors fade
3
7 colors jump
4
7 colors fade
5
Full color fade
3
W+Blue
9
7 colors jump
4
W+Yellow
10
7 colors fade
5
W+Purple
11
Full colors fade
6
W+Cyan

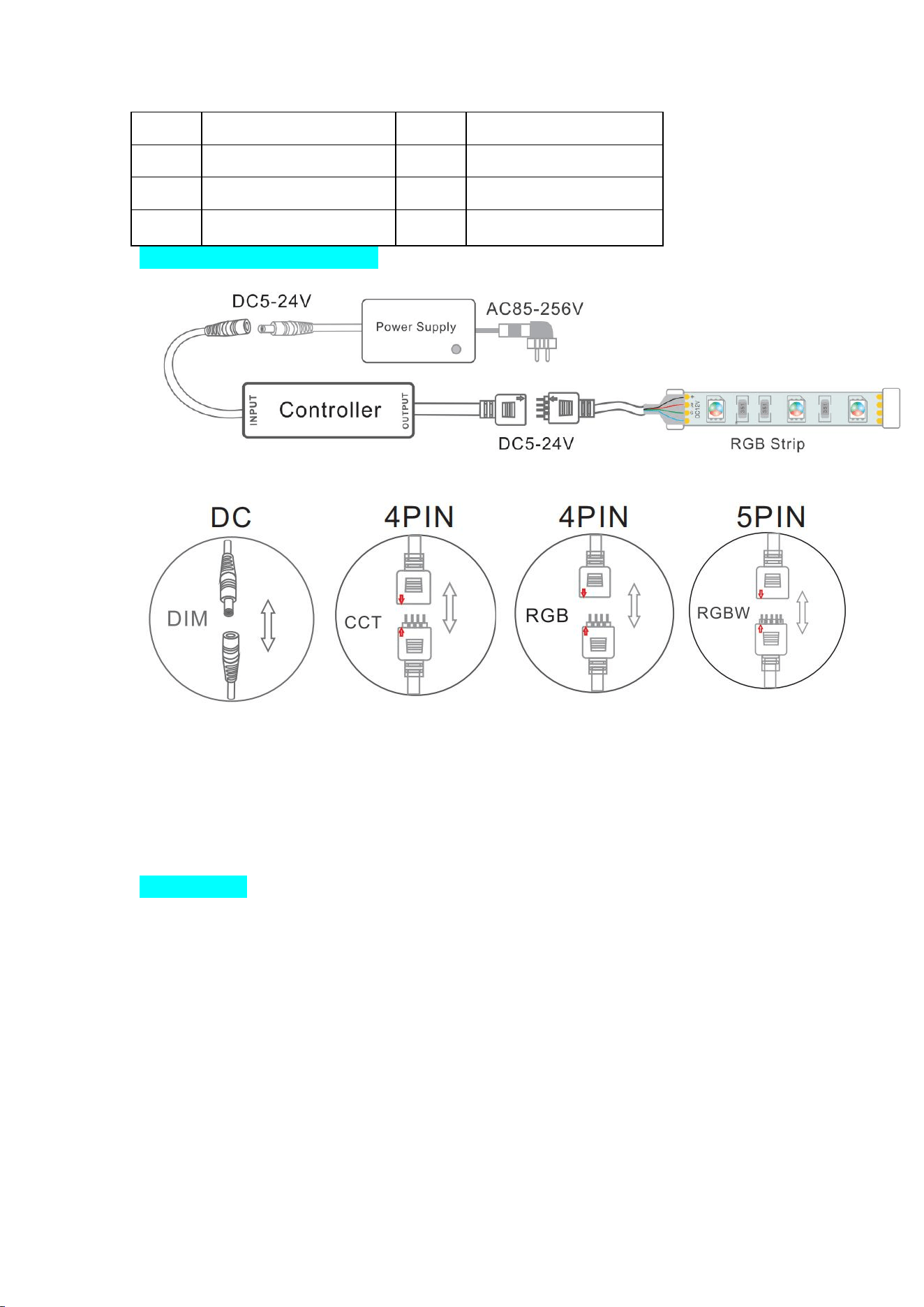

5. Connection description:
Output connection:
To Paring New Remote:
receiver can be paired to 1 remote. Remotes can be paired to any receiver. If a
receiver be paired to 3 remotes, the 3rd remote will cover the 1st. Follow steps
below to pair a new remote:
1.Disconnect receiver from power, reconnect within 5 sec.
2.Press "on"button for 2 seconds and the receiver will recognize the new
remote controller.
6. Attention:
1.Controller’s input voltage is DC5-24V, never connect to others or AC220V,
Please do not overload, the total max output current is 6A;
2.Before using the infrared remote, the insulating film should
removed.
3.Please don’t reverse the power input connection of both cathode and
anode, please switch on again only when it is in right connection and no
short circuit.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
