Lockly Vision
PGK798HK
Zeno Series
Powered by
We’re here to help
Your Lockly smart lock comes with lifetime
technical support. Feel free to contact us with
any questions or comments.
(669) 500-8835 [email protected] support.Lockly.com
App download 04
Charge/install battery 05/6
Lock overview 07/8
Hub overview 09
Apple Home 10
Fingerprint access 11
Adding a fingerprint 12
Setup
04
Download the Lockly app

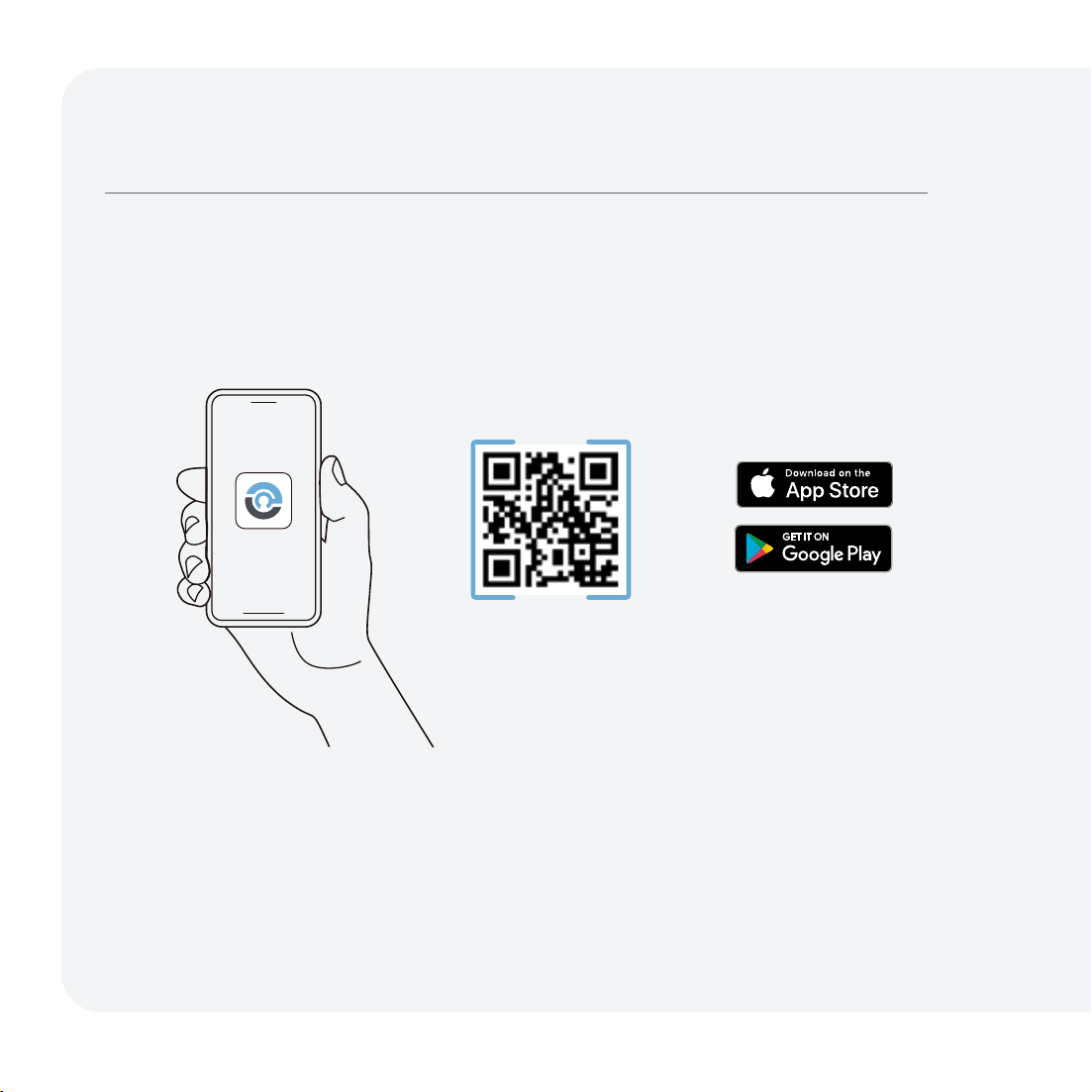

Scan or visit Lockly.com/app
The Lockly app will guide you through final installation, setup, and creating your user
profile for a more tailored and optimized experience.
Ensure battery has been fully charged.
Charge the battery
Charge the battery with the included USB-C cable and a common mobile
device charger (not included) rated 5V/2A or higher. A full charge can take
up to 12 hours.
05
Ensure battery has been fully charged.
Install battery and start self-check

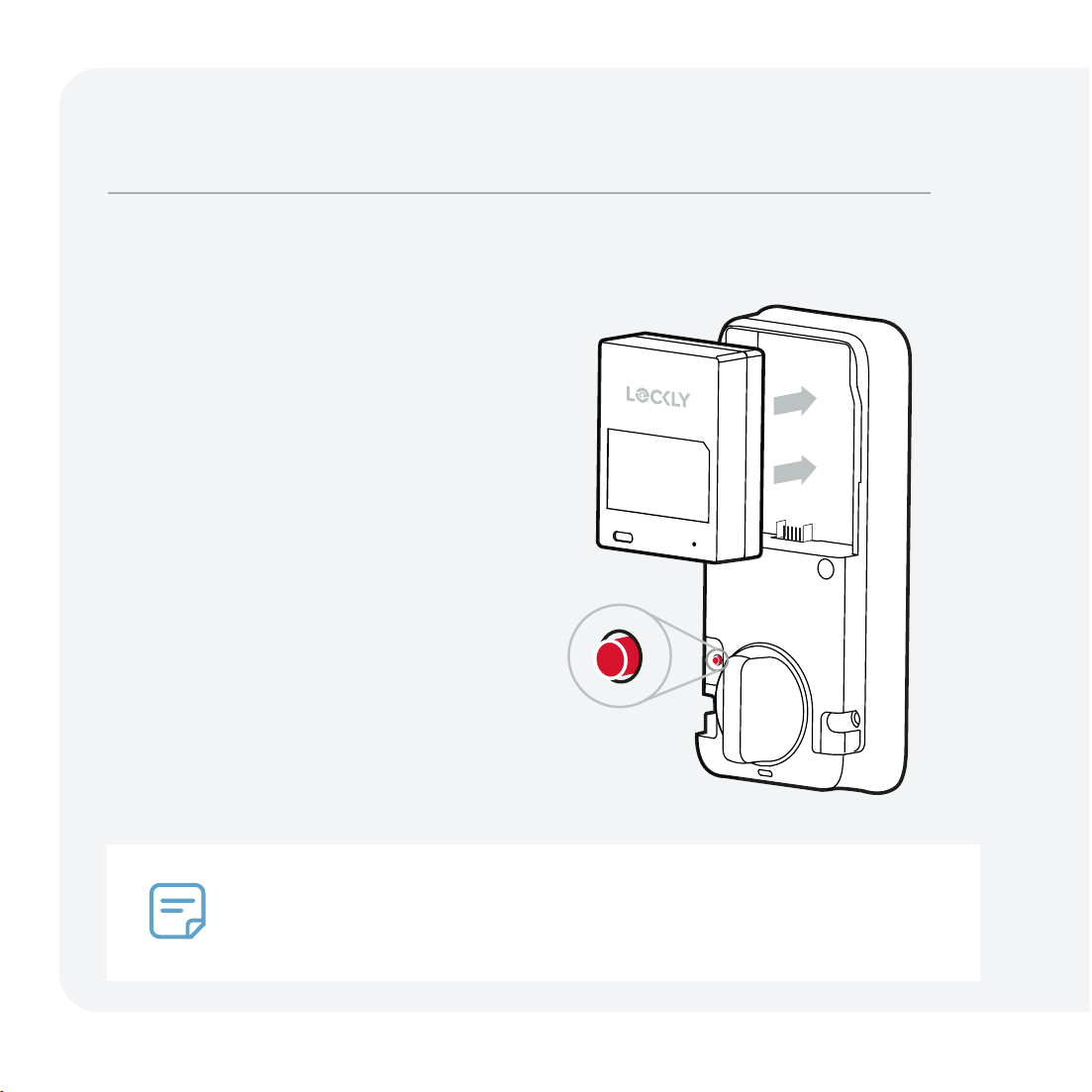

Install battery as shown.
Perform self-check (skip if done)
Immediately hold the red program
button for 4 seconds. The lock will
perform a self-diagnostic by extending
and retracting the deadbolt multiple
times.
Open the Lockly app and tap (+) to
add a new device. Locate your Lockly
model and follow in-app instructions
to continue setup.
After 10 minutes of powering on, the Bluetooth connection will be disabled, preventing
pairing with the Lockly or Home app. To re-enter Pairing Mode, reinstall the battery or
press the Program button. You can also reactivate Bluetooth pairing by tapping the
"BL" in the circle on the keypad.
06
Exterior

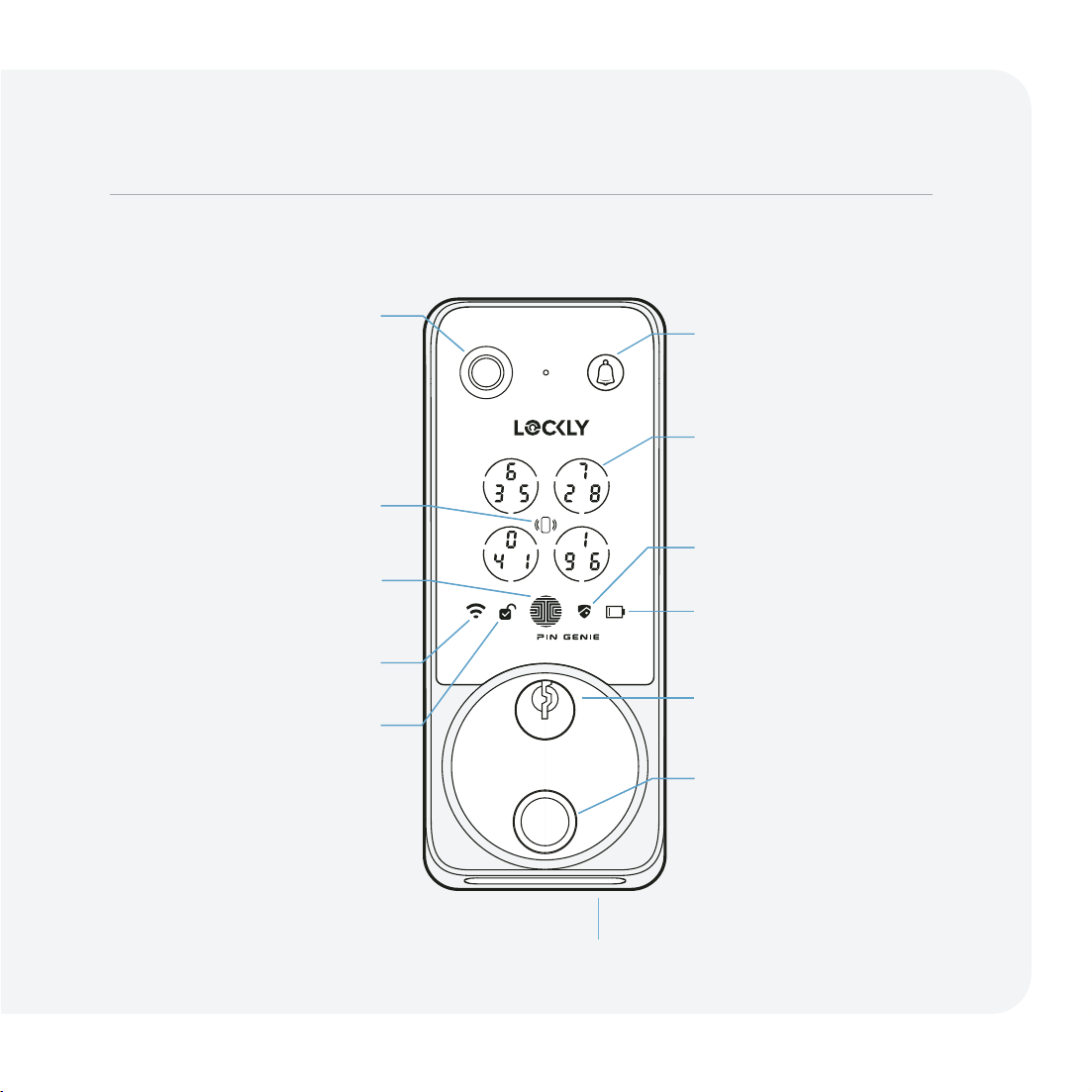

Getting to know your Lockly Vision
USB-C backup power port
07
Powered by
Wi-Fi status
Unlocked indicator/
Welcome Mode
Safe Mode
Low battery indicator
Doorbell with
2-way audio
2K Video
Camera
PIN Genie
digital keypad
Wake up screen/
enter button
Apple Home Key
sensor
Physical key hole
Fingerprint sensor/
LED indicator
1234
5678
Visage Zeno Series Deadbolt Edition
PGKXXXXXXX
SN: PGKXXXXXXXXXXX

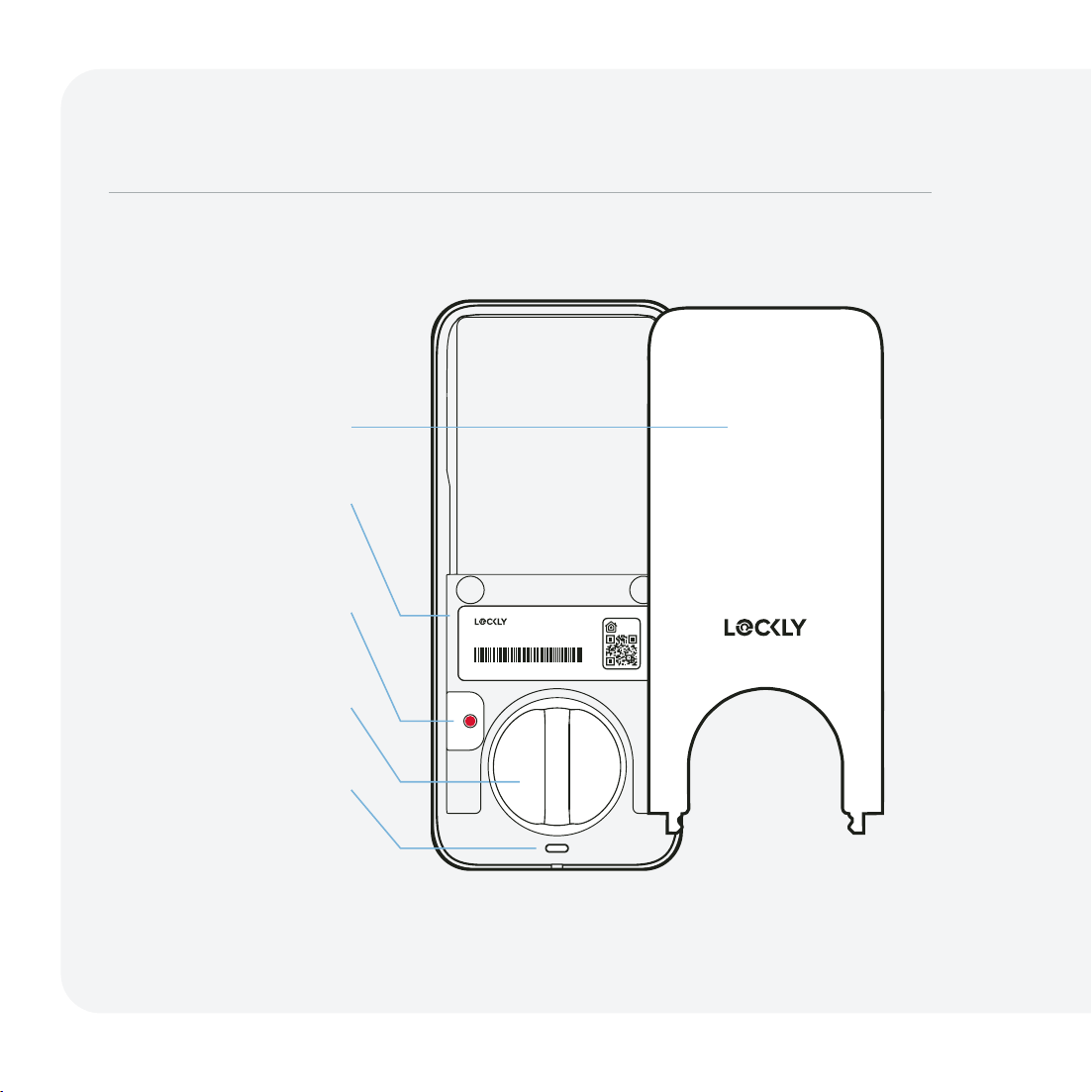

Battery cover
SN number/
Apple HomeKit code
Program/reset
button
Lock/unlock
thumbturn
Interior side LED
indicator light
Interior
08
Connect the hub to power. Follow the in-app instructions
to complete the setup.
Setup New-Gen Vision Connect Hub
09

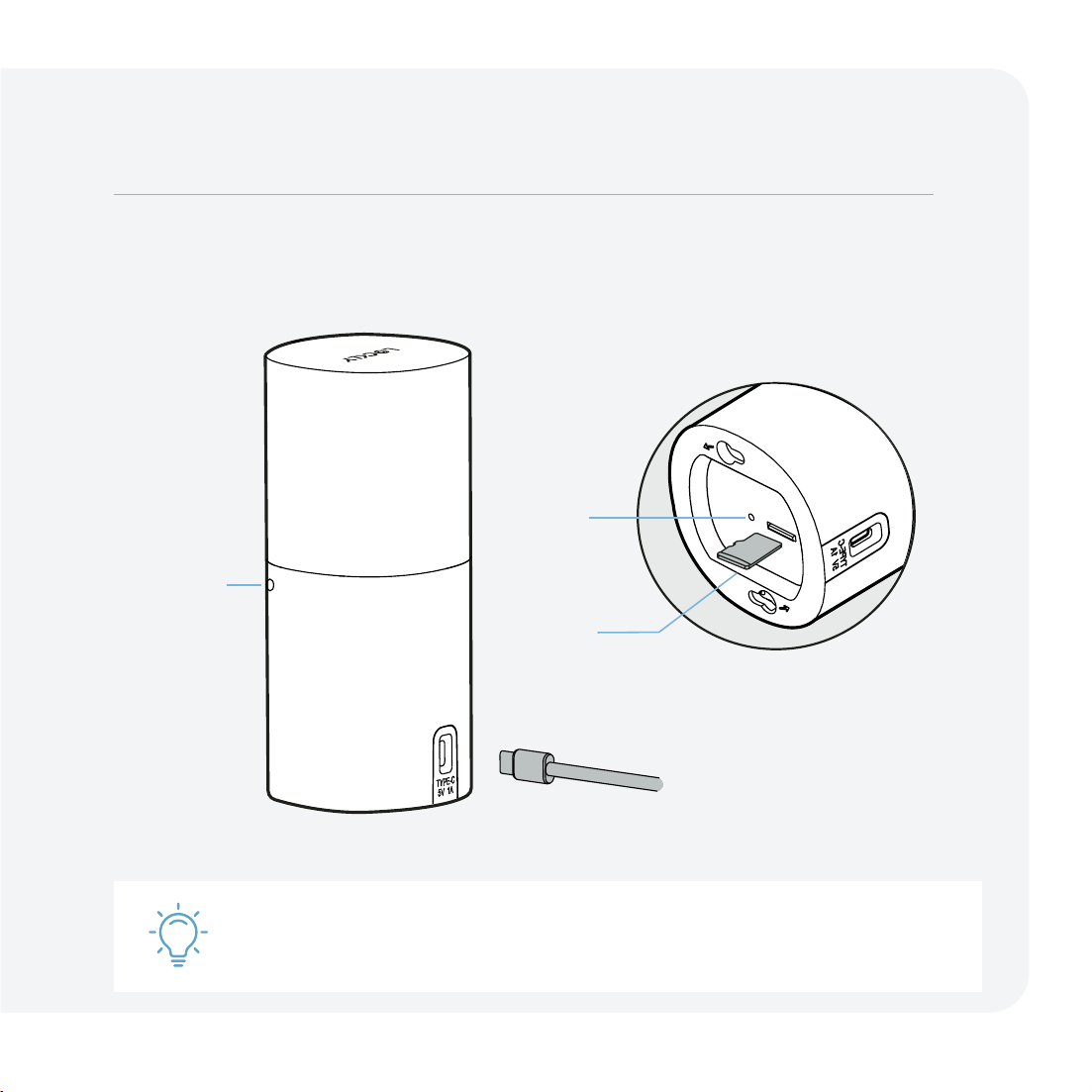

Reset
TF Card
(already inserted)
Power adapter cable
LED
status light
For the best Wi-Fi connection:
• Avoid placing the device in kitchens to prevent signal disruptions from appliances.
• Keep it away from walls and obstructions that can absorb wireless signals.
• Avoid placing it on the floor, as the ground can absorb signals.
Set up Apple Home

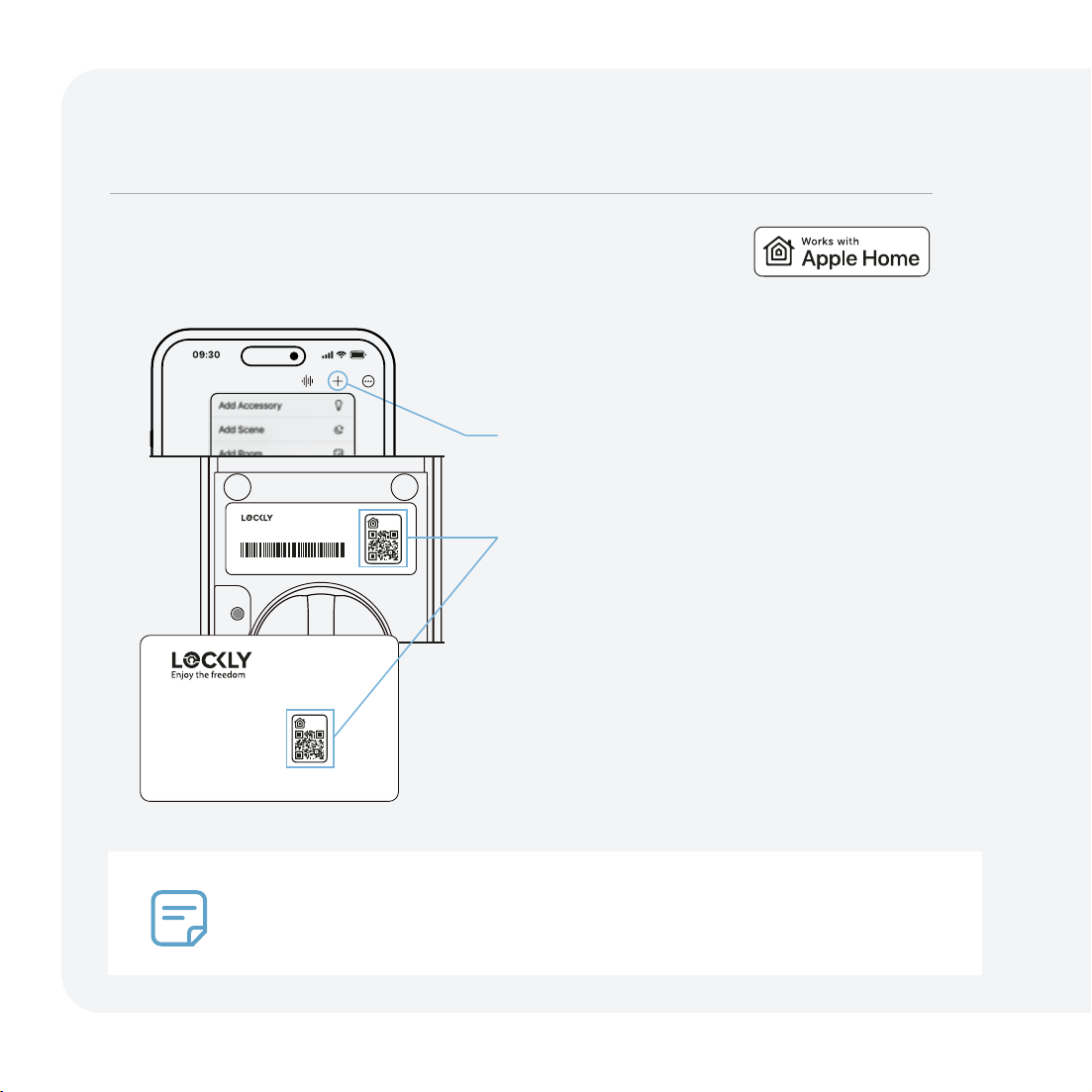

Open Apple’s Home app and select (+),
Add Accessory.
Locate the Apple HomeKit code under
the battery cover or on the activation
card. Scan code when prompted.
Follow the in-app instructions to add
your Home Key to your Wallet app.
To share access and control remotely
through Apple Home, you will need one
of the following as a home hub:
• Apple TV® (4th gen, tvOS 12.0 or higher)
• iPad® (iOS 12.0 or higher)
• HomePod® or HomePod mini®
1234
5678
Vision Zeno Series Deadbolt Edition
PGKXXXXXXX
SN: PGKXXXXXXXXXXX
Activation Card
Need help? Email: help@Lockly.com | Support: +1(669) 500-8835
LOCK SERIAL
PGKxxxxxxxxxxxxxxxxxxxxxx
ACTIVATION CODE
PGKxxxxxxxxxxxxxxxxxxxxxx
1234
5678
Unlock your door with your iPhone or Apple Watch
and monitor its status through the Home app.
10
Fingerprint scanning
Set up fingerprint access
For fast and reliable fingerprint recognition, it's important to follow correct finger
positioning when registering your fingerprints.

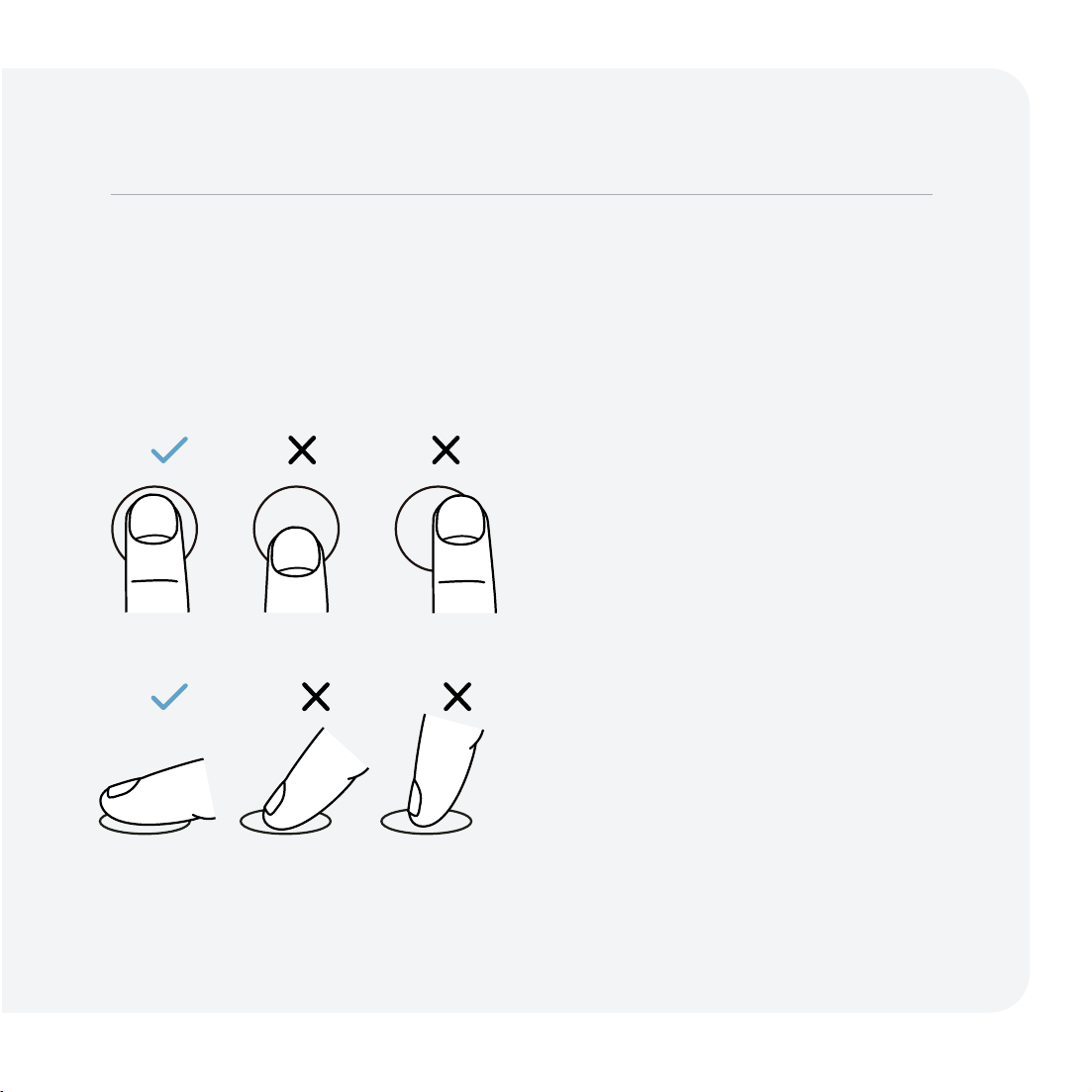

Alignment
Avoid positioning finger too high or low
on the sensor.
Avoid positioning finger too much
off-center left or right.
Angle
Keep finger straight and somewhat flat;
avoid holding at an angle.
11
Adding a fingerprint
If fingerprint registration fails, repeat process.

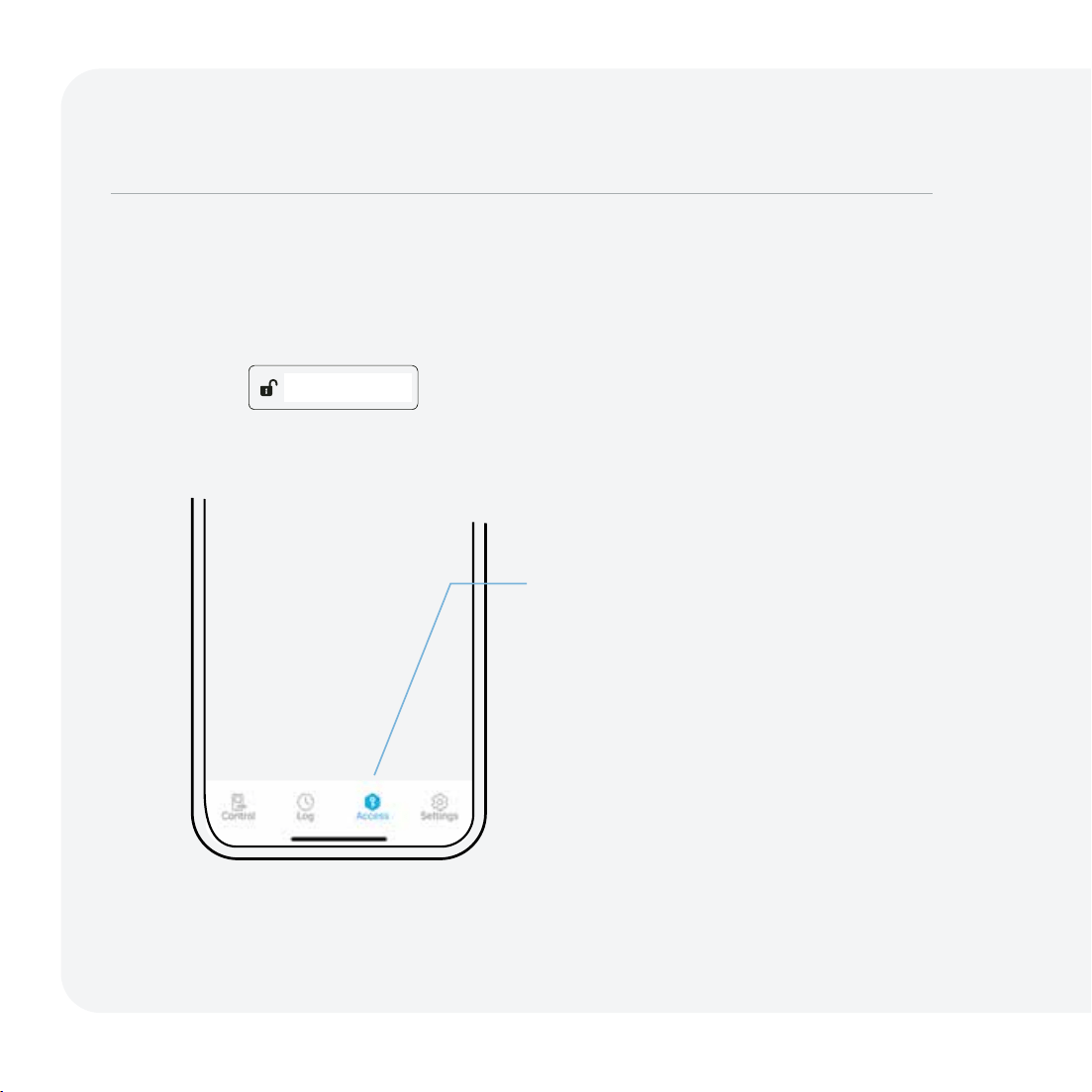

In the Lockly app, choose your lock then select “Access”
and follow on-screen instructions.
Scanning process
Your finger will be scanned six times for optimal
accuracy. The countdown shows in the lower-left
circle of the digital screen, starting from six.
Place your finger on the sensor and hold still until
you hear a beep. Slightly adjust your finger position
and hold for each remaining scan until you hear
a longer beep with the word "pass" indicating a
successful scan.
12
PIN Genie keypad 14
Unlock with keypad 15
Adding a PIN code 16
Auto and manual lock 17
Using Video Doorbell 18
Fingerprint access 19
Apple Home Keys 20
Unlock with app 21
More ways to access 22/23
Alert and sounds 24/25
Troubleshooting/FAQs 27/28
Use
Dynamic shuffling technology
PIN Genie
™
keypad
Using

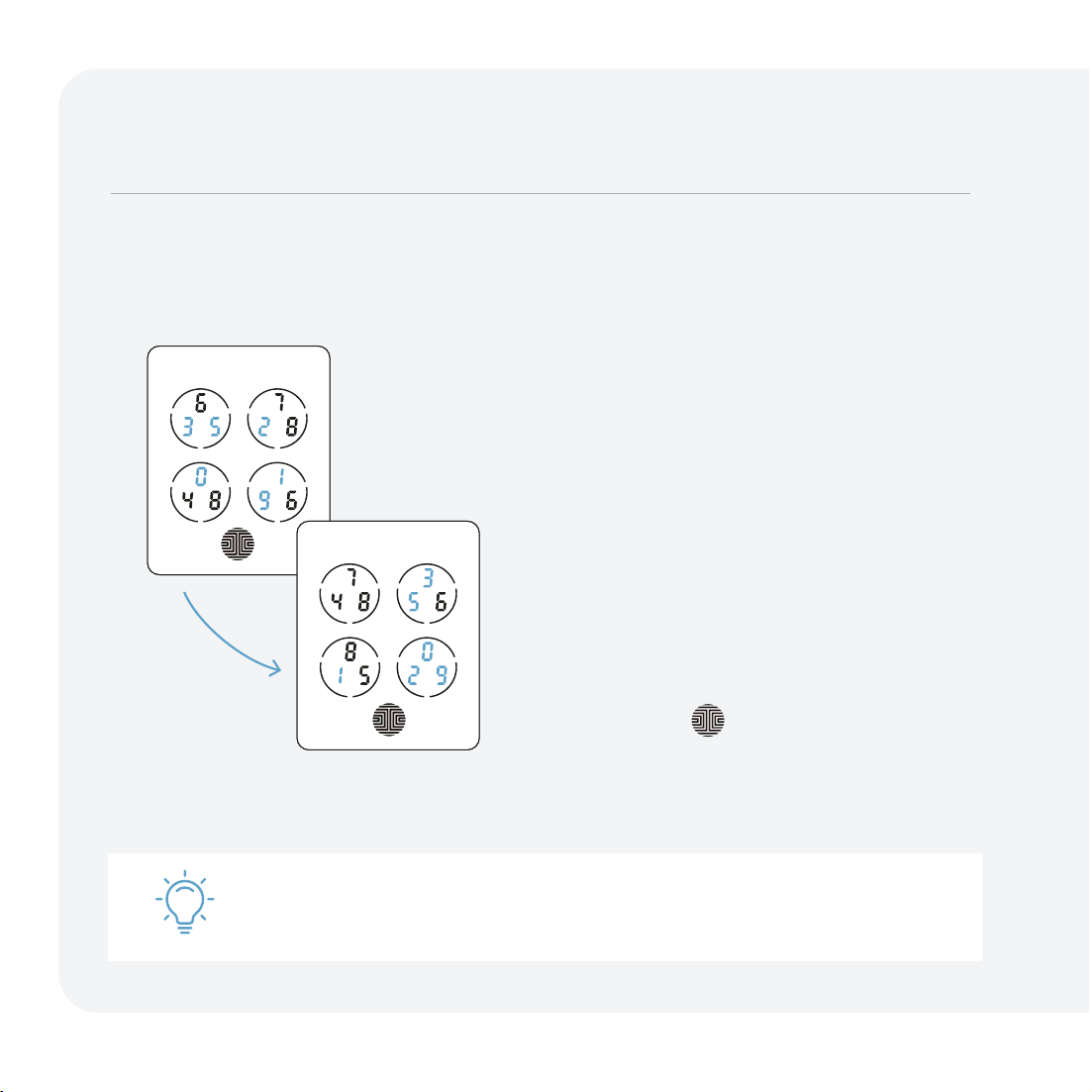

PIN codes are made up of six digits, for
example 3 5 1 2 9 0. Each number can
show up anywhere in one of three
positions inside for circles.
Simply press anywhere on a circle
containing the corresponding number
to enter your six digit PIN code.
Unlocking
After all six numbers are entered press
the enter button to unlock.
Exclusive hack-proof PIN Genie digital keypad shuffles PIN (personal identification
number) between each use.
The same PIN shuffles location
between each use.
Note: the default PIN code is 1 2 3 4 5 6
14
You can toggle between dynamic shuffling and always fixed number location by
pressing the enter button for 3 seconds.
Unlock

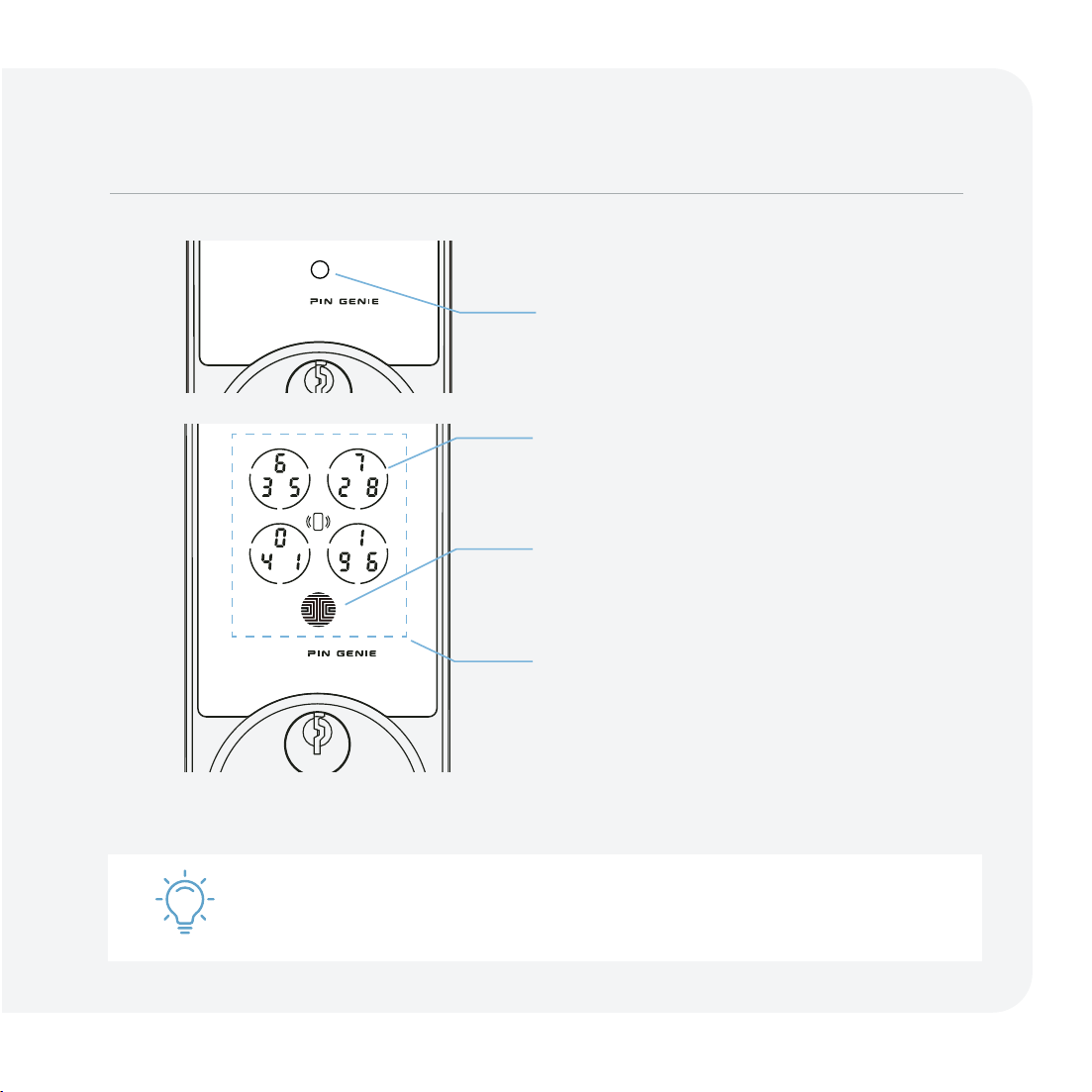

Press the circle to wake screen.
Enter your PIN code by pressing
anywhere in the circles that contain
the corresponding numbers; you do
not need to press the exact number.
Press the enter button after the last
digit of your PIN code has been
entered.
Lock
To lock, press the enter button while
the screen is active, or the area of the
4 circilar number buttons while the
screen is off.
Temporarily boost screen brightness by pressing and holding any of the 4 circular
number buttons for 3 seconds.
Unlock with digital keypad
Poweredby
Powered by
15
Adding additional access codes
Default PIN code
The default PIN code is 1 2 3 4 5 6.
During setup, you will be prompted to
set a new code to replace it.
Adding a code
Select your lock from the Lockly app,
then select Access then user, Access
Code and follow the on-screen
instructions to setup the various
types of codes.
Access code types
Set permanent, recurring, time-based, or one-time use access codes.
1234 5 6
16
Auto and manual locking
Auto-locking
In the Lockly app, set your desired time
(example 5-min) under settings of
your lock, auto-lock timer.
Lock using digital screen
Swipe top to bottom with two fingers
when screen is off or press the enter
button when screen is on.
Interior locking
Rotate the thumbturn on the interior
assembly.
Lock with key
Insert physical key and rotate.
You can set auto-lock timing under your lock’s setting in the Lockly app.
When unlocked the icon will appear on screen.
17
Using Video Doorbell
18
Ensure the New-Gen Vision Connect Hub has been set up and your
phone can receive push notifications.

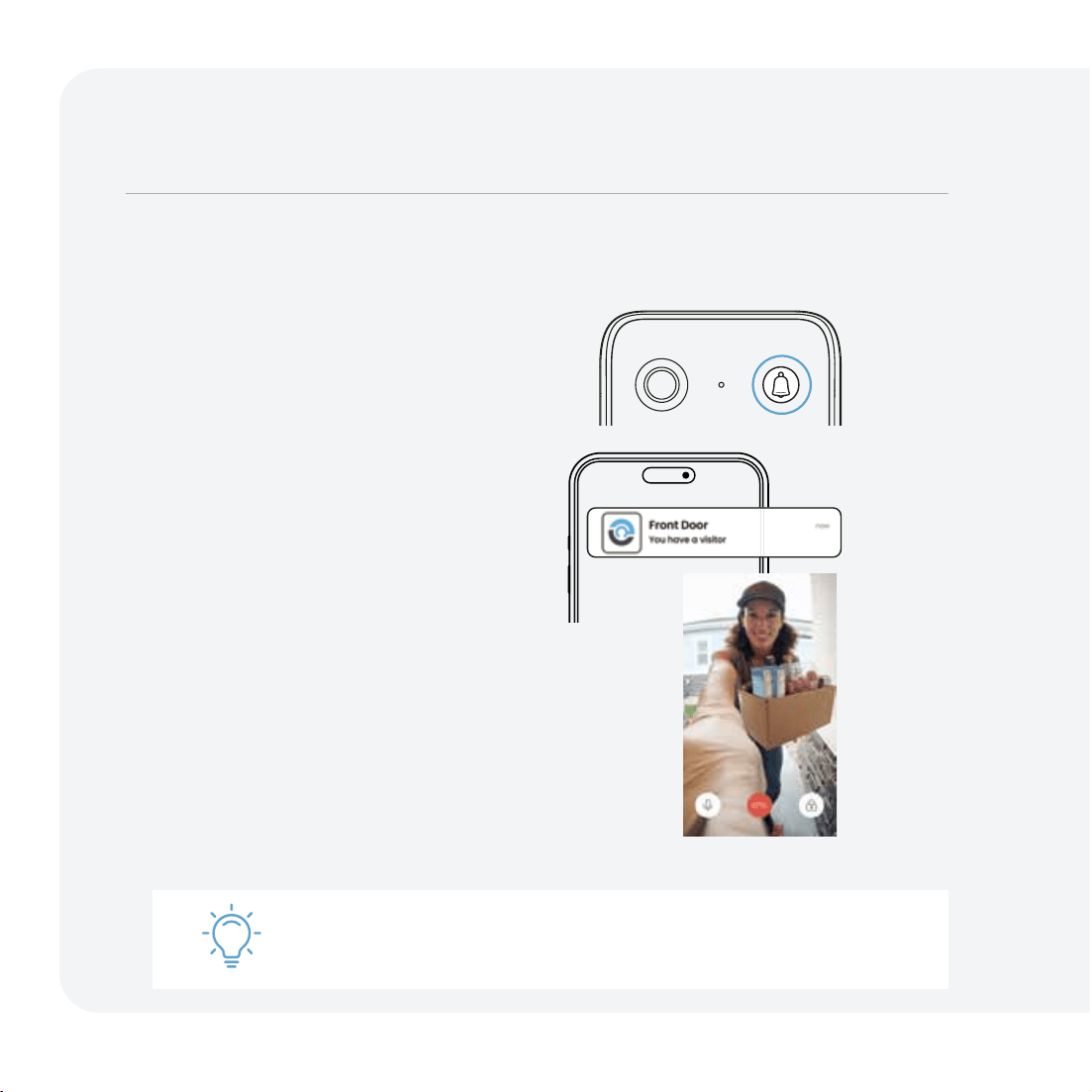

Press the doorbell button on the
Lockly Vision.
You can record the call in the Lockly app.
Live view of the camera can also be activated from the Lockly app.
A notification will be sent to your
smartphone. Tap the notification
to open camera view in the
Lockly app.
Unlock or initiate a two-way
conversation within the live view.

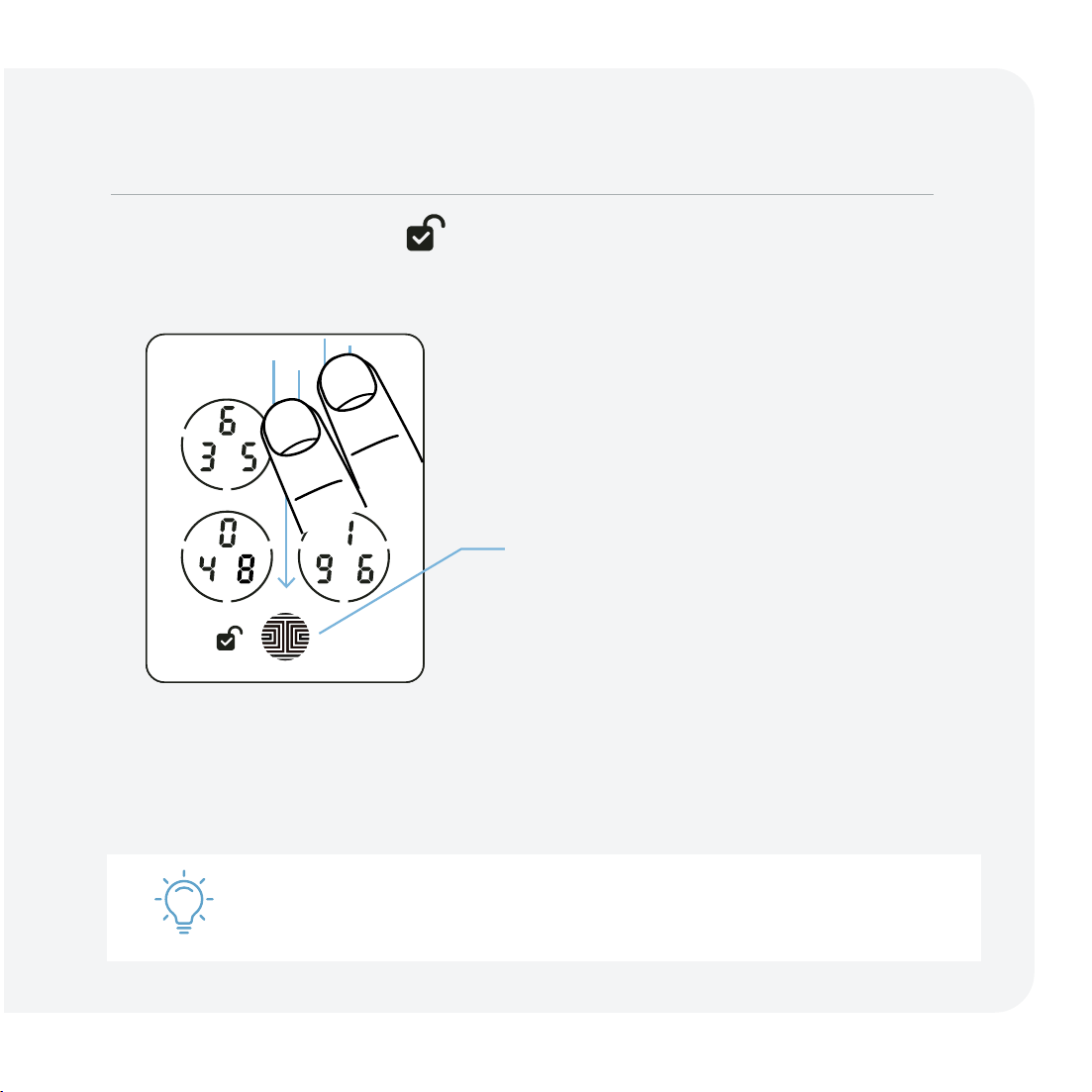

Featuring advanced AI learning technology.
Unlock with your finger

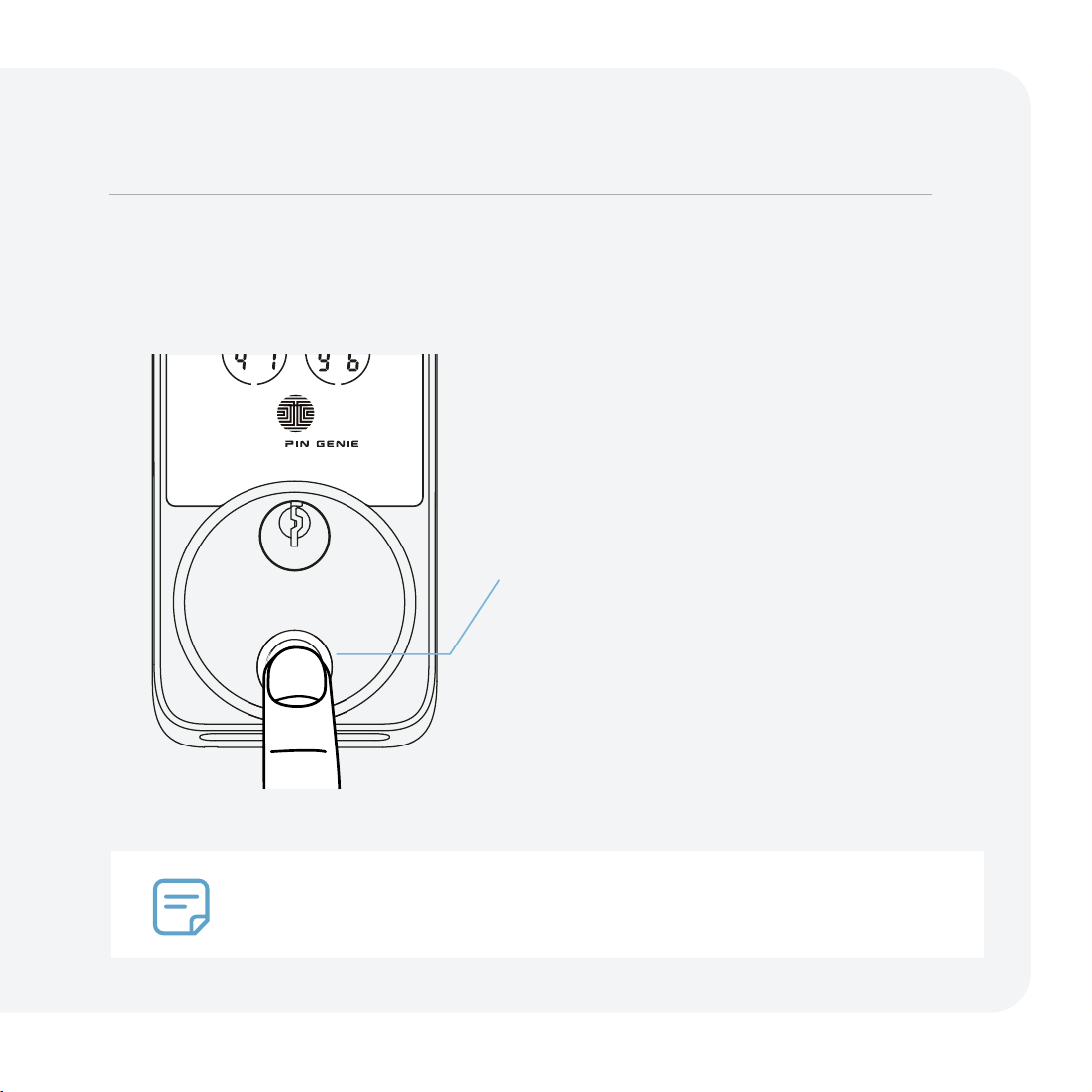

Place a registered finger flat and centered
on the sensor.
Green circular LED: with a beep; door is
unlocked.
Red circular LED: with two beeps; finger
not recognized. Try again or try another
registered finger.
Our advanced biometric sensor with AI learning technology recognizes your
fingerprint in 0.2 seconds and improves in speed and accuracy with use.
Poweredby
19

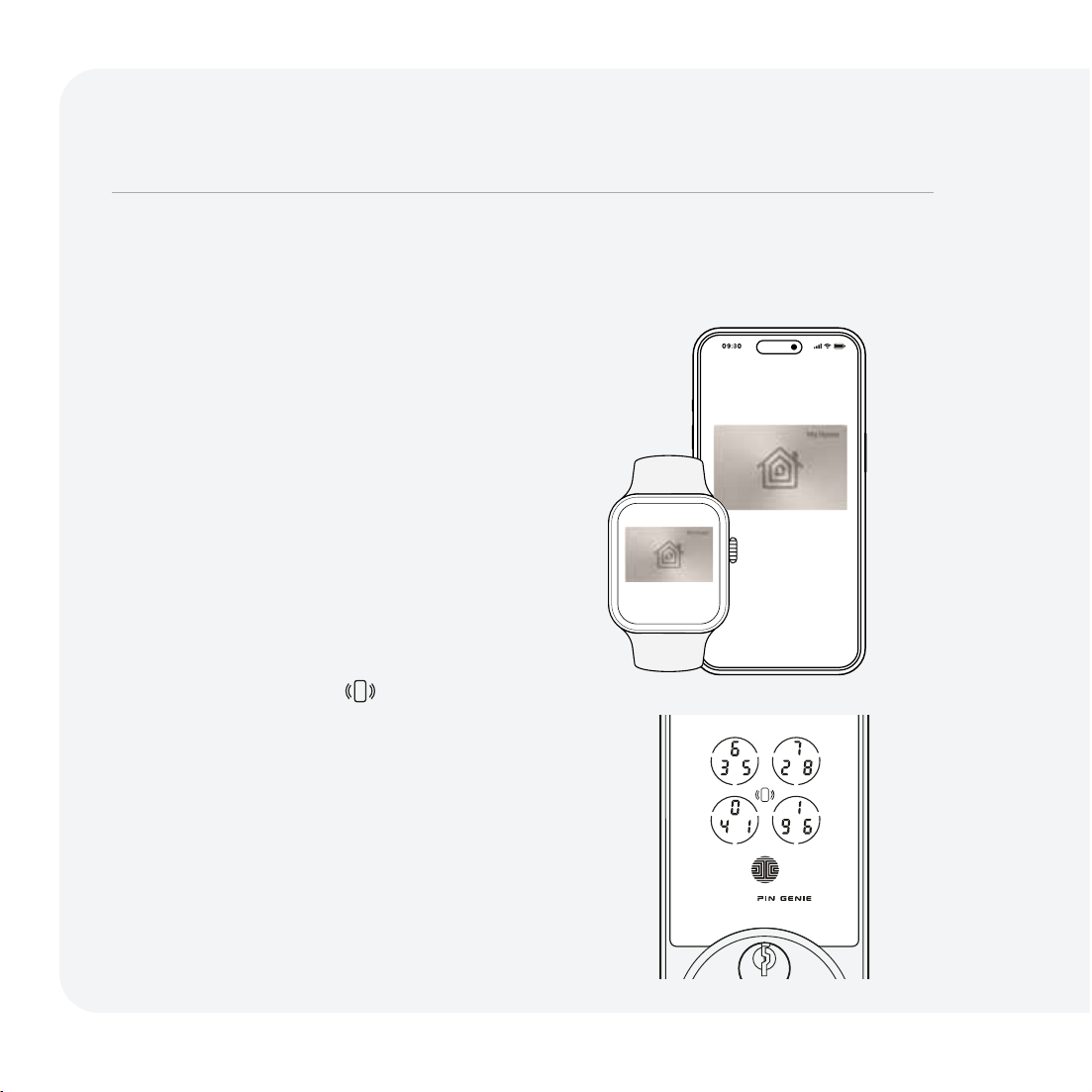

Unlock your door with home key in
Apple Wallet (on your compatible
iPhone and Apple Watch).
Set up a home key
Add your Lockly lock to the Home app.
Choose the "Express Mode" unlocking
option.
Unlock your door with a home key
On your iPhone or Apple Watch and
with Express Mode turned on, place
your device near the icon
to unlock.
Unlock with Apple home Keys
Open your door with your iPhone and Apple Watch
Learn more about home key in Apple Wallet on the
iPhone User Guide online at: support.apple.com
Poweredby
20

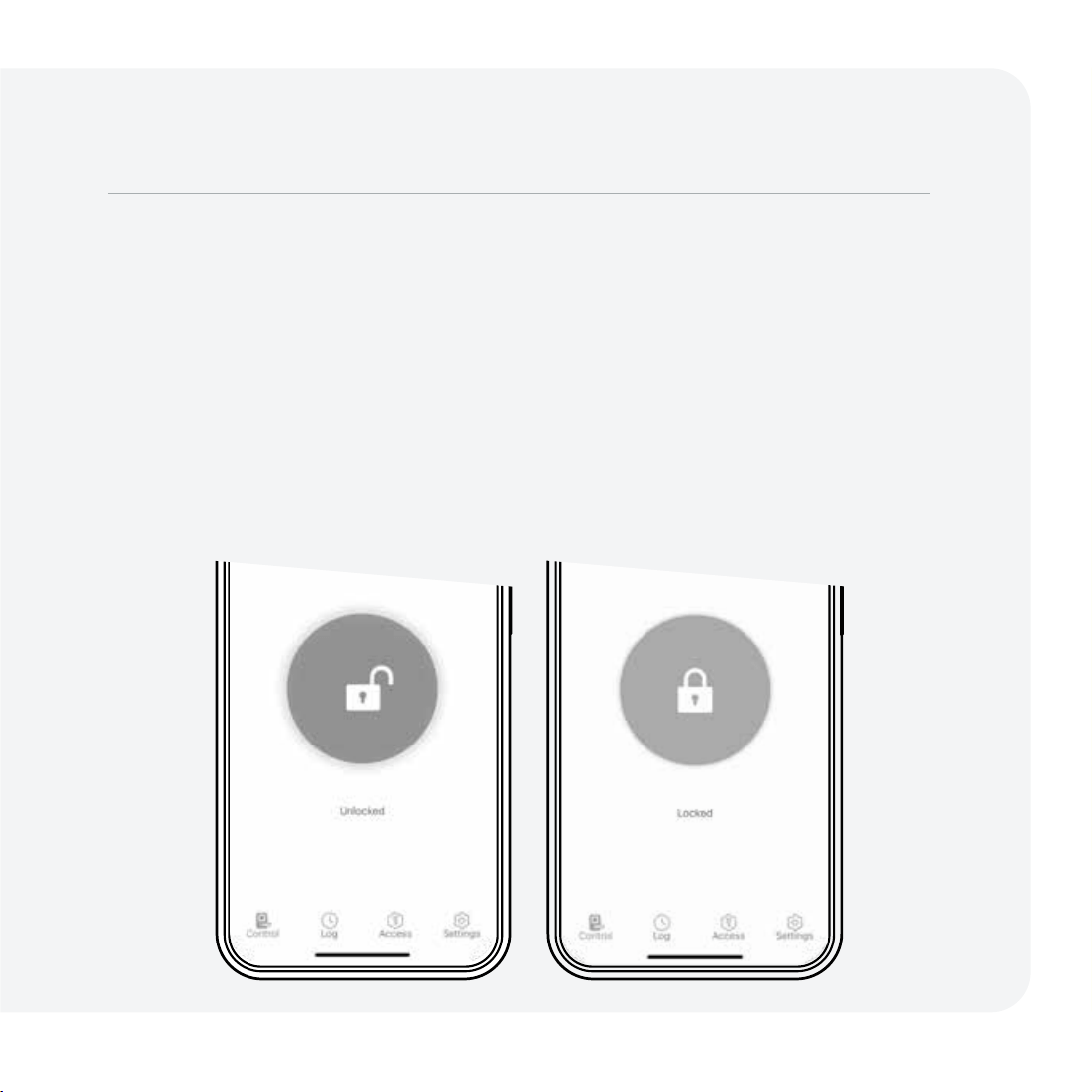

Remote app control
Unlock, lock, check status, and get
notifications from anywhere on your
smartphone.
Unlock or lock
Choose your lock in the Lockly app, tap unlock or lock.
History and status monitoring
Check real-time status and history on
your smartphone.
Lock, unlock, and check status.
Unlock with Lockly app
21
eKeys and eBadges
Share one-time, permanent, recurring,
or revocable access with people you
trust.
We introduce new features every year. Subscribe to our newsletter at lockly.com for
product updates, tips, and the latest innovations.
Secure access, control, and monitoring options.
More Ways to Access and Control
Offline Access Codes
TM
Grant one-time access through the
Lockly app without needing an
internet connection.
Voice control
Unlock, lock, or check door status
through Amazon Alexa, Apple Siri,
and Google Assistant.
Welcome Mode
Temporarily keep your lock from
auto-locking for more convenient
trusted user access.
22
For more information, refer to the Lockly app or visit support.Lockly.com.
History and status monitoring
Check real-time status and history on
your smartphone.
Set up user privileges
Grant sub-admin privileges to allow
others to manage your property.
Air Transfer
Easily transfer user profiles between
Lockly device for seamless setup and
access management.
Manage multiple properties
Manage access control and reporting
with LocklyOS, the cloud platform for
property access management.
23
24
Alerts and sounds
Exterior Assembly Alerts
Fingerptint
Exterior LED indicator flashes green with a ‘beep’
sound
sounds
Door unlocked
Exterior LED indicator flashes red with two 'beep' Fingerprint recognition failed
Access Code
Exterior LED indicator
fl
ashes green Door unlocked
Exterior LED indicator
flashes red Incorrect access code entered
Apple Home Key / Voice Control
Exterior LED indicator
flashes green Door unlocked
Video Doorbell
Exterior LED indicator flashes white
Doorbell ringing
Exterior LED indicator turns red for 2 seconds
Network not connected
Exterior LED indicator turns yellow for 2 seconds Call missed
Exterior LED indicator turns green for 2 seconds Call answered
25
Interior Assembly Alerts
Battery
Interior LED indicator flashes red with a beep sound
(x3)
Battery level is less than 20%
Interior LED indicator fl ashes red with a beep sound
(x5)
Battery level is critically low (3 unlocks
remaining). Charge battery immediately.
New-Gen Vision Connect Hub Status
LED Indicators
Blue & White lights
flash Pairing
Green lights flash slowly Network is connected
Purple lights fl ash Resetting
Blue lights
flash Updating
Red lights fl ash Network not connected
White light on Doorbell ringing
Troubleshooting
FAQs
Troubleshooting/FAQs
27
Why is my keypad not responding?
• Press the circle button to activate the keypad.
• If is flashing, your smart lock is in Safe Mode. Unlock with other access credentials (fingerprint,
mobile app, home key or physical key) to exit.
• If water is detected, Rain Mode may be activated. Unlock your door with other authentication
methods (Apple Home Keys, Lockly app..)
• Check if batteries are installed correctly.
• Refer to support.Lockly.com for more information about Safe Mode and Rain Mode.
Why is my keypad on full blackout?
• Battery may have been completely depleted. Use the physical key or a Type-C cable to connect
your Lockly to a mobile power source to temporary activate the lock. Charge the battery
immediately after unlock.
Why is my fingerprint not recognized?
• Check that you are using a registered fi nger.
• Make sure your fi nger is clean and dry.
• Position your fi nger at the centre of the sensor.
Why is my Lockly not locked automatically?
• Check if auto lock is disabled in the Lockly app.
• Welcome mode is currently active. Disable or change setting in Lockly app.
28
Why is my New-Gen Vision Connect Hub cannot find my Wi-Fi networks?
• The New-Gen Vision Connect Hub works with 2.4GHz wireless networks.
• Check your router if it is combining the 2.4GHz and 5GHz bands.
• Refer to your router’s manual to separate the two bands or refer to support.Lockly.com for more details.
How to pair my smart lock with a new phone?
• Download the Lockly app on your new device and log in using the same account credentials,
follow in-app instructions.
How to pair my smart lock with a new Lockly account?
• You will need to perform a factory reset with the following steps.
1. On the old Lockly app account, go toSettings > Reset and Pairing > Perform Factory Reset
2. Download, register and log in to the new Lockly app account. You will need your activation card
to set up the device.
• You can perform factory reset on the lock. Refer to Lockly app or support.Lockly.com for more details.
Lockly Technical Support
Troubleshooting/FAQs
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. It should be installed
and operated with a minimum distance of 20cm between the radiator & your body.
IC WARNING
This device contains license-exempt transmitter(s) that comply with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
IC Radiation Exposure Statement
This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and
operated with a minimum distance of 20cm between the radiator and any part of your body.
Cet équipement est conforme à l'exemption des limites d'évaluation habituelle de la section 2.5 de la norme RSS-102. Il doit
être installé et utilisé à une distance minimale de 20 cm entre le radiateur et toute partie de votre corps.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to
cause cancer. For more information go to www.P65Warnings.ca.gov.
29
© Copyright 2024 Lockly All rights reserved
US Patent No. US 9,881,146 B2 | US Patent No. US 9,853,815 B2 | US Patent No. US 9,875,350 B2 | US Patent No. US 9,665,706 B2 |
US Patent No. US 11,010,463 B2 | AU Patent No. 2013403169 | AU Patent No. 2014391959 | AU Patent No. 2016412123 | UK Patent No.
EP3059689B1 | UK Patent No. EP3176722B1 | patternity technology patterned or parents and pattern pending.
Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology
identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and regulatory standards.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. , and any use of such
marks by Lockly is under license. Other trademarks and trade names are those of their respective owners. Google, Android,
Google Play and Google Home are trademarks of Google LLC. , Amazon, Alexa and all related logos are trademarks of
Amazon.com, Inc., or its affiliates. Apple, Apple Home, Apple Watch, HomeKit, HomePod, HomePod mini, iPad, iPad Air, iPhone,
and tvOS are trademarks of Apple Inc., registered in the U.S. and other countries and regions.
30
Have an innovative idea?
Need a new solution for a situation?
Let us know. We are always innovating based
on customer input and feedback.
(669) 500-8835 or [email protected]
Own a business?
Learn about how LocklyPRO and LocklyOS
can help you in your business.
(510) 288-9928 or [email protected]
© Copyright 2024 Lockly All rights reserved.
(See details on the inside back cover).
MPGK798HK240815
Let’s co-create together!
