WATER DESCALER
MODEL:BSQ-Q1
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL:BSQ-Q1
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
Water Descaler
- 2 -
Production's Characters Description
1. Large flow of whole house scale inhibition, scale inhibition rate up to
86%.
2. Pure physical ion polarization, say goodbye to chemical soft water.
3. Military black technology, exclusive invention patent, life free.
4. No magnetic, no electricity, no external power supply, no consumables.
5. No maintenance, zero carbon and zero row, suitable for all kinds of
conventional water pipes.
6. Prevent scale formation, prolong the service life of water equipment.
7. All stainless steel material durable, explosion-proof pressure resistance,
no fear of high temperature.

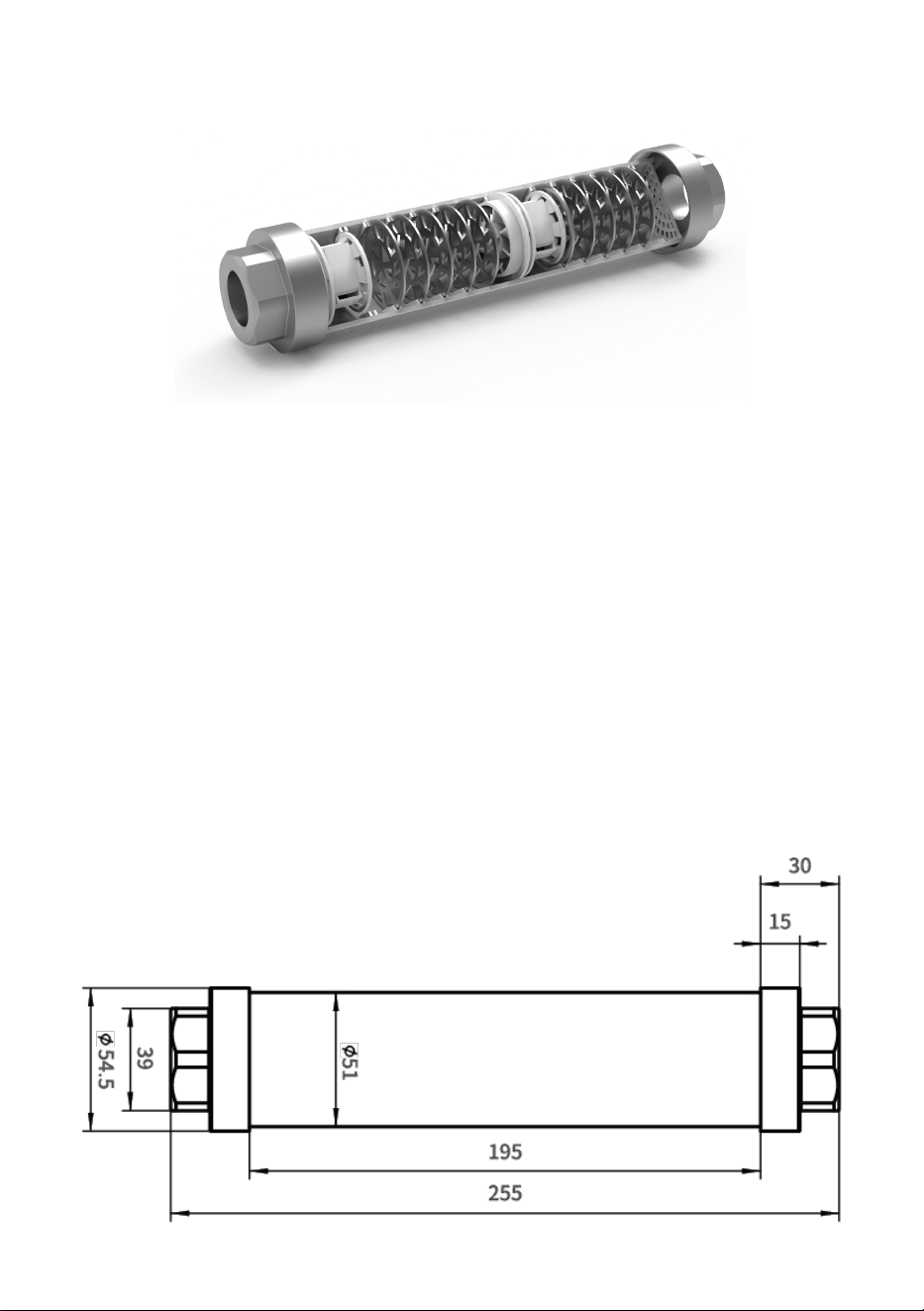

Product size: mm
- 3 -
Product Introduction
Thank you for choosing the whole house central water softener produced
by our company.
In order for you to correctly install, use and maintain the product and
maximize the performance of the product, please read the installation and
use instructions carefully and keep them properly for future reference.
When you encounter any problems in the process of use, you can directly
on tact our local distributors, or call the company's national hotline to get in
touch with us.
The soft water dispenser in the center of the whole house can physically
and electro chemically treat the water in the home, without adding any
substance to the water or removing any substance from it. It retains the
health benefits of the water and enhances its properties. At the same time
it can also effectively prevent hot and cold pipes, household appliances,
such as solid sediment and corrosion; It is suitable both for new pipelines
to prevent the formation of deposits and for old pipelines to gradually
remove existing deposits.
Note:The presence of powder in the kettle does not mean that the water
softener in the center of the house is ineffective. It Is a transformed
aragonite, with a rag or fingers can be wiped away.
Product Installation
Advice
In order to prevent impurities accumulation in the soft water device from
affecting the scale inhibition effect, it is recommended to use this product
with the prefilter. The intallation sequence is shown in the following
connection diagram.

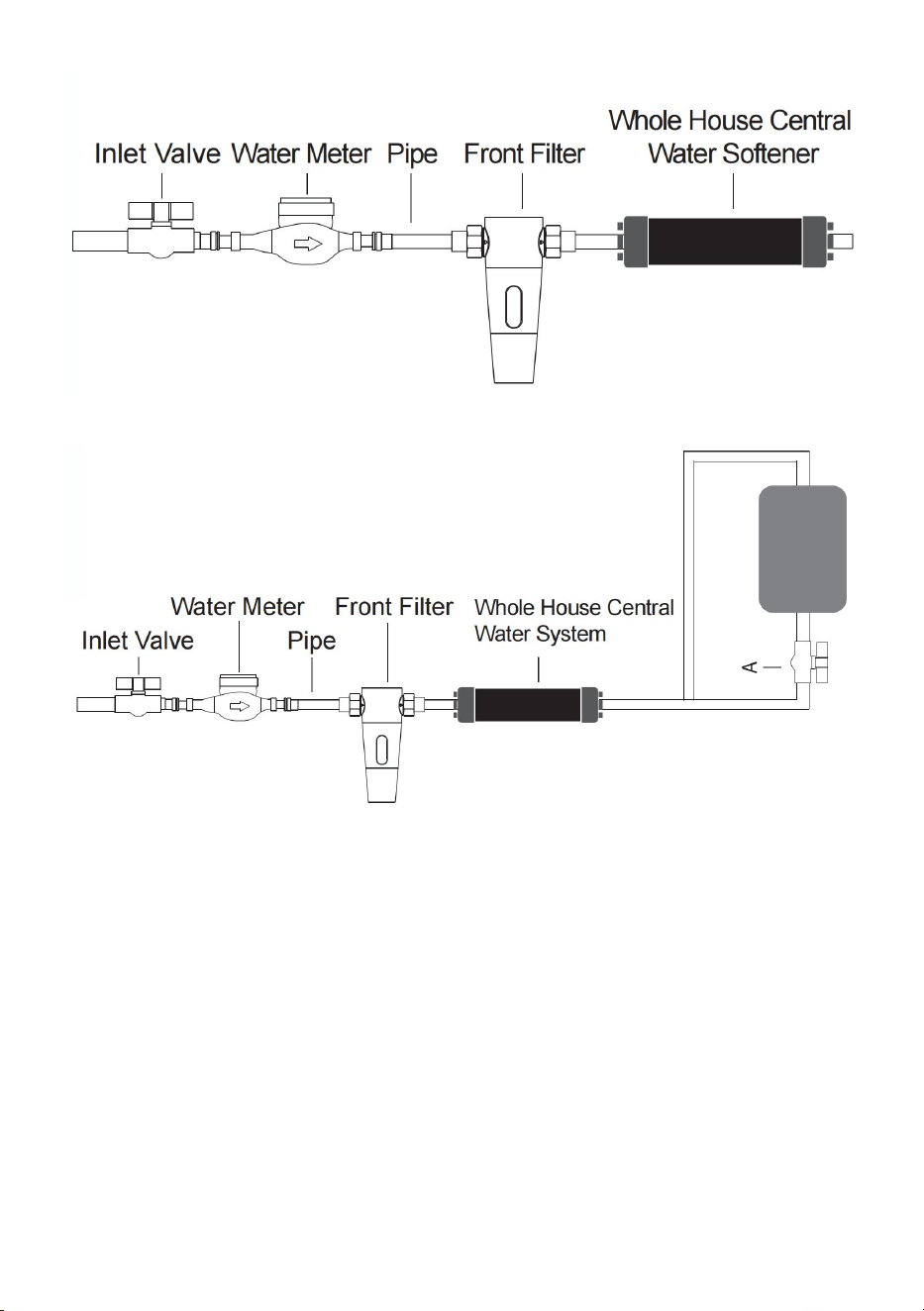

Diagram of connection
1.Standard installation on the water supply system
- 4 -
2.Install on the non-circulating hot water system
Installation Instructions:
1.The whole house central soft water can be installed horizontally or
vertically on the water pipe.
2.When installing the central water softener of the whole house, the water
flow direction of the water pipe should be consistent with the equipment.
The arrow indicates the same. Failure to comply with this condition will
affect the positivity of the equipment constant operation and efficiency.
3.If the thread size is incorrect and a adapter is required, use the teflon
tape to wrap 4 to 5 turns around the thread and then screw it onto the
product.
- 5 -
4.First close the main inlet water valve, then measure the product or
product and adapter length, mark the pipe to be installed and intercept the
pipe at the corresponding distance. Clean cross sections and pipe interiors
and prepare the corresponding pipe adapter.
5.Connect this product to the pipe through the thread or adapter, in the
middle can be wrapped with teflon tape to ensure that no water leakage.
6.The product can operate in water with electrical conductivity of
50~4000uS/cm.
Note: In order to ensure that there is no water leakage, the adapter after
wrapping the teflon tape is not screwed in completely, as long as there is
no water leakage.
Product parameters：
Product name
Central softener throughout the house
Product model
BSQ-Q1
Scale inhibition principle
Pure physical ion polarization
Applicable temperature
0
℃
~99
℃
Installation
Horizontal or vertical
Apply to water quality
Municipal tap water
Apply pressure
0.15~1Mpa
Packing List:
Whole House Central Softener...............1pcs
Connect Adapter.....................................2pcs
Teflon tape volume.................................1pcs
Manual...................................................1pcs
