6KU
ToyDrifto
TM
Momo Drifrt 11 PRO
Electric Wiggle Car
Read this manual carefully before use and keep it for future reference.
WARNING: CHOKING
HAZARD-Small parts. Not
for children under 3 years.
ASTM F963,CPSIA
Catalogue
Safety Notice...............................................................................................................1
Product Information...........................................................................................5
Parts List.........................................................................................................................6
Parts Diagram...........................................................................................................7
Assembly Step..........................................................................................................9
Instructions For Use.......................................................................................... 14
Fault Analysis...........................................................................................................16
1
Safety Notice
WARNING!
-CAUTION--ELECTRIC TOY
As with all electric products, precautions should be observed during handling and
use to prevent electric shock.
-Adult assembly required. Keep small parts away from children during assembly.
-This product is intended for children aged 3 years and older only.
-Adult supervision is required at all times during use.
-Never allow more than one rider at a time.
-Maximum user weight: 150 lb / 68 kg.
-Always wear shoes when using this product.
-Protective equipment such as a helmet, knee pads, and elbow pads is
recommended.
-This toy should be used with care. Skill is required to avoid falls, collisions, or injury
to the rider or others.
-This product does not have a brake.
Safe Riding Area
-Use this product on flat, stable, dry surfaces with enough open space. An adult must
choose a safe riding area and supervise the child at all times.
-Do not ride downhill or use on slopes, ramps, uneven ground, loose gravel, sand, wet
surfaces, grass, or soft ground. Since this product has no brake, these areas may
make the vehicle hard to stop, tip over, or collide with people or objects.
-Do not use in any area with traffic or moving vehicles. Driveways, parking areas, or
other open paved areas may be used only when an adult confirms they are flat,
dry, free of traffic, and safe for riding.
-Keep away from stairs, steps, swimming pools, ponds, and other bodies of water. PU
wheels may mark or scratch some floors, especially hardwood floors. This product
may not be suitable for carpet.
Before First Use
-Fully charge the vehicle before first use. Charging must be performed by an adult
only.
-Make sure the vehicle is turned off before charging.
-Before allowing a child to ride, check that all parts are correctly assembled and
securely fastened.
-Use the vehicle in low-speed mode for the first ride until the child becomes familiar
with starting, steering, slowing down, and stopping.
2
Safety Notice
Before Each Use
-Check that all parts are correctly assembled and securely fastened before each
use.
-Inspect all screws, nuts, bolts, wheels, and other fasteners. Tighten them if
necessary.
-Parents should periodically examine this toy for potential hazards, including
damaged parts, worn wheels, exposed wiring, or damaged charging components.
-Do not use the product if any part is damaged, loose, cracked, missing, or if any
electrical or charging component is damaged.
-Any potentially hazardous parts must be repaired or replaced before further use.
-Keep hands, feet, hair, clothing, and loose items away from the wheels and moving
parts.
During Use
-Children must remain seated properly while riding.
-Do not allow the child to stand on the vehicle while it is moving.
-Stop using the product immediately if it slows down abnormally, does not operate
properly, or shows signs of damage.
Battery and Charging Safety
-All charging and recharging must be carried out by an adult only.
-Switch the vehicle off before charging.
-Do not use the product while it is charging.Charge the product in a dry,
well-ventilated area, away from heat, sparks, open flames, and flammable
materials.
-Use only the supplied USB Type-C charging cable and a suitable USB power adapter
that meets applicable safety requirements.
-Do not use a damaged charging cable, USB adapter, battery, or connector.
-The battery and charging cable may become warm during charging. This is normal.
Do not cover them during charging.
-Disconnect the charging cable after charging is complete.
-Recharge the battery promptly after it is discharged.
-If the product will not be used for a long period, recharge the battery at least once
every month to help maintain battery performance.
-Never short-circuit the battery terminals or electrical connections.
-Keep children away from the battery and charging components.
-For best charging performance, a 5V DC USB power adapter with an output current
of 2A or higher is recommended.
3
Safety Notice
How to Stop the Vehicle
-This product does not have a brake.
-Pressing the foot pedal will power the vehicle.
-Releasing the foot pedal will stop motor power, but the vehicle will not stop
immediately.
-The vehicle may continue to roll or move for a short distance after the foot pedal is
released.
-To slow down or stop, release the foot pedal in advance and allow the vehicle to
come to a gradual stop.
-An adult should assist the child when stopping, especially during first use.
Care and Maintenance
-Clean the vehicle with a soft, dry or slightly damp cloth.
-Do not wash the vehicle with water.
-Do not spray water directly onto the vehicle, control panel, charging port, battery
compartment, motor, or electrical parts.
-Keep the charging port dry and clean.
-Store the vehicle indoors in a cool, dry place when not in use.
-Do not leave the vehicle outdoors for long periods.
-Keep the vehicle away from direct sunlight, rain, snow, heat sources, and open
flames.
Battery Service, Disposal and Recycling
-This product contains a rechargeable lithium-ion battery.
-Do not remove or replace the battery unless instructed by customer support.
-Battery service must be performed by an adult only.
-Use only the battery pack specified or supplied by the manufacturer.
-Do not use a damaged, leaking, swollen, overheated, deformed, or modified battery.
-Do not puncture, crush, disassemble, modify, or short-circuit the battery.
-Do not dispose of the battery or product in fire.
-Do not expose the battery to water, excessive heat, direct sunlight, or open flames.
-Dispose of used batteries according to local laws and regulations.
-Do not dispose of lithium batteries with household waste where prohibited.
-Contact your local recycling center or waste disposal authority for proper battery
recycling instructions.
4
Safety Notice
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
MODIFICATION: Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to operate the device.
This device has been evaluated to meet the general RF exposure requirements.
This device can be used in portable exposure conditions without restriction.
FCC ID: 2BMPX-MODR11PRO
5
Product Information
Model number
Momo Drift 11 Pro
Battery
Lithium battery 11.1v 2500mAh
Material
PP、ABS、PU
Suitable age
More than 36 months
Load capacity
Max 150 lbs
Size of car
76 X 34 X 41.5 cm
Speed
1.7~4 mph
Battery life
60~120 minutes
(The battery life will vary due to changes in weight and
environment, please refer to the actual situation)
Charging time
3~4 hours
(The product comes with a USB charging cable, please bring
your own qualified adapter)
Charging
mode
USB charging cable
Charging Input: 5V DC, 2A min / 3A max
[Please bring your own USB adapter that meets safety
standards]
6
Parts List
Sequence
Part name
Quantity
1
Vehicle body
1
2
Drive device
1
3
Square tube
1
Bolt-Nut
（Installed on the
square pipe）
4
4
Steering wheel
1
5
Movable Leg
Leg Cover
4
Washer
Nut
Wrench
10
6
USB charging cable
1
7
Instruction manual
1
2*M5X38
Bolt
2*M5
4*M8
4*M8
2*M8
7
Parts Diagram
Foot Pedal: Press the pedal to activate the
motor. Release the pedal to stop the vehicle.
Horn Button: When the vehicle is turned
on, press the button to sound the horn.
360° Swivel Caster
Wheel
Auxiliary Caster Wheel: The wheel
rotates freely as the product moves.
It is a non-motorized wheel.
Main Power Switch
Anti-tip
Wheel
USB-C
Charging
Port Area
Motorized Drive
Wheel
8
Parts Diagram
Left Leg Cover
2*M8 Washer
2*M8 Nut
Left Movable Leg
2*M8 Washer
2*M8 Nut
Right Leg Cover
Right Movable Leg
Steering Whee
Drive device
Square tube
M5 Nut
M5*38 Bolt
9
Assembly Step
1
Install the Left and Right Movable Legs
1、Slide the left movable leg onto the two bottom mounting rods. Make sure the rods
pass through the two channels in the leg.
2、Place one M8 washer and one M8 nut onto each mounting rod.
3、Finger-tighten the M8 nuts only to temporarily secure the left movable leg. Do not
fully tighten the nuts at this step.
4、Repeat the same steps to install the right movable leg.
10
Assembly Step
2

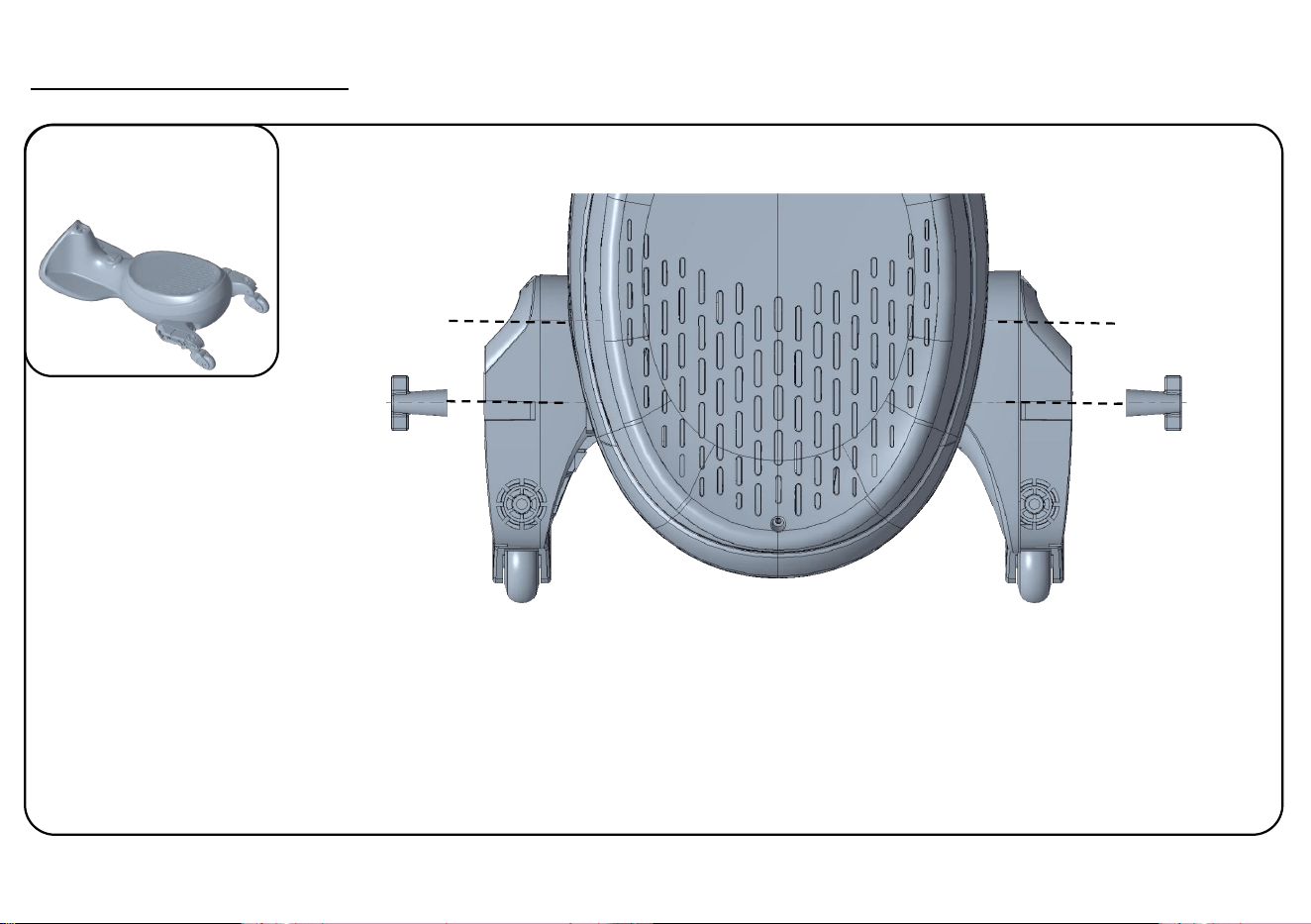

Tighten the Left and Right Movable Legs
1、After both movable legs are temporarily secured to the vehicle body, use the
included M8 wrenches on both sides at the same time.
2、Tighten the matching left and right nuts simultaneously. Because the mounting rods
are round, tightening only one side may cause the rod to rotate.
3、Continue tightening until both movable legs are firmly attached and no longer
wobble.
11
Assembly Step
3

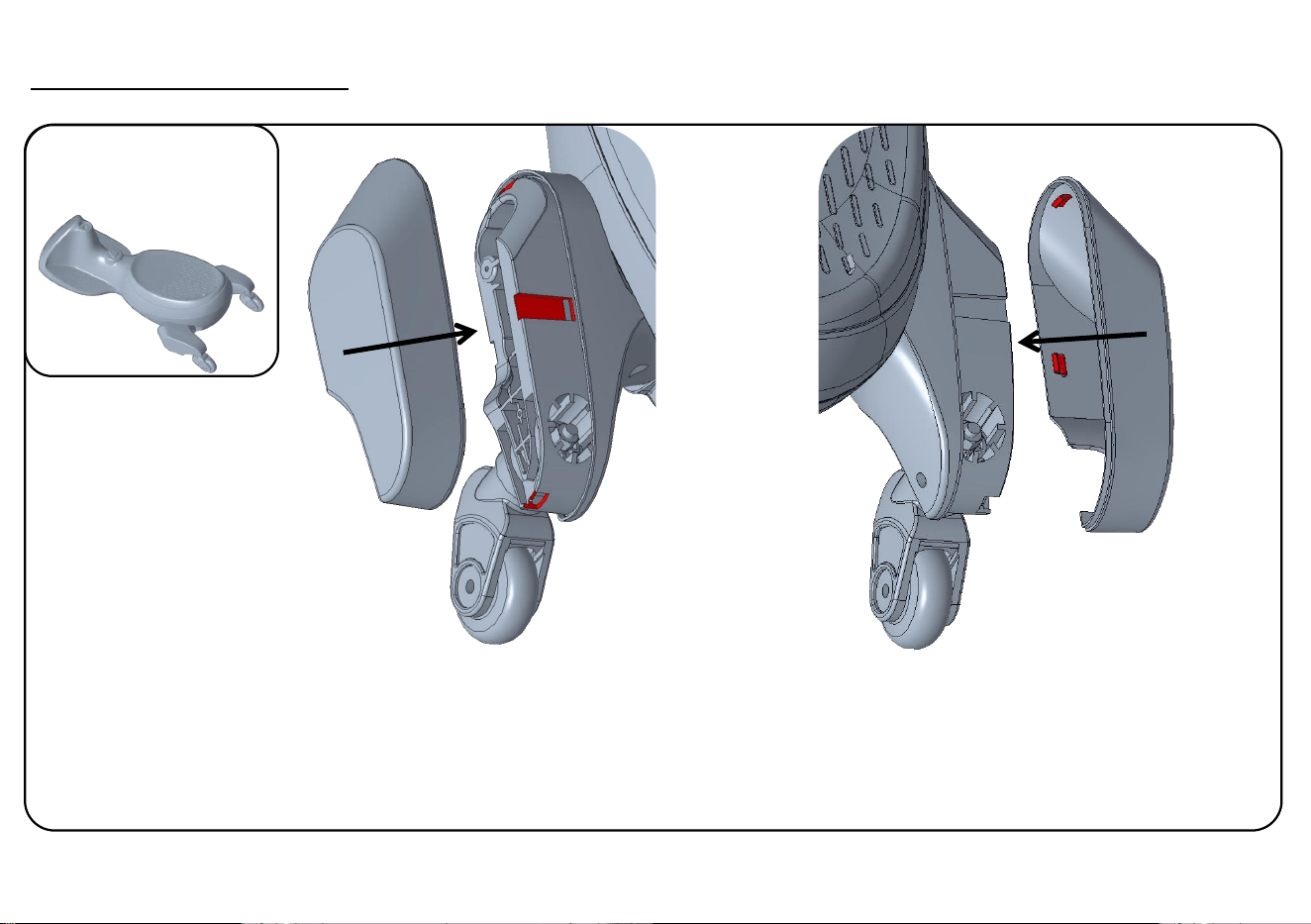

Install the Left and Right Leg Covers
1、Align the tabs on the inside of the left leg cover with the slots on the left movable leg.
2、Snap the left leg cover onto the left movable leg.
3、Press the cover firmly until it clicks into place.
4、Make sure the cover is securely attached.
5、Repeat the same steps to install the right leg cover.
12
Assembly Step
4

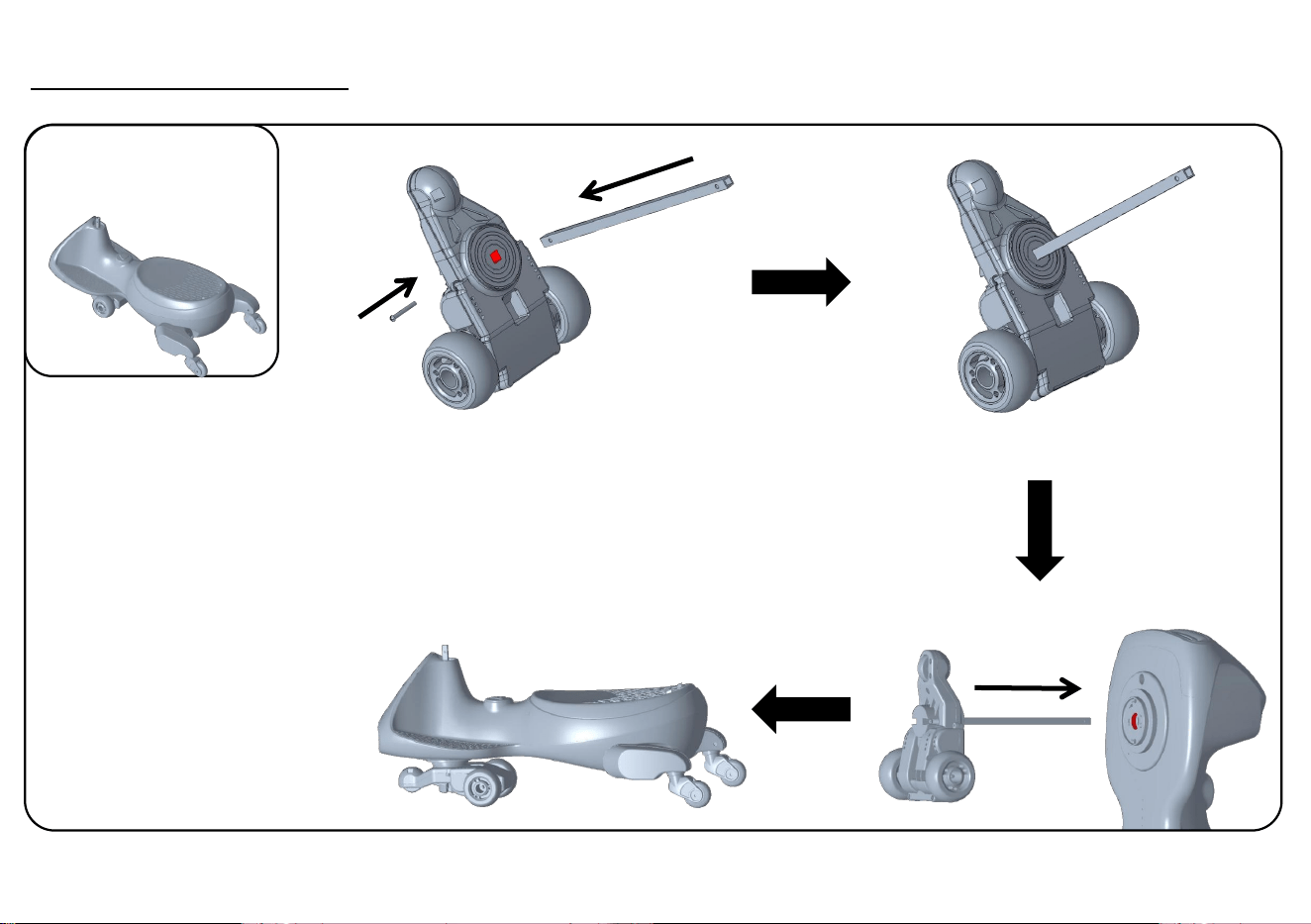

Install the Drive Module and Square Tube
1、Insert the square tube into the square slot on the drive module.
2、Align the hole in the square tube with the hole underneath the drive module.
3、Insert the supplied M5×38 bolt through the aligned holes. Use a Phillips screwdriver, not
included, to tighten the bolt into the factory-installed M5 nut on the drive module. Make sure
the square tube is securely attached to the drive module.
4、From the bottom front of the vehicle body, insert the assembled drive module and square
tube through the round opening. Push the drive module into position as shown.
13
Assembly Step
5

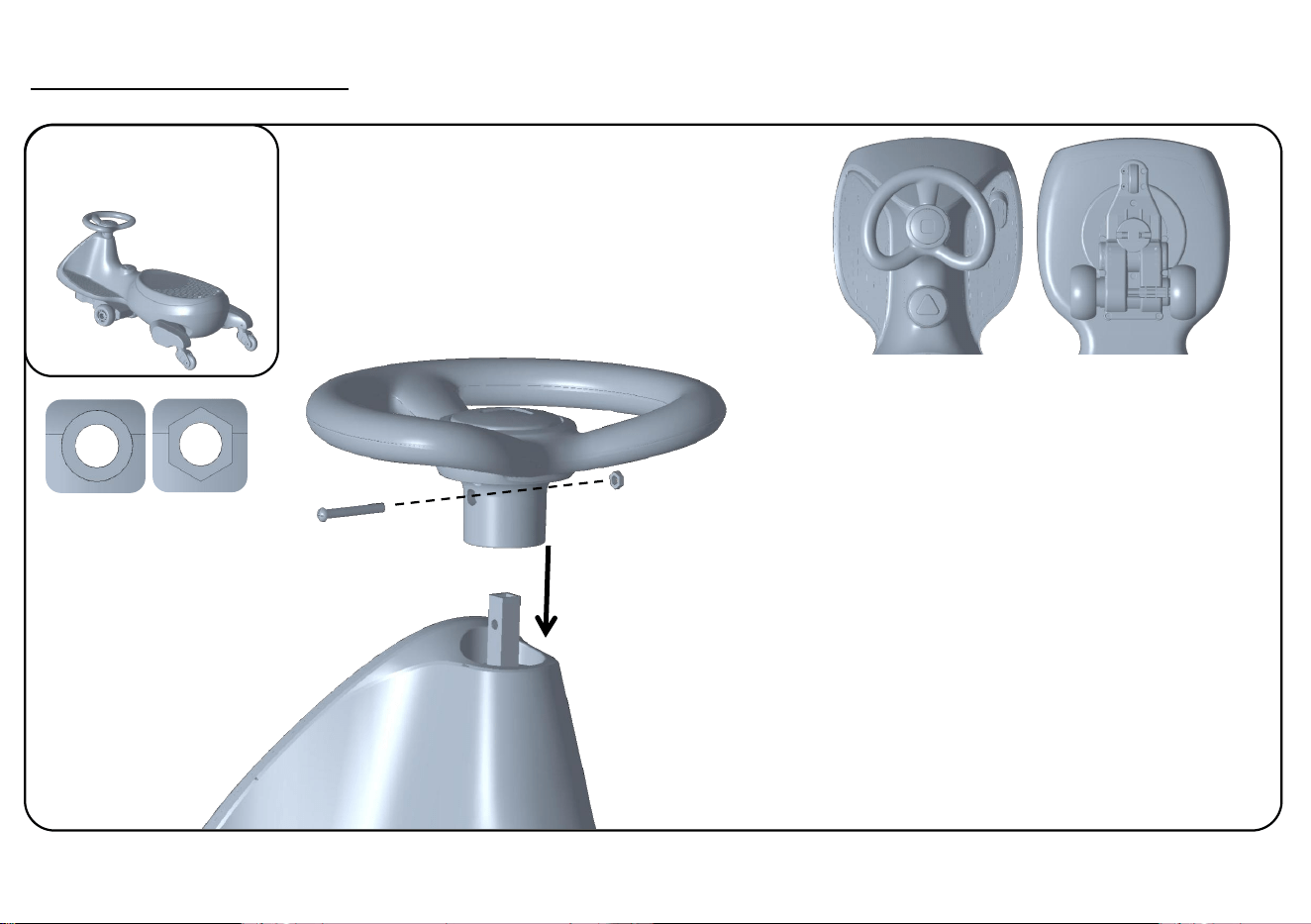

Install the Steering Wheel
1、Make sure the steering wheel and drive module are
facing the same direction as shown in the top-right
illustrations.
2、Slide the steering wheel onto the square tube.
3、Align the hole in the steering wheel stem with the
hole in the square tube.
4、Insert the M5 bolt through the aligned holes from
the round recessed side. Place the M5 nut into the
hexagonal recessed slot on the opposite side.
5、Use a screwdriver, not included, to tighten the M5
bolt and nut until the steering wheel is securely
attached to the square tube.
Note: The round recessed
slot is for the bolt head.
The hexagonal recessed
slot is for the M5 nut.
14
Instructions For Use
Start the vehicle
Please find the start switch at the bottom and adjust it to
the open position. If the wheels turn when you step on the
foot pedal, it indicates that the car has started successfully.
Charging Indicator
A red charging indicator light indicates the product is
charging normally;
A green charging indicator light indicates the battery is fully
charged;
If the charging indicator light flashes red and green
alternately, it indicates a charging malfunction. Please check
if the adapter's output is below 2A and try a different adapter.
If the problem persists, please contact customer service.
Type-c charging port
Before charging, please set the start switch to the OFF position
first.
Please use a USB adapter that complies with safety regulations
to charge the product. If the product charges too slowly, please
replace it with a charger of higher power.
Charging Input: 5V DC, 2A min / 3A max
15
Instructions For Use
The speed switch is located underneath the front
of the vehicle, near the drive module. Pressed in =
High Speed; Raised = Low Speed. The factory
default setting is High Speed.
High/Low Speed Switch
Connect Bluetooth
The product will automatically enable Bluetooth upon
startup. Please search for and connect to "Momo Drift 11 Pro"
via your device's Bluetooth settings. If the device is not found,
please power off and restart the product.
If Bluetooth fails to activate after attempting, please press
the speaker button twice consecutively after powering on
the device to enable Bluetooth functionality.
Sound the horn
After turning on the machine, press the horn button and
the product will emit a horn sound.
Drive the vehicle
When the foot pedal is pressed, one wheel
of the drive module will rotate. The other
wheel is an auxiliary wheel, which rotates
only when the vehicle is moving. Therefore,
if the vehicle is lifted off the ground and
the foot pedal switch is pressed, it is
normal for the auxiliary wheel not to
rotate. This is by design.
16
Fault Analysis
Only one wheel of the
product rotates
For the safety of turning, this product is designed with a
single-sided driving wheel, and the other wheels are
auxiliary wheels.
The product fails to
power on
Please open the seat and check if the battery is
connected.
Charging time is too
slow
Please check if the output current of the charger being
used is only 1A. You can use a USB adapter with an
output current of up to 3A.
