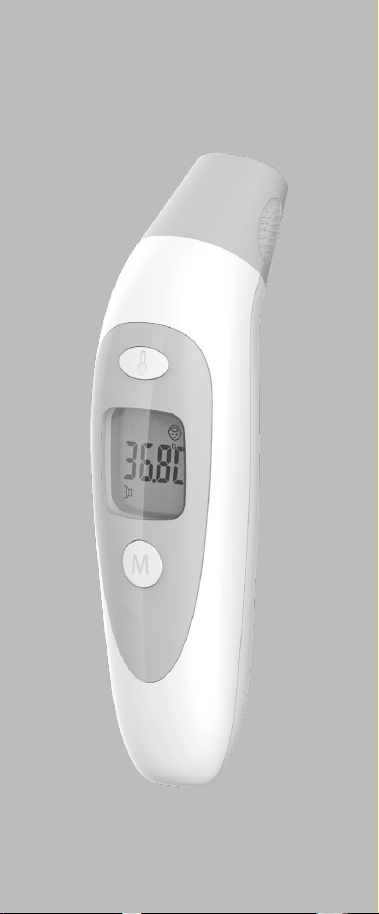

Infrared Thermometer
MDI261
USER MANUAL
1
Contents
1. Product introduction........................2
2. Usage and scope of application........2
3. Environmental conditions.................2
4. Features...........................................2
5. Product structure.............................3
6. Specications...................................4
7. Installation and adjustment...............5
8. Operations........................................8
9. Troubleshooting.............................10
10. Precautions..................................11
11. Maintenance.................................13
12. Transportation and storage..........13
13. Unpacking and inspection.............13
14. EMC.............................................14
15. Hazardous substances and their
content in the product........................19
2
1. Product introduction
This infrared thermometer uses infrared
technology to measure human body
temperature inside the ear cavity or on the
forehead. Just aim the product’s temperature
probe at the measuring site and press the [
] button. The temperature value is displayed
within 1 second. The entire measurement
process is simple and fast.
2. Usage and scope of application
The infrared thermometer measures and
displays the temperature inside the ear cavity
or on the forehead of the person through
thermal radiation.
3. Environmental conditions
Ambient temperature: 10°C ~ 40°C
Relative humidity: ≤85%
Atmospheric pressure: 70kPa - 106 kPa
4. Features
This product allows the user to measure
the human body temperature inside the ear
cavity or on the forehead with easy and fast
operation.
3
5. Product structure
It is composed of housing, circuit board,
temperature-measuring component, display
screen, power supply, etc.
Measure
button
Display
screen
Power button
Temperature probe
Forehead
measurement cap
Battery cover
Memory symbol
Temperature
value
Prompt tone
symbol
Ear temperature
symbol
Forehead
temperature symbol
Low-battery symbol
4
6. Specications
Product name Infrared Thermometer
Model MDI261
Measuring
site
Inside ear cavity or on forehead (the
user can switch between ear mode
and forehead mode by removing or
installing the forehead measurement
cap)
Temperature
unit
°C, °F
Measuring
range
32.0-43.0°C (89.6°F~109.4°F)
Resolution 0.1°C/0.1°F
Accuracy
Within 35.0°C~42.0°C, ±0.2°C;
beyond 35.0°C~42.0°C, ±0.3°C
Clinical
repeatability
±0.3°C
Operating
environment
Temperature: 10°C~40°C, Relative
humidity: ≤85%
Storage
environment
Temperature: -20°C~55°C, Relative
humidity: ≤85%
Number of
records
32 entries
Automatic
shutdown
60±5 seconds without operations
Dimension
162.6±1.0 * 43±1.0 *36±1.0 mm
(Length * Width * Height)
Weight 73g±10g (without battery)
Battery 1.5V AAA, 2pcs
Valid period 5 years
Safety
Classification
BF type
5

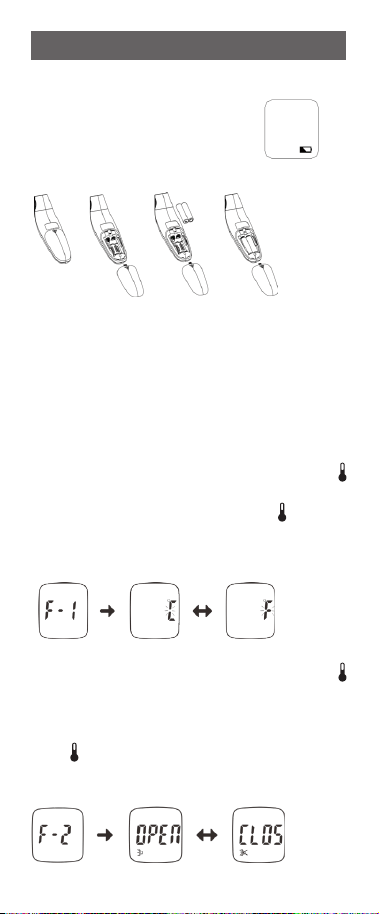

7. Installation and adjustment
1) Battery installation and replacement:
Install or replace the batteries
before the rst use or when
a low-battery prompt is shown
on the display screen
How to replace batteries
As shown in the figure above: open the
battery cover, and install two 1.5V AAA
batteries in the direction indicated by the
symbols in the battery cavity, and close the
battery cover.
2) Function setting:
Setting 1: Switch between °C and °F.
In the power-off state, press and hold the [
] button for 3 seconds. The LCD will display
the [ F - 1 ] , and then press the [ ] button
to switch between °C or °F. Press the [M]
button continuously until the machine is
turned off.
Setting 2: Turn on/off the voice
In the power off state, press and hold the [
] button for 3 seconds. The LCD will display
the [ F - 1 ] ,and then press the [M] button,
the LCD will display [ F - 2 ] ,and then Press
the [ ] button to switch between OPEN or
CLOSE. Press the [ M ] button continuously
until the machine is turned off.
6

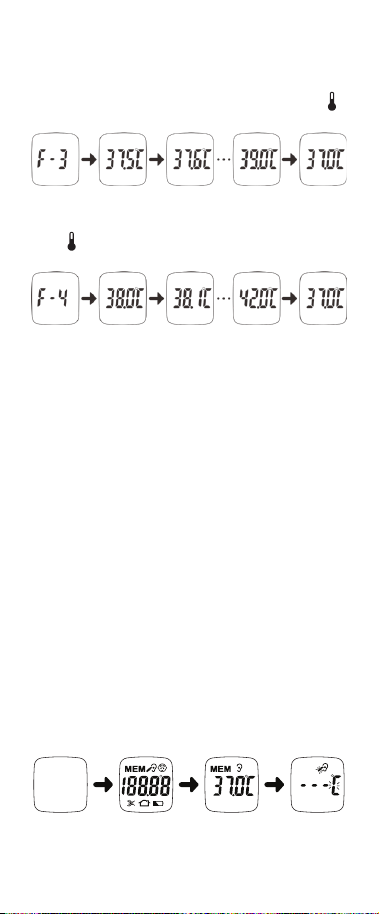

Setting 3: Set the alarm point of the orange
backlight.
When the LCD displays [ F - 2 ], Press the
[ M ] button to [ F - 3 ], then press the [ ]
button to set the alarm point [ 37.0 - 39.0 ].
Setting 4: When the LCD displays [ F - 3 ],
Press the [ M ] button to [ F - 4 ], then press
the [ ] button to set the alarm point [ 37.0 -
42.0 ].
3) Conversion of ear temperature
measurement mode and frontal temperature
measurement mode:
Remove the forehead cap and the machine
enters into the ear mode. Switch on the
machine, the LCD screen shows all the
ICONS about 2 seconds, then the LCD display
about 2 seconds after the last measurement
record values, buzzer “beep” sound short,
products entering the ear temperature
measurement model, the temperature
measuring head into the ear canal, volume
key measurement, “beep” sound prompt,
complete measurement and measurement
results show, when temperature is < 37.5
°C——the backlight is green color, when the
temperature is like this 37.5 °C≤ temperature
<38.0°C——backlight is orange, when the
temperature <38.0 °C——backlight is red,as
the picture below :

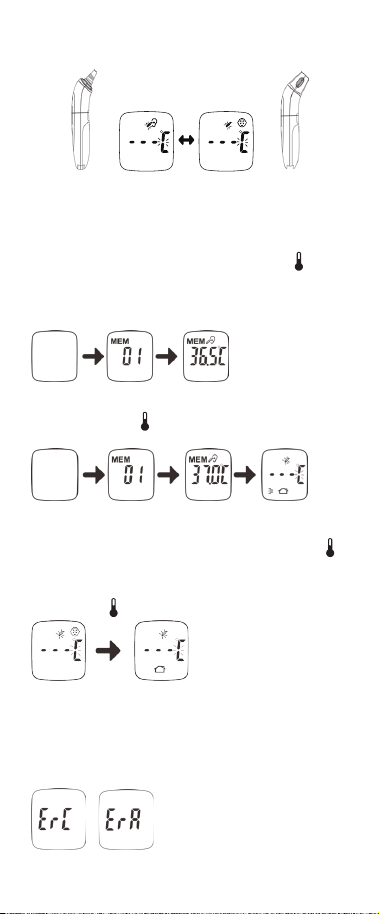

Remove or put on the forehead cap, the
thermometer can automatically switch
7
between ear mode or forehead mode for
temperature measurement.
Ear mode Forehead mode
4) Query and clear of measurement memory
value:
In the state of power off, press the [ ] but-
ton, the prompt sound system to display
the measurement record values in turn as
shown in the gure above.
Under shutdown condition, long-press (6
seconds)the [ ] button to clear memory
value.The LCD will display as below.
5) Calibration mode (Object mode):
When the machine is off. Press the [ ]
button for 6 seconds and the machine enters
into object mode. When the LCD dims, short
press the [ ] button to measure the object.
6) Self-test procedure:
If the hardware or sensor of this product is
damaged, a prompt is shown as below. In
this case, contact the manufacturer.
8
8. Operations
1) Measuring ear temperature
Remove the forehead measurement
cap from the product to enter the
ear mode.
Press the
[ M ]
button to turn on the product.
The LCD is lit for 2 seconds, and then the
last measurement value is displayed for 2
seconds. After a “beep” sound, the product
is ready to take ear temperature. Insert
the temperature probe into the ear canal
gently, and press the [ ] button once. A
“beep” sound indicates the measurement
is completed, with the measurement result
displayed on the screen.
If the body temperature is less than 37.5°C,
the screen has green backlight; if the body
temperature is equal to or greater than
37.5°C but less than 38.0 °C, the screen has
orange backlight; if the body temperature is
equal to or greater than 38.0°C, the screen
has red backlight, as shown in the figure
below:
Note:
To take the temperature of infants under one
year old, gently pull the auricle backward
and downward and hold there to expose
the tympanic membrane to the temperature
probe.
To take the temperature of children above
one year old or the adults, gently pull the
auricle backward and upward and hold there
to straighten the ear canal, so as to expose
the tympanic membrane to the temperature
probe.
9
2) Measuring forehead temperature
To switch the product to
forehead mode, install the
forehead temperature cap to
the top of the product.
Press the
[ M ]
button to turn on the product.
The LCD is lit for 2 seconds, and then the
last measurement value is displayed for 2
seconds. After a “beep” sound, the product
is ready to take forehead temperature. Aim
the temperature probe to the target person’s
forehead, and press the [ ] button once. A
“beep” sound indicates the measurement
is completed, with the measurement result
displayed on the screen (If you press and
hold the [ ] button, after multiple "beep"
sounds, the product enters scanning
measurement mode. Release the [ ] button
to complete the measurement).
If the body temperature is less than 37.5°C,
the screen has green backlight; if the body
temperature is equal to or greater than
37.5°C but less than 38.0 °C, the screen has
orange backlight; if the body temperature is
equal to or greater than 38.0°C, the screen
has red backlight, as shown in the figure
below:
Note: Aim the temperature probe at the
center of the forehead to measure the
person’s body temperature, keeping a
distance of 0.5-1.5 inch.
3) Switching off
short press the [ M ] button to turn off the
product. If there is no operation in 60s, the
product will shut down automatically.
10
9. Troubleshooting
Symptom Cause Solution
The ambient
temperature
is higher than
40°C or lower
than 10°C.
Use the product
in an appropriate
environment.
Body
temperature
is higher than
43.0°C.
1. Use the product
according to this
user manual.
2. Contact the
manufacturer.
Body
temperature
is lower than
32.0°C.
1. Use the product
according to this
user manual.
2. Contact the
manufacturer.
Low batteries. Replace batteries.
Sensor or
hardware
damage.
Contact the
manufacturer.
11
10. Precautions
1) Read the User Manual carefully before
use. Improper use may cause product
performance degradation or incorrect
measurement readings.
2) Do not use the ear mode when the ear
canal is wet or suffering from an ear disease.
3) Earwax, local lesions (such as
inflammation, trauma, and post-
operation scar), and other foreign objects
at the measurement site will affect the
measurement accuracy.
4) The product has been calibrated before
shipment. It does not need recalibration if it
is used according to the User manual.
5) NEVER force the temperature measuring
probe into the ear canal.
6) This product cannot be used as a
substitute of medical diagnosis and
treatment, and the medication must be
treated by the doctor.
7) Do not take a shower or have sports
before measurement. The person and the
infrared thermometer should stay in the
same environment for more than 30 minutes
before taking measurement.
8) Use the product under the operating
environment specied in this manual.
9) Do not drop or impact the infrared
thermometer to avoid damage.
10. When the product is not in use for a
long time (more than 1 month), take out the
batteries and put the product in the package
box.
11) Do not store the product in an
environment with direct sunlight, high
temperature, high humidity, dust or
corrosive gas.
12
12) Do not use a leaking or moldy battery.
Keep the battery away from any re source
to avoid explosion. Do not reverse the
positive and negative poles when installing
the battery.
13) Dispose of the batteries, infrared
thermometer and their packaging material in
accordance with local regulations.
14) Do not clean the infrared thermometer
with toxic liquids, volatile oil, thinner or
gasoline.
15) Statement: The company can provide
information such as circuit diagrams,
component lists, and calibration rules upon
request. We can also provide necessary
information for qualified maintenance
personnel for repairing of this product,
but we recommend that the user return
the product to the manufacturer for better
service.
16) Graphic description:
No Icon Description
1
Note: personal injury and property damage
may occur in case of misuse.
2
Read the User Manual before using this
product.
3
Dispose of the product properly in
accordance with local regulations.
4
Type BF device with internal power supply.
5
Fragile item. Handle carefully.
6
Keep dry.
7
Temperature limits for storage and
transportation.
8
Use no hooks.
9
Keep away from direct sunlight.
13
11. Maintenance
1) Always keep the surface of the product
clean and tidy, which helps to extend its
service life.
2) Take out the batteries when the product
is not in use for a long time. Put the
product in the package, and store it in a dry
environment (about 25°C).
3) If the product gets dirty, wipe it clean with
a dry soft cloth. If the dirt still remains, damp
the cloth with water or neutral detergent and
wipe the product clean.
4) The temperature probe should be kept
clean, without taints or scratching. If there
is any foreign matter stuck to it, clean it up
with a cotton swab.
5) For disinfection, use 75% medical alcohol
to wipe the surface of the product.
12. Transportation and storage
Transportation and storage environment:
Temperature: -20°C~55°C
Relative humidity: ≤85%
Precautions for transportation and storage:
Handle with care. Do not drop or impact the
product. Keep the product away from insects
and rats.
13. Unpacking and inspection
Unpacking the product: open the box along
the tuck ap of the carton box. Keep the box
for future use.
Inspection after unpacking: this product
is shipped with User Manual (including a
warranty card) and Certicate of Conformity.
Check whether any item is missing.
Note: dispose of the packaging materials
according to local regulations.
14
14. EMC
Electromagnetic compatibility
Note:
• The product meets the requirements on
electromagnetic compatibility in standard
YY0505;
• The user should install and use the
product according to the electromagnetic
compatibility information provided in the
accompanying documents;
• Portable and mobile RF communication
equipment may affect the performance of
infrared thermometers. When using the
product, keep away from strong interference
sources, such as mobile phones, microwave
ovens, etc.;
• See the appendix for the guidelines and
manufacturer's declaration.
Warning:
• The product should not be used close to or
stacked with other equipment; if it must be
used in such setting, observe and make sure
it operates normally rst;
• Class A equipment is intended to be
used in industrial environment. Due to the
radiation disturbance, there may be potential
difficulties in ensuring electromagnetic
compatibility in other environments;
• Except for the cables that come as spare
parts of this product, other accessories and
cables may cause an increase in the infrared
emission or a decrease in electromagnetic
immunity.
15
Appendix:
Guidance and manufacturer’s declaration –
electromagnetic emission
This product is intended for use in the electromagnetic
environment specied below. The customer or the user
of the product should assure that it is used in such an
environment.
Emissions
test
Compliance Electromagnetic
environment - guidance
RF
emissions
CISPR 11
Group 1 The product uses RF
energy only for its internal
function. Therefore, its RF
emissions are very low
and are not likely to cause
any interference in nearby
electronic equipment.
RF
emissions
CISPR 11
Class B The product is suitable for
use in all non-domestic
establishments and those
not directly connected to the
public low-voltage power
supply network.
Harmonic
emissions
IEC 61000-
3-2
N/A
Voltage
uctuations
/icker
emissions
IEC 61000-
3-3
N/A
16
Guidance and manufacturer’s declaration –electromagnetic immunity
This product is intended for use in the electromagnetic environment
specied below. The customer or the user of the product should
assure that it is used in such an environment.
Immunity
test
IEC 60601 test level Compliance
level
Electromagnetic
environment -
guidance
Electrostatic
discharge
(ESD) IEC
61000-4-2
±6 kV contact
±8 kV air
±6 kV
contact
±8 kV air
Floors should
be wood,
concrete or
ceramic tile.
If oors are
covered with
synthetic
material,
the relative
humidity should
be at least 30%.
Electrical fast
transient/
burst
IEC
61000-4-4
±2kV for power supply
lines
±1kV for input/output
lines
N/A N/A
Surge IEC
61000-4-5
±1 kV differential mode
±2 kV common mode
N/A N/A
Voltage
dips, short
interruptions
and voltage
variations on
power supply
input lines
IEC
61000-4-11
﹤5% UT
(﹥95% dip in UT) for
0.5 cycle
40% UT (60% dip in
UT) for 5 cycles
70% UT (30% dip in
UT) for 25 cycles
﹤5% UT
(﹥95% dip in UT) for 5
Sec
N/A N/A
Power
frequency
(50/60Hz)
magnetic
eld IEC
61000-4-8
3A/m 3A/m,
50/60Hz
Power
frequency
magnetic
elds should
be at levels
characteristic
of a typical
location in
a typical
commercial
or hospital
environment.
Note: UT is the a.c. mains voltage prior to application of the test level.
17
Guidance and manufacturer’s declaration –electromagnetic immunity
This product is intended for use in the electromagnetic environment
specied below. The customer or the user of the product should
assure that it is used in such an environment.
Immunity
test
IEC 60601
test level
Compliance
level
Electromagnetic
environment - guidance
Conducted
RF
IEC 61000-4-
6
Radiated RF
IEC 61000-4-
3
3 V
150 kHz~
80 MHz
3 V/m
80 MHz~
2.5 GHz
N/A
3 V/m
Portable and mobile RF
communications equipment
should be used no closer to
any part of this equipment,
including cables, than the
recommended separation
distance calculated from the
equation applicable to the
frequency of the transmitter.
Recommended separation
distance:
d =1.2√ P
d =1.2√ P 80 MHz~800 MHz
d =2.3√ P 800 MHz~2.5 GHz
Where P is the maximum
output power rating of the
transmitter in watts(W)
according to the transmitter
manufacturer and
d is the recommended
separation distance in
meters (m).
Field strengths from
xed RF transmitters,
as determined by an
electromagnetic site
surveya should be less than
the compliance level in each
frequency rangeb.
Interference may occur in
the vicinity of equipment
marked with the following
symbol.
Note1: At 80 MHz and 800 MHz, the higher frequency range applies.
Note2: These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reection
from structures, objects and people.
A Field strengths from xed transmitters, such as base stations for
radio(cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic
environment due to xed RF transmitters, an electromagnetic site
survey should be considered. If the measured eld strength in the
location in which the product is used exceeds the applicable RF
compliance level above, the product should be observed to verify
normal operation. If abnormal performance is observed, additional
measures may be necessary, such as reorienting or relocating the
product.
B Over the frequency range 150 kHz to 80 MHz, eld strengths should
be less than 3 V/m.
18
Separation distance between this product and portable/mobile RF
communication equipment
This product is intended for use in an electromagnetic environment
in which radiated RF disturbances are controlled. The customer or
the user of the product can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile
RF communication equipment (transmitters) and the product as
recommended below, according to the maximum output power of the
communications equipment.
Rated maximum
output power of
transmitter(W)
Separation distance according to frequency of
transmitter (m)
150 kHz ~
80 MHz
d = 1.2√ P
80 MHz ~
800 MHz
d = 1.2√ P
800 MHz ~
2.5 GHz
d = 2.3√ P
0.01 Not Applicable 0.12 0.23
0.1 Not Applicable 0.38 0.73
1 Not Applicable 1.2 2.3
10 Not Applicable 3.8 7.3
100 Not Applicable 12 23
For transmitters rated at a maximum output power not listed
above, the recommended separation distance d in meters (m) can
be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1: At 80MHz and 800MHz, the separation distance for the higher
frequency range applies.
NOTE 2: These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reection
from structures, objects and people.
19
15. Hazardous substances and
their content in the product
Hazardous
substance
Part
Pb Hg Cd Cr(VI) PBB PBDE
Housing O O O O O O
Probe O O O O O O
Panel O O O O O O
LCD O O O O O O
PCB X O O O O O
Sensor O O O O O O
This form is made in accordance with SJ/T 11364.
O Indicates that the said hazardous substance contained
in all of the homogenous materials for this part is below
the limit requirement of SJ/T 11364.
X Indicates that the said hazardous substance contained in
at lease one of the homogenous materials used for this
part is above the limit requirement of SJ/T 11364. (Note:
some hazardous substances or elements contained
in this product cannot be replaced with substitutes
under current technical conditions. The part containing
hazardous substance in one homogenous material
above the limit specied in SJ/T 11364 meet the
conditions for exemption in RoHS directive 2002/95/
EC.)
20
The date of production is printed on the outer package.
ShenZhen Medek Bio-Medical Co.,Ltd.
Address: No.101 Wenhao Industrial Park, No.13
Yuanxin Road, Tongle Community, Baolong Street,
Longgang District, 518100 Shenzhen, PEOPLE’S
REPUBLIC OF CHINA
Name: Shanghai International Holding Corp.GmbH
(Europe)
Add: Eiffestraße 80, 20537 Hamburg, GERMANY
Made in China
Dec.2022.VER.1.0
尺寸：60*145±1mm
材质：80g 书写纸 ，封面铜
版纸 , 封底空白页
黑白印刷
20230309
V1.0
