CHINA DRAGON TECHNOLOGY LIMITED Page 1
WiFi Module
CDW-G47663U-00
CDW-G47663U-00
DATASHEET
Software：
客 户
Customer
客户承认
Approve（请盖印章）
日 期
Date
深圳市中龙通电子科技有限公司
CHINA DRAGON TECHNOLOGY LIMITED
工厂地址：深圳市宝安区沙井街道南浦路林坡坑蚝三第一工业园 B4 栋
Address: B4 building, Haosan No.1 industry, nanpu road, shangliao community, xinqiao
street, baoan district, Shenzhen, China
电话 Tel：(86 755) 81449957
传真 Fax：(86 755) 81449967
E-mail: Info@cdtech.cn
Http://www.cdtech.cn
拟制
Design
审核
Check
批准
Approve
版本
Version
日期
Date
V1.0
2021.05.15
产 品 承 认 书
SPECIFCATION
CHINA DRAGON TECHNOLOGY LIMITED Page 2
WiFi Module
CDW-G47663U-00
更改记录：
Reversion History：
版本
Version
日期
Date
更改内容
Modification
1.0
2021.05.15
New Revision Release
CHINA DRAGON TECHNOLOGY LIMITED Page 3
WiFi Module
CDW-G47663U-00
1.
Overview
The CDW-G47663U-00 is a highly integrated single chip Module which has built in a 2x2
dual-band wireless LAN radio and Bluetooth radio.It supports IEEE 802.11a/b/g/n/ac standard and
provides the highest PHY rate up to 867Mbps,offering feature-rich wireless connectivity and
reliable throughput from an extended distance.It includes Bluetooth EDR and LE radio which
complies with Bluetooth v2.1+EDR,v4.2,Low Energy, and v5.1.
2. Features
2.1 Platform
■ Embedded high-performance 32-bit RISC microprocessor
■ Integrate high efficiency switching regulator
■ 40MHz crystal clock support with low power operation in sleep mode
■ Best-in-class active and idle power consumption performance
■ Fully Compliance with USB v2.0 specification
■ Internal thermal sensor for temperature compensation and thermal protection.
■ Self calibration.
■ Advanced FDD/TDD mode Wi-Fi/Bluetooth coexistence scheme.
■ Wi-Fi and Bluetooth over USB.
2.2 WLAN
■ IEEE 802.11a/b/g/n11ac compliant
■ Support 20/40MHz bandwidth in 2.4GHz band and 20/40/80MHz in 5GHz band,and.
■ Dual-band 2T2R mode with data rate up to 867Mbps
■ Greenfield,mixed mode,legacy modes support
■ Integrated LNA,PA,and T/R switch
■ Optional external LNA and PA support.
■ IEEE 802.11d/e/h/i/j/k/r/v/w support
■ Security support for WFA WPA/WPA2 /WPA3personal,WPS2.0
■ Support MU-MIMO RX
■ QoS support of WFA WMM,WMM PS
CHINA DRAGON TECHNOLOGY LIMITED Page 4
WiFi Module
CDW-G47663U-00
2.3 Bluetooth
■ Bluetooth 5 dual mode for 2x the speed
■ Bluetooth specification v2.1+EDR
■ Bluetooth v4.2 Low Energy(LE)
■ Standard HCI interface over USB super-speed,high-speed and full-speed mode
■ Best-in-class BT/Wi-Fi coexistence performance
■ Scatternet support:Up to 7 piconets simultaneously with background inquiry/page scan
■ Up to 7 simulaneous active ACL links
■ Support SCO and SCO link with re-transmission
■ Support wide-band speech
■ Integrated high efficiency PA and TSSI

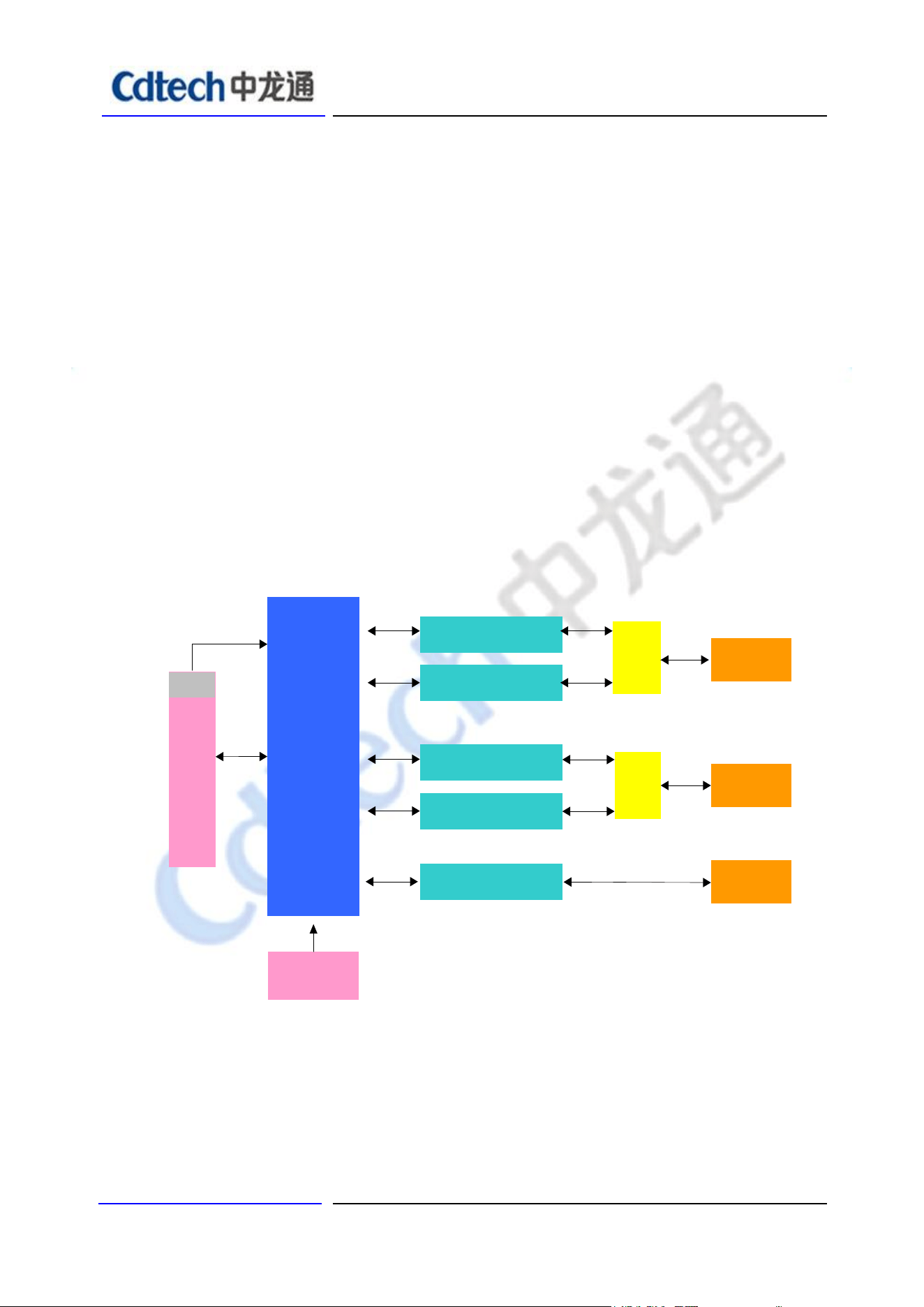

3. Block Diagram
MT7663BU
2.4G TX1/RX1
5G TX1/RX1
2.4G TX0/RX0
5G TX0/RX0
Diplexer
Diplexer
Antenna0
USB2.0
&GPIO
Crystal 40MHz
3V3
Antenna1
BT TX/RX Antenna3
DC-DC
CHINA DRAGON TECHNOLOGY LIMITED Page 5
WiFi Module
CDW-G47663U-00
4. General Specification
5. Electrical Characteristics
5.1 WiFi Section:
2.4GHz RF Specification
Feature
Description
WLAN Standard
IEEE 802.11a/b/g/n/ac WiFi compliant
Frequency Range
2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
Number of Channels
2.4GHz：Ch1 ~ Ch14
Modulation
802.11b : DQPSK, DBPSK, CCK
802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK
Receive Sensitivity
11b,20MHz @8%PER
- 1Mbps,PER @ -98 dBm, typical
- 11Mbps,PER @ -89dBm, typical
Receive Sensitivity
11g,20MHz @10%PER
- 6Mbps,PER @ -95dBm, typical
- 54Mbps,PER @ -75 dBm, typical
Receive Sensitivity
11n,20MHz @10%PER
Receive
Sensitivity (11n,20MHz)
@10% PER
- MCS=0,PER @ -95 dBm, typical
- MCS=7,PER @ -74 dBm, typical
Receive Sensitivity
11n,40MHz @10%PER
Receive
Sensitivity (11n,40MHz)
@10% PER
- MCS=0,PER @ -91dBm, typical
- MCS=7,PER @ -72 dBm, typical
Model
CDW-G47663U-00
Product Name
WLAN 11a/b/g/n/ac USB2.0 2T2R + Bluetooth 5.1module
Major Chipset
MT7663BU
Standard
802.11a/b/g/n/ac
Modulation Method
BPSK/ QPSK/ 16-QAM/ 64-QAM/256-QAM
Frequency Band
2.4GHz and 5GHz ISM Band
WiFi Interface
USB2.0
BT Interface
USB2.0
Operating Temperature
-20° C ~ 70° C
Storage Temperature
-40° C ~ 85°C
Humidity
5% to 90% maximum
Dimension
46.5x40.0x5.8mm (LxWxH)
CHINA DRAGON TECHNOLOGY LIMITED Page 6
WiFi Module
CDW-G47663U-00
5GHz RF Specification
Feature
Description
WLAN Standard
IEEE 802.11a/n/ac 2x2, WiFi compliant
Frequency Range
4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)
Number of Channels
5.0GHz：Please see the table
Modulation
802.11a : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11n : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11ac : OFDM /256-QAM
Receive Sensitivity
11a,20MHz @10%PER
- 6Mbps ,PER @ -92 dBm, typical
- 54Mbps,PER @ -75 dBm, typical
Receive Sensitivity
11n,20MHz @10%PER
Receive Sensitivity
(11n,20MHz) @10% PER
- MCS=0,PER @ -92 dBm, typical
- MCS=7,PER @ -73 dBm, typical
Receive Sensitivity
11n,40MHz @10%PER
Receive Sensitivity
11a,20MHz @10%PER
Receive Sensitivity
(11n,40MHz) @10% PER
- MCS=0,PER @ -88 dBm, typical
- MCS=7,PER @ -71 dBm, typical
Receive Sensitivity
11ac,20MHz @10%PER
Receive Sensitivity
(11ac,20MHz) @10% PER
- MCS=0, NSS1 PER @ -90 dBm, typical
- MCS=8, NSS1 PER @ -69 dBm, typical
Receive Sensitivity
11ac,40MHz @10%PER
Receive Sensitivity
(11ac,40MHz) @10% PER
- MCS=0, NSS1 PER @ -87 dBm, typical
- MCS=9, NSS1 PER @ -65 dBm, typical
Receive Sensitivity
11ac,80MHz @10%PER
Receive Sensitivity
(11ac,80MHz) @10% PER
- MCS=0, NSS1 PER @ -84 dBm, typical
- MCS=9, NSS1 PER @ -62 dBm, typical
CHINA DRAGON TECHNOLOGY LIMITED Page 7
WiFi Module
CDW-G47663U-00
5.2 Bluetooth Section:
Feature
Description
General Specification
Bluetooth Standard
Bluetooth V2.1+EDR,V4.2,V5.1
Host Interface
USB2.0
Frequency Band
2402 MHz ~ 2480 MHz
Number of Channels
79 channels
Modulation
FHSS, GFSK, DPSK, DQPSK
RF Specification
Min
Typical
Max
Sensitivity @ BER=0.1%
for GFSK (1Mbps)
-86 dBm
Sensitivity @ BER=0.01%
for π/4-DQPSK (2Mbps)
-86 dBm
Sensitivity @ BER=0.01%
for 8DPSK (3Mbps)
-80 dBm
Maximum Input Level
GFSK (1Mbps):-20dBm
π/4-DQPSK (2Mbps) :-20dBm
8DPSK (3Mbps) :-20dBm
CHINA DRAGON TECHNOLOGY LIMITED Page 8
WiFi Module
CDW-G47663U-00
6.Electrical Characteristics
6.1 WLAN current consumption
Description
TYP
Unit
Sleep mode, radio off
1.23
mA
2.4GHz RX Power saving, DTIM=1
2.39
mA
2.4GHz RX Active, HT20, MCS15
132
mA
2.4GHz TX CCK, 11Mbps @ 21dBm
417
mA
2.4GHz TX HT20, MCS15 @ 17.5dBm
596
mA
2.4GHz TX HT20, MCS8 @ 18dBm
652
mA
5GHz VHT80 RX Listen, 2RX
157
mA
5GHz RX Active, VHT80, MCS9, Nss=2
236
mA
5GHz TX VHT80, MCS9, Nss=2 @ 15dBm
717
mA
5GHz TX VHT80, MCS0, Nss=2 @ 17dBm
775
mA
6.2 Bluetooth current consumption
Description
TYP
Unit
Sleep mode, radio off
1.73
mA
Bluetooth TX @ 15dBm
86.5
mA
Bluetooth RX
29.4
mA
Bluetooth SCO connection, HV3 packets+sniff mode+scan
(Page scan internal=1.28sec,inquiry scan interval=2.56s,sniff
interval=500ms)
3.2
mA
Bluetooth page scan+inquiry scan
(Page scan interval=1.28s,inquiry scan interval=2.56s)
2.14
mA
Bluetooth page scan
(Page scan interval=1.28s)
1.92
mA
CHINA DRAGON TECHNOLOGY LIMITED Page 9
WiFi Module
CDW-G47663U-00
7. Supplier
Supplier list
Name of Material
Supplier brand
Main chip
MTK
Crystal
FK/TKD /
muRata
/TXC/JWT/
HOSONIC/
Siward
PCB
Bomin/Benchuang/E-Tech
Diplexer
ACX/Walsin/GLEAD/TDK/
Sunlord
Inductor
Sunlord/
CHILISIN/SAMWHA/TDK
Capacitance
SAMSUNG /EYANG/ WALSIN/ muRata/TAIYO/ Darfon
Resistor
UniOhm /YAGEO/ WALSIN
DC-DC
RYCHIP/ZILLTEK

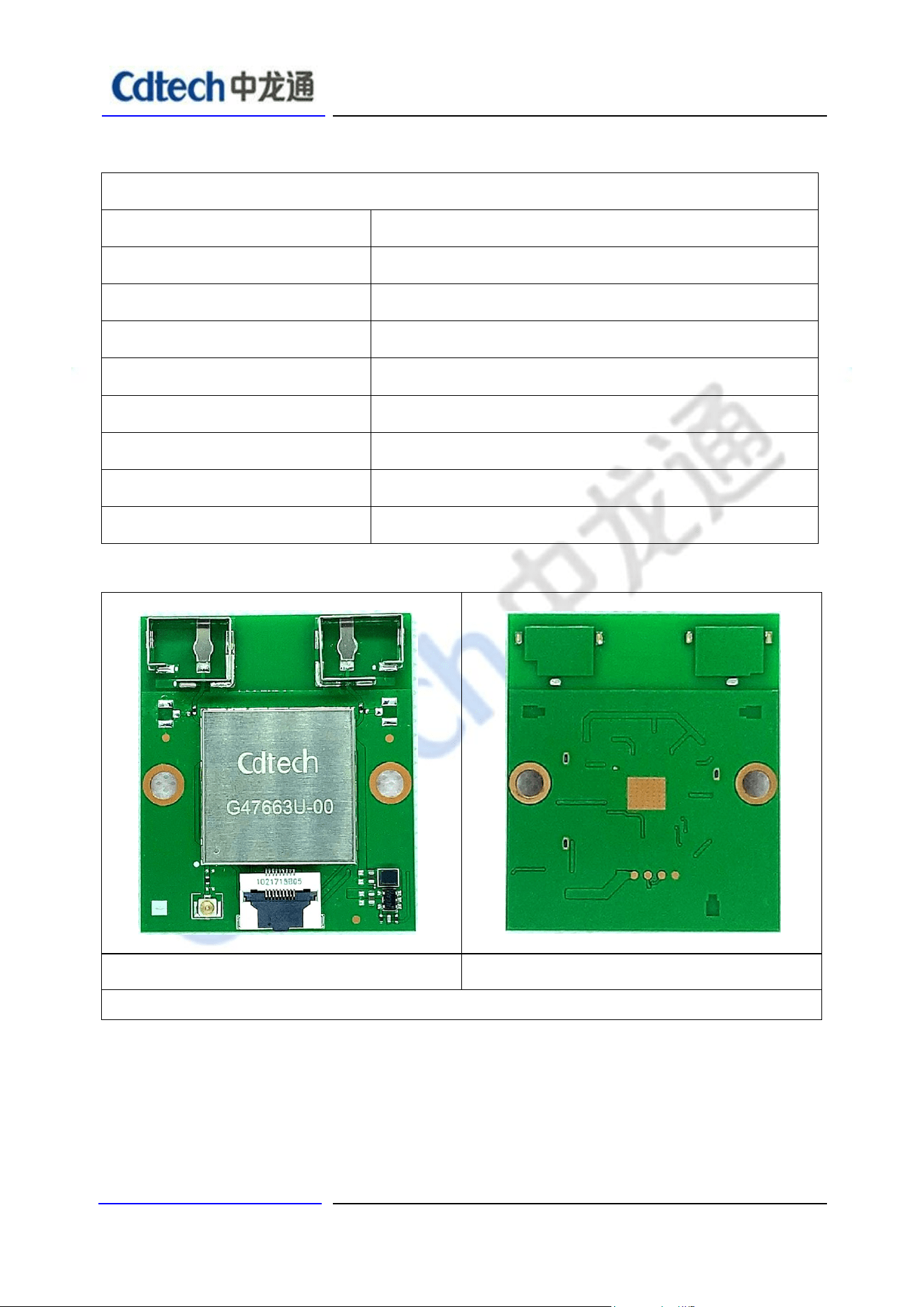

8. Module photo
TOP VIEW
BOTTOM VIEW
Dimension:46.5x40.0x5.8mm (LxWxH)(LxWxH) ±0.25mm
Installation suggestions:
1. A distance of approximately 10mm should be maintained between the module and the TV back panel
using positioning columns, foam, or plastic card trays.
2. The module should be installed away from areas that are prone to interference, such as the
motherboard, FFC lines, and T-CON boards.
CHINA DRAGON TECHNOLOGY LIMITED Page 10
WiFi Module
CDW-G47663U-00

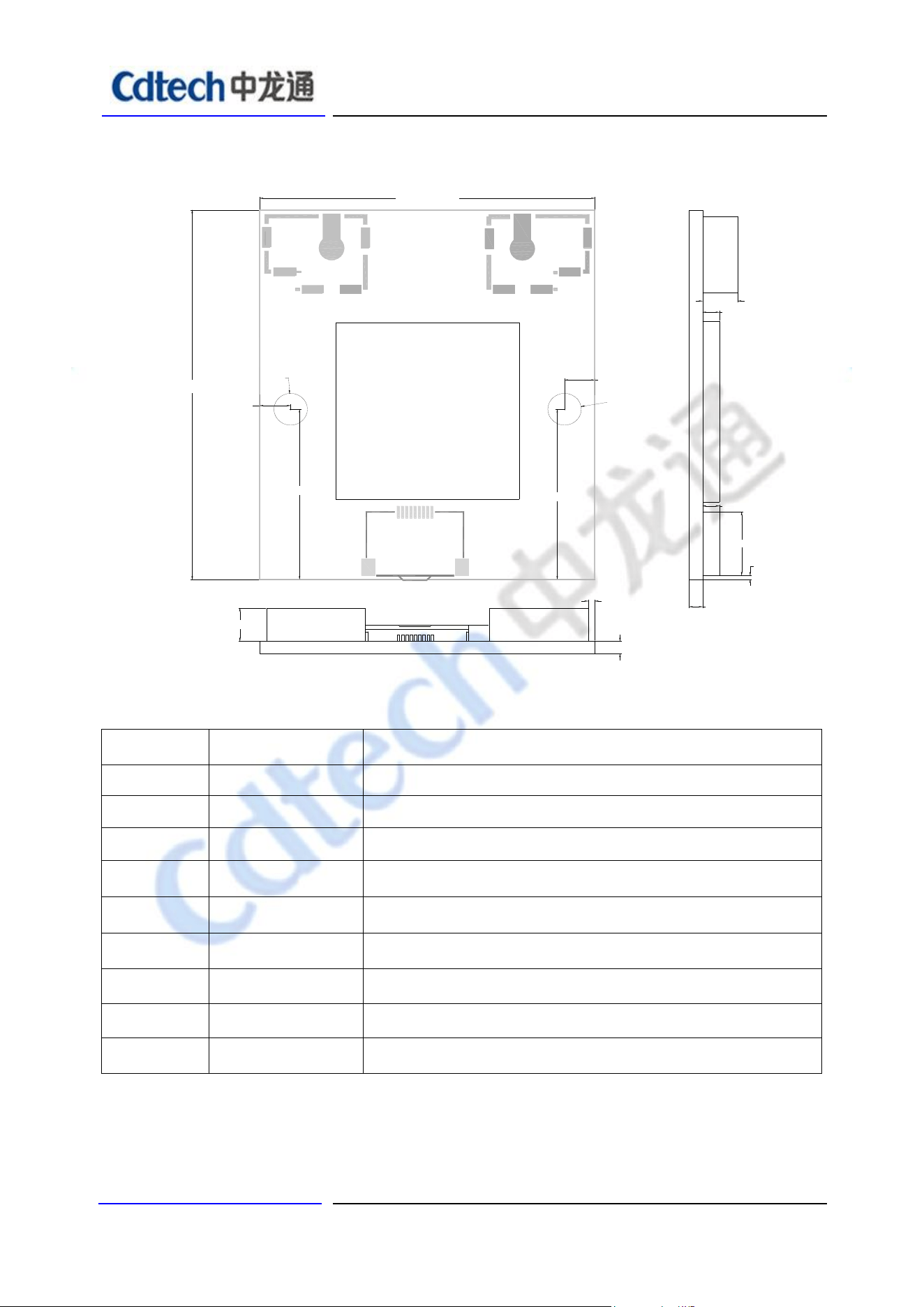

9. Pin Description and PCB size
40.0mm
46.5mm
21.4mm
3.7mm
3.6mm
21.4mm
1.6mm
4.2mm
0.5mm
0.8mm
4.2mm
2.0mm
1.6mm
1
9
1111111 2345678
2.0mm
8.0mm
R2.0mm
R2.0mm
NO.
Symbol
Description
1
RESET
System reset MT7663BUN,low active(Module 10k Pull-Up)
2
WOW
Wake up system via wifi,low active(Module 10k Pull-Up)
3
GND
Ground connections
4
DP
USB positive differential data lines
5
DM
USB negative differential data lines
6
GND
Ground connections
7
BT_WAKE_HOST
Wake up system via BT,low active(Module 10k Pull-Up)
8
VCC
Power supply 5V
9
VCC
Power supply 5V

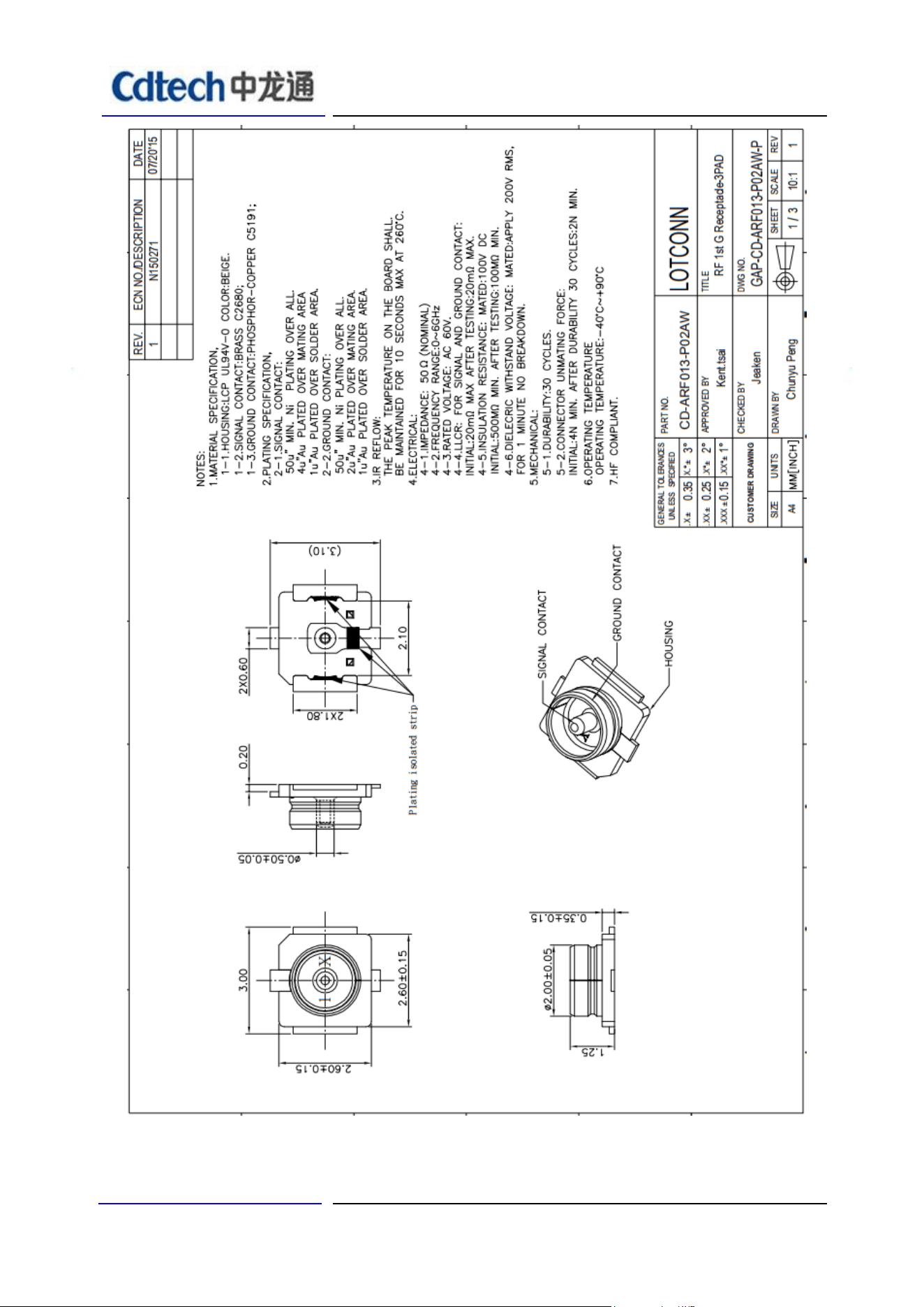

10. IPEX Connector Spec
CHINA DRAGON TECHNOLOGY LIMITED Page 11
WiFi Module
CDW-G47663U-00

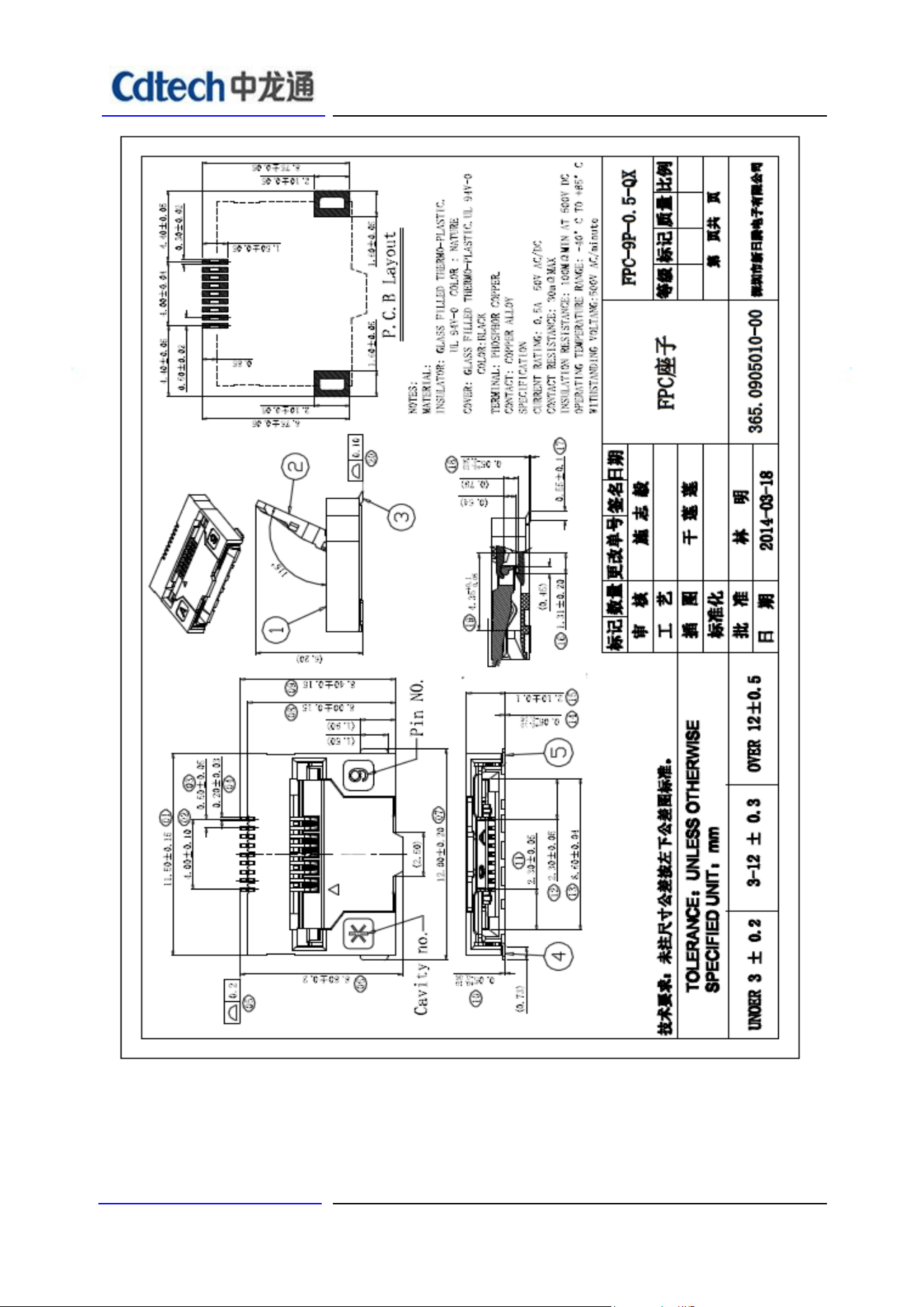

11. FPC Connector spec
CHINA DRAGON TECHNOLOGY LIMITED Page 12
WiFi Module
CDW-G47663U-00

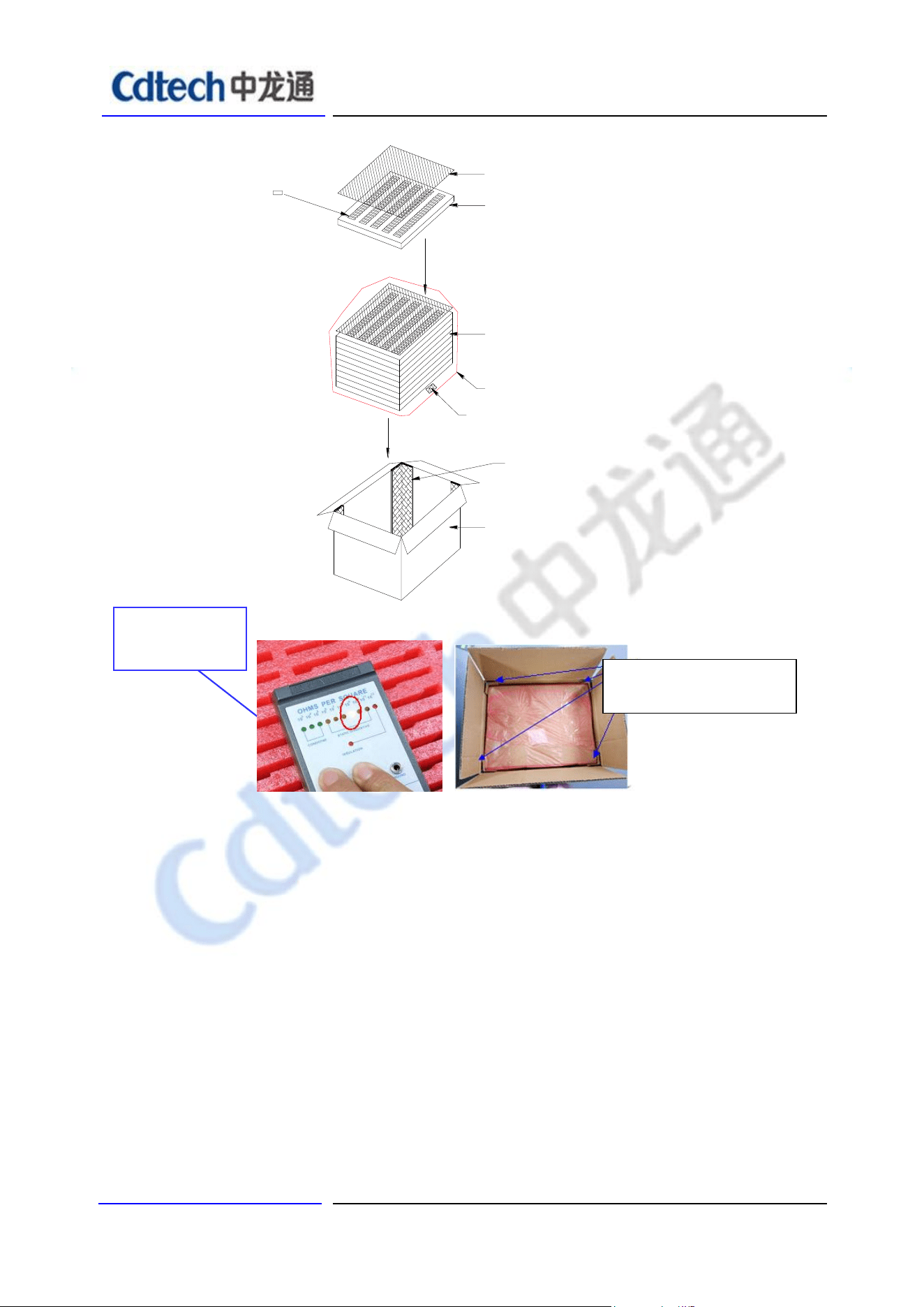

12. Package
CHINA DRAGON TECHNOLOGY LIMITED Page 13
WiFi Module
CDW-G47663U-00
WiFi module
Red antistatic plastic bag
Loading the
outer box
Desiccant 50g
Pearl cotton: 420*335*45mm
126PCS/laye
clapboard A12: 420*335mm
Outer box K=A：435*350*415mm
1008pcs/BOX
Red antistatic pearl cotton
1008pcs/8 layer
Paper corner/4pcs
Pearl cotton
Antistatic test
4pcs paper protector
CHINA DRAGON TECHNOLOGY LIMITED Page 14
WiFi Module
CDW-G47663U-00
ESD CAUTION
The CDW-G47663U-00 is ESD (electrostatic discharge) sensitive device and may
be damaged with ESD or spike voltage. AlthoughCDW-G47663U-00 is with built-in
ESD protection circuitry, please handle with care to avoid the permanent malfunction
or the performance degradation.
CHINA DRAGON TECHNOLOGY LIMITED Page 15
WiFi Module
CDW-G47663U-00
FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
The antennas used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co‐located for operating in conjunction with any
other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause
undesired operation.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
The final end product must be labelled in a visible area with the following:
“Contains Transmitter Module FCC ID: ROW-G47663U”
CHINA DRAGON TECHNOLOGY LIMITED Page 16
WiFi Module
CDW-G47663U-00
Requirement per KDB996369 D03
2.2 List of applicable FCC rules
List the FCC rules that are applicable to the modular transmitter. These are the rules that
specifically establish the bands of operation, the power, spurious emissions, and operating
fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart
B) since that is not a condition of a module grant that is extended to a host manufacturer. See also
Section 2.10 below concerning the need to notify host manufacturers that further testing is
required.3
Explanation: This module meets the requirements of FCC part 15C(15.247).
2.3 Summarize the specific operational use conditions
Describe use conditions that are applicable to the modular transmitter, including for example any
limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in
power or compensation for cable loss, then this information must be in the instructions. If the use
condition limitations extend to professional users, then instructions must state that this information
also extends to the host manufacturer’s instruction manual. In addition, certain information may
also be needed, such as peak gain per frequency band and minimum gain, specifically for master
devices in 5 GHz DFS bands.
Explanation: The EUT has PCB antenna, The antenna gain is -0.74dBi.
2.4 Limited module procedures
If a modular transmitter is approved as a “limited module,” then the module manufacturer is
responsible for approving the host environment that the limited module is used with. The
manufacturer of a limited module must describe, both in the filing and in the installation
instructions, the alternative means that the limited module manufacturer uses to verify that the
host meets the necessary requirements to satisfy the module limiting conditions. A limited module
manufacturer has the flexibility to define its alternative method to address the conditions that limit
the initial approval, such as: shielding, minimum signaling amplitude, buffered modulation/data
inputs, or power supply regulation. The alternative method could include that the limited module
manufacturer reviews detailed test data or host designs prior to giving the host manufacturer
approval. This limited module procedure is also applicable for RF exposure evaluation when it is
necessary to demonstrate compliance in a specific host. The module manufacturer must state how
control of the product into which the modular transmitter will be installed will be maintained such
that full compliance of the product is always ensured. For additional hosts other than the specific
host originally granted with a limited module, a Class II permissive change is required on the
module grant to register the additional host as a specific host also approved with the module.
Explanation: The module is a single module.
CHINA DRAGON TECHNOLOGY LIMITED Page 17
WiFi Module
CDW-G47663U-00
2.5 Trace antenna designs
For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB
Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration
information shall include for the TCB review the integration instructions for the following aspects:
layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.
a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length,
width, shape(s), dielectric constant, and impedance as applicable for each type of antenna);
b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency,
the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be
considered);
c) The parameters shall be provided in a manner permitting host manufacturers to design the
printed circuit (PC) board layout;
d) Appropriate parts by manufacturer and specifications;
e) Test procedures for design verification; and
f) Production test procedures for ensuring compliance.
The module grantee shall provide a notice that any deviation(s) from the defined parameters of the
antenna trace, as described by the instructions, require that the host product manufacturer must
notify the module grantee that they wish to change the antenna trace design. In this case, a Class
II permissive change application is required to be filed by the grantee, or the host manufacturer
can take responsibility through the change in FCC ID (new application) procedure followed by a
Class II permissive change application.
Explanation: Yes, the module with PCB antenna designs, and this manual has been shown the
layout of design, antenna, connectors, and isolation requirements.
2.6 RF exposure considerations
It is essential for module grantees to clearly and explicitly state the RF exposure conditions that
permit a host product manufacturer to use the module. Two types of instructions are required for
RF exposure information: (1) to the host product manufacturer, to define the application conditions
(mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host
product manufacturer to provide to end users in their end-product manuals. If RF exposure
statements and use conditions are not provided, then the host product manufacturer is required to
take responsibility of the module through a change in FCC ID (new application).
Explanation: This module complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment; this equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body." This module is designed to
comply with the FCC statement, FCC ID is: ROW-G47663U.
CHINA DRAGON TECHNOLOGY LIMITED Page 18
WiFi Module
CDW-G47663U-00
2.7 Antennas
A list of antennas included in the application for certification must be provided in the instructions.
For modular transmitters approved as limited modules, all applicable professional installer
instructions must be included as part of the information to the host product manufacturer. The
antenna list shall also identify the antenna types (monopole, PIFA, dipole, etc. (note that for
example an “omni-directional antenna” is not considered to be a specific “antenna type”)). For
situations where the host product manufacturer is responsible for an external connector, for
example with an RF pin and antenna trace design, the integration instructions shall inform the
installer that unique antenna connector must be used on the Part 15 authorized transmitters used
in the host product. The module manufacturers shall provide a list of acceptable unique
connectors.
Explanation: The EUT has External antenna (BT/BLE), PCB antenna (2.4G/5G WIFI), the antenna
gain is below.
BT: External antenna, 1.89 dBi
BLE: External antenna, 1.89 dBi
2.4G WIFI: PCB antenna
Antenna A: 2.66 dBi
Antenna B: 2.56 dBi
5G WIFI: PCB antenna
5.1G Antenna A: 3.84 dBi; Antenna B: 3.8 dBi
5.8G Antenna A: 3.78 dBi; Antenna B: 3.59 dBi
2.8 Label and compliance information
Grantees are responsible for the continued compliance of their modules to the FCC rules. This
includes advising host product manufacturers that they need to provide a physical or e-label
stating “Contains FCC ID” with their finished product. See Guidelines for Labeling and User
Information for RF Devices – KDB Publication 784748.
Explanation: The host system using this module, should have label in a visible area indicated the
following texts: "Contains FCC ID: ROW-G47663U”
2.9 Information on test modes and additional testing requirements
Additional guidance for testing host products is given in KDB Publication 996369 D04 Module
Integration Guide. Test modes should take into consideration different operational conditions for a
stand-alone modular transmitter in a host, as well as for multiple simultaneously transmitting
modules or other transmitters in a host product.
The grantee should provide information on how to configure test modes for host product
evaluation for different operational conditions for a stand-alone modular transmitter in a host,
versus with multiple, simultaneously transmitting modules or other transmitters in a host.
Grantees can increase the utility of their modular transmitters by providing special means, modes,
or instructions that simulates or characterizes a connection by enabling a transmitter. This can
greatly simplify a host manufacturer’s determination that a module as installed in a host complies
with FCC requirements.
Explanation: Can increase the utility of our modular transmitters by providing instructions that
simulates or characterizes a connection by enabling a transmitter.
CHINA DRAGON TECHNOLOGY LIMITED Page 19
WiFi Module
CDW-G47663U-00
2.10 Additional testing, Part 15 Subpart B disclaimer
The grantee should include a statement that the modular transmitter is only FCC authorized for the
specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product
manufacturer is responsible for compliance to any other FCC rules that apply to the host not
covered by the modular transmitter grant of certification. If the grantee markets their product as
being Part 15 Subpart B compliant (when it also contains unintentional-radiator digital circuit), then
the grantee shall provide a notice stating that the final host product still requires Part 15 Subpart B
compliance testing with the modular transmitter installed.
Explanation: The module without unintentional-radiator digital circuit, so the module does not
require an evaluation by FCC Part 15 Subpart B. The host should be evaluated by the FCC
Subpart B.
2.11 Note EMI Considerations
Note that a host manufacture is recommended to use D04 Module Integration Guide
recommending as "best practice" RF design engineering testing and evaluation in case non-linear
interactions generate additional non-compliant limits due to module placement to host
components or properties
Explanation: The host manufacturer is strongly recommended to confirm compliance with FCC
requirements for the transmitter when the module is installed in the host. This module is a
stand-alone modular. If the end product will involve the Multiple simultaneously transmitting
condition or different operational conditions for a stand-alone modular transmitter in a host, the
host manufacturer has to consult with the module manufacturer for the installation method in the
end system. Host manufacturer is recommended to use D04 Module Integration Guide. The final
host product may also need to be evaluated against FCC rule part 15 Subpart B (criteria for unint
entional radiators) in order to be properly authorized for operation as part 15B
2.12 How to make changes
Since. only Grantees are permitted to make permissive changes, it is recommended that module
manufactures provide contact information and some guidance to host providers in the integration
instructions if they expect their module will be used differently than granted.
Explanation: Module manufacturer contact: Tel: 13510082761,
E-mail: songxiaoyue@cdtech.cn
