Technical manual
（1）Module information
Product name：TPMS SENSOR
Model name：TMSS6F2
Brand：BH SENS
Manufacture Name：Baolong Huf Shanghai Electronics Co., Ltd.
Address:No. Building 3, Lane 1099, Zhangjing Road, Dongjing Town, Songjiang District, Shanghai City,
P.R. China
Power：Battery（3.0V）
Rated current：＜10mA
Operating frequency ：315MHz or 433.92Mhz
Modulation Frequency deviation：±45KHz
Transmit Power：＜5 mW
Modulation：FSK
RF code：Manchester
Antenna gain：-25dBi
Receiver Low frequency：125kHz
Modulation：ASK
LF code：Manchester
Operating temperature range：-40℃~+125℃
Software version：V1.0
Hardware version：V3.0
The module is powered by 3V battery, the RF center frequency is 315MHz or 433.92Mhz, the
modulation frequency deviation is ±45KHz, and the modulation mode is FSK. In normal operation
mode, the sensor function module will periodically detect the tire internal pressure and temperature
information. The real-time data collected is sent to the receiver by RF circuit. In addition, the pressure,
temperature, sensor ID and other information inside the tire can be read in real time through the
hand-held low-frequency tool.

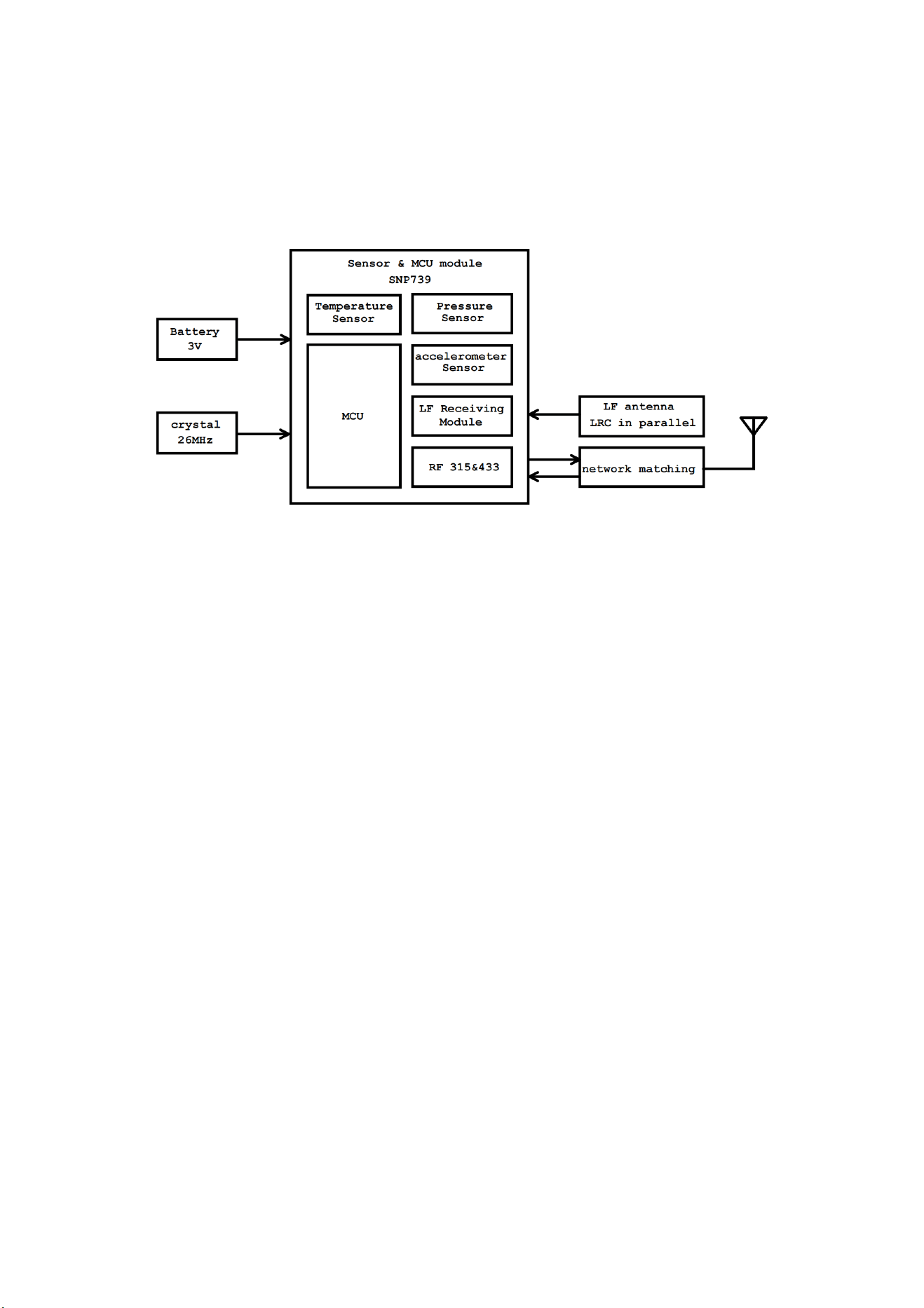

（2）Diagram introduction
Description：
1. This module contains a highly integrated chip, which includes microprocessor core, pressure sensor,
temperature sensor, acceleration sensor and RF function module. The RF center frequency is
433.92Mhz or 315MHz.
2. The module is powered by 3V battery. During the working period of the sensor, the microprocessor
periodically reads the pressure and temperature information inside the tire through the pressure sensor
and temperature sensor.
3. This module uses crystal oscillator circuit recommended by chip to provide accurate clock
frequency for microprocessor.
4. As the core of the sensor, the microprocessor sensor function module is responsible for collecting
tire pressure, temperature, acceleration and other information.
5. The sensor contains low-frequency function module, which is used for hand-held tools to read
real-time data of sensor or upgrade software.
