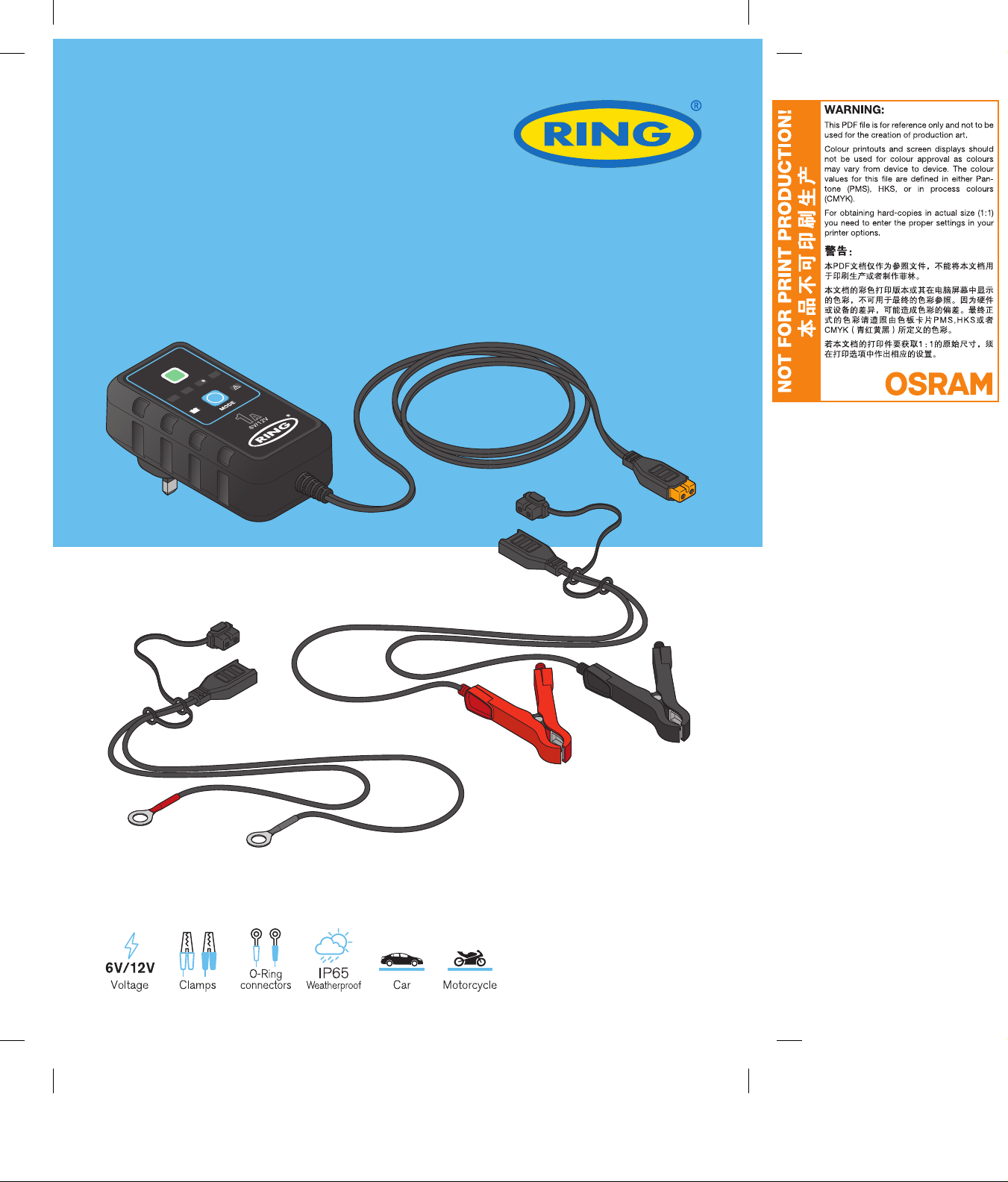

#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm
RSC901
1 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
INNOVATION
ON THE MOVE
6V 12V
12V
LFP
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 1G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 1 08.12.23 10:0208.12.23 10:02
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm

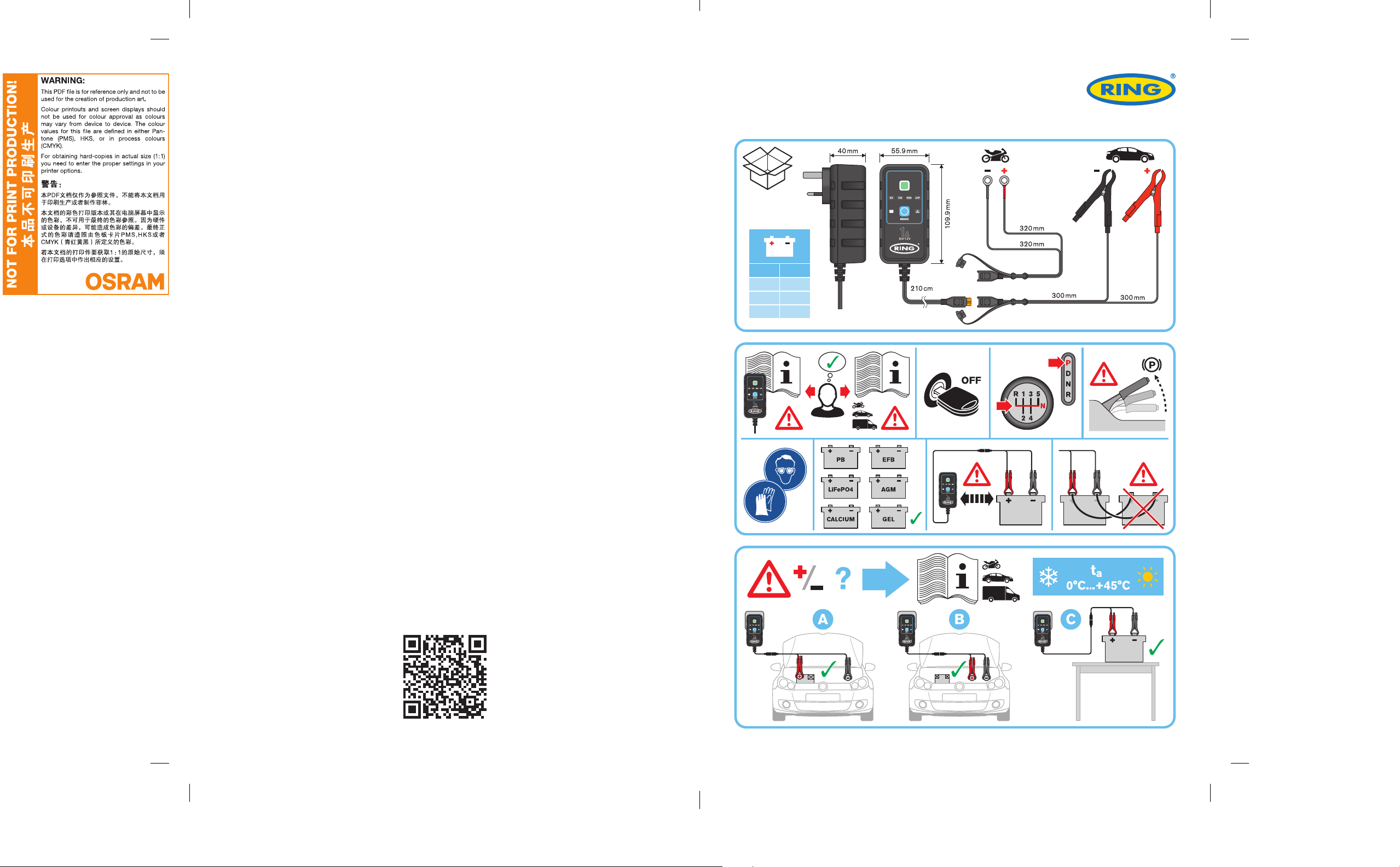

2 3
RSC901
1 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
21
6V 12V
≤ 7.4 V ≤ 14.8 V
≤ 1 A ≤ 1 A
≤ 25 Ah ≤ 25 Ah
Warnings
DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING
NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS VERY IMPORTANT TO READ
AND FOLLOW THESE INSTRUCTIONS CAREFULLY, EACH TIME YOU USE THE CHARGING
EQUIPMENT.
WARNING! Modern vehicles contain extensive electronic systems. You are required to check
with the vehicle manufacturer, for any specific instructions regarding the use of this type of equip-
ment on each vehicle.
Charge in a well-ventilated area.
DO NOT operate near flammable liquids or gases.
DO NOT touch the clamps together or allow to touch the chassis.
DO NOT connect the clamps via another metallic object.
DO NOT cross connect power leads from charger to battery. Ensure positive (+/RED)
is connected to positive and negative (-/BLACK) is connected to negative.
DO NOT pull the cables or clamps from the battery terminals.
DO NOT pull or carry the charger by the power cable.
DO NOT pull the plug from the socket by the cable.
DO NOT use worn or damaged cables, plugs or clamps. Any faulty item should be
immediately repaired or replaced by a qualified technician.
DO NOT use the charger for a task for which it is not designed.
DO NOT cover or obstruct the charger ventilation louvres or fan.
DO NOT at the same time charge batteries of different capacities or discharge levels.
For list of General Power Tool Safety Warnings please scan the QR code or visit:
www.ringautomotive.com/en/product-safety-documents
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 2-3
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 2-3
08.12.23 10:02
08.12.23 10:02
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm

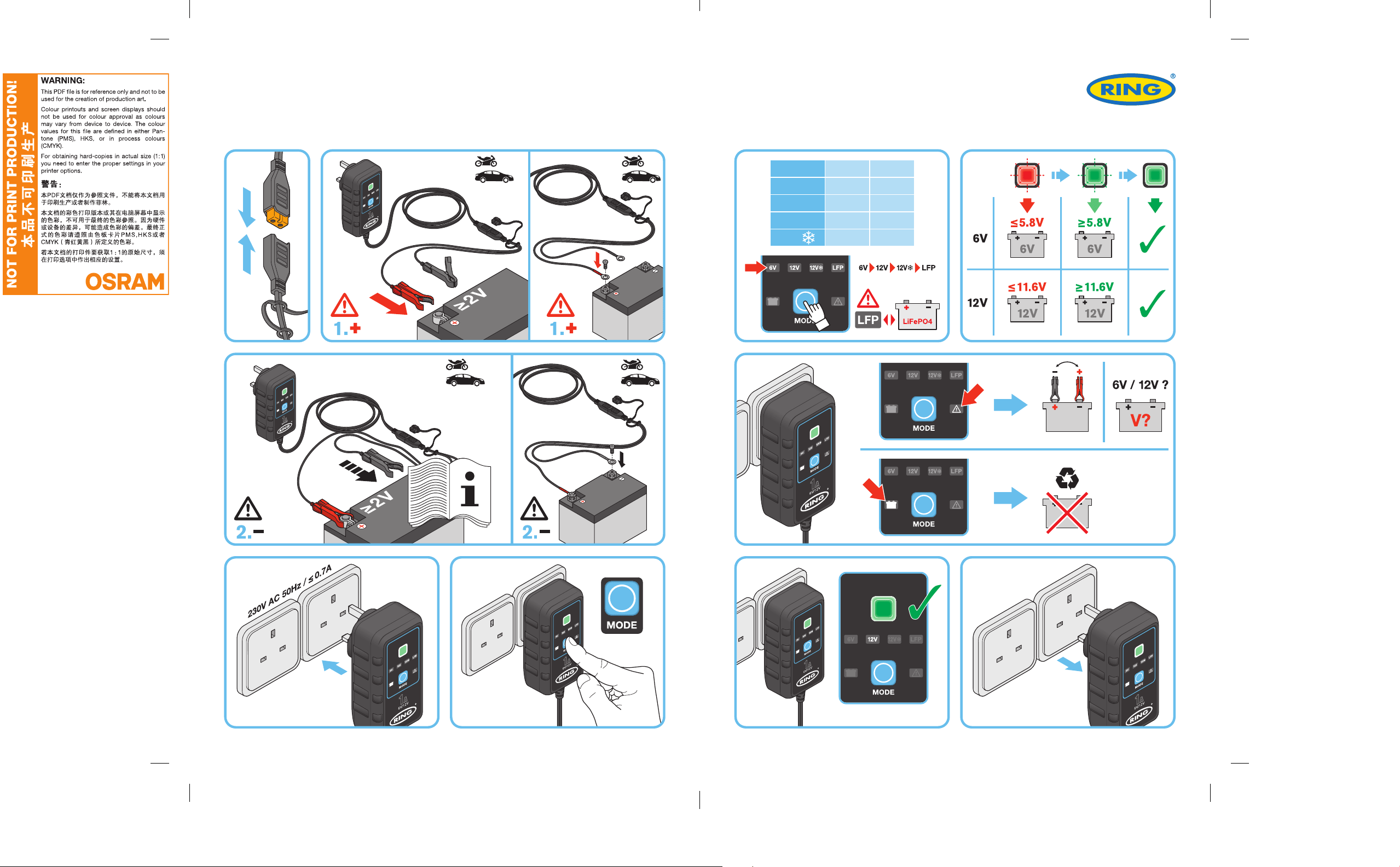

4 5
RSC901
1 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
2
3
1
4 5a
5b 5c
5d
16 V ≤ 7.4 V ≤ 1 A
16 V LFP ≤ 7.2 V ≤ 1 A
12 V ≤ 14.6 V ≤ 1 A
12 V LFP ≤ 14.4 V ≤ 1 A
12 V
≤ 14.8 V ≤ 1 A
65e
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 4-5
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 4-5
08.12.23 10:02
08.12.23 10:02
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm

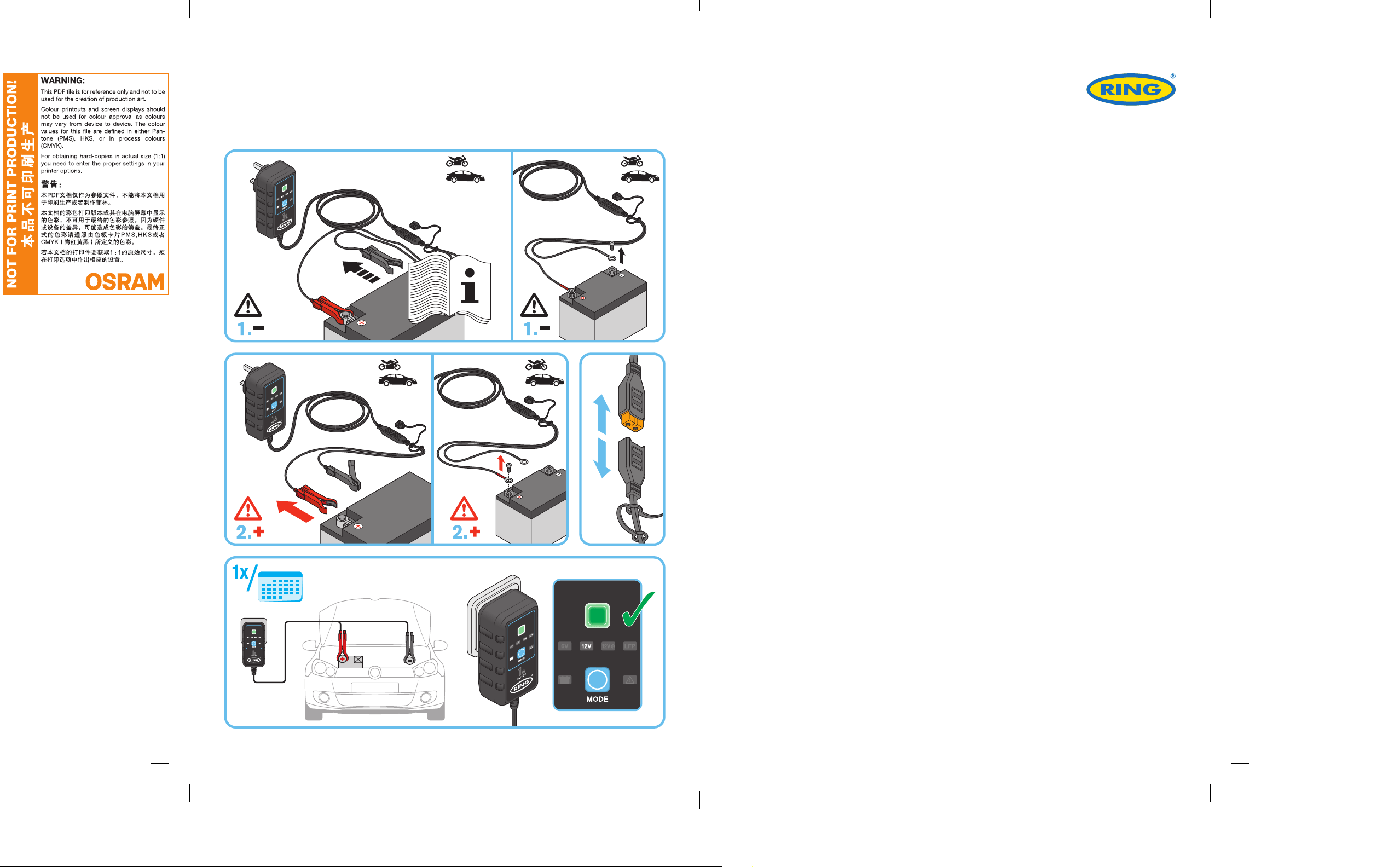

6 7
RSC901
1 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
7
8 9
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 6-7
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 6-7
08.12.23 10:02
08.12.23 10:02
#90721
Cyan Magenta Yellow Black
score dimension 148 x 210 mm
RSC901
1 A SMART
BATTERY CHARGER AND MAINTAINER
For all battery types, including lithium
G15126819
C10449058
08.12.23
Imported by
OSRAM GmbH
Nonnendammallee 44
13629 Berlin
Germany
www.osram.com
Manufactured by
Ring Automotive Limited
Volvox House, Gelderd Road,
LEEDS, LS12 6NA,
UNITED KINGDOM
Telephone +44 (0)113 213 2000
Fax +44 (0)113 231 0266
Email [email protected]
www.ringautomotive.com
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to ensure that they do not play with the appliance. For indoor use only. Charging only
rechargeable Batteries. Disconnect the supply before making or breaking the connections to the battery. WARNING: Explosive gases.
Prevent flames and sparks. Provide adequate ventilation during charging, the battery must be placed in a well ventilated area. WARNING:
Use of unauthorized parts or failure to follow maintenance Instructions may create a risk of electric shock or injury. File instructions for
future reference. Store the manual in a safe place.
Do not use
in extreme heat
Do not use
in extreme cold
No drinks/liquids No smoking/vaping Keep away from children
Do not drop
Do not expose
to moisture
Do not charge
a frozen battery
Do not touch
clamps together
Keep away from
tools and jewellery
Do not damage cables
Do not use
with damaged cable
Keep cables away
from moving parts
Do not carry by cables Risk of fire
Risk of
electric shock
Risk of
hazardous materials
Use in a well
ventilated area
Battery may
emit fumes
Surrounding items
may emit fumes
G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 8G15126819_UI_RING_Battery_Starter_RSC901_GB_MiCh_03.indd 8 08.12.23 10:0208.12.23 10:02
