MANUAL 10130 REV 4 (10/22)
$21.00
ELECTRIC MODULAR SKILLETS
MANUAL SECTION CO
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #:
___________________________
Serial #:
___________________________
Date Purchased:
_____________________
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.

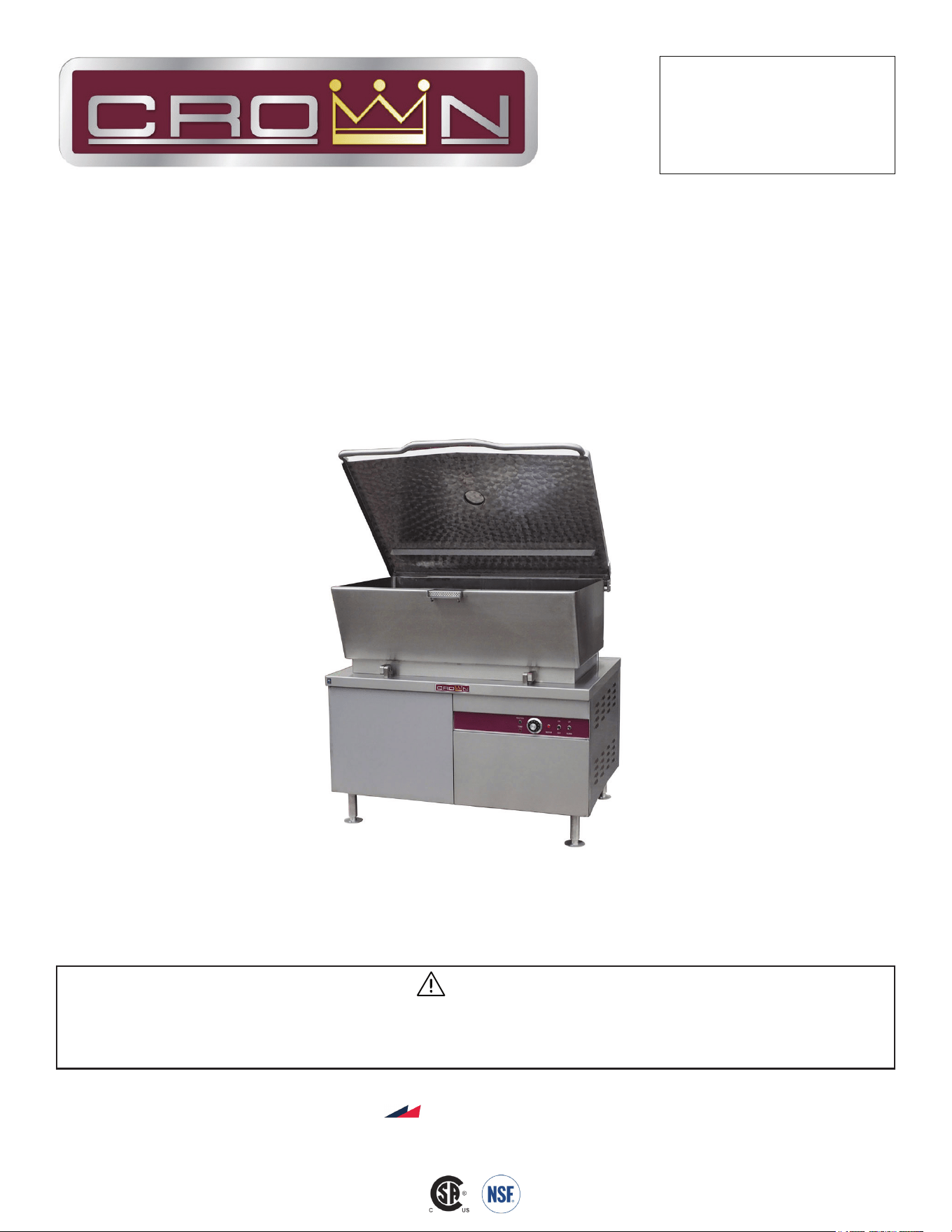

Model EMTS-60
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Electric Modular Skillets
EMTS-30, EMTS-40 & EMTS-60
Installation & Operation Manual
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
2
OF 24
Electric Modular Skillets
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
CAUTION
WARNING
NOTICE
This symbol warns of immediate hazards that will result in severe injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury, product
damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
WARNING
Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions thoroughly before installing, operating or servicing this equipment.
NOTICE
This manual should be retained for future reference.
NOTICE
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE.
Copyright © 2022 by Crown. All rights reserved. Published in the United States of America.
SPECIFICATIONS
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
WARNING
FOR YOUR SAFETY:
Do not store or use gasoline or other ammable vapors or liquids in the vicinity of this or any other appliance.
NOTICE
The appliance area MUST be kept free and clear of combustibles.
DO NOT obstruct the ow of combustion and ventilation air.
Adequate clearances MUST be maintained for servicing and proper operation.
Contact the factory, the factory representative or a local service company to perform maintenance and repairs
should the appliance malfunction. Refer to warranty terms.
NOTICE
Do not attempt to operate this unit in the event of a power failure.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
3
OF24
Electric Modular Skillets
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Important Notes For Installation and Operation .................................................................... 2
Service Connections ............................................................................................................. 4
Installation Instructions ......................................................................................................... 6
Operating Instructions ........................................................................................................... 8
Cleaning ................................................................................................................................ 10
Cooking Temperatures .......................................................................................................... 11
Maintenanc, Hydraulic System ........................................................................................... 12
Adjustments and Controls ................................................................................................... 13
Troubleshooting .................................................................................................................... 14

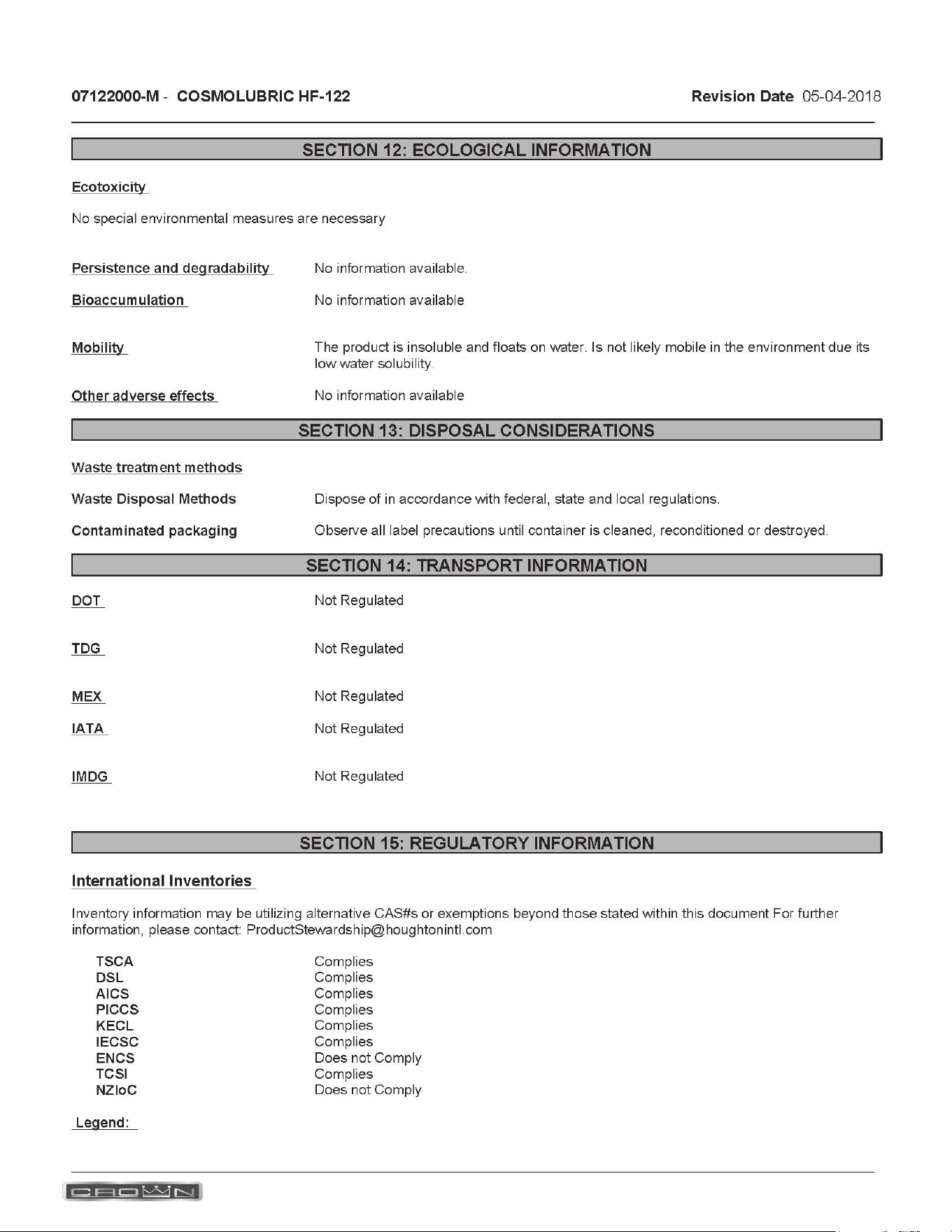

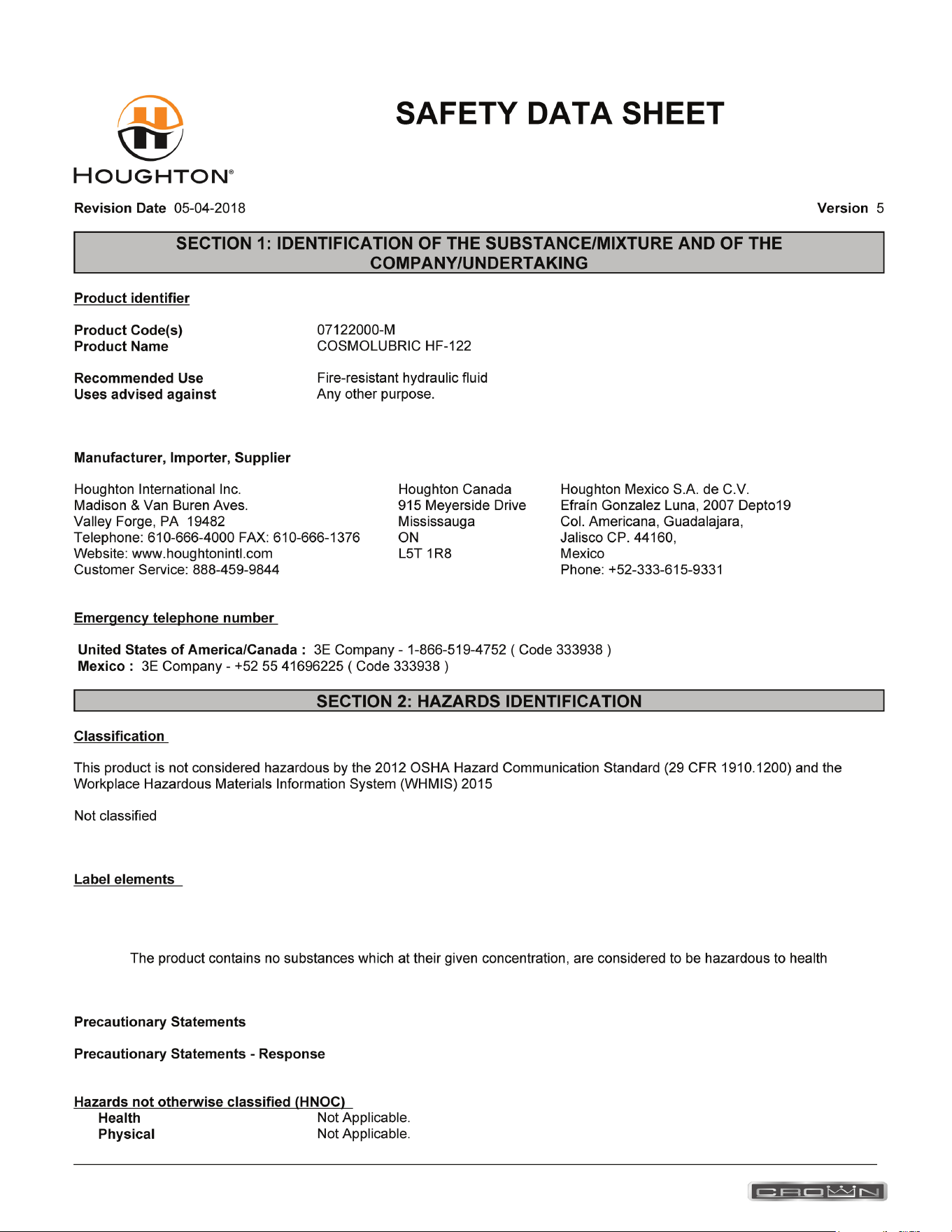

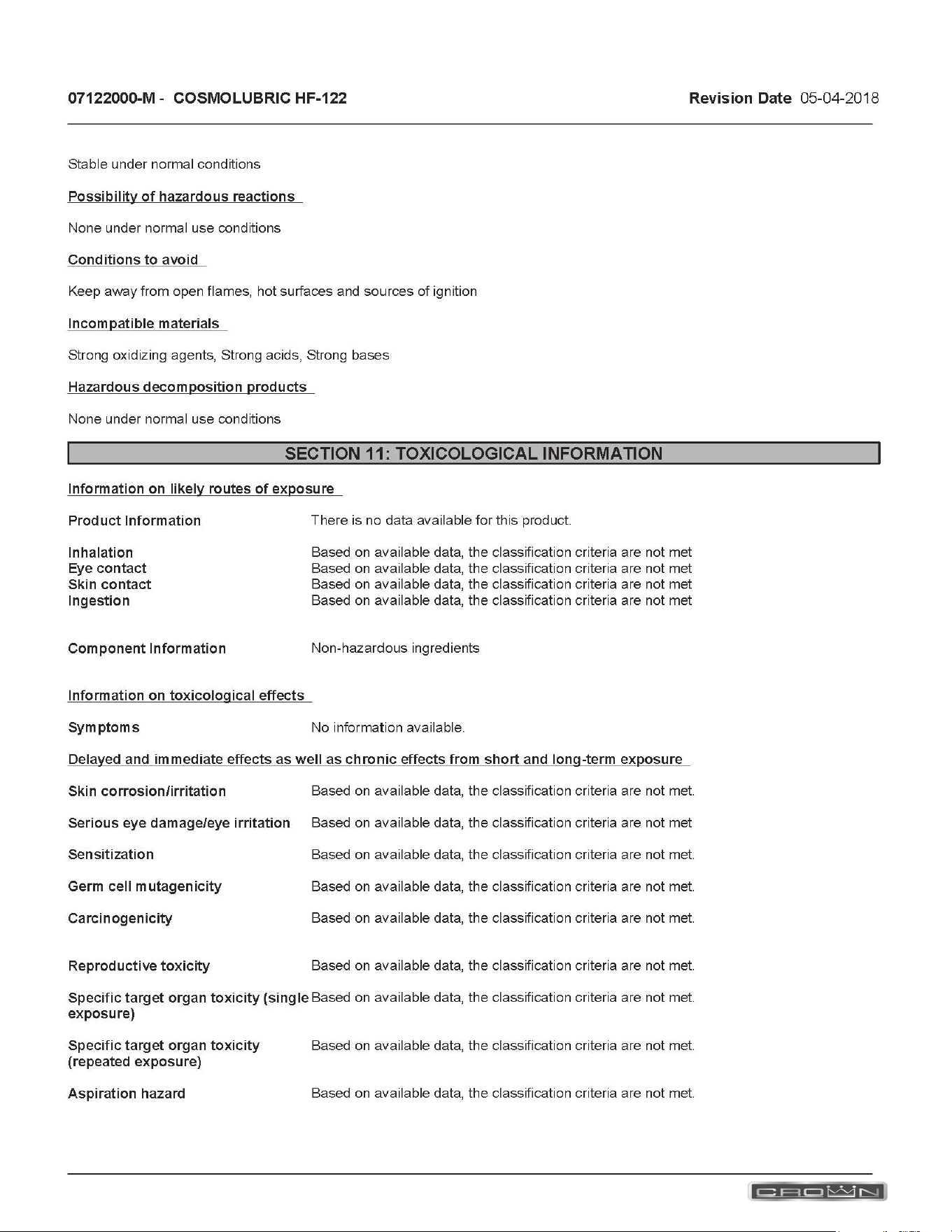

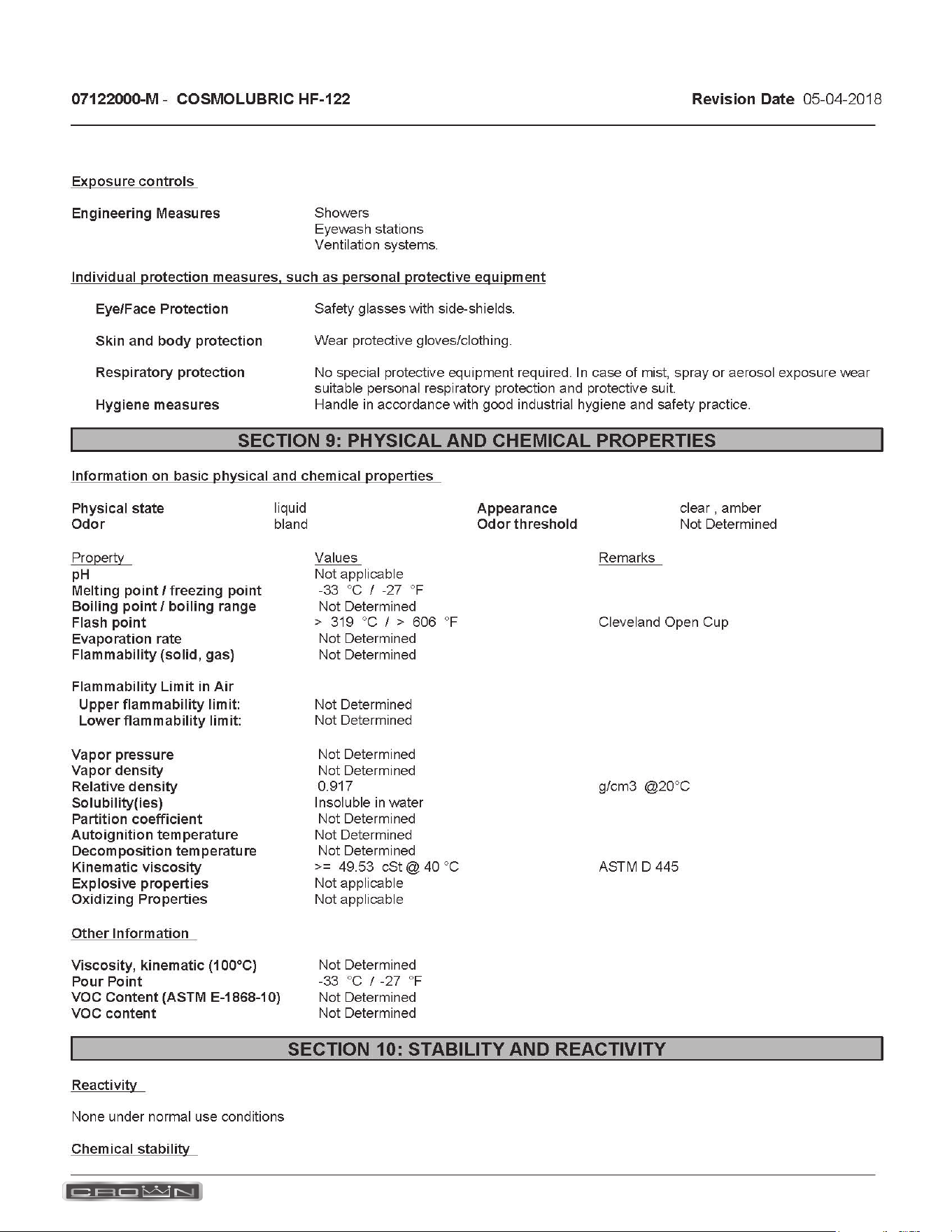

Material Safety Data Sheets ................................................................................................. 16
Table of Contents
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
4
OF 24
Electric Modular Skillets
SERVICE CONNECTIONS
Service Connections

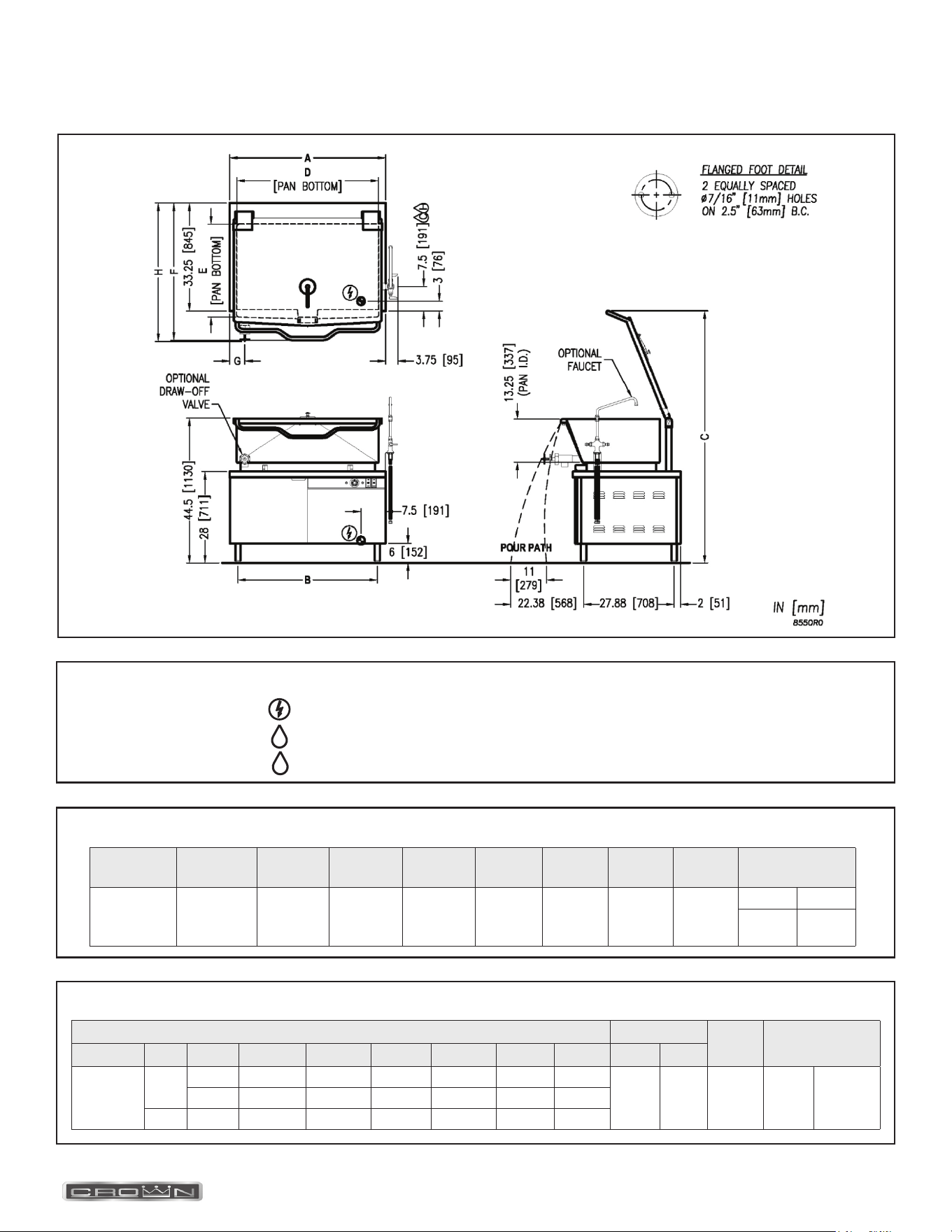

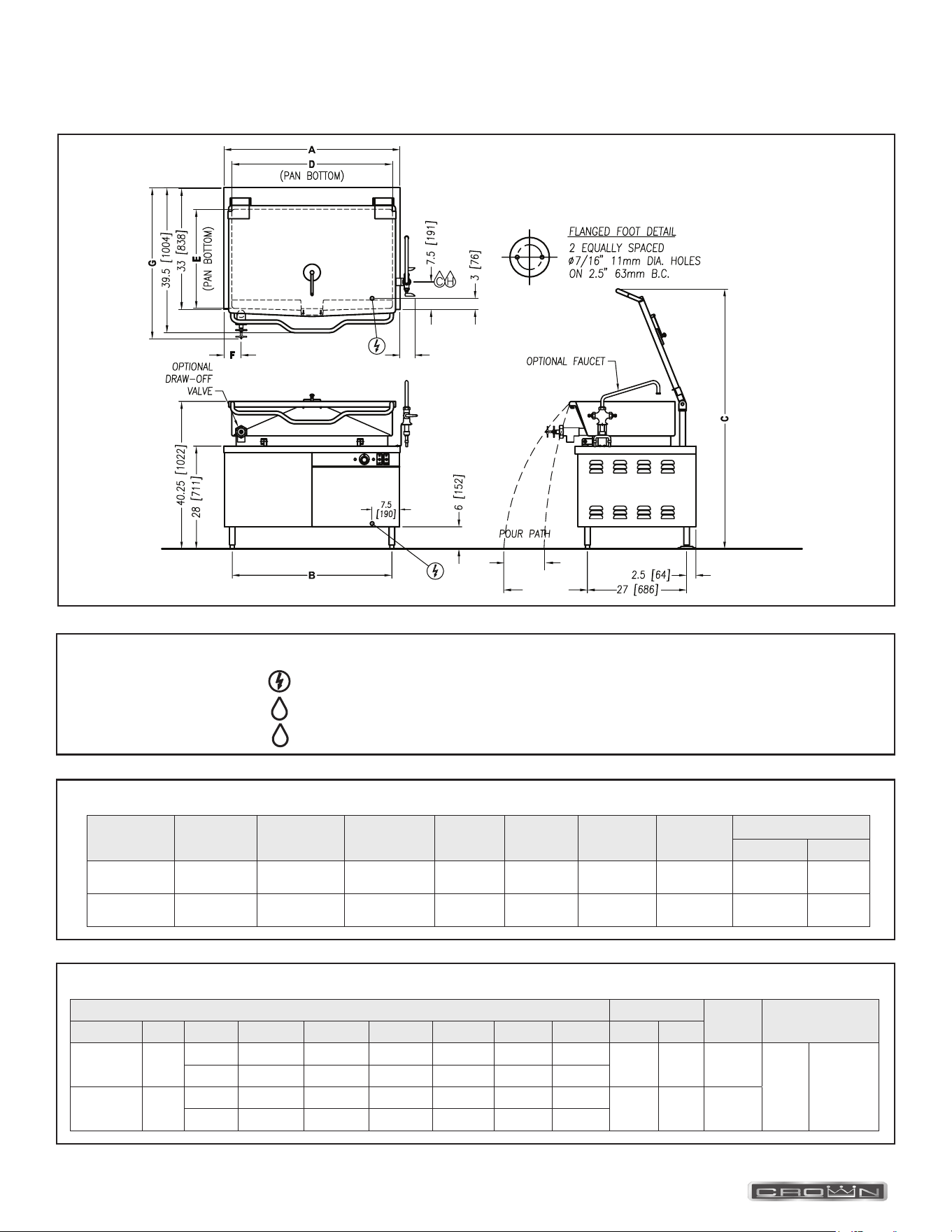

DIMENSIONS
As continued product improvement is a policy of Crown, specications are subject to change without notice.
ELECTRICAL CHARACTERISTIC AND SPECIFICATIONS
Amps Per Line Capacity
Shipping
Weight
Minimum Clearance
Model kW Phase 208V 220V 240V 380V 415V 480V Gallon Liter
EMTS-30 12
1 57.7 A 54.5 A 50.0 A N/A N/A N/A
30 114
617 lbs.
[280 kg]
SIDES
BACK
0
4” (102 mm)
3 33.3 A 31.5 A 28.9 A 18.2 A 16.7 A 14.4 A
EMTS-40 18
1 86.5 A 81.8 A 75.0 A N/A N/A N/A
40 152
770 lbs
[349 kg]
3 50.0 A 47.2 A 43.3 A 27.3 A 25.0 A 21.7 A
3.75 [95]
22.36 [568]
11
[279]
SERVICE CONNECTIONS
- Electrical connection to be as specied on data plate
- Cold Water: 3/8” O.D. tubing to optional faucet
- Hot Water: 3/8” O.D. tubing to optional faucet
C
H
Model Capacity A B C D E F
G
Ø2 Ø3
EMTS-30
30 Gallons
(114 liters)
36"
(914 mm)
30"
(762 mm)
70.875"
(1800 mm)
33.5"
(851 mm)
23.5"
(597 mm)
3.75”
(95 mm)
41.13”
(1045 mm)
46.75”
(1187 mm)
EMTS-40
40 Gallons
(152 liters)
48"
(1219 mm)
42"
(1076 mm)
70.875”
(1800 mm)
43.5"
(1105 mm)
23"
(584 mm)
4.75”
(121 mm)
41.63”
(1057 mm)
46.13”
(1172 mm)
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
5
OF24
Electric Modular Skillets
As continued product improvement is a policy of Crown, specications are subject to change without notice.
Service Connections
Model Capacity A B C D E F G H
EMTS-60
60 Gallons
(227 liters)
48”
(1219 mm)
42”
(1067 mm)
77.50”
(1969 mm)
42.88”
(1089 mm)
23”
(584 mm)
42.25”
(1073 mm)
4.75”
(121 mm)
Ø2 Ø3
42.63”
(1083 mm)
46.5”
(1181 mm)
Amps Per Line
Capacity
Shipping
Weight
Minimum Clearance
Model kW Phase 208V 220V 240V 380V 415V 480V Gallon Liter
EMTS-60
18
1 86.5 A 81.8 A 75.0 A N/A N/A N/A
27 226
845 lbs.
[384 kg]
SIDES
BACK
0
4” (102 mm)
3 50.0 A 47.2 A 43.3 A 27.3 A 25.0 A 21.7 A
27 3 75.0 A 70.9 A 65.0 A 41.0 A 37.6 A 32.5 A
DIMENSIONS
ELECTRICAL CHARACTERISTIC AND SPECIFICATIONS
SERVICE CONNECTIONS
- Electrical connection to be as specied on data plate
- Cold Water: 3/8” O.D. tubing to optional faucet
- Hot Water: 3/8” O.D. tubing to optional faucet
C
H
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
6
OF 24
Electric Modular Skillets
UNPACKING
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
Immediately after unpacking, check for possible shipping damage. If the tilting braising pan is found to be damaged,
save the packaging material and contact the carrier within 15 days of delivery.
Before installing, verify that the electrical service agrees with the specications on the rating plate located on the left
side panel as you face the front of the braising pan. If the supply and equipment requirements do not agree, contact
your dealer or Crown Food Service Equipment Ltd.
Installation Instructions
Installation
Location
The installation location must allow adequate clearances for servicing and proper operation.
A minimum front clearance of 36” and rear clearance of 4” is required.
Installation Codes and Standards
Your Crown Tilting Braising Pan must be installed in accordance with:
1. In Canada, provincial and local codes, or in the absence of local codes, with: C.S.A. C22.1 Canadian Electrical Code,
Part 1or in the U.S.A., U.L. 197 Standard.
2. In the U.S.A., state and local codes, or in absence of local codes, National Electrical Code ANSI/NFPA-70 (latest
edition).
3. ANSI NFPA Standard #96, “Vapor Removal from Cooking Equipment,” (latest edition), available from the National Fire
Protection Association, Batterymarch Park, Quincy, MA, U.S.A., 02269.
Electrical grounding must be provided in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable.
Ventilation must be provided in accordance with local codes, or in the absence of local codes, with ANSI/NFPA 96 Standard
for Ventilation and Fire Protection of Commercial Cooking Operations.
Leveling and Anchoring Tilting Braising Pan
1. Place tilting braising pan in the installation position.
2. Place a carpenter’s level on top of the braising pan and turn the adjustable feet to level braising pan side-to-side and
front-to-back.
3. Mark hole locations on the oor through the anchoring holes provided in the rear anged adjustable feet.
4. Remove tilting braising pan from installation position and drill holes in locations marked on the oor. (See Installation
Diagram on page 4.) Insert proper anchoring devices (not supplied).
5. Place tilting braising pan back in the installation position.
6. Place carpenter’s level on top of braising pan and re-level side-to-side and front-to-back.
7. Bolt and anchor tilting braising pan securely to the oor.
8. Seal bolts and anged feet with silastic or equivalent compound.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
7
OF24
Electric Modular Skillets Installation
WARNING
ELECTRICAL GROUNDING INSTRUCTIONS
This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard
and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. (120V units only).
Electrical Connection
WARNING
Before performing any maintenance disconnect the electrical power supply and place a tag at the disconnect
switch to indicate that you are working on the circuit.
The wiring compartment is located behind the control panel. Refer to Page 4 Service Connections.
1. Remove the wiring compartment cover and make electrical connections per the wiring diagram located inside the
control housing cover panel. The braising pan must be grounded in accordance with requirements of the National
Electrical Code or applicable local codes. See warning (page 6). Connection from incoming lines must be waterproof.
2. Ground skillet to terminal provided in control housing. A wiring diagram is provided and is located inside the control
cover panel.
3. Replace wiring compartment cover.
Service Connections
All internal wiring for the skillet is complete.
Make service connections as indicated on page 4 and Electrical Connections above.
If faucet is provided connect water supply and check for proper operation.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
8
OF 24
Electric Modular SkilletsOperation
Operating Instructions
WARNING
The tilting braising pan and its parts are hot. Use care when operating, cleaning and servicing the tilting braising pan.
Before First Use
Using a non-corrosive, grease-dissolving commercial cleaner, clean the protective metal oils from all surface parts and the
interior of the tilting braising pan. Follow the cleaner manufacturer’s directions. Rinse thoroughly and drain the pan. Wipe
dry with a soft clean cloth.
Controls
TILT SWITCH (UP/DOWN) ....... Push up to raise tilting braising pan; push down to lower tilting braising pan.
POWER SWITCH (ON/OFF) .... Turns power on to the lift motor. Note: It is not necessary to have the power on when
using the braising pan. Turn power on only when you intend to operate the tilt feature.
This will save energy as well as prevent the motor from overheating.
AMBER LIGHT .......................... Will light when the power is turned on to the lift motor.
THERMOSTAT .......................... Turns tilting braising pan ON and maintains set temperature by controlling power supply.
Temperature settings range from 1 to 10. (SEE COOKING GUIDELINES in this manual for
temperature range for settings 1 - 10.)
RED TEMPERATURE LIGHT .. Will light when heating elements are supplying heat to the tilting braising pan.
Start-Up Procedure
1. Ensure that the braising pan is in the DOWN position.
2. Turn THERMOSTAT dial to desired temperature. The red TEMPERATURE LIGHT will come on.
3. When braising pan has reached set temperature, the red TEMPERATURE LIGHT will go o and the heating
elements will shut o. The heating elements will cycle on and o thereafter to maintain set temperature. The red
TEMPERATURE LIGHT will be on when the heating elements are on, and o when the heating elements are o.
4. Preheat braising pan and allow it to cycle to equalize heat across the entire surface.
5. Water will boil faster with the lid down.
6. Turn THERMOSTAT to OFF when braising pan is not in use.
7. Turn power switch to motor OFF.
Daily Shutdown Procedure
1. To turn tilting braising pan OFF, turn THERMOSTAT dial to OFF.
2. To turn power to tilt motor OFF, turn power switch to OFF.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
9
OF24
Electric Modular Skillets Operation
Tilting the Braising Pan
1. DO NOT try to tilt braising pan with lid down.
2. Turn power switch to the ‘ON’ position.
3. Make sure the receiving pan is in place.
4. To tilt braising pan, push and hold TILT SWITCH in the UP mode until desired pan position has been reached. The
braising pan will empty when raised to the top tilt position.
When the braising pan is raised 5° or more, the heating elements will be turned o automatically. The braising pan will
not operate once the pan has been tilted.

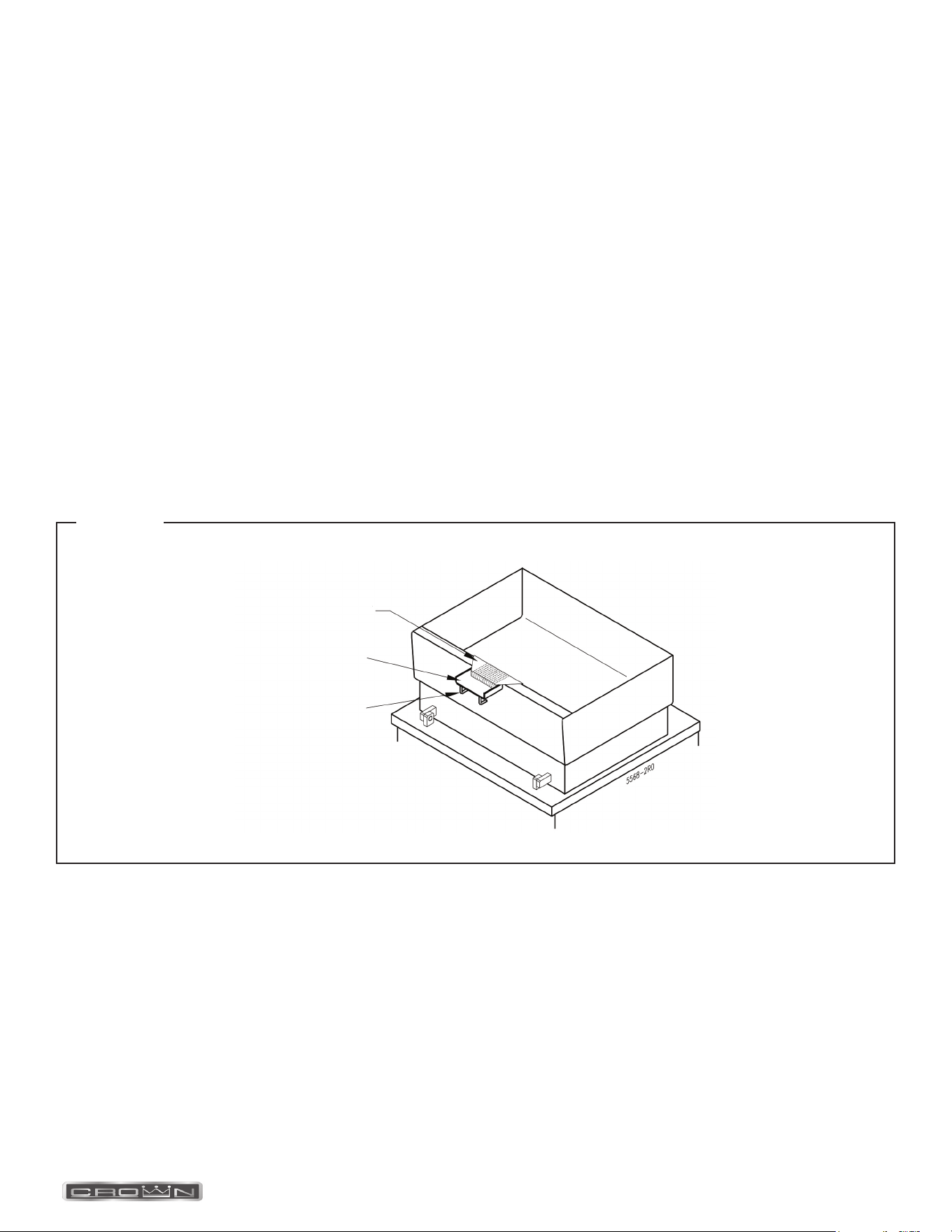

5. Food is poured through the removable strainer (Figure 1) into a food receiving pan positioned under the lip of the
pouring spout (Figure 1).
6. To lower braising pan, push and hold TILT SWITCH in the DOWN mode.
FIGURE 1
Removable Strainer
Pour Spout
Receiving Pan
Support
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
10
OF 24
Electric Modular SkilletsCleaning
Cleaning
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
After each use, allow the tilting braising pan to cool before cleaning. Keep exposed cleanable areas of the tilting braising
pan clean at all times. Do not get water in electrical box or on any electrical component.
1. Thoroughly wash pan, pouring spout, (see Figure 1) lid and exterior surfaces with mild detergent and warm water.
If necessary, soak pan to remove food that is stuck to pan surface. Rinse thoroughly and wipe dry with a soft clean
cloth.
2. Clean removable strainer and receiving pan support with mild detergent and warm water. Rinse thoroughly and wipe
dry with a soft clean cloth.
WARNING
The appliance and its parts are hot. Use care when operating, cleaning and servicing the skillet.
CAUTION
Do not use cleaning agents that are corrosive.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
11
OF24
Electric Modular Skillets
Cooking Temperatures
Cooking Method Temperature (°F) Thermostat Setting
Simmering 200 Maximum 1 - 4
Sautéing 225 - 275 5 - 6
Searing 300 - 350 7 - 8
Frying 325 - 375 8 - 9
Grilling 350 - 450 9 - 10
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
12
OF 24
Electric Modular SkilletsMaintenance
Maintenance
NOTICE
Contact the factory, factory representative or local service company to perform maintenance and repairs.
WARNING
Disconnect electrical power supply and place a tag at the disconnect switch to indicate that you are working on
the circuit before performing any maintenance.
WARNING
The tilting braising pan and its parts are hot. Use care when operating, cleaning and servicing the tilting braising pan.
Hydraulic System
Service
The hydraulic system has been adjusted and tested at the factory and no further adjustment should be needed. If the unit
fails to operate properly, all service work must be performed by a qualied service agent.
Maintenance
1. Hot oil in the Hydraulic System is one of the primary causes of poor operation. When the tilt system is not in use turn
power switch o.
2. Inspect hydraulic hoses for wear and aging.
3. Check that uid levels are kept full.
4. To replace oil, ll through ller breather.
5. Use proper oil as specied by factory. TYPE: AWH32 or equivalent.
6. Set up regular schedule for checking the oil temperature, hydraulic hoses and keeping the equipment clean. A thick
layer of dirt acts as an insulation and prevents the hydraulic system from cooling properly.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
13
OF24
Electric Modular Skillets Maintenance
Adjustments and Controls
Adjust Pan Speed
There are three controls available on this power unit. The rst is an adjustable relief valve mounted into the custom
aluminum manifold block. The other two control the linear speed of the actuator.
Relief Valve
The relief valve is located underneath an aluminum hexagon cover on the side of the custom manifold block. This relief
valve is factory set to 825 P.S.I. and locked and should not be adjusted.
If adjustments are necessary, remove the hexagon cover which will give access to the relief valve screw. With the
pump running, and with a suitable at blade style screwdriver, rotate the screw clockwise to increase pressure, and
anti clockwise to decrease pressure. While this operation is being carried out some oil will leak down the threads of the
adjusting screw.
To obtain the pressure required, a pressure gauge will have to be located in the circuit. The best location is on the
cylinder hose. To set the pressure, energize the solenoid to extend the cylinder fully and thus “deadhead” the system. The
pressure can be set as indicated above. When adjustment is complete, replace the hexagon cover. This will seal the relief
valve area. The actual factory set pressure is noted on the label and should not be exceeded as this aects the HP draw
on the electric motor.
Flow Control
!
IMPORTANT !
It should be noted that if the cylinder speed is restricted by the ow control valves, the balance of oil not
delivered to the cylinder will go over the relief @ 825 P.S.I. which will cause unwanted heat in the reservoir.
There are two ow control valves mounted on the power unit and located on the solenoid valve subplate. The ow
control valves will restrict the capacity of oil passing through them when the knurled knob is screwed in - in a clockwise
direction. This action will reduce the linear speed of the cylinder. Turning the ow control valve adjustment in the opposite
direction - anti clockwise, will increase the speed of the cylinder. One ow control valve (right side) will allow adjustment
of the extension speed (travel speed should be set at minimum 20 seconds), the other (left side) the retraction speed.
(Retraction speed should be set at minimum 10 seconds).
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
14
OF 24
Electric Modular SkilletsTroubleshooting
Troubleshooting
Braising Pan
Heating Elements Do Not Come On
1. Power supply not “ON”.
2. Pan not in down position.
3. Defective limit switch.
4. Defective thermostat.
5. Defective elements or loose terminals.
6. Defective contactors.
Braising Pan Will Not Operate (Up or Down)
1. Power supply not “ON”.
2. Defective UP/DOWN switch.
3. SEE TROUBLESHOOTING - HYDRAULICS (below).
Troubleshooting - Hydraulics
Dirty Oil
1. Components not properly cleaned after servicing.
2. Inadequate screening in ll pipe.
3. Air breather left o.
4. Filter dirty or ruptured.
Foaming Oil
1. Return of tank line not below uid level.
2. Fluid contamination.
3. Suction leak to pump.
Moisture In Oil
1. Fill pipes left open.
2. Moisture in cans used to replace oil in tank.
3. Extreme temperature dierential.
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
15
OF24
Electric Modular Skillets
Overheating of System
1. Continuous operation at relief setting.
2. Excessive slippage or internal leakage.
3. Fluid viscosity too high or low.
4. Hose I.D. too small causing high velocity.
5. Improper air circulation around reservoir.
6. System relief valve set too high.
7. Power unit operating in direct sunlight or ambient temperature is too high.
Pump Makes Excessive Noise
1. Check for vacuum leaks in suction line.
2. Vacuum leak at pump shaft seal.
3. Check alignment with drive mechanism. Misalignment will cause wear and subsequent high noise level operation.
4. Relief valve set too high.
5. Aeration of uids in reservoir (return line above uid level).
6. Worn cam ring, damaged gear or faulty bearing.
7. Reversed rotation.
8. Plugged lines.
9. Oil viscosity too high or temperature too low.
10. Loose or worn pump parts.
11. Pump housing bolts loose or not properly torqued.
Solenoid Valves
1. Voltage too low.
2. Short circuit, open connection.
3. Wrong voltage.
4. Foreign matter in uid causing valves to stick or plug.
Troubleshooting
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
16
OF 24
Electric Modular SkilletsMaterial Safety Data Sheets

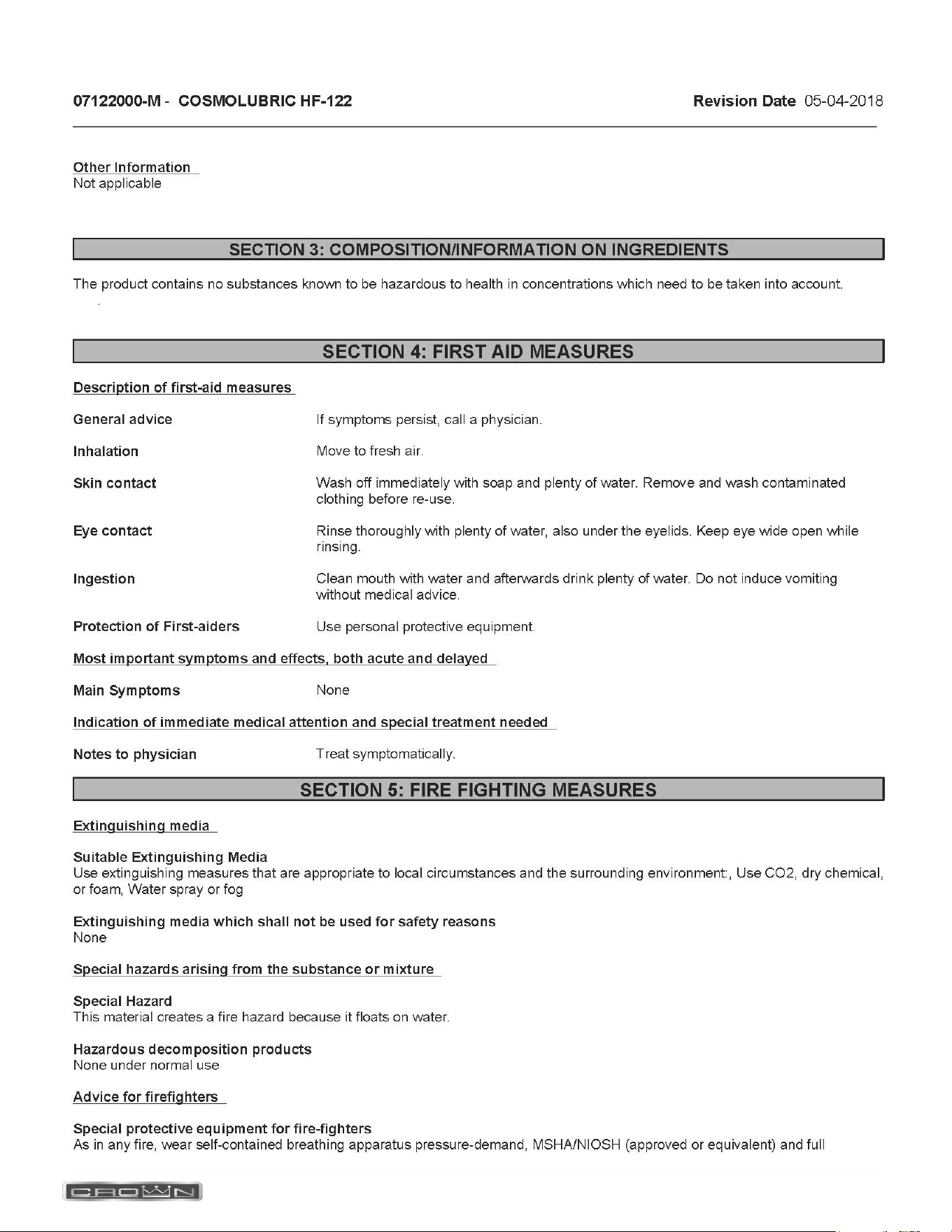

INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
17
OF24
Electric Modular Skillets Material Safety Data Sheets

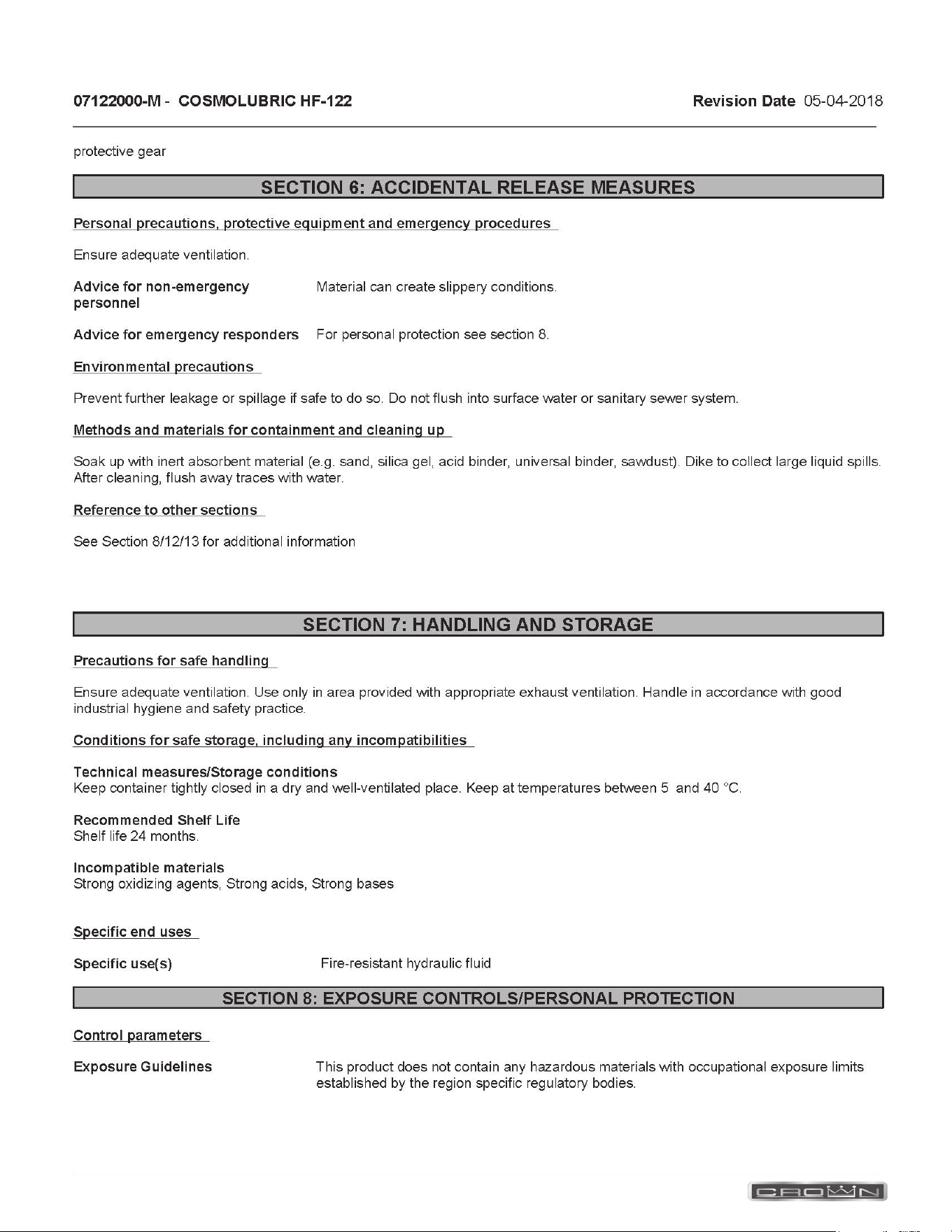

INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
18
OF 24
Electric Modular SkilletsMaterial Safety Data Sheets
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
19
OF24
Electric Modular Skillets Material Safety Data Sheets
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
20
OF 24
Electric Modular SkilletsMaterial Safety Data Sheets
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
21
OF24
Electric Modular Skillets Material Safety Data Sheets

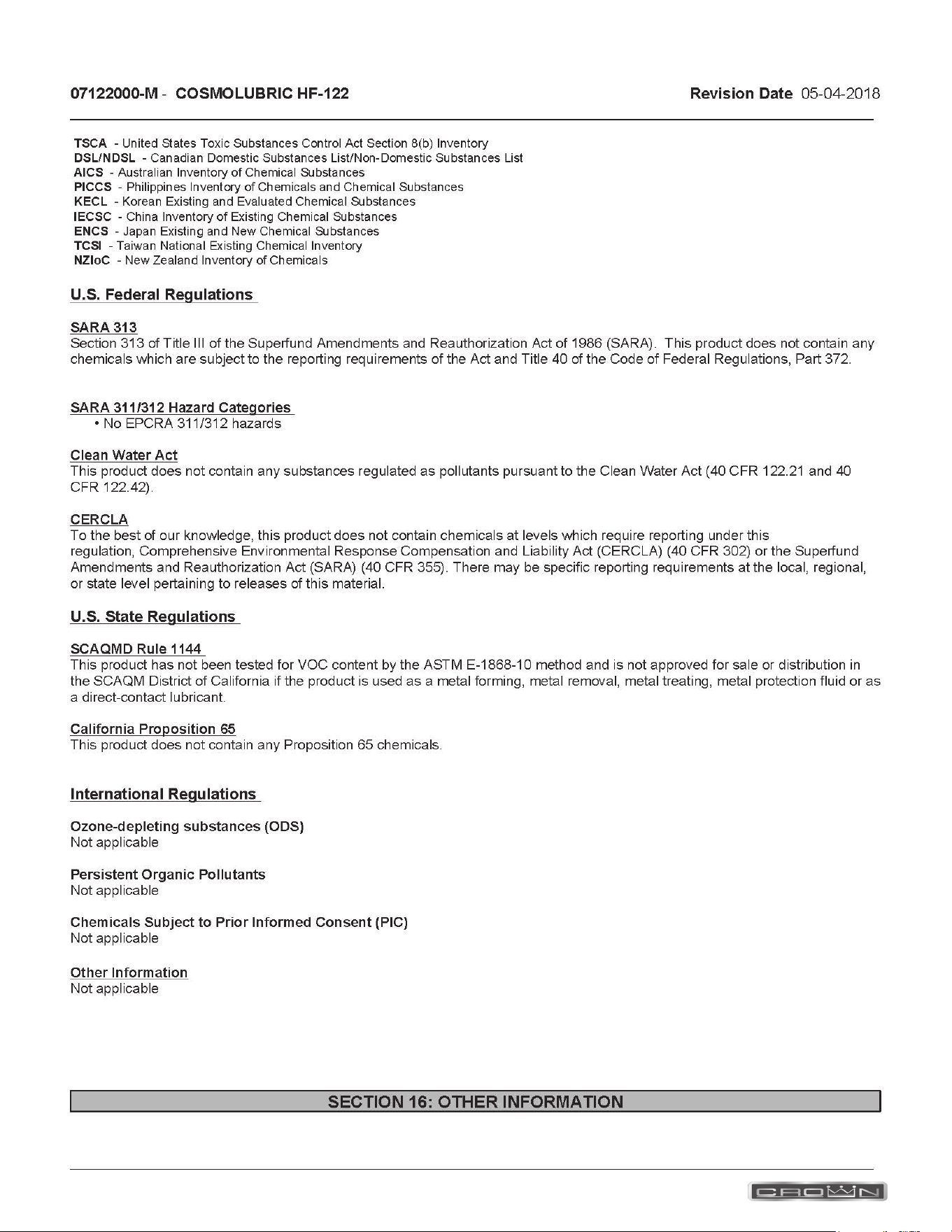

INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
22
OF 24
Electric Modular SkilletsMaterial Safety Data Sheets

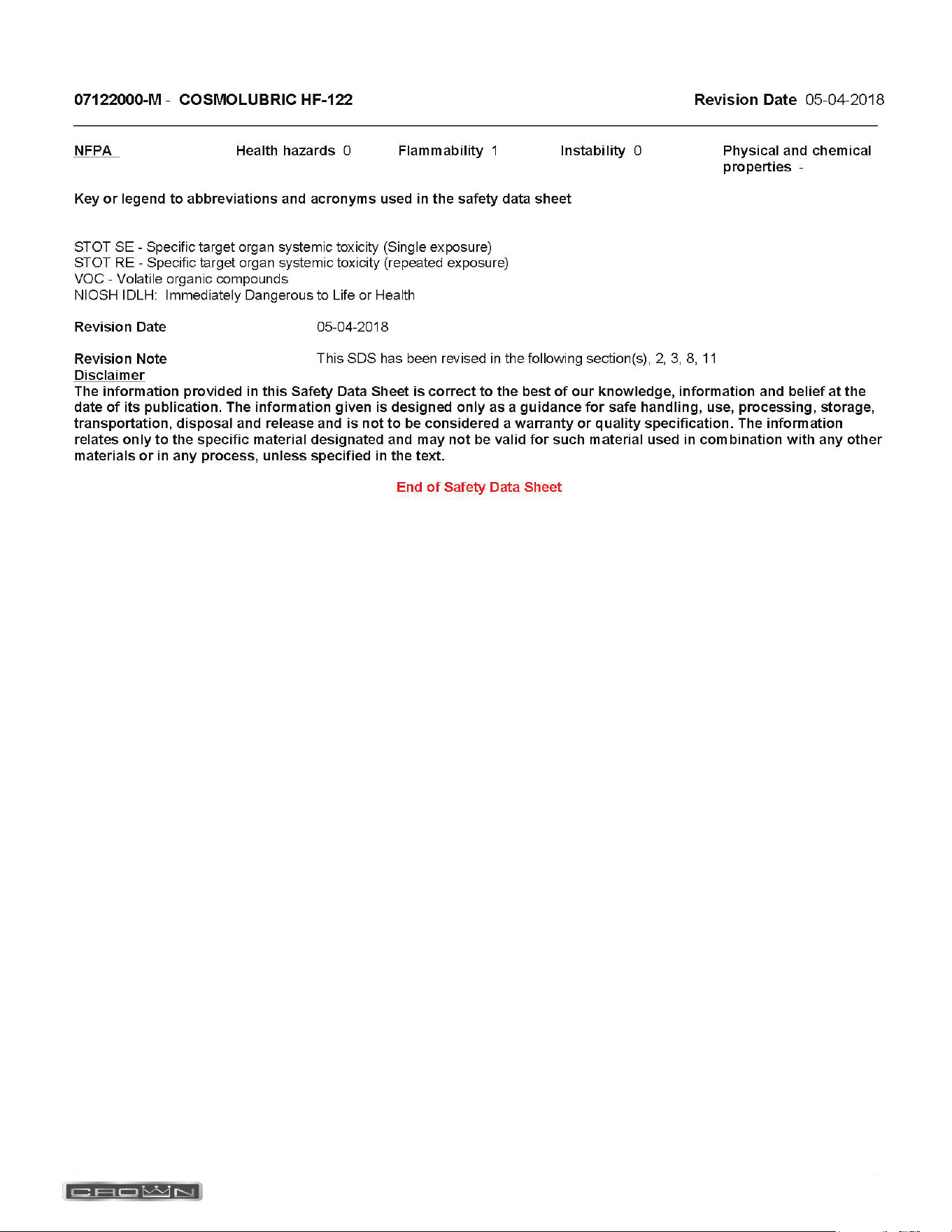

INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
23
OF24
Electric Modular Skillets Material Safety Data Sheets
INSTALLATION & OPERATION MANUAL 10130 REV 4 (10/22)
PAGE
24
OF 24
Electric Modular Skillets
EMTS-30, EMTS-40 & EMTS-60
Electric Modular Skillets
A product with the Crown name incorporates the best in durability and low maintenance. We all recognize, however,
that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance.
When service is needed, contact a Crown Authorized Service Agency, or your dealer. To avoid confusion, always refer
to the model number, serial number, and type of your appliance.
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
