Repair Manual
Model:VEFFD3018RISL
VEFFD3316RISL
The first edition of
The first edition of
directory
1. Product features and characteristics
2. Product appearance structure
3. The main technical parameters of the product
4. Instructions for the operation of the product functions
5. Electrical schematics and wiring diagrams
6. Control principles, parameters and detection methods
7. Refrigeration principle and line cycle diagram
8. Instructions for the removal of the main components
9. Typical fault judgment and troubleshooting

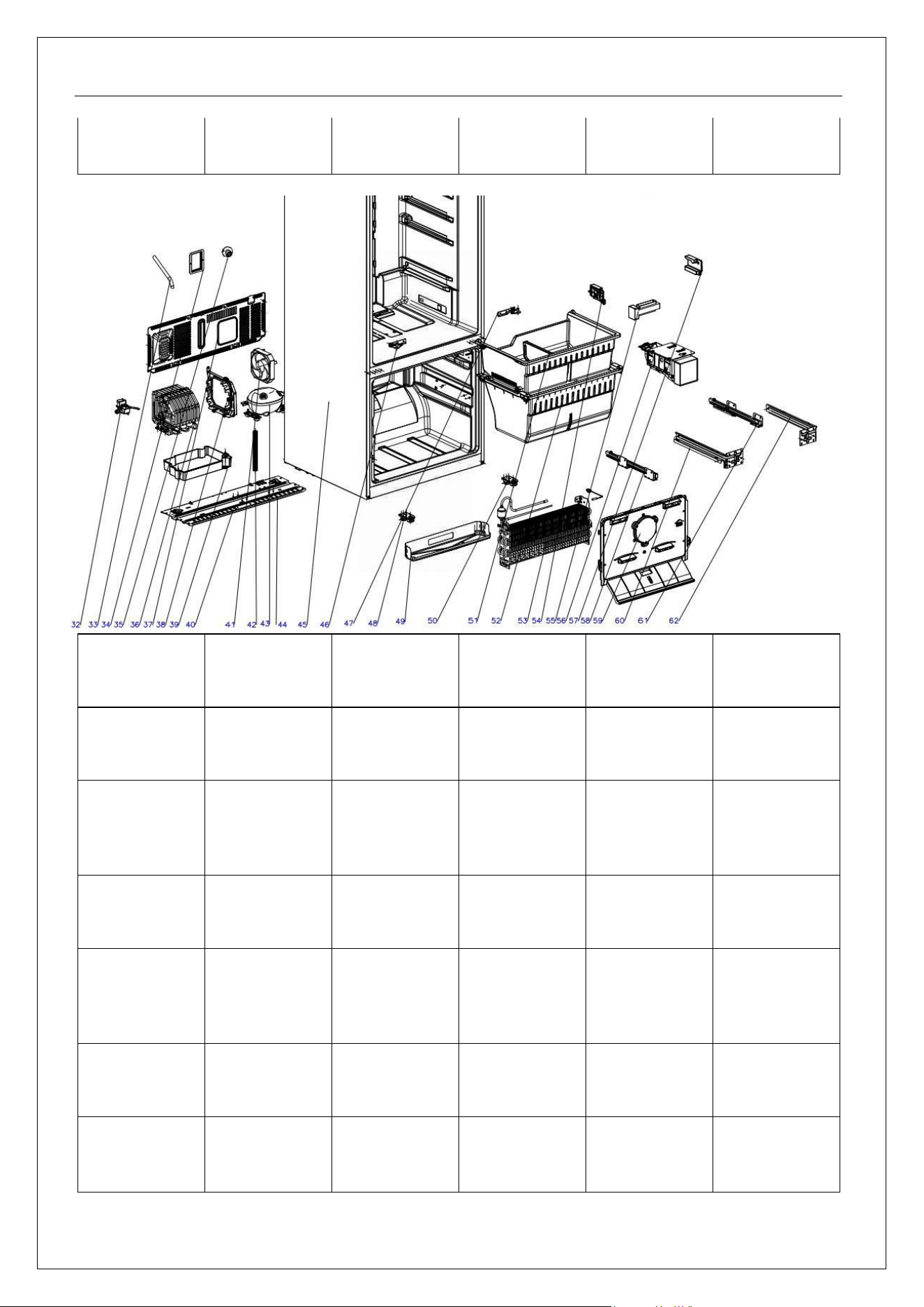

10. Product breakdown chart and parts schedule
The first edition of
Chapter 1: Product features and features
1.Refrigerant R600a and foamingagents are hydrocarbons that do not destroythe ozone layer and do not
produce a greenhouse effect. The freezer automatically defrosts, eliminating the hassle of manual
defrosting.
2.Setfrozen,energysaving,noisereductionandothertechnologiesinone,throughtheoptimizationofrefrigeration
systems,energy-savingpurposes,andminimizenoise.
3.Anti-mold antibacterial removable door seal, clean and hygienic, easy to clean.
4.Metal hinge system, solid and beautiful, can achieve automatic closing, door opening limits.
The first edition of
Chapter 2: Product appearance structure
The first edition of
Fridge
sensor
Sensor
Freezer
sensor
Sensor

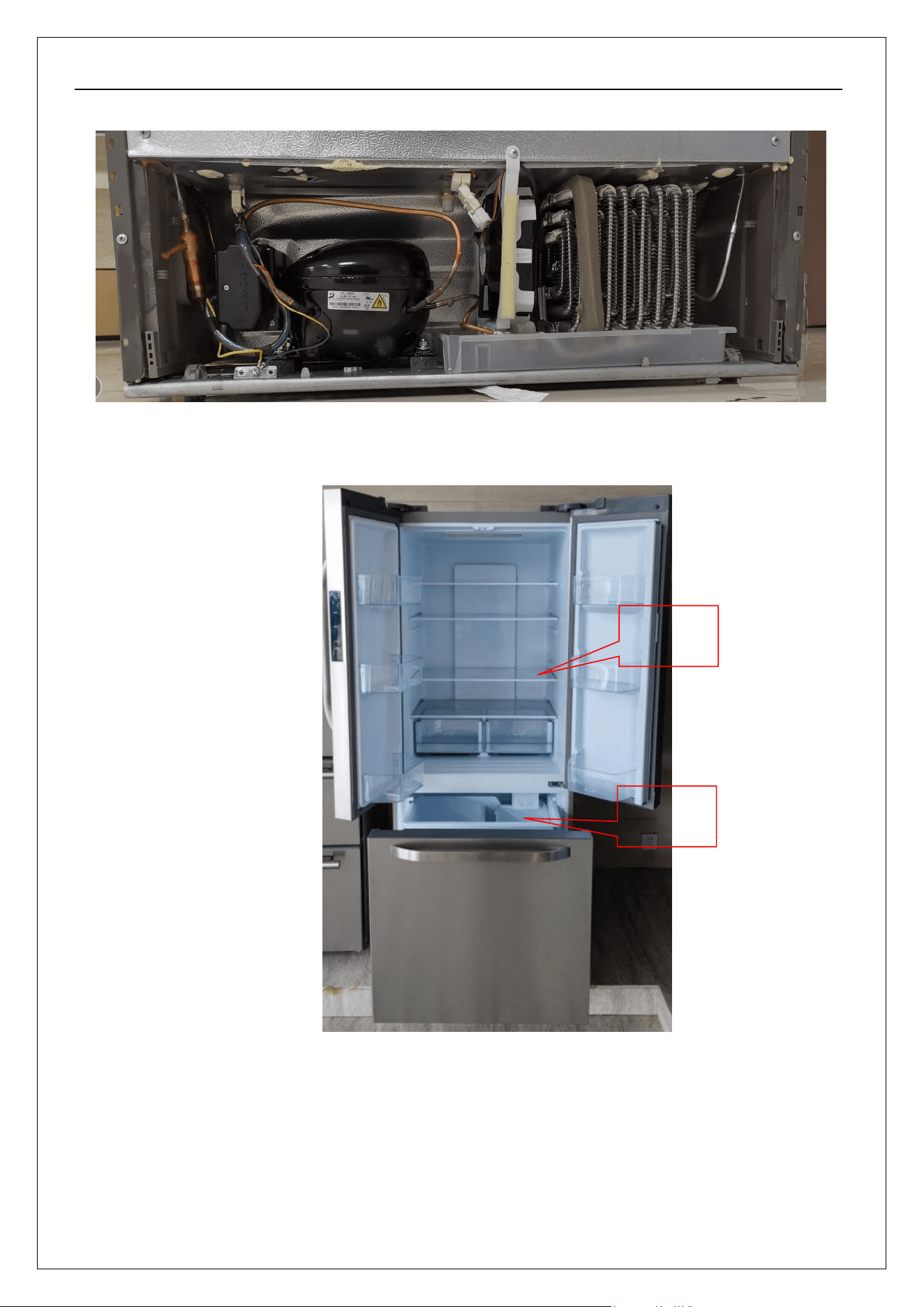

Compressor warehouse picture
Refrigeration sensor / refrigeration sensor location
description
The first edition of

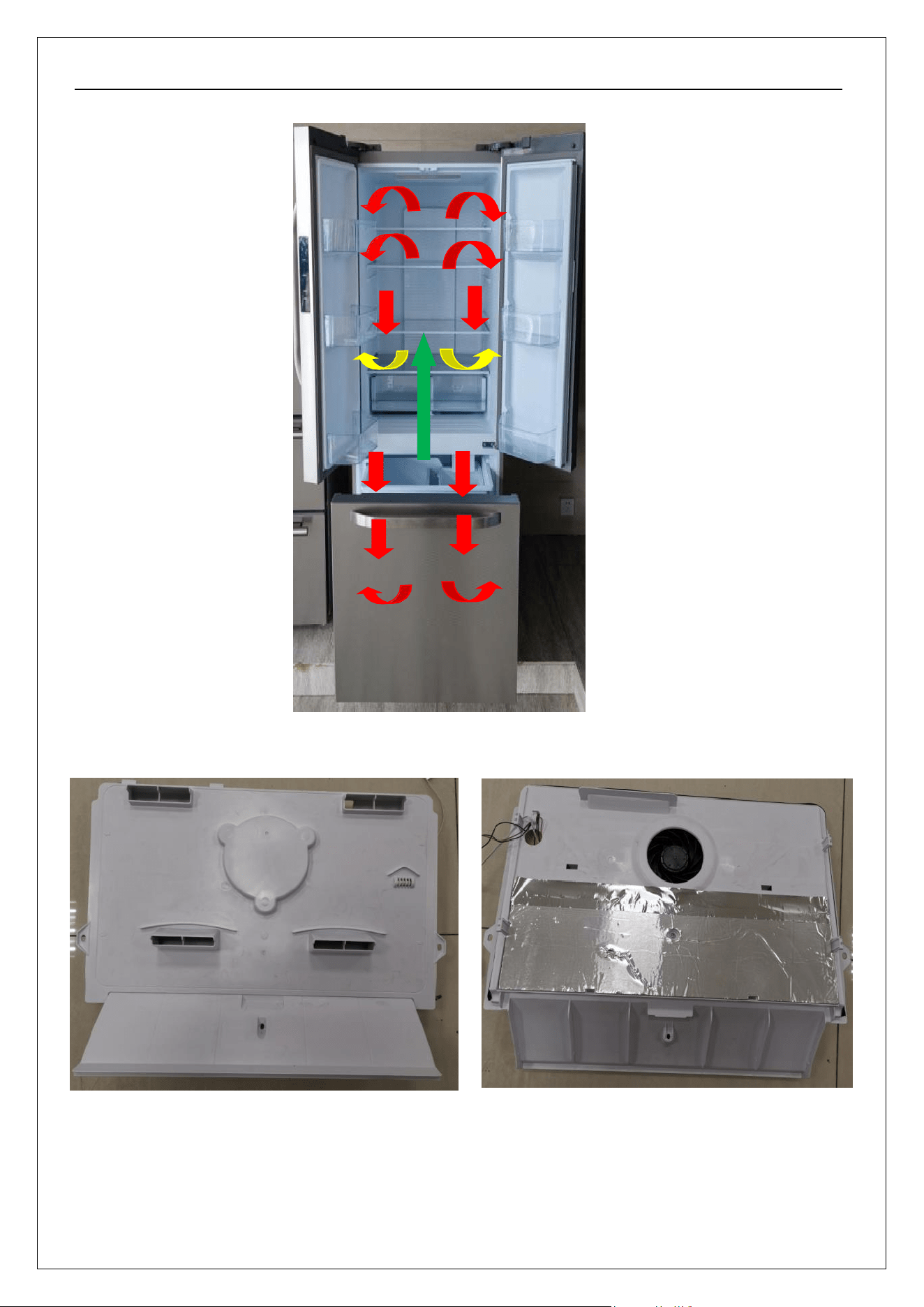

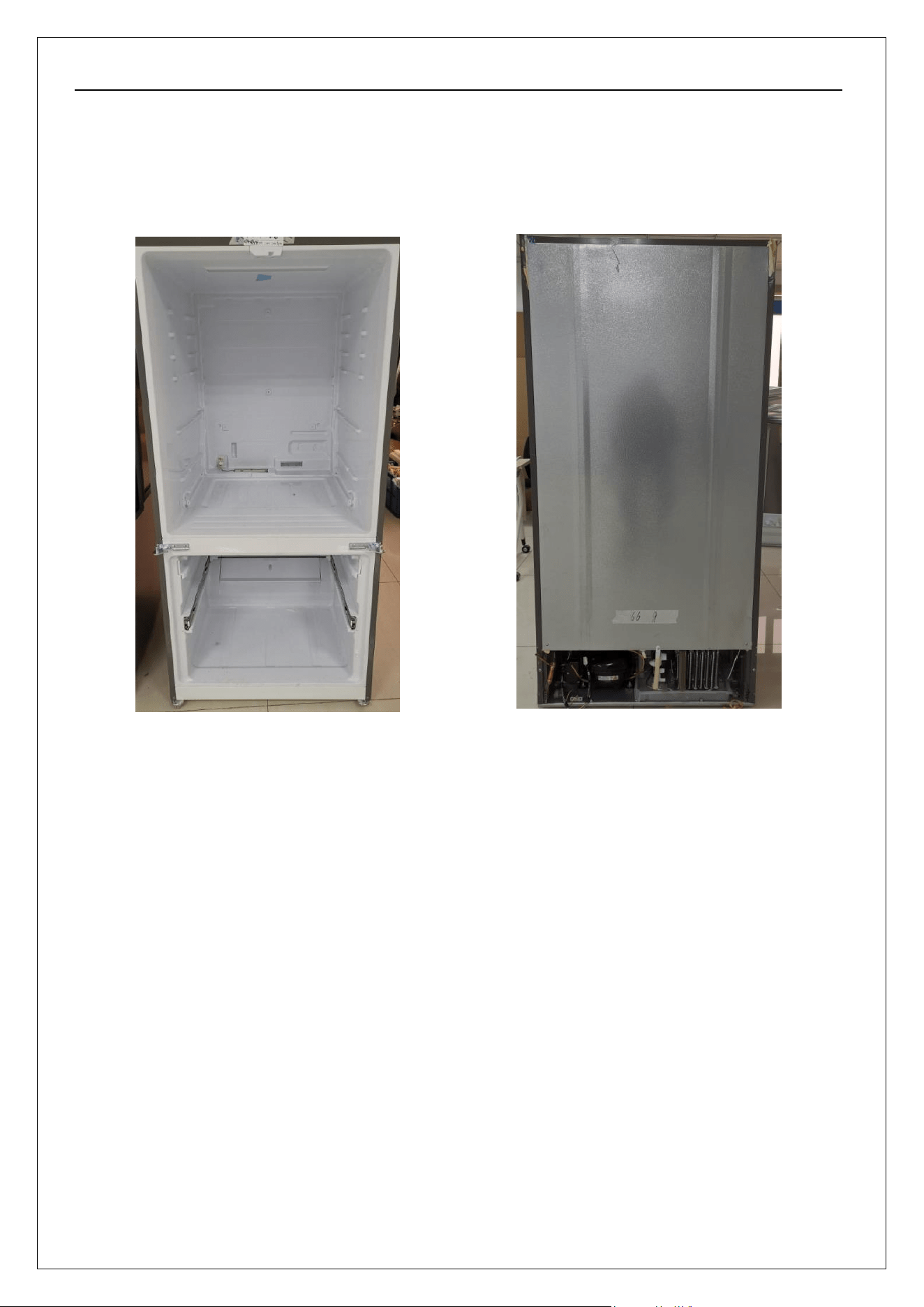

Each room wind road towards
Freezing air duct back cover
Freezing air duct front cover
The first edition of

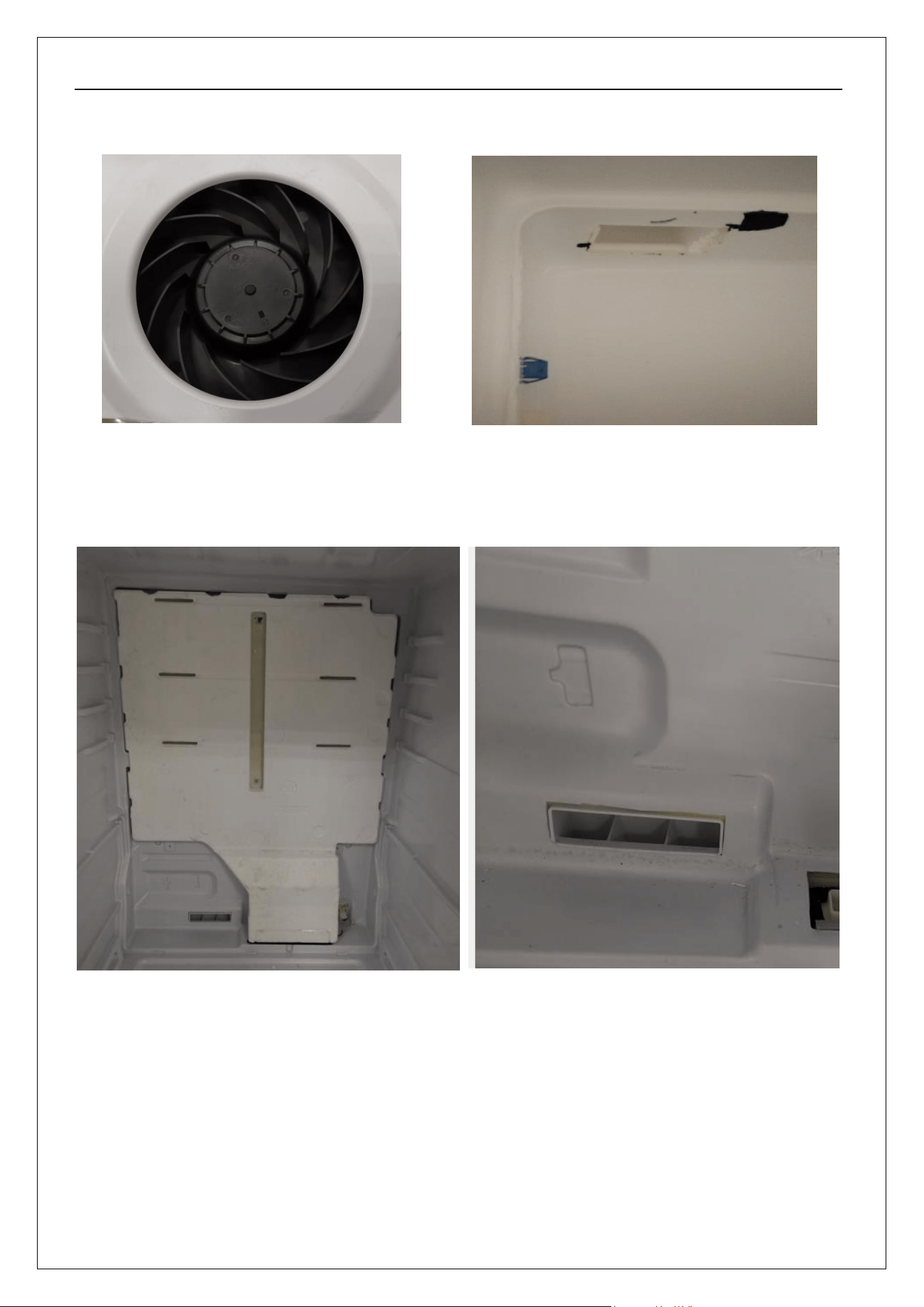

Refrigerator fan motor Freezer → air supply outlet of fridge
Refrigeration room air duct
Refrigeration room back to the air vent
The first edition of

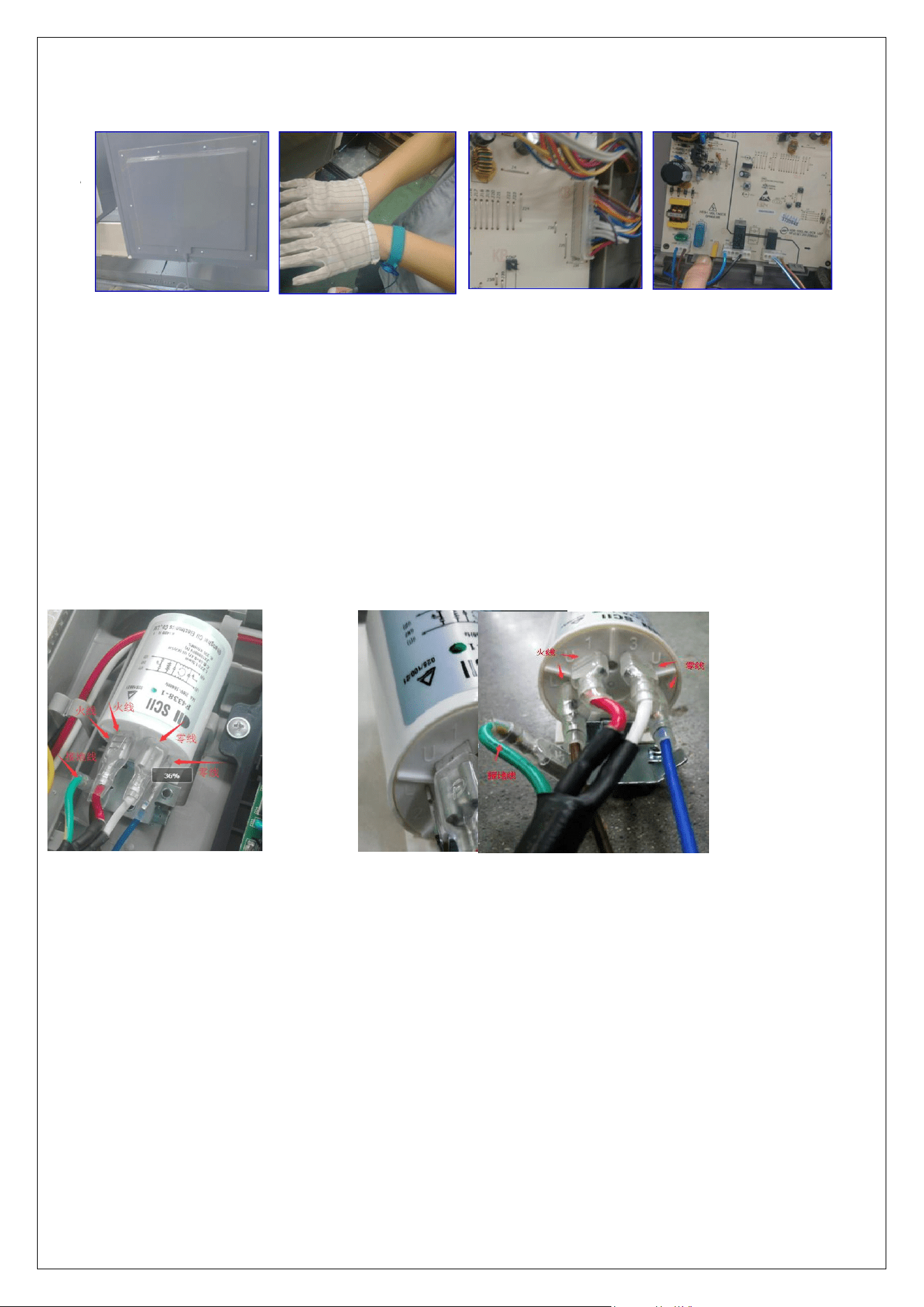

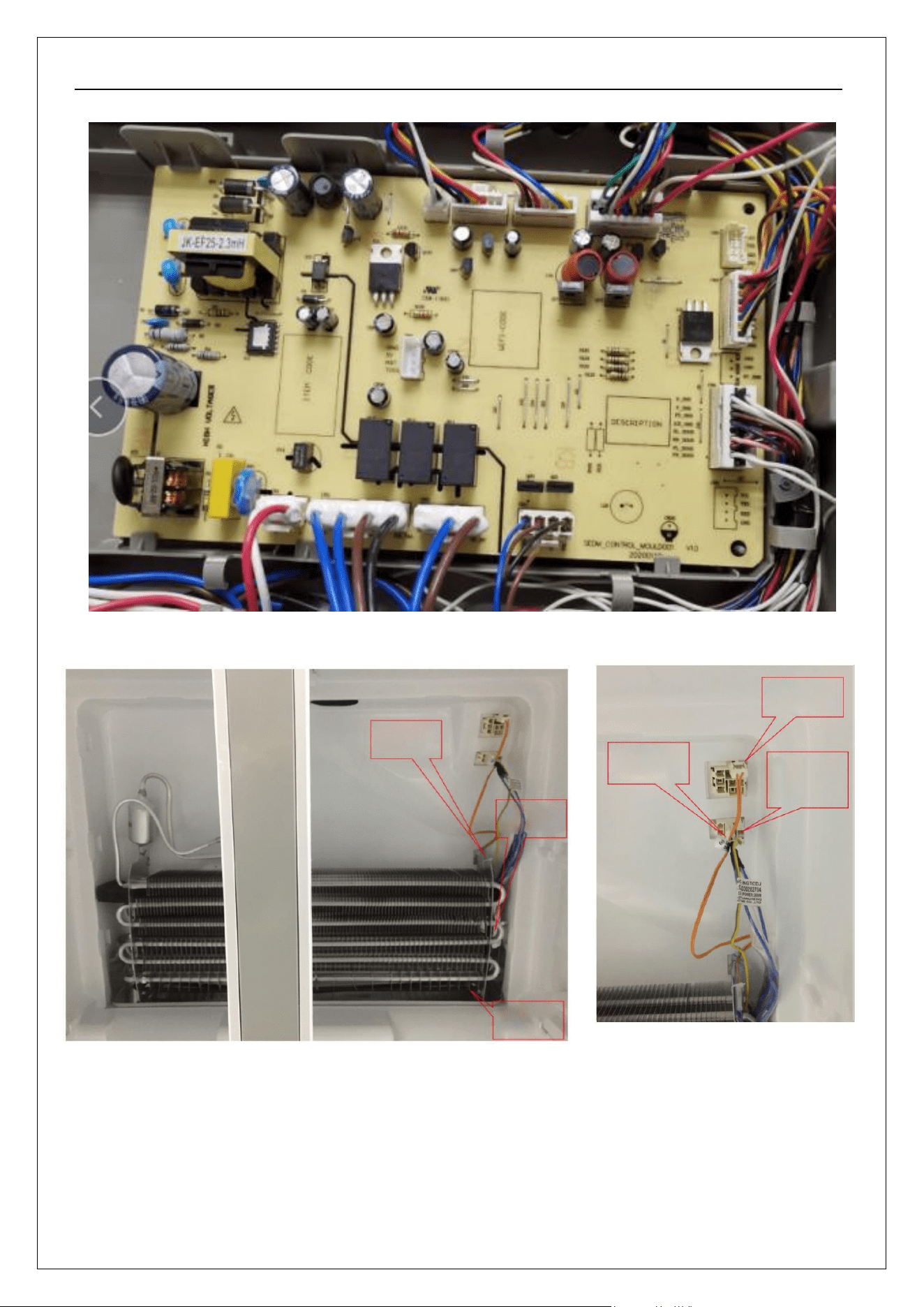

PCB board
The first edition of

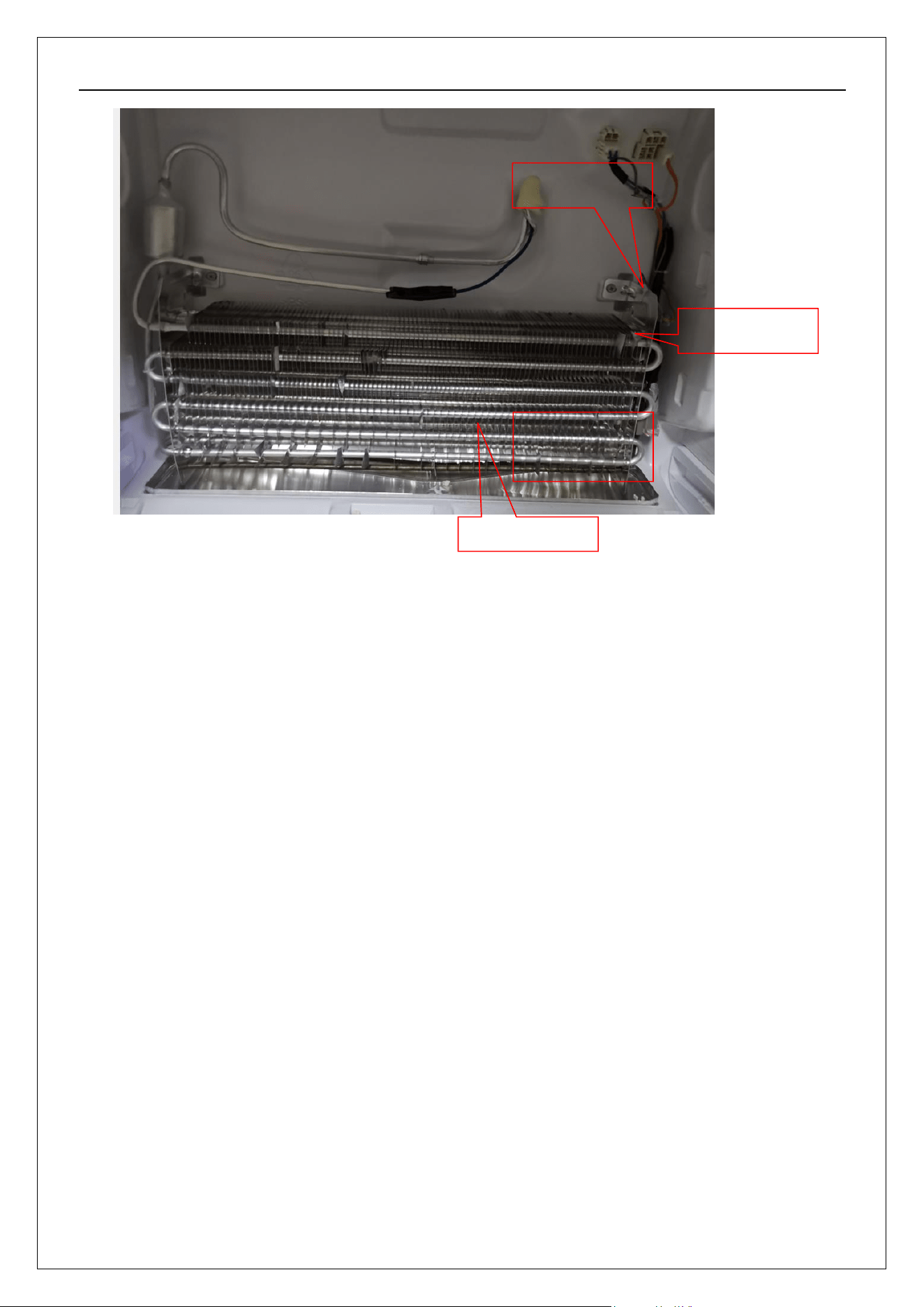

Frozen evaporator
Freezer defrost
sensor
Freezer defrost fuse
Freezer defrost
heater
The first edition of
Chapter 3: Key technical parameters of the product
Total
volume (L).
513
Origin
China
Production
identification time
/
Freezer (L).
153
Product
platform code
W756
The number of
cabinets installed
/
Refrigerator
(L).
360
ERP product
code
/
Dimensions W*D*H
(mm).
759mm*742mm
*
1780mm
Change
greenhouse
(L).
/
The color of
the product
Customer-
specified
Package size
W*D*H(mm).
820mm*775m
m*
1845mm
Door
structure
Door panel
material
Stainless steel
steel door
handle
Clear handle
Star symbol
End cover
of the
door
gray
The color of the
door panel
( membrane
number ).
Dazzling steel
Door shelves
GPPS
Box
structure
Box bile /
door bile
HIPS, white
Lights
LED
Fruit box
HIPS
Fruit box
cover
HIPS(white)and
tempered glass
Freezer
drawers
HIPS, white
Evaporator
structure
Fin-type
evaporator
Transparent
color
GPPS,
aquamarine
blue
Glass shelf
Injection and
tempered
glass
Net weight (kg).
100.5
Wine rack
material
—
The type of
fresh retainer
-
Gross weight (kg).
110.5
performa
nce
Climate
type
SN/N/ST/T
Rated voltage
(V).
115V
Refrigeration
capacity (kg/12h).
/
Whether to
compensate
automatically
not
Rated
frequency (Hz).
60HZ
Change the
greenhouse
temperature range
(
-
Standard
power
consumption
1.13kW·h/24h
Current (A).
/
Refrigerant
R600a
The first edition of
Chapter 4: Instructions for the operation of the product function
The keys and LED display layout in the human-machine interface are shown in the figure below (the
key icon may not match the actual):
1, display
●When you first power on, ring the power-on ringtone and enter the normal operation display
●Normal operation display digital display area: there is a freezer failure after three hours to display the
fault code, touch any key to exit the fault display, other faults do not show the dominant;
●Display control normal operation, no door opening action, no key operation 20 seconds after the display goes
out, each time there is an opening action, or there is a key operation, the display returns to normal display, there is a
freezer failure, the first three hours of hidden display,3 hours after the dominant display, but not very bright,
accompanied by the display of the screen, touch any key exit fault display, other faults are hidden display.
2, Celsius conversion
Press and hold mode (MODE) about 5S,can be converted to display;
3, child lock mode
●In a non-locked state, hold down the Lock child key (LOCK) continuously for3 seconds, enter the lock state, ring
the lock beep, and the lock icon appears as
Locked state;
The first edition of
-20 -21
-2
●In the locked state, hold down the lock child key (LOCK)continuously for3 seconds, enter the non-locked
state, the unlock beep sound, the lock icon appears as unlocked state.
The following keystrokes must be performed in a non-locked state. If you operate in a locked state, the lock icon
flashes to prompt.
4, refrigerator temperature setting and cold room switch function
● The temperature of the freezer is set
Press the "FRIDGE"button and the temperature is set
In the following
order
Fahrenheit (sf):38 36 34 32 43 41 39 38
The default temperature is 38 degrees F(3 degrees C).
● The freezer is closed/open
When refrigeration is on, press and hold the "FRIDGE" button 5Suntil you hear a beep and enter the
refrigeration shutdown state, and when the refrigeration is turned off, press and hold the "FRIDGE" button
until you hear a beep and exit the refrigeration shutdown state. The freezer temperature setting returns
to the temperature between the refrigeration shutdowns and goes into normal operating mode.
5, freezer temperature setting
Press the Freeze (FREEZER) button and the temperature is set in the following order:
Celsius (℃
）：
-19 -22 -23 -15 -16 -17 -18
Fahrenheit (℉）： -4 -6 -8 -10 5 4 2 0 -2
Default temperature -2 degrees F(-19 degrees C).
6, holidays, frozen, cold
Each time you press the Mode key, holiday, freeze, freeze, and speed cold, cool, no cycle setting, set
or cancel any mode, the icon lights up/off to select/cancel the mode. When setting the holiday mode,
the refrigeration automatically sets 6 degrees C,thefreezer automatically sets to - 15 degrees C,when
exiting holiday mode, the set temperature of thefreezer and freezer automatically returns to the set
temperature before the smart mode, when setting the cold mode, the refrigeration automatically sets 0
degrees C,and when the cold mode is exited, the temperature set by the freezer automatically returns to
the set temperature before the cold mode.
7, refrigerator door opening prompt and open the door alarm
When the refrigerator door opens and does not close for 1 minute, the buzzer alarm (three sounds)is
raised, followed by three sounds every 30 seconds until the refrigerator and freezer door is closed;
The first edition of
8, power-off memory
After the refrigerator is powered off, the re-powering is still working according to the set state before the
power failure;

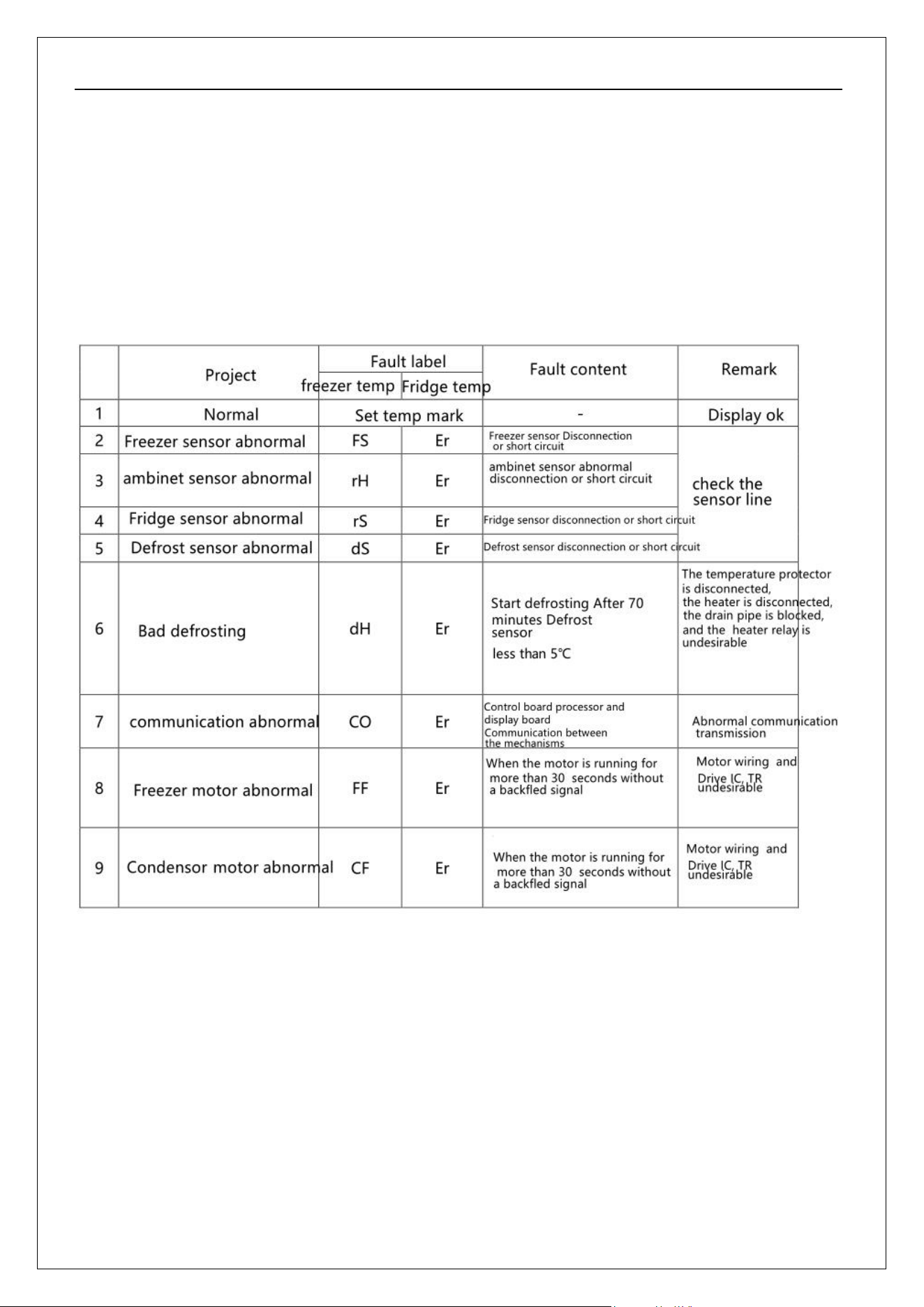

9, fault tips
When the display has the following fault, the refrigerator has a fault, some of the fault state
refrigerator can still be cooled, but should contact repair as soon as possible to achieve optimal
operation of the refrigerator.
The first edition of
Chapter 5: Electrical schematics and wiring diagrams

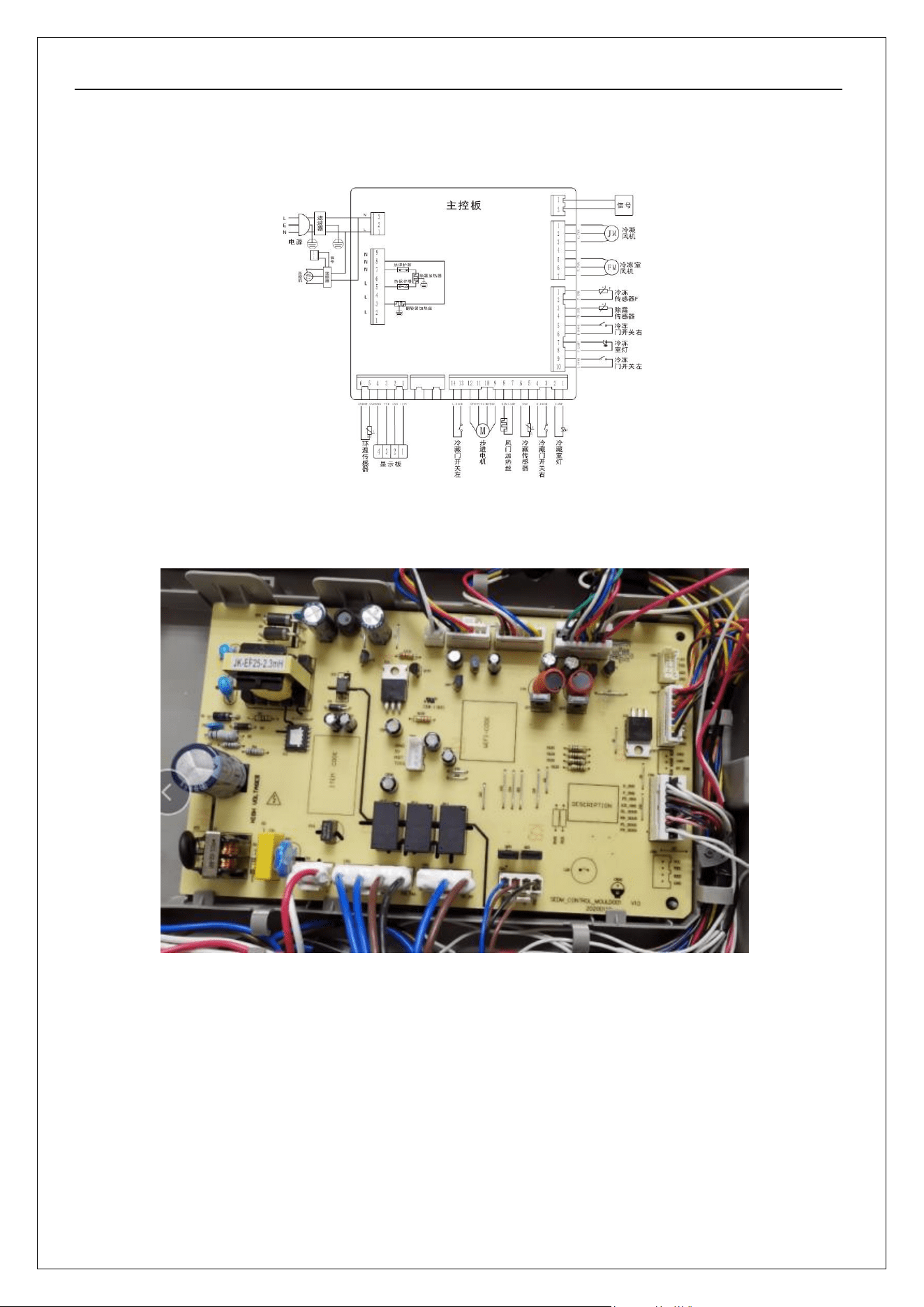

A . Electrical schematics
Second, the main control board physical map
The first edition of
Chapter 6 Control principles, parameters, and detection methods
1, refrigerator control: refrigeration on state, press and hold the "refrigerator"key for 5 seconds, until
you hear a beep, into the refrigeration closed state.
When refrigeration is off, press and hold "FRIDGE"for5 seconds until you hear a beep and exit the refrigeration
shutdown state.
2, freezer control: according to the "frozen temperature adjustment(FREEZER)"can adjust the freezer
temperature;
3,holiday, frozen, cold control: press the "mode"key once, the holiday icon lit, no key operation after 10S
effective;
Press the Modekey twice, the freeze icon lights up, 10S takes effect without a keystroke, the Mode key
is pressed four times, the cool icon is lit, and refrigeration forces the display 10S to take effect after no
keystroke action.
4, open the door alarm: when the refrigerator door opens 60S, every 30S display board buzzer sound three.
5, refrigeration lighting control: when the refrigerator door opens, the refrigerator lighting lights on;
6, fan control:
The freezer fan motor is switched on if one of the following conditions is met:
a． ( non-chemical cream state compressor on the start ) AND (refrigeration room, freezer door closed);
b
．
(When non-cream state compresses the machine and refrigeration
requests refrigeration) AND (refrigeration room,
freezer door closed). Note: The fan meets the opening conditions after the
freezer door is closed, and the delay is 10s.
8.2 The freezer fan motor is stopped if one of the following conditions is met:
a.
Compressor shutdown and refrigeration non-cooling state;
b. Freezer cream status;
c. The freezer door or freezer door is open for less than 4 hours (if the door is opened for more than 4 hours,
it is restored to its original state).
7, door control:
7.1 The refrigerator door is closed if one of the following conditions is met:
a . Refrigeration sensor temperature Tra≤ Refrigeration stop point temperature Trt
b. During the defrosting process
7.2
The freezer door is open if:
a.
(Non-defrosting process) AND (non-refrigerated shutdown mode) AND (refrigeration room sensor
temperature Tra≥ freezer boot point temperature Trk);
b. After defrosting exits 17min, the press meets the start-up conditions or refrigeration requests after
refrigeration;
c. The freezer room is closed.
The first edition of
7.3
The fla door state is abnormally controlled
a.
The door continues to open 60min door reset once.
b.
The door is continuously closed 60min door reset once.
8, display control: no key operation (the last operation will prevail)20 seconds display off, refrigeration room or
freezer door open when the display lights up
(detect only one door signal at a time);
9, press protection: press every shutdown 7min can be turned on again,7min delay after the end, can enter the
normal control of the press;
10,press model and main parameters
Press
model
factory
power
Energy
efficiency
ratio
Cooling
capacity
Operating
current
Maximum
start-up
power
flow
VTH1113Y
A
jiaxipera
36.4-131.1W
1.65—
1.73
60-215W
0.35—
1.10A
1.60A
11, force mode: press the display board "freeze "(FREEZER)" button and "mode" button for 5 seconds, the
display board all
shows that you enter forced cooling mode, where you press the Freeze (FREEZER) button and mode
buttons for 5 seconds at the same time, display four 0s,enter the mandatory cream mode, and press the
Freeze (FREEZER) button and in this mode at the same time Mode key for 5 seconds, exit force mode, and
return to normal display.
The first edition of
Chapter 7: Refrigeration principles and pipe cycle diagrams
1.

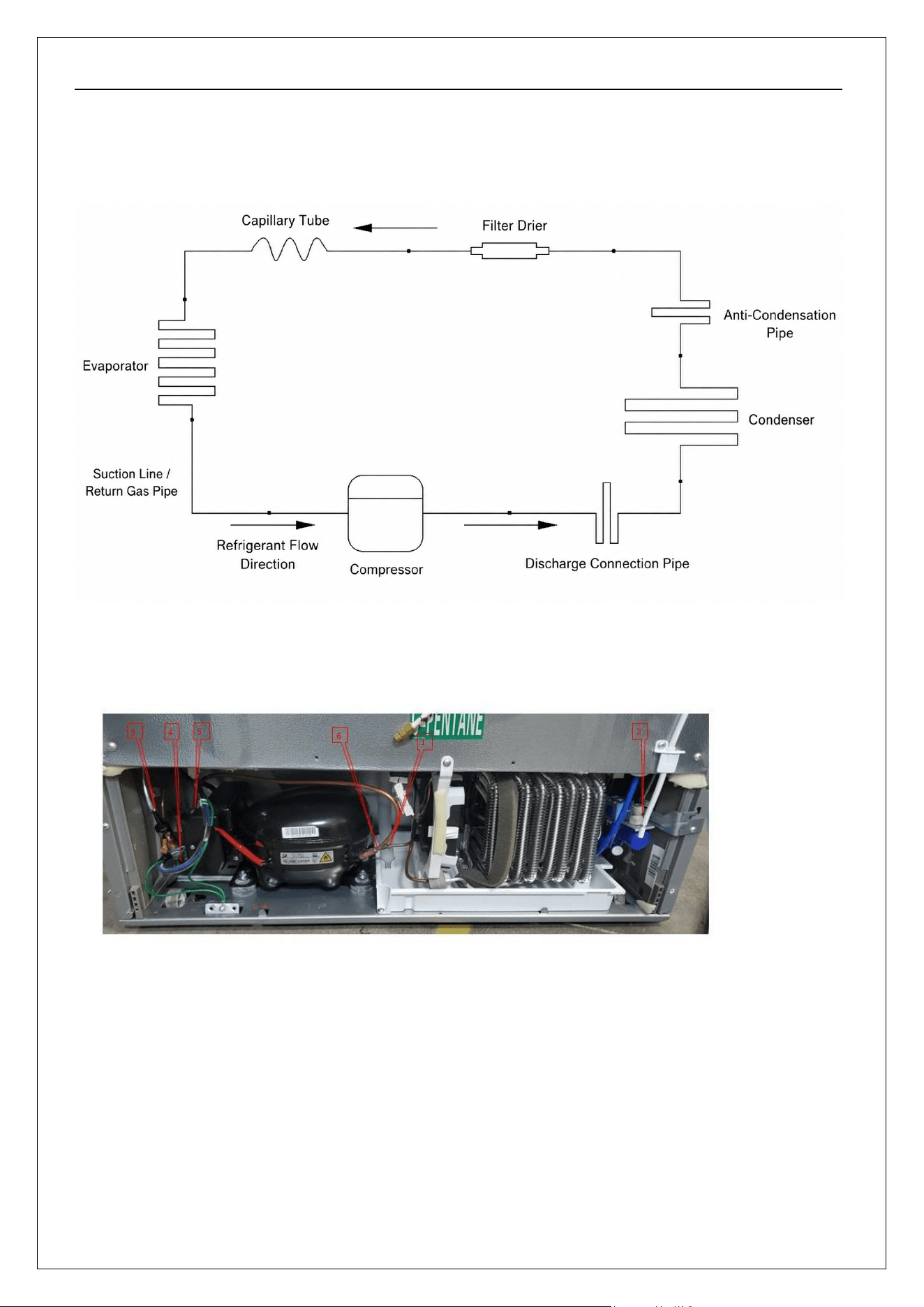

System cooling schematic:
2.
Line cycle diagram: Weld distribution
Compressor --- solder joint 1( brazing )---- exhaust connection pipe -- solder joint 2(ring welding) ---- rotary fin
condenser -- solder joint 3(ring welding) --- dew pipe -- weld point 4 (Brazing
Welding)---- drying filter -- soldering point 5(brazing)---- capillary pipe ----- return pipe --- solder joint 6(ring
welding)--- compressor suction tube -- soldering point 7(brazing).
---- compressor
The first edition of
Chapter 8: Instructions for the removal of major components

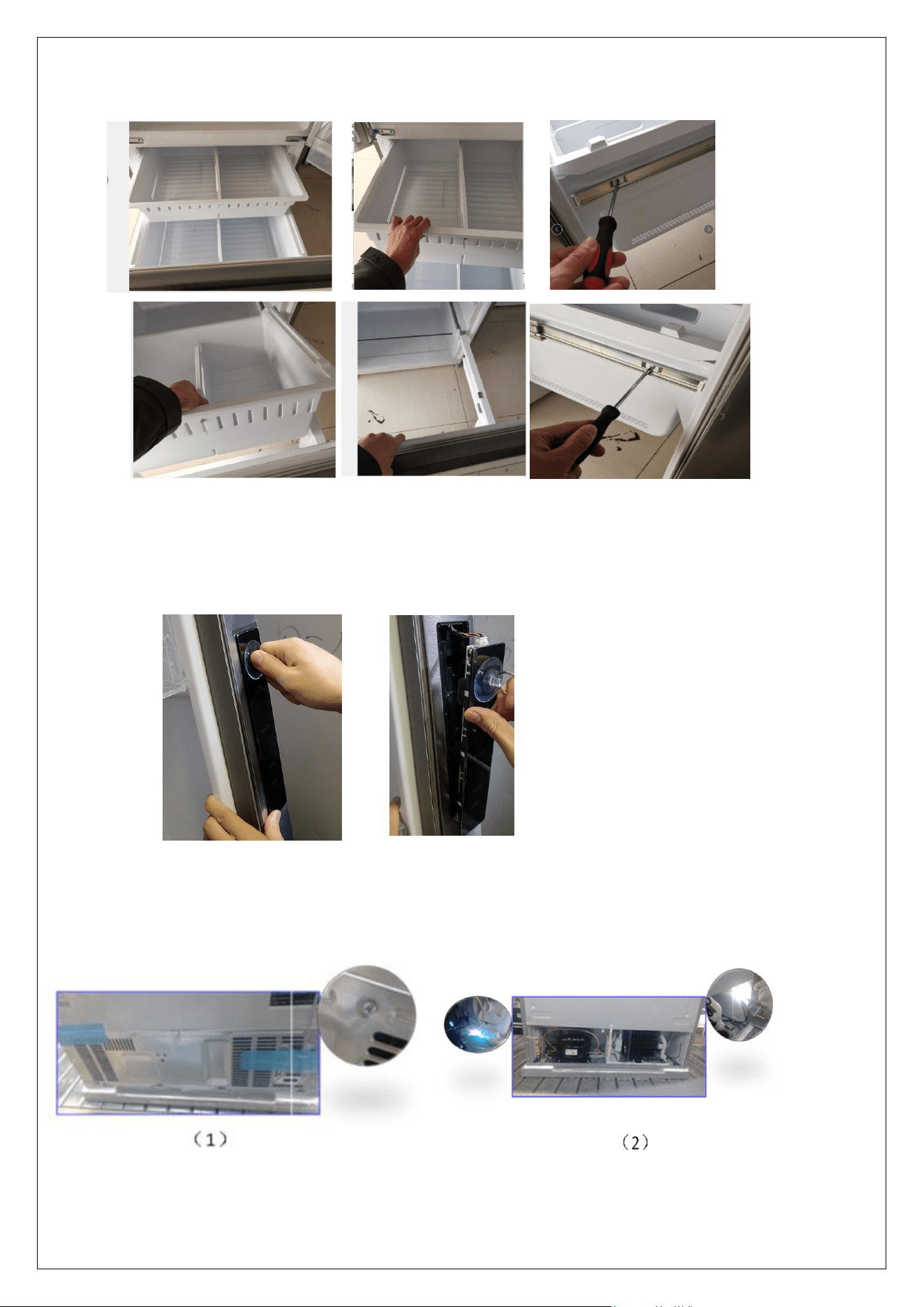

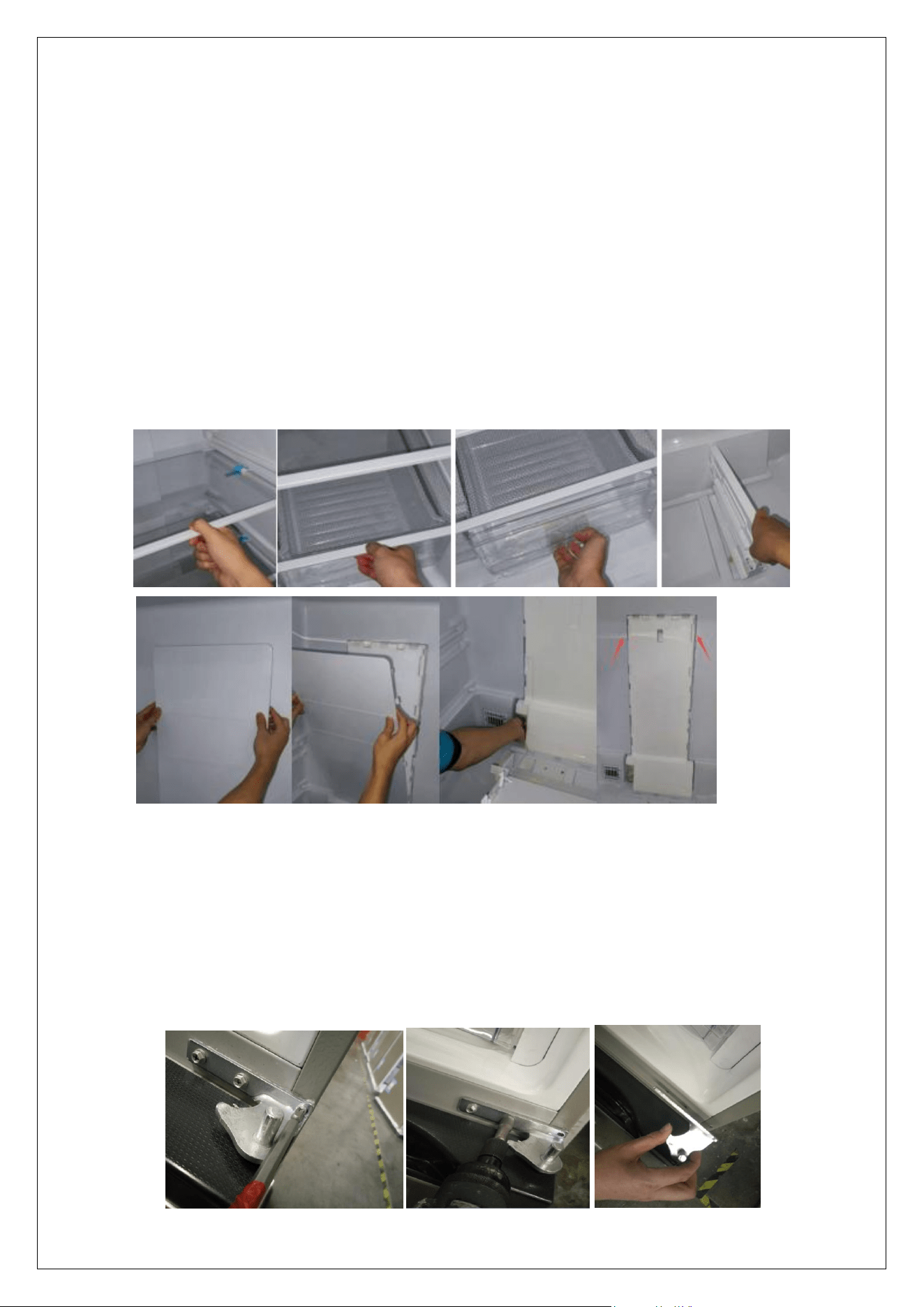

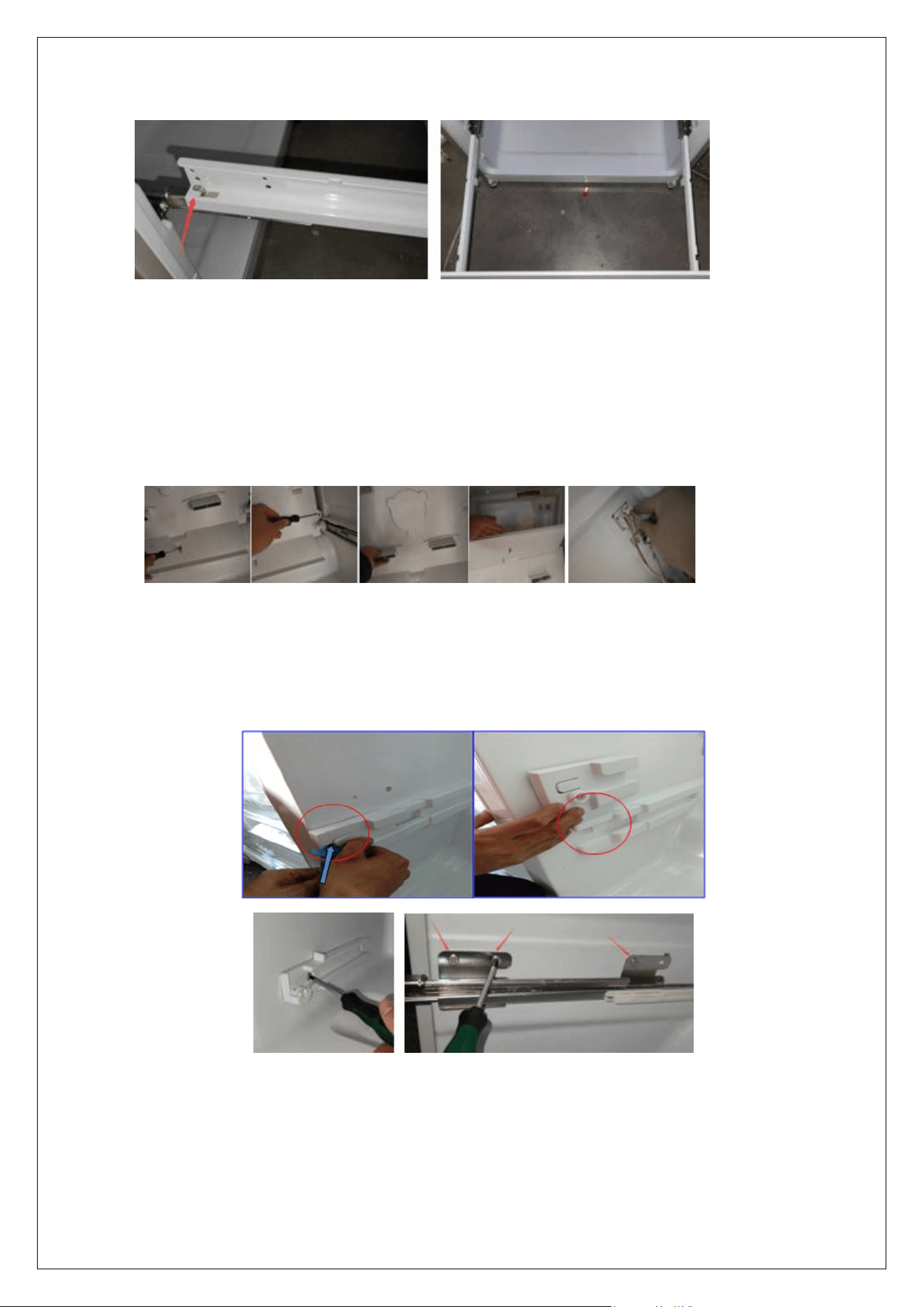

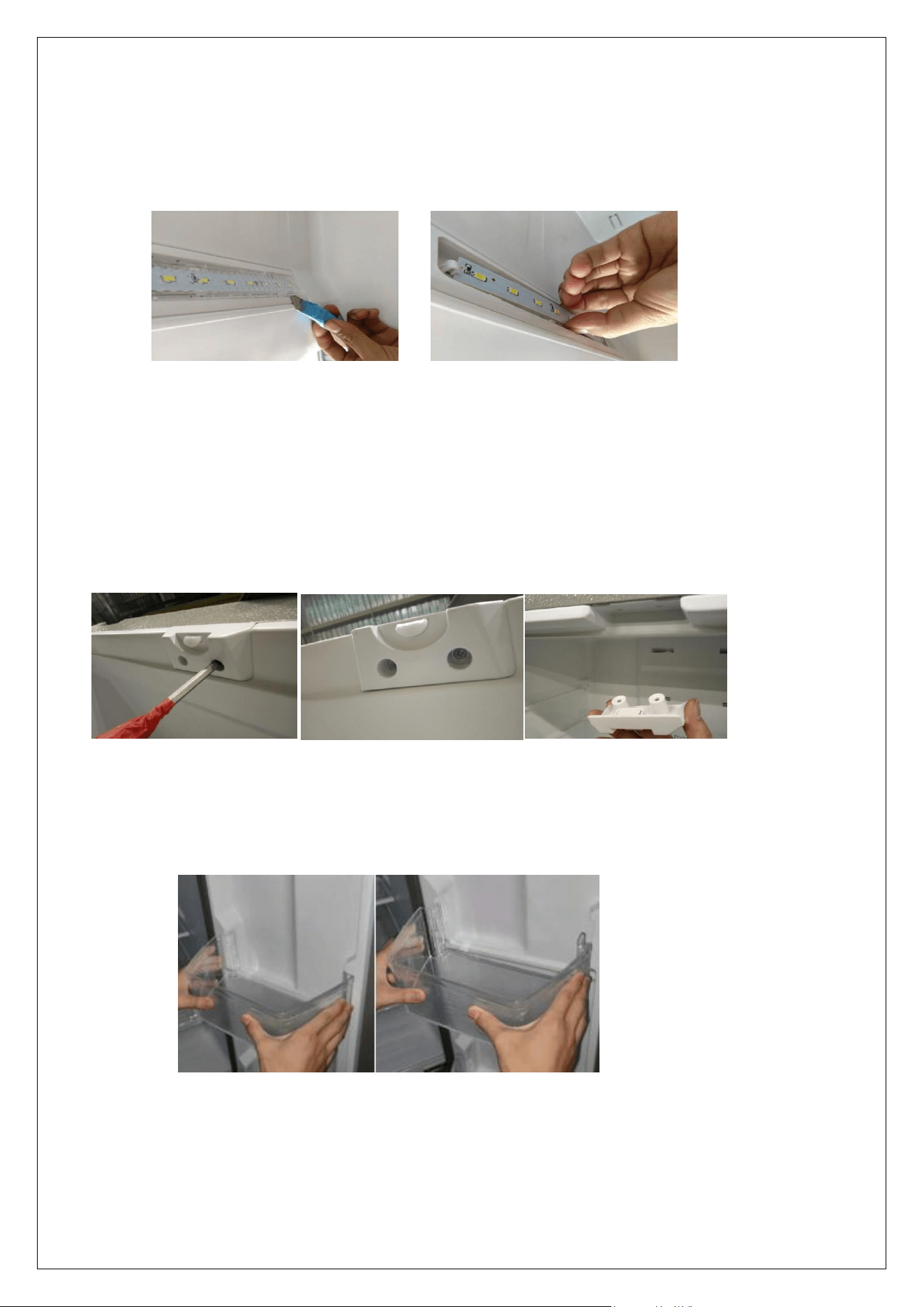

First, the door body removal mode

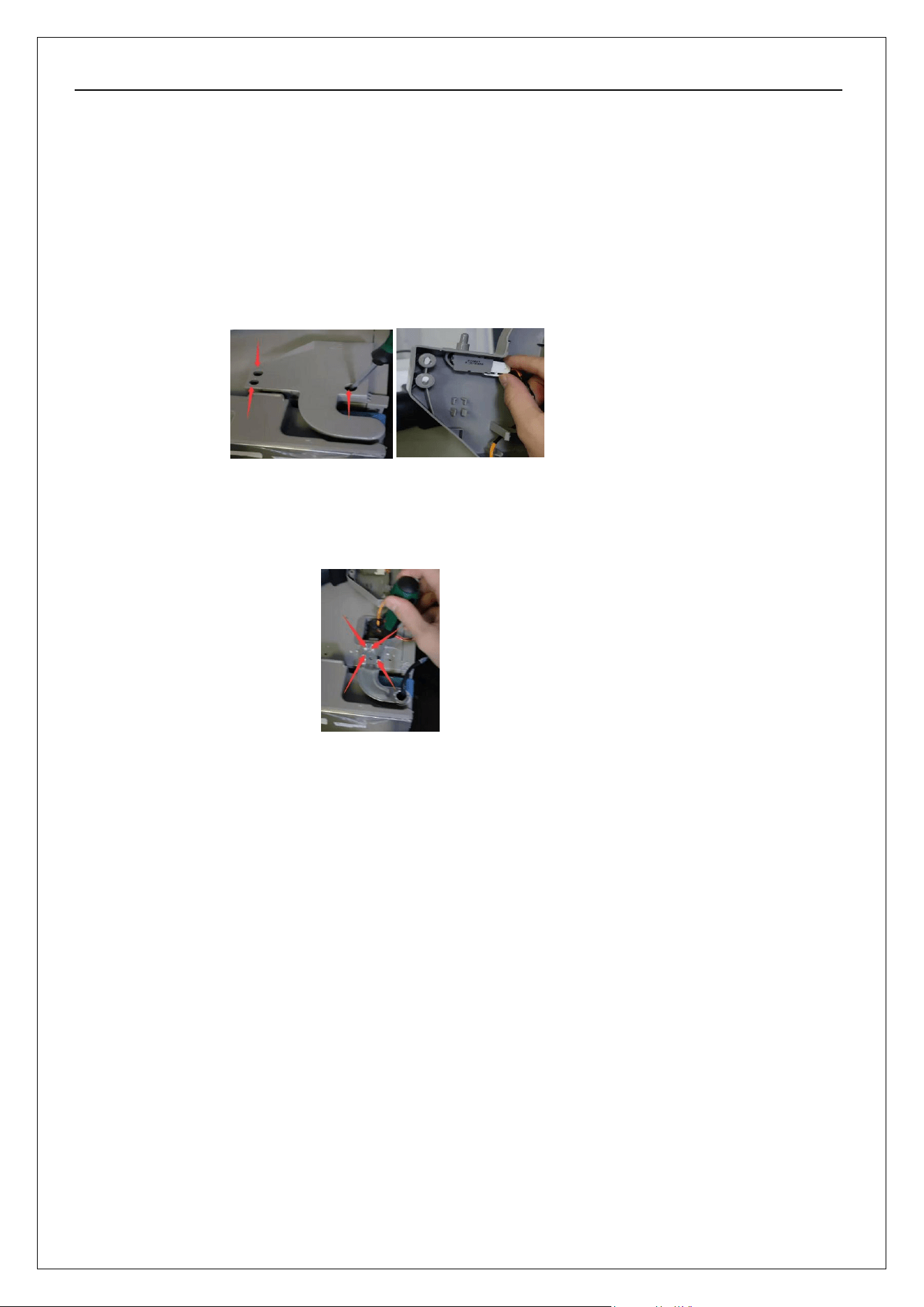

1, remove the upper hinge cover
(1,the use of simple plum screwdriver to remove the upper hinge cover screws;
(2),remove the door light switch terminal;
(3),unplug the door light switch can remove the hinge cover;
2, remove the upper hinge
Remove the upper hinge screw and use a simple plum gun / wrench / 6 angle with an 8mm socket
wrench;
3, the removal of the frozen door body
(1) pull out the frozen door body completely, grasp the front of the freezer drawer, lift up and
remove the upper drawer;
(2)Remove the left and right fixing screws using a simple plum screwdriver:
(3),grasp the front of the frozen drawer, lift up to remove the frozen drawer;
The first edition of
(4),hold the frozen door body, lift up, you can remove the freezer door;
Second, the display control plate removal mode
1, take the suction cup against the display control plate, pull out, pull out the terminal can remove
the display plate.

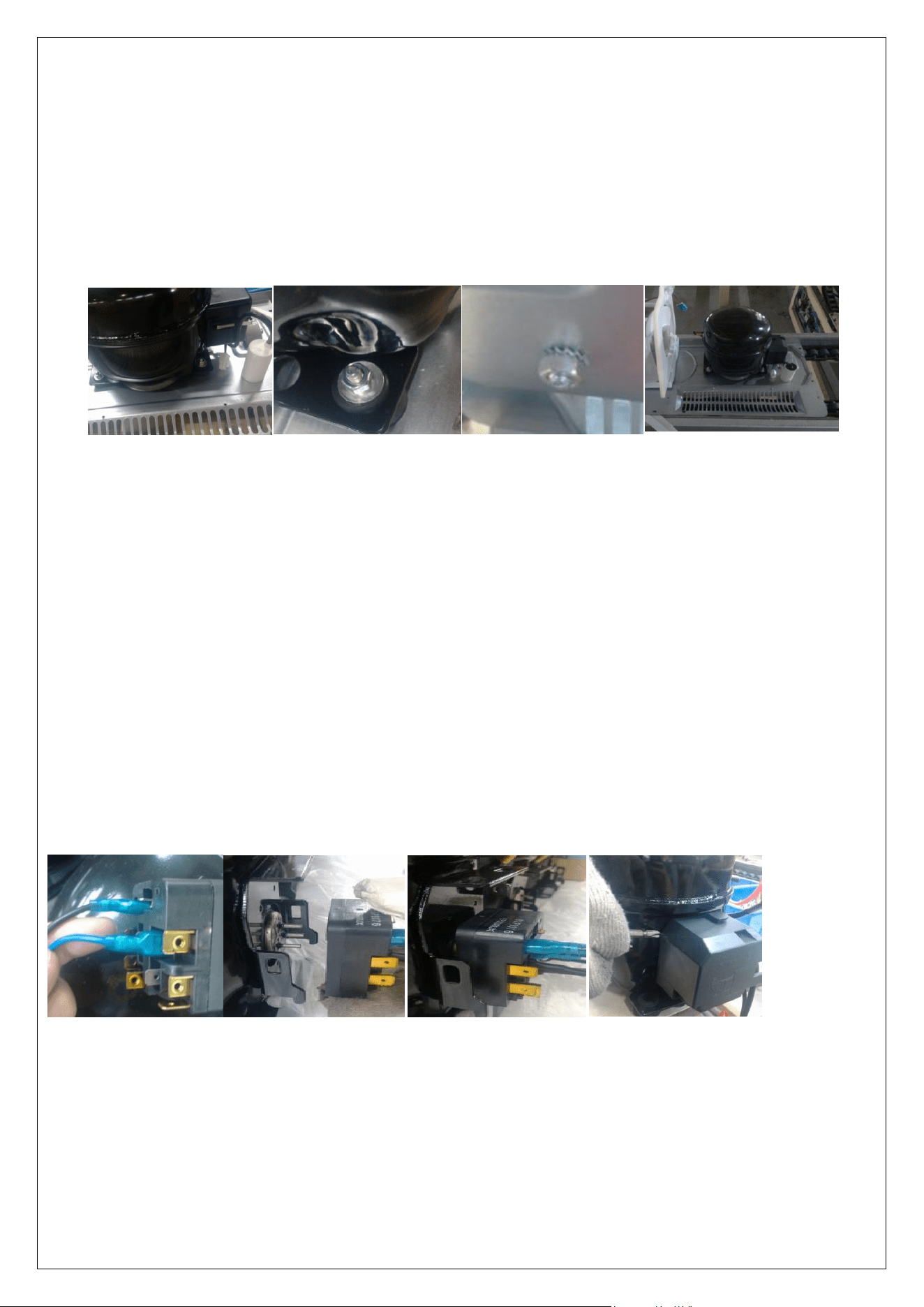

Third, the compressor assembly removal method
1, remove the compressor rear cover: use plum screwdriver to remove the screws.
2, remove the compressor assembly (warning: refrigerant R600 for flammable and explosive gas, the
repair process needs professional refrigerator maintenance personnel to operate, in determining that
The first edition of
the refrigerator can be effectively ventilated around, repair space to meet 10m2 above two
conditions):
1, the line cut short (with the pipe cutter operation, prohibit the use of flame welding open);
2, after cutting open the line free volatile refrigerant 30 minutes after the vacuum parameters meet
the 10Pa or less to fill, the third step is to use seal clamps after the line clamping using a simple
welding gun welding (note that the strong clamp clamp must be free of refrigerant leakage).
3, remove the compressor / capacitor
(1),the compressor assembly is placed flat on the workbench, the fixed screws are removed with a
wrench, and the remaining 4 are removed in turn;
(2),replace the capacitor (wrench) after removing the capacitor screw at the bottom of the
compressor assembly.
Remove the starter/protector
(3),the compressor flat on the work surface using a screwdriver to pry the shield open;
(4),by hand to pull thestarter / protector out;
(5)Replace the starter/protector by separating the terminals from the inserts with a one-word
screwdriver.
Fourth, remove the refrigerator accessories and refrigeration door dud cover
1, open the refrigerated door, holding the front of the refrigerated glass shelf by hand, take the glass
shelf removed from the outside, three methods are the same;
2, fruit box cover and glass shelf removal method is consistent;
The first edition of
3, fruit box pulled out to the maximum travel, lifted to remove;
4, first pull out the refrigerated medium partition near end, take the outer can be removed from the
middle partition;
5, pull the refrigerated upper air duct cover plate part, pull forward, remove the terminal, can remove
the refrigerated upper air duct cover;
6, seize the refrigerated duo foam, pull forward, you can remove the refrigerated duo foam;
V. Mid-hinged removal
1, the use of plum screwdrivers to the middle hinge fixed in the beam and side panel screws
removed;
2, the use of pneumatic guns to remove the middle hinge fixing screws;
3, will be left and right hinges in turn to remove the completion of removal.
The first edition of
Six, remove the frozen lamp board
1 Use an art knife to remove the lamp cover outwards and open the limit refrigerated lamp board
claws outwards to complete the removal of the lamp board.
Seven, guide seat removal
Remove the two sides of the fixing screw with a cross screwdriver and remove the guide seat to
complete the removal.
Eight, bottle frame removal
Two hands grasp the outside of the bottle box along the inward squeeze, pull out can be;
Nine, frozen drawer rail bracket removal
The first edition of
Tap the frozen rail stand on the side plate side, the claws out of the stand Complete
removal.
Ten, frozen air duo cover removal
Remove the two sides of the fixed screws with a cross screwdriver;
Grasp the front of the frozen duct cover by hand and pull forward hard to remove the wind tunnel
cover;
Pull out the frozen air duo cover terminals to complete removal.
Eleven, remove the rail, semi-rail
1、 Refrigeration room rail removal: use a plum screwdriver to remove the rail fixing screws, the
rail is equipped with the other end of the roller pull out of the box, to complete the removal;
2、 Freezer rail removal: remove the rail fixing screws with a plum screwdriver to complete the
removal;
Fifteen, the main control board removal mode
Use a plum screwdriver to remove the main control plate power box cover screws and wear anti-
static measures to remove the main control board;
Wearing anti-static measures, pull the harness terminals up and separate the terminals from the main
control panel;
The first edition of
Remove the power switch limit claws outwards and the main control plate along the open side.
XVI,
VARIABLE FREQUENCY PRODUCT PARTS REPLACEMENT:
The filter interface has a total of 5 interfaces, of which L2-N4 plugs the power cord terminals into the
input terminals. The U1-U3 is the output and the plug-in filter cable supplies power to the main
control plate.
Where L2 is the fire wire,U1 is the fire wire,N4,U3 is the zero wire, pay attention to the plug-in cable
can not be confused, must be plugged according to the color matching terminals, otherwise there
will be a short circuit causing the power cord to burn.
The docking diagram looks like the image on the left:
The first edition of
Chapter 9: Typical troubleshooting and troubleshooting
One Common failures and troubleshooting of refrigeration systems:
一、 Refrigeration systems Common faults and troubleshooting:
phenomeno
n
Fault analysis
The
refrigerator is
not cooled
Cause 1: Compressor does not start: Check whether the PTC starter is damaged
and the main board supply voltage is ok
Reason two: compressor frequently jump: check if the overload protector is
damaged;
Reason 3: Compressor frequently jumps: check if the overload protector is
damaged;
Reason 4: Whether the refrigeration system is blocked
One room of
the
refrigerator is
not cooled
Reason one: check whether the main control board plug-in is loose, contact with
undesirable phenomenon;
Reason two: if the refrigerator is not refrigerated, check whether the refrigeration
fan is running, check the refrigeration fan when the door light switch is pressed,
after 5S inspection;
The
refrigerator is
not cool
enough
Cause one: Check the refrigerant for leaks;
Reason 2: Check whether each fan is running: Open the door and observe if the air
vents are blowing. When checking the refrigeration fan, press the door light switch
and check after 5S.
Reason 3: Check whether the freezer evaporator frost seriously blocked the air duo,
the frost is normal.
Unusual noise
Cause one: check whether the lines are touching, the compressor has resonance;
Reason 2: Check whether the exhaust temperature is too high, if the exhaust pipe
temperature is too high (ring temperature should not exceed 60 degrees C) may
be mixed into the system air, causing noise anomalies;
Cause 3: Freezer or refrigeration fan noise check whether the fan leaves interfere
with other components.
二、
Electroniccontrol systems
Common troubleshooting:
Fault
Possible causes
Repair method
The display is
not displayed
and the light is
not on
Whether the power supply is on, whether the plug is
plugged in, whether the power plug-in is in good
contact
Plug in or plug in or plug in the
plug-in
The fuse (fuse) on the main control plate is blown
Replace the fuse
The main control board power supply socket is in
poor contact
Plug in the plug
The display is
not displayed
The socket on the signal harness connecting the
display board to the main control board is in poor
contact
Plug in the plug
The first edition of
and the light is
on
The signal connection harness is disconnected
Repair or replace the harness
The display panel is damaged
Repair or replace
The display
shows that the
normal
compressor is
not working
The compressor plug-in is in poor contact
Plug in the plug
The main control board is damaged
Repair or replace
Two of the compressors were damaged
Repair or replace
The compressor is damaged
Repair or replace
The freezer is
not cooled
The electronic control board is damaged
Repair or replace
The freezer is
not cooled
The fan blades of the freezer fan motor fall off
Reinstall and tighten the fan leaves
The freezer fan motor does not turn
Check the plug-in or replace it
Freezer frosting
The refrigerator fan motor does not turn
Check the plug-in or replace it
The return duo is blocked
Clean the duo
The cream heater or sensor is bad
replacement
The freezer frost
is severe
The cream circuit connector comes off
Plug in the plug
The cream heater or sensor is bad
replacement
The compressor
will lose power
as soon as it
works
Refrigeration system failure
Follow the instructions of the
previous system pieces to
troubleshoot
The compressor
does not work
Check that the compressor harness is properly
connected
Show reconnection
The electronic control board is damaged
Replace the main control board
The key is not
working
The keys (springs) are not assembled properly
Reinstall and adjust the position
The touch capacitor is bad
Repair or replace
The display panel is damaged
Repair or replace
三、
Major electrical
component failure:
Electrical
parts
Fault
The detection method
Repair method
Cream
heater/fuse
There is a
cream action,
no frost
The multimeter tests the resistance of
the cream heater, with a resistance of
about 252 ohms, and the test freeze
fuse is switched on (the multimeter
diode is switched on).
Heater damage replacement
heater;
fuse damage replacement fuse;
The first edition of
Fault code prompt and
index
Electric door
The freezer is
not cooled
In non-commercial inspection mode,
set the greenhouse temperature to -
18 degrees C, check by hand whether
there is wind in the greenhouse air
duct mouth
Check that the door harness
connector is ok and replace the
main control plate, otherwise
replace the door
Lights
The light is not
on
1. Check if the connector is well
connected
2. Check that the excuse of the lamp
on the motherboard is normal power
supply
3. All not on, check the door light
switch and communication line
4. Some of the lamp beads are not on,
change the light plate
Fan motor
The freezer
cools down
slowly, and the
temperature of
the change
room does not
drop
Check that the motherboard freezer
terminals are powered and that the
fan is blocked
The motherboard is bad to
replace the motherboard, the fan
blocking the reinstall
No
project
Fault
identification
Breakdown contents
remark
froze
n
temp
eratu
re
refriger
ation
temper
ature
1
normal
Set the
temperature
indication
-
The display is OK
2
Refrigeration
sensor abnormal
he
FS
Refrigeration sensor Open
or short circuit
Sensor Wiring Check
3
Ambient
temperature Sensor
abnormal
he
rH
Ambient temperature The
sensor is off or shorted
4
Refrigeration sensor
1 is abnormal
he
rS
Refrigeration sensor 1 is
open or shorted
The first edition of
5
Refrigeration sensor
2 abnormal
he
r2
Refrigeration sensor 2 is
open or shorted
6
The defrost sensor is
abnormal
he
Ds
Defrost sensor Break or
short circuit
7
Defrost bad
he
dH
Start Defrost After 90
minutes The defrost sensor
is less than 6 degrees C or
more
Temperature Protector
Disconnected, Heater
Disconnected, Drain Pipe
Blocked, Heater Relay Is Not
Good
9
Communication
exception
he
CO
Control board processor
and the display board
processor
correspondence
Communication delivery
exception
10
The refrigeration
motor is abnormal
he
Ff
When the motor is running
for more than 30 seconds
without a feedback letter
number
Motor wiring and Drive ICs,
TRs, etc. are not good
11
The condensing
motor is abnormal
he
CF
The first edition of

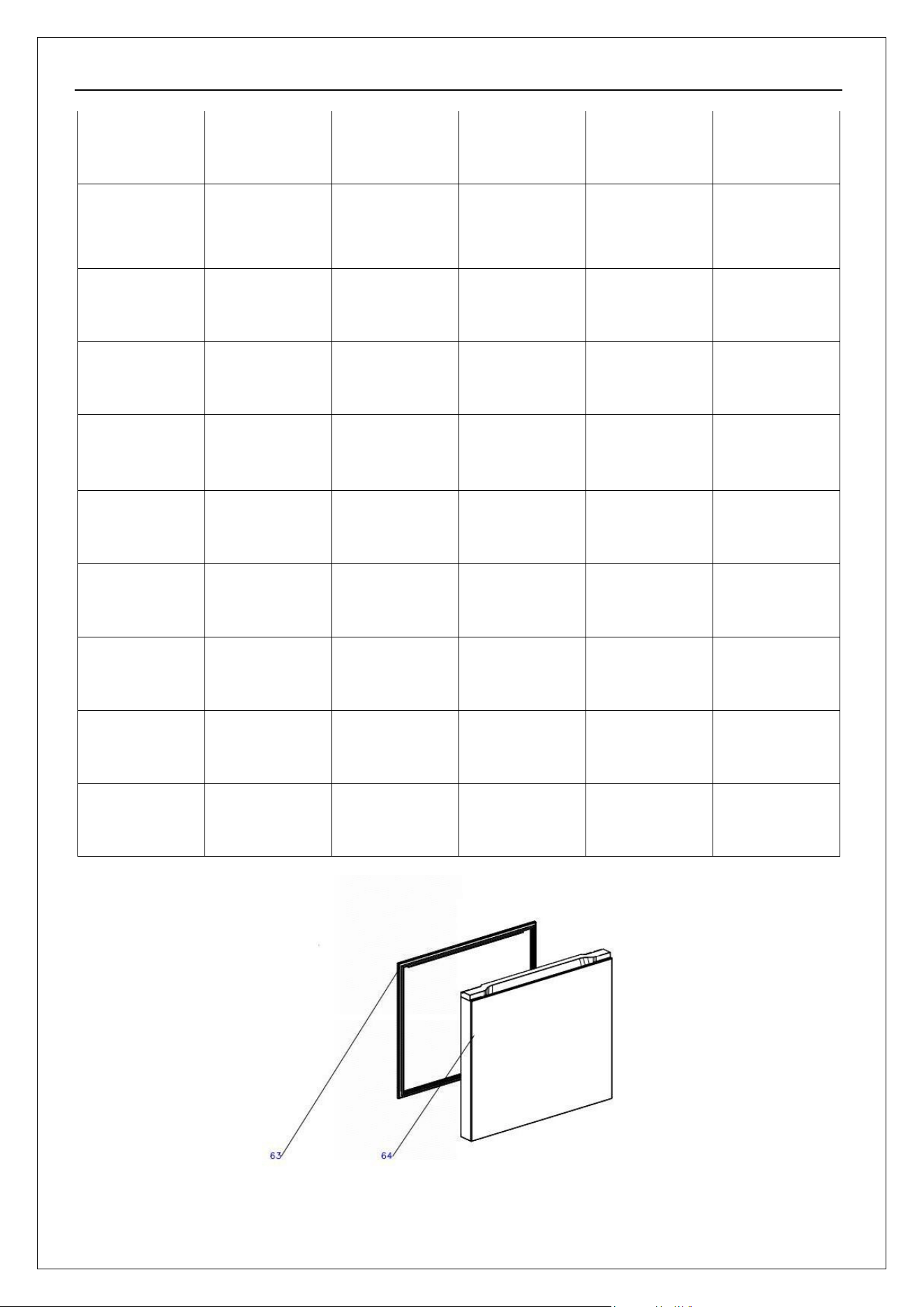

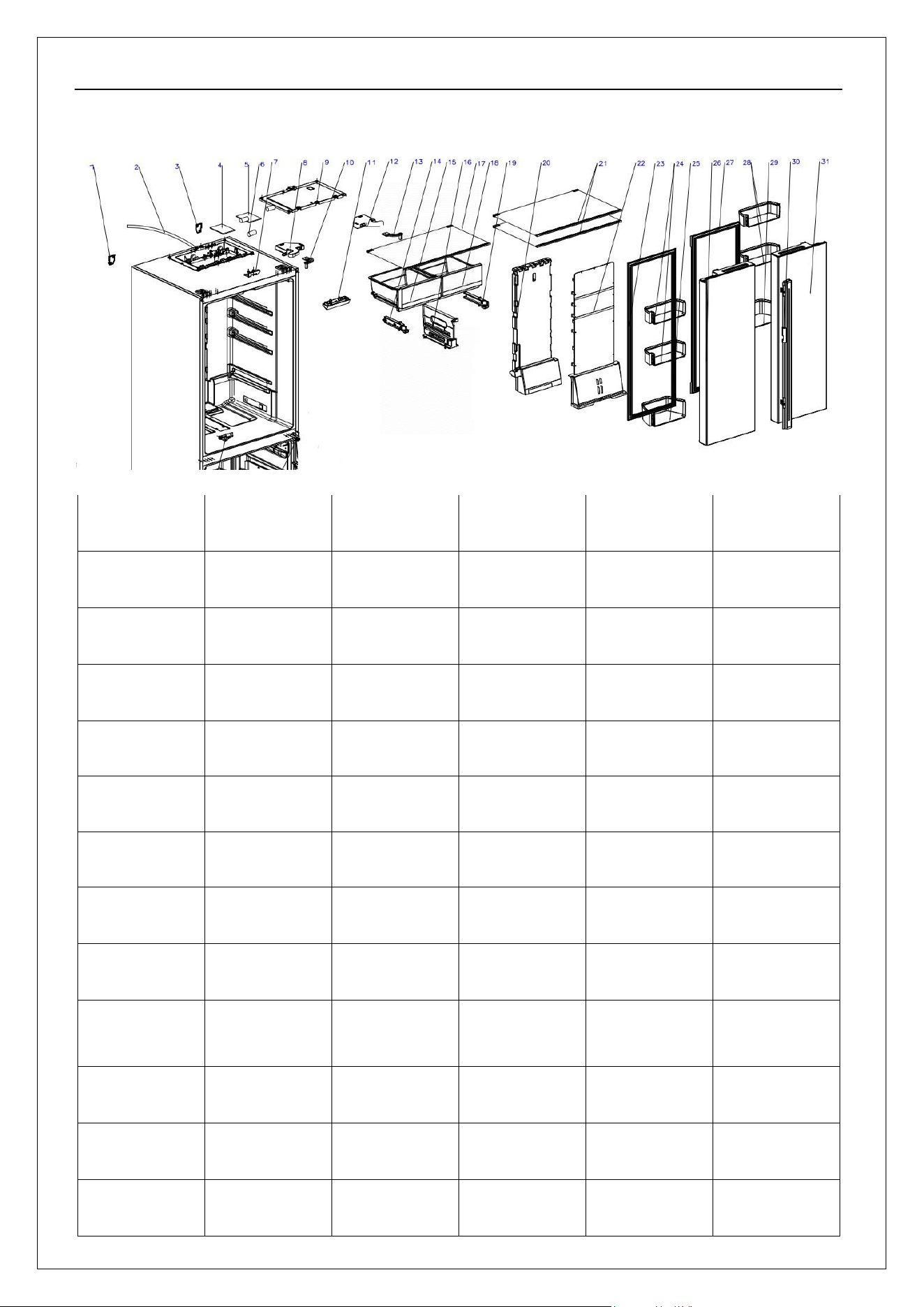

Chapter 10: Product Breakdown Chart and Parts Schedule
Serial
NO
Name -
Description CN
English name -
Description EN
Coding - Parts
code
Material
Quantity - Qty
1
The rear corner
cover is left
Rear corner
cover left
GS000240806
PP
1
2
The power cord
assembly
Power cord
assembly
DA000042201
subassembly
1
3
The rear corner
cover is right
Rear corner
cover right
GS000240906
PP
1
4
Master board
Main control
board
DA000039004
subassembly
1
5
Variable frequency
control board
Frequency
conversion
control board
DA000028001
subassembly
1
6
filter
wave filter
DA010283002
subassembly
1
7
Guide seat
components
Guide seat
assembly
GA000514601
subassembly
1
8
Left hinge cover
assembly
Cover as-hinge-
left
GA0000239L2
subassembly
1
9
Power control
box cover
assembly
Power control
box cover
assembly
GA000015806
subassembly
1
10
Upper hinge
welding assembly
Upper hinge
welding
assembly
GA0004021L1
subassembly
1
11
Top lamp
assembly
Internal display
and
control unit
GA000812001
subassembly
1
12
Upper hinge cover
assembly
Cover as-upper
hinge
GA000563302
subassembly
1
The first edition of
13
Upper hinge
welding assembly
Upper hinge
welding
assembly
GA0004021R1
subassembly
1
14
One-wheel left
short rail
assembly
Single wheel left
short guide rail
assembly
GA000016301
subassembly
1
15
Left fruit box
drawer
set,W756
Drawer assembly
of left fruit and
vegetable
box
GA000065702
subassembly
1
16
Refrigerate the
components in
refrigeration
Partition
assembly in
refrigeration
GA000056901
subassembly
1
17
Fruit box cover
assembly
Fruit and
vegetable box
cover assembly
GA000069801
subassembly
1
18
Right fruit box
drawer
set,W756
Drawer assembly
of left fruit and
vegetable
box
GA000065702
subassembly
1
19
Single-wheel
right short
rail assembly
Single wheel
right short
guide rail
assembly
GA000016401
subassembly
1
20
Refrigerated air
duo foam
group
Refrigerated
duct foam
assembly
GA000053401
subassembly
1
21
Refrigerate the
shelf assembly
Shelf as-
refrigeration
GA000066401
subassembly
1
22
Refrigerated air
duo cover
panels
Cover assembly
of refrigeration
air duct
GA000053301
subassembly
1
23
Refrigerate the
door seal assembly
Refrigeration
door seal
assembly
GA000077801
subassembly
2
24
on the bottle box
Gall bottle frame
GS000081701
GPPS
4
25
Gallon bottle
frame
Gall bottle frame
GS000081701
GPPS
2
26
Refrigerate the left
foaming door
body
Refrigerated left
foam door
body
GA000067903
subassembly
1
27
Refrigerate the
door seal assembly
Refrigerated left
foam door
body
GA000077801
subassembly
1
28
Gallon bottle
frame
Gall bottle frame
GS000081701
GPPS
1
29
Flip the beam
assembly
Flip beam
assembly
GA000081101
subassembly
1
The first edition of
30
Refrigerate the
right foaming door
body
Refrigerated
right foam door
body
GA000068003
subassembly
1
The first edition of
31
Show the
dashboard
Display control
panel
DA000027002
subassembly
1
32
Show panel film
Display panel
lamination
GA000048801
subassembly
1
33
Water valve
assembly
Valve as-water
DA010130302
subassembly
1
34
Ice machine
inlet water
conduit
assembly
Intake pipe
assembly of ice
maker
GA000038301
subassembly
1
35
The water pipe
cover
Water inlet pipe
cover
GS010112201
PP
1
36
Ice box water
quick
connector
assembly
Water inlet quick
connector
assembly of ice
making box
GA020112301
subassembly
1
37
Condenser
assembly
Condenser
assembly
LA000597801
subassembly
1
38
Compressor
rear cover
assembly
Compressor rear
cover plate
assembly
GA000045201
Galvanized steel
plate
1
The first edition of
39
Condensing fan
stand
Condenser fan
bracket
GS000555801
subassembly
1
The first edition of
40
The main assembly
of the water tank
Water box
assembly
GA000045601
subassembly
1
41
The compressor
base plate
assembly
Compressor
bottom plate
assembly
GA000046201
subassembly
1
42
One-body
condensing motor
Integrated
condensing
motor
DA000560701
subassembly
1
43
drainpipe
a drain
GK000008302
subassembly
1
44
Compressor
components
Compressor
assembly
LA000006501
subassembly
1
45
Foaming box
Foam box
GA000067501
subassembly
1
46
The left
component of the
middle hinge
Middle hinge left
assembly
GA0000583L2
subassembly
1
47
The right
component of the
middle hinge
Middle hinge
right assembly
GA0000583R2
subassembly
1
48
Roller support
assembly - left
Roller support
assembly - left
GA0000065L2
subassembly
1
49
Water tray
Water pan
GK000008302
subassembly
1
50
Roller support
assembly - right
Roller support
assembly - right
GA0000065R2
subassembly
1
51
Refrigerate the
drawer assembly
Freezing upper
drawer assembly
GA000078101
HIPS
1
52
Refrigerate the
drawer assembly
Freeze lower
drawer assembly
GA000078201
HIPS
1
53
Evaporator
assembly
Evaporator
assembly
LA000009301
subassembly
1
The first edition of
54
Upper drawer stop
- left
Upper drawer
stop - left
GS0000446L1
subassembly
1
The first edition of
55
Electric door
Electric damper
DA000943001
subassembly
1
56
American ice
machine
components
American ice
maker
components
DA000033502
subassembly
1
57
Upper drawer stop
- right
Upper drawer
stop - right
GS0000446R1
subassembly
1
58
Metal rail - left
Metal slide - left
GA0000048L1
Galvanized steel
plate
1
59
Frozen air duo
cover plate
assembly
Cover assembly
of cooling air
duct
GA000053301
subassembly
1
60
Rail stand - left
Rail bracket - left
GK0000015L1
Galvanized steel
plate
1
61
Metal rail - right
Metal slide -
right
GA0000048R1
Galvanized steel
plate
1
62
Rail bracket - right
Rail bracket -
right
GK0000015R1
Galvanized steel
plate
1
63
Drawer door seal
assembly
Drawer door
seal assembly
GA000042901
subassembly
1
64
Frozen foaming
door body
Freezing foam
door body
GA000090301
subassembly
1
