ASSEMBLY INSTRUCTIONS
Piggyback Wall-Mounted
Shelf Kits
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG10095 Revised 02/24
(continued on back page)

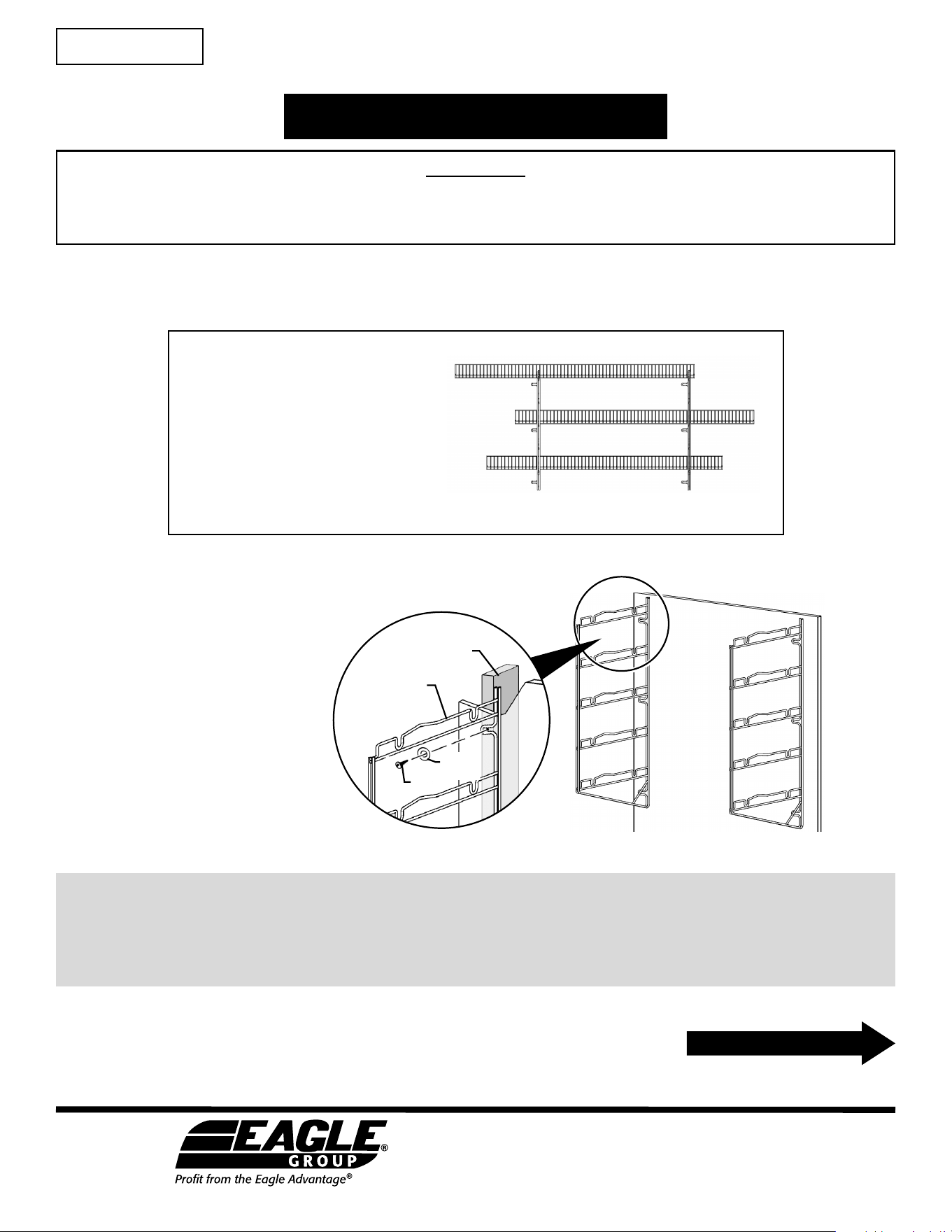

Step 1 - Mount brackets to wall,
using appropriate hardware*.
Do not tighten hardware!
Note: Make sure to mount brackets
at the same height. This will ensure
level shelving.
Please note: Hardware* not included.
stud behind wall*
(BRACKET MOUNTED TO STUD WALL*)
bracket
fender
washer
bolt
(FRONT VIEW)
PLEASE NOTE:
Once the brackets are anchored
to the wall* (as shown in Step 1),
shelves can be positioned
anywhere along the wall brackets
without the use of fasteners.
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2024 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglemhc.com
INSTRUCTION SHEET
#A223459
* IMPORTANT NOTE: Depending on construction of wall, shelf brackets should be attached to wall studs, in-wall grounds (wall backing)
of plywood or sheet metal, or solid part of brick or concrete wall with appropriate fasteners. Failure to use appropriate fasteners could
result in collapse and personal injury. Eagle Group cannot be held responsible for failure of the device or any other devices due to
improper installation. Also, it is your responsibility to make certain the mounting surface and method of mounting are suitable to
support the anticipated weight which will be placed on this unit.
ASSEMBLY INSTRUCTIONS
Piggyback Wall-Mounted
Shelf Kits
brackets
top shelf
mid shelf
Step 3 - Tighten all hardware.
(End)

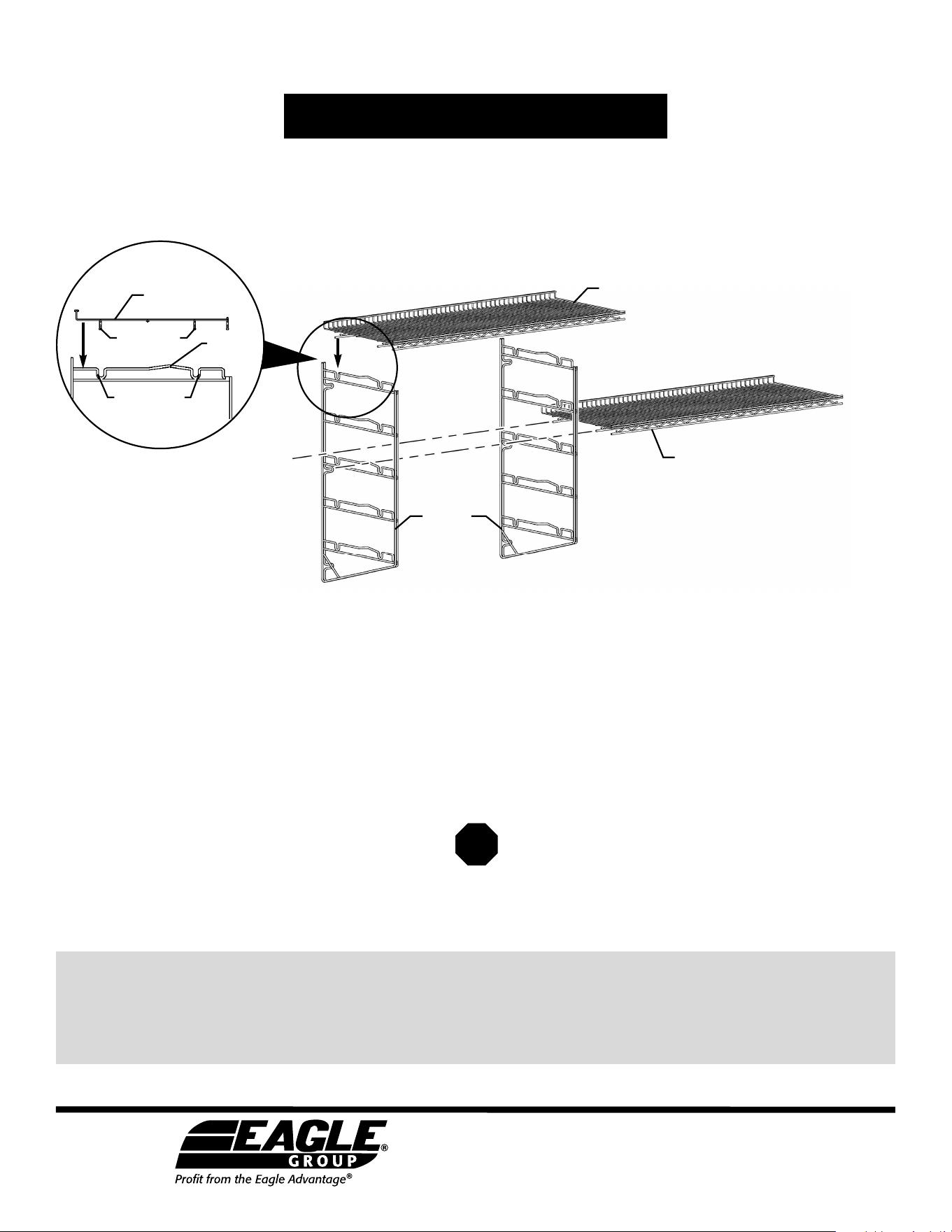

Step 2 - Mount shelves to brackets.
For top shelf:
• Place shelf onto brackets at
desired location.
• Side-to-side shelf trusses should
rest inside bracket loops.
• Bracket “bends” should slightly
protrude through shelf wires.
For all other shelves:
• In one side-to-side motion, run shelf through
brackets at desired tier, then place shelf
downward onto top of brackets at desired
location.
• Side-to-side shelf trusses should rest inside
bracket loops.
• Bracket “bends” should slightly protrude
through shelf wires.
(SIDE VIEW)
wire shelf
side-to-side
trusses
bracket loops
bracket
“bend”
