EG10060 Revised 09/23
ASSEMBLY INSTRUCTIONS
Snap-n-Slide
®
Wire Wall Shelves
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
wall

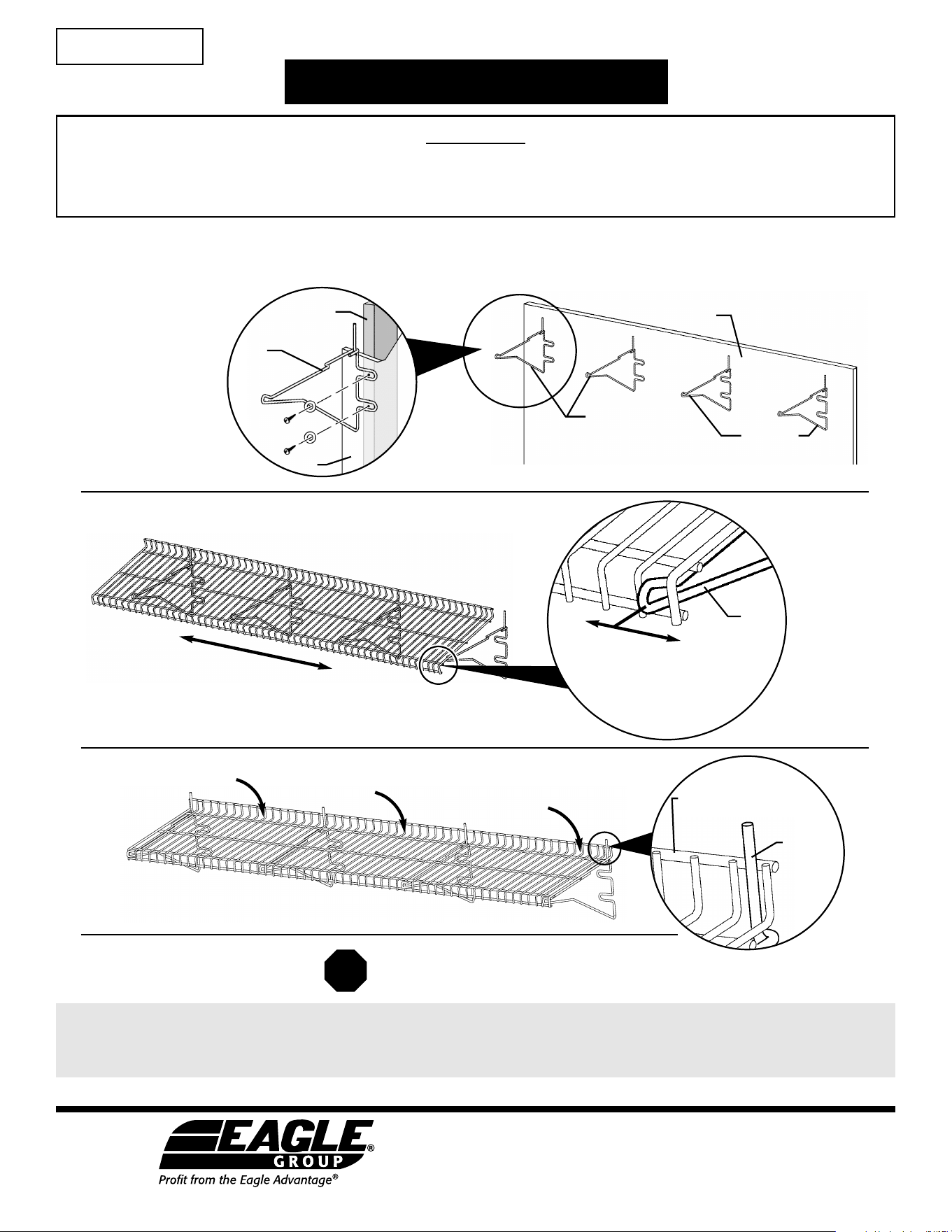

Step 1 - Mount brackets in relation to studs behind wall using bolts and washers—do not tighten hardware!
Step 2 - Position the wall shelf into desired location.
Step 3 - Lower rear of shelf to lock in place.
Step 4 - Tighten all hardware.
stud behind
wall
wall
bracket
wall
wire
protruding
at top of
bracket
left-hand
wall
brackets*
right-hand
wall
brackets*
wire on upturn of shelf
to fit behind bracket wire
* Quantity of wall brackets varies with length of shelf.
Note: Bracket loops must
face toward center.
Mounting hardware
not included.
*** Please note: Hardware not included. ***
Note: Adjust bracket to fit in between
shelf wires at front of shelf.
Mounting hardware may need
to be loosened for bracket
adjustment.
bracket
Note: Wall mounted units must be attached to a properly constructed and sound wall. For walls constructed of wood or steel studs,
the mounting points must be directly on the stud or suitable in-wall-grounds of plywood or sheet metal. Eagle Group cannot be held
responsible for the failure of the device or any other devices due to improper installation.
(End)
