EG10089 Revised 10/23
ASSEMBLY INSTRUCTIONS
Snap-n-Slide
®
Wall Shelves
with Ticket Rail
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
wall
level line

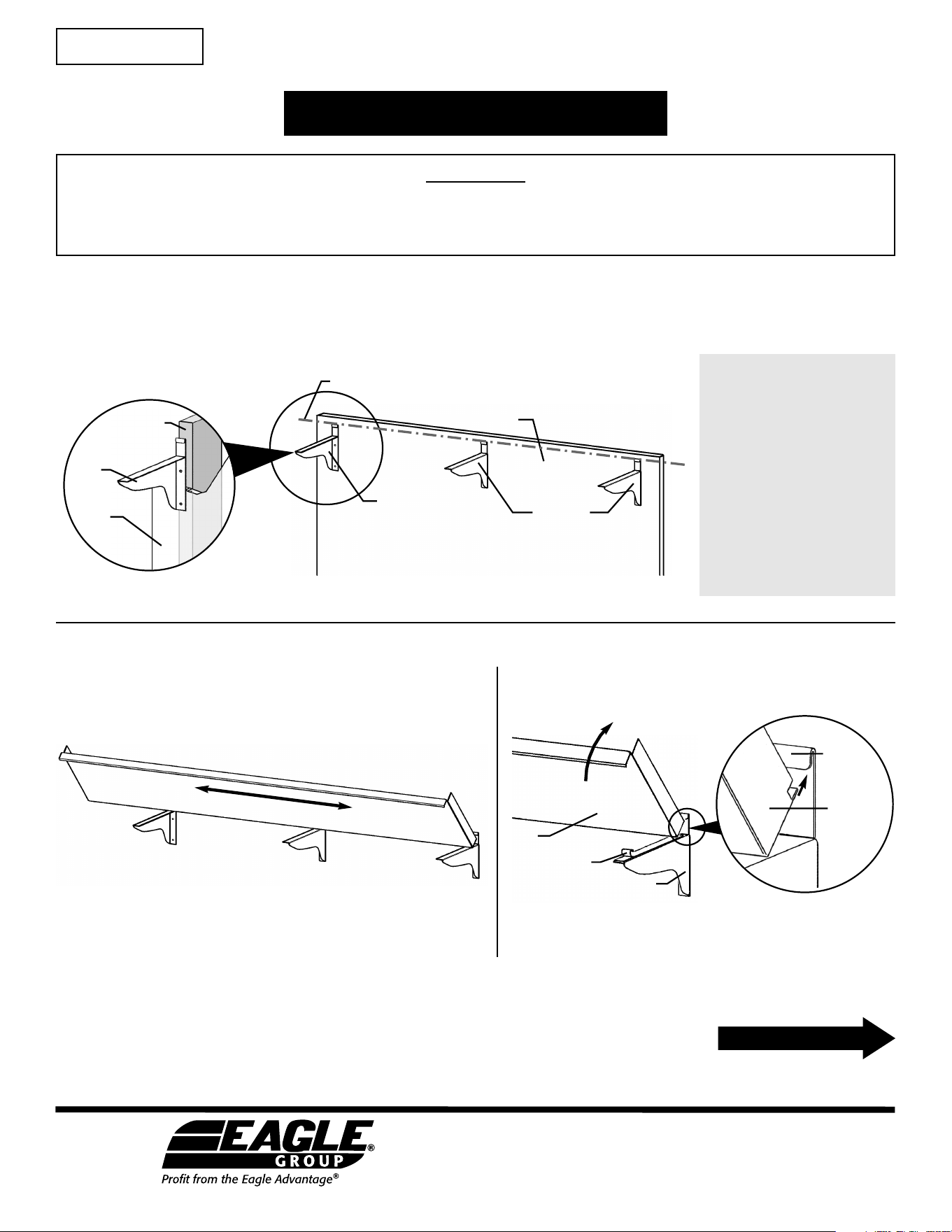

Step 1 - Mount brackets in relation to studs behind wall.
Brackets must be vertically level with each other. Using a laser level is highly recommended.
Step 2 -
Slide the wall shelf into desired placement.
Step 3 -
Hold shelf in place and peel off tape backing.
stud behind
wall
wall
bracket
wall
left-hand
wall bracket*
right-hand
wall brackets*
* Quantity of wall brackets varies with length of shelf.
CAUTION:
• Wall brackets must be
mounted in relation to
studs behind wall.
• Wall brackets must be
fastened securely prior to
mounting shelf.
• Eagle Group cannot be held
responsible for the failure
to use the appropriate
secure mounting method.
In order for proper bonding of the tape adhesive, ensure the bottom of
the shelf is free of dirt, oil and other contaminants prior to installation.
Rear upturn of wall shelf hooks under tab of each bracket.
tab on
bracket
upturn
on wall
shelf
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTRUCTION SHEET
#368038
(continued on back page)

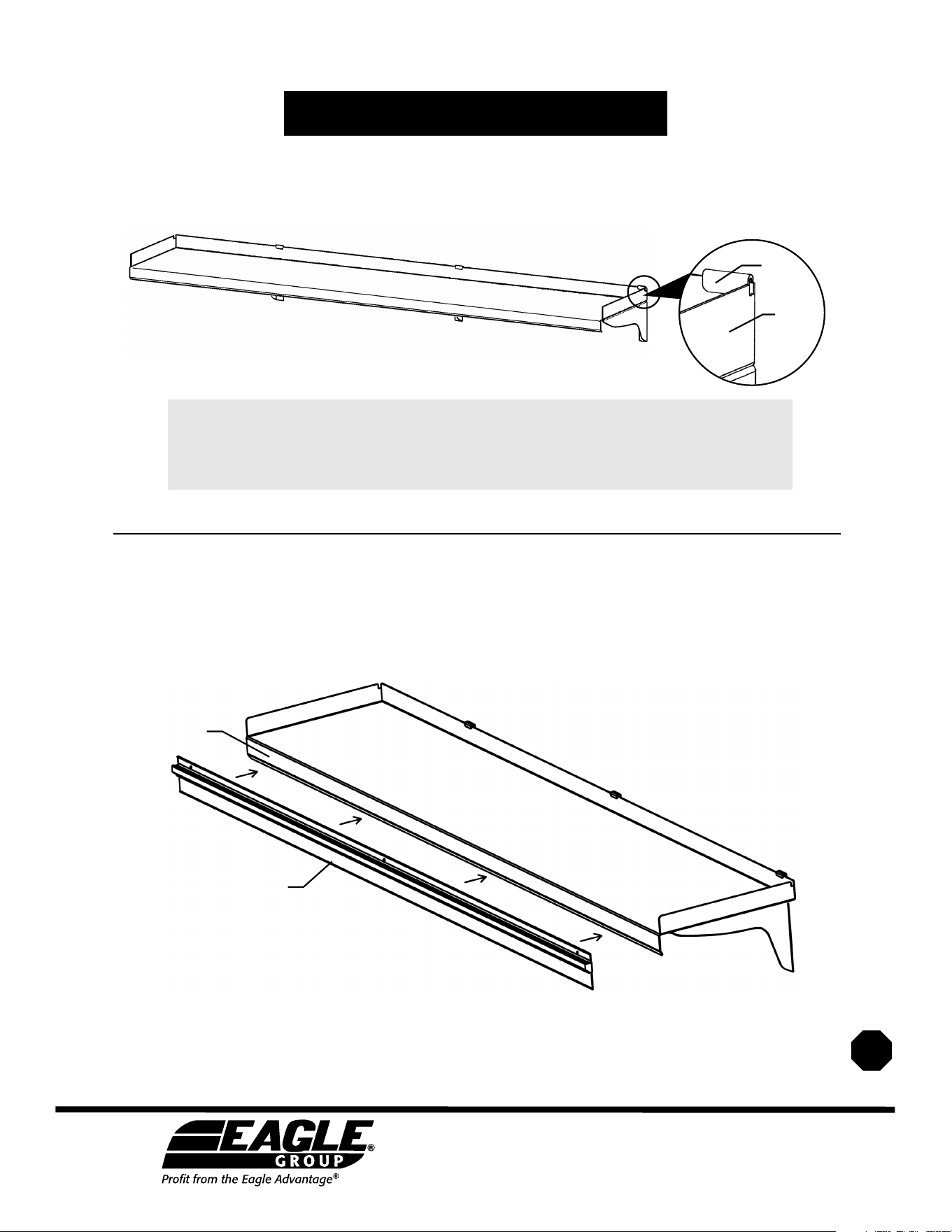

Step 4 - Lower shelf and press firmly over brackets to lock into place.
Step 5 - Attach ticket rail to front of shelf.
• Clean flat surface of shelf front with enclosed alcohol pad and allow to dry.
• On rear side of ticket rail, peel off tape backing.
• Align and firmly press ticket rail onto flat surface of shelf front.
Assembly in complete.
tab on
bracket
upturn
on wall
shelf
ticket rail
shelf front
CAUTION:
• A secure means of fastening the wall brackets prior to mounting shelf must be utilized.
• Eagle Group will not be held responsible for wall brackets pulling away from the wall.
ASSEMBLY INSTRUCTIONS
Snap-n-Slide
®
Wall Shelves
with Ticket Rail
