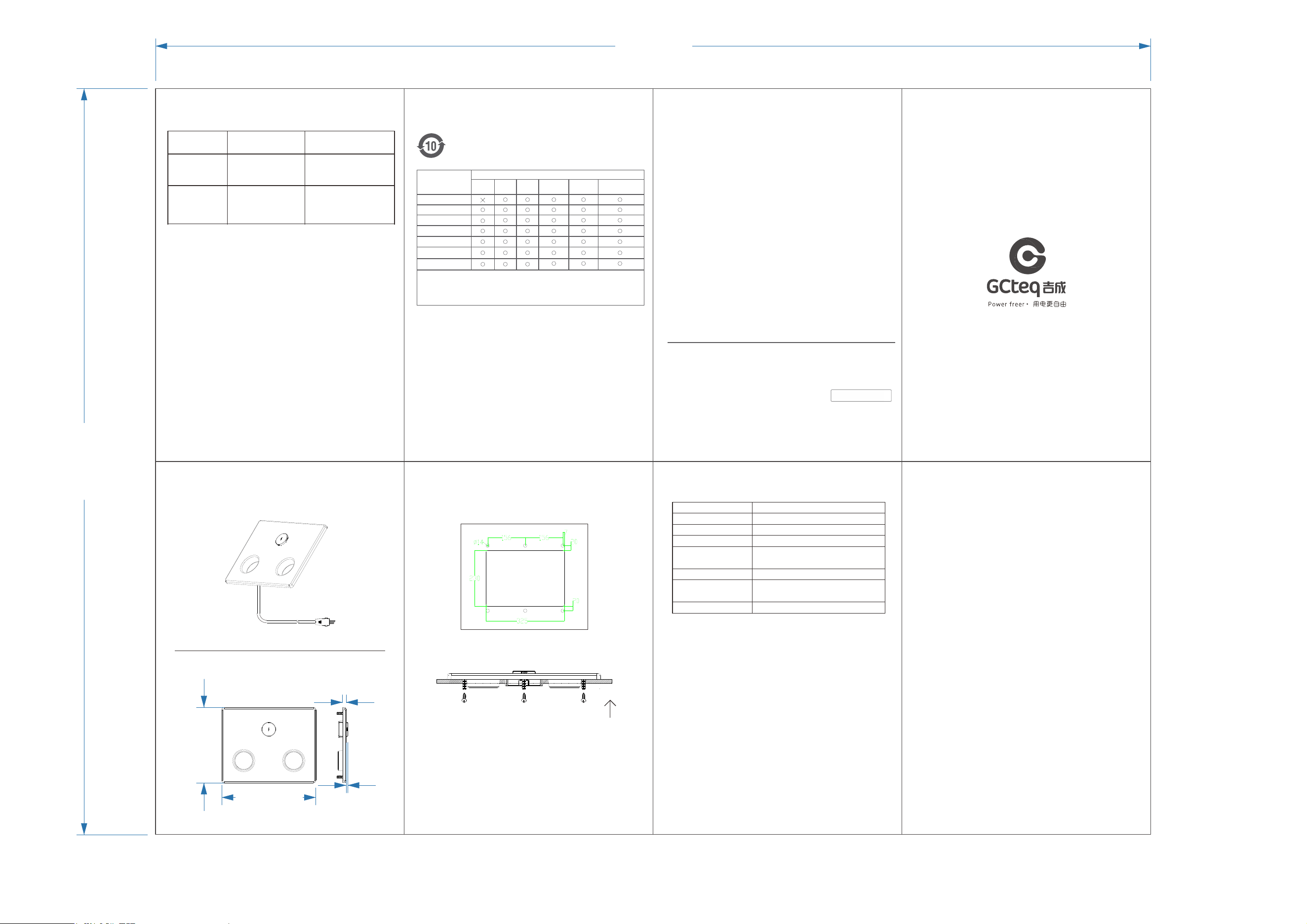

1. The dimensions for drilling holes in the wooden board
are as shown in the Þgure below;
2. Embed and install the product into the hole cut in the wooden board,
and then tighten the six screws at the bottom.
400 mm
320 mm
6.5mm
15. 5 mm
1.Power Supply: Use an adapter that meets safety standards to power the device.
2.Foreign Metal Objects: Ensure there are no foreign metal objects between the
wireless charger and the mobile phone while charging to prevent accidental heating
of the metal objects.
3.Magnetic Cards: Do not place magnetic cards, such as bank or bus cards,
in the charging area to avoid damage.
4.Charging Distance: To obtain a better wireless charging experience,
use only within the product's maximum charging distance.
5.Compatibility: This product is designed for iPhones with magnetic wireless
charging functions and is compatible only with iPhone 12 and newer models.
For optimal Qi2 15W charging, the device must be an iPhone 12 or later, running
iOS 17 or newer.
1.Qi2.0 MPP Standard: Supports iPhone's latest Qi 2.2 MPP magnetic
charging standard .
2.Wireless Charging: Supports up to 25W wireless charging.
3.Magnetic Design: It features a ring-shaped magnetic design to ensure
the phone is tightly adsorbed and aligns the charging coil easily.
4.Easy Installation: The unique metal buckle design for easy fixing, and
the embedded design allows it to integrate seamlessly with furniture.
320.00 mm
240.00 mm
GF-22Mag
Embedded multi-functional table board
User Manual
Product Introduction
Manufacturer: GCteq Wireless (Shenzhen) Co., Ltd.
Website: http://www.gcteq.com
Product Warranty Instructions
Wireless charger product after-sales service strictly in accordance with
Law of the PRC on the Protection of the Rights and Interests of
Consumers, and Product Quality Law of the People's Republic of China
Adopted to provide After-sales service.
The services are as follows:
1. Within 7 days from the next day after purchase (sign for), if this
product has performance failure, you can enjoy free return or exchange
service after being tested and determined by the after-sales service
center;
2. Within 15 days from the next day after you purchase (sign for), if this
product has performance failure, you can enjoy free exchange or repair
service after being tested and determined by the after-sales service
center;
3. Within 1 year from the next day after you purchase (sign for), if this
product has performance failure, you can enjoy free repair service after
being tested and determined by the after-sales service center.
Non warranty regulations
In one of the following cases, we don't offer three guarantees and only
charging maintenance will be provided:
1. Damage caused by improper use, maintenance and storage of consumers;
2. Damage caused by unauthorized service provider;
3. There is no valid invoice or proof of purchase;
4. Damage caused by majeure.
Common product faults
Phenomenon
Cause
Troubleshooting
This mark is the product pollution control mark, the number of which
represents the environmental service life. In this period of time, under
normal conditions of use harmful substances will not cause greater
pollution to the environment or damage to human life and property.
Name of parts
Hazardous substance
Electronic co mp onents
Plastic casin g
Electroplat ed a luminum
alloy parts
Non-electro pl ated metal part s
Double faced ad he sive tape
Synthetic cor k
Silicon parts
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
-Chromium
(Cr(VI))
Polybromina te d
-Biphenyls
(PBB)
Polybromina te d
diphenyl ethe rs
(PBDE)
This form is in term of Stipulation SJ/T 11364
O It means that the content of the harmful substance in a part of the part is lower than the limit
requirements specified in GB/T 26572.
X It means that the content of the harmful substance in a part of the part exceeds the limit
requirements specified in GB/T 26572.
Specification
Installation
Precautions
Please read and follow the following precautions carefully before
installing and using this product:
Wireless charging
not working
1. Power supply doesn't
meet requirements.
2. Poor contact in power
interface.
1. Use an adapter that meets
requirements.
2. Ensure secure connection
of power port.
Wireless charging
slow
1. Product body temperature
too high.
2. Misaligned wireless charging
area.
1. Let the product cool to room
temperature.
2. Place the phone in the center
of the charging area for better
alignment.
Hazardous Substance Declaration
FCC STATEMENT :
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body: Use
only the supplied antenna.
Checked
Certificated of qualification
Introduction
Dimensions
1500mm
Product Name
Product model
Embedded multi-functional table board
input power
DC 24V-36V
Wireless charging
output power
25W Max
GF-22Mag
input interface
01 male connector
Wireless charging
protection
Over-temperature protection,
over-voltage protection,
over-current protection, FOD
communication standard
certiÞcation
Qi2.2 MPP
CE、FCC、Rosh
Performance Characteristics
