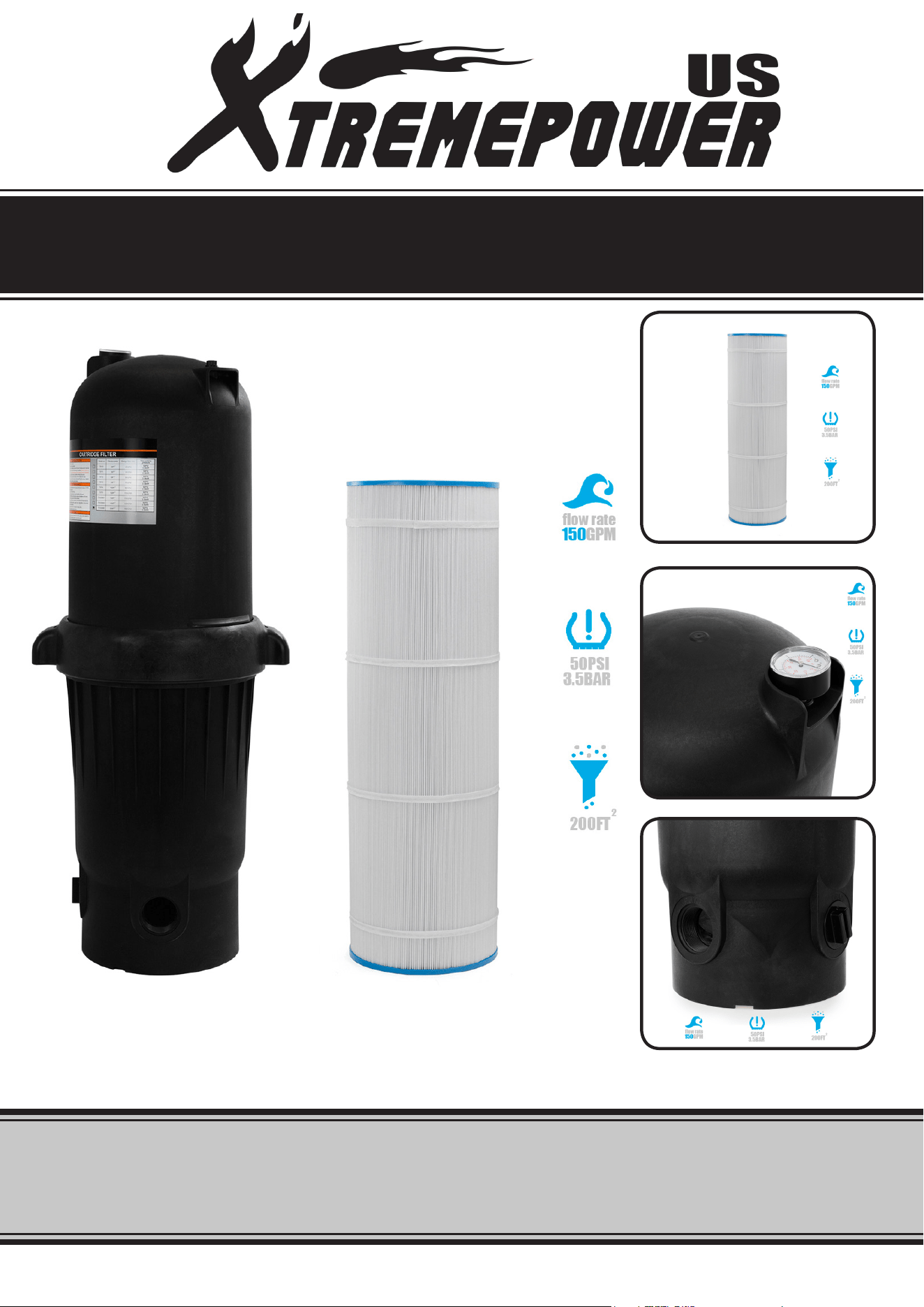

CARTRIDGE FILTER 200SQF
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM #75201
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
GENERAL SAFETY WARNINGS
1
Before installing this product, read and follow all warning notices and instructions which are included.
Failure to follow safety warnings and instructions can result in severe injury, death, or property damage.
IMPORTANT SAFETY INFORMATION
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result
in electric shock, re and/or serious injury. Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
DO NOT operate the lter until you have read and understand clearly all the operating instructions and
warning messages for all equipment that is a part of the pool circulating system. The following instructions
are intended as a guide for initially operating the lter in a general pool installation. Failure to follow all
operating instructions and warning messages can result in property damage or severe personal injury or
death.
DO NOT operate the lter until you have read and understand clearly all the operating instructions and
warning messages for all equipment that is a part of the pool circulating system. The following instructions
are intended as a guide for initially operating the lter in a general pool installation. Failure to follow all
operating instructions and warning messages can result in property damage or severe personal injury or
death.
Due to the potential risk that can be involved it is recommended that the pressure test be kept to the
minimum time required by the local code. Do not allow people to work around the system when the
circulation system is under pressure test. Post appropriate warning signs and establish a barrier around
the pressurized equipment. If the equipment is located in an equipment room, lock the door and post a
warning sign. Never attempt to adjust any closures or lids or attempt to remove or tighten bolts when the
system is pressurized. These actions can cause the lter to separate and could cause severe personal
injury or death if they were to strike a person.
This lter must be installed by a qualied pool serviceman in accordance with all applicable local codes
and ordinances. Improper installation could result in death or serious injury to pool users, installers, or
others and may also cause damage to property.
ALWAYS disconnect power to the pool circulating system at the circuit breaker before servicing the lter.
Ensure that the disconnected circuit is locked out or properly tagged so that it cannot be switched on while
you are working on the lter. Failure to do so could result in serious injury or death to serviceman, pool
users or others due to electric shock.
AVOID DAMAGING SYSTEM
Never Exceed Maximum Pressure of Components.Never subject this lter to higher pressure, even
when conducting hydrostatic pressure tests. Pressures above 50 psi can damage your lter. Be sure
the maximum pressure of the lter system does not exceed the maximum pressure of any components
within the system (typically stated on each component), including during hydrostatic or external leak tests.
Exceeding the maximum pressure of a component can result in that component failing. If you do not
know the pool or spa system operating pressure, install an ASME approved automatic Pressure Relief or
Pressure Regulator in the circulation system set to the lowest working pressure of any of the components
in the system.
2
IMPORTANT SAFETY INFORMATION
THIS SYSTEM OPERATES UNDER HIGH PRESSURE
When any part of the circulating system, (e.g., closure, pump, lter, valve(s), etc.), is serviced, air can enter
the system and become pressurized. Pressurized air can cause the top closure to separate which can
result in severe injury, death, or property damage. To avoid this potential hazard, follow these instructions:
1. Let air and pressure out of system before and after servicing.
a. Shut off pump and RELIEVE PRESSURE by opening the manual air/pressure relief valve before
servicing, including before tightening the clamp bolt. Follow the Opening the Filter instructions exactly.
b. Follow Start-Up Instructions exactly after completing service (page 6). The air/pressure relief valve
must remain open until water comes out, allowing all air out of the system.
2. Install lid and clamp ring properly.
a. Follow the Installing the Filter Lid and Clamp Ring instructions exactly (page 5). The nut must be
tightened until the spring is compressed when clamp is installed. Tap the clamp with a rubber mallet or
similar tool after clamp installation to ensure proper seating.
3. Maintain circulation system properly to help prevent air entering the system.
a. Replace worn or damaged parts immediately, (e.g., closure, pressure gauge, valve(s), O-rings, etc.).
b. Maintain proper water level in the pool or spa.
4. Verify that the return line to the pool is
unobstructed. Ensure return valves are open and any winterizing
plugs are removed.
AVOID DAMAGING SYSTEM
Never Exceed Maximum Pressure of Components. The maximum working pressure of this lter is 50 psi.
Never subject this lter to higher pressure, even when conducting hydrostatic pressure tests. Pressures
above 50 psi can damage your lter. Be sure the maximum pressure of the lter system does not exceed
the maximum pressure of any components within the system (typically stated on each component),
including during hydrostatic or external leak tests. Exceeding the maximum pressure of a component
can result in that component failing. If you do not know the pool or spa system operating pressure, install
an ASME approved automatic Pressure Relief or Pressure Regulator in the circulation system set to the
lowest working pressure of any of the components in the system. Certain codes may require pressure
testing the system. Performing pressure tests increases the risk of component failure. Due to the potential
risk that can be involved, keep the pressure test to the minimum time required by the local code and take
precautions. If pressure testing is necessary, follow these precautions:
1. Keep people away.
a. Do not allow people to work around the system when the circulation system is under pressure test.
Post appropriate warning signs and establish a barrier around the pressurized equipment. If the
equipment is located in an equipment room, lock the door and post a warning sign.
2. Never exceed maximum operating pressure.
a. When performing hydrostatic pressure tests or when testing for external leaks of the completed filtration
and plumbing system, ensure that the Maximum Pressure that the filtration system will be subjected
to does not exceed the maximum working pressure of any of the components contained within the
system.
SAVE THESE WARNINGS
3
INSTALLATION
FILTER LOCATION
It is important to first determine where your pump and filter will be located. If above the water line. A self-
priming pump must be used. Self-priming pumps have the ability to lift water from a lower level and prime
automatically.
1. Since plumbing ttings offer a resistance to water ow, position the lter as close to the swimming pool
as local codes allow. Keep the number of ttings to a minimum. Select a well drained area, one that will not
ood when it rains.
2. Set the lter on a solid , level surface. Be sure lter, pump, drain and pressure gauge are accessible for
convenient operation.
3. Position the lter so the tank can drain by gravity.
4. lf practical.place pump and lter in the shade to shield it from continuous.direct heat from the sun
PLUMBING
1. Use 1-1/2” or 2”piping. When making permanent connections, be sure to provide unions for easy
servicing.

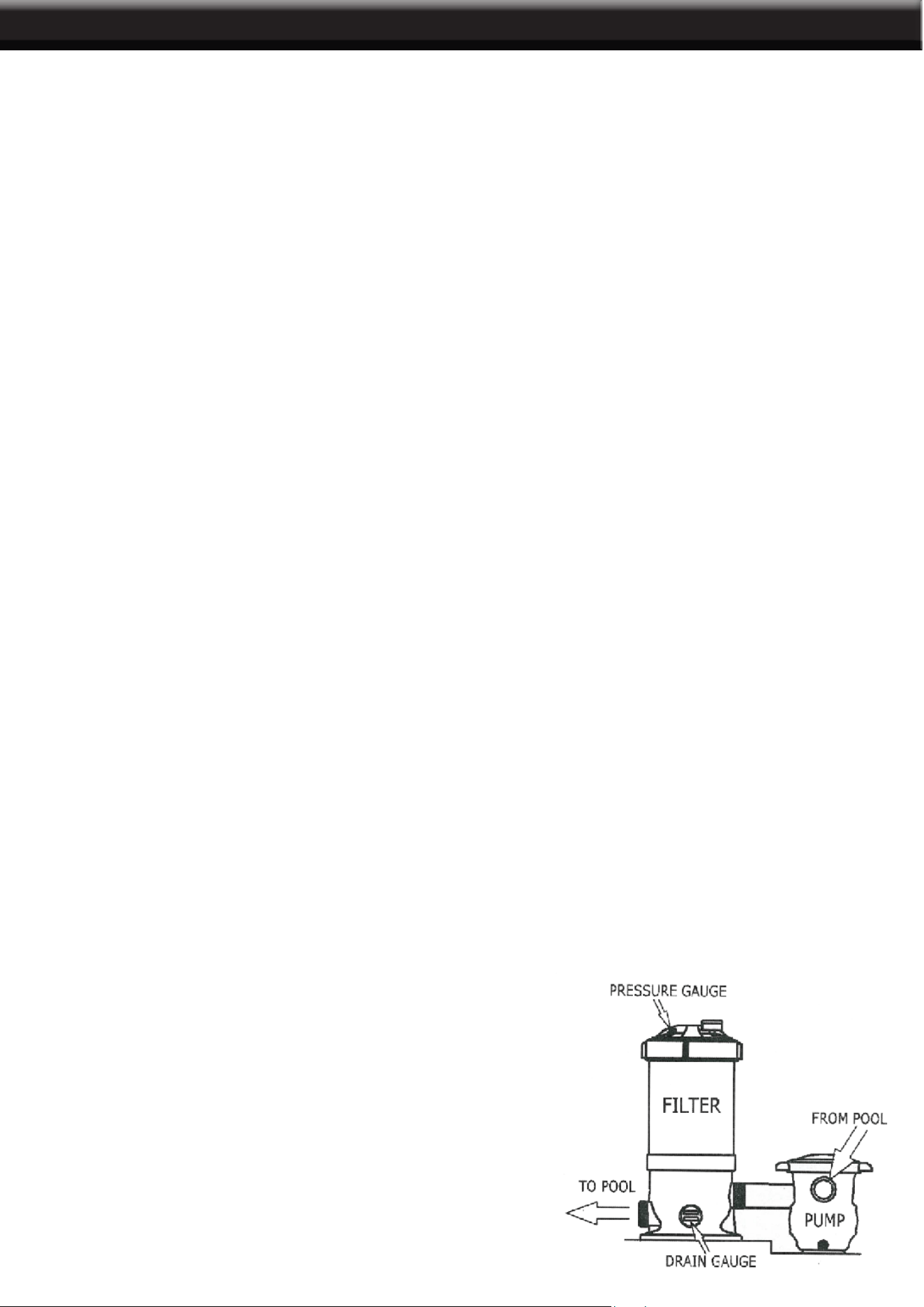

2. Refer to the diagrams for basic suggested valving. Ballvalves are recommended where needed. While all
systems vary, the main consideration is to provide the desired control of water ow from the pool to the pump
and lter, and back to the pool. When the lter is located below water level, provide valves to prevent back
ow of water to the lter during cleaning and routine servicing.
3. All plumbing on the Star-Clear Plus lter are 1-1/2” or 2”N.P.T. or socket (solvent weld). When making
threaded connections to the lter use plastic adapters. Apply three turns of Teon tape (or use special plastic
pipe sealant)to male threads.Screw the tting into the thread hand tight: then using a wrench, tighten one
more full turn. Additional tightening is unnecessary and result in broken or damaged ttings
4. Connect the pool suction plumbing between the skimmer, pool outlet, etc. and the pump.
5. Install the pool return plumbing.
6. If pressure gauge is not installed, apply Teon tape to the gauge threads, and carefully screw the gauge
into the threaded hole in the lter head.
7. A lter drain plug is furnished with each lter and is all that is needed for complete lterdraining. A manual
air relief valve is furnished to aid in bleeding off unwanted air when starting the lter. The auto air relief
provides air removal during operation.
8. All electrical connections should be made in accordance with local codes.
9. Check for joint leaks before operating.
10. Refer to pump instruction booklet for pump information.
4
OPERATION
STARTING THE FILTER
Be sure filter drain plug is closed. Open manual air relief valve a few turns and open the suction and return
valves (when used). CAUTION: All suction and discharge valves must be open when starting the system.
Failure to do so could cause severe personal injury and/or property damage. Be sure locking knob is
secure (hand tighten--only slight pressure is required). Stand clear of the filter and prime and start the
pump, following the manufacturer’s instructions. Air trapped in the system will automatically vent to the
pool and out air relief valve. Close air relief valve as soon as air is vented.
FILTERING
Filtration starts as soon as flow is steady through the filter. As the filter cartridge removes dirt from the
pool water, the accumulated dirt causes a resistance to flow. As a result, the gauge pressure will rise and
the flow will decrease. When the pressure rises 7-10 psi (.49-.70 Bar) above the starting pressure, or
when flow decreases below desired rate, clean or replace the filter cartridge.
REMOVING CARTRIDGE ELEMENT
1. Shut off the pump.
2. If lter is located below water level, close valves (or block off suction and discharge lines) to prevent
backow of water from the pool.
3. Unscrew and remove drain plug and allow water to drain from lter. Close drain plug. (Note: To assist
draining process: open air vent a few turns.)
4. Unscrew and remove locking knob (counterclockwise direction).
5. Carefully lift off top cover to gain access to lter cartridge.
6. Lift out cartridge and clean. Or, replace with clean, spare cartridge. (See Cleaning Cartridge.)
REINSTALLING CARTRIDGE ELEMENT
1. Clean any collected debris from the bottom of lter body.
2. Carefully replace cartridge element over tie rod and into lter body ensuring that the cartridge sits evenly
on the collector hub in bottom of lter body.
3. Tighten locking knob in clockwise direction. (Hand tight only.)
4. Proceed as in STARTING THE FILTER.
CLEANING CARTRIDGE
The cartridge filter element can be cleaned by pressure washing inside and out with a garden hose.
{The cartridge is easier to clean when dry.) After hosing the cartridge, for best results, allow cartridge
to dry and carefully brush pleated surface areas to remove fine particles. Algae, suntan oil and body oils
can form a coating on the cartridge pleats which may not be thoroughly removed by hosing. To remove
such materials, soak the cartridge in a solution of filter element cleaner (various brands available at pool
dealer). Follow manufacturer’s directions for use and allow an hour for soaking.Hose thoroughly before
reinstalling in filter. If calcium or mineral deposits are excessive, the cartridge may be restored to “like
new” condition by soaking in muriatic acid. Use commercially available 20% muriatic acid added to
water in 1 to 1 ratio. Use a plastic container and take extreme care when handling cleaning agents as they
can be harmful to eyes. skin and clothing. After cleaning, flush with water. A spare cartridge filter element is
an excellent investment. It provides convenience and ensures that your filter will always be ready to
operate at peak efficiency.
5

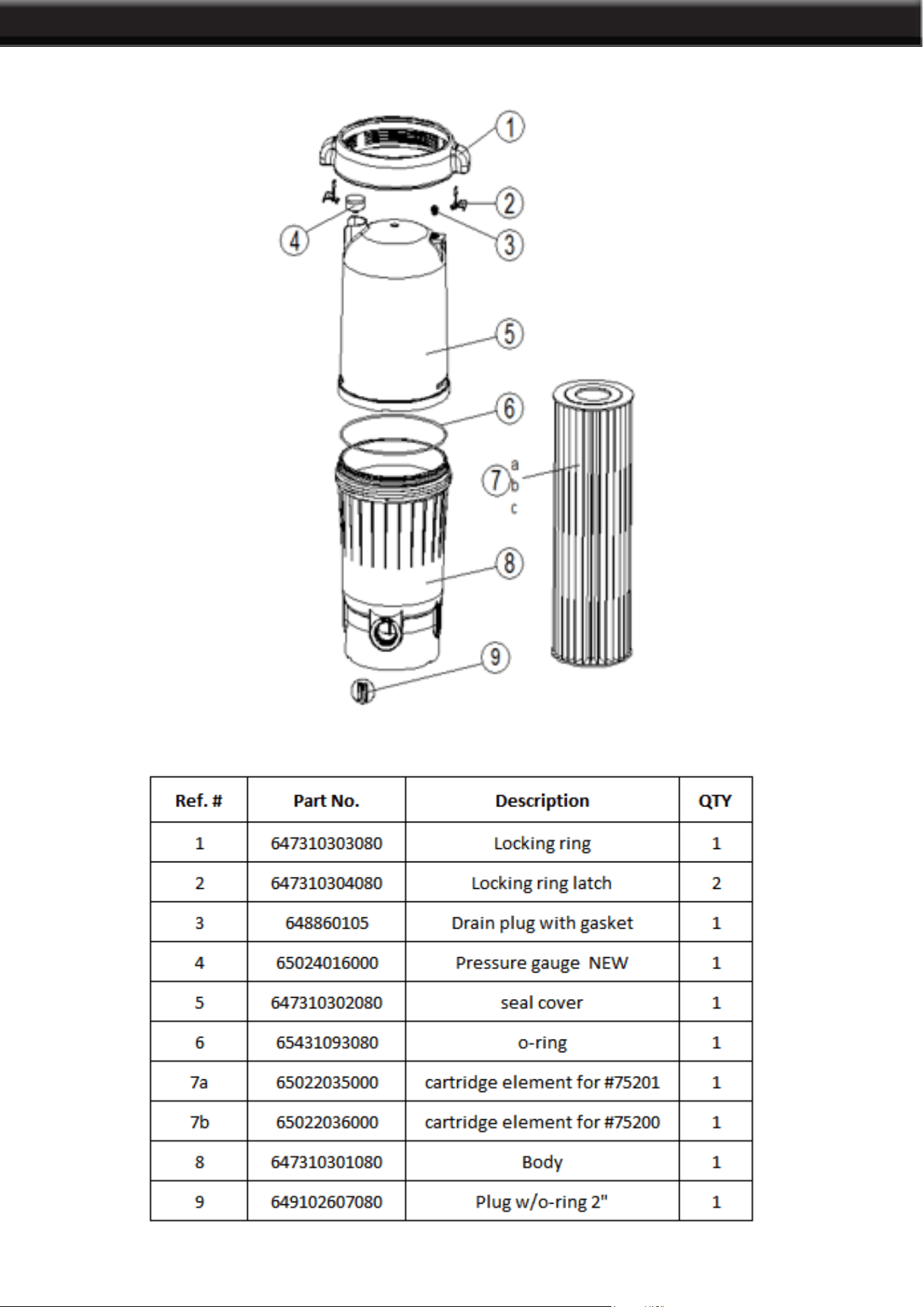

PARTS INFORMATION
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR
SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS
TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR
HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
6
DISCLAIMER
PRODUCT MADE IN CHINA
