WIRELESS RECEIVER CONNECTING AND PROGRAMMING

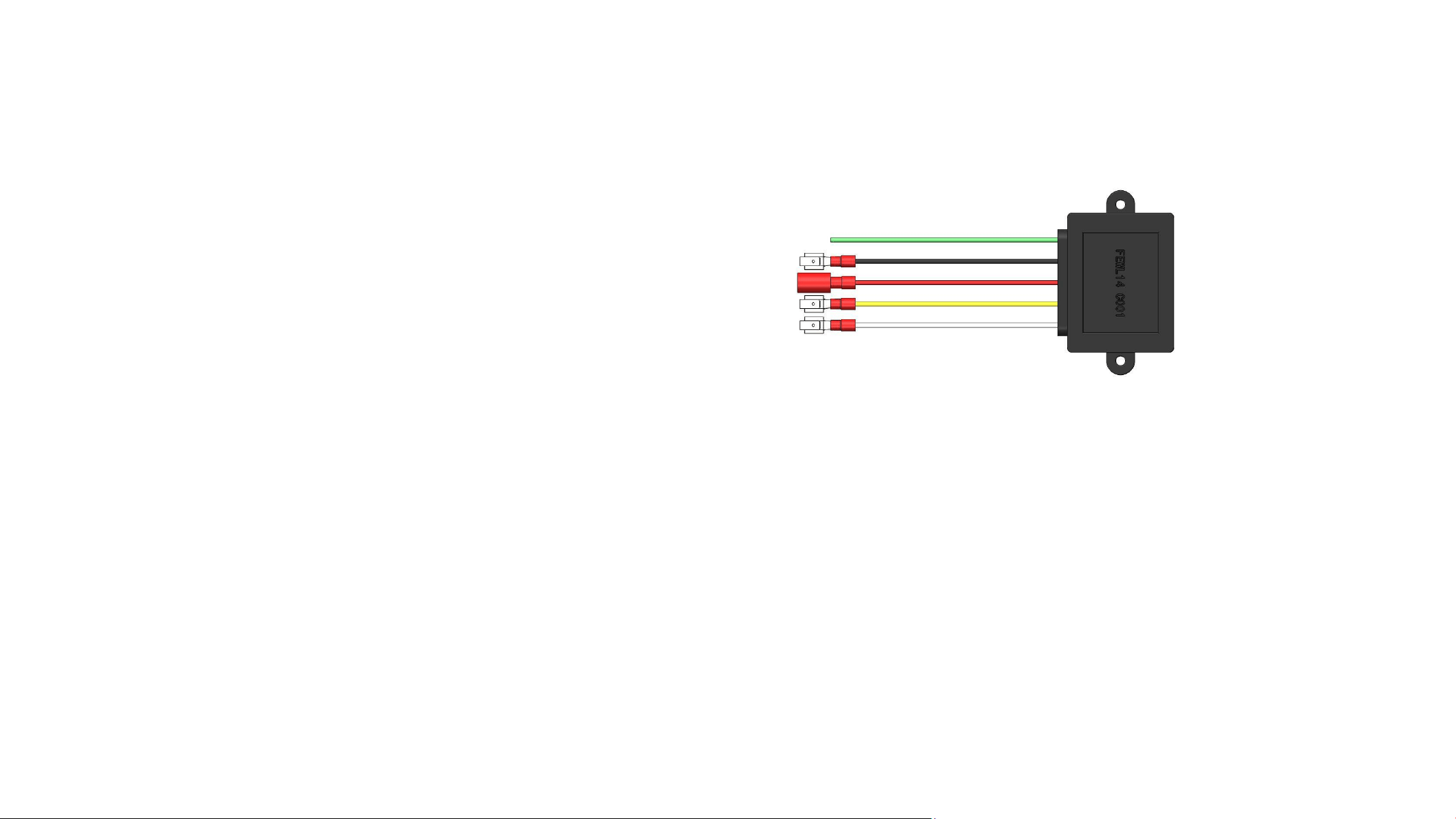

1、WIRING
（1）GREEN WIRE — Radio Frequency
（2）BLACK WIRE
— GND
（3）RED WIRE
— DC12~24V
（4）YELLOW WIRE
— IN
（5 WHITE WIRE
— OUT
2、PROGRAMMING
（1）
（2）
（3）
（4）
（5）
Connecting WIRE (2), (4) and (5) to corresponding terminals.
Activate Wireless Remote Transmitter, connect RED WIRE (3) to
start programming. Programming should be fulfilled within 3 seconds.
If Programming is failed, deactivate Wireless Remote Transmitter,
disconnect RED WIRE (3) from Wireless Receiver. Restart
Programing following the steps decribed above.
