Baby 5M
Please consult this checklist for all pas.
In the Box
1
Quick guide X1Power adapter X1
Power cable X1RESET pin X1
Monitor X1
2
DC 5V/2APower supply
DescriptionName
Status light of
charging
Orange light: Charging
Green light: Fully charged
Camera switch Press to switch between cameras bound to the screen
Menu Access the settings and options
Direction Navigate and select options
OK Conrm selections or wake the screen
Call Make a call after pressing the button
Back Press to back up; Long press to stop playing music
Menu
OK
Call
Back
Microphone
Status light
of charging
Zoom in/out
Direction
Camera switch
RESET
Micro SD card slot
Power po
ON/OFF button
Volume button
Stand
Speaker
Antenna
Bater cover plate
Zoom in/out Adjust the image magnication in 1X, 2X or 4X
3
ON/OFF button Long press 5 seconds to turn on/turn o the monitor
Antenna Adjust the angle to get better signals
Micro SD
card slot
Micro SD card storage (up to 128GB)
RESET Press with pin to reset the monitor
DescriptionName
Batte cover
plate
Cannot be removed for individual charging, used for
batte maintenance and environmental requirements
(Facto specic batteries are required)
Volume button Press to adjust the volume
4
Monitor Using Tips
Pairing of camera and monitor1
•Bind the monitor and camera
Power on the camera and the monitor, and they will
automatically connect. If the connection fails, please follow
the steps below to pair. The pairing is distance limited,
please determine the appropriate distance according to the
signal strength of the monitor.
1. Press the Menu button on the monitor, and select >
Camera.
Select Camera 1 or Camera 2 which you need to pair.
2. Long press the camera pairing button until you hear the
prompt tone.
3. Press the OK button on the monitor to sta pairing.
4. If you need pair 2 cameras, please repeat step 2~ step 4.
•Unbind the monitor and camera
1. Press the Menu button on the monitor, and select > Camera.
2. Select Camera 1 or Camera 2 which you need to unbind.
3. Long press the OK button to release the binding.
5
Camera switching method2
If you have added 2 cameras, the monitor will display 2 live
views at the same time. If you want to set parameters or enable
functions of one of the cameras, you need to select and switch
to the camera rst (the number shown in the represents the
selected camera).
Rotate the camera
3
You can adjust the monitoring angle for better vision.
The Direction buttons on the monitor screen are available
On the home page, press Camera switch button to switch the
camera between Cam1 or 2 if you have added 2 cameras. Press
the Menu button after you select one camera and set
parameters or enable functions according to your needs. You
can also press Zoom in/out button to zoom in and zoom out
after selection of camera.
6
Photo & video4
•Take a photo
•Record a video
•View the taken photos and recorded videos
1. Press the Menu button on the monitor, select and press
OK to enter the inteace.
2. Select the camera and date, then select the photo or video you
want to view and press OK to enter preview mode.
* Press OK to play or pause the video in the preview mode.
* Press the Back button to the quit preview or back to the main
menu.
You can take a photo when you want to capture an interesting
scene of the baby. Press Menu button on the monitor, select
and press OK to take a photo.
You can record a video when you want to capture a meaningful
moment for the baby. Press Menu on the monitor, select and
press OK to record a video.
when the camera is powered on. Press the Direction buttons to
rotate the camera horizontally and veically for better vision.
7
Play music5
You can use the monitor to play music when your baby needs to
be soothed. There are various soft music to select.
Press the Menu button on the monitor screen, select and press
OK to enter the music inteace. You can select dierent music,
change the music cycle mode, or adjust the music volume.

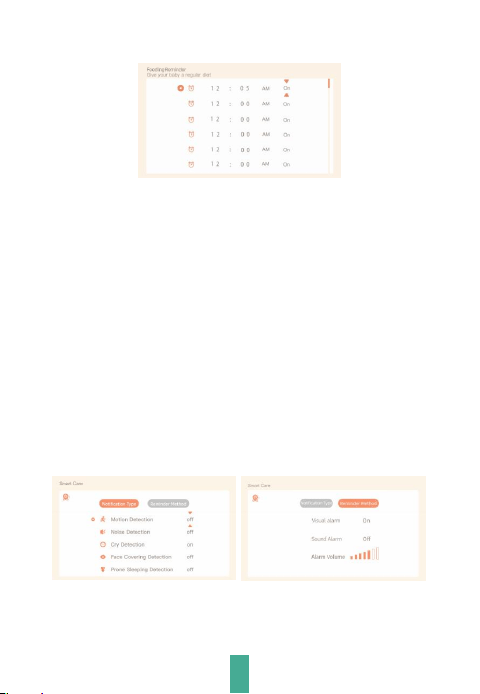

Feeding reminder6
Remind you to feed your baby when you are too busy, or when
you want to give your baby a regular diet.
1. Press the Menu button on the monitor, and select >
Feeding Reminder.
2. Select on or o to open or close feeding reminders. You can
set up to 10 feeding times one day. And when the set time is up,
a feeding alarm will appear on the monitor screen.
3. Press UP and DOWN Direction buttons to select between 10
time options, and press OK to sta the time setting.
8
Sma care7
1. Press Menu on the monitor and select > Sma Care.
2. Press UP and DOWN Direction buttons to select options
between several sma detections, and alarm volume, then press
OK to save.
3. When set up one detection mode, please press LEFT and
RIGHT Direction buttons to change options, and press UP and
DOWN Direction buttons to adjust the sensitivity.
* You can select dierent sensitivity according to your needs.
Low refers to low sensitivity, and high refers to high sensitivity.
Note: This function is only available when the camera suppos it.
9
Temperature and humidity detection 8
You can monitor the temperature and humidity of your baby's
room in real-time. When the temperature and humidity are out
of range, you will receive the alarms immediately, so that you
can take measures.
1. Press the Menu button on the monitor, and select >
Temperature and humidity.
2. Press UP and DOWN Direction buttons to select options
between Temperature Range, Humidity Range and Out of
range Reminder, then press OK to set up.
3. Press LEFT and RIGHT buttons to change options, then
press UP and DOWN buttons to change values and units.
In the Out of range Reminder option, select to turn on or o
the alarm when the temperature and humidity are out of
range.
Safety protection9
•Wi-Fi network channel
If you turn o the Wi-Fi network channel, the App will not be
able to view the camera.
Note: This function is only available when the camera suppos it.
10
•Visited records
You can also view the visited records as all visits through the App
will be recorded
.
Night light
You can turn on the night light if needed, and you can set
lighting mode and light color.
Press the Menu button, and select > Light > Night light.
10
General settings11
•Set up brightness
1. Press Menu on the monitor, select and press OK to enter.
2. Press UP and DOWN buttons to adjust brightness.
•Set up time:
1. Press Menu on the monitor and select > Date and time.
2. Press the Direction buttons to change the date, time, and time displaying
mode.
Note: This function is only available when the camera suppos it.
•Set up language:
1. Press Menu on the monitor and select > Language.
2. Select the language you need.
•Set up sleep mode:
You can set up sleep mode to increase standby time.
1. Press Menu on the monitor and select > Sleep mode.
2. In default mode(Audio o), the audio from the camera can not be heard
after the display is o, so the standby time is long. In Audio on mode, the
audio from camera can still be heard even after the screen is turned o, and
you can choose the time(1, 5, 10, 30 or 60min), but the standby time is
shoer. In Always on mode, the monitor remains on unless the power button
is pressed, with sho standby time.
•Turn on and o status indicator:
If you turn on the status indicator, you can get the working status of the
camera. You can also turn o the status indicator if you think it will aect
your baby's sleep.
Press Menu on the monitor and select > (Or Press the Menu
button, select > Light > Status light.).
•SD card:
1. Press Menu on the monitor and select > SD card management. Then
you can view the total capacity and remaining capacity of your SD card.
2. (Optional) You can format the SD card as you needed, but make sure that
the impoant data is backed up.
•Upgrade:
You can upgrade your camera when the upgrade alarm appears. Or press
Menu on the monitor and select > Device information to check
whether there is an upgrade.
•Low batte alarm:
When the monitor is low on batte, the low batte alarm will appear on
the monitor screen. Please charge the monitor as soon as possible.
11
FAQs
Q:
A:
The monitor cannot be previewed properly?
Check whether the monitor has connected to the camera. If not, pair the
camera and the monitor rstly.
Q:
A:
How can I upgrade the version of the monitor?
Firstly, add the camera to the App. Then press Menu on the monitor and
select > Device Information, then check for available upgrades.
What should I do if the monitor is stuck?
Press the RESET button or long press the ON/OFF button to turn on the
monitor again.
Q:
A:
Q:
A:
How can I change the wallpaper of monitor screen?
Press Menu on the monitor and select > Wallpaper.
Q:
A:
Why the camera or the monitor cannot identify the Micro SD card?
Conrm whether the Micro SD card is normally available and the format
is FAT32.
12
Tech Specs
Model
Resolution
1024(H) x 600(V)
Batte capacity
5200mAh
Working temp
0°C to 40°C
Local storage
Micro SD card (up to 128GB)
Input power
DC 5V / 2A
Wi-Fi Halow
866MHz (Max. power<14dBm ) (For CE)
905-925MHz (Max. power<30dBm ) (For FCC)
Baby 5M
13
Ceications
Don’t throw batteries or out of order products with
the household waste (garbage). The dangerous
substances that they are likely to include may harm
health or the environment. Make your retailer take
back these products or use the selective collect of
garbage proposed by your city.
Hereby, we declare that the radio equipment type
Baby 5M isin compliance with the Directive
2014/53/EU.
Specic precautions for EMC
This is a Class B product, in a domestic environment, this product may cause
radio inteerence, in which case the user may be required to take adequate
measures.
RF EXPOSURE INFORMATION
This device meets the EU requirements (2014/53/EU) on the limitation of
exposure of the general public to electromagnetic elds by way of health
protection.
14
Power Adapter Safety
1. The power plug is intended to see as a disconnect device. Do not drop or cause an impact
to the power adapter.
2. If the power cable is damaged (for example, the cord is exposed or broken), or the plug
loosens, stop using it at once. Continued use may lead to electric shocks, sho circuits, or re.
3. Do not touch the device or the power adapter with wet hands. Doing so may lead to sho
circuits, malfunctions, or electric shocks.
Note: The adapter is compatible with LPS.
Child's Safety
1. Comply with all precautions with regard to child's safety. Letting children play with the device
or its accessories may be dangerous.
2．The device and its accessories are not intended for use by children. Children should only use
the device with adult supeision.
Operation Requirements
1. Use the device under allowed humidity and temperature conditions.
2. Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing
it, to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and ickering.
3. Obsee local laws and regulations, and respect the privacy and legal rights of others.
15
Batte Safety
1.Your device contains a rechargeable lithium-ion batte and should be replaced only by a
qualied seice provider. Do not disassemble, open, crush, bend, deform, puncture, shred or
attempt to access the batte in your device
2.Do not modify or remanufacture the batte, attempt to inse foreign objects into the
batte, or immerse or expose it to water or other liquids, expose to re, explosion or other
hazard.
3.Do not use a batte if its case appears damaged, swollen, or compromised. Examples include,
but are not limited to, leaking, odors, dents, corrosion, rust, cracks, swelling, melting, and
scratches.
4.Do not put the batte in trash that is disposed of in landlls. When disposing of the batte,
comply with local ordinances or regulations.
Indust Canada (ISED) Compliance Statement
This device complies with ISED’s licence‐exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause inteerence; and
(2) This device must accept any inteerence, including inteerence that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de
licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
ISED Statement
This device compliance with CAN ICES-003 (B)/NMB-003(B) CAN ICES-003 (B)
Déclaration d’ISED Canada
Cet appareil est conforme à la norme CAN ICES-3 (B)/ NMB-3 (B).
16
© 2026. All rights reseed. All trade names are registered trademarks of respective companies
Apple, the Apple logo, iPhone are trademarks of Apple Inc. registered in the U.S. and other
countries. Google, the Google logo, Android are trademarks of Google Inc. App Store is a seice
mark of Apple Inc. Google Play is a seice mark of Google Inc.
V1.0 202603
17
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to pa 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful inteerence in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful inteerence to radio communications. However, there is no
guarantee that inteerence will not occur in a paicular installation. If this equipment does
cause harmful inteerence to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to t to correct the inteerence by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF EXPOSURE WARNING
FCC Radiation Exposure Statement: This device complies with FCC radiation exposure limits set
foh for an uncontrolled environment and it also complies with Pa 15 of the FCC RF Rules.
This equipment must be installed and operated in accordance with provided instructions and
the antenna(s) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provide with antenna installation
instructions and consider removing the no-collocation statement.
This device complies with Pa 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful inteerence, and (2) this device must accept
any inteerence received, including inteerence that may cause undesired operation.
Caution!
Any changes or modications not expressly approved by the pay responsible for compliance
could void the user's authority to operate the equipment.
