PN 240013258 REV. E [02/10/2023]
USER'S
INFORMATION
MANUAL
CAST IRON GAS FIRED
WATER HEATING BOILERS
WARNING: IF THE INFORMATION IN THIS MANUAL IS
NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
re department.
Installation and service must be performed by a
qualied installer, service agency or the gas
supplier.
Do not use this boiler if any part has been under water. Immediately call a qualied service technician
to inspect the boiler and to replace any part of control system and any gas control which has been
under water.
Should overheating occur or gas supply fail to shut o, do not turn o or disconnect electrical supply
to the pump. Instead, shut o gas supply at location external to the appliance.
KEEP THIS MANUAL NEAR BOILER
RETAIN FOR FUTURE REFERENCE
2
PN 240013258 REV. E [02/10/2023]
1- GENERAL
This boiler has few user serviceable parts. Maintenance
and Service must be completed by qualied agency.
WARNING
Fire, explosion, asphyxiation and electrical shock
hazard. Improper maintenance and service could
result in death or serious injury. Read this manual
and understand all requirements, including use of
qualied agency where directed.
Become familiar with symbols identifyingBecome familiar with symbols identifying
potential hazards.potential hazards.
NOTICE
Used to address practices not related to personal
injury.
CAUTION
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
!!
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
!
DANGER
Indicates a hazardous situation which, if not
avoided, WILL result in death or serious injury
!
This is the safety alert symbol. Symbol alerts you to This is the safety alert symbol. Symbol alerts you to
potential personal injury hazards. Obey all safety messages potential personal injury hazards. Obey all safety messages
following this symbol to avoid possible injury or death.following this symbol to avoid possible injury or death.
1- SAFETY INFORMATION
!
WARNING
Combustion chamber insulation in this product
contains ceramic ber material. Ceramic bers
can be converted to cristobalite in very high
temperature applications. The International Agency
for Research on Cancer (IARC) has concluded,
Crystalline silica inhaled in the form of quartz
or cristobalite from occupational sources is
carcinogenic to humans (Group1). Avoid breathing
dust and contact with skin and eyes. Use NIOSH
certied dust respirator (N95). This type of
respirator is based on the OSHA requirements
for cristobalite at the time this document was
written. Other types of respirators may be needed
depending on the job site conditions. Current
NIOSH recommendations can be found on the
NIOSH website https://www.cdc.gov/niosh/topics/
silica/. NIOSH approved respirators, manufacturers,
and phone numbers are also listed on this website.
Wear long-sleeved, loose tting clothing, gloves,
and eye protection. Apply enough water to the
combustion chamber lining to prevent dust. Wash
potentially contaminated clothes separately from
other clothing. Rinse clothes washer thoroughly.
NIOSH stated First Aid. Eye: Irrigate immediately.
Breathing: Fresh air.
!
CAUTION
Laceration, burn hazard. Metal edges and parts
may have sharp edges and/or may be hot. Use
appropriate personal protection equipment to
include safety glasses and gloves when installing
or servicing this boiler. Failure to follow these
instructions could result in minor or moderate
injury.
!!
3
PN 240013258 REV. E [02/10/2023]
1.1 What To Do Should Overheating Occur
Do not turn o or disconnect electrical supply to pumps.
Shut o gas supply at location external to appliance.
1.2 What To Do If Boiler Or Any Part Has Been Under 1.2 What To Do If Boiler Or Any Part Has Been Under
WaterWater
Do not use boiler if any part has been under water.
Immediately call a qualied service technician to inspect
boiler and to replace any part of control system and any
gas control which has been under water.
1.3 For Your Safety 1.3 For Your Safety
This product burns gas to produce heat. The appliance
must be properly installed, operated, and maintained to
avoid exposure to appreciable levels of carbon monoxide
and the installer is required to conrm that at least one
carbon monoxide alarm is installed in the living space
before the appliance is put into operation. It is important
for the carbon monoxide alarms to be installed, maintained,
and replaced following the alarm manufacturer's
instructions and applicable local codes.
2 - SAFETY INFORMATION
FOR YOUR SAFETY READ BEFORE OPERATING
Hot Water Can Scald!
Water heated to temperature for clothes washing,
dish washing and other sanitizing needs can scald
and cause permanent injury.
Children, elderly, and inrm or physically
handicapped persons are more likely to be
permanently injured by hot water. Never leave them
unattended in bathtub or shower. Never allow small
children to use a hot water tap or draw their own
bath.
If anyone using hot water in the building ts the
above description, or if state laws or local codes
require certain water temperatures at hot water
taps, you must take special precautions:
• Use lowest possible temperature setting.
• Install some type of tempering device, such as an
automatic mixing valve, at hot water tap or water
heater. Automatic mixing valve must be selected
and installed according to manufacturer's
recommendations and instructions.
• Water passing out of drain valves may be
extremely hot. To avoid injury:
• Make sure all connections are tight.
• Direct water ow away from any person.
DANGER
!
Water
Temperature
Seng
1st Degree Burn
Exposure Time For
An Adult
2nd and 3rd Degree Burn
Exposure Time For An
Adult
120° F 1 minute 5 minutes
130° F 5 seconds 30 seconds
140° F 2 seconds 5 seconds
150° F 1 second 1.5 seconds
160° F Instantaneous 0.5 seconds
Note: Warning for Infants, Children, and Elderly:
Great care must be taken when exposing the
aforementioned groups to warm or hot water as they
can be badly burned in exposure times less than half
of the time for an adult.
WARNING
Fire, Explosion, Asphyxiation, Electrical shock
hazard! Flooding will result in damages such as
electrical problems, corrosion, inoperative parts,
mold and other unforeseen issues which can
occur over time. Any equipment determined by
a professional as damaged by a ood, dened as
excess of water or other liquid, shall be replaced.
Failure to follow these directions will result in a
Hazardous Situation.
!
4
PN 240013258 REV. E [02/10/2023]

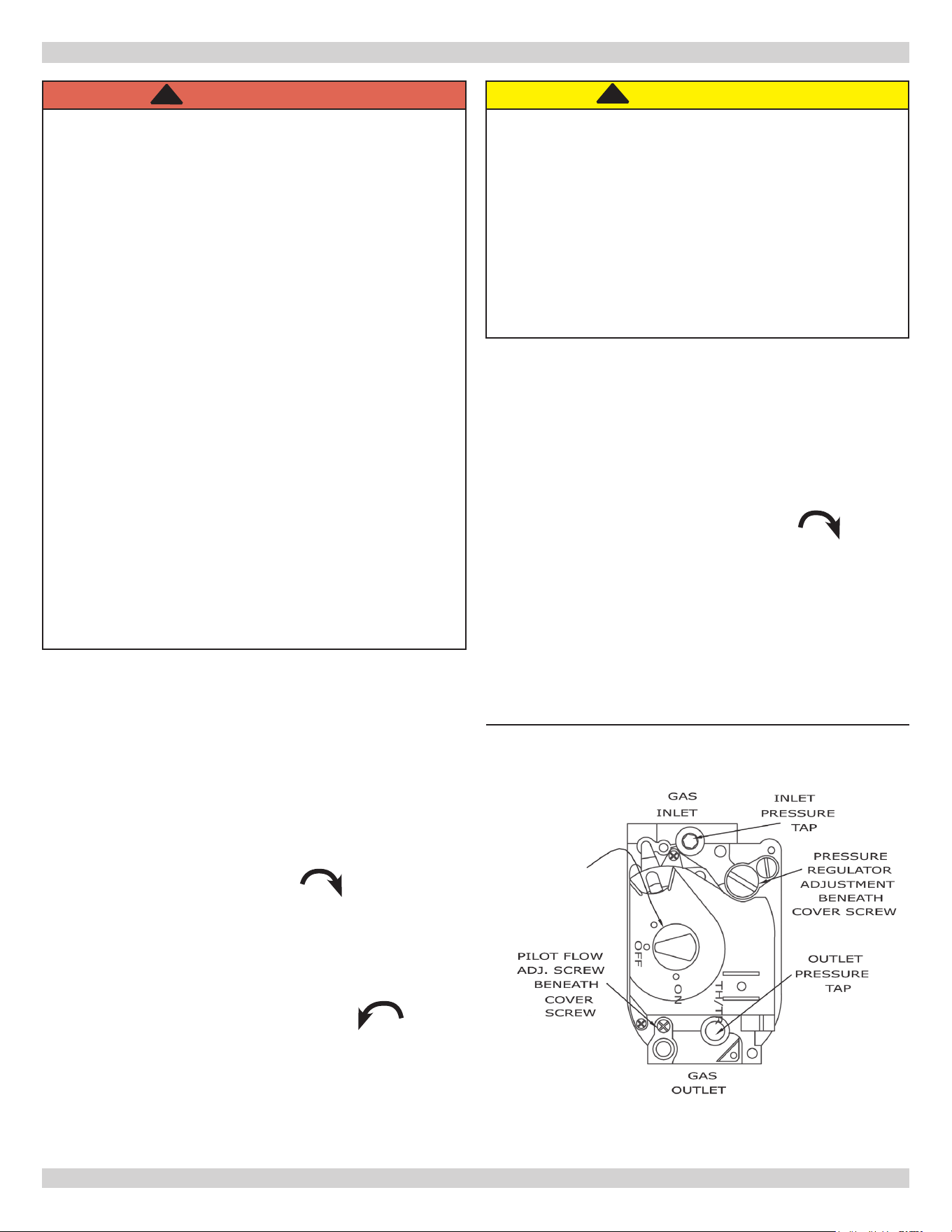

FIGURE 1- 1 - GAS VALVE
FOR YOUR SAFETY READ BEFORE OPERATING
CAUTION
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re
department.
!!
WARNING
If you do not follow these instructions
exactly, a re or explosion may result
causing property damage, personal injury
or loss of life.
• This appliance is equipped with an ignition device
which automatically lights burner. Do NOT try to
light this burner by hand.
• Before operating smell all around appliance area
for gas. Be sure to smell next to oor because
some gas is heavier than air and will settle to the
oor.
• Use only your hand to turn the gas shuto valve.
Never use tools. If valve will not turn by hand,
do not try to repair it, call a qualied service
technician. Force or attempted repair may result
in re or explosion.
• Do not use this appliance if any part has been
under water. Immediately call a qualied service
technician to inspect appliance and to replace any
part of control system and any gas control which
has been under water.
• Do not operate boiler if hot water boiler and
system are not full of water to minimum pressure
of 12 psi. Verify system is vented of air.
!
2.1 Operating Instructions
Stop! Read Safety information above.
• Set thermostat to lowest setting.
• Turn "OFF" all electrical power to appliance.
• This appliance is equipped with an ignition device which
automatically lights the burner. Do not try to light
burner by hand!
• Lift and remove front door.
• Turn gas control knob clockwise to closed
position. See Figure 2-1
• Wait 5 minutes for any gas to clear. Smell for gas,
including near oor. If you smell gas, STOP! Follow
instructions on this page: “What To Do If You Smell
Gas.” If you do not smell gas, go to next step.
• Turn gas control knob counter clockwise to
open position.
• Turn "ON" electrical power to appliance.
• Set thermostat to desired setting.
• If the appliance will not operate, follow instructions TO
TURN OFF GAS TO APPLIANCE and call your service
technician or gas supplier.
2.2 To Turn O Gas To Appliance
• Set thermostat to lowest setting.
• Turn "OFF" all electric power to appliance if service is
to be performed.
• Remove access panel(s).
• Turn gas shuto control knob clockwise to
closed position.
• Replace access panel(s).
GAS CONTROL KNOB
(SHOWN IN CLOSED
POSITION)
2 - LIGHTING INSTRUCTIONS
5
PN 240013258 REV. E [02/10/2023]
3 - GENERAL INSTRUCTIONS
3.1 Safety Features
• In event the ow of combustion products through
boiler venting system becomes blocked, the blocked
vent safety switch will shut main burner gas o. See
Figure 2. If this condition occurs, do not attempt
to place boiler in operation. Contact a qualied
service agency.
• If boiler ue-ways become blocked, ame rollout
safety switch will shut main burner gas o. See
Figure 2. If this condition occurs, do not attempt to
place the boiler in operation. Contact a qualied
service agency.
3.2 Continuous
• Keep boiler area free from combustible materials,
gasoline and other ammable vapors and liquids.
• Keep combustion air and vent terminations (outside
building) free from trash, vegetation and other items
capable of blocking ow.
3.3 Beginning of Each Heating Season
Contact qualied service agency to perform maintenance
and cleaning per Installation, Operation and Maintenance
manual.
Inspection will include examining all ue product carrying
areas, vent system, burner and pilot ames. Will also
include lling boiler with water if drained as part of End of
Heating Season procedure.
3.4 Monthly
• Inspect combustion air, vent piping for deterioration,
leaks or sagging. Contact qualied agency, as
necessary.
• Inspect system piping for leaks. Contact qualied
agency, as necessary.
• Check air vent(s) for leakage.
• Follow OPERATING INSTRUCTIONS to return to normal
operation.
Integral Draft
Hood

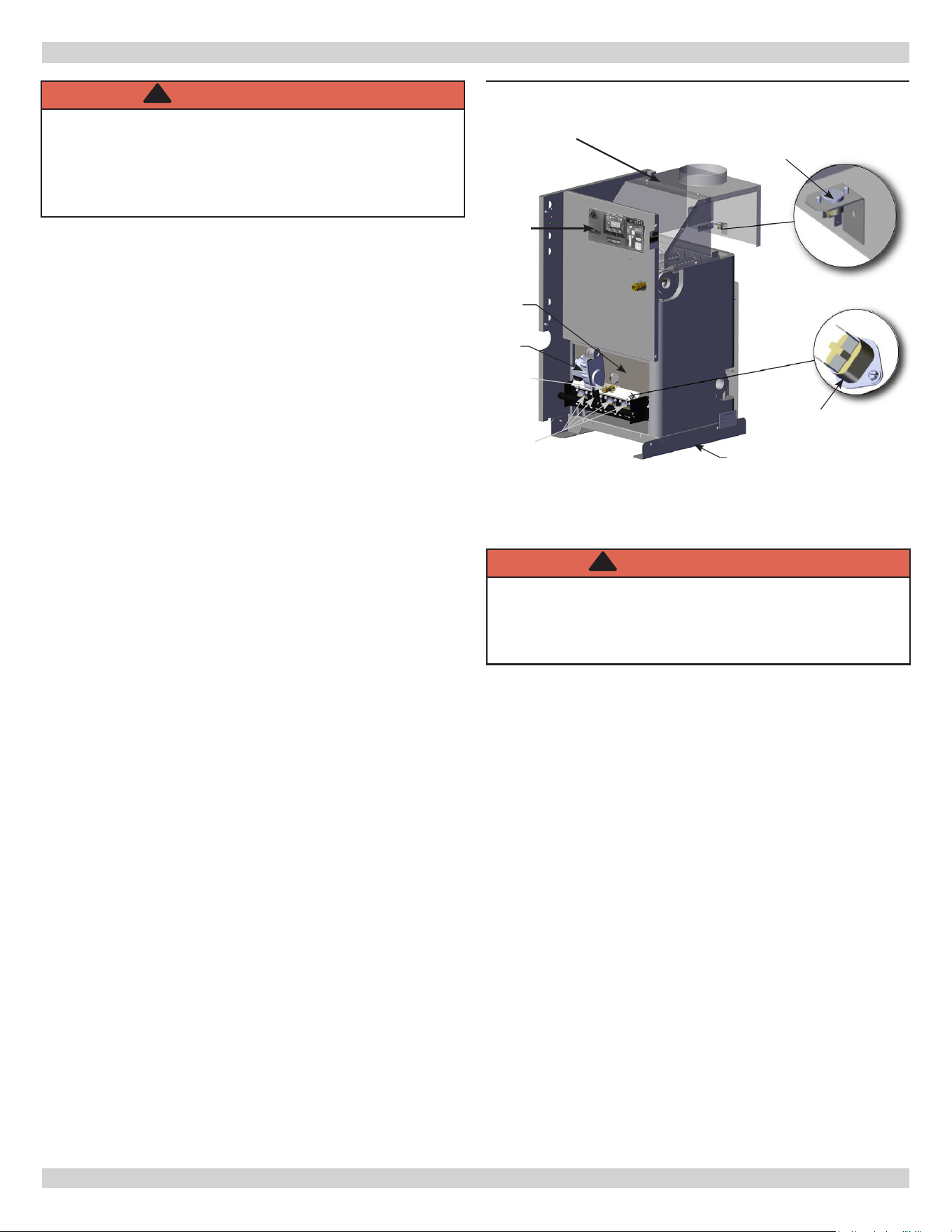

FIGURE 2 - BOILER FLUE GAS PASSAGEWAYS
WARNING
Burn and scald hazard. Verify Safety Relief Valve
discharge piping run to safe discharge location before
conducting maintenance procedure. Contact qualied
agency to correct improper piping.
!
3.5 Check According to Manufacturer’s
Instructions
Safety Relief Valve - Refer to manufacturer’s instructions.
3.6 End of Heating Season, if boiler is not used
for domestic hot water
• Follow instructions to TURN OFF GAS TO APPLIANCE.
See section 2.2.
• Contact qualied agency to drain heating system (if
system does not use antifreeze) if heating system is
exposed to freezing temperatures while out of service.
Blocked Vent
Safety Switch
Rollout Switch
Burner
Door
Gas
Valve
Igniter
Burners
Controls
Base
WARNING
Fire and Asphyxiation hazard. Do not attempt to
place boiler in operation if safety switches shut the
main burner gas o. Contact a qualied service
agency. Failure to follow these instructions could
result in death or serious injury.
!
6
PN 240013258 REV. E [02/10/2023]
NOTES
7
PN 240013258 REV. E [02/10/2023]
Date Service Performed Company Name & Tech Initials Company Address & Phone #
SERVICE RECORD
Following information is requested for all service calls
(*Information can be found on boiler's rating plate)
Date of Installation:
*Boiler Serial Number:
* Boiler Model Number:
Installed By:
