CATALOG OF
REPLACEMENT PARTS
F-45409 (February 2022)
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
www.vulcanequipment.com
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
MODELS
VICM24
VICM36
VICM48
VICM60
VICM72
WICM24
WICM36
WICM48
WICM60
WICM72
VICM AND WICM CHEESEMELTERS
VICM AND WICM CHEESEMELTERS REPLACEMENT PARTS
F-45409 (February 2022) - 2 - © VULCAN-HART COMPANY 2022
PANELS AND RACK
VICM AND WICM CHEESEMELTERS REPLACEMENT PARTS
F-45409 (February 2022) - 4 -

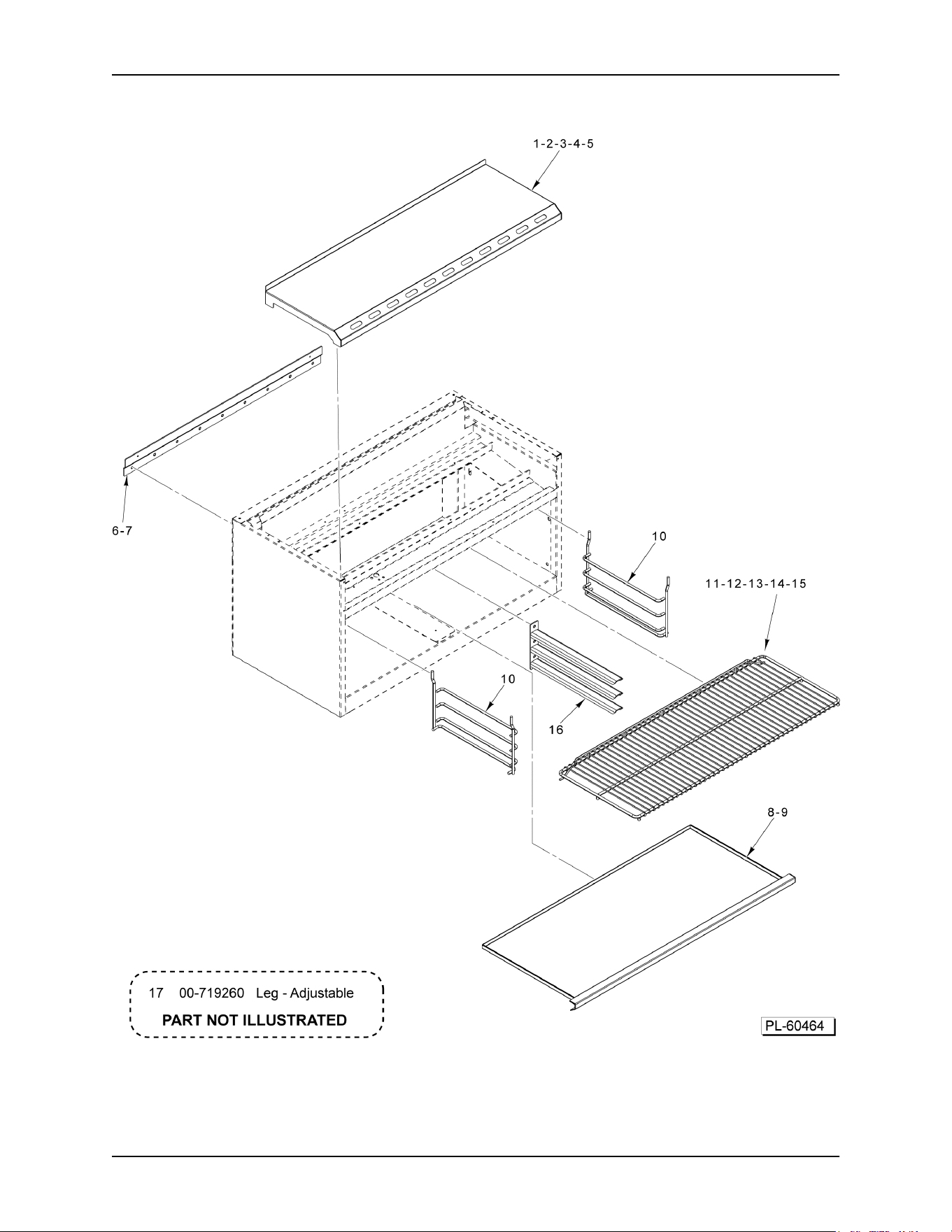

PANELS AND RACK
ILLUS.
PL-60464
PART NO. NAME OF PART AMT.
1 00-944498-0024 Panel - Top (24 In.)....................................................................................................................1
2 00-944498-0036 Panel - Top (36 In.)....................................................................................................................1
3 00-944498-0048 Panel - Top (48 In.)....................................................................................................................1
4 00-944498-0060 Panel - Top (60 In.)....................................................................................................................1
5 00-944498-0072 Panel - Top (72 In.)....................................................................................................................1
6 00-944491-00002 Bracket - Mounting (20 In.)......................................................................................................AR
7 00-944491-00001 Bracket - Mounting (32 In.)......................................................................................................AR
8 00-944496-0036A Tray - Crumb (36 In.)...............................................................................................................AR
9 00-944496-0024A Tray - Crumb (24 In.)...............................................................................................................AR
10 00-712378-00001 Guide - Rack Support.................................................................................................................2
11 00-712300-00001 Rack (24 In.)...............................................................................................................................1
12 00-712301-00001 Rack (36 In.)...............................................................................................................................1
13 00-712302-00001 Rack (48 In.)...............................................................................................................................1
14 00-712303-00001 Rack (60 In.)...............................................................................................................................1
15 00-712304-00001 Rack (72 In.)...............................................................................................................................1
16 00-944494-0000A Support - Center Rack (60 In. and 72 In. Models)......................................................................1
17 00-719260 Leg - Adjustable (4 In.)...............................................................................................................1
VICM AND WICM CHEESEMELTERS REPLACEMENT PARTS
- 5 - F-45409 (February 2022)
BURNER AND GAS COMPONENTS
VICM AND WICM CHEESEMELTERS REPLACEMENT PARTS
F-45409 (February 2022) - 6 -

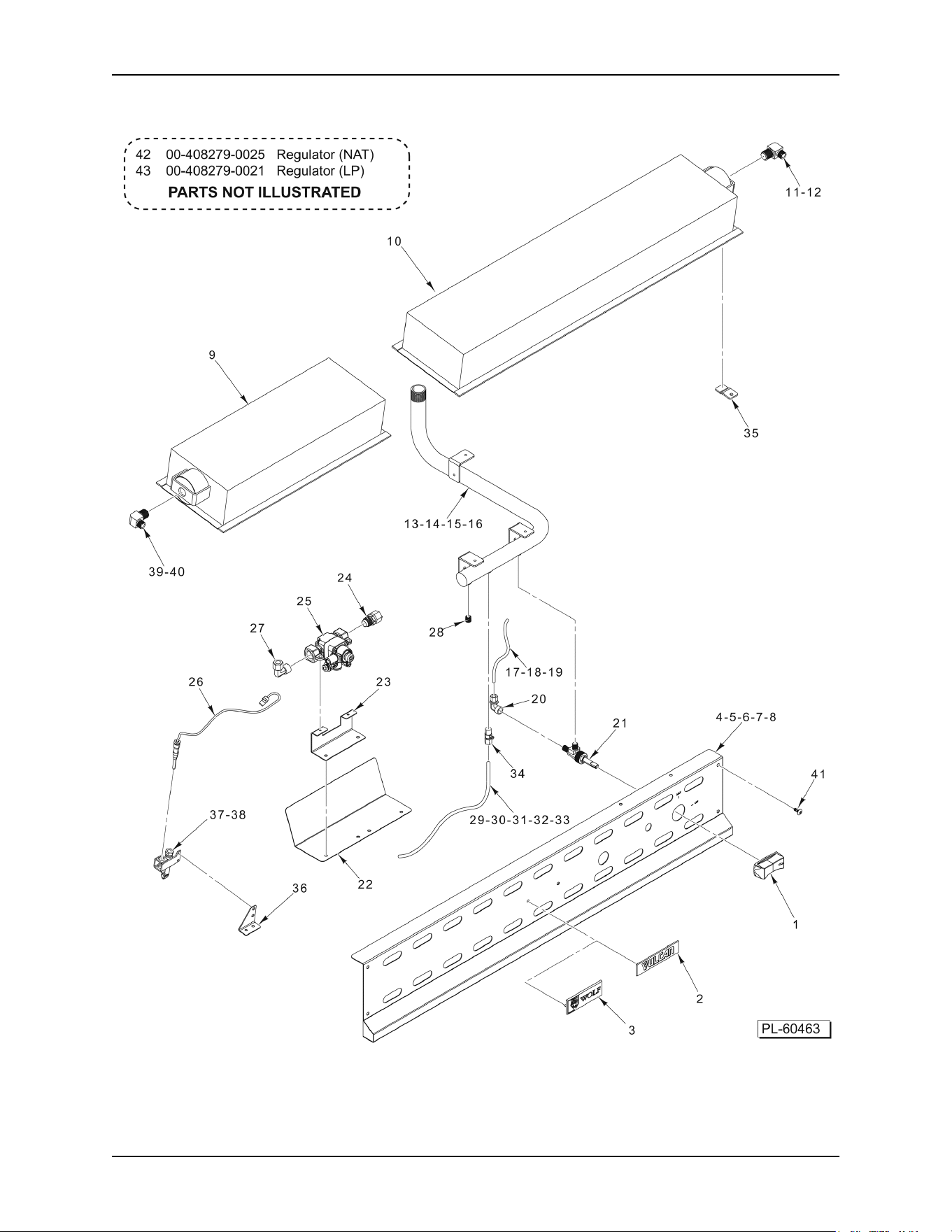

BURNER AND GAS COMPONENTS
ILLUS.
PL-60463
PART NO. NAME OF PART AMT.
1 00-944265 Knob (Chrome)...........................................................................................................................1
2 00-957916-00003 Nameplate - Small (Vulcan).......................................................................................................1
3 00-723204 Nameplate - Small (Wolf)...........................................................................................................1
4 00-944497-0024A Panel Assy. - Front (24 In.)........................................................................................................1
5 00-944497-0036A Panel Assy. - Front (36 In.)........................................................................................................1
6 00-944497-0048A Panel Assy. - Front (48 In.)........................................................................................................1
7 00-944497-0060A Panel Assy. - Front (60 In.)........................................................................................................1
8 00-944497-0072A Panel Assy. - Front (72 In.)........................................................................................................1
9 00-944489-00020 Burner (20,000) (BTU) (24 In., 48 In., and 60 In. Models).......................................................AR
10 00-944489-00030 Burner (30,000) (BTU) (36 In., 60 In., and 72 In. Models).......................................................AR
11 00-713944-00037 Orifice - Elbow #37 (NAT) (30,000 BTU).................................................................................AR
12 00-713944-00051 NLA - Obsolete--Orifice - Elbow #51 (LP) (30,000 BTU).........................................................AR
13 00-944499-0024A Manifold Assy. (24 In. and 36 In.)...............................................................................................1
14 00-944499-0048A Manifold Assy. (48 In.)................................................................................................................1
15 00-944499-0060A Manifold Assy. (60 In.)................................................................................................................1
16 00-944499-0072A Manifold Assy. (72 In.)................................................................................................................1
17 00-851614-00001 Tube - Flex (3/8 x 6 In.) (Burner Valve to Burner)...................................................................AR
18 00-722425 Tube - Flex (3/8 x 8 In.) (Burner Valve to Safety Valve)..........................................................AR
19 00-498622 Tube - Flex (3/8 x 15-1/2 In.) (Safety Valve to Burner)...........................................................AR
20 00-719393 Elbow 3/8 MPT........................................................................................................................AR
21 00-719221 Valve - Manual........................................................................................................................AR
22 00-944487 Valve - Safety Shield...............................................................................................................AR
23 00-944490 Valve - Safety Bracket.............................................................................................................AR
24 00-719377 Connector - Straight 3/8 x 3/8 (Brass).....................................................................................AR
25 00-922159-0000A Valve - Safety..........................................................................................................................AR
26 00-714268 Thermocouple.........................................................................................................................AR
27 00-719376 Elbow 3/8 x 3/8........................................................................................................................AR
28 00-719363 Plug 1/8 NPT Countersink..........................................................................................................1
29 00-498887 Tube - Flex (1/4 x 14 In.) (Pilot Valve to Pilot).........................................................................AR
30 00-722230 Tube - Flex (1/4 x 24 In.) (Pilot Valve to Pilot).........................................................................AR
31 00-426505-00006 Tube - Flex (1/4 x 6 In.) (Pilot Valve to Safety Valve).............................................................AR
32 00-722228 Tube - Flex (1/4 x 12 In.) (Safety Valve to Pilot).....................................................................AR
33 00-426505-00018 Tube - Flex (1/4 x 18 In.) (Safety Valve to Pilot).....................................................................AR
34 00-719179 Valve - Single Pilot..................................................................................................................AR
35 00-944493 Clip - Burner............................................................................................................................AR
36 00-944492 Bracket - Pilot..........................................................................................................................AR
37 00-426262-00001 Pilot Assy. (NAT).....................................................................................................................AR
38 00-426262-00002 Pilot Assy. (LP)........................................................................................................................AR
39 00-713944-00044 Orifice - Elbow #44 (NAT) (20,000 BTU).................................................................................AR
40 00-713944-00053 Orifice - Elbow #53 (LP) (20,000 BTU)....................................................................................AR
41 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
42 00-408279-00025 Regulator - Pressure 3/4 In. (NAT).............................................................................................1
43 00-408279-00021 Regulator - Pressure 3/4 In. (LP)...............................................................................................1
