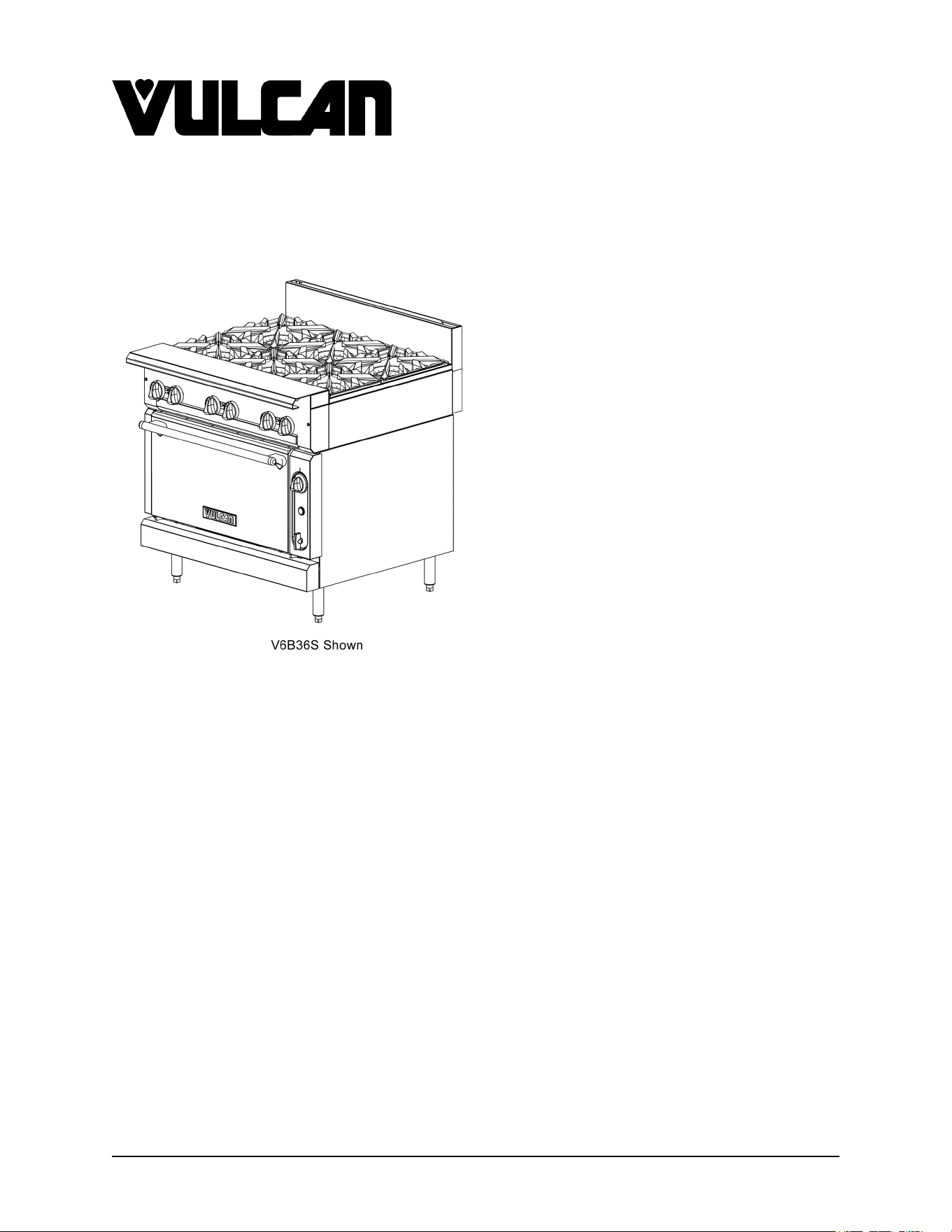

Vulcan V2B12 V Series Heavy Duty Range User Manual

V SERIES HDR GAS RANGES

TOPS

Open Top

Hot Top

Griddle Top

Work Surface

BASES

Standard Oven

Convection Oven

Cabinet Base

*Add “B” for Cabinet Base.

*Add “S” for Standard Oven Base on

36” Models.

*Add “C” for Convection Oven Base on

36” Models.

CATALOG OF

REPLACEMENT

PARTS

VULCAN-HART DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC 3600 NORTH POINT BLVD., BALTIMORE, MD 21222

FORM 37419 Rev. H (February 2024)

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 2 - © VULCAN-HART COMPANY 2024

Table of Contents

5 12/24/36 IN OPEN TOP BURNER

7 B MODEL 12/18/24/34 IN CABINET BASE

9 S MODEL OVEN

11 S MODEL GAS MANIFOLD ASSY

13 C MODEL OVEN

15 C MODEL GAS MANIFOLD ASSY

17 36 IN - 4 & 18 IN - 2 OPEN TOP BURNER

19 24/36 IN CHAR BROILER

21 18/36 IN FRENCH TOP RADIAL FIN HOT TOP

23 18/24/36 IN THERMO CONTROL GRIDDLE TOP

25 18/24/36 IN MANUAL CONTROL GRIDDLE TOP

27 12/18/24/36 IN WORK TOP

29 18/36 IN STEP UP OPEN TOP BURNER

31 36 IN 6 OPEN TOP STEP UP BURNER

33 STEP UP BURNER ASSEMBLY

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 3 - F-37419 Rev. H (February 2024)

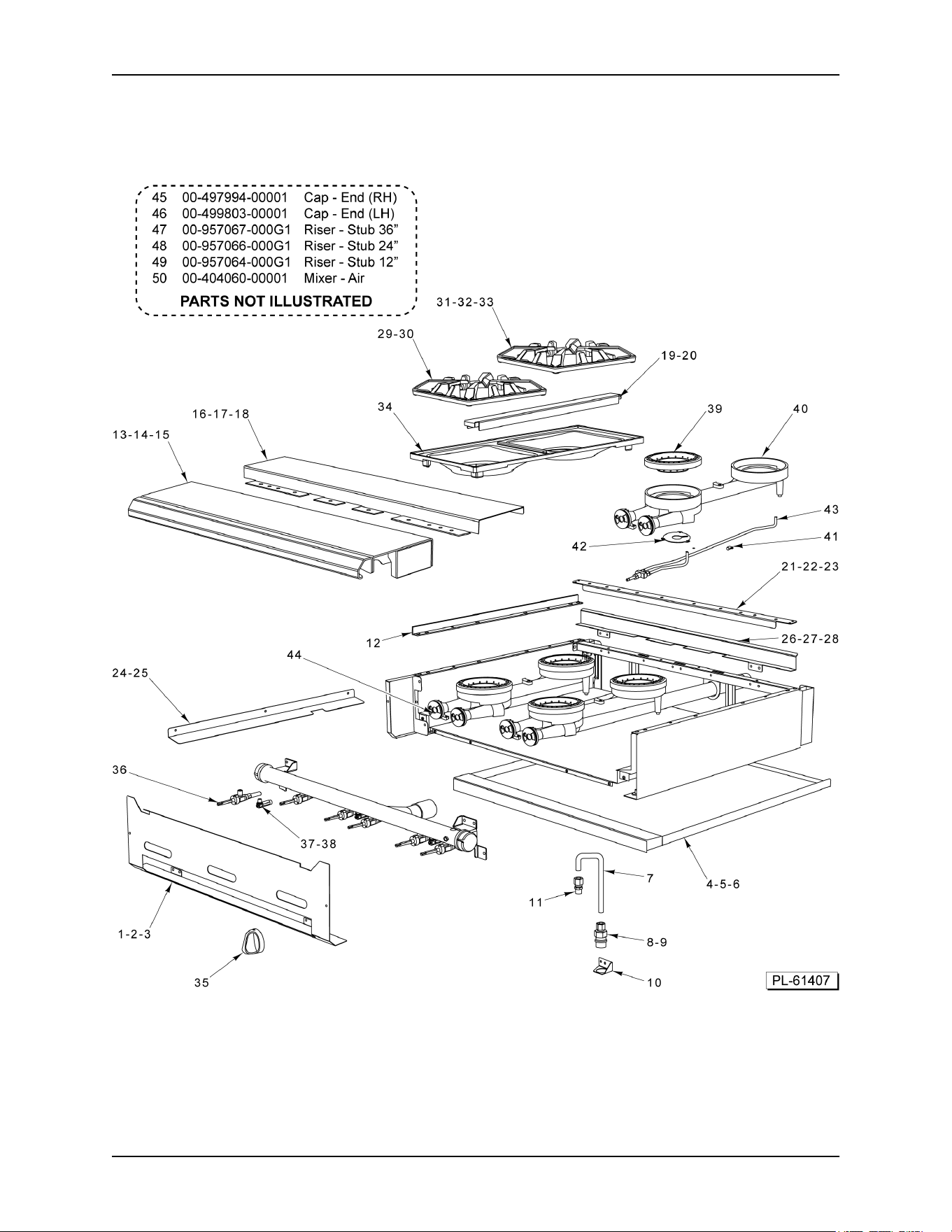

12/24/36 IN OPEN TOP BURNER

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 4 -

12/24/36 IN OPEN TOP BURNER

ILLUS.

PL-61407

PART NO. NAME OF PART AMT.

1 00-957575-00002 Cover - Manifold 36" (6 Open Top Burner)................................................................................1

2 00-957570-00001 Cover Manifold 24" (4 Open Top Burner)...................................................................................1

*3 00-957559-00001 Cover - Manifold 12" (2 Open Top Burner)................................................................................1

4 00-499006-000G2 Tray - Crumb (SST) 36" (6 Open Top Burner)...........................................................................1

5 00-956724-000G2 Tray - Crumb (SST) 24" (4 Open Top Burner)...........................................................................1

6 00-499969-000G2 Tray - Crumb (SST) 12" (2 Open Top Burner)...........................................................................1

7 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1

8 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1

9 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1

10 00-499047-00001 Bracket - Disconnect..................................................................................................................1

11 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1

12 00-497984-00001 Retainer - Grate..........................................................................................................................2

13 00-957236-000G1 Front Top Assy. 36" (6 Open Top Burner).................................................................................1

14 00-956705-000G1 Front Top Assy. 24" (4 Open Top Burner).................................................................................1

15 00-499966-000G1 Front Top Assy. 12" (2 Open Top Burner).................................................................................1

*16 00-957235-000G1 Front Top Assy - Condiment Rail 36" (6 Open Top Burner).......................................................1

17 00-957239-000G1 Front Top Slide Rail Assy. 36" (6 Open Top Burner).................................................................1

18 00-957357-000G1 Front Top Assy. - Condiment Rail 24" (4 Open Top Burner)......................................................1

19 00-499493-00001 Support - Grate (Alum.)..............................................................................................................1

20 00-499493-00002 Support - Grate (SST)................................................................................................................1

21 00-499001-00002 Support - HD Burner (SST) 36" (6 Open Top Burner)................................................................1

22 00-956718-00002 Support - HD Burner (SST) 24" (4 Open Top Burner)................................................................1

23 00-499965-00002 Support - HD Burner (SST) 12" (2 Open Top Burner)................................................................1

24 00-499002-00003 Deflector - HD Splash L.H. (SST)...............................................................................................1

25 00-499002-00004 Deflector - HD Splash R.H. (SST)..............................................................................................1

26 00-499615-00002 Deflector - Rear (SST) 36" (6 Open Top Burner).......................................................................1

27 00-956725-00002 Deflector - Rear (SST) 24" (4 Open Top Burner).......................................................................1

28 00-499935-00001 Deflector - Rear (SST) 12" (2 Open Top Burner)....................................................................AR

29 00-959325-00001 Grate - Front 12 In (New Construction)...................................................................................AR

30 00-959325-00001 Grate - Front 12 In (Previous Construction)............................................................................AR

31 00-959325-00002 Grate - Rear 12 In (New Construction)....................................................................................AR

32 00-957369-00001 Grate - Rear 12" (Before S/N 481808643)..............................................................................AR

33 00-959325-00002 Grate - Rear 12 In (Starting S/N 481808643).............................................................................1

34 00-957341-00001 Bowl - Rear 12" Double (Previous Construction)....................................................................AR

35 00-499712-00001 Knob - HD Burner....................................................................................................................AR

**36 00-957367-00001 Valve - Burner Does not include orifice spud..........................................................................AR

37 00-959108-000G1 Pilot - Kit Open Top Burners (Standard Burners)....................................................................AR

38 00-959108-000G2 Pilot Assy. - Step Up (Step Up Burners).................................................................................AR

39 00-957343-00002 Burner - Head 6".....................................................................................................................AR

40 00-957342-00001 Venturi Assy............................................................................................................................AR

41 00-402558-00004 Clip - Tubing............................................................................................................................AR

42 00-958073-00002 Plate - Restrictor......................................................................................................................AR

43 00-959108-000G1 Pilot - Kit Open Top Burners...................................................................................................AR

44 00-404060-00001 Mixer - Air................................................................................................................................AR

45 00-497994-00001 Cap - End (RH)...........................................................................................................................1

46 00-499803-00002 Cap - End (LH)...........................................................................................................................1

47 00-957067-000G1 Riser - Stub 36" W/Alum. Back 36" (6 Open Top Burner)..........................................................1

48 00-957066-000G1 Riser - Stub 24" W/Alum. Back 24" (4 Open Top Burner)..........................................................1

49 00-957064-000G1 Riser - Stub 12" W/Alum. Back 12" (2 Open Top Burner)..........................................................1

50 00-404060-00001 Mixer - Air...................................................................................................................................1

51 00-010901-00042 Orifice - Spud (Nat. Gas) FOR SEA LEVEL TO 2499'............................................................AR

52 00-010901-00052 Orifice - Spud (LP Gas) FOR SEA LEVEL TO 2499'..............................................................AR

* No Longer Available

** Must Order Orifice Spud Separately Item 51 for Natural and Item 52 for

Propane .

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 5 - F-37419 Rev. H (February 2024)

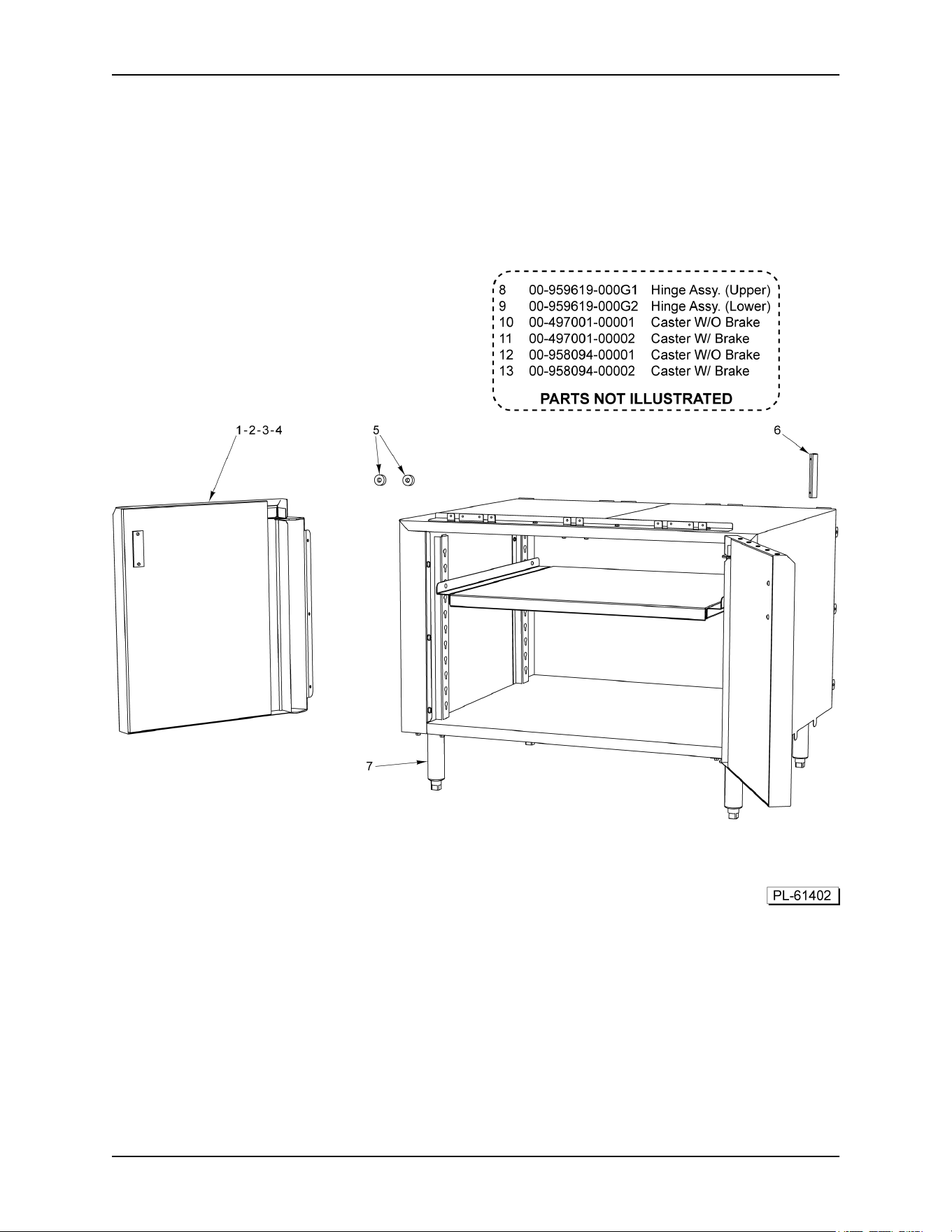

B MODEL 12/18/24/34 IN CABINET BASE

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 6 -

B MODEL 12/18/24/34 IN CABINET BASE

ILLUS.

PL-61402

PART NO. NAME OF PART AMT.

1 00-959615-000G4 Door Assy. (LH) (12 In.).............................................................................................................1

2 00-959615-000G3 Door Assy. (RH) (12 In.).............................................................................................................1

3 00-959615-000G2 Door Assy. (LH) (18 In.).............................................................................................................1

4 00-959615-000G1 Door Assy. (RH) (18 In.).............................................................................................................1

5 00-497296-000G1 Magnet Assy...............................................................................................................................2

6 00-959632-00001 Handle - Door Handle - Door Keeler R3122...............................................................................2

7 00-413112-00012 Leg - Plate Mount (6 In.).............................................................................................................4

8 00-959619-000G1 Hinge Assy. (Upper)................................................................................................................AR

9 00-959619-000G2 Hinge Assy. (Lower)................................................................................................................AR

10 00-497001-00001 Caster W/O Brake (5 In.)............................................................................................................4

11 00-497001-00002 Caster W/ Brake, Swivel (5 In.)..................................................................................................4

12 00-958094-00001 Caster W/O Brake (6 In.)............................................................................................................4

13 00-958094-00002 Caster W/ Brake (6 In.)...............................................................................................................4

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 7 - F-37419 Rev. H (February 2024)

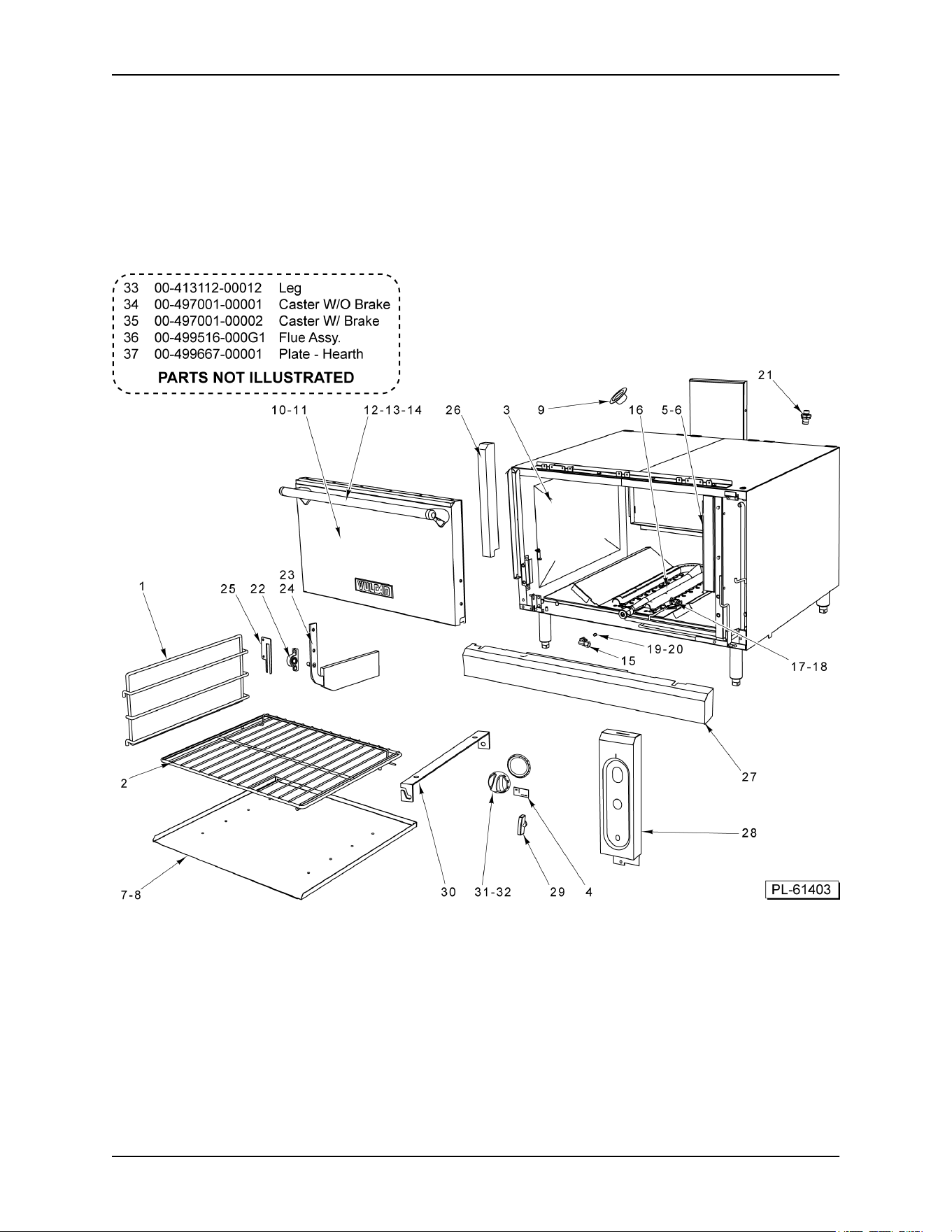

S MODEL OVEN

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 8 -

S MODEL OVEN

ILLUS.

PL-61403

PART NO. NAME OF PART AMT.

1 00-499468-00001 Support - Wire Rack...................................................................................................................2

2 00-499517-00002 Rack, Oven.................................................................................................................................1

3 00-499467-00001 Oven - Side Liner R/H (Porcelain)..............................................................................................1

4 00-414708-00001 Plate - On-Off.............................................................................................................................1

5 00-499467-00002 Oven - Side Liner L/H (Porcelain)..............................................................................................1

6 00-499467-00004 Oven - Side Liner L/H (SST)......................................................................................................1

*7 00-499800-000G1 Bottom Liner (Porcelain).............................................................................................................1

8 00-499800-000G2 Bottom Liner (SST).....................................................................................................................1

*9 00-405930-00001 Eyelet - Brass.............................................................................................................................1

10 00-499513-000G3 Door W/O Handle.......................................................................................................................1

11 00-499513-000G4 Door W/O Handle (SST).............................................................................................................1

12 00-956635-00001 Handle - Oven Door...................................................................................................................1

13 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex. Hex Washer Hd., Type TT..............................................2

14 NS-047-70 Lock Nut 10-24 Hex....................................................................................................................2

15 00-404079-0000F Nozzle, 90 Deg. Burner..............................................................................................................1

16 00-497891-00001 Burner - Oven.............................................................................................................................1

17 00-412787-00001 Pilot - Oven (NAT)......................................................................................................................1

18 00-412787-0002 Pilot - Oven (LP).........................................................................................................................1

19 00-010901-00031 Orifice - Spud (31 Drill) (Sea Level - 2499 Ft.)(NAT).................................................................1

20 00-010901-00047 Orifice - Spud (47 Drill) (Sea Level - 2499 Ft.) (LP)...................................................................1

21 00-499554-00001 Disconnect - Main Male Q..........................................................................................................1

22 00-497906-00001 Bearing - Pillow Block.................................................................................................................2

23 00-499512-000G3 Counterweight - Oven L.H..........................................................................................................1

24 00-499512-000G4 Counterweight - Oven R.H.........................................................................................................1

25 00-499452-00001 Coverplate..................................................................................................................................1

26 00-958353-00001 Cover - Moulian Panel................................................................................................................1

27 00-958470-000G1 Kick Panel..................................................................................................................................1

28 00-499507-00001 Panel - Oven Control..................................................................................................................1

29 00-413157-00001 Knob - Shut Off...........................................................................................................................1

30 00-497883-00001 Bracket - Themostat Bulb...........................................................................................................1

31 00-961928-00550 Knob - Oven 550 Deg. F............................................................................................................1

32 00-961928-00650 Knob - Oven 650 Deg. F............................................................................................................1

33 00-413112-00012 Leg - Plate Mount (6 In.).............................................................................................................4

34 00-497001-00001 Caster W/O Brake (5 In.).........................................................................................................AR

35 00-497001-00002 Caster W/ Brake, Swivel (5 In.)...............................................................................................AR

36 00-499516-000G1 Flue Assy....................................................................................................................................1

37 00-499667-00001 Plate - Hearth.............................................................................................................................1

* No Longer Available

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 9 - F-37419 Rev. H (February 2024)

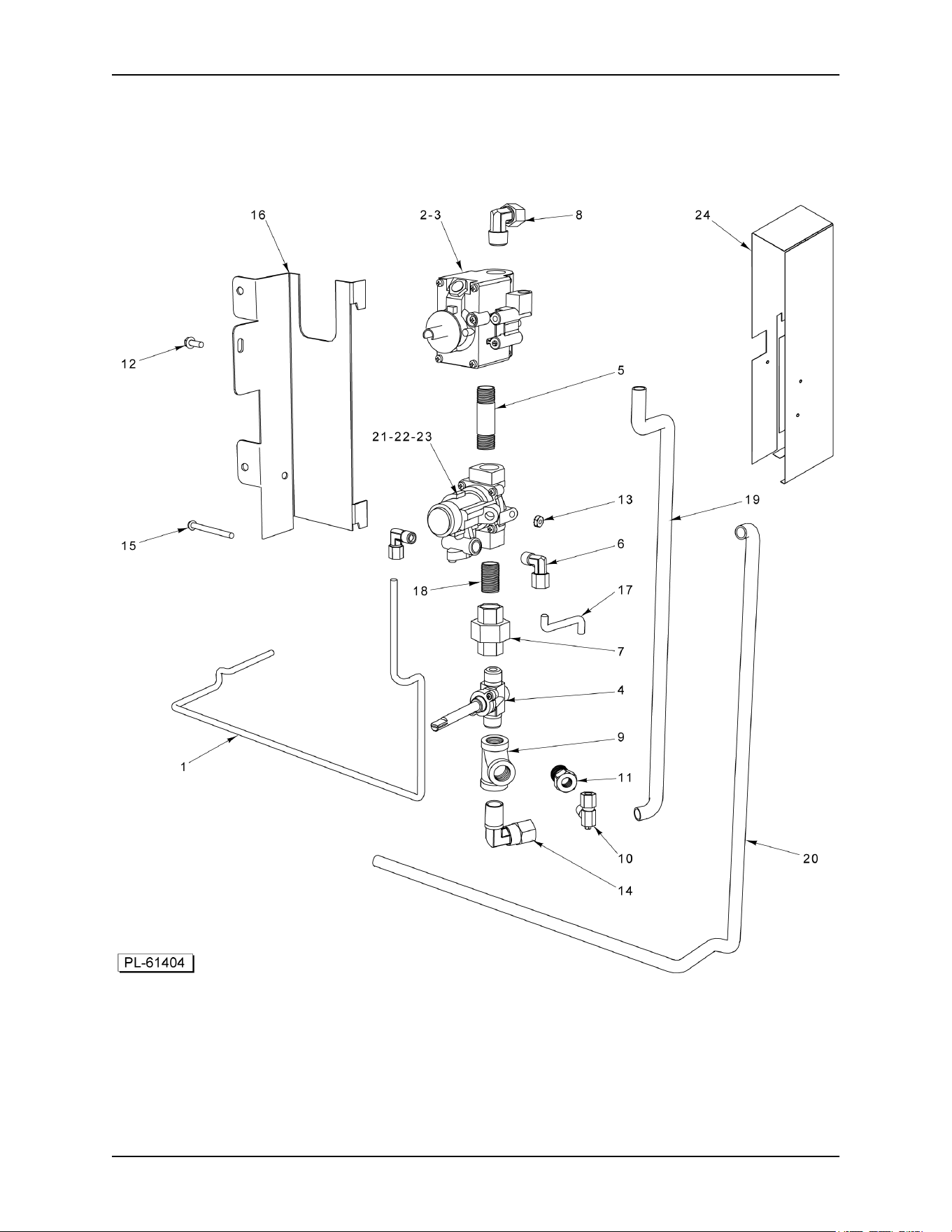

S MODEL GAS MANIFOLD ASSY

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 10 -

S MODEL GAS MANIFOLD ASSY

ILLUS.

PL-61404

PART NO. NAME OF PART AMT.

1 00-426505-00036 Tube - Flex 1/4" O.D. 36" Lg......................................................................................................1

2 00-407522-00007 Thermostat - 550 Deg. F............................................................................................................1

3 00-958754-000G1 Kit - Thermostat 400-650 Deg. F................................................................................................1

4 00-719971 Valve - Gas Manual Shut-Off.....................................................................................................1

5 FP-035-54 Pipe - 3/8 X 2.250 (BLKSTL) (TBE)...........................................................................................1

6 FP-012-21 Elbow 90 Deg. (1/8 Male Pipe x 1/4 Tube).................................................................................2

7 00-719032 Union..........................................................................................................................................1

8 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................1

9 FP-019-10 Tee - 3/8 X 3/8 X 3/8 (BLKSTL).................................................................................................1

10 00-404193-00001 Valve - Pilot 260 BROILER........................................................................................................1

11 00-719066 Bushing - Pipe 3/8 -1/8...............................................................................................................1

12 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex. Hex Washer Hd., Type TT..............................................1

13 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................1

14 FP-012-03 Fitting - Elbow 1/2 TBG X 3/8 MPT............................................................................................1

15 SC-060-38 Mach. Screw 10-24 X 2 Slotted Rd. Hd......................................................................................1

16 00-499465-00001 Bracket - Gas Mounting..............................................................................................................1

17 00-426505-00009 Tube - Flex 1/4" O.D. 9" Lg........................................................................................................1

18 FP-035-46 Pipe 3/8 x 1 Lg. TBE..................................................................................................................1

19 00-426509-00024 Tube - Flex 1/2" O.D. 24" Lg......................................................................................................1

20 00-426508-00048 Tube - Flex 7/16" O.D. 48" Lg....................................................................................................1

21 00-962067-0KIT1 Kit - Safety Valve Service (see SB1039) (Before 4/1/19)...........................................................1

22 00-962067-00001 Valve - Safety (Starting 4/1/19)..................................................................................................1

23 00-412788-00048 Thermocouple 48"......................................................................................................................1

24 00-962017-00001 Heat Shield Assy........................................................................................................................1

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 11 - F-37419 Rev. H (February 2024)

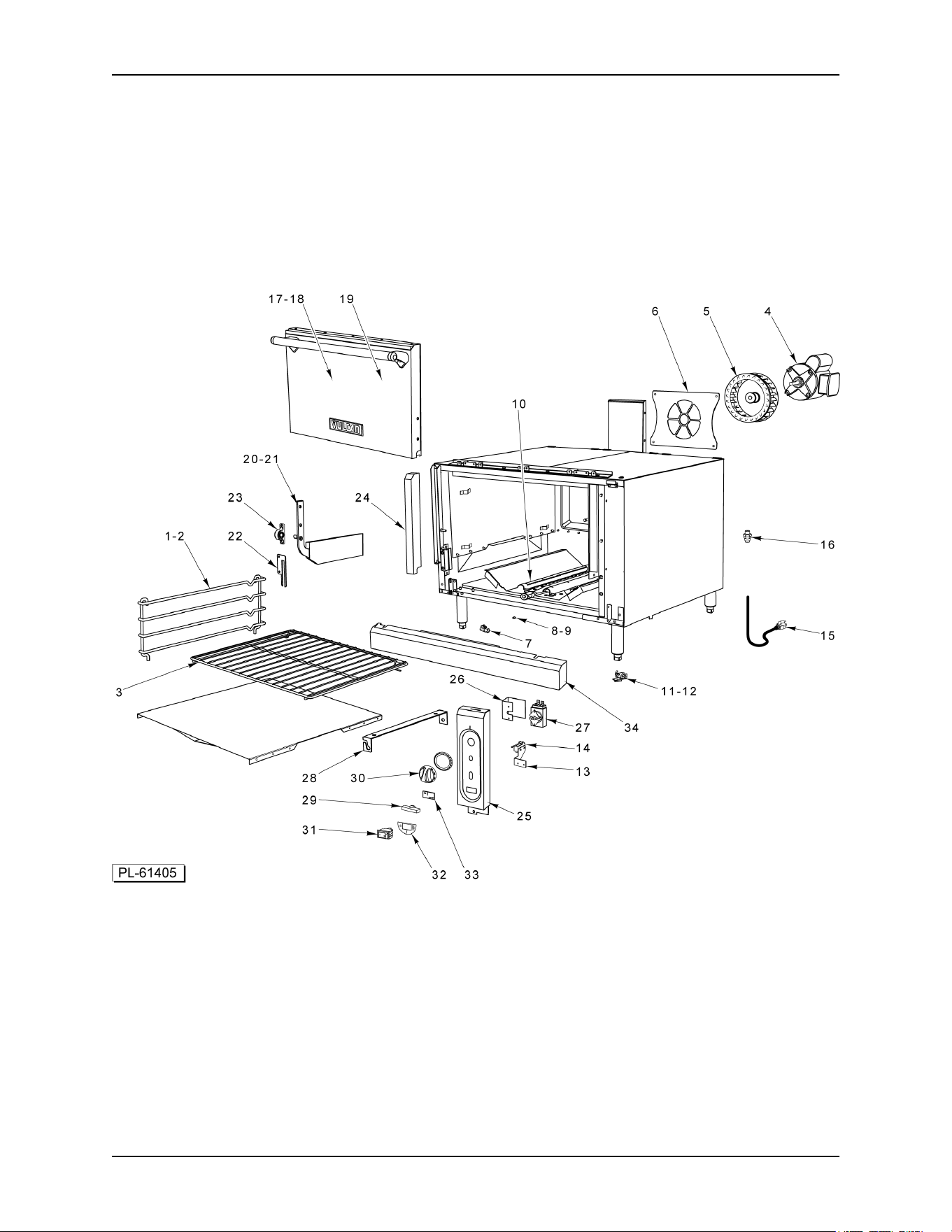

C MODEL OVEN

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 12 -

C MODEL OVEN

ILLUS.

PL-61405

PART NO. NAME OF PART AMT.

1 00-499468-00002 Support - Wire Rack R.H............................................................................................................1

2 00-499468-00003 Support - Wire Rack L.H............................................................................................................1

3 00-499517-00002 Rack, Oven.................................................................................................................................2

4 00-419730-00001 Motor (1/6 Hp., 115/208-230 V., 50/60 Hz., 1 Ph.).....................................................................1

5 00-415780-00008 Wheel - Blower (Incls. Set Screws)............................................................................................1

6 00-499641-00001 Grate - Motor Convection Oven.................................................................................................1

7 00-404079-0000F Nozzle, 90 Deg. Burner..............................................................................................................1

8 00-010901-00042 Orifice - Spud (Drill 42) (Nat.) (Sea Level - 2499 FT.)................................................................1

9 00-010901-00051 Orifice - Spud (Drill 51) (Pro) (Sea Level - 2499 Ft.)..................................................................1

10 00-497891-00001 Burner - Oven.............................................................................................................................1

11 00-412787-00001 Pilot - Oven (NAT)......................................................................................................................1

00-426262-00004 Pilot Oven (NAT) Starting March 2019....................................................................................AR

12 00-412787-00002 Pilot - Oven (LP).........................................................................................................................1

00-426262-00005 Pilot Oven (PRO) Starting March 2019...................................................................................AR

13 00-956633-00002 Bracket - Switch Door.................................................................................................................1

14 00-411496-000F1 Switch - Micro Door....................................................................................................................1

15 00-405016-00001 Cord - Electric Supply (120 V. Only)..........................................................................................1

16 00-499554-00001 Disconnect - Main Male Q..........................................................................................................1

17 00-499513-000G3 Door W/O Handle.......................................................................................................................1

18 00-499513-000G4 Door W/O Handle (SST).............................................................................................................1

19 00-956635-00001 Handle - Oven Door...................................................................................................................1

20 00-499512-000G6 Counterweight - Oven Convection R.H......................................................................................1

21 00-499512-000G3 Counterweight - Oven L.H..........................................................................................................1

22 00-499452-00001 Coverplate..................................................................................................................................1

*23 00-497906-00001 Bearing - Pillow Block.................................................................................................................1

24 00-958353-00001 Cover - Moulian Panel................................................................................................................1

25 00-499507-00003 Cover - Control Panel.................................................................................................................1

26 00-957464-00001 Guard - Thermostat....................................................................................................................1

27 00-411506-00015 Thermostat (200-550 Deg. F).....................................................................................................1

28 00-497883-00002 Bracket - Thmostat Bulb.............................................................................................................1

29 00-413157-00001 Knob - Shut Off...........................................................................................................................1

30 00-922511 Knob - Thermostat......................................................................................................................1

31 00-715112 Switch - Rocker, Lighted............................................................................................................1

32 00-957609-00001 Label - On - Off Cool Down........................................................................................................1

33 00-414708-00001 Plate - On-Off.............................................................................................................................1

34 00-499515-000G1 Kick Plate Assy...........................................................................................................................1

* Order with SC-037-87, Qty. 2

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 13 - F-37419 Rev. H (February 2024)

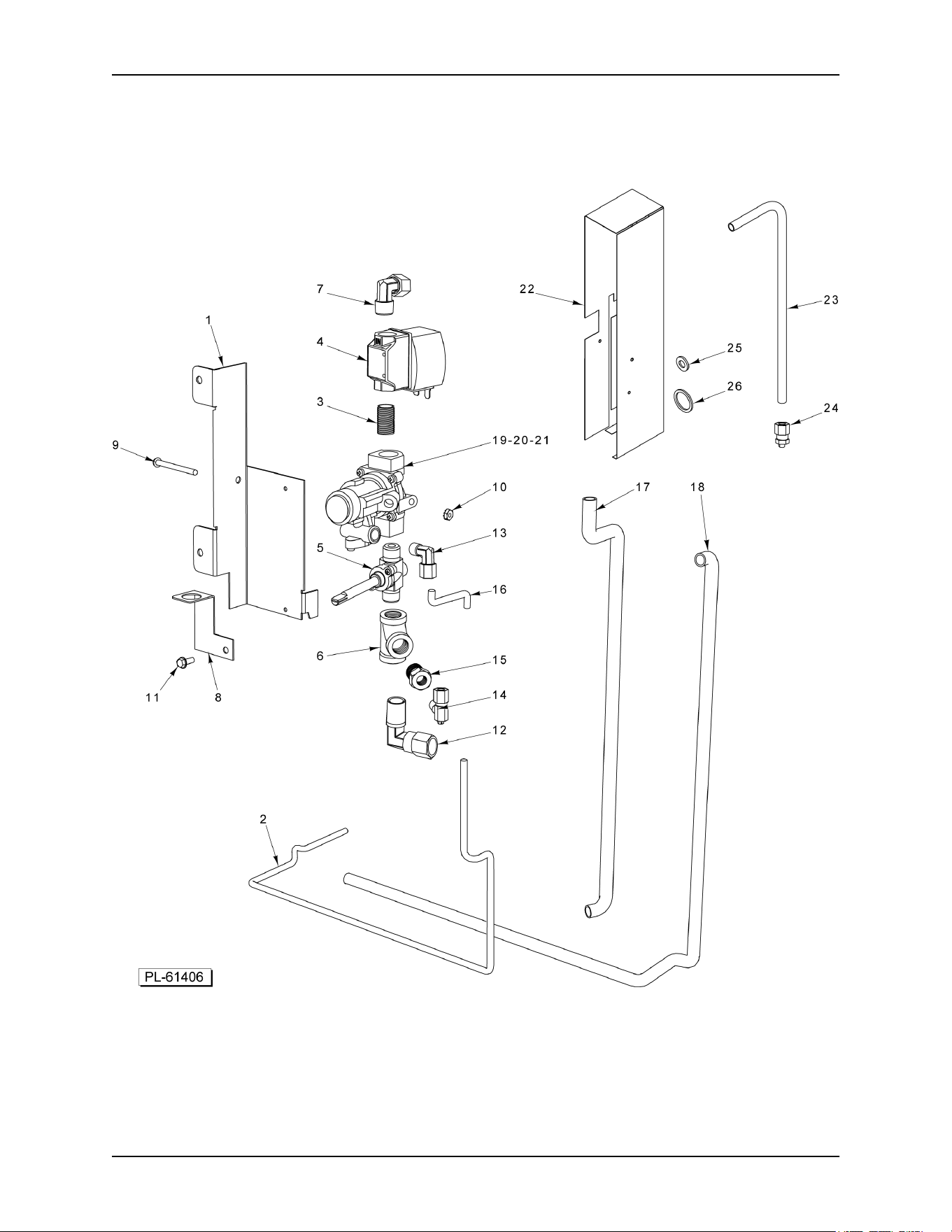

C MODEL GAS MANIFOLD ASSY

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 14 -

C MODEL GAS MANIFOLD ASSY

ILLUS.

PL-61406

PART NO. NAME OF PART AMT.

1 00-499651-00003 Bracket - Mounting Gas (Convection)........................................................................................1

2 00-426505-00036 Tube - Flex 1/4" O.D. 36" Lg......................................................................................................1

3 FP-035-47 PIPE - 3/8 X 1.125 (TBE) (BLKSTL)..........................................................................................1

4 00-428045-00001 Gas Solenoid Valve....................................................................................................................1

5 00-719971 Valve - Gas Manual Shut-Off.....................................................................................................1

6 FP-019-10 Tee - 3/8 X 3/8 X 3/8 (BLKSTL).................................................................................................1

7 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................1

8 00-956615-00002 Bracket - Manifold Support.........................................................................................................1

9 SC-060-38 Mach. Screw 10-24 X 2 Slotted Rd. Hd......................................................................................1

10 NS-044-09 Nut Assy. 10-24 Hex KEPS........................................................................................................1

11 SD-032-07 Self-Tapping Screw 10-24 x 1/2 Hex. Hex Washer Hd., Type TT..............................................1

12 FP-012-03 Fitting - Elbow 1/2 TBG X 3/8 MPT............................................................................................1

13 FP-012-21 Elbow 90 Deg. (1/8 Male Pipe x 1/4 Tube).................................................................................1

14 00-404193-00001 Valve - Pilot................................................................................................................................1

15 FP-026-04 Bushing - Pipe 3/8 to 1/8............................................................................................................1

16 00-426505-00006 Tube - Flex (1/4 x 6 In.)..............................................................................................................1

17 00-426509-00024 Tube - Flex 1/2" O.D. 24" Lg......................................................................................................1

18 00-426508-00048 Tube - Flex 7/16" O.D. 48" Lg....................................................................................................1

19 00-962067-0KIT1 Kit - Safety Valve Service (see SB1039) (Before 4/1/19)...........................................................1

20 00-962067-00001 Valve - Safety (Starting 4/1/19)..................................................................................................1

21 00-412788-00048 Thermocouple (48 In.)................................................................................................................1

22 00-962017-00001 Heat Shield Assy........................................................................................................................1

23 00-426508-00012 Tube - Flex 7/16" OD x 12" Lg...................................................................................................1

24 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1

25 00-962107-00002 Grommet....................................................................................................................................1

26 00-962107-00001 Grommet....................................................................................................................................1

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 15 - F-37419 Rev. H (February 2024)

36 IN - 4 & 18 IN - 2 OPEN TOP BURNER

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 16 -

36 IN - 4 & 18 IN - 2 OPEN TOP BURNER

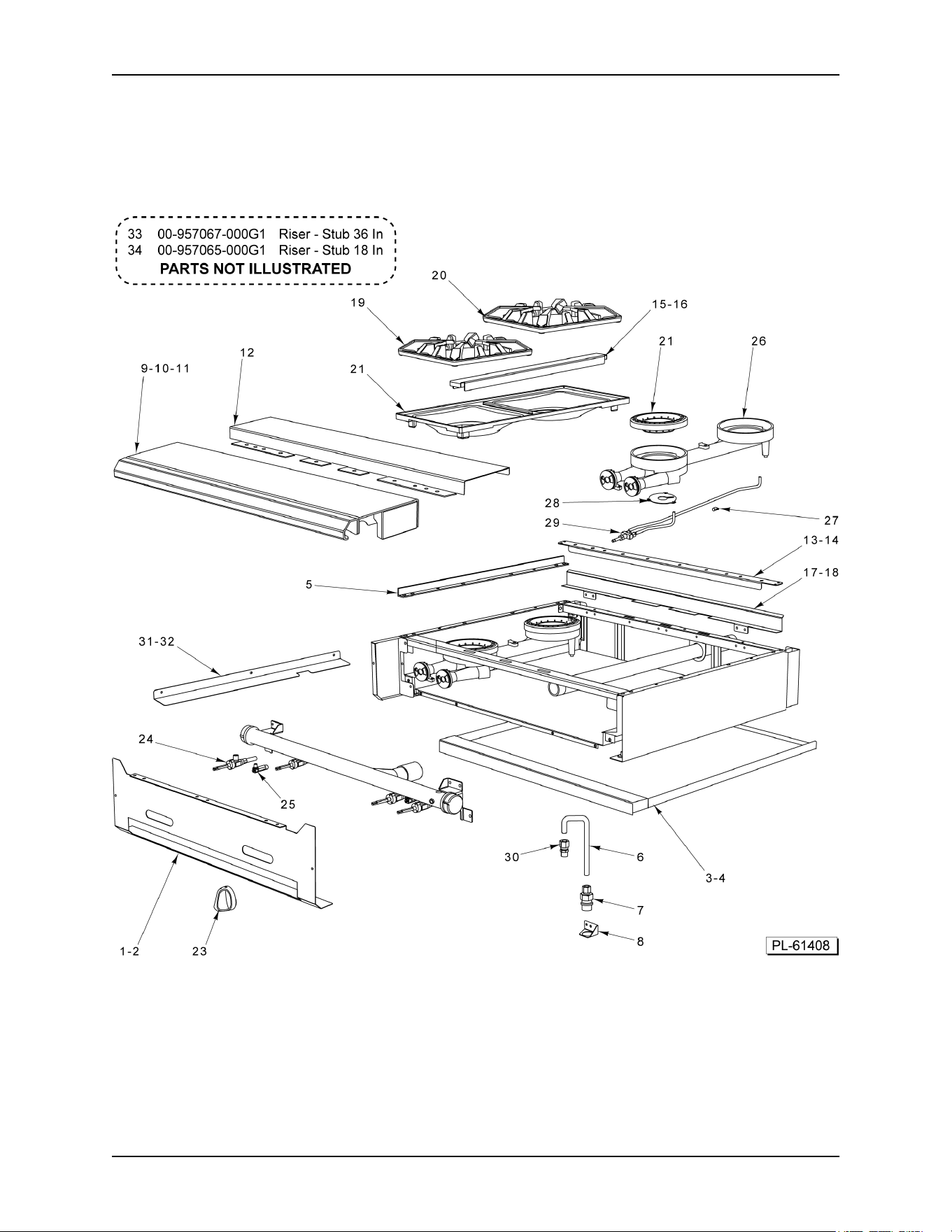

ILLUS.

PL-61408

PART NO. NAME OF PART AMT.

1 00-957573-00001 Manifold Cover 36" (4 Open Top Burner)...................................................................................1

2 00-957564-00001 Manifold Cover 18" (2 Open Top Burner)...................................................................................1

3 00-499006-000G2 Tray - Crumb (SST) 36" (4 Open Top Burner)...........................................................................1

4 00-956696-000G2 Tray - Crumb (SST) 18" (2 Open Top Burner)........................................................................AR

5 00-497984-00001 Retainer - Grate..........................................................................................................................2

6 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1

7 00-499555-00001 Disconnect - Gas Female...........................................................................................................1

8 00-499047-00001 Bracket - Disconnect..................................................................................................................1

9 00-499425-000G1 Front Top Assy. 36" (4 Open Top Burner).................................................................................1

10 00-957235-000G1 Front Top Assy - Condiment Rail 36" (4 Open Top Burner).......................................................4

11 00-956658-000G1 Front Top Assy 18" (2 Open Top Burner)...............................................................................AR

12 00-957239-000G1 Front Top Slide Rail Assy...........................................................................................................4

13 00-499001-00004 Support - (4) OTB Burner (SST).................................................................................................1

14 00-956690-00001 Support - (2) OTB Burner (SST).................................................................................................1

15 00-499493-00001 Support - Grate (Alum.)..............................................................................................................1

16 00-499493-00002 Support - Grate (SST)................................................................................................................1

17 00-499615-00002 Deflector - Rear (SST) 36" (4 Open Top Burner).......................................................................1

18 00-956697-00002 Deflector - Rear (SST) 36" (4 Open Top Burner).......................................................................1

19 00-959326-00001 Grate Front 18 in.....................................................................................................................AR

20 00-959326-00002 Grate Rear 18 in......................................................................................................................AR

*21 NLA Bowl Bowl - 18" Double Order Grate Front (#19) and Rear (#20)...................................................AR

22 00-957343-00002 Burner - Head 6".....................................................................................................................AR

23 00-499712-00001 Knob - HD Burner....................................................................................................................AR

**24 00-957367-00001 Valve - Burner.........................................................................................................................AR

25 00-499970-00001 Valve - Pilot Quick Disconnect................................................................................................AR

26 00-957398-000G1 Venturi Assy...............................................................................................................................1

27 00-402558-00004 Clip - Tubing............................................................................................................................AR

28 00-958073-00001 Plate - Restricor..........................................................................................................................1

29 00-959108-000G1 Pilot - Kit Open Top Burners......................................................................................................1

30 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1

31 00-499002-00003 Deflector - HD Splash L.H. (SST)...............................................................................................1

32 00-499002-00004 Deflector - HD Splash R.H. (SST)..............................................................................................1

33 00-957067-000G1 Riser - Stub 36" W/Alum. Back 36" (4 Open Top Burner)..........................................................1

34 00-957065-000G1 Riser - Stub 18" W/Alum. Back 36" (4 Open Top Burner)..........................................................1

35 00-010901-00042 Orifice - Spud (Nat. Gas) FOR SEA LEVEL TO 2499'...............................................................1

36 00-010901-00052 Orifice - Spud (LP Gas) FOR SEA LEVEL TO 2499'.................................................................1

* Bowl - 18" Double is now designed into Front and Rear Grate.

** Must Order Orifice Spud Separately Item 35 for Natural and Item 36 for

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 17 - F-37419 Rev. H (February 2024)

24/36 IN CHAR BROILER

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 18 -

24/36 IN CHAR BROILER

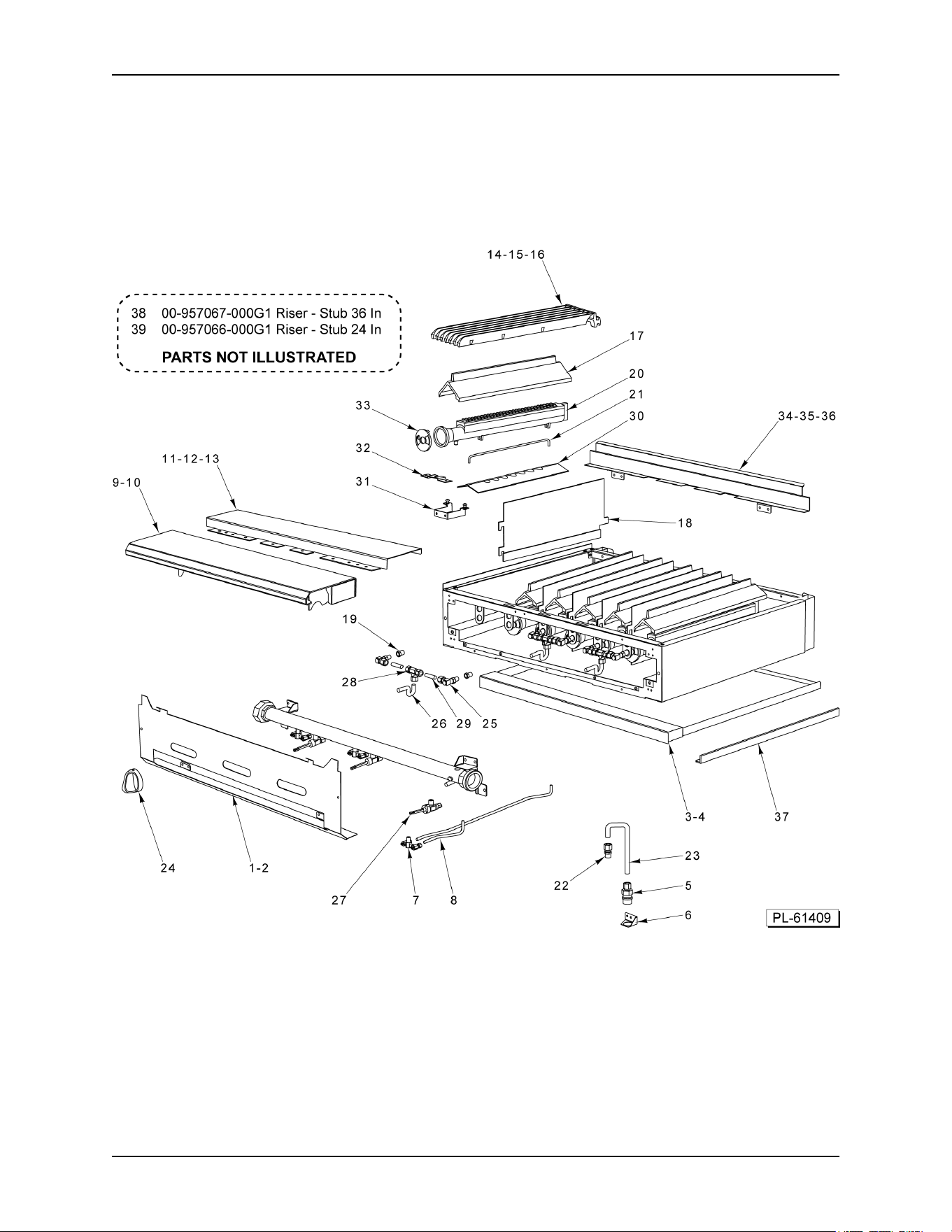

ILLUS.

PL-61409

PART NO. NAME OF PART AMT.

1 00-957574-00001 Cover - Manifold 36" Char Broiler..............................................................................................1

2 00-957567-00001 Cover - Manifold 24" Char Broiler..............................................................................................1

3 00-499006-000G2 Tray - Crumb (SST) 36" Char Broiler.........................................................................................1

4 00-956724-000G2 Tray - Crumb (SST) 24" Char Broiler.........................................................................................1

5 00-499555-00001 Disconnect - Gas Female...........................................................................................................1

6 00-499047-00001 Bracket - Disconnect..................................................................................................................1

7 00-957814-00001 Valve - Dual Pilot........................................................................................................................1

8 00-788541-0000A Tube - Pilot, Flex (W/Tip)...........................................................................................................1

9 00-499425-000G1 Front Top Assy. 36" Char Broiler...............................................................................................1

10 00-956705-000G1 Front Top Assy. 24" Char Broiler...............................................................................................1

11 00-957235-000G1 Front Top Assy - Condiment Rail 36" Char Broiler.....................................................................1

12 00-957239-000G1 Front Top Slide Rail Assy. 36" Char Broiler...............................................................................1

13 00-957357-000G1 Front Top Assy. - Condiment Rail 24" Char Broiler....................................................................1

14 00-412852-00001 Grate - Top Straight....................................................................................................................6

15 00-722131 Grate - Slanted 6-RIB 24" Char Broiler......................................................................................2

16 00-710424 Grate - Slanted 7-RIB 24" Char Broiler......................................................................................2

17 00-710407 Radient.......................................................................................................................................6

18 00-956614-00002 Supercharger..............................................................................................................................5

19 00-418051-0000F Hood - Orifice.............................................................................................................................6

20 00-957413-00001 Burner Assy................................................................................................................................6

21 00-710455 Burner Rod.................................................................................................................................6

22 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1

23 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1

24 00-499712-00001 Knob - HD Burner.......................................................................................................................3

25 00-719383 W/O Plug....................................................................................................................................6

26 00-722425 Tubing - Flex 3/8" X 8" Lg..........................................................................................................3

27 00-957348-00001 Valve - Gas.................................................................................................................................3

28 00-714676 TEE, 3/8" UNION, TUBE TO TUBE...........................................................................................1

29 00-722468 NLA - Obsolete--3/8"" Tube 1-1/4"" Long...................................................................................1

30 00-956748-00001 Heat Deflector............................................................................................................................6

31 00-957412-00001 Bracket - Dual Pilot..................................................................................................................AR

32 00-957335-00001 Stabilizer - Burner.......................................................................................................................6

33 00-719329 Air Mixer Assy............................................................................................................................6

34 00-499615-00002 Deflector - Rear (SST) 36" Char Broiler.....................................................................................1

35 00-956725-00002 Deflector - Rear (SST) 24" Char Broiler.....................................................................................1

36 00-958442-00002 Deflector - Rear (SST) 48" Char Broiler..................................................................................AR

37 00-499959-000G2 Retainer - Grate..........................................................................................................................2

38 00-957067-000G1 Riser - Stub 36" W/Alum. Back 36" Char Broiler........................................................................1

39 00-957066-000G1 Riser - Stub 24" W/Alum. Back 24" Char Broiler........................................................................1

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 19 - F-37419 Rev. H (February 2024)

18/36 IN FRENCH TOP RADIAL FIN HOT TOP

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 20 -

18/36 IN FRENCH TOP RADIAL FIN HOT TOP

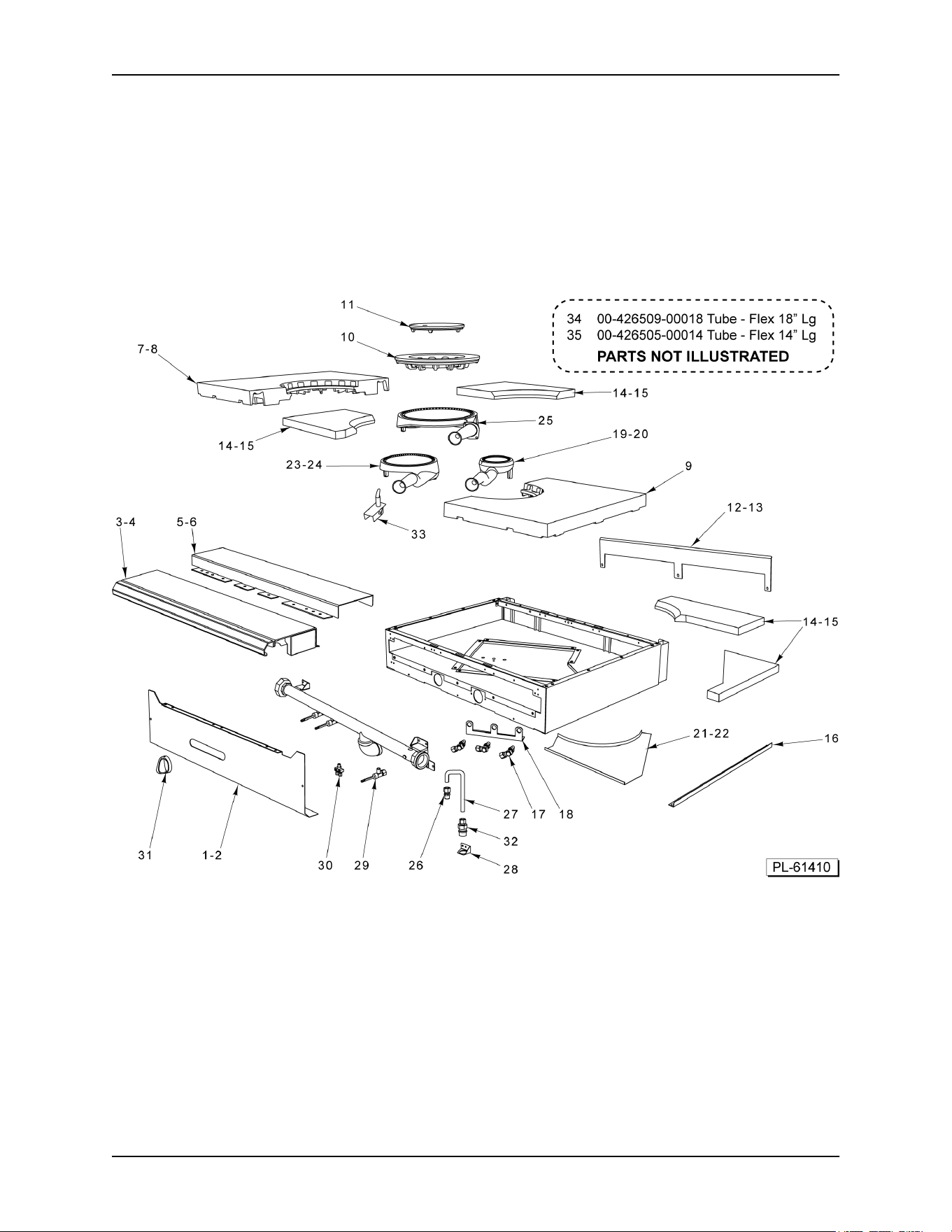

ILLUS.

PL-61410

PART NO. NAME OF PART AMT.

1 00-957576-00001 Cover - Manifold W/Rail 36" Radial Fin. Hot Top.......................................................................1

2 00-957563-00001 Cover Manifold 18" Radial Fin. Hot Top.....................................................................................1

3 00-499425-000G1 Front Top Assy. 36" Radial Fin. Hot Top....................................................................................1

4 00-956658-000G1 Front Top Assy 18" Radial Fin. Hot Top.....................................................................................1

5 00-957235-000G1 Front Top Assy - Condiment Rail...............................................................................................1

6 00-957239-000G1 Front Top Slide Rail Assy...........................................................................................................1

7 00-499814-00001 Casting - LH Radial Fin. 36" 36" Radial Fin. Hot Top.................................................................1

8 00-956800-00001 Casting - Radial Fin. 18" Radial Fin. Hot Top............................................................................1

9 00-499814-00002 Casting - RH Radial Fin. 36"......................................................................................................1

10 00-400705-00001 Ring (Top)..................................................................................................................................1

11 00-715211-000GR Plate - Top..................................................................................................................................1

12 00-956809-00002 Deflector - Radial Fin. Rear 36" Radial Fin. Hot Top.................................................................1

13 00-956663-00001 Deflector - Radial Fin. 18" Radial Fin. Hot Top..........................................................................1

14 00-956622-000G1 Brick Set 36" Radial Fin. Hot Top...............................................................................................1

15 00-956799-000G1 Brick Set 18" Radial Fin. Hot Top...............................................................................................1

16 00-497984-00001 Retainer - Grate..........................................................................................................................1

17 00-719383 Elbow 3/8 Orifice W/O Plug........................................................................................................1

00-404079-0000F Elbow 7/16 Orifice W/O Plug - 5/8 nut........................................................................................1

18 00-499810-00002 Bracket - Pilot.............................................................................................................................1

19 00-957801-000G1 Burner - Inner, Radial Fin 36" Radial Fin. Hot Top.....................................................................1

20 00-956794-00001 Burner - 18" Inner 18" Radial Fin. Hot Top.................................................................................1

21 00-957946-000G1 Plate - Aeration Assy. 36" Radial Fin. Hot Top..........................................................................1

22 00-957710-000G1 Plate - Aeration, Assy. 18" Radial Fin. Hot Top.........................................................................1

23 00-409413-000G1 Burner 36" Radial Fin. Hot Top..................................................................................................1

24 00-956793-00001 Burner - 18" Outer 18" Radial Fin. Hot Top................................................................................1

25 00-409412-000G1 Burner - Top Outer.....................................................................................................................1

26 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1

27 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1

28 00-499047-00001 Bracket - Disconnect..................................................................................................................1

29 00-408379-00004 Valve - Burner (Top)...................................................................................................................3

30 00-957814-00001 Valve - Dual Pilot........................................................................................................................1

31 00-499712-00001 Knob - HD Burner.......................................................................................................................3

32 00-499555-00001 Disconnect - Gas Female...........................................................................................................1

33 00-409839-00003 Burner - Pilot..............................................................................................................................3

34 00-426509-00018 Tube - Flex 1/2" O.D. 18" Lg......................................................................................................3

35 00-426505-00014 Tube - Flex 1/4" O.D. 14" Lg......................................................................................................2

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 21 - F-37419 Rev. H (February 2024)

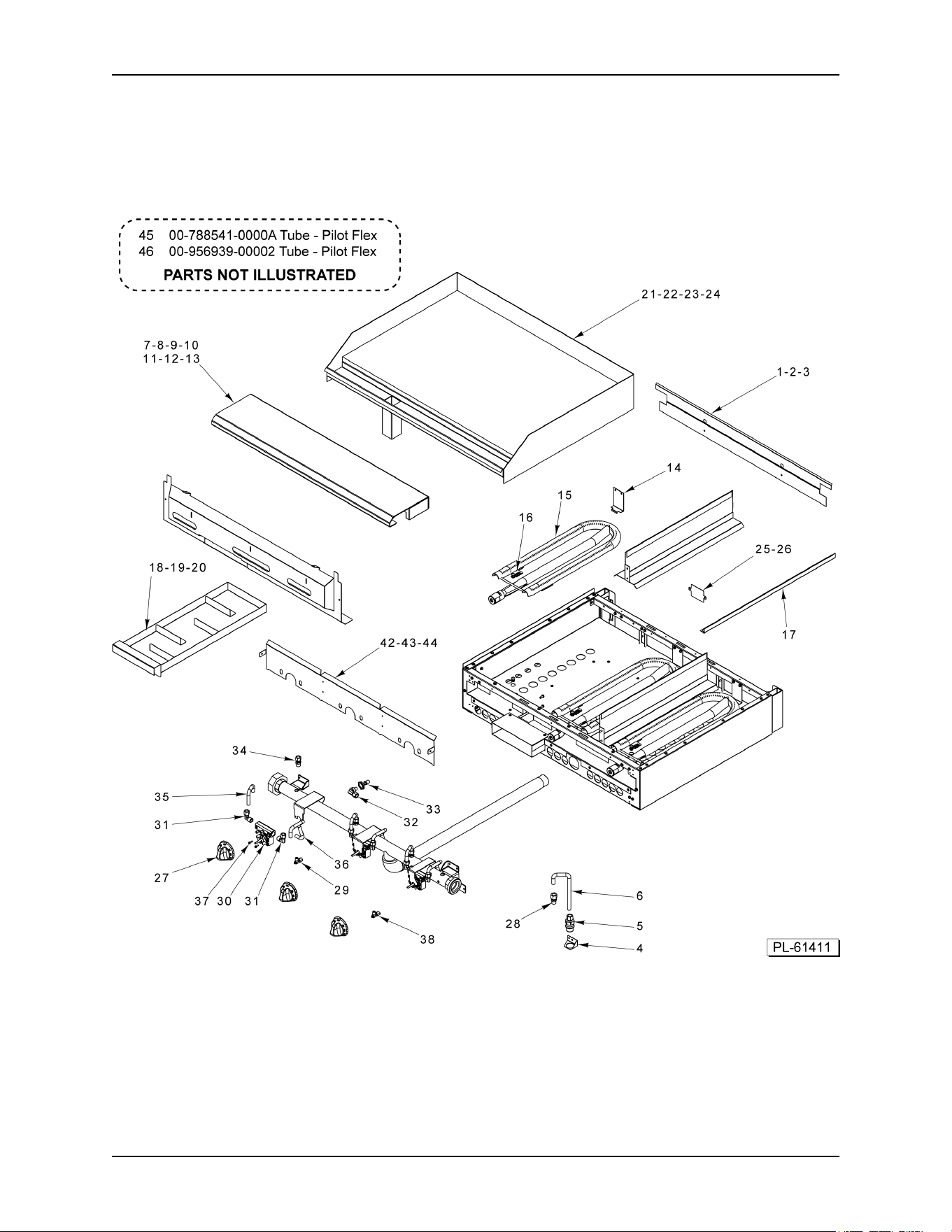

18/24/36 IN THERMO CONTROL GRIDDLE TOP

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 22 -

18/24/36 IN THERMO CONTROL GRIDDLE TOP

ILLUS.

PL-61411

PART NO. NAME OF PART AMT.

1 00-957961-00001 Panel - Rear Closure 36" (Alum.) (36" Griddle Top)..................................................................1

2 00-957989-00001 Panel - Rear Closure 24" (24" Griddle Top)...............................................................................1

3 00-957993-00001 Panel - Rear Closure 18" (18" Griddle Top)............................................................................AR

4 00-499047-00001 Bracket - Disconnect..................................................................................................................1

5 00-499555-00001 Disconnect - Gas Female...........................................................................................................1

6 00-426509-00010 Tube - Flex 1/2" O.D. 10" Lg......................................................................................................1

7 00-499425-000G1 Front Top Assy. (36" Griddle Top).............................................................................................1

8 00-956705-000G1 Front Top Assy. (24" Griddle Top).............................................................................................1

9 00-956658-000G1 Front Top Assy (18" Griddle Top)..............................................................................................1

10 00-957235-000G1 Front Top Assy - Condiment Rail (36" Griddle Top)...................................................................1

11 00-957239-000G1 Front Top Slide Rail Assy. (36" Griddle Top).............................................................................1

12 00-957357-000G1 Front Top Assy. - Condiment Rail (24" Griddle Top)..................................................................1

13 00-957235-000G1 Front Top Assy - Condiment Rail (18" Griddle Top)...................................................................1

14 00-499112-00001 Bracket - Griddle Burner Support...............................................................................................3

15 00-499635-00001 Griddle Burner Assy...................................................................................................................3

16 00-413302-00001 Clip - Pilot Mounting...................................................................................................................3

17 00-497984-00001 Retainer - Grate..........................................................................................................................2

18 00-957982-000G4 Grease Drawer Assy. (36" Griddle Top).....................................................................................1

19 00-956709-000G4 Grease Drawer Assy. (24" Griddle Top).....................................................................................1

20 00-956677-000G4 Grease Drawer Assy. (18" Griddle Top).....................................................................................1

21 00-499622-000G2 36 In Griddle Assy......................................................................................................................1

22 00-499957-000G2 24 In Griddle Assy......................................................................................................................1

23 00-956674-000G2 18 In Griddle Assy......................................................................................................................1

24 00-957170-000G1 Griddle Baffle Assy. Center........................................................................................................2

25 00-956662-00001 Cover - Rear Manifold................................................................................................................1

26 00-956710-00001 Cover - Hot Top 24" Griddle.......................................................................................................1

27 00-499488-00002 Knob - Gas Thermostat..............................................................................................................3

28 FP-012-02 Fitting - Tube 1/2 TBG X 3/8 MPT..............................................................................................1

29 00-404193-00001 Valve - Pilot................................................................................................................................3

30 00-499488-00001 Thermostat - Gas.......................................................................................................................3

31 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................6

32 00-404079-0000F Nozzle........................................................................................................................................3

33 00-418051-0000F Hood - Orifice.............................................................................................................................3

34 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................3

35 00-426508-00006 Tube - Flex 7/16" O.D. 6" Lg......................................................................................................3

36 00-426508-00010 Tube - Flex 7/16" O.D. 10" Lg....................................................................................................3

37 SD-036-79 Self-Tapping Screw 6-32 x 1/2 Type TT Hex Hd. (SST)............................................................6

38 FP-085-53 Pipe Plug 1/8..............................................................................................................................1

39 00-957604-000G2 Cover - Manifold 36" Thermo Griddle (Condiment Rail).............................................................1

40 00-957602-000G2 Cover - Manifold 24" Therno Griddle (Condiment Rail)..............................................................1

41 00-957594-000G1 Cover - Manifold 18" Thermo Griddle.........................................................................................1

42 00-957396-00002 Baffle - Griddle...........................................................................................................................1

43 00-957988-00002 Baffle - 24" Forward Griddle.......................................................................................................1

44 00-957992-00002 Bafffle - 18" Forward Griddle......................................................................................................1

45 00-788541-0000A Tube - Pilot, Flex (W/Tip)...........................................................................................................2

46 00-956939-00002 Tube - Pilot, Flex (W/Tip)...........................................................................................................1

V SERIES HDR GAS RANGES REPLACEMENT PARTS

- 23 - F-37419 Rev. H (February 2024)

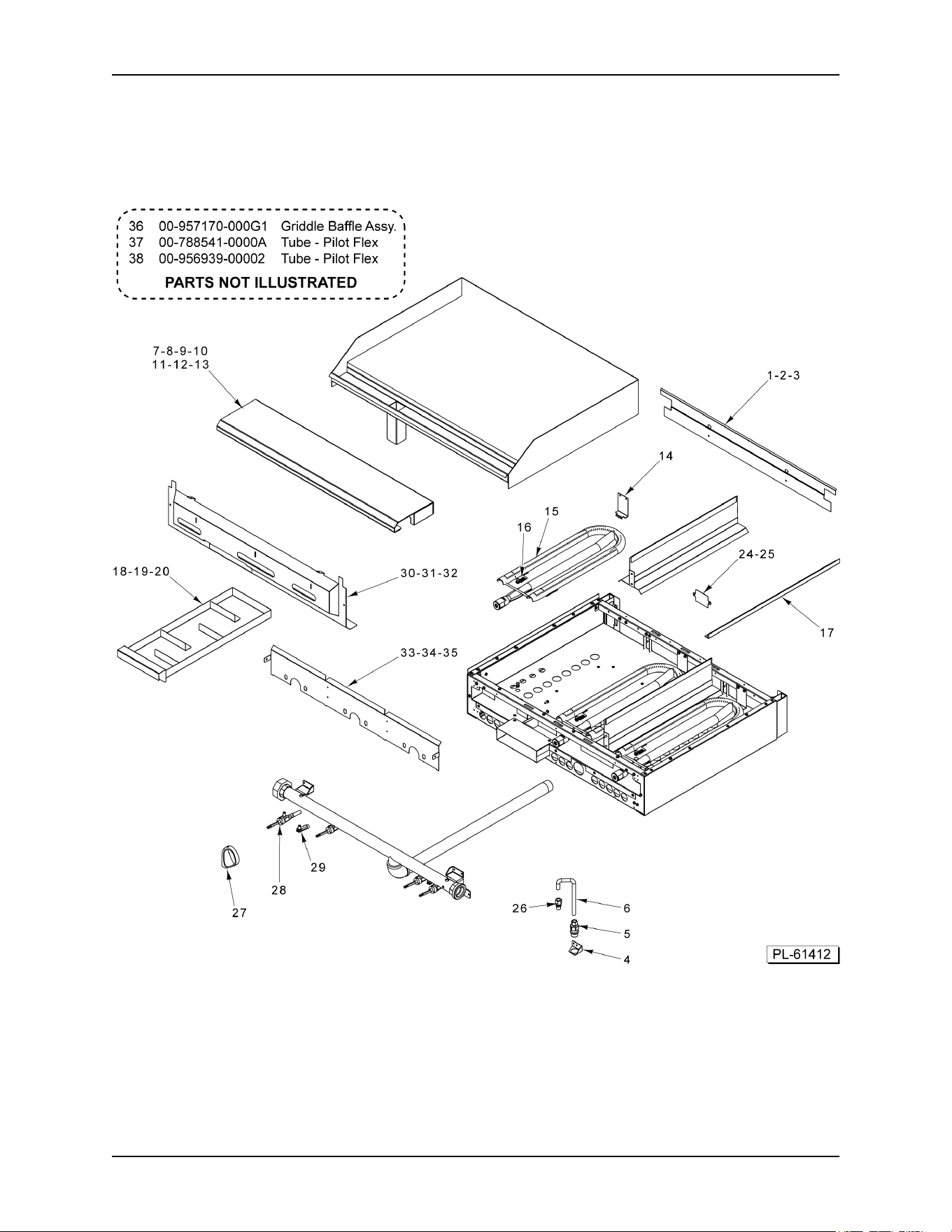

18/24/36 IN MANUAL CONTROL GRIDDLE TOP

V SERIES HDR GAS RANGES REPLACEMENT PARTS

F-37419 Rev. H (February 2024) - 24 -

18/24/36 IN MANUAL CONTROL GRIDDLE TOP

ILLUS.

PL-61412
