INSTRUCTION MANUAL
LED SOLAR STREETLIGHT
INTRODUCTION & WARRANTY
TECHNICAL DATA
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before
starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or
local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid
for 6 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear
and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product.
The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
MODEL
SKU
WATTS
LUMENS
LED CHIP
SOLAR PANEL
BATTERY PACK
BEAM ANGLE
DETECTION ANGLE
DETECTION DISTANCE
DIMENSION
INSTALLATION HEIGHT
LIFESPAN
SENSING RANGE
CHARGING TIME
WORKING TIME
BODY TYPE
VT-ST43
24423
40W
6000LM
SMD2835*138PCS
21W/16V, Mono-crystalline silicone material
LiFePO4, 32700/9.6V/12000 mAh
140 x 70°
120°
8 - 12 Meters
706.1 x 289.7x73.6mm
3 - 6 Meters
35,000 Hours
<12M
8-10 hrs. Sunlight charging
Minimum 36 hrs. Maximum 120 hrs
ABS+PC, Aluminum
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
[email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR
OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

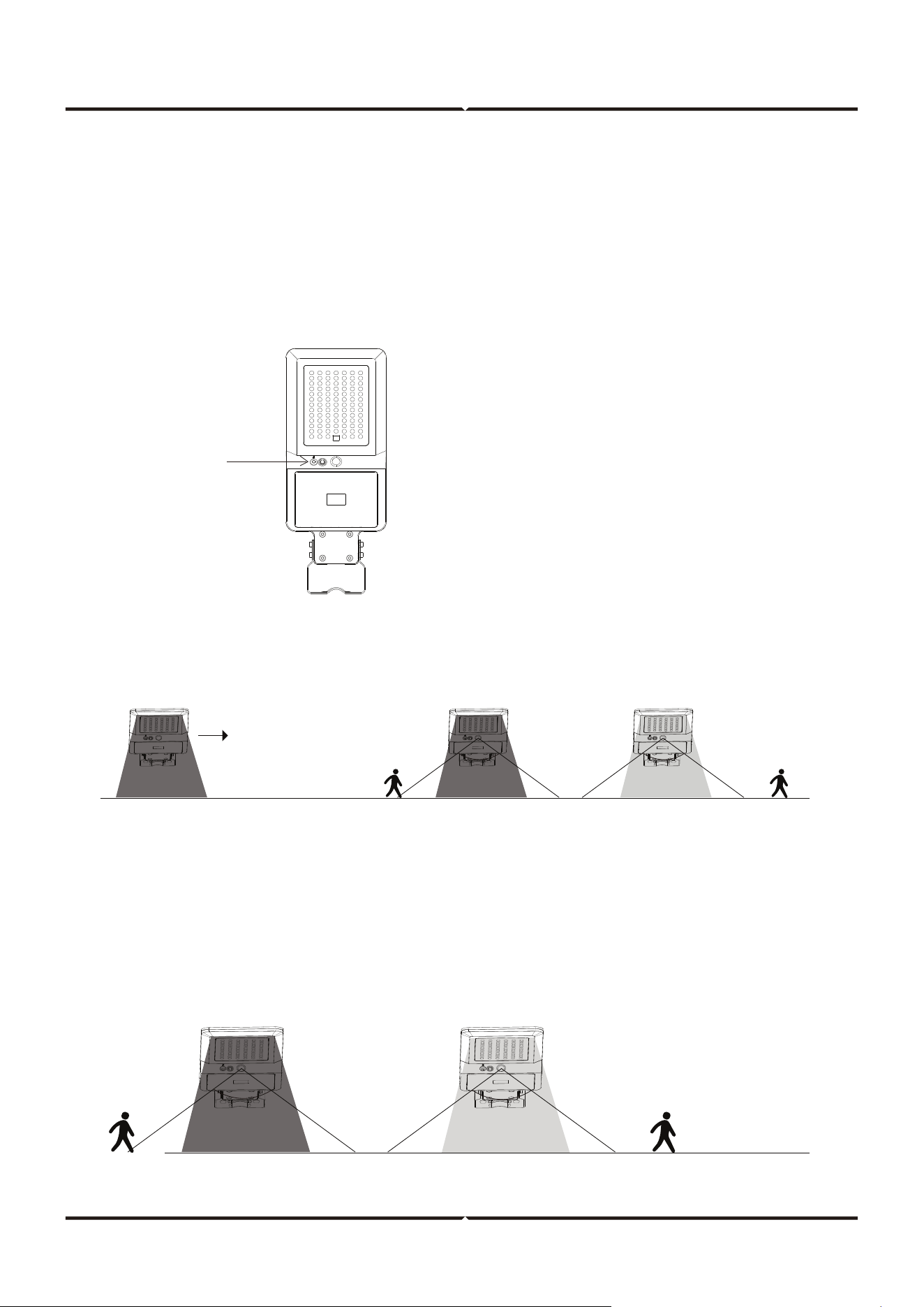

SENSOR MODE
Lamp automatically turns on at night. When motion is detected within 8 meters, brightness increases to
100%, then dims to 30% brightness aer 20 seconds of no motion.
The Sensor Mode is built with an AIM intelligent system for smarter and more user-friendly operation.
The lamp automatically lights up at night at 60% brightness. Aer 4 hours, or when the battery capacity
＜30% (whichever comes first), the lamp switches to Sensor Mode.
Lamp Button
Aer 4 hours or
battery capacity<30%
120° 120°
120° 120°
CONSTANT LIGHTING MODE
WARNING
WORKING MODES
1. Once finishing the installation, remember to press the button on lamp to turn on the power.
2. Installation must be performed by a certified person.
3. The light source of this luminaire is not replaceable, when the light source reaches its end of
life the whole luminaire should be replaced.
2H 6H4H
8H 12H10H
Time
Brightness
CCT
Switch color temperature (3000K/4000K/6000K)
SELECT WORK MODE AND CCT BY REMOTE CONTROL
NOTICE

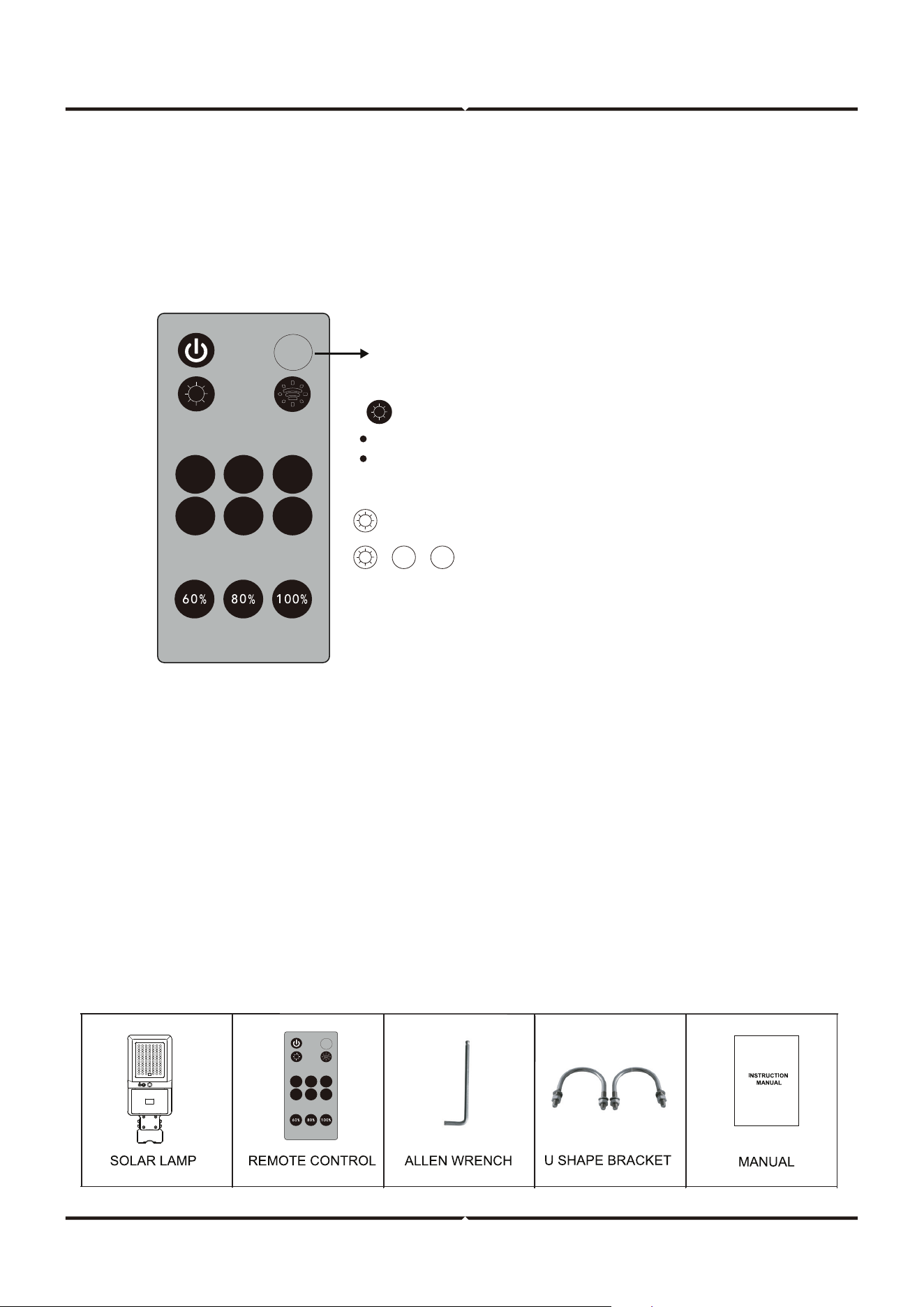

PACKAGE CONTENT
2H
80%
Constant Lighting Mode
Both time and brightness are adjustable.
60% bright for 4H → Sensor Mode
80% bright for 2H → Sensor Mode
+ +
Lamp changes to Sensor Mode once the
battery capacity is below 30%.
When set to 12H, the lamp maintains the selected
brightness throughout the night (actual duration may
vary) and does not switch to Sensor Mode. It keeps
lighting as long as it is dark.
2H 6H4H
8H 12H10H
Time
Brightness
CCT
• The remote control can be used only aer the lamp has been activated by pressing the
ON/OFF button on the lamp.
• The lamp will flash once each time you press a button on the remote, indicating that the
setting has been applied successfully.
• Remote control distance: ＜10 meters.
• The remote control includes a memory function.
1. The lamp button is power-o switch, lamp can get solar charged in any mode.
2. This is a solar powered lamp, please install it in a location where can get enough sunshine.
3. Please note the lighting time depends on the sunshine duration & weather.
4. Built-in intelligent IC is with over-charge, over-discharge and over-voltage protection.
5. The lamp gets solar charged at day time, and lights up automatically at dusk.
6. The lamp is equipped with an internal battery pack, which is replaceable. If any need, please
contact seller for correct new battery pack.
7. Non-professionals please do not disassemble the lamp.
8. Please do not dispose the battery with household garbage to avoid explosion.
Default installation method, Accessories included

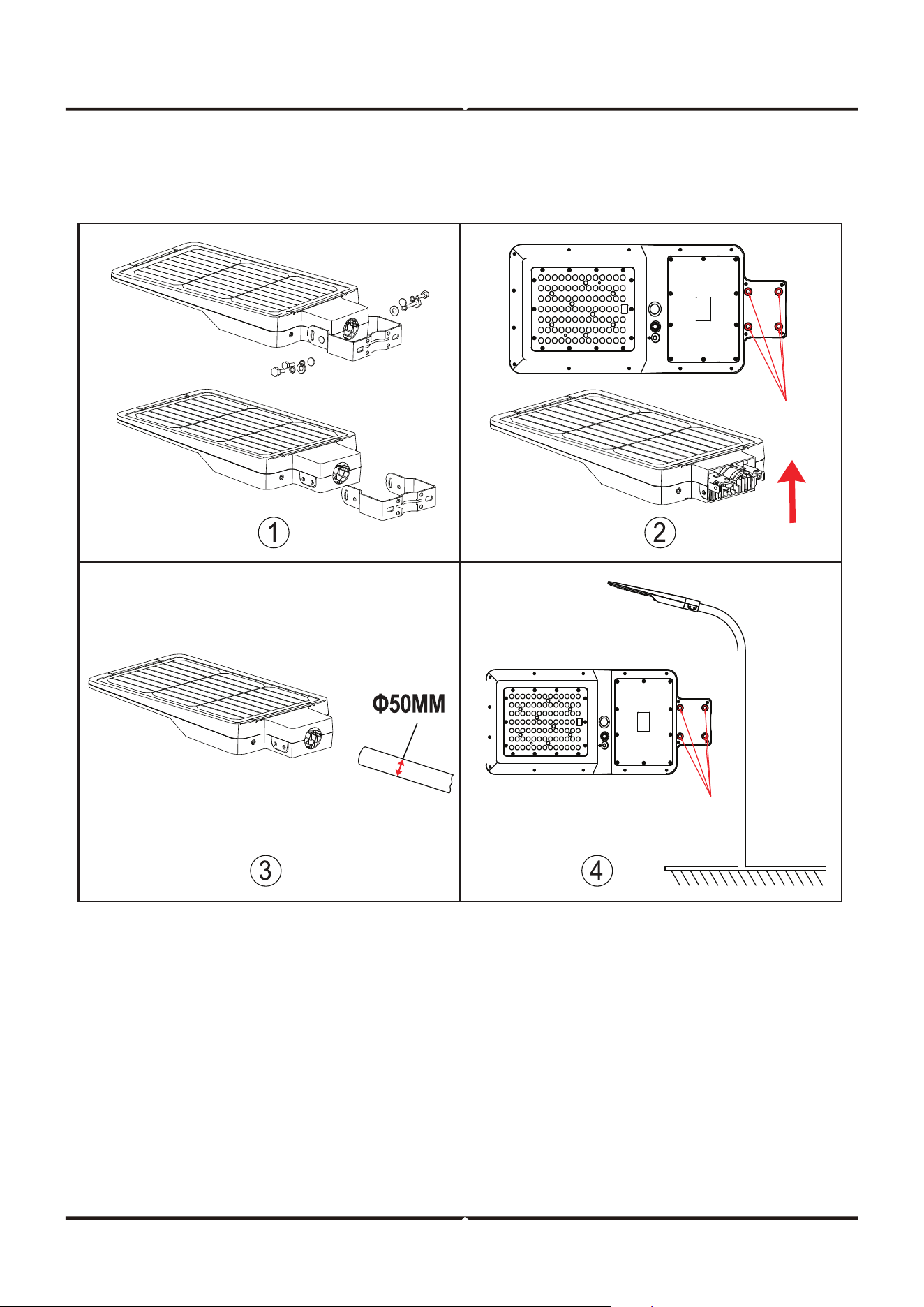

INSTALLATION A: STRAIGHT POLE
1. Prior to installation, verify that the four lower screws are properly tightened.
2. Detach the gaskets from the small U¯shaped brackets and position the brackets onto
the lamp bracket across the straight pole.
3. Secure the lamp to the pole by tightening the screws. This installation is suitable for
poles with a diameter of 50–60 mm.
4. To set the desired lighting angle, loosen the screws located on both sides of the lamp
(refer to the image). Adjust the lamp upward by a maximum of 20° or downward by a
maximum of 10°, then tighten the screws to lock the position.
1. Loosen the screws and remove the big U-shaped bracket.
2. Loosen the bottom screws to match the pole.
3. Install the lamp on the pole (Suitable for poles with (50mm).
4. Adjust the lamp and balance it, tighten the four screws to lock the lamp.
Default installation method, Accessories included

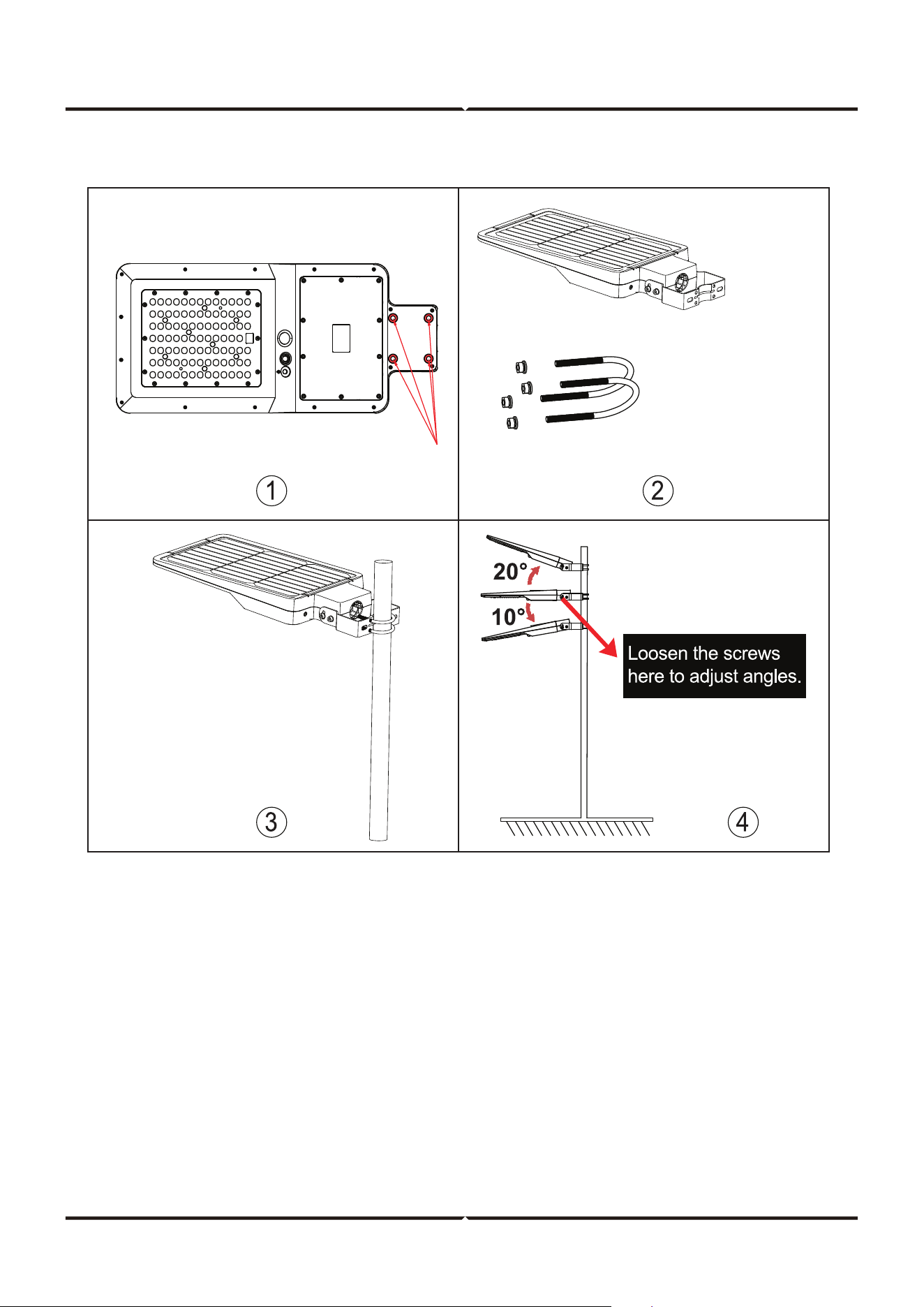

INSTALLATION B: CURVED POLE
1. Before beginning installation, ensure that the four bottom screws are fully tightened.
2. Drill two holes in the wall using a 14 mm bit to a depth of 60 mm, spaced 104 mm
apart.
3. Insert the two expansion screws and secure the lamp firmly to the wall.
4. To adjust the lamp angle, loosen the screws on both sides of the lamp (as shown in
the reference image). Adjust the lamp upward by up to 20° or downward by up to
10°, then retighten the screws to lock the position.
Requirements for wall mounted installation: 2 pcs expansion screws M10*60mm (NOT Included in the packaging)

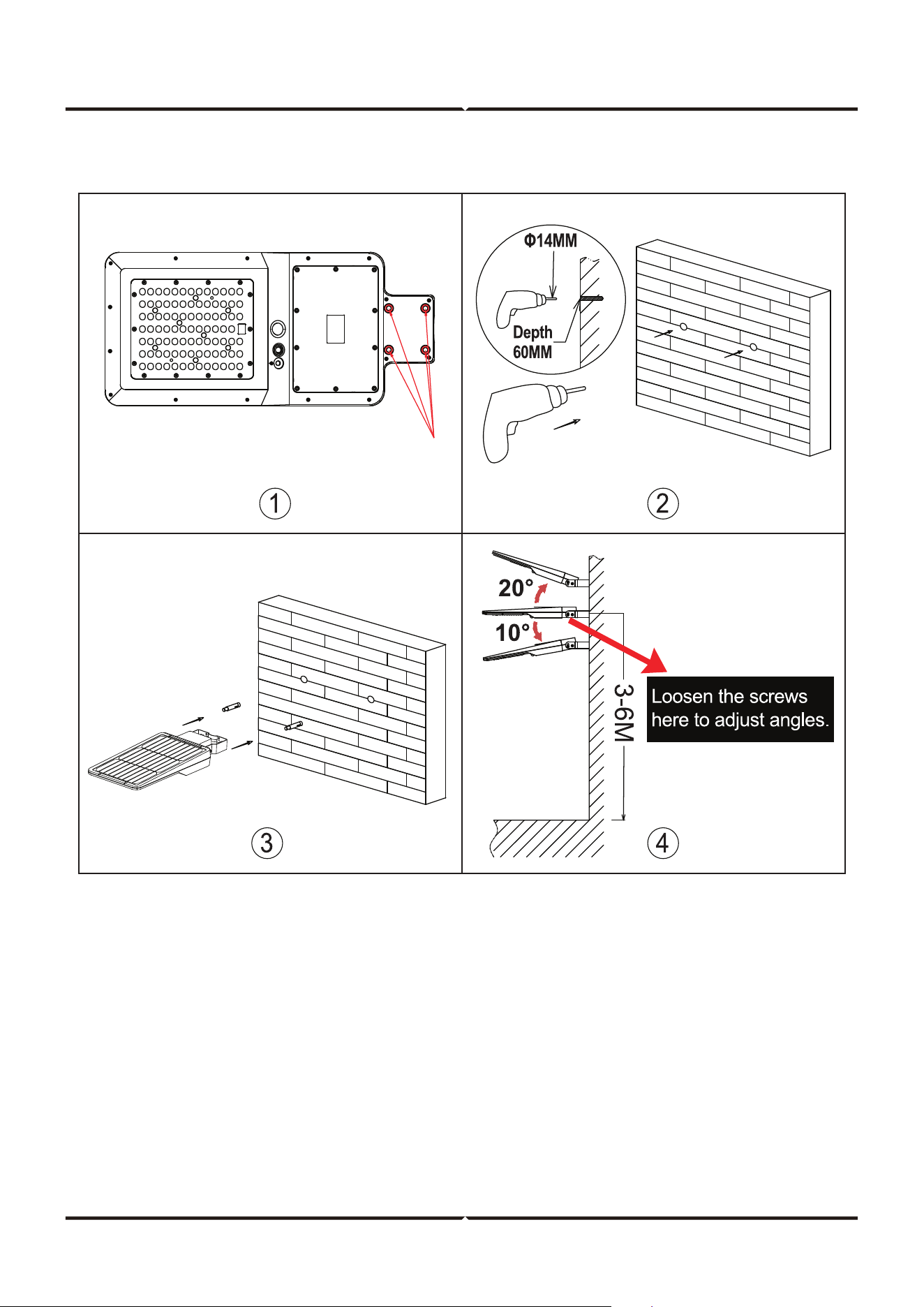

INSTALLATION C: WALL MOUNTED (OPTIONAL)
• This product contains battery type "Secondary" (rechargeable).
• Electrical and electronic equipment that has become waste is known as old equipment/device.
Old devices must not be disposed of with other household waste.
• Owners of old devices at the end of its service life must return the device by taking them to the
collection points set up by public waste disposal authorities or distributors. This return does not
entail any costs for you.
• Owners of old devices have an obligation to remove accessible batteries / rechargeable batteries
as well as non-destructively removable lamps from the old device prior to return. This does not
apply if old devices are being prepared for reuse with the participation of a public law firm.
• Battery removal warning: The battery contained in this product must be removed only by profes-
sional personnel only. The battery must never be removed by the end user, if not removed
correctly it could damage the battery which could cause fire.
• Batteries removed from an old electronic device should be disposed of separately. This return of
battery does not entail any costs for you and the user is obliged to return the battery.
• Please make sure that this product is not powered on when removing the battery. Fire hazard!
Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery. Please
handle the battery with Caution!
• If electrical appliances or batteries are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and well-be-
ing.
• The symbol of "Crossed rubbish bins "indicates that this product should not be disposed of with
other household wastes and must be collected separately from unsorted municipal waste at the
end of its service life.
• Please use the link below to view the online directory of the collection and return
points:https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
[email protected] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT:
SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
IMPORTANT NOTES
