IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY91477B908/C
e
I M P O R T A N T S A F E T Y I N S T R U C T I O N S
READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE 3
How to read the User Manual 3
For this appliance 8
Appliance purpose 8
Disposal 9
Technical Support. 10
This user manual 10
Manufacturer’s liability 10
Identification plate 10
To save energy 10
Light sources 10
Safety symbols 10
DESCRIPTION 11
General description 11
Accessories 11
USE 12
Preliminary operations 12
First use 12
Temperature setting 12
Rapid cooling function 12
Alarm for door open 13
Using the accessories 13
Ventilation 14
Using the refrigerator compartment 14
Using the freezer compartment 14
Noises during operation 14
Heated front surface 15
Turning the appliance off 15
Storage advice 15
CLEANING AND MAINTENANCE 15
Cleaning the appliance 15
Defrosting 16
Interior lighting 16
Replacing the seal 16
What to do if... 16
INSTALLATION 17
Electrical connection 17

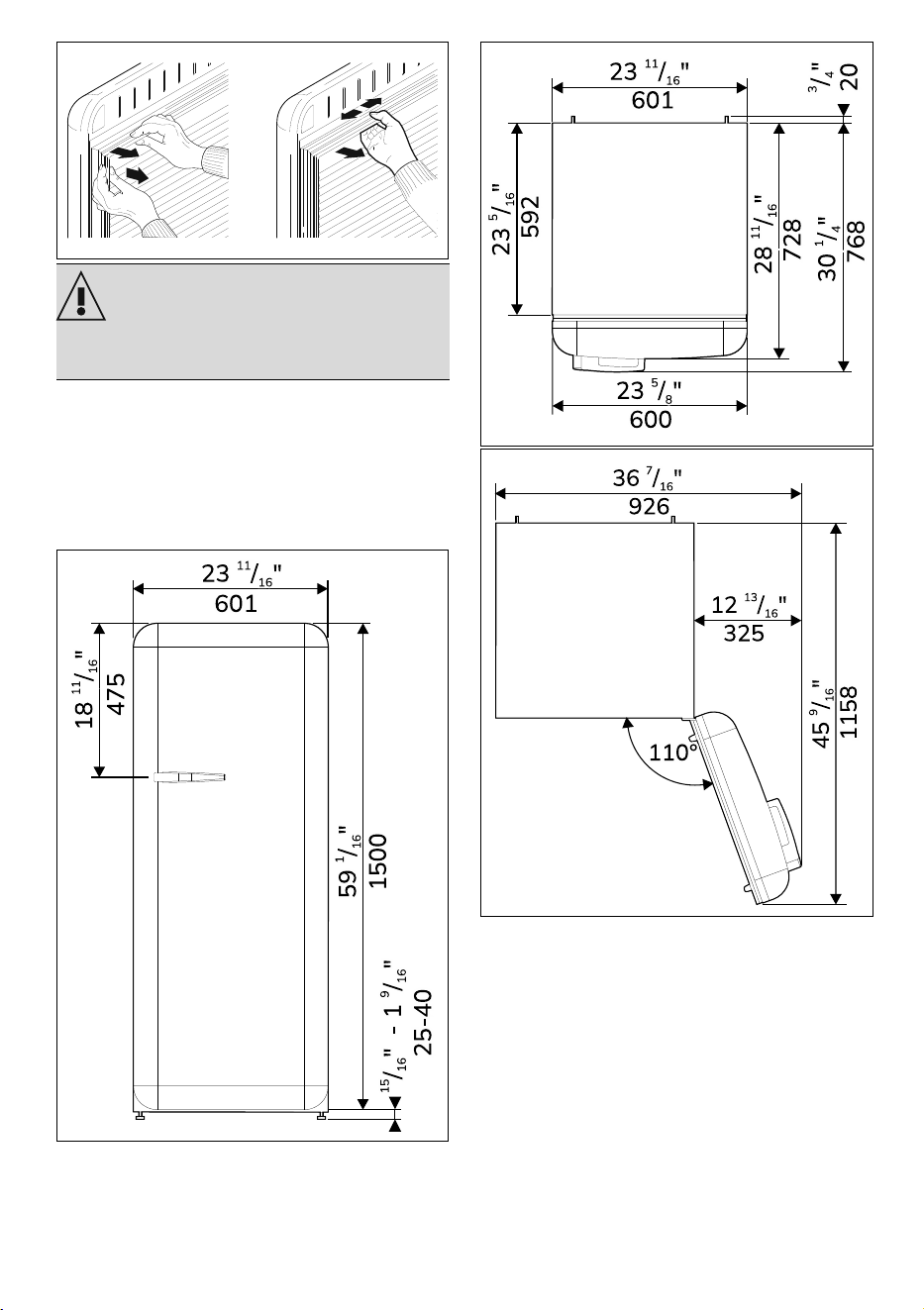

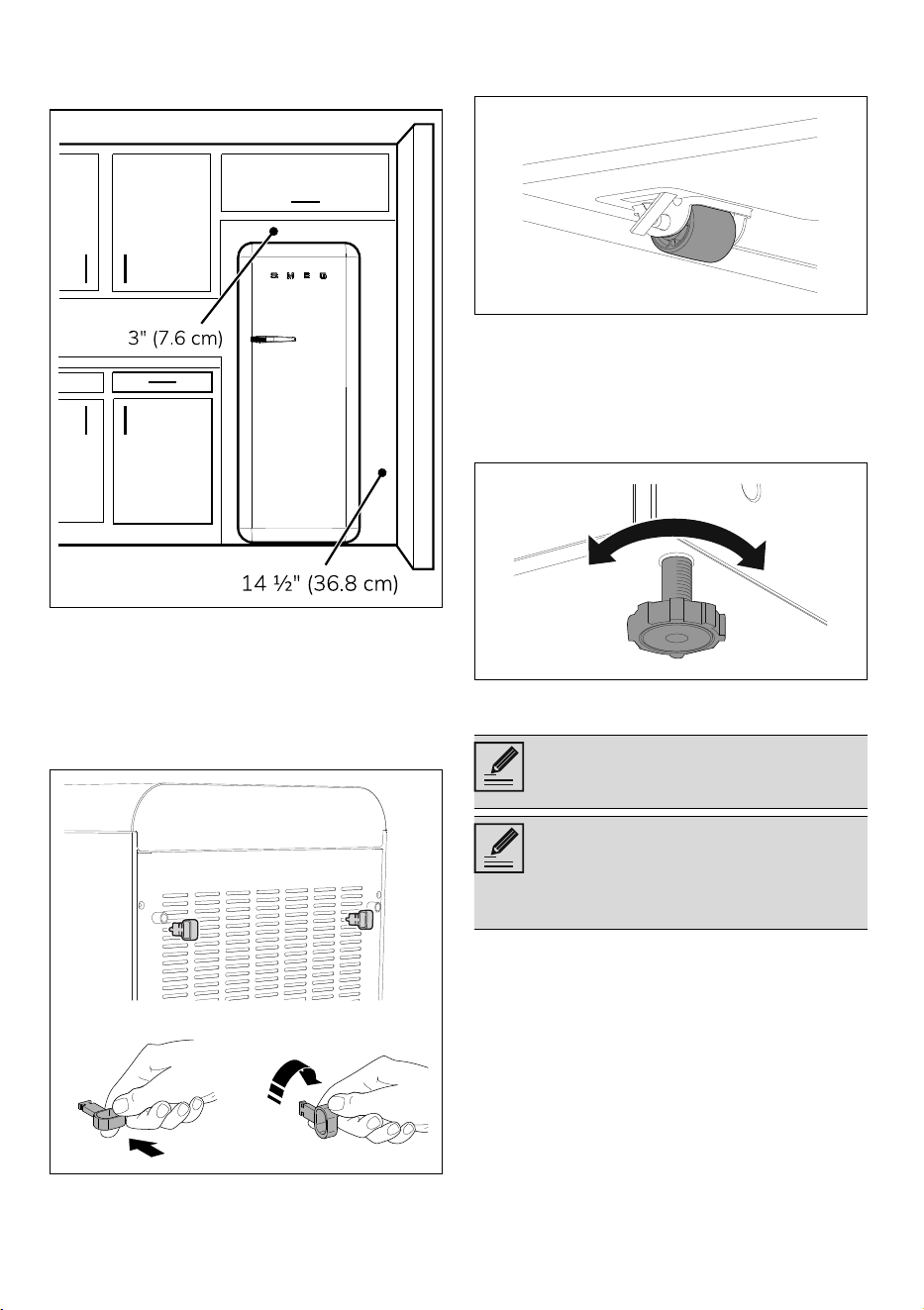

Positioning 17
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities. For further information on the
product: www.smeg.com
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
How to read the User Manual
This User Manual uses the following
definitions of terms:
WARNING: If the instructions in this manual are not carefully
followed, fire or explosion may occur resulting in property
damage, personal injury or death.
DANGER
• failure to follow instructions
immediately may result in death or
serious injury.
WARNING
• failure to follow instructions may result
in death or serious injury.
PRECAUTION
• indicates a potentially hazardous
situation which, if not avoided, may
result in minor to moderate injury.
NOTE: important information
4 - IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY 91477B908/C
Notice: Proposition 65 of the State
of California
Injury to persons
• Read all instructions.
• This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they
have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
• Do not leave children
unattended: Children
should not be left alone or
unattended in the area
where the appliance is
used.
• Never allow children to sit
or stand on any part of the
appliance.
• Never allow children to play
with the refrigerator and
have them use the drawers,
shelves and other parts of
the appliance only as
described in this manual.
• Never attempt to extinguish
flames/fire with water. Turn
off the appliance and cover
the flame with a fire-proof
blanket or a dry or foam
fire-extinguisher.
• Do not attempt to repair,
disassemble, or modify the
appliance yourself.
• Do not damage the coolant
circuit.
• Do not use this appliance if
the power plug or cord are
damaged.
•WARNING: do not use
electrical equipment inside
the food storage
compartments of the
appliance unless it is of the
type recommended by the
manufacturer.
• Use a non-flammable
cleaner.
• Do not climb, stand or stick
to refrigerator shelves. This
could result in serious injury
or damage to the appliance.
• Cleaning and maintenance
operations to be performed
by the operator should not
be carried out by children
without supervision.
• Do not modify the
appliance.
• Do not insert sharp metal
objects (knives and utensils)
into the slots.
• Do not touch (especially
with wet hands) or place in
your mouth a frozen
product taken directly from
the freezer. This can cause
burns due to very low
temperatures.
This product may expose you to
chemicals including vinyl chloride,
which is known to the State of
California to cause cancer and
prenatal defects or other
reproductive harm. See
www.P65Warnings.ca.gov for more
information.
WARNING
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY91477B908/C
e
• Do not store explosive or
flammable substances,
such as petrol, in or near
this refrigerator or use
petrol or other flammable
vapors or liquids in the
vicinity of this or any other
appliance.
• Do not store or use gasoline
or other flammable vapors,
liquids, or materials near
this or any other appliance.
• Bottles with high alcohol
content should be tightly
closed and upright.
• Organic, acidic substances
and ethereal oils can
corrode plastic surfaces
and seals if in contact for a
long time.
• Before cleaning or
servicing, turn off the
appliance and disconnect it
from the power supply.
• Do not insert the plug into the
electrical outlet with wet
hands.
• Do not pull the cable to
remove the plug.
Damage to the appliance
• While in use, do not place
metal objects on the
appliance, such as knives,
forks, spoons and lids.
• Do not use abrasive or
corrosive detergents on the
glass parts (e.g. powder
products, stain removers or
metal scouring pads).
• Do not sit on the appliance.
• Do not lean or sit on the
door or on open drawers.
• Do not use steam jets to
clean the appliance.
• CAUTION: do not defrost or
clean the appliance with a
steam cleaner.
• WARNING: do not use
electrical appliances (e.g.,
hair dryers, etc.) or
defrosting sprays to
accelerate defrosting, as
they may deform plastic
parts, unless they are
recommended by the
manufacturer.
• Do not store liquids in cans
or glass containers in the
freezer.
• Do not remove ice or frost
with sharp objects to avoid
damage to the walls of the
appliance.
• WARNING: Do not place
portable power strips or
portable power supplies in
the rear of the appliance.
• Do not place heavy objects
on top of the appliance.
• For safety reasons and to
prevent damage to the
appliance, never sit, stand
or lean on the refrigerator
door.
• CAUTION: never cover or
block any ventilation
openings on the appliance.
• Do not refreeze frozen
WARNING
PRECAUTION
6 - IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY 91477B908/C
foods that have partially or
completely thawed.
• Do not strike or press too
hard on glass surfaces.
• Do not pry open the door or
handle to move the
appliance.
• Under no circumstances
should the appliance be
used to cool the room.
• Wear appropriate clothing.
Never wear loose or
dangling clothing when
using the appliance.
• Comply with maximum
storage times and
expiration dates for frozen
products.
Installation and maintenance
• It takes two or more people
to move and install this
appliance.
• This appliance is heavy and
must be secured during
transport and installation.
• Do not use the appliance
outdoors.
• WARNING: while
positioning the appliance,
make sure that the power
supply cable is not caught
or damaged.
• To prevent instability of the
appliance, install and
secure it correctly as
indicated in the instructions
provided in this manual.
• Do not install this appliance
in prefab (mobile) homes,
recreational vehicles (RV),
or boats.
• Do not install this appliance
in a room where there is a
risk of freezing.
• The appliance must not be
exposed to direct sunlight.
• The appliance should not
be placed near any heat
sources or flammable
materials. If this is not
possible, a suitable
insulation panel should be
used.
• Always place the appliance
in a dry, well-ventilated
room.
• If installed near another
refrigerator or freezer, keep
it at a minimum distance of
2 cm -
3
/
4
”.
• Depending on the climate
class to which it belongs,
the appliance can be used
in different temperature
conditions. The climate
class is specified on the
appliance nameplate.
• Observe all applicable
regulations and ordinances.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Insert the plug into a 3-pin
grounded outlet.
• Do not remove the
grounding pin.
• Do not use an adapter plug.
• Do not use an extension
cord.
• Do not twist or tie the
WARNING
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY91477B908/C
e
power cord.
• Do not pull or bend the
power cord.
• Do not damage the power
cord when moving the
appliance.
• To avoid any danger, if the
power cord is damaged,
contact technical
assistance service
immediately to have it
replaced and eliminate any
risk.
• Never unplug an appliance
device by pulling on the
power cord. Always grasp
the plug firmly when pulling
it out of the outlet to avoid
damaging the power cord.
• Always disconnect the
appliance from the power
supply when
troubleshooting, servicing,
replacing bulbs, or cleaning.
• Have a qualified electrician
check the wall outlet and
circuit to make sure the
outlet is properly grounded.
• Installation and servicing
should be carried out by
qualified personnel in
accordance with current
standards. Service
personnel should
disconnect power before
working on this appliance.
• Have the electrical
connection performed by
authorized technical
personnel.
• Always use any necessary/
required personal
protective equipment (PPE)
before performing any work
on the appliance
(installation, maintenance,
positioning or movement).
• Do not attempt to repair or
replace any part of this
appliance unless
specifically recommended
in this manual. Any other
maintenance must be
performed by a qualified
technician.
• Do not damage or drill the
coolant pipes.
• Do not damage the coolant
circuit.
• Do not use sharp
instruments, alcohol,
flammable liquids, or
abrasive cleaners to
remove tape glue. Clean
only with warm water.
• WARNING: Keep ventilation
openings in the appliance
enclosure or built-in structure
free from obstructions.
• WARNING: Do not use
mechanical, electrical, or
chemical products other than
those recommended by the
manufacturer to speed up the
defrosting process.
• Do not dispose of the
packaging materials
improperly. Separate the
various pieces by type and
consign them to the nearest
separate waste collection
center.
• Leave the appliance
PRECAUTION
8 - IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY 91477B908/C
standing vertically for at
least two hours before
turning it on for the first
time.
• Leave enough space
around the appliance and
install it on a flat surface.
• Never use the open door to
lever the appliance into
place when fitting.
• Avoid exerting too much
pressure on the door when
open.
• When installing the
appliance be careful not to
scratch or damage the floor.
• Do not move back and forth
or drag the appliance when
trying to move it, as you
may damage the floor.
• Never cover or block any
ventilation openings on the
appliance.
• This equipment can be used
up to a maximum height of
2000 meters/6562 feet
above sea level.
For this appliance
• The appliance contains a
small amount of isobutane
(R600a), take care during
transport, assembly or
cleaning not to damage the
refrigeration circuit.
• In case of damage to the
refrigeration circuit, avoid
using open flames and
ventilate the room
appropriately.
• Do not operate the
equipment or any part of it
other than as specified in
this manual.
• Caution: Fire hazard/
flammable materials.
• Opening the door for long
periods of time can cause a
significant temperature
increase in the appliance
compartments.
• Regularly clean surfaces
that may come in contact
with food and accessible
drainage systems.
• Store raw meat and fish in
suitable containers in the
refrigerator so that it does
not come in contact with
other foods or drips on
them.
• If the appliance is left empty
for long periods, turn it off,
defrost, clean, dry, and
leave the door open to
prevent the development of
mold inside.
Appliance purpose
• This appliance is not
intended to be used as a
built-in appliance.
• The appliance is not
designed for professional
and commercial use.
PRECAUTION
PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY91477B908/C
e
• This appliance is for
refrigeration and
conservation of fresh and
frozen foods in the home.
Every other use is
considered improper.
• The appliance is designed
for use in a domestic or
similar environment, for
instance:
- Staff kitchen areas in
shops, offices and other
working environments;
- farmhouse holiday
centres, farms and by
clients in hotels, motels
and other residential-type
environments;
- bed and breakfast
establishments;
- catering and similar
non-retail applications.
• The appliance is not
designed to operate with
external timers or with
remote-control systems.
Disposal
• Entrapment risk for children.
Before you throw away an
old refrigerator/freezer:
- Remove the doors.
- Leave the shelves
positioned so that children
cannot easily climb inside.
• Destroy or recycle
cardboard, plastic bags,
and any outer packaging
material immediately after
unpacking the refrigerator.
Children should NEVER use
these items for play. They
can cause suffocation and
death.
• Take the appliance to a
suitable recycling center for
electric and electronic
waste, or return it to the
dealer when purchasing an
equivalent product, as a
one-on-one exchange.
Before you throw away an
old refrigerator/freezer:
•Unplug the power cord
plug.
• Cut the power cord.
• Have the coolant removed
and disposed of by a
qualified technician.
• Do not let children climb,
stand or stick to refrigerator
shelves.
• Do not allow children to
play with the refrigerator.
NOTE: This appliance
may only be installed
and used indoors.
DANGER
WARNING
10 - IMPORTANT SAFETY INSTRUCTIONS READ 91477B908/C
Technical Support.
• In the event of failure of the appliance,
contact the technical support and have
the repair carried out by qualified
personnel only.
• make sure you have the model and
serial number available on the
identification plate.
• Use original spare parts only.
• Do not try to repair the appliance
yourself or without the assistance of a
qualified technician: this affects safety
and may void the warranty.
• Genuine spare parts for some specific
components remain available for a
minimum of 7 or 10 years, depending on
the type of component, from the date
the model is released on the market.
This user manual
• This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the user's
reach for the whole working life of the
appliance.
• Read this user manual carefully before
using the appliance.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in
the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
To s ave e ne rgy
• Correct use of the appliance, correct
packaging of foodstuffs, a constant
temperature and food hygiene have
effects on the quality of storage.
• Reduce the number of times that the
doors are opened and the length of time
they remain open to prevent the
compartments from heating up
excessively.
• Clean the condenser (if it can be
accessed) at the rear of the appliance
periodically to prevent the appliance
from losing efficiency.
• Defrost frozen food in the refrigerator
compartment in order to make use of the
cold stored in the frozen foods.
• Placing the shelves at different heights
does not affect the stated energy
consumption.
Light sources
• This appliance contains light sources
which cannot be replaced by the user
and must only be replaced by the
technical assistance service.
• This appliance contains light sources of
efficiency class "F".
Safety symbols
The appliance uses the following
pictograms:
READ AND KEEP THESE
INSTRUCTIONS
ISO 7010-W021 symbol for
“Warning; risk of fire/flammable
materials”
United Nations GHS symbol for
“Warning; risk of fire/flammable
materials”
DESCRIPTION - 1191477B908/C
e
DESCRIPTION
General description
1 Freezer compartment
For storing frozen foods, freezing fresh
foods and producing ice cubes.
2 Fan
Distributes the temperature and reduces
condensation on the shelves and other
surfaces.
3 Interior lighting
The interior of the appliance is lit when the
door is opened.
4 Refrigerator compartment
For storing fresh foods.
5 Super-cold drawer
6 Fruit and vegetable drawer
7 Thermostat
For setting the temperature inside the
refrigerator and freezer compartments.
8 Fridge door
Accessories
Shelves
For optimizing fridge space and placing
foodstuffs inside the refrigerator
compartment.
Fruit and vegetable drawer
For storing fruit and vegetables,
maintaining a constant humidity level.
Not all accessories are available on
some models.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres. Use
only original accessories supplied by
the manufacturer.
12 - USE 91477B908/C
Super-cold drawer
Can be used for maintaining freshness and
flavor of delicate food such as meat, fish
and lightly frozen foods for a longer time
period, since temperature is kept constantly
between 28°F and 37°F.
Door balconies and shelves
For storing foodstuffs in small containers.
The shelf in the lower part of the door is
useful for storing bottles.
USE
Preliminary operations
• Remove any protective film from the
outside or inside of the appliance,
including accessories.
• Remove any labels (apart from the
technical data plate) from the
accessories and shelves.
• Remove and wash all the appliance
accessories (see chapter "CLEANING
AND MAINTENANCE").
First use
Make sure that the appliance is connected
to the electrical outlet.
Temperature setting
Turn the thermostat knob from position
(minimum) to (maximum) depending on
the desired temperature.
Rapid cooling function
This function allows you to cool down large
quantities of freshly stored food and drink in
the appliance in a short time.
To activate the function, turn the thermostat
knob to position.
Do not place food to be frozen or
trays to make ice in the super-cold
compartment.
See General safety instructions.
After installing or relocating the
appliance, wait at least two hours
before operating it.
Increasing from position to
the temperature decreases in the
refrigerator compartment.
The function will remain active for
max. 24 hours.
5
5
USE - 1391477B908/C
e
Then return the thermostat knob to the
desired position between
and .
Alarm for door open
When the refrigerator compartment door
remains open for a long time, the appliance
sounds to warn the user that door should
be closed.
Using the accessories
Shelves
These can be positioned at different heights
on the guides according to requirements.
Each shelf has a safety fitting to prevent it
from being accidentally removed.
To extract them fully, lift up the rear part (1)
and remove them (2).
Door balconies and shelves
Suitable for storing eggs, butter, dairy
products, conserves and other small food
packages/containers. The lower part of the
door has a shelf for bottles. Avoid placing
excessively heavy bottles on the shelf and
do not let them drop onto the bottom when
inserting them.
Fruit and vegetable drawer
Located at the bottom of the refrigerator
compartment, which is fitted with a glass
shelf to cover fresh foods that require
constant humidity for optimum storage.
Humidity regulator
Can be used to adjust the humidity level in
the fruit and vegetable drawer. Slide the
regulator horizontally to open or close the
passage of air through the slots.
To save energy, the rapid cooling
function can be stopped as soon as
the food or drink has cooled down.
Return the thermostat knob to the
desired position between and
.
Perishable foods should be placed
on the rear part of the shelves
where the temperature is lower.
5
5
Storing vegetables with high
content of water can generate
condensation on the glass shelf.
This is a natural phenomenon which
does not affect the appliance’s
operation in any way.
14 - USE 91477B908/C
Ventilation
The forced recirculation air in the appliance
is free of humidity and quickly dries the food
inside.
The inner ventilation system cools food
more rapidly and keeps refrigeration
homogeneous inside the appliance.
Using the refrigerator
compartment
Arranging food
Arrange food on the various shelves,
making sure that they are wrapped and
covered hermetically. This precaution
ensures that:
• the flavour, moisture and freshness of
the foods is preserved;
• any contamination of foods with odours
or tastes from other foods can be
avoided;
• the humidity level inside the refrigerator
is prevented from becoming too high as
a result of the normal transpiration of
food (especially fresh fruit and
vegetables). In some operating
conditions (rise in ambient temperature
and humidity, more frequent opening of
the door) this might cause condensation
to form on the shelves.
Storage life table
Using the freezer compartment
To keep and freeze foods properly:
• Pack fruit and vegetables in portions of
no more than 35 oz / 1 kg; meat and fish
in portions of no more than 70 oz / 2 kg.
• small packages freeze quickly which
means that the foods' nutritional
properties are preserved better,
including after defrosting/preparation.
• package foods in hermetically sealed
packages, expelling air as much as
possible.
• Do not use paper bags or shopping
bags, use suitable freezer bags/
containers.
Frozen foods storage life table
Defrosted foods
Food must be consumed as soon as
possible once defrosted. Freezing foods
preserves them, but it does not destroy any
micro-organisms, which are activated after
thawing, damaging the foods.
Partial defrosting lowers the nutritional
value of the foodstuffs, particularly of fruit,
vegetables and ready meals.
Noises during operation
The refrigerator and freezer compartments
are cooled by means of a compression
system. In order to maintain the preset
temperature inside the refrigerator and
freezer compartments, the compressor
comes into operation in response to the
level of cooling required, and may operate
continuously if necessary. When the
compressor starts up a humming sound will
be heard, tending to drop in volume after a
few minutes.
Another normal operating noise of the
appliance is a gurgling due to the coolant
flowing through the pipes in the circuit. This
noise is normal and does not indicate an
appliance malfunction. If it becomes too
loud, this may mean that there are other
causes. Checks must then be made to
ensure that:
• The refrigerator is properly levelled on
the floor and does not vibrate when the
compressor is in operation: if this is not
Before introducing food into the
appliance, seal it thoroughly.
Always allow hot foods and drinks
to cool to room temperature before
putting them in the appliance.
Foodstuff Time
Eggs, smoked meats, mari-
nated foods, cheese
max 10 days
Root vegetables max 8 days
Butter max 7 days
Pastries, fruit, ready meals,
fresh meat
max 2 days
Fish, minced meat, seafood max 1 day
Always allow hot foods and drinks
to cool to room temperature before
putting them in the appliance.
Foodstuff Time
Fruit, beef max 10-12 months
Vegetables, veal, poultry max 8-10 months
Game max 6-8 months
Pork max 4-6 months
Ground meat max 4 months
Bread, desserts, cooked
foods, oily fish
max 3 months
Offal max 2 months
Sausages, lean fish max 1 month
CLEANING AND MAINTENANCE - 1591477B908/C
e
the case, adjust the appliance's feet until
it is level;
• The drawers, shelves and trays on the
door are correctly positioned in their
holders: if they are not, put them in
correctly;
• Bottles and containers on the various
shelves are stable and not touching
each other: otherwise, the vibration
resulting from compressor operation
could generate noise;
• Do not place the fridge in such a way
that it is in contact with furniture or other
household appliances.
Heated front surface
There is a front surface heating system
inside the cabinet to limit the formation of
condensation around the door seal.
Turning the appliance off
Whenever the appliance is to remain
unused for long periods, it should be
switched off.
1. Unplug the appliance from the wall
socket.
2. Empty the compartments.
3. Once the freezer has fully defrosted, dry
any residual accumulated moisture with
a tea towel.
Storage advice
General advice
• Always check the expiry date on the
food packaging.
• The foodstuffs must be stored in closed
or pre-packaged containers and must
not be able to emit or absorb moisture
and odours.
• Remove perishable products from the
appliance if you are going away for a
long period.
Refrigerator compartment door
• Keep eggs, butter, cheese etc. in the
upper and central parts.
• Keep drinks, bottles, cans etc. in the
lower part.
Refrigerator compartment
• Keep conserves, wine, biscuits etc. in the
upper part.
• Keep dairy products, ready meals,
pastries, fruit juices, beer etc. in the
central part.
• Keep meats, cold cuts etc. in the lower
part.
• Keep fresh and tropical fruit, vegetables,
carrots, potatoes, onions, etc. in the fruit
and vegetable drawer.
Freezer compartment
• The type of food, quantity and date of
freezing should be marked on the
container/packaging.
• Use small containers, if possible already
cold.
• The quantity of fresh foods which can
be frozen at the same time is listed on
the nameplate inside the refrigerator
compartment.
• Use suitable freezer bags, tinfoil,
cling-film for use with food, and freezer
containers.
• Do not use paper bags, cellophane for
non-food use, shopping bags or
pre-used freezer bags.
• Avoid frozen food coming into contact
with fresh food to be frozen.
• Keep bagged frozen vegetables, ice, ice
cream etc.
CLEANING AND MAINTENANCE
Cleaning the appliance
They must be cleaned regularly in order to
keep them in good condition.
Cleaning the outside of the appliance
• The appliance may be cleaned with
water or alcohol-based liquid
detergents (e.g. window cleaning
products).
• Avoid aggressive detergents and rough
sponges in order not to damage the
surfaces.
• Use a soft brush to remove dust and
fume deposits from the condenser on
the rear of the appliance.
• Clean the tank above the compressor.
Cleaning the inside of the appliance
• Clean the inside of the appliance with
diluted liquid detergent and warm
water, adding a little bit of vinegar.
• The door balconies and shelves can be
Leave the door ajar to ensure that
moisture and stagnant air do not
cause unpleasant odours.
See: General safety warnings.
16 - CLEANING AND MAINTENANCE 91477B908/C
removed: tap them upwards with your
fist, first on one side and then on the
other in the insertion zone.
• Remove any ice thicker than 3-5 mm -
1
/
8
”-
3
/
16
” Do not use sharp objects or
spray products.
Defrosting
Defrosting the refrigerator compartment
The refrigerator compartment does not
require defrosting, as any ice which forms
on the refrigeration plate will melt when the
compressor is idle. The defrosting process is
automatic.
Defrost water is channeled directly into the
dedicated pan on the back of the appliance,
which lets it evaporate by means of the
heat generated by the compressor.
Defrosting the freezer compartment
The freezer compartment needs to be
defrosted manually. When the thickness of
frost or ice exceeds 2 cm -
3
/
4
”, the freezer
should be defrosted.
1. A few hours before defrosting, set the
thermostat to the max. value in order to
further lower the temperature of the
frozen foods.
2. Unplug the appliance from the supply
mains socket.
3. Remove the frozen foods from the
freezer compartment and protect them
from thawing while cleaning.
4. Wait until ice thaws and then remove
water from the freezer compartment
using a sponge/absorbing cloth.
Interior lighting
Interior lighting, if damaged, must be
repaired by Technical Service only.
Replacing the seal
The door seal can be replaced by the user:
1. Remove the seal by pulling it out of its
housing.
2. Reposition the new seal and press along
the entire perimeter to insert it into the
appropriate housing.
What to do if...
The appliance does not work:
• Make sure that the appliance is plugged
in and that the main switch is turned on.
The compressor starts to function too often
or functions continuously:
• The room temperature is too high.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The freezer is loaded with too many
fresh foods.
• Check that sufficient air can circulate
around the sensor on the right-hand
side of the refrigerator compartment.
• Check that the back of the refrigerator is
properly ventilated and that the
condenser is not too dirty.
Excessive ice or condensation has built up
inside the refrigerator compartment:
• The door is being opened too often or for
too long.
• Hot foods have been placed inside the
refrigerator compartment.
• The foodstuffs or containers are in
contact with the rear wall.
• The door seal is damaged or dirty. Clean
or replace it.
The refrigerator compartment is not
sufficiently cold:
• The thermostat is set at too high a
temperature.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The room temperature is too high.
The temperature inside the refrigerator
compartment is too cold and the foodstuffs
are freezing:
• The thermostat is set at too low a
Occasional presence of frost inside
the freezer compartment is normal.
Do not use electrical devices (e.g.
hair dryers) or sprays for defrosting,
the plastic parts could be damaged.
INSTALLATION - 1791477B908/C
e
temperature.
• Foodstuffs not contained in suitable
containers or bags.
• Fruit and vegetables might be too wet.
• Foodstuffs placed against the rear wall
of the refrigerator compartment.
Temperature inside freezer compartment
not low enough to freeze foods properly:
• The thermostat is set at too high a
temperature.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The door seal is damaged or dirty. Clean
or replace it.
• The food to be frozen contains large
quantities of sugar.
Excessive ice has built up inside the freezer
compartment:
• The thermostat is set at too low a
temperature.
• The room temperature is too high.
• The door is being opened too often or for
too long.
• The door is not closing/sealing properly.
• The door seal is damaged or dirty. Clean
or replace it.
• Hot foods have been placed inside the
freezer compartment.
Doors are hard to open just after closing:
• If you attempt to open the door again
just after closing it (especially the freezer
door), considerable strength is required.
This is due to the vacuum created by the
cooling of the warm air which has
entered the freezer.
The doors are misaligned:
• Check that the appliance is level.
• Level the appliance using its feet.
INSTALLATION
Electrical connection
General information
• Check the mains characteristics against
the data indicated on the plate. The
identification plate bearing the technical
data, serial number and brand name is
visibly positioned inside the appliance.
Do not remove this plate for any reason.
• Make sure that the plug and socket are
of the same type.
• Avoid using adapters, gang sockets or
shunts as these could cause
overheating and a risk of burns.
• The plug must always be accessible
when the appliance is installed.
• Leave the appliance standing vertically
for at least two hours before turning it
on for the first time.
• If it is necessary to replace the power
cable, this must be performed by an
authorised technician from Technical
Support Service.
Positioning
Choice of location
Always install the appliance in a dry
place with satisfactory ventilation.
Depending on its climate class
(stated on the nameplate inside the
refrigerator compartment), the
appliance can be used in different
temperature conditions
.
• The appliance must not be installed near
heat sources. If this is not possible,
insulate properly.
• To ensure proper ventilation for your
appliance allow 1 ¼” (3 cm) space on
each side.
• If installed underneath wall units, at
least 3” (7.6 cm) clearance must be left.
• Ensure that the appliance is
located with sufficient space for
the door to open and for the
internal drawers and shelves to
be removed, if necessary. Leave
See General safety instructions.
See General safety instructions.
Class Room temperature
SN (Subnormale)
da 50°F a 90°F
da 10°C a 32°C
N (Normale)
da 61°F a 90°F
da 16°C a 32°C
ST (Subtropicale)
da 65°F a 100°F
da 18°C a 38°C
T (Tropicale)
da 65°F a 109°F
da 18°C a 43°C
18 - INSTALLATION 91477B908/C
14 ½” (36,8 cm) minimum on the
hinge side to allow for the door
to swing open.
Spacers
To ensure proper cooling of the condenser,
the appliance must not be placed too close
to the wall. To avoid this, the product is
equipped with two plastic spacers, which
must be positioned on the back of the
appliance.
Positioning
Position the appliance on a firm, level
surface.
The appliance has two small wheels on the
back to allow it to be moved and positioned
more easily.
In any case, we recommend moving the
appliance very carefully in order to avoid
damaging the floor (especially in the case of
wooden floors).
If the floor is not perfectly level, use the two
adjustable feet on the front part of the
appliance.
Level the appliance horizontally adjusting
its feet.
Lean the appliance slightly towards
the rear part to facilitate proper door
closure.
In order for the freezer to be
installed correctly, the door must be
able to close properly. Ensure that
the door seals close hermetically,
especially at the corners.
INSTALLATION - 1991477B908/C
e
A few days after installation, check that the
initial level adjustment is still correct. Make
sure that the appliance is still stable and the
door seals still close hermetically when it is
in operation and loaded with food. If
necessary, re-adjust the level and the seals.
Appliance overall dimensions (mm)
Pressure on the seal
Risk of damage to the appliance
• Do not press, do not tear or detach the
seal from the door.
20 - INSTALLATION 91477B908/C
