Instruction Manual
Notice d'Utilisation
Manual de instrucciones
!"#$"%&'(&)#*+,$--).#(*
(#
)+
/#*+,$-+).#&!"#$"%
!"#$"%(&')&)*+,$0).#)
1,
(*
Notice d'Utilisation
CB300U
Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an eective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Dierences between models will be identied in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips.
Warning against dangerous conditions for life and property.
Warning against electric voltage.
Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an eective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Dierences between models will be identied in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips.
Warning against dangerous conditions for life and property.
Warning against electric voltage.
Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an eective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Dierences between models will be identied in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips.
Warning against dangerous conditions for life and property.
Warning against electric voltage.
Remove the right crisper
drawer to see the serial tag.
Serial Number
Model
xx-xxxxxx-xx
Content
Read the “Safety Instructions” section rst!
The manufacturer will not be liable for any event caused by disregarding the information supplied in this
user manual.
1
3
3
4
4
4
6
7
7
7
7
8
8
8
8
11
10
10
10
11
1. Your Refrigerator
2. Important instructions for safety
and environment
2.1 General Safety
2.2 Intended Use
2.3 Children’s Safety
2.4 Package Information
3 Installation
3.1 Before Installation
3.2 Appropriate installation location
3.3 Inset Installations
3.4 Electrical connection
3.5 Adjusting the feet
3.6 Illumination lamp
3.7 Door/Drawer open warning
3.8 Installing the handle
3.9 Transportion of the product
4. Preparation
4.1 Placing and installation
4.2 Door and drawer removal
4.3 Door Removal
12
12
13
13
13
13
13
13
13
13
14
14
14
14
14
14
14
15
5. Using the Controls
5.1 Indicator panel
5.2 Food Storage and Compartment
Usage
5.2.1 Freezing fresh food
5.2.2 Recommendations for preserving
frozen food
5.2.3 Placing the food
5.2.4 Deep-freeze information
5.2.5 Removing door shelves
5.2.6 Glass shelves
5.2.7 Crisper bins (In some model)
5.2.8 Deli drawer
5.2.9 Humidity controlled crisper
(EverFresh+)
5.2.10 Harvest fresh
5.2.11 Odor lter
6. Maintenance and cleaning
6.1 Avoiding bad odors
6.2 Protecting the plastic surfaces
7. Troubleshooting
EN1

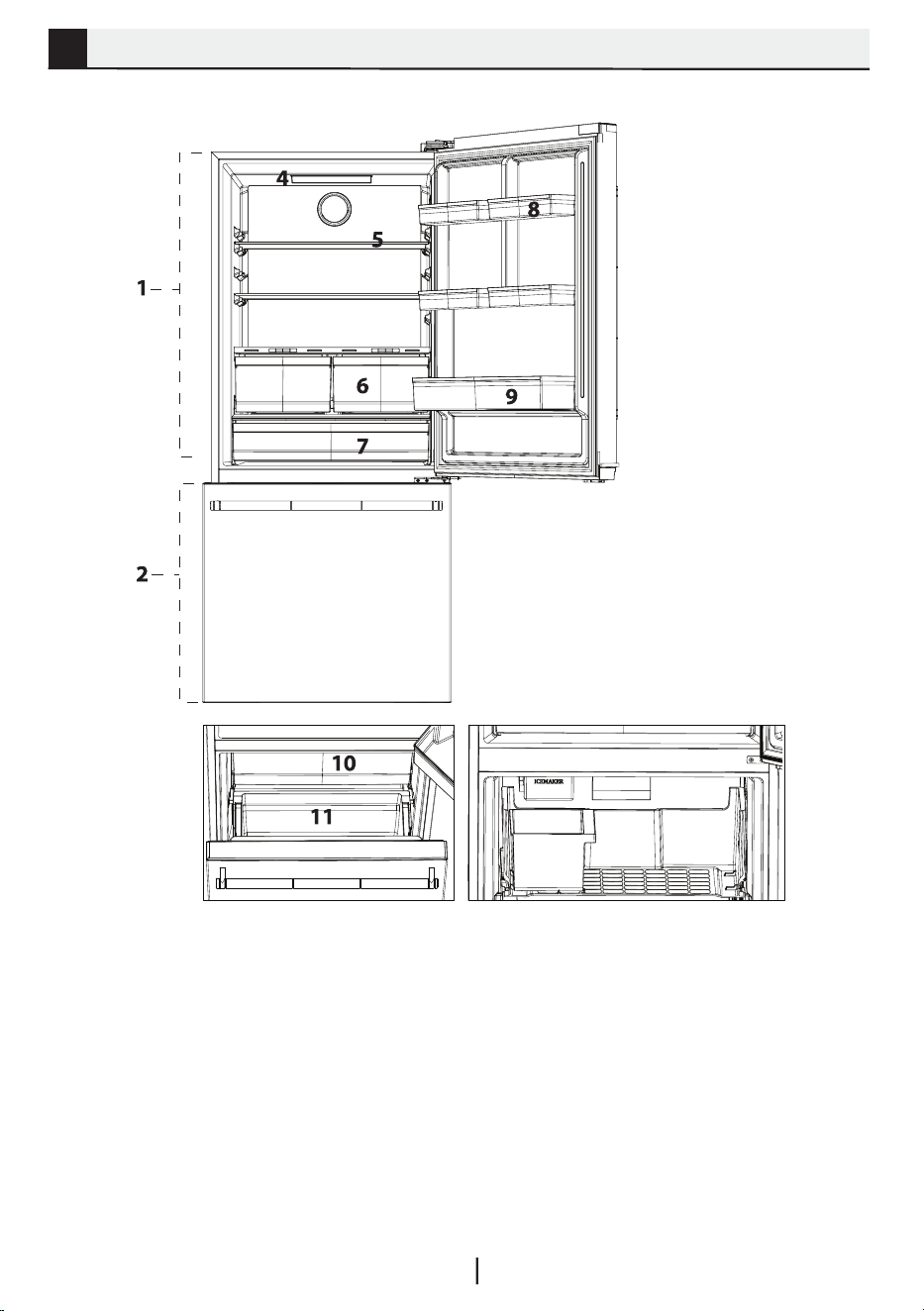

1. Fridge Compartment
2. Freezer Compartment
3. *Ice box / Ice-Making (in Freezer Compartment)
4. Celing Display
5. Adjustable Glass Shelf
6. Crisper
7. Chiller
8. Half Door Shelf
9. Gallon Door Shelf
10. Top Drawer
11. Bottom Drawer
*Option
Your Refrigerator
1
3*
EN2
Refrigerator Shelf Weight Limitation
Fridge compartment shelves, are tested for max 71 pounds (32 kgs) per each part.
Chiller will hold up to 61 pounds (27.6 kgs) per each one. Crisper will hold up to 32 pounds (14.6 kgs).
Half door shelf holds up to 4 pounds (1.8 kgs) and gallon door shelf will hold up to 21 pounds (9.6 kgs). Top
drawer holds up to 111 pounds(50.2 kgs ) and bottom drawer hold up to 93 pounds(42. kgs.)
32 lbs = 14.6 kgs.
71 lbs = 32 kgs.
61 lbs= 27.6 kgs.
111 lbs = 50.2 kgs.
93 lbs = 42.1 kgs.
21 lbs = 9.6 kgs.
4 lbs = 1.8 kgs.
This section contains safety instructions that will help
protect from risk of personal injury or property damage.
Failure to follow these instructions shall void any
warranty.
• If the product has a failure, is should not be operated
unless it is repaired by the Authorized Service Agent.
There is the risk of electric shock!
• Connect the product to a grounded outlet protected by a
fuse complying with the values on the rating plate.
Have the grounding installation made by a qualied
electrician. Our company shall not be liable for any
damages that or arise when the product is used without
grounding in accordance with the local
regulations.
• Do not tuck the power cord under the product. Do not
put heavy items on the power cord. The power cord
should not be bent, crushed, come into contact with any
heat source.
• Never wash the product by spreading or pouring water
onto it! There is the risk of electric shock!
• Never touch the plug with wet hand! Never unplug by
pulling on the cable, always pull out by grabbing the
plug.
• Do not plug in refrigerator if the wall outlet is loose.
• Never connect your refrigerator to electricity-saving
systems. Such systems are harmful for the product.
• Unplug the product during installation, maintenance,
cleaning and repairing procedures.
• Always have the installation and repairing procedures
carried out by the Authorized Service Agent. The
Manufacturer shall not be held liable for damages that
may arise from procedures carried out by authorized
persons.
• Do not put bottled and canned liquid beverage in the
freezer compartment. They may burst!
• Never use the parts on your refrigerator such as the door
and drawer as a means of support or step. This will cause
the product to tip over or parts of it get damaged.
• Do not use gaseous sprays near the product since there
is the risk of re or explosion!
• Flammable items or product that contain ammable
gases (e.g. spray) as well as the explosive materials should
never be kept in the appliance.
• Do not place containers lled with liquid on top of the
product. Spilling water on an electrical component may
cause electric shocks or risk of re.
• Do not store product (vaccines, temperature-sensitive
medicines, scientic materials and etc.) that require a
precise temperature control in the refrigerator.
• If you will not operate the product for a long period of
time, unplug and unload the food in it.
• Do not overload the product. It may fall when the door is
opened, and cause injury or damage. Similar problems
may occur in case of putting things on top of the product.
• Pay attenton not to have your hand or any part of your
body get caught by the moving parts inside theproduct.
• This appliance is intended to be used in household and
similar applications such as
- sta kitchen areas in shops, oces and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
and the risks it brings out. Children must not play with
the product. Cleaning and maintenance works should
not be performed by children unless they are
supervised by someone.
• Unplug the product if a failure occurs while it is in use.
EN
3
WARNING : Keep ventilation
openings, in the appliance enclosure
or in the built-in structure, clear of
obstruction.
WARNING : Do not use
mechanical devices or other means to
accelerate the defrosting process,
other than those recommended by
the manufacturer.
WARNING : Do not damage the
refrigerant circuit.
WARNING : Do not use electrical
appliances inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the manufacturer.
2.1 General safety
• This product can be used by children at and above 8
years old and by persons whose physical, sensory or
mental capabilities were not fully developed or who lack
experience and knowledge provided that they are
supervised or trained on the safe usage of the product
Important instructions for safety and environment
2
2.1.1 HCA warning
• If your product’s cooling system contains R600a:
This gas is ammable. Therefore, pay attention to not
damaging the cooling system and piping during usage
and transportation. In the event of damage, keep your
product away from potential re sources that can cause
the product catch a re and ventilate the room in which
the unit is placed.
The type of refrigerant used in your
product can be found on the serial
tag, located on the left side wall,
inside the Fresh Food Compartment.
WARNING : Never dispose of the
product by re.
2.1.2 For products with a water dispenser
• Pressure for cold water inlet shall be maximum 90 psi
(620 kPa). If your water pressure exceeds 80
psi(550kPa), use a pressure limiting valve in your mains
system. If you do not know how to check your water
pressure, ask for the help of a professional plumber.
• If there is risk of water hammer eect in your
installation, always use a water hammer prevention
equipment in your installation. Consult Professional
plumbers if you are not sure that there is no water
hammer eect in your installation.
• Do not install on the hot water inlet.
• Take precautions against of the risk of freezing of the
hoses. Water temperature operating interval shall be
33°F (0.6°C) minimum and 100°F (38°C) maximum.
• Use only potable water.
2.4 Package information
• Packaging materials of the product are manuafacturered
from recyclable materials in accordance with our
National Environment Regulations. Do not dispose of
the packaging materials together with the domestic or
other wastes. Take them to the packaging material
collection points designated by the local authorities.
« Contact qualied personnel for disposal. »
DANGER: Risk of child entrapment.
Before you throw away your old
refrigerator or freezer:
• Take o the doors.
• Leave the shelves in place so that
children may not easily climb inside.
EN
4
Important instructions for safety and environment
2
2.2 Intended use
• This product has been designed for domestic use. It is
not suitable for commercial use and it must not be used
out of its intended use.
• Product must be used only for storing food.
• The manufacturer waives any responsibility arising from
incorrect usage or transportation.
2.3 Children’s safety
• Children must be supervised to prevent them from
tampering with the product.
A
Overall
B
Top of cabinet
E
Include handle
D
Not include
handle
C
Cabinet
F
G
H
I
J
K
M
L
Height-Overall
“A”
Height-TopOf
Cabinet
“B”
(96 / ”)1770mm
11
16
(68 / ”)1740mm
1
2
Depth-Cabinet
only
“C” “M”
(24 / ”)620mm
7
16
Depth-Without
Handles
“D”
Depth-With
Handles
“E”
Width-Cabinet
“F”
(27 / ”)700mm
9
16
(29 / ”)758mm
7
8
(29 / ”)756mm
12
16
Depth-Drawer
Open
“G”
Depth-Doors
Open90
“H”
Width-Door Open
90 FromCabinetTo
Handles “I”
(43 / ”)1111mm
12
16
(55 / ”)1403mm
3
16
(3 / ”)81mm
3
16
Width-Door Open
130 FromCabinet
ToHandles “J”
Door Open130
“K”
Depth-Doors
Open130
“L”
(24 / ”)629mm
12
16
(20 / ”)513mm
3
16
(50 / ”)1291mm
13
16
Width-Door Open
130 FromCabinet
ToHandles “N”
(49 / ”)1269mm
15
16
EN
5
N
REFRIGERATOR DRAWER DOOR
(
513mm
)
/
16
7
/
30
(784mm)
8
3
20
“
“
25
71-11/16”(1820mm)
(786mm)
15
16
5
8
(650mm)
/
“
30
/
“
24 ”(620mm)
Cabinet
25 / ”(650mm)
Countertop
Top View
Recessed
electrical outlet
Allow 1 ” (30 mm) min, clearance at rear
for proper air circulation and
water/electrical connections
1/2’’ on EACH side.
Minimum Clearances - 2” on the top, 1/2”
on each side, and 1 3/16 in the back.
13
/
32
3
16
/
19
32
”
130
EN
6
Installation
3
Allow 2” (50 mm) min. clearance
between the top of refrigerator
and bottom of cabinetry.
• Installation should be performed by an Authorized
Installer with the necessary equipment. If electrical supply
does not meet the listed requirments above, an
Authorized Electrician should make all necessary changes.
• Make sure that sucient room is provided around the
appliance to ensure free air circulation.
• For proper functionality, there should be a gap of at least 1
3/16” (30 mm) between the refrigerator and the rear wall.
To ensure this, attach the gray, rectangular buers, to be
installed on the top rear of the refrigerator.
These are shipped inside the crisper drawer in the Fresh
Food compartment.
3.1 Before Installation
Preparation of the location and
electrical installation at the place of
installation is the customer's
responsibility.
Plumbing: The refrigerator should
only be connected to the cold water
line.
WARNING : Installation and
electrical connections of the product
must be carried out by the
AuthorizedService Agent. Manufac-
turer shall not be held liable for
damages that may arise from
procedures carried out by unautho-
rised persons.
WARNING : Prior to installation,
visually check if the product has any
defects on it. If so, do not have it
installed. Damaged products cause
risks for your safety.
If two refrigerators are to be installed
side by side, there should be at least 4
cm 1 1/2”distance between them.
3.2 Appropriate installation location
• Install the product at least 12”(30 cm) away from heat
sources such as cooktops, ovens, space heaters, radiators
and stoves at least 2” (5 cm) away from electrical ovens.
Product must not be subjected to direct sun light and
kept in humid places after installation.
• Do not place the product on the materials such as rugs
or carpets.
• Place the product on an even oor surface to prevent
wobbling.
• Do not install the product in places where the
temperature falls below 50F°/10ºC.
3.3 Inset installations
• If the product will be installed within surrounding
cabinetry or in an alcove, be sure there is adequate airow
around the product for proper functionality. This
refrigerator requires at least 2” from the top of the unit to
the ceiling or enclosure, 1/2” on each side and 1 3/16” in the
back.
• the spacer is shipped with the product
3.4 Electrical connection
• 120VAC, 60Hz, Dedicated 15Amp Circuit.
• GFCI outlets will provide added protection, but any
failure of the GFCI could cause food spoilage, which is
not covered by the manufacturer’s warranty.
• Electrical connection must comply with national
regulations.
• Power cable plug must be within easy reach after
installation.
• Do not make connections via extension cables or
multi-plu gs.
EN
7
• Before installing, be sure the opening
measurements are sucient to receive the product
and that the appropriate electrical and plumbing
connections are present.
Max Operating pressure :
Max pressure
for limting valve device
requirement :
90
80
620
550
6.2
5.5
Water line pressure values psi kPa bar
Voltage 120V AC
60 Hz
15 A
7 ft.
Frequency
Current
Power cord Lenght
Electrical requirements
Installation
3
Unscrew before installing the spacer.
Install the spacer and screw.
Rear of unit with installed spacers.
1
2
3
WARNING : Damaged power
cord must be replaced by the
Authorized Service Agents.
WARNING : If the product has a
failure, it should not be operated
unless it is repaired by the Authorized
Service Agent! There is the risk of
electric shock!
WARNING : First unplug the
product. Product must not be
plugged in when adjusting the feet.
There is the risk of electric shock!
3.6 Illumination lamp
Do not attempt to repair yourself but call the Authorized
Service Agent if the LED lights do not go on or are out of
order. The lights used in this appliance is not suitable for
household room illumination. The intended purpose of
this lights is to assist the user to place foodstus in the
refrigerator/freezer in a safe and comfortable way.
EN
8
Installation
3
3.5 Adjusting the feet
After moving the refrigerator into place, we recommend
lowering the feet to secure the product in place. You can
also adjust the feet if the product is not balanced. Twist
the feet in the desired direction according to the
illustration below.
3.7 Door/Drawer Open Warning
An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed.
Installing door handles
Step 1 : Position the top handle over handle mounts.
Step 2 : Tighten the set screw on the top pedestal in
clockwise direction to secure the handle onto the door.
1. Handle Assemblies x 2
3.8 Installing the Handles
2. Allen Key Ball End x 1
EN
9
Installation
3
Step 3 : Tighten the set screw on the bottom pedestal in
clockwise direction to secure the handle onto the door.
Step 5 : Tighten the set screw on the left pedestal
in clockwise direction to secure the handle onto the
door.
Step 6 : Tighten the set screw on the right pedestal
in clockwise direction to secure the handle onto the
door.
Step 7 : Assembly completed
Step 4 : Position the lower handle over handle mounts.
3.9 Transportation of the product
1. Unplug the product before transporting it.
2. Remove water connections.
3. Secure the shelves, accessories, crisper and etc. in
the refrigerator by adhesive tape before repackaging it.
Packaging must be tied with thick tape
or strong ropes and the rules of
transportation printed on the package
must be followed.
WARNING : Packaging materials
are dangerous for the children. Keep
packaging materials in a safe place
away from reach of the children.
EN
10
Installation
3
Preparation
4
Points to be paid attention to when the
relocation of the refrigerator
1. Your refrigerator should be unplugged.Before
transportation of your refrigerator, it should be
emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper,
etc. inside your refrigerator should be xed with
adhesive tape and secured against impacts. Package
should be bound with a thick tape or sound ropes
and the transportation rules on the package should
be strictly observed.
3. Original packaging and foam materials should be
kept for future transportations or moving.
Connecting the water hose to the refrigerator
• Connect the water line to a water supply valve.
If a valve is not present or you are not sure, consult
a qualied plumber.
Connecting the water line to the water supply
1. Slip the union (B) on to the water hose (A)
2. Push the water hose downwards rmly to slip it onto the
water inlet valve (C).
3.Tighten the union (C) by hand to ecure it onto the water
inlet valve.Normally, you are not required to tighten the
union with a tool.However, you can use a wrench or pliers
to tighten the union if there is a leakage.
WARNING: Connect to potable
water supply only.
WARNING: Fill With Potable
Water Only.
Before you start the refrigerator, Check the
following before you start to use your refrigerator:
1. Clean the interior of the refrigerator as
recommended in the “Maintenance and cleaning”
section.
2. Connect the plug of the refrigerator to the wall
socket. When the fridge door is opened, fridge internal
lamp will turn on.
3. When the compressor starts to operate, a sound will
be heard. The liquid and gases sealed within the
refrigeration system may also give rise to noise, even if
the compressor is not running and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is
normal. These areas are designed to be warm to avoid
condensation.
4.1 Placing and Installation
If the entrance door of the room where the refrigera-
tor will be installed is not wide enough for the
refrigerator to pass through, then carefully remove
the doors of your refrigerator and pass it
sideways through the door.
4.2 Door and Drawer Removal
1. Open drawer door to maximum position
Preparation
4
4.3 Door Removal
1.With the upper door closed, remove the single
screw in the hinge cover.
3.Close the upper door and remove the 3 screws
securing the hinge plate and disconnect reed
switch cable.
4.Open the door and tilt it 10-15 degrees and lift it
o the bottom hinge.
2.Open the door, take o the hinge cover remove
ambient sensor from cover.
3. Open upper door then tilt-up top drawer and
remove
EN
11
Ambient sensor
Reed switch
connection
Ambient sensor
Reed switch
connection
Ambient sensor
Reed switch
connection
Connecting reed
switch
2. Remove ice container from top drawer
7. Ice Maker Off icon (*optional):
The ice cubes with a slash through them will be
illuminated when the ice maker is turned on.
8. Freezing Compartment Temperature Setting
Key:
Temperature setting is made for cooler compart-
ment. Pressing this key will enable the freezer
compartment
temperature to be set at -7,-6,-5,-4,-3,-2,-1,0,1,2,3,4
and 5 Fahrenheit.
9.QuickFreezing Key:
When the quick reeze key is pressed, the quickfreeze
symbol ( ) shall be illuminated and the
quickfreeze function shall be activated. Freezing-
compartment temperature is set to -16 Fahrenheit.
Function is cancelled when the key is pressed again.
The quick freezing function shall be automatically
cancelled after 24 hours. To freeze a large amount of
fresh food, press the quick freeze key before placing
the food in the freezer compartment.
10. Sabbath Mode:
Press the Fresh Food Temp Set Function key for 3
seconds to activate or deactivate the Sabbath Mode.
When Sabbath Mode is activated, the display, alarm,
door opening or light buttons will not function. "SA"
will appear in the display. The cooling algorithm is
set according to the sabbath fashion. If the user does
not deactivate the Sabbath mode, the refrigerator
will automatically cancel it in 72 hours.
11. Ice Maker on/off key (*optional):
Press and hold the Freezer Temp Set key for 3
seconds to turn the Ice Maker on and on.
7. Ice Maker Off icon (*optional):
The ice cubes with a slash through them will be
illuminated when the ice maker is turned on.
8. Freezing Compartment Temperature Setting
Key:
Temperature setting is made for cooler compart-
ment. Pressing this key will enable the freezer
compartment
temperature to be set at -7,-6,-5,-4,-3,-2,-1,0,1,2,3,4
and 5 Fahrenheit.
9.QuickFreezing Key:
When the quick reeze key is pressed, the quickfreeze
symbol ( ) shall be illuminated and the
quickfreeze function shall be activated. Freezing-
compartment temperature is set to -16 Fahrenheit.
Function is cancelled when the key is pressed again.
The quick freezing function shall be automatically
cancelled after 24 hours. To freeze a large amount of
fresh food, press the quick freeze key before placing
the food in the freezer compartment.
10. Sabbath Mode:
Press the Fresh Food Temp Set Function key for 3
seconds to activate or deactivate the Sabbath Mode.
When Sabbath Mode is activated, the display, alarm,
door opening or light buttons will not function. "SA"
will appear in the display. The cooling algorithm is
set according to the sabbath fashion. If the user does
not deactivate the Sabbath mode, the refrigerator
will automatically cancel it in 72 hours.
11. Ice Maker on/off key (*optional):
Press and hold the Freezer Temp Set key for 3
seconds to turn the Ice Maker on and on.
5. Fault Condition Indicator:
This indicator ( ) shall be active when your
refrigerator cannot perform adequate cooling or
in case of any sensor error. “E” shall be displayed on.
6. Freezing Compartment Symbol:
The temperature values of the freezing compartment is
displayed on the screen when this symbol is active.
5. Fault Condition Indicator:
This indicator ( ) shall be active when your
refrigerator cannot perform adequate cooling or
in case of any sensor error. “E” shall be displayed on.
6. Freezing Compartment Symbol:
The temperature values of the freezing compartment is
displayed on the screen when this symbol is active.
1.On/Off Function:
This function ( ) allows you to make the Fridge turn
o when pressed for 3 seconds. The fridge could be
turned on by pressing On/O button for 3 seconds again.
When the function is active, all indicators turn o.
1.On/Off Function:
This function ( ) allows you to make the Fridge turn
o when pressed for 3 seconds. The fridge could be
turned on by pressing On/O button for 3 seconds again.
When the function is active, all indicators turn o.
EN
12
Using the Controls
5
2. Vacation Function Key:
Press the key for 3 seconds to activate the vacation
function. Vacation mode is activated and the vacation
symbol ( ) is illuminated. “- -” shall be displayed on the
Fresh Food Compartment temperature indicator and the
Fresh Food Compartment does not actively perform
cooling. You shall not keep your food in the Fresh Food
Compartment when this function is activated. The Freezer
Comparment will continue to operate at its set tempera-
ture. Press the key for 3 seconds again to cancel this
function.
3. Fresh Food Compartment Temperature Setting Key:
Allows setting of temperature for Fresh Food Compart-
ment Pressing this key will enable the Fresh Food
Compartment temperature to be set at
46,45,44,43,42,41,40,39,38,37,36,35,34 and 33 Fahrenheit.
4. Fresh Food Compartment Symbol:
The temperature values of the cooling compartment
is displayed on the screen when this symbol is active.
2. Vacation Function Key:
Press the key for 3 seconds to activate the vacation
function. Vacation mode is activated and the vacation
symbol ( ) is illuminated. “- -” shall be displayed on the
Fresh Food Compartment temperature indicator and the
Fresh Food Compartment does not actively perform
cooling. You shall not keep your food in the Fresh Food
Compartment when this function is activated. The Freezer
Comparment will continue to operate at its set tempera-
ture. Press the key for 3 seconds again to cancel this
function.
3. Fresh Food Compartment Temperature Setting Key:
Allows setting of temperature for Fresh Food Compart-
ment Pressing this key will enable the Fresh Food
Compartment temperature to be set at
46,45,44,43,42,41,40,39,38,37,36,35,34 and 33 Fahrenheit.
4. Fresh Food Compartment Symbol:
The temperature values of the cooling compartment
is displayed on the screen when this symbol is active.
5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions of th refrigerator.
Just press the relevant buttons for function settings.
1
2
3
4 6
8 9 10 11*
7*
5
5.2.3 Placing the food
5.2.4 Deep-freeze information
You can keep the freshness of food for many months (at
5°F / -15°C or lower temperatures in the deep freeze).
5.2.5 Removing door shelves
You can remove the door shelves to clean them.
Push the desired shelf up to remove it. Do not remove
the door shelf when there is food in it.
First, empty the food inside them.
5.2.6 Glass shelves
You can remove the glass shelves to clean them.
Be careful when removing the shelves since they
are heavy.
5.2.7 Crisper bins
(in some models)
Crisper bins allow you to prepare the food for
freezing. You can also use these compartments to
store your food at a temperature a few degrees
below the fridge compartment.
You can increase the inner volume of your refrigerator
by removing any of the chiller
compartments:
1. Pull the compartment towards yourself until it stops.
2. Lift the compartment about 7/16’’ (1cm) up and pull
towards yourself to remove it from its seating.
• Material necessary for packaging
• Coldresistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen
Various frozen food such as meat, sh, ice
cream, vegetables and etc.
Food in pans, covered plates and closed
containers
Small and packaged food or beverage (such
as milk, fruit juice, beer and etc.)
Vegetables and fruits
Delicatessen products (cheese,butter, salami
and etc.)
Freezer
compartment
shelves
Fridge
compartment
shelves
Fridge
compartment
door shelves
Fresh zone
compartment
Crisper
Pack the food in an airtight manner to
prevent them from drying even if they
are going to be stored for a short time.
5.2 Food Storage and Compartment Usage
5.2.1 Freezing fresh food
• Wrap the food or place them in a covered container
before putting them in the refrigerator.
• Hot food and beverages must cool down to room
temperature before putting them in the refrigerator.
• The food that you want to freeze must be fresh and in
good quality.
• Pack the food in an airtight manner to prevent them
from drying even if they are going to be stored for a
short time.
• Materials to be used for packaging must be tear-proof
and resistant to cold, humidity, oils and acids and they
must also be airtight. All packaging must be completely
sealed.
• Frozen food must be used immediately after they are
thawed and they should never be refrozen.
• Do not freeze excessively large quantities of food at
one time.The quality of the food is best preserved when
it is frozen right through to the core as quickly as
possible.
• Placing warm food into the freezer compartment
causes the cooling system to operate continuously until
the food is frozen solid.
5.2.2 Recommendations for preserving frozen food
To ensure the quality achieved by the frozen food
manufacturer and food retailler is maintained, follow
the steps listed below:
1. Put packets in the freezer as quickly as possible
after purchase.
2. Make sure that contents of the package are labelled
and dated.
3. Check whether the "Use By" and "Best Before" dates
on he packaging are exceeded or not.
Divided the food into portions
according to your family’s daily or meal
based consumption needs.
EN
13
Using the Controls
5
5.2.8 Deli Drawer
The Deli Drawer is designed with cool air circulation
intensied around it. This allows for items stored in the
drawer to be generally fresh food compartment than
average Fresh Food temperatures.
If required, remove door shelves prior to Deli Drawer
removal
5.2.9 Humidity controlled crisper (EverFresh+)
Humidity levels of the vegetables and fruit are kept
under control with the feature of humiditycontrolled
crisper and the food is ensured to stay fresh longer.
We recommend you to place the leafy vegetables such
as lettuce, spinach and the vegetables which are
sensitive to humidity loss, in a horizontal manner as
much as possible inside the crisper, not on their roots in
a vertical position.
While the vegetables are being placed, individual
weights of the vegetables should be taken into
consideration.
Certain fruits such as pears, apricots, peaches or
apples generate high levels of ethylene gas. Do not
place them with other fruits and vegetables which do
not, as this will cause them to decompose faster.
5.2.10 Harvest Fresh
Crispers of the refrigerator are illuminated with blue
light. Food stored in the crispers continue their
photosynthesis by means of the wavelength eect of
blue light and thus, preserve their freshness and
preserves their vitamin content.
5.2.11 Odor filter
Odor lter in the air duct of the fridge compartment
prevents build-up of unpleasant odors in the
refrigerator.
Heavy and hard vegetables should be put at the
bottom of the crisper and the lightweight and soft
vegetables should be placed on top.
Never leave vegetables inside the crisper in their
bags. This will cause them to decompose prematuraly.
If you wish to keep vegetables separate,
use perforated paper bags or similar materials
to do so.
EN
14
Using the Controls
5
The life of the product is extended and service problems are decreased if the product is cleaned at regular
intervals.
• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of baking soda in half litre of water. Soak a cloth with the solution and wring it
thoroughly. Wipe the interior of the refrigerator with this cloth and dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave
the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts
of the product. Chlorine causes corrosion on such metal surfaces
6.1 Avoiding bad odors
Materials that may cause odor are not used in the production of our refrigerators. However, due to inappropriate
food preserving conditions and not cleaning the inner surface of the refrigerator as required can cause the
problem of odor . Pay attention to following to avoid this problem :
• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odor. Therefore, clean the
refrigerator with baking soda dissolved in water every 15 days. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause
unpleasant odors.
• Never keep the food that is past its expiration date or has spoiled in the refrigerator.
6.2 Protecting the plastic surfaces
Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic
surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of
the surface at once with warm water.
Maintenance and cleaning
6
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.
The refrigerator’s operating noise is increasing while in use.
• The product’s operating performance may vary depending on the ambient temperature variations. This is
normal and not a malfunction.
The refrigerator runs too often or for too long.
• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room
temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take
longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food
into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause
the product to run longer. Do not open the doors too frequently.
• The freezer or Fresh Food Compartment door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the
product to reach the adjusted temperature.
• The Fresh Food Compartment or freezer door washer may be dirty, worn out, broken or not properly settled.
>>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods
to preserve the current temperature.
The freezer temperature is very low, but the Fresh Food Compartment temperature is adequate.
• The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The Fresh Food Compartment temperature is very low, but the freezer temperature is
adequate.
• The Fresh Food Compartment temperature is set to a very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The food items kept in Fresh Food Compartment drawers are frozen.
• The Fresh Food Compartment temperature is set to a very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The temperature in the Fresh Food Compartment or the freezer is too high.
• The Fresh Food Compartment temperature is set to a very high degree. >>> Temperature setting of the Fresh
Check this list before contacting a servicer. Doing so will save you time and money. This list includes frequent
complaints that are not related to faulty workmanship or materials.
The refrigerator is not working.
• The power plug is not fully seated. >>> Plug it in outlet completely.
• The Fuse/Circuit Breaker connected to the socket powering the product or the main Fuse/Circuit Breaker is
blown. >>> Check the Fuse/Circuit Breaker.
Condensation on the side wall of the Fresh Food Compartment.
• The door is opened too frequently >>> Take care not to open the product’s door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed
holders.
• The product’s door is left open. >>> Do not keep the product’s door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.
Compressor is not working.
• In case of sudden power failure or pulling the power plug o and putting back on, the gas pressure in the
product’s cooling system is not balanced, which triggers the compressor thermic safeguard.
The product will restart after approximately 6 minutes. If the product does not restart after this period, contact a
servicer.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out
periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
Troubleshooting
7
EN15
Food Compartment has an eect on the temperature in the freezer compartment. Wait until the temperatureof
relevant parts reach the sucient level by changing the temperature of Fresh Food Compartment or freezer
compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The
product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the
product.
Shaking or noise.
• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to
balance the product. Also make sure the ground is suciently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.
The product is making noise of liquid flowing, spraying etc.
• The product’s operating principles involve liquid and gas ows. >>> This is normal and not a malfunction.
There is sound of wind blowing coming from the product.
• The product uses a fan for the cooling process. This is normal and not a malfunction.
There is condensation on the product’s internal walls.
• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if
open, close the door.
• The door may be ajar. >>> Fully close the door.
There is condensation on the product’s exterior or between the doors.
• The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate
when the humidity is reduced.
The interior smells bad.
• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated
water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without
free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread
out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.
The door is not closing.
• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The ground is not level or durable. >>> Make sure the ground is level and suciently durable to bear the
product.
The vegetable bin is jammed.
• The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the
drawer.
If The Surface Of The Product Is Hot.
• High temperatures may be observed between the two doors, on the side panels and at the rear grill while the
product is operating. This is normal and does not require service maintenance!Be careful when touching these
areas.
EN
16
Troubleshooting
7
WARNING:
WARNING:
If the problem persists after following the instructions in this section, contact your vendor or an
Authorised Service. Do not try to repair the product.
• This product can expose you to chemicals including Nickel (Metallic) which is know to the state of
California to cause cancer.
• For more information go to www.P65Warnings.ca.gov
• Note : Nickel is a component in all stainless steel and some other metal components.
