Congratulations on the purchase of your new refrigerator! This refrigerator has been manufactured in modern facilities
with the utmost care and meticulous quality controls. We are so confident in the quality of this product that we back it
with a two year parts and labor warranty, and five years on the sealed system! Please read this entire user manual
before using your product, to ensure you understand all of its features and benefits and know how to operate it properly.
This manual should be kept in an easily accessible location and passed on to any future owners.
This guide will help you use the product quickly and safely.
Please read the user guide carefully before installing and operating the product.
Always observe the applicable safety instructions.
Please read any other documents provided with the product.
keep in mind that this user guide may apply several product models. Please note the various symbols used
throughout this manual and what they represent.
Important information and useful tips.
The product’s packaging is made of
recyclable materials, in accordance
with the National Environment
Legislation.
Risk of life and property.
Risk of electric shock.
Remove the right crisper
drawer to see the serial tag.

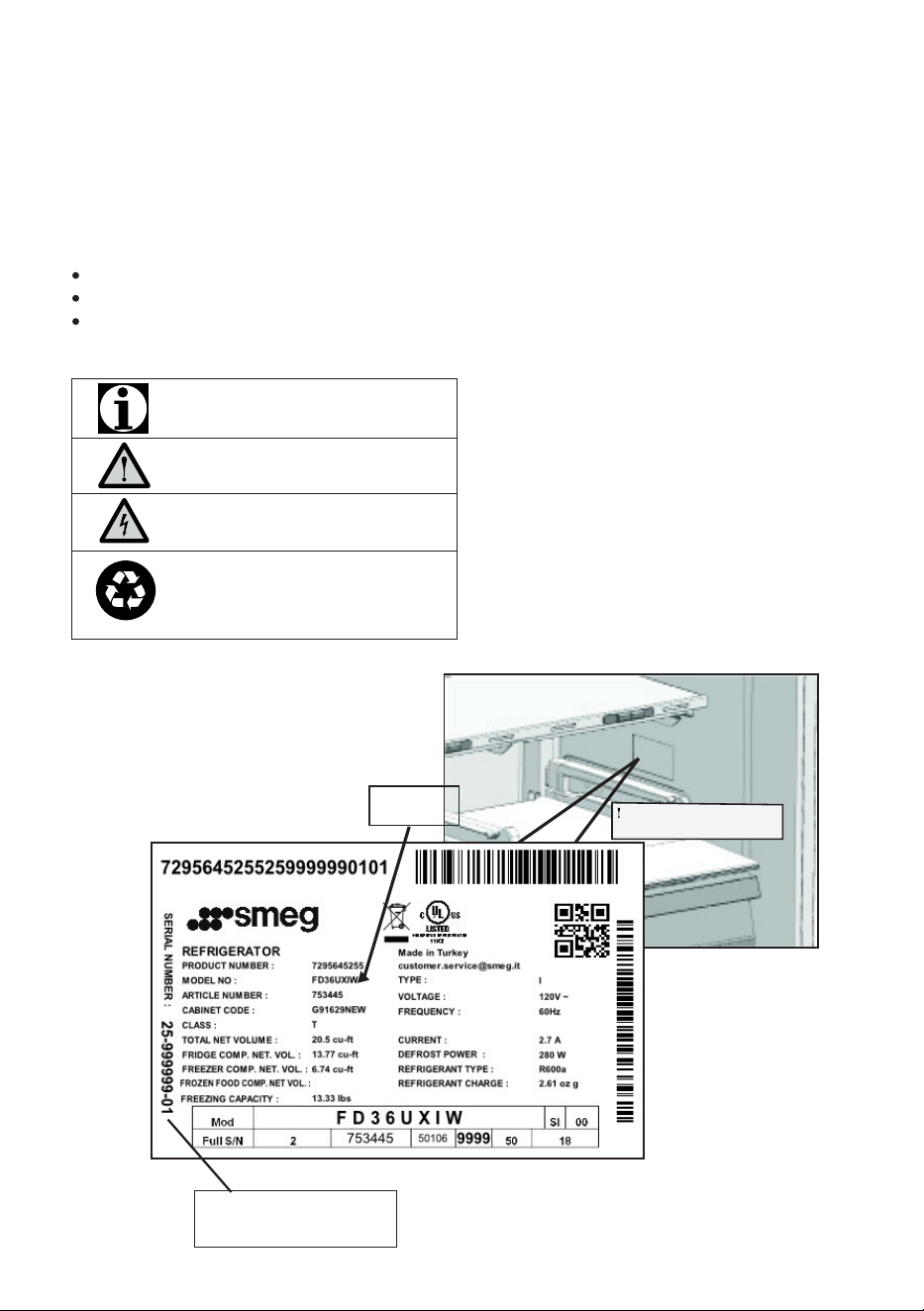

Serial Number
Model
3 / 32 EN
Refrigerator / User Manual
1 Your Refrigerator 4
2 Important Instructions Regarding
Safety and Environment 6
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . .6
2.2 General Safety . . . . . . . . . . . . . . . . . . . . . . .6
2.3 Hydrocarbon (HC) Warning . . . . . . . . . . . . . .8
2.4 For Products with a Water Dispenser/Ice
Machine . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.5 Intended Use . . . . . . . . . . . . . . . . . . . . . . . .8
2.6 Children’s Safety . . . . . . . . . . . . . . . . . . . . .9
2.7 Compliance with the WEEE Directive and
Disposing the Waste Product: . . . . . . . . . .9
2.8 Compliance with the RoHS Directive:. . . . . . .9
2.9 Packaging Information . . . . . . . . . . . . . . . . .9
3 Environmental instructions 10
3.1 Compliance with the WEEE Directive and
Disposing of the Waste Product: . . . . . . .10
3.2 Compliance with RoHS Directive . . . . . . . . .10
3.3 Package information. . . . . . . . . . . . . . . . . .10
4 Installation 11
4.1 Before Installation. . . . . . . . . . . . . . . . . . . .15
4.2 Appropriate installation location . . . . . . . .15
4.3 Inset installations. . . . . . . . . . . . . . . . . . . .16
4.4 Electrical connection . . . . . . . . . . . . . . . .16
4.5 Adjusting the feet. . . . . . . . . . . . . . . . . . .16
4.6 Illumination lamp . . . . . . . . . . . . . . . . . . .17
4.7 Door/Drawer Open Warning . . . . . . . . . . . .17
Installing the Handles . . . . . . . . . . . . . . . . . . . .18
4.8 Water connection . . . . . . . . . . . . . . . . . . .19
4.9 Connecting the water hose to the
refrigerator . . . . . . . . . . . . . . . . . . . . . . .19
4.10 Connecting the water line to the water
supply . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4.11 Installing the Internal Water Filter . . . . . .20
4.12 Before using the water dispenser . . . . . . .21
4.12.1 Using the Ice Maker. . . . . . . . . . . . . . . .21
4.13 Transportation of the product . . . . . . . . . .21
5 Preparation 22
6 Display and operating the product 23
6.1 Indicator panel. . . . . . . . . . . . . . . . . . . . .23
6.2 Sabbath Mode . . . . . . . . . . . . . . . . . . . . . .24
6.3 Showroom Mode . . . . . . . . . . . . . . . . . . . .24
6.4 High Temp Error . . . . . . . . . . . . . . . . . . . . .24
6.5 Freezing fresh food . . . . . . . . . . . . . . . . .26
6.6 Recommendations for preserving frozen food 26
6.7 Placing the food. . . . . . . . . . . . . . . . . . . .26
6.8 Deep-freeze information. . . . . . . . . . . . . .26
6.9 Removing door shelves . . . . . . . . . . . . . .27
6.10 Moving the FlexiLift Door Shelf . . . . . . . . .27
6.11 Glass shelves. . . . . . . . . . . . . . . . . . . . . .27
6.12 Crisper bins . . . . . . . . . . . . . . . . . . . . . . .27
6.13 Deli Drawer . . . . . . . . . . . . . . . . . . . . . . .27
6.14 Humidity controlled crisper . . . . . . . . . . . .28
6.15 Ice container . . . . . . . . . . . . . . . . . . . . . .28
6.16 Butter & Cheese section . . . . . . . . . . . . .28
6.17 Door flappers. . . . . . . . . . . . . . . . . . . . . .28
6.18 ActiveFresh Blue Light . . . . . . . . . . . . . . .29
6.19 IonGuard . . . . . . . . . . . . . . . . . . . . . . . . .29
6.20 Odor filter. . . . . . . . . . . . . . . . . . . . . . . . .29
6.21 Changing the temperature scale (Fahrenheit
Celsius) . . . . . . . . . . . . . . . . . . . . . . . . . .29
7. Maintenance and cleaning 30
7.1 Avoiding bad odors . . . . . . . . . . . . . . . . .30
7.2 Protecting the plastic surfaces . . . . . . . . .30
8. Troubleshooting 31
4 / 32EN
Refrigerator / User Manual
1 Your Refrigerator

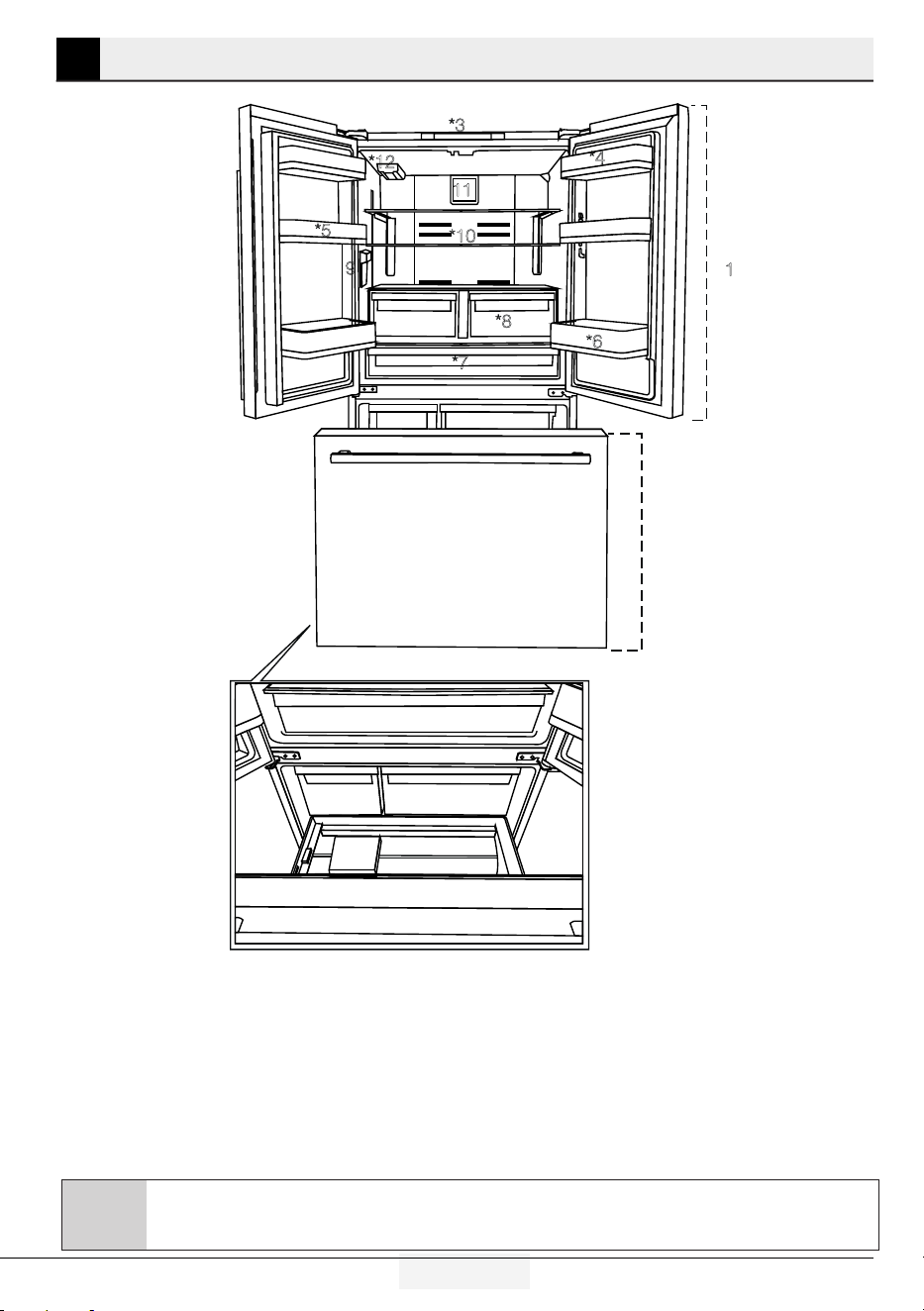

1- Fridge compartment
2- Bottom Freezer
3- Display/indicator panel
4- Butter & cheese section
5- FlexiLift Door Shelves
6- Bottle shelf
7- Deli Drawer
8- Crispers
9- Water dispenser
10- Adjustable glass shelf
11- Fan Cover
12- Water filter
13- Ice container
14- Frozen Food Storage Bın
15- Freezer Drawer
16- Separator
2
*3
1
*6
*5
*7
*8
9
11
*12
*10
*4
13 14
15
*16
C
Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are only valid for other models.
5 / 32 EN
Refrigerator / User Manual
Fridge compartment cantalever shelves, those that only have rear supports, are tested for max 25 kgs
(55 pounds) per each part.
Crispers will hold up to 15 kgs (33 pounds) per each one. Deli Drawer will hold up to 20 kgs (44
pounds).
Ice container bin holds up to 10 kgs (22 pounds), it is for usage without ice. Freezer bin will hold up to 24
kgs (53 pounds) and drawer holds up to 30 kgs (66 pounds).
55 pounds = 25 kgs
33 pounds = 15 kgs
9 pounds = 4 kgs
22 pounds =10 kgs
Up to 11 pounds / 5 kgs day ice production
48 pounds = 22 kgs
53 pounds = 24 kgs
44 pounds = 20 kgs
105 pounds = 48 kgs
4 pounds = 2 kgs
4 pounds = 2 kgs

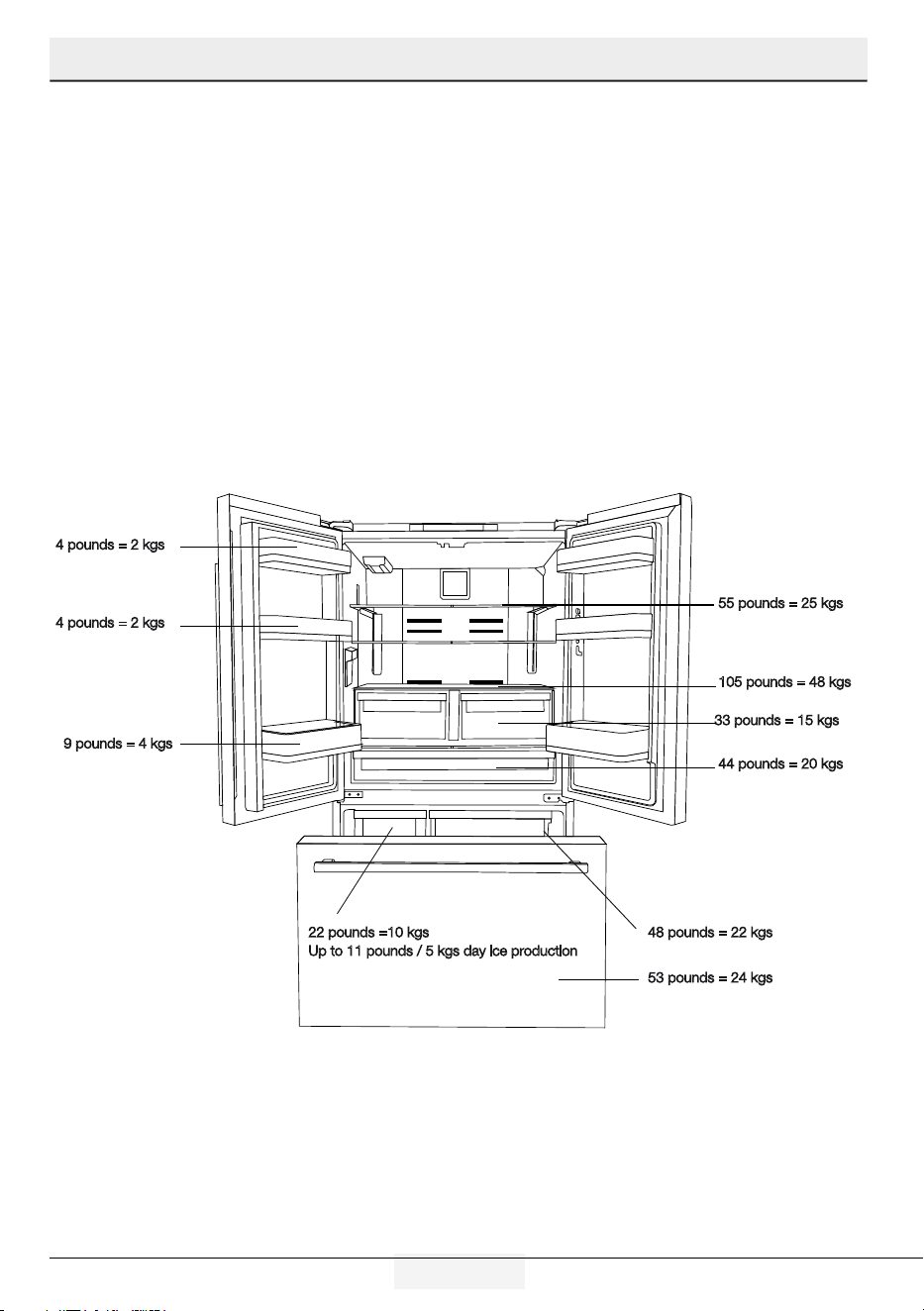

Refrigerator Shelf Weight Limitations
6 / 32EN
Refrigerator / User Manual
2 Important Instructions Regarding Safety and Environment
This chapter contains safety information
that will help you avoid the risk personal
injury or property damage. Failure to
follow these instructions shall render any
product warranty void.
2.1 Intended use
A
WARNING:
Keep ventilation openings, in
the appliance enclosure or in
the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
A
WARNING:
Do not damage the refrigerant
circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.
This appliance is intended to be used in
household and similar applications such
as
– staff kitchen areas in shops, offices and
other working environments;
– farm houses and by clients in hotels,
motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail
applications.
2.2 General Safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
• Failure to follow the instructions and
uncontrolled use of the product lead to
dangerous results!
• Unplug the product if you encounter a
failure during use.
• If the product malfunctions, it must
not be operated until repaired by the
authorised service provider. Risk of
electric shock!
• Plug the product into a grounded
socket protected by a fuse that
corresponds to the value on its
nameplate. Have a qualified electrician
ground the product. Our company
cannot be held responsible for
damages resulting from the failure to
use the product with a grounded socket
pursuant to local regulations.
• Unplug the product when not in use.
• Never wash the product by spreading
or pouring water onto it! Risk of electric
shock!
• Never touch the plug with wet hands!
• Never unplug the product by pulling the
cable. Always pull the plug by holding
the socket.
• Do not plug the refrigerator if the wall
socket is loose.
7 / 32 EN
Refrigerator / User Manual
Important instructions for safety and environment
2 Important Instructions Regarding Safety and Environment
• Never connect your refrigerator to
energy saving devices. Such systems are
harmful to your product.
• Unplug the product during installation,
care, cleaning and repairing procedures.
• Always have the Authorised Service
Provider install the product and
establish its electrical connections. The
manufacturer cannot be held responsible
for damages caused by procedures
performed by unauthorised persons.
• Do not eat cone ice cream or ice cubes
immediately after you take them out
of the freezer compartment! This may
cause frostbite in your mouth!
• Do not touch frozen food with wet
hands! They may stick to your hand!
• Do not put bottled or canned liquid
beverages in the freezer compartment.
They may burst!
• Never use steam or steam cleaners to
clean or defrost the refrigerator. Steam
gets into contact with the live parts in
your refrigerator, causing short circuit or
electric shock!
• WARNING: When positioning the
appliance, ensure the supply cord is not
trapped or damaged.If the supply cord
is damaged, it must be replaced by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• WARNING: Do not locate multiple
portable socket-outlets or portable power
supplies at the rear of the appliance.
• Do not use mechanical devices or other
means to accelerate the defrosting
process other than those recommended
by the manufacturer.
• Never use the parts in your refrigerator
such as the door and drawer as a means
of support or step. This may cause the
product to tip over or damage the parts
of it.
• Do not damage the parts where the
refrigerant is circulating with drilling or
cutting tools. The refrigerant that might
blow out when the gas channels of the
evaporator, pipe extensions or surface
coatings are punctured causes skin
irritations and eye injuries.
• Do not cover or block the ventilation
holes in your refrigerator with any object.
• Place the beverage with higher proofs
tightly closed and vertically.
• Do not use gaseous sprays near the
product since there is the risk or fire or
explosion!
• Flammable items or products that contain
flammable gases (e.g. spray) as well as
explosive materials should never be kept
in the appliance.
• Do not place vessels filled with liquid
onto the product. Splashing water on an
electrical part may cause electric chock
or the risk of fire.
• Do not store items that need precise
temperature adjustment (such as
vaccines, heat-sensitive medication,
science materials etc.) in the refrigerator.
• If you are not going to use the product
for a long time, unplug it and remove the
food in it.
• If there is a blue light on the refrigerator,
do not look at this light with optical tools.
• Exposing the product to rain, snow,
sun or wind is dangerous in terms of
electrical safety.
• In products with mechanical control
(thermostat), wait for 5 minutes to plug in
the product again after unplugging.
• Do not overload the refrigerator. Objects
in the refrigerator may fall down when
the door is opened, causing injury or
damage. Similar problems may arise if
any object is placed onto the product.
• If the product has a door handle, do not
pull the handle when re-locating the
product. The handle might be loose.
8 / 32EN
Refrigerator / User Manual
Important instructions for safety and environment
• Be careful not to jam your hand or any
other body part in the moving parts of
the refrigerator.
• Do not put your hand or any other
foreign materials into the ice machine
while it is operating.
2.3 Hydrocarbon (HC) Warning
• If your product’s cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention not to damage the cooling
system or the piping during use and
transportation. If damaged, keep the
product away from potential fire sources
that may cause it to catch fire and
ventilate the room where the product is
placed.
C
If the product is damaged and
if you see gas leak, please
keep away from the gas. It may
cause frostbite when it gets into
contact with the skin.
(including R134)
C
Ignore this warning if the cooling
system of your product contains
R134a.
C
Type of gas used in the product
is stated on the type plate which
is on the left wall inside the
refrigerator.
A
WARNING:
Never throw the product into fire
for disposal.
2.4 For Products with a Water
Dispenser/Ice Machine
• Use only drinking water. Do not fill the
water tank with fruit juice, milk, fizzy
beverages, alcoholic beverages or any
other liquids incompatible for use in the
water fountain. This may cause risk to
your health and safety.
• Do not allow the children to play with
the water dispenser or Ice Maker to
prevent accidents and injuries.
• Do not insert your fingers or other
objects inside the hole of the water
dispenser, ice channel or inside the
container of the Ice Maker. This may
cause injuries or material damages.
• Pressure for cold water inlet shall be
maximum 90 psi (620 kPa). If your
water pressure exceeds 80 psi (550
kPa), use a pressure limiting valve in
your mains system. If you do not know
how to check your water pressure, ask
for the help of a professional plumber.
• If there is a risk of water impact in your
installation, always use a water impact
protection equipment in that installation.
Please consult professional plumbers if
you are not sure if there is water impact
in your installation.
• Do not make installation on the hot
water inlet.
• Take the necessary measures against
the freezing risk of the hoses. The water
temperature operating range must
be 0.6°C (33°F) minimum and 38°C
(100°F) maximum.
A
WARNING:
Never connect the product
to a cold water mains with a
pressure of 550 kPa (80 psi)
or above.
2.5 Intended Use
• This product has been designed for
domestic use. It is not suitable for
commercial use and it must not be used
out of its intended use.
9 / 32 EN
Refrigerator / User Manual
Important instructions for safety and environment
• It must be used only for storing food.
• The manufacturer will not take any
responsibility for damages resulting
from improper use or transport.
• Original spare parts will be available for
10 years after the purchase date of the
product.
2.6 Children’s Safety
• If there is a lock on the door of the
product, the key should be kept out of
the reach of children.
• Do not let children play with the
product.
A
CAUTION:
To Prevent A Child From Being
Entrapped, Keep Out Of Reach Of
Children And Not In The Vicinity Of
Freezer Or Refrigerator.
A
WARNING:
Before disposing your old
refrigerator or freezer:
• Children may get locked
inside.
• Remove the doors.
• Leave the shelves to prevent
children from getting inside
the product easily.
2.7 Compliance with the WEEE
Directive and Disposing
the Waste Product:
This product conforms to the EU
WEE Directive (2012/19 EU). This
product bears a classification symbol
for waste electrical and electronic
equipment (WEEE). This product has
been manufactured from high quality
parts and materials which can be
reused and are suitable for recycling. Therefore,
do not dispose the product with normal domestic
waste or other waste at the end of its service life.
Take it to a collection centre for recycling electrical
and electronic equipment. Please consult local
authorities to learn about the locations of such
collection centres.
2.8 Compliance with the
RoHS Directive:
The unit you have purchased conforms to the EU
RoHS Directive (2011/65/EU). It does not contain
harmful or prohibited materials specified in the
Directive.
2.9 Packaging Information
• Packaging materials of the product have been
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose the packaging
materials with normal domestic waste or other
types of waste. Take these materials to a
recycling point designated by local authorities.
A
DANGER:
Risk of Fire or Explosion:
• This product uses flammable
refrigerant.
• Do not use mechanical devices to
defrost the refrigerator.
• Do not use chemicals for cleaning.
• Do not pierce the refrigerant pipe.
• If the refrigerant pipe is pierced, it
must be repaired only by licensed
service personnel.
• Please consult the repair/user manual
before cleaning the product. All safety
instructions must be followed.
• Dispose the product according to
federal or local regulations.
10 / 32EN
Refrigerator / User Manual
3.1 Compliance with the WEEE
Directive and Disposing
of the Waste Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic
equipment (WEEE).
This symbol indicates that this product
shall not be disposed with other
household wastes at the end of its
service life. Used device must be
returned to offical collection point for
recycling of electrical and electronic devices. To
find these collection systems please contact to
your local authorities or retailer where the product
was puchased. Each household performs
important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance
helps prevent potential negative consequences for
the environment and human health.
3.2 Compliance with RoHS Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
3.3 Package information
Packaging materials of the product are
manufactured from recyclable materials
in accordance with our National
Environment Regulations. Do not
dispose of the packaging materials together with
the domestic or other wastes. Take them to the
packaging material collection points designated by
the local authorities.
3 Environmental instructions
11 / 32 EN
Refrigerator / User Manual
4 Installation

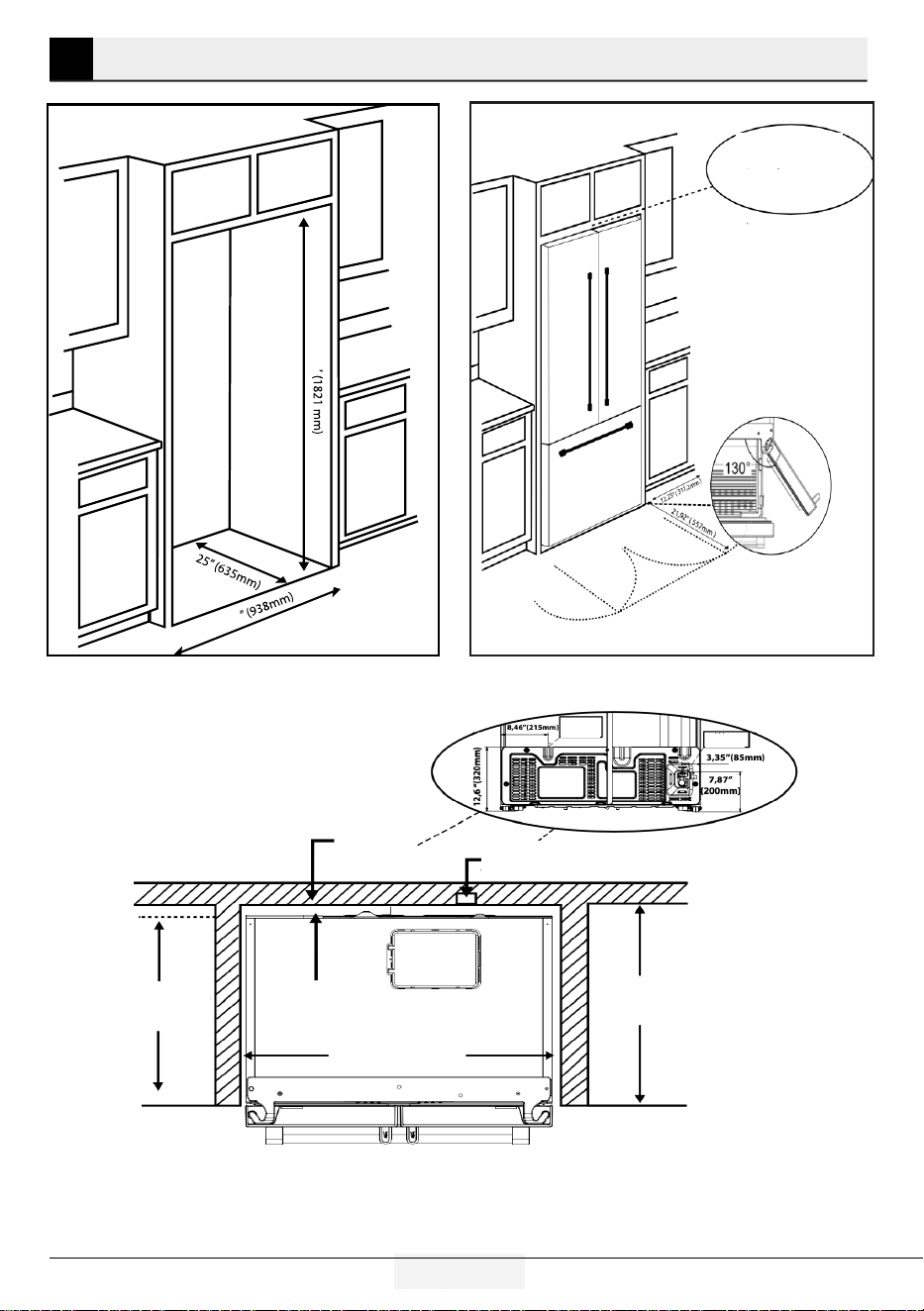

Allow 1 3/4” min. clearance at the rear for
proper air circulation and water/electrical
connections
Minimum clearances
Top View
Electrical
Outlet
Water Line
Recessed electrical outlet
Recessed water
line
23 5/8” (600mm)
Cabinet
25” (635 mm)
Countertop
2” ceiling 5/8” from sides and 1-3/8”
the back.
Allow 1 3/8’’ (35 mm) mm. clearance at
rear for proper air circulation and water/
electrical connections
9/16” (15mm) min, widt
Allow 2’’ (50mm) min. clearance
between the top of refrigerator
and alcove
71 ¹¹/16
36 15/16
12 / 32EN
Refrigerator / User Manual
Installation
"
!
"
"
"
"
"

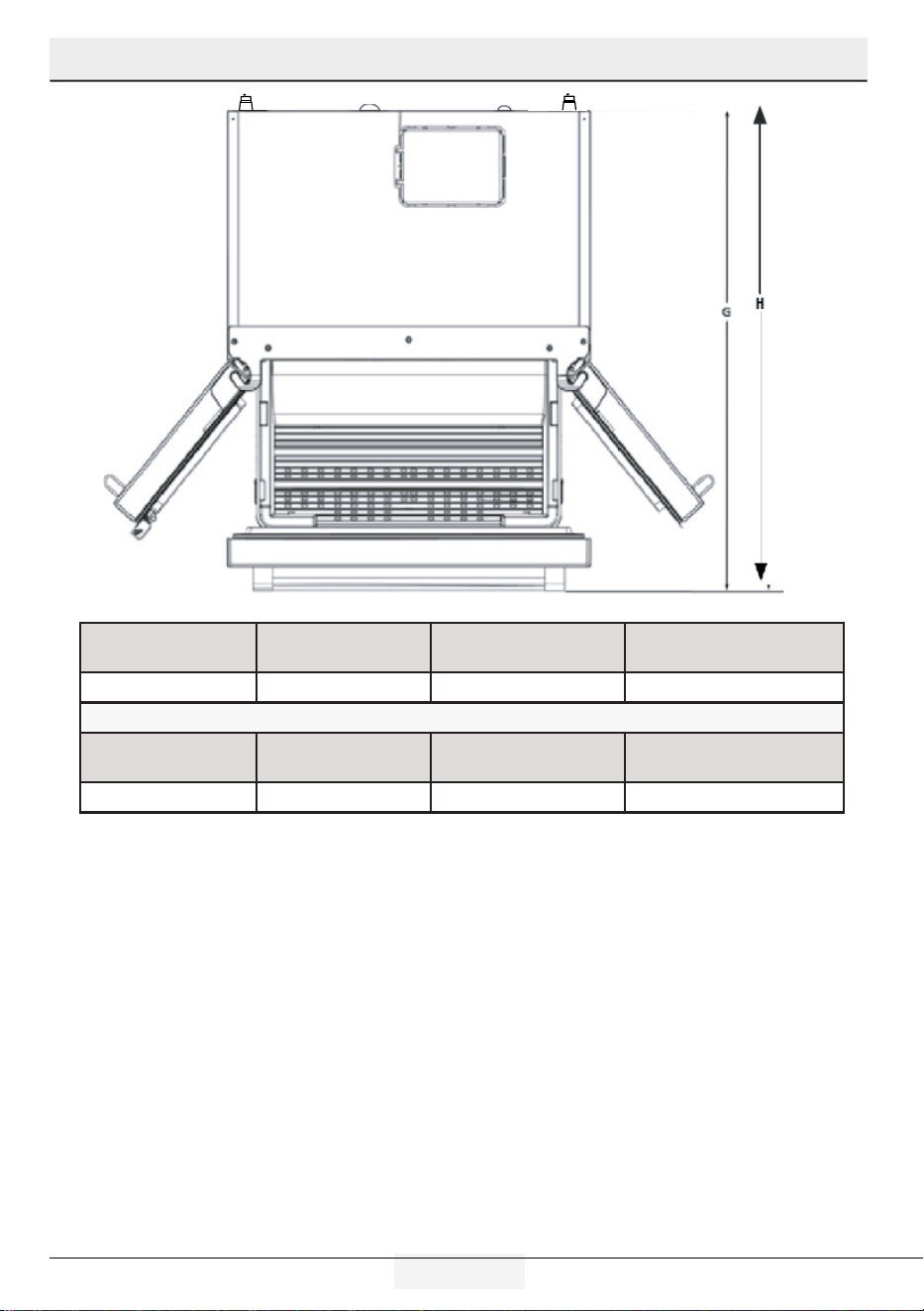

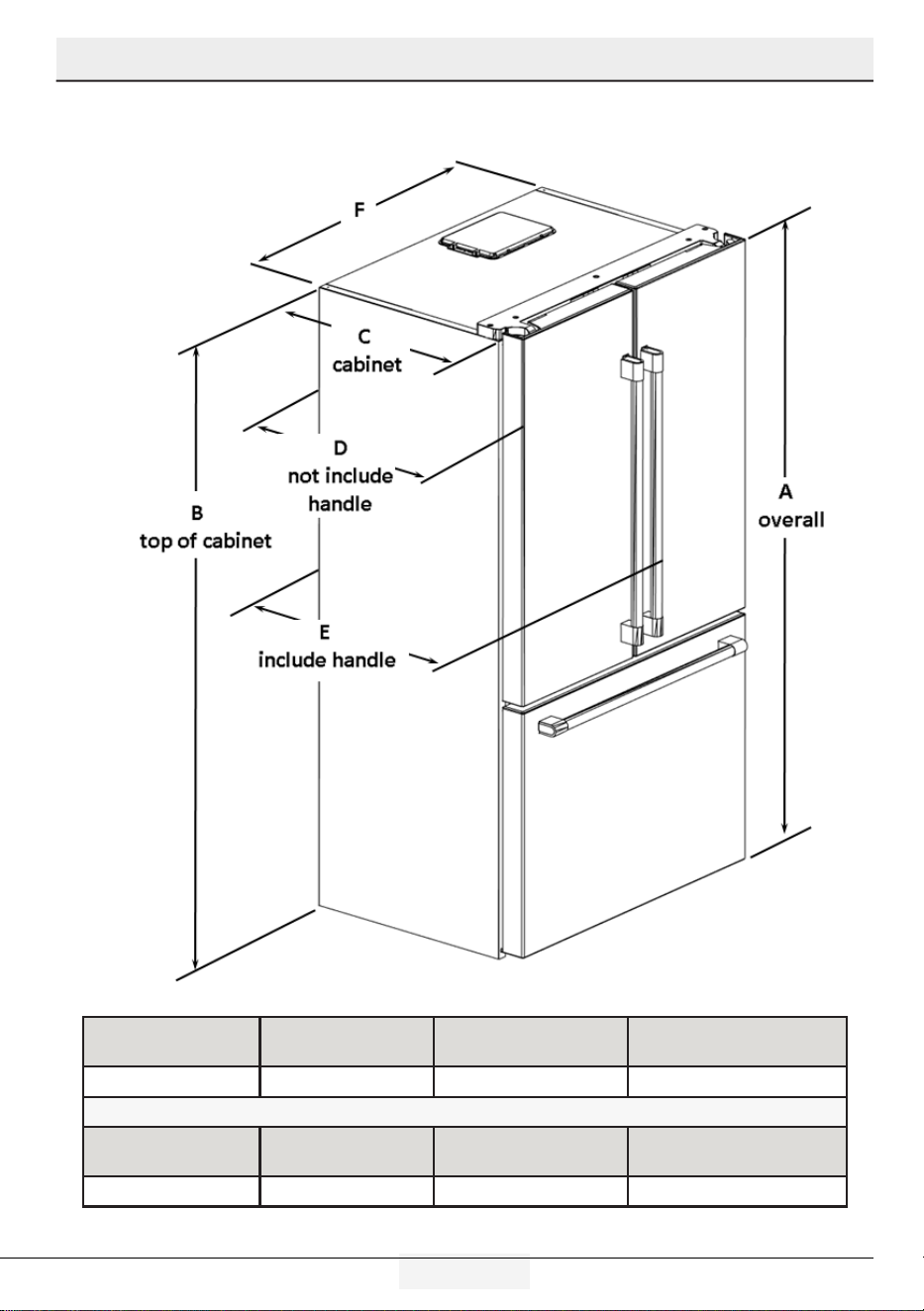

Height-Overall “A’’ Height-TopOfCabinet
“B”
Depth-CabinetOnly “C”
“O”
Depth-Without Handles “D”
69 3 /4” ( 1771 mm ) 67 5/16”( 1710 mm ) 23 5/8” ( 600 mm ) 26 13/16” ( 680.5 mm )
Depth-With Handles
“E”
Width-Cabinet “F” Depth-DrawerOpen “G” TotalDepth-DrawerOpen “H”
29” ( 737 mm ) 35 3/4”( 908 mm ) 45 9/16” ( 1157 mm ) 46 3/16” ( 1173.5 mm )
13 / 32 EN
Refrigerator / User Manual
Installation
Min Clearance From the Top: 2” inches
Min Clearance From the Sides: 5/8” inches
Min Clearance From the Back: 1 3/8” inches
Height-Overall “A’’ Height-TopOfCabinet
“B”
Depth-CabinetOnly “C”
“O”
Depth-Without Handles “D”
69 3 /4” ( 1771 mm ) 67 5/16”( 1710 mm ) 23 5/8” ( 600 mm ) 26 13/16” ( 680.5 mm )
Depth-With Handles
“E”
Width-Cabinet “F” Depth-DrawerOpen “G” TotalDepth-DrawerOpen “H”
29” ( 737 mm ) 35 3/4”( 908 mm ) 45 9/16” ( 1157 mm ) 46 3/16” ( 1173.5 mm )
14 / 32EN
Refrigerator / User Manual
Installation

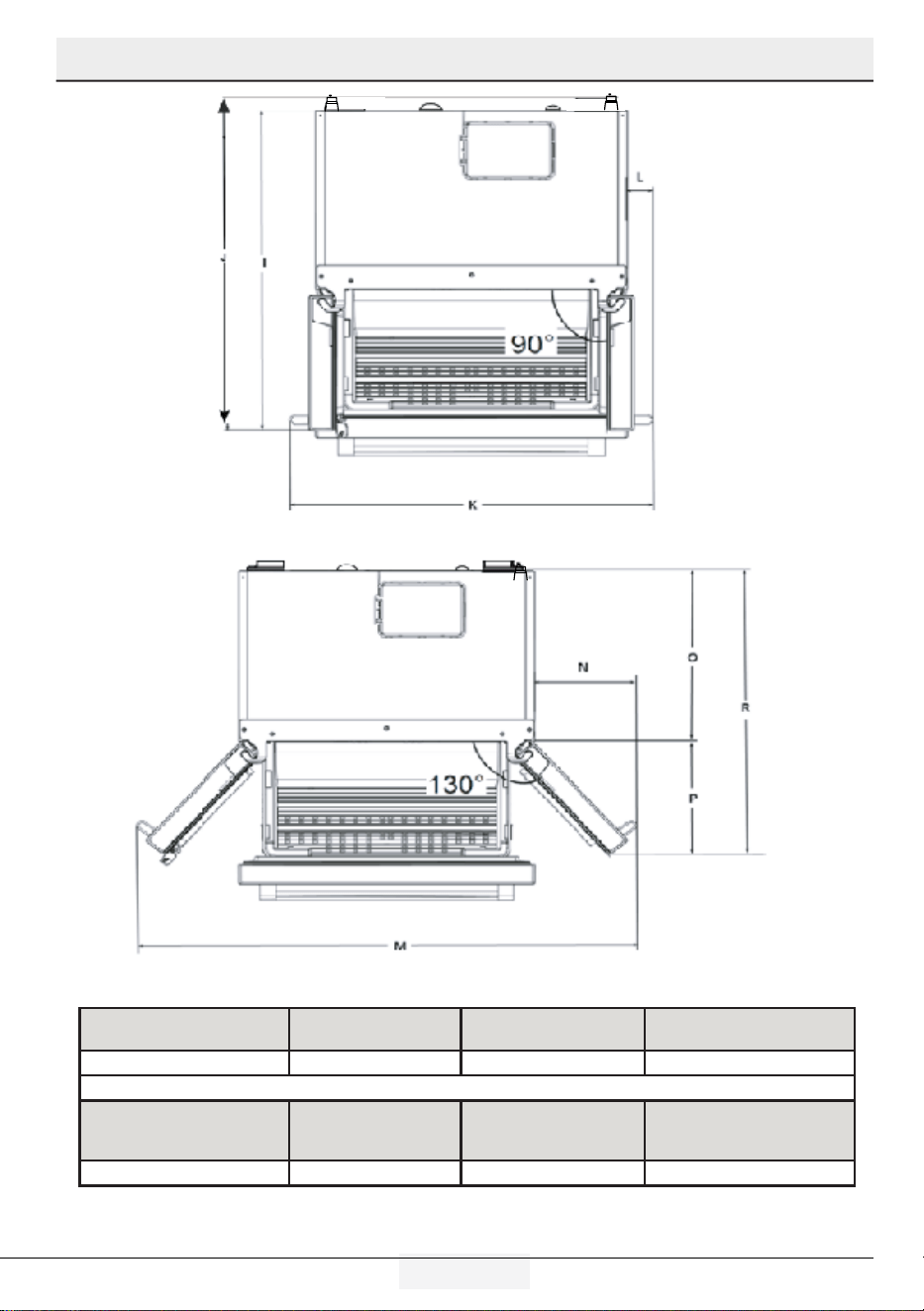

Depth-Doors Open90° “I” Total Depth-Doors
Open90° “J”
Width-Doors Open90°
WithHandles “K”
Width-Doors Open90°-
FromCabinetToHandle “L”
42 1/4” ( 1072.6 mm ) 43 1/16” ( 1094 mm ) 41 11/16” ( 1059.2 mm ) 3” ( 75.6 mm )
Width- Doors Open130°-
FromHandleToHandle “M”
Width-Doors Open
130°- FromCabinetTo
Handle “N”
Depth-Doors Open 130”
“P”
Depth Doors Open 130° “R”
60 1/4” ( 1530.2 mm ) 12 1/4” ( 311.2 mm ) 15 3/8” ( 391 mm ) 39’’ ( 991mm )
15 / 32 EN
Refrigerator / User Manual
Installation
4.2 Appropriate installation location
• Install the product at least 12”(30 cm) away
from heat sources such as cooktops, ovens,
space heaters, radiators and stoves at least
2” (5 cm) away from electrical ovens. Product
must not be subjected to direct sun light and
kept in humid places after installation.
• Do not place the product on the materials such
as rugs or carpets.
• Place the product on an even floor surface to
prevent wobbling.
• Do not install the product in places where the
temperature falls below 50F°/10ºC.
C
If two refrigerators are to be installed side
by side, there should be at least 1 1/2”
(4 cm) distance between them.
• Make sure that sufficient room is provided
around the appliance to ensure free air
circulation.
• For proper functionality, there should be a
gap of at least 1 3/8” (35 mm) between the
refrigerator and the rear wall. To ensure this,
attach the gray, circular buffers, to be installed
on the rear back metal cover of the refrigerator.
These are shipped inside the crisper drawer in
the Fresh Food compartment.
.
4.1 Before Installation
• Before installing, be sure the opening
measurements are sufficient to receive the
product and that the appropriate electrical and
plumbing connections are present.
• Refer to the nearest Authorized Service Agent for
installation of the product. To make the product
ready for use, make sure that the electricity
installation is appropriate before calling the
Authorized Service Agent. If not, call a qualified
electrician to have any necessary arrangements
carried out.
• Your product comes with an internal water filter.
Part number of the filter is 4918450200 and
you can use this part number when ordering
replacement filters.
C
Preparation of the location and electrical
installation at the place of installation is
under customer's responsibility.
C
Plumbing: The refrigerator should only
be connected to the cold water line.
B
Product must not be plugged in during
installation. Otherwise, there is the risk of
death or serious injury!
B
WARNING: Installation and electrical
connections of the product must be carried
out by the Authorized Service Agent.
Manufacturer shall not be held liable for
damages that may arise from procedures
carried out by unauthorized persons.
A
WARNING: Prior to installation, visually
check if the product has any defects on
it. If so, do not have it installed. Damaged
products cause risks to your safety.
16 / 32EN
Refrigerator / User Manual
Installation
4.4 Electrical connection

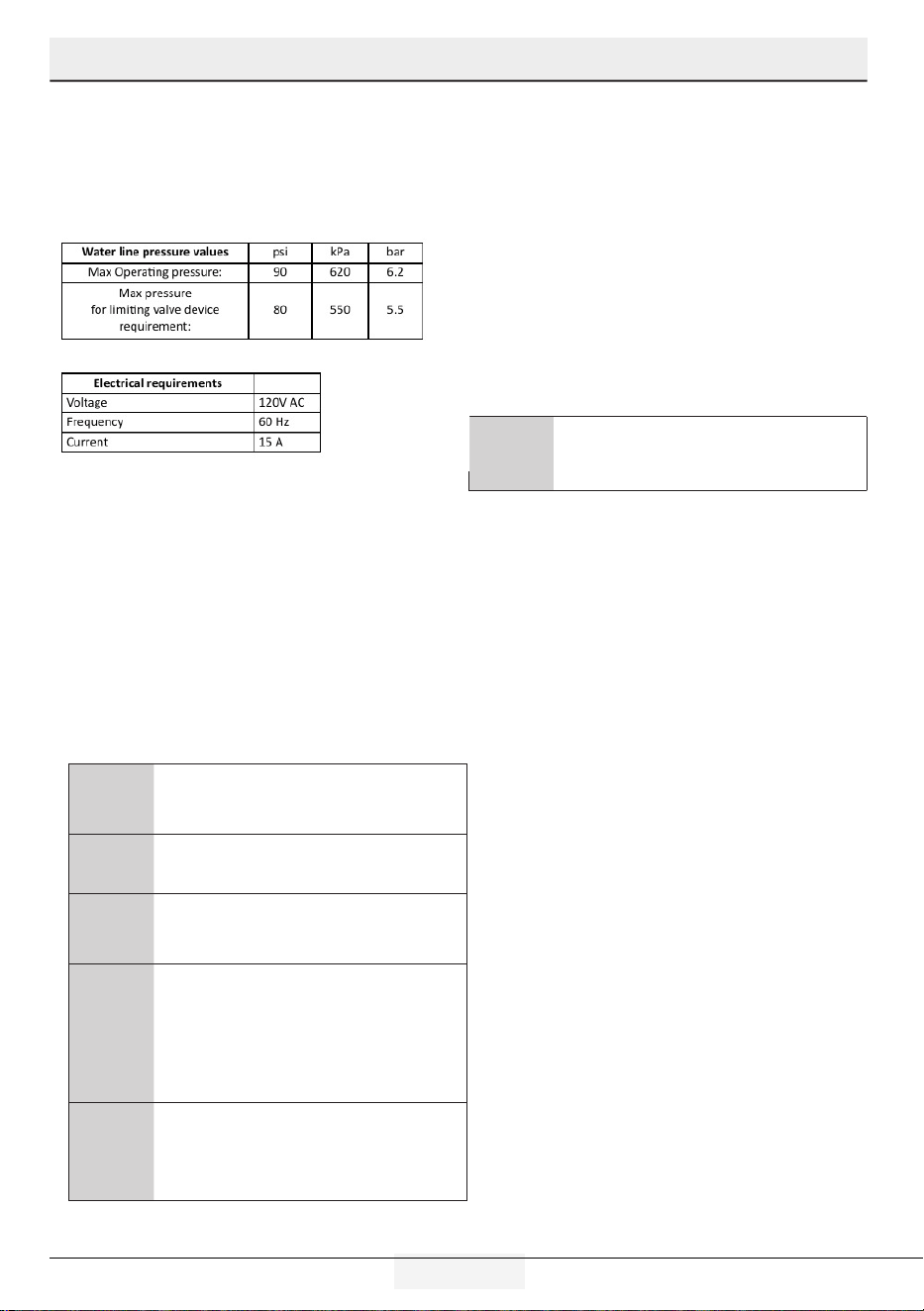

• 120VAC, 60Hz, Dedicated 15Amp
Circuit.
• GFCI outlets will provide added protection,
but any failure of the GFCI could cause
food spoilage, which is not covered by the
manufacturer’s warranty.
• Electrical connection must comply with national
regulations.
• Power cable plug must be within easy reach
after installation.
• Do not make connections via extension cables
or multi-plugs.
B
WARNING: Damaged power cable must
be replaced by the Authorized Service
Agents.
B
WARNING: If the product has a failure, it
should not be operated unless it is repaired
by the Authorized Service Agent! There is
the risk of electric shock!

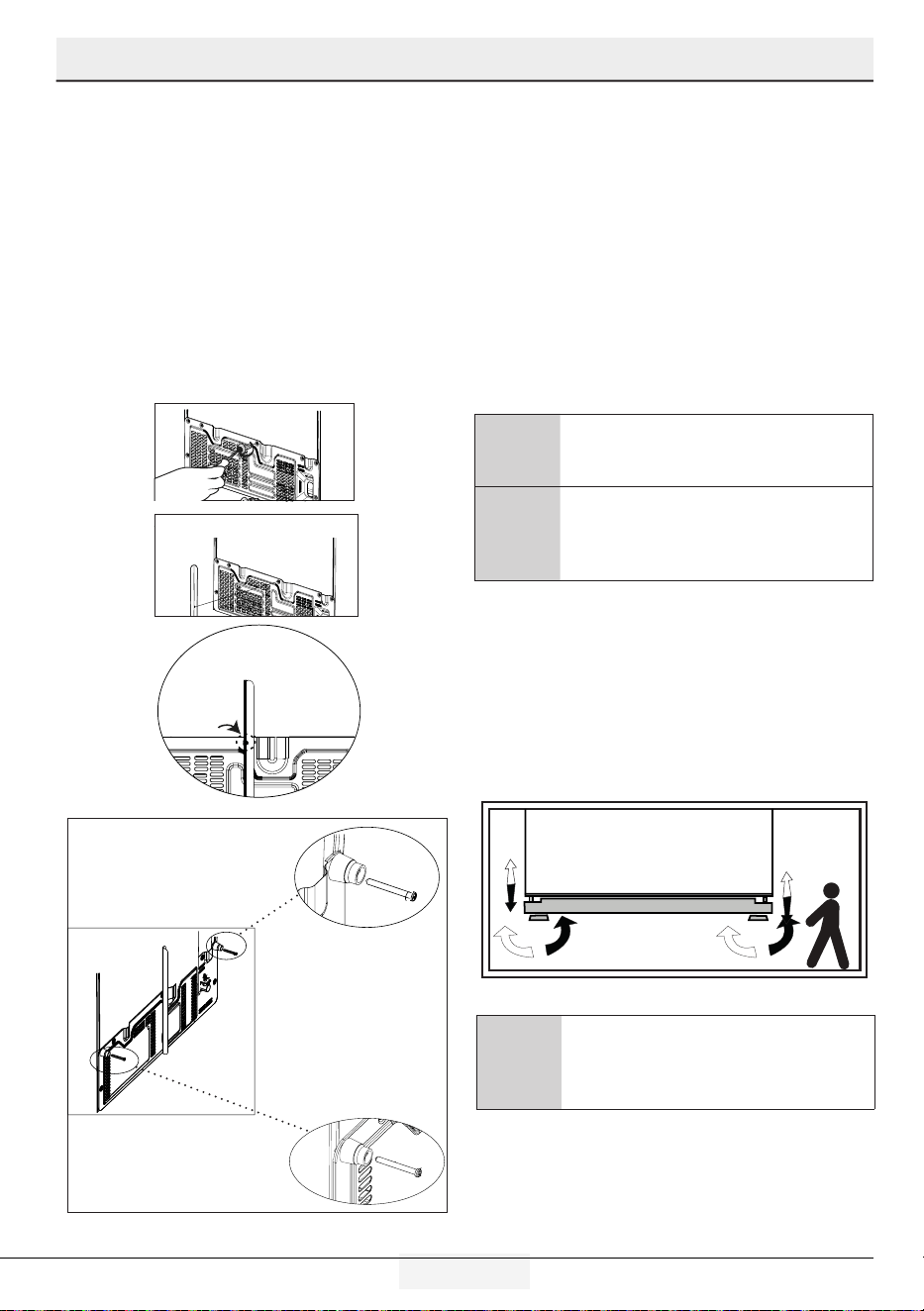

4.5 Adjusting the feet
After moving the refrigerator into place, we
recommend lowering the feet to secure the
product in place. You can also adjust the feet
if the product is not balanced. Twist the feet in
the desired direction according to the illustration
below. Adjusting the feet can also be used to align
the doors.
B
WARNING: First unplug the product.
Product must not be plugged in when
adjusting the feet. There is the risk of
electric shock!

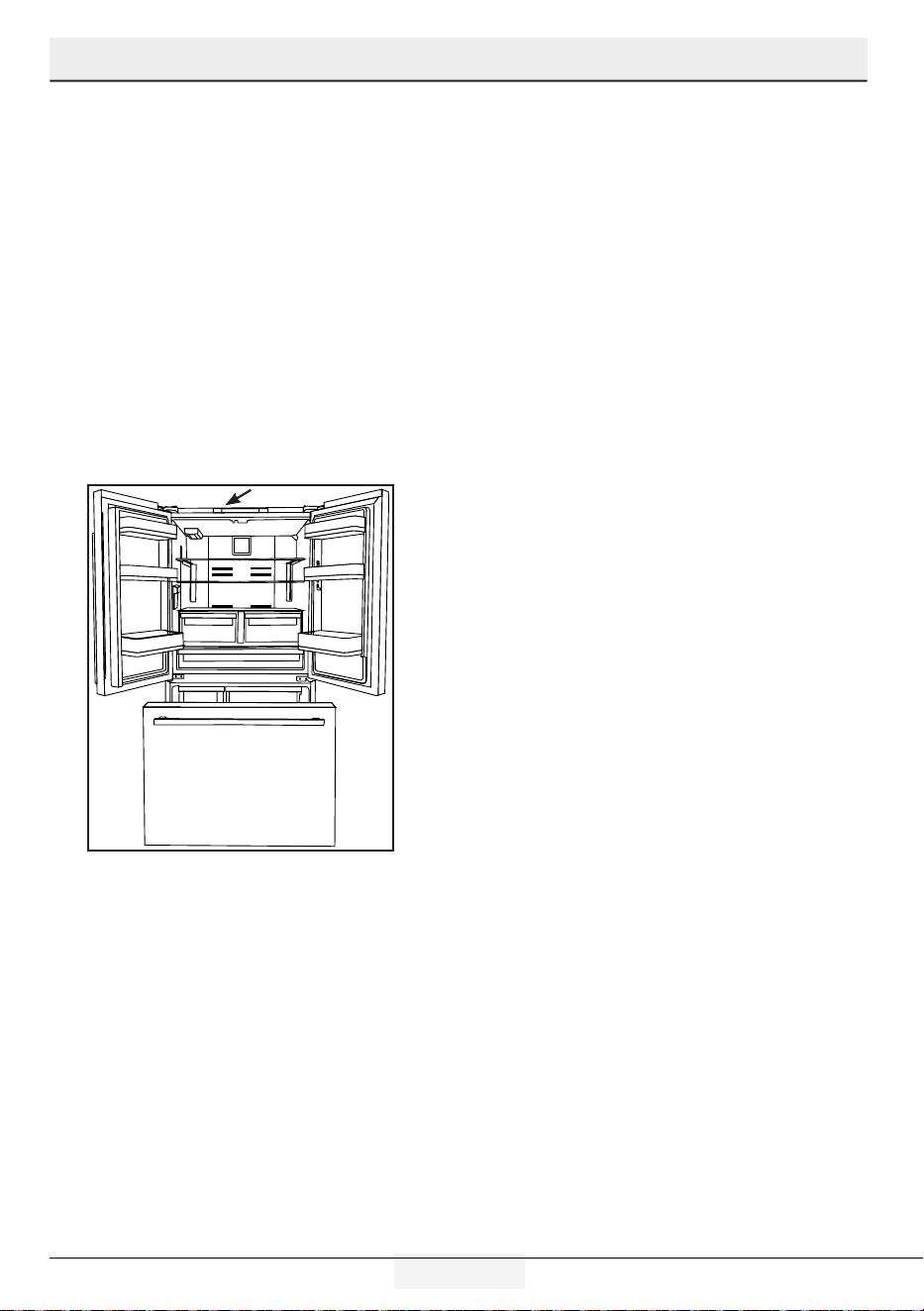

4.3 Inset installations
• If the product will be installed within surrounding
cabinetry or in an alcove, be sure there is
adequate airflow around the product for proper
functionality. This refrigerator requires at least
2” from the top of the unit to the ceiling or
enclosure, 5/8” on each side and 1 3/8” in the
back.
• For proper air flow when installed in an inset
or alcove, be sure the parts shown below are
installed on the unit.
The longer screw must
be used on the top.
circulation part
unscrew before the installation
Install the vertical
metal bracket and screw.
17 / 32 EN
Refrigerator / User Manual
Installation
Display
4.6 Illumination lamp
Do not attempt to repair yourself but call the
Authorized Service Agent if the LED illumination
lamps do not go on.
The lamp(s) used in this appliance is not suitable
for household room illumination. The intended
purpose of this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in a safe and
comfortable way.
4.7 Door/Drawer Open Warning
An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed or if
any of the display buttons are pressed.
18 / 32EN
Refrigerator / User Manual
Installation

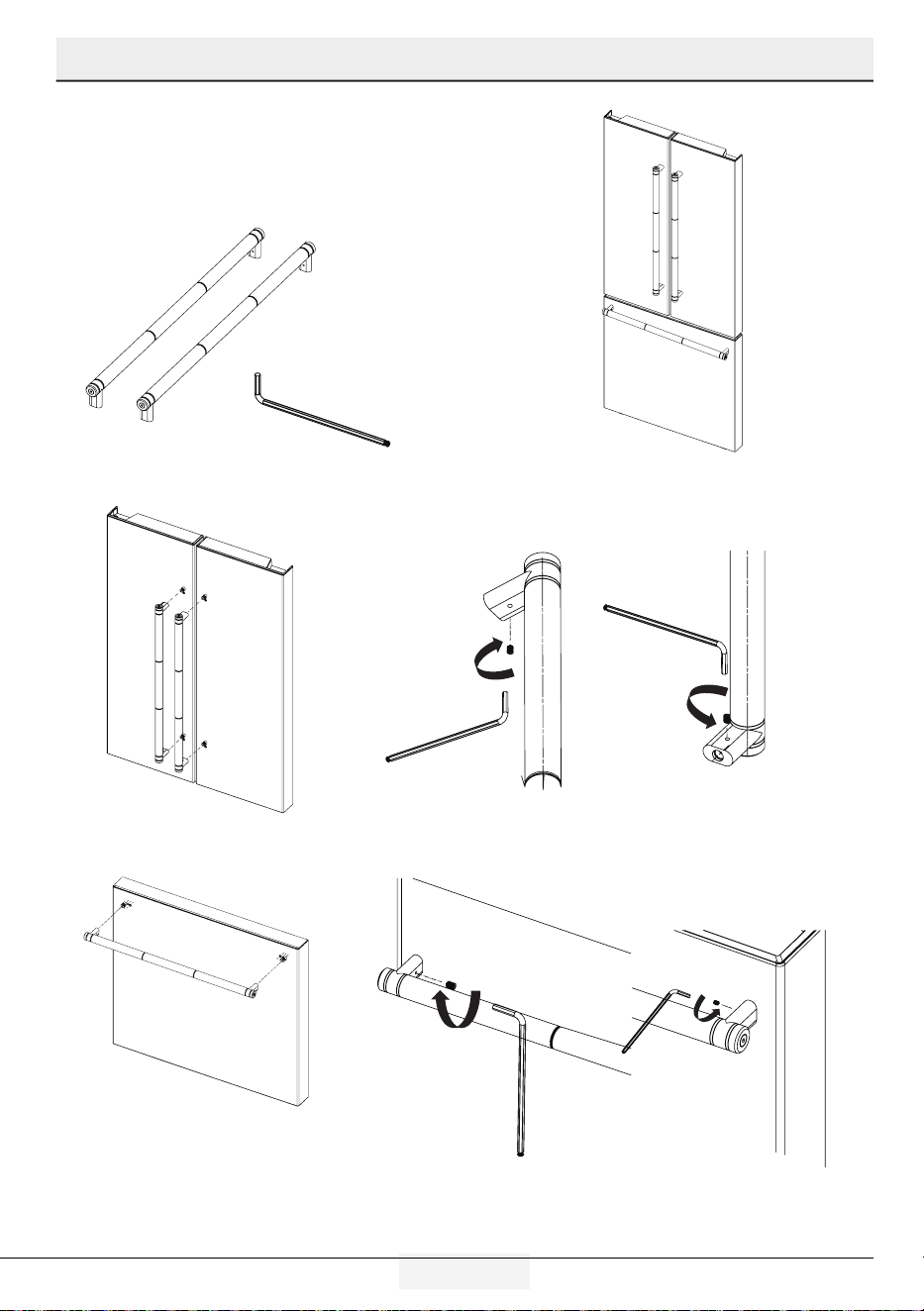

Installing the Handles
1.
Handle Assemblies x3
2.
Allen Key Ball End x1
1. Position the top handles over the handle mounts and tighten the set screw on the top and bottom of each handle.
1. Position the drawer handles over the handle mounts and tighten the set screw on the left and right of the handle.
19 / 32 EN
Refrigerator / User Manual
Installation
4.8 Water connection
First you must connect the water hose to the
refrigerator.
A
WARNING: Refrigerator and the pump, if
any, must be unplugged during connection.
4.9 Connecting the water
hose to the refrigerator

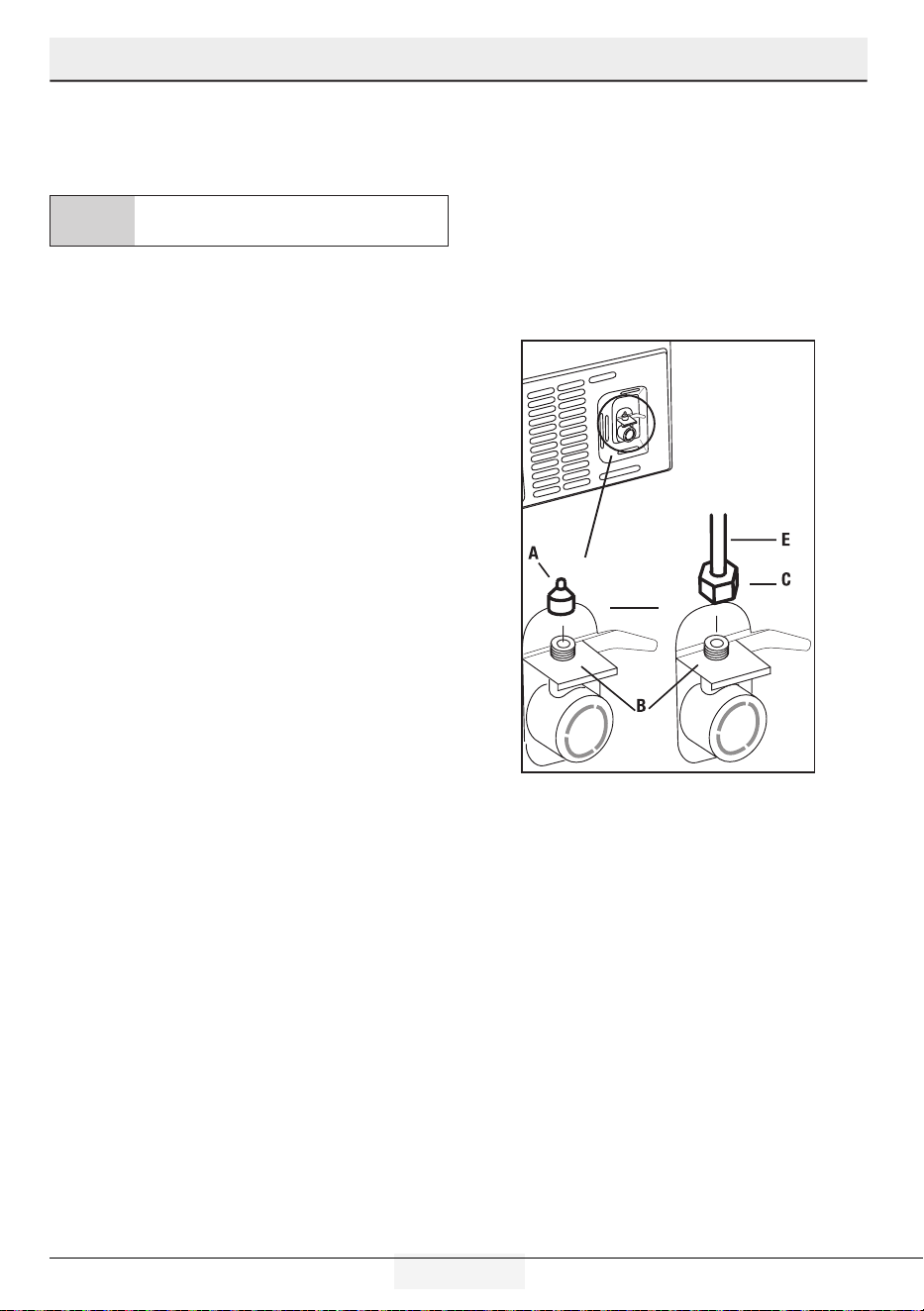

1.
Remove the valve channel cover (A) from the water
inlet valve.
2.
Connect the water line (C) to the inlet valve (B) and
tighten by hand to secure it. It is not necessary to use
pliers, but if there is a leak, you may tighten slightly
with a pair of pliers.
4.10 Connecting the water line
to the water supply
Connect the water line to a water supply valve. If a
valve is not present or you are not sure, consult a
qualified plumber.
20 / 32EN
Refrigerator / User Manual
Installation
4.11 Installing the Internal
Water Filter
Installing the internal water filter consists of two
steps:
• Physically installing the filter
• Making adjustsments to the display.

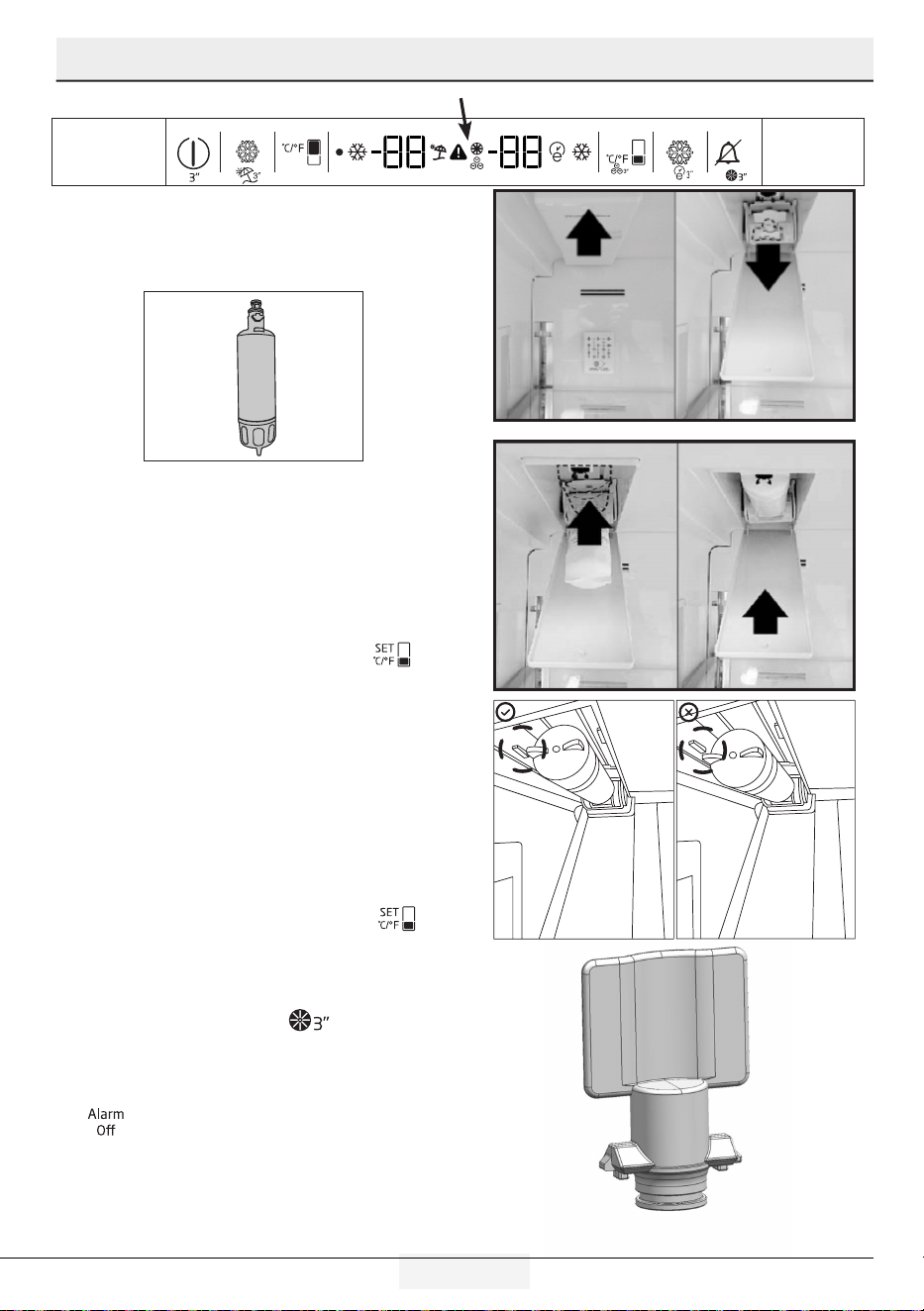

1.
Press and hold the Freezer Temp Set key for
3 seconds, or until the ice on icon disappears in the
display.
2.
Slide the filter cover forward to open the filter
compartment.
3.
Tilt the bypass plug down and pull straight out to
remove it.
4.
Insert the filter into the housing and push it up to a
horizontal position.
5.
Close the filter cover and push it back into place.
6.
Press and hold the Freezer Temp Set key
again for 3 seconds.
You have successfully installed your filter.
The Filter End of Life warning will appear in
approximate 130 days, requiring you to replace
the filter with the same steps as listed above. After
replacing the filter, press and hold the “Alarm Off”
key for 3 seconds, or until the Filter End of
Life Warning goes out in the display.
BYPASS PLUG
21 / 32 EN
Refrigerator / User Manual
Installation

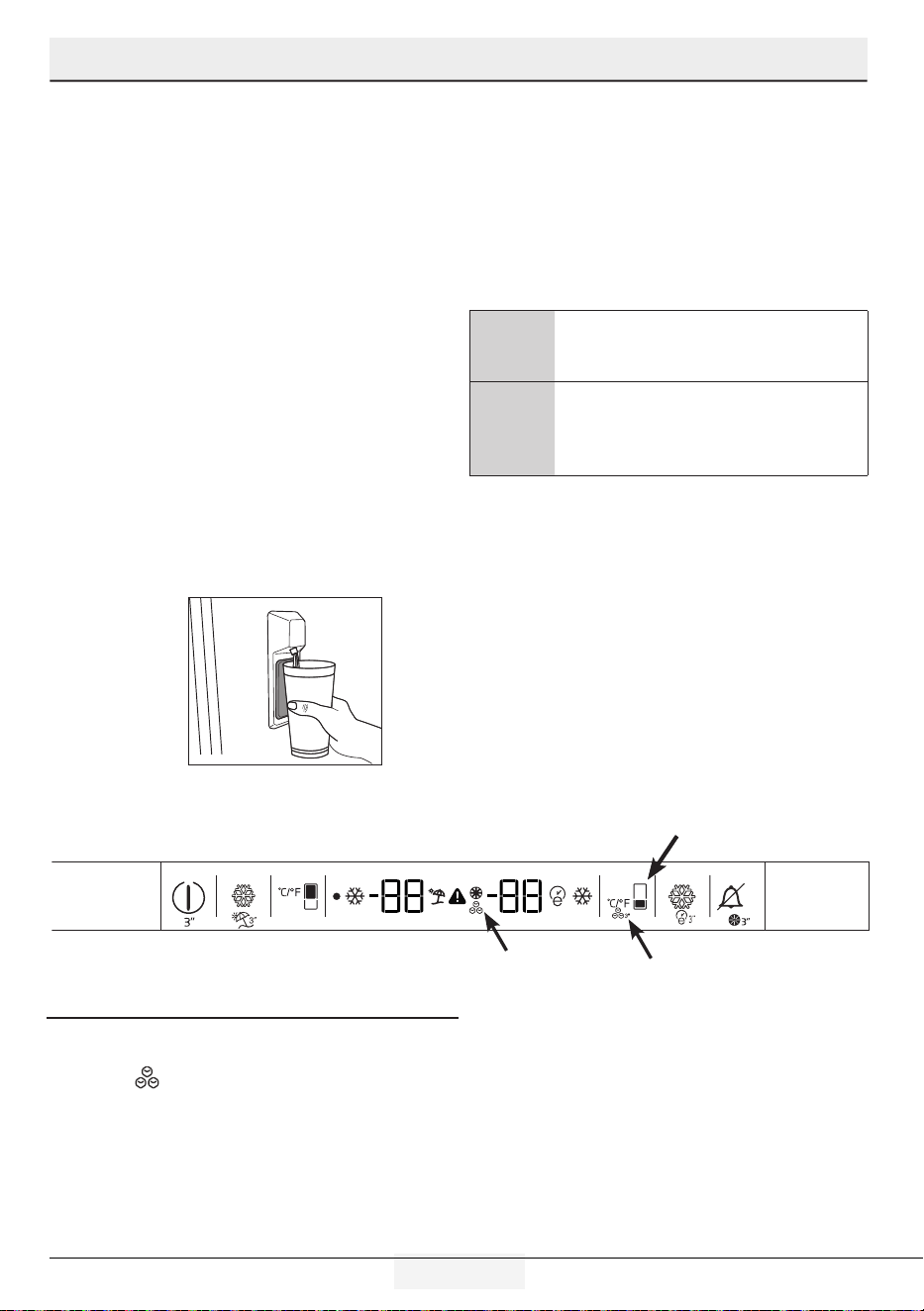

4.12 Before using the water dispenser
The water system connections should be made
by an Authorized Service Agent, with the necessary
tools.
• The water system is designed to operate
only with water. Do not attempt to connect to
beverages such as soft drinks or juices.
• There will be air in the water line that must be
bled out of the system before the intial use.
To remove the air in the line, place a container
beneath the water dispenser nozzle and depress
the dispenser paddle for 1-2 minutes until only
water comes out.
• The first 10 glasses of water should not be
consumed.It will take approximately 12 hours
before the water being dispensed cools down to
refrigerated temperatures.
• Wait 1 second after releasing the dispenser
paddle before removing your container, as this
will reduce the potential for dripping into the
dispenser tray.
4.12.1 Using the Ice Maker
• Empty and clean the ice bin.Ice cubes can also
stick together if they are left in the bin for too
long.
4.13 Transportation of the product
1.
Unplug the product before transporting it.
2.
Remove water connections.
3.
Secure the shelves, accessories, crisper and etc. in
the refrigerator by adhesive tape before repackaging it.
C
Packaging must be tied with thick tapes or
strong strips and the rules of transportation
printed on the package must be followed.
A
WARNING: Packaging materials
are dangerous for the children. Keep
packaging materials in a safe place away
from reach of the children.
Freezer Temp Set
The ice maker is not turned on from the factory.
• To turn the ice maker on, press and hold the
Freezer Temp Set key for 3 seconds, or until ice
on icon ( ) appears in the display.It will take
approximately 1-2 days for the ice bin to fill with
ice.If a power outage occurs while the refrigerator
is running, the ice cubes may partially melt and
then stick together when the re-freeze. If the power
outage is prolonged, the ice cubes may turn into
water, causing leakage. If such a problem occurs.
ıce on keyıce on icon
22 / 32EN
Refrigerator / User Manual
5 Preparation
C
You will hear a noise when the compressor
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is quite normal.
C
Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.

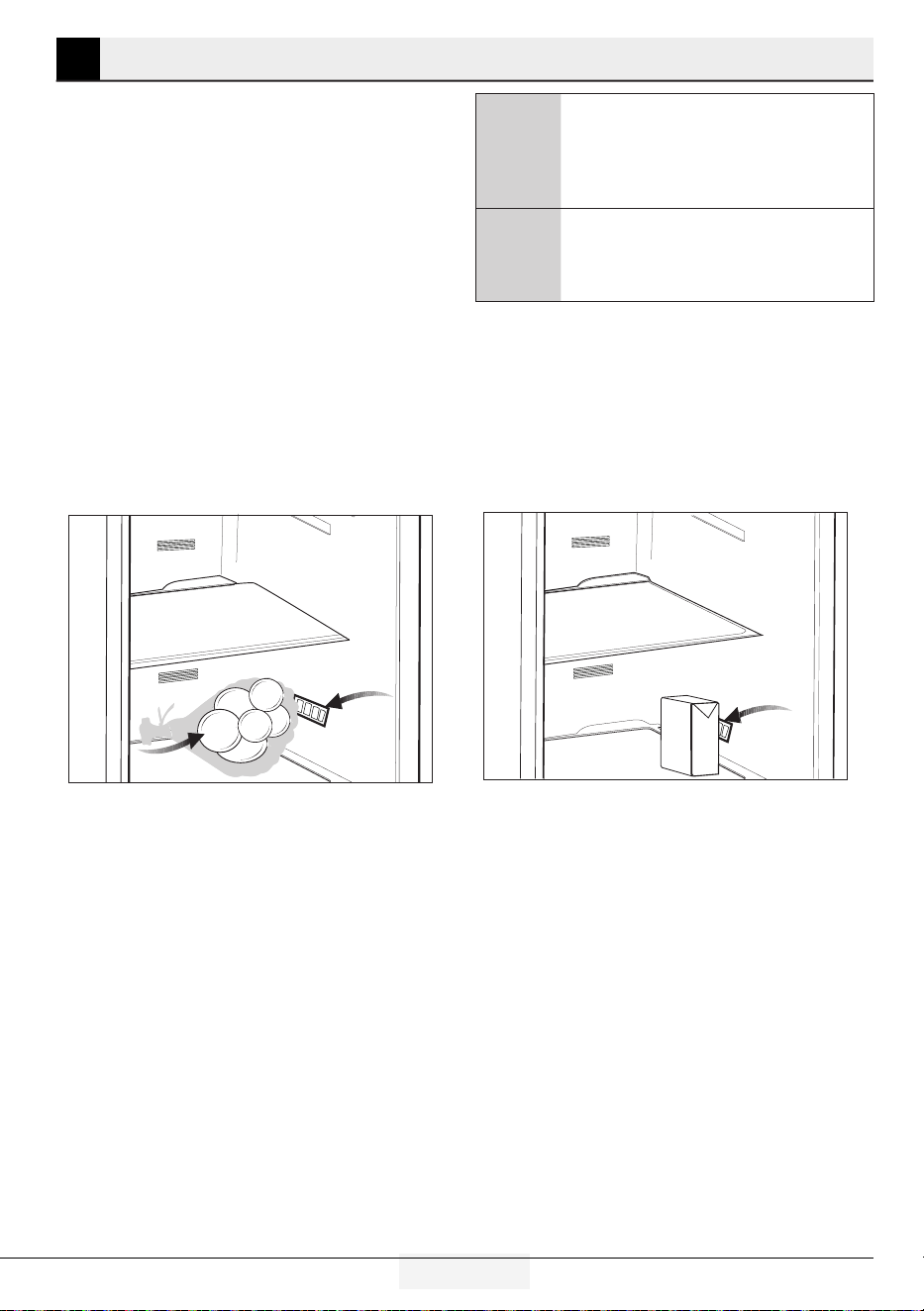

• To allow the fresh food compartment keep its
ideal storage temperature, sensor must not be
covered by food.
Before starting to use the product, check that all
preparations are made in accordance with the
instructions in sections "Important instructions for
safety and environment" and "Installation".
• Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning (Page 25)” section. Ensure that
interior is dry before operating.
• Plug the refrigerator into the grounded wall
outlet. When the door is opened the interior
illumination will turn on.
• Run the refrigerator without putting any food
for 6 hours and do not open its door unless
absolutely required.
• Do not allow the food to touch the temperature
sensor in fresh food compartment.
23 / 32 EN
Refrigerator / User Manual
6 Display and operating the product
C
*optional: Figures in this user manual are schematic and may not match the product exactly. If the
subject parts are not included in the product you have purchased, then those parts are valid for other
models.

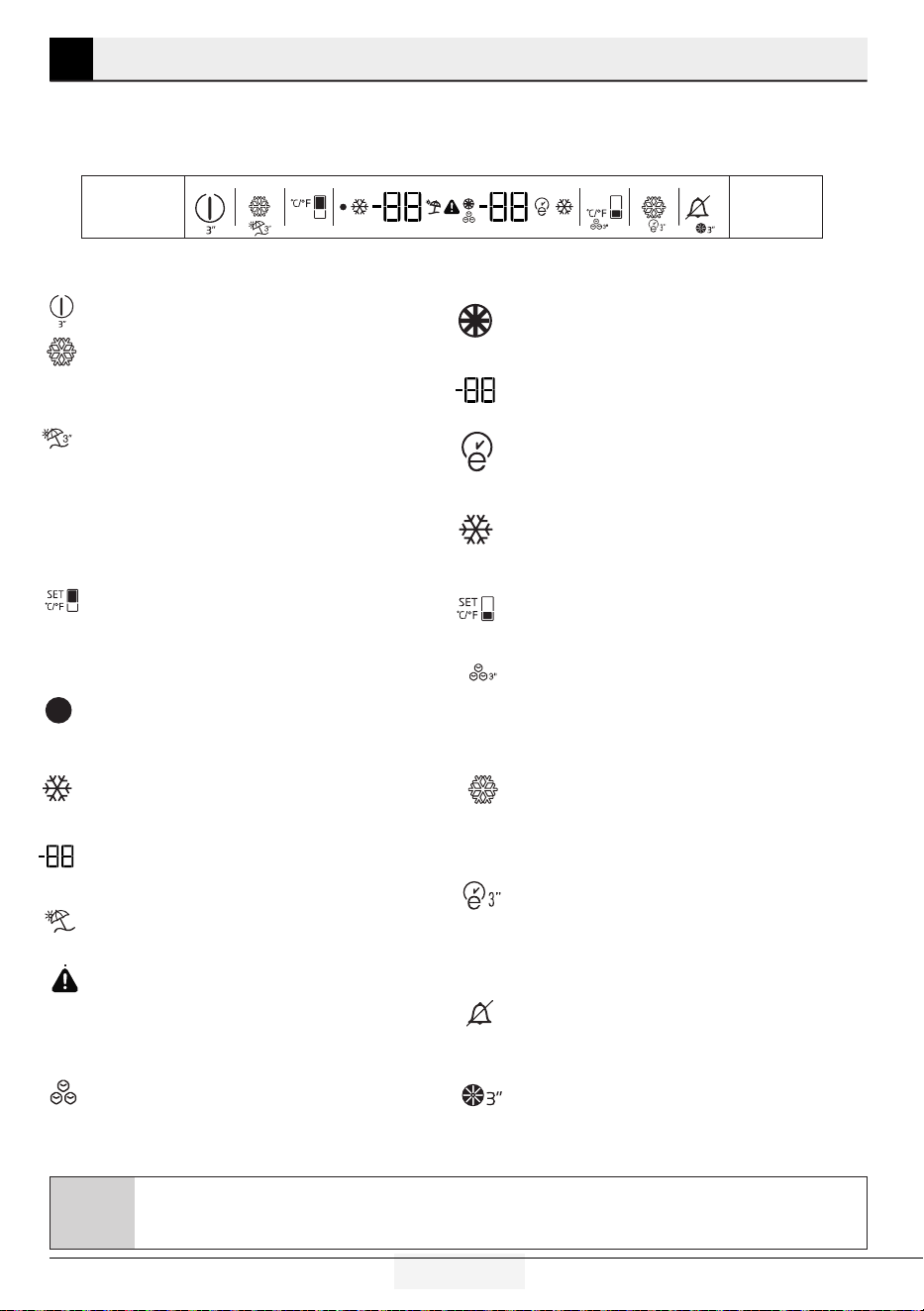

6.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions of the
refrigerator. Just press the relevant buttons for function settings.
1-Power key
Press and hold this key for 3 seconds to turn the refrigerator on and off.
2-Quick Cool Key
Press this key to turn on the Quick Cool option, which drops the
temperature in the Fresh Food compartment to its lowest setting (33 F°)
for two hours. It will return to the previously set temperature after this time.
2b. Vacation Mode
If you hold the Quick Cool key for three seconds, you will turn on the
Vacation Mode. In Vacation mode the Fresh Food compartment will stay
at 50 F° while the Freezer maintains its set temperature. You will know
that Vacation Mode is on by the dashes in the Fresh Food temperature
display (6) and the illumination of the “beach umbrella” (7). Press and
hold the Quick Cool key for 3 seconds to turn this option off.
3- Fresh Food Temperature set key
Press this key to change the temperature in the Fresh Food section from
between 33 F° and 40 F°. The set temperature will be displayed in the
Fresh Food temperature display (6).
4- Power “off” indicator light
A red dot will be illuminated when the refrigerator is plugged in, but NOT
turned on. Once the refrigerator is turned on, the red light will go out.
5-Quick Cool Indicator
A “snowflake” icon to the left of the Fresh Food temperature display lets
you know the Quick Cool option is on.
6-Fresh Food Temperature display
The set temperature in the Fresh Food compartment will be displayed
here.
7-Vacation Mode indicator
The “beach umbrella” icon will be illuminated when Vacation Mode is
turned on. You will also see dashes in the Fresh Food temperature display.
8- High Temp Warning
The red exclamation point will be illuminated if the temperature in Freezer
is too high after the initial 72 hours of operation. (See page 19 for more
details)
9-Ice Maker On icon
When this icon goes on, the ice maker function is active. When the icon goes
off, the ice maker function is deactivated.
10-Filter Change icon
The filter reset icon will illuminate when it is time to replace the water
filter. (For instructions on how to do that, see page 12.)
11-Freezer Compartment temperature display
The set temperature of the Freezer compartment will be shown in
this display.
12-Eco-Extra icon
The Eco-Extra icon will be illuminated when Eco-Extra is turned on.
(See 15b for more information on this option.)
13-Quick Freeze Indicator
A snowflake icon to the right of the Freezer Compartment temperature
display will be illuminated when the Quick Freeze option is turned on.
(See 15 for information on that option.)
14-Freezer Temperature set key
Press this key to adjust the temperature in the Freezer compartment,
between -8 F° and 5 F°.
14.b. Ice Maker on/off key
When this button is pressed for 3 seconds, the ice maker function
is activated and the LED for the Ice Maker On Icon turns on. When
this button is again pressed for 3 seconds, the ice maker funciton is
deactivated; the ice cubes prepared beforehand can be used even if
the function is deactivated.
15-Quick Freeze key
Press and hold the Quick Freeze key to turn on the Quick Freeze opti-
on, which will drop the temperature in the Freezer to its lowest setting
(-8 F°) for 24 hours. After this time it will return to the previously set
temperature.
15b. Eco-Extra key
Press and hold the Quick Freeze key for 3 seconds to turn on the
Eco-Extra option. In this mode
the refrigerator will operate in its most efficient way. It will only stay in
this mode while the doors remain closed.
16. Alarm Off key
If the doors remain open for more than 1 minute, or if an error is
detected, an alarm will sound. If this key is pressed, the alarm will be
silenced.
16b. Filter Change Timer Reset
If the filter change light comes on (10), press and hold the Alarm Off
key for 3 seconds to reset the timer. The filter reset light will come on
after 130 days of operation.
Note: Keys 2, 14, 15, and 16 have two functions. The second function has a “b” after the number below.
1 2 3 4
5 6
7 8 9
10
11
12
13
14
15
16
24 / 32EN
Refrigerator / User Manual

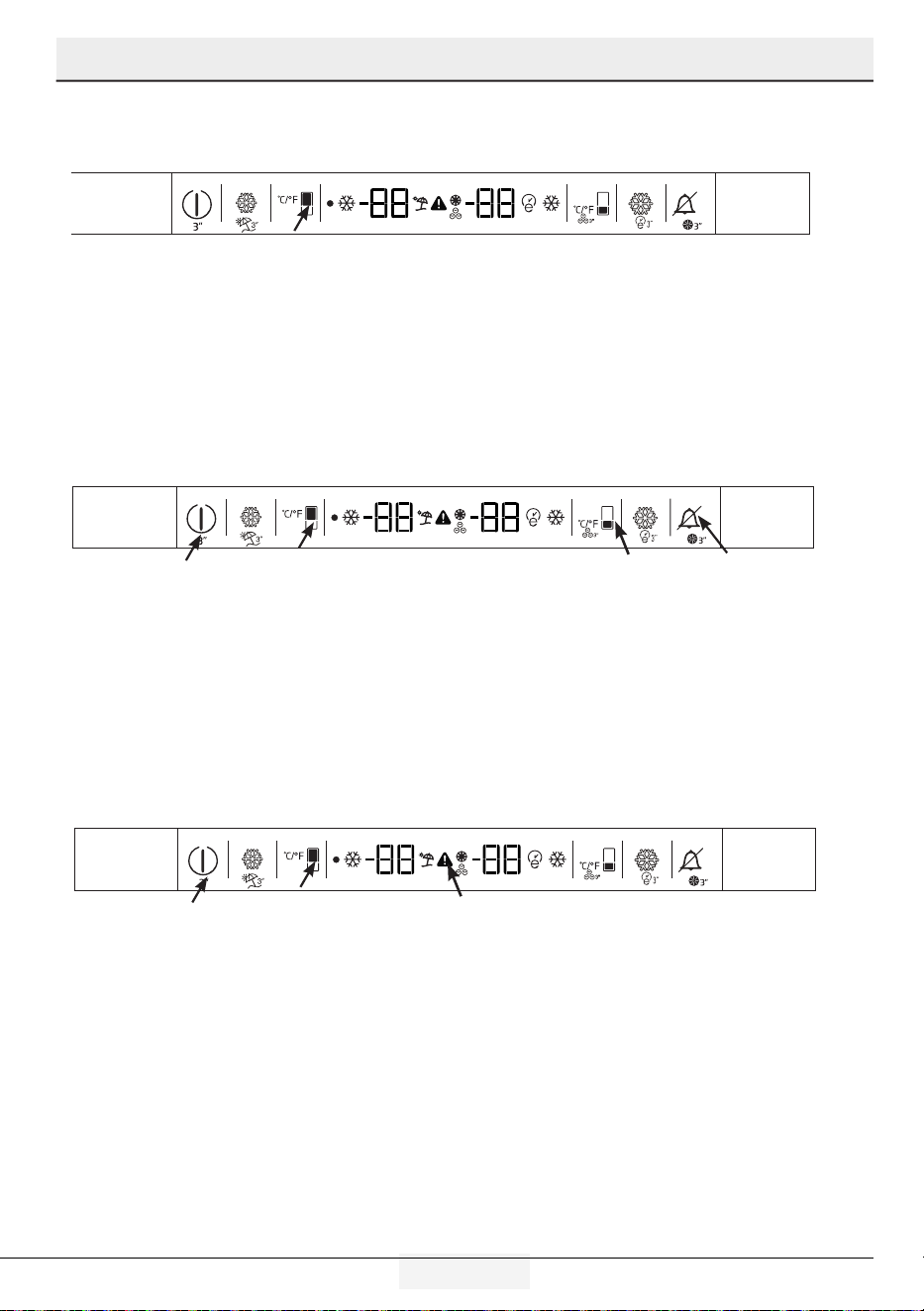

6.2 Sabbath Mode
Press the Fresh Food Temp Set Function key for 3 seconds to activate or deactivate the Sabbath Mode.
When Sabbath Mode is activated, the display, alarm, door opening or light buttons will not function. "SA"
will appear in the display. The cooling algorithm is set according to the sabbath fashion. If the user does
not deactivate the Sabbath mode, the refrigerator will automatically cancel it in 72 hours.
The High Temp Error icon is displayed when the Freezer temperature is too warm after the initial 72 hours of
operation. If the Freezer temperature reaches 28Fº (-2.2ºC) or higher, and doesn’t drop below 16 Fº (-9ºC)
within 12 hours, the High Temp Error icon will be illuminated, an alarm will sound and the set temperature
and highest temperature reached in the Freezer will alternate in the display. If you press the “Alarm Of” key,
the alarm will be silenced, but the icon and flashing temperature will continue until the Freezer gets below
16Fº (-9ºC). If the Freezer does not cool below 16Fº (-9ºC) in the next 3.5 hours, the audible alarm will
return. The audible alarm can be silenced again with the “Alarm Off” key. If the error continues to return, the
doors should be checked for proper closure and sealing. A common cause of this error is a power failure in
the circuit to which the refrigerator is connected. If the icon continues to return, an authorized service agent
should be called to inspect the unit.
6.4 High Temp Error
Showroom Mode is an option primarily used in dealer's showrooms. It allows the product to be turned
on without the operation of the fans and cooling system. To activate this mode, Press and hold “Power”
& “Alarm Off” until PS 0 appears. Change the 0 to an 8 by pressing the “Freezer Temperature Set” key.
Then press “Fresh Food Temperature Set” key to activate. To deactivate, press and hold the “Power” &
“Alarm Off” again.
Display and operating the product
6.3 Showroom Mode
Power
Alarm Off
Freezer Temp Set
Fresh Food Temp Set key
High Temp Error Icon
Fresh Food Temp Set key
25 / 32 EN
Refrigerator / User Manual
Freezer
Compartment
Setting
Fridge
Compartment
Setting
Explanations
5F°/-15°C 39 F° /4°C This is the normally recommended setting.
-4F°/-20°C 37 F° / 3°C
These settings are recommended when the ambient temperature
exceeds 86 F° /30°C.
Quick Freeze 39 F° / 4°C
Use when you wish to freeze your food in a short time. Your
refrigerator will return to its previous mode when the process is
over.
Quick Fridge
5 F° /-15°C or
colder
Use this function when you place large quantities into the fridge
compartment or when you need to cool your food quickly. It is
recommended that you activate Quick Fridge function 4-8 hours
before placing the food in the compartment.
Operating Temperatures
26 / 32EN
Refrigerator / User Manual
Operating the product
6.5 Freezing fresh food
• Wrap the food or place them in a covered
container before putting them in the refrigerator.
• Hot food and beverages must cool down to
room temperature before putting them in the
refrigerator.
• The food that you want to freeze must be fresh
and in good quality.
• Pack the food in an airtight manner to prevent
them from drying even if they are going to be
stored for a short time.
• Materials to be used for packaging must be
tear-proof and resistant to cold, humidity, oils
and acids and they must also be airtight. All
packaging must be completely sealed.
• Frozen food must be used immediately after
they are thawed and they should never be re-
frozen.
• Do not freeze excessively large quantities of
food at one time.The quality of the food is best
preserved when it is frozen right through to the
core as quickly as possible.
• Placing warm food into the freezer compartment
causes the cooling system to operate
continuously until the food is frozen solid.
6.6 Recommendations for
preserving frozen food
To ensure the quality achieved by the frozen food
manufacturer and food retailler is maintained,
follow the steps listed below:
1.
Put packets in the freezer as quickly as possible
after purchase.
2.
Make sure that contents of the package are labelled
and dated.
3.
Check whether the "Use By" and "Best Before"
dates on the packaging are exceeded or not.
6.7 Placing the food
Freezer
compartment
shelves
Various frozen food such
as meat, fish, ice cream,
vegetables and etc.
Fridge
compartment
shelves
Food in pans, covered plates
and closed containers
Fridge
compartment
door shelves
Small and packaged food or
beverage (such as milk, fruit
juice, beer and etc.)
Crisper Vegetables and fruits
Deli drawer
Delicatessen products (cheese,
butter, salami and etc.)
6.8 Deep-freeze information
You can keep the freshness of food for many
months (at 5 F° / -15°C or lower temperatures in
the deep freeze).
C
Divided the food into portions according
to your family’s daily or meal based
consumption needs.
C
Pack the food in an airtight manner to
prevent them from drying even if they are
going to be stored for a short time.
• Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen
27 / 32 EN
Refrigerator / User Manual
Operating the product

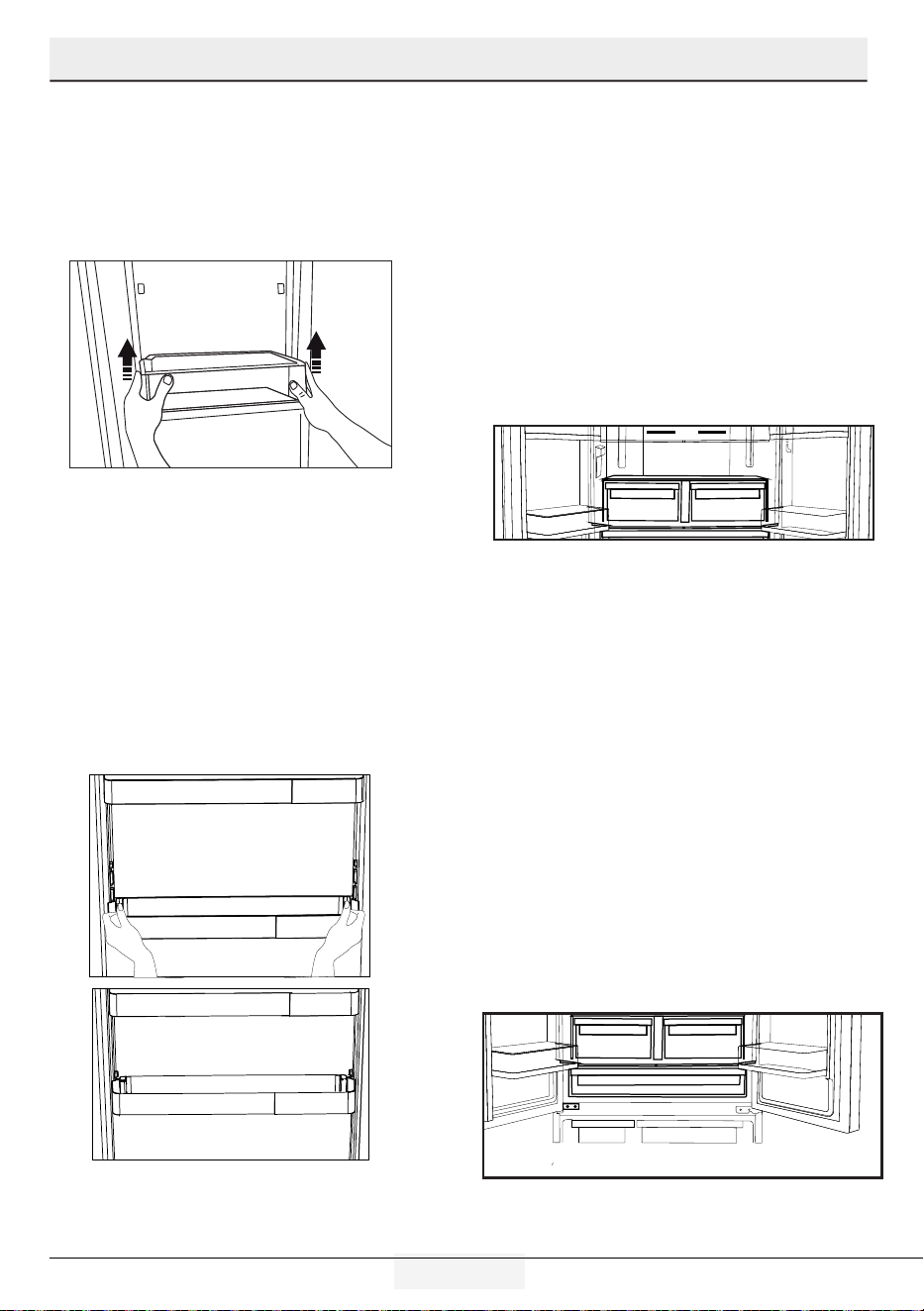

6.9 Removing door shelves
You can remove the door shelves to clean them.
First, empty the food inside them.
Push the desired shelf up to remove it.
Do not remove the door shelf when there is food
in it.
6.10 Moving the FlexiLift Door Shelf
*optional
Moving the FlexiLift door shelf can be fixed in 3
different positions.
In order to move the shelf, push the buttons on the
side evenly. Shelf will be movable.
Move the shelf up or down.
When the shelf is in the position that you want,
release the buttons. Rack will be fixed again in the
position where you have released the buttons.
6.11 Glass shelves
You can remove the glass shelves to clean them.
Be careful when removing the shelves since they
are heavy.
6.12 Crisper bins
(in some models)
Crisper bins allow you to prepare the food for
freezing. You can also use these compartments to
store your food at a temperature a few degrees
below the fridge compartment.
You can increase the inner volume of your
refrigerator by removing any of the chiller
compartments:
1. Pull the compartment towards yourself until it
stops.
2. Lift the compartment about 7/16’’ (1cm) up
and pull towards yourself to remove it from its
seating.
6.13 Deli Drawer
The Deli Drawer is designed with cool air
circulation intensified around it. This allows for
items stored in the drawer to be generally fresh
food compartment than average Fresh Food
temperatures.
If required, remove door shelves prior to Deli
Drawer removal
28 / 32EN
Refrigerator / User Manual
Operating the product
6.14 Humidity controlled crisper
Humidity levels of the vegetables and fruit are
kept under control with the feature of humidity-
controlled crisper and the food is ensured to stay
fresh longer.
We recommend you to place the leafy vegetables
such as lettuce, spinach and the vegetables which
are sensitive to humidity loss, in a horizontal
manner as much as possible inside the crisper, not
on their roots in a vertical position.
While the vegetables are being placed, individual
weights of the vegetables should be taken into
consideration. Heavy and hard vegetables should
be put at the bottom of the crisper and the
lightweight and soft vegetables should be placed
on top.
Never leave vegetables inside the crisper in
their bags. This will cause them to decompose
prematuraly. If you wish to keep vegetables
separate, use perforated paper bags or similar
materials to do so. Certain fruits such as pears,
apricots, peaches or apples generate high levels of
ethylene gas. Do not place them with other fruits
and vegetables which do not, as this will cause
them to decompose faster.
6.15 Ice container
The ice container is used to collect ice produced
by the ice maker. Do not put water in it to make ice
as it may break. The ice container is not used for
storing foods.
C
The ice machine may drop ice when the
ice container is opened.
6.16 Butter & Cheese section
Store food such as butter, cheese and margarine in
this section.
a
a
a
a

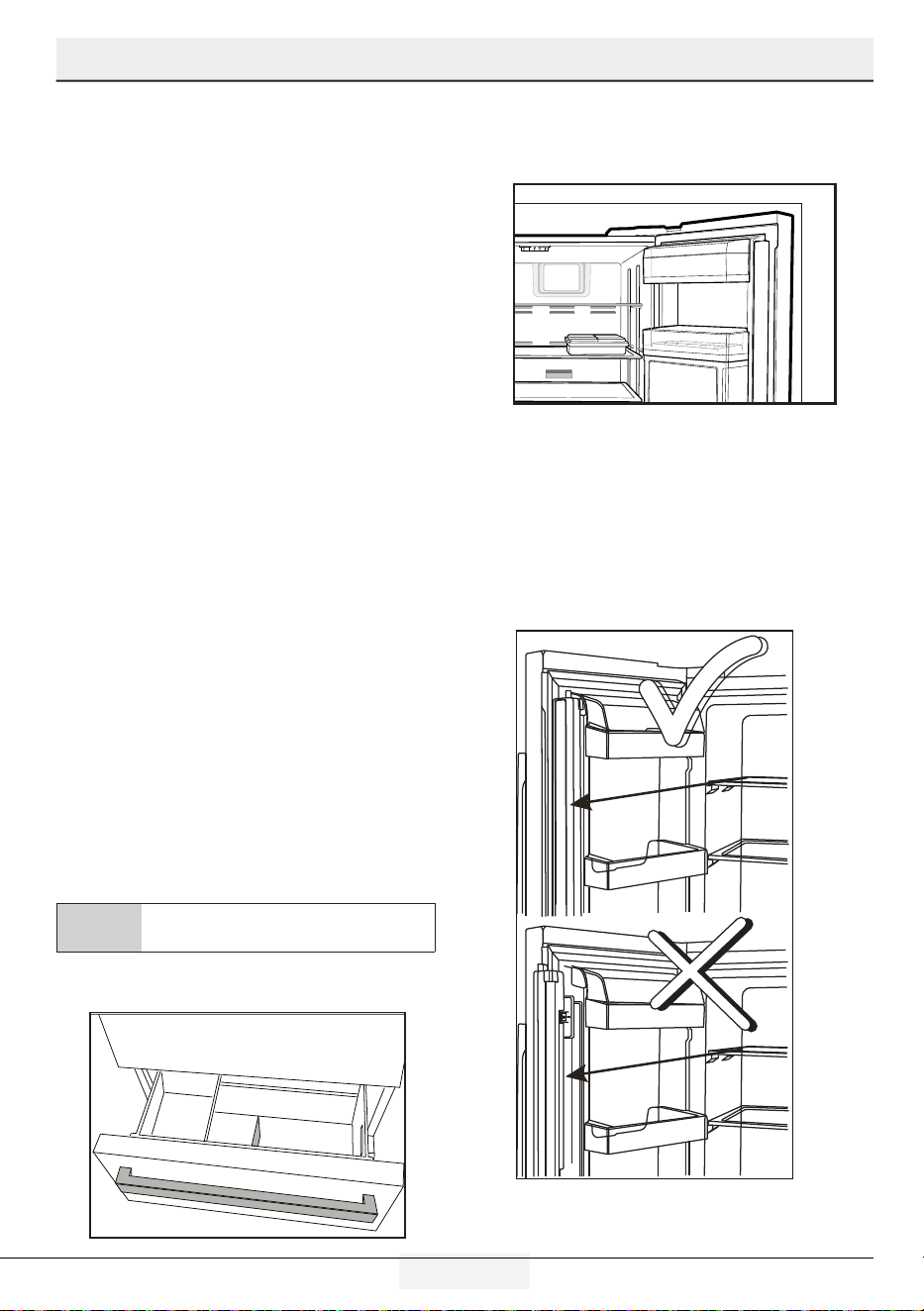

6.17 Door flappers
Movable door flapper is intended to prevent the
cold air inside the refrigerator from escaping
outside. Sealing is provided when the gaskets on
the door presses on the surface of the door flapper
while the fridge compartment doors are closed.
29 / 32 EN
Refrigerator / User Manual
Operating the product
6.18 ActiveFresh Blue Light
Crispers of the refrigerator are illuminated with
blue light. Food stored in the crispers continue
their photosynthesis by means of the wavelength
effect of blue light and thus, preserve their
freshness and preserves their vitamin content.
6.19 IonGuard
(in some models)
Air is ionized by means of the ionizer system in
the fridge compartment air duct. Thanks to this
system, air-borne bacteria and oderizing molecules
are removed from the air.
6.20 Odor filter
Odor filter in the air duct of the fridge compartment
prevents build-up of unpleasant odors in the
refrigerator.
6.21 Changing the temperature scale (Fahrenheit Celsius)
After the product is energized, press and hold the Fresh Food Temp Set and Freezer Temp Set buttons
together for 3 secs.
The temperature scale change is completed. Reverse these steps to switch back to the original scale.
Freezer Temp Set
Fresh Food Temp Set key
30 / 32EN
Refrigerator / User Manual
7. Maintenance and cleaning
The life of the product is extended and common
problems are reduced, if it is cleaned regularly.
B
WARNING: Unplug the product before
cleaning it.
• Never use gasoline, benzene or similar
substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap,
household cleaners, detergent and wax polish
for cleaning.
• Dissolve one teaspoon of baking soda in 1 pint
of water. Soak a cloth with the solution and
wring it thoroughly. Wipe the interior of the
refrigerator with this cloth and dry thoroughly.
• Make sure that no water enters the lamp
housing and other electrical items.
• If you will not use the refrigerator for a long
period of time, unplug it, remove all food inside,
clean it and leave the door ajar.
• Check regularly that the door gaskets are clean.
If not, clean them.
• To remove door and body shelves, remove all of
its contents.
• Remove the door shelves by pulling them up.
After cleaning, slide them from top to bottom to
install.
• Never use cleaning agents or water that
contain chlorine to clean the outer surfaces and
chromium coated parts of the product. Chlorine
causes corrosion on such metal surfaces
7.1 Avoiding bad odors
Materials that may cause odor are not used in the
production of our refrigerators. However, due to
inappropriate food preserving conditions and not
cleaning the inner surface of the refrigerator as
required can bring forth the problem of odor . Pay
attention to following to avoid this problem:
• Keeping the refrigerator clean is important.
Food residuals, stains, etc. can cause odor .
Therefore, clean the refrigerator with baking
soda dissolved in water every 15 days. Never
use detergents or soap.
• Keep the food in closed containers.
Microorganisms spreading out from uncovered
containers can cause unpleasant odors.
• Never keep the food that is past its expiration
date or has spoiled in the refrigerator.
7.2 Protecting the plastic surfaces
Do not put liquid oils or oil-cooked meals in your
refrigerator in unsealed containers as they damage
the plastic surfaces of the refrigerator. If oil is
spilled or smeared onto the plastic surfaces, clean
and rinse the relevant part of the surface at once
with warm water.
31 / 32 EN
Refrigerator / User Manual
8. Troubleshooting
Check this list before contacting a servicer. Doing so will save you time and money. This list includes
frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned
herein may not apply to your product.
The refrigerator is not working.
• The power plug is not fully seated. >>> Plug it in outlet completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Be sure the unit
is turned on. A single red light in the display means the product is plugged in but not turned on. Press
and hold the Power button for three seconds to turn the unit on.
• Condensation on the side wall of the fresh food compartment (MULTI ZONE, COOL,
CONTROL and FLEXI ZONE).
• The door is opened too frequently >>> Take care not to open the product’s door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed
holders.
• The product’s door is left open. >>> Do not keep the product’s door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.
Compressor is not working.
• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure
in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard.
The product will restart after approximately 6 minutes. If the product does not restart after this period,
contact a servicer.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is
carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.
The refrigerator’s operating noise is increasing while in use.
• The product’s operating performance may vary depending on the ambient temperature variations. This
is normal and not a malfunction.
The refrigerator runs too often or for too long.
• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room
temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product
will take longer to reach the set temperature when recently plugged in or a new food item is placed
inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food
into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will
cause the product to run longer. Do not open the doors too frequently.
• The freezer or fresh food compartment door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait
for the product to reach the adjusted temperature.
• The fresh food compartment or freezer door washer may be dirty, worn out, broken or not properly
settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for
longer periods to preserve the current temperature.
32 / 32EN
Refrigerator / User Manual
Troubleshooting
The freezer temperature is very low, but the fresh food compartment temperature is
adequate.
• The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The fresh food compartment temperature is very low, but the freezer temperature is
adequate.
• The fresh food compartment temperature is set to a very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The food items kept in fresh food compartment drawers are frozen.
• The fresh food compartment temperature is set to a very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The temperature in the fresh food compartment or the freezer is too high.
• The fresh food compartment temperature is set to a very high degree. >>> Temperature setting of
the fresh food compartment has an effect on the temperature in the freezer compartment. Wait until
the temperature of relevant parts reach the sufficient level by changing the temperature of fresh food
compartment or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too
frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is
normal. The product will take longer to reach the set temperature when recently plugged in or a new
food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food
into the product.
Shaking or noise.
• The ground is not level or firm. >>> If the product is shaking when moved slowly, adjust the feet to
balance the product. Also make sure the ground is sufficiently firm to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.
The product is making noise of liquid flowing, spraying etc.
• The product’s operating principles involve liquid and gas flows. >>> This is normal and not a
malfunction.
There is sound of wind blowing coming from the product.
• The product uses a fan for the cooling process. This is normal and not a malfunction.
There is condensation on the product’s internal walls.
• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too
frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.
There is condensation on the product’s exterior or between the doors.
• The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will
dissipate when the humidity is reduced.
The interior smells bad.
• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and
carbonated water.
• Certain containers and packaging materials may cause odor. >>> Use containers and packaging
materials free of odor.
33 / 32 EN
Refrigerator / User Manual
Troubleshooting
• The foods were placed in unsealed containers. >>> Keep the foods in sealed containers. Micro-
organisms may spread out of unsealed food items and cause bad odor. Remove any expired or spoiled
foods from the product.
The door is not closing.
• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the
product.
• The ground is not level or firm. >>> Make sure the ground is level and sufficiently firm to bear the
product.
The vegetable bin is jammed.
• The food items may be obstructing with the upper section of the drawer. >>> Reorganize the food
items in the drawer.
If The Surface Of The Product Is Hot.
• High temperatures may be observed between the two doors, on the side panels and at the rear grill
while the product is operating. This is normal and does not require service maintenance! Be careful
when touching these areas.
A WARNING:
If the problem persists after following the instructions in this section, contact your vendor or an
Authorized Service. Do not try to repair the product.
A WARNING:
• This product can expose you to chemicals including Nickel (Metallic) which is known to the State of
California to cause cancer.
• For more information go to www.P65Warnings.ca.gov
• Note : Nickel is a component in all stainless steel and some other metal components.
15 7550 0168/AC
EN-ES-FR
