User Manual

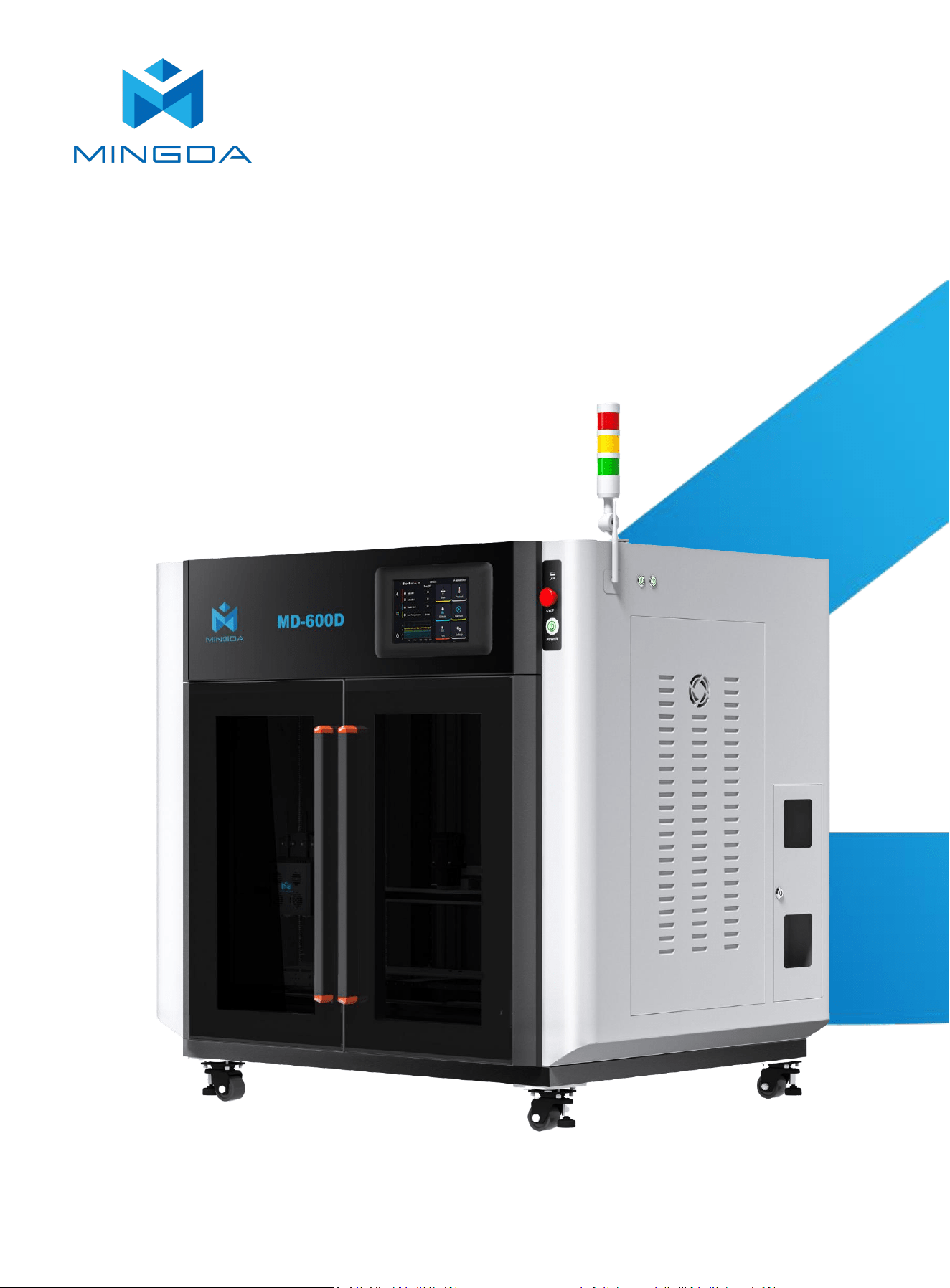

[MD-600D 3D Printer]
Shenzhen MINGDA Technology Co.,Ltd
V2.0
*Please read this guide carefully before using this printer
Thank you for choosing MINGDA Technology's products!
For the best experience, please read this user manual carefully and follow the instructions to operate the printer.
If you encounter any issues with the printer, please contact us using the contact information provided at the end
of this user manual. Our team is always ready to provide you with high-quality service.
To enhance your usage of our product, you can also learn how to use the printer through the following means:
1. User Manual: Relevant instructions and videos can be found on the included USB drive.
2. You can also visit our official website (www.3dmingda.com) for information on software, hardware, contact
details, device instructions, device specifications, and warranty information, among other things.
1. Please do not place the printer in environments with significant vibrations or instability, as machine
shaking can affect the print quality, please make sure the ground is level.
2. Avoid touching the nozzle and heated bed while the printer is in operation to prevent potential burns from
high temperatures, resulting in personal injury.
3. Refrain from moving the device during the printing process to prevent accidents and injuries.
4. Do not dismantle the equipment or alter circuit settings without authorization.
5. Avoid using the device in high-temperature or humid environments to prevent compromising device
performance or creating safety hazards.
6. In case of an emergency, immediately cease using the device and power it off.
Cautionary Notes
Contents
1 Overview …………………………………………………………………………………………………………………..........
2 Device Introduction ……………………………………………………………………………….............................
Device Parameters ……………………………………………………………………………………………...…..........................................
Packing List ……………………………………………………………………………………………………………...........................................
Machine Components Overview ……………………………………………………………………………............................................
Machine Components Overview ……………………………………………………………………………............................................
3 Operational Steps ……………………………………………………………………………………...........................
Part assembly .......…………………………………………………………………………………………….................................................
Install the indicator light ………………………………………………………………………………......................................................
Install the Antenna ……………………………………………………………………………….....……....................................................
Power on ………………………………………………………………………………..............…….........................................................
Power off ………………………………………………………………………………..............…….........................................................
Startup Configuration ……………………………………………………………………………………….................................................
Printer Calibration …………………………………………………………………...........………...…...................................................
Z Calibrate ………………………………………….……………………………….....……....................................……………………………..
Auto Bed Leveling ………………………………………………………………..............……...........................................................
XY Axis Offset Calibration ……………………………….………………..................................................................................
Z Height Diff Calibration …………………………………………………….....…….......................................................................
Input Shaper …………………………………………………………………….....……......................................................................
Calibrate PID .…………………………………………….....……...............................................................................................
4 Operating interface introduction ………………………………………………………..................................
5 Insert filament .….........…………………………………….………......…..........……….....………....…......….....
6 Unload filament .........……………………..……....……...........…......…........………......…........………......
7 Printing .........……………………............……....………......…........………......…........…………......………...
8 Resume Printing …………............……....………......…........………......…........……….……......…........…..
9 Slicing Software Installation and Usage …....………......…........………......…..................……….....
Installation …………………………………………………………………........................................................................................
Configuration ……………………………………………………………………………….....……...........................................................
Usage ……………………………………………………………………..............…….........................................................................
LAN Printing ………………………………………………………………........................................................................................

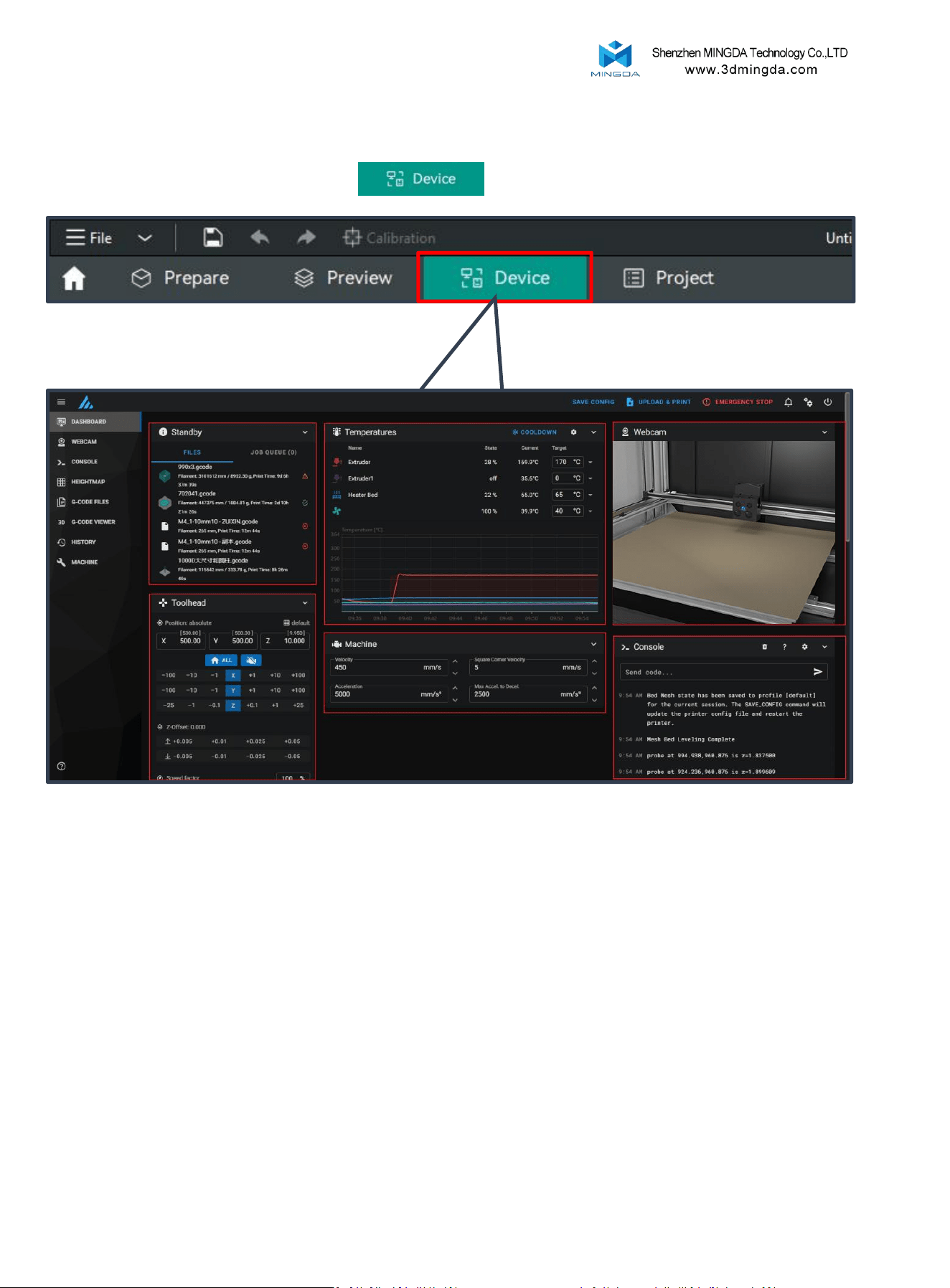

Device Connection……………………………………………………………………………….....……......................................................
Print two colors ………………………………….……………………….…………......….......................................................................
Print Support …………………………………………………………………………..............…….............................................................
10 Maintenance and Care …...…...…...……...……...……...…...…...…...…..……...…...…....…...…............
11 Printing Tips for different filaments …..…...…...…...…...…...…...……...…...…......……...…..……....
02
02
02
03
04
05
06
06
06
06
07
07
08
09
10
10
11
13
14
16
18
19
20
22
23
24
24
24
25
26
28
29
31
32
32
Precautions …………………………………………………………………………………………………………………………………………………………… 01
1. Overview
This manual provides instructions on the usage of the 3D printer, covering aspects such as an overall introduction
to the device, operational procedures, maintenance, and care. The aim of this manual is to assist you in correctly using
and maintaining the 3D printer, ensuring device performance and safety, extending the lifespan of the equipment,
and enhancing print quality. We hope that you follow the requirements and recommendations outlined in this manual
during usage, and maintain attention to and care for the equipment. Thank you for choosing our product, and we wish
you a pleasant experience!
2. Device Introduction
Device Parameters
2
Basic Parameters
Product Model
MD-600D
Machine Dimensions
1310*965*1255mm
Max. Build Dimensions
600*600*600mm
Print Technology
Fused Deposition Modeling (FDM)
Rated Voltage
100-240V, 50/60Hz
Rated Power
2400W
Ambient temperature
10℃-30℃ / 50°F-86°F
Extruder Type
Dual Extruders
Max. Nozzle Temperature
350℃
Max. Bed Temperature
110℃
Screen
10inch touch screen
Printing Method
USB Flash Disk / LAN Printing
Connection
USB Flash Disk / WIFI / Ethernet
Power Loss Recovery
Yes
Filament Detection
Yes
Fast Auto leveling
Yes
Camera
Yes
Fast Calibrate Offset
Yes
Supported Filament
Common filament: PLA, PETG;
Engineering filament: PA-CF/GF, PET-CF/GF, HtPA-CF/GF,
PA-GF25/CF25;
Support filament: S-Mulit, S-HtPA, etc
Packing List
Tool List
Note: The picture is for reference only. When the real thing is inconsistent with
the picture, the actual object shall prevail.
U-disk
Allen wrench Antenna
Indicator light & screw
3

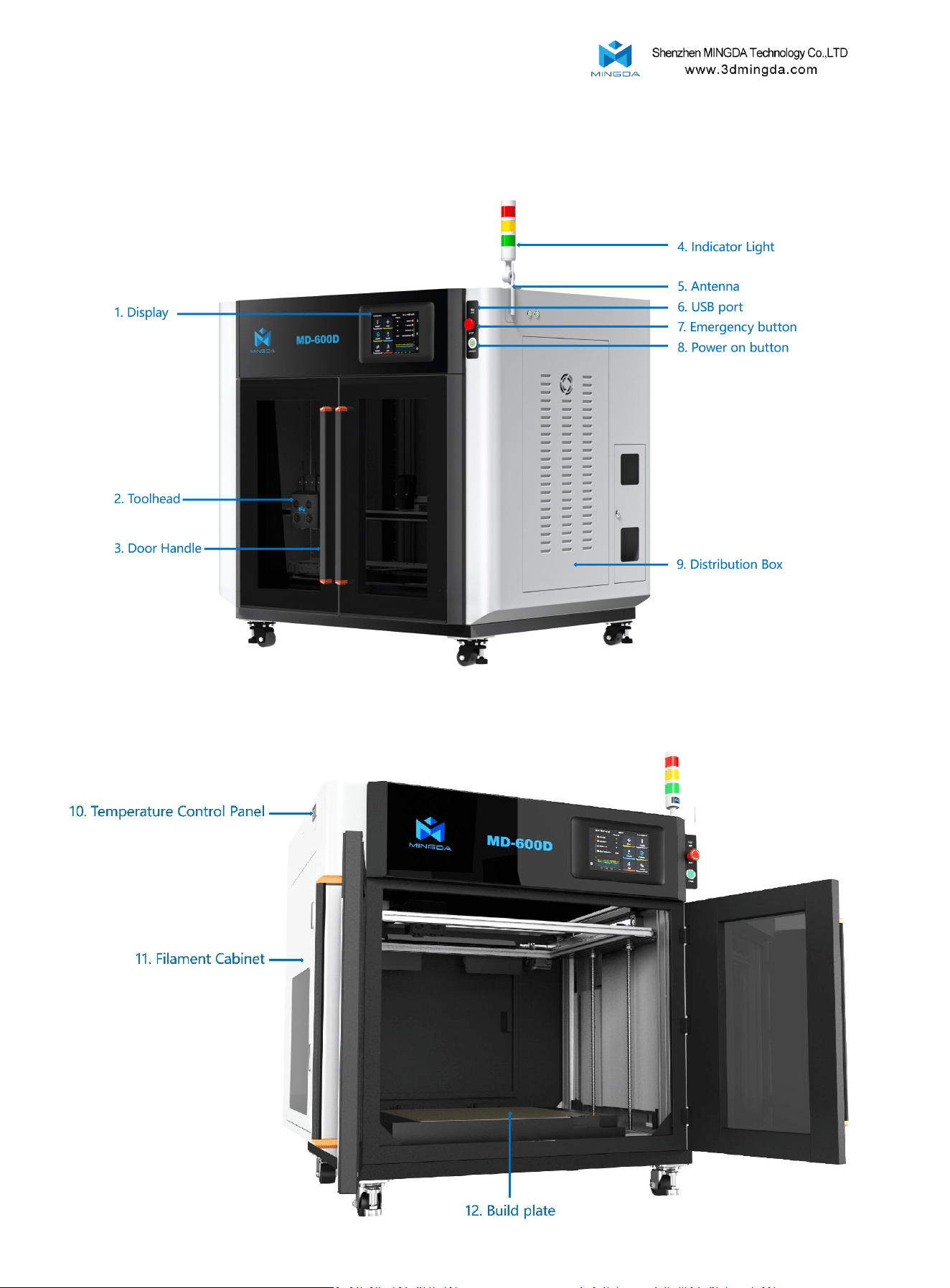

Machine Components Overview
4

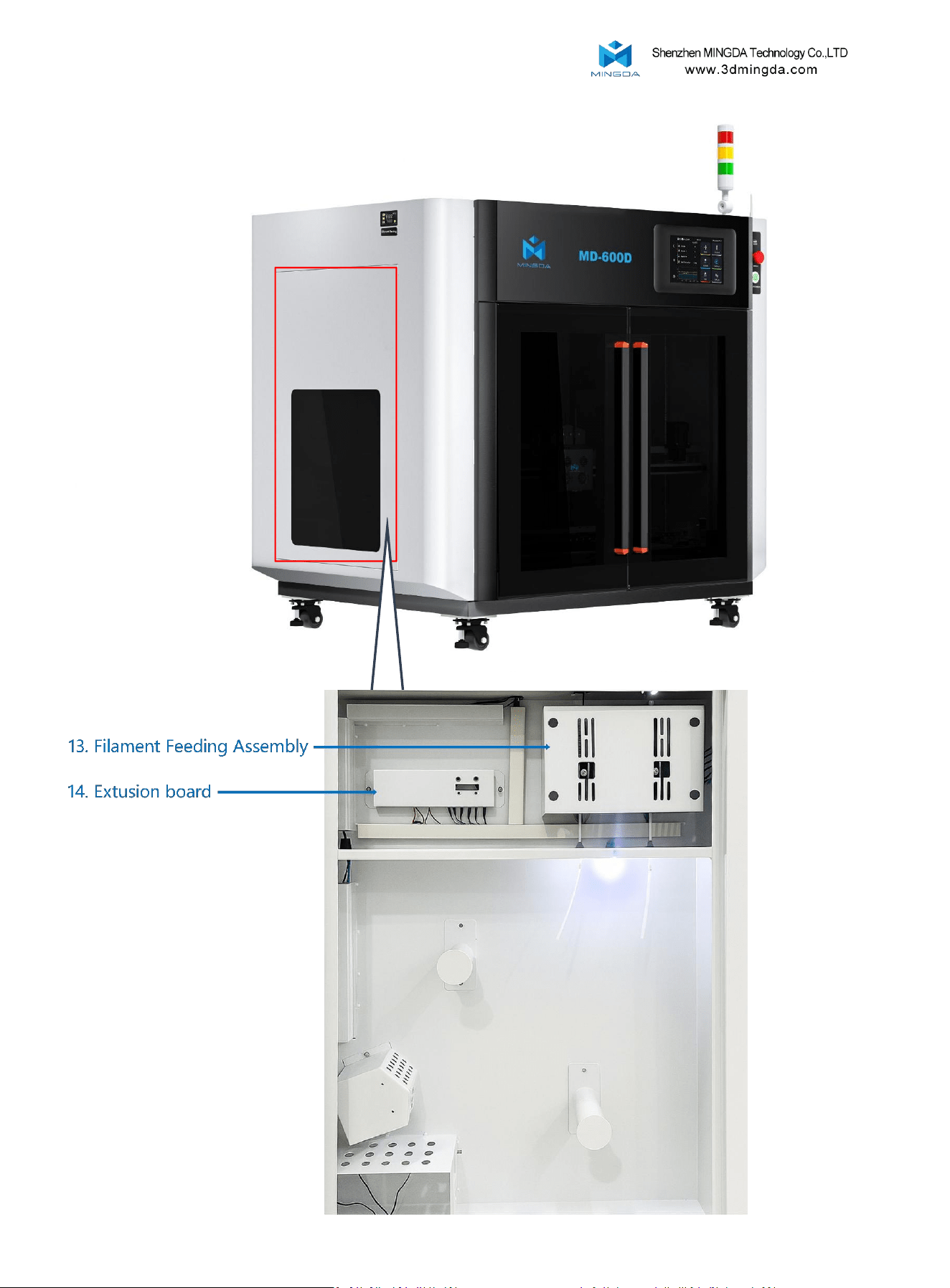

Machine Components Overview
5

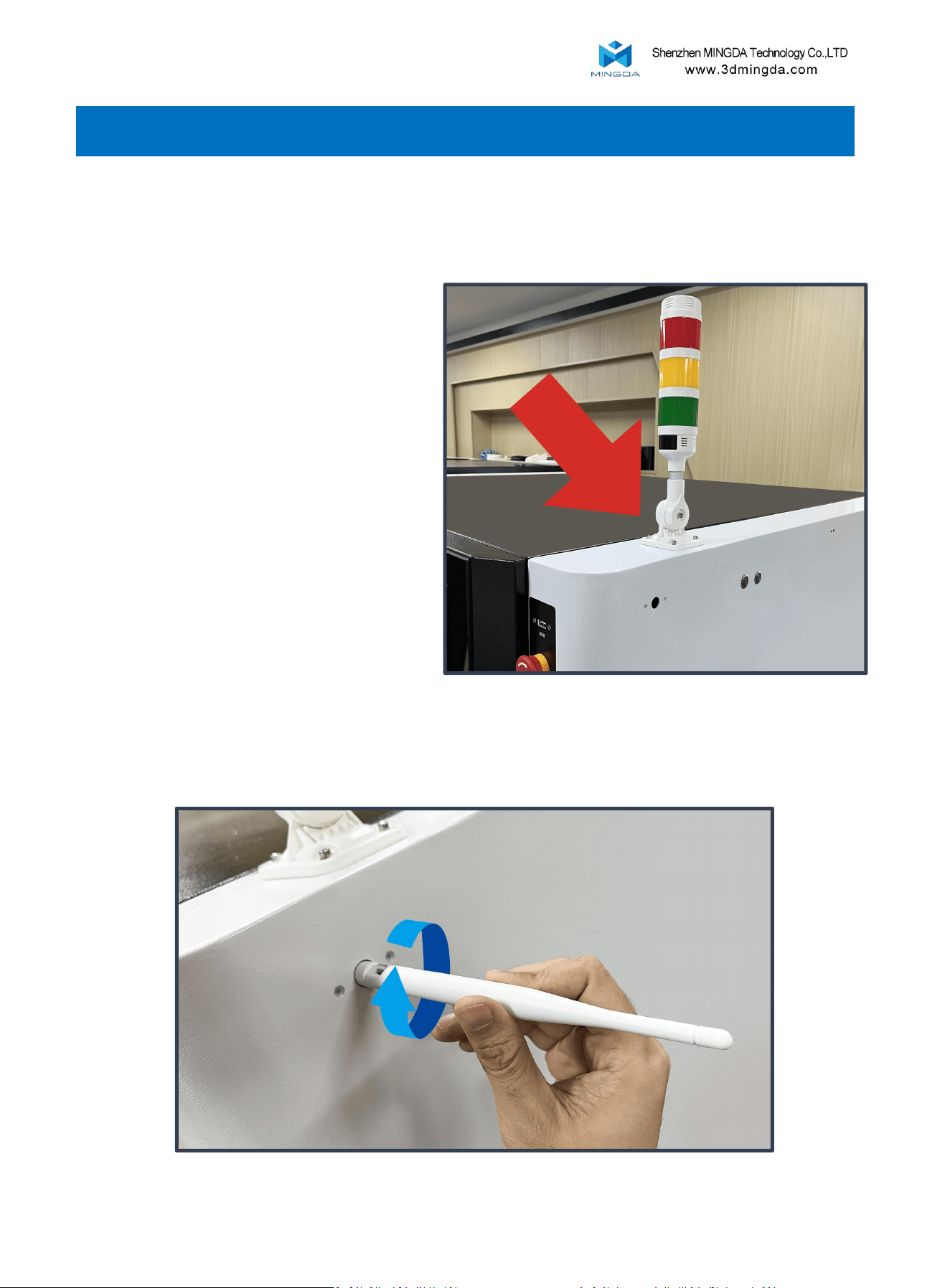

Part assembly
2. Install the Antenna
3. Operational Steps
1. Install the indicator light
Green light: Indicates that the printer
is working properly.
Red light: Indicates that the printer is
in an emergency stop or fault state,
requiring immediate attention or
repair by the user. For example,
overload, short circuit, or error
message on the screen.
Yellow light: Indicates that the printer
is in a warning or abnormal state,
requiring user attention or
intervention. For example, insufficient
filament or paused printing.
6

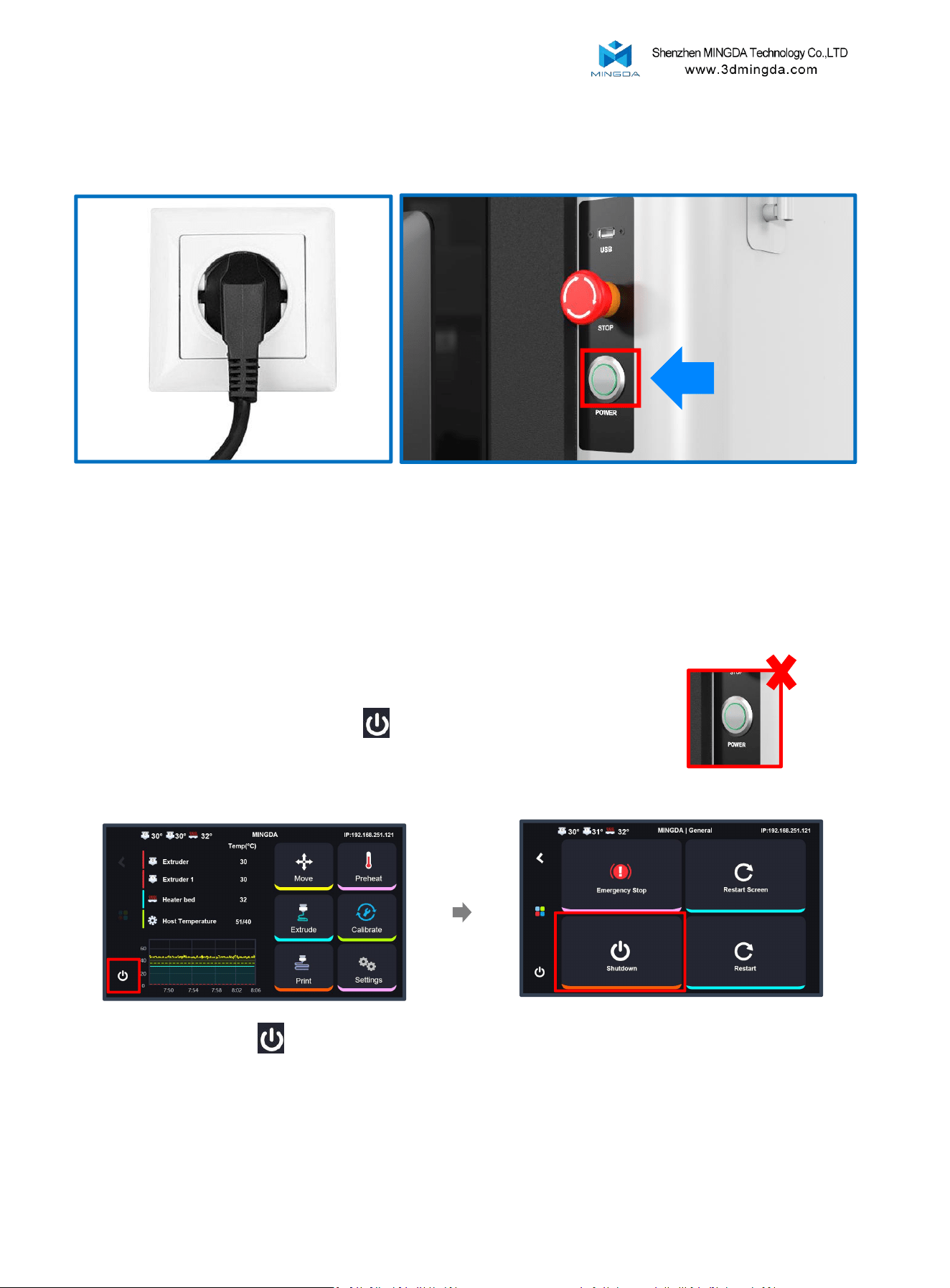

3. Power on
4. Power off
When you turn off the printer, please don't press the power
directly! Click " Shutdown " to turn off the printer
Click the "Shutdown"
Insert a power socket
Press the power button to turn on the printer
7

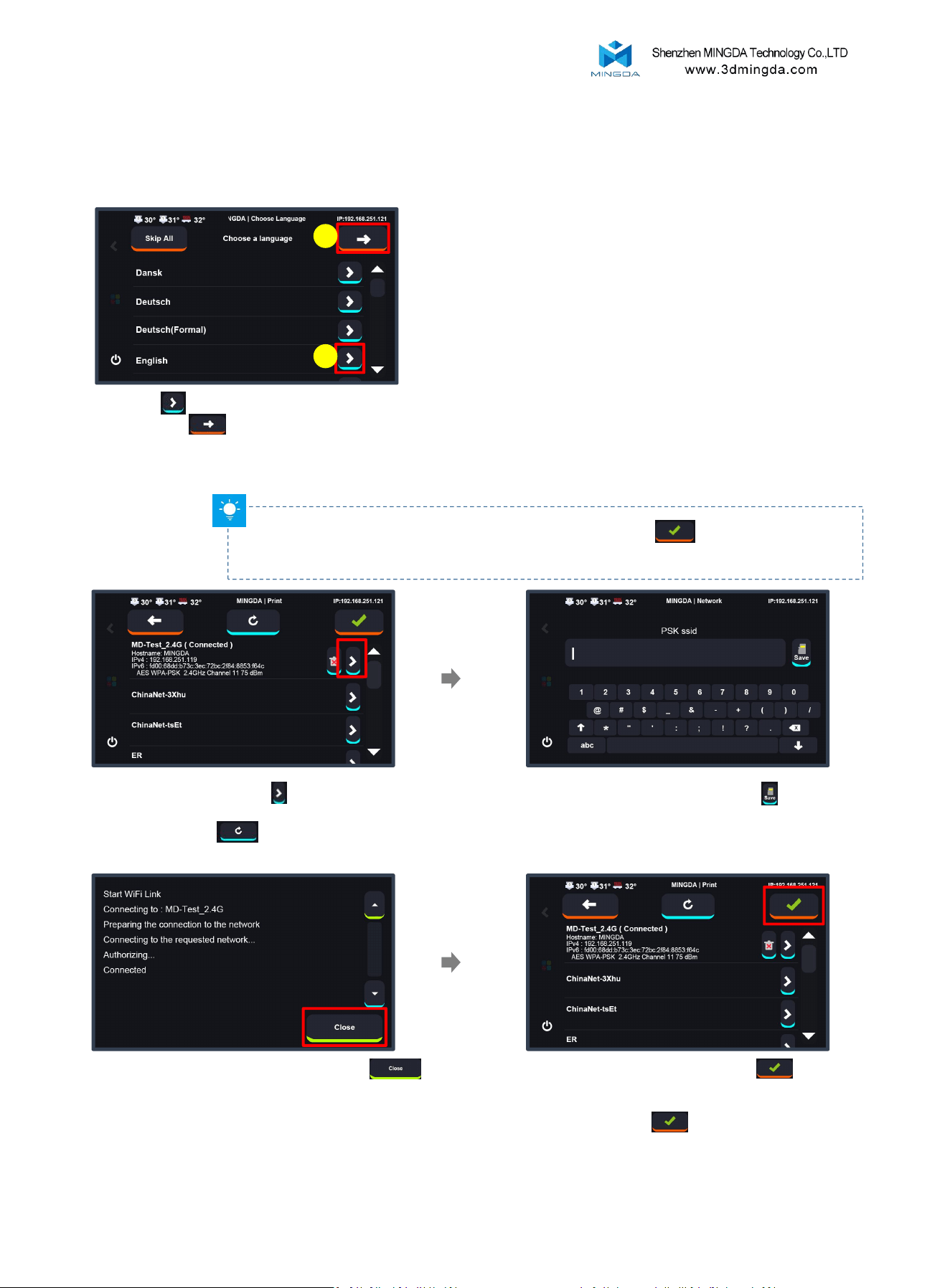

Startup Configuration
2. Wi-Fi
Note: If you find that the printer cannot detect your WiFi signal, you can click to skip this step for
now. After completing the startup wizard, move the printer to a location closer to a stronger signal source,
and then reconnect to WiFi.
Enter the WiFi password and click
Select the WiFi and click
(If your WiFi cannot be displayed for more than
20s, please click to refresh)
Upon successful connection, click the in the
upper right corner to enter the main interface of the
machine. If you do not need to connect to the network,
you can also click the to skip this step.
Once the connection is successful, click
1. Select Language
Click to choose the language,
and click to proceed to the
next step.
1
2
8
If the nozzle is not aligned with the center of the
metal sensor, use to manually adjust the nozzle
position until it is directly above the sensor.
Tip: Please follow the sequence shown in the diagram to calibrate step by step.

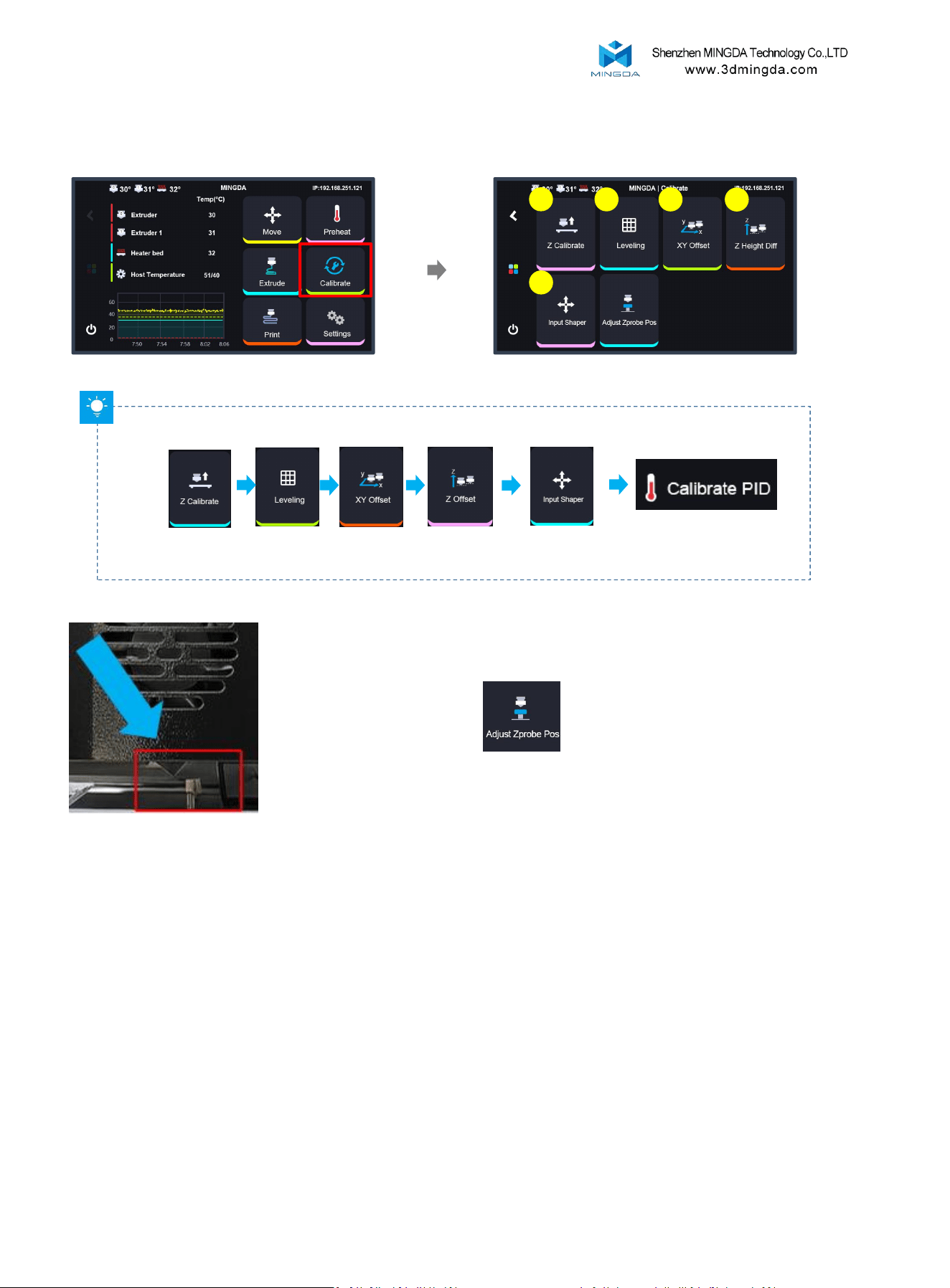

Printer Calibration
Z Calibrate → Leveling → XY Offset → Z Height Dif f → Input Shaper → Calibrate PID
1
2
3
4
5
9
2. Leveling: Before starting the leveling process, heat the bed to 60℃
and wait for 20 minutes. This allows for thermal expansion of the glass
to stabilize, ensuring accurate leveling.
Note：
1. Z-calibrate, Auto-leveling, XY offset and Z height diff must be
performed after replacing the nozzle, hotend, or removing/reinstalling
the extruder.
Printing Tips:
If the bed calibration temperature is set to 60°C. Before printing, keep
the bed temperature at 60°C and wait for 20 minutes to ensure
optimal first layer adhesion and print quality.

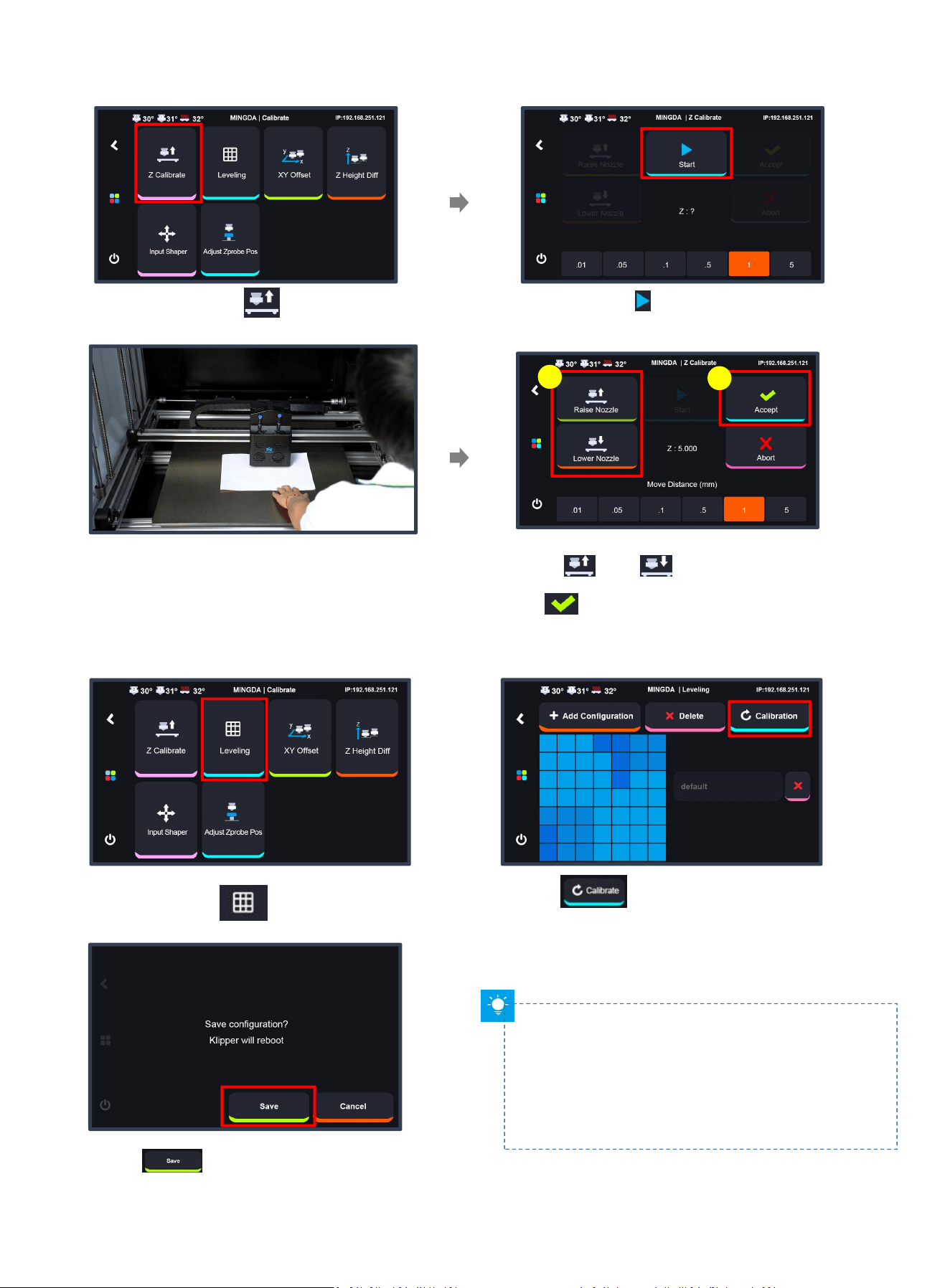

1. Z Calibrate
Click "Z Calibrate"
Click "Start" , wait Z axis calibrating
and click "Accept" and confirm
Put an A4 paper between the nozzle and
heated bed.
1
2
While moving the A4 paper back and forth,
adjust and . When you feel slight
resistance as the paper moves, you can click
the to save.
2. Auto Bed Leveling
Click to save the value, the
printer will reboot automatically.
Click to start auto-leveling,
which will take approximately 3 minutes
Click "Leveling"
Tips: It is better to heat up the bed to
the target degrees and keep it warm up
for 5-10 minutes before leveling.
10

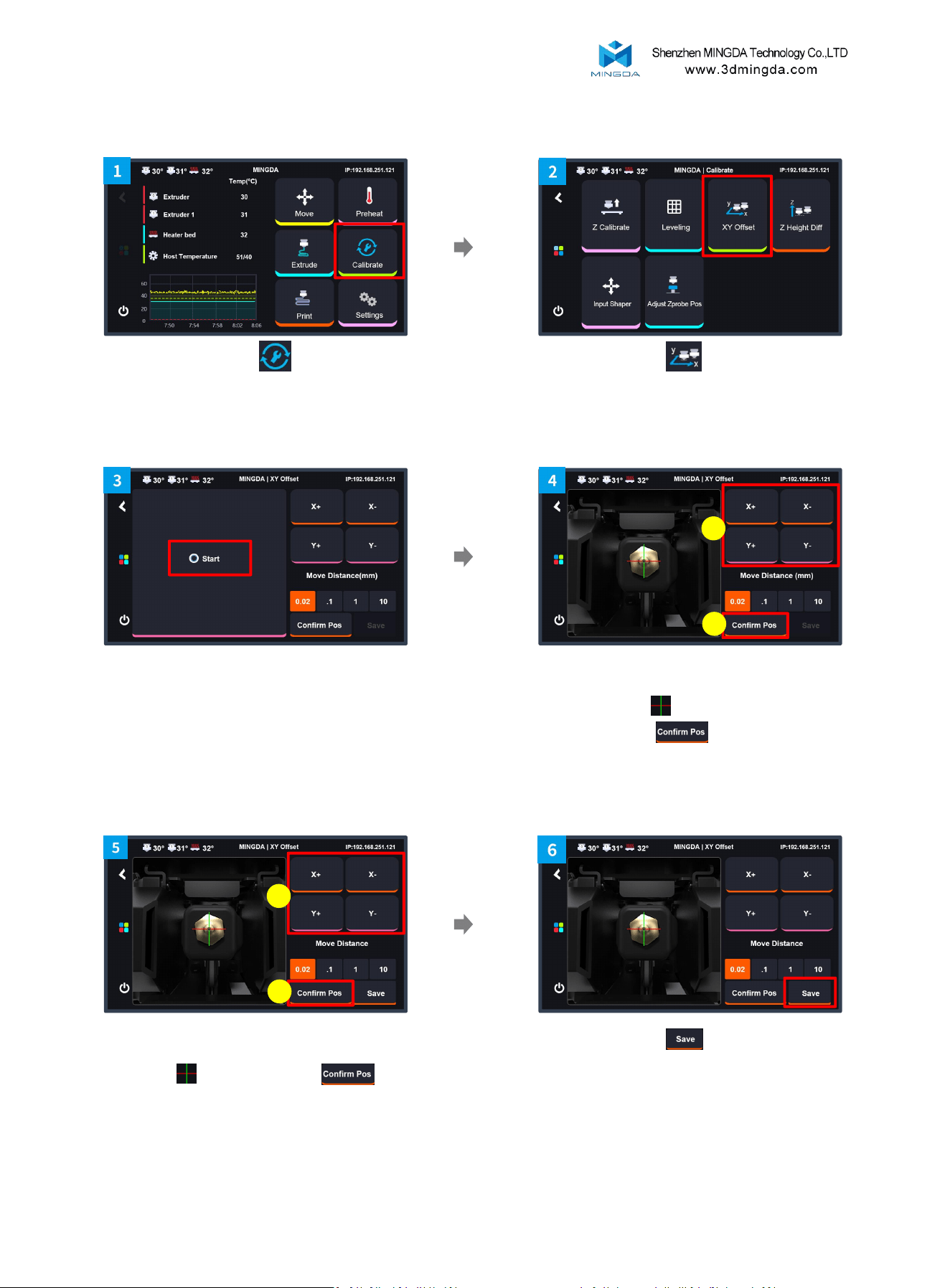

3. XY Axis Offset Calibration

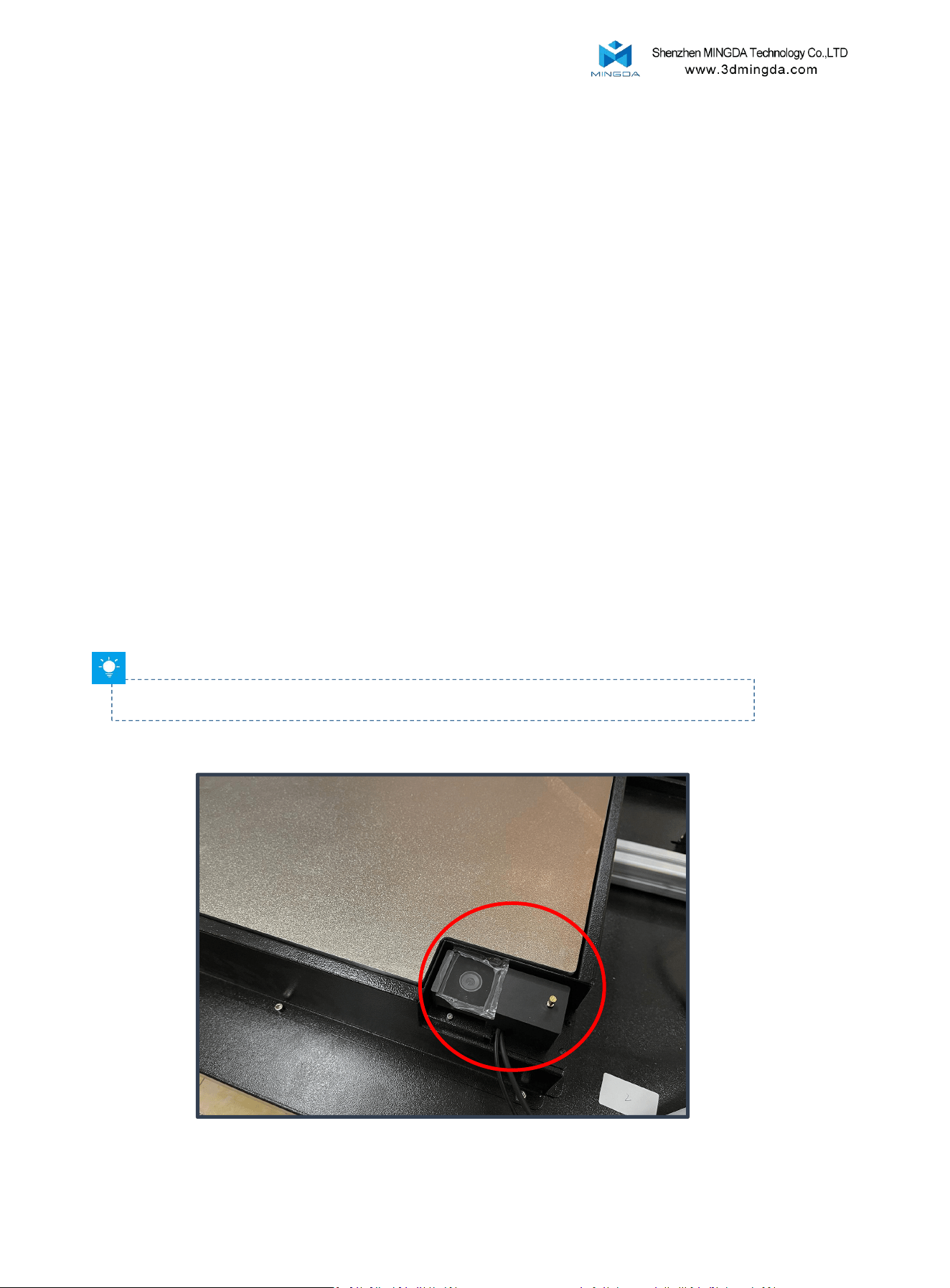

Tips: Wipe the nozzle clean before calibration to avoid any interference during the process.
Printing Tips:
1. Bed Leveling Frequency:
It is recommended to perform bed leveling every 20–25 print jobs. The Frequent
removal and repositioning of the glass bed can gradually lead to positional
deviation. Timely leveling ensures consistent print quality.
2. How to Determine if Leveling is Needed during printing:
Carefully observe the first layer when starting a new print. If there is a large gap
between the filament and the heated bed, poor adhesion, warping, curling, or
uneven extrusion (e.g., some areas too thick, others too thin, or broken lines), it
indicates that bed leveling is required.
11
2
1
2
1
Click "XY Offset"
Click "Calibrate"
After the camera Led light up, Click "Start" ,
and the left extruder will move to the
calibration camera's position.
Click the "Save"
Adjust the left extruder nozzle to align with
the crosshairs of the screen and click
"Confirm Pos"
Adjust the right extruder nozzle to align with the
crosshairs of the screen click
12

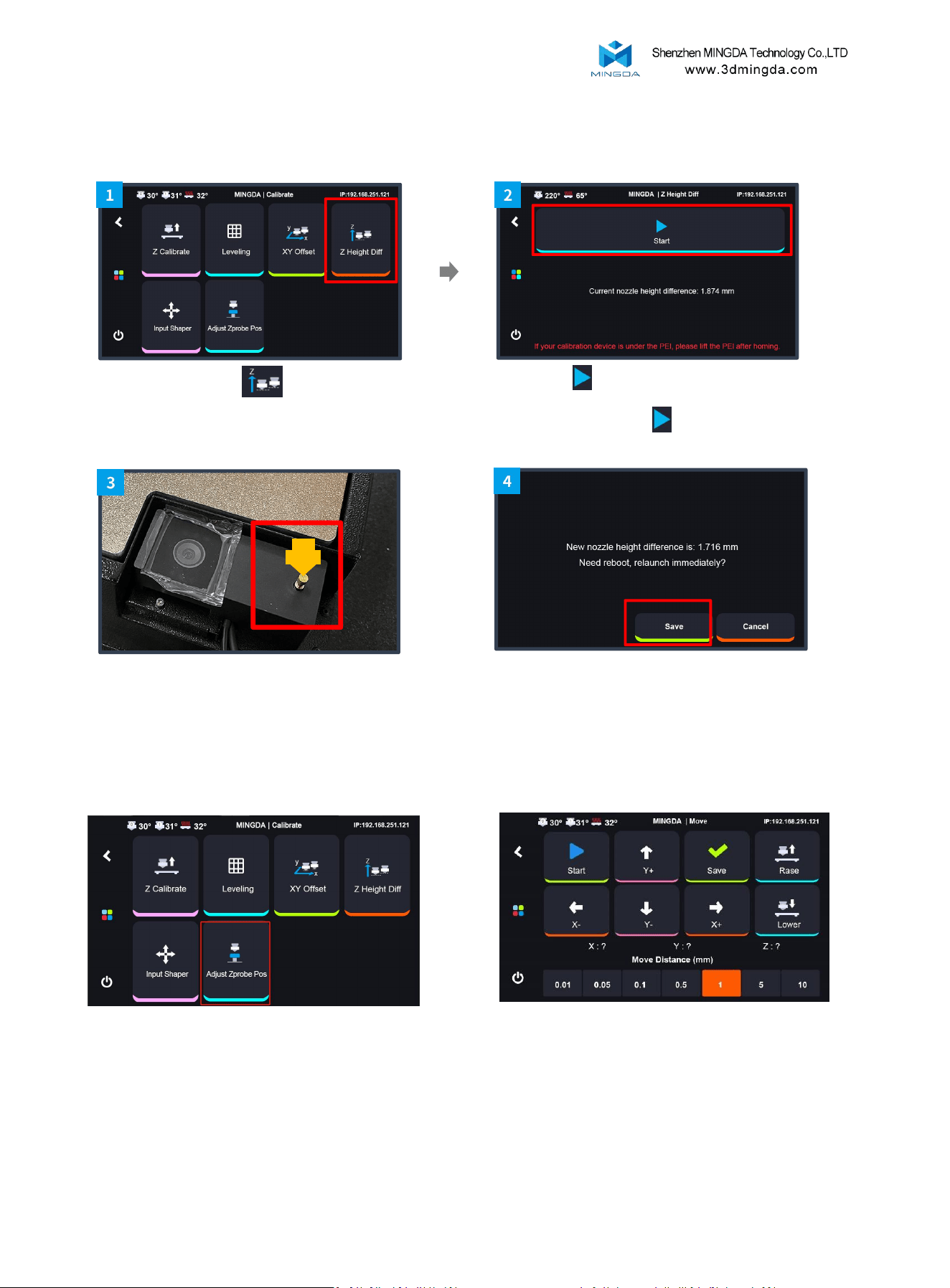

4. Z Height Diff Calibration
After finishing, click “Save” and restart the
machine.
While calibrating the Z-axis offset, the extruder will
move towards the sensor automatically. Please observe
if the nozzle is positioned above the probe sensor. If
not, use the Adjust Zprobe Pos function to adjust the
nozzle.
Click "Z Height Diff"
Click “Start” to start Z offset automatically.
If the printer hasn't homed before, it will home itself first.
After that, click “Start” again to begin calibration.
Click “Start” and move the XYZ to make the nozzle on the top of the metal sensor then save
the value. After than do the “Z height Diff” again
13

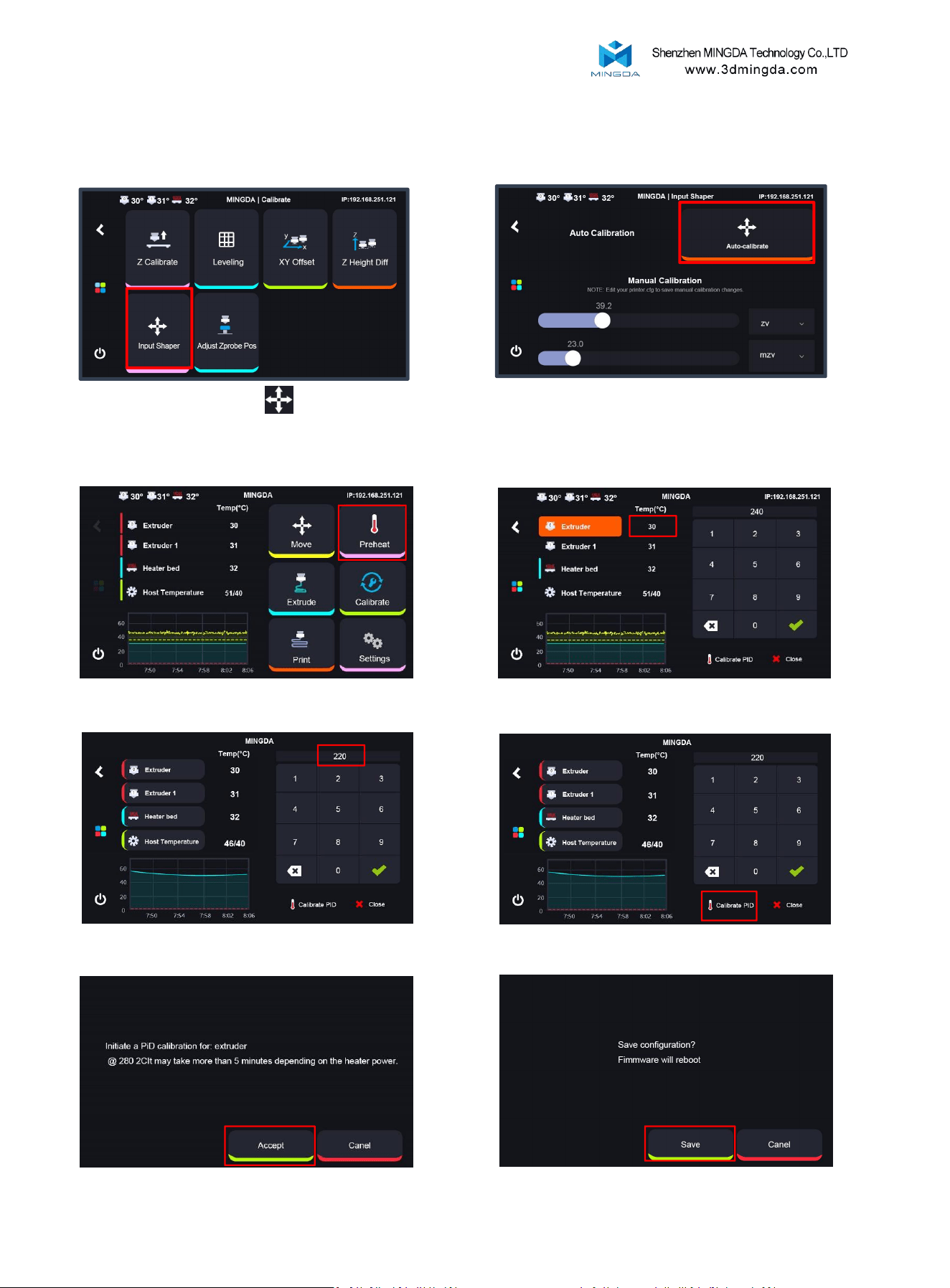

5. Input Shaper
Click "Input Shaper"
Click "Auto-calibrate"，After calibration is
complete, click the save button.
10
6. Calibrate PID
Click “Preheat”
Click the temperature value
Set at ”220°C“
Click ”Accept“
Click “Save”
Click “Calibrate PID”
14
Primary interface
Explain
Temperature
Temperature display area.
IP
Network IP address.
Move
Adjust or home the XYZ axis.
Preheat
Pre-set nozzle & hotbed’s temperature.
Extrude
To load the filament.
Calibrate
Printer Calibration
Settings
Printer’s printing value adjustment.
Print
Start printing.
Shutdown
Shutdown interface.
Homepage
Return to the main page.
Return
Return to the previous page.
Main interface
11
10
09
01
02
04
05
06
08
07
03
01
02
03
04
05
06
07
08
09
10
11
4. Operating interface introduction
15
Calibrate:
Secondary interface
Explain
Z Calibrate
Leveling sensor calibration
Leveling
Auto-leveling
XY Offset
Calibrate XY axis
Z Height Diff
Calibrate Z axis
Input Shaper
Test the resonance compensation value.
Adjust Zprobe Pos
Adjust Zprobe Pos
01
02
03
04
05
06
01 02
03
04
05 06
16
Secondary interface
Explain
Network
To connect Wi-Fi
Fan
Cooling fan adjustment
Leds
Turn on/off Light
System
Machine shutdown, restart, reset function
Update
Update
Manual
Manual
Troubleshooting
Troubleshooting
Power Loss Recovery
Resume the print after a power failure or system error
Force move
Move the toolhead if necessary before resuming the print
More
Includes some basic settings such as time, language,
screen timeout, notification sound toggle, and automatic
shutdown after printing completion.
Settings:
01
02
03
04
05
06
05
06 07
01 02
03
04
08
07
08
17
09
10
09
10
Secondary
interface
Explain
Cancel
Stop printing
Pause
Pause printing
Fine Tuning
Adjust Z-offset, Printing Speed, Printing Flow
[Please refer to Figure 1.]
Settings
Basic setting, browse camera, adjust cooling fan, light ,
Extrude and Exclude object. [Please refer to Figure 2.]
Stop
Emergency stop .
Printing Interface:
01
02
03
04
01 02
03
04
Figure 2
Figure 1
18
05
05

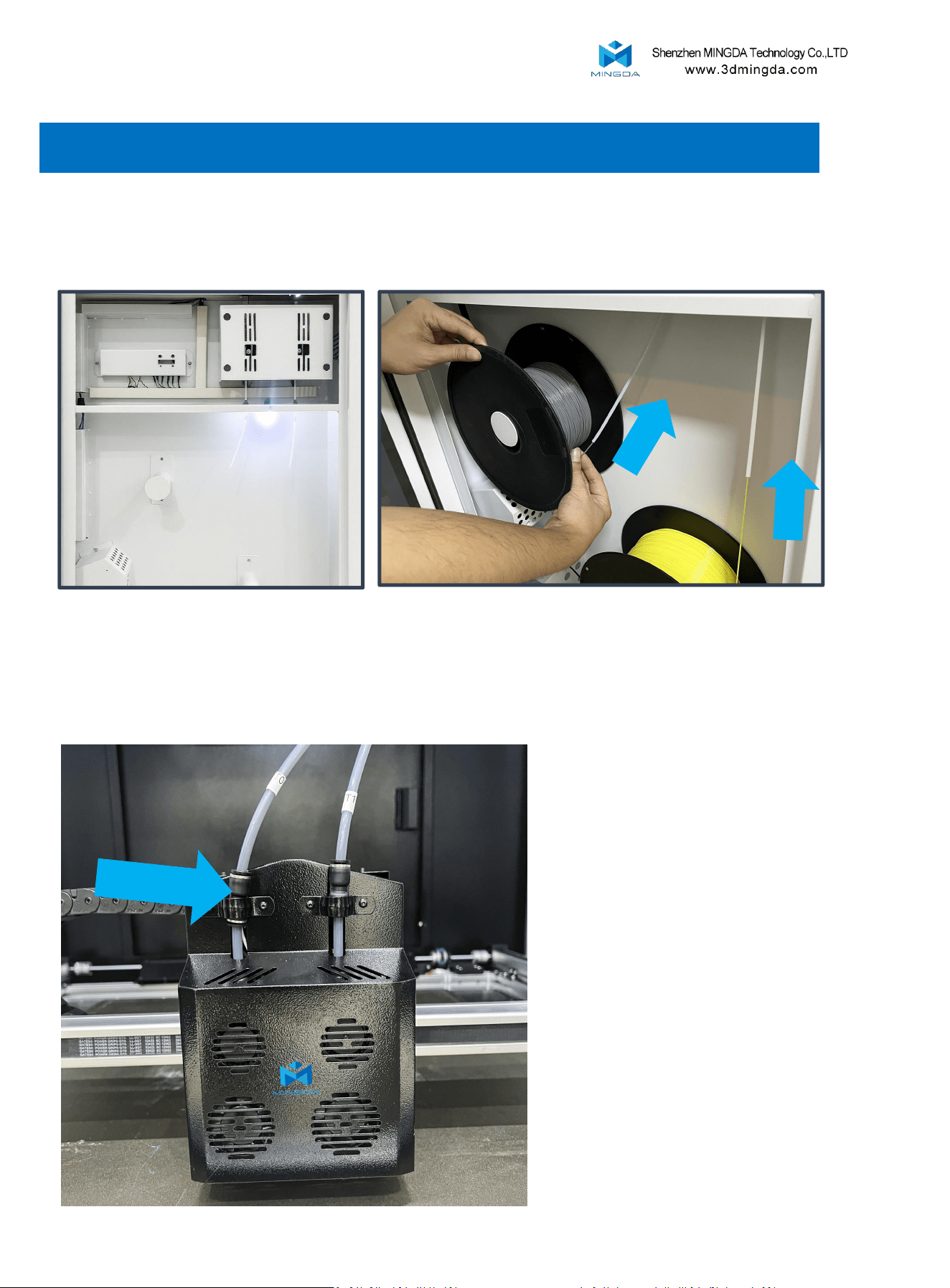

5. Insert filament
19
1.Hang the filament onto the filament holder as shown in the picture, and insert the filament into the
corresponding tube and push it until it cannot be pushed anymore. The internal gears will
automatically pull the filament in.
2. When the gears stop moving, the filament may still remain inside the tube. We need heat up the
nozzle to target degrees and then load the filament.
20
6. Unload Filament
1. Press the gas connector and pull the Telfon
tube out.
2. Cut the filament
1
2
Click Extruder “T0” , select Distance
“100mm” and Speed”5”, click Load 2-3
times till the filament goes out of the nozzle.
1
2
Click the "Extrude"
Enter the filament recommand temperature
value, click then click
Click the temperature setting
Repeat the same steps to load the filament into the right extruder.
21
7. Click the T0 unload button in filament cabinet.
When you click the unload button, please roll the
filament back manually .
5. Click “load” to feed out the rest
filament
6. Feed out all the rest filament inside the
extruder until the screen 'filament sensor0' turns
red.
1
2
3. Click the "Extrude"
4. Select the extruder you want to unload
filament and heat it up to filament recommand
temperature value.
Keep clicking unload button until the filament
finished unloading.

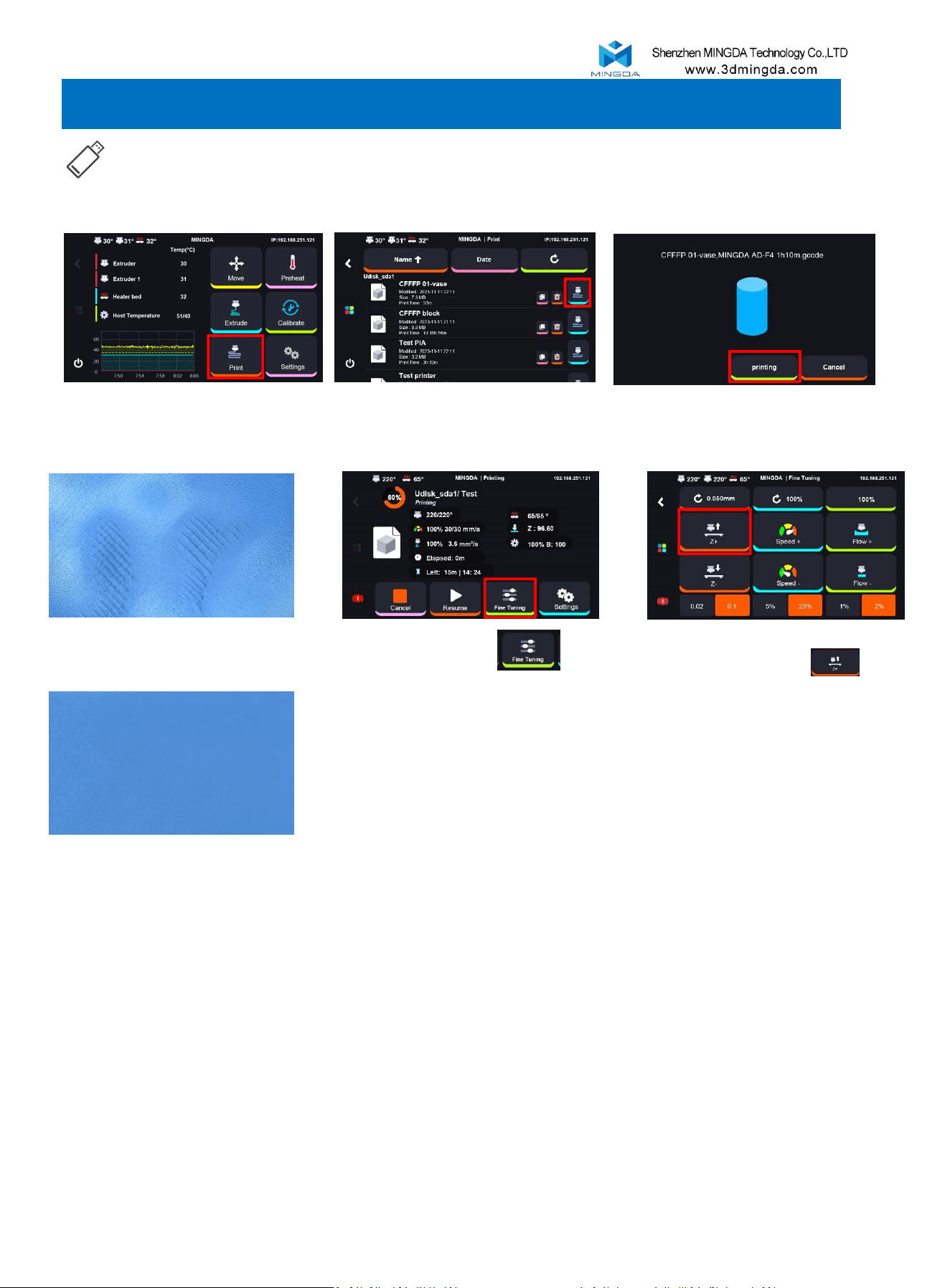

Test Printing
Before printing, please test the gcode which shipped from the printer first
Click “Print”
Click Print icon
7. Printing
22
Observe the first layer during printing
Click Fine-tuning
Select the distance at 0.02 and
increase the Z-offset until the
line is smooth
The final result after adjusting
Printing Tips:
During printing, if the model is too close to or too far from the build plate, you can
use the fine-tuning function to adjust the nozzle height:
1. Tap "Fine Tune".
2. Select a tuning step of 0.02, then use Z+ (raise the nozzle) or Z− (lower the nozzle)
to adjust the height until the extrusion lines are evenly laid and properly aligned.
Proper fine-tuning helps achieve optimal first-layer adhesion and print quality.
The first layer very important
1. There are gaps between each lines, that means the Z-offset
need to be lower.
2. There are waves on the printing surface, that means the Z-
offset need to be higher
Explain:
1. Resume printing after power off
2. Resume printing after filament run out
Printer will pause printing, and
yellow light up.
Replace new filament into the
extruder, click load till the filament
was feed out.
Click “Resume” , continue to
print from the point of interruption.

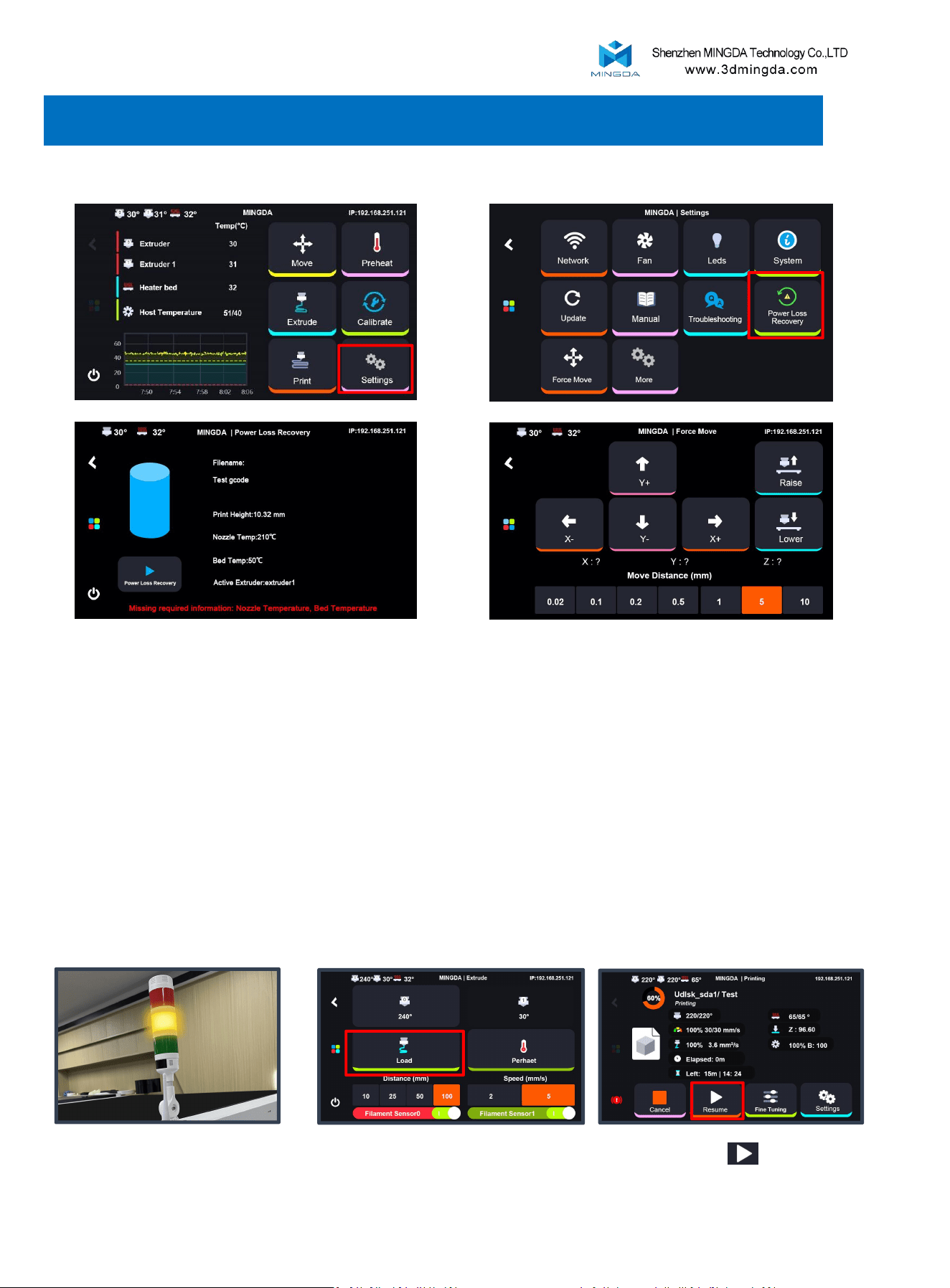

8. Resume Printing
Note:
1. If the printed height is less than 1 mm, resume printing is not supported.
2. Prior to resuming the print, verify whether the nozzle has dropped. If so, use the "Force Move" function to position it
approximately 0.1 mm above the model surface.
3. After resuming the print, closely monitor the printing process and adjust the Z-offset via fine-tuning if necessary.
23
After power is restored, turn on the printer. It will perform a selfcheck. Then go to Settings > Power Loss
Recovery to resume printing.
Upon the first run of Mingda OrcaSlicer,
you will enter the configuration wizard.
Choose the MD-600D model and click "Confirm."
Select the desired filament type.
Installation:
Configuration:
1
2
2
1
Search "www.3dmingda.com/download" in any Browser.
Download "MINGDA OrcaSlicer"
9. Slicing Software Installation and Usage
24

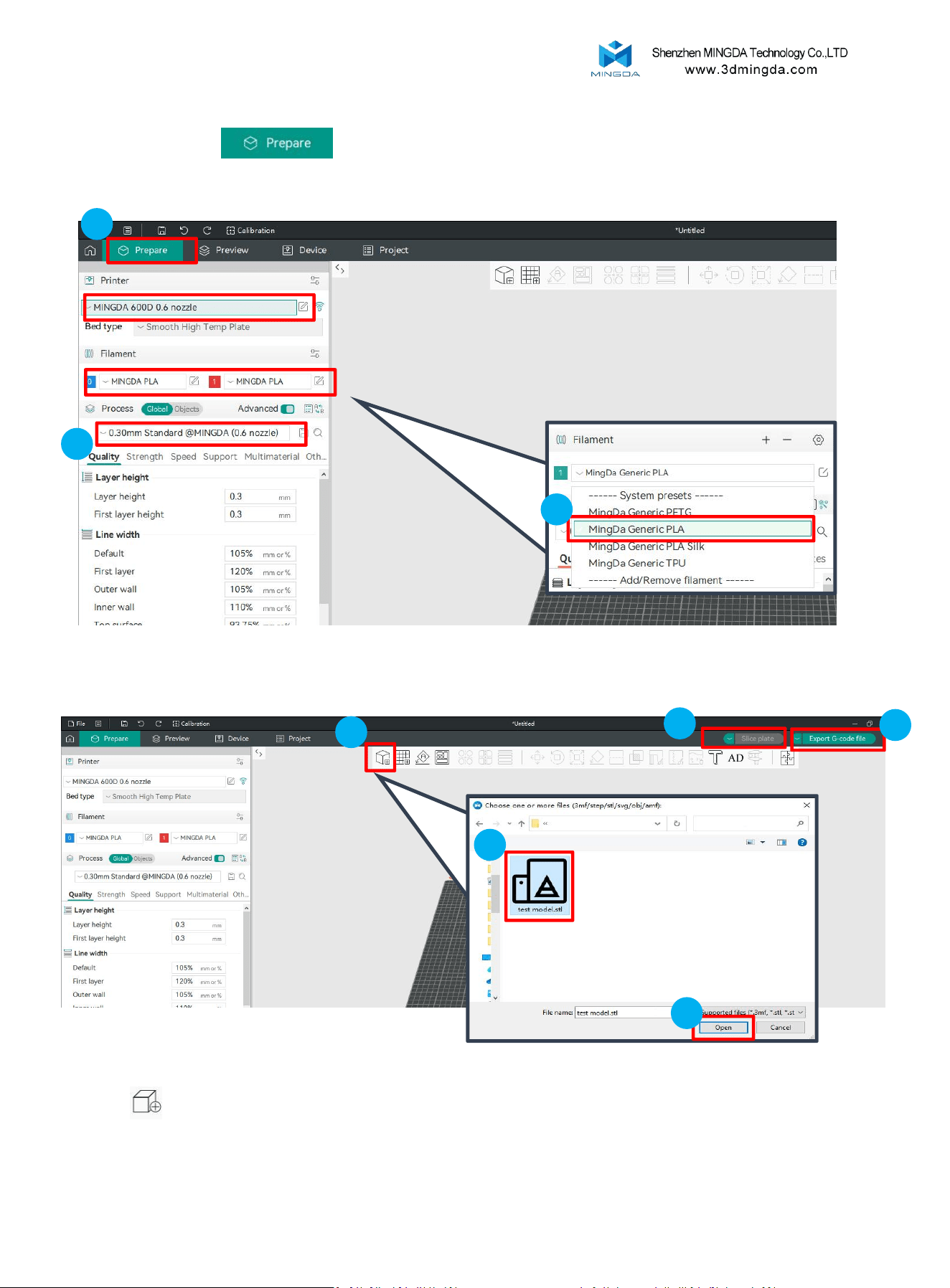

Select the printer model, filament type and printing parameter.
Usage
Click the "Prepare"
1
2
3
1
2
3
4
5
Click , upload your STL in your slicer, adjust your model parameter, after finishing, click “Slice plate” to
create the Gcode file.
25
26
2
3
4
1

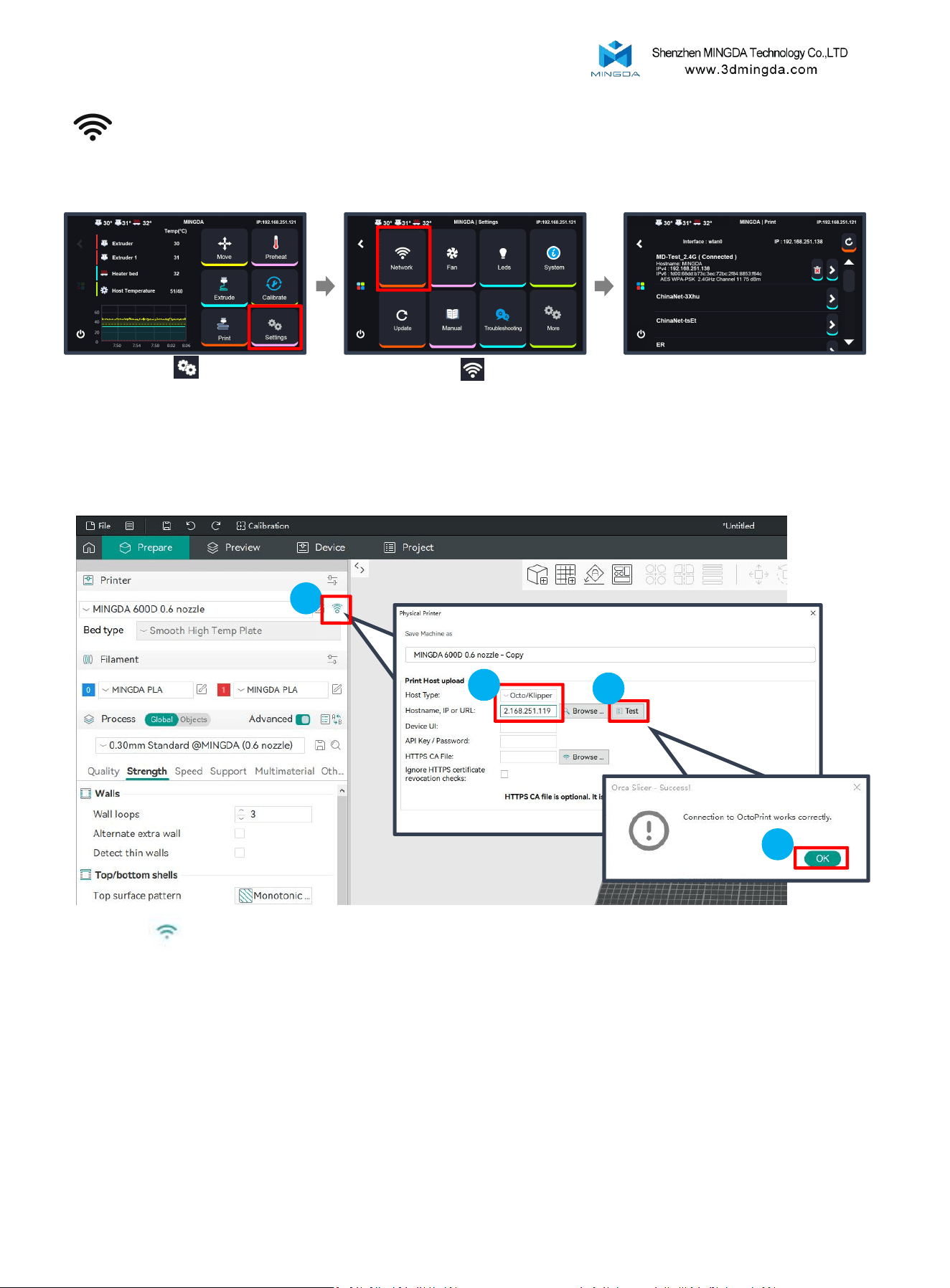

Click WIFI , select Host type as Octo/Klipper, enter the printer’s IP address, and click “Test” and “OK”
LAN Printing (Recommend)
Ensure that the printer and the computer host are on the same local network.
Click "Settings" to enter the
settings page.
Click "Network" to enter
the network page.
Check the printer's IP address.

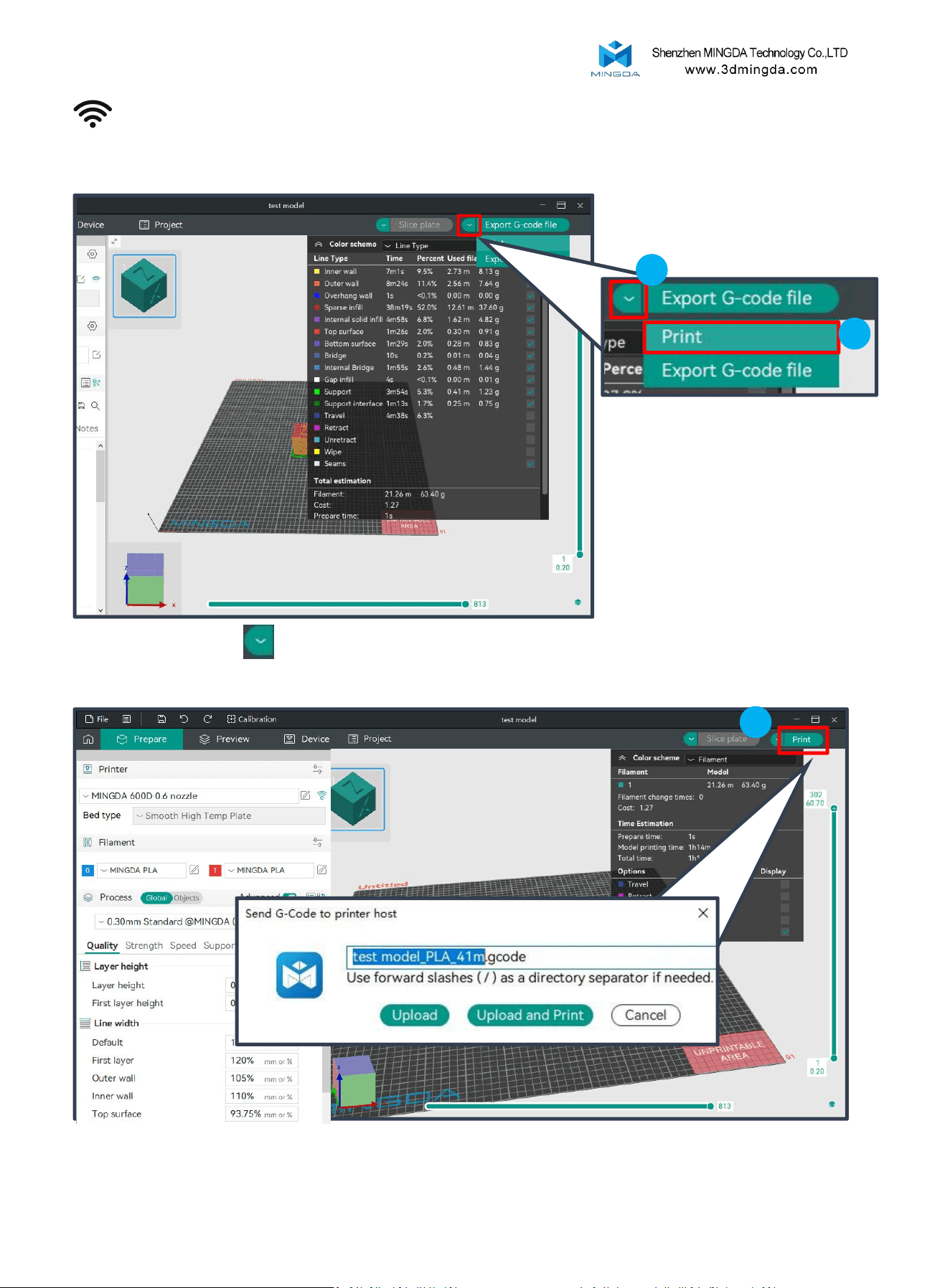

Click the dropdown icon in the top right corner , select "Print."
Click "Print" and choose "Upload and Print".
File Transfer:
1
2
1
2
LAN Printing
27
After successful connection, click on "Device"
Device Connection
1.Task List
4.Movement
Control
2.Temperature Control
5.Printer Limits
6.Console
3.Camera
Enter the control interface below the diagram
1. Task List: Drag G-code files to this task list for printing.
2. Temperature Control: Displays machine temperature changes and allows pre-setting
nozzle and bed temperatures.
3. Camera: Monitors the printing status.
4. Movement Control: Controls the movement of each axis and allows compensation
settings after leveling.
5. Printer Limits: Controls the maximum acceleration of the printer, usually doesn't need
to be changed.
6. Console: Sends G-code commands to run the machine and displays error output.
28

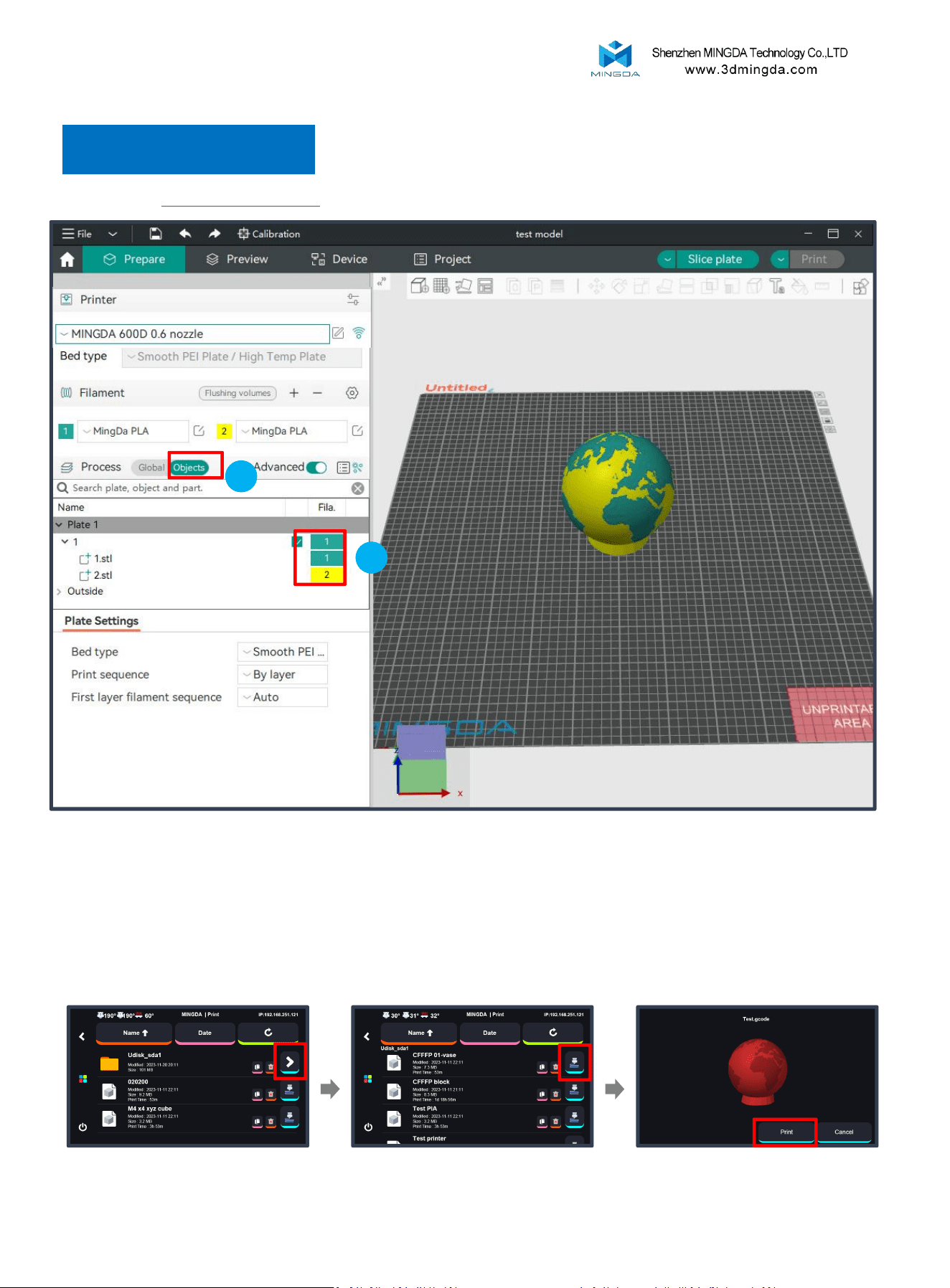

Print Mode
Print Two Colors
Printing size: 600 * 600 * 600mm
Selecting the MingDa 600D 0.6 nozzle
1
1. In the Process section, click to switch to the "Objects" option.
2. Click on the color box next to the STL file to select the desired filament.
2
In the printer interface:
Select "Print", Insert the U-disk. Choose the print file for printing.
Choose “ Print”.
29

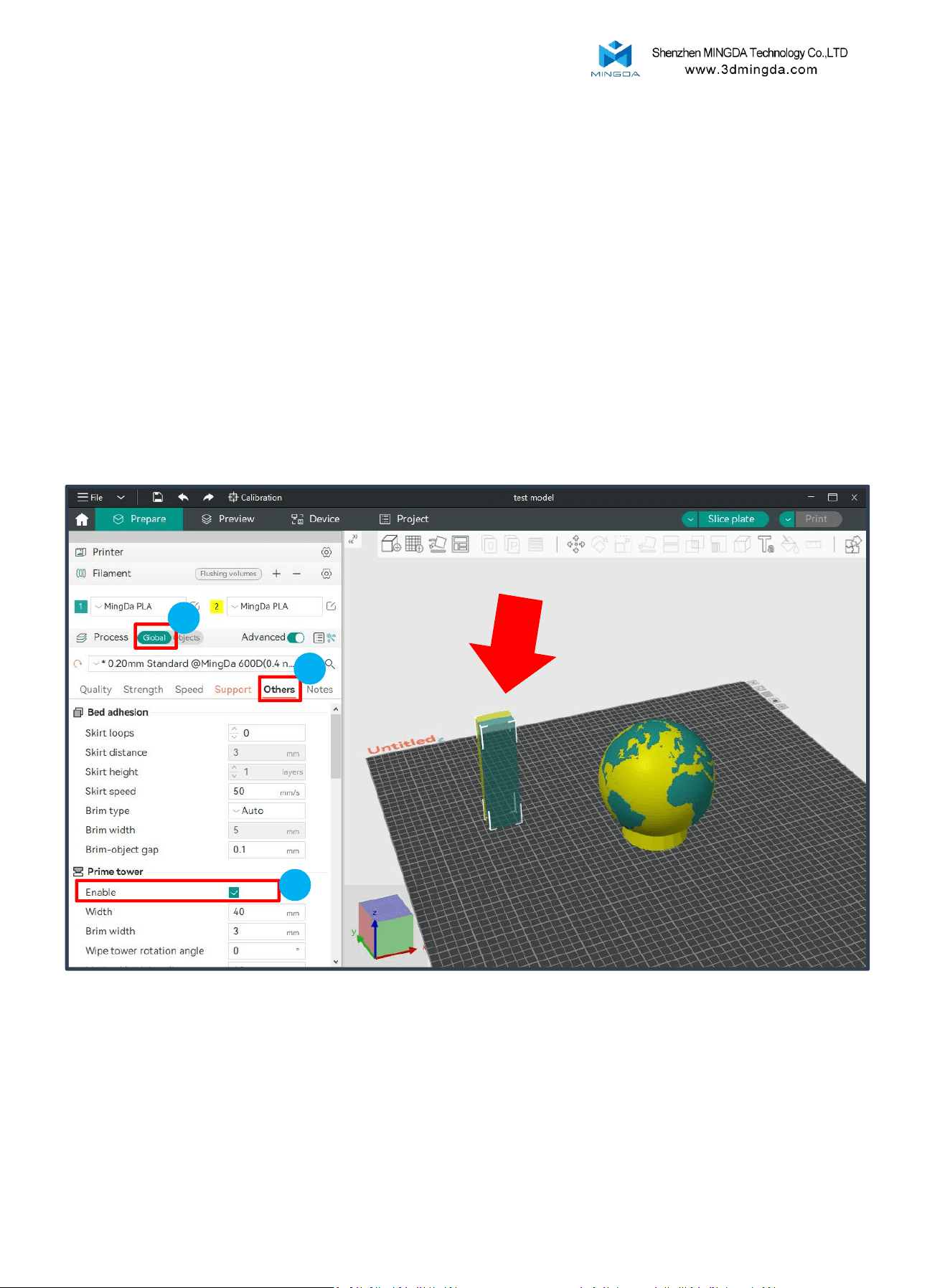

Double extrusion: Start the Prime tower
Because there is always one printer in standby mode during the printing process, it is easy to
cause defects such as wire drawing and material leakage. Prime tower can solve this problem,
the extruder will print a prime tower before each layer printing. Any material leakage will be
printed on the tower, effectively avoiding the phenomenon of material leakage when replacing
the extruder.
If you want to print the following two modes, we recommend adding this option to your Gcode.
2
3
Note: The printing position of the Prime tower cannot coincide with the model
1. Select the "Global" section.
2. Select the "Others" section.
3. Check the "Enable" option in the "Prime tower" settings.
1
30

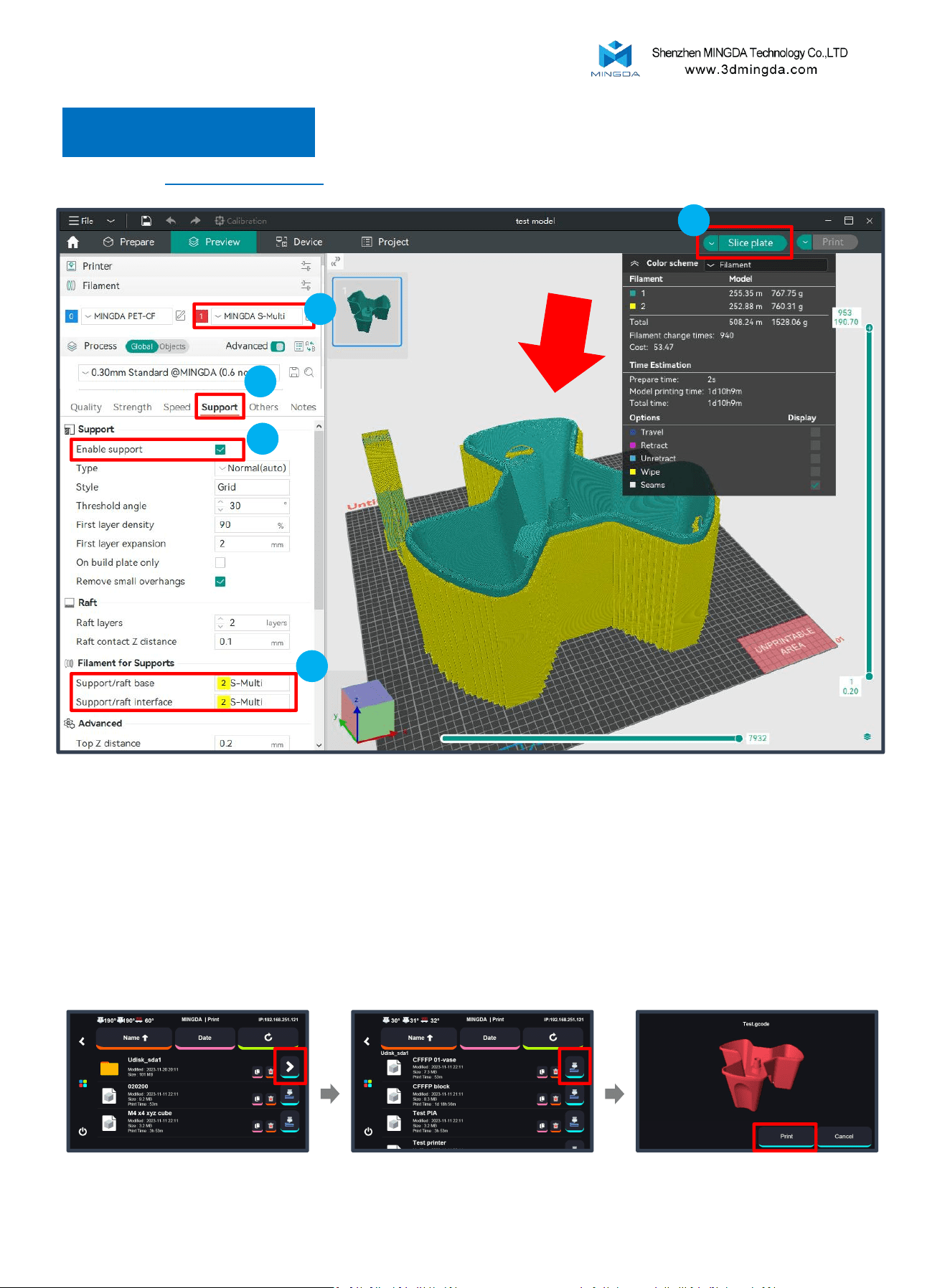

Print Support
Printing size: 600 * 600 * 600mm
Selecting the MingDa 600D 0.6 nozzle
we will take MD-600D as an example
4
2
3
1
5
1. Choose and modify the filament information.
2. Then, select the "Support" section.
3. Check the "Enable support" option.
4. In the "Filament for Supports" option, choose the filament needed for supports.
5. Click "Slice plate" to preview.
In the printer interface:
Select "Print", Insert the U-disk. Choose the print file for printing.
Choose “ Print”.
31
1. Do not allow PET-GF, PET-CF, PA12-CF, HTPA-GF, HTPA-CF, or S-Multi to absorb moisture.
1. Dry the filament before printing as long as you are not sure if the filament is damp.
2. After drying the filament, please store it in filament cabinet with driers
3. If the printer will not be used for an extended period, please store the filament in a sealed container, preferably in a dry
cabinet.
2. Avoid PLA-HF/PETG-HF clogged during printing
1.When printing PLA with a bed temperature above 45 °C, open the front door to prevent heat buildup and extrusion issues.
2.When printing PETG with a bed temperature around 70 °C, open the front door to prevent overheating that may cause
extrusion issues or nozzle clogging.
3. To prevent warping, take caution when printing with ABS-HF, PA12-CF, HTPA-GF, HTPA-CF, ABS-
GF25, ABS-CF20, HtPA-GF25, and HtPA-CF25.
If the model size is large and the fill rate is set high, such as 60% (the default value is 15%), warping occurs and it can be
adjusted down appropriately. In addition, change the fill pattern to a spiral to reduce the risk of shrinkage. For some
structural parts with high strength requirements, you can set 5 layers of walls and a fill rate of about 25%, and try to avoid
using a fill rate of more than 50% to reduce the shrinkage tendency; for most non-structural parts with low strength
requirements, you can directly select the default 2 layers of walls and a fill rate of 15%.
1. Set the nozzle temperature to 250–300 °C.
2. Manually unload the remaining high-temperature filament.
3. Load the new low-temperature filament and manually extrude it.
4. Continue extrusion until all residual high-temp material is flushed out and the new filament flows smoothly.
5. Lower the nozzle temperature to 220–240 °C, and continue extruding while the nozzle cools down to ensure smooth flow
of the new filament.
If extrusion fails during the flushing process, increase the nozzle temperature and consider using a cleaning needle to clear
the nozzle
11. Printing Tips for different filaments
10. Maintenance and Care
Hotend:
If you print high-temperature materials or engineering materials for a long time, the inner wall of the hot end will gradually
carbonize, which will ultimately affect the extruder out of the material is not smooth, if you find that the model has a fault or
spitting material is not uniform, it may be this reason.
Replacing Filaments:
Timely replace filaments based on the type and actual usage. It is recommended to use filaments recommended by the
manufacturer. Seal filament not in use for an extended period, as excessive exposure to moisture in the air can make the
filament brittle.
PEI plate:
Please avoid touch the PEI bed by hand. It can be cleaned by dish soap with warm water and dry it by a clean cloth.
Regular Lubrication:
Once every 3 months. Home the printer first and grease it and move the Z+ to the top, then home the printer and grease again
until the screw rods full with the grease, after that clean the excess grease. If there are noise during moving. You can grease
the oil on the idler wheels when there are noise.
Software Updates:
Regularly update the printing software to improve print quality and efficiency.
4. After printing with high-temperature materials such as PA-CF, PET-CF, or PET-GF, and before
switching to low-temperature, lower-hardness materials like PLA or PETG, it is recommended
to follow these steps:
32
Shenzhen MINGDA Technology Co., Ltd
Email: support@3dmingda.com
www.3dmingda.com
Address: No. 19, Dahe Industrial Zone, Longhua District,
Shenzhen, 518110, Guangdong Province, China.
Customer SupportOfficial Website
