User Manual
HALOT-SKY 2025 3D Printer
V 1.2
HALOT-SKY 2025
Thank you for choosing Creality products. This quick guide introduces the steps for unboxing, installation, and debugging. Please read it carefully before use.
For more detailed instructions, unboxing videos, and after-sales seice tutorials, please visit the Creality Wiki platform.
The Creality team is always ready to provide you with quality seice. If you encounter any problems during use, please contact us through the phone number
and email provided at the end of this quick guide.
Dear
Users
Bought a product but don't
know how to use it?
Don't wor, all your
confusions will be resolved!
Creality ocial Wiki
Comprehensive understanding of the new product,
immersive exploration of its features.
Detailed operation guides to help you get staed
eolessly.
Professional after-sales suppo platform oering
ecient solutions.
https://wiki.creality.com
Creality Cloud
Creality Cloud – Your 3D
Printing Universe Awaits!
Discover the all-in-one 3D
printing platform designed
for all enthusiasts.
https://www.crealitycloud.com
Access a vast libra of high-quality models.
Built-in cloud slicing and Print Settings make printing
easier than ever.
Control remotely and print with just one click, anytime,
anywhere.
感谢您选择创想三维的产品，本快速指南为您介绍产品开箱、安装及调试等步骤，请在使用前仔细阅读；
如需更详细的说明书、开箱视频及售后服务教程，可前往 Creality Wiki 平台获取；
创想三维团队随时为您提供优质服务，使用中遇到问题，请依据快速指南结尾提供的电话、邮箱与我们联系。
尊敬的
用户
https://wiki.creality.com
全方位认识新品，沉浸式探索产品功能
详尽的操作方案，助您轻松上手
售后专业辅助平台，提供高效的解决方案
创想三维官方Wiki
产品买回来，不知怎么用？
别担心，困惑一网打尽！
玩3D打印，上创想云
丰富、便捷、有趣的
一体化3D打印平台
创想云
https://www.crealitycloud.cn
丰富优质的模型库，让灵感触手可及
云切片、免切片免调参，自由选择
手机远程控制，随时随地一键打印
NOTES 使用须知
请勿尝试任何使用说明中没有描述的方法来使用本机，避免造成意外的人身伤害和财产损失;
请勿将打印机放置在振动较大或者其他不稳定的环境内，机器晃动会影响打印机打印质量;
建议使用厂家推荐耗材，以免造成机器损坏;
请勿将本机放置在易燃易爆物中或高热源附近，请将本机放置在通风、阴凉、少尘的环境内;
请勿在安装过程中使用其他产品电源线代替，请使用本机附带的电源线，电源插头需接插在带有地线的三孔插座;
请勿在操作打印机工作时打开打印机面盖，以免影响打印;
请勿在操作打印机时戴棉手套，以防可动部件对人身造成卷入挤压和切割伤害;
在打印完毕后稍等片刻，带上手套后再取下打印平台，借助工具将平台上的模型取下，清理时请勿直接用手触摸;
常做产品维护，定期在断电的情况下，用干布对打印机做机身清洁，拭去灰尘和粘结的打印材料、导轨上的异物;
年龄在��岁以下的儿童，请勿在没有人员监督的情况下使用本机，以免造成人身伤害;
本机设有安全保护机制，请勿在开机状态下手动快速移动喷头或打印平台机构，否则设备会自动断电关机保护;
Do not use the printer any way other than described herein in order to avoid personal injury or property damage.
Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment.
Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
Please use recommended resin for not to damage the machine.
Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.
Please do not open the plastic cover during usage, otherwise the printing will be interrupted.
Do not wear cotton gloves when operating the printer, avoiding the burns, injury and machine damage caused by the moving parts.
Please wait a moment after the print is finished. And please wear gloves to take out the print by tools.
Children under �� years should not use the printer without supervision.
�
�
�
�
�
�
�
�
�
��
��
��
�
�
�
�
�
�
�
�
�
��
��
��
This machine is equipped with a security protection mechanism. Do not manually move the nozzle or printing platform mechanism manually while booting
up, otherwise the device will automatically power off for safety.
Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics or any other material off the frame,
guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface.
使用者应遵守设备所在地（使用地）相应国家、地区法律法规，恪守职业道德，注意安全义务，严禁将我司的产品或设备使用在任何非法用途上。
如有违反者所应承担的相关法律责任我司概不负责。
Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to
safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Piocreat will not be responsible for any violators' legal liability under any circustance.
�. Introduction 设备简介 ��-��
�. Package Content 装箱清单
��-��
�. Equipment Parameters 设备参数
��-��
��-��
�. Cleaning Menu 清屏菜单
��-��
�. Z-axis Movement Menu Z轴运动菜单
��-��
�. First Print Guide 首次打印指引
��-��
�. Connect to Network/Creality Cloud 设备联网、接入创想云
��-��
�. Export a Slice to USB 导出切片到U盘
��-��
�. Send a Slice Via WiFi 切片无线发送
��-��
��. Level Platform 调平平台
��-��
��. Hardware Interface Diagram 硬件接口示意图
��-��

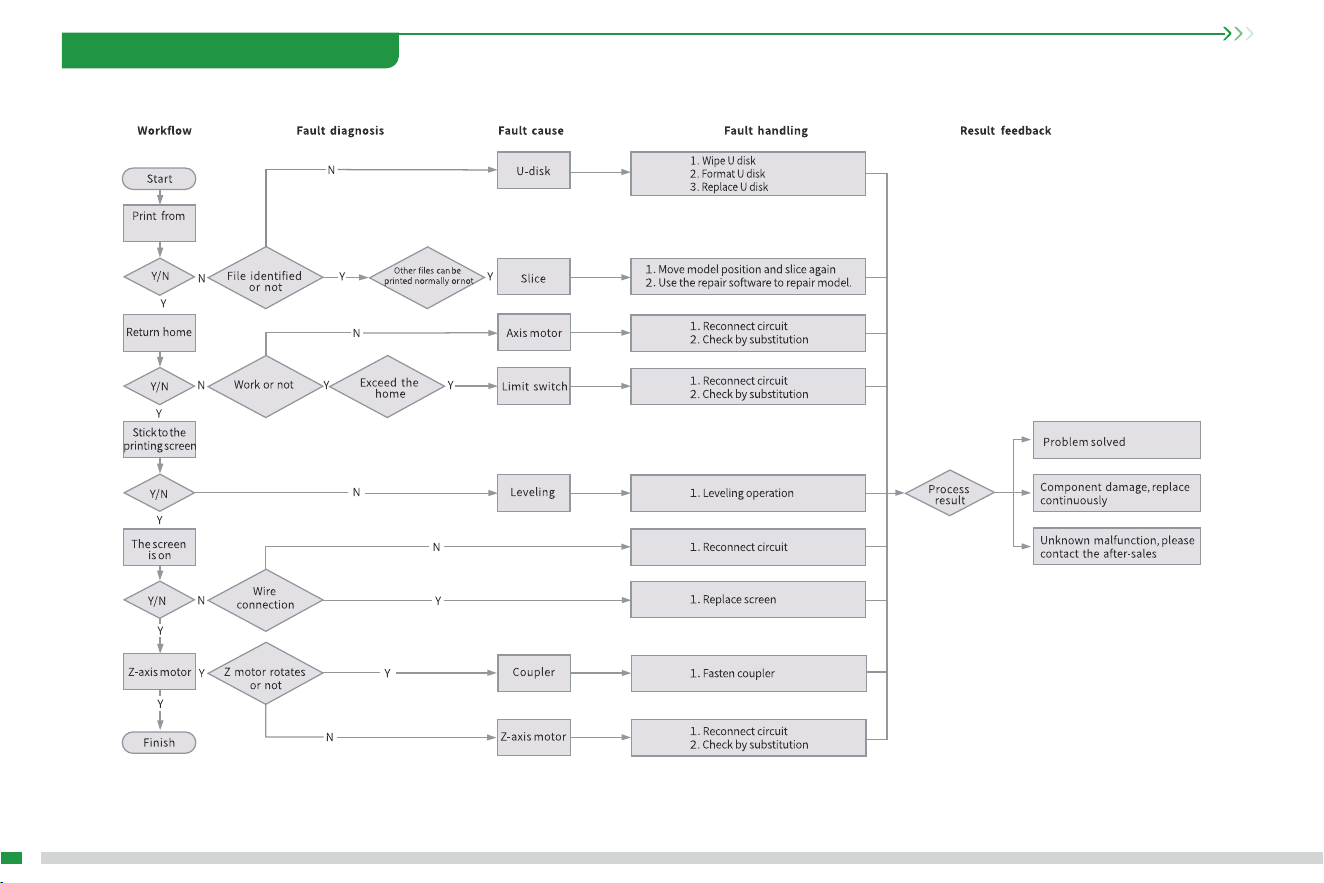

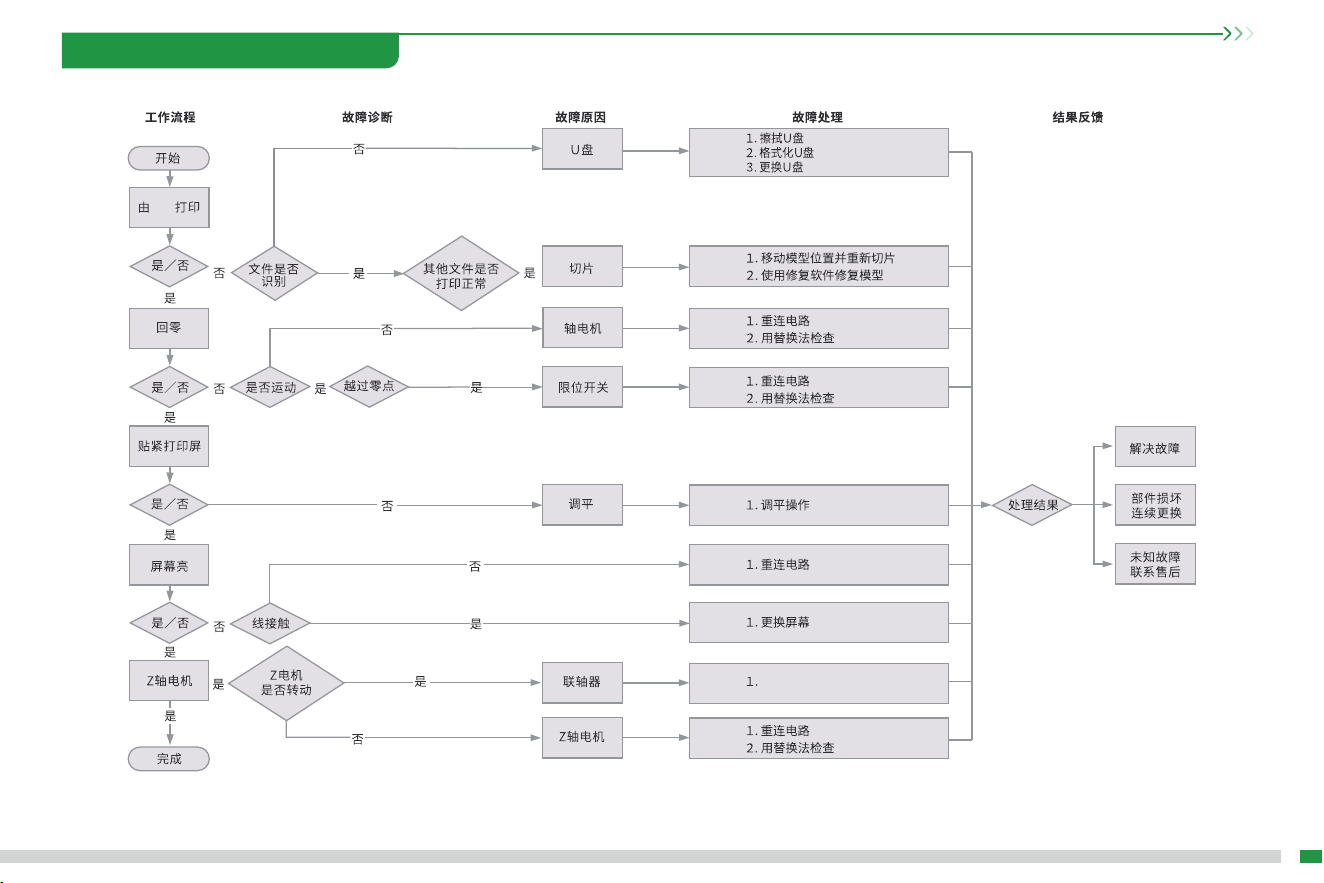

��. Troubleshooting 故障检修
��-��

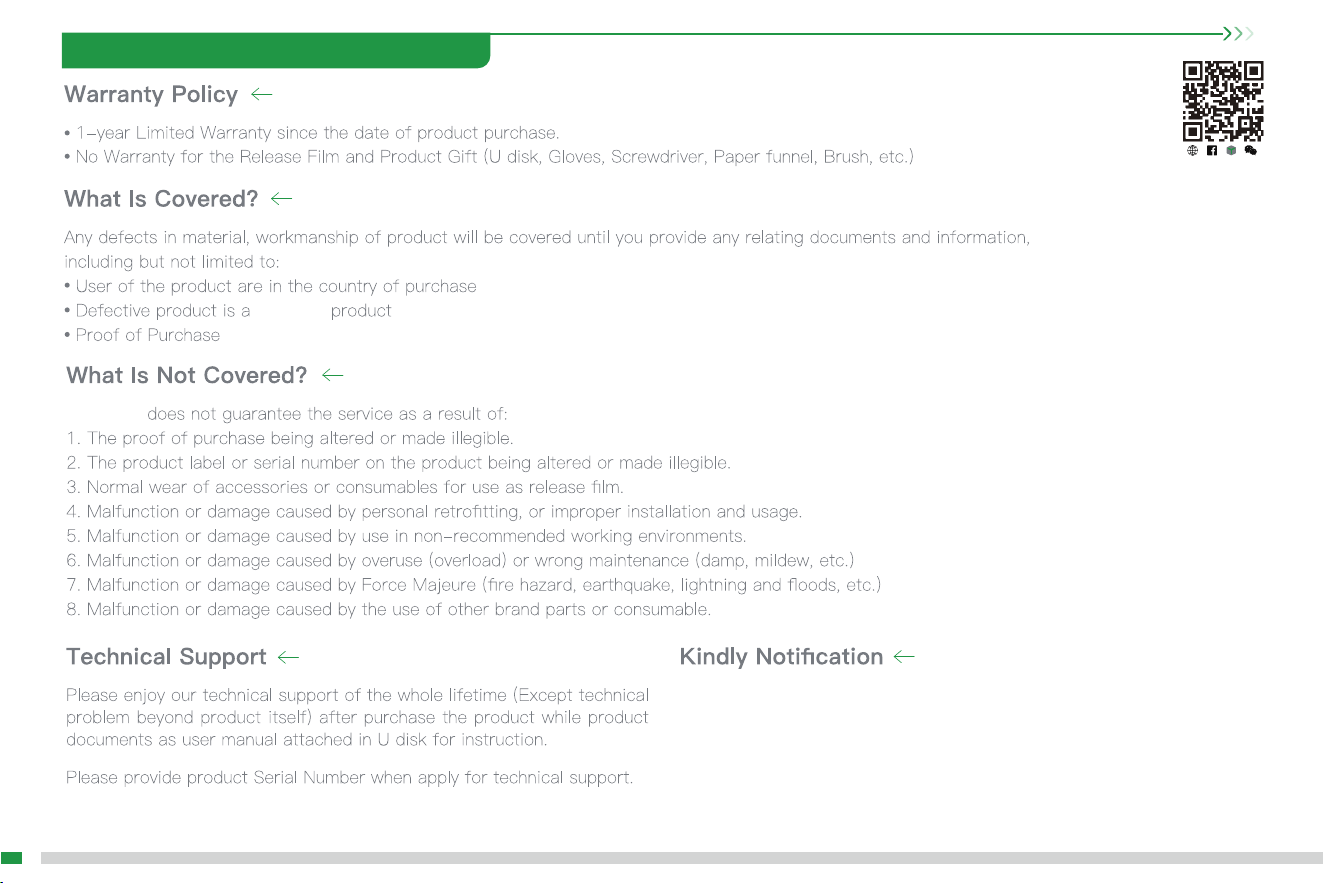

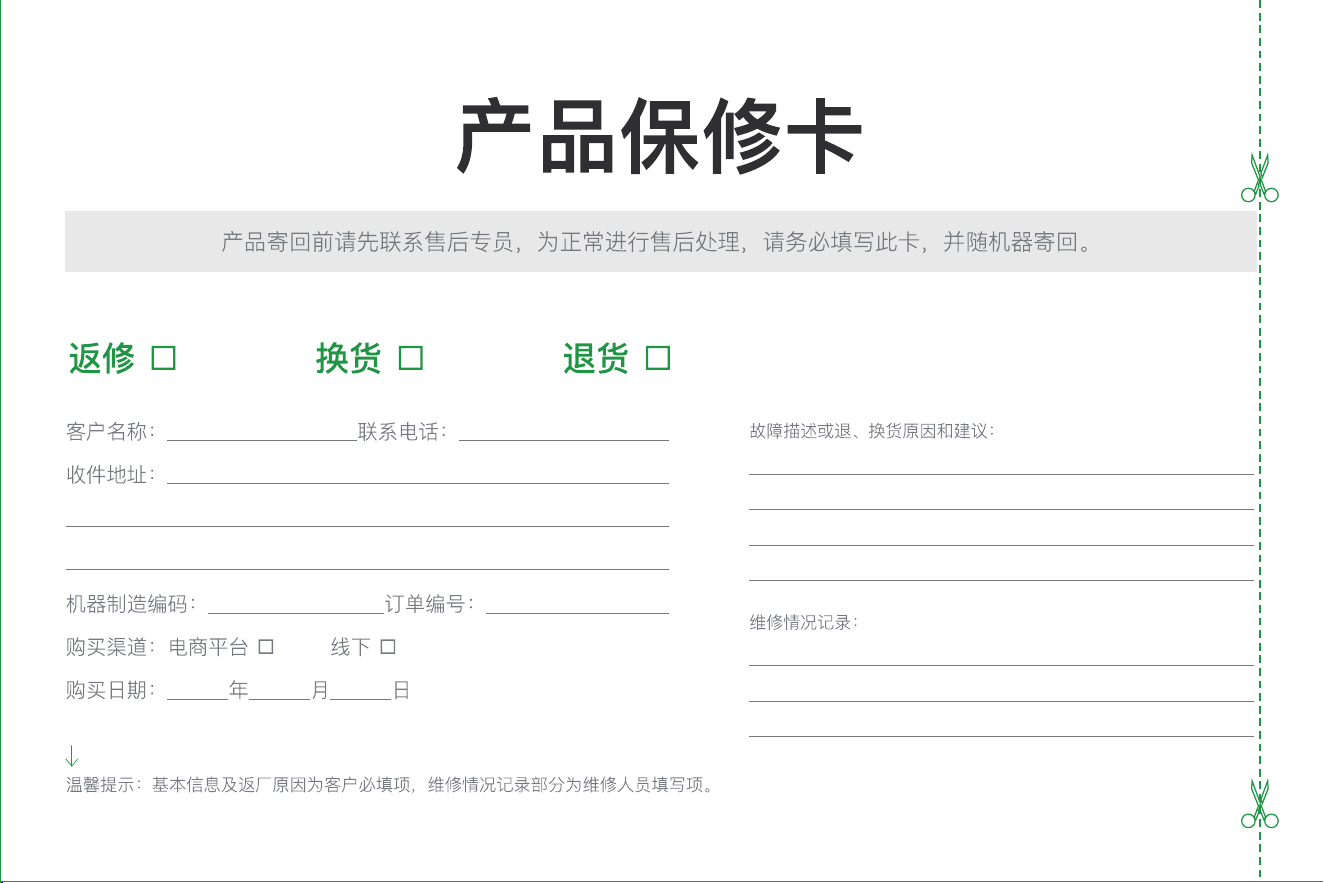

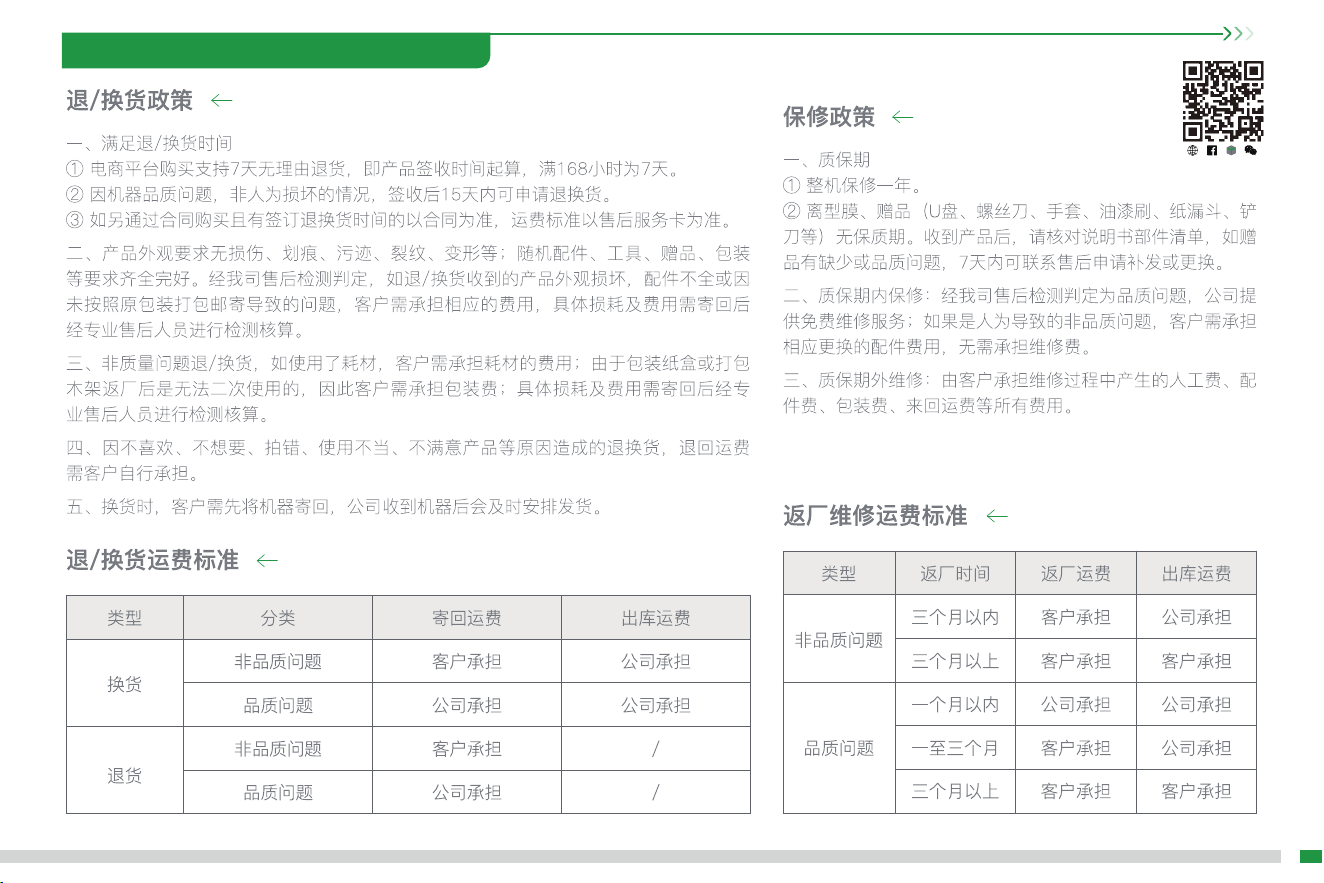

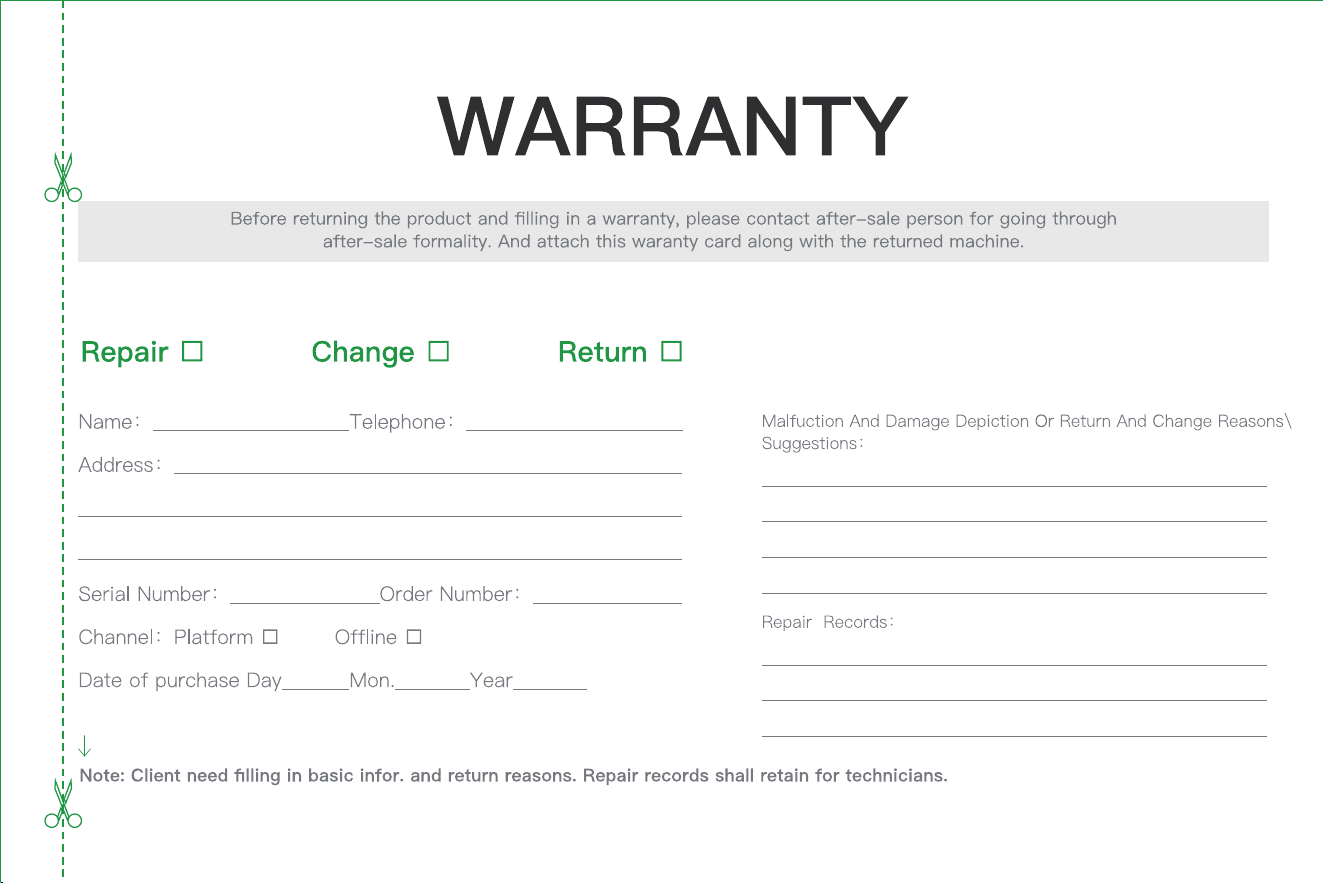

��. After-Sales Service Card 售后服务卡
Content 目录
Exhaust fan
排气风扇
�
Resin vat
料盘
�
Touch screen
显示屏
�
USB port
USB接口
�
��
Power port
电源接口
Limit switch
限位开关
Platform screws
平台手拧螺丝
Leveling screw
调平螺钉
�
�
�
Vat latch �
成型平台
Buliding platform
�
�. Introduction 设备简介
��
料盘把手
1
2
3
4
5
6
7
8
9
10
��
�. Package Content 装箱清单
Tool list 工具包清单
Tips: the above accessories are for reference only, in kind prevail! 注意：以上配件仅供参考，请以实物为准！
U disk × �
U盘
�
Plastic blade × �
塑胶铲刀
�
Metal blade × �
金属铲刀
�
�
Brush × �
油漆刷
Hex Keys Set × �
内六角扳手工具包
�
�
纸漏斗
Resin filter × �
一次性乳胶手套
Disposable latex
gloves × �
�
�
Power cord × �
电源线
�D printer | 打印机 x �
�
Print platform | 打印平台 x �
Resin vat | 料盘 x�
离型膜
�
Release film �
��
Tube adaptor × �
管路转接器
排气管
Exhaust tube × �
��
校准卡片
��
Calibration card �
Calibration Card
校准卡片
��
�. Equipment Parameters 设备参数
Model | 型号 HALOT-SKY ����
LCD screen | LCD屏 ��.�"��K Ultra HD Mono LCD | ��.�寸��K超高清单色屏
���-���V ～, ��/��Hz
U disk | U盘 / WIFI
��*��μm
�.��-�.�mm(layer thickness | 层厚)
���W
���×���×���mm (length×width×height) | ���×���×���mm（长×宽×高）
���×���×���mm (length×width×height) | ���×���×���mm（长×宽×高）
��.�kg
��.��kg
�����*����px
High Fidelity Model Resin、Flexible、ABS、 Transparent、Water Washable resin、Standard resin、
Hight hardness、 High toughness、Biocompatible Resin.
高精度哑光树脂、柔性树脂、类ABS、高透、水洗、普通刚性光敏树脂、高硬度、高韧性树脂、生物相容性树脂
UV integrated lamp bead (wavelength ���nm) | 紫外线集成灯珠(波长���nm)
HALOT BOXSoftware | 软件
Nominal power | 额定功率
Print size | 成型尺寸
X/Y-axis resolution | X、Y分辨率
Machine weight | 机器重量
Machine size | 设备尺寸
Package size | 包装尺寸
Gross weight | 机器毛重
Input voltage | 额定电压
Print method | 打印方式
Print speed | 打印速度
Special resin | 专用耗材
Light source configuration | 光源配置
XY axis accuracy | XY轴精度
Z-axis resolution | Z轴精度
Basic Parameters 基本参数
���mm/h（�.�mm）
���.��×���.��×���mm (length×width×height) | ���.��×���.��×���mm（长×宽×高）
�. Cleaning Menu 清屏菜单
��
Note: Check whether the light source is normal when clearing the screen. The UI is only for reference only and shall be subject to the actual UI.
注意: 清屏时检查光源是否正常。界面仅供参考，实际以固件UI为准。
清屏： 点击可进行料槽清理；
Z轴运动：点击可设置归零和调平；
打印设置： 点击可进行打印参数、设备控制等功能设置；
系统设置： 点击可进行设置网络、设置语言及区域、
升级固件版本（本地升级&网络升级）、
查看设备信息、恢复出厂设置等功能设置。
Cleaning: material tank cleaning；
Z-axis movement: Back to Zero and leveling;
Print settings: printing parameters, device
control,etc.
System settings: set network, set language
and region, upgrade firmware version
(local upgrade & network upgrade);
view device information, restore factory settings.
��
�. Z-axis Movement Menu Z轴运动菜单
Note: The UI is only for reference only and shall be subject to the actual UI.
注意：界面仅供参考，实际以UI为准。
Rise the platfrom to zero position;
Homing:
Lower the platform for leveling.
Leveling:
打印平台上升回到零点；
归零：
降低平台完成调平操作。
调平：
��
�. First Print Guide 首次打印指引
Pour the UV photosensitive resin into the resin vat.
The slot capacity is ���ml.
将�D打印机 UV 光敏树脂倒入料盘，
槽位容量：���ml。
Both USB ports can be used for inserting the USB drive
and importing the slices
两个USB接口均可以用于连接U盘导入切片。
Caution ：Resin may cause skin irritation or an allergic
skin reaction. Please wear gloves before use to avoid
direct contact with the skin.
警示：请戴上手套方可进行装料，光敏树脂为刺激性材料,避
免接触到皮肤。
How to change resin:
提示：如何更换耗材？
将料盘缓缓取出，把剩余树脂倒入容器，清洗干净料盘，重新倒入新树脂，再把料盘安装到机器即可。
Tips：
Take out the resin vat slowly, pour out the remaining resin into the container, clean the resin
vat, pour in new resin, and then install the resin vat to the machine.
���ml
�. Add resin | 加入树脂
�. Insert the USB stick | 插入U盘
�
�
��

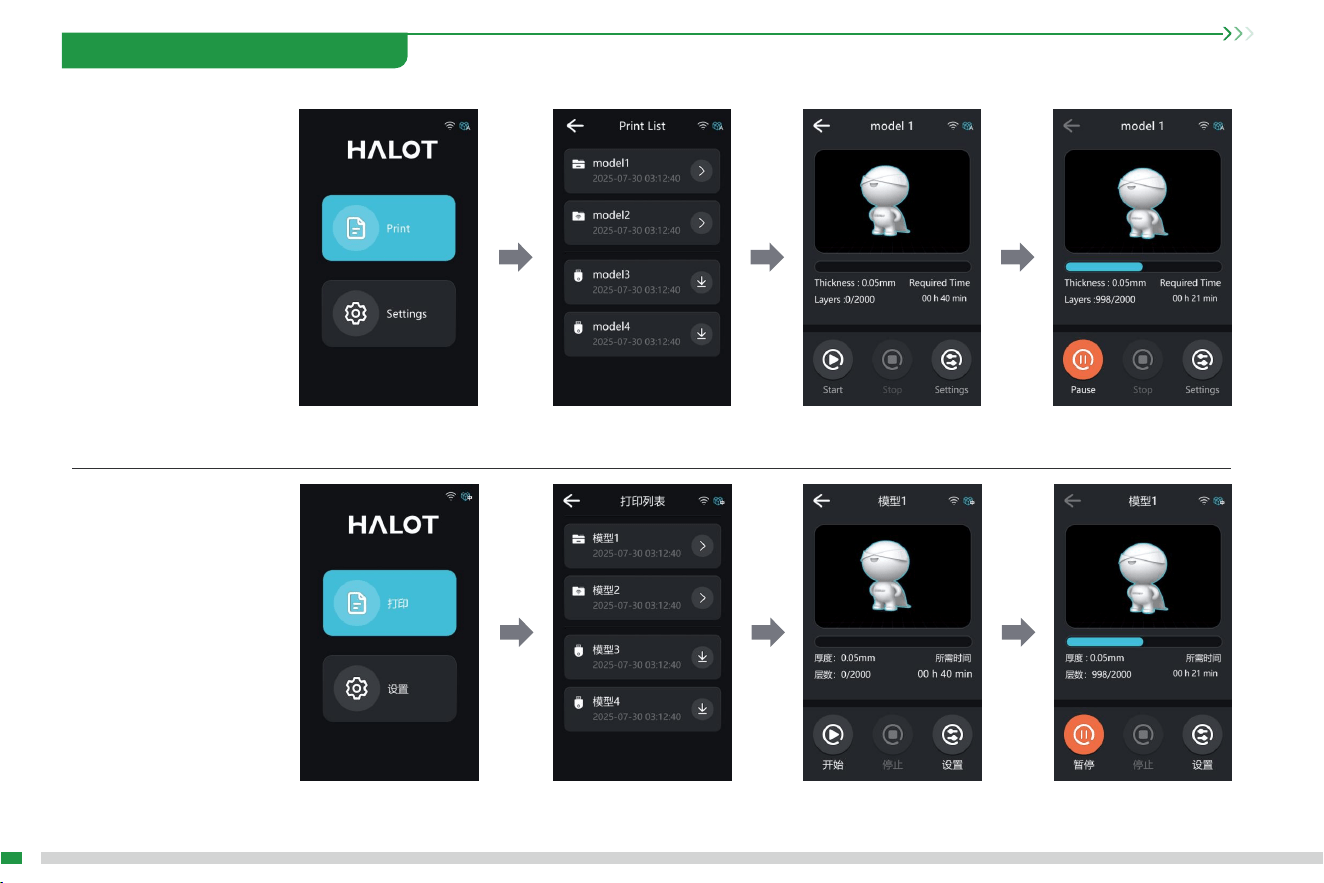

�. 选择U盘文件 �. 按下开始键 �. 正在打印中···
�. Select USB disk files �. Press "Start" button �. Printing···
�. First Print Guide 首次打印指引
�. Print selected slice
�. 选择切片打印
��

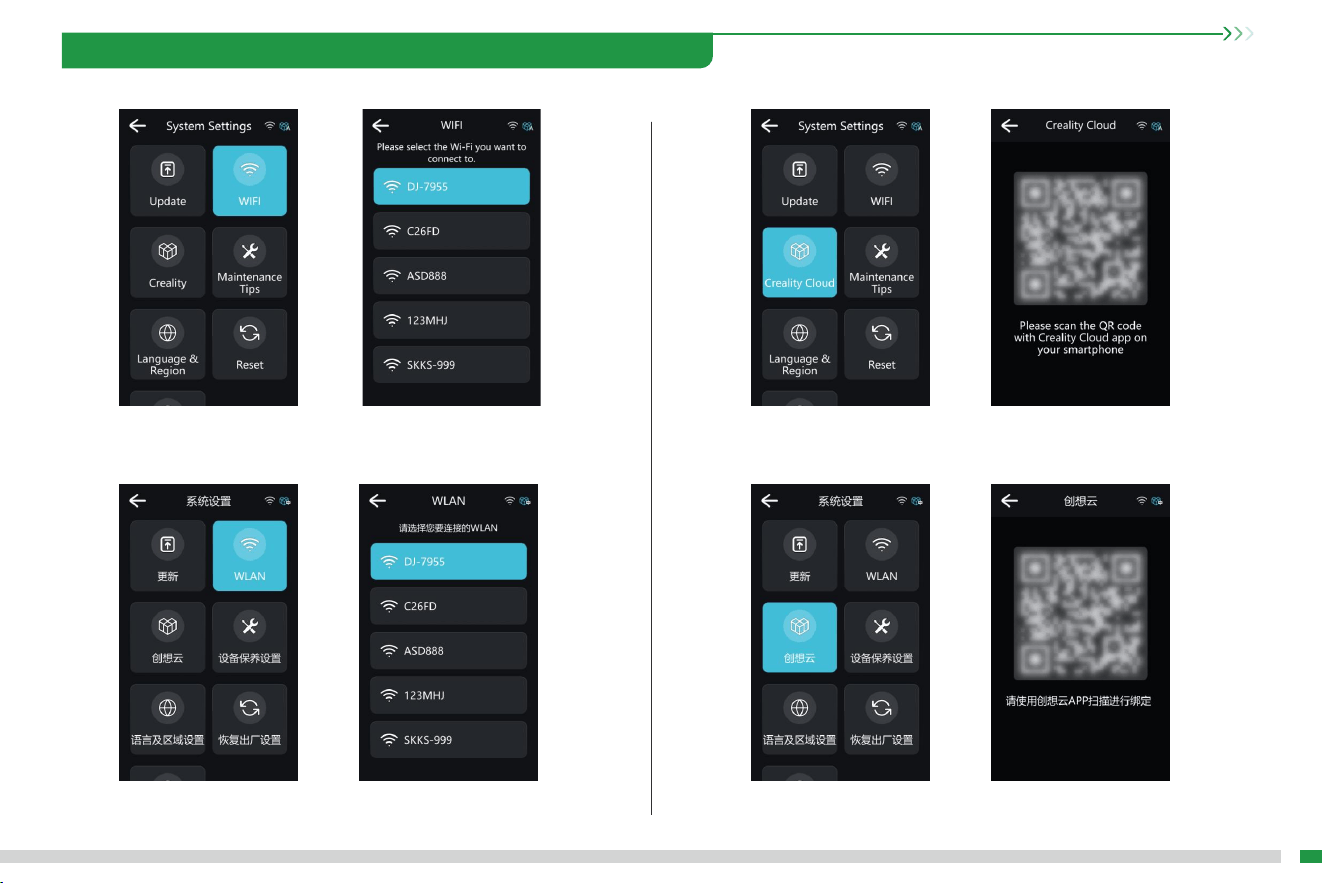

�. Connect to Network/Creality Cloud 设备联网、接入创想云
In the main interface of the device, go to “Settings” → “System Settings” → “WIFI”,
select the Wi-Fi you want to connect to, and network the device.
Install the "Creality Cloud" app on your smartphone → Register an account;
In the main interface of the device, go to “Settings” → “System Settings” → “Creality Cloud”,
and use the Creality Cloud app to scan the code to bind the device.
手机安装“创想云”APP→注册账号；
设备主界面进入“设置”→“系统设置”→“创想云”，使用创想云APP扫码进行绑定设备。
设备主界面进入“设置”→“系统设置”→“WLAN”中，
选择需要连接的WLAN，为设备联网。
��
�. Slice
HALOT BOX
HALOT BOX
Note: The published UI of slicing software shall prevail for the interfaces of HALOT BOX .
�. Export a Slice to USB 导出切片到U盘
1. Open the HALOT BOX slicing software
→ ①Click the right printer column“ ” to select the device model
→ ②And click "Open" on the top left of the inteace to impo the model le
�. Setting Printing Parameters (to use Default-Parameters,skip this step)
→➀Click the " " icon in the Parameter Configuration
→ ➁Set the appropriate parameters
→ ➂Click "Add"
�. Add support to the model (skip steps ➀ and ➁ if no support is added)
→➀Click the icon above →➁Set the corresponding parameters
→➂Click the slice
�. Waiting for the auto slicing to complete
(you can adjust the print parameters as required)
→Click "Export to local" icon to save the sliced file
①
②
➂
➁
➀
➁
➂
➀
��
�. 打开HALOT 切片软件
→ ➀点击右侧打印机栏“ ”，选择打印机
→ ➁在界面的左上方点击“ 打开 ” 导入模型文件
注意：HALOT BOX 的界面均以发布的切片软件UI为准。
①
②
➂
➁
➀
➁
➂
➀
�. 设置打印参数（选择默认参数可跳过该步骤）
→➀点击参数配置中的“ ”→➁设置相应参数
→➂点击添加
�. 模型添加支撑（无需添加支撑跳过➀➁步骤）
→➀点击上方图标 →➁设置相应参数 →➂点击“下一步”
�. 等待切片完成（可根据需求调整打印参数）
→选择“导出到本地”另存切片完成的文件
�. 切片
HALOT BOX
HALOT BOX
�. Export a Slice to USB 导出切片到U盘
��
�. 插入U盘→按下打印按键
U盘接口
�. 导入
�. 生成 .cxdlpv� 文件→保存文件到U盘
�. Insert the U disk → press the print button
�. Importing
�. Generate .cxdlpv� file，and save the file to U disk
USB port
Warning: During the printing process the machine can’t be shaken, so
as not to avoid influencingaffect the printing quality.
Note: The UIinterface is for reference only,and shall be subject to the actual UI.
注意：界面仅供参考，实际以UI为准。
警告:在打印过程中，机器不能摇动，以免影响打印质量。
�. Export a Slice to USB 导出切片到U盘
��
�. Send a Slice Via WiFi 切片无线发送
Note: Make sure the HALOT BOX and the printer are
connected to the same WiFi.
➁
➂
➀
�. Waiting for the auto slicing to complete
(you can adjust the print parameters as required)
→Click "Sent to Printer"icon to use WIFI-printing
�. Add support to the model
(skip steps ➀ and ➁ if no bracket is added)
→➀Click the icon above →➁Set the corresponding parameters
→➂Click "Next"
�. The software will automatically search and display
the IP addresses of printers under the same WIFI.
Check the checkbox on the right side of the printer model
you want to adapt and click “OK”.
When the transfer is complete, select the file on the
corresponding printer to start printing.
Slice
HALOT BOX
HALOT BOX
①
②
➂
➁
➀
1. Open the HALOT BOX slicing software.
→ ①Click the right printer column“ ” to select the device model
→ ②And click "Open" on the top left of the inteace to impo the model le
�. Setting Printing Parameters (to use Default-Parameters,skip this step)
→➀Click the " " icon in the Parameter Configuration
→ ➁Set the appropriate parameters
→ ➂Click "Add"
��
➂
➁
➀
�. 设置打印参数（选择默认参数可跳过该步骤）
→➀点击参数配置中的“ ”→➁设置相应参数
→➂点击“添加”
①
②
�. 打开HALOT BOX 切片软件
→ ➀点击右侧打印机栏选择设备型号
→ ➁然后在界面的左上方点击“ 打开 ” 导入模型文件
�. 等待切片完成（可根据需求调整打印参数）
→选择“下发到打印机”
进入WIFI打印
�. 模型添加支撑（无需添加支撑跳过➀➁步骤）
→➀点击上方图标 →➁设置相应参数 →➂点击切片
�. 软件会自动检索并显示同一WIFI下的打印机IP，
勾选所需适配打印机机型右侧勾选框后点击“确定”，
待传输完成后在对应打印机上选择该文件开始打印。
注意：确保HALOT BOX与打印机连接同一WIFI。
切片
HALOT BOX
HALOT BOX
➁
➂
➀
�. Send a Slice Via WiFi 切片无线发送
��
��. Level Platform 调平平台
�. Remove the resin tank �. Place the calibration card
Fastening screws Set screws
�. Loosen the platform screws �. Lower the platform
Note: The printing platform has been leveled at the factory. If it needs leveling due to transportation or
other reasons, please follow the steps below to adjust the printing platform.
To calibrate the build platform, first go to the settings menu and click
"Homing" for the platform. Turn the handles on both sides of the resin
tank to remove it.
Use a hex key to counterclockwise loosen the fastening screws and set screws
on the platform in sequence until the platform is loose.
Click "Leveling" in the settings menu until the platform descends
and contacts the calibration card.
As shown in the figure above, place the calibration card on top of
the LCD screen.
��
��. Level Platform 调平平台
在设置菜单中，点击平台“归零”，向外转动料槽两侧把手，将料槽取出。 如上图所示，将校准卡片放置在LCD屏幕上方位置。
�. 取出料槽 �. 放入校准卡片
用内六角扳手依次逆时针拧松平台上的紧固螺丝和顶丝，直到平台松动。
紧固螺丝
顶丝
在设置菜单中点击“调平”，直到平台到位接触校准卡片。
�. 拧松平台螺丝 �. 降低平台
注意：打印平台出厂时已调平，若因运输或其他原因需要调平，可以进行以下步骤进行打印平台调平。
��
�. Adjust the set screws �. Adjust the fastening screws
In settings menu, click "Homing". The platform will rise to the highest position
and stop automatically.
Remove the calibration card, install the resin tank, turn the handles
on both sides to lock the resin tank in place, completing the
platform leveling process.
�. Home the platform �. Reinstall the resin tank
��. Level Platform 调平平台
Press gently on the center of the platform with one hand, then clockwise adjust
the four set screws until all four corners of the platform are snug against the
calibration card, and the card cannot be pulled out or meets significant resistance.
Then, clockwise tighten the four fastening screws in sequence
until the platform is secure and does not move.
Fastening screws Set screws
��
一只手轻压平台中心，先顺时针调节�个顶丝，直至平台四个角都贴紧
校准卡片，校准卡片无法抽出或有较大阻力。
再依次顺时针拧紧�个紧固螺丝，直至平台稳固不松动。
�. 调节顶丝 �. 调节紧固螺丝
在设置菜单中,点击“归零”，平台上升到最高位置自动停下。 取出校准卡片，装上料盘，向内转动料槽两侧把手，将料槽锁定，
完成平台调平。
�. 平台归零 �. 装回料槽
��. Level Platform 调平平台
紧固螺丝
顶丝
��
��. Hardware Interface Diagram 硬件接口示意图
Adapter board circuit wiring diagram
转接板电路接线示意图
Motherboard Interface
主板接口
Fan � Interface
风扇�接口
Fan � Interface
风扇�接口
Air Circulation Fan Interface
空气循环风扇接口
Power Interface
电源接口
Motor Interface
电机接口
Z-axis Limit Interface
Z轴限位接口
Light Source Driver Interface
光源驱动接口
Light Source Thermal Interface
光源热敏接口
��
��. Troubleshooting 故障检修
U disk
��
U盘
��. Troubleshooting 故障检修
紧固联轴器
��
��. After-Sales Service Card 售后服务卡
Please read the user manual and warranty card carefully before the use.
For any service, Please priorly contact local seller or contact us via
See www.creality.com / for specific warranty information
about your product and procedures to act on a warranty claim.
Scan the code to know more
CREALITY
CREALITY
��
扫码了解更多

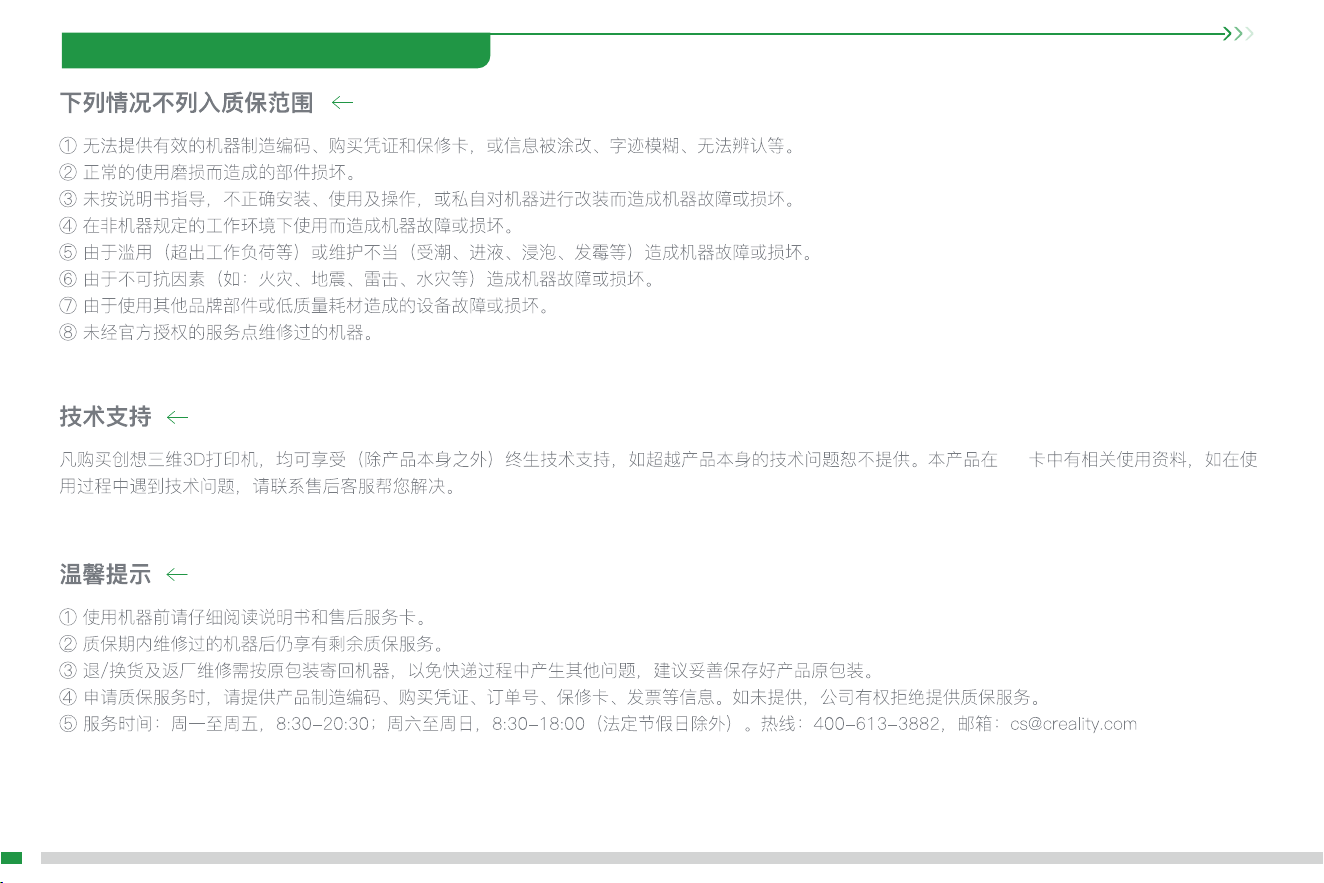

��. After-Sales Service Card 售后服务卡
U盘
��. After-Sales Service Card 售后服务卡
��
FCC Requirement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part �� of the FCC Rules. Operation is subject to the following two conditions:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part �� of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of ��cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device may not cause harmful interference;
This device must accept any interference received, including interference that may cause undesired operation.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
(�)
(�)
R
214-240379
深圳市龙华区民治街道新牛社区梅龙大道锦绣鸿都大厦18F
公司网站：www.cxsw3d.com
服务热线：400 6133 882 0755-8523 4565
SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
Ocial Website: www.creality.com
Tel：+86 755-8523 4565
E-mail: [email protected] [email protected]
Add:18F,JinXiuHongDu Building, Meilong Blvd, Longhua Dist, Shenzhen, China 518131
Scan To Learn More
扫码了解更多
深圳市创想三维科技有限公司
