REVISED BULLETIN
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

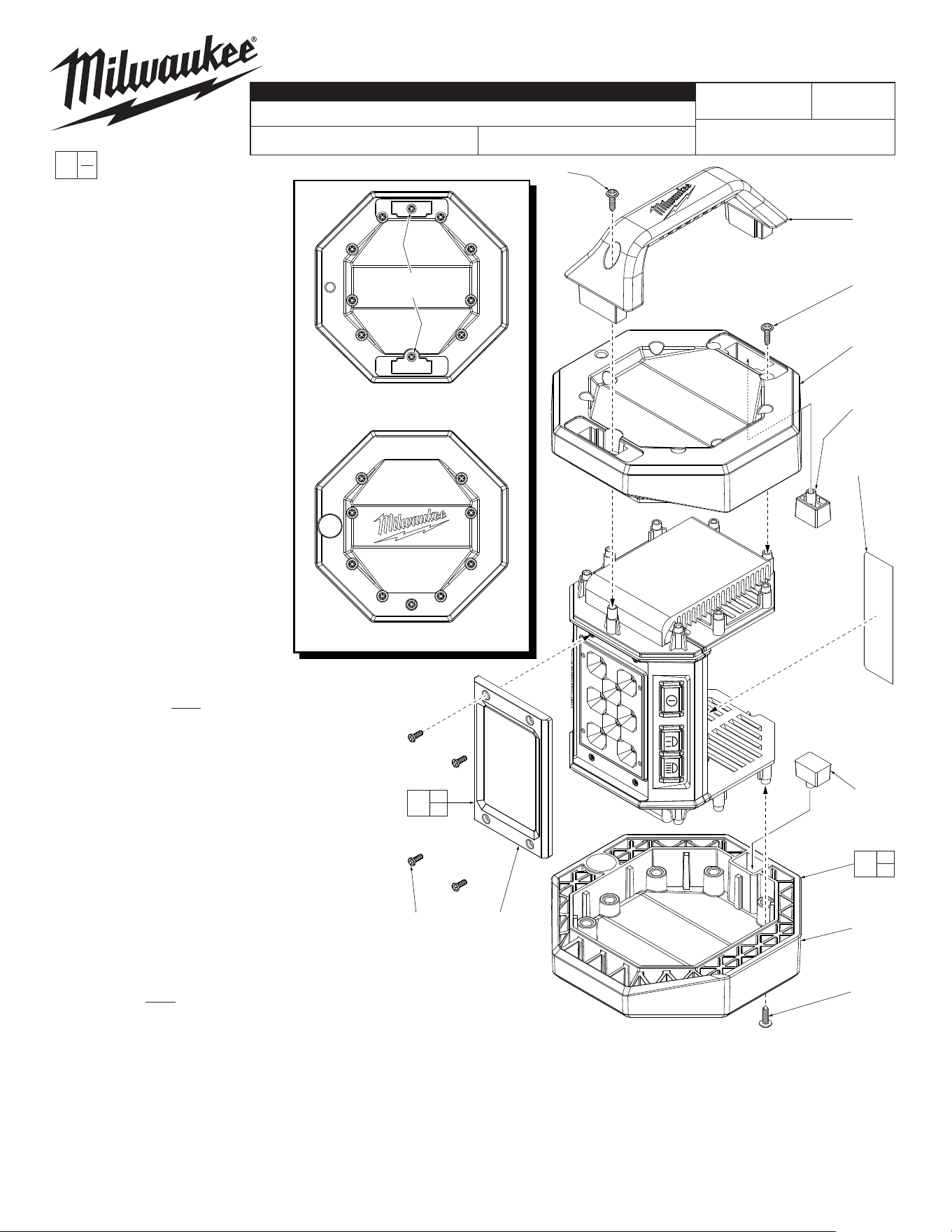

Drwg. 1
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
TOP WHEEL
(Shown without handle for clarity)
BOTTOM WHEEL
Handle
Screws
4
(2x)
5
4(8x)
6
7
3
8
4(9x)
1(4x) 2
1
2
10
6
8
9
7
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-81-0625 M3 x 8mm Pan Hd. T-10 Screw (4)
2 --------------- Lens Assembly (1)
3 12-20-2361 Service Nameplate (1)
4 06-82-0022 M3.5 x 8mm Pan Hd. Washer Plast. T-10 Sc (19)
5 31-44-0995 Top Handle (1)
6 --------------- Top Wheel (1)
7 31-01-1587 Plug (2)
8 --------------- Bottom Wheel (1)
9 31-70-2361 Wheel Kit (1)
10 44-06-0240 Lens Assembly Kit (1)
54-06-2361
CORDLESS M18™ LED FLOODLIGHT
2361-20
F47B
May 2018
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. NOTES
1,2 Care must be used when securing screws (1) in tool.
To prevent damage to the lens assembly (2) do not
over tighten. It is not recommended to use power
tools, hand tighten only. Torque screws to 3-4 in/lbs
(3.5-4.5 kg/cm).
3 A clean, dry surface is essential for proper
performance for any adhesive system. The area
intended for application of any adhesive label or
nameplate must be prepared by cleaning with
isopropyl alcohol. The solvent is to be applied with a
clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
6,8 NOTE: As an aid to reassembly, do not attempt to
install the top or bottom wheels with screws in the
screw cavities. Be sure the wheels are squarely and
rmlyseatedpriortosecuringwiththefasteners.
4 Care must be used when securing housing screws (4)
in tool. To prevent damage to the main housing, be
sure the pointed tip of the fasteners are in the screw
boss holes and that the screw is perpendicular to the
bosses. It is not recommended to use power tools,
hand tighten only. Torque screws to 8-10.5 in/lbs (9.5-12 kg/cm).
54-06-2360
= Part number change from
previous service parts list.
