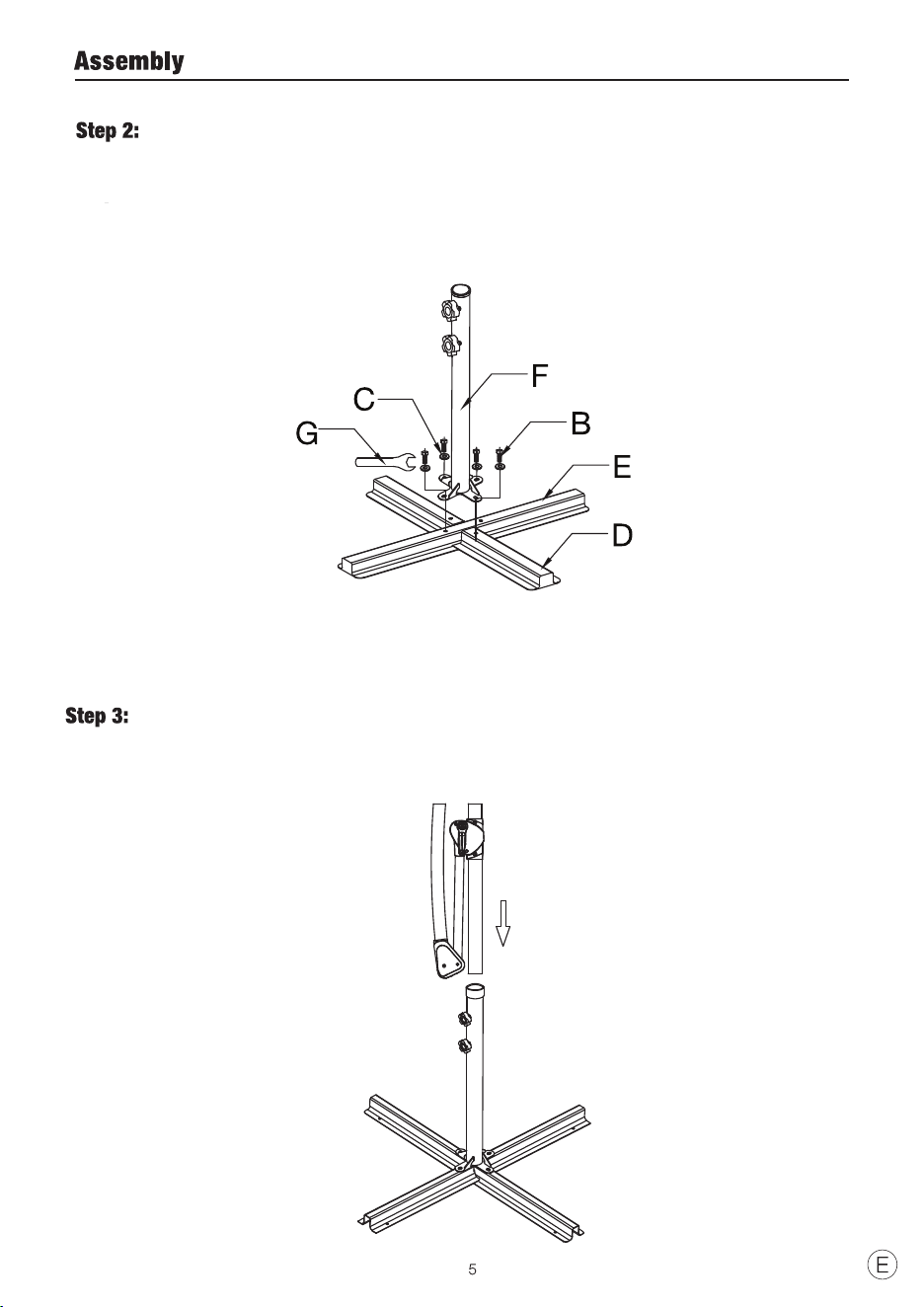

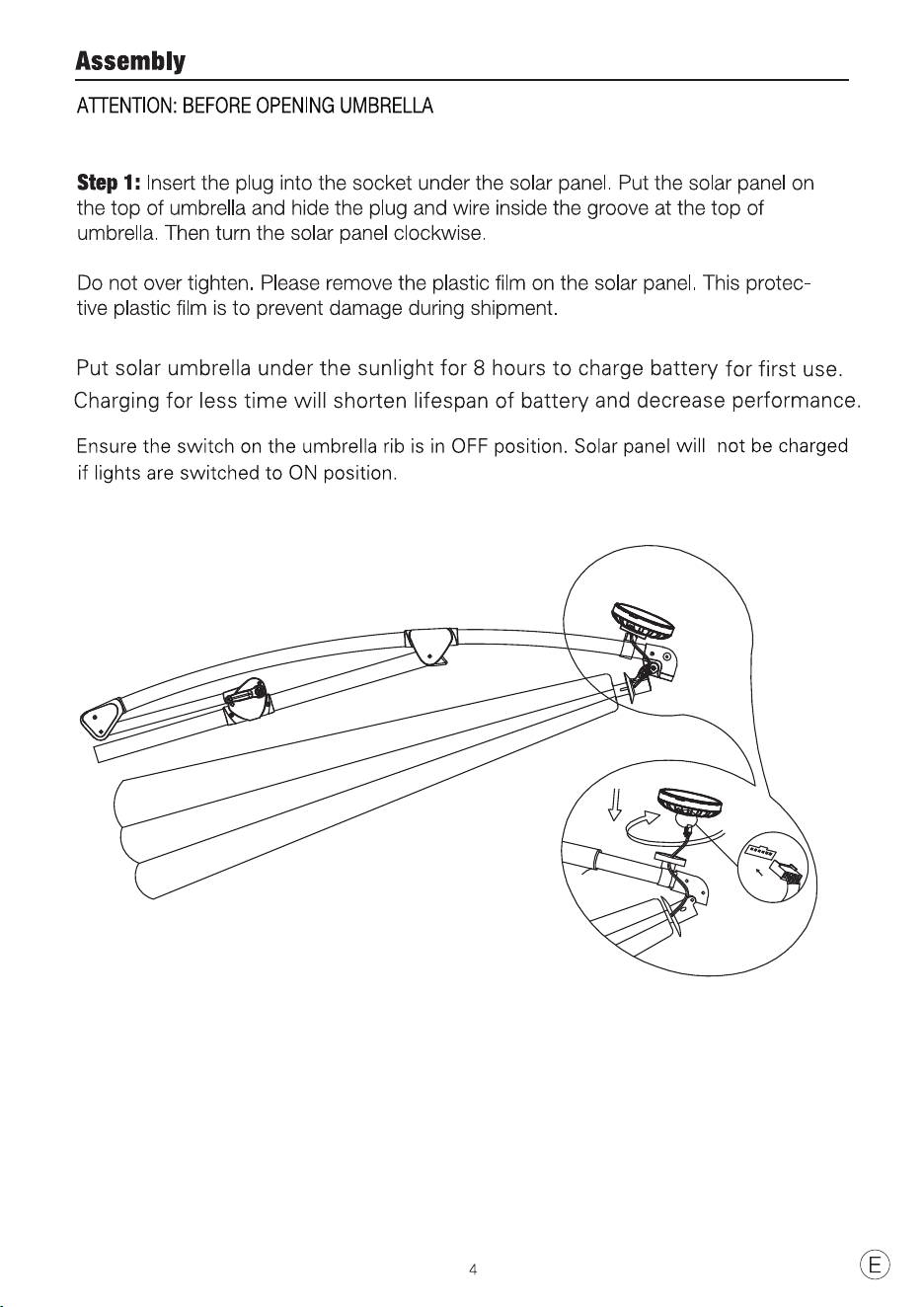

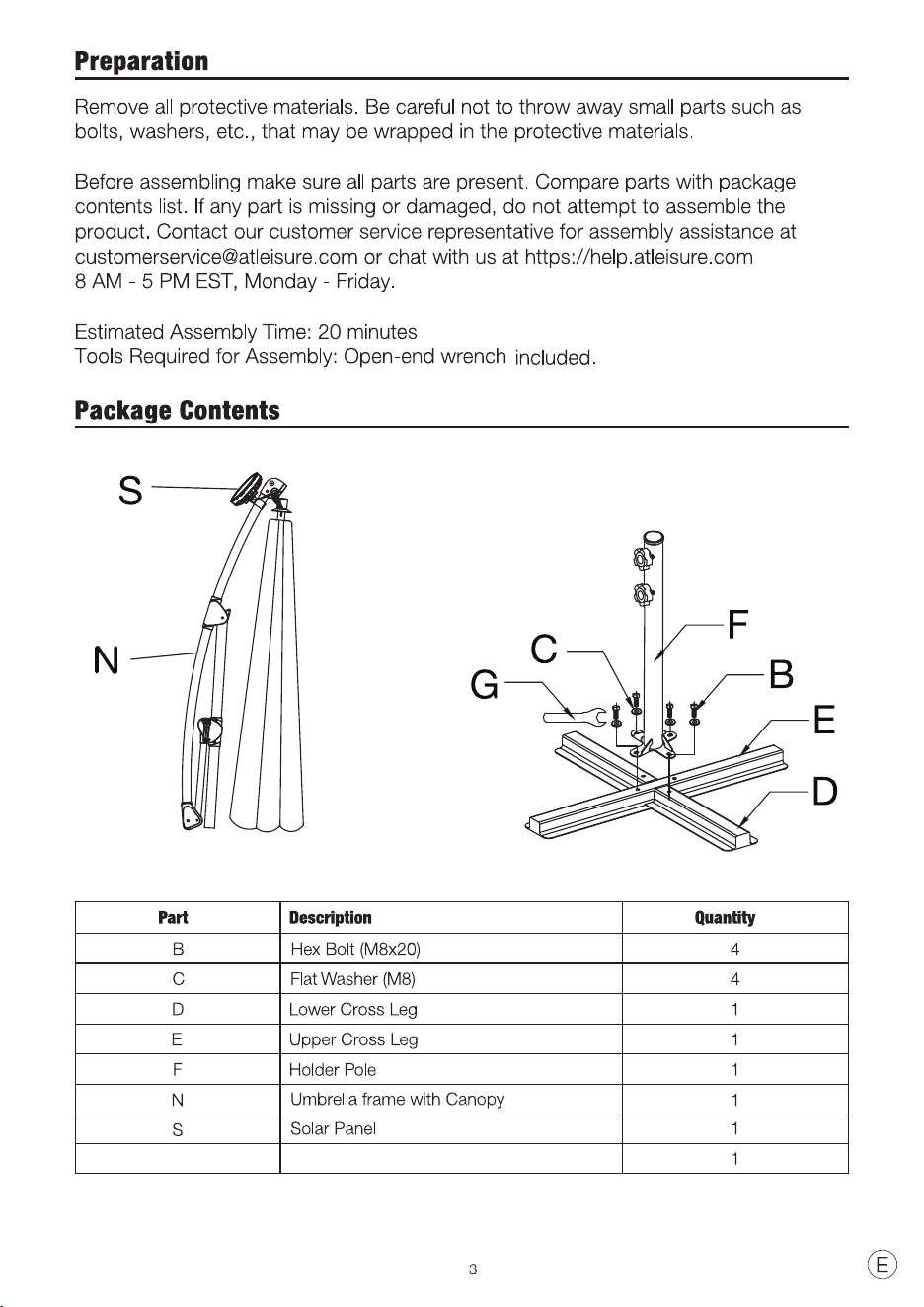

Place the upper cross leg (E) on the top of lower cross leg (D).Then attach
the holder pole (F) to the cross legs, insert the bolts (B) and washers by wrench
(G). Adjust the holder pole (F) to be sure that it is positioned correctly on the base
and tighten the bolts. Be careful to not over tighten the bolts.
Loosen the two control knobs, then Insert the pole of the Umbrella Frame
with Canopy (N) into the Holder Pole (F). Tighten the two control knobs to secure
the main pole.

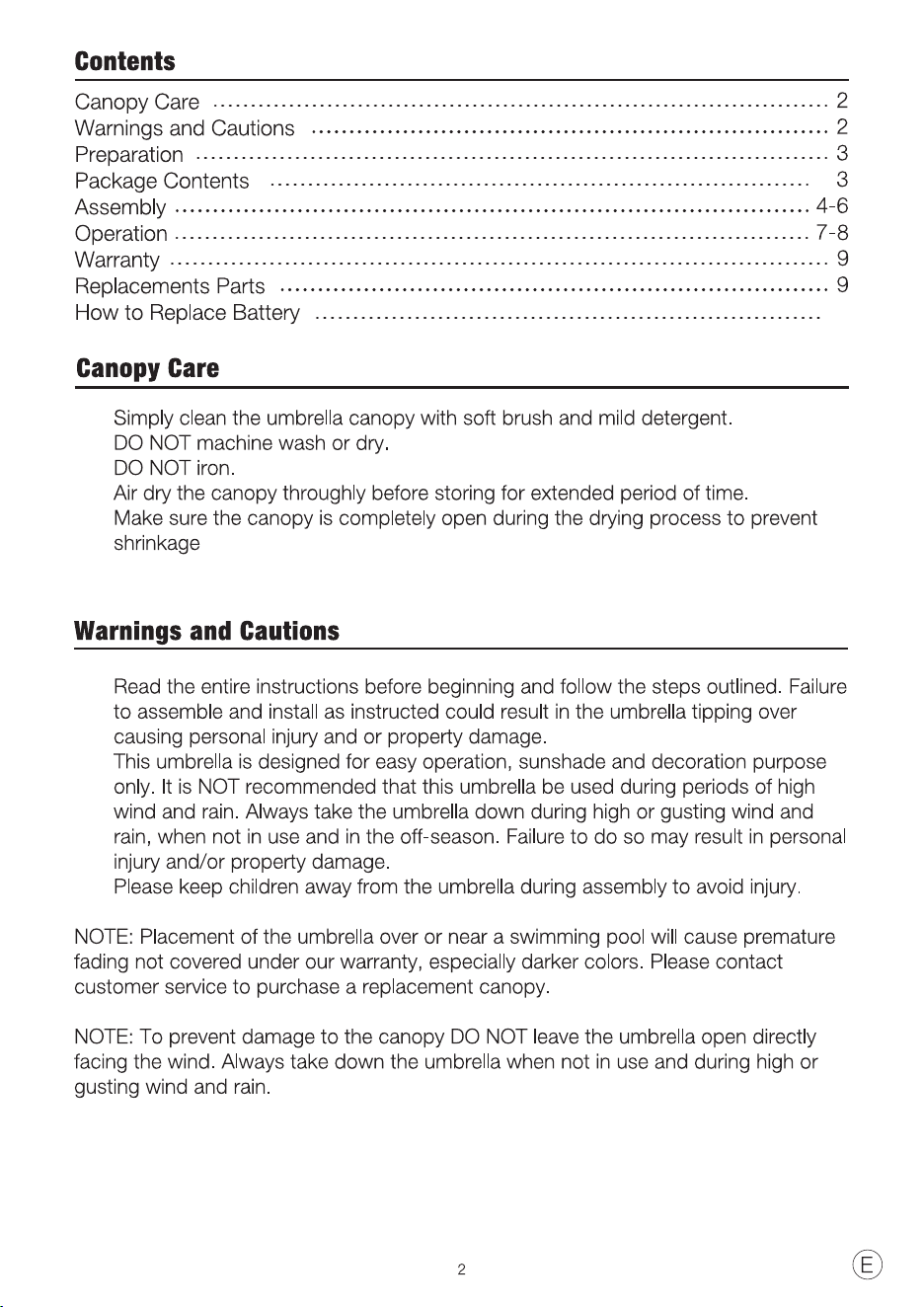

WARNING: Be sure to secure and/or weight the cross leg base of the umbrella with at
least 150 lbs to prevent the umbrella from tipping over with umbrella base (sold
separately)

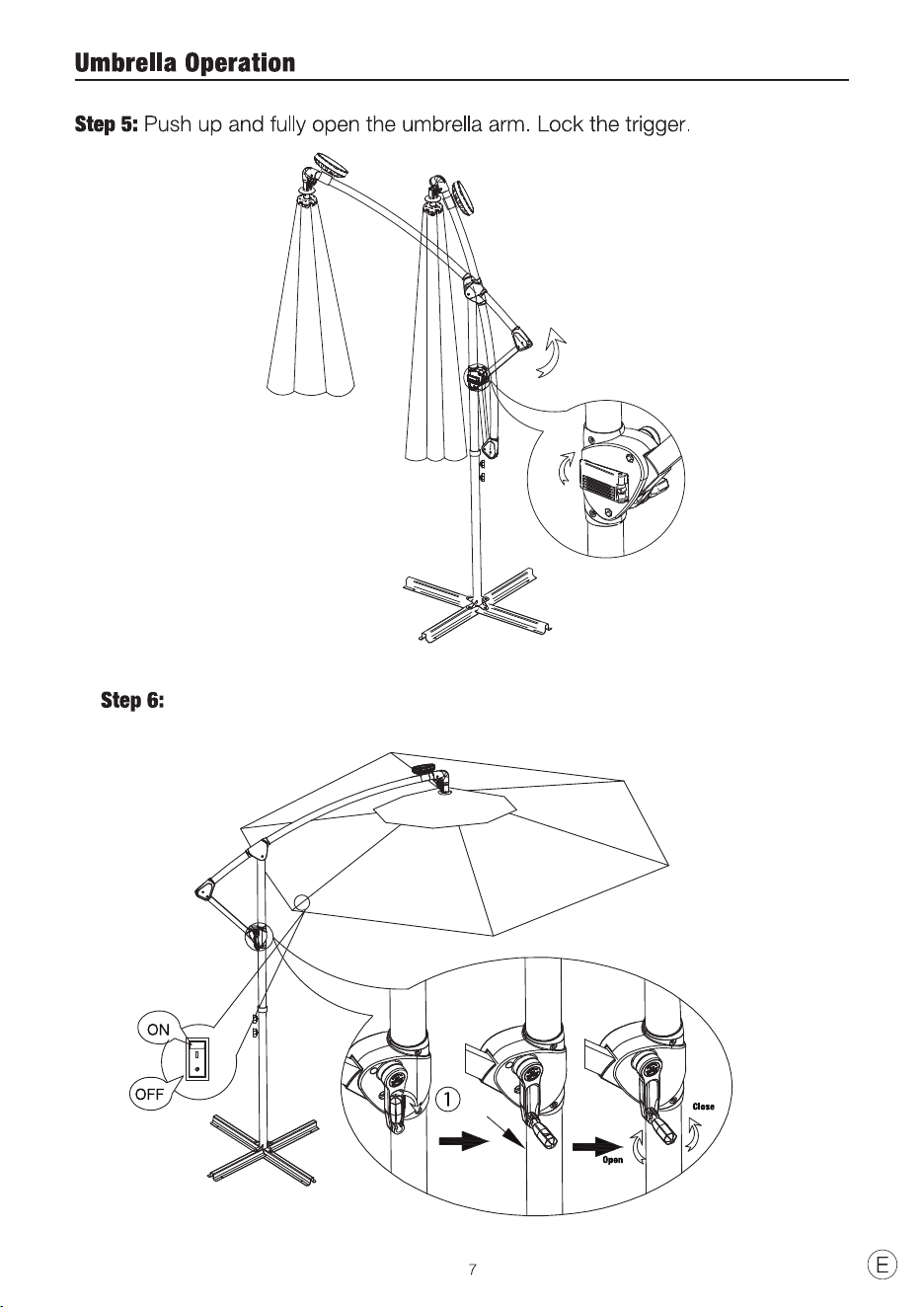

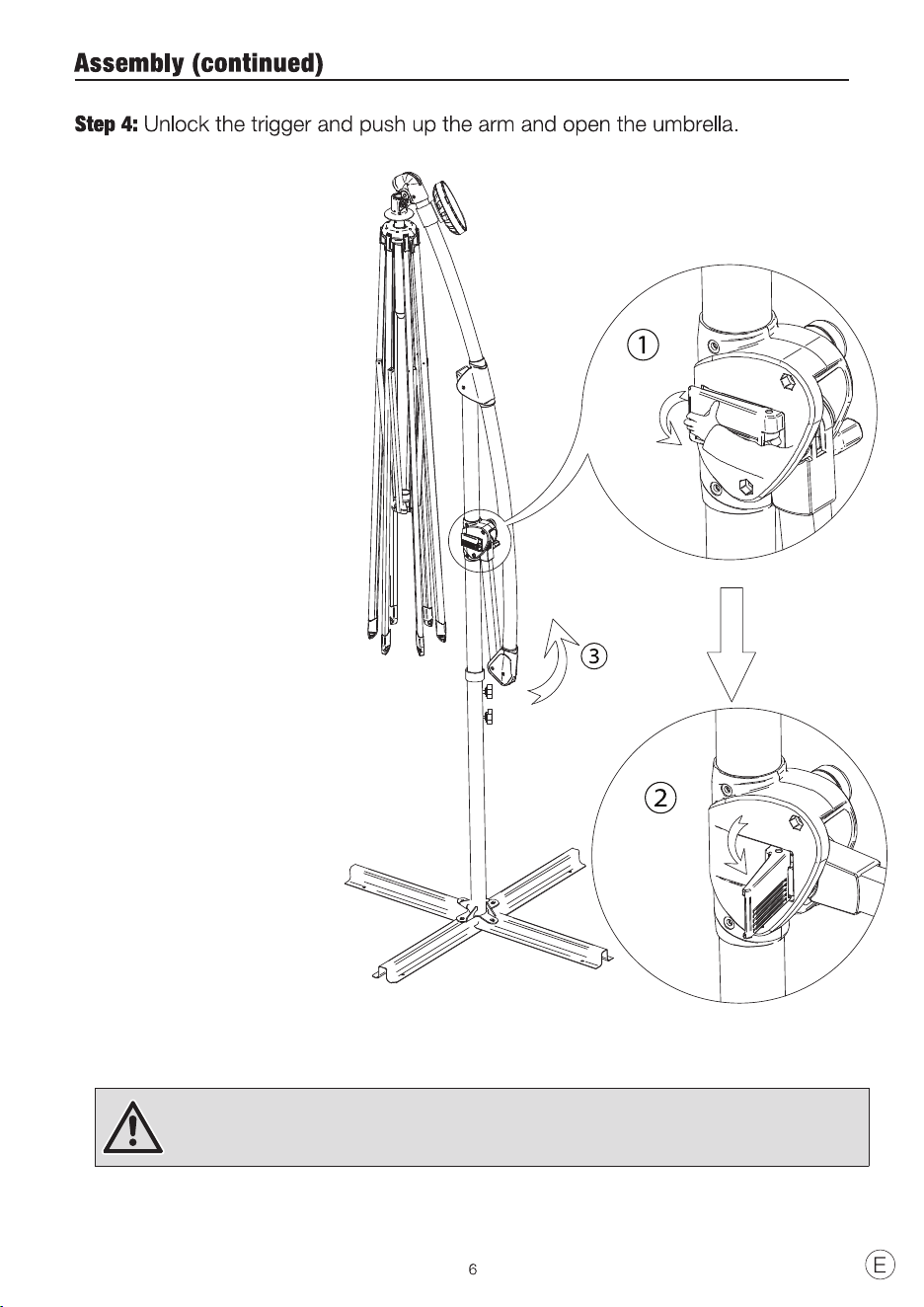

Open the folded crank as below drawings. Then open the canopy by
the handle. Turn on the light by pressing switch to ON position.

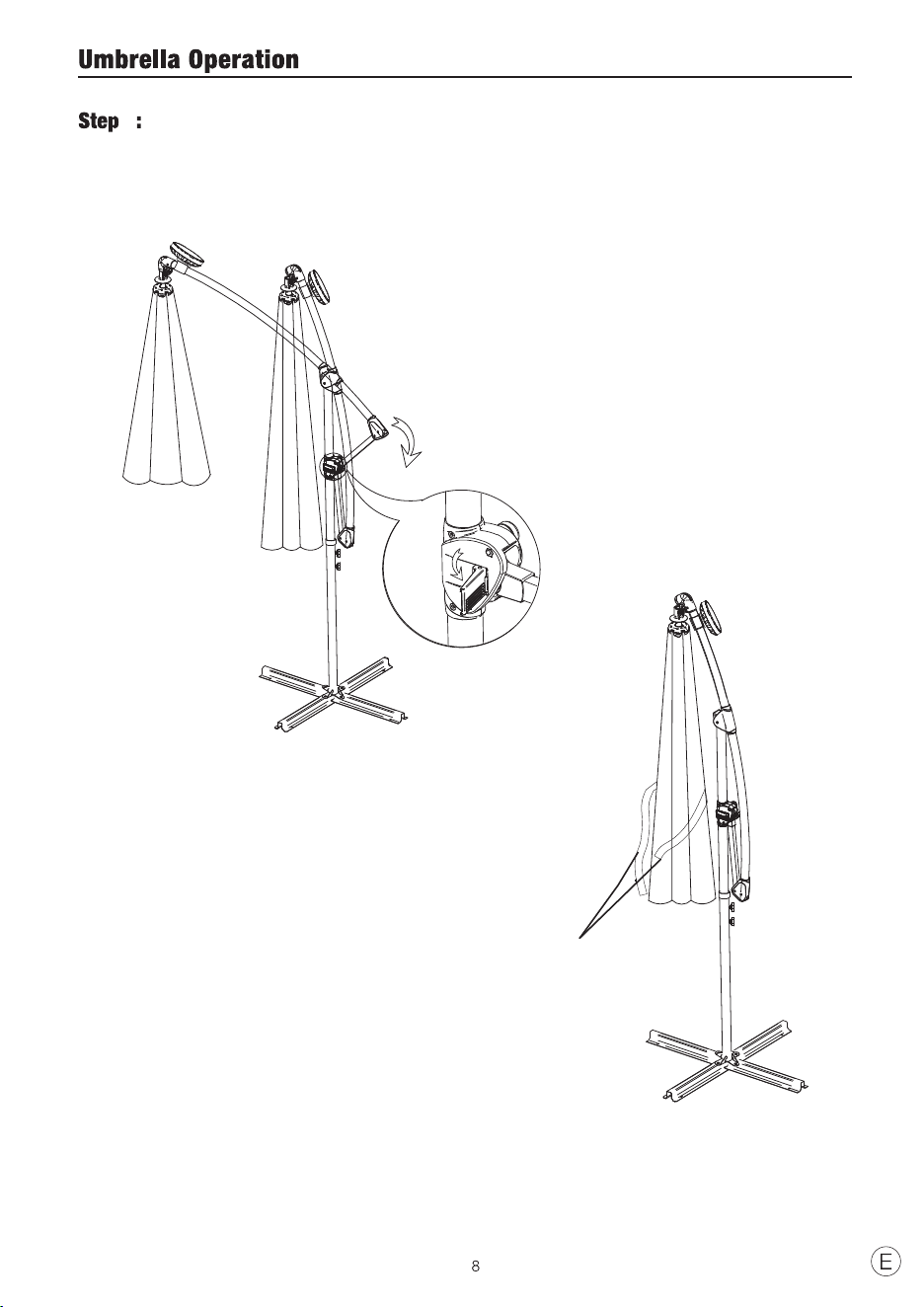

After finish using, please make sure the switch on the umbrella rib is in
OFF position. Then close the canopy by turn the handle counterclockwise,
unclock the trigger, pull down the umbrella arm, lock the trigger and fasten the
storage straps.
Storage straps
7

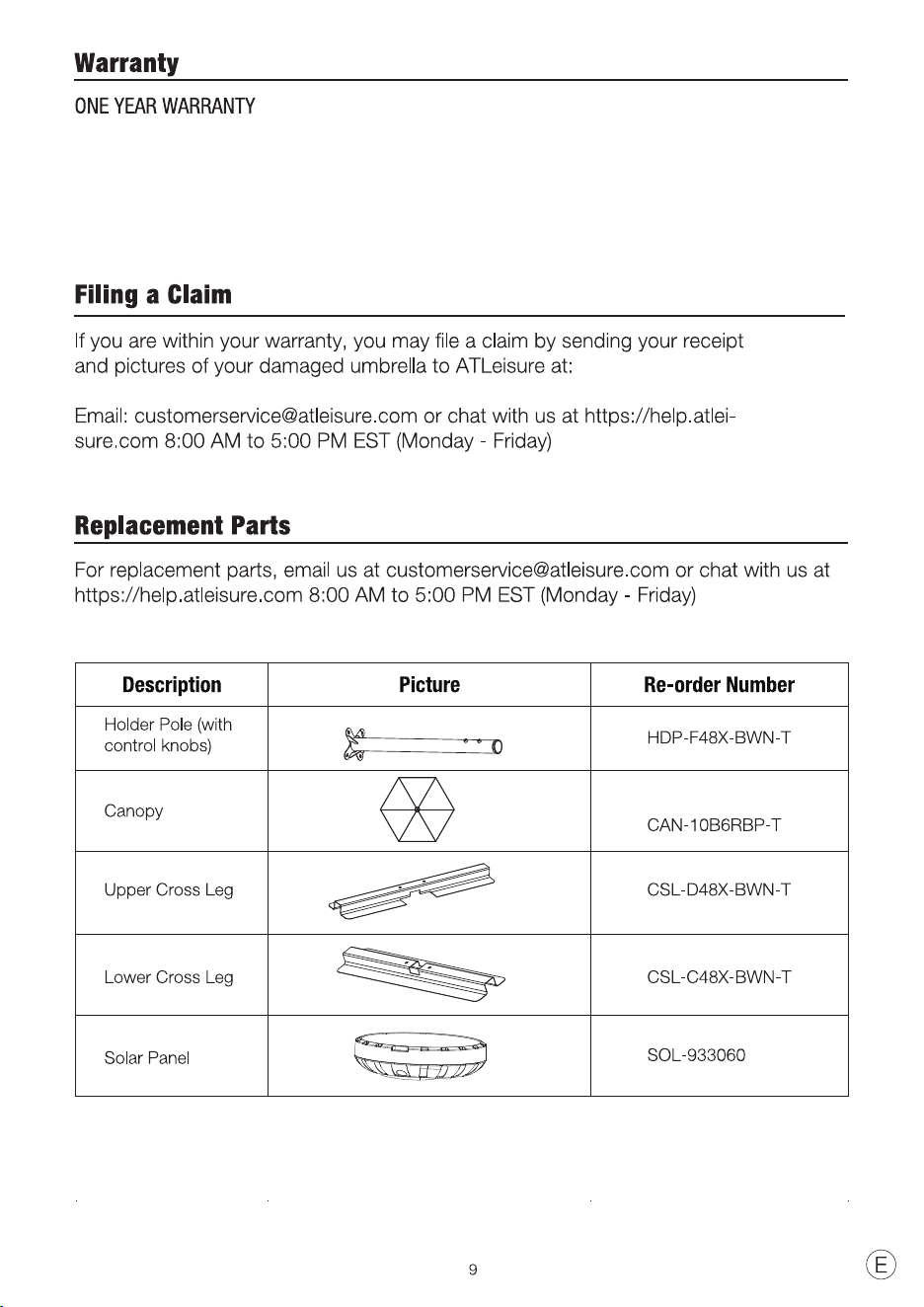

This product is covered under a manufacturer’s one year warranty from date of pur-
chase against defects in materials and workmanship. This warranty does not cover
damage due to neglect, abuse or weather related damage. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to state.

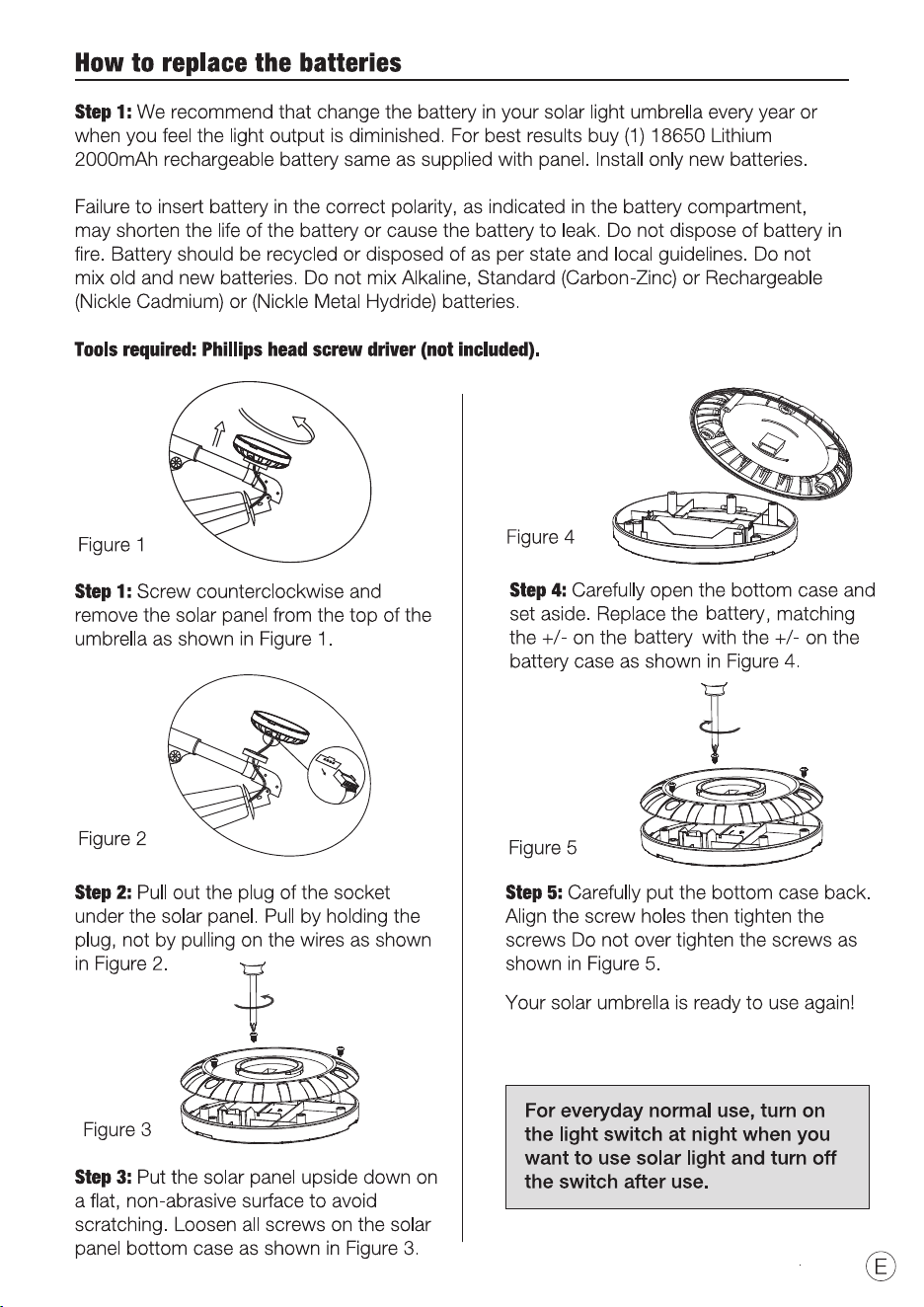

10
U.S.Patent No.
6,612,713 & 7,753,546
8,069,868 & 8,375,966
8,727,555 & 8,794,781
9,470,413
