SET UP GUIDE
MODEL: M71800
Digital BBQ Grill Thermometer
with Infrared and Probe Sensors
Low Battery
Icon
Temperature
Display
Infrared
Icon
Fahrenheit or
Celsius Icon
Probe
Icon
Hold Temperature
Reading Icon
Buttons
Hold to Turn
Thermometer
ON or OFF
Hold to freeze the
Probe Temperature
Reading on the display
Hold to scan and allow
the Infrared Temperature
Reading to change
Grill Thermometer
Hanging Hole
Infrared Sensor
and Laser
LCD Display Buttons
Probe
Sensor
Battery
Cover
Belt
Clip
Magnets
on the side
2
Power Up
1. Remove the Battery Cover screw using a screwdriver. Pull up firmly to open.
2. Insert 1-AAA alkaline battery (not included) according to polarity markings.
3. Use the °F/°C Switch to select your desired Temperature Display.
4. Replace the Battery Cover using the screw to secure it in place.
Note: The Grill Thermometer is water-resistant and has a
gasket around the battery cover that may make it dicult
to remove easily.
Using Your Grill Thermometer
ON/OFF: Hold the Button to turn the thermometer on or o.
When on, hold the Button to turn on the Infrared Laser and
see changing readings. The will show.
Hold the Button to freeze the Probe Sensor temperature
reading. The Icon will show.
When on, extend the Probe Sensor and insert it into your
meat. The Probe Icon will show along with changing
readings.
Temperature Probe
Infrared Sensor
3
Infrared Sensor Tips
• Make sure the target to measure is larger than the red dot from the IR
sensor. Ideally, the target should be double the size of the red dot or
bigger.
• As the distance from the target increases, the area measured by the sensor
will be larger. The smaller the target, the closer you should be.
• The Infrared Sensor cannot measure through transparent surfaces. You will
see the temperature of the transparent surface instead.
• Not recommended for shiny or polished surfaces.
• Steam, dust, smoke, etc., can obstruct the unit’s optics.
Safety
• Do not point the IR Laser at a human or animal’s eyes.
• Avoid pointing the IR laser at a shiny or polished surface that can reflect the
laser into an eye.
• Do not allow the IR laser beam to impinge on any gas or area which can
explode.
• Avoid pointing the Probe Sensor at anything living.
• This is a fast-read thermometer; do not put it in the oven with your food.
Note: The thermometer will shut o automatically when the temperature
is reading less than 122°F (50°C) and no buttons have been pressed for 2
minutes.
4
Point the IR Laser at your target and press and release the
Button to freeze the temperature reading. The Icon will
show.

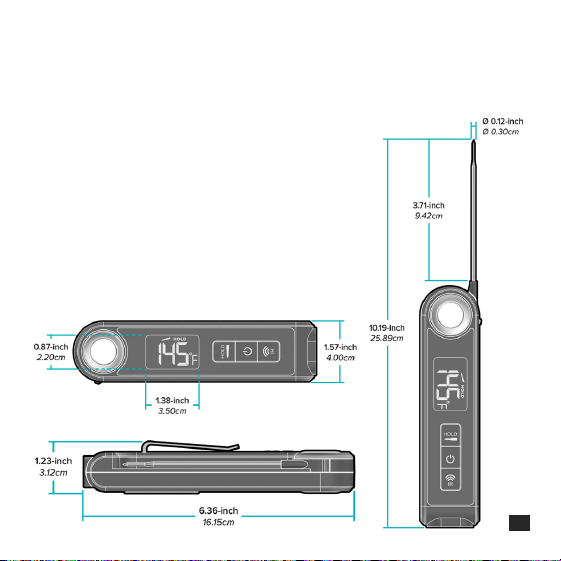

Specifications / Dimensions
Power: 1-AAA, Alkaline battery, (Not Included)
Display: LCD with Backlight
Water-Resistance: IPX5
Dimensions: 6.36 in L x 1.23 in W x 1.57 in H
(16.15 cm L x 3.12 cm W x 4.00 cm H)
Probe Sensor: 3.71 in L (9.42 cm L)
Range: -58ºF to 572ºF (-50ºC to 300ºC)
Fast Read: 3 seconds
Infrared Sensor Range: 32ºF to 932ºF (0ºC to + 500ºC)
Fast Read: 1 second
Emissivity: 0.95 fixed value
Field of View: S/S-Approx 12:1
Diode Laser: <1mW, wavelength
Spectral Response: 6-14um
5
6
If you require additional assistance, get in touch with our friendly
customer support team based in La Crosse, WI.
Self Help: bit.ly/m71800_support
Online: bit.ly/contact_techsupport
Phone: 1.608.782.1610
Our knowledgable customer support team is available:
Mon-Fri 8am-6pm CST
We’re Here to Help
SCAN HERE
Stay in Touch!
Ask questions, watch set up videos, and provide feedback on our social media outlets.
Follow La Crosse Technology on Youtube, Facebook, Instagram, and X (Twitter).
Warranty & Patents
La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date
of purchase) on this product relating to manufacturing defects in materials &
workmanship. La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty
Patents: www.lacrossetechnology.com/pages/patents
7
Care & Maintenance
When batteries of dierent brand or type are used together, or new and old batteries
are used together, some batteries may be over-discharged due to a dierence of
voltage or capacity. This can result in venting, leakage, and rupture and may cause
personal injury.
• Do not mix Alkaline, lithium, standard, or rechargeable batteries.
• Always purchase the correct size and grade of battery most suitable for the intended
use.
• Always replace the whole set of batteries at one time, taking care not to mix old and
new ones, or batteries of dierent types.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from product during periods of non-use. Battery leakage can
cause corrosion and damage to this product.
• Remove used batteries promptly.
• For recycling and disposal of batteries, and to protect the environment, please check
the internet or your local phone
directory for local recycling centers and/or follow localgovernment regulations.
WARNING: This product can expose you to chemicals including acrylonitrile,
1, 3-butadiene, and styrene, which are known to the State of California to cause
cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.gov
California Residents
Made in China • Printed in China • DC012224
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. All rights
reserved. This manual may not be reproduced in any form, even in part, or duplicated
or processed using electronic, mechanical or chemical process without the written
permission of the publisher. This booklet may contain errors or misprints. The
information it contains is regularly checked and corrections are included in subsequent
editions. We disclaim any responsibility for any technical error or printing error, or their
consequences. All trademarks and patents are recognized.
FCC Statement
