A
TABLE TOP
1 J
HEX NUT M6
1
B
TABLE LEG
4 K
FIRE POKER
1
C
LEG
CONNECTOR
BRACKET
4 L
FIRE BOWL
1
D
ALLEN BOLT
M6X15MM
16 M
GRATE
1
E
ALLEN BOLT
M6X30MM
4 N
COVER
1
F
METAL
WASHER M6
21 O
MESH
SCREEN
1
G
PLASTIC
BOLT CAP M6
20 P
ALLEN
WRENCH
1
H
ALLEN BOLT
M6X12MM
1 Q
HEX WRENCH
1
I
ADJUSTABLE
STEEL PLATE
1
FOOT CAP
(FACTORY
ASSEMBLED)
STONE MANOR CHAT FIRE TABLE
SKU # 272-4680
IMPORTANT: PLEASE READ COMPLETE INSTRUCTION SHEET PRIOR TO ASSEMBLY!
Identify all parts packed in carton against the parts list. Remove all protective materials, place parts on a nonabrasive surface
to avoid scratching.
IF ANY PARTS ARE MISSING OR DAMAGED, DO NOT ATTEMPT TO ASSEMBLE OR RETURN TO THE STORE.
Please contact our customer service center (Monday-Friday 8:30 a.m.- 4:30 p.m. CST) at 1-800-426-2950 or e-mail:
cs@patiohelpdesk.com.
PARTS LIST
Step 1:

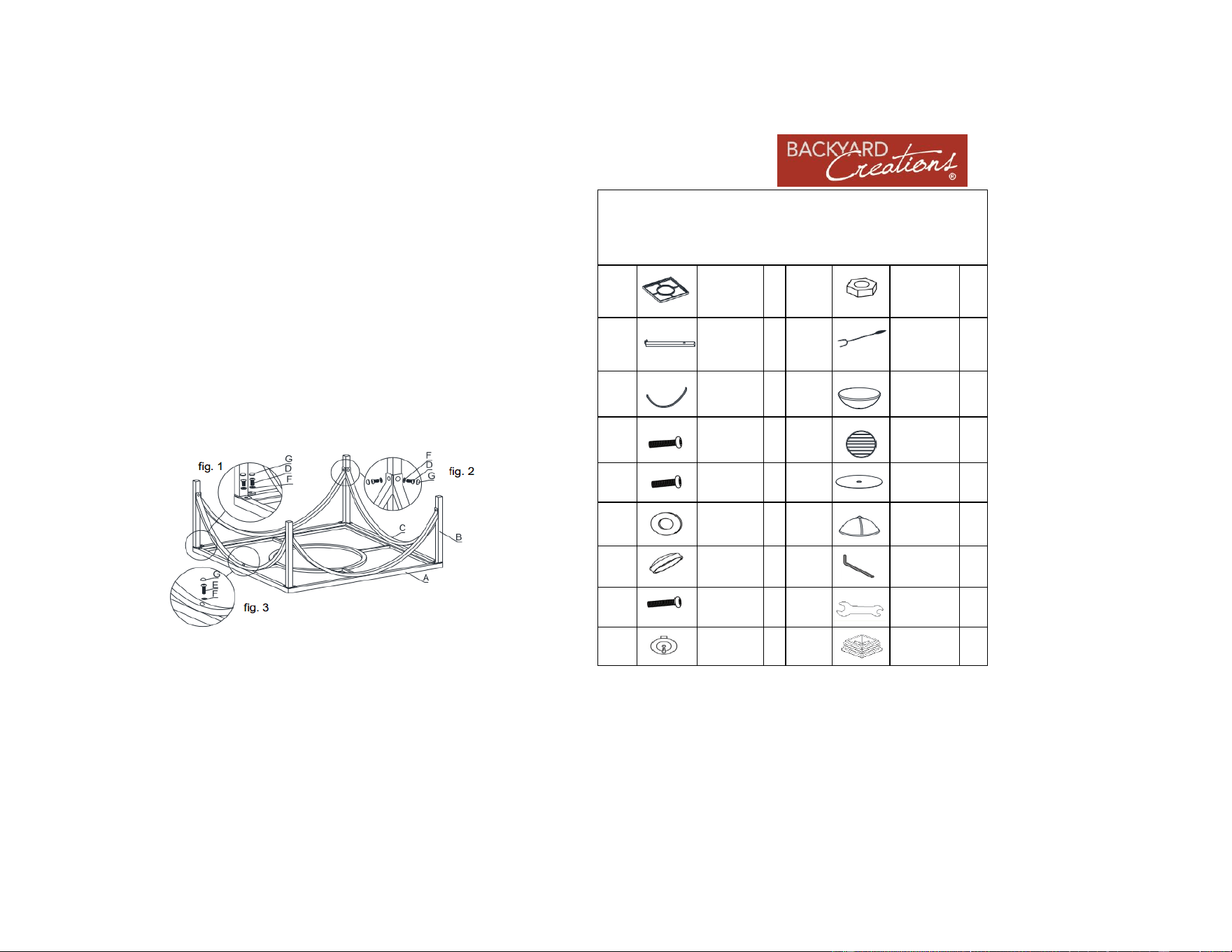

Turn the table top (A) upside down on a flat soft surface. Attach the table legs (B) to the table top (A) using 8 bolts (D) and
metal washers (F). DO NOT TIGHTEN COMPLETELY. See fig. 1
Step 2:
Attach the leg connector bracket (C) to the table legs (B) using 8 bolts (D) and metal washers (F). DO NOT TIGHTEN
COMPLETELY. See fig. 2
Step 3:
Attach the leg connector bracket (C) to the table top (A) using 4 bolts (E) and metal washers (F). Tighten all the bolts with Allen
wrench (P). Cover the bolts with the plastic bolt caps (G). See fig. 3
2019
Step 4:

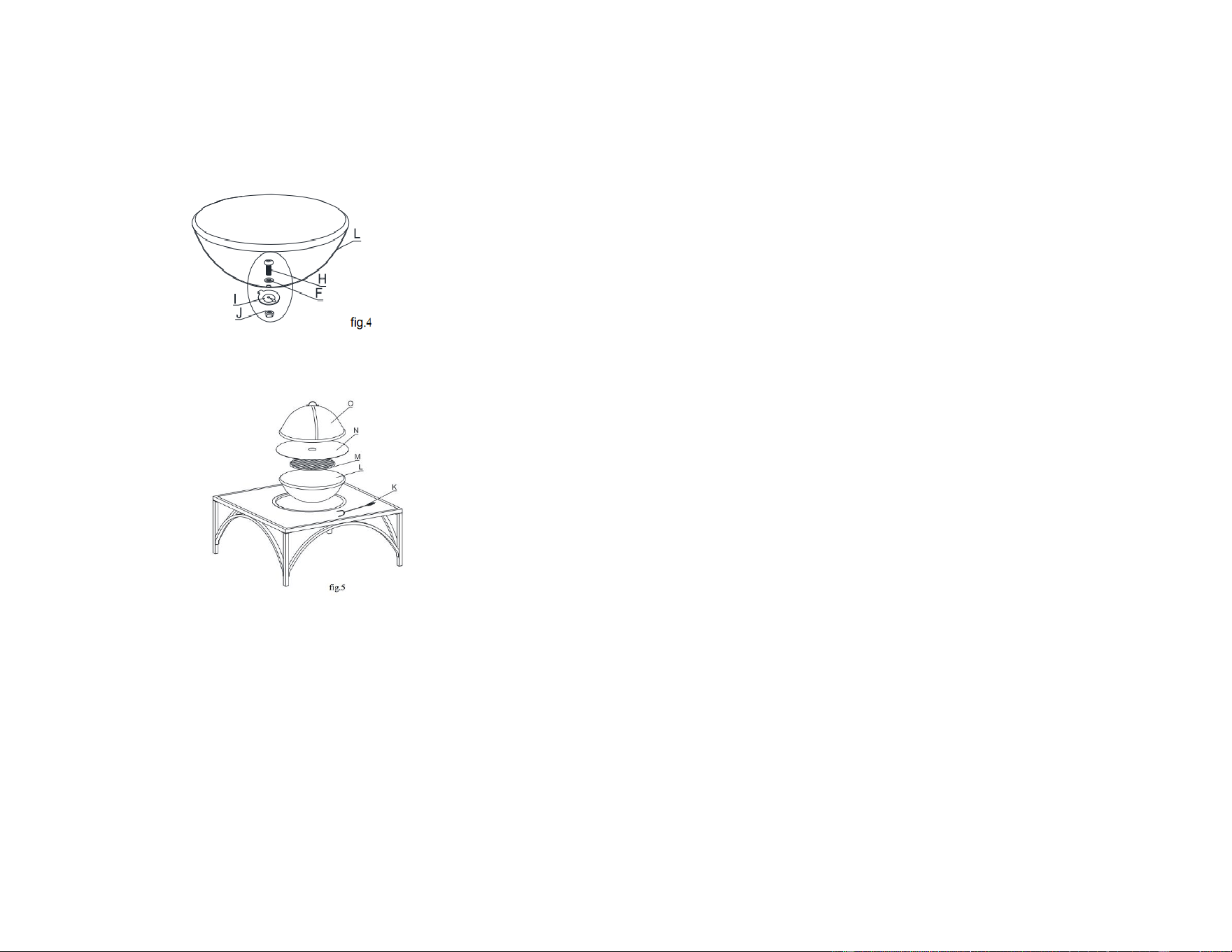

Attach the steel plate (I) to fire bowl (L) using bolt (H) in order of bolt (H), metal washer (F), fire bowl (L) hole, steel plate (I) and
hex nut (J). Loosely tighten the nut with the hex wrench (Q). DO NOT TIGHTEN COMPLETELY. The ashes can be emptied by
adjusting the steel plate (I). See fig. 4
Step 5:
Turn the table frame into the upright position. Place the fire bowl (L) into the middle of the table top (A). Insert the grate (M) into
the bowl (L). Place cover (N) over the bowl when not in use. Use the mesh screen (O) while fire is burning. You can store the
fire poker (K) inside the bowl when not in use. Your table is now ready to use. See fig. 5
IMPORTANT: To avoid damage to your table:
● In storing patio furniture, do not stack anything on glass, stone or marble table tops.
● Before storing, drain all water that may have accumulated in or around the frames.
● If not drained properly, water can cause freeze damage.
● Cover furniture with outdoor furniture covers when not in use.
● For safety reasons, do not sit or stand on the table.
2019
