36" VESTAVIA FIRE PIT
Style# FHTS80543
FOR YOUR SAFETY:
Improper installation, adjustment
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING
• This appliance can produce carbon
monoxide which has no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclose d
space such as a camper, tent, car or home.
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues leave the area
immediately.
4. After leaving the area, call your
gas supplier or fire department.
Failure to follow these instructions
could result in fire or explosion,
which could cause property
damage, person injury, or death.
1. Do NOT store or use
gasoline or other flammable
vapors or liquids in the vicinity
of this or any other appliance.
2. Any LP-cylinder not
connected for use shall not be
stored in the vicinity of this or
any other appliance.
CARBON MONOXIDE HAZARD
DANGER
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
WARNING
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch; do
NOT use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference.
FOR YOUR SAFETY:
For Outdoor Use Only (outside, non-enclosed
area). Do Not Use For Cooking.
Installation and service must be performed by
a qualified installer, service agency, or the
gas supplier.
WARNING
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
Sku# 259-5309
ANS Z21.97-2017 • CSA
2.41-2017,Outdoor Decorative Gas
Appliances.
IF YOU HAVE ANY QUESTIONS OR CONCERNS PLEASE CALL US
TOLL FREE AT 1-866-905-4107
MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC TIME / 11:30 AM
TO 8:00 PM EASTERN TIME.
2
Warranty
1 YEAR LIMITED FRAME WARRANTY.
WHAT IS COVERED
We warrant the frames to be free of manufacturing defects to the original
purchaser for one year limited warranty.
WHAT IS NOT COVERED
It remains the customer's responsibility for freight and packaging charges
to and from our service center. This warranty does not cover commercial use,
hardware, acts of nature, fire, freezing and abusive use. In addition,
purchased parts are not covered under this warranty. We reserve the right to
make substitutions with similar merchandise, if the model in question is no
longer in production.
WARNING
For your own safety, and to reduce the risk of serious personal injury,
the user must read and understand this Use and Care Guide,
and assemble each piece only in accordance with these instructions and
with the parts and hardware included with the original packaging.
Failure to follow these instructions and/or use of tools or hardware
not included in the original packaging may lead to improper assembly
and/or risk of serious personal injury.
WARNING
KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN.DO NOT USE POWER TOOLS.
DO NOT USE POWER TOOLS.
DO NOT OVERTIGHTEN HARDWARE.
PERIODICALLY CHECK HARDWARE AND RE-TIGHTEN AS NECESSARY.
DO NOT USE PRODUCT IF ANY COMPONENT BECOMES DAMAGED.
FOR RESIDENTIAL (NON-COMMERCIAL) USE ONLY.
DO NOT SIT OR STAND ON PRODUCT.
USE ONLY FOR INTENDED PURPOSE.
CARE AND CLEANING
FRAME: WIPE CLEAN WITH A MILD SOAP AND WATER SOLUTION,
RINSE WITH CLEAN WATER, AND DRY THOROUGHLY.
IN ORDER TO PROLONG THE LIFE OF YOUR FIRE PIT, PLEASE STORE
IN DRY SHELTERED PLACE WHEN NOT IN USE OR DURING
INCLEMENT WEATHER.
3
TABLE OF CONTENTS
Introduction
Hardware

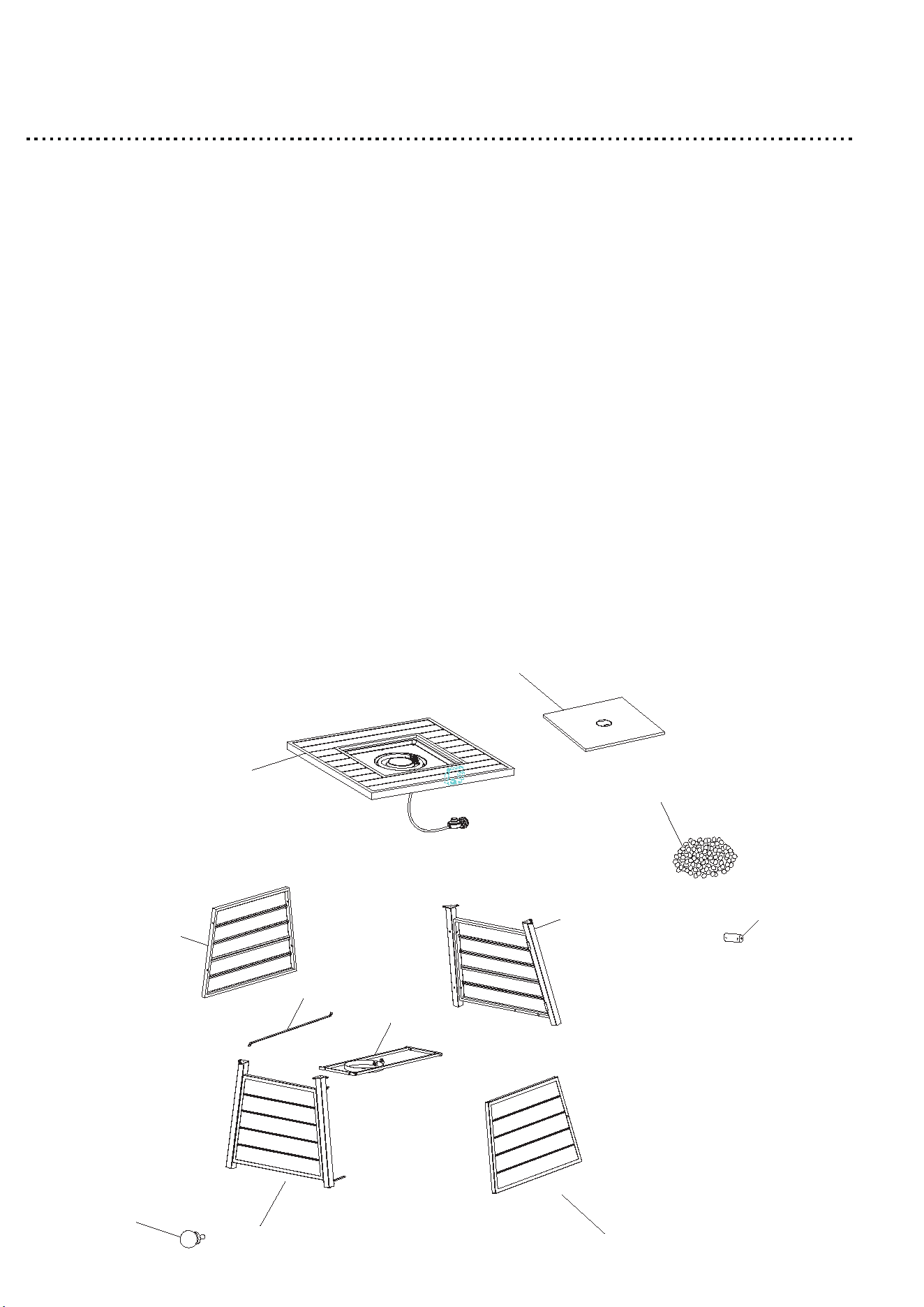

Parts List

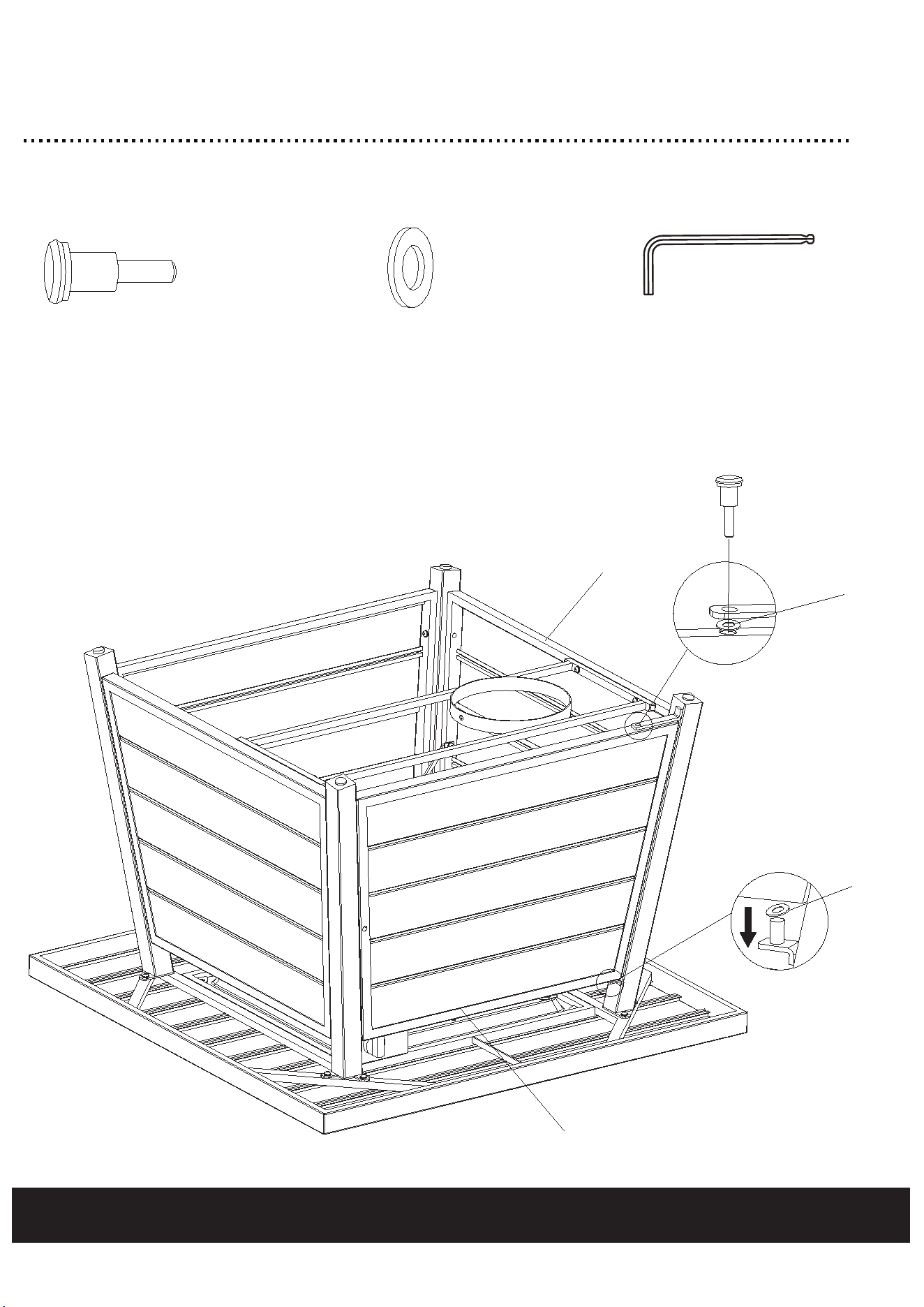

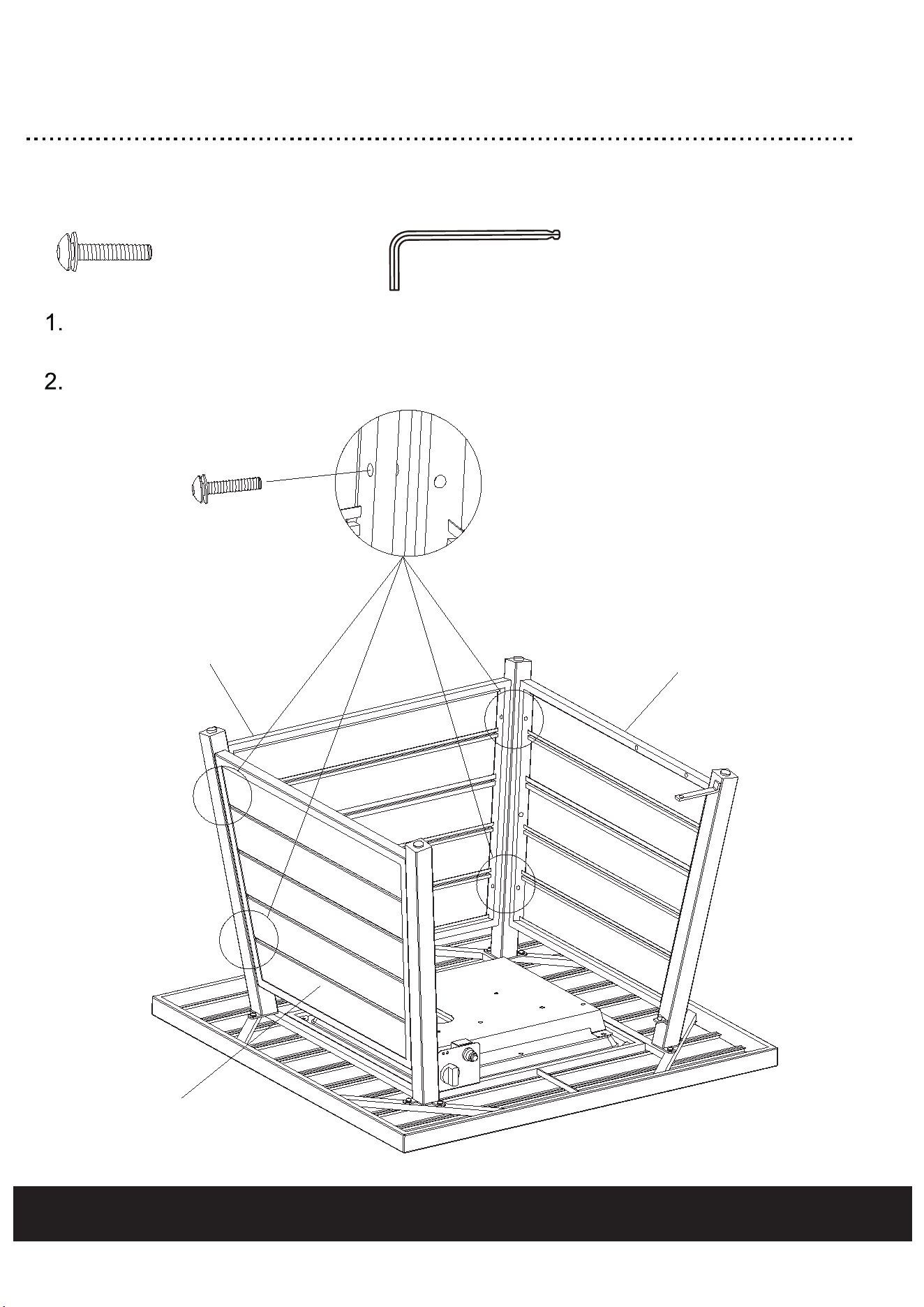

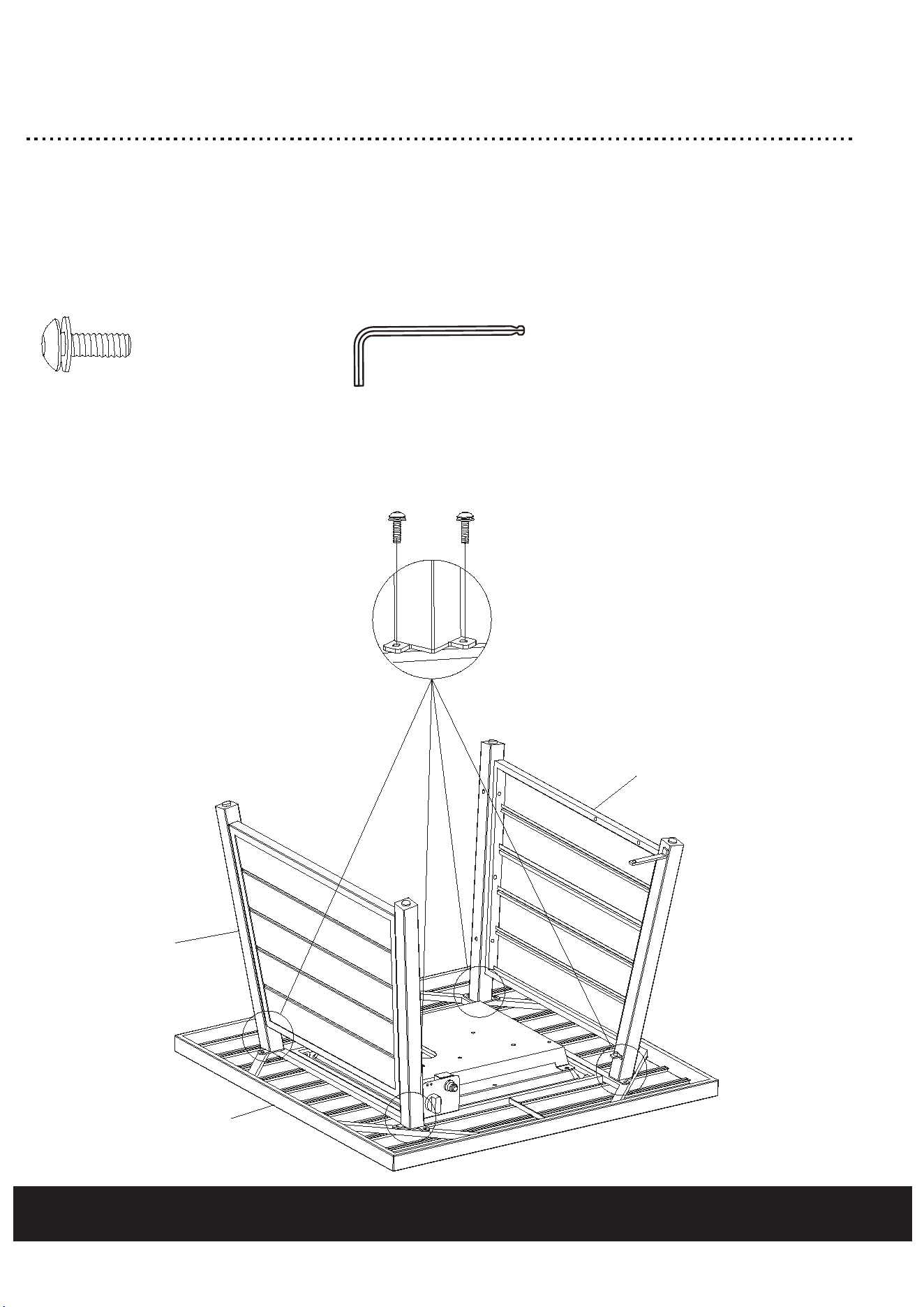

Assembly
2
4-11
14
23
24-31
IMPORTANT SAFETY INFORMATION
• Shut off gas supply to the fire pit.
• Extinguish any open flame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
4
Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or
clothing ignition. Young children should be carefully supervised
when they are in the area of the appliance. Clothing or other
flammable materials should not be hung from the appliance or
placed on or near the appliance. Any guard, barrier, or other
protective device removed for servicing the appliance shall be
replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person.
The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required
as necessary. It is imperative that the control compartment, burners
and circulating air passageways of the appliance are kept clean.
WARNING Failure to follow the dangers, warning and cautions in this
manual may result in serious bodily injury or death, or in a fire or an
explosion causing damage to property.
IMPORTANT NOTICE Read and understand all warnings and precautions
prior to assembly and use of your gas fire pit. Improper installation,
adjustment, alteration, service or maintenance can cause injury or property
damage.
Note The use and installation of this product must conform to local codes.
In the absence of local codes, use the National Fuel Gas Code,
ANSI Z223.1/NFPA54. Reference to Natural Gas and Propane Installation
code CS A B149.1 or Propane Storage and Handling code B149.2.
Minimum Clearance from Unit to Combustible Materials
61’’ (155.1cm) from the top: 48’’ (121.9cm) from all sides and back. Do not
locate this fire pit under any overhead structures.
IF YOU SMELL GAS:
WARNING:
For outdoor use only
5
WARNING: For outdoor use only
• Keep these instructions for future reference. If you are assembling this unit
for someone else, give this manual to him or her to read and keep for future
reference.
• This gas fire pit must be used ONLY outdoors in a well-ventilated space
and shall NOT be used inside a building, garage, or any other enclosed area.
• DO NOT use this outdoor gas fire pit for indoor heating. TOXIC carbon
monoxide fumes can accumulate and cause asphyxiation.
• NEVER LEAVE this gas fire pit unattended when in use.
• This unit is to be used with propane gas & natural gas only! (sold
separately).
• Do not use a flame to check for gas leaks.
• Do not store or use gasoline or other flammable vapors and liquids within
25 feet (7.62m) of this or any other appliance.
• Do not store any combustible materials in the base enclosure.
• The use of alcohol, prescription or non-prescription drugs may impair an
individual’s ability to properly assemble or safely operate this outdoor fire pit.
• DO NOT use in an explosive atmosphere. Keep gas fire pit area clear and
free from combustible materials, gasoline and other flammable vapors and
liquids.
• This outdoor fire pit is not to be installed or used in or on recreational
vehicles and/or boats.
• Always use in accordance with all applicable local, state and national
codes. Contact your local fire department for detail on outdoor burning.
• Use the same precautions you would with any open fire when using this
outdoor fire pit.
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump
charcoal, manufactured logs, driftwood, trash, leaves, paper, cardboard,
plywood, painted or stained or pressure treated wood in this outdoor fire pit.
• DO NOT paint or color any part of this heating unit.
• DO NOT use this outdoor fire pit until it is COMPLETELY assembled
and all parts are securely fastened and tightened.
• DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor
fire pit while it is in operation.
IMPORTANT SAFETY INFORMATION (continued)
IMPORTANT SAFETY INFORMATION (continued)
recreational vehicles.
• DO NOT use this outdoor fire pit under any overhead structure or near
any unprotected combustible constructions. Avoid using near or under
overhanging trees and shrubs.
• Always use this outdoor fire pit on a hard, level non-combustible surface
such as concrete, rock or stone. An asphalt or blacktop surface may not be
acceptable for this purpose.
• DO NOT use this outdoor fire pit if any part has been under water.
Immediately call a qualified service technician to inspect the fire pit and to
replace any part or control system and any gas control which has been
under water. Always remove protective cover before operating (if applicable).
• DO NOT set the protective cover over the unit until it is turned off and
completely cooled down.
• DO NOT use in windy conditions.
• Keep all electrical cords away from a hot outdoor fire pit.
•
DO NOT use this outdoor fire pit near automobiles, trucks, vans or
6
• Certain areas of this outdoor fire pit when in use will become too hot to
touch. Do not touch hot surfaces until the unit has cooled unless you are
wearing protective gear such as insulated pot holders or heat resistant
gloves or mittens to avoid burns.
• DO NOT attempt to move or store this outdoor fire pit until a
ll parts are cool.
DO NOT lean over this outdoor fire pit when lighting or when in use.
• Use only the regulator and hose assembly provided. The replac
ement
regulator and hose assembly shall be that specified by the manufacturer.
• DO NOT attempt to disconnect the gas regulator from the tank or any gas
fitting while the outdoor fire pit is in use.
• Always shut off the supply at the tank valve and disconnect regulator form
the tank when the fire pit is not in use.
WARNING: For outdoor use only
• DO NOT sit on the fire pit when the unit is in operation.
• DO NOT throw anything onto the fire when the unit is in operation.

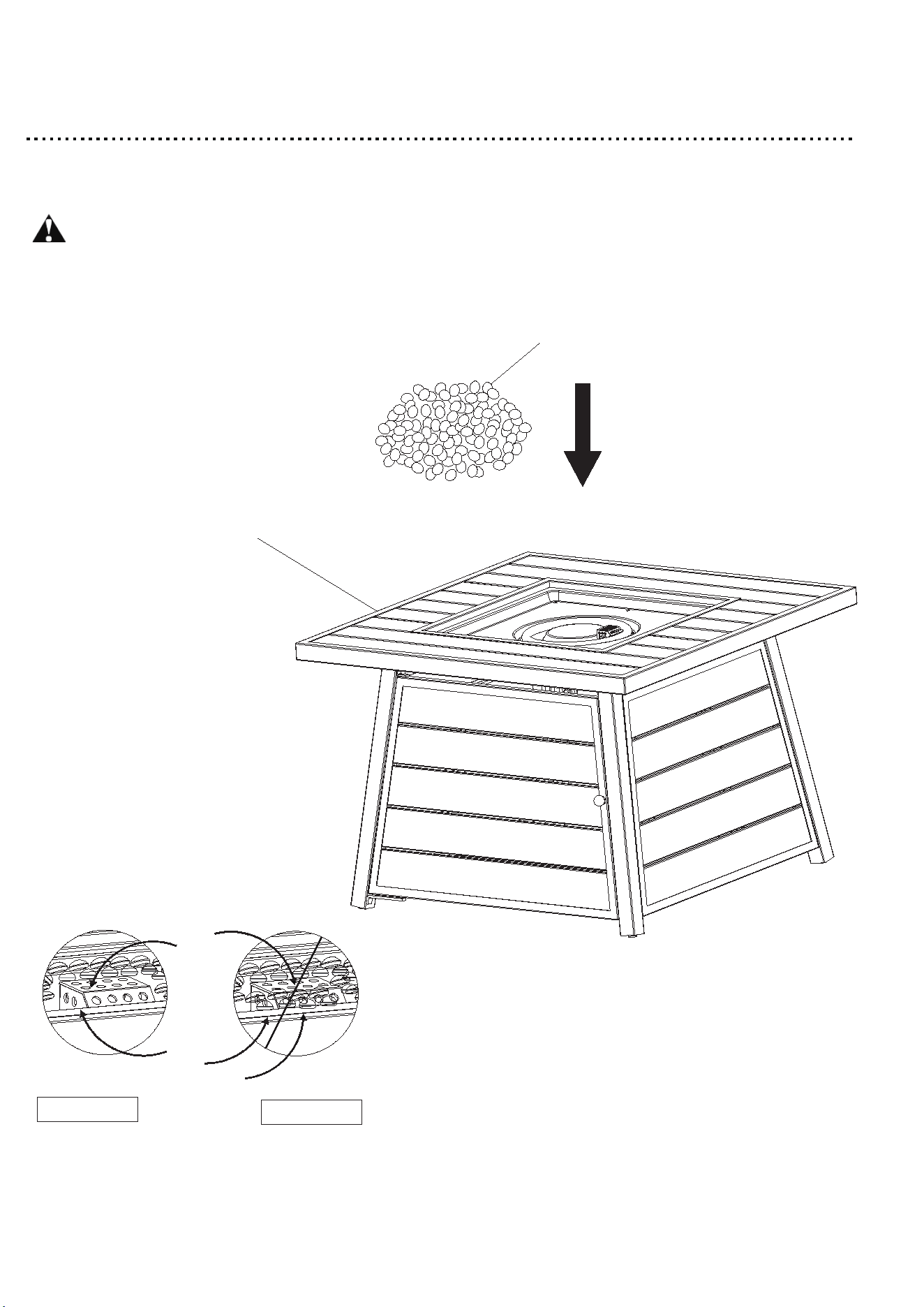

• Glass beads are very hot; please keep children or pets at a safe distance.

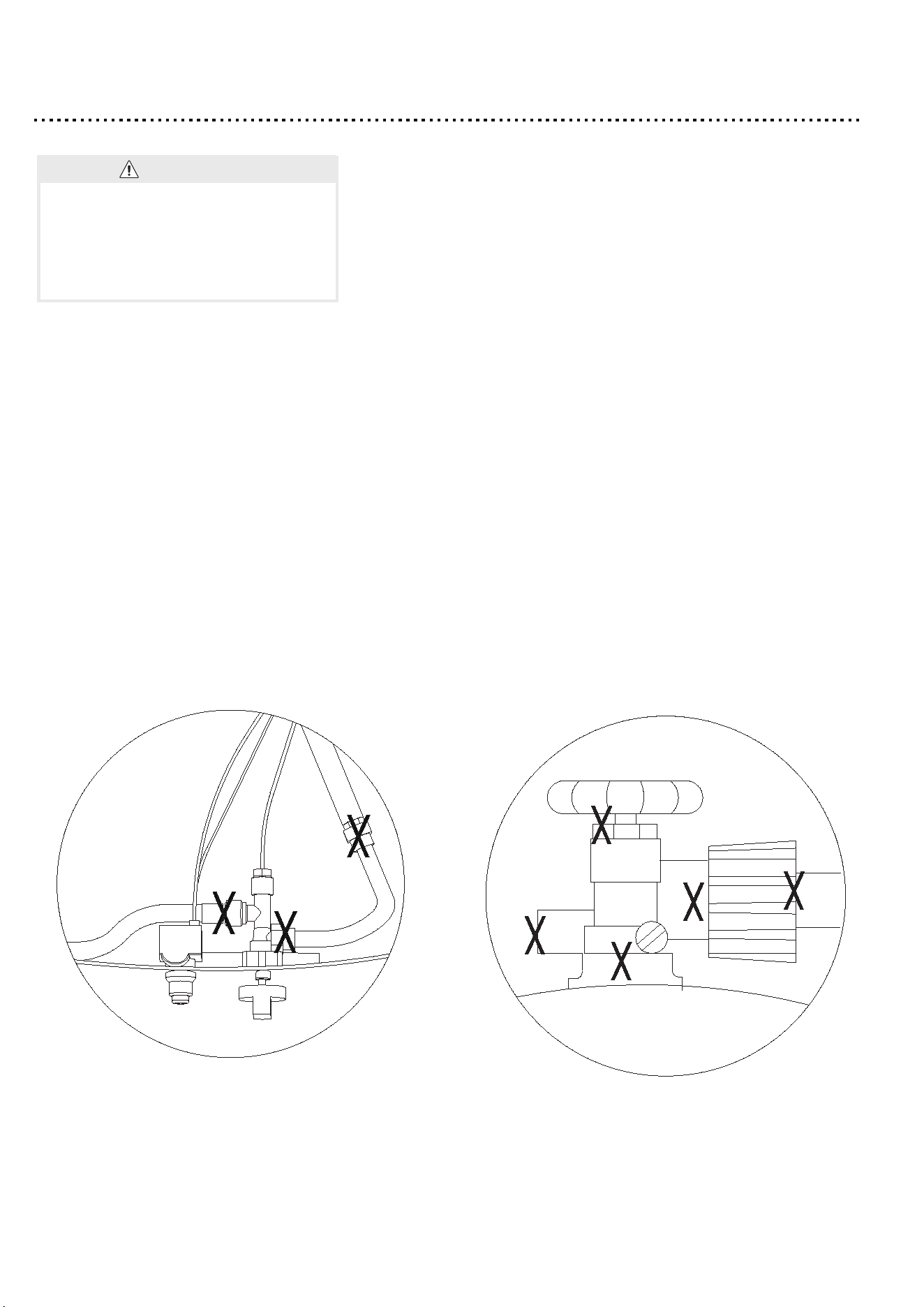

• Check for leaks after not using the unit for long periods of time.
• It is essential to keep the outdoor fire pit valve compartment, burners, and
circulating air passages clean. Inspect outdoor fire pit before each use.
• Prior to each fire pit operation, visually check the hose for evidence of
excessive abrasion or wear. If the hose is damaged, cracked or cut, it must
be replaced before using the gas fire pit. The hose assembly can only be
replaced with a hose assembly specified by the manufacturer. Please call
the customer service department at:
components. If dirty, clean with a soft brush and soapy water solution.
Also examine the area around the burner. Any dirt or foreign material, such
as spider webs or nests in this area should be removed. If it is evident that
the burner is damaged, the fire pit must not be used. The burner assembly
can not be replaced. Please contact customer service department at:
1-866-905-4107 for technical support.
• Place the hose out of the pathways where people may trip over it (if using
external tank). Do not place the hose in areas where it may be subjected to
accidental damage.
1-866-905-4107.
• Before each use, remove the glass media. Examine the burner and its
ATTENTION: Any alteration of the outdoor fire pit that is not specifically
directed in the operations manual will void manufacturer warranty.
7
IMPORTANT SAFETY INFORMATION (continued)
WARNING: For outdoor use only
PROPANE (LP) DANGERS AND WARNINGS
8
pools in low areas.
Propane Characteristics
LP GAS
LP gas is flammable and hazardous if handled improperly. Become
aware of the characteristics before using any LP gas product.
Propane Characteristics:
• Flammable, explosive under pressure, heavier than air and settles in
• In its natural state, propane has no odor. For your safety, an odorant has
been added.
• Contact with propane could burn your skin.
• Propane is extremely flammable and hazardous if handled improperly.
LP GAS WARNINGS:
•
Cylinders must be stored outdoors in a well-ventilated area out of reach of
children.
•
Disconnected cylinders must have threaded valve plugs tightly installed and
must not be stored in a building, garage or any other enclosed area.
• Never use a propane cylinder with a damaged body, valve, collar or footing.
•
Dented or rusted propane cylinders may be hazardous and should be
checked by your propane gas supplier.
•

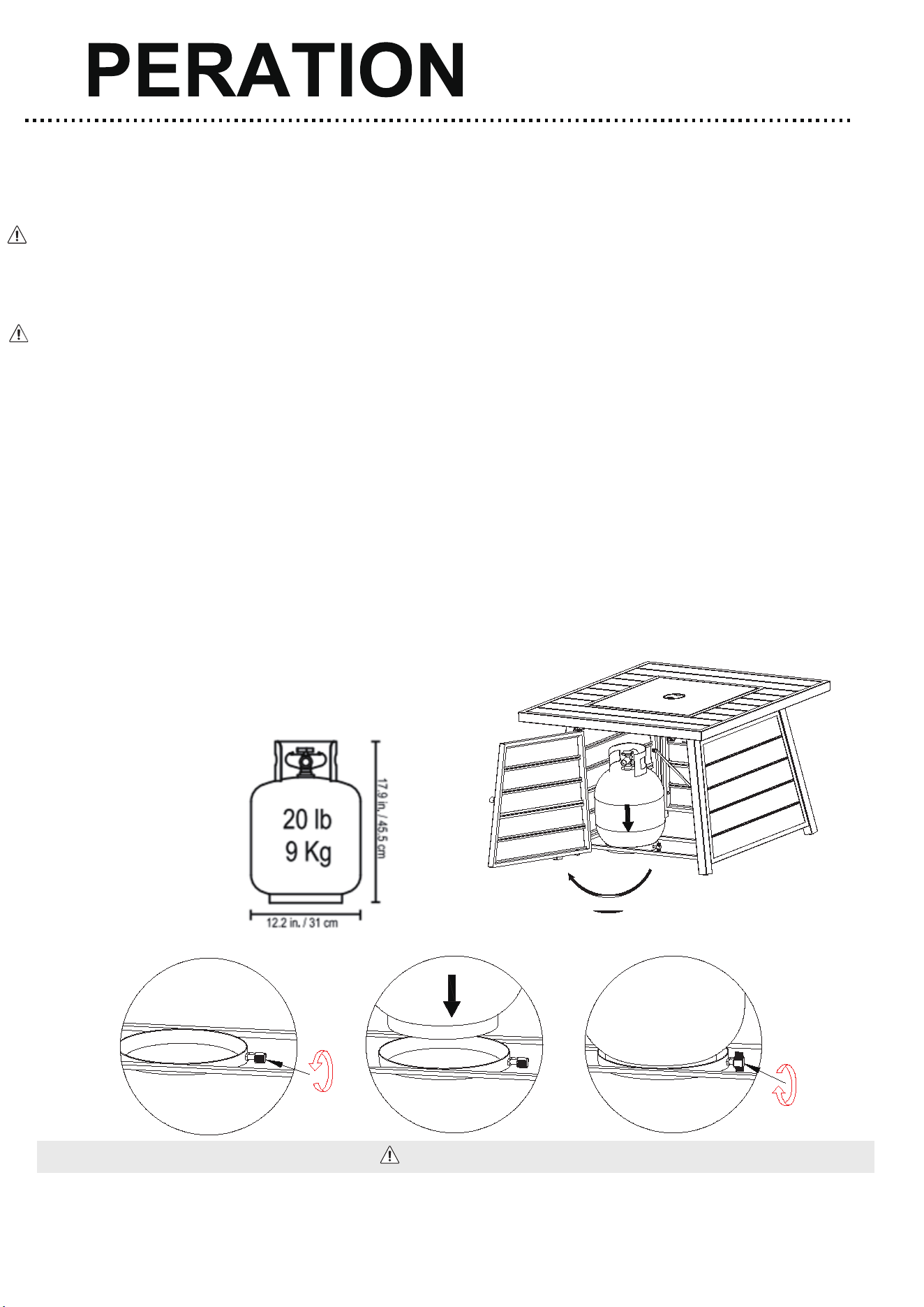

Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve
with this appliance as required by the American National Standards Institute
(ANSI) and the Canadian Standards Steering Committee.
•
Only tanks marked “propane” may be used.
•
The LP gas supply tank must be constructed and marked in accordance
with the Specifications for LP gas tanks of the U.S. Department of
Transportation (DOT) or the National standard of Canada, CAN/CSA-B339,
LP gas tanks,Spheres and Tubes for the Transportation of Dangerous Goods.
•
LP gas tank must be arranged for vapor withdrawal.
•
The LP gas tank must have a listed overfilling prevention device (OPD) and
a QCCI or Type I (CGA810) LP gas tank connection.
•
The LP gas tank must have a tank collar to protect the tank valve.
•
LP gas cylinder must contain a shut-off valve as specified in the standard for
compressed gas cylinder valve outlet and inlet and inlet connection, ANSI/
CGA-V-1-1977, CSA B96.
•
Never use an LP gas tank with a damaged body, valve, collar, or footing.
Dented or rusted LP gas tanks may be hazardous and should be checked by
your LP gas supplier prior to use.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store
in a building, garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach over 125°F.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) are not followed exactly, a fire causing
death or serious injury may occur.
• Do not store the LP gas cylinder in direct sunlight or near a source of heat
or combustion.
• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the
gas pressure to increase, which may open the relief valve and allow gas to
escape.
• Place dust cap on valve outlet whenever the LP gas tank is not in use.
Only install the type of dust cap on the LP gas tank valve outlet that is
provided with the LP gas tank valve. Other types of caps or plugs may result
in leakage of propane.
9
• LP gas cylinders should be filled only by a certified LP gas dealer.
• The pressure regulator is set for 11 inches of water column (pressure).
• The maximum inlet propane gas pressure for this outdoor fire pit is 250 psi.
• The minimum inlet propane gas pressure for this outdoor fire pit is 25 psi.
• Never attempt to attach this appliance to the self-contained LP gas system
of a camper trailer, motor home or house.
• Always use the pressure regulator and hose assembly provided with the
appliance to connect to a LP gas cylinder. Never connect to an unregulated
LP gas supply. For technical support contact customer service at
(866) 905-4107.
PROPANE (LP) DANGERS AND WARNINGS
• Hand turn the manual gas control valve. Never use tools. If the valve will
not turn by hand, do not try to repair it. Call a Certified Gas Technician. The
use of force or any self attempted repair may result in a fire or explosion.

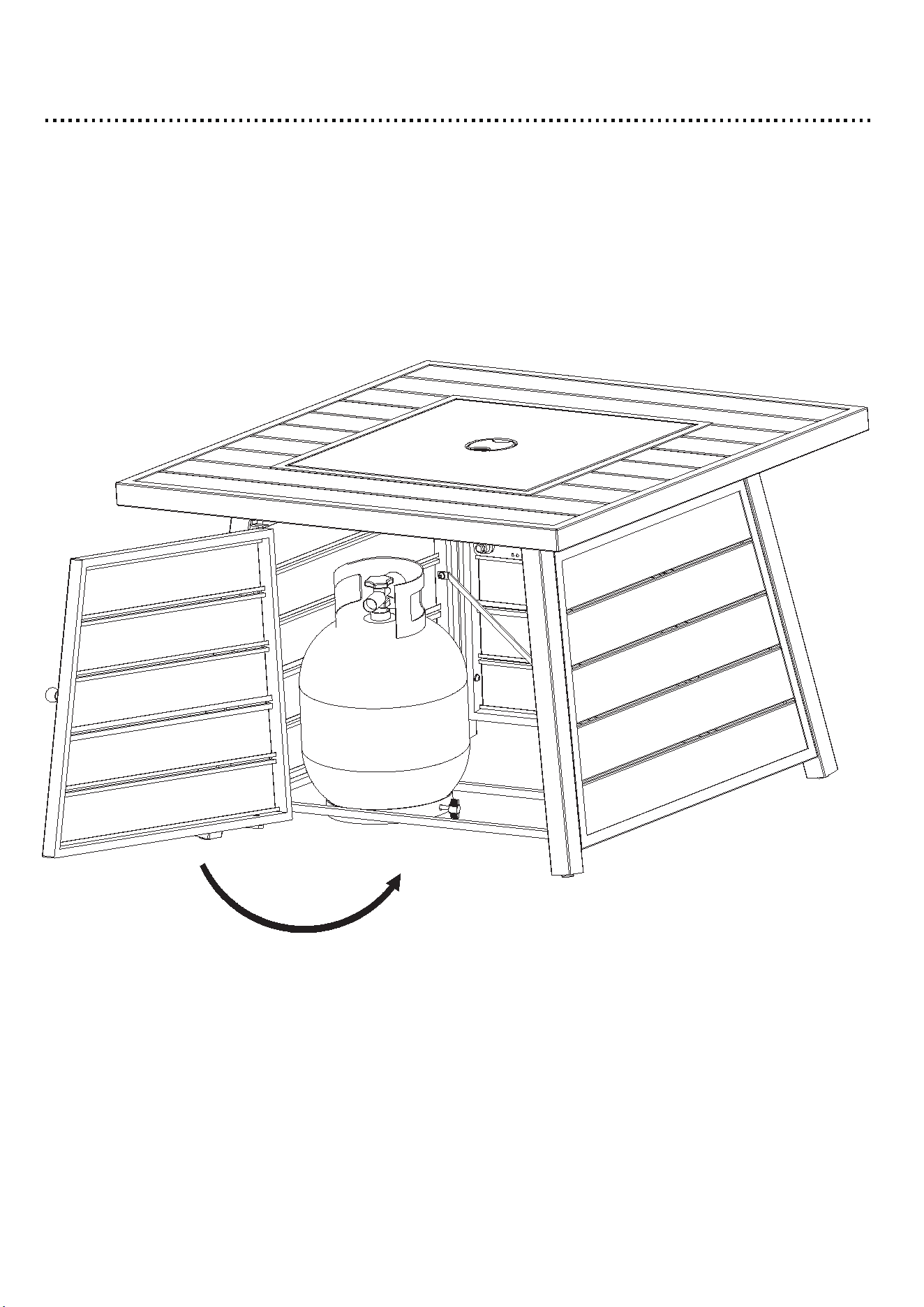

Connecting your gas cylinder:
Before connection, be sure that there is no debris caught in the head of the
gas cylinder, head of the regulator valve or in the head of the burner and
burner ports. Connect regulator valve and hand-tighten firmly. Disconnect
the propane cylinder from the regulator valve when the fire pit is not in use.
PROPANE (LP) DANGERS AND WARNINGS
10
DO NOT obstruct the flow of combustion air and ventilation air to the burner.
1. This fire pit comes equipped with a standard LP gas hose and regulator
including the appliance side connection for a CGA No 791 Cylinder
Connection Device. The LP gas hose and regulator supplied with this fire pit
must be used. Only a hose and regulator specified by manufacturer can be
used for replacement.
a. The CGA No 791 connection incorporates a magnetic flow limiting device
that acts to limit the flow of gas if a leak is detected between the regulator
and the burner valve.
b. If the burner valve is open prior to the LP gas cylinder service valve being
opened, the connection will interpret this free flow of gas to be a leak.
c. The connection safety feature will reduce gas flow from the regulator to
the appliance to a minimal level.
Be sure that the burner control valve is closed prior to opening the LP gas
cylinder service valve to ensure that the connection flow limiting device is
not triggered mistakenly.
If the connection flow limiting device is triggered mistakenly, close the LP
gas cylinder service valve and the burner valve, wait 10 seconds to allow
the device to reset, open the cylinder service valve, then open the burner
valve and light the fire
as per lighting instructions.
Be sure to protect the hose from any hot surfaces. Serious danger may
result if the hose contacts any hot surface.
Regular maintenance of the hose and regulator:
Inspect the hose before each use of the fire table. If the hose shows signs
of cracks, abrasions, cuts or damage of any kind, do not operate the
appliance. Fix or replace the hose as required before using the appliance.
For assistance with repair or replacement of the hose, call customer
service at (866) 905-4107. Use only replacement parts from the
manufacturer.

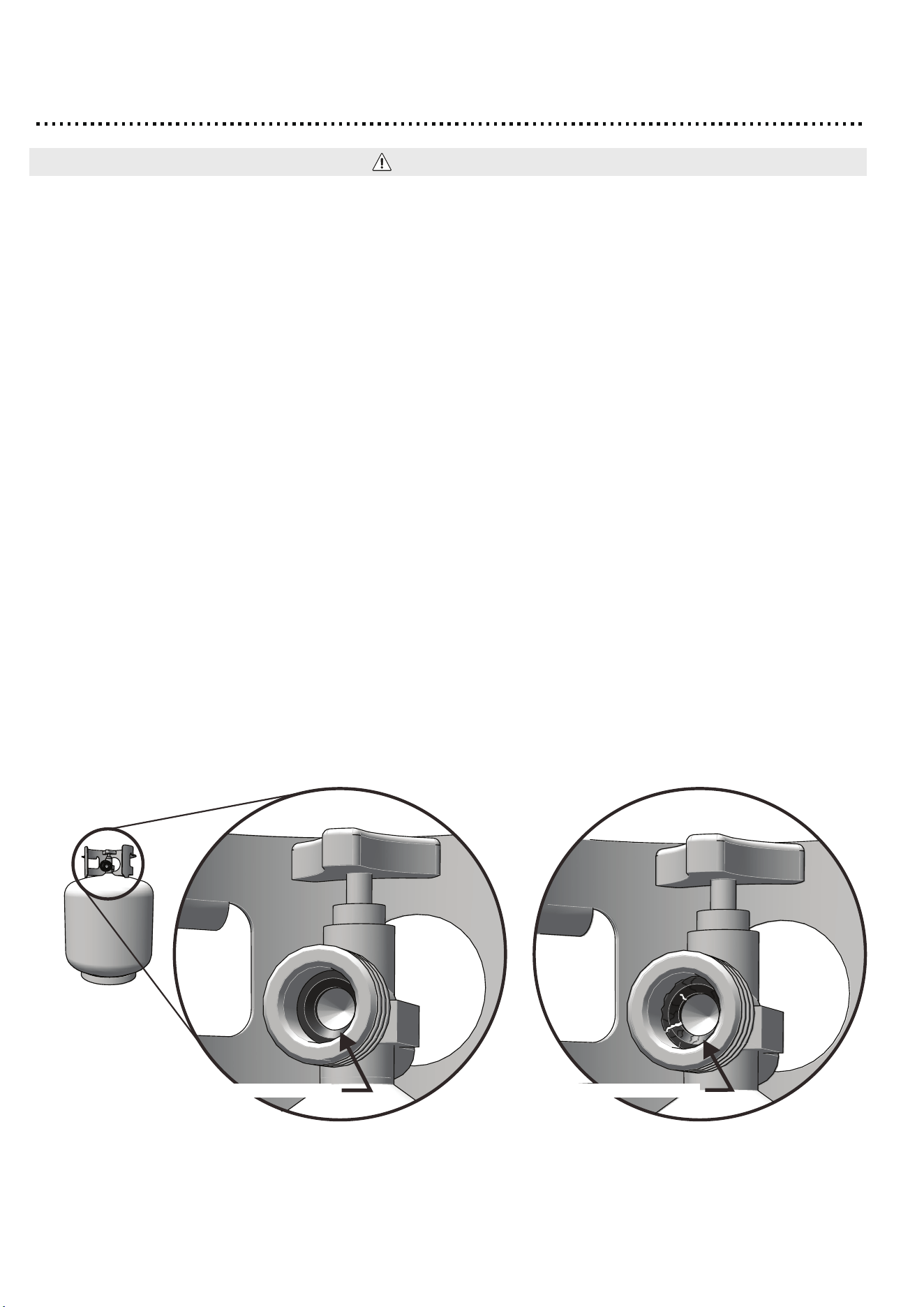

Inspect the seal inside the CGA No 791 service valve on the LP gas
cylinder when replacing the cylinder or at least once per year. If there is
any indication of damage, have the seal replaced by a certified gas dealer
before operating the appliance.
4. Do not use tools to tighten the CGA No 791 connection nut onto the LP
gas cylinder service valve. Hand tighten only.
Glass Media Warning:
5. Be careful to not cross the threads on the connection when tightening the
CGA No 791 connection on to the LP gas cylinder service valve.
6. “Leak Test” should always be performed after attaching the connection to
the LP gas cylinder service valve. (See details on page 26 of this manual).
7. For the connection of the hose and regulator to the LP tank, refer to page
25 for details.
11
WARNING: Combustion by-products produced when using this product
contain carbon monoxide, a chemical known to the State of California to
cause cancer, birth defects, or other reproductive harm, and this product can
expose you to chemicals including lead and lead compounds, which are
known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to: www.P65Warnings.ca.gov.
1. Media may have sharp edges. Wear safety glasses and gloves when
handling.
2. Do not change or substitute the media material provided with this fire pit.
If replacing, use only replacement glass media available from your local
authorized dealer/distributor.
3. Pour the glass media evenly in to the burner area (with the exception of
the screen-if applicable). The glass should be 1/2-1”above the burner.
4. IMPORTANT: Do not exceed a height of 1” above the burner when
placing glass media. Ensure no media covers the igniter screen. Store any
excess media in a safe location.
5. Keep away from the unit for the first 20 minutes after igniting your unit for
the first time, as lava rocks/pumice stones/glass shards/glass beads could
pop out and cause injury. Should any rocks pop out, discard them.
6. Always ensure that lava rocks/pumice stones/glass shards/glass beads
are completely dry before use. Failure to do so will cause them to crack or
pop.
PROPANE (LP) DANGERS AND WARNINGS
WARNING
California Proposition 65
CLEANING & CARE
1. All cleaning and maintenance should be done when outdoor fire pit is
cool and with the fuel supply disconnected.
2. Do not clean any outdoor fire pit part in a self-cleaning oven, the
extreme heat will damage the finish.
3. Do not enlarge valve orifices or burner ports when cleaning the valves
or burners.
Notices
1. This outdoor fire pit should be thoroughly cleaned and inspected on a
regular basis.
2. Abrasive cleaners will damage this product.
3. NEVER use oven cleaner to clean any part of this outdoor fire pit.
CAUTION:
Before Each Use:
1. Keep the outdoor fire pit area clear and free from any combustible
materials, gasoline and other flammable vapors and liquids.
2. Do not obstruct the flow of the combustion of LP gas and the ventilation
of air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear
from debris.

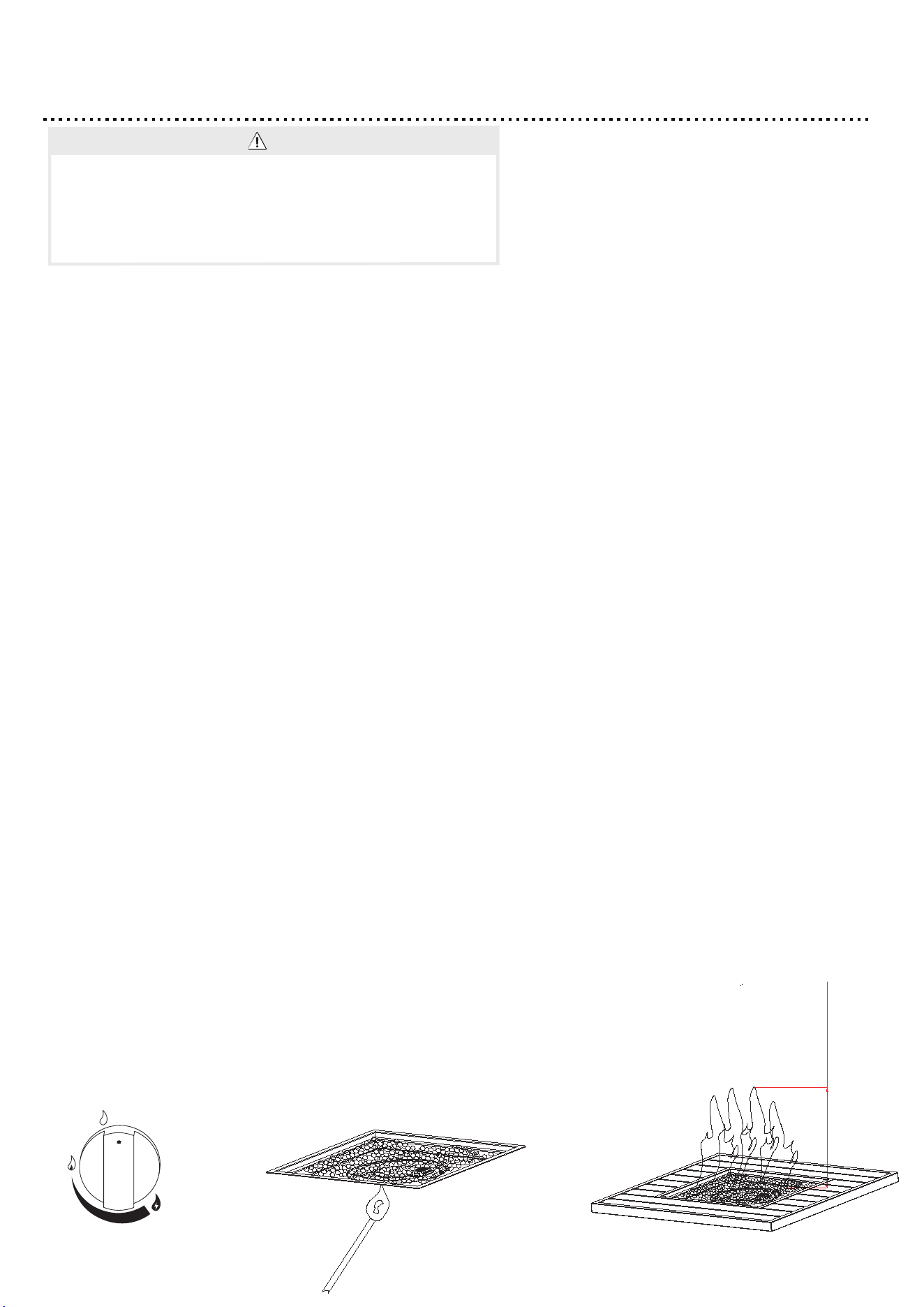

4. Visually check the burner flames to make sure your outdoor fire pit is
working properly (Figure 5).
5. See next page for proper cleaning instructions.
6. Check all gas connections for leaks.
7. Check components for any signs of damage or rust.
8. Check for obstructions of airflow to the burner. Spiders, insects and webs
can clog the burner/venturi tube. A clogged burner/venturi tube can lead to
a fire.
9. If damage to any component is detected, do NOT operate until repairs
are completed.
12
1. Wipe surfaces clean with mild dishwashing detergent or baking soda
mixed with water.
2. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing
brush.
3. Rinse clean with water.
Cleaning Surfaces
4. Allow to air dry.
Before Storing
1. Turn LP gas tank valve to “CLOSED”.
2. Turn control knob to the “OFF” position. Note: A “poof” sound is normal as
the last of the gas is burned.
3. Disconnect LP gas tank as detailed on page 25.
4. Clean all surfaces.
5. Lightly coat the burner with cooking oil to prevent excess rusting.
CAUTION: NEVER place cover on hot outdoor fire pit.
6. If storing the outdoor fire pit indoors, cover and store in a cool dry
location away from children and pets.
7. If storing the outdoor fire pit outdoors, use the cover (included) for added
protection from weather.
Cleaning your fire pit top on a consistent and regular basis will help aid in a
longer lasting top. Cover your fire pit with the included cover when not in use
to protect it from the elements. We recommend that your fire pit be stored
indoors during the winter months. If it must be stored outside, it should
ALWAYS be covered
13
CLEANING & CARE
Care & Maintenance
14

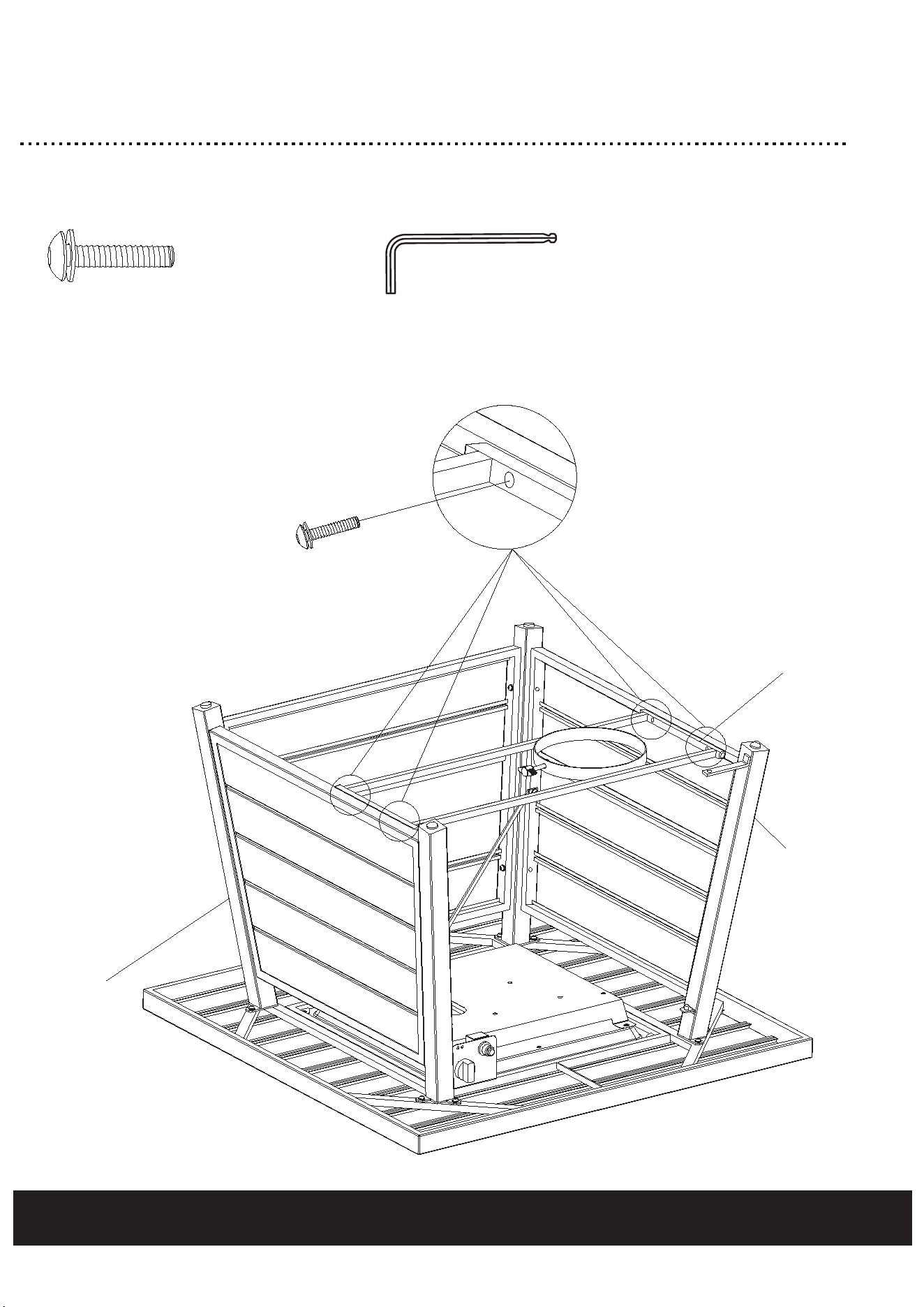

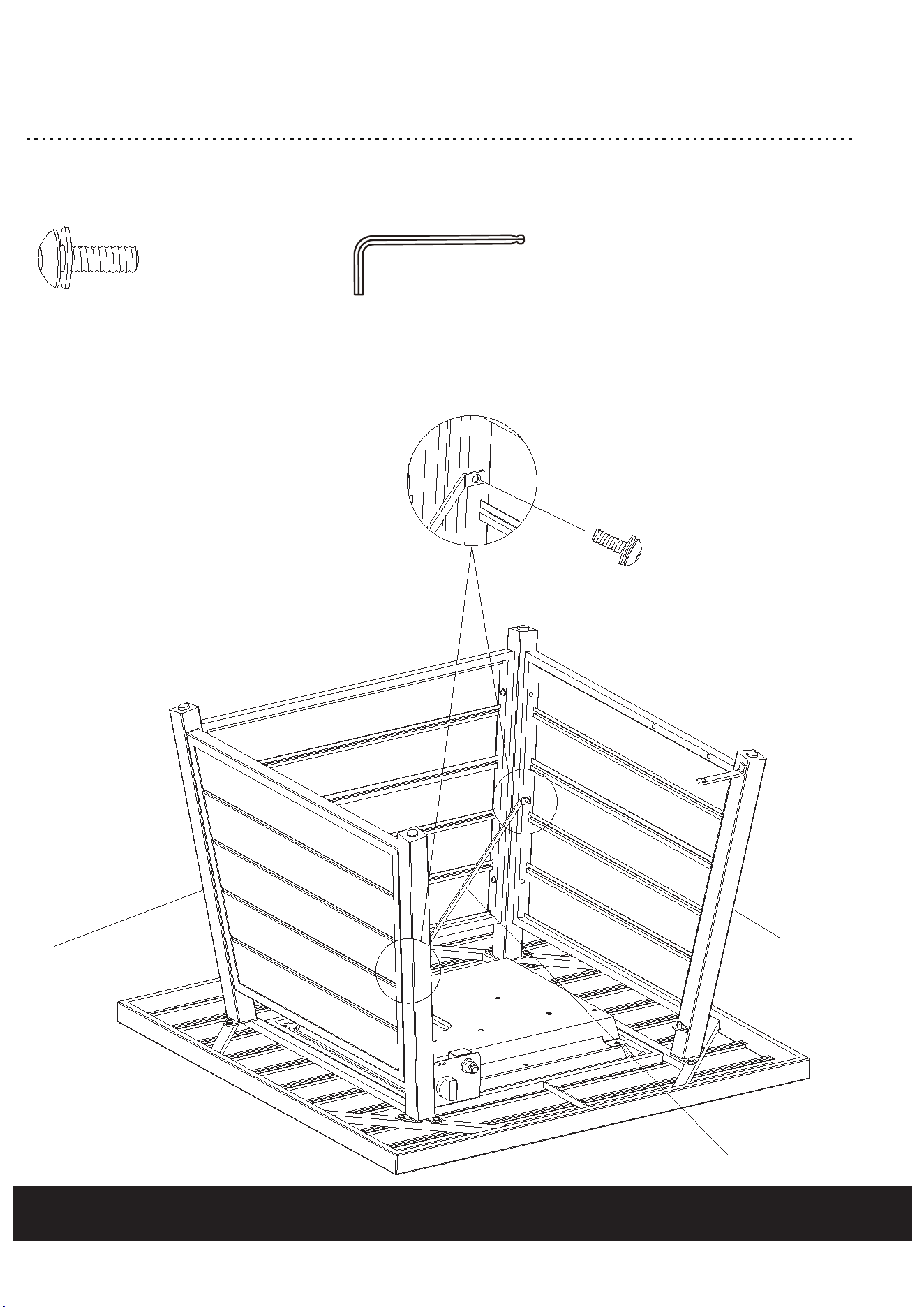

HARDWARE
(Part AA)×10+1
M6*15mm bolt with washer
(Part BB)×8+1
M6*28mm bolt with washer
(Part CC)×1+1
φ8.8*8*M6*12mm bolt
(Part DD)×2+1
Washer
(Part EE)×1
Allen wrench
15
ITEM DESCRIPTION QUANTITY
A
B
C

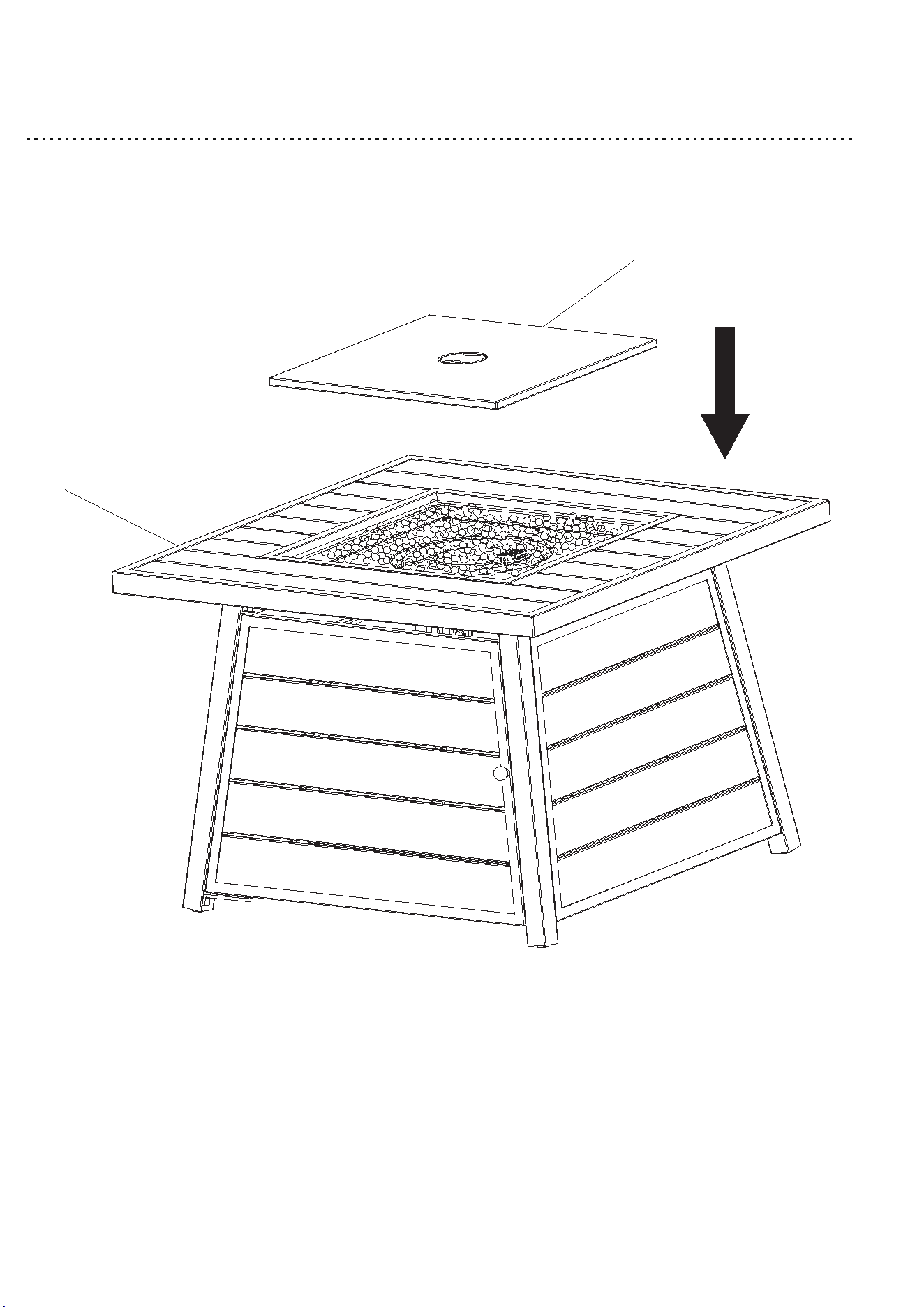

Lid
Table top
Left side panel
1
1
1
D Right side panel 1
E Back panel 1
F Door 1
G Base 1
G
A
B
I
J
M
E
F
D
C
H
H Position-Limiting Tube 1
1
I Glass beads
J Battery 1
1
M Door Knob
16
Step 1
ATTENTION: To prevent damage during assembly, please use either
the box carton or another soft material as a working surface.
1. Attach the Left side panel (C) & Right side panel (D) to the Table top (B) with
M6*15mm bolt with washer.
NOTE:Install all bolts by hand, loosely threaded before fully tightening.
(Part AA)×8
M6*15mm bolt with washer
(Part EE)×1
Allen wrench
AA AA
C
D
B
2. Secure with M6*15mm bolt with washer (AA) using Allen wrench (EE).
17
Step 2
NOTE: Install all bolts by hand, loosely threaded before fully tightening.
(Part BB)×4
M6*28mm bolt with washer
(Part EE)×1
Allen wrench
BB
C
E
D
Attach the Back panel (E) to the Left side panel (C) & Right side panel
(D)
with M6*28mm bolt with washer (BB).
Secure with M6*28mm bolt with washer (BB) using Allen wrench (EE).
Step 3
NOTE: Install all bolts by hand, loosely threaded before fully tightening.
1. Attach the Position-Limiting Tube (H) to the Left side panel (C) & Right
side
(Part AA)×2
M6*15mm bolt with washer
(Part EE)×1
Allen wrench
AA
18
panel (D) with M6*15mm bolt with washer (AA).
2. Secure with M6*15mm bolt with washer (AA) using Allen wrench (EE).
D
C
H
19
Step 4
1. Attach the Base (G) to the Left side panel (C) & Right side panel (D) with
M6*28mm bolt with washer (BB).
NOTE: Install all bolts by hand, loosely threaded before fully tightening.
(Part BB)×4
M6*28mm bolt with washer
(Part EE)×1
Allen wrench
C
BB
D
G
Secure with M6*28mm bolt with washer (BB) using Allen wrench (EE).
2.
20
Step 5
NOTE: Install all bolts by hand, loosely threaded before fully tightening.
2. Attach the Door (F) to the Left side panel (C) with φ8.8*8*M6*12 bolt (CC) &
Washer (DD).
1. Insert the Washer (DD) into the door post.
3. Secure with φ8.8*8*M6*12mm bolt (BB) using Allen wrench (EE).
4. Tighten all screws.
(Part CC)×1
φ8.8*8*M6*12 bolt
(Part DD)×2
Washer
DD
CC
DD
F
C
(Part EE)×1
Allen wrench
21

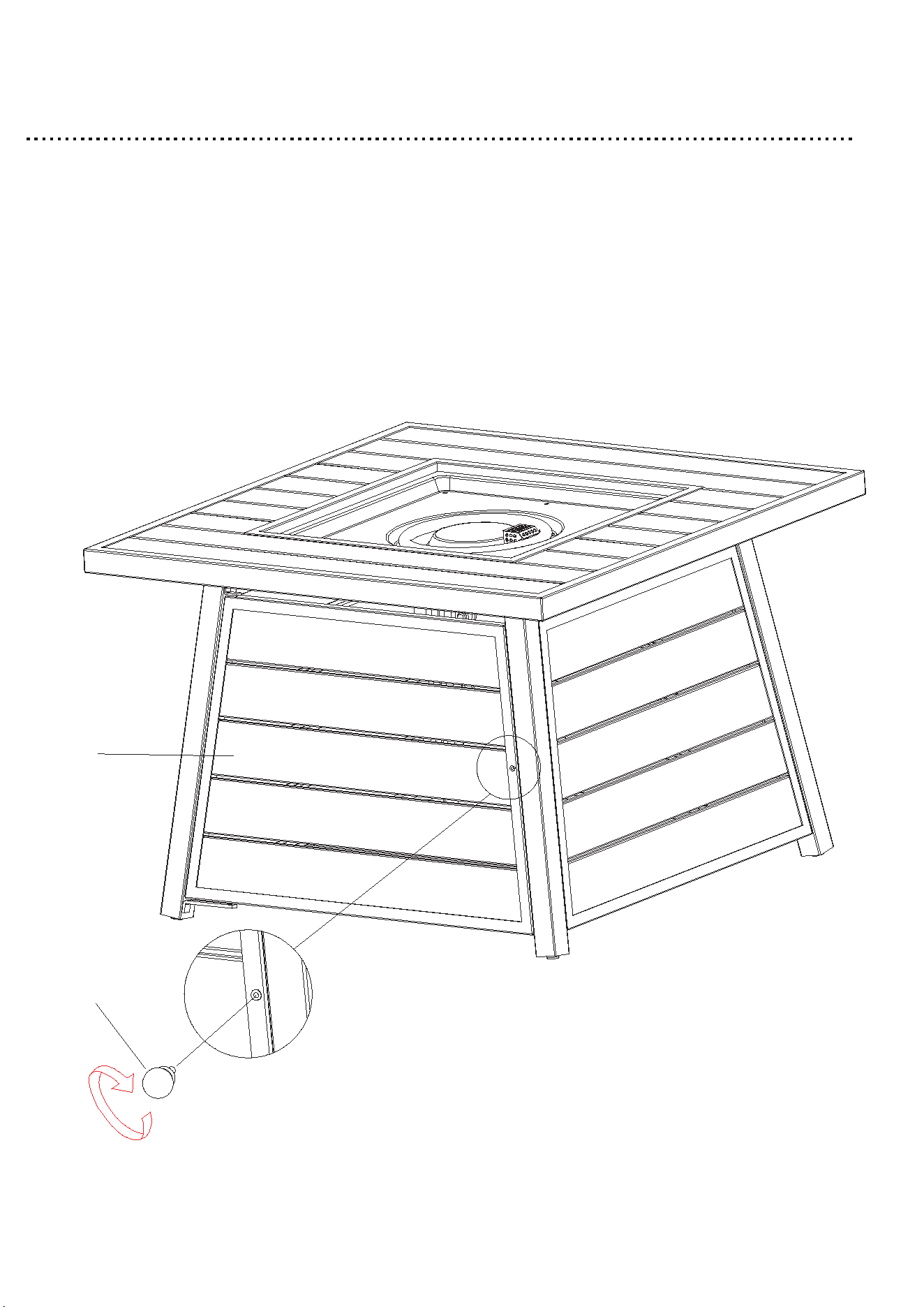

Step 6
2. Insert the Door Knob (M) into the Door (F) and tighten it by turning clockwise.
1. Turn the fire pit right side up.
M
F
Step 7
22
1. Place the Glass beads (I) into the burner pan.
Caution
To ensure proper function, the screen on the burner should be free of glass beads.
I
B
Pilot
CORRECT
INCORRECT
Pilot
Housing
Burner
Tube
do not block
opening
Step 8
Place the Lid (A) over the Burner pan.
23
A
B
24
O
Installing LP Gas Tank:
WARNING: This product contains a small battery. Swallowing the small battery can cause
a CHOCKING HAZARD. Seek immediate medical attention if batteries are swallowed or
inhaled. Keep children away from the small batteries.
-
To operate, you will need one precision-filled standard
grill LP gas tank with external valve threads.
CAUTION: LP gas tank must be properly
disconnected and removed prior to moving this
prior to moving the fire pit.
To Insert:
Warning: Make sure LP gas tank valve is closed.
Loosen LP tank retainer bolt by turning counter-
clockwise.
-
Place precision-filled LP gas tank upright into hole in
outdoor fire pit base so the tank valve is facing the gas
line connection.
-
Secure tank by turning the LP gas tank retainer bolt
clockwise until tight.
-
The propane gas and cylinder are sold separately. Use a
standard 20 lb. propane cylinder only (approximately 12.2
in./31cm in diameter and 17.9 in./45.5cm high). Use this
fire pit only with a propane vapor withdrawal supply
system. See chapter 5 of the standard for storage and
handling of liquefied petroleum gas, ANSI/NFPA 58.
- Your local library or fire department should
have this book. Storage of an appliance
indoors is permissible only if the cylinder is
disconnected and removed from the
appliance. A cylinder must be stored outdoors
in a well-ventilated area out of the reach of
children. A disconnected cylinder must have
dust caps tightly installed and must not be
stored in a building, garage, or any other
enclosed area. The maximum inlet gas supply
pressure: 250 Psi. The minimum inlet gas
supply pressure: 25 Psi.Manifo ld pressure
with regulator provided: 11in. W.C/2.74 kPa.
The pressure regulator and hose assembly
supplied with the appliance must be used. The
installation must conform with local codes, or
in the absence of local codes, with national
fuel gas code, ANSI Z223.1/NFPA54, natural
gas and propane Installation Code,
CSAB149.1, or propane storage and handling
code, B149.2.
-
WARNING
OPERATION
CONNECT
DISCONNECT
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your
cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder
must be constructed and marked in accordance with the specifications for propane gas cylinders of the
U.S. the specifications for propane gas cylinders of the U.S. Department of Transportation (DOT) or the
standard for cylinders, spheres, and tubes for transportation of dangerous goods and commission,
CAN/CSA-B339.
The cylinder must have a listed overfilling prevention device. The cylinder must have a connection
device compatible with the connection for the appliance. The cylinder used must include a collar to
protect the cylinder valve. Never connect an unregulated propane cylinder to the fire pit.
The knob on the propane tank must be closed. Make sure that the knob is turned clockwise to a full stop.
The cylinder supply system must be arranged for vapor withdrawal. Check that the control knob on the
control unit is turned off. Hold the regulator in one hand and insert the nipple into the valve outlet. Be
sure the nipple is centered in the valve outlet. The coupling nut connects to the large outside threads
on the valve outlet. Hand-tighten the coupling nut clockwise until it comes to a full stop. Firmly tighten
by hand only.
To Connect: Before connecting be sure there is no debris caught in the head of the LP gas tank, head of
the regulator valve or in the head of the burner or burner parts. Connect the regulator/hose to the gas tank
by turning the knob clockwise until it stops.
To Disconnect: Before disconnecting make sure the LP gas tank valve is “CLOSED”. Disconnect
regulator/hose assembly from LP gas tank turning the knob counterclockwise until it is loose. Place the
protective cap cover on the LP tank and store the tank outdoors in a well-ventilated area out of direct
sunlight.
Do not store a spare propane gas cylinder under or near this appliance; Never fill the cylinder beyond 80
percent full. Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve that is provided with the cylinder valve. Other type of caps or plugs
may result in leakage of propane. Instructions, including illustrations, on the proper cylinder orientation to
provide vapor withdrawal.Storage of an appliance indoors is permissible only if the cylinder is disconnected
and removed from the appliance. A cylinder shall be stored outdoors in a well-ventilated area out of the
reach of children. A disconnected cylinder shall have dust caps tightly installed and shall not be stored in a
building, garage, or any other enclosed area. The pressure regulator and hose assembly supplied with the
appliance must be used, and a statement that replacement pressure regulators and hose assemblies must
be those specified by the appliance manufacturer.
25
26
OPERATION
Figure 1
Figure 2
WARNING
Perform all leak tests outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the fire pit until all
connections
1. Make 2-3oz of leak detection solution by mixing one part liquid dishwashing soap with three parts
water.
2. Make sure control knob is in the “OFF” position.
3. Connect LP gas tank;
4. Turn LP gas tank valve to “open” ;
5. Spoon several drops of solution or use a squirt bottle, at all “X” locations;
a. If any bubbles appear, turn LP gas tank valve to “CLOSED”, reconnect and reset.
b. If you continue to see bubbles after several attempts, turn LP gas tank valve to “CLOSED”,
disconnect LP gas tank as detailed in “Operation" pg. 25 and Contact 1-866-905-4107 for
assistance.
c. If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED”, wipe away solution
and proceed.
27
LP GAS CYLINDER RUBBER SEAL INSPECTION.
.
.
OPERATION
.
.
Example of good rubber seal. Example of damaged rubber seal.
• Inspect the LP gas cylinder valve rubber seal for cracks, wear or deterioration prior to each use. A damaged
rubber seal can cause a gas leak, possibly resulting in an explosion, fire, or severe bodily harm.
• It is recommended that you inspect the rubber seal each time the LP gas cylinder is connected to the fire
pit, each time it has been refilled, or if it has not been used for more than 60 days.
• DO NOT use a LP gas cylinder with a damaged rubber seal. The rubber seal CANNOT be repaired or
replaced. Purchase a new cylinder or exchange the cylinder. You should inspect the seal before accepting a
new or exchanged cylinder. DO NOT insert tools or foreign objects into the cylinder valve opening as this
could damage the rubber seal.
• The leak check procedure outlined in the product guide/assembly manual MUST be followed each time the
LP gas cylinder is connected to the fire pit. Consult the product guide/assembly manual for the proper
procedure and locations for leak checking.
WARNING
28
OPERATION
J
IGNITER
WARNING
Battery may contain mercury. Do not put
batteries into the fire or trash. Please treat
batteries as hazardous waste and recycle
properly.

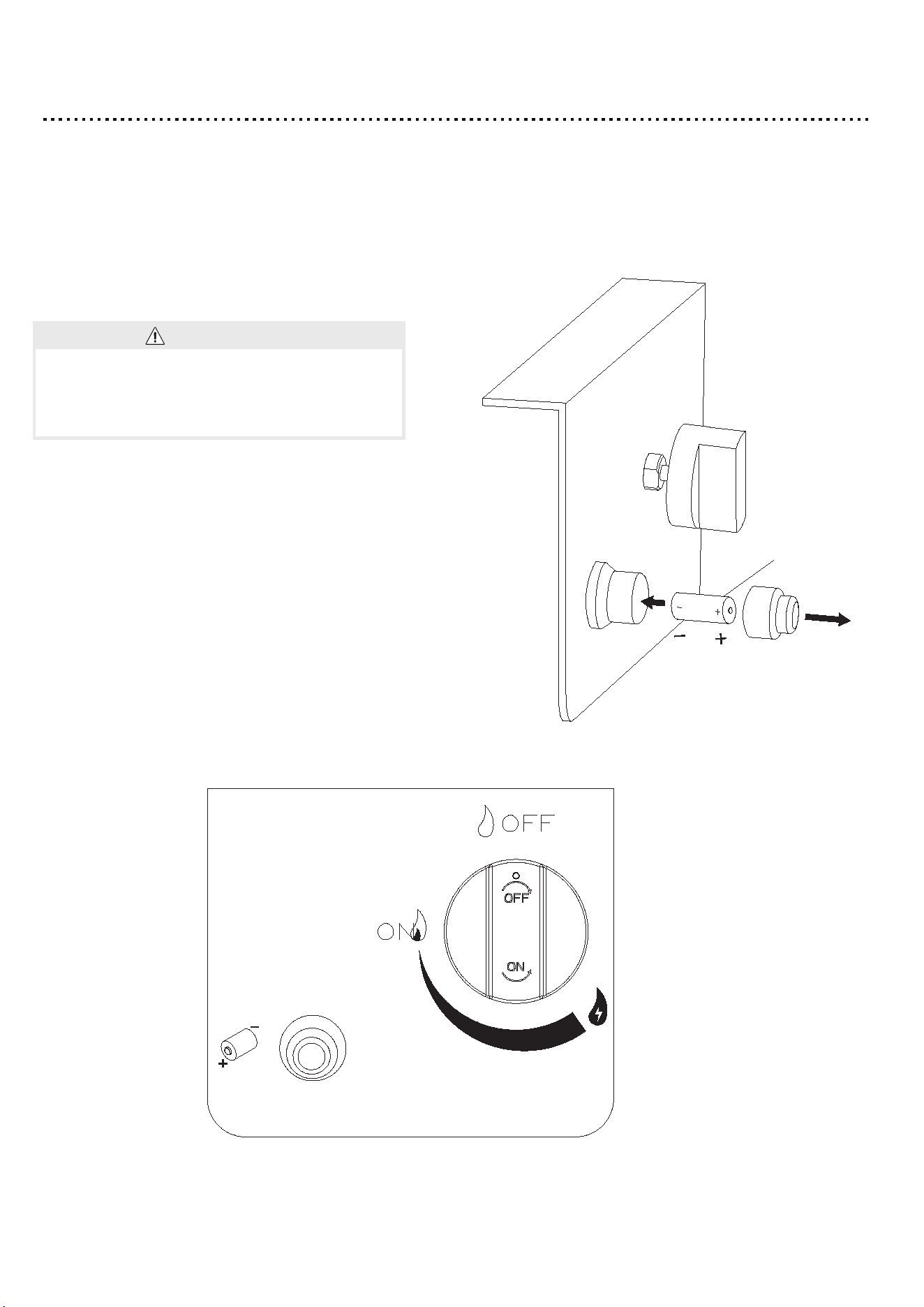

INSTALLING BATTERY
Insert the included battery (J) into the flame igniter and reinstall the cap. Do not overtighten.
29
OPERATION
WARNING
• CARBON MONOXIDE HAZARD
• For outdoor use only. Never use inside house, or
other unventilated or enclosed areas. This fire pit
consumes air
(oxygen). Do not use in unventilated
or enclosed areas to avoid endangering your life.
15.75in-26.771in
40-68cm
WARNING:NEVER light the burner with the cover on the outdoor fire pit. CAUTION: Keep outdoor gas
fire pit area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
Caution: Do NOT obstruct the flow of combustion and ventilation air.
Caution: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to
a fire.
1. Make sure all labels, packaging and protective films have been removed from the outdoor fire pit.
2. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/ venturi tube.
A clogged burner tube can lead to a fire.
3. Control knob must be in the OFF” position (Figure 3).
4. Clear small area of glass rocks away from the igniter cover (Figure 4).
5. Connect LP gas tank as detailed on pg 25.
6. Turn LP gas tank valve to “OPEN”.
7. Push and hold the electronic igniter to create sparks within the electrode, continue to hold.
8. Push in the control knob and turn to the “ON” position, Keep holding down the control knob to allow gas to
flow for 20 seconds.
9. After 20 seconds, release and turn control knob Counterclockwise to adjust flame to desired height.
10. If ignition does not occur in 20 seconds turn burner control knob to “ OFF” wait 5 minutes, fan with a
newspaper or magazine, and repeat lighting procedure.
11. Remove cover and lid from outdoor fire pit before lighting.
12. If igniter does not light burner:
a. Wearing heat-resistant gloves, position a long lit match or long lit butane lighter near the pilot housing
b. Push and turn control knob to “ON”
c. Remove match/lighter once burner is lit
Caution: After lighting - using a fire pit tool and heat-resistant gloves, carefully move the glass beads back
to their proper position, being careful to avoid the flame.
13. After lighting, observe the burner flame make sure all burner ports are lit and flame height matches
illustration (Figure 5).
Caution:After lighting - using a fire pit tool and heat-resistant gloves, carefully move the glass beads back to
their proper position, being careful to avoid the flame.
Failure to follow these instructions could result in fire or explosion, which could cause property damage,
personal injury, or death.
Turning Off
1. Turn LP gas tank valve to “CLOSED”.
2. Turn control knob to the “OFF” position. Note: A “poof” sound is normal as the last of
the LP gas is burned.
3. Disconnect LP gas tank as detailed on pg 25.
Figure 3
Figure 4
Figure 5
30
OPERATION
Once the LP gas tank is installed, close the door.
31
OPERATION

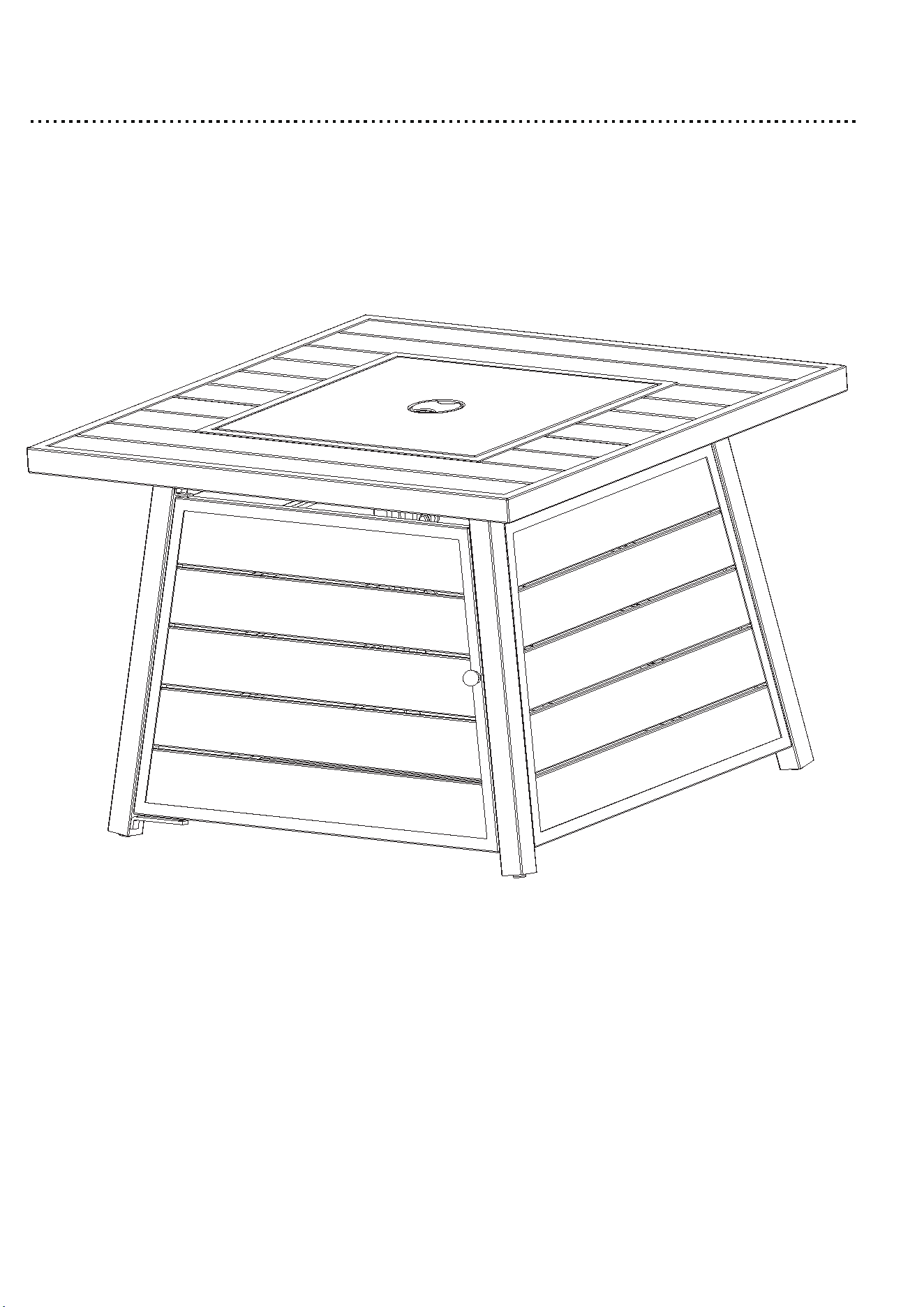

The fire pit is now complete and ready to use.
Troubleshooting
Problem Cause Solution/Prevention
Burner will not
light
using igniter
Burner will not
light
with match
32
LP gas tank valve is closed
LP gas tank is low or empty
LP gas leak
Battery needs to be changed
Electrode and burners are wet
Electrode cracked or broken -
sparks at crack
Wire loose or disconnected
Bad igniter
Wire is shorting (sparking)
between igniter and electrode
No gas flow
LP gas tank is low or empty
LP gas leak
Coupling nut and regulator not
fully connected
Obstruction of gas flow
Disengagement of burner to
valve
Burner ports clogged or
Spider webs or insect nest in
burner/venturi tube
blocked
Exchange, refill or replace LP gas
tank
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow details on pg 26
Replace the “AA” battery (follow
assembly step for inserting battery)
Reconnect wire or replacement part(s)
Wipe dry with cloth
1-866-905-4107
may be needed - contact Customer
Care at 1-866-905-4107
Replacement part(s) may be needed -
Replacement part(s) may be needed -
contact Customer Care at
contact Customer Care at
1-866-905-4107
Make sure regulator is securely
attached to the LP gas tank per
“Installing LP Gas Tank” section then
turn LP gas tank valve to “OPEN”.
Replacement part(s) may be needed -
contact Customer Care at
1-866-905-4107
Check if LP gas tank is empty
a. If empty, exchange, refill or replace
LP gas tank
b. If LP gas tank is not empty, refer to
“Sudden drop in gas flow or reduced
flame height” (see next page)
Exchange, refill or replace LP gas tank
Clean burner/venturi tube
Re-engage burner and valve
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow details on pg 26.
Turn the coupling nut about one-half to
three-quarters additional turn until solid
stop. Tighten by hand only - do NOT
use tools
2. Check for bent or kinked hose
1. Clear burner/venturi tube
Clean burner ports
Troubleshooting
Problem Cause Solution/Prevention
Sudden drop in gas
flow or reduced
Flame is yellow or
orange
33
Out of gas
Overfilling prevention device
may have been activated
flame height
Irregular flame
pattern flame does
not run the full
length of burner
New burner may have residual
Burner ports are clogged or
blocked
manufacturing oils
Spider webs or insect nest in
burner/venturi tube
Poor alignment of valve to
burner/venturi tube
Flame goes out
High or gusting winds
Excess flow valve tripped
Burner and/or burner/venturi
Low on LP gas
tube is blocked
overfilling prevention.
Clean burner ports
a. Turn control knob(s) “ OFF”
b. Turn LP gas tank valve to “CLOSED”
c. Disconnect regulator
d. Turn control knobs to (ON)
e. Wait one minute
f. Turn control knobs to “ OFF”
g. Reconnect regulator and leak check
connections, being careful not to fully
open valve(s)
h. Light outdoor fire pit as detailed on
pg 29.
Burn outdoor fire pit for 15 minutes
and re-inspect.
Exchange, refill or replace LP gas tank
For assistance call 1-866-905-4107
1. Turn control knob to “ OFF”.
2. Wait 30 seconds and light outdoor
fire pit as detailed on page 29.
3. If flames are still too low, reset the
Clean burner/venturi tube.
Ensure burner/venturi tube is properly
engaged with valve.
Do not use outdoor fire pit in high
winds.
Exchange, refill or replace LP gas tank
Refer to “Sudden drop in gas flow
or reduced flame height” above.
Flashback (fire in
venturi/burner
tube(s))
Clean burner and/or burner/venturi tube
1. Turn off per “Turning Off” section
2. Replace with a spare LP gas tank
3. Reconnect LP gas tank per
“Installing LP Gas Tank” section
4. Check for leaks as detailed on pg 26.
5. Light outdoor fire pit as detailed on pg
29.
Flame seems to
lose heat when
burning in cold
temperatures below
50°F
Ice has built up on the outside
of the LP gas tank because
the vaporization process is too
slow.
