1. Introduction
This document provides a guideline for operating and configuring Castles S1F4CT
terminal.
The scope of this document includes setting up the terminal, basic operation, application
lifecycle, and some advanced features.
Regulatory instruction of usage
● Before using the terminal, please check has it been disassembled, modified, or showed
abnormal situation. If yes, please do not use.
● Please stay away from strong electromagnetic waves.
(Example) Microwave ovens, magnets, shoplifting prevention devices, high-voltage
wires, automatic doors, communication antennas, etc.
● Condensation can occur when moving from a cold place to a warm place. If
condensation occurs, do not use the unit until the connected water droplets evaporate.
● Static electricity may occur in some places (such as where you use a carpet).
● Please do not leave it in the sun for a long time.
● Please operate the unit carefully as it is a precision instrument. Do not apply impact,
drop or heavy objects on top of the unit.
● Do not attach dust, oil, etc. to a part of the power terminal. Also, please do not
scratch.
Castles Technology Co., Ltd. Pg. 6
2. Hardware Setup
2.1. Parts of the Terminal

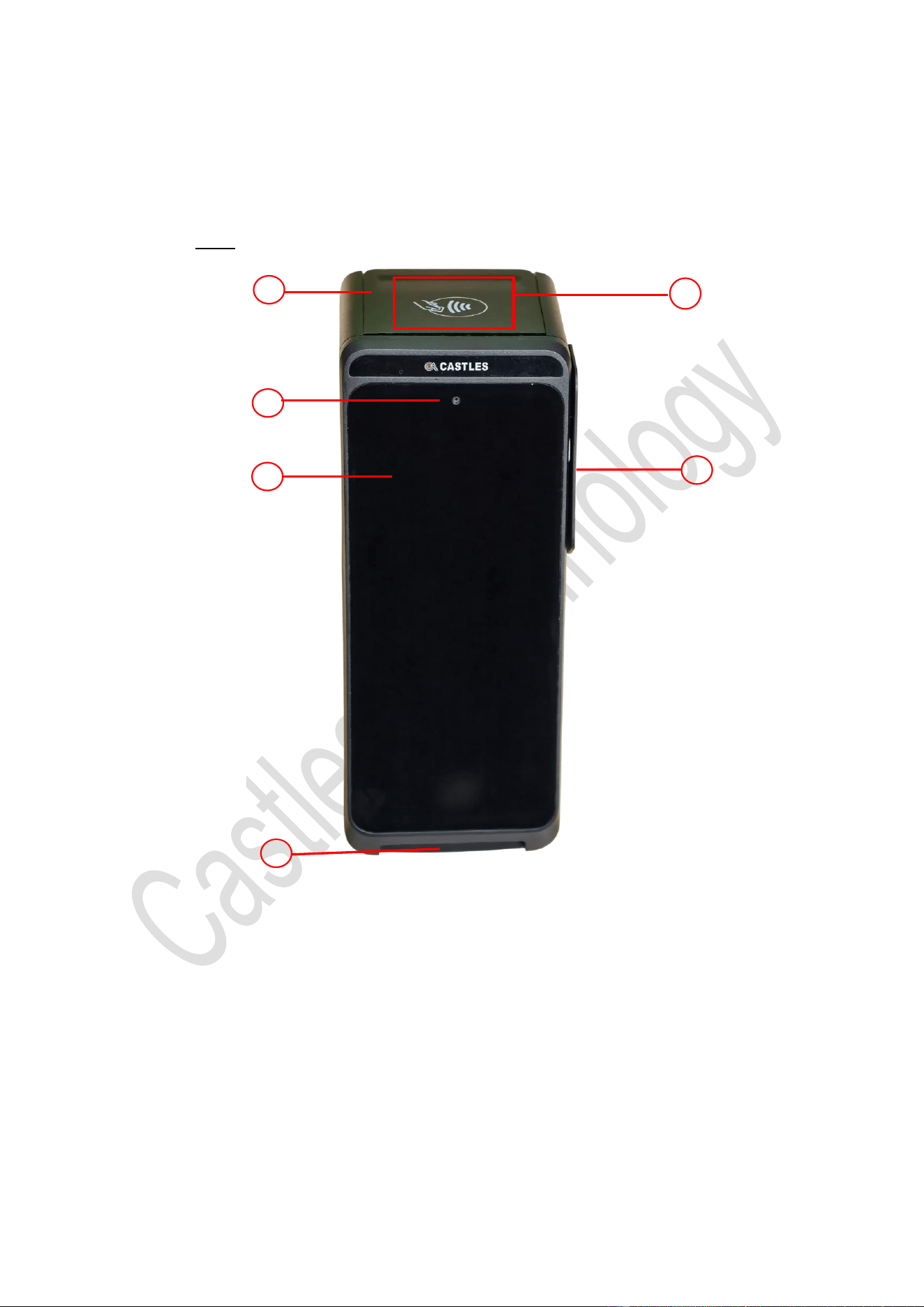

Front
1. Paper Roll Cover
2. Front Camera
3. LCD Display (6.745”)
4. Smart Card Reader
5. Contactless Card
Landing Zone
6. Magnetic Stripe Reader
1
5
3
4
6
2
Castles Technology Co., Ltd. Pg. 7

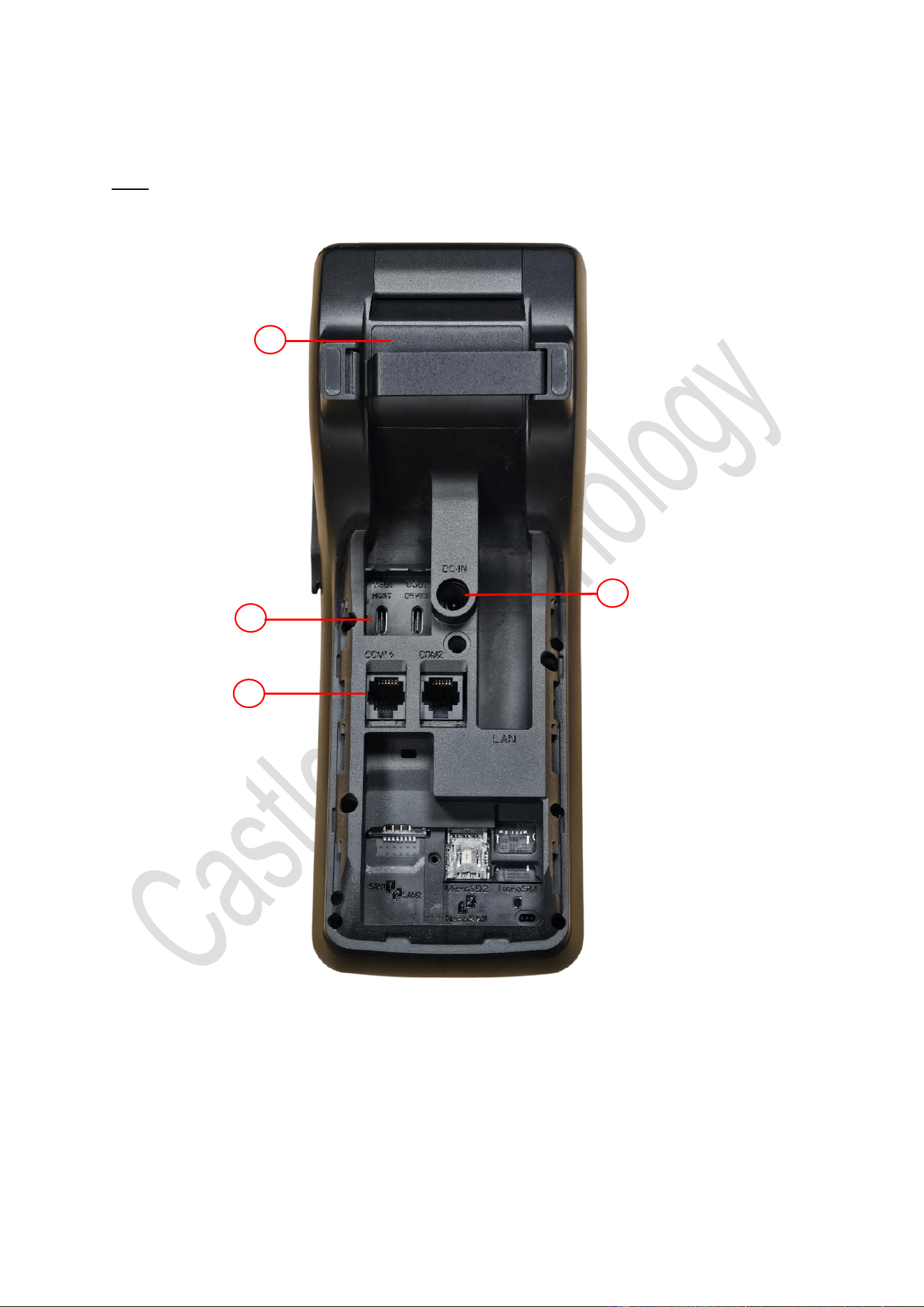

Rear
7. Product Label
8. USB type-C Slots (USB1 Host, USB2 Device)
9. COM Ports (COM1 with power)
10. DC Jack
7
10
8
9
Castles Technology Co., Ltd. Pg. 8

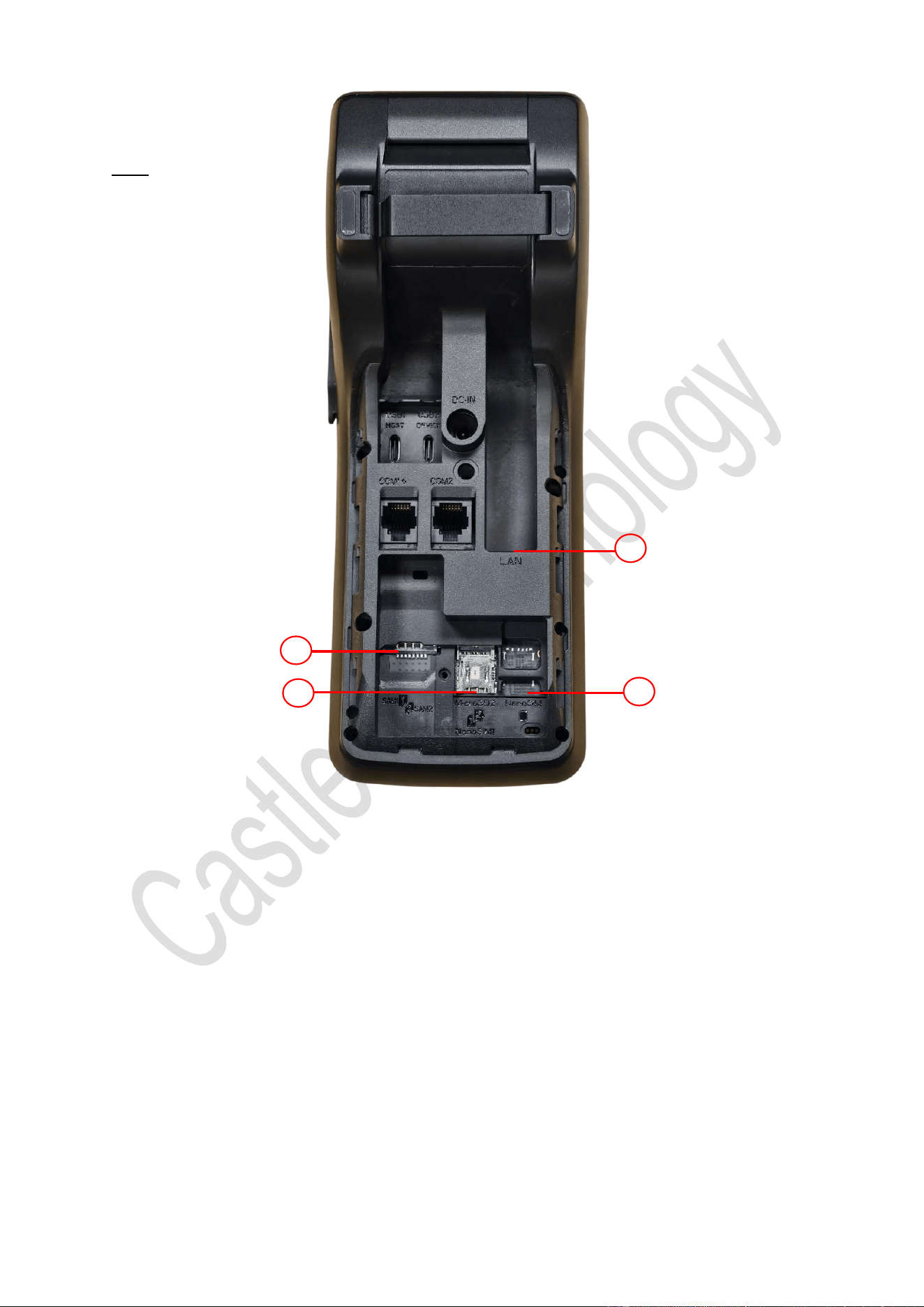

Rear
11. SAM Card Slots*2
12. Micro SD Card Slots*1(Upper layer), Nano SIM Card Slot*1(Bottom layer)
13. LAN Port
14. Nano SIM Card Slot*1
14
13
11
12
Castles Technology Co., Ltd. Pg. 9

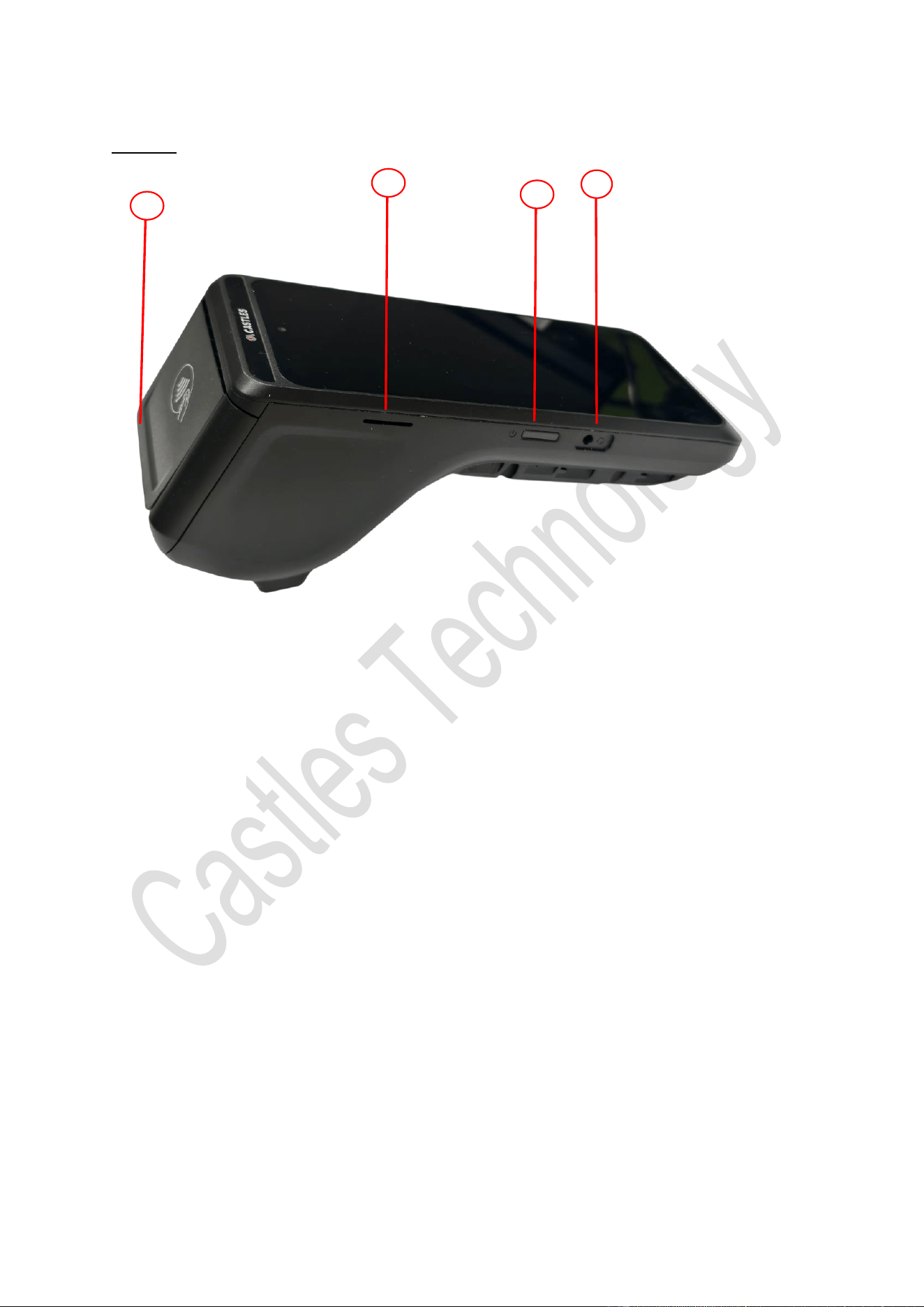

Left side
15. Paper Roll Cover Handle
16. Speaker
17. Power Button
18. Headphone Jack
17
18
15
16
Castles Technology Co., Ltd. Pg. 10

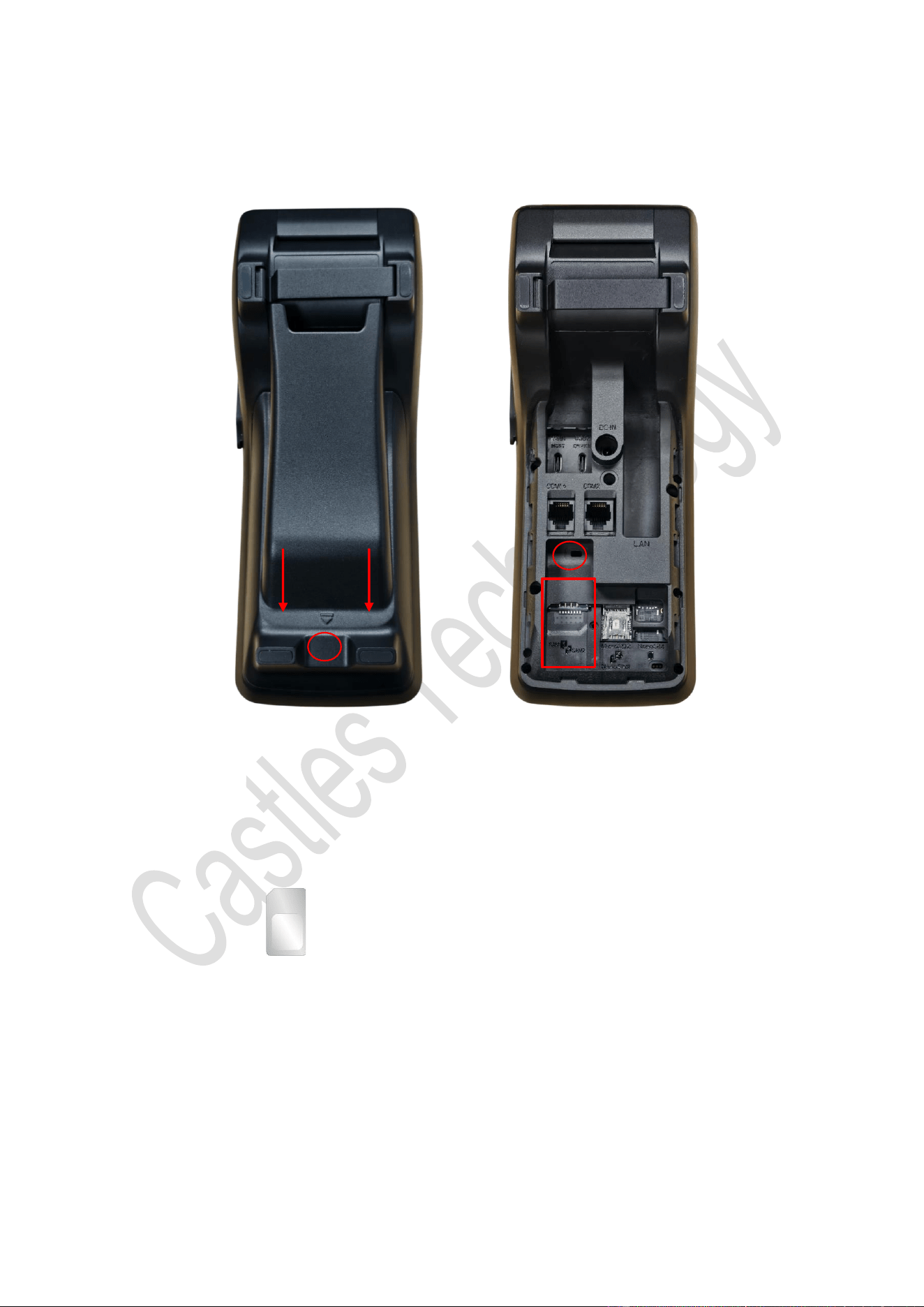

2.2. Insert SAM Card
Step 1: Push down to remove the back cover.
Step 2: Insert SAM card into the desired slot.
SAM 1 & 2:
SAM 1 is on the upper layer, SAM 2 is on the bottom layer.
Gold contact is facing down.
Step 3: Reverse the step 1 to install the back cover.
1
2
Castles Technology Co., Ltd. Pg. 11

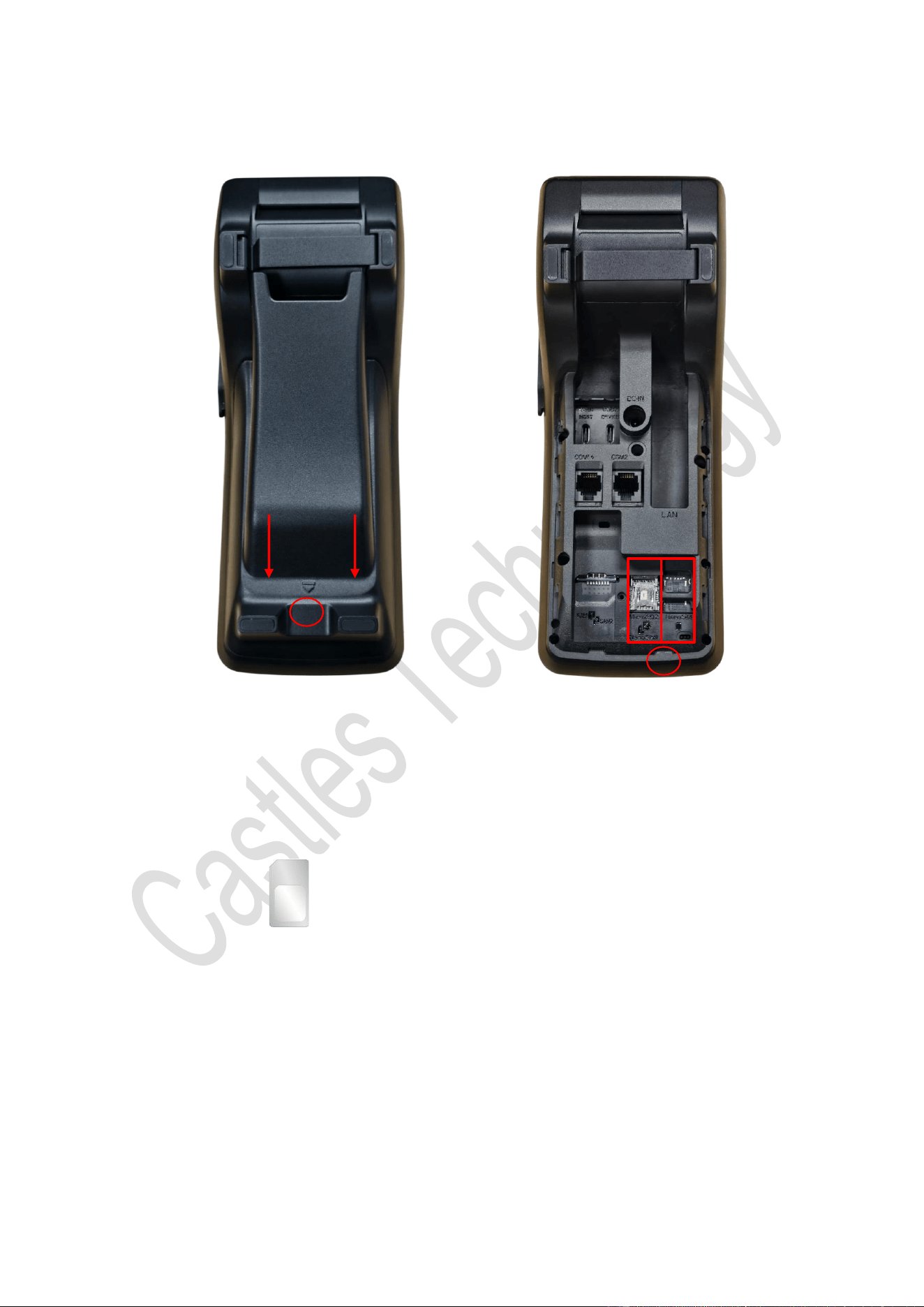

2.3. Insert Nano SIM Card
Step 1: Push down to remove the back cover.
Step 2: Insert Nano SIM card into the desired slot.
Nano SIM 1 is on the left part of bottom layer, Nano SIM 2 is
on the right part. Gold contact is facing down.
Step 3: Reverse the step 1 to install the back cover.
1
2
Castles Technology Co., Ltd. Pg. 12

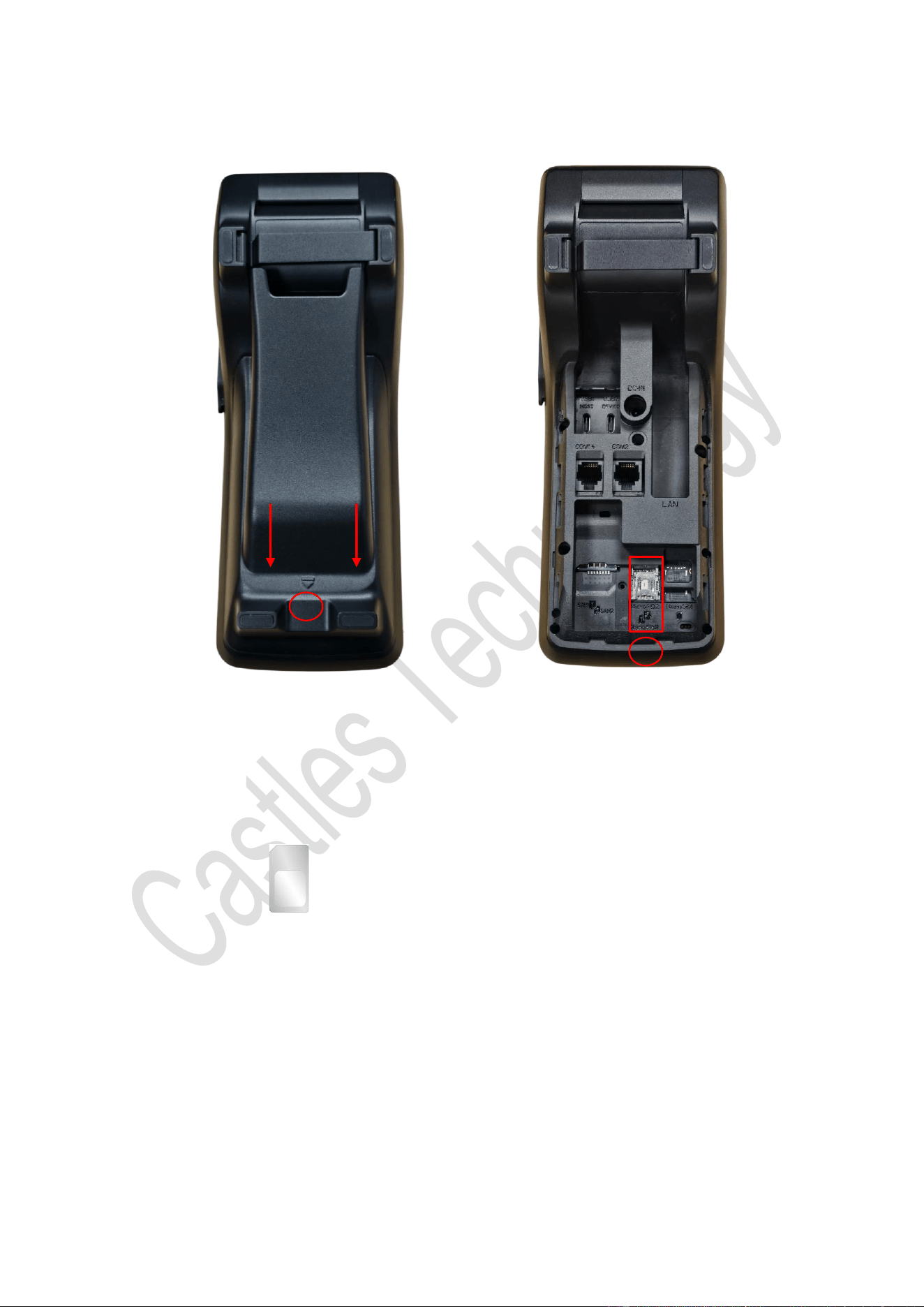

2.4. Insert Micro SD Card
Step 1: Push down to remove the back cover.
Step 2: Insert Micro SD card into the desired slot.
Micro SD card is on the upper layer. Gold contact is facing
down.
Step 3: Reverse the step 1 to install the back cover.
1
2
Castles Technology Co., Ltd. Pg. 13

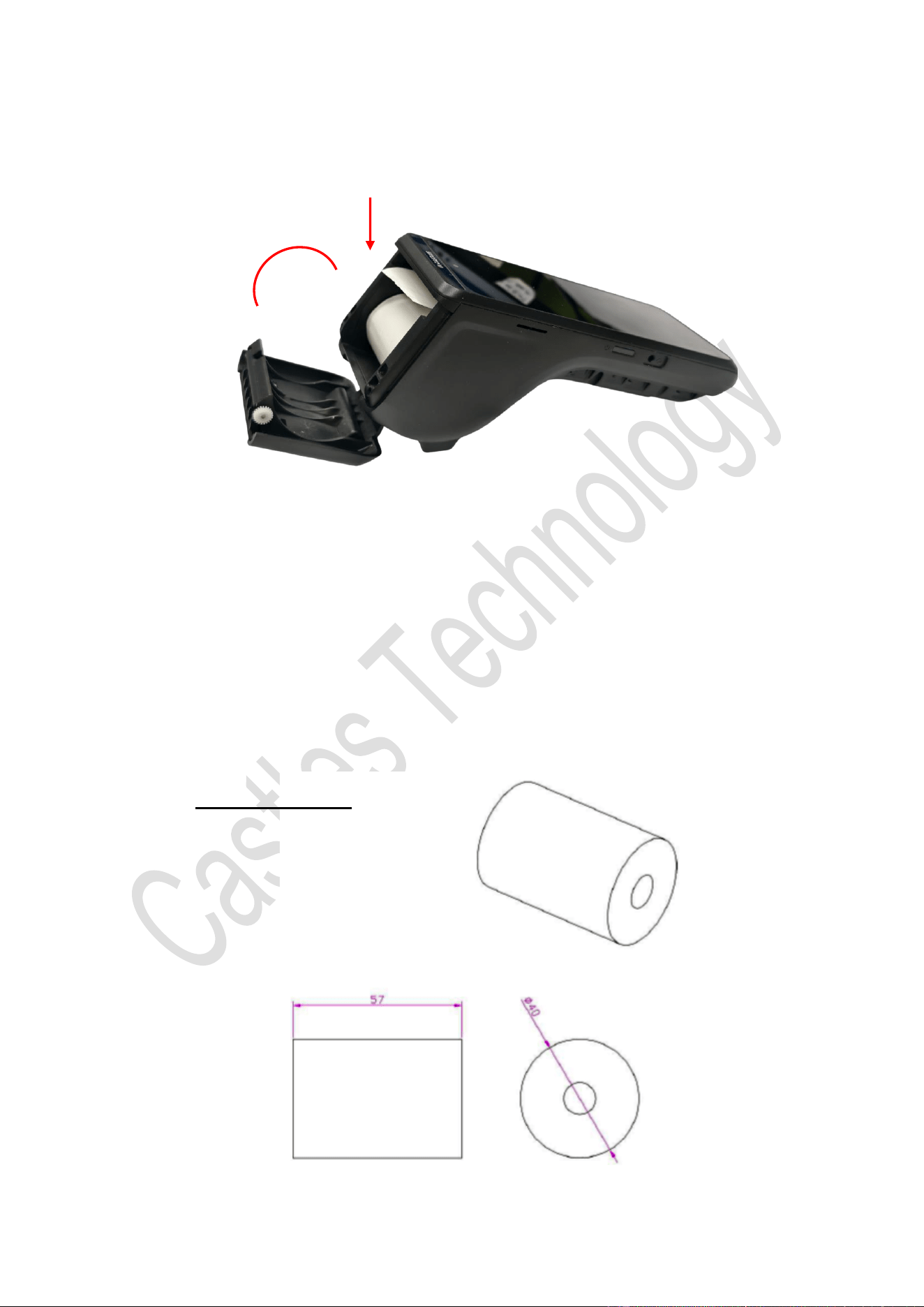

2.5. Insert Paper Roll
Step 1: Pull up the paper roll box cover, handles are on the both side of the
cover.
Step 2: Put the paper roll in the compartment. Make sure the beginning of the
paper roll is on the right side.
Step 3: Reverse the step 1 to close paper roll cover.
Paper specification
Width: 57mm
Outside diameter: 40mm
Step 1
Step 2
Castles Technology Co., Ltd. Pg. 14
3. Appendix
3.1. FCC
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:
⚫ Reorient or relocate the receiving antenna.
⚫ Increase the separation between the equipment and receiver.
⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
⚫ Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
⚫ Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
⚫ This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Castles Technology Co., Ltd. Pg. 15
3.2. IC
Industry Canada statement
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit
accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
greater than 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé à plus de 20cm entre le radiateur et votre corps.
IC UNII-1 Indoor statement
i: The device for operation in the band 5150–5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems.
ii. The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and
5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit.
iii. The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall
be such that the equipment still complies with the e.i.r.p. limits as appropriate.
iv. Be advised that high-power radars are allocated as primary users (i.e., priority users)
of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices
i：L’appareil pour fonctionner dans la bande 5150-5250 MHz est uniquement pour
une utilisation à l’intérieur pour réduire le potentiel d’interférence nuisible aux systè
mes satellites mobiles co-canaux.
ii: Le gain en puissance d’antenne maximal autorisé pour les périphériques dans les
bandes 5250 à 5350 MHz et 5470 à 5725 MHz doit respecter la limite EIRP
iii: Le gain en puissance d’antenne maximal autorisé pour les périphériques dans les
bandes 5725 à 5850 MHz doit respecter les limites EIRP spécifiées pour les opérations
point à point et non point à point le cas échéant.
iv. Sachez que les radars de haute puissance sont désignés comme utilisateurs
principaux (c.-à-d. utilisateurs prioritaires) des bandes 5250 à 5350 MHz et 5650 à
Castles Technology Co., Ltd. Pg. 16
5850 MHz, et que ces radars peuvent causer des interférences ou endommager les
périphériques LE-LAN.
Castles Technology Co., Ltd. Pg. 17
3.3. UL / IEC 62368-1
● Warning:
Power cord shall be connected to a socket-outlet with earthing connection.
● Warning:
Risk of explosion if battery is replaced by an incorrect type. Dispose of expended
battery in accordance with local disposal regulations.
● Warning:
This product is intended to be supplied by a Listed Power Adapter "L.P.S." (Or
"Limited Power Source") and is rated at 9 Vdc, 4.5 A min., Tma = 50 degrees C.
● Warning:
The COM port is not used for connection to the telecommunication network.
● Warning:
Equipment for use in locations where it is unlikely that children will be present.
● Attention:
le cordon d'alimentation doit être branché sur une prise secteur avec mise à la
terre.
● Attention:
Risque d'explosion si la batterie est remplacée par une de type incorrect É liminer
la pile usagée conformément à la réglementation locale en vigueur.
● Attention:
Le produit est destiné à être alimenté par un adaptateur secteur répertorié « L.P.S.
» (ou "Source d'alimentation limitée") et est évalué à 9 Vdc, 4.5 A min., Tma = 40
degrés C.
● Attention:
Le port COM ne sert pas à la connexion au réseau de télécommunication.
● Attention:
É quipement destiné à être utilisé dans des endroits où il est peu probable que des
enfants soient présents.
