1. Introduction
This document provides a guideline on operating and configuring Castles S1 cradle
The scope of this document includes setting up and basic operation.
Regulatory instruction of usage
● Before using the cradle, please check has it been disassembled, modified, or showed
abnormal situation. If yes, please do not use.
● Please stay away from strong electromagnetic waves.
(Example) Microwave ovens, magnets, shoplifting prevention devices, high-voltage
wires, automatic doors, communication antennas, etc.
● Condensation can occur when moving from a cold place to a warm place. If
condensation occurs, do not use the unit until the connected water droplets evaporate.
● Static electricity may occur in some places (such as where you use a carpet).
● Please do not leave it in the sun for a long time.
● Please operate the unit carefully as it is a precision instrument. Do not apply impact,
drop or heavy objects on top of the unit.
● Do not attach dust, oil, etc. to a part of the power terminal. Also, please do not scratch.
Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 6
2. Hardware Setup
2.1. Parts of S1F4B-BT
S1F4Pro &S1F4B-BT
Front/Top

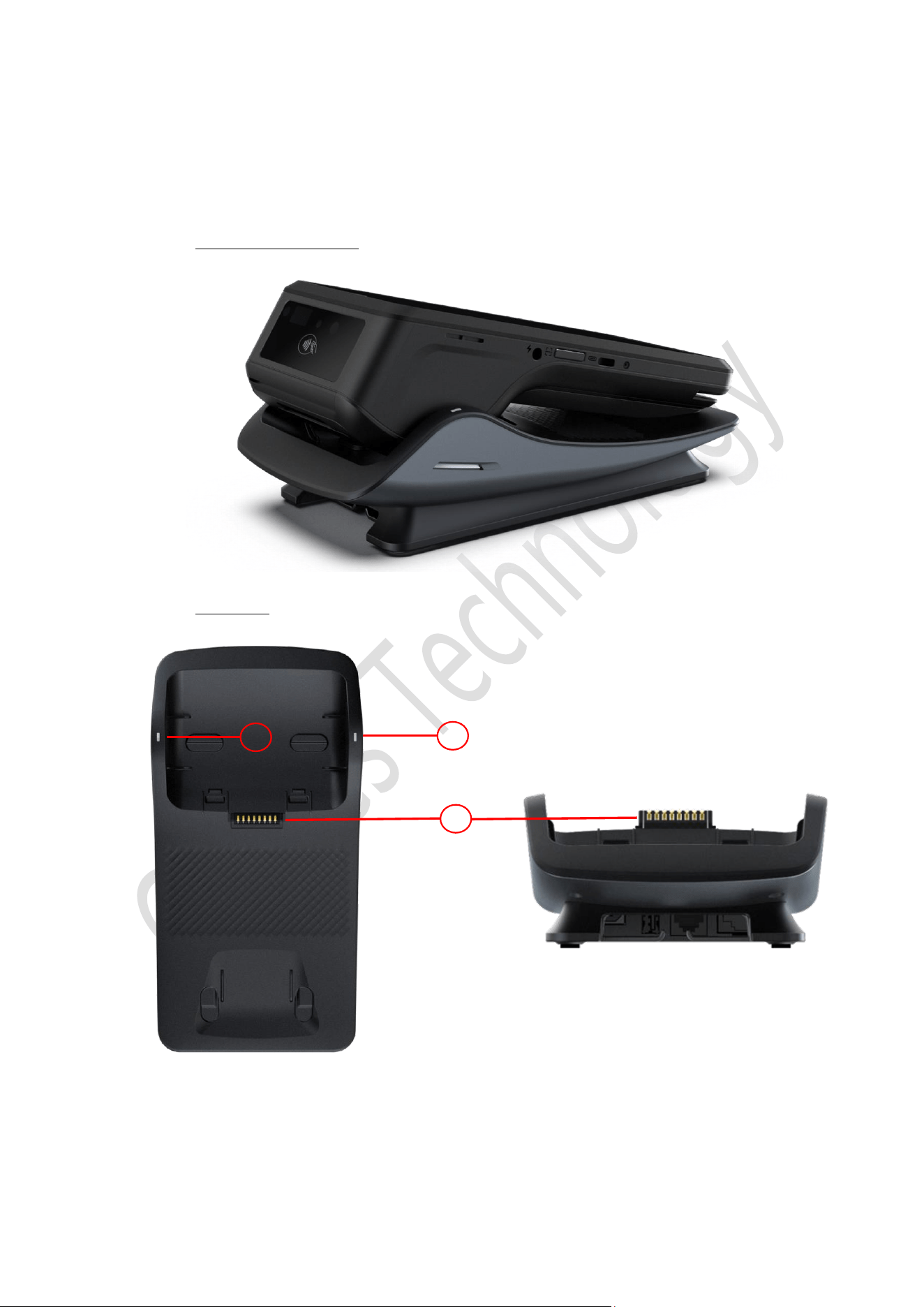

1. Charging Pins
1
2
3
Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 7
Left

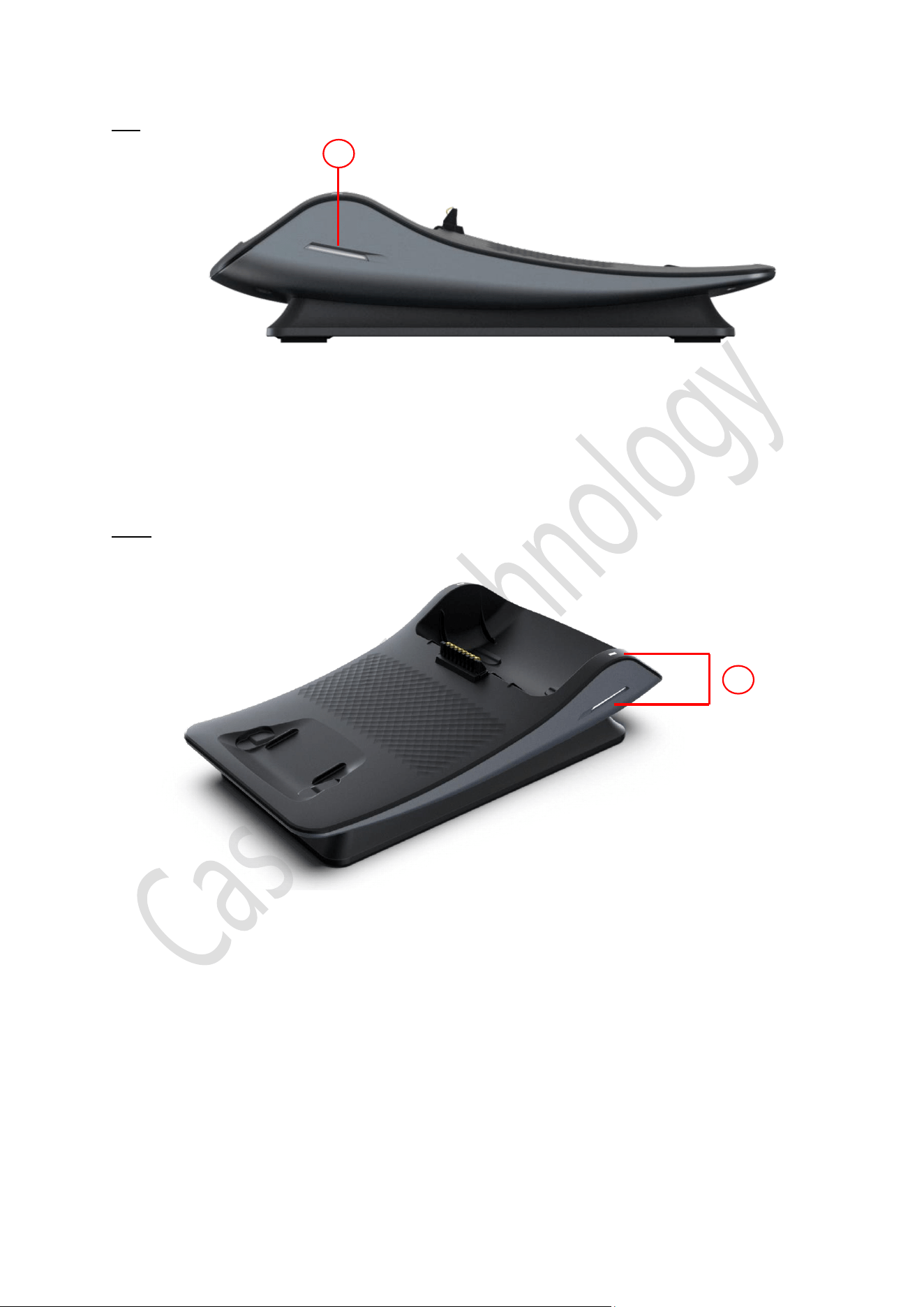

2. Power Indicator (Green Light)
Right
3. Bluetooth Signal Indicator (Blue Light)
2
3
Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 8
Rear

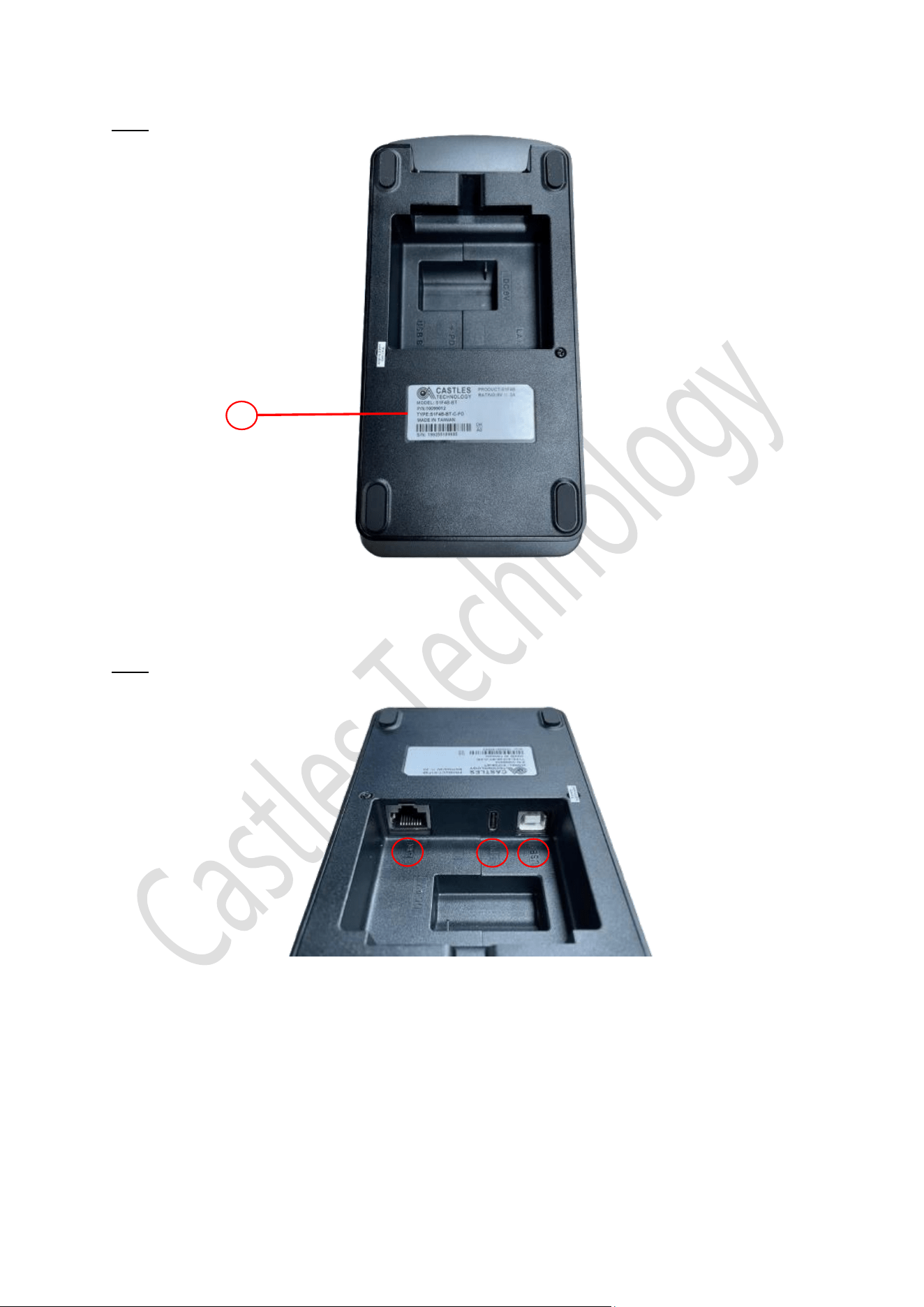

4. Product Label
Rear
5. LAN Port
6. USB Type-C PD (9V, 2A)
7. USB Type-B (Factory Mode)
4
5
6
7
Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 9
2.2. Power on S1F4B-BT & Charge S1F4
Step1: Plug the USB-Type C cable into
USB Type-C port on the rear part of
S1F4B-BT.

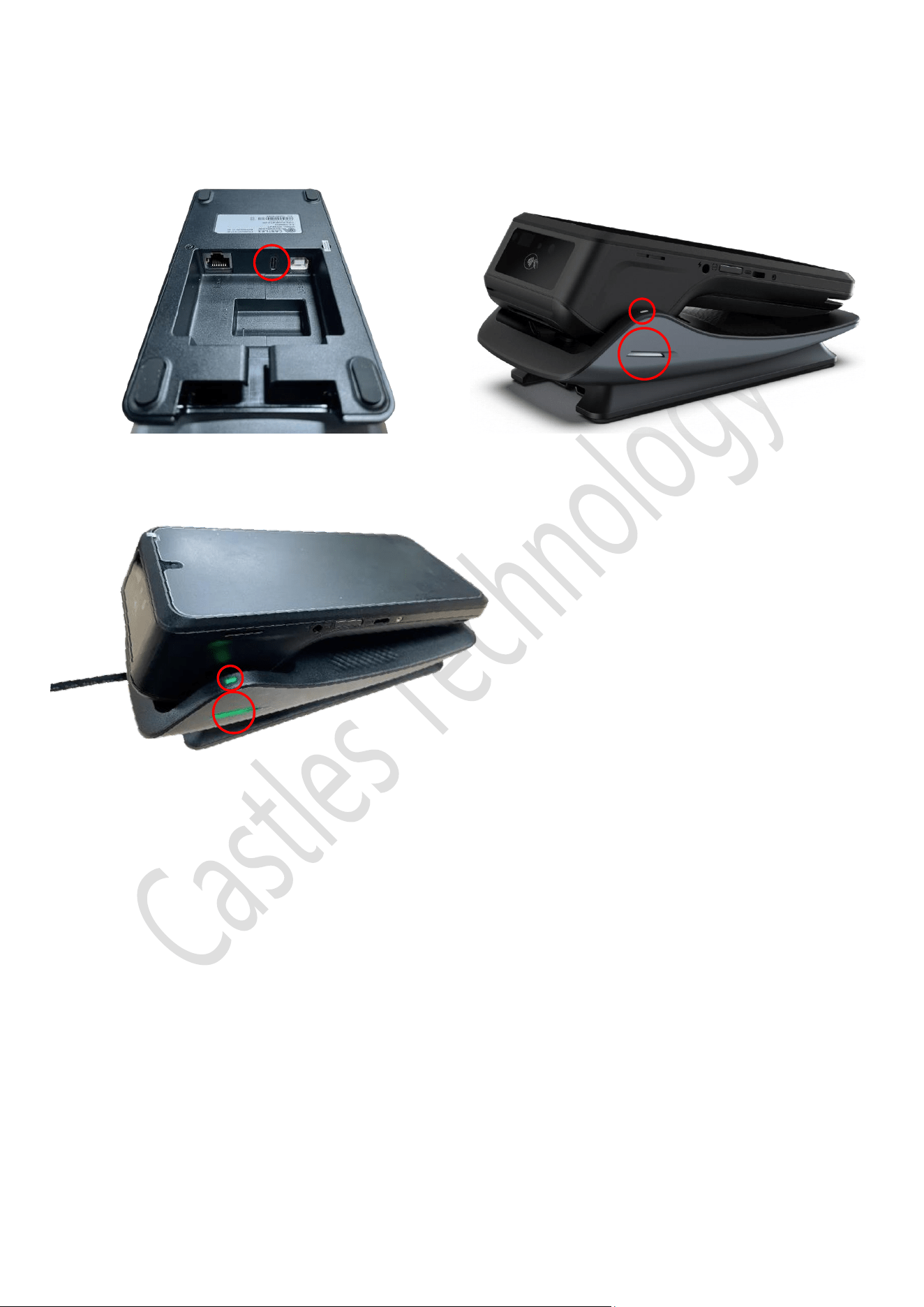

Step2: The power indicator on the left
front side of S1F4B-BT will light up
immediately after plugging the USB
Type-C cable.
Step3: Put S1F4 on S1F4B-BT, then
the POS cradle will charge S1F4.
Castles Technology Co., Ltd. Confidential • All Right Reserved. Pg. 10
