Installation Instructions
works with the
Google Assistant
Please read and save these
instructions before installation
For all questions about your ceiling fan please read all
included instructions, installation procedures, trouble-
shooting guidelines and warranty information before
starting installation.
For fast service have the following information below
when you call:
For missing parts or general inquiries
call our trained technical sta at:
• Model Name and Number
• Part Number and Part Description
• Date Of Purchase and Purchase Location
Email: [email protected]
Or live chat at www.waclighting.com
Email: fansupport@waclighting.com
1-800-526-2588
option
0 1-800-526-2588
option
3
MON-FRI 8AM-8PM EST MON-FRI 8AM-8PM EST
GENERAL INQUIRIES FAN SUPPORT
DO NOT RETURN TO STORE
SAFETY RULES
To reduce the risk of electric shock, ensure electricity has been turned o at
the circuit breaker before beginning.
All wiring must be in accordance with the National Electrical Code “ANSI/
NFPA 70” and local electrical codes. Electrical installation should be
performed by a licensed electrician.
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the fan blades to the oor
and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls.
Never place objects in the path of the fan blades.
To avoid personal injury or damage to the fan and
other items, please be cautious when working around
or cleaning the fan.
To avoid electrical shock or damage to the motor or nish, do not use water
or chemicals when cleaning the fan or fan blades. A dry cloth or lightly
dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outletbox. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outletbox, and the ungrounded conductor on
the other side of the outletbox.
All set screws must be checked and re-tightened where necessary before
installation.
For operation, maintenance, and troubleshooting information, visit http://waclighting.com/fan-support/
02 SAFETY RULES
WARNING: Do not install or use your fan if any part(s) is/are damaged or
missing. This product is designed for use only with the supplied parts and/
or accessories designated for use with this product by WAC. Substitution of
parts or accessories not designated for use with this product by WAC could
result in personal injury or property damage and will void the warranty.
Contact an authorized dealer or the manufacturer if any parts are damaged
or missing.
WARNING: To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from
the WAC app.
WARNING: Do not use power tools to assemble or install your fan. Using
power tools can result in improper assembly which can lead to noise or fan
damage,personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the
blade arms when installing the brackets, balancing the blades or cleaning
the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: Do not operate fan unless fan blades are in place.
Noise and fan damage can occur
WARNING: This appliance is not intended for use by young
children without supervision.
WARNING: To reduce the risk of re, electric shock, personal injury or damage
to the fan or other items, the outletbox and support structure must be
securely mounted and capable of reliably supporting a minimum of 35 Ibs
(15.9 kg). Use only UL/cUL listed outletboxes marked “FOR FAN SUPPORT.” Use
only the screws and washers provided with the outletbox.
CAUTION: Before assembling your fan, refer to the “Making
the Electrical Connections“ section. If you feel you do not have
enough wiring knowledge or experience, have your fan installed
by a licensed electrican.
NOTE: Before servicing or cleaning the fan, switch power o at
the circuit breaker.
This WAC Smart Fan is:
DC
MOTOR
The WAC app synchronizes seamlessly with smart home devices you already own
GET SMART
works with the
Google Assistant
WALL CONTROL
WC20-WT
Optional accessory
sold separately
6 fan speeds
Dims light to 1%
ON/OFF
APP DOWNLOAD
Available for purchase on
the Google Pay and App Store
Quiet, reliable, and up to 70%
more ecient than AC motor fans
Wi-Fi and Bluetooth enabled
for unlimited control
Wet
/Damp location-listed to the
strictest UL/cUL safety regulations
Compatible with our WAC app
Coordinate with smart devices
for voice-activated control
REMOTE CONTROL
RC20-WT
Included with
each fan
6 fan speeds
Dims light to 1%
ON/OFF
Package Contents
Mounting Options
Installing the Mounting Bracket
Attaching the Fan Blades
Hanging the Fan
Making the Electrical Connections
Installing the Optional Wall Control
Finishing the Installation
Installing the Adapter Plate
Installing the Luminaire Cover
Installing the Luminaire Module
Controlling the Fan
Reset
Application
Accessories
Troubleshooting
9.
10.
10.
11.
12.
14.
15.
17.
18.
19.
20.
22.
25.
26.
28.
30.
4
7
8
9
10
11
12
13
14
15
16
17
5
5
6
7
TABLE OF CONTENTS
F-003
8
Electrical tape
Phillips screwdriver Step ladder
Wire cutters
NOTE: Before discarding packaging materials, be certain all parts have been removed.
NOTE: Place the parts from the hardware bag into a small container to keep them from being lost.
Hanging Weight: 17lbs
MAC ID
03 TOOLS & MATERIALS REQUIRED
IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
9F-003
NOTE: ** denotes nish code of fan
1
9
5
3
8
4
13
2
7
10
11
12
Canopy Ring
RPL-CAN-RND-
**
Adapter Plate
Luminaire Cover
RPL-F003-COVER-
**
Coupling
Cover
Hardware Bag
RPL-003-PARTS
Canopy
RPL-CAN-CYL-**
Motor Housing
Fan Blade
RPL-F003-52-
**
Remote Control
RC20-WT
PACKAGE CONTENTS 04
Downrod
Assembly
Mounting
Bracket
RPL-HGR-ASM-
**
PC Shade
(F-003L version)
RPL-F003-GLA
Luminaire Module
(F-003L version)
F3IN-120V-R1-30
Receiver
F-R3-003-052
14
A: Junction Box
Pan Head Phillips Screw (2)
Flat Washers (2)
Pan Head Phillips Screws (2)
B: Blades
Blade Screws (10)
C: Safety Cable
Flat Washer (1)
Spring Washer (1)
Wood Screws(1)
D: Wire Connectors (8)
E: Optional Light Kit
(F-003L version)
5/32 * 22mm Pan Head
Screws (4)
F-003
10
1
2
05 MOUNTING OPTIONS INSTALLING THE MOUNTING BRACKET
1. Remove 1 set screw from mounting bracket and set aside
for use in Finishing the Installation.
2. Pass supply wires through mounting bracket and secure to
outlet box. Your outlet box should come with pre-
attached screws for your hanger bracket. Install your
hanger bracket as shown.
Standard Ceiling Slope Ceiling
Caution: Remember to disconnect
the power at the circuit breaker.
CAUTION: To prevent electrical shock, ensure electricity has been
turned o at the circuit breaker before beginning.
Figures 1 and 2 are examples of different ways to mount the
outlet box. Use A hardware if needed to mount your outlet box.
11F-003
3
1. Place blade on motor assembly hole.
2. Secure blade with blade attachment screws - repeat for
remaining blades. Use B hardware.
ATTACHING THE FAN BLADES 06
F-003
12
54
1. Remove screw from hanger ball. Remove hanger ball
and cross pin.
2. Loosen 2 screws, clevis pin and cotter pin.
1. Install coupling cover, canopy screw ring, canopy and
downrod assembly into motor housing as shown.
07 HANGING THE FAN
13F-003
6
7
HANGING THE FAN 07
1. Align downrod and motor collar holes, re-insert pins and screws.
2. Slip up canopy and canopy screw cover. Re-install hanger ball
with cross pin in correct place.
1. Seat all into the mounting bracket. Rotate until ball drops and
locks into hanger bracket screw.
14
9
Outlet Box
Hanger Ball & Downrod
8
07 HANGING THE FAN MAKING THE ELECTRICAL CONNECTIONS
1. Secure the safety cable into the structure beams using the
wood screw, washers, and spring washers provided.
NOTE: Safety cable is required for all ceiling fan installations in
Canada. Safety cable is required for ceiling fan and light (combo)
installations over 35 lbs. in both ush and downrod models in the
United States.

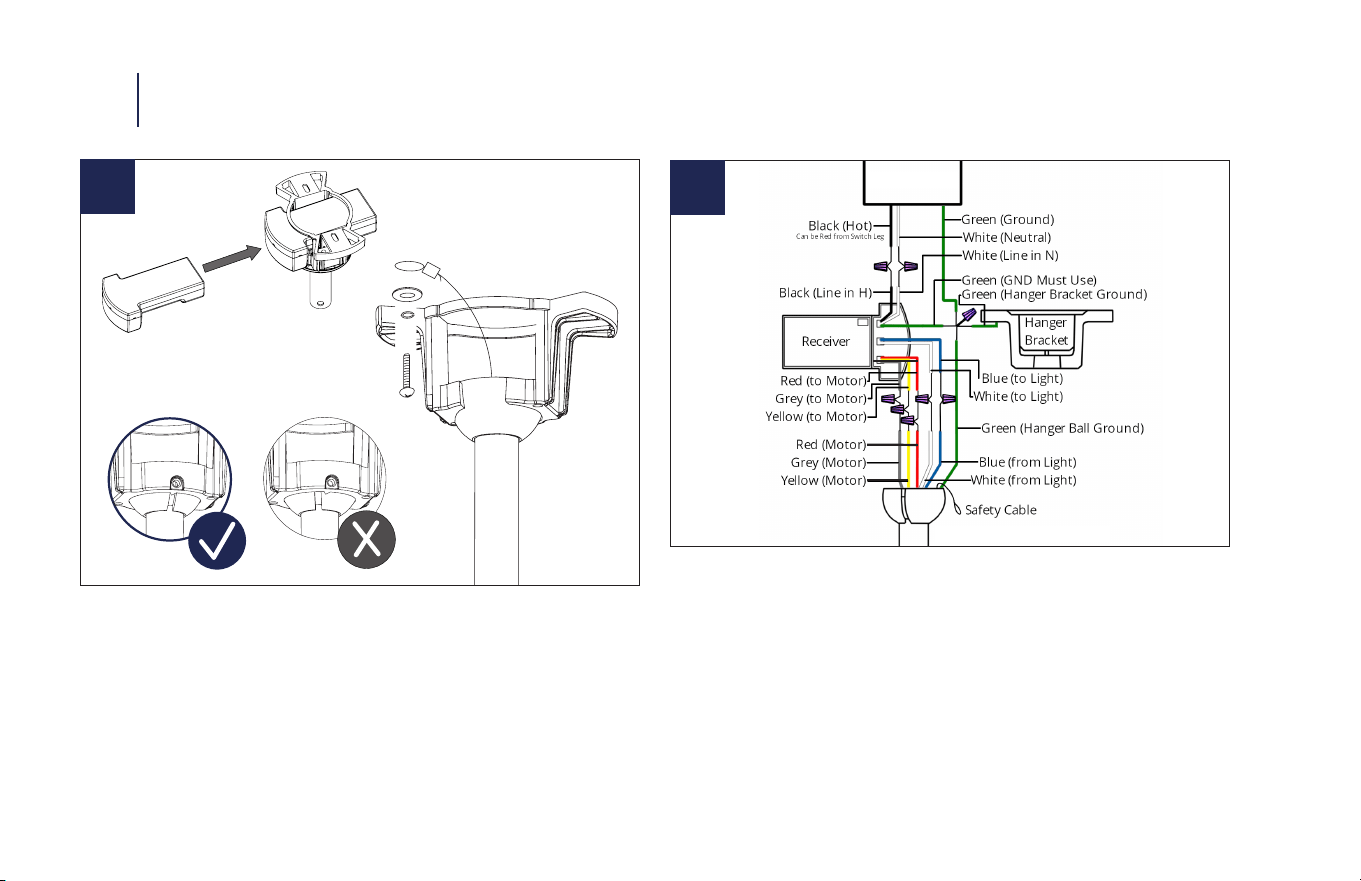

2. Slide receiver into place with the at side facing up.
Use C hardware.
1. Connect the labled wires from fan to the corresponding wires
on the receiver.
2. Connect the labeled wires from the outlet box to the
corresponding wires on the receiver.
After making electrical connections, spliced connectors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded connector on the other side of the outlet box. Secure
all connections with wire nuts and electrical tape. Failure to do so
may result in damage to the electronics.
Use D hardware.
15F-003
10

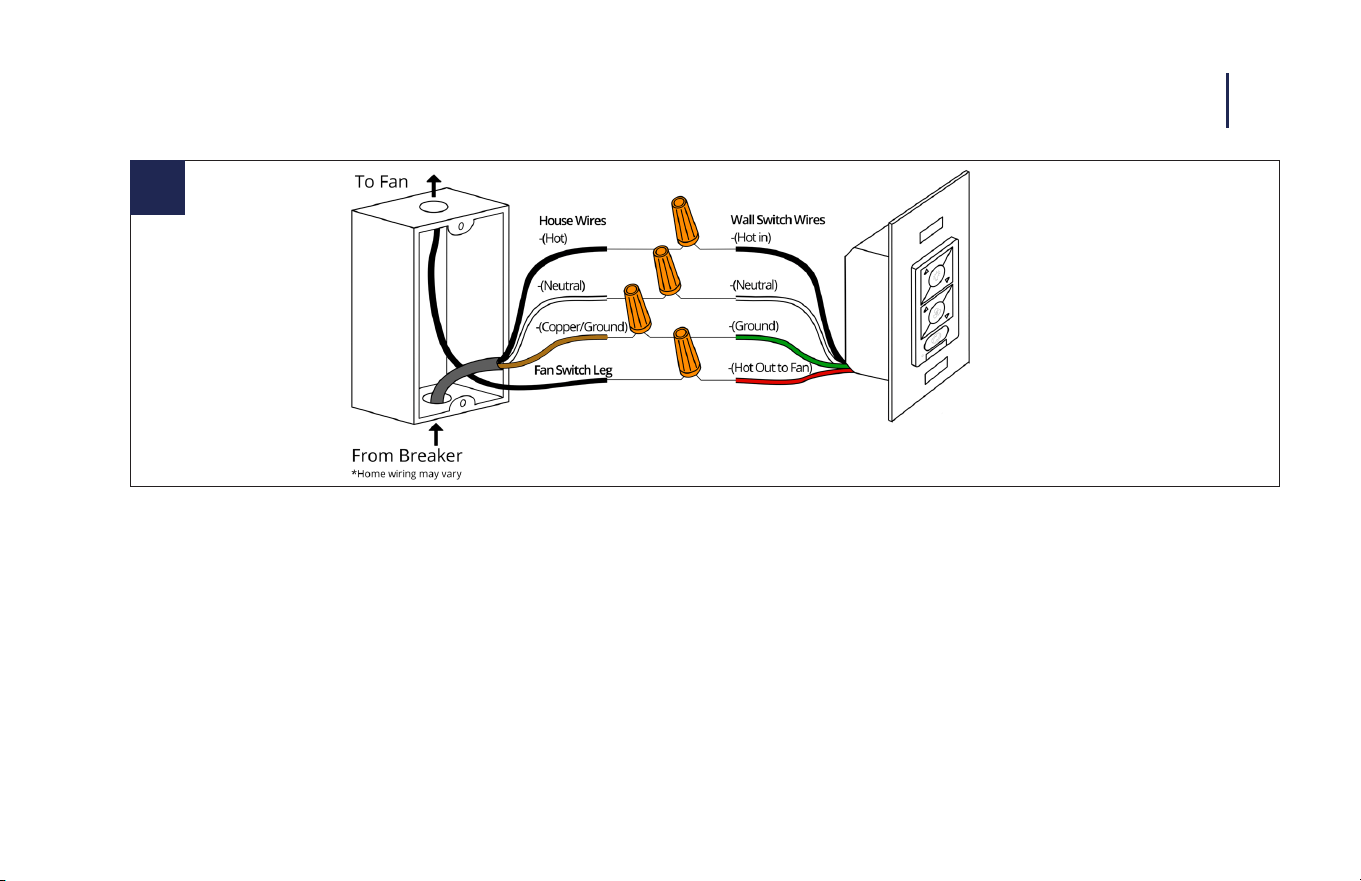

NOTE: Wall control not included. A Bluetooth wall control accessory can be purchased separately.
NOTE: For multi-location wiring, skip to the next step.
1. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outletbox that feeds back to the circuit
breaker – important for proper fan function.
2. Connect the black wire marked “LINE IN” from the wall control to the black LINE VOLTAGE wire from the wall outletbox that feeds back to the
circuit breaker.
3. Connect the red wire from the wall control to the black wire from the wall outletbox that feeds up to the fan.
4. Connect the white wire from the wall control to the white (neutral) wire from the wall outletbox.
5. Carefully tuck the wire connections inside the outletbox. Secure the wall control with the two (2) wall control screws provided.
6. Attach the wall mounting plate over the wall switch and secure with the two (2) wall mounting plate screws provided.
7. Fasten the wall plate to the wall mounting plate.
INSTALLING THE OPTIONAL WALL CONTROL 08
F-003
16

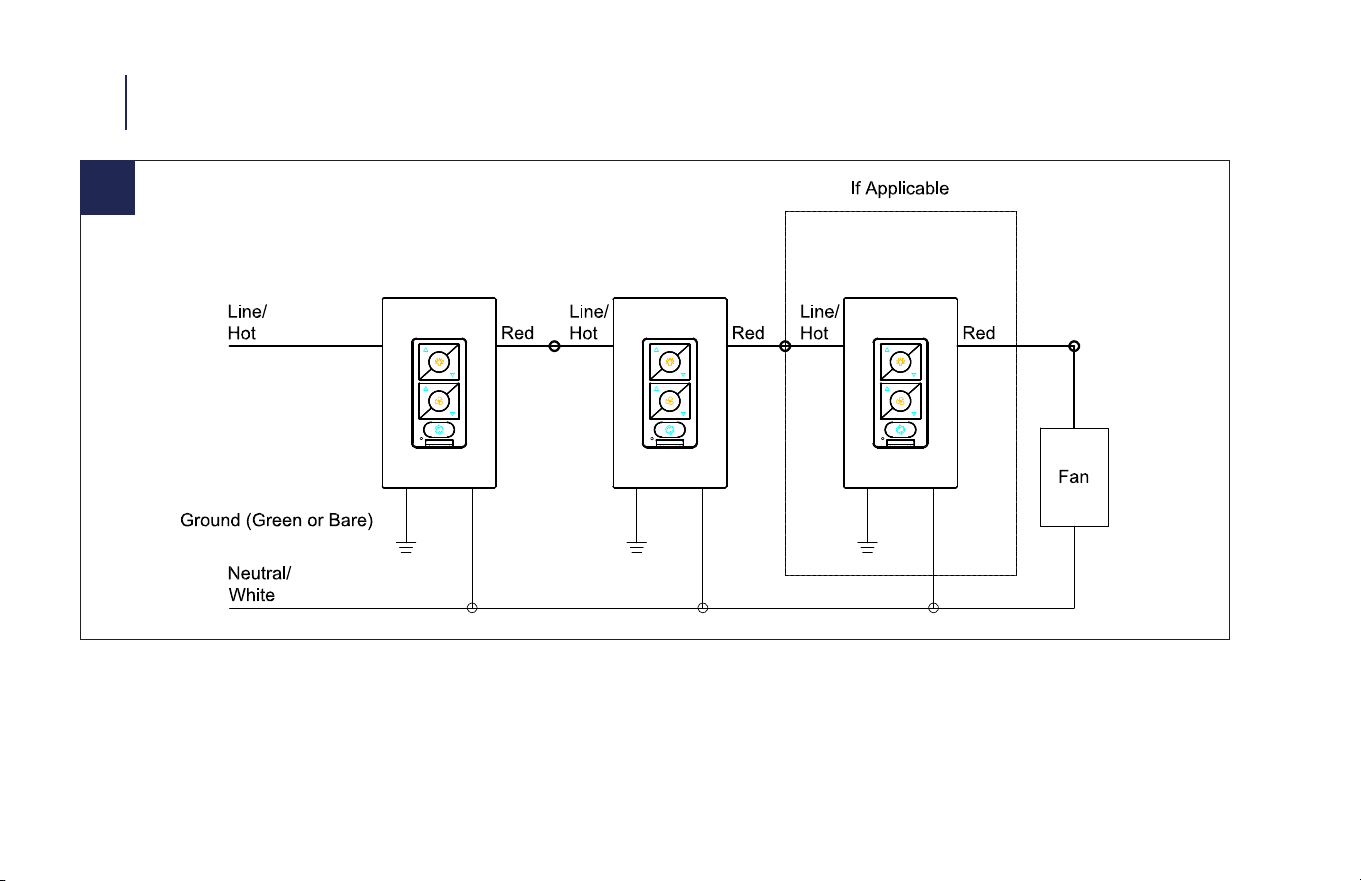

1. Install the wall control using the wiring diagram above.
2. Individually pair each of the wall controls with the fan receiver using the pairing instruction.
08 INSTALLING THE OPTIONAL WALL CONTROL
11
Wall Control 1 Wall Control 2 Wall Control 3
17F-003
1312

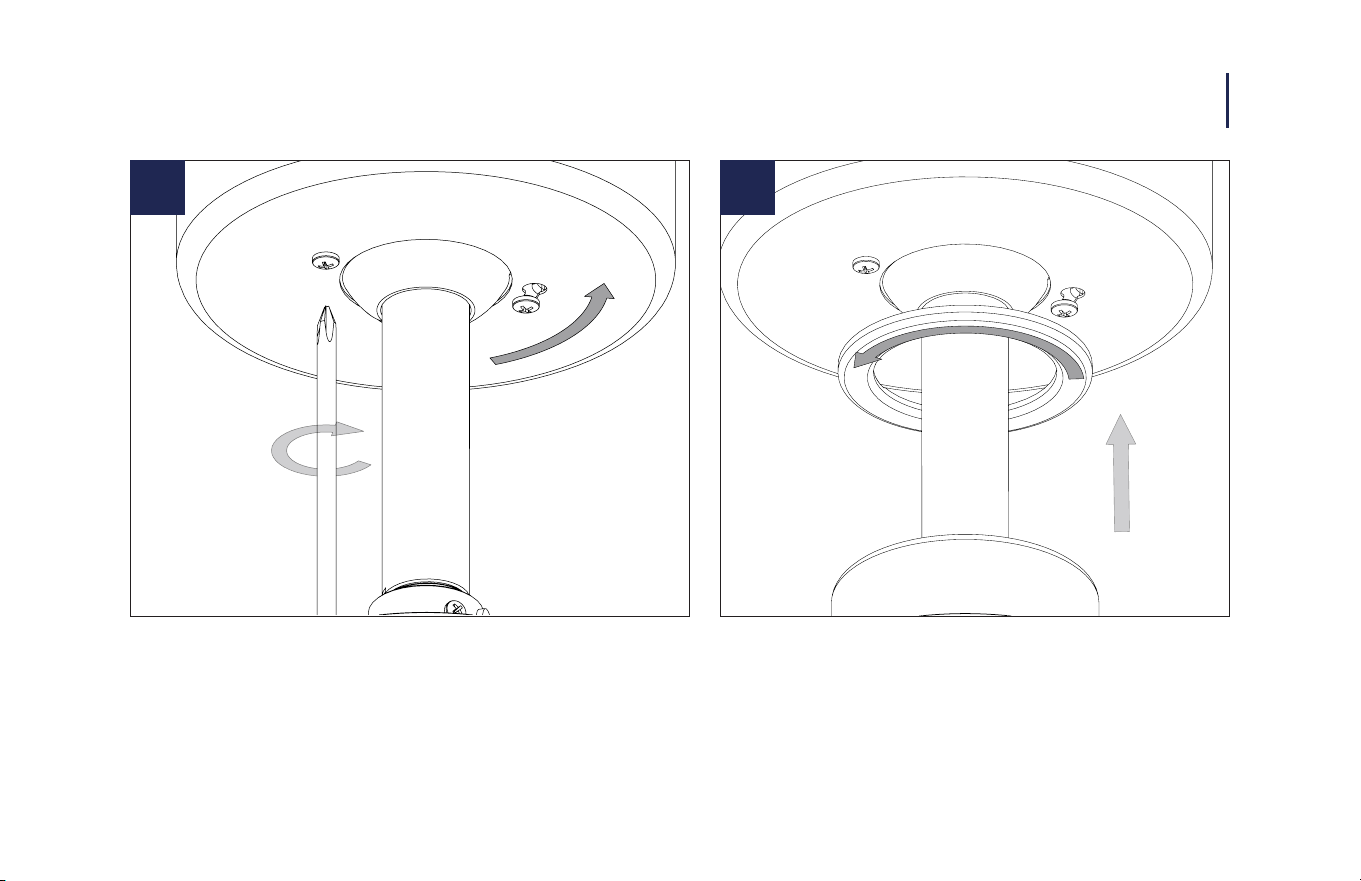

1. Secure wire connectors with supplied wire ties.
2. Install canopy to mounting bracket with the screw
removed in section 2.
1. Install canopy screw ring as shown.
FINISHING THE INSTALLATION 09
F-003
18
14
15
10 INSTALLING THE ADAPTER PLATE

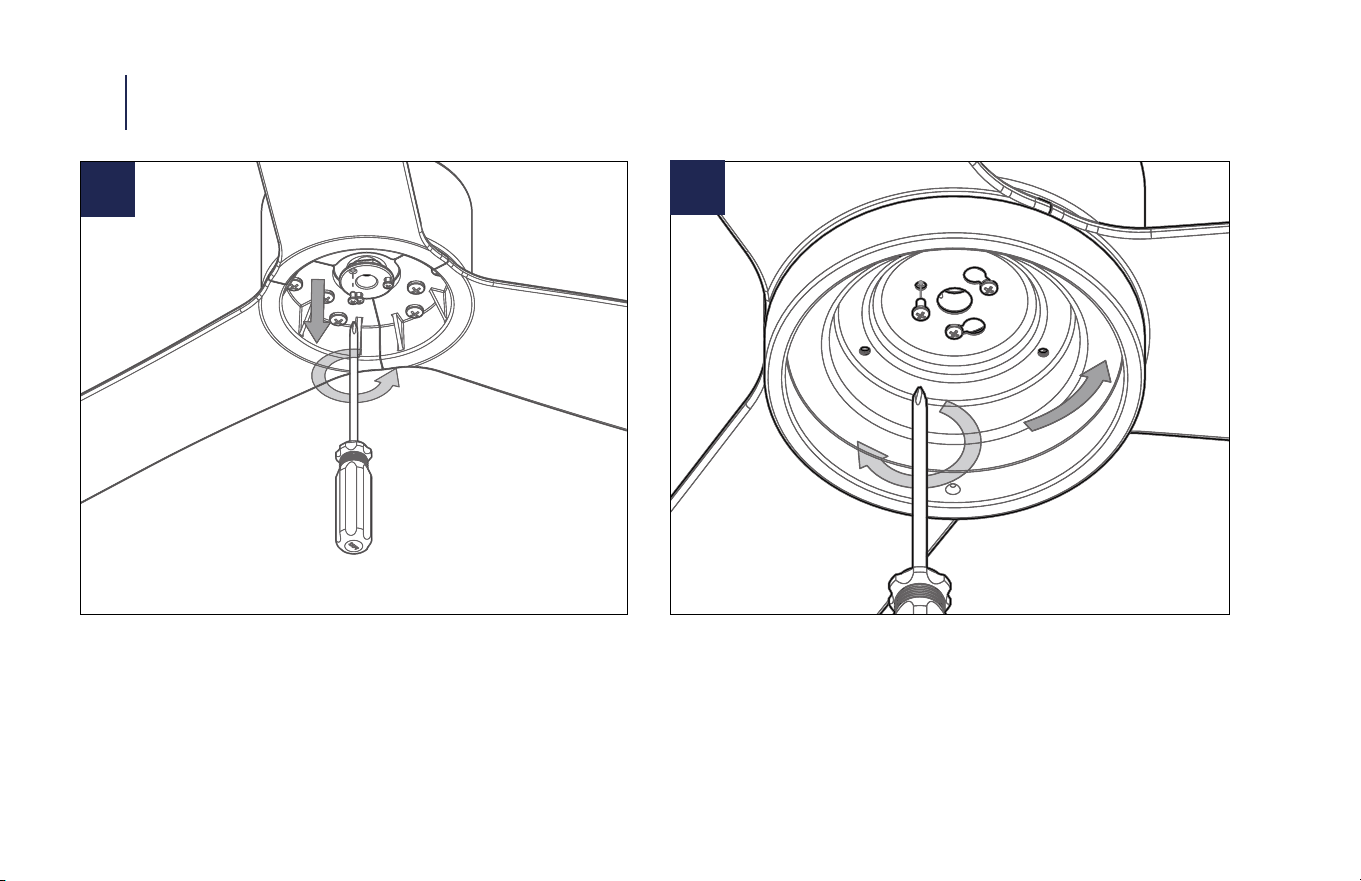

1. Remove 1 of 3 screws from the mounting ring and loosen the
others (do not remove them).

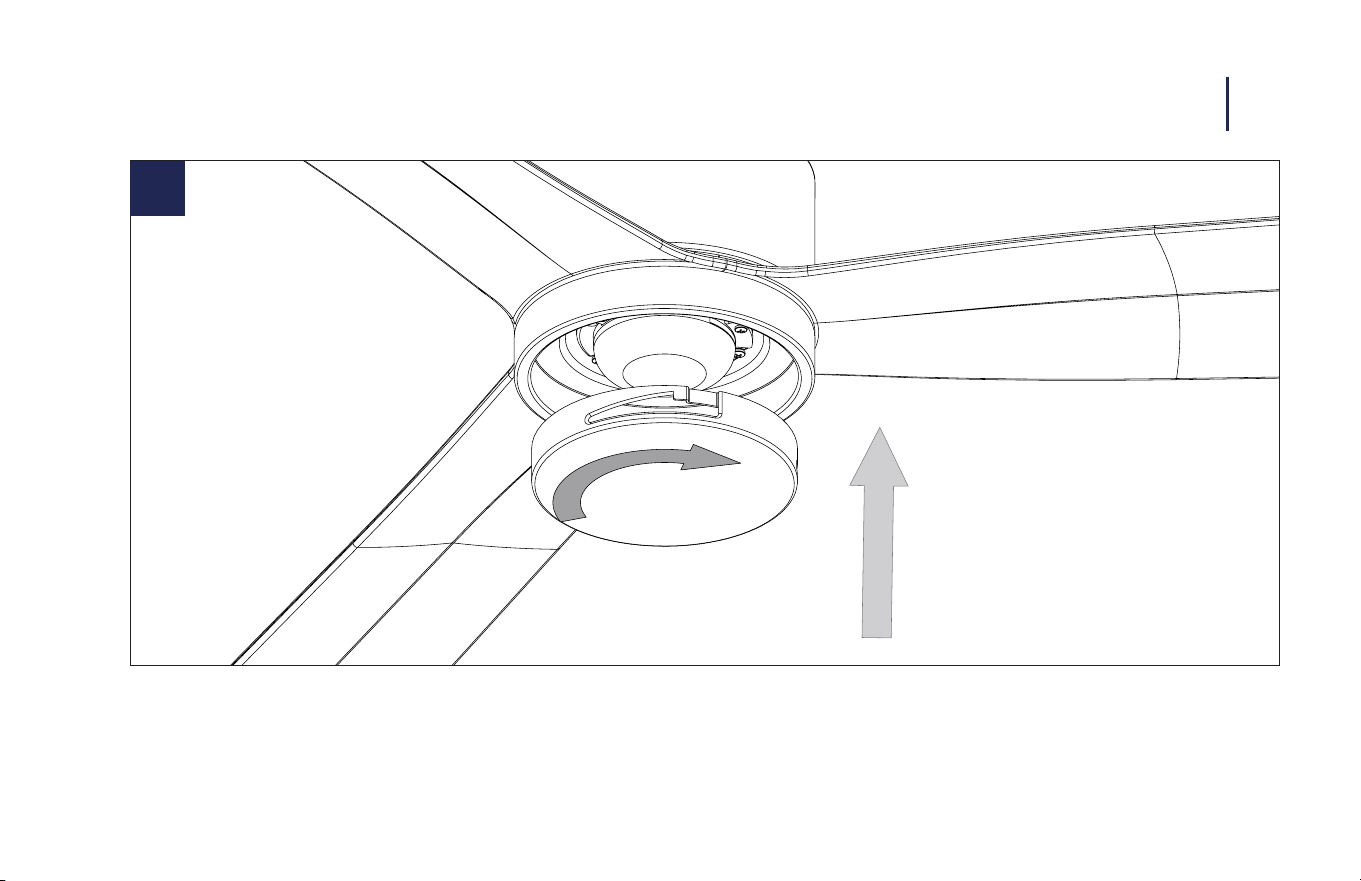

1. Twist and lock the adapter plate into place by following the
arrows above.
2. Using the screw from the previous step, install the adapter plate.
19F-003
INSTALLING THE LUMINAIRE COVER 11
16

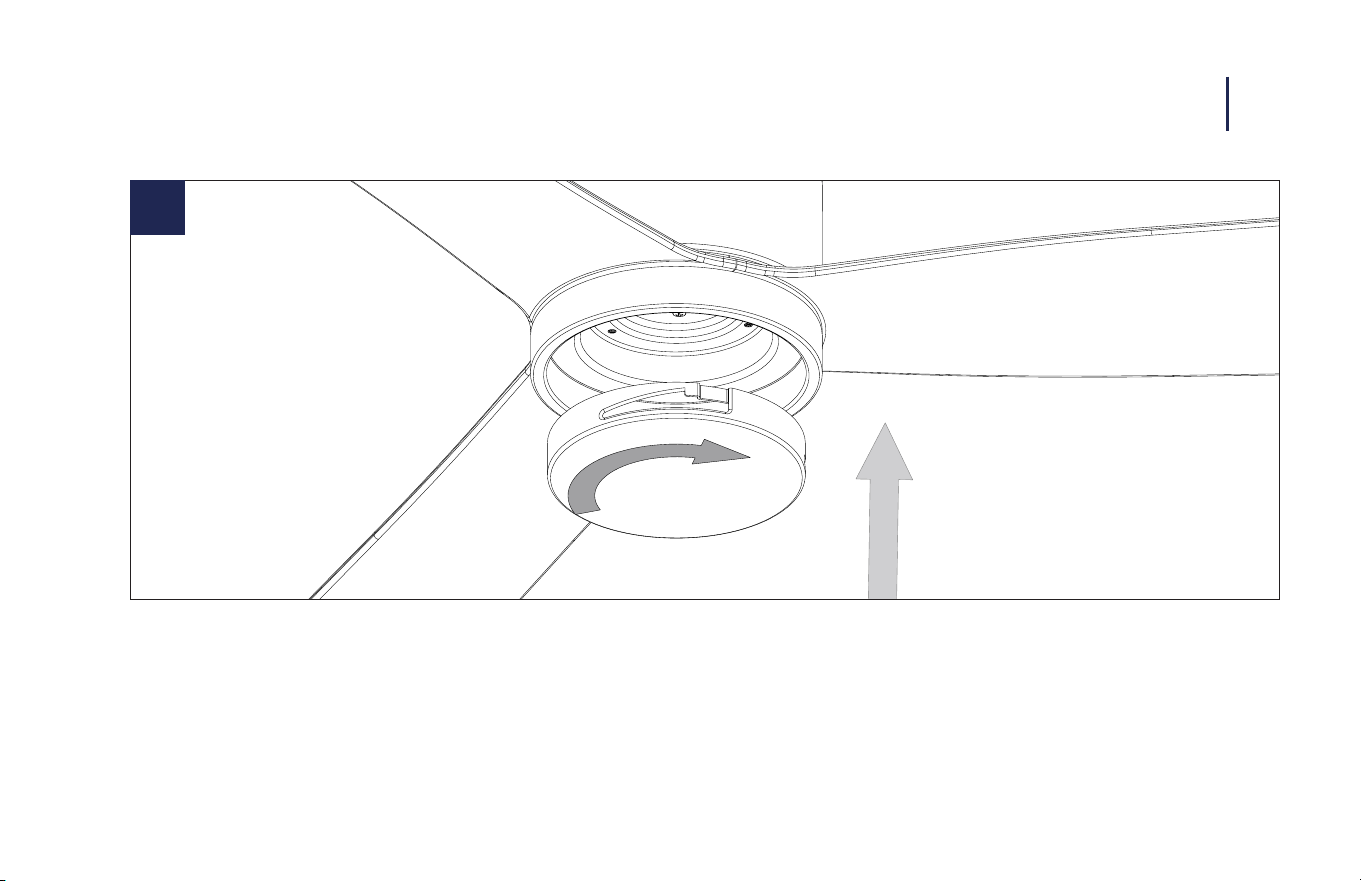

1. Install luminaire cover firmly without over-tightening. If you purchased F-003 your fan assembly is complete.
NOTE:
Skip this step if you have purchased F-003L.
20
F-003
18
When installing the Luminaire verison (F-003L)
12 INSTALLING THE LUMINAIRE MODULE

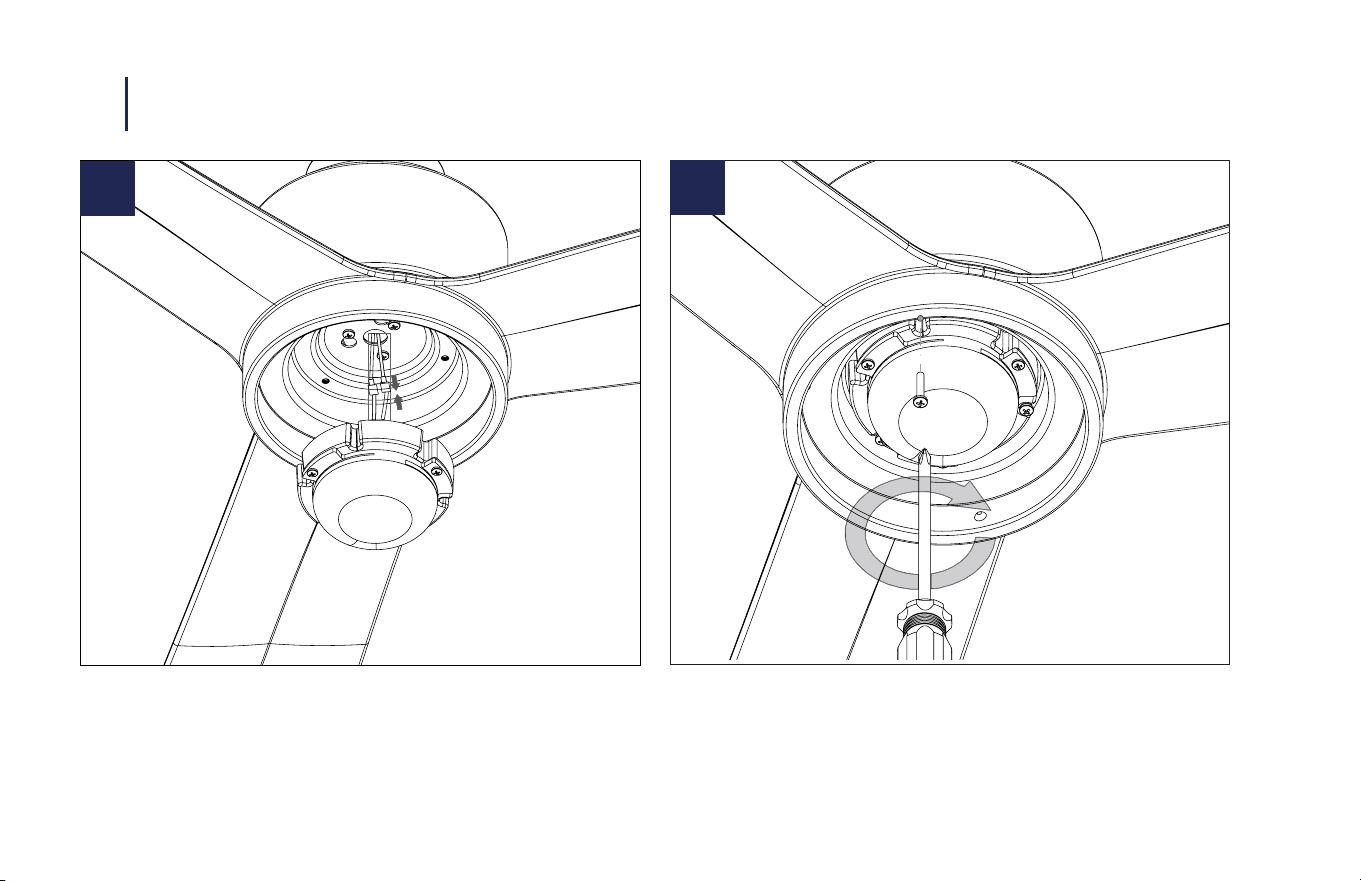

1. Use the 3 screws located in the luminaire module screw bag to
install the luminaire module to the adapter plate.
Use E Hardware.
1. Connect the white wire connectors from the luminaire module
to the white wire of the fan. Follow same procedure with blue
wire connectors.
17
19
1. Install glass shade firmly without over-tightening. Your fan assembly is complete.
When installing the Luminaire verison (F-003L)
INSTALLING THE LUMINAIRE MODULE 12
22
22
A
A
B
B
C
C
Air-Gap
Switch*
F-003
13 CONTROLLING THE FAN
Your fan was delivered to you with the included remote already
paired to your fan. You will need to remove the pull-tab to begin
using your remote control.
A: Light On/O, Bright/Dim
B: Fan On/O, Speed Up/Down
C: Season (Summer/Winter)
Air-Gap Switch: Pull tab to power o in case of emergency.
Not necessary for normal fan operation.
Summer Mode
(Counter-Clockwise)
Winter Mode
(Clockwise)
20 21
Pairing
Press and hold buttons
for 10-15 seconds.
Optional
Wall Control
* Air-Gap Switch only
included with wall control
Remote
Control
Unpairing
To purge, press and hold
buttons for 4 seconds.
NOTE: Your fan features 6 speeds. An audible tone will indicate when
the speed is increased or decreased. When the fan has reached the
minimum/maximum speed level the fan will beep twice.
NOTE: Pairing must be completed within 3 minutes of turning the
power on to the fan receiver. If you wish to pair your remote to another
WAC Smart Fan or if you ever need to re-pair your remote to its original
fan, press and hold the light toggle and fan toggle for 4 seconds until
you hear a short beep, long beep combination from the fan.
23F-003
CONTROLLING THE FAN 13
Controlling Multiple Fans with Remote or Wall Controls
Your remote and wall controls are capable of controlling
multiple fans. A remote or wall control has the ability to control
an unlimited number of fans with the only limitation being the
Bluetooth® range of the control and fan.
Pairing a remote control or wall control to an additional fan(s)
can be performed in the same manner as described in the
pairing section.
NOTE: Pairing must be completed within three (3) minutes of
powering the fan.
Synchronizing Control Across Multiple Fans
If you are controlling more than one fan with a remote control,
there is a possibility that their light state, fan state or fan
direction can get out of sync. To bring the fans/lights back
into sync please follow the instructions on the next page.
Breeze Mode
1. Breeze Mode mimics the natural ebb and flow of winds in
nature by varying the fan speed.
NOTE:
Breeze Mode always rotates your fan in the Summer
(CCW) direction
2. To start Breeze Mode, press and for 4 seconds. The
LED will blink green and the fan will beep.
3. To exit Breeze Mode and return to standard fan mode,
press
and for 4 seconds. The led will blink green and
the fan will beep. Your fan will return to the direction and
speed it was set to prior to entering Breeze Mode.
F-003
24
23
13 CONTROLLING THE FAN
Fan On/O: Press and hold button for 4 seconds. The LED on the remote will ash green and all connected fans will beep to
indicate the message has been received. All fans will turn o. This will bring all fans controlled by the remote into sync.
Light On/O: Press and hold button for 4 seconds. The LED on the remote will ash green and all connected fans will beep to
indicate the message has been received. All lights will turn o. This will bring all fans controlled by the remote into sync.
Fan Direction: Press and hold button for 4 seconds. The LED on the remote will ash green and all connected fans will beep to
indicate the message has been received. All fans will be set to summer mode (CCW rotation). This will bring all fans controlled by the
remote into sync.
Fan On/O
Press and hold
button for 4 seconds.
Light On/O
Press and hold
button for 4 seconds.
Fan Direction
Press and hold
button for 4 seconds.
25F-003
24 25 26
WACFan_841812
Factory Reset
Press and hold buttons for 10 seconds
Receiver Factory Reset
Press the reset button on the receiver
until the receiver beeps
NOTE: If advised by technical support, you can reset your fan to factory settings by
either holding down the light toggle, fan toggle, and season button for 10 seconds or
briey depressing the reset button on the fan’s receiver. The fan will emit three beeps
indicating the reset was successful.
NOTE: Factory reset will remove remote control(s), wall control(s) and WAC
app connections.
NOTE: If you change your Wi-Fi settings
(SSID or Security Passphrase you will need
to perform a Wi-Fi reset on the fan by
holding down the fan speed up and fan
speed down buttons on the remote control
for 10 seconds. The light on the remote
will ash green and the fan will sound two
long beeps. You can then use the Modern
Forms Fans app to connect your fan to the
new network.
RESET 14
Fan Wi-Fi Reset
Press and hold the and for 10 seconds until LED
blinks green and receiver emits 2 long beeps
F-003
26
15
APPLICATION
For more detailed app Instructions and Smart Home Device Integration
http://www.waclighting.com/SmartFanStart
In addition to the included control, you can operate your fan with
the WAC Smart Fans app
*
.
Upgradeable with Smart Features
Scan the code to the right with your phone to nd out how you
can enable smart features through the WAC app and integrate with
your smart home ecosystem.
NOTE: Press light toggle and season toggle and hold for 4 seconds
if you prefer not using the app or broadcasting Wi-Fi.
1. To use the WAC app, download it from the App Store or
Google Play.
2. Open the app to create your account. You can also log in
using your Facebook or Google account.
3. To set up a Wi-Fi connection you will need the SSID and
Wi-Fi password for the network you wish to connect to.
4. You will receive a prompt to name your fan device and upload
an optional picture of it if you choose.
27F-003
APPLICATION
15
Scan and follow prompts for multilingual instruction
options and Smart Fan FAQs:
** Additional purchase required to enable app control and integration.
** $9.95 + applicable tax per fan.
Spanish French
5. The WAC app will walk you through the main screen and show
you how to create schedules, change fan speeds, dim the
light, switch between Summer and Winter Modes, invite users,
create groups and much more. Please refer to
the WAC app instructions for more details.
F-003
28
Model Description
Finish
Product
16 ACCESSORIES
Bluetooth
Wall Control WC20-
6 fan speeds, dims light to 1%
Works in conoutlet with WAC Smart Fan receiver
(not included)
WT
Coupler
DC- Connects two downrods
Slope Ceiling Kit
SC-
Designed to accommodate buildings with steeper
sloped ceilings up to 45° or 12/12 pitch
Bluetooth
Remote Control
RC20-
Compatible with WAC Smart Fans
6 fan speeds, dims light to 1%
WT
29F-003
ACCESSORIES 16
Downrod
DR12-** 12” downrod
All our downrods are
1” 1” O.D.
and are threaded on the motor
end to create an extra layer of
security to allow for adjustments
in the eld
DR18-** 18” downrod
DR24-** 24” downrod
DR36-** 36” downrod
DR48-** 48” downrod
DR60-** 60” downrod
DR72-** 72” downrod
Model DescriptionProduct
F-003
30
17 TROUBLESHOOTING
My Fan Will Not Start
1. Check main and branch circuit fuses or circuit breakers.
2. Check line wire connections to fan and switch wire connections in the switch housings.
WARNING: Make sure the main power is turned o!
My Fan is Noisy
1. Allow for 24-hour break-in period. Most noises associated with a new fan will go away during this time period.
2. Check to make sure the screws which attached to the blades (and blade arms when applicable) are tight.
3. Check to make sure all screws in motor housing are snug.
4. Make sure light cover is tightened and/or glass is snug.
5. Tighten the hanger bracket screws and make sure the outletbox is secured.
6. Your wire connectors may be rattling against the fan’s canopy.
7. Make sure you have a cUL/UL approved outletbox and it is installed correctly.
My Fan is Wobbling
1. Tighten the setscrews in the downrod.
2. Make sure your hanger ball assembly is locked into place in the hanger bracket.
3. Tighten the hanger bracket screws to the outletbox.
4. Make sure the fan blades are properly aligned and securely fastened to the motor housing assembly/blade arms.
5. Make sure the gaps between the blades are evenly distributed.
6. Make sure you are using an approved cUL/UL listed outletbox and it is installed correctly
31F-003
TROUBLESHOOTING 17
My Fan is not producing Enough Air Movement
If possible, please consider using a longer than included downrod.
My remote or wall control is not controlling my fan
Verify that the fan is receiving power by power cycling the fan.
To do this:
1. Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
2. Wait at least 10 seconds, and then restore power.
3. The fan will power on in Pairing mode for 3 minutes.
4. Press and hold
5. When the LED indicator remains solid green, and three (2) audible beeps are heard, the pairing process is
complete.
My home Wi-Fi network is not showing up in the app’s list during setup.
1. Your fan supports connection with 2.4GHz 802.11b/g/n networks. Conrm your network is compatible by checking your router settings or contact
your router manufacturer.
2. Make sure your network’s SSID is not hidden.
3. Your fan does not support 5 GHz network connectivity.
My Fan failed to join the Wi-Fi network
Make sure you entered the correct Wi-Fi password and your mobile device is connected to the same network you attempted to connect the fan.
Make sure you are within the router manufacturer’s specied range. If all of these steps have failed - please power cycle your fan and router and retry.
and
buttons on the control for 10-15 seconds.
F-003
32
17 TROUBLESHOOTING
What is power cycling and how do I power cycle my fan?
Power cycling is the act of temporaily removing the power source for your fan. If the fan is powered through a wall switch, turn the switch o for
10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it o for 10 seconds and back on. If your fan
is wired through a WAC wall control (P/N: WC20-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
What is Adaptive Learning?
Adaptive learning is an exclusive feature that allows your fan to learn your daily/weekly habits and automatically recommend scheduled activity
through the Modern Forms app. This feature can be toggled on or o.
What is Breeze Mode?
Breeze Mode mimics the natural ebb and flow of winds in nature by uctuating your fan’s speed.
What is Pairing?
Pairing is the process of connecting your WAC remote or wall control to your fan. Your fan comes pre-paired to your included remote control.
However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
What is a Factory Reset?
Factory Reset is a restore of the fans original settings. This can be achieved from the control or by pressing and holding the small button on the
receiver until you hear three audible beeps or by holding down the fan toggle, light toggle, and season toggle buttons on your paired remote or
wall control for 10 seconds. NOTE: You will need to re-pair your remote or wall controls to the fan following a factory reset. A factory reset will also
disconnect the fan from your home Wi-Fi network and will require you to add the fan using the WAC Smart Fans app.
Please refer to the FAQ section of our app for further guidance. For all other questions, please contact our dedicated Fan Support
specialists. Contact information can be found at the front of the instructions.
33F-003
F-003
34
Congratulations on your new purchase.
Your new WAC Smart Fan is engineered to make life easier every day. WAC creates future-
forward fans and luminaires that provide energy savings and outstanding ecency. Our
dedication to doing things the right way goes beyond our love
for amazing products. WAC Smart Fans™ warrants any of its outdoor rated ceiling fan
products that they are to be free from defects in material and workmanship for a period
of one (1) year from the date of purchase; outdoor painted nishes are warranted for two
(2) years; LED light modules and electronic components are warranted for ve (5) years;
DC motors and stainless steel nishes are warranted for lifetime under normal use to the
rst non-dealer purchaser.
Although WAC uses the best available materials and does extensive testing for nish
endurance, some fading or chalking may occur and is considered normal. For coastal
locations, some corrosion and/or deterioration is considered “normal wear” in this
environment. Therefore, any nish claim due to coastal environment conditions is not
applicable to our warranty.If a product is defective, all eorts will be made to correct
the problem in the eld. If the problem cannot be resolved, an RGA number will be
issued. WAC obligation is expressly limited to repair or replacement, without charge, at
the WAC factory after prior written return authorization has been granted.
WAC obligation under this warranty shall not extend beyond the distributor’s initial
purchase price of the product and accordingly any consequential damages or labor
costs arising out of a defect are expressly excluded. This warranty shall not apply to
products that have been altered, improperly installed, mishandled or misused. Notice
of a defect in writing must be received by WAC within ve (5) years from the date of
purchase (or according period of time as outlined by material). Excluded from warranty
are any 3rd party component which carries its own manufacturer’s warranty. Note: WAC
product warranty applies only to purchases from authorized WAC distributors. THERE
ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Wangs Alliance Corporation is under license.
Other trademarks and trade names are those of their respective owners.
Felicidades por tu nueva compra.
Su nuevo ventilador WAC está diseñado para facilitarle la vida cada día. WAC crea
ventiladores y luminarias para el futuro que proporcionan ahorros de energía y
eciencia excepcional. Nuestra dedicación a hacer las cosas de la manera correcta va
más allá de nuestro amor por los productos asombrosos.WAC garantiza a cualquiera de
sus productos para ventiladores de techo con clasicación exterior que estén libres de
defectos en materiales y mano de obra por un período de un (1) año desde el fecha de
compra; Los módulos de luz LED están garantizados por cinco (5) años; Los motores de
CC y los acabados de acero inoxidable están garantizados de por vida bajo el uso normal
para el primer comprador no distribuidor.
Aunque WAC utiliza los mejores materiales disponibles y realiza pruebas exhaustivas
para la resistencia del acabado, puede producirse cierto desvanecimiento o parloteo
y se considera normal. Para las ubicaciones costeras, cierta corrosión y / o deterioro se
considera “desgaste normal” en este entorno. Por lo tanto, cualquier reclamación de
acabado debido a las condiciones del entorno costero no se aplica a nuestra garantía. Si
un producto es defectuoso, se harán todos los esfuerzos para corregirlo.
El problema en el campo. Si el problema no se puede resolver, se emitirá un número
RGA. La obligación de WAC se limita expresamente a la reparación o el reemplazo, sin
cargo, en la fábrica de WAC después de que se haya otorgado una autorización previa
por escrito.
La obligación de WAC bajo esta garantía no se extenderá más allá del precio de
compra inicial del producto por parte del distribuidor y, en consecuencia, cualquier
daño consecuencial o costo de mano de obra que surja de un defecto se excluye
expresamente. Esta garantía no se aplicará a los productos que hayan sido alterados,
instalados incorrectamente, mal manejados o mal utilizados. La noticación de un
defecto por escrito debe ser recibida por WAC dentro de los cinco (5) años a partir de
la fecha de compra (o según el período de tiempo indicado en el material). Quedan
excluidos de la garantía todos los componentes de terceros que tengan la garantía de
su propio fabricante. Nota: la garantía del producto WAC se aplica solo a las compras de
los distribuidores autorizados de WAC. NO HAY GARANTÍAS QUE SE EXTIENDAN MÁS
ALLÁ DE LA DESCRIPCIÓN DE SU CARACTERÍSTICA, INCLUIDAS LAS GARANTÍAS DE
COMERCIABILIDAD Y ADECUACIÓN PARA UN PROPÓSITO PARTICULAR.
La marca denominativa y los logotipos Bluetooth® son marcas registradas propiedad
de Bluetooth SIG, Inc. y cualquier uso de dichas marcas por parte de Wangs Alliance
Corporation se realiza bajo licencia. Otras marcas comerciales y nombres comerciales
pertenecen a sus respectivos propietarios.
CERTIFICATE OF WARRANTY
35F-003
Félicitations pour votre nouvel achat.
Votre nouveau ventilateur intelligent WAC est conçu pour vous simplier la vie au
quotidien. WAC crée des ventilateurs et des luminaires d’avant-garde qui permettent
des économies d’énergie et une ecacité exceptionnelle. Notre engagement à bien
faire les choses va au-delà de notre amour pour les produits étonnants.WAC garantit à
tous ses produits pour ventilateurs de plafond pour extérieur qu’ils ne doivent présenter
aucun défaut de matériau ou de fabrication pendant un (1) an date d’achat; Les modules
d’éclairage à LED sont garantis pendant cinq (5) ans; Les moteurs à courant continu et
les nis en acier inoxydable sont garantis à vie dans les conditions normales d’utilisation
par le premier acheteur non revendeur.
Bien que WAC utilise les meilleurs matériaux disponibles et eectue des tests
approfondis pour l’endurance de la nition, des décolorations ou des craies peuvent
se produire et sont considérés comme normaux. Pour les zones côtières, une certaine
corrosion et / ou détérioration est considérée comme une «usure normale» dans cet
environnement. Par conséquent, toute réclamation liée à la nition en raison des
conditions de l’environnement côtier ne s’applique pas à notre garantie. Si un produit
est défectueux, tous les eorts seront déployés pour y remédier. Le problème sur le
terrain. Si le problème ne peut pas être résolu, un numéro RGA sera attribué. L’obligation
de WAC est expressément limitée à la réparation ou au remplacement, sans frais, dans
l’usine de WAC après autorisation écrite préalable du retour.
L’obligation de WAC au titre de cette garantie ne s’étendra pas au-delà du prix d’achat
initial du produit par le distributeur. En conséquence, tout dommage indirect ou tout
coût de main-d’œuvre résultant d’un défaut est expressément exclu. Cette garantie ne
s’applique pas aux produits modiés, mal installés, manipulés ou utilisés de manière
inappropriée. WAC doit recevoir un avis écrit du défaut dans un délai de cinq (5) ans
à compter de la date d’achat (ou selon la période précisée dans les informations
fournies). Sont exclus de la garantie tout composant tiers bénéciant de la garantie du
fabricant. Remarque: la garantie des produits WAC ne s’applique qu’aux achats auprès
des distributeurs agréés WAC. IL N’Y A AUCUNE GARANTIE QUI ALLAIT AU-DELÀ
DE LA DESCRIPTION FACE AU PRESENT, INCLUANT LES GARANTIES DE QUALITÉ
MARCHANDE ET D’ADÉQUATION À UN USAGE PARTICULIER.
La marque et les logos Bluetooth ® sont des marques déposées appartenant à Bluetooth
SIG, Inc. et toute utilisation de ces marques par Wangs Alliance Corporation est sous
licence. Les autres marques et noms commerciaux appartiennent à leurs propriétaires
respectifs.
waclighting.com
F-003/ F-003L
