Step 5
Visit online resources for instructions, FAQs, etc. -- dashrsystems.com/resources
Step 6
USER MANUAL
Dashr|VBT
Simplify Testing Day
Step 1
www.dashrsystems.com
Email: info@dashrsystems.com
Phone: 844.44.DASHR
Step 2
.
Power on the device using the switch
Step 3
1
After the loading logo screen, press the left
button to enter "Vertical Jump Mode".
Select a unit.
Press a button to pass the instruction page.
Place the device on flat ground with nothing in front of it,
the lights will flash all Blue and Reset.
Stand approximately 60cm in front of the sensors.
Jump and land back in the sensors.
Step 7
Step 8
A jump height is displayed on the screen.
Step 4
More instructions and videos can be
found on our website at
www.dashrsystems.com.
Visit us online to learn more ways to make
testing easier and more efficient.
www.dashrsystems.com Results You Can Trust
Visit online resources for instructions, FAQs, etc. -- dashrsystems.com/resources
USER MANUAL
Dashr|VBT
Simplify Testing Day
FCC Statement
www.dashrsystems.com
Email: info@dashrsystems.com
Phone: 844.44.DASHR

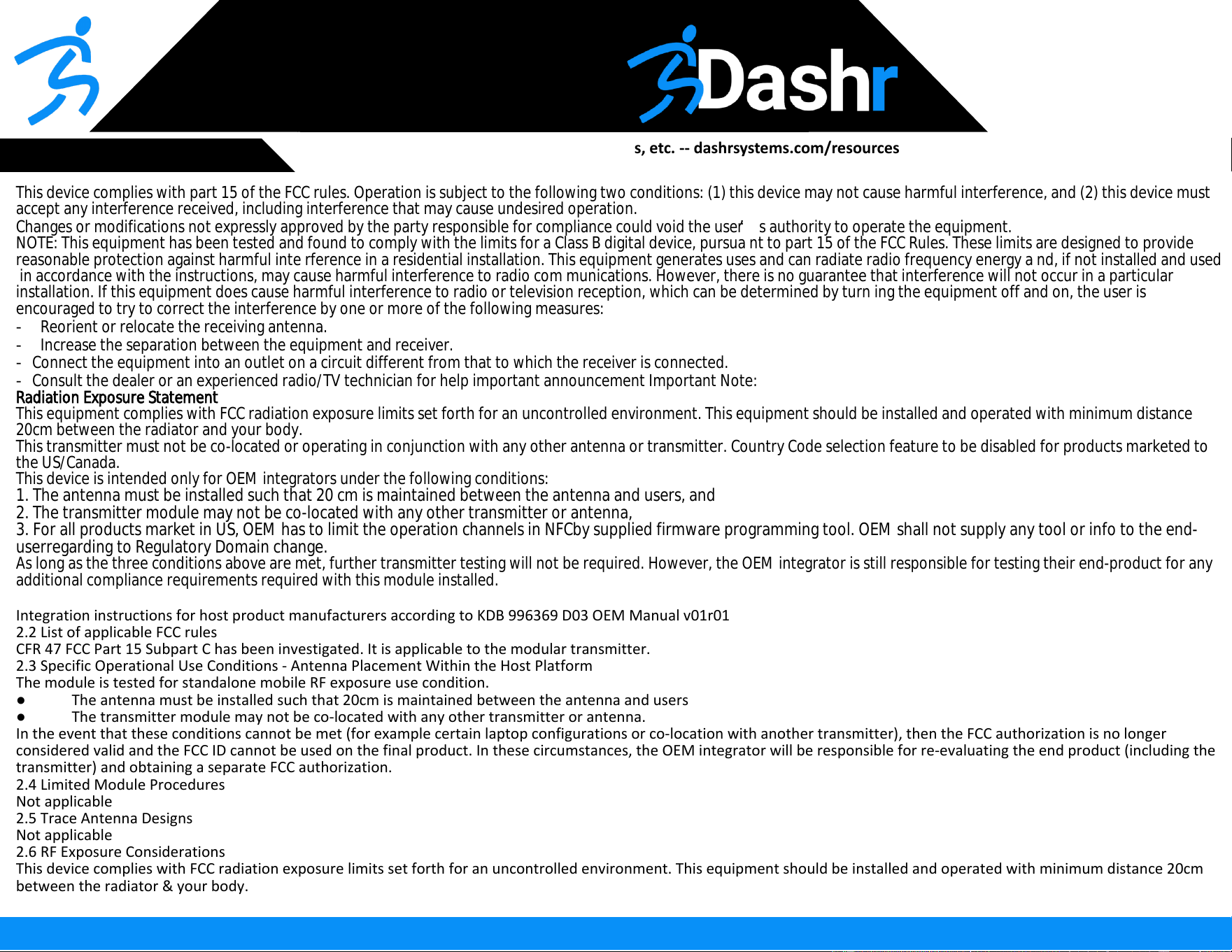

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursua nt to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful inte rference in a residential installation. This equipment generates uses and can radiate radio frequency energy a nd, if not installed and used
in accordance with the instructions, may cause harmful interference to radio com munications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn ing the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help important announcement Important Note:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance
20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to
the US/Canada.
This device is intended only for OEM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2. The transmitter module may not be co-located with any other transmitter or antenna,
3. For all products market in US, OEM has to limit the operation channels in NFCby supplied firmware programming tool. OEM shall not supply any tool or info to the end-
userregarding to Regulatory Domain change.
As long as the three conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed.
Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01r01
2.2 List of applicable FCC rules
CFR 47 FCC Part 15 Subpart C has been investigated. It is applicable to the modular transmitter.
2.3 Specific Operational Use Conditions - Antenna Placement Within the Host Platform
The module is tested for standalone mobile RF exposure use condition.
● The antenna must be installed such that 20cm is maintained between the antenna and users
● The transmitter module may not be co-located with any other transmitter or antenna.
In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the
transmitter) and obtaining a separate FCC authorization.
2.4 Limited Module Procedures
Not applicable
2.5 Trace Antenna Designs
Not applicable
2.6 RF Exposure Considerations
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
www.dashrsystems.com Results You Can Trust
USER MANUAL
Dashr|VBT
Simplify Testing Day
www.dashrsystems.com
Email: info@dashrsystems.com
Phone: 844.44.DASHR

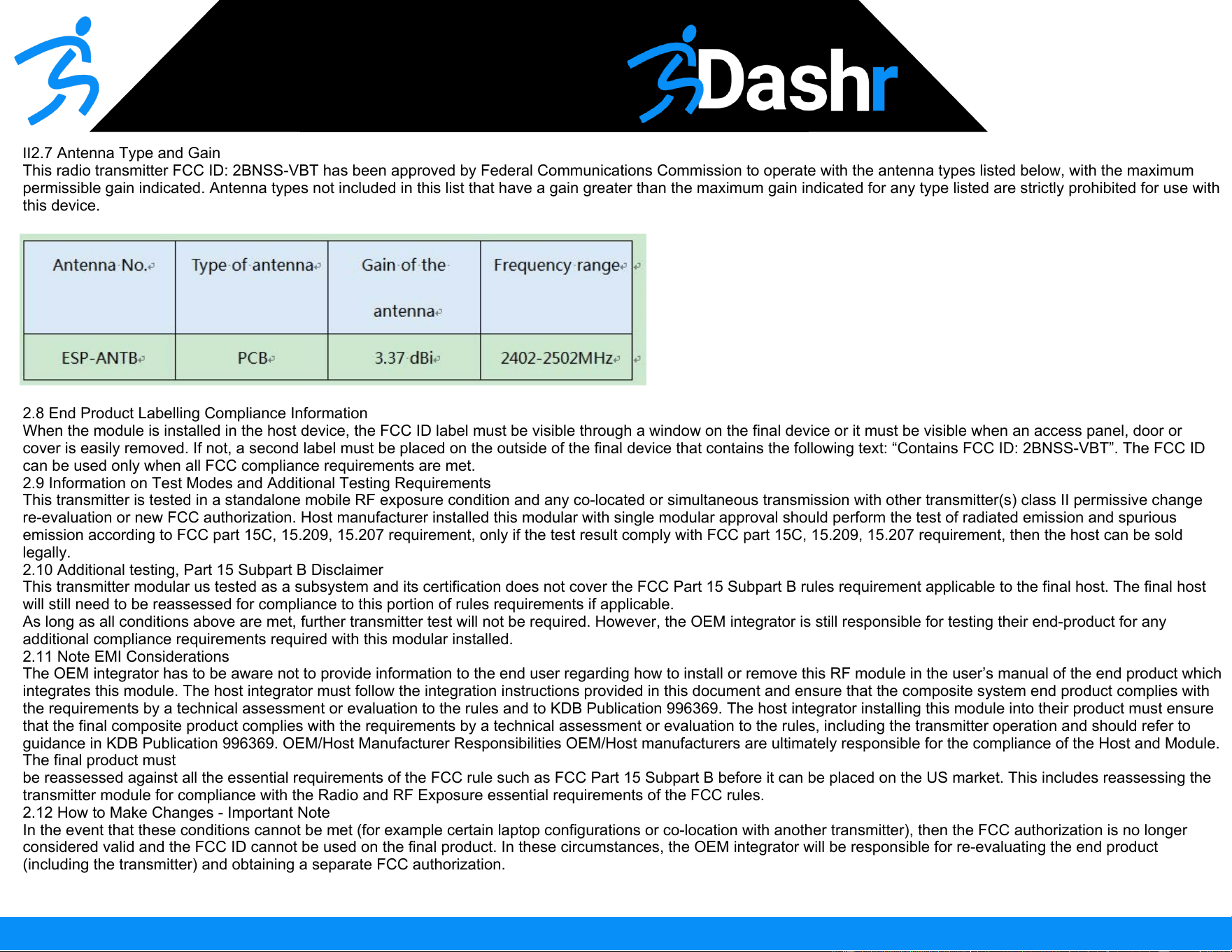

II2.7 Antenna Type and Gain
This radio transmitter FCC ID: 2BNSS-VBT has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum
permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with
this device.
2.8 End Product Labelling Compliance Information
When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or
cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: 2BNSS-VBT”. The FCC ID
can be used only when all FCC compliance requirements are met.
2.9 Information on Test Modes and Additional Testing Requirements
This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) class II permissive change
re-evaluation or new FCC authorization. Host manufacturer installed this modular with single modular approval should perform the test of radiated emission and spurious
emission according to FCC part 15C, 15.209, 15.207 requirement, only if the test result comply with FCC part 15C, 15.209, 15.207 requirement, then the host can be sold
legally.
2.10 Additional testing, Part 15 Subpart B Disclaimer
This transmitter modular us tested as a subsystem and its certification does not cover the FCC Part 15 Subpart B rules requirement applicable to the final host. The final host
will still need to be reassessed for compliance to this portion of rules requirements if applicable.
As long as all conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this modular installed.
2.11 Note EMI Considerations
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which
integrates this module. The host integrator must follow the integration instructions provided in this document and ensure that the composite system end product complies with
the requirements by a technical assessment or evaluation to the rules and to KDB Publication 996369. The host integrator installing this module into their product must ensure
that the final composite product complies with the requirements by a technical assessment or evaluation to the rules, including the transmitter operation and should refer to
guidance in KDB Publication 996369. OEM/Host Manufacturer Responsibilities OEM/Host manufacturers are ultimately responsible for the compliance of the Host and Module.
The final product must
be reassessed against all the essential requirements of the FCC rule such as FCC Part 15 Subpart B before it can be placed on the US market. This includes reassessing the
transmitter module for compliance with the Radio and RF Exposure essential requirements of the FCC rules.
2.12 How to Make Changes - Important Note
In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
