IMPORTANT SAFETY INFORMATION
Throughout this manual, notices appear to bring your attention to situations which could result in
death, serious injury, or damage to the unit.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
Indicates a hazardous situation which, if not avoided, could result in damage to
the unit.
HYGIENE
Indicates important precautions for hygiene and food safety.
IMPORTANT
Indicates important information about the use and care of the unit.
IMPORTANT
This booklet is an integral and essential part of the product and should be kept and preserved
by the user.
Please read carefully the guidelines and warnings contained herein as they are intended to
provide the installer/user with essential information for the proper installation and the continued
safe use and maintenance of the product.
Please preserve this booklet for any further consultation that may be necessary.
WARNING
This is a commercial icemaker, and should be destined only to be used for the purpose for
which it has been expressly designed.
Any other use should be considered improper and therefore dangerous. The manufacturer
will not be held liable or responsible for any damage caused by improper, incorrect and
unreasonable use.
The installation, and relocation if necessary, must be carried out by qualied personnel,
in accordance with current regulations, according to the manufacturer’s instructions.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
2
ENGLISH
The use of any electrical appliance involves the observance of some fundamental rules. In
particular:
* Instances of high humidity and moisture increase the risk of electrical short circuits and
potential electrical shocks. If in doubt, disconnect the icemaker.
* Do not damage the power cord or pull it in order to disconnect the icemaker from the
electrical supply network.
* [FM-1000, 600]
If the supply cord and/or the plug should need to be replaced, it should only be done by a
qualied service engineer.
[FM-750, 480, 300, 170]
If the supply cord is damaged, it must be replaced by a replacement cord available from
Hoshizaki Parts/Service Centres.
* Do not touch the electrical parts or operate the switches with damp hands.
* This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, it can however be used
by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge providing they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
* Children shall not play with the appliance.
* Cleaning and user maintenance shall not be made by children without supervision.
* Do not attempt to modify the icemaker. Only qualied personnel may disassemble or repair
the appliance.
3
ENGLISH
I. INSTALLATION INSTRUCTIONS
1. CONSTRUCTION
2. ACCESSORIES
CD 1
Mounting Bracket 2
Power Supply Cord 1
Inlet Hose 1
Outlet Hose 1
Connector Cover 1
3. UNPACKING
WARNING
Children should not be allowed in reach of the packaging elements (plastic bags and expanded polystyrene) as they are
potential sources of danger.
CAUTION
Do not lift or manoeuvre the carton by using the shipping bands.
When moving the unit by hand, remove the panels and hold the unit frame.
Always wear protective gloves when carrying the unit.
When handling the carton or the unpacked unit, work in pair to prevent injury.
NOTICE
Remove shipping carton, tape(s) and packing. If packing material is left in the icemaker, it will not work properly.
This icemaker needs a storage bin. The recommended storage bin is HOSHIZAKI
ICE STORAGE BIN, Model B-300SD(PD) or B-500SD(PD) with top kit - 8C,
B-700SD(PD) with top kit - 22C, or B-900SD(PD) with top kit - 22C and top kit -8C.
1) After removing the packaging, make sure that the icemaker and the storage
bin are in good condition. If in doubt, please do not use the icemaker but apply
to professionally qualied personnel. See the instruction sheet attached to the
storage bin for its unpackaging and installation guidelines.
2) Remove the shipping tape holding panels.
3) Remove the front, top, and side panels.
4) Remove the package of accessories. Check the contents according to “2.
ACCESSORIES”.

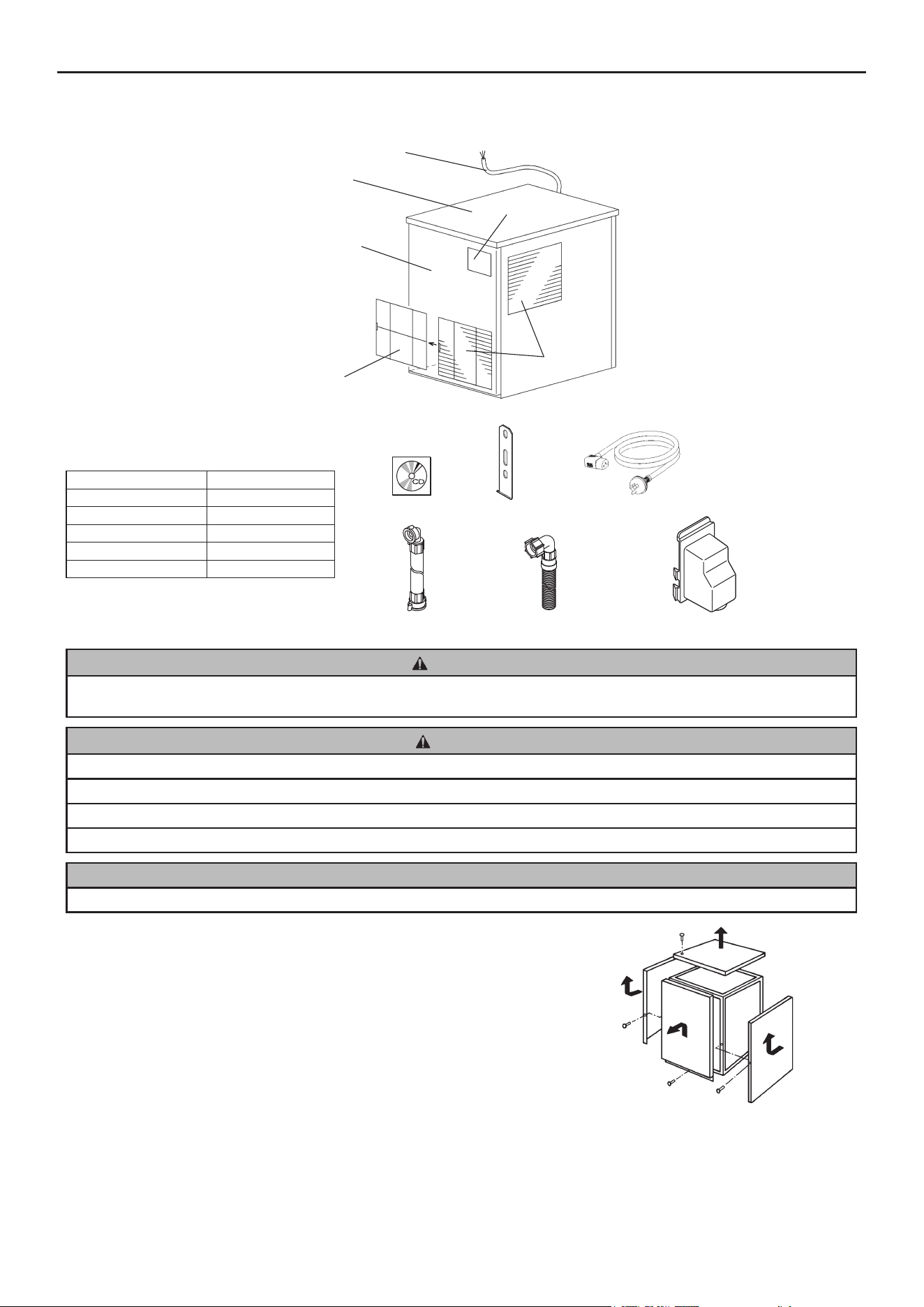

Top Panel: Remove the screw. Lift off.
Front Panel: Remove the screw. Lift up and
pull toward you.
Side Panel: Remove the screws. Pull slightly
toward you.
Top Panel
Side Panel
Front Panel
Power Supply Cord
Top Panel
Operation Panel
Air Filter
Louver
Front Panel
CD
Connector Cover
Mounting Bracket
Inlet Hose
Outlet Hose
Power Supply Cord
4
ENGLISH
5) Remove the protective plastic lm from the panels. If the icemaker is exposed to the sun or to heat, remove the lm after the
icemaker cools.
4. LOCATION
WARNING
This icemaker is not intended for outdoor use.
The icemaker should not be located next to ovens, grills or other high heat producing equipment.
This appliance is not suitable for installation in an area where a water jet could be used.
CAUTION
The location should provide a rm and level foundation for the icemaker.
NOTICE
Do not place anything on top of the icemaker or in front of the louver.
IMPORTANT
Normal operating ambient temperature should be within 5°C to 40°C. Water connection is cold water only. Operation of the
icemaker, for extended periods, outside of these normal temperature ranges may affect production capacity.

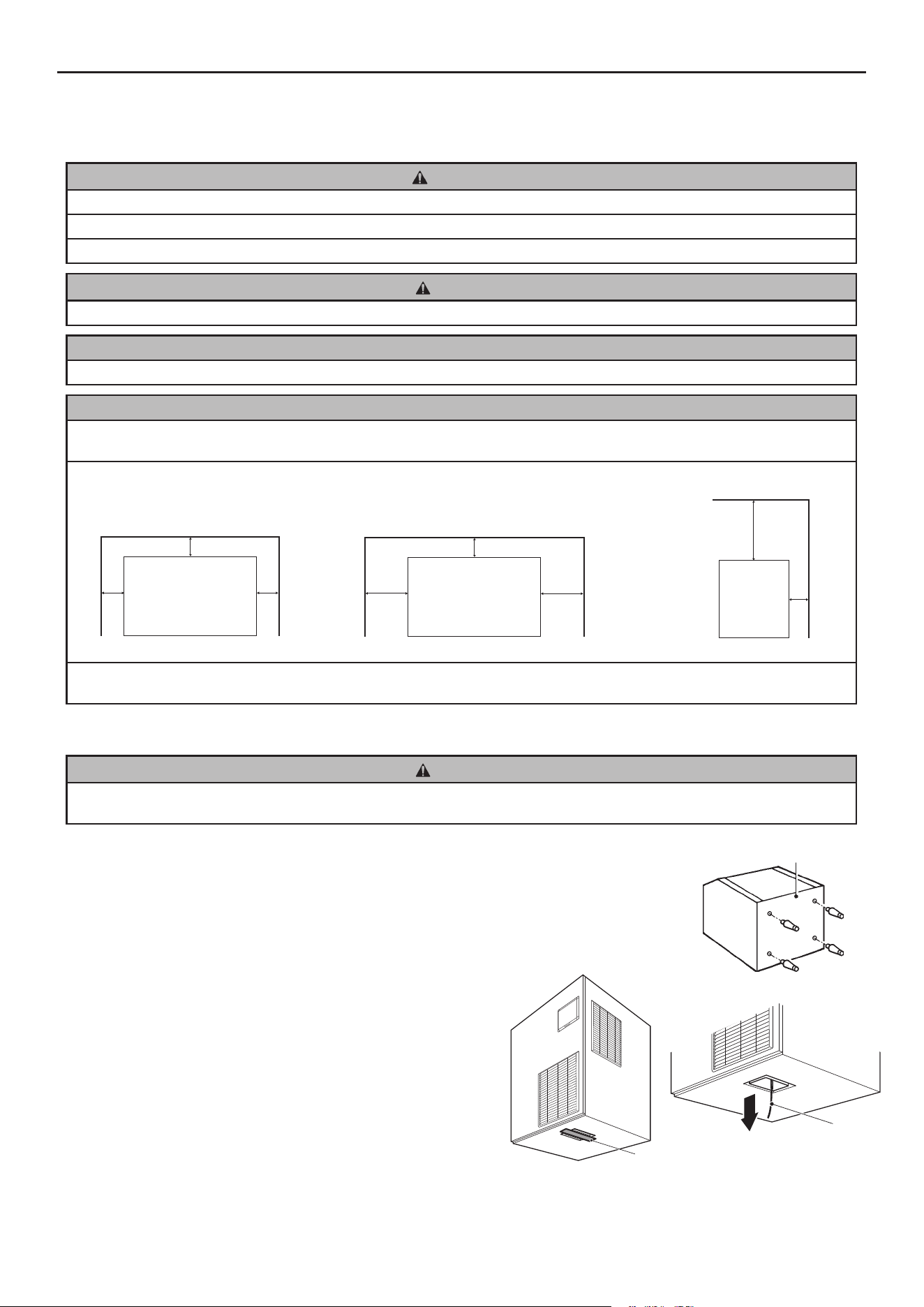

Allow the clearance specied below for proper air circulation and ease of maintenance and/or service should they be required.
Top View (FM-600AKE only)
Side View
Rear
ICEMAKER
Front
Left
Right
Rear
Front
Top
ICEMAKER
30cm
15cm
30cm
15cm
60cm
Top View (except FM-600AKE)
Rear
ICEMAKER
Front
Left
Right
15cm
15cm
15cm
In some high humidity environments, condensation may form inside the machine and drip onto the oor. Do not install where
the oor can be affected by water.
5. INSTALLATION
CAUTION
Incorrect installation can cause harm to people, animals or other items, for which the manufacturer cannot be held
responsible.
1) Fully screw in the four legs provided (bin accessory) into the storage bin underside.
2) Position the storage bin in the selected permanent side.
[Except FM-170]

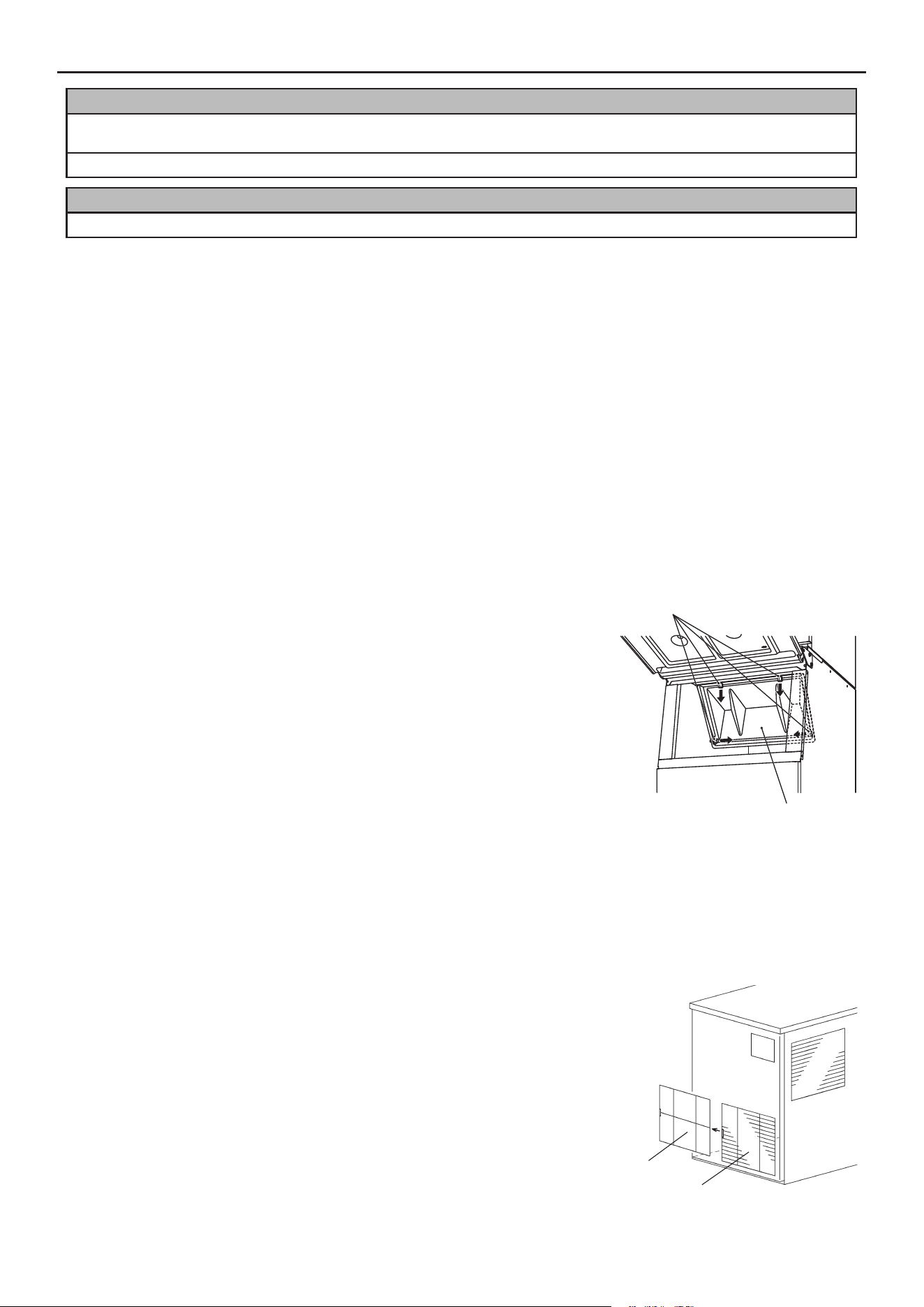

3) Remove the tape from the chute opening at the bottom of the icemaker.
[Except FM-170]
4) Pull down the end of the string coming out of the chute opening to
remove the cushion.
Note: If the power supply is turned on with the cushion left inside,
the icemaker will not start showing “BIN FULL” in the display.
5) Place the icemaker on top of the storage bin by holding the
bottom.
Bottom Plate
Adjustable Legs
Tape
String
5
ENGLISH
Icemaker
Mounting
Bracket
Bin
Bolt
Adjust legs
6) Secure the icemaker to the storage bin, by using the two mounting
brackets and two bolts provided.
7) Seal the seam between the icemaker and the storage bin with food
grade sealant.
8) Ret the side panels in their correct position.
9) Adjust the four legs on the bottom (adjustable from 0 to 25.4 mm)
to have the icemaker perfectly horizontal. Use the spirit level.
6. ELECTRICAL CONNECTIONS
WARNING
THIS APPLIANCE MUST BE EARTHED
Electrical connection must be made in accordance with the appropriate local codes and regulations. The icemaker is to be
connected to a residual-current device protected, earthed wall socket via the supplied exible supply cord.
Disconnect the main power supply before any maintenance, repairs or cleaning is undertaken.
* It is recommended that these appliance are connected to a separate 240VAC supply, protected by an appropriate circuit
breaker and Residual Current Device. Check the nameplate on the icemaker for the supply requirements.
* The main control box fuse is rated 3A and should only be replaced by a qualied service engineer.
* The service of a licensed electrician may be required to ensure the installation is in accordance with the local codes and
regulations.
* [FM-1000, 600]
The xed wiring must incorporate a means for disconnection from the supply having a contact separation of at least 3 mm in all
poles.
* The wires in the mains lead are coloured in accordance with the following code:
Green & Yellow = Earth
Blue = Neutral
Brown = Live
7. WATER SUPPLY AND DRAIN CONNECTIONS
WARNING
Connect to potable cold water supply only.
* The service of a licensed plumber may be required to ensure the installation is in accordance with the local codes and
regulations.
[Connection to the water supply]
* The connections to the mains water supply must be made in accordance with the Plumbing Code of Australia and in
accordance with AS / NZS 3500.1 and AS / NZS 3500.2. This appliance incorporates backow protection complying with AS /
NZS 3500.1. No further backow protection is required for connection to the water supply.
* Icemaking water must be potable water. Where scaling can be caused by water quality, installation of an external lter or
softener is recommended. Contact your local water treatment professional or Hoshizaki service agent.
* Water supply pressure should be minimum 0.05 MPa (0.5 bar) and maximum 0.8 MPa (8 bar). If the pressure exceeds 0.8 MPa (8
bar), use a proper pressure reducing valve. Do NOT throttle back the supply tap.

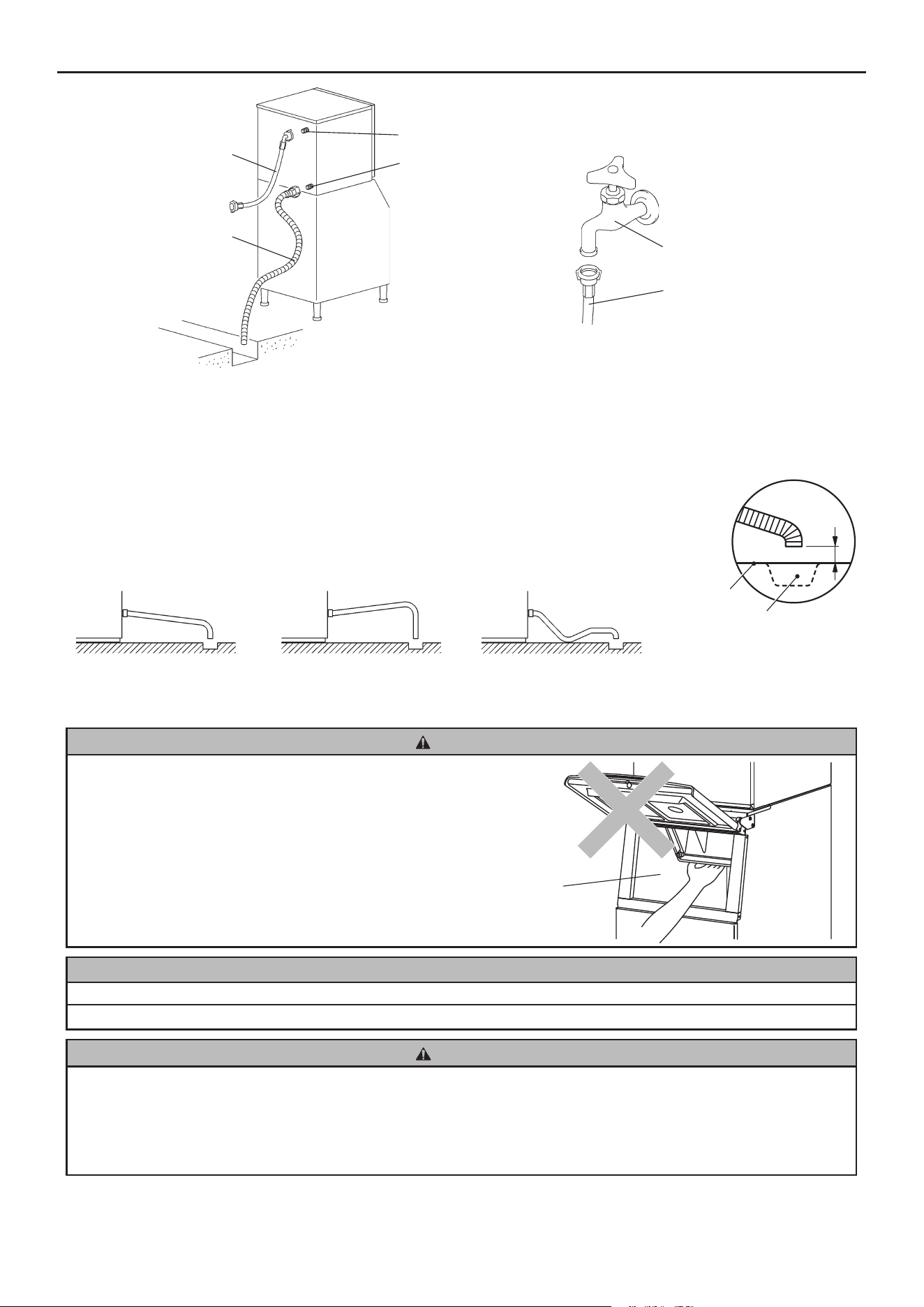

* Attach the angle end of the inlet hose to the G3/4” water inlet tting on the rear of the icemaker.
* Be sure to use the new inlet hose-sets supplied with the appliance. Do not reuse any other inlet hose-set.
* Ensure rubber tap washers are correctly positioned. Hand tighten the inlet hose sufciently to provide a leak free joint.
6
ENGLISH
[Connection to the drain]
* Hand tighten grey exible outlet hose (accessory) onto the R3/4 tting on the rear of the icemaker as indicated, ensuring
rubber washer is correctly positioned to obtain a leak free joint. The hose can be cut to length as necessary to suit position of
main drain.
* Drain lines should not be installed directly to the sewer system. A vertical air gap of a minimum of 5
cm should be between the end of the drain hoses from the icemaker and storage bin and the oor
drain.
* To prevent a backow into the storage bin, the outlet hose must be laid as shown.
II. OPERATING INSTRUCTIONS
CAUTION
Do not step into the storage bin, or put your hands into the
machine compartment inside the storage bin. Children can get
trapped inside, or the icemaking mechanism may suddenly
move, resulting in injury.
NOTICE
All parts are factory-adjusted. Improper adjustments may result in failure.
If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor.
HYGIENE
This icemaker is designed to produce edible ice. To keep the icemaker hygienic:
* Wash your hands before removing ice. Use the plastic scoop provided (accessory).
* The storage bin is for ice use only. Do not store anything else in the bin nor use other electrical appliances in the bin.
* Clean the storage bin before use (see “III. 1. CLEANING”).
* Keep the scoop clean. Clean it by using a neutral cleaner and rinse thoroughly.
* Close the door after removing ice to prevent entrance of dirt, dust or insects into the storage bin.
Downgrade
GOOD BAD
Upgrade
BAD
5cm air gap
Drain
Floor
Storage Bin
Water Supply Inlet G3/4
Drain Outlet R3/4
Inlet Hose
Outlet Hose
Water Supply Tap
Inlet Hose
7
ENGLISH
1. START UP
The installer will normally commission the icemaker to start the
automatic icemaking process. To ensure continuous operation, make
sure that:
* The water supply tap is on, and
* The icemaker is connected to the power supply.
To start the icemaking process, check the position of the operation
switch on the operation panel:
“OFF” position - Move it to the “ON” position.
“ON” position - Press the ice button.
2. SHUT DOWN
Press the stop button on the operation panel. The “STOP” and “DRAIN”
modes light up on the display. Then, only the “DRAIN” mode goes off.
3. PREPARING THE ICEMAKER FOR LONG STORAGE
NOTICE
This icemaker will not work at subfreezing temperatures. To prevent damage to the water supply line, drain the icemaker when
air temperature is below zero.
HYGIENE
When shutting down the icemaker for two or more days, drain the icemaker to prevent contamination in the water circuit.
1) Follow the instructions in “2. SHUT DOWN”.
2) Close the water supply line shut-off valve.
3) Open the drain valve.
4) Press the ice button on the operation panel to drain the water circuit.
5) When no more water comes out of the drain valve, press the stop button.
6) Move the operation switch to the “OFF” position, and disconnect the power supply.
7) Close the drain valve.
8) Remove all ice from the storage bin, and clean the bin.
III. MAINTENANCE
1. CLEANING
WARNING
Before carrying out any cleaning or maintenance operations, unplug the icemaker from the electrical supply network.
This appliance must not be cleaned by use of a water jet.
CAUTION
When using a neutral cleaner or sodium hypochlorite, thoroughly read and understand the instructions provided to prevent
potential health problems.

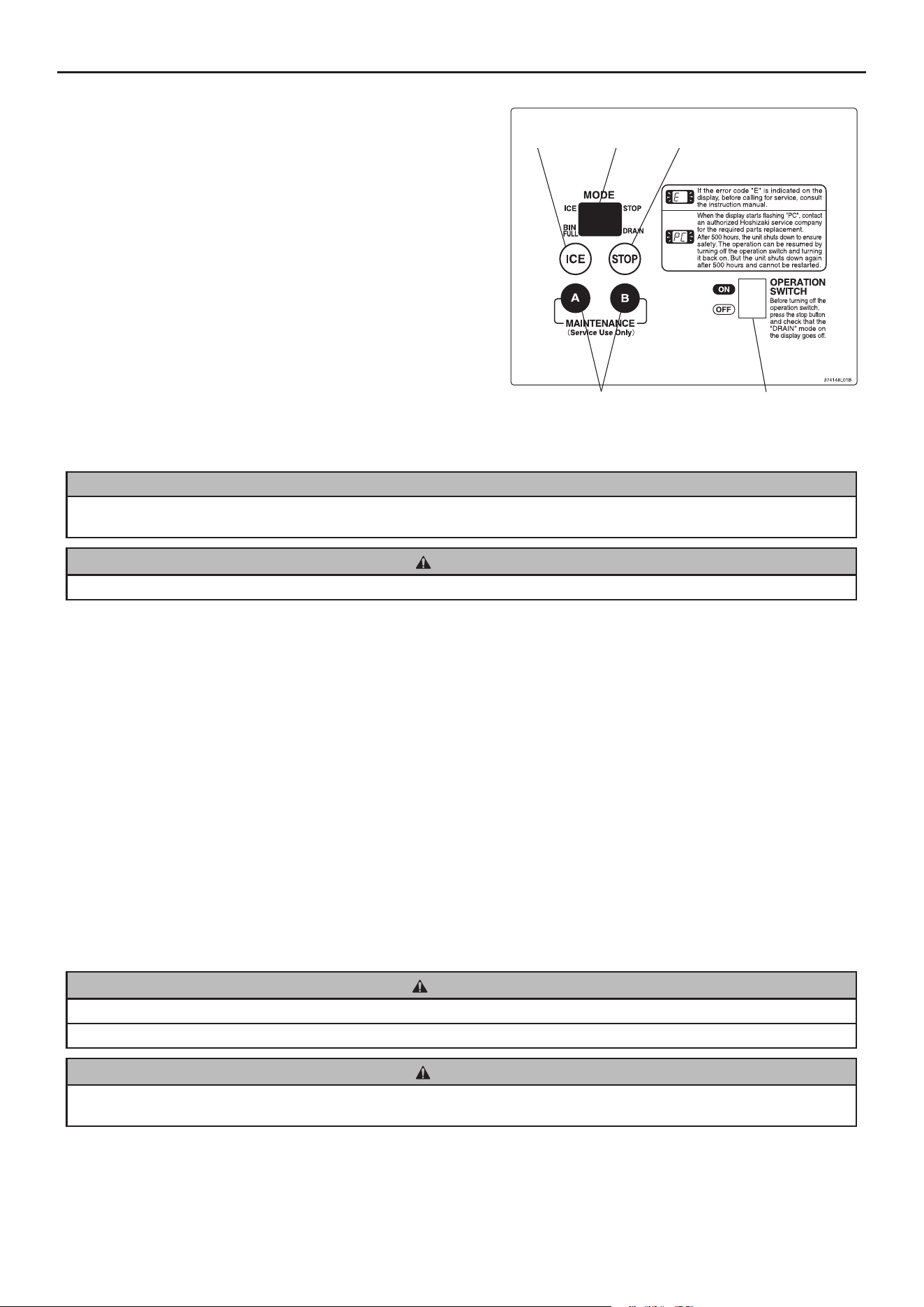

Operation Panel
Ice Button Display Stop Button
Maintenance Button
(service use only)
Operation Switch
8
ENGLISH
NOTICE
Ask a trained service person to clean and sanitise the icemaker water system at least twice a year and to check and clean the
condenser at least once a year.
To prevent possible damage, do not clean the plastic parts with water above 40°C or in a dishwasher.
IMPORTANT
For spare parts information, contact your local Hoshizaki service agent.
[a] Machine and Bin Exterior
Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off
grease or dirt.
[b] Scoop and Storage Bin Handle Cleaning/Sanitisation (Daily)
1) Either mix 1 litre of water with 4 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended
Hoshizaki sanitiser as directed.
2) Soak the scoop in the solution for more than 3 minutes. Rinse thoroughly, and shake to remove surplus liquid.
Note: Using a cloth to dry may re-contaminate.
3) Use a neutral cleaner to wash the storage bin handle. Rinse thoroughly.
4) Soak a clean cloth with the sanitising solution, and wipe the handle. Use fresh water and a clean cloth to rinse/dry.
[c] Storage Bin Interior Cleaning/Sanitisation (Weekly)
1) Open the storage bin door, and remove all ice.
Note: Hoshizaki recommends various types of storage bin for the icemaker which
vary in size and design. The following instructions are therefore for general
guidance only.
2) Remove the thumbscrews securing the bafe.
3) Remove the bafe from the bin.
4) Wash the bin liner, and bafe with a neutral non-abrasive cleaner. Rinse thoroughly.
5) Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a
suitable container, or the recommended Hoshizaki sanitiser as directed.
6) Soak a clean sponge or cloth with the solution, and wipe the bin liner surfaces, and bafe.
7) Ret the bafe and thumbscrews. Wipe the surface of the bin door and thumbscrews with the solution. Close the bin door.
8) The remaining solution can be used to sanitise utensils.
Note: Do not wipe dry or rinse after sanitising, but allow to air dry.
[d] Storage Bin Door
Clean the storage bin door at least once a week, using a neutral non-abrasive
cleaner. Rinse thoroughly after cleaning and sanitise as required.
[e] Air Filter
Plastic mesh air lters remove dirt or dust from the air, and keep the condenser
from getting clogged. If the lters get clogged, the icemaker’s performance will be
reduced. Remove and clean the air lter(s) at least twice per month:
1) Slide the air lter off the louver.
Thumbscrew
Bafe
Air Filter
Louver
9
ENGLISH
2) Clean the air lter by using a vacuum cleaner. When severely clogged, use warm water and a neutral cleaner to wash the air
lter.
3) Rinse and dry the air lter thoroughly.
NOTICE
After cleaning, be sure to place the air lter back in position.
2. INSPECTION AND MAINTENANCE
NOTICE
To achieve optimum icemaker performance, the following parts need periodic inspection and maintenance:
Extruding head (upper bearing)
Housing (lower bearing)
Mechanical seal
[a] Inspection
These parts should be inspected after two years from installation or 10,000 hours of operation, whichever comes rst, and once
a year afterwards. Replacement of these parts is required if wear exceeds factory recommendations.
Their service life, however, depends on water quality and environment. More frequent inspection and maintenance are
recommended in bad or severe water conditions.
Consult with your local Hoshizaki service agent about inspection and maintenance service.
[b] Replacement
The extruding head (upper bearing) and mechanical seal must be replaced after four years from installation or 20,000 hours of
operation, whichever comes rst, to prevent the risk of serious accidents or failures. Contact your local Hoshizaki service agent
for replacement.
When the total operating time reaches 20,000 hours, the display ashes “PC”. Then, after 500 hours, the unit shuts down to
ensure safety. Contact your local Hoshizaki service agent for replacement as soon as the display starts ashing.
Once the unit shuts down after 500 hours, the operation can be resumed by turning off the operation switch and turning it back
on. But the unit shuts down again after 500 hours. To resume the operation, contact your local Hoshizaki service agent for the
required replacement.
Replacement of the housing (lower bearing) may be required depending on water quality and wear condition.
3. BEFORE CALLING FOR SERVICE
WARNING
Do not damage the refrigerant circuit.
[a] Error Code Indication
If the error code “E” is indicated on the display, before calling for service, check the following.
Code Remedy
E0 Possibility of water leaks. Turn OFF operation switch, and turn it ON again. If error code appears again, call for
service.
E1 Low ice production. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
E2 Water supply circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for
service.
E3 Gear motor failure. Turn OFF operation switch, and turn it ON again after 10 minutes. If error code appears again, call
for service.
E4 Abnormal high side pressure. Clean air lter. Check that icemaker is properly installed according to installation manual.
Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
10
ENGLISH
E5 Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
E8 Compressor could be overheated. Check that icemaker is properly installed according to installation manual. Turn OFF
operation switch, and turn it ON again after 10 minutes. If error code appears again, call for service.
EA Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
Eb Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EC Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EE Gear motor failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EF Supply voltage is too low. Check that voltage is in required range and icemaker is not sharing a single receptacle with
other appliances. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EH Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EL Bin control switch has failed. Turn OFF operation switch, and turn it ON again. If error code appears again, call for
service.
En Electric circuit failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
EU Controller board failure. Turn OFF operation switch, and turn it ON again. If error code appears again, call for service.
[b] No Error Code Indication
If the icemaker does not work properly or does not work at all and no error code is indicated on the display, before calling for
service, check that:
* The power is supplied to the unit.
* The water is turned on.
* The air lter is clean.
For further assistance or advice, contact your local Hoshizaki service agent.
4. DISPOSAL
Comply with local regulations regarding disposal of this appliance and its refrigerant gas. Before you scrap the appliance, take
off the door to prevent children trapped.
Correct disposal of this product:
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources. To return your used device, use the return and collection
systems or contact the retailer where the product was purchased. They can take this product for environmental safe
recycling.
5. WARRANTY
Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or
workmanship for the duration of the “warranty period”. The warranty shall be effective for two years from the date of installation.
Hoshizaki’s liability under the terms of the warranty are limited and shall exclude routine servicing, cleaning, essential
maintenance and/or repairs occasioned by misuse and installations not in accordance with Hoshizaki guidelines.
Warranty repairs should be completed by an approved Hoshizaki dealer or service agency using genuine Hoshizaki components.
To obtain full details of your warranty and approved service agency, please contact your dealer/supplier, or the nearest Hoshizaki
Service ofce:
Hoshizaki Lancer
TEL: +61 8 8268 1388
FAX: +61 8 8268 1978
http://www.hoshizaki.com.au
To register your product for warranty with Hoshizaki,
visit http://www.hoshizaki.com.au/warranty-registration
or scan the QR code.
11
ENGLISH
SPECIFICATIONS
Model FM-1000AKE FM-1000AKE-N
Type Air-cooled, ake ice Air-cooled, nugget ice
Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz
Electric Consumption 2490W 2550W
Ice Production per 24h 1030kg (ambient 10°C, water 10°C) 860kg (ambient 10°C, water 10°C)
Dimensions 762mm(W) x 700mm(D) x 780mm(H) 762mm(W) x 700mm(D) x 780mm(H)
Refrigerant R404A, 1.35kg
(GWP: 3920, CO2: 5.292t)
R404A, 1.35kg
(GWP: 3920, CO2: 5.292t)
Insulation Foam Blowing Agent HFC-free HFC-free
Weight Net: 146kg (Gross: 156kg) Net: 146kg (Gross: 156kg)
Ambient Temp 5 - 40°C 5 - 40°C
Water Supply Temp 5 - 35°C 5 - 35°C
Water Supply Pressure 0.05 - 0.8 MPa (0.5 - 8 bar) 0.05 - 0.8 MPa (0.5 - 8 bar)
Voltage Range Rated voltage ± 10% Rated voltage ± 10%
Model FM-750AKE FM-750AKE-N
Type Air-cooled, ake ice Air-cooled, nugget ice
Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz
Electric Consumption 1880W 2010W
Ice Production per 24h 750kg (ambient 10°C, water 10°C) 590kg (ambient 10°C, water 10°C)
Dimensions 762mm(W) x 700mm(D) x 780mm(H) 762mm(W) x 700mm(D) x 780mm(H)
Refrigerant R404A, 1.15kg
(GWP: 3920, CO2: 4.508t)
R404A, 1.15kg
(GWP: 3920, CO2: 4.508t)
Insulation Foam Blowing Agent HFC-free HFC-free
Weight Net: 133kg (Gross: 143kg) Net: 133kg (Gross: 143kg)
Ambient Temp 5 - 40°C 5 - 40°C
Water Supply Temp 5 - 35°C 5 - 35°C
Water Supply Pressure 0.05 - 0.8 MPa (0.5 - 8 bar) 0.05 - 0.8 MPa (0.5 - 8 bar)
Voltage Range Rated voltage ± 10% Rated voltage ± 10%
Model FM-600AKE FM-600AKE-N
Type Air-cooled, ake ice Air-cooled, nugget ice
Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz
Electric Consumption 1900W 1950W
Ice Production per 24h 600kg (ambient 10°C, water 10°C) 530kg (ambient 10°C, water 10°C)
Dimensions 560mm(W) x 700mm(D) x 780mm(H) 560mm(W) x 700mm(D) x 780mm(H)
Refrigerant R404A, 1.3kg
(GWP: 3920, CO2: 5.096t)
R404A, 1.3kg
(GWP: 3920, CO2: 5.096t)
Insulation Foam Blowing Agent HFC-free HFC-free
Weight Net: 107kg (Gross: 114kg) Net: 107kg (Gross: 114kg)
Ambient Temp 5 - 40°C 5 - 40°C
Water Supply Temp 5 - 35°C 5 - 35°C
Water Supply Pressure 0.05 - 0.8 MPa (0.5 - 8 bar) 0.05 - 0.8 MPa (0.5 - 8 bar)
Voltage Range Rated voltage ± 10% Rated voltage ± 10%
12
ENGLISH
Model FM-480AKE FM-480AKE-N
Type Air-cooled, ake ice Air-cooled, nugget ice
Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz
Electric Consumption 1650W 1650W
Ice Production per 24h 500kg (ambient 10°C, water 10°C) 430kg (ambient 10°C, water 10°C)
Dimensions 560mm(W) x 700mm(D) x 780mm(H) 560mm(W) x 700mm(D) x 780mm(H)
Refrigerant R404A, 0.6kg
(GWP: 3920, CO2: 2.352t)
R404A, 0.6kg
(GWP: 3920, CO2: 2.352t)
Insulation Foam Blowing Agent HFC-free HFC-free
Weight Net: 95kg (Gross: 102kg) Net: 95kg (Gross: 102kg)
Ambient Temp 5 - 40°C 5 - 40°C
Water Supply Temp 5 - 35°C 5 - 35°C
Water Supply Pressure 0.05 - 0.8 MPa (0.5 - 8 bar) 0.05 - 0.8 MPa (0.5 - 8 bar)
Voltage Range Rated voltage ± 10% Rated voltage ± 10%
Model FM-300AKE FM-300AKE-N
Type Air-cooled, ake ice Air-cooled, nugget ice
Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz
Electric Consumption 1000W 1000W
Ice Production per 24h 320kg (ambient 10°C, water 10°C) 270kg (ambient 10°C, water 10°C)
Dimensions 560mm(W) x 700mm(D) x 780mm(H) 560mm(W) x 700mm(D) x 780mm(H)
Refrigerant R404A, 0.46kg
(GWP: 3920, CO2: 1.803t)
R404A, 0.46kg
(GWP: 3920, CO2: 1.803t)
Insulation Foam Blowing Agent HFC-free HFC-free
Weight Net: 80kg (Gross: 87kg) Net: 80kg (Gross: 87kg)
Ambient Temp 5 - 40°C 5 - 40°C
Water Supply Temp 5 - 35°C 5 - 35°C
Water Supply Pressure 0.05 - 0.8 MPa (0.5 - 8 bar) 0.05 - 0.8 MPa (0.5 - 8 bar)
Voltage Range Rated voltage ± 10% Rated voltage ± 10%
Model FM-170AKE FM-170AKE-N
Type Air-cooled, ake ice Air-cooled, nugget ice
Power Supply 1 phase 220-240V 50Hz 1 phase 220-240V 50Hz
Electric Consumption 600W 620W
Ice Production per 24h 170kg (ambient 10°C, water 10°C) 160kg (ambient 10°C, water 10°C)
Dimensions 560mm(W) x 700mm(D) x 780mm(H) 560mm(W) x 700mm(D) x 780mm(H)
Refrigerant R134a, 0.37kg
(GWP: 1430, CO2: 0.529t)
R134a, 0.37kg
(GWP: 1430, CO2: 0.529t)
Insulation Foam Blowing Agent HFC-free HFC-free
Weight Net: 68kg (Gross: 75kg) Net: 68kg (Gross: 75kg)
Ambient Temp 5 - 40°C 5 - 40°C
Water Supply Temp 5 - 35°C 5 - 35°C
Water Supply Pressure 0.05 - 0.8 MPa (0.5 - 8 bar) 0.05 - 0.8 MPa (0.5 - 8 bar)
Voltage Range Rated voltage ± 10% Rated voltage ± 10%
Note: The above specications are for the representative models.
This product includes a hermetically sealed refrigeration system that contains uorinated greenhouse gases.
