1
SY26012
4007498
Purchase Date
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems or missing parts?
Before returning, contact us on: 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ITEM #9053189/9053190/
9640283/9640284
MODELO #CCN52MBK5L/CCN52BNK5L/
CCN52MBZL5L/CCN52MWL5L
ARMITAGE II
CEILING FAN
Español p. 20
ATTACH YOUR RECEIPT HERE
2
TABLE OF CONTENTS
Safety Information .................................................................................................................................... 2
Package Contents .................................................................................................................................... 5
Hardware Contents ................................................................................................................................... 6
Preparation ............................................................................................................................................... 6
Initial Installation ....................................................................................................................................... 6
Wiring ....................................................................................................................................................... 9
Final Installation ...................................................................................................................................... 11
Installing Fan Without Light Kit ............................................................................................................... 15
Operating Instructions ............................................................................................................................ 16
Care and Maintenance ........................................................................................................................... 17
Troubleshooting ...................................................................................................................................... 18
Limited Lifetime Warranty ....................................................................................................................... 19
Replacement Parts List .......................................................................................................................... 19
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could void
the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053 1-800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product. Review the accompanying assembly diagrams.
• Do not discard fan carton or inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 13.23 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
WARNING
DANGER
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
4
SAFETY INFORMATION
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.

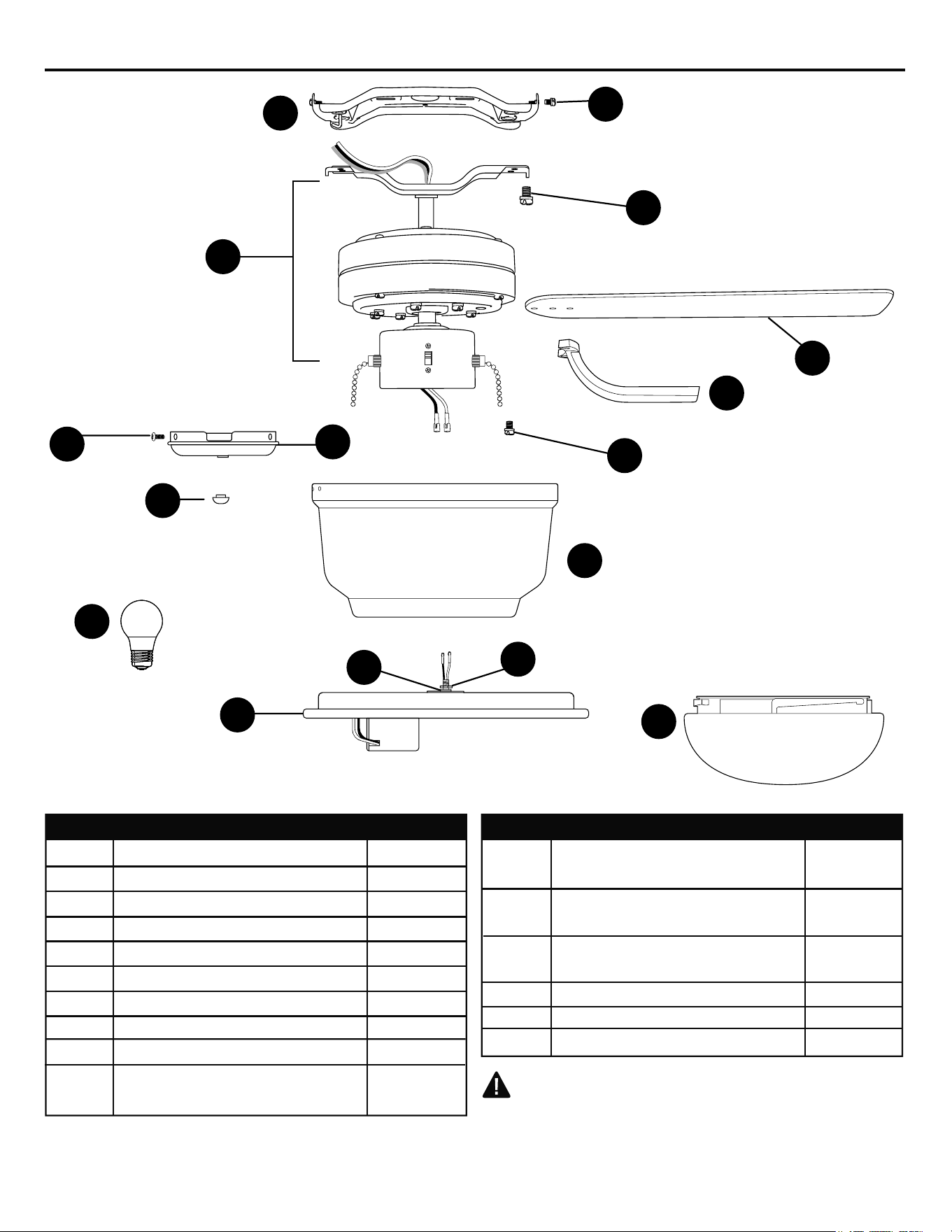

PACKAGE CONTENTS
5
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper
installation and safety.
A Mounting Bracket 1
B Motor Housing 1
C Motor Assembly 1
D Blade 5
E Blade Arm 1
F Light Kit Fitter 5
G Switch Housing Cap 1
H Shade 1
I Bulb 1
J Mounting Bracket Screw/ 4
Lock Washer (preassembled)
K Motor Screw/Lock Washer 10
(preassembled) + 1 extra
L Motor Housing Screw 4
(preassembled)
M Switch Housing Screw 3
(preassembled)
N Lock Washer (preassembled) 1
O Hex Nut (preassembled) 1
P Center Cap (preassembled) 1
D
B
F
M
L
J
I
H
A
P
C
N
E
K
G
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
O
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
6
INITIAL INSTALLATION

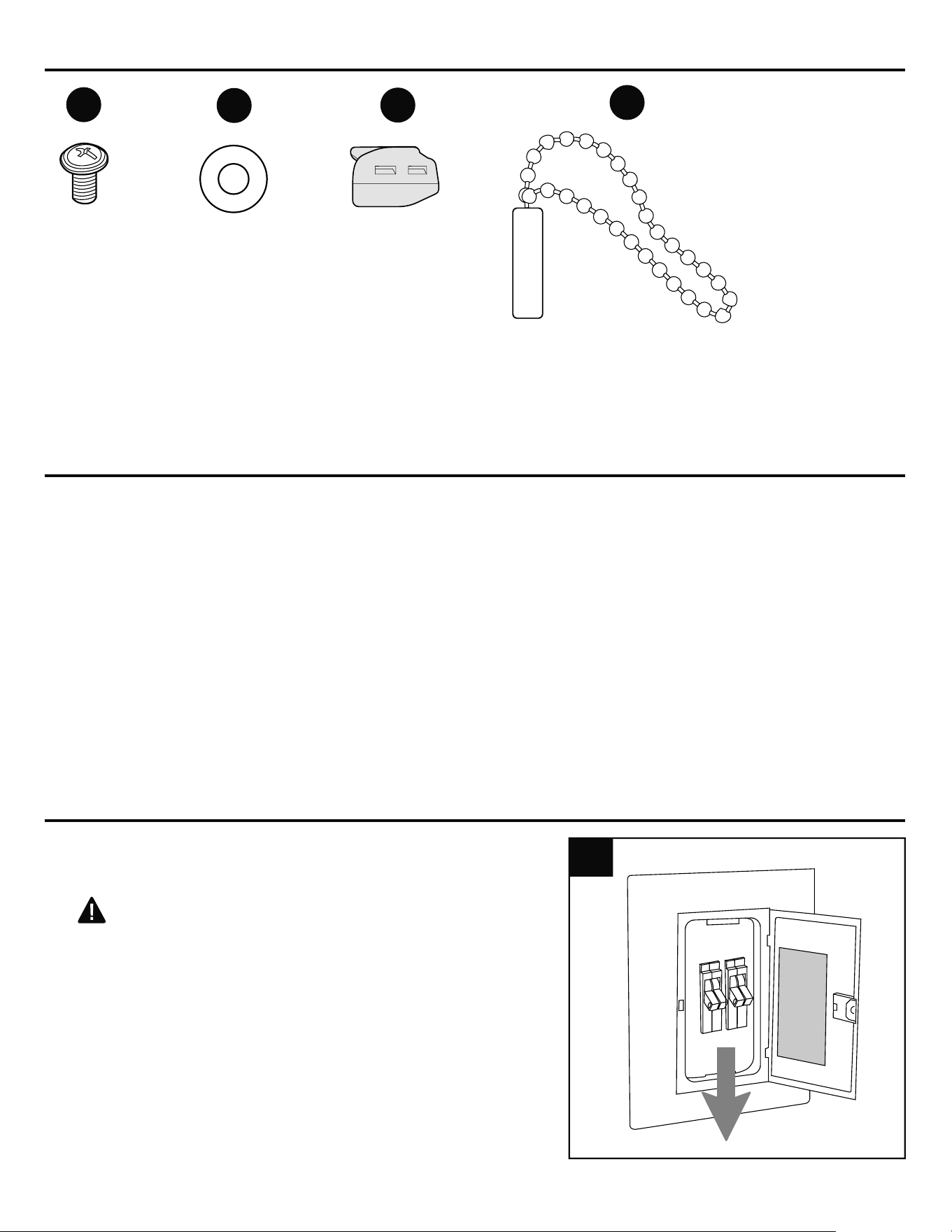

HARDWARE CONTENTS (shown actual size)
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
PREPARATION
ON
OFF
ON
OFF
1
Lever Wire
Connector
Qty. 4
Blade
Screw
Qty. 15
+ 1 extra
Fiber Blade
Washer
Qty. 15
+ 1 extra
AA
BB
CC
Pull Chain
Extension
Qty. 2
DD
INITIAL INSTALLATION

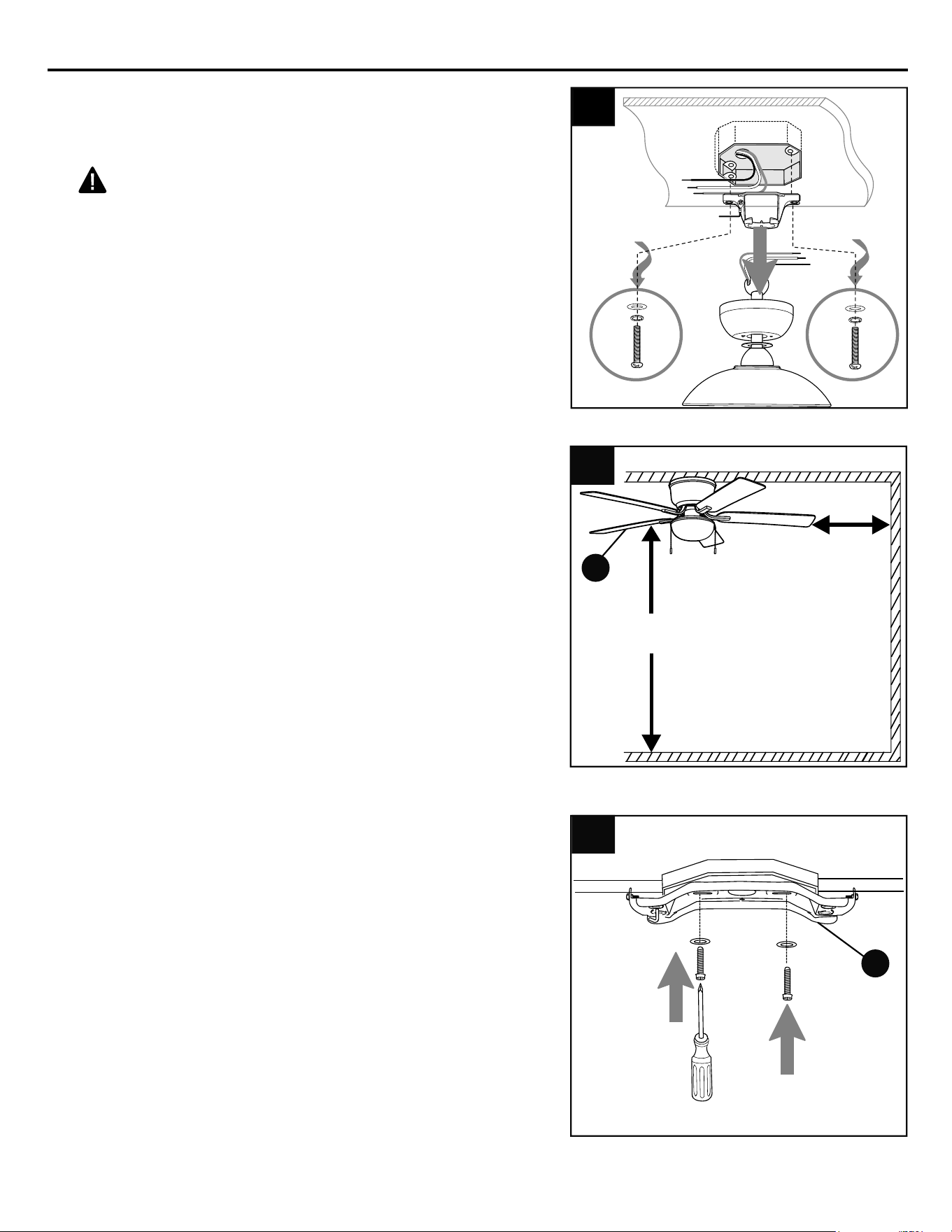

Secure mounting bracket (A) to outlet box using
screws, spring washers, and flat washers
provided with the outlet box.
*NOTE: It is very important that you use the
proper hardware when installing the mounting
bracket (A) as this will support the fan.
7
4.
This fan can be mounted as a flushmount on a
regular (no-slope) ceiling only.
Check to make sure blades (D) will be at least
30 inches from any obstruction and at least 7 ft.
above the floor.
3.
4
3
7 ft.
min.
30 in.
min.
D
2.
2
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers provided with the outlet box for fan
installation.
A
INITIAL INSTALLATION

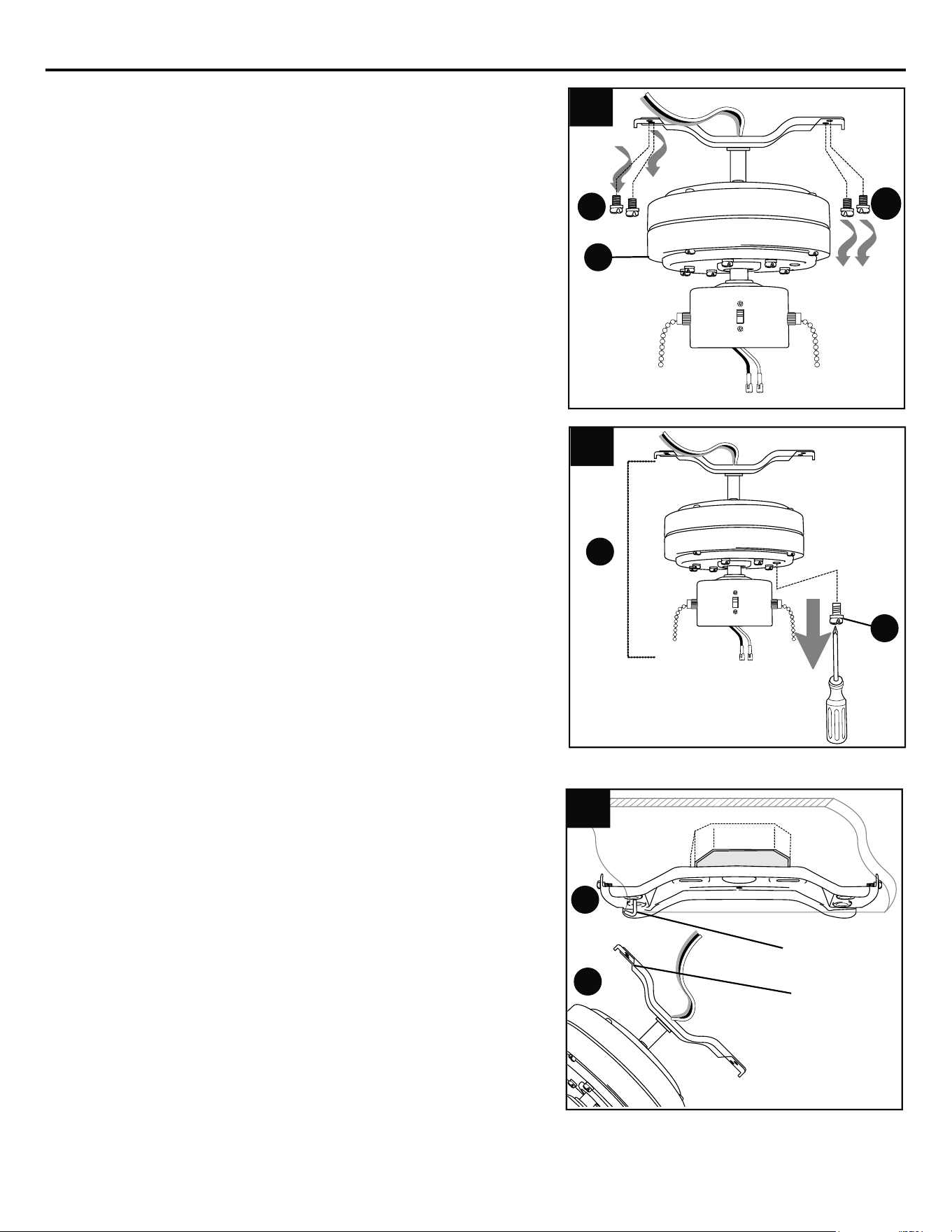

Slide the slot in the bar at the top of the
motor assembly (C) onto the "J" hook on
the mounting bracket (A) to support the
fan during wiring.
IMPORTANT: Do not use screw holes at
the ends of the bar on the motor
assembly (C) on the “J” hook on the
mounting bracket (A).
Remove motor screws/lock washers (K)
from underside of motor assembly (C) --
save motor screws/lock washers (K) to
attach blade arms (E) later on. If there are
also plastic motor blocks, discard them at
this time.
"J" Hook
8
6.
7.
3
6
C
K
3
A
3
7
Remove all mounting bracket screws/lock
washers (J) from bar on top of motor
assembly (C). Save mounting bracket
screws/lock washers (J) to attach motor
assembly (C) later on.
5.
5
J
J
C
C
Bar

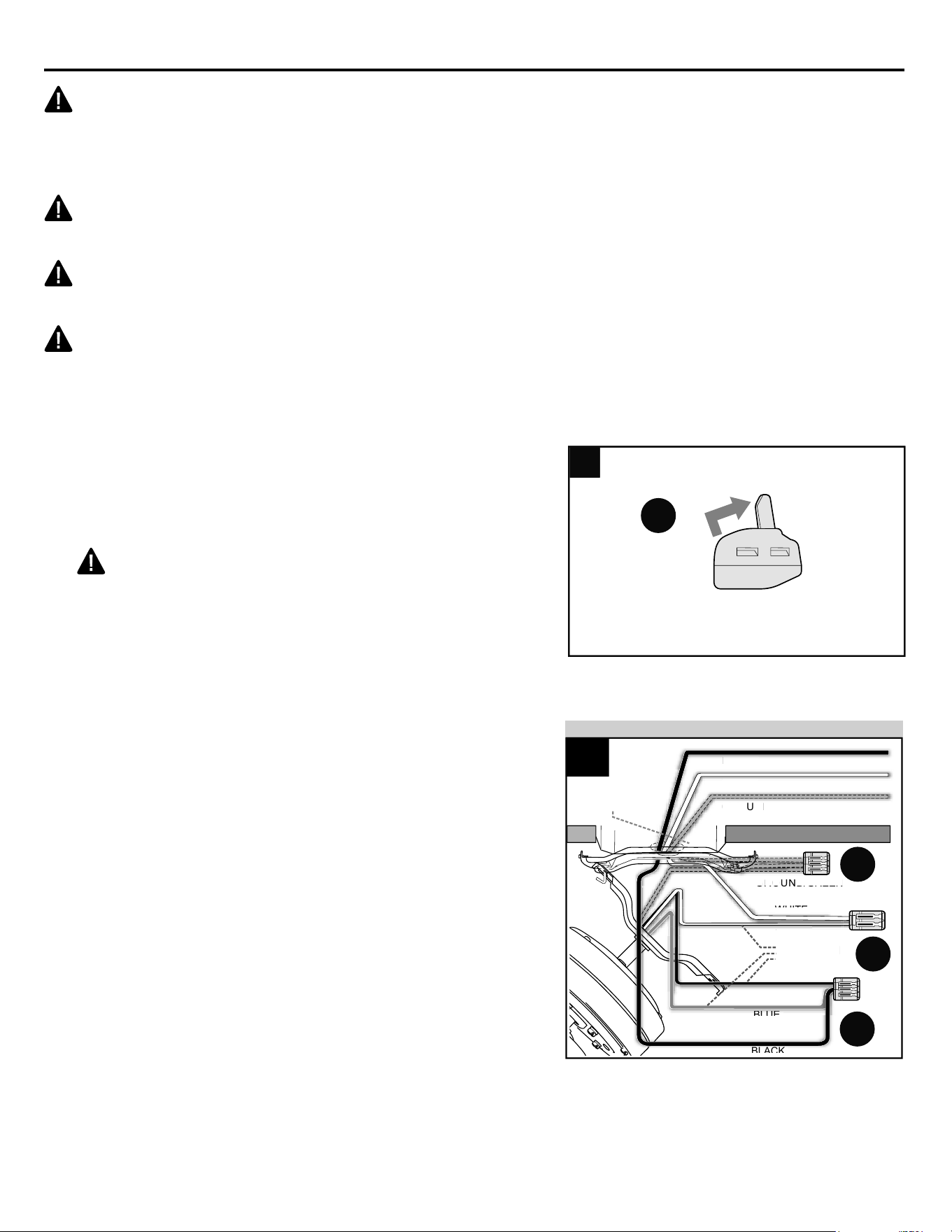

WIRING
9
2.

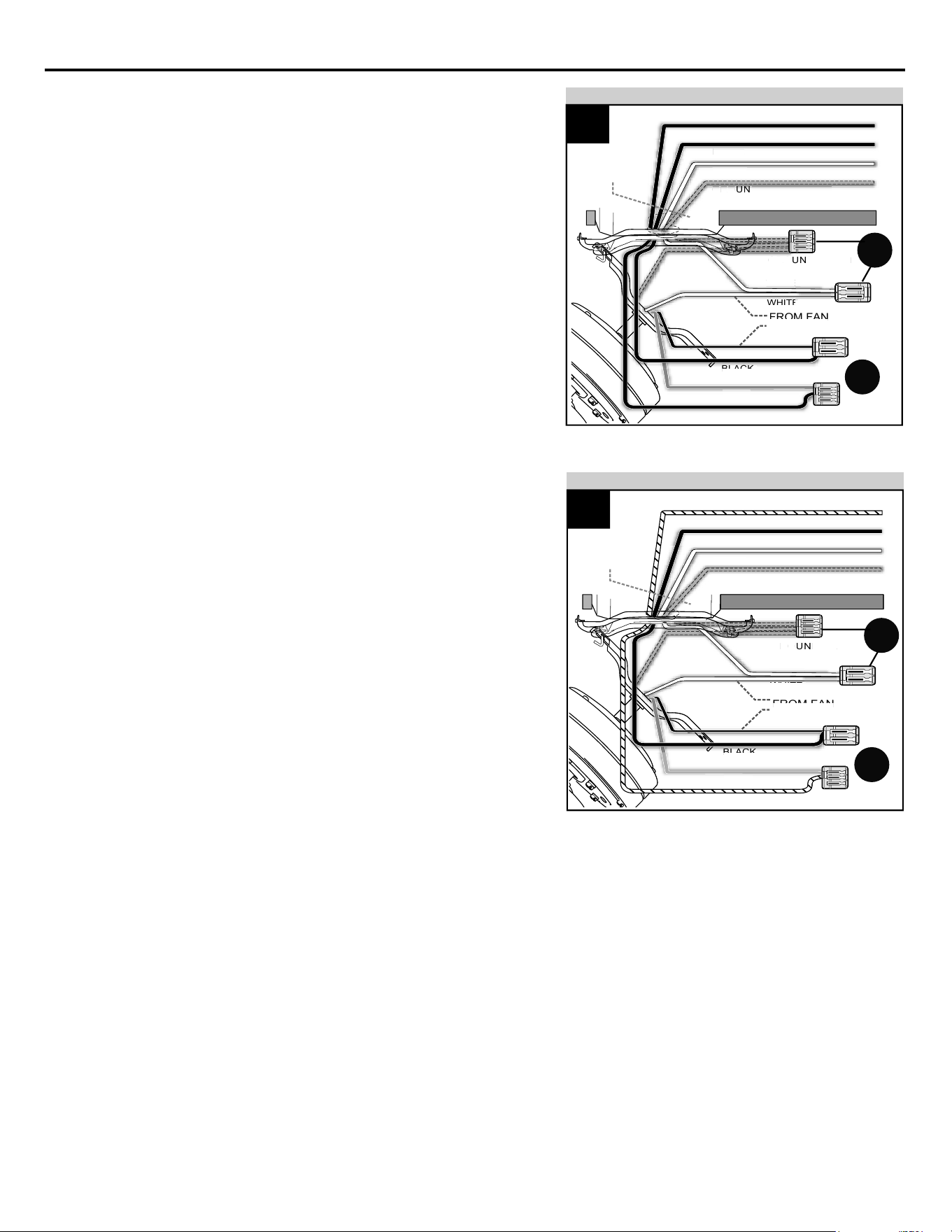

Choose wiring diagram (Fig. 2a, Fig. 2b or Fig.
2c) that fits your situation and make appropriate
wiring connections as follows:
2a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Insert each GROUND (GREEN)
wire from fan (on motor assembly (C) and
mounting bracket (A)) and BARE/GREEN
wire from ceiling to lever wire connector
(CC) with three levers. Insert BLACK and
BLUE wires from fan and BLACK wire from
ceiling to lever wire connector (CC) with
three levers. Insert WHITE wire from fan and
WHITE wire from ceiling to lever wire
connector (CC) with two levers. (Fig. 2a)
GROUND/GREEN (BARE)
WHITE
BLACK
BLA
C
K
WHITE
G
R
O
U
ND/GREE
N (
BAR
E)
GROUND/GREEN
BLACK
WHITE
WHITE
BLUE
FROM FAN
BLACK
BLUE
BLUE
WHITE
F
R
O
M F
AN
WHITE
G
R
O
U
N
GREEN
D/G
G
R
O
U
N
G
REE
N
D/G
WHI
TE
WHITE
BLACK
120 V Power
from ceiling
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
1
CC
1.
IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire
connector (CC), as shown. Then, ONE wire is
inserted into each opening.
WARNING: In order for wire connections to
be secure, all levers on the lever wire connectors
(AA) must be completely returned to their original
position. GENTLY pull on wires in each lever wire
connector (CC) to confirm the lock is engaged
and that wires are secure.
CC
CC
CC
10
WIRING
2b. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall
switch, insert each GROUND (GREEN)
wires from fan (on motor assembly (C) and
mounting bracket (A)) BARE/ GREEN wire
from ceiling to lever wire connector (CC)
with three levers. Insert BLACK wire from
fan and BLACK wire from ceiling to lever
wire connector (CC) with two levers. Insert
BLUE wire from fan and BLACK wire from
the independent wall switch for the light to
lever wire connector (CC) with three levers.
Insert WHITE wire from fan and WHITE wire
from ceiling to lever wire connector (CC)
with two levers. (Fig. 2b)
2c. FAN AND LIGHT CONTROLLED BY
TWO WALL SWITCHES: If you intend to
control the fan and light with separate wall
switches, insert each GROUND (GREEN)
wires from fan (on motor assembly (C) and
mounting bracket (A)) and BARE/ GREEN
wire from ceiling to lever wire connector
(CC) with three levers. Insert BLACK wire
from fan and BLACK wire from the
independent wall switch for the fan to lever
wire connector (CC) with two levers. Insert
BLUE wire from fan and the BLACK wire
from the other independent wall switch for
the light to lever wire connector (CC) with
three levers. Insert WHITE wire from fan
and WHITE wire from ceiling to lever wire
connector (CC) with two levers. (Fig. 2c)
NOTE: BLACK wire is hot power for fan. BLUE
wire is hot power for light. WHITE wire is
common for fan and light. BARE/GREEN wire is
ground.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2b
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
WHITE
WHITE
GROUND/GREEN
BLACK
WHITE
WHITE
BLUE
FROM FAN
BLACK
BL
U
E
R
EE
N
WHITE
BLACK
FROM
FAN
FROM FAN
G
R
O
U
N
D
/G
R
WHITE
WHITE
BLACK
BLACK (WALL SWITCH FOR LIGHT)
BLACK (WALL SWITCH)
BLACK (WALL SWITCH)
GROUND/GREEN (BARE)
120 V Power
from ceiling
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2c
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
GROUND/GREEN (BARE)
WHITE
BLACK
120 V Power
from ceiling
er
BLA
C
K
r
WHITE
G
R
O
U
N
D
/G
REE
N (
BAR
E)
GROUND/GREEN
BLACK
WHITE
WHITE
BLUE
FROM FAN
R
EEN
BLACK
BL
U
E
WHITE
WHITE
BLACK
FROM
FAN
FROM FAN
G
R
O
U
U
N
D
/G
R
E
WHI
TE
BLACK
BLACK (WALL SWITCH)
BLACK (WALL SWITCH)
CC
CC
CC
CC
CC
CC
CC
WIRING
11
Bar
Bar
FINAL INSTALLATION
Securely attach motor assembly (C) to
mounting bracket (A) by adjusting the motor
assembly (C) until the tabs on both ends of the
bar on motor assembly (C) lock into the slots on
the mounting bracket (A). Make sure screw
holes are aligned. Re-insert mounting bracket
screws/lock washers (J) previously removed
(Step 5, Page 8). Securely tighten all mounting
bracket screws/lock washers (J).
2.
2
Locate wide openings in mounting bracket
(A). Remove motor assembly (C) from "J"
hook. Lift motor assembly (C) to hanging
bracket (A) and slide one end of bar on
topside of motor assembly (C) into opening
on hanging bracket (A).
Tilt the motor assembly (C) and insert the
other end of the bar into the second
opening, hanging motor assembly (C)
loosely on the mounting bracket (A).
1.
1
A
3
3.

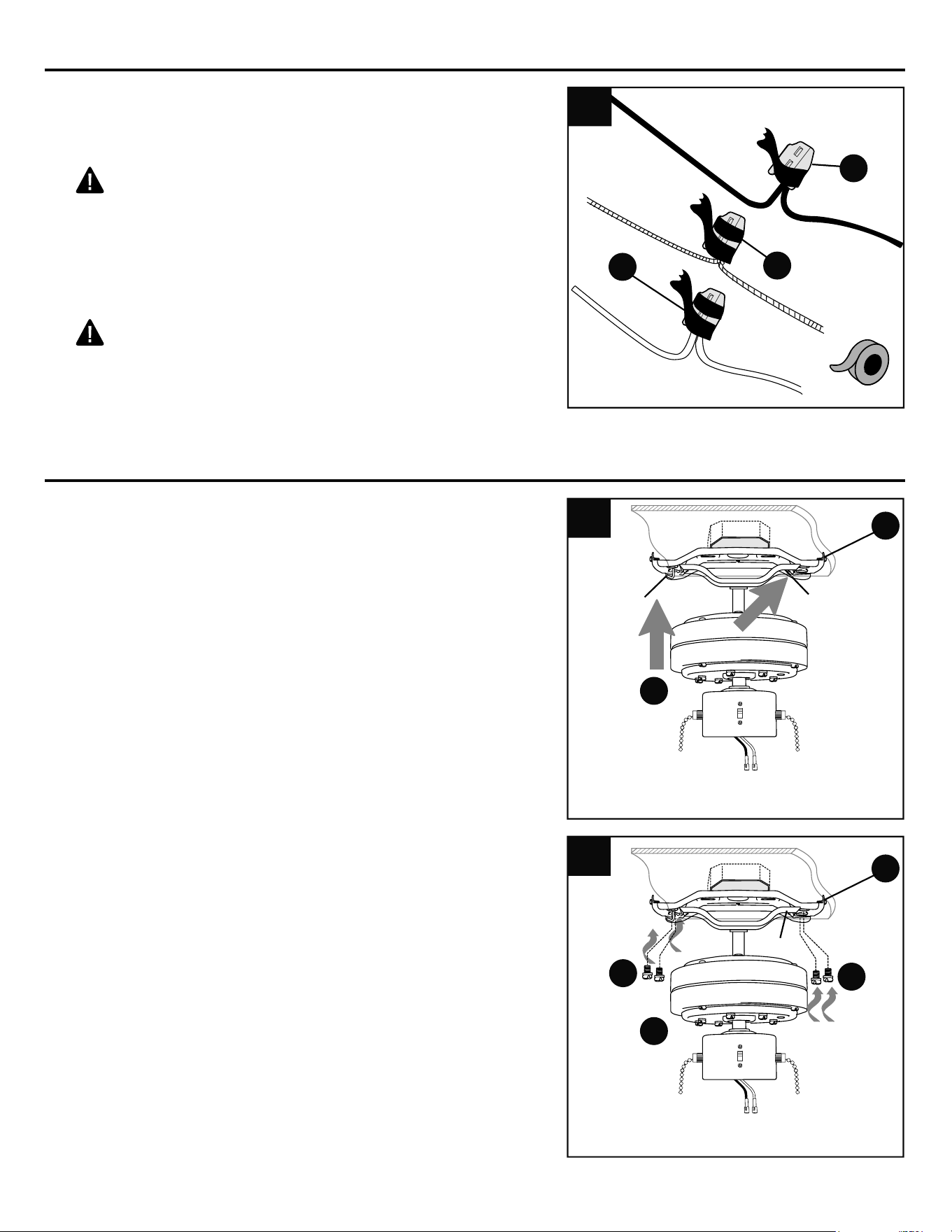

Wrap electrical tape (not included) around
each individual lever wire connector (CC)
down to the wire.
WARNING: Make sure no bare wire or
wire strands are visible after making
connections. Place GREEN and WHITE
connections on opposite side of the outlet box
from the BLACK and BLUE (if applicable)
connections.
WARNING: GENTLY pull on wires in
each lever wire connector (CC) to confirm the
lock is engaged and that wires are secure.
"J" Hook
C
C
A
J
J
12
Temporarily lift motor housing (B) to mounting
bracket (A) to determine which two motor
housing screws (L) in sides of mounting
bracket (A) align with the slotted holes in the
top edge of the motor housing (B) and partially
loosen these two motor housing screws (L).
Remove the other two motor housing screws
(L) from sides of mounting bracket (A). Slide
motor housing (B) over motor assembly (C),
aligning slotted holes in motor housing (B)
with loosened motor housing screws (L) in
mounting bracket (A). Twist motor housing (B)
to lock. Re-insert the other two motor housing
screws (L) to secure motor housing (B).
Tighten all motor housing screws (L) securely.
FINAL INSTALLATION

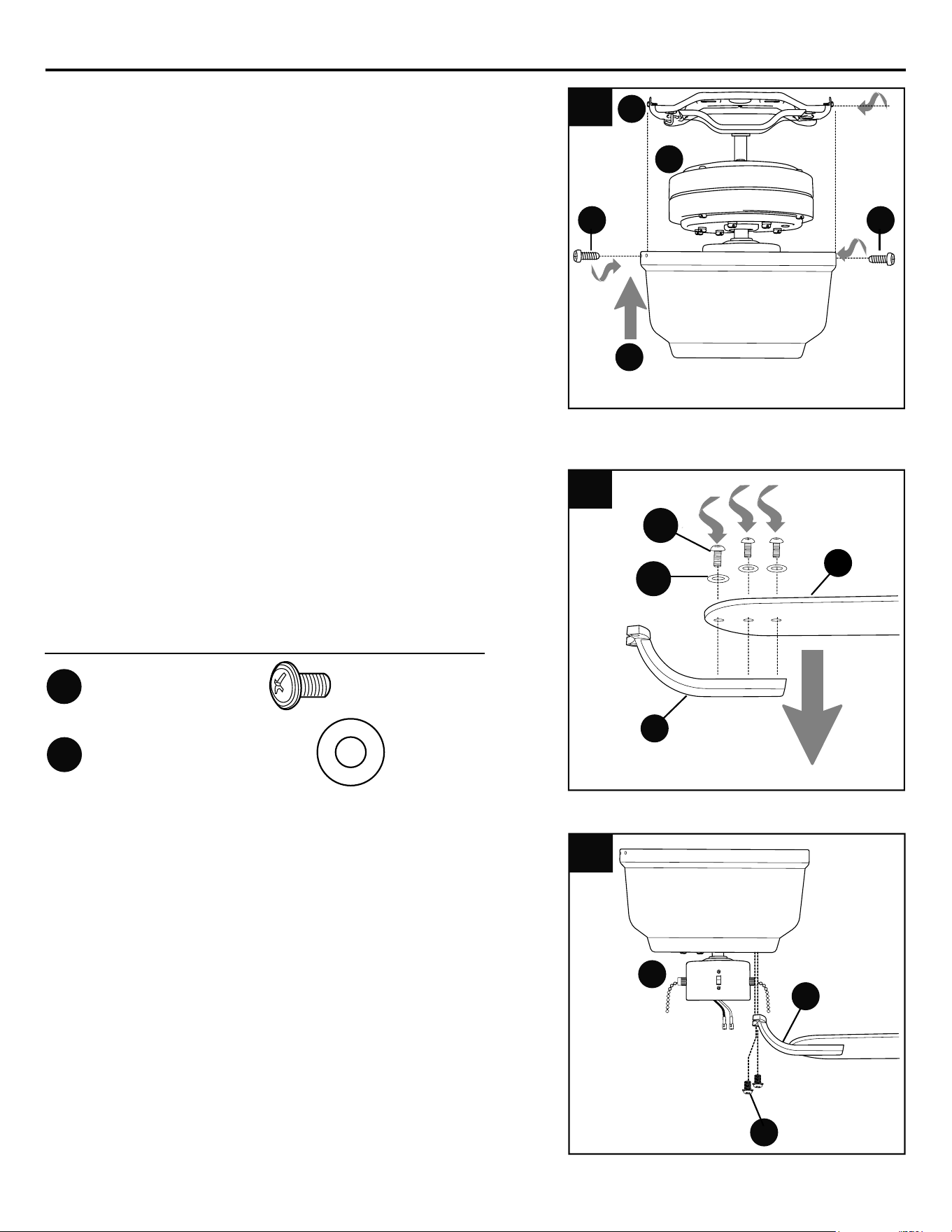

Partially insert three blade screws (AA) along
with three fiber blade washers (BB) into holes
on blade arm (E) and blade (D) to attach blade
arm (E) to blade (D). Then, tighten each blade
screw (AA) starting with the one in the middle.
Repeat with remaining blades (D) and blade
arms (E).
3.
4.
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB
Hardware Used
3
4
3
A
C
L
B
L
E
D
Locate motor screws/lock washers (K)
previously removed in Step 6 on Page 8.
Insert two motor screws/lock washers (K)
through one blade arm (E) to attach blade arm
(E) to motor assembly (C). Tighten motor
screws/lock washers (K) securely. Repeat with
remaining blade arms (E) making sure to
completely secure each blade arm (E) before
proceeding with the next.
5.
BB
AA
C
5
E
M
K
13

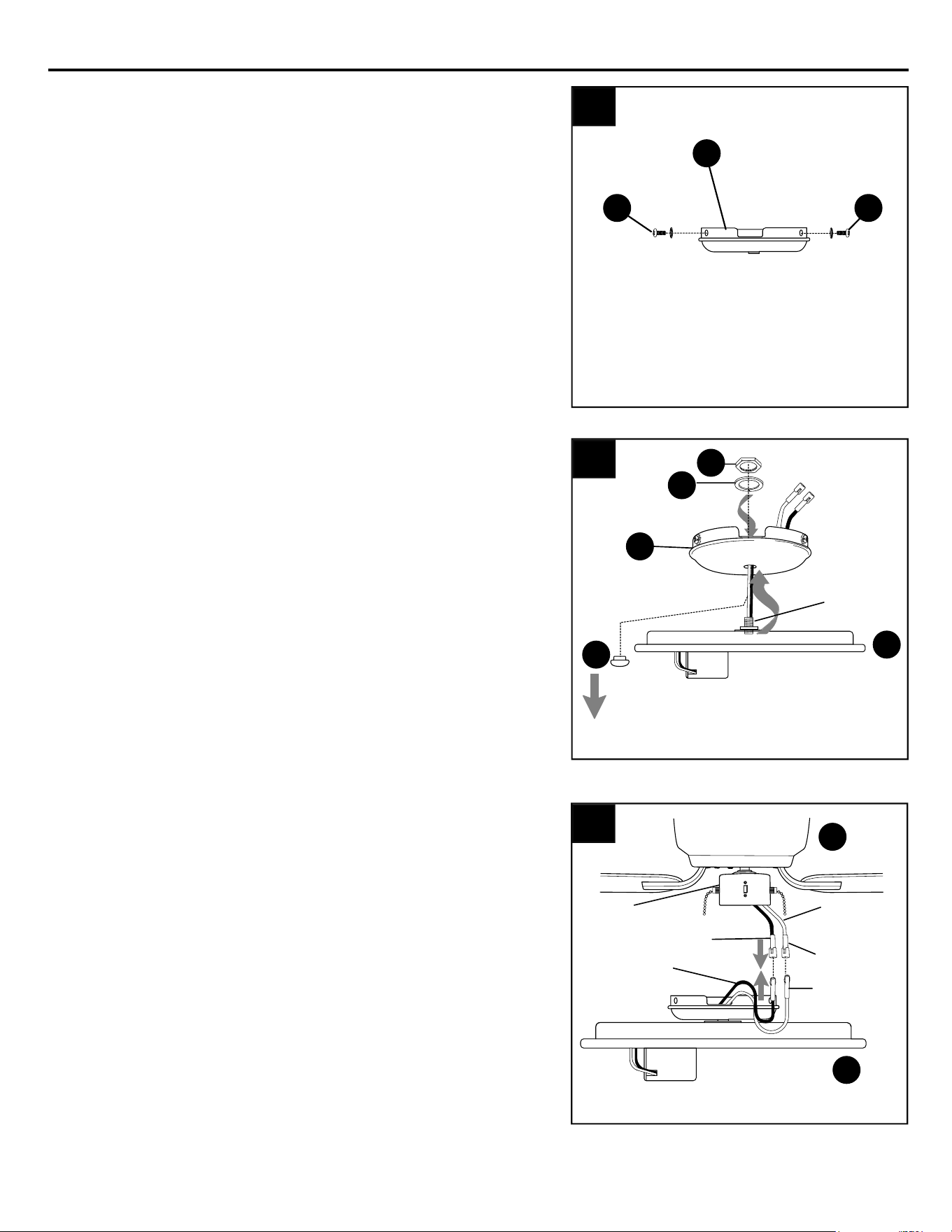

6.
Remove three switch housing screws (M) from
outer edge of switch housing cap (G). Save
switch housing screws (M) for later use.
If you do NOT wish to use the light, skip to
INSTALLING FAN WITHOUT LIGHT KIT on
page 15.
If you DO wish to use the light, proceed to
Step 7.
6
7.

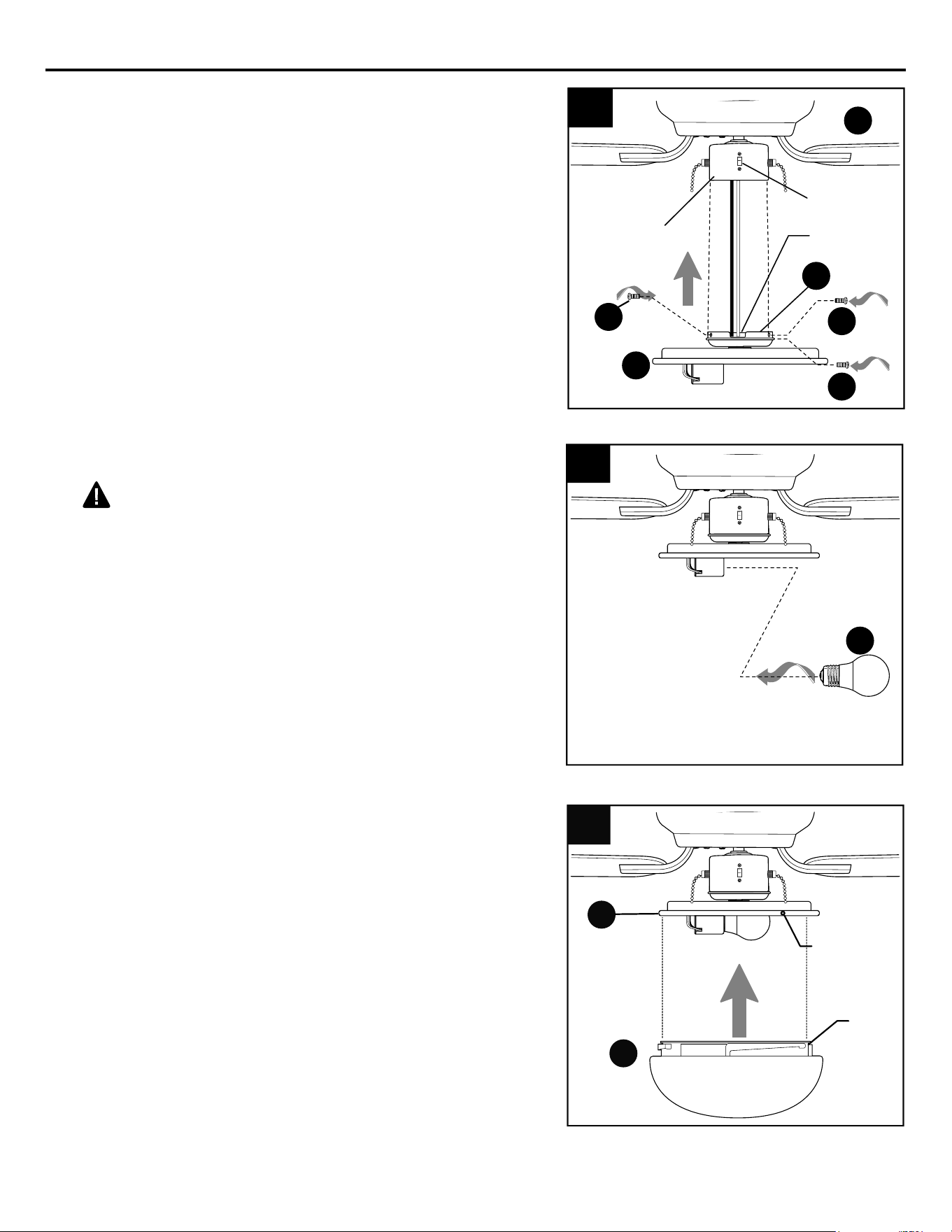

To install the fan with the light, remove
preassembled hex nut (O) and lock washer (N)
from threaded rod at top of light kit fitter (F).
NOTE: Do NOT remove rubber washer from
threaded rod at top of light kit fitter (F). Punch
center cap (P) out of switch housing cap (G).
Gently feed molex connections (one wire at a
time) from light kit fitter (F) through hole in
middle of switch housing cap (G), and then
screw switch housing cap (G) onto threaded
rod at top of light kit fitter (F). Replace lock
washer (N) and then tighten hex nut (O) over
lock washer (N) for a secure fit.
7
P
O
N
G
M M
Threaded
Rod
Molex
Connections
F
G
FINAL INSTALLATION
BLUE
WHITE
Molex
Wires
WHITE
BLUE
(or BLACK)
Locate the BLACK (or BLUE) and WHITE
wires in the switch housing preassembled on
motor assembly (C).
Connect WHITE wire from light kit fitter (F) to
WHITE wire from switch housing. Connect
BLUE wire from light kit fitter (F) to BLUE (or
BLACK) wire from switch housing. Make sure
molex connections snap together securely.
8.
8
Switch
Housing
F
C
FINAL INSTALLATION
14
F
9.
Carefully arrange wires inside switch housing.
Align holes in switch housing cap (G) with
holes in switch housing, and secure switch
housing cap (G) with three switch housing
screws (M) previously removed (Step 6, Page
13). Tighten all three switch housing screws
(M) securely.
NOTE: Make sure to align gap on switch
housing cap (G) with the reverse switch on
switch housing for the correct fit.
9
E
G
M
M
M
Switch
Housing
Reverse
Switch
Gap
Install bulb (I).
WARNING: When replacing bulb (I),
allow bulb (I) and shade (H) to cool down
before touching.
10.
10
I
Align slots on shade (H) with protrusions on
the inside of the light kit fitter (F). Turn shade
(H) to the right (clockwise) until it no longer
turns.
NOTE: Pull down gently on the shade (H) to
make sure that it is secured completely.
11.
3
11
H
Protrusions
Slot
F
FINAL INSTALLATION
15
Reverse
Switch

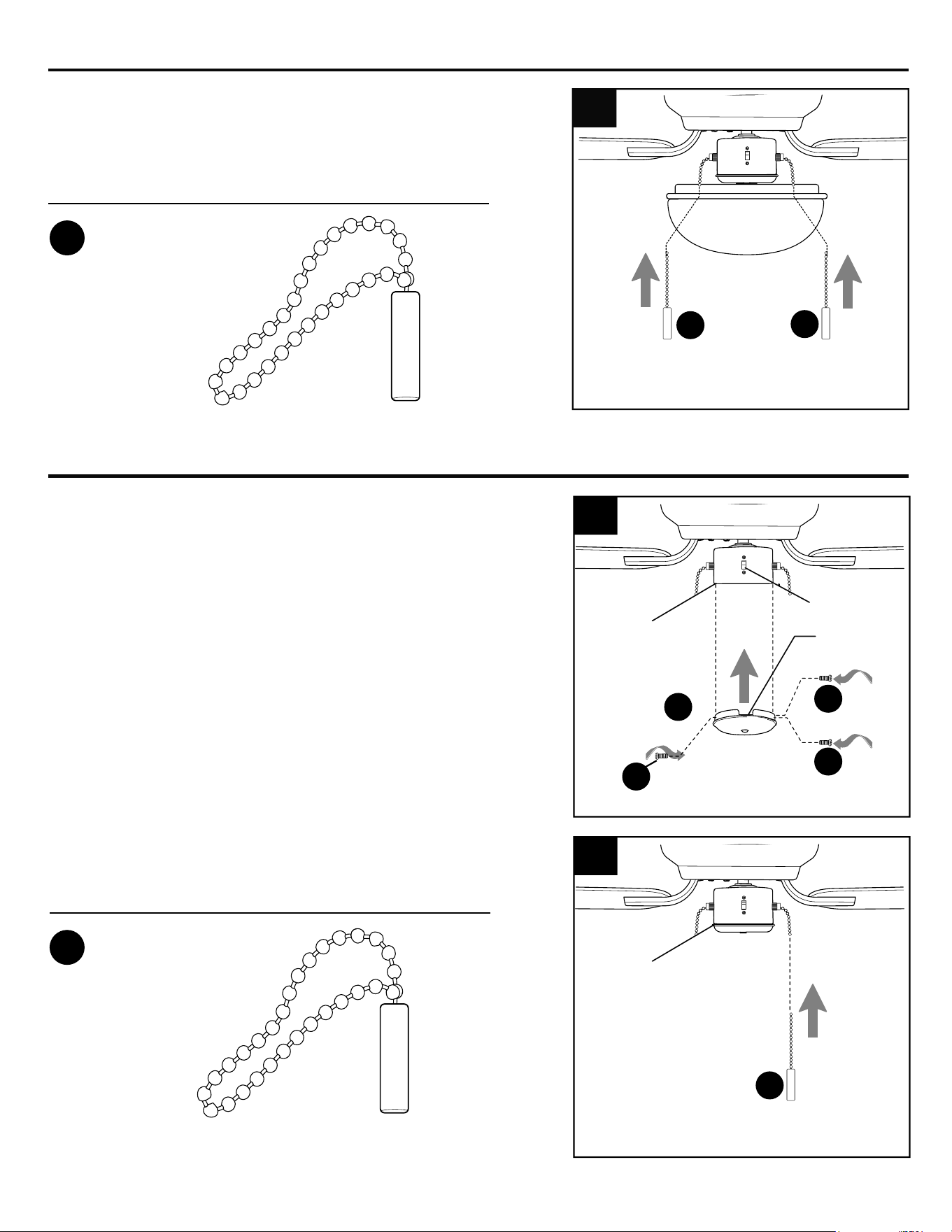

Attach pull chain extensions (DD) or custom
pull chain extensions (not included) to fan
and light pull chains.
12.
DD
12
(For Fan)
(For Light)
DD
Hardware Used
Pull Chain Extensions x 2
DD
INSTALLING FAN WITHOUT LIGHT KIT
1.
If you do NOT wish to use the light, carefully
arrange wires inside switch housing. Align holes
in switch housing cap (G) with holes in switch
housing, and secure switch housing cap (G)
with three switch housing screws (M) previously
removed (Step 6, Page 13). Tighten all switch
housing screws (M) securely.
NOTE: Make sure to align gap on switch
housing cap (G) with the reverse switch on
switch housing for correct fit.
1
G
M
M
M
Switch
Housing
Attach pull chain extension (DD) or custom pull
chain extension (not included) to the fan pull chain.
2.
Hardware Used
Pull Chain Extension x 1
DD
Gap
2
Switch
Housing
DD
(For Fan)

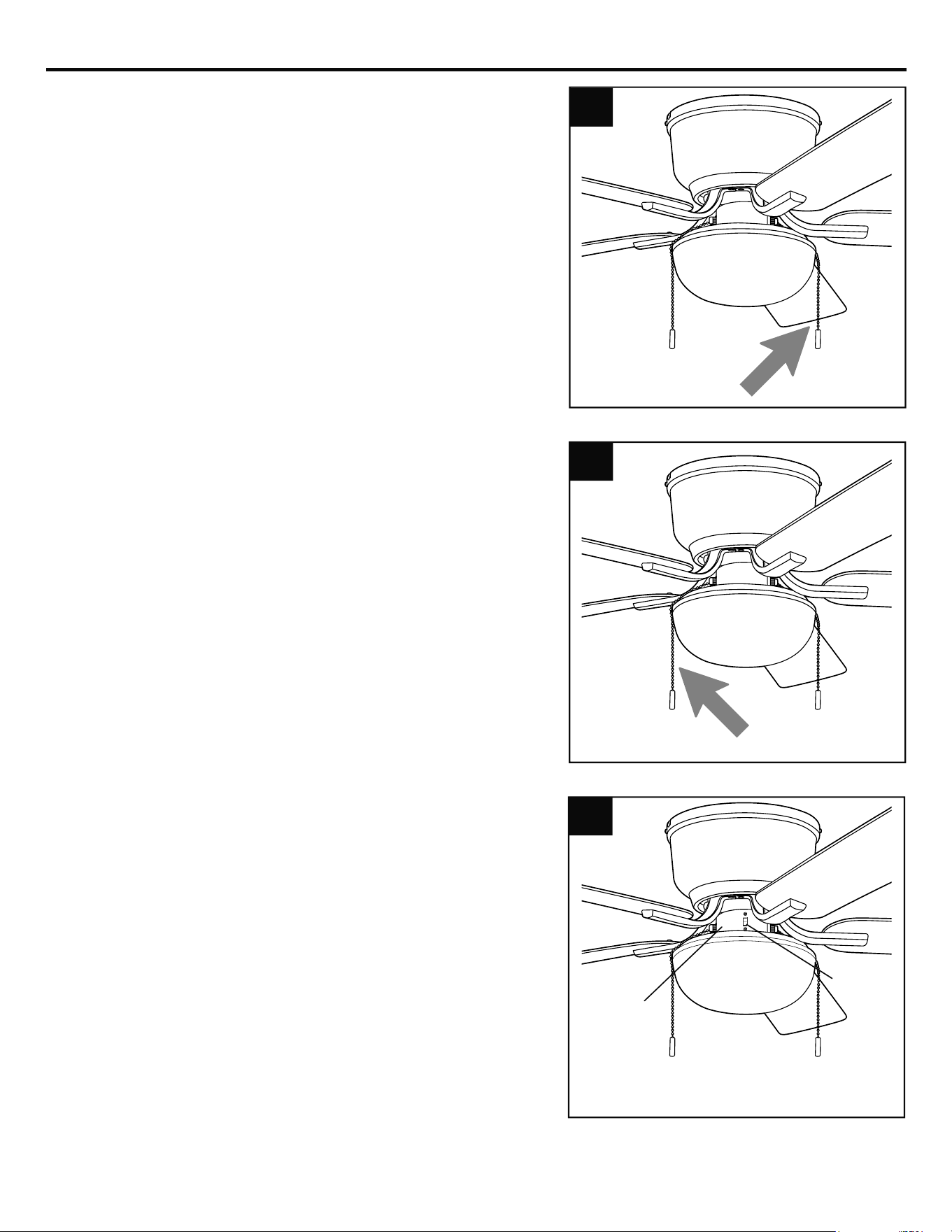

OPERATING INSTRUCTIONS
The pull chain located to the right of the reverse
switch has four positions to control fan speed.
One pull is HIGH, two pulls is MEDIUM, three is
LOW and four turns the fan OFF.
Use the fan reverse switch, located on the switch
housing, to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
Switch
Housing
1.
3.
3
1
The pull chain located to the left of the reverse
switch is used to turn the light ON or OFF (if
applicable).
2.
3
2
3
3
16
Reverse
Switch
17
3b
3c

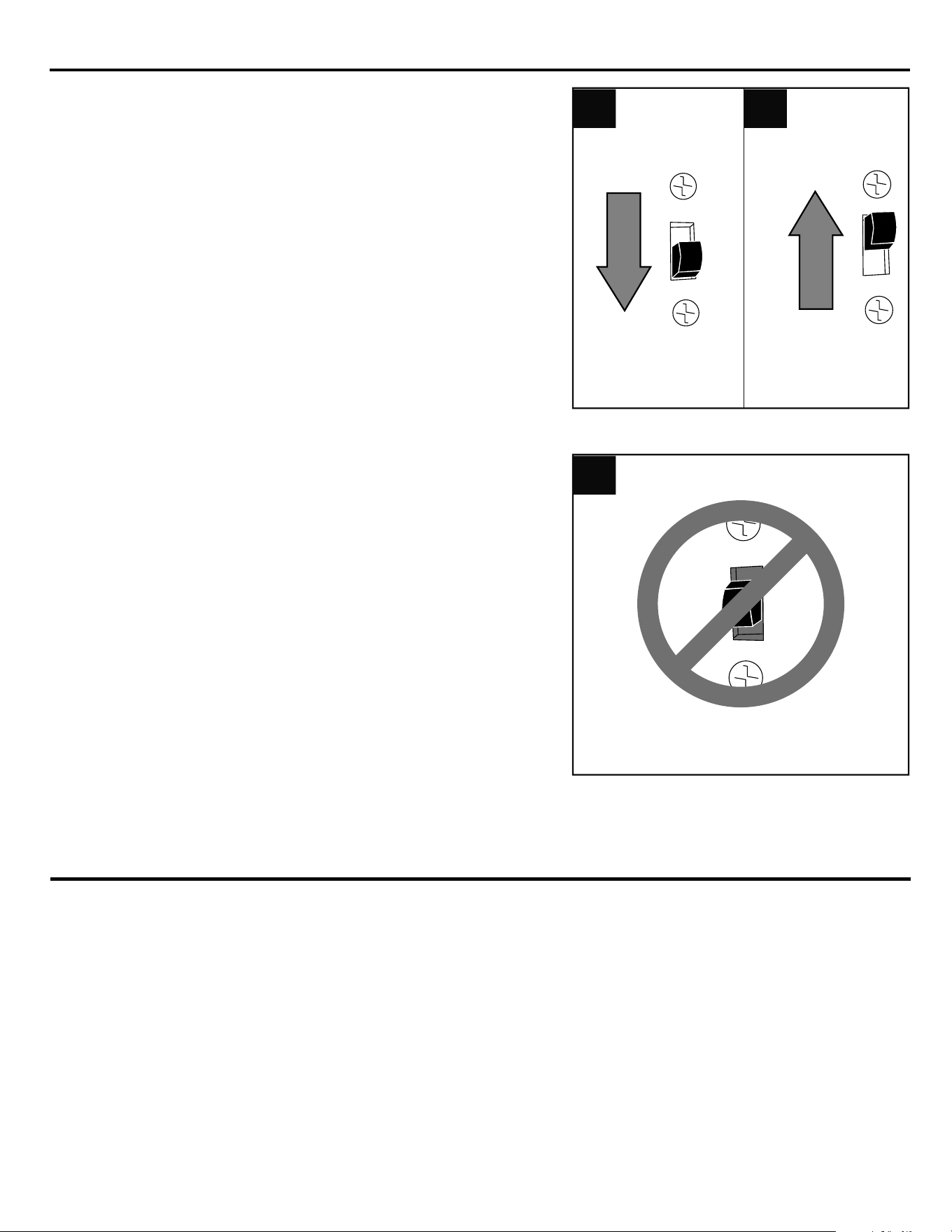

3c. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN
for fan to function. If the reverse switch is set in
the middle position (Fig. 3C), fan will not
operate.
3a
3a. In warmer weather, setting the reverse switch
in the DOWN position will result in downward
airflow creating a wind chill effect. (Fig. 3a)
3b. In cooler weather, setting the reverse switch in
the UP position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area. (Fig. 3b)
CARE AND MAINTENANCE
At least twice each year, lower motor housing (B) to check motor assembly (C), and then tighten all
screws on the fan. Clean motor housing (B) with only a soft brush or lint-free cloth to avoid scratching
the finish. Clean blades (D) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use a standard-base 5.5-watt LED bulb or SBLED equivalent, up to 60 watts.
OPERATING INSTRUCTIONS
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan operates but light
fails (if applicable).
1. Re-install bulb.
2. Check wires in outlet box and, if
necessary, re-wire according to
instructions on pages 9 and 10.
3. Make sure that wall switch to fan is on.
4. Check that molex connections in light
kit fitter are connected properly
according to instructions on page 13.
1. Bulb not installed correctly.
2. Wires in outlet box not wired
properly.
3. Wall switch to fan is off.
4. Wires in light kit fitter not
wired correctly.
Excessive wobbling.
1. Tighten all blade screws.
2. Replace blade.
3. Re-install blade arms.
4. Switch one blade with a blade from the
opposite side.
5. Turn power off. Carefully loosen motor
housing and verify that mounting
bracket is secure according to
instructions on page 7.
6. Allow fan a "break in" period of a few
days, especially when running the fan
at Medium and High speeds.
1. Blades are loose.
2. Cracked blade.
3. Blade arms incorrectly attached.
4. Unbalanced blades.
5. Fan not securely mounted.
6. Fan is new.
Noisy operation.
Fan does not move.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
18
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a "break in" period of a few
days, especially when running the fan
at Medium and High speeds.
4. Turn power off. Carefully loosen motor
housing and verify that mounting
bracket is secure according to
instructions on page 7.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
4. Fan is loose.
1. Push switch firmly either up or down.
2. Turn power on or check fuse.
3. Turn power off. Loosen motor housing
and check all connections.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
A
F
E
D
Printed In China
19
GGLI2605
LIMITED LIFETIME WARRANTY
REPLACEMENT PARTS LIST
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday.
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
A Mounting Bracket
D Blade
E Blade Arm
F Light Kit Fitter
9640284-A
9640284-D
9640284-E
9640284-F
9640283-A
9640283-D
9640283-E
9640283-F
9053190-A
9053190-D
9053190-E
9053190-F
9053189-A
9053189-D
9053189-E
9053189-F
#9053189
#9053190 #9640283
#9640284
PART
#
PART
#
PART
#
PART
#
PART DESCRIPTION
