1
ITEM #807431/6560190
MODEL #40680/43556
BUILDER’S SERIES
CEILING FAN
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
ATTACH YOUR RECEIPT HERE
SS24076
Español p. 18
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Purchase Date _________________________
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring ..........................................................................9
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions .............................................................13
Care and Maintenance ............................................................14
Troubleshooting ..................................................................14
Limited Lifetime Warranty ..........................................................16
Replacement Parts List ............................................................17
3

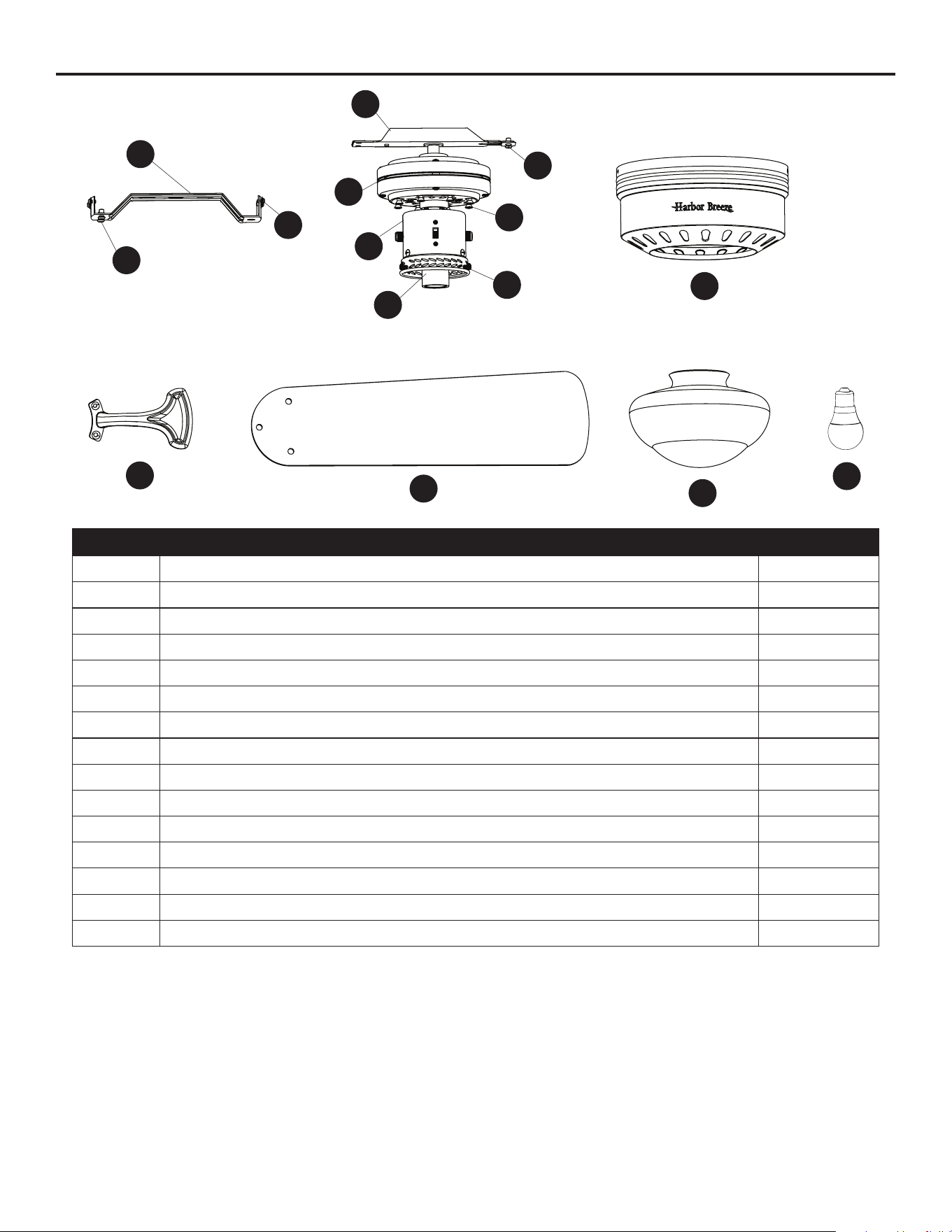

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Upper Mounting Bracket 1
B Lower Mounting Bracket (preassembled to Motor [C]) 1
C Motor 1
D Switch Housing (preassembled to Motor [C]) 1
E Light Kit (preassembled to the Switch Housing [D]) 1
F Motor Housing 1
G Blade Arm 4
H Blade 4
I Glass Globe 1
J Bulb 1
K Lower Bracket Screw (preassembled to Lower Mounting Bracket [B]) 1
L Thumbscrew (preassembled to Light Kit [E]) 3
M Motor Screw (preassembled to Motor [C]) 8
N Motor Housing Screw (preassembled to Upper Mounting Bracket [A]) 4
O Upper Bracket Screw (preassembled to Upper Mounting Bracket [A]) 2
A
C
D
M
K
O
N
B
F
L
E
H
G
I
J
4

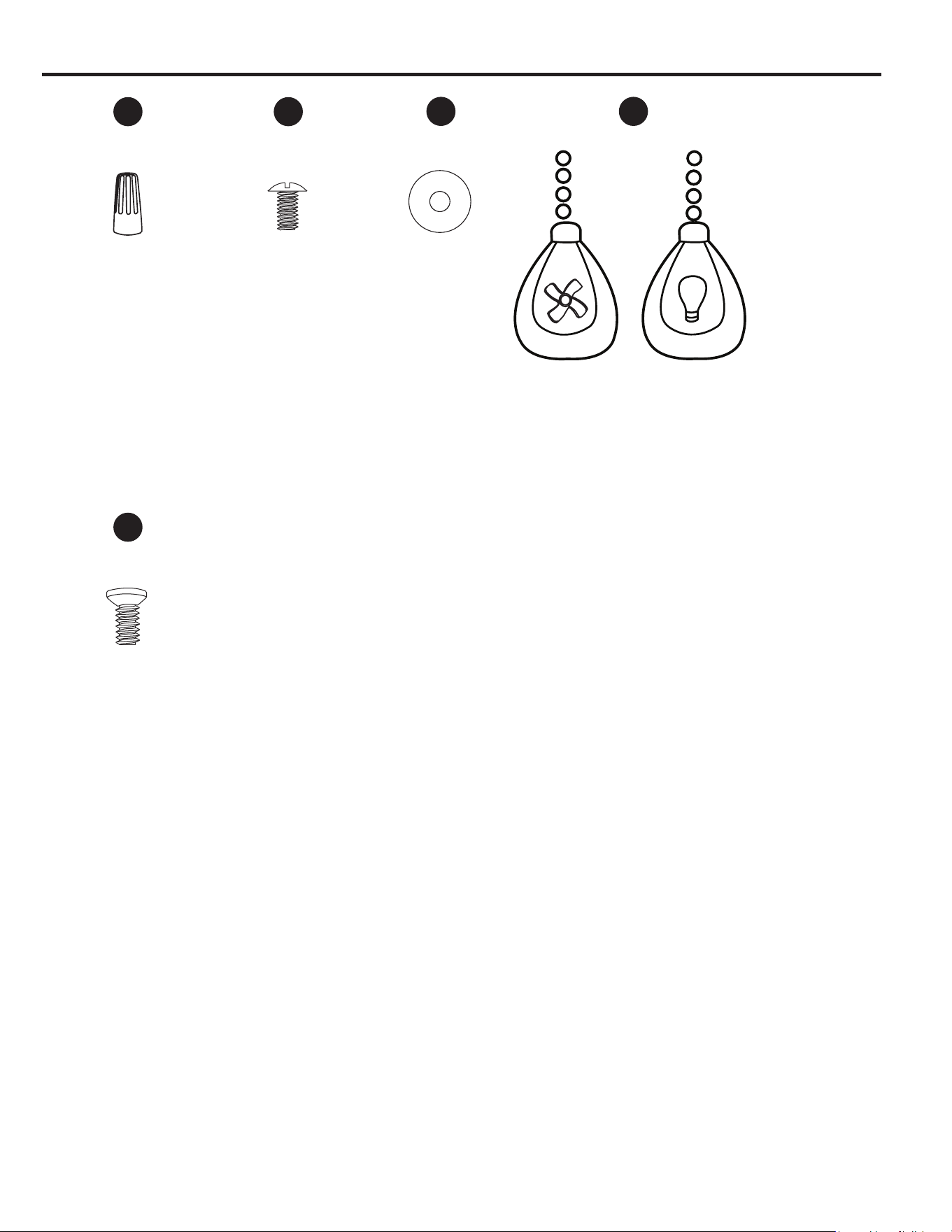

HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3 + 1 extra
Blade Screw
Qty. 12 + 1 extra
Blade Washer
Qty. 12 + 1
extra
Pull Chain Extension
Qty. 2
Motor Screw
1 extra
BB
CC DD
AA
XX
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 9.68 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an oulet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12 gauges and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re or electrical shock, do not use this fan with any solid-state
speed control device.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
Read all instructions and safety information before installing your new fan. Review the accompanying
assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
--Reorient or relocate the receiving antenna. Increase the separation between the equipment and
receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help. Any changes or modications
not expressly approved by the grantee of this device could void the user’s authority to operate the
equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
HKC-US
3350 Players Club Pkwy. #225
Memphis, TN 38125
888-251-1003
7

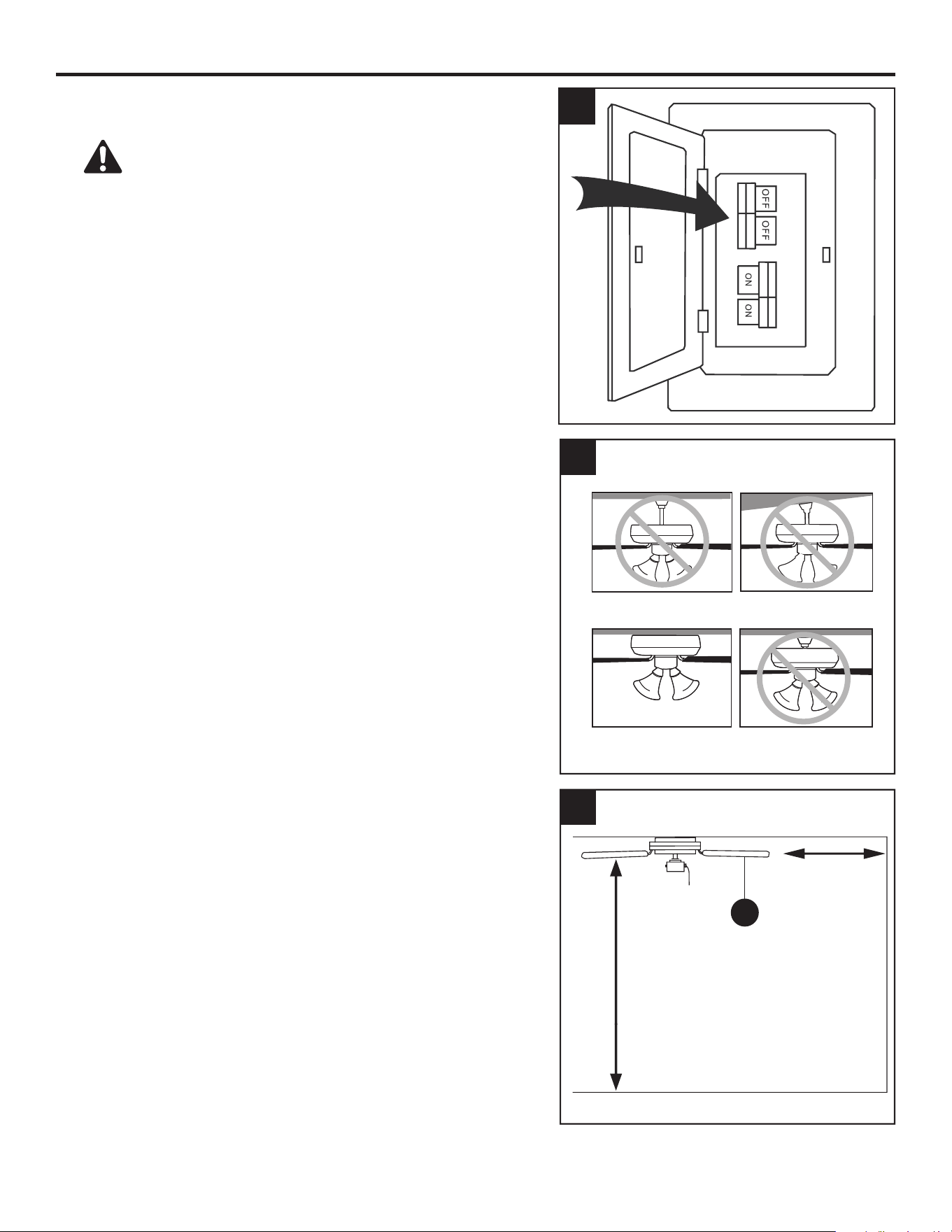

INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. This fan is intended for Flushmount installations.
Standard Mounting, Angled Mounting and Closemount
installations are not available.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (H) will be at least 30 in. from
any obstructions and at least 7 ft. above the oor.
H
3
7 ft. Min
30 in. Min
1
8

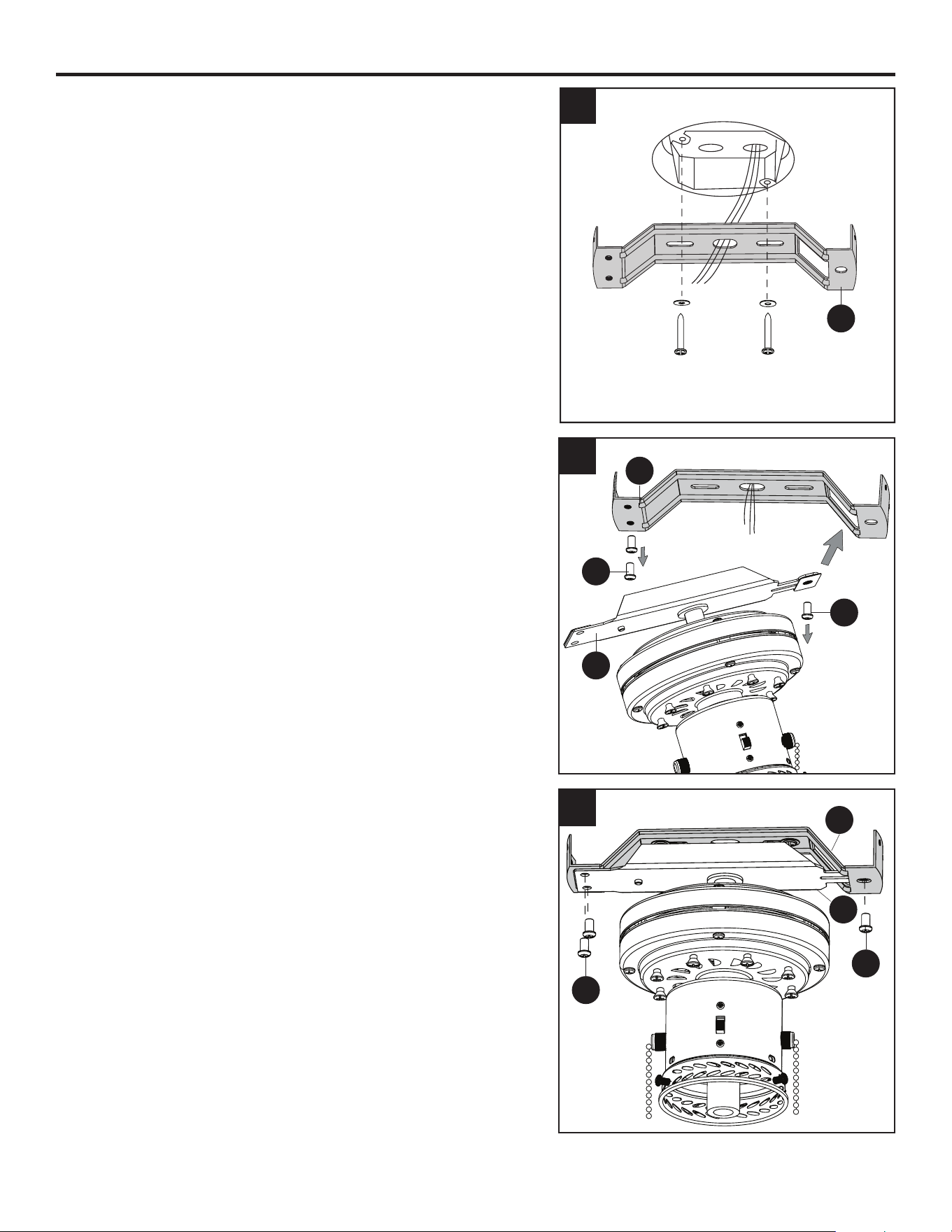

INITIAL INSTALLATION
4. Secure the upper mounting bracket (A) to the
outlet box (not included) using screws and washers
provided with the outlet box.
CAUTION: It is very important you use the proper
hardware when installing the upper mounting bracket
(A) as it will support the fan.
4
5. Remove the preassembled lower bracket screw (K)
from the lower mounting bracket (B) and the upper
bracket screws (O) from the upper mounting bracket
(A). Insert the tab of the lower mounting bracket (B)
into the slot in the upper mounting bracket (A).
6. Re-install the previously removed lower bracket screw
(K) and upper bracket screws (O) to secure the lower
mounting bracket (B) to the upper mounting bracket (A).
A
5
6
A
O
K
B
B
A
O
K
9

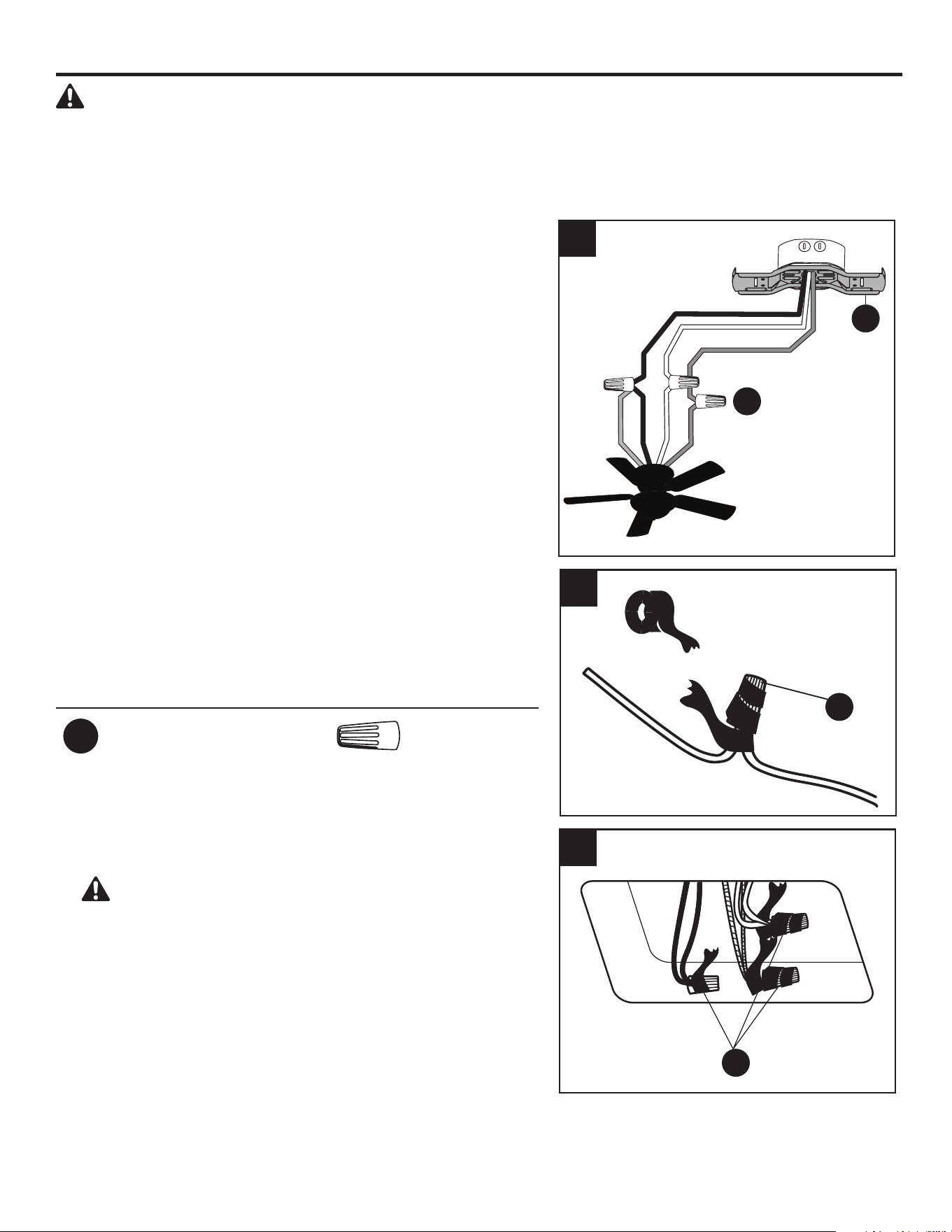

WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from the fan to the Bare/
Green supply wire.
• Connect the White wire from the fan to the White
supply wire.
• Connect the Black and Blue wires from the fan to the
Black supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Blue wire is hot power for light. The Green wire is the
ground wire. If household supply wires are different
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA
Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black and Blue wire connections.
1
3
AA
AA
AA
A
2
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
10

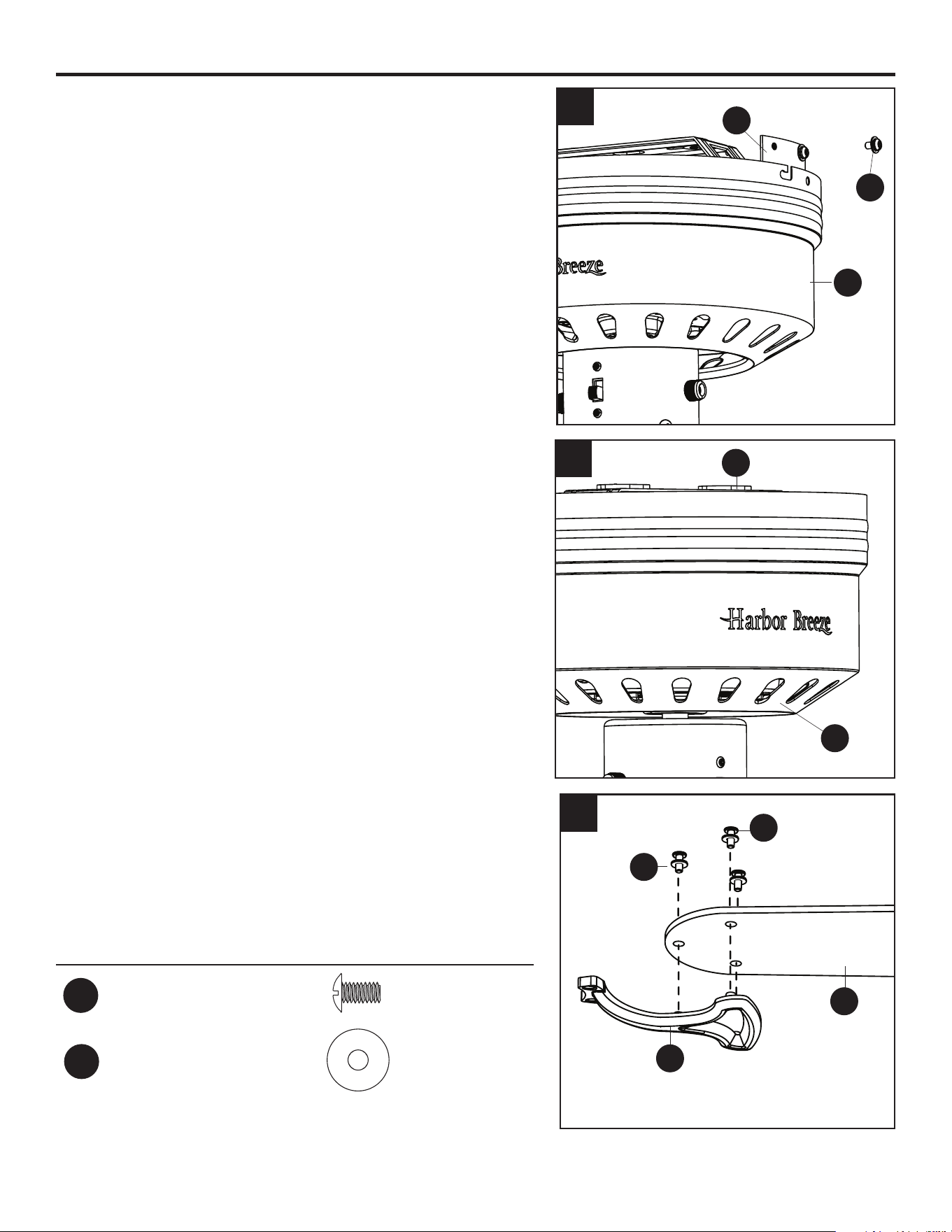

FINAL INSTALLATION
1. Temporarily lift the motor housing (F) to the upper
mounting bracket (A) to determine which two motor
housing screws (N) preassembled in the sides of
the upper mounting bracket (A) align with the slotted
holes in the top edge of the motor housing (F).
Partially loosen the two motor housing screws (N) that
align with the slotted holes.
Remove the other two motor housing screws (N) from
the upper mounting bracket (A).
2. Slide the motor housing (F) over the motor (C),
aligning the slotted holes in the motor housing (F) with
the loosened motor housing screws (N) in the upper
mounting bracket (A). Twist the motor housing (F) to
lock, then re-insert the two previously removed motor
housing screws (N) and securely tighten all screws.
3. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (H) and into
the blade arm (G). Tighten each blade screw (BB)
with a Phillips screwdriver (not included), starting
with the one in the middle. Repeat this step for the
remaining blades (H) and blade arms (G).
Hardware Used
BB
Blade Screw x 12
Blade Washer x 12
A
A
F
N
F
1
2
CC
3
BB
CC
H
G
11

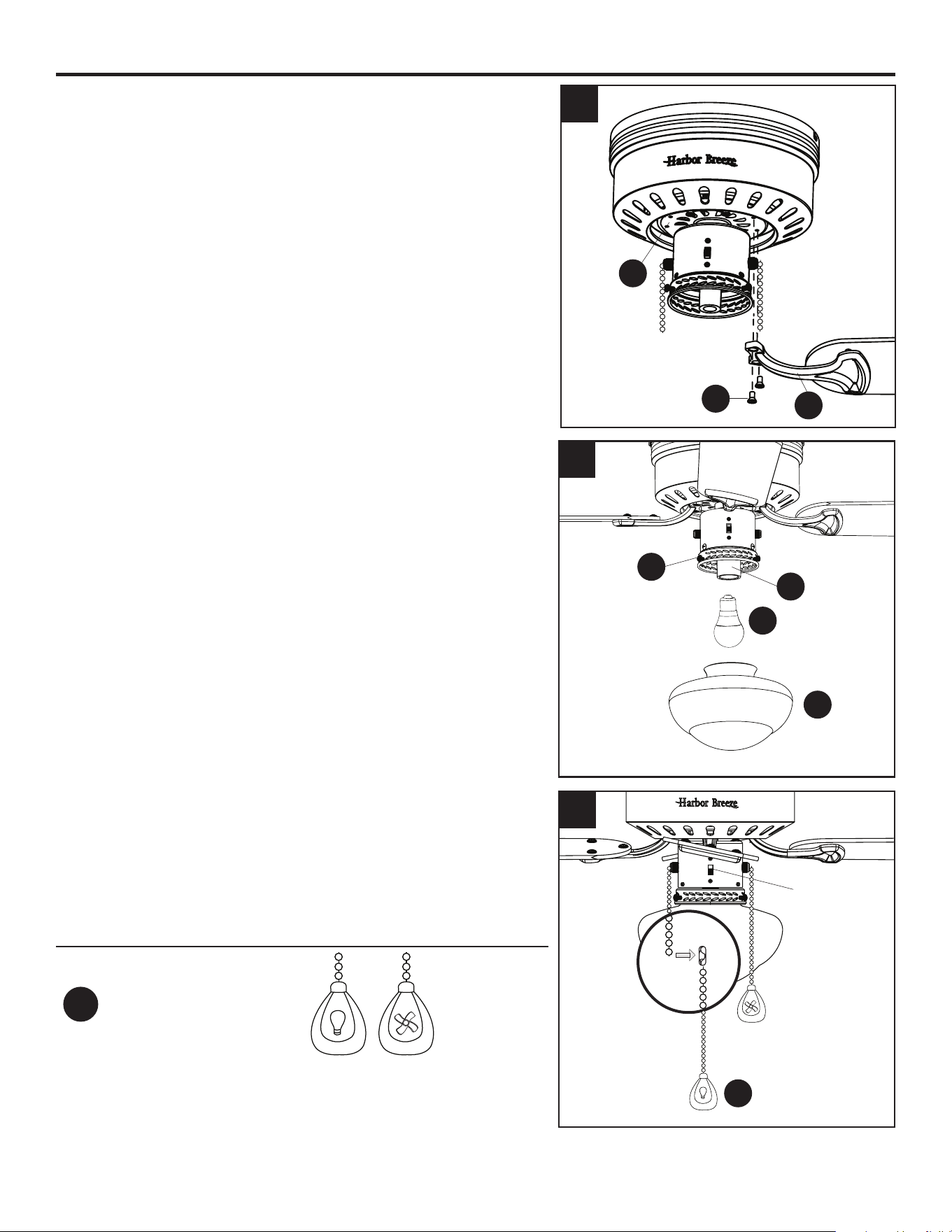

FINAL INSTALLATION
4. Remove the 8 preassembled motor screws (M) from the
underside of the motor (C). Insert two motor screws (M)
in each blade arm (G) and install the blade arm (G) to
the underside of the motor (C) with motor screws (M).
Tighten with Phillips screwdriver.
Repeat for each blade arm (G).
5. Install the bulb (J) into the socket of the light kit (E).
Then, loosen the thumbscrews (L) on the light kit (E).
Lift glass globe (I) to light kit (E), tightening loosened
thumbscrews (L) to secure.
6. Attach the pull chain extensions (DD) or custom pull chain
extensions (not included) to the fan and light pull chains.
Note: When facing the reverse switch, the pull chain for
the fan is on the right and the pull chain for the light is
on the left.
Hardware Used
DD
Pull Chain
Extension
x 2
4
G
M
C
5
I
L
J
E
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
6
Reverse
Switch
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
DD
12
FINAL INSTALLATION
7. Turn on power supply to the fan.
Assembly is complete.
7
13

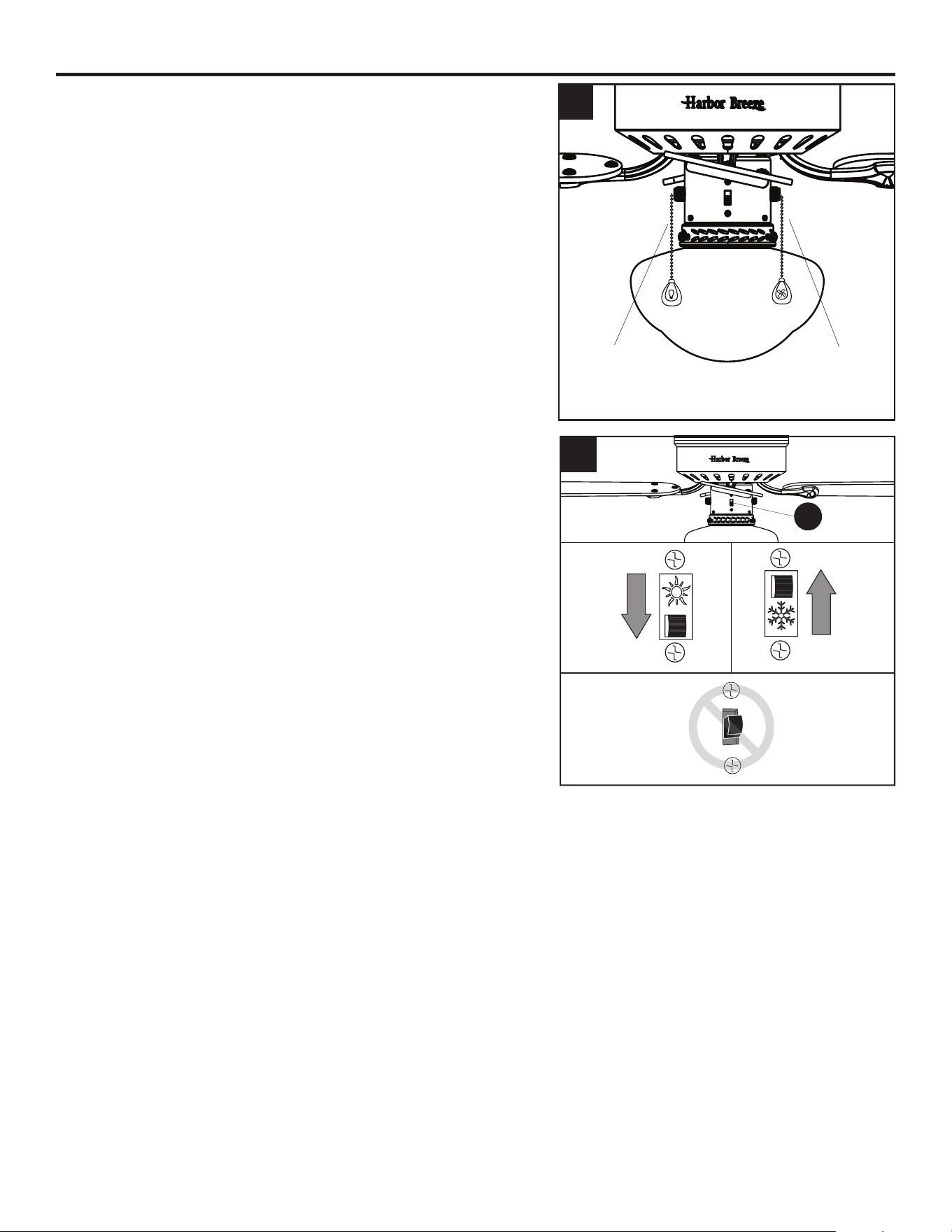

OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF.
The light pull chain has two positions to control the
light, ON and OFF.
2. Use the fan reverse switch, located on the switch
housing (D), to optimize your fan for seasonal
performance.
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a difference in your comfort.
Note: Wait for the fan to stop before moving the
reverse switch.
2a. In warmer weather, push the reverse switch down
to display a sun icon, which will result in downward
airow creating a wind chill effect.
2b. In cooler weather, push the reverse switch up to
display a snowake icon, which will result in upward
airow that can help move stagnant, hot air off the
ceiling area.
Important: The reverse switch must be set either
completely up or down in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
1
Fan Pull
Chain
Light Pull
Chain
D
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
Fig. 2a Fig. 2b
Fig. 2c
2
14
CARE AND MAINTENANCE
At least twice each year, lower the motorhousing and tighten all screws on the fan. Clean the motor
housing with only a soft brush or lint-free cloth to avoid scratching the nish. Clean the blades with a
lint-free cloth.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shut off the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch
completely up or down.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
15
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade from
the opposite side. Or balance the
fan using a blade balancing kit (sold
separately).
3. Turn off the power. Loosen the
canopy and verify that the mounting
bracket is secure to the electrical
outlet box. The bracket must be
ush without movement against the
outlet box. Verify the outlet box is
secure.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure the single-pin connectors in
the light kit are connected properly.
3. Turn the power off and check all
connections at the ceiling outlet box.
16
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made
in whole or in part with glass) to be free from defects in workmanship and material for a period of
one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such
purchaser purchased the product through a store or contractor. Ceiling fan part defects must be
reported within the rst year from the date of purchase. Parts made in whole or in part with glass
and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage
to any part caused by ordinary wear and tear, accident, misuse, or improper installation, is
not covered by this warranty. The manufacturer assumes no responsibility whatsoever for fan
installation. Any service performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product
within the terms stated above. The manufacturer shall not be liable for any loss or damage of any
kind, including any incidental or consequential damages resulting directly or indirectly, from any
breach of warranty, express or implied, or any other failure of this product. Some states do not
allow the exclusion or limitation of incidental or consequential damages so this limitation may not
apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees
to replace the defective part without charge, or at its option, to replace the ceiling fan with a
comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan
limited lifetime warranty. All other express and implied warranties, including, without limitation, the
implied warranty of tness for a particular purpose and the implied warranty of merchantability is
disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer may
not apply to you.
17
Printed in China

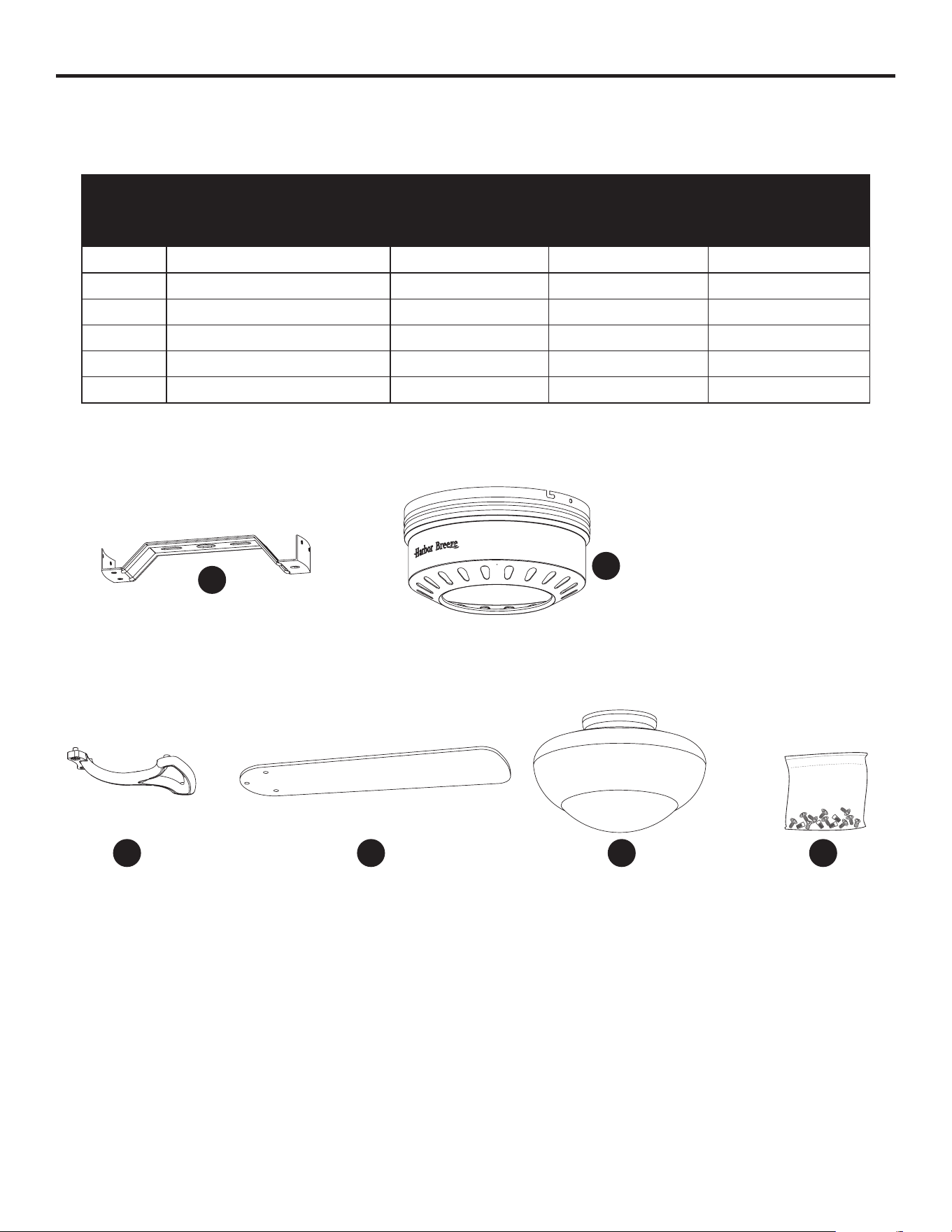

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
A
C
DE F
G
PART DESCRIPTION 807431
PART #
6560190
PART #
COVERED
UNDER
WARRANTY
A Upper Mounting Bracket 4L000006760 4L000015800 YES - 1 year
F Motor Housing 4L000001600 4L000019900 YES - 1 year
G Blade Arm 4L000001610 4L072440001 YES - 1 year
H Blade 4L000001620 4L083270003 YES - 1 year
I Glass Globe 4L000001630 4L000001630 NO
HW Hardware Kit 4L000010760 4L000019910 NO
8914-PB •101824
F
A
G I HWH
