24" MINIMAL OVENS AND COMPANIONS
PLANNING GUIDE
SERIES 7 SELF-CLEANING OVEN | OB24SAMPTB5
SERIES 7 COMPACT CONVECTION-SPEED OVEN | OM24NMTB5
SERIES 9 WARMING DRAWER | WB24SMB3
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 290005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHOICE
Styles 4
Minimal Style 5
Installation Options 6
Overview 7
SPECIFICATION GUIDE
Self-Cleaning Oven 9
Compact Convection-Speed Oven 10
Warming Drawer 11
Dimensions 12
Services 13
DATA SHEETS
Self-Cleaning Oven 15
Compact Convection-Speed Oven 16
Warming Drawer 17
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | 24" OVENS AND COMPANIONS
PLANNING CONSIDERATIONS
Cabinetry Preparation 19
Ventilation 20
Stack Height 21
SERVICES
Power Connection and Electrical 23
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome with
Fisher & Paykel appliances. In this guide, you will find a range of
conceptual, detailed, and dimensional product information to bring
your ideas to life and create spaces that truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available in all
markets and are subject to change at any time. Refer to our website
fisherpaykel.com for the latest document version. Product
specifications may vary from those shown.
This Planning Guide should not be used as installation guidance for
any product. Specific installation guidance will be available with the
product on delivery and on our website.
<< CONTENTS
CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005567B US-CA
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 490005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN CHOICE | 24" OVENS AND COMPANIONS STYLES
This Planning Guide is for the Minimal Style featuring 24" Ovens and
Companions. For information on other styles, please visit the Fisher
and Paykel website. To see what models are available, head to the
'Overview' section in this Planning Guide.

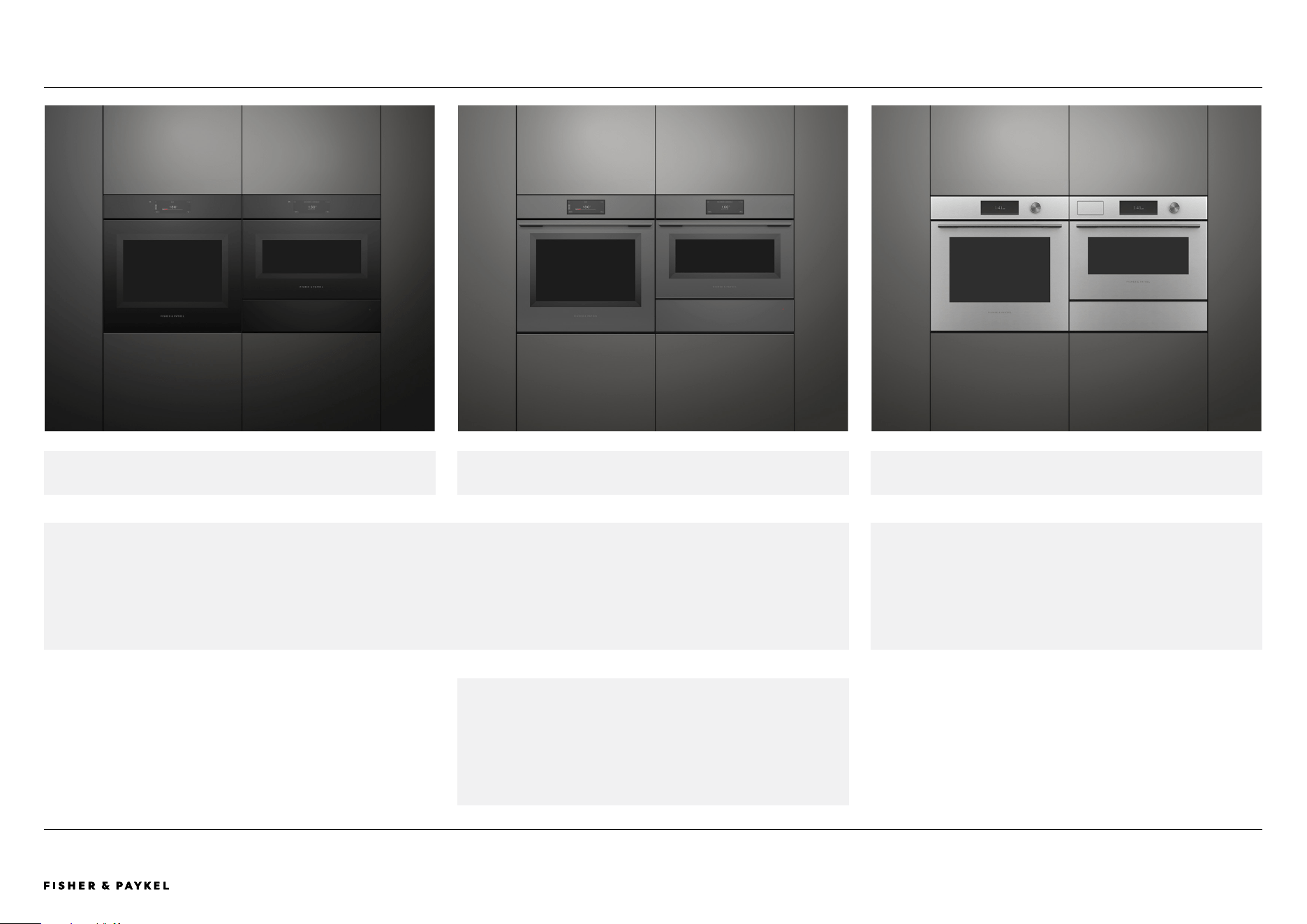

MINIMAL STYLE MINIMAL STYLE - HANDLELESS CONTEMPORARY STYLE
Celebrating a singular aesthetic to blend seamlessly into the kitchen, Minimal style ovens feature subtle textural and tonal contrasts for a sense of
refinement and purity.
Defined by clean lines and timeless design cues, Contemporary style
ovens bring a sense of balance and refinement. A versatile aesthetic
that complements a range of kitchen styles.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 590005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
MINIMAL STYLEDESIGN CHOICE | 24" OVENS AND COMPANIONS
Installation in wall
Installation under-bench
Black
FINISH OVENS COMPANIONS INSTALLATION OPTIONS
SELF-
CLEANING
CONVECTION-
SPEED
WARMING
DRAWER
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 690005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
INSTALLATION OPTIONSDESIGN CHOICE | 24" OVENS AND COMPANIONS
CONSIDERATIONS
Different configurations possible, consider
heights for grid and row installations.

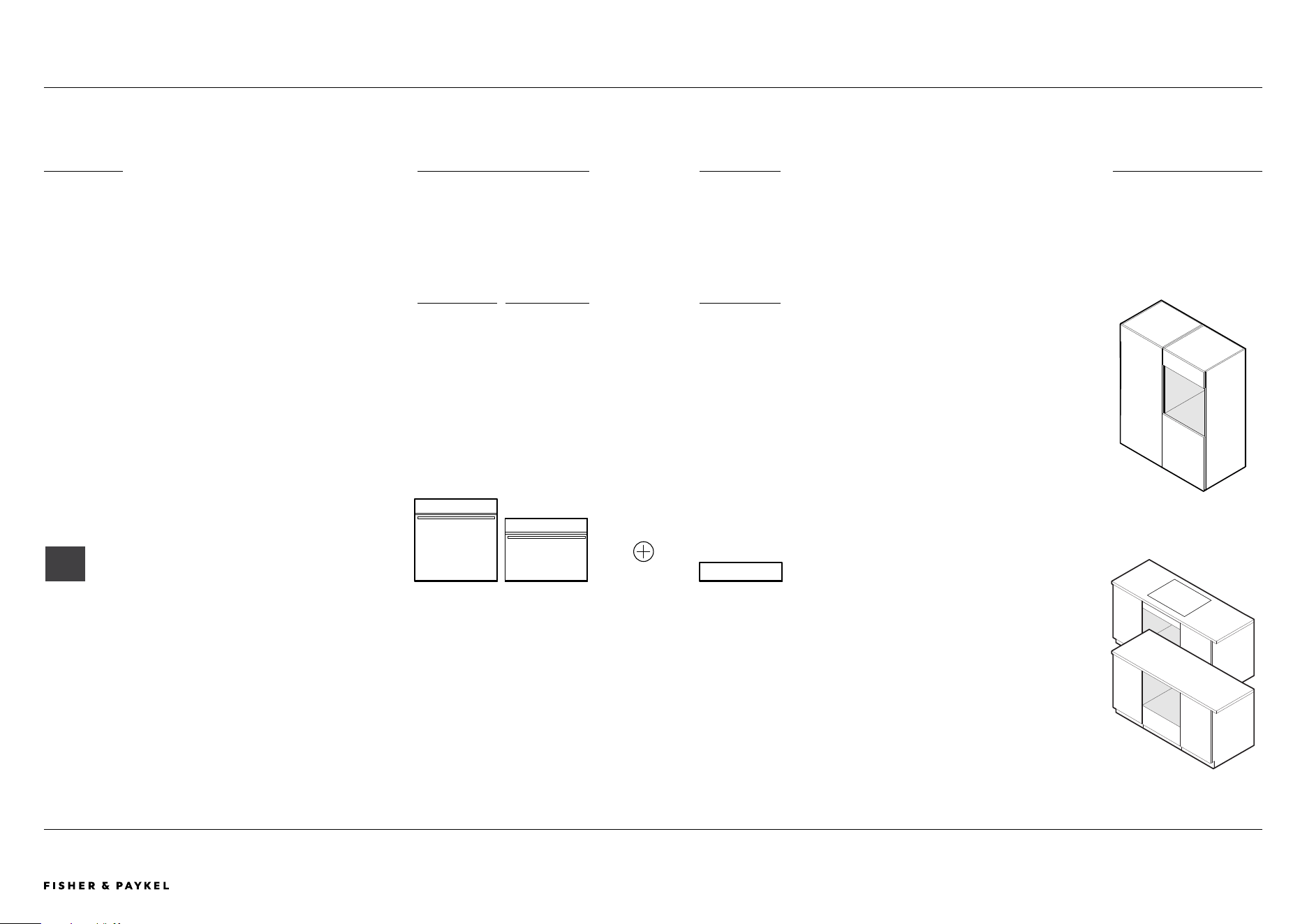

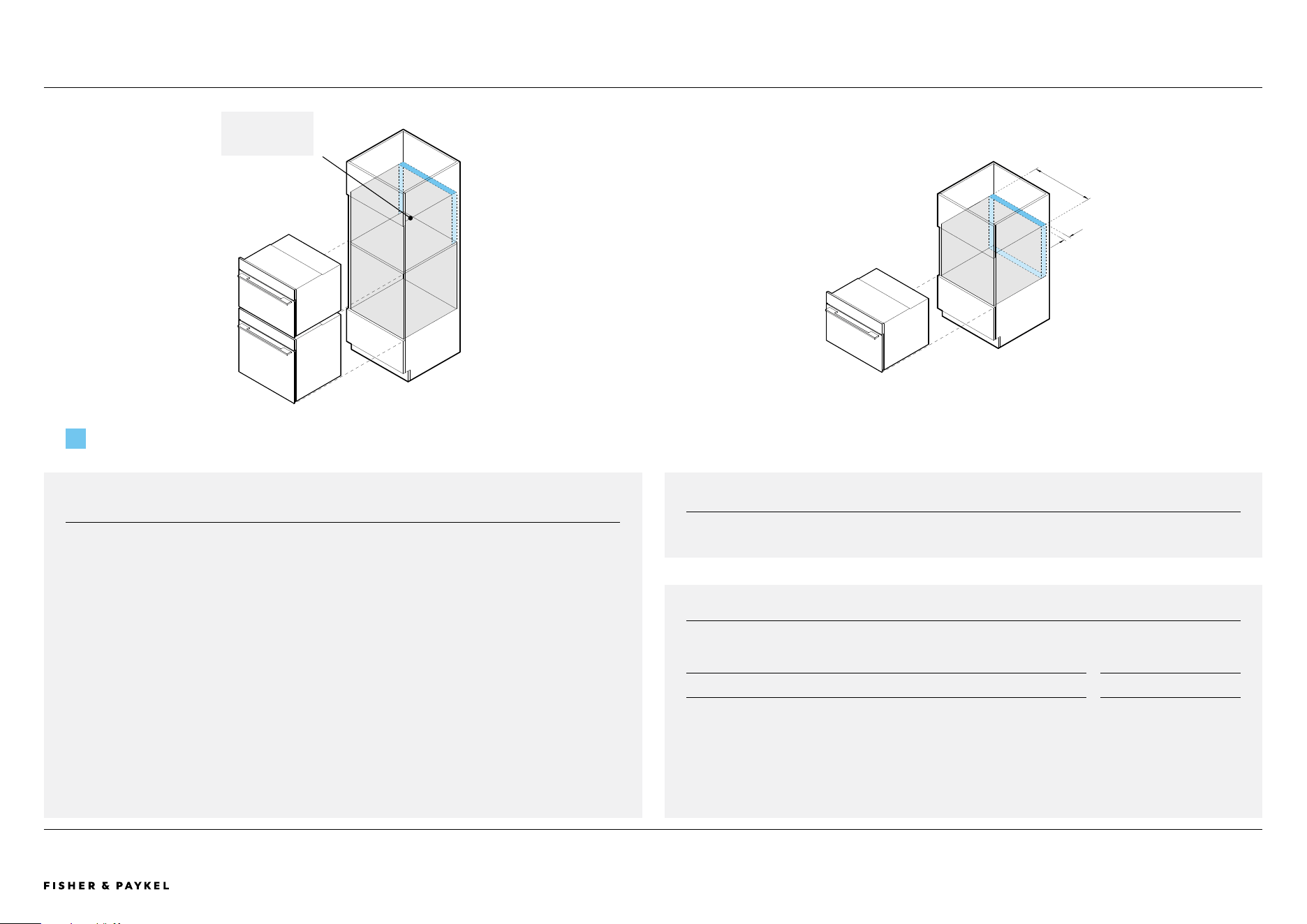

STACK HEIGHT
Stack Height is overall product height with
minimum clearance above appliance front panel
to upper cabinetry front panel or appliance.
STACKED INSTALLATION GRID INSTALLATION ROW INSTALLATION
Stack Height
41 3/4" (1060mm)
Stack Height
23 5/8" (600mm)
Stack Height
47 1/4" (1200mm)
Stack Height
23 5/8" (600mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 790005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

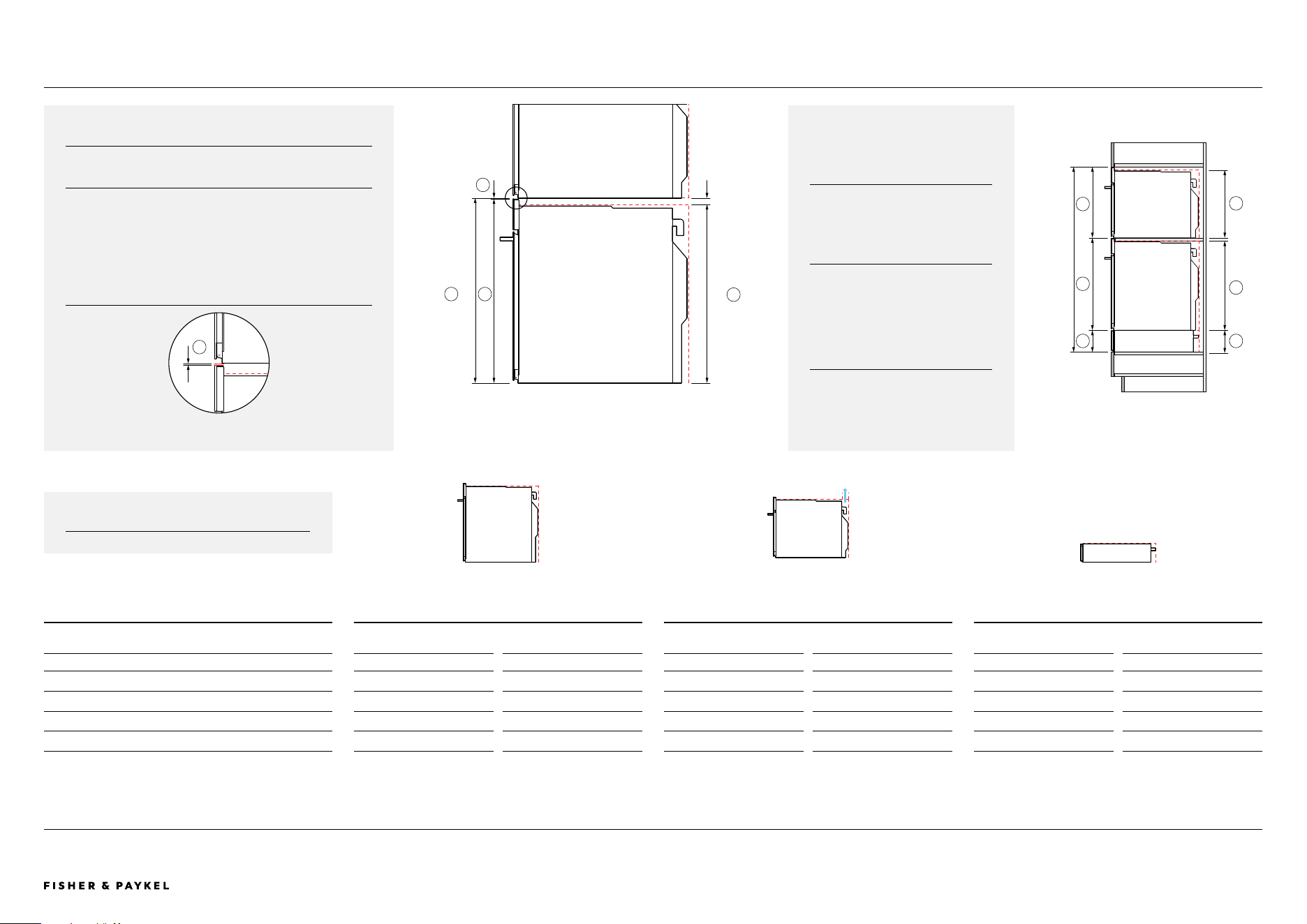

OVERVIEWDESIGN CHOICE | 24" OVENS AND COMPANIONS
SELF-CLEANING OVEN COMPACT CONVECTION-SPEED OVEN WARMING DRAWER
Series Series 7 Series 7 Series 9
Black OB24SAMPTB5 OM24NMTB5 WB24SMB3
Interface 5" Touchscreen 5" Touchscreen -
Overall Height 23 9/16" (598mm) 18" (458mm) 5 1/2" (140mm)
Overall Width 23 7/16" (596mm) 23 7/16" (596mm) 23 7/16" (596mm)
Control Panel/Front Panel Thickness 13/16" (20mm) 13/16" (20mm) 13/16" (20mm)
SIDE ELEVATION
FRONT ELEVATION
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005567B US-CA
SPECIFICATION GUIDE
SERIES 7 & 9
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 990005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

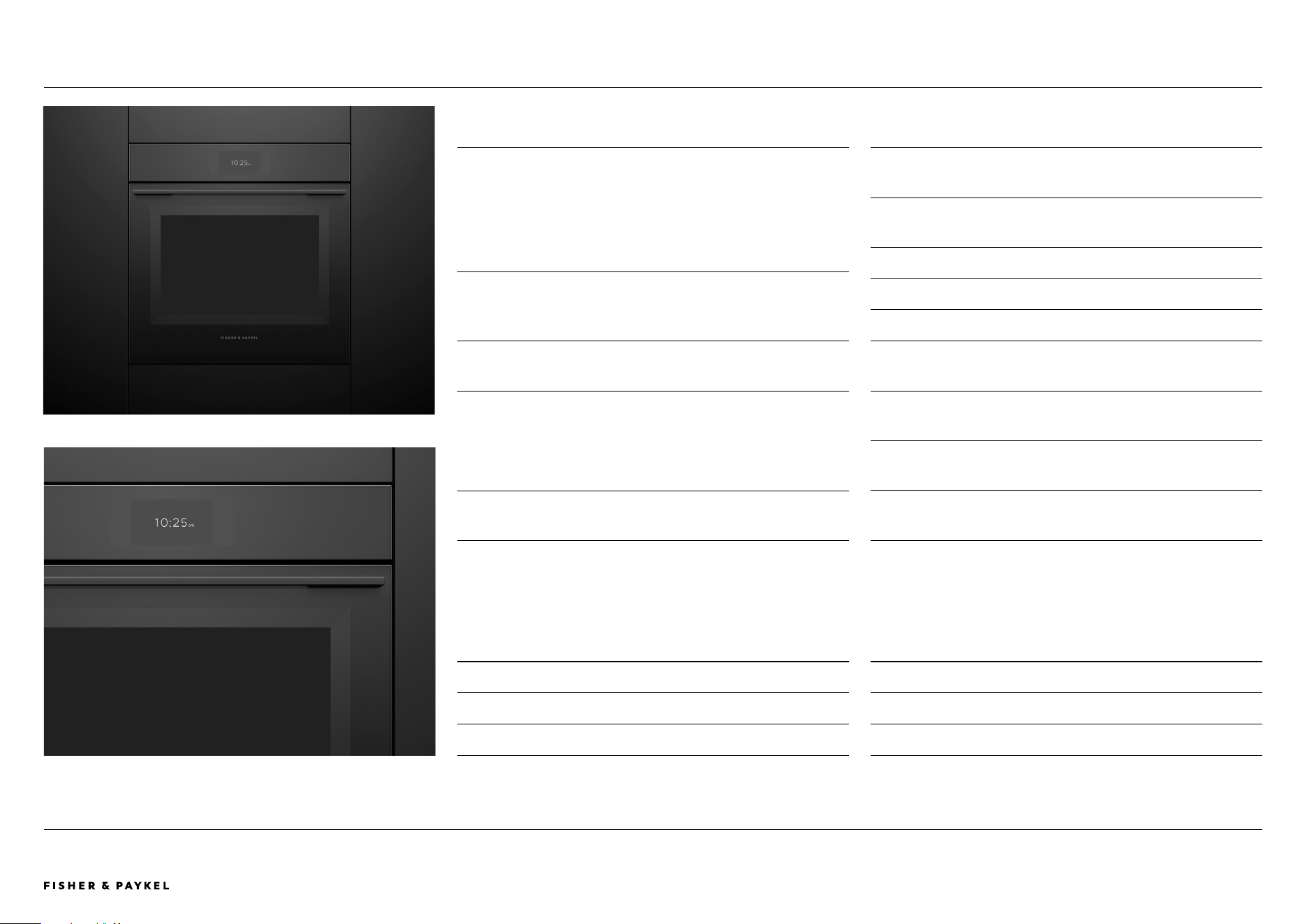

OB24SAMPTB5SPECIFICATION GUIDE | SELF-CLEANING OVEN, 24"
OVERVIEW
Designed to complement Minimal style appliances, this oven
delivers a seamless, flush finish – ideal for modern kitchen designs.
The pyrolytic self-cleaning function breaks down food residue for
an easy clean, while precise cooking methods with temperature and
heat type recommendations for a wide range of food types are
easily accessed via the touch screen and SmartHQ™.
PRODUCTS
OB24SAMPTB5 - Black
24" Series 7 Minimal Self-Cleaning Oven
SERIES & STYLE
Series 7
Minimal
FEATURES
1 Minimal style is designed to fit flush with cabinetry. Matches our
Minimal style family of appliances
2 Self-cleaning pyrolytic function breaks down food residue for an
easy clean
3 Premium soft open and close door
4 Generous 2.5 cu ft useable capacity
5 5” touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food type
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Includes a wired temperature sensor for real-time monitoring of
cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Self-cleaning Proof Side Ladders
2 Telescopic Sliding Runners
3 Wire Shelf (x2)
ACCESSORIES
4 Multi-functional Air Fry Tray
5 Roasting Dish
6 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1090005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OM24NMTB5SPECIFICATION GUIDE | COMPACT CONVECTION-SPEED OVEN, 24"
OVERVIEW
Designed to complement Minimal style appliances, this Convection-
Speed Oven delivers a seamless, flush finish – ideal for modern
kitchen designs. Versatile cooking options including microwave or
convection offer efficient heating across a variety of dishes. Precise
cooking methods with temperature and heat type recommendations
for a wide range of food types are easily accessed via the touch
screen and SmartHQ™.
PRODUCTS
OM24NMTB5 - Black
24" Series 7 Minimal Compact Convection-Speed Oven
SERIES & STYLE
Series 7
Minimal
FEATURES
1 Minimal style is designed to fit flush with cabinetry. Matches our
Minimal style family of appliances
2 Combines fast microwave cooking with even convection heat for
versatile, efficient heating across a variety of dishes
3 With soft open and close, the CoolTouch door is safe to touch
from the outside - protecting hands and surrounding cabinetry
4 Compact 1.3 cu ft useable capacity
5 5” touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food type
7 Versatile microwave only, convection only or combi-microwave
functions to suit a range of cooking styles
8 Includes a wired temperature sensor for real-time monitoring of
cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Wire Shelf
3 Step Down Wire Shelf
4 Glass Tray
5 Broil Rack
6 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1190005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

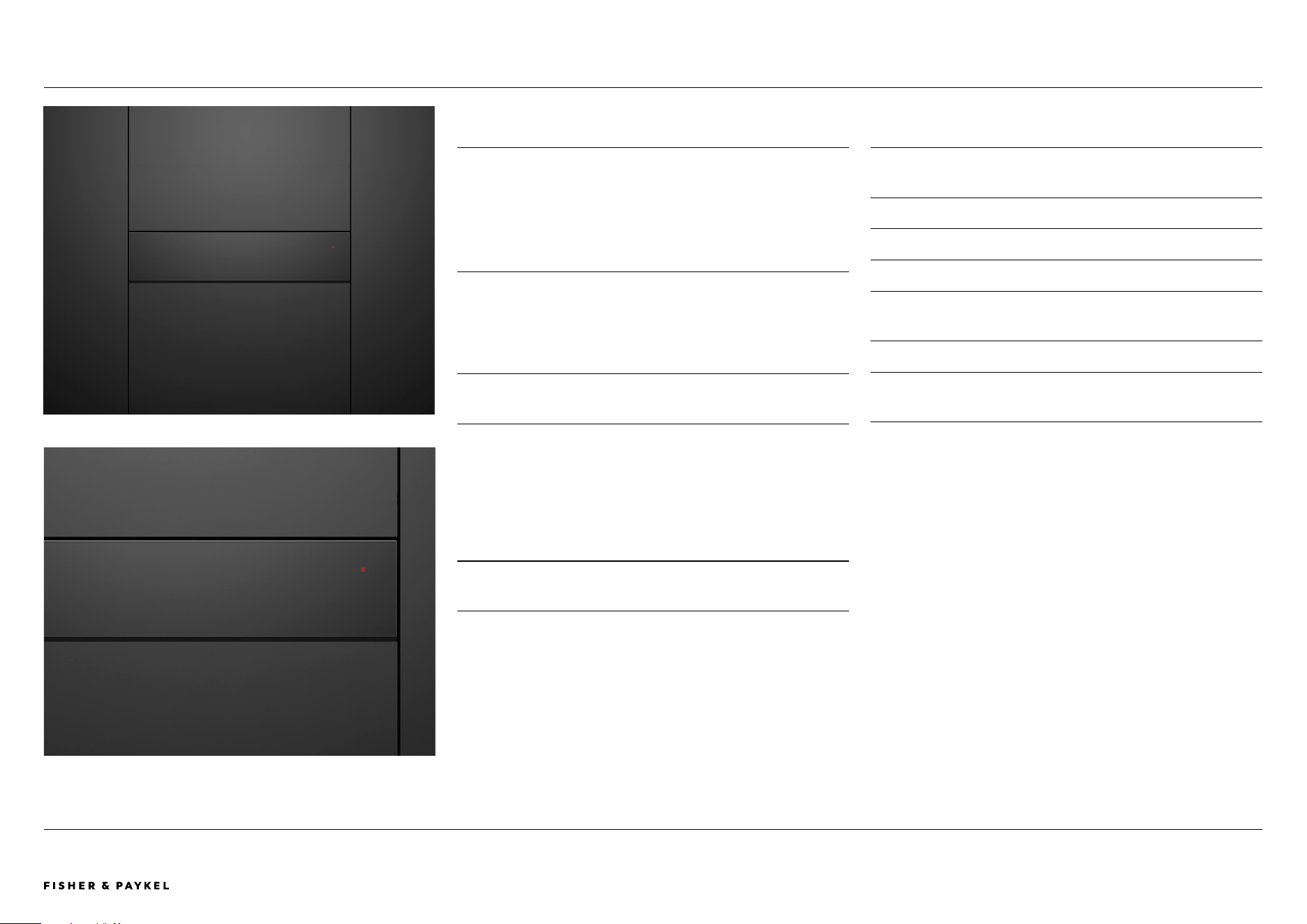

WB24SMB3SPECIFICATION GUIDE | WARMING DRAWER, 24"
FEATURES
1 Minimal style is designed to fit flush with cabinetry. Matches our
Minimal style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 6 standard-sized place settings
7 Six tailored programmes including Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and flexibility
OVERVIEW
Designed to complement Minimal style appliances, this Warming
Drawer delivers a seamless, flush finish – ideal for modern kitchen
designs. Featuring a push-to-open mechanism, intuitive touch
controls, and a smooth glass base for easy cleaning. With six
tailored programmes and space for 6 place settings, it keeps meals
ready to serve.
PRODUCTS
WB24SMB3 - Black
24" Series 9 Minimal Warming Drawer
SERIES & STYLE
Series 9
Minimal
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1290005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

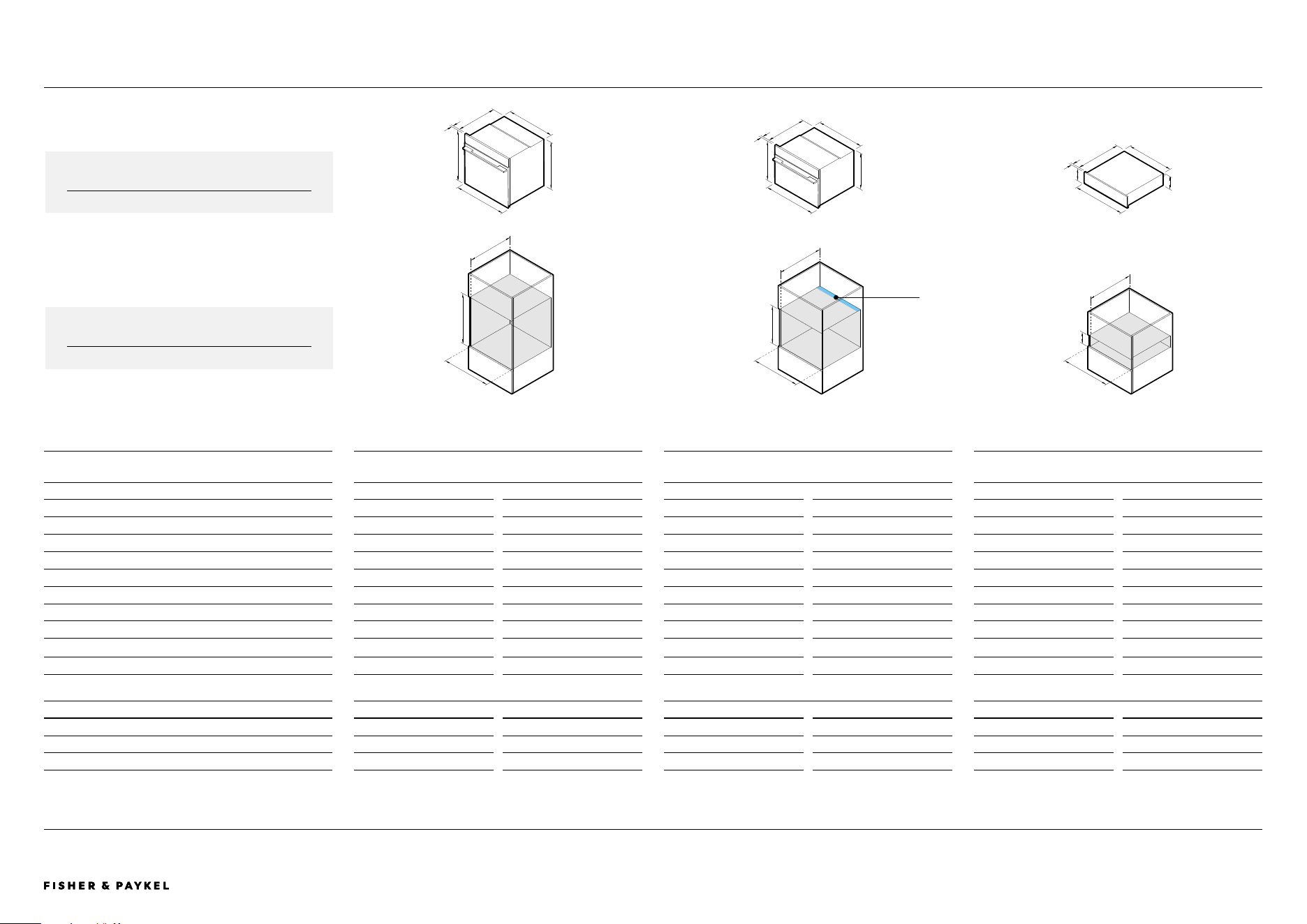

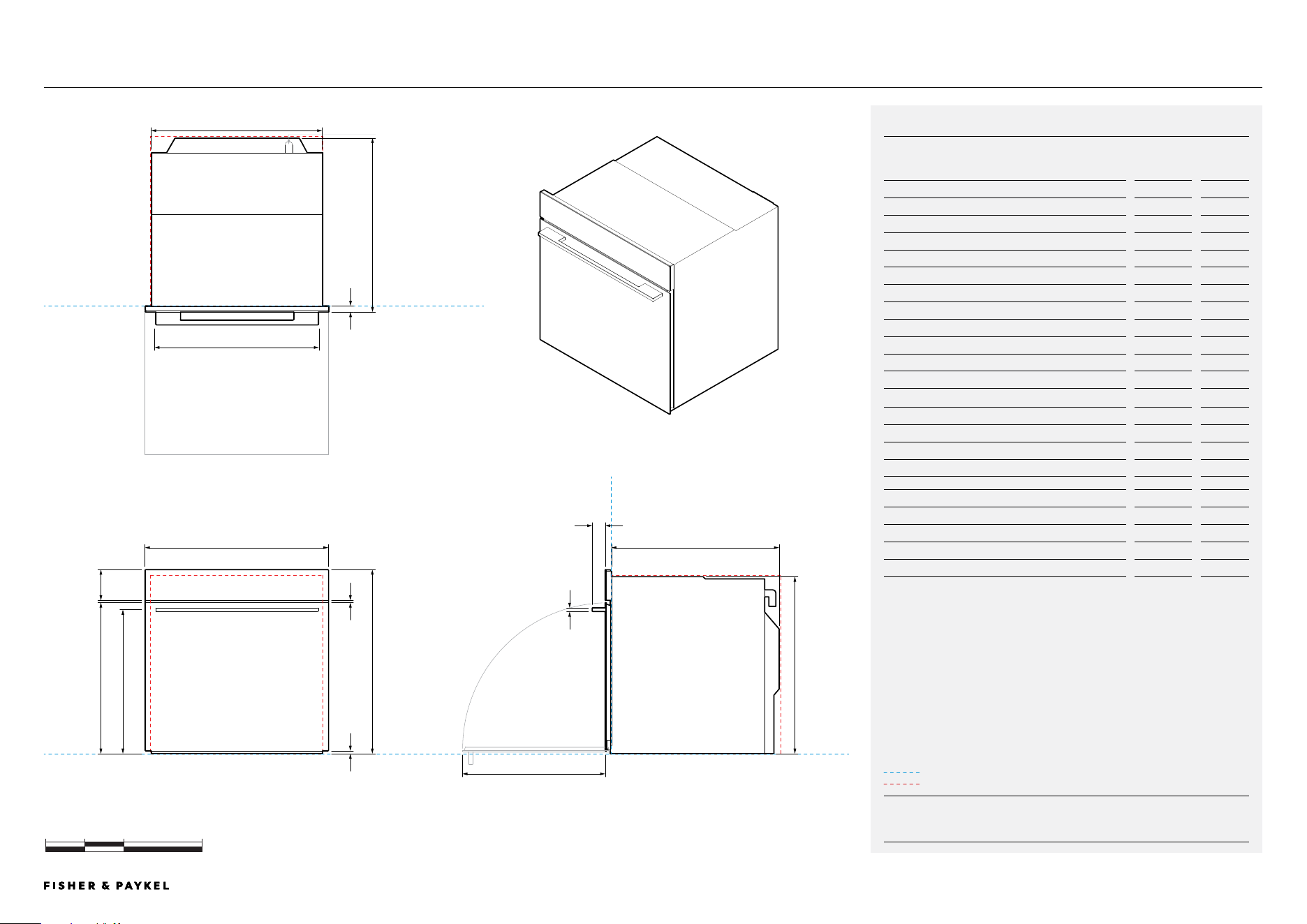

SPECIFICATION GUIDE | 24" OVENS AND COMPANIONS

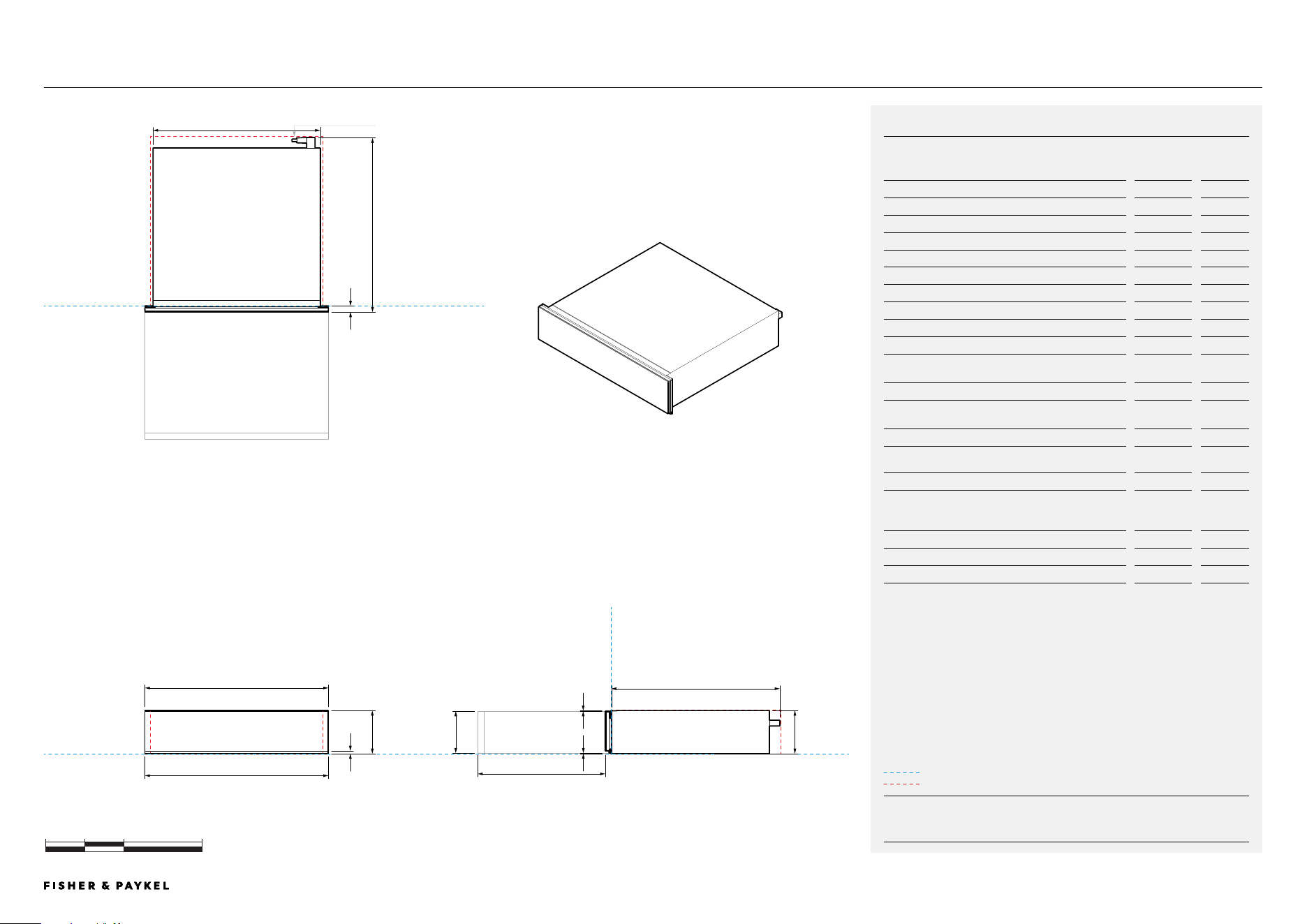

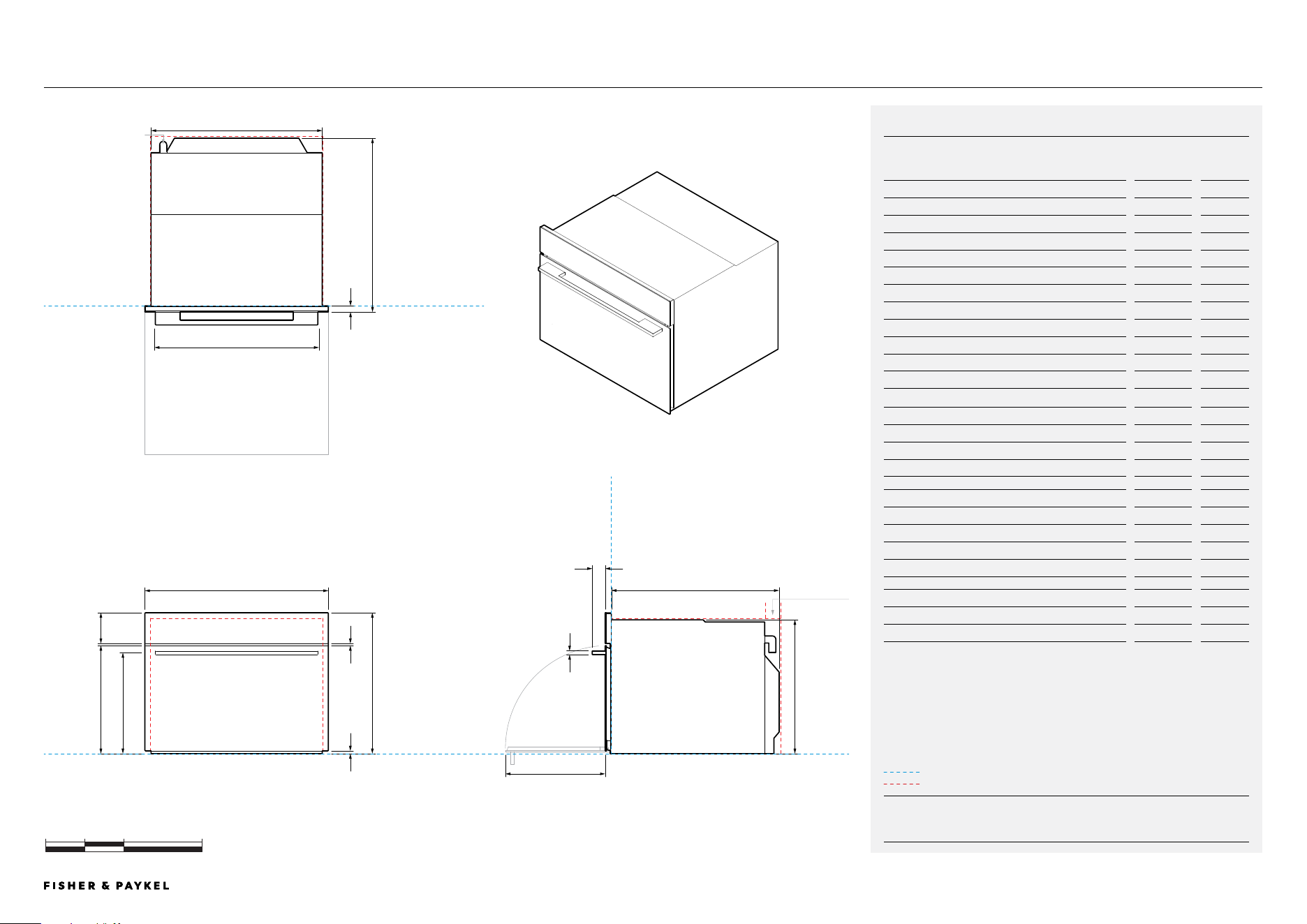

CAVITY DIMENSIONS
PRODUCT DIMENSIONS
A
B
C
D
E
F
G
H
I
Ventilation
required
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
SELF-CLEANING OVEN
OB24SAMPTB5
COMPACT CONVECTION-SPEED OVEN
OM24NMTB5
WARMING DRAWER
WB24SMB3
PRODUCT DIMENSIONS inch mm inch mm inch mm
A Overall product height
23 9/16 598 18 458 5 1/2 140
B Overall product width
23 7/16 596 23 7/16 596 23 7/16 596
C Chassis height
22 5/8 575 17 1/8 435 5 1/2 140
D Chassis width
21 7/8 556 21 7/8 556 21 3/8 543
E Chassis depth
21 7/16 545 21 7/16 545 21 9/17* 547*
F Front frame depth (excludes handle)
13/16 20 13/16 20 13/16 20
Front panel height - - - - 5 3/8 136
Front panel width - - - - 23 7/16 596
Door open depth at 90º (from product front)
18 1/4 463 12 3/4 324 - -
Drawer extension - - - - max 16 5/16 max 414
*Including power plug.
CAVITY DIMENSIONS inch mm inch mm inch mm
G Cavity height
min 22 13/16 min 580 min 17 5/16 min 440
min 5 9/16 min 142
H Cavity width
min 22 1/16 min 560 min 22 1/16 min 560
min 22 1/16 min 560
I Cavity depth (from chassis front datum)
min 21 5/8 min 550 min 21 5/8* min 550*
min 21 5/8 min 550
*Minimum total ventilation area of 43.4in (280cm
2
) is required. The ventilation opening must be located at the rear of the cavity and may be positioned at the base, sides, or top of the cavity.
Note: 24" Fisher & Paykel ovens can be installed directly onto the drawer. An intermediate shelf is not required.
ALL MODELS
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1390005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELS
SERVICES | 24" OVENS AND COMPANIONS
ISOMETRIC VIEW
SELF-CLEANING OVEN
OB24SAMPTB5
COMPACT CONVECTION-SPEED OVEN
OM24NMTB5
WARMING DRAWER
WB24SMB3
PRODUCT REQUIREMENTS
Dedicated Circuit (A) 20 20 15
Rated Power (W) 4200 / 3200 3300 / 3900 930
Supply (Hz) 60 60 60
Voltage (V) 208 / 240 208 / 240 120
Connection
Hard-wired
48" (1220mm)*
Hard-wired
min 70 7/8" (1800mm)*
Flex cord
70 7/8" (1800mm)*
*Supplied with product.
Note: For multi-residential installations, use the Rated Power to calculate the demand.
CAPACITY
Total Oven capacity 3cu ft (85L) 1.7cu ft (49L) -
Total water tank capacity - - -
Note: All Coffee Makers has internal water tanks which need to be filled manually. No external water supply is required.
WEIGHTS
Packaged 119lb (54kg) 106lb (48kg) 40lb (18kg)
Unpackaged 99lb (45kg) 84lb (38kg) 37lb (17kg)
<< CONTENTS
PAGE 14© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005567B US-CA
DATA SHEETS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1590005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
OB24SAMPTB5DATA SHEET | SELF-CLEANING OVEN, 24"
POWER OUTLET LOCATION
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
DATUM: FRONT OF CHASSIS
23 7/16" (596mm)
23 9/16" (598mm)
DATUM: FRONT OF CHASSIS
PLAN VIEW
A
B
E
F
G
D
H
I
J
K
M
P
N
O
L
Model no:
OB24SAMPTB5 24" Series 7 Minimal Self-Cleaning Oven - Black
Product Dimensions inch mm
A Overall product height 23 9/16 598
B Overall product width 23 7/16 596
C Overall product depth (excludes handle)
22 1/4
565
D Front frame depth (excludes handle)
13/16
20
E Chassis height 22 5/8 575
F Chassis width 21 7/8 556
G Chassis depth 21 7/16 545
H Control panel height
3 15/16
100
I Door-to-control panel gap
9/32
7
J Door upper edge height (from chassis base datum)
19 5/16
491
K Door lower edge height (from chassis base datum)
3/8
9
L Door open depth at 90° (from product front)
8 1/4
463
M Handle centreline height (from chassis base datum)
18 7/16
468
N Handle width
20 13/16
528
O Handle depth (projection)
1 21/32
42
P Handle thickness
15/32
12
Minimum Clearances inch mm
Cavity height min 22 13/16
min 580
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides
min 1/16
min 2
C
22 1/4" (565mm)
0 5 10 20
Inches
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1690005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
OM24NMTB5DATA SHEET | COMPACT CONVECTION-SPEED OVEN, 24"
VENTILATION
PLAN VIEW
POWER OUTLET LOCATION
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
DATUM: FRONT OF CHASSIS
18" (458mm)
DATUM: FRONT OF CHASSIS
A
B
E
F
G
D
H
I
J
K
M
P
N
O
L
C
Model no:
OM24NMTB5 24" Series 7 Minimal Compact Convection-Speed Oven -
Black
Product Dimensions inch mm
A Overall product height 18 458
B Overall product width 23 7/16 596
C Overall product depth (excludes handle)
22 1/4
565
D Front frame depth (excludes handle)
13/16
20
E Chassis height 17 1/8 435
F Chassis width 21 7/8 556
G Chassis depth 21 7/16 545
H Control panel height
3 15/16
100
I Door-to-control panel gap
9/32
7
J Door upper edge height (from chassis base datum)
13 13/16
351
K Door lower edge height (from chassis base datum)
3/8
9
L Door open depth at 90° (from product front)
12 3/4
324
M Handle centreline height (from chassis base datum)
12 29/32
328
N Handle width
20 13/16
528
O Handle depth (projection)
1 21/32
42
P Handle thickness
15/32
12
Minimum Clearances inch mm
Cavity height min 17 5/16
min 440
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides min 1/16
min 2
Ventilation Requirements inch mm
Rear ventilation opening height*
min 2
min 50
Rear ventilation opening width*
min 22 1/16
min 560
*Minimum total ventilation area of 43.4in (280cm
2
) is required. The ventilation opening
must be located at the rear of the cavity and may be positioned at the base, sides, or
top of the cavity.
0 5 10 20
Inches
23 7/16" (596mm)
22 1/4" (565mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1790005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
INDICATES PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read
the installation manual for detailed information on installing the product. For full installation
instructions & specifications visit fisherpaykel.com
WB24SMB3DATA SHEET | WARMING DRAWER, 24"
PROFILE VIEWFRONT VIEW
DATUM: BOTTOM OF CHASSIS
PLAN VIEW
DATUM: FRONT OF CHASSIS
POWER OUTLET LOCATION
5 1/2"
(140mm)
A
23 7/16" (596mm)
B
C
22 5/16" (567mm)
D
E
F
G
M
H
I
J
K
L
Model no:
WB24SMB3 24" Series 9 Minimal Warming Drawer - Black
Product Dimensions inch mm
A Overall product height 5 1/2 140
B Overall product width 23 7/16 596
C Overall product depth (includes power plug)
22 5/16
567
D Chassis height
5 1/2
140
E Chassis width 21 3/8 543
F Chassis depth 21 9/17 547
G Front frame depth (includes flange and front panel) 13/16 20
H Front panel height 5 3/8 136
I Front panel width
23 7/16
596
J Front panel lower visual edge height (from chassis
base datum)
3/8
9
K Front panel upper edge to top of chassis
1/16
2
L Front panel lower true edge height (from chassis
base datum)
1/16
2
M Drawer extension
max 16 5/16
max 414
Minimum Clearances inch mm
Cavity height
- standalone installation
- stack installation
min 5 9/16
5 1/2
min 142
140
Cavity width min 22 1/16
min 560
Cavity depth (from chassis front datum) min 21 5/8
min 550
Front frame clearance - top & sides
min 1/16
min 2
Note: 24" Fisher & Paykel ovens can be installed directly onto the drawer. An
intermediate shelf is not required.
DATUM: FRONT OF CHASSIS
0 5 10 20
Inches
<< CONTENTS
PAGE 18© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005567B US-CA
PLANNING CONSIDERATIONS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1990005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

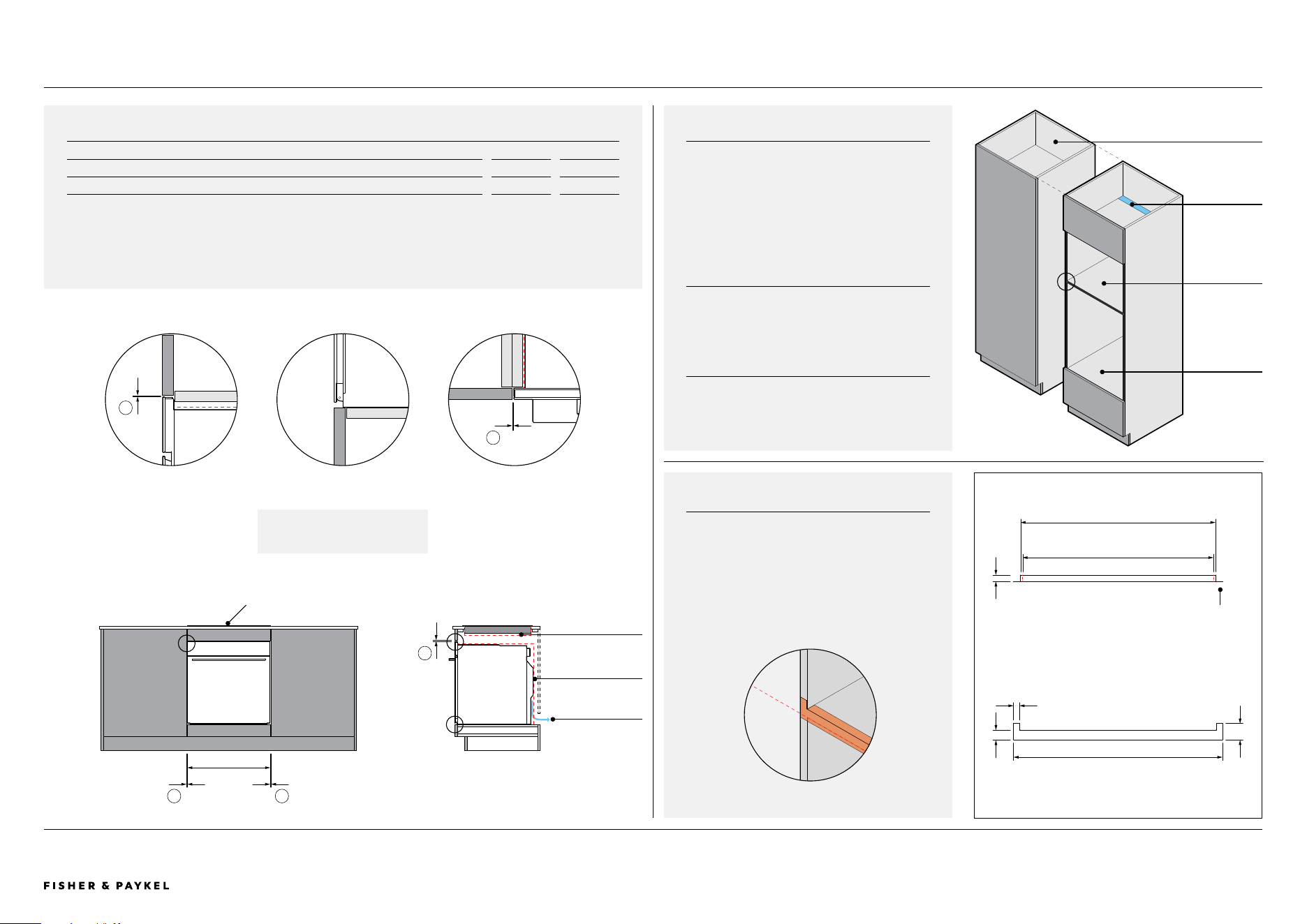

ALL MODELSPLANNING CONSIDERATIONS | CABINETRY PREPARATION
INSTALLATION
SINGLE
Head to the 'Data Sheets' section in this Planning Guide
for details.
STACKED OR GRID
Head to the 'Stack Height' section in this Planning Guide
for details.
BLACK CLASHING
Black edge clashing is recommended on all front facing
panels and openings at product locations, and on side
cabinet panels where a rebated exists.
DIVIDING SHELF
If the appliance front panel is thicker than the cabinetry
front panel, adjust the dividing shelf depth to ensure the
oven sits flush with the front of the cabinetry.
DETAIL 3
PLAN VIEW
Products require no bottom clearance
between product to cabinetry front
panel or appliance.
DETAIL 2
PROFILE VIEW
DETAIL 1
PROFILE VIEW
A
B
CABINETRY CLEARANCES
CLEARANCES inch mm
A Front/custom panel clearance - sides min 1/16 min 2
B Front/custom panel clearance - top
min 1/16 min 2
UNDERBENCH
If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop manufacturer’s
instructions.
1:10 then 40% then 80%
Dividing shelf
Supporting shelf
Ventilation gap
Adjacent cabinet
4
OVEN CABINETRY TRIM (OPTIONAL)
An optional black cabinetry trim is supplied with all
ovens.
Prior to installation, check the trim height against
dividing or supporting shelves. If required, score and cut
the trim to the appropriate height to prevent
interference.
Note: Microwave ovens has a different trim width. Ensure
the correct trim is used for each appliance.
DETAIL 4
ISOMETRIC VIEW
1:10 then 70% then 45%
PROFILE VIEW
1
Cooktop clearance
Product clearance
Some products
require ventilation
B
2
FRONT VIEW
23 9/16" (596mm)
Cooktop
AA
3
1 7/8" (47mm)
23 3/8" (594mm)
Thickness
1/32" (0.3mm)
3/4" (19.5mm)
13/16" (20.5mm)
Ovens 21 13/16" (554mm)
PLAN VIEW
FRONT VIEW
11/16" (17mm)
Microwave Oven 21 3/8" (543mm)
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2090005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OM24NMTB5PLANNING CONSIDERATIONS | VENTILATION
VENTILATION PLACEMENT
Total minimum ventilation area
43.4in (280cm²)
or
2" x 22 1/16" (50mm x 560mm)
Cavity venting options base, sides, top or back
COMPACT CONVECTION-SPEED OVEN
OM24NMTB5
VENTILATION
Ventilation is required to ensure proper performance of certain products.
Possible Venting Locations:
• Space behind the cabinet
• Upper cavity (not a product cavity)
• Toe kick cavity
• Adjacent cabinetry (not a product cavity)
Cabinet with back panel or installed against a wall:
Select one of the venting locations listed above, providing the required minimum ventilation area.
Cabinet without back panel:
If the cabinet is manufactured without a back panel and is not positioned directly against a wall, the open back will provide
sufficient ventilation.
Do not vent directly into another appliance’s cavity.
Options for total minimum ventilation area
Minimum
22 1/16" (560mm)
Minimum
2" (50mm)
Do not vent directly
into another
appliance’s cavity
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2190005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELSPLANNING CONSIDERATIONS | STACK HEIGHT
STACK HEIGHT
Stack height is overall product height with minimum clearance above
appliance control panel or front panel.
A Overall product height
+
B Minimum top clearance above appliance front/custom panel to upper
appliance
=
C Stack Height
Ventilation air vent is required at rear of
cabinetry for some products.
Dividing shelves are required to support
stacked appliances and to achieve correct
clearance.
Dividing shelves must be constructed
from material that will support the weight
of the appliances.
Ensure the product is not bearing any
weight from cabinetry or products
installed above.
Drawers can fully support a 24" Fisher &
Paykel ovens. An intermediate shelf is not
required.
EXAMPLE
PROFILE VIEW
PROFILE VIEW
MINIMUM INSIDE HEIGHT OF CAVITY
DETAIL 1
PROFILE VIEW
A
BACKFRONT
C
B
1
1
Dividing shelf
location, shelf
must be above
minimum inside
height of cavity.
D
Minimum inside height of cavity
Stack Height
D
D
D
C
B
47 1/4" (1200mm)
SELF-CLEANING OVEN
OB24SAMPTB5
COMPACT CONVECTION-SPEED OVEN
OM24NMTB5
WARMING DRAWER
WB24SMB3
DIMENSIONS inch mm inch mm inch mm
A Overall product height 23 9/16 598 18 458 5 1/2 140
B Minimum top clearance above appliance front/custom panel 1/16 2 1/16 2 - -
C Stack height 23 5/8 600 18 1/8 460 5 1/2 140*
D Minimum cavity height 22 13/16 580 17 5/16 440 5 1/2 140
*24" Fisher & Paykel ovens can be installed directly onto the drawer. An intermediate shelf is not required. Note: Standalone installation of drawers require minimum clearance above, head to 'Data Sheets' section of this Planning Guide for more details.
C
C
<< CONTENTS
PAGE 22© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 202690005567B US-CA
SERVICES
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2390005567B US-CA PLANNING GUIDE 24" OVENS AND COMPANIONS VERSION B - MAY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELSSERVICES | POWER CONNECTION AND ELECTRICAL
CONNECTION
Connections may be located in an adjacent cabinet to either side of the appliance. Ensure power will remain accessible following
installation to allow access for any future product maintenance.
POWER CONNECTION
WATER TANK LOCATION
SELF-CLEANING OVEN COMPACT CONVECTION-SPEED OVEN WARMING DRAWERS
SERIES 9 1 OB24SAMPTB5 2 OM24NMTB5 3 WB24SMB3
POWER CONNECTION
Connection
Hard-wired
48" (1220mm)
Hard-wired
70 7/8" (1800mm)
Flex cord
70 7/8" (1800mm)
Location upper right upper left upper right
ELECTRICAL
Dedicated Circuit (A) 20 20 15
Rated Power (W) 4200 / 3200 3300 / 3900 930
Supply (Hz) 60 60 60
Voltage (V) 208 / 240 208 / 240 120
Note: Multiple product installation requires the design of power outlets according to local regulations.
1 2 3
FRONT VIEW
70 7/8" (1800mm)
PROFILE VIEW
HARD-WIRED
For more information on electrical requirements, refer to the Installation Guide.
48" (1220mm)
<< CONTENTS
