DATA SHEET

For AJRS84LR. Also, The document are for others Fisher & Paykel models: RS1884FLJ1, RS1884FLJK1 + RS2484SR1, RS2484SRK1

Model no:
RS1884FLJ1 / RS1884FLJK1 + RS2484SR1 / RS2484SRK1 shown.
(Various models available to swap units to opposite sides, hinge
doors both left, both right or at the outsides as shown here).
(refer page 2 for metric measurements)
IMPORTANT!
For ease of installation, ensure cavity has consistent dimensions top to
bottom and left to right.
Clearance Dimensions in
A Overall height of cavity
84"
B Overall width of cavity
42"
C Minimum depth of cavity*
25"
D Width of supply area behind freezer
18"
e Width of supply area behind fridge
24"
f Height of supply area
9"
g Height at sides of supply area
5"
h Width from side of supply area
1/2"
i Combined width in from side of supply areas
1"
j Depth of supply area
1"
Minimum door cabinetry gap clearance
1/8"
Optional Stainless Steel Panel Dimensions in
K Height of door panel
79 7/8"
L Width of freezer door panel
17 3/4"
M Width of fridge door panel
23 3/4"
N Depth of door panels
3/4"
O Height of toekick panel
3 15/16"
P Width of toekick panel
41 7/8"
* With cavity at minimum depth, electrical and water connections must be
within the supply area shown if located behind the appliance, and must not
protrude from the back wall.
Connections may be located in an adjacent cabinet to either side of the fridge.
HANDLES: Handle Kits are sold separately. Shown with handle kit ADH3-RD84.
Other style options available.
DATA SHEET
18" Freezer + 24" Fridge - Stainless Steel Integrated Columns
DATE: 10.10.2018
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Please read the installation manual for detailed information on installing the
product. For full installation instructions & specifications visit fisherpaykel.com

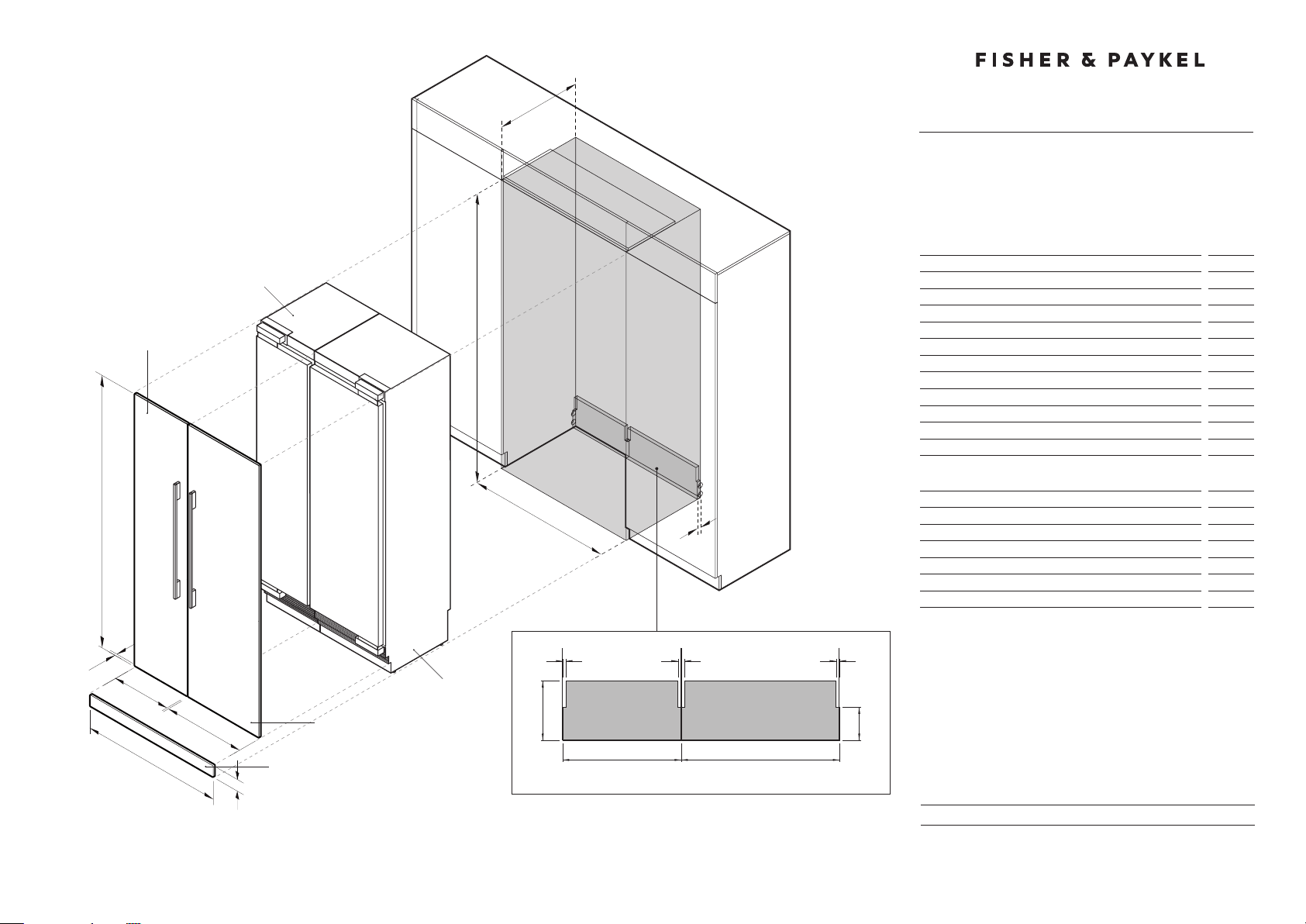

ISO VIEW OF 42" CAVITY
(18" + 24")
Stainless Steel Door Panel
RD2484R4D
Stainless Steel Toekick
AKRS42041
Stainless Steel Door Panel
RD1884L4D
RS1884FLJ1 / RS1884FLJK1
RS2484SR1 / RS2484SRK1
c
A
B
SUPPLY AREA
f
g
e
hih
d
o
p
k
j
l
n
m
