INSTALLATION GUIDE
US CA NZ AU BI EU SG HK CN
INSTALLING THE TOE KICK
INTEGRATED COLUMNS (Refrigerator & Freezer, Refrigerator-Freezer & Wine Cabinet)

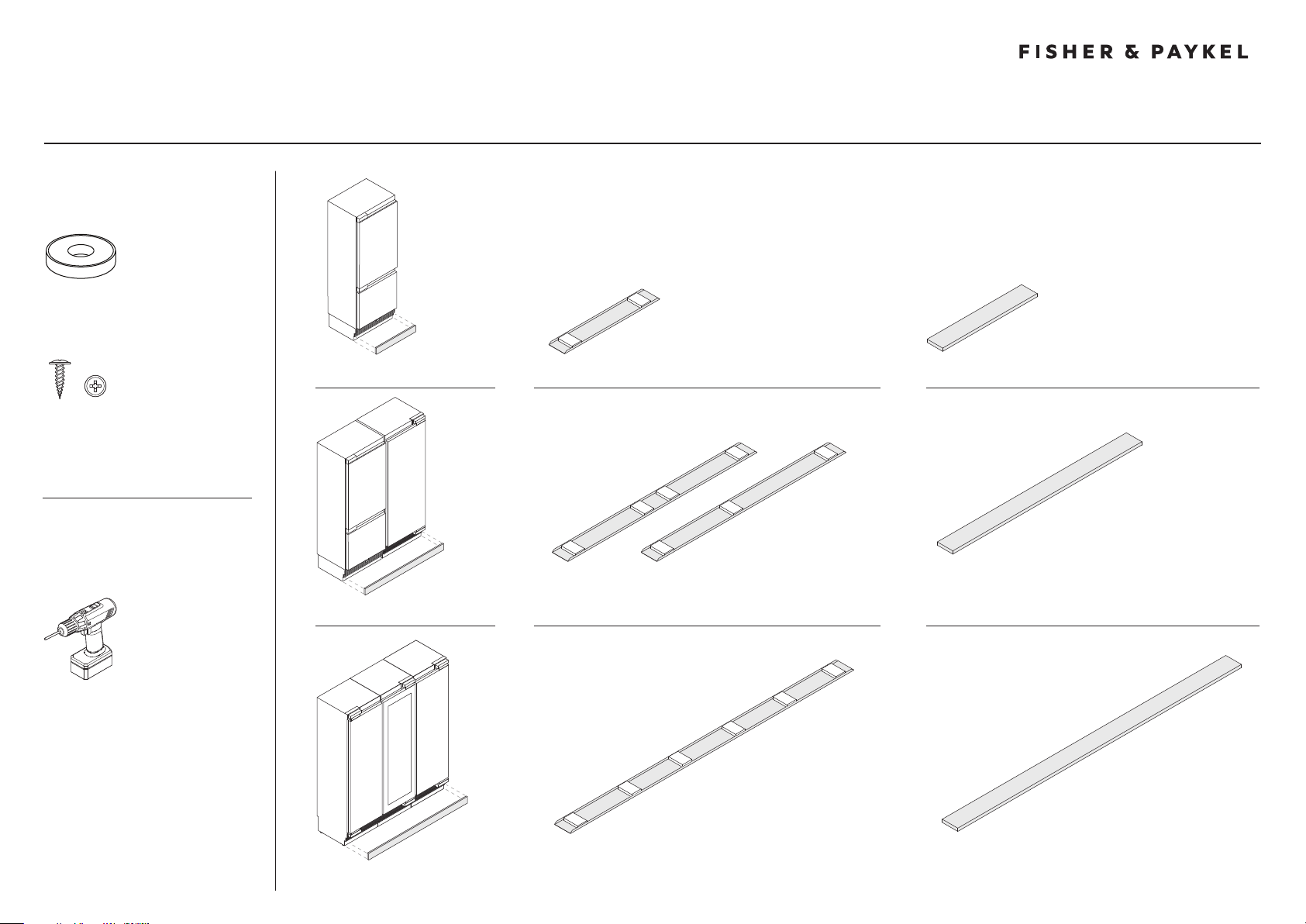

PARTS SUPPLIED STAINLESS STEEL TOE KICK CUSTOM TOE KICK
TOOLS REQUIRED
Powered driver
Magnets (4x)
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
8Gx16 Mush washer
screws (4x)
Included in installation kit supplied with
every product.
Single installation
Dual installation
Triple installation
Not supplied and can be purchased separately through an authorised
Fisher and Paykel dealer. Visit fisherpaykel.com for more information.
Must be suppplied by customer to match their cabinetry.
866176A 03.21

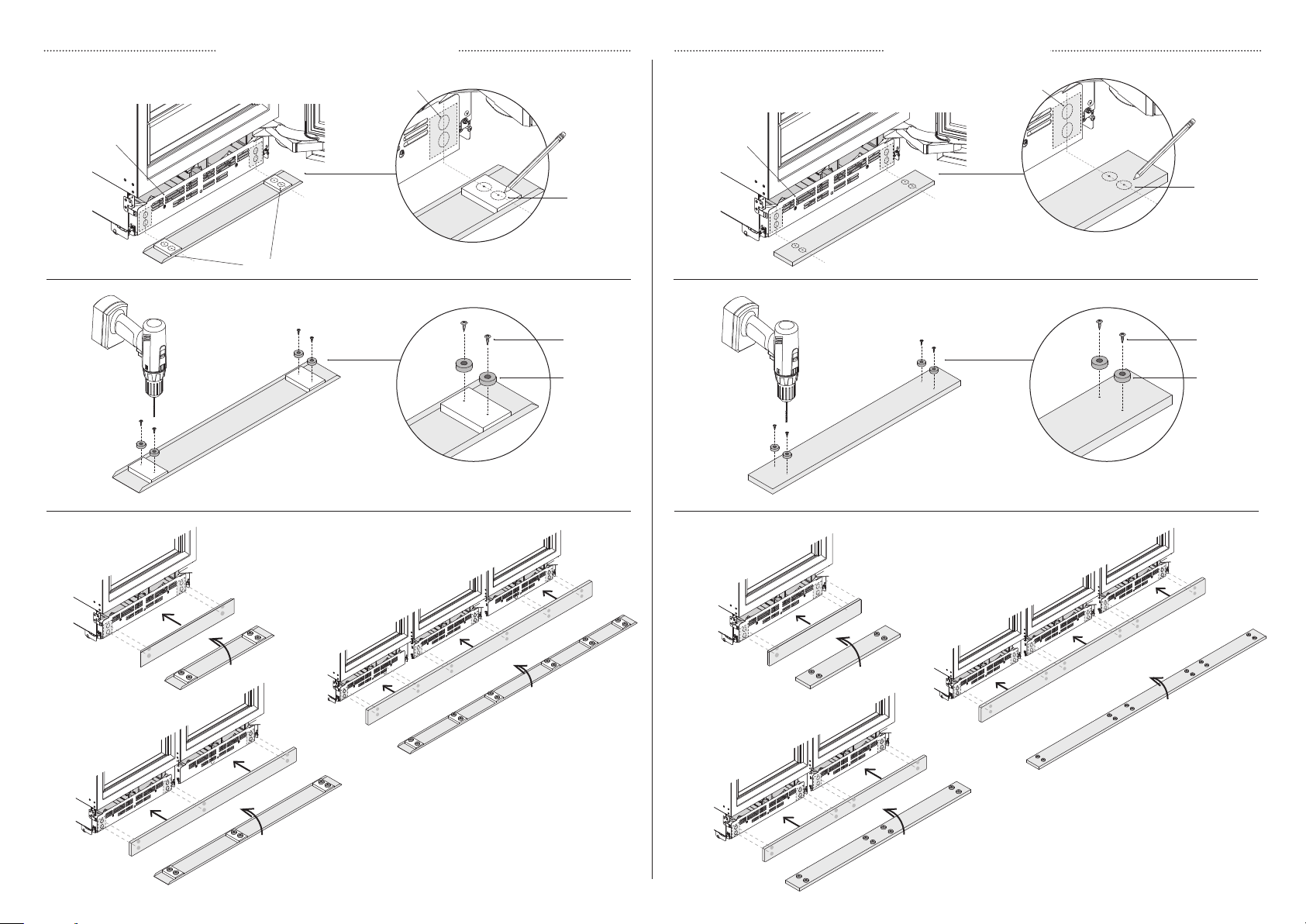

STAINLESS STEEL TOE KICK CUSTOM TOE KICK
1
spacers
magnet fixing
location
magnet
attachment area
toe kick
mounting plate
3
1
magnet fixing
location
magnet
attachment area
toe kick
mounting plate
3
2
2
magnets
screws
magnets
screws
