BG-USX-B100CH
Dual-Host USB 3.2/HDMI Switcher & HDBaseT 3.0 Extender Kit with
Dual USB-C Host Inputs and Dual 4K60 HDMI Outputs with
Bi-Directional PoC/RS-232 up to 328ft
User Manual
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
Connection Diagram 12
API Commands 13
Troubleshooting 15
Tech Support 16
Limited Product Warranty Terms 16
Mission Statement 16
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Introduction
The BG-USX-B100CH USB 3.2 Gen 1 Extender is a high-performance signal
extension solution designed to transmit USB data and video signals over long
distances of up to 100 meters (328 feet) using a single CAT6a (F/FTP) cable.
Supporting USB 3.2 Gen 1 with data rates up to 5Gbps, the system is fully
backward compatible with USB 2.0 and USB 1.1 devices. The transmitter features
dual USB-C host inputs with both automatic and manual switching, enabling flexible
source selection, while the receiver provides multiple USB device ports for
seamless peripheral connectivity.
Integrated DisplayLink video technology enables dual HDMI video output at
resolutions up to 4K@60Hz, making the extender ideal for applications requiring
simultaneous USB and video extension. Additional professional features include
bi-directional 24V Power over Cable (PoC), RS-232 pass-through, FSYNC GPIO
support for industrial and machine-vision cameras, and analog audio de-embedding
on the receiver. With support for firmware upgrades via USB-C service ports and
robust metal enclosures, the BG-USX-B100CH is well suited for control rooms,
medical imaging, industrial automation, and AV system integration environments.
Features
● 100m USB Extension: Extends USB 3.2 Gen 1 signals up to 100m (328ft) over a
single CAT6a (F/FTP) cable.
● 5Gbps High-Speed USB: Supports USB 3.2 Gen 1 data transfer rates up to 5Gbps
with backward compatibility for USB 2.0 and 1.1 devices.
● Dual USB-C Host Inputs: Provides two selectable USB-C host ports on the
transmitter with auto-switching and manual switching support.
● Multiple USB Device Ports: Features one USB-C and two USB-A device ports on
both transmitter and receiver for flexible peripheral connectivity.
● Dual HDMI Video Outputs: Utilizes DisplayLink™ technology to deliver dual HDMI
video outputs at resolutions up to 4K@60Hz.
● Bi-Directional 24V PoC: Enables power delivery over the CAT6a link so only one
side requires an external power supply.
● RS-232 Pass-Through Control: Supports RS-232 communication for remote
control system integration and API command operation.
● FSYNC GPIO Support: Provides FSYNC signal pass-through for synchronization of
industrial and machine-vision cameras.
● Analog Audio De-Embedding: Supports balanced and unbalanced analog audio
output from the receiver.
● Firmware Upgrade Support: Allows firmware updates via USB-C service ports on
both transmitter and receiver.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Packing List
● 1 × USB 3.2 Gen 1 Extender Transmitter (TX)
● 1 × USB 3.2 Gen 1 Extender Receiver (RX)
● 1 × 24V / 3.75A Locking Power Supply
● 2 × 4-Pin 3.5mm Phoenix Connectors (Male)
● 1 × 5-Pin 3.5mm Phoenix Connector (Male)
● 4 × Mounting Ears
● 8 × Machine Screws (KM3 × 4)
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Specifications
Technical
USB Protocol
USB 3.2 Gen 1
Data Rate
Up to 5Gbps
HDMI™ Compliance
HDMI™ 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Maximum Video Resolution
Up to 4K@60Hz
Color Depth
8 / 10 / 12-bit
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
ESD Protection
IEC 61000-4-2: ±8kV (Air), ±4kV (Contact)
Transmission
USB Extension Distance
100m / 328ft via CAT6a (F/FTP)
USB Cable Distance
1.5m / 4.9ft
HDMI™ Cable Distance
3m / 9.8ft (Passive)
Connections – Transmitter (TX)
USB-C Host Inputs
2 × USB-C (24-pin, Female)
USB Device Outputs
1 × USB-C (24-pin), 2 × USB-A (9-pin)
Extension Port
1 × HDBT-USB3 (RJ45, 24V PoC)
RS-232 Control
1 × 3-Pin 3.5mm Phoenix
FSYNC
1 × 1-Pin 3.5mm Phoenix
Service Port
1 × USB-C (Firmware Upgrade)
Power Input
DC 24V / 3.75A
Connections – Receiver (RX)
Extension Input
1 × HDBT-USB3 (RJ45, 24V PoC)
USB Device Outputs
1 × USB-C (24-pin), 2 × USB-A (9-pin)
HDMI™ Outputs
2 × HDMI™ Type-A
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Audio Output
1 × 5-Pin 3.5mm Phoenix (Balanced / Unbalanced)
RS-232 Control
1 × 3-Pin 3.5mm Phoenix
FSYNC
1 × 1-Pin 3.5mm Phoenix
Service Port
1 × USB-C (Firmware Upgrade)
Power Input
DC 24V / 3.75A
Mechanical & Environmental
Housing
Metal Enclosure
Color
Black
Dimensions (TX)
5.5 × 3 × 0.91 in [140 × 75 × 23 mm] (W × D × H)
Dimensions (RX)
7.1 × 3.7 × 0.91 in [180 × 95 × 23 mm] (W × D × H)
Weight (TX)
0.71 lbs [324 g]
Weight (RX)
1.1 lbs [486 g]
Power Supply
AC 100–240V, 50/60Hz; DC 24V / 3.75A
Power Consumption (TX)
18.48W (Max)
Power Consumption (RX)
19.44W (Max)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operating Humidity
20%–80% RH, Non-Condensing
Storage Humidity
10%–90% RH, Non-Condensing
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel

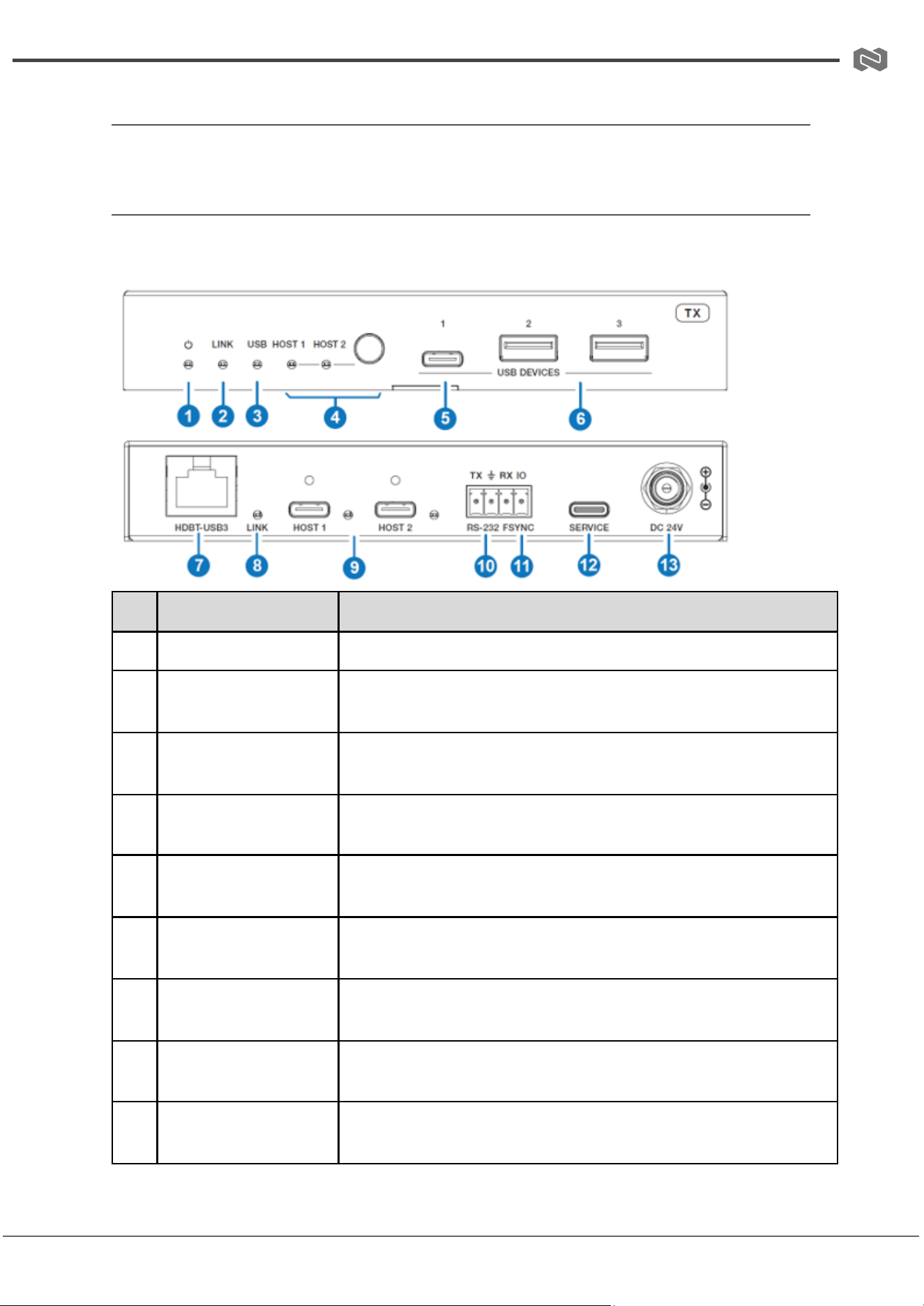

Transmitter Panel (TX)
No.
Name
Function Description
1
Power LED
Indicates the transmitter is powered on (Red LED ON).
2
LINK LED
Indicates connection status between TX and RX. ON: Linked
successfully. OFF: No link established.
3
USB LED
USB status indicator. ON: USB 3.0 detected. Blinking: USB 2.0
detected. OFF: No USB signal.
4
HOST Switch Button &
LED
Selects between USB-C HOST 1 and HOST 2 inputs. Corresponding
LED illuminates when active.
5
USB-C DEVICE
USB-C downstream port for peripherals (up to 5V/1A power output).
6
USB-A DEVICE
USB-A downstream ports for USB peripherals (up to 5V/1.5A output).
7
HDBT-USB3 Port
RJ45 port for CAT6a connection to RX, also provides 24V PoC power
transmission.
8
LINK LED (Secondary)
Additional link status indicator confirming TX–RX connection.
9
USB-C HOST Ports
(1/2)
Dual USB-C host inputs for PC/source connection; support
automatic/manual switching.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
10
RS-232
3-pin Phoenix connector for RS-232 pass-through control.
11
FSYNC
GPIO synchronization signal pass-through (0–5V default range).
12
SERVICE Port
USB 2.0 port for firmware and MCU/HDBT chip upgrades.
13
DC 24V
Locking DC power input (24V / 3.75A).

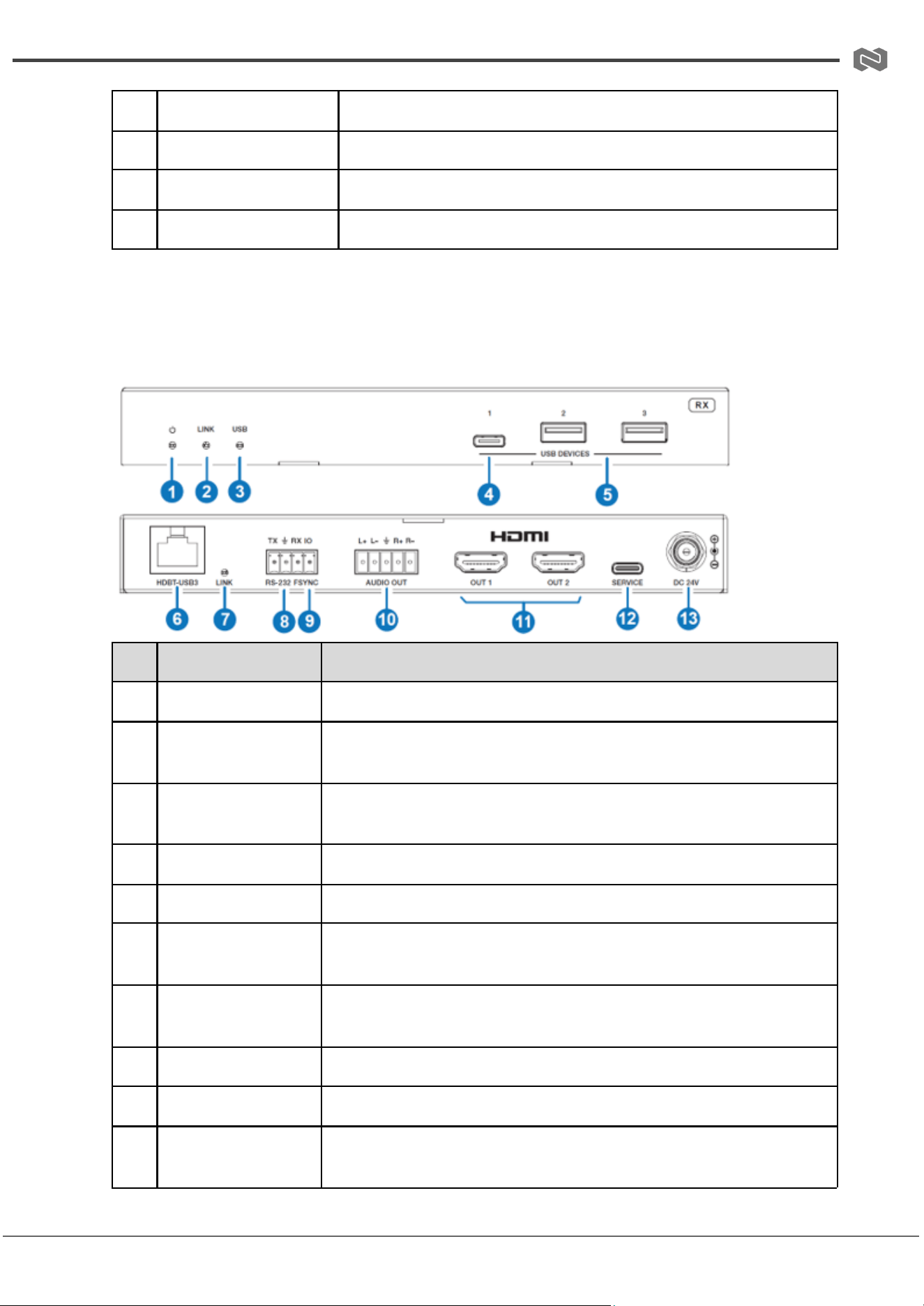

Receiver Panel (RX)
No.
Name
Function Description
1
Power LED
Indicates the receiver is powered on (Red LED ON).
2
LINK LED
Indicates TX–RX connection status. ON: Linked. OFF: No connection.
3
USB LED
USB status indicator. ON: USB 3.0 detected. Blinking: USB 2.0
detected. OFF: No USB signal.
4
USB-C DEVICE
USB-C downstream port for peripherals (up to 5V/1A output).
5
USB-A DEVICE
USB-A downstream ports for peripherals (up to 5V/1.5A output).
6
HDBT-USB3 Port
RJ45 connection to TX unit via CAT6a cable with 24V PoC support.
7
LINK LED
(Secondary)
Additional connection status indicator confirming active link.
8
RS-232
3-pin Phoenix connector for RS-232 pass-through control.
9
FSYNC
GPIO synchronization signal pass-through (0–5V default range).
10
AUDIO OUT
Analog audio output supporting balanced (up to 2Vrms) and
unbalanced (up to 1Vrms) output.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
11
HDMI OUT (1/2)
Dual HDMI outputs for display devices; supports up to 4K@60Hz via
DisplayLink™.
12
SERVICE Port
USB 2.0 port for firmware and MCU/HDBT chip upgrades.
13
DC 24V
Locking DC power input (24V / 3.75A).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-USX-B100CH PRODUCT MANUAL

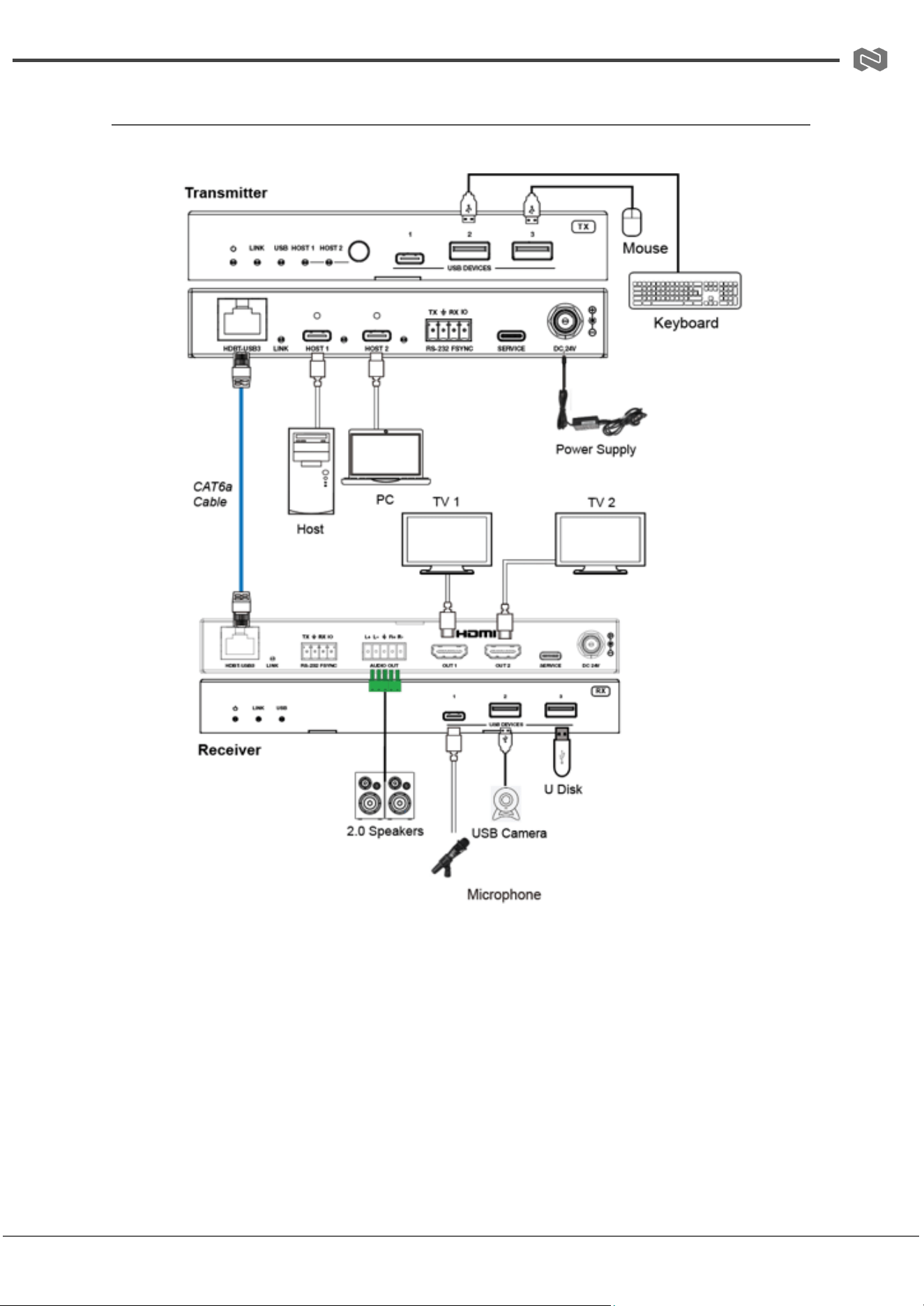

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
API Commands
The BG-USX-B100CH supports API command control via RS-232 or USB-C service port.
Connect the SERVICE port or RS-232 port to a PC and use a serial terminal tool (e.g.,
PuTTY, Tera Term) to send commands. Both transmitter and receiver support
command-based configuration and status monitoring.
Communication Protocols:
● Service Port (USB-C Virtual RS-232): 115200 baud (fixed), 8 data bits, 1 stop bit,
no parity
● RS-232 Phoenix Port: 4800–115200 baud (configurable), 8 data bits, 1 stop bit, no
parity
ASCII Command Table
Command
Function
Example
Feedback
Default
?
List all available
commands
?
Command list returned
—
help
List all available
commands
help
Command list returned
—
get fw version
Get firmware version
get fw version
TX FW x.x.x / RX FW
x.x.x
—
set reboot
Reboot device
set reboot
Rebooting... System
initializing
—
set reset
Restore factory defaults
set reset
Prompt confirmation
required
—
get status
Display system status
get status
Full system status
report
—
set key on/off
Enable/disable front
panel keys
set key off
Key off
ON
get key
Get front panel key
status
get key
Key on/off
ON
set baud x
Set RS-232 baud rate
set baud 6
115200
115200
get baud
Get RS-232 baud rate
get baud
Baud rate 115200
115200
set autoswitch
on/off
Enable/disable auto
switching
set autoswitch
on
Autoswitch on
ON
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
get autoswitch
Get autoswitch status
get autoswitch
Autoswitch on/off
ON
set input x
Select USB host input
(1–2)
set input 1
Input USB host 1
1
get input
Get current USB host
input
get input
Input USB host x
1
get usb5v x
Check USB host 5V
status
get usb5v 0
USB power status
report
—
set tx usbd x
power y
Set TX USB device
power mode
set tx usbd 0
power 1
Follow host power
1
get tx usbd x
power
Get TX USB power
status
get tx usbd 0
power
Power mode status
Follow
set rx usbd x
power y
Set RX USB device
power mode
set rx usbd 0
power 1
Follow host power
1
get rx usbd x
power
Get RX USB power
status
get rx usbd 0
power
Power mode status
Follow
set hdbt update
Enter firmware update
mode
set hdbt update
HDBT update mode
enabled
—
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-USX-B100CH PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
