Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
WOODBURNING FIREPLACE
Fire Risk.
WARNING
For use with solid wood fuel only.
Other fuels may overre and generate
poisonous gases (i.e. carbon monoxide).
Model(s):
Installation Manual
Installation and Fireplace Setup
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other ammable
materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
ODCTGWD-50
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
•
DO NOT overre. Overring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specied. Failure to comply may
cause house re.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury, or death.
Installation and service of this appliance should be performed by
NOTICE: DO NOT discard this manual!
2
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the replace or to property.
Table of Contents
1 Product Specic & Important Safety Information
A. Fireplace Certication 4
B. Non-Combustible Materials 4
C. Combustible Materials 4
2 Getting Started
A. Typical Fireplace System 5
B. Design and Installation Considerations 6
1. Selecting Fireplace Locations 6
2. Locating Fireplace & Chimney 7
C. Tools and Supplies Needed 8
D. Inspect Fireplace and Components 8
E. Fireplace System Requirements 8
3 Framing and Clearances

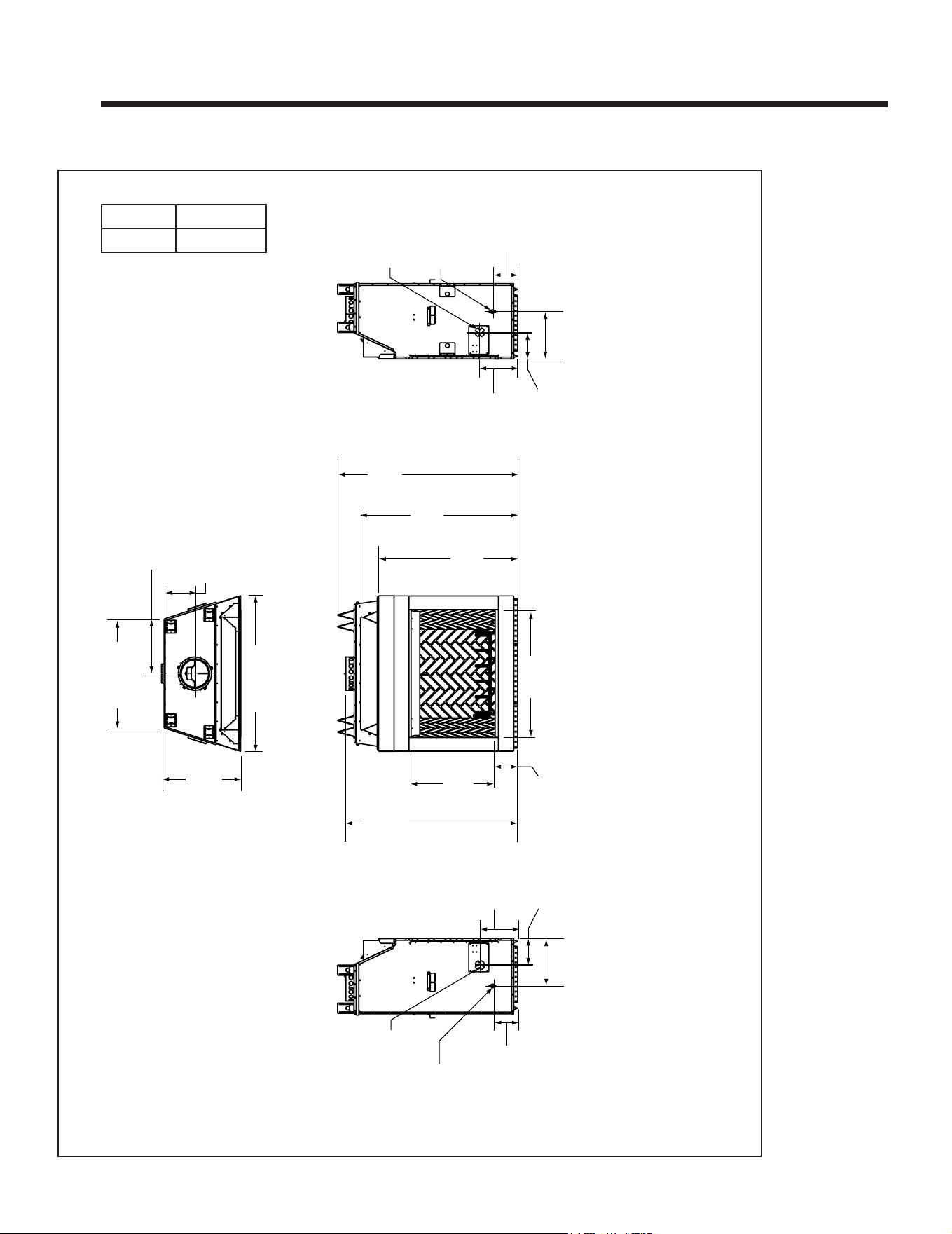

A. Appliance Dimensions/Weight 9
B. Clearances 10
Minimum Clearances to Combustibles 10
C. Construct the Chase 11
D. Unpack the Fireplace 12

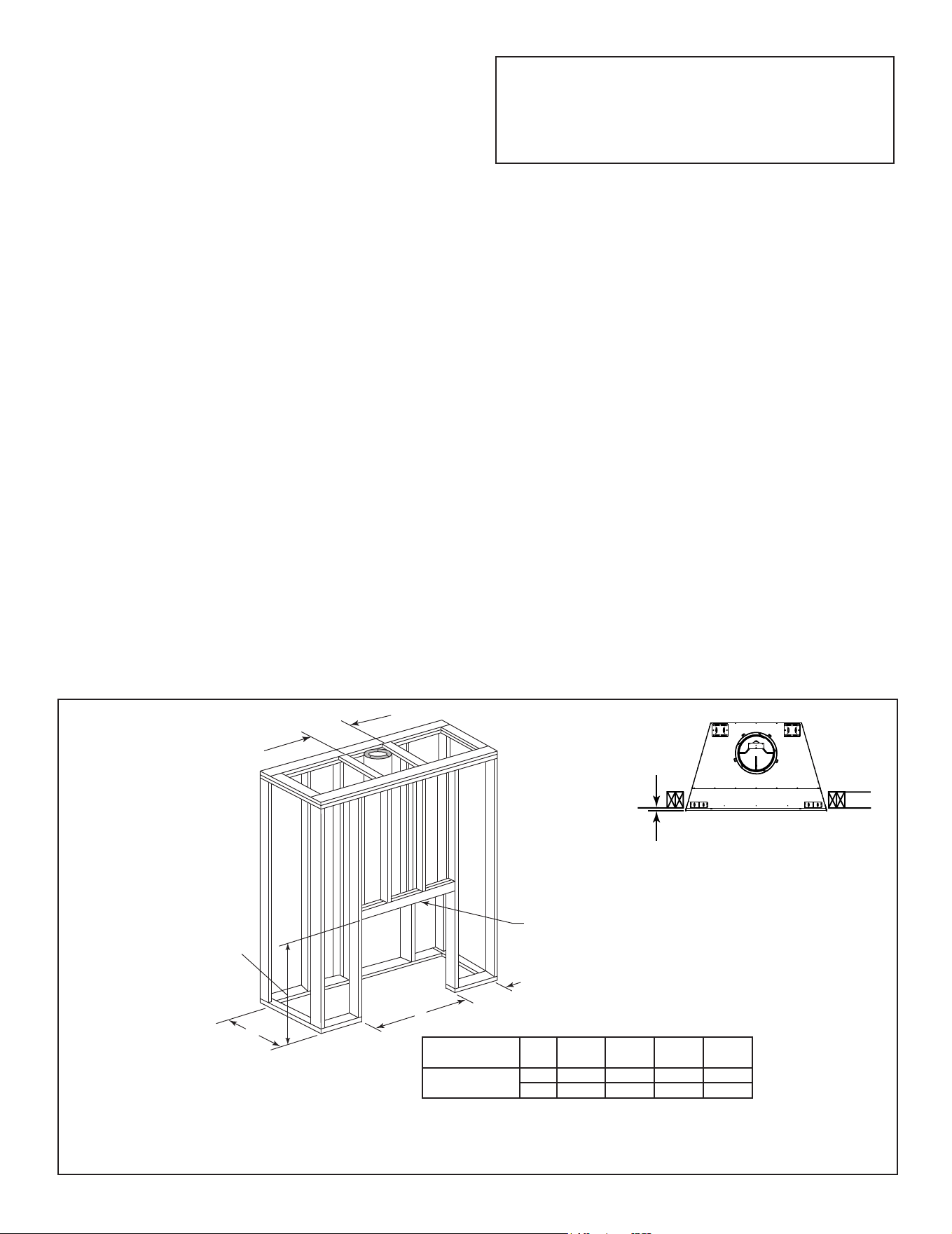

E. Frame the Fireplace 13
F. Secure and Level the Fireplace 13
G. Protective Metal Hearth Strips 15

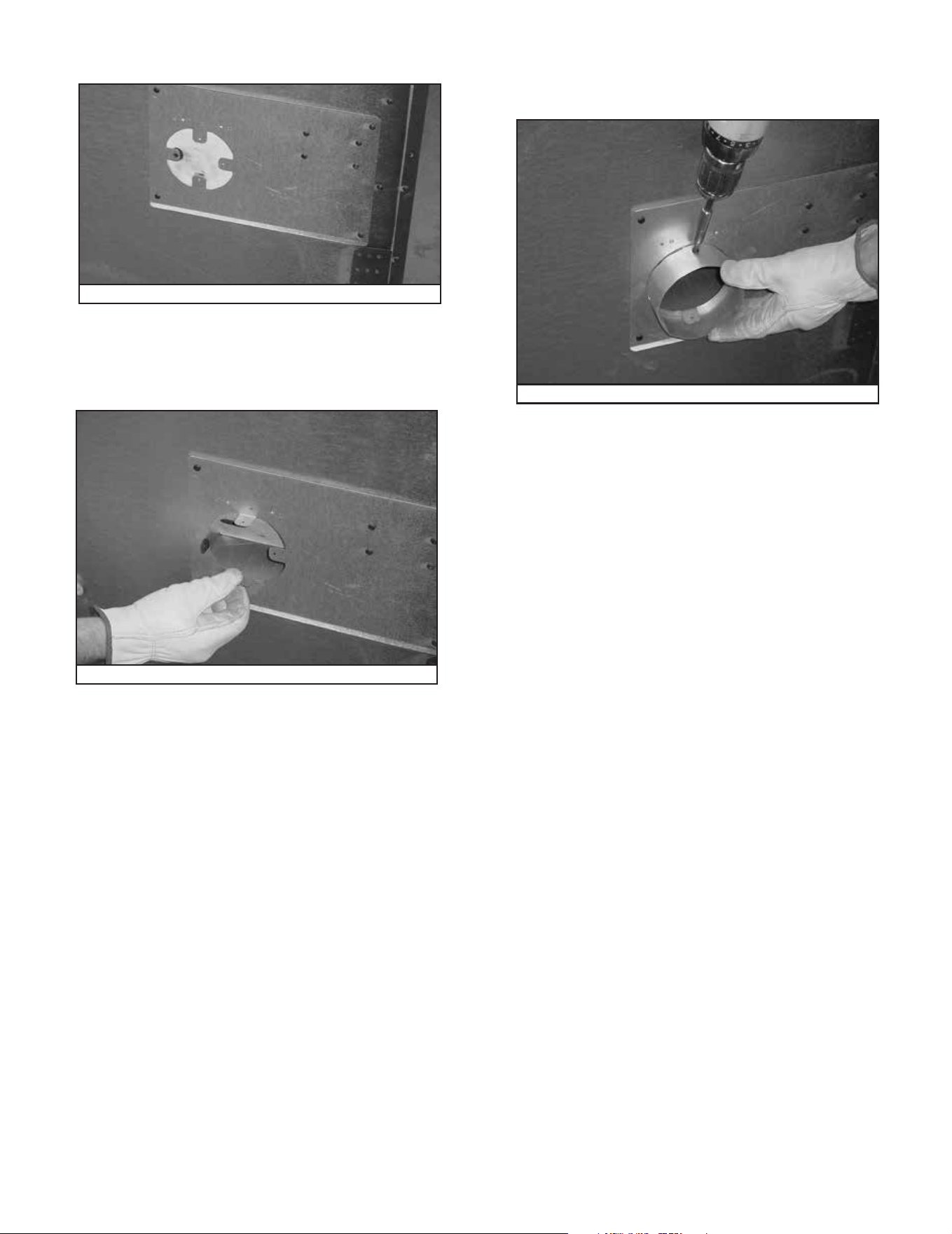

H. Outside Air Kit 16
4 Chimney and Termination Requirements
A. Chimney Requirements 18
B. Osets/Returns 19
C. Termination Requirements 20
5 Chimney Installation

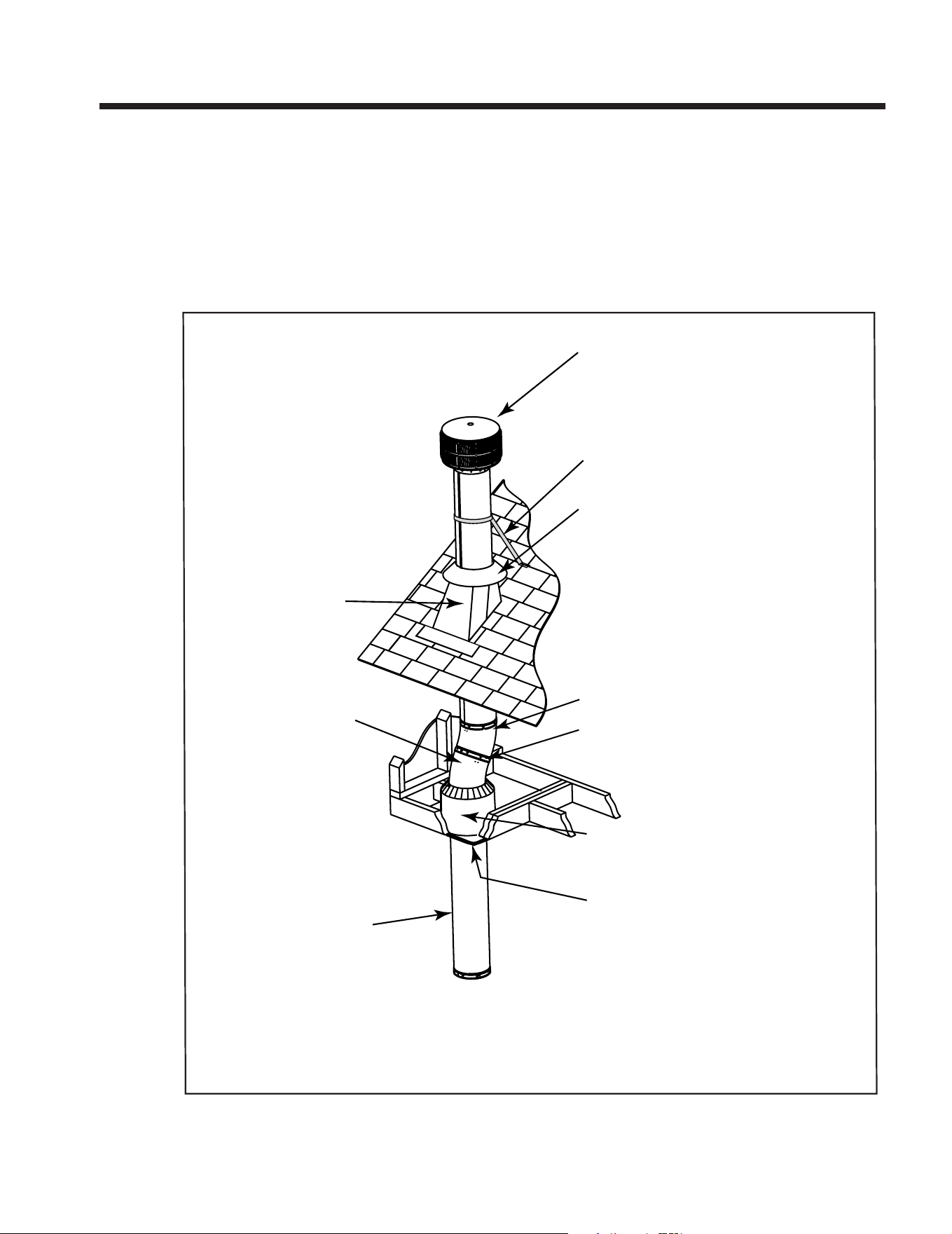

A. Typical Chimney System 21
B. Assemble Chimney Sections 22
C. Install Chimney Air Kit (optional) 22
D. Secure Oset/Return 23
E. Install Ceiling Firestops 23

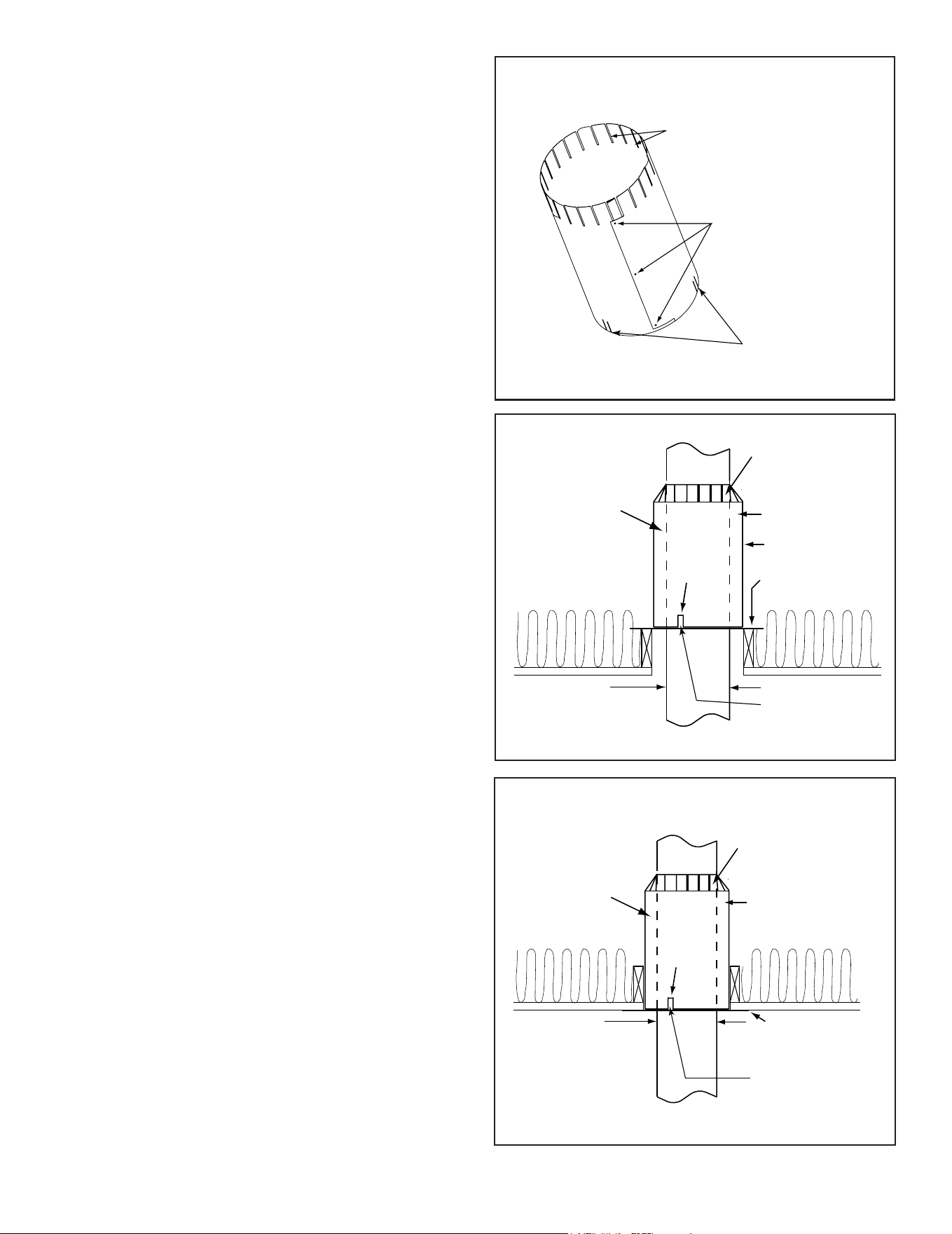

F. Install Attic Insulation Shield 24
G. Roof Penetration 25
H. Install Chase/Chase Top 25
I. Termination Cap Requirements 26

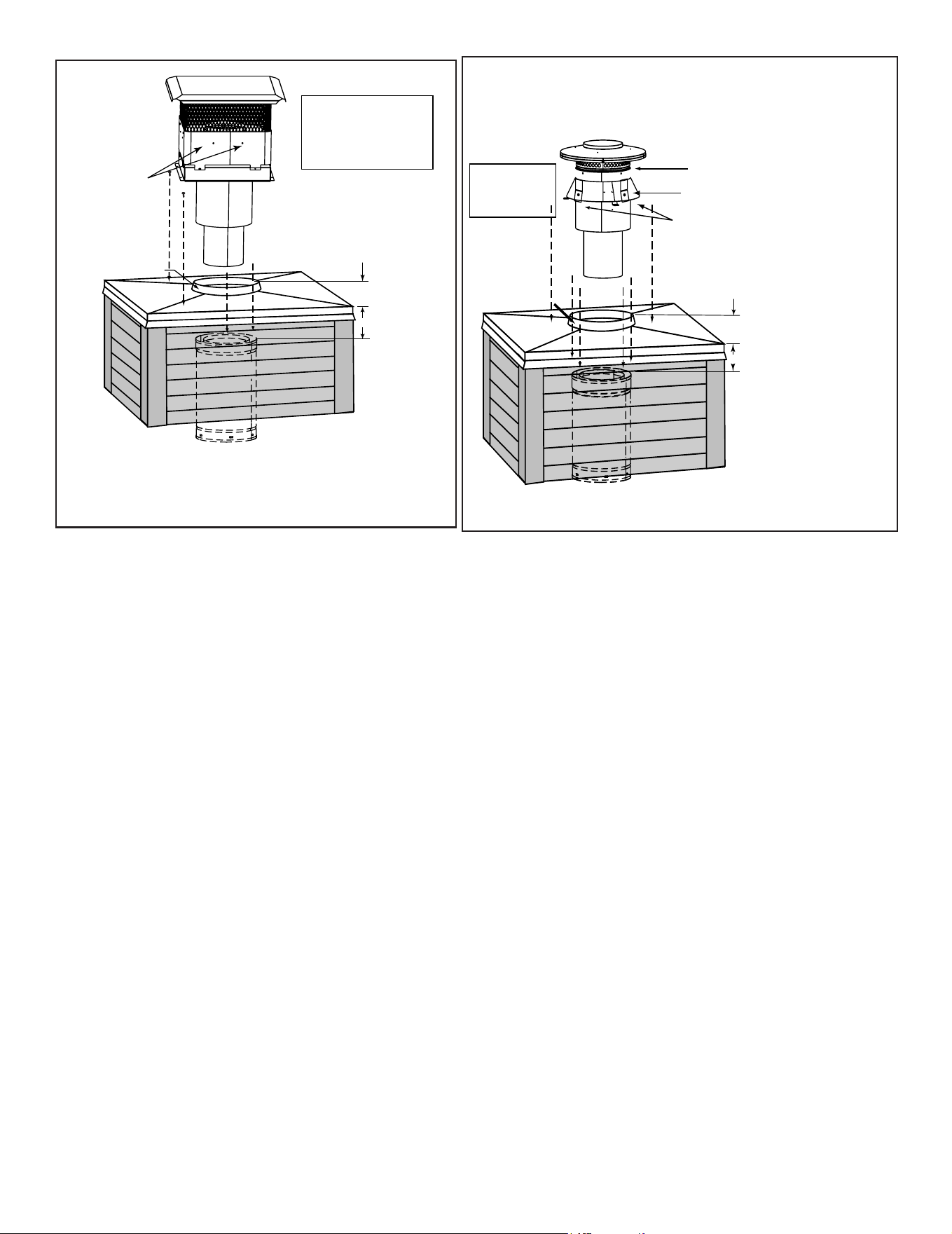

J. Install Termination Cap 26
6 Shrouds
A. Radiation Shield 28
B. Field Constructed Shrouds 28

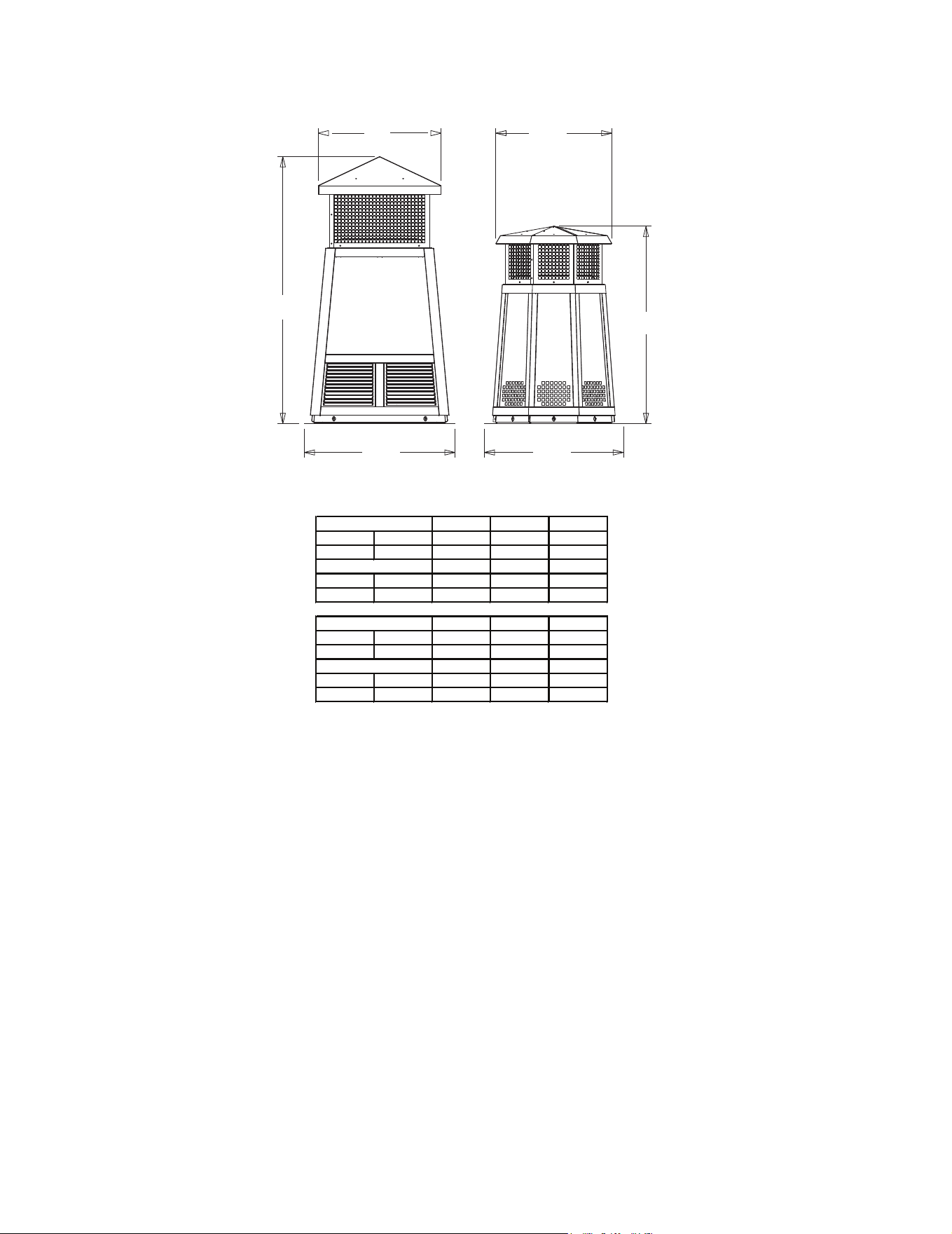

1. Open Top Shroud 28
2. Mailbox Style Shroud 29
3. Roofed Style Shroud 29
7 Finishing
A. Finishing Material 30

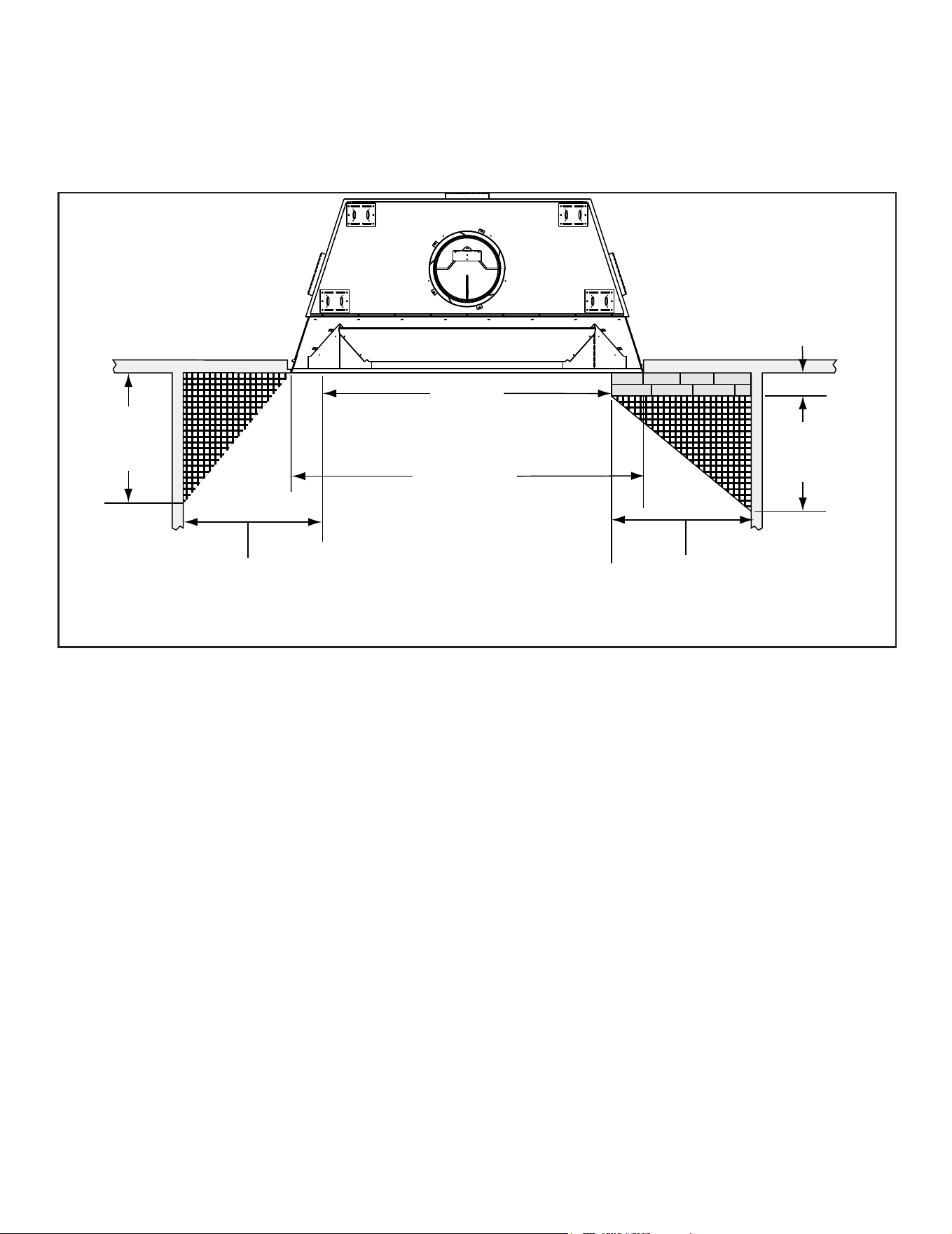

B. Hearth Extension, Building and Finishing 31
1. Fireplace Installed Flush on the Floor
and Hearth Extension Raised to
Bottom of Firebox Opening 32
2. Raised Hearth Extension and Raised Fireplace 33
3. Fireplace Opening and Hearth Extension
Flush with the Floor 34
C. Non-Combustible Sealant Material 35
D. Mantel and Wall Projections 36
E. Sidewalls/Surrounds 37
8 Fireplace Setup
A. Install Refractory 38
B. Gas Log/Lighter Provision 39
C. Wood Burning Inserts 40
9 Reference Materials

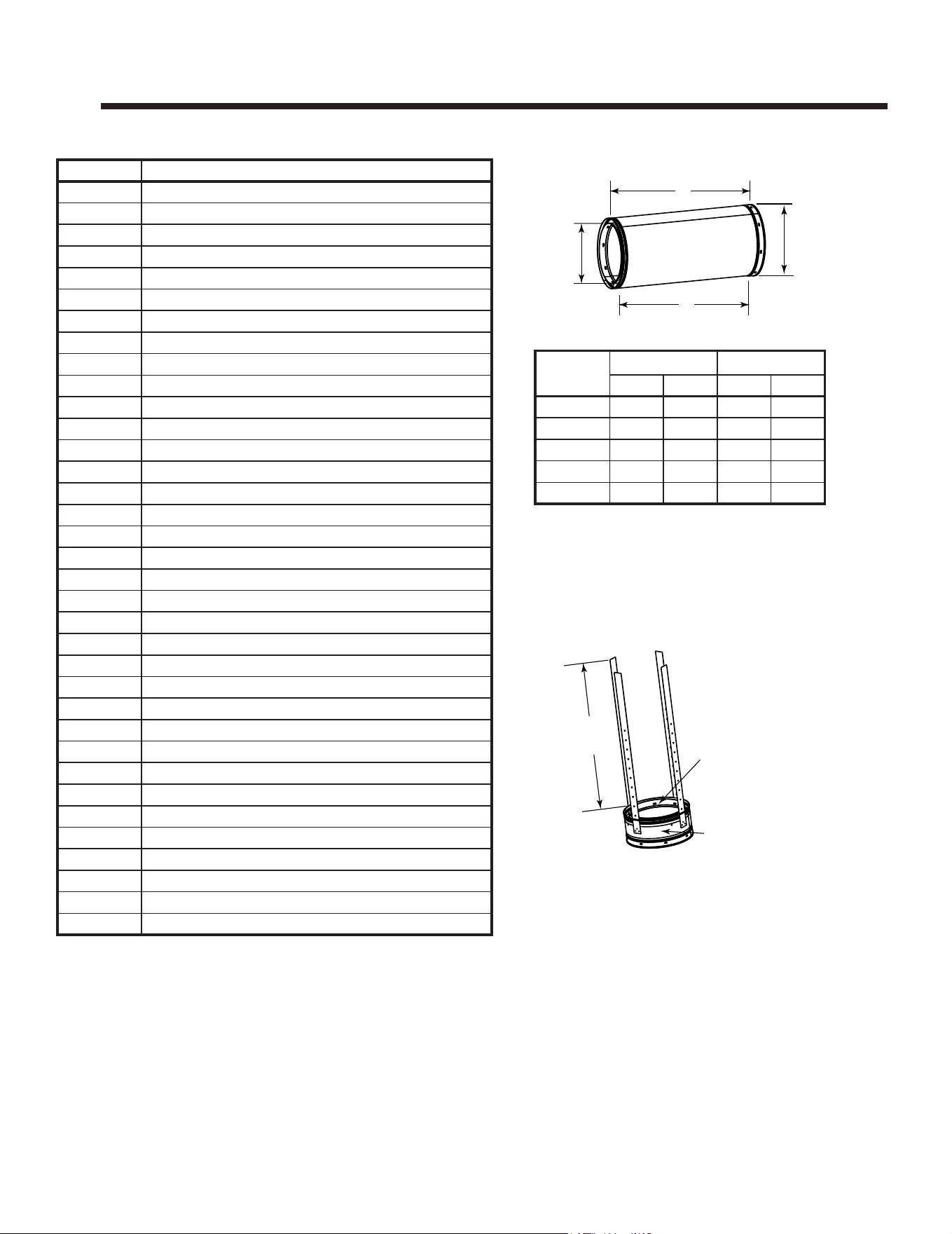

A. Chimney Components 41
B. Optional Components 44
3
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Customer:
Lot/Address
Model (circle one): ODCTGWD-50
YES IF NO, WHY?
Protective hearth strips installed per manual requirements. (Pg. 14)
Outside air kit installed. (Pg. 15)
Attic insulation shield installed.
Shroud is installed properly per instructions.
Hearth extension installed per manual requirements.
Comments communicated to party responsible
4169-982 • Rev A • 8-15-25
__________________________ by ______________________on _________
(Builder/Gen. Contractor) (Installer) (Date)
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
WARNING! Risk of Fire or Explosion! Failure to install fireplace acording to these instructions can lead to a fire or
explosion.
Manual bag and all of its contents are removed from the fireplace and given to the party
responsible for use and operation.
Verified that the chase is insulated and sealed. (Pg. 11)
Verified clearances to combustibles. (Pg. 10)
Fireplace is leveled and secured. (Pg. 14)
Hearth extension size/height decided. (Pg. 29)
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney air kit installed.
Firestops installed.
• That this checklist remain visible at all times on the fireplace until the installation is complete.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation
manual.
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Roof flashing installed.
Termination installed.
• Photographing the installation and copying this checklist for your file.
Combustible materials not installed in non-combustible areas.
Hearth & Home Technologies recommends the following:
Fireplace Install
Chimney Section 4 & 5 (Pg. 16)
Shrouds
Section 6 (Pg. 26)
Finishing
Section 7 (Pg. 28)
Fireplace Setup
Section 8 (Pg. 35)
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
All packaging and protective materials removed.
Optional doors properly installed.
Molded brick panels installed correctly.
Grate is properly installed.
Firescreen installed properly.
4
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
WARNING! Risk of Fire! Hearth & Home Technologies
disclaims any responsibility for, and the warranty and
agency listing will be voided by the following actions.
DO NOT:
• installoroperatedamagedreplace
• modifyreplace
• install other than as instructed by Hearth & Home
Technologies
• operate the fireplace without fully assembling all
components
• overre
• install any component not approved by Hearth & Home
Technologies
• install parts or components not Listed or approved
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
installer, service agency or your dealer.
B. Non-Combustible Materials
• Materials which will not ignite and burn, composed of
any combination of the following:
- Steel - Iron
- Brick - Tile
- Concrete - Slate
- Glass - Plasters
• Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace at 750° C
C. Combustible Materials
• Materials made of or surfaced with any of the following
materials:
- Wood - Compressed paper
- Plant bers - Plastic
- Plywood/OSB - Sheet rock (drywall)
• Any material that can ignite and burn; ame proofed or
not, plastered or un-plastered
1 1
Product Specic & Important Safety Information
A. Fireplace Certication
WARNING: This product and the fu-
els used to operate this product (wood
and wood pellets), and the products of
combustion of such fuels, can expose
you to chemicals including carbon black,
which is known to the State of California
to cause cancer and carbon monoxide,
which is known to the State of California to
cause birth defects or other reproductive
harm. For more information go to: www.
P65Warnings.ca.gov.
This replace may be installed in sleeping rooms. This
replace is not approved for manufactured housing. If in-
stalled with a gas log set, provisions for the National Fuel
Gas Code must be met.
This replace has been tested and listed for use with
the optional components specied in this manual. These
optional components may be purchased separately and
installed at a later date. An outside air kit, gas insert, gas
log set or gas log-lighter should be installed at the time of
replace installation.
Heatilator is a registered trademark of Hearth & Home
Technologies.
This replace system has been tested and listed in accor-
dance with UL 127 standards by Underwriters Laborato-
ries Inc. for installation and operation in the United States.
5
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
2 2
Getting Started

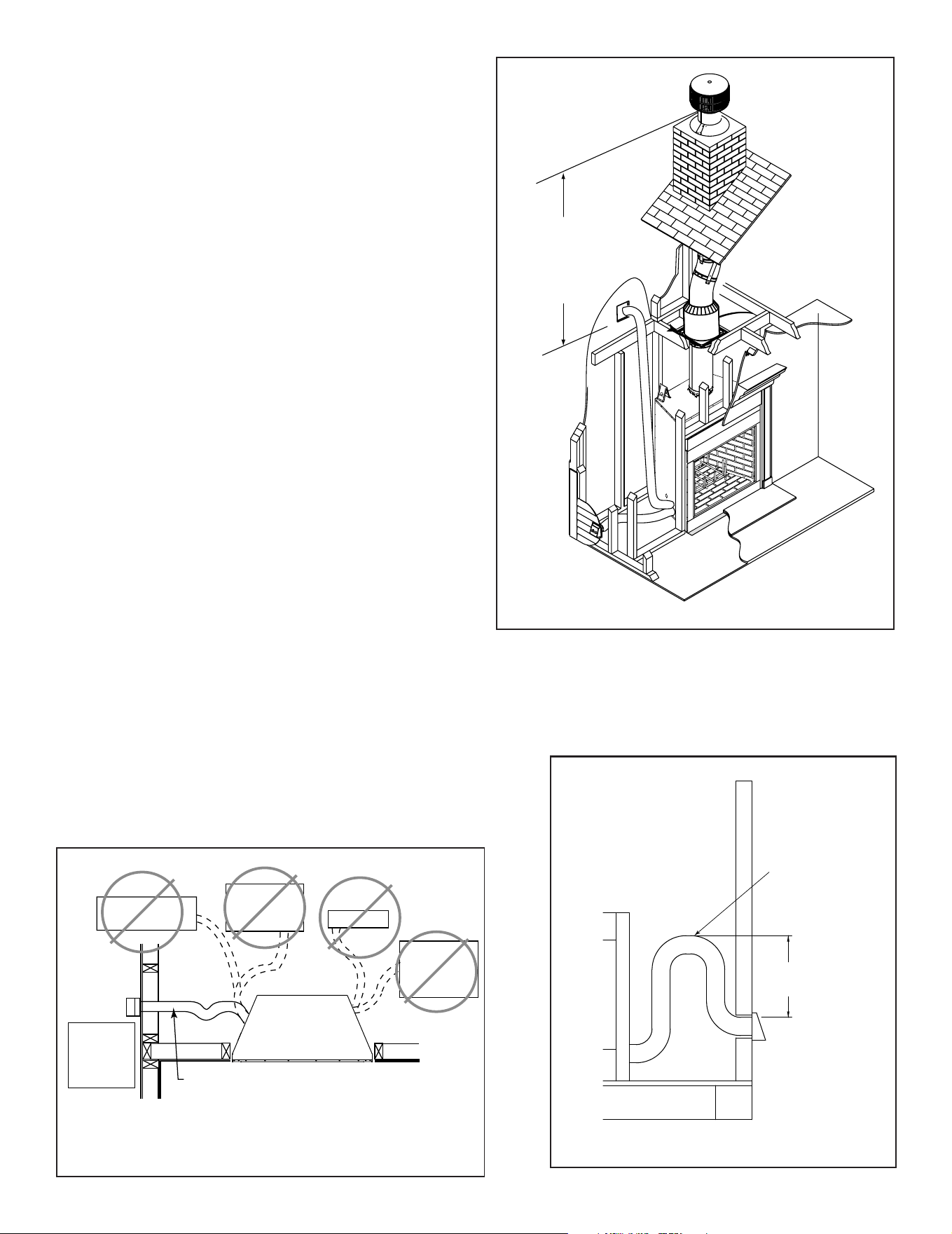

A. Typical Fireplace System

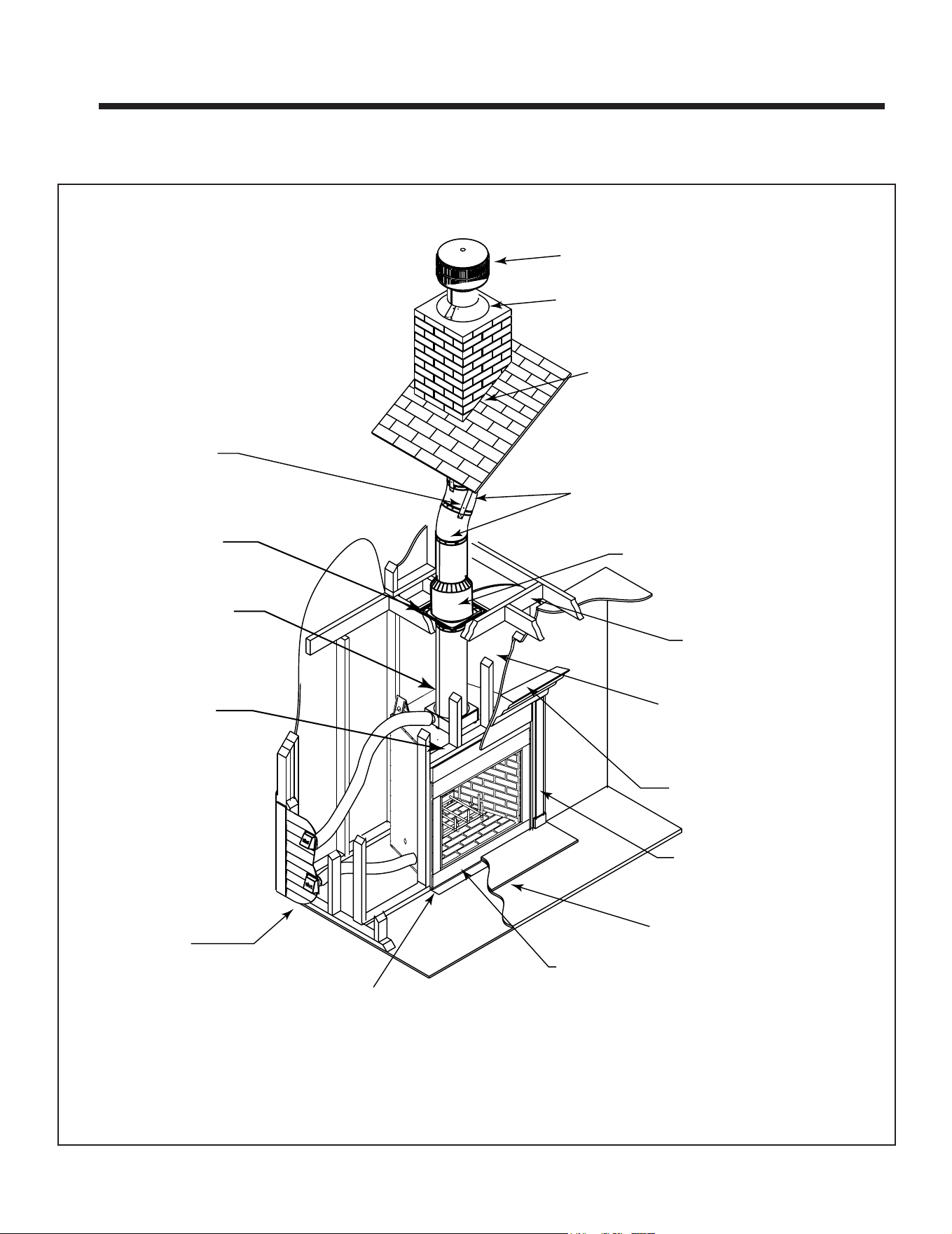

Figure 2.1 Typical Fireplace System
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
))
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Non-combustible
roof flashing maintains
minimum clearance
around chimney
Additional lateral
support for chimney
above roof (or enclosed
in chase) if needed
Ceiling firestop
on floor of attic
Support straps
on rafter support
chimney
Termination cap
Chimney penetrates roof
preferably without affecting
roof rafters
Offset & Return (with hanger straps)
Framing headed off
in ceiling joists
Enclosed space above
and around fireplace
Mantel and surround
Decorative facing
and trim
Hearth extension
Factory-built fireplace
Protective metal
hearth strip(s)
Outside
combustion air
Combustible framing/header
on top of V-shaped standoffs
Chimney system
Attic insulation shield
must be used here to keep
insulation away from chimney
if attic is insulated
Storm Collar
6
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

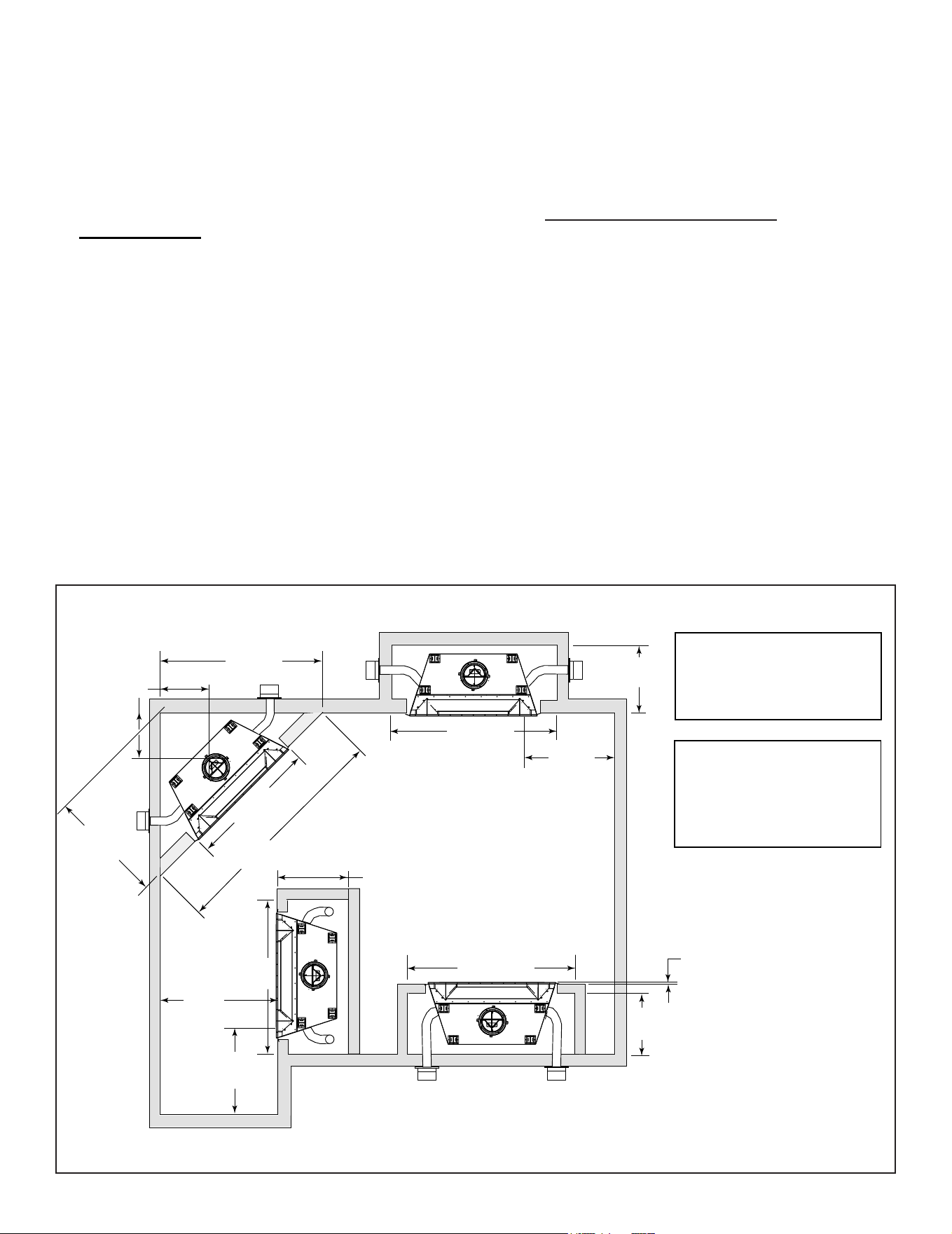

Figure 2.2 Fireplace Locations
B. Design and Installation Considerations
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, re
ocials or authorities having jurisdiction over restrictions,
installation inspection and permits.
• Before installing, determine the following:
- Where the replace is to be installed.
- The vent system conguration to be used.
- Gas supply piping.
- Electrical wiring.
- Framing and nishing details.
- Whether optional accessories - devices such as a
fan, wall switch or remote control - are desired.
1. Selecting Fireplace Locations
This replace may be used as a room divider, installed
along a wall, across a corner or used in an exterior chase.
See Figure 2.2.
Locating the replace in a basement should be avoided.
Locating near frequently opened doors, central heat
outlets or returns, or other locations of considerable air
movement can aect the performance.
Note:
1-1/2 in. (38 mm) min.
distance from sides & back
of fireplace to combustible
materials. 1/2 in. (13 mm)
min. at nailing flanges.
30-1/2 in.
(775 mm)
77-5/8 in.*
(1972 mm)
1/2 in. (13 mm)
all configurations
In an exterior chase
or projecting into a
garage
Across a
corner
Along a wall
30-1/2 in.
(775 mm)
24 in.
(610 mm)
77-5/8 in.
(1972 mm)
As a room
divider
30-1/2 in.
(775 mm)
48 in.
(1219 mm)
77-5/8 in.
(1972 mm)
52-1/2 in.
(1334 mm)
61-5/8 in.
(1565 mm)
104-7/8in.
(2664 mm)
24-3/8 in.
(619 mm)
74-1/4 in.
(1886 mm)
24 in.
(610 mm)
*
8 in. (203 mm) extra space
included (both sides) for outside
air connection. If outside air duct
has no bend, this dimension
may be reduced as long as
minimum clearances are met.
Consideration should be given to these factors before
deciding on a location.
NOTICE:
A minimum 1-1/2 in. air clearance at the back and
a minimum 1-1/2 in. air clearance to the sides of the
replaceassemblymustbemaintained.
Chimney sections at any level require a 2 in.
minimum air space clearance between the framing
and chimney sections.
NOTICE:
• Illustrationsandphotosreecttypicalinstallationsand
are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation/appearance may vary due to individual
design preference.
• Hearth & Home Technologies reserves the right to alter
its products.
NOTICE: In addition to these framing dimensions, also
reference the following section:
• Clearances (Section 3).
7
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
2. Locating Fireplace & Chimney
Location of the replace and chimney will aect perfor-
mance.
• Install within the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
• Installing the replace in a basement is not recommended.
• Penetrate the highest part of the roof. This minimizes
the eects of wind loading.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
• Minimize the use of chimney osets.
• Consider the replace location relative to oor and ceiling
and attic joists.
• Take into consideration the termination requirements in
Sections 4 and 5.
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
Not recommended in basement due
to high negative pressure concerns
that effect draft

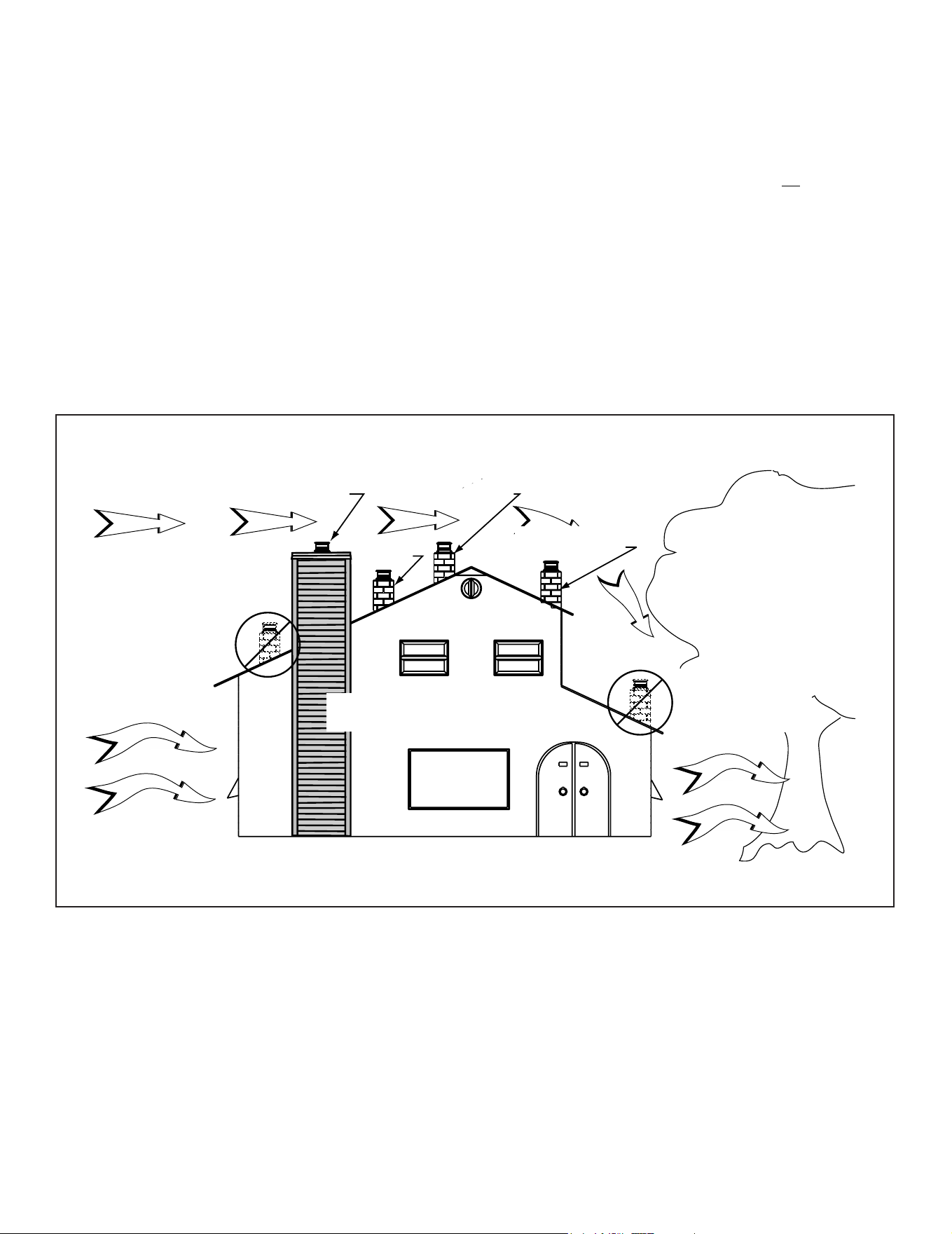

Figure 2.3 Recommended Chimney Locations
• Install the outside air kit with the intake facing prevailing
winds during the heating season.
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment.
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the replace.
• Avoid installing the replace near doors, walkways or
small isolated spaces.
• Recessed lighting should be a “sealed can” design.
• Attic hatches weather stripped or sealed.
• Attic mounted duct work and air handler joints and seams
taped or sealed.
8
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
C. Tools and Supplies Needed
Before beginning the installation be sure the following
tools and building supplies are available:
Reciprocating saw Framing material
Pliers Non-combustible sealant
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
1/2-3/4 in. length, #6 or #8 self-drilling screws
Misc. screws and nails
D. Inspect Fireplace and Components
WARNING! Risk of Fire and/or Explosion! Damaged
parts could impair safe operation. DO NOT install dam-
aged,incompleteorsubstitutecomponents.Keepre-
place dry.
• Remove replace and components from packaging and
inspect for damage.
• Vent system components and doors are shipped in
separate packages.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
E. Fireplace System Requirements
Fireplace system requirements consist of the following:
• Fireplace
- Refractory (required, sold separately)
WDR3350-T-NG Refr. Trad. Natural Gray
WDR3350-T-BK Refr. Trad. Black Onyx
WDR3350-T-BR Refr. Trad. Masonry Brown
WDR3350-H-NG Refr. Herr. Natural Gray
WDR3350-H-BK Refr. Herr. Black Onyx
WDR3350-H-BR Refr. Herr. Masonry Brown
- Firescreen (included with replace)
- Hearth Extension (required, sold separately)
- Grate (included with replace)
• Outside Air System
- Air Inlet Hood (included with replace)
- Flex (required, sold separately
• Chimney System
- Attic insulation shield (included with replace)
- Chimney termination cap (required, sold separately)
• Non-combustible nish material
• Drainage Pan (required on wood surfaces, sold
separately)
9
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
3 3
Framing and Clearances
A. Appliance Dimensions/Weight
Figure 3.1 Appliance Dimensions
60 5/8 in.
(1540 mm)
20 3/4 in.
(527 mm)
11 5/8 in.
(295 mm)
29 1/2 in.
(749 mm)
14 3/4 in.
[375 mm]
Gas
Knockout
9 7/8 in.
[251 mm]
19 in.
[483 mm]
10 1/2 in.
[267 mm]
Outside
Air
14 3/4 in.
[375 mm]
Gas
Knockout
9 7/8 in.
[251 mm]
19 in.
[483 mm]
10 1/2 in.
[267mm]
Outside
Air
50 in.
[1270 mm]
33 in.
[838 mm]
68 1/8 in.
[1730 mm]
(effective height)
8 3/4 in.
[222 mm]
70 1/2 in.
[1791 mm]
60 1/4 in.
[1530 mm]
54 3/8 in.
[1381 mm]
41 5/8 in.
(1057 mm)
Model Pounds
CTG-50 443
Appliance Weight Table
10
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
B. Clearances
WARNING! Risk of Fire!
You must comply with all minimum air space clearances
tocombustiblesasspeciedinFigure3.2.DO NOT pack
required air spaces with insulation or other materials.
Framing or nishing material used on the front of, or in
frontof,thereplacecloserthantheminimumslistedmust
be constucted entirely of non-combustible materials (i.e.,
steel studs, concrete board, etc.). Failure to comply may
causere.

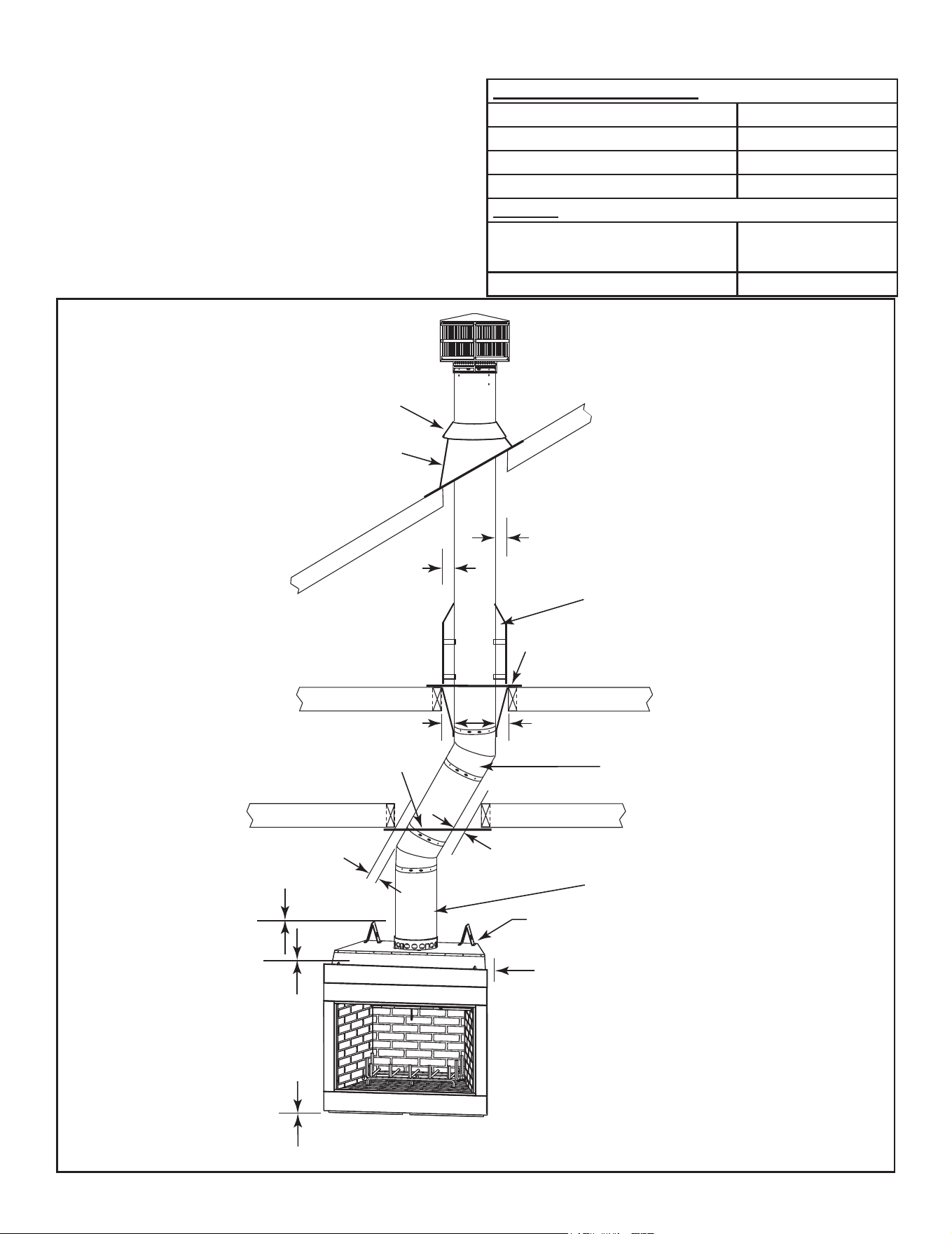

Figure 3.3 Clearances to Combustible Materials
Minimum Clearances to Combustibles
WITHIN ENCLOSURE AREA
Fireplace to backwall 1-1/2 in. (38 mm)
Fireplace to sidewall 1-1/2 in. (38 mm)
Top standos to header 0 in. (0 mm)
Door opening to sidewall 24 in. (610 mm)

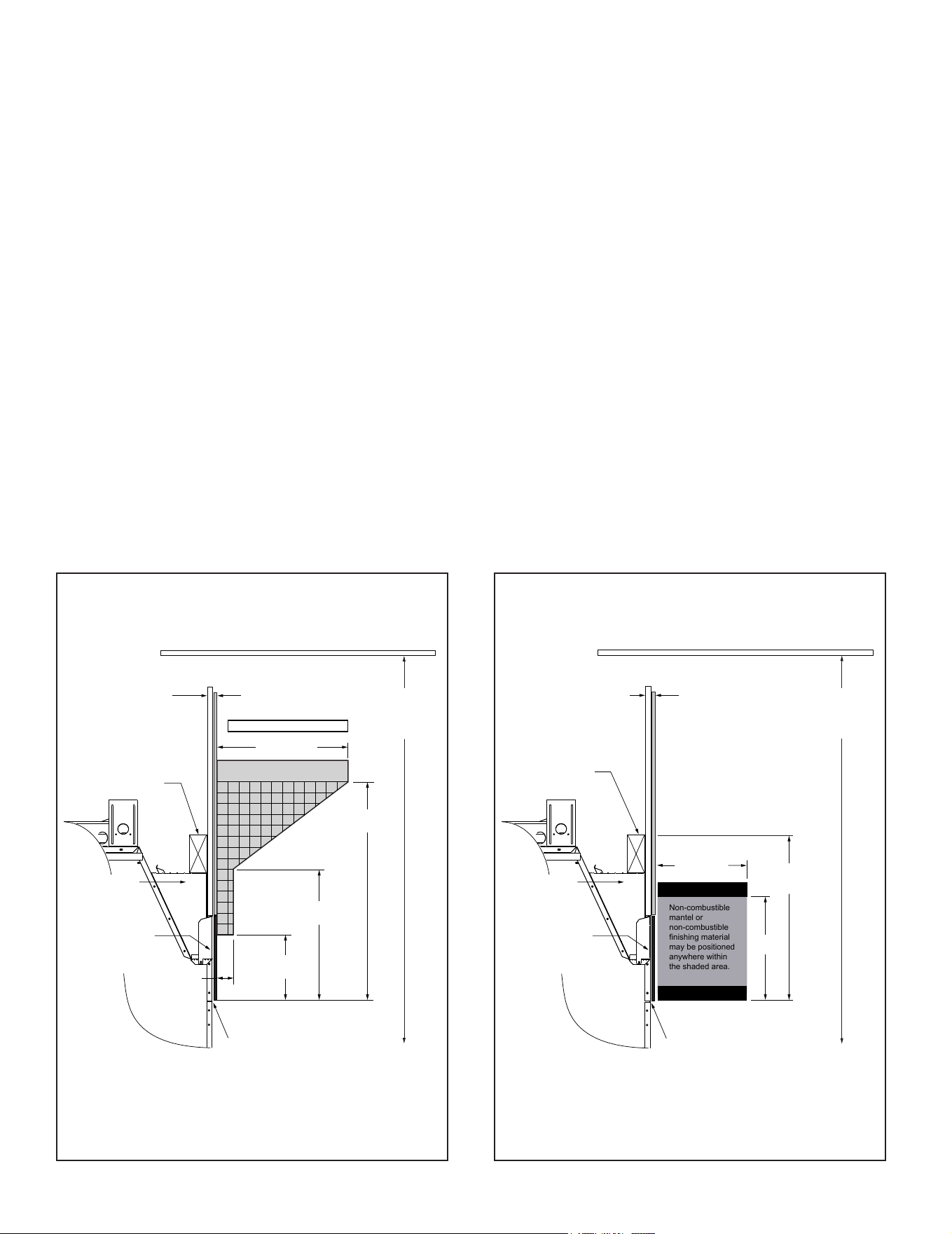

MANTEL
Mantel minimum height 20 in. (508 mm)
above opening
Maximum mantel depth 12 in. (305 mm)
0 in.
from floor
Attic
Insulation
Shield
Ceiling Firestop
(ceiling)
(roof)
(attic)
(ceiling)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
2 in. min.
(51 mm)
Must have 2 in. (51 mm)
minimum clearance
to header
Ceiling Firestop
Offset/Return with
hanger straps
Storm Collar
Roof Flashing
0 in. to level
of standoffs
1-1/2 in. (38mm) from
side of appliance
(except at nailing flanges
where it is 1/2 in. (13 mm)
1-1/2 in. (38mm) from
back of appliance
11
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
C. Construct the Chase
A chase is a vertical boxlike structure built to enclose the
replace and/or its vent system. Vertical chimneys that
run on the outside of a building must be installed inside a
chase.
In cold climates, Hearth & Home Technologies recom-
mends that the chase be well insulated using batt type in-
sulation between the joists.
Construction of the chase may vary with the type of build-
ing. These instructions are not substitutes for the require-
ments of local building codes. Local building codes MUST
be checked.
Chases should be constructed in the manner of all outside
walls of the home to prevent cold air drafting problems. The
chase should not break the outside building envelope in
any manner. All outer walls need to be insulated.
Building codes require false ceiling and ceiling restops/
attic shields at each oor of the chase or every 10 ft (3048
mm) of clear space to control spread of re.
Walls, ceiling, base plate and cantilever oor at the rst
level of the chase should be insulated (see Figure 3.4.)
Vapor and air inltration barriers should be installed in the
chase as per regional codes for the rest of the home. Ad-
ditionally, Hearth & Home Technologies recommends that
the inside surfaces be drywalled and taped (or the use of
an equivalent method) for maximum air tightness.
Holes and other openings should be caulked with high tem-
perature caulk or stued with unfaced ber glass insulation.
Ceiling
Firestop
Metal Chase Top
Round Termination Cap
False Ceiling
Insulation in the
outside walls
of the chase
Attic
Insulation
Shield
Chimney
Ceiling
Firestop
Tabs
False Ceiling
False Ceiling
Insulation
Insulation
Storm Collar

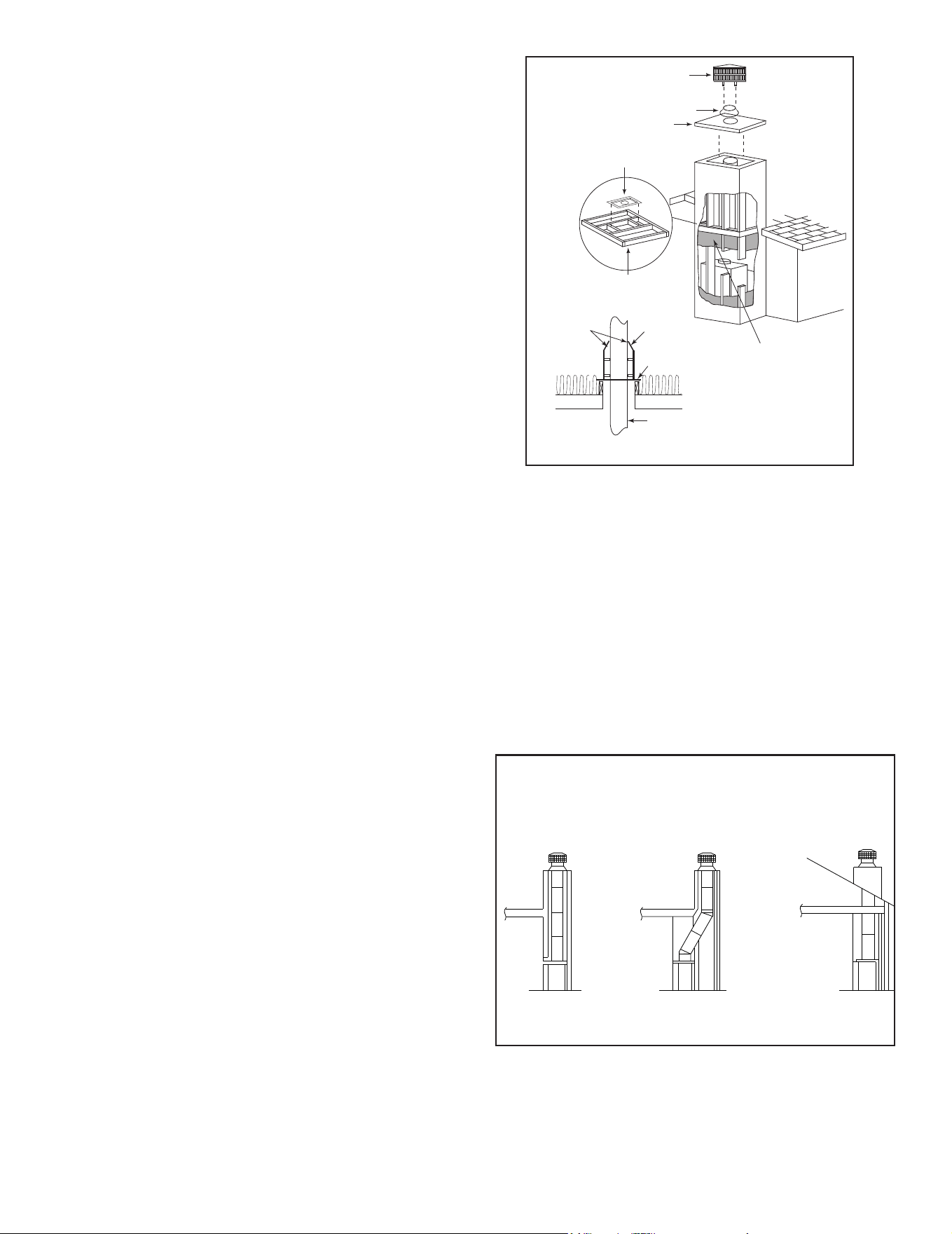

Figure 3.4 Chase Assembly
1 2 3
All outside walls should be insulated.
Figure 3.5 Chase Constructions
1. Fireplace and chimney enclosed in an exterior chase.
2. Chimney oset through exterior wall and enclosed in chase.
3. Chase constructed on roof.
• The chase is constructed using framing materials much
the same as the walls in your home. A variety of siding
materials may be used including brick, stone, veneer
brick, or standard siding materials.
• In constructing the chase, several factors must be
considered:
- Maintain a 2 in. (51 mm) air space around the
chimney.
- The chase top must be constructed of non-
combustible material.
- In cold climates, a restop spacer and attic insulation
shield should be installed in an insulated false ceiling
at the 8 ft. (2438 mm) level above the replace
assembly. This reduces heat loss through the chase.
- In cold climates, the walls of the chase should be
insulated to the level of the false ceiling as shown in
Figure 3.4. This will help reduce heat loss from the
home around the replace.
Three examples of chase applications are shown in Fig-
ure 3.5.
WARNING! You must install false ceilings and ceil-
ing restops at each oor of the chase or every 10 ft
(3.05 m) to control spread of re.
WARNING! Risk of Fire! DO NOT sealareabetweenre
stop opening and chimney pipe except where they enter
the attic or leave the warm air envelope of the home (use
600° F sealant).
WARNING! Risk of Fire! You must maintain a minimum
2 in. (51 mm) air space clearance to insulation and other
materials surrounding the chimney system.
• Insulationandothermaterialsmustbermlysecuredto
prevent accidental contact with chimney system.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
makingcontactwithreplaceorchimney.
• Failure to prevent contact between insulation or other
materials and chimney system may cause overheating
andre.
12
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
D. Unpack the Fireplace
• Remove packaging.
• Remove shipping brackets as shown in Figure 3.6.
Replace the screws removed from the replace.
• Remove replace from pallet.
The replace is attached to pallet with two brackets on
each side and rear of outer shell. See Figure 3.6.
• Remove screws from bracket, pallet and fireplace.
Replace screws removed from replace.
• Brackets can be used to anchor replace in position.

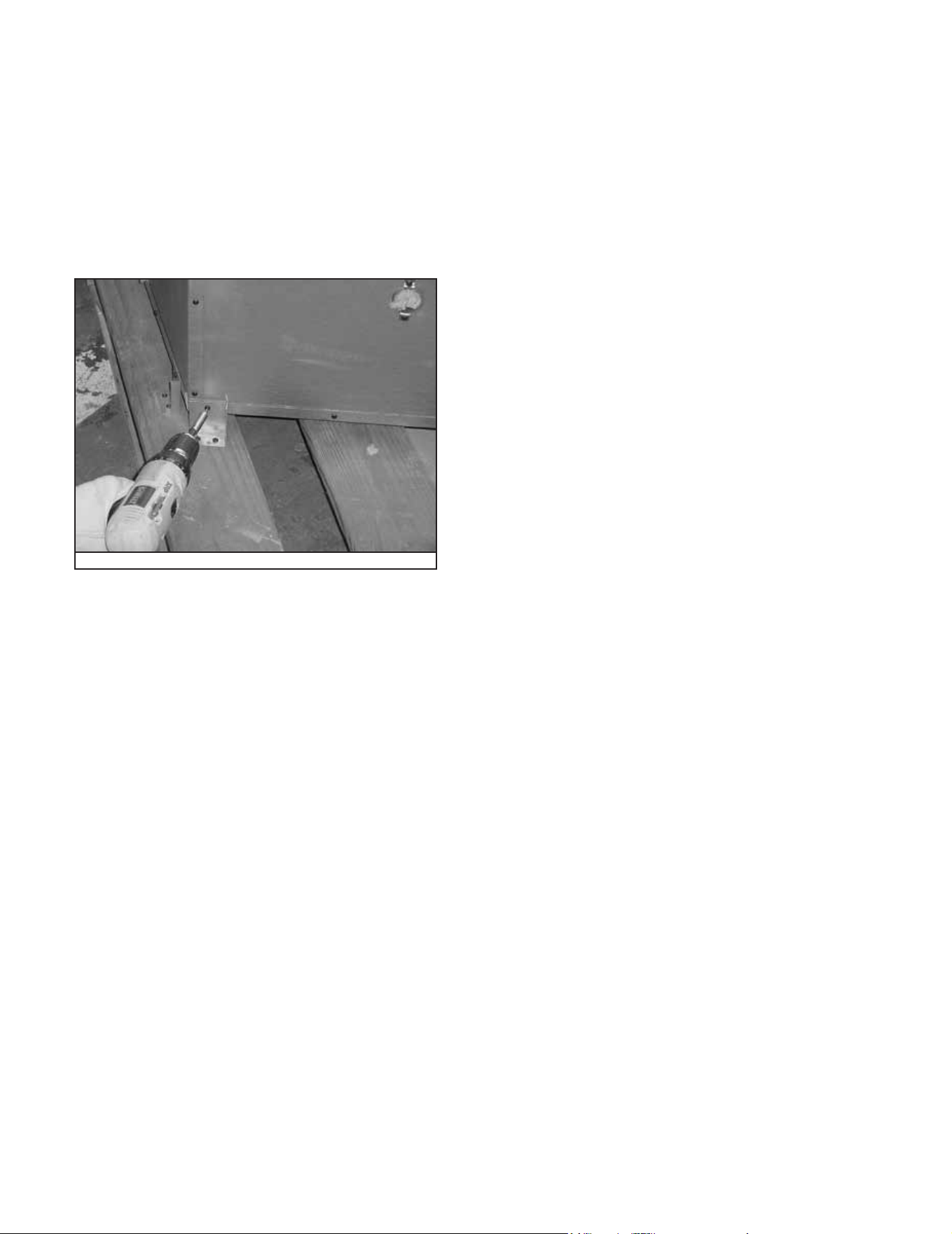

Figure 3.6 Removing Shipping Brackets
13
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
B
A
Header MUST NOT be notched!
D
D = extra space needed for outside air connection.
If outside air duct has no bend, this dimension may be
reduced as long as minimum clearances are met.
Header will sit on
top of front standoffs
after fireplace is
installed.
17 in (432 mm)
framing
* If interior of chase will be drywalled, add the thickness to this
measurement.
** Rough opening dimension to be able to get fireplace installed.
C
Model A B* C** D
in. 61-5/8 30-1/2 70 8
ODCTGWD-50
mm 1565 775 1778 203
E. Frame the Fireplace
NOTICE: Hearth extension design must be determined
before installation of replace.
If the replace is placed on the oor the maximum height
of a nished raised hearth is 8-3/4”, if you want a higher
raised hearth the replace must be placed on a platform.
WARNING! Risk of Fire! You must comply with all
minimum air space clearances to combustibles. DO NOT
pack required air spaces with insulation or other materi-
als.
WARNING! Risk of Fire! Comply with all minimum clear-
ancesspecied.
• A minimum 1-1/2 in. (38 mm) air clearance must be
maintained at the back and 1-1/2 in. (38 mm) to the
sidesofthereplaceassembly.
• Chimney sections at any level require a 2 in. (51 mm)
minimum air space clearance between the framing and
chimney section.
Figure 3.11 shows a typical framing (using 2 x 4 lumber)
of the replace, assuming combustible materials are
used. All required clearances to combustibles around the
replace must be adhered to. See Figure 3.2. Any framing
across the top of the replace must be above the level of
the top standos.
The
nished cavity depth must be no less than 30-1/2 in.
(775 mm) from the nished backwall to the outside of front
wall framing.
DO NOT install header until the replace is in position.
CAUTION! Risk of Cuts/Abrasions. Wear protective gloves
and safety glasses during installation. Sheet metal edges
are sharp.
WARNING! Risk of Fire! Prevent contact with sagging,
loose insulation.
• DO NOT install against vapor barriers or exposed
insulation.
• Secure insulation and vapor barriers.
• Provide minimum air space clearances at the sides and
backofthereplaceassembly.
F. Secure and Level the Fireplace
This replace may be placed on either a combustible
or noncombustible continuous at surface. Follow the
instructions for framing in Section 3. Slide the replace
into position. Be sure to provide the minimum 1-1/2 in.
air clearance at the sides and 1-1/2 in. at the back of the
replace.
The replace should be positioned so the face of the non-
combustible material on the replace will be ush with the
face of the drywall on the walls.
Level the replace and shim as necessary.
Figure 3.11 Framing the Fireplace
1/2 in.
(13 mm)
Fireplace must be set out
1/2 in. (13 mm) in front of
the face of the framing
material.
NOTE: Before framing up the chase, consider where
and how the chimney will run. If there are obstacles
that might be in the way, it may be necessary to make
the chase larger than shown to allow for osets to be

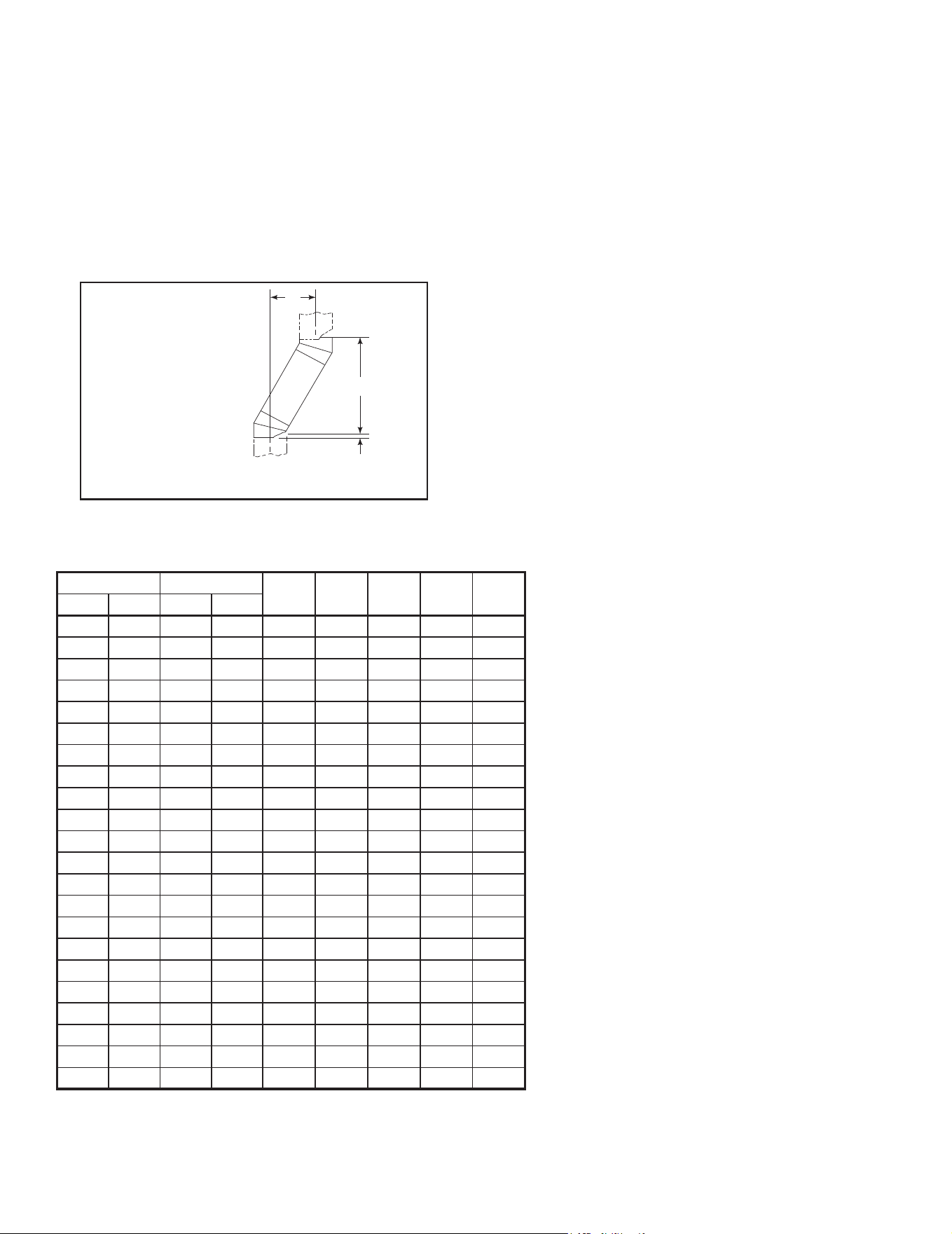

used. Refer to oset chart on page 17 if needed.
14
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Figure 3.15 Freestanding Fireplace Location
FREESTANDING
INSTALLATION
(Combustible Structure)
(Enclosed Fireplace)
10 ft Min.
From Termination
Note:
• Illustrations and photos reect typical installations
and are FOR DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation/appearance may vary due to
individual design preference.
• Hearth & Home Technologies reserves the right to
alter its products.
• Freestanding Installations (see Figure 3.14 and 3.15)
When installing this replace as a freestanding replace
in your yard, it must be enclosed to prevent impact
damage to the fireplace. Freestanding applications
allow for a reduction in the minimum vent run. Non-
combustible framing and an extended smoke shield are
required. See Table 3.1 and Figure 3.14.
• Porch and Patio Installations
The replace will not perform as an exterior wall. Hearth
& Home Technologies recommends that the replace
chase be constructed outside the structure’s weather
envelope. Where the platform meets the wall, use
a ashing detail similar to that required for attached
decks. Chase platforms, including heaths should slope
away from the structure at 1/8 in. to 1/4 in. per foot. The
replace can be shimmed level.
When Installed on Surfaces Where Water May Collect
or Cause Damage:
Hearth & Home Technologies recommends that a
drainage pan be placed under the unit (sold separately).
B
A
Header MUST NOT be notched!
D
17 in (432 mm)
framing
E
Model A B* C** D E
in. 61-5/8 30-1/2 70 8 77-5/8
ODCTGWD-50
mm 1565 775 1778 203 1972
C
D = extra space needed for outside air connection.
If outside air duct has no bend, this dimension may be
reduced as long as minimum clearances are met.
E = Minimum width for non-combustible enclosure.
Minimum height is 70 inches. Framing outside
minimum dimensions can be combustible material.
Header will sit on
top of front standoffs
after fireplace is
installed.
* If interior of chase will be drywalled, add the thickness to this
measurement.
** Rough opening dimension to be able to get fireplace installed.
Freestanding structure less than 18 ft.
must be made of out of non-combustible
materials.

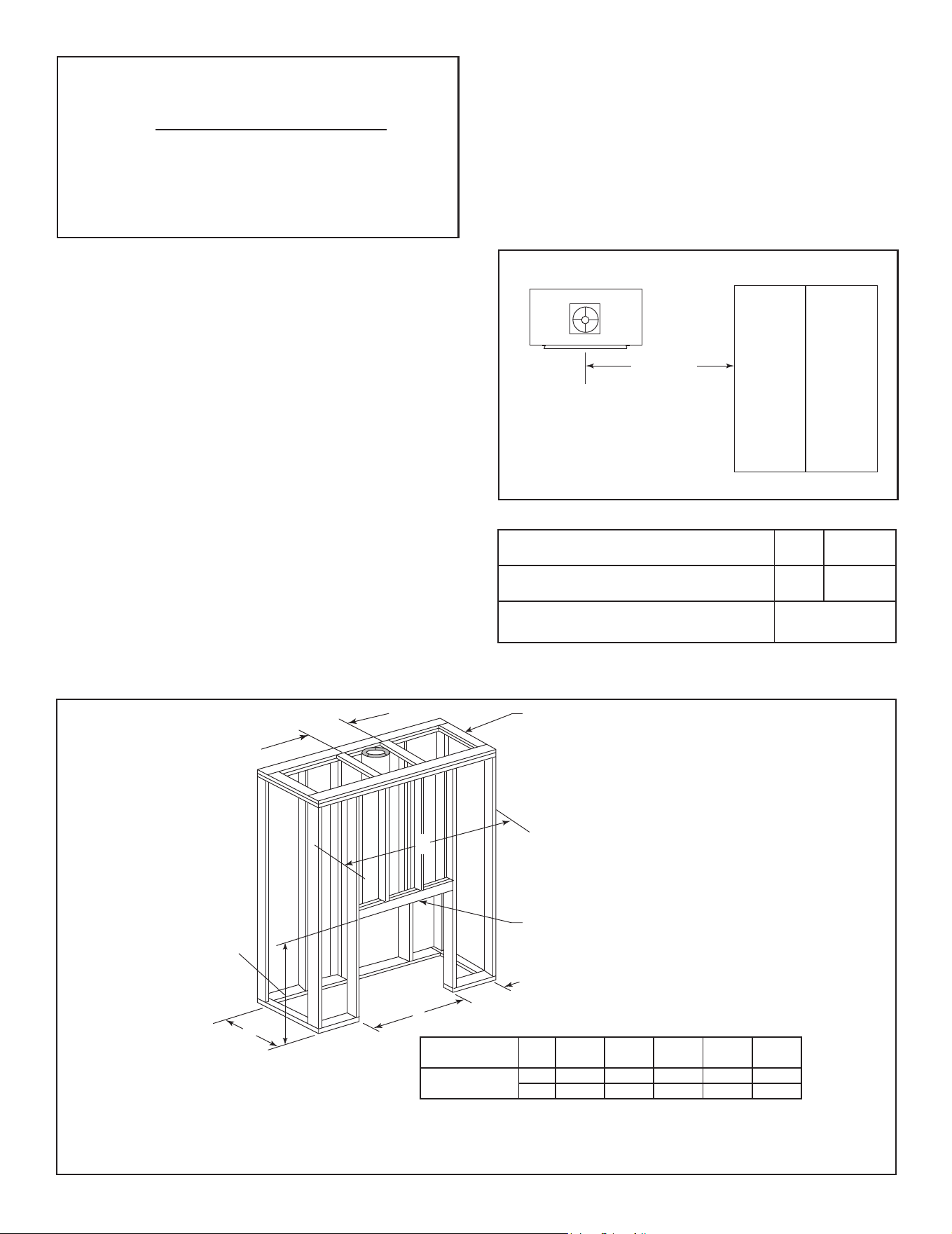

Figure 3.14 Freestanding Framing
Non-combustible enclosure minimum straight
height
10 ft 3.05 m
Non-combustible enclosure minimum straight
heightwithsingleoset/return
10 ft. 3.05 m
If vent run is less than 18 ft. an extended smoke
shield needs purchased and used.
ODCTGWD-FSK50
Table 3.1 Reduced Chimney Requirements
This can be constructed of metal, adhesive polymer
membrane (such as ice and water shield) or other
suitable materials. A means of drainage out of the pan
such as tubes or weep holes should be provided. A slope
of 1/8 in. to 1/4 in. per foot towards the drain port is
suggested. The replace can be shimmed level. Hearths
should slope away from the front of the replace and
chase at 1/8 in. to 1/4 in. per foot. Spark strips must be
used on top of any combustible hearth materials used
for moisture management.
15
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Protective metal strips are placed 2 in. (51 mm) under the
front of the fireplace and must extend beyond the front
and sides of fireplace opening by 2 in. (51 mm).
1 in. (25 mm)
overlap
Raised Platform
Floor
2 in.
(51 mm)
1 in. (25 mm) min.
overlap
2 in.
(51 mm)
Top piece must overlap
bottom piece

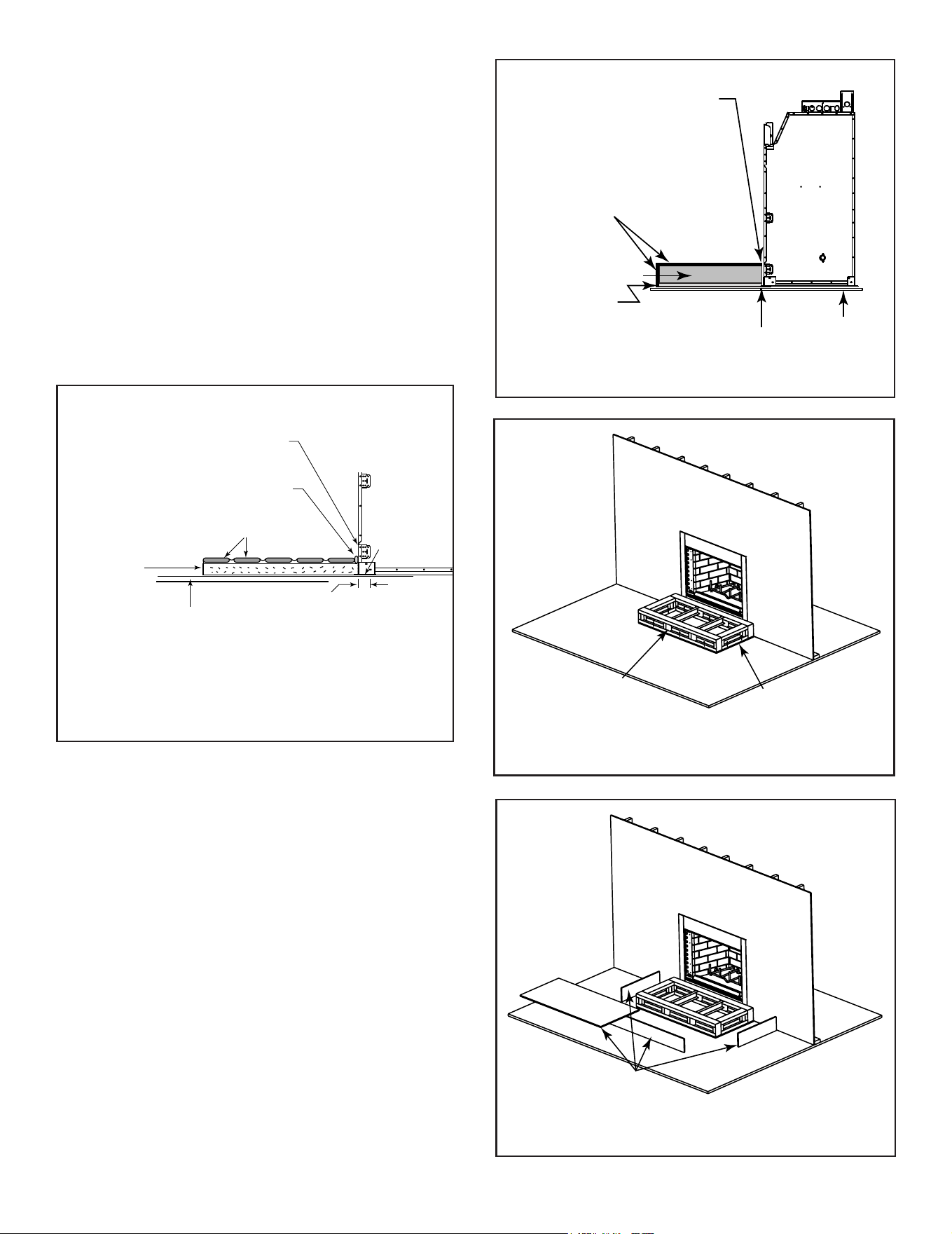

Figure 3.13 Protect the Front of an Elevated Platform
G. Protective Metal Hearth Strips

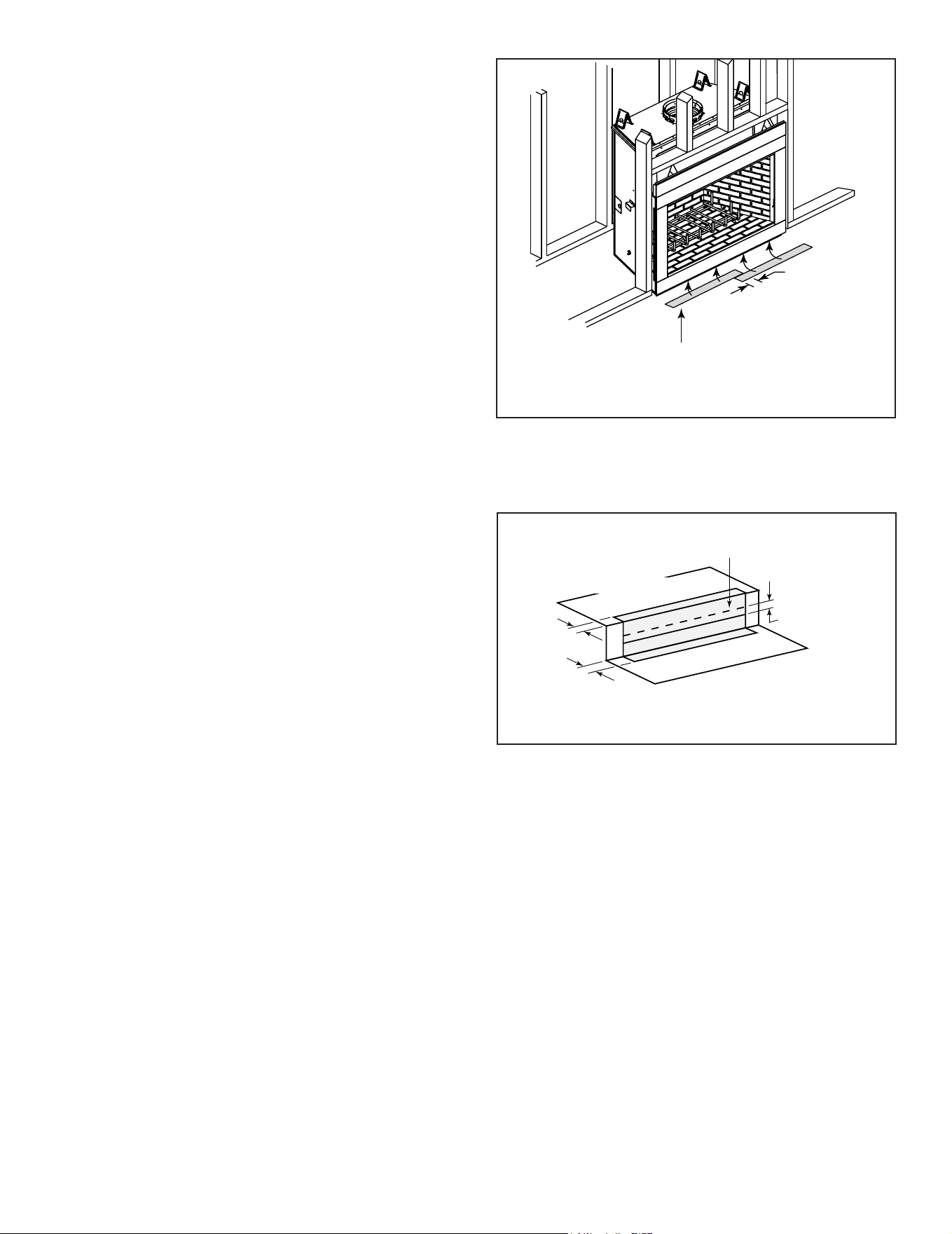

Figure 3.12 Position the Protective Metal Hearth Strips
• Locate the three protective metal hearth strips measuring
approximately 26 in. x 4 in. (660 mm x 102 mm) included
with this replace.
• Slide each metal strip 2 in. (51 mm) under front edge of
replace.
• Overlap strips in the middle of replace opening by 1 in.
(25 mm) minimum.
• Metal strips must extend beyond the front and sides
of the replace opening by at least 2 in. (51 mm),
Figure 3.12).
• Protect the front of a platform elevated above the hearth
extension with metal strips (not included with replace)
per Figure 3.13. See Section 7 for hearth extension
instructions.
WARNING! Risk of Fire! Protective metal hearth
strips MUST be installed on combustible surfaces. DO
NOT cover metal strips with combustible materials.
Sparksorembersmayigniteooring.
WARNING! Risk of re! High temperatures, sparks,
embers or other burning material falling from the
replacemayigniteooringorconcealedcombustible
surfaces.
• Protective metal hearth strips MUST be installed.
• Hearth extensions MUST be installed exactly as
specied.
16
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
H. Outside Air Kit
Two outside air kits must be used for combustion. Hearth
& Home Technologies recommends you utilize the short-
est duct runs to optimize the performance of the outside
air kits and install a P-trap. See Figure 3.16. The outside
air inlet hoods should be positioned in a manner that will
not allow snow, leaves, etc. to block the inlets. In some
installations the air duct may need to be run vertically.
In such an installation, a 3 ft (914 mm) height dierence
must be maintained from the top of the uppermost chim-
ney section to the outside air inlet hoods.
NOTE: The maximum length of a 4 inch diameter duct is
20 feet. The duct can be extended up to a maximum of 40
feet by using 6 inch duct. A 4 inch to 6 inch adapter will be
needed. (not included).
NOTE: The minimum cross-sectional area of the 4 inch
inlet hood is 7.0 square inches.
Refer to Figures 3.14 and 3.15 when placing the outside
air inlet hoods.
An outside air kit is installed on each side of the replace.
• Cut 4-1/2 in. (114 mm) holes in outside wall to
accommodate air piping.
• Use 4 in. (102 mm) ex (not supplied) to directly connect
outside air to replace intake. Insulate the pipe to prevent
frost condensation.
• Use the supplied outside air inlet hoods.
• Seal between the wall and the pipe with silicone to
prevent moisture penetration and air leaks.
• Seal between the outside air inlet hoods and the house
with silicone to prevent air inltration.
CAUTION! Risk of Cuts/Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
CAUTION! Risk of Fire or Asphyxiation! DO NOT draw
outsidecombustionairfromwall,oororceilingcavity,or
enclosed spaces such as an attic or garage.
• DO NOT place outside air inlet hood close to exhaust
vents or chimneys. Fumes or odor could be drawn into
theroomthroughthereplace.
• Locate outside air inlet hood to prevent blockage from
leaves, snow/ice, or other debris. Blockages could cause
combustion air starvation.
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)))
)
))
)
)
)
))))
)
))
))
)))
)
)
))
))
))
)
))
)
))
)
)
)
))
)
)
)
)
))
)
)
)
)
)
)
)
)
)
)
)
)
3 ft min. from
top of uppermost
chimney section
to air inlet.
Figure 3.15 Outside Air Inlet Hood Locations
Outlet placed
higher than 3 ft
below the
termination cap
Attic space
Garage or
combustible
liquids storage
Outlet blocked by
snow, leaves, etc.
Clear area
outside
house or in
ventilated
crawl space
YES
NO
NO
NO
NO
Factory-built
fireplace
• Use UL181 Class 1 or Class 0 rigid or flexible ducting.
• Install with short run and add a P-trap which will help
prevent flow of cold air.
• Secure flex duct with screws or wire ties.
Figure 3.14 Outside Air Installation
Typical Outside Air
Installation
Typical CAK Installation
Seal
Seal
24” (610 mm) min.
48” (1220 mm) max.
Note: The pipe
cannot lay on top
of the unit.
4” Duct-Use UL181
Class 0 or Class 1
ducting
Recommend
around 24 inches
for a minimum bend
Figure 3.16 Outside Air Installation with Cold Air Trap
17
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
• Position ring over tabs and screw in place. See
Figure 3.19.
• Repeat for other side.
Figure 3.19 Attaching Outside Air Kit Collar
• Check the operation by moving the outside air control
handles up and down.
• Mark and cut out a 4-1/2 in. (114 mm) hole in the building
side for air entry.
• Install the outside air inlet hoods in the sidewall of the
structure, ush with the building’s exterior.
• Assemble the exible duct (not supplied) between the
collar and the outside air inlet hood. Secure into position
with the supplied wire ties.
• Check for light leaks with a ashlight and seal with duct
tape and/or insulation.
• Locate outside air kit on one side of replace.
Figure 3.17 Close-up of Outside Air Kit
• Open door (raise handle up to open, refer to Figure 2.1
for location of handles).
• Bend the four tabs out at 90 degrees. See Figure 7.20.
Figure 3.18 Bending Tabs on Outside Air Kit Collar
18
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
6 ft (1.83 m) max.
unsupported run
20 ft (6.10 m) max.
pipe between an
offset & return
Ceiling Firestop
35 ft (10.67 m)
max. straight
unsupported
chimney height
20.5 ft (6.25 m) min. height/single offset-return
24 ft. (7.32 m) min. height/double offset-return
90 ft (27.43 m) max. height
6 ft (1.83 m) max.
unsupported chimney
above roof
68-1/8 in.
(1730 mm)
Effective Height
(bottom of fireplace
to top of starter collar)
Gas
Knockout

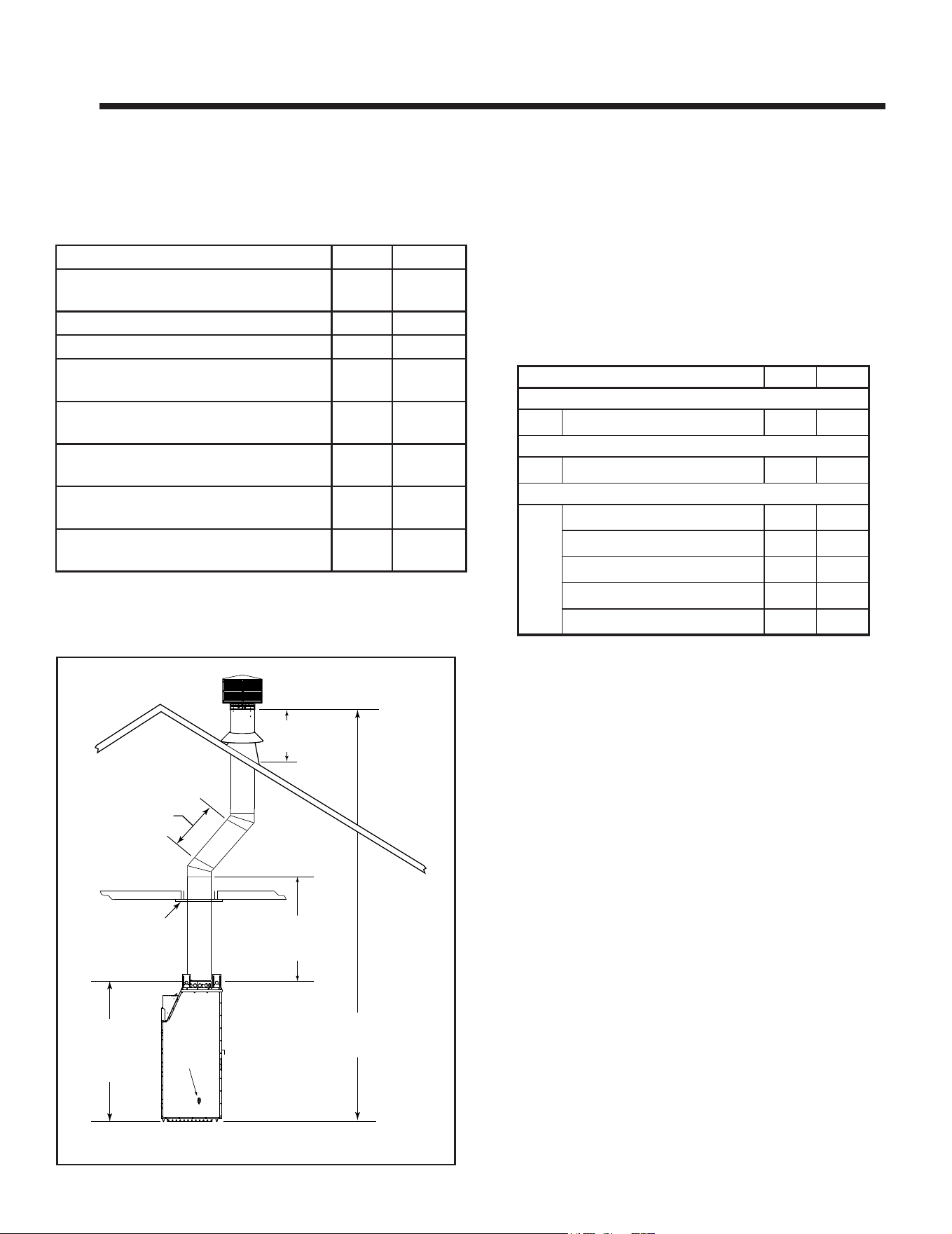

Figure 4.1 Chimney Requirements
NOTICE: Amaximumoftwopairsofosetsandreturns
may be used.
Minimum overall straight height 20 ft 6.1 m
Minimumheightwithsingleoset/
return
20.5 ft 6.25 m
Doubleoset/returnminimumheight 24 ft 7.32 m
Maximum height 90 ft 27.43 m
Maximum chimney length between an
osetandreturn
20 ft 6.1 m
Maximum distance between chimney
stabilizers
35 ft 10.67 m
Maximum unsupported chimney
lengthbetweentheosetandreturn
6 ft 1.83 m
Maximum unsupported chimney
heightabovethereplace
35 ft 10.67 m
Maximum unsupported chimney
above roof
6 ft 1.83 m
WARNING! Risk of Fire! You must maintain 2 in. (51 mm)
air space clearance to insulation and other combustible
materials around the chimney system. Failure to do so may
causeoverheatingandre.
NOTICE: You must provide support for the pipe during
construction and check to be sure inadvertent loading has
notdislodgedthechimneysectionfromthereplaceorat
any chimney joint.
A. Chimney Requirements
Vertical distances are measured from the base of the
replace as shown in Figure 4.1.
4 4
Chimney and Termination Requirements
Table 4.2 Chimney Component Dimensions
Table 4.1 Chimney Requirements
HEIGHT OF CHIMNEY COMPONENTS in. mm
Chimney Stabilizer
SL11 4-3/4 121
Osets/Returns
SL1130 18 457
Chimney Sections*
SL1106 4-3/4 121
SL1112 10-3/4 273
SL1118 16-3/4 425
SL1136 34-3/4 883
SL1148 46-3/4 1187
* Dimensions reect eective height.
19
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
B. Osets/Returns
• Use an oset/return to bypass overhead obstructions.
• An oset and return can be used as a single entity or separated by chimney section(s).
WARNING! Risk of Fire! DO NOT useoset/returnsgreaterthan30°.Chimneydraftwillberestrictedandcouldcause
overheatingandre.Secureosetswithscrews(nottoexceed1/2”/13mminlength)Securereturnswithstrapping.
Straight chimney sections may be secured with screws. Keep chimney sections from separating or twisting.
• Measure the shift needed to avoid the overhead obstruction. Refer to dimension A in Figure 4.2.
• Find the appropriate A dimension listed in Table 4.3. The B dimension coinciding with the A dimension measurement in
Table 4.3 represents the required vertical clearance needed to complete the oset/return.
• Read across the chart to nd the number of chimney sections/model numbers needed between the oset and return.
A
B
1-1/4 in. (32 mm)
OVERLAP
Figure 4.2 Chimney Oset/Return
Example:
Your “A” dimension from Figure 4.2 is 14-1/2 in. (368
mm). Using Table 4.3 the dimension closest to, but not
less than 14 1/2 in. (368 mm) is 15-3/4 in. (400 mm) using
a 30° oset/return.
You determined from the table that you would need
36-5/8 in. (930 mm) (Dimension “B”) between the oset
and return.
The chimney component that best ts your application is
two SL1112s.
A B
SL1106 SL1112 SL1118 SL1136 SL1148in. mm in. mm
4 7/8 124 17 7/8 454 - - - - -
7 1/4 184 22 559 1 - - - -
9 3/4 248 26 1/8 664 2 - - - -
10 1/4 260 27 1/4 692 - 1 - - -
12 3/4 324 31 3/8 797 1 1 - - -
13 1/4 337 32 3/8 822 - - 1 - -
15 3/4 400 36 5/8 930 - 2 - - -
18 1/8 460 40 3/4 1035 1 2 - - -
18 3/4 476 41 3/4 1060 - 1 1 - -
21 3/4 552 47 1194 - - 2 - -
22 1/4 565 48 1219 - - - 1 -
24 3/4 629 52 1/8 1324 1 - - 1 -
27 3/4 705 57 3/8 1457 - 1 - 1 -
28 1/4 718 58 3/8 1483 - - - - 1
30 3/4 781 62 1/2 1588 1 - - - 1
33 3/4 857 67 3/4 1721 - 1 - - 1
36 3/4 933 73 1854 - - 1 - 1
39 3/4 1010 78 1/8 1984 - - - 2 -
41 1/8 1045 82 3/8 2092 1 - - 2 -
45 3/4 1162 88 1/2 2248 - - - 1 1
48 1/8 1222 92 3/4 2356 1 - - 1 1
51 3/4 1314 98 7/8 2511 - - - - 2
Proper assembly of air cooled chimney parts results in an overlap of chimney joints
of 1-1/4 in. (32 mm). Eective length is built into this table.
Table 4.3 Oset Dimensions
20
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Slanted Roofs
Flat Roofs
Chimney must
extend 3 ft (.9 m)
above the roof
Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney
Chimney must
extend 3 ft (.9 m)
above the roof
Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney
Multiple Chimney Locations
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
Gas, Wood or Fuel Oil
Termination Cap
Wood
Minimum
(See
illustration
above)
B
Gas
Termination
Cap **
A *
Perpendicular Wall
*
If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
In a staggered installation with both gas and wood terminations, the
wood termination cap must be higher than the gas termination cap.

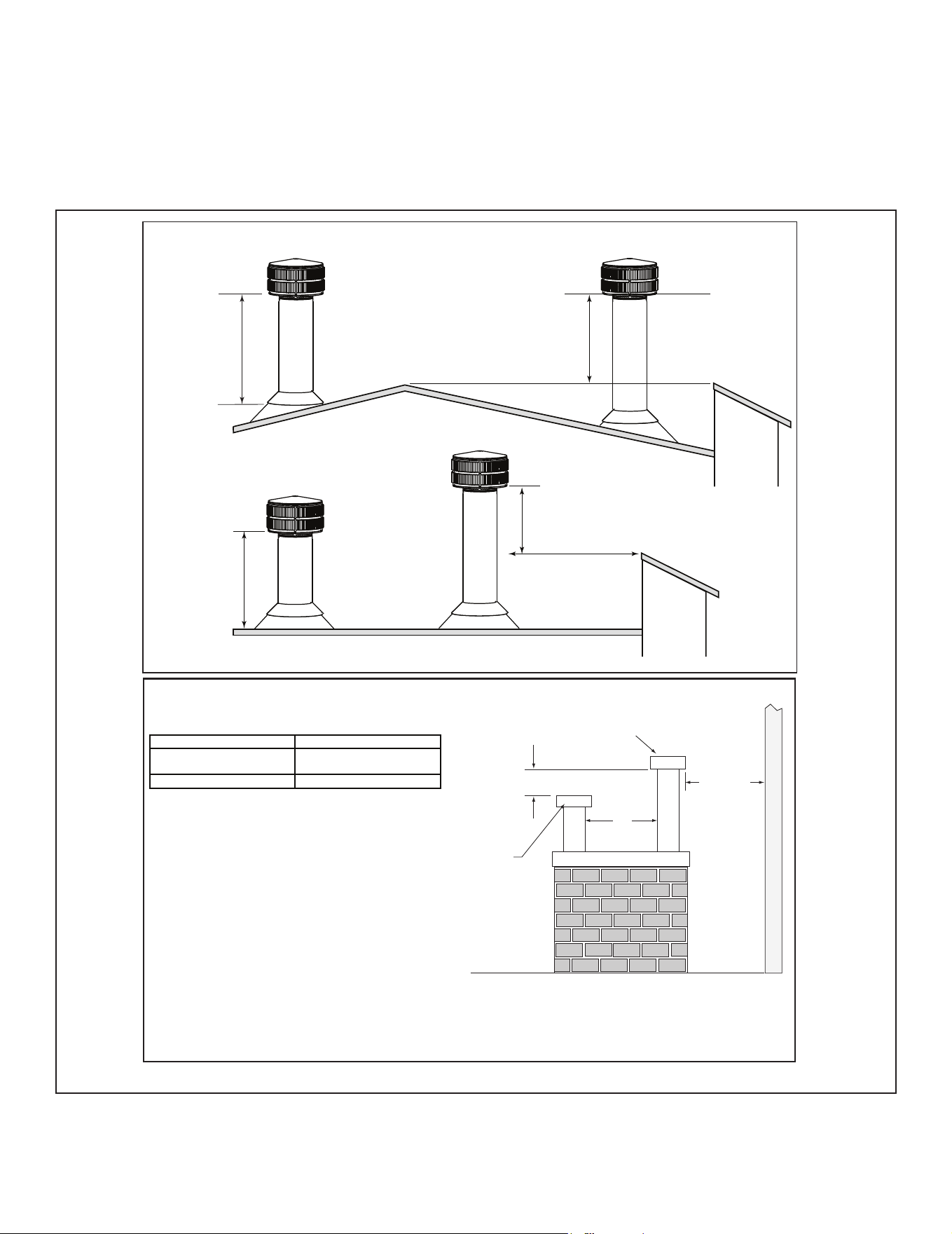

Figure 4.3 Multiple Chimney Locations
C. Termination Requirements
• Install a cap approved and listed for this replace system.
• Locate cap where it will not become plugged by snow or other materials.
• Locate cap away from trees or other structures.
• The bottom of the termination cap must be at least 3 ft (.91 m) above the roof AND at least 2 ft (.61 m) above any portion
of roof within 10 ft (3.05 m).
• The distance required between caps is shown below.
21
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
5 5
Chimney Installation
Chimney must extend
beyond combustible
roof structure
Maintain minimum
height of chimney
above roof
Additional
support for
tall chimneys
Install roof flashing
according to minimum
requirements
Maintain minimum
clearances to
combustibles as
specified
Offsets/returns
may not exceed
30° from vertical
Lock chimney
sections together
firmly to resist
movement
Ceiling firestops
are required where
chimney passes
through ceiling or
floor
Support straps for offsets
(not shown) must be
secured to adequate framing
Termination Cap
Storm Collar
Offsets/returns must be
secured with screws
(outer pipe only)
Attic shield
The chimney must be
enclosed from the
replace to the attic
maintaining the 2
inch clearances.
Figure 5.1 Typical Chimney System - Guidelines for Chimney System Installation
NOTICE: Chimney performance may vary.
• Trees,buildings,rooflinesandwindconditionsaectperformance.
• Chimney height may need adjustment if smoking or overdraft occurs.
A. Typical Chimney System
22
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
C. Install Chimney Air Kit (optional)
• Follow instructions included with accessory.
NOTICE: Chimney sections cannot be disassembled once
locked together. Plan ahead!
• Lock chimney sections and/or osets/returns together by
pushing downward until the top section meets the stop
bead on the lower section.
• Pull on the top section to make sure it is fully engaged
and will not separate.
• You may use #6 or #8 sheet metal screws no longer than
1/2 in. (13 mm) to fasten chimney sections together. Do
NOT penetrate inner ue.
WARNING! Risk of Fire! You MUST use screws to
fastenoset/returnstochimneysectionstokeepthe
chimney parts from twisting. Failure to do so could
causere.
• Fasten oset/returns to chimney sections. Do NOT
penetrate inner ue.
• Secure chimney returns with hanger straps provided;
fasten to studs or joists.
• Vertical straight runs of chimney must be supported every
35 ft (10.7 m).
WARNING! Risk of Pinch Point! Failure to secure
elevateduewithmethodsnotabletobearthefull
weight of the pipe could result in serious injury.
B. Assemble Chimney Sections
Use only those components described in this manual.
Substitute or damaged chimney components could impair
safe operation and cause overheating and re.
Attach either a straight chimney section or an oset to
the top of the replace (depending on your installation
requirement). Chimney sections are locked together by
pushing downward until the top section meets the stop
bead on the lower section.
The inner ue is placed to the inside of the ue section
below it. The outer casing is placed outside the outer cas-
ing of the chimney section below it. See Figure 5.2.
WARNING! Risk of Fire! DO NOT install substitute or
damaged chimney components.

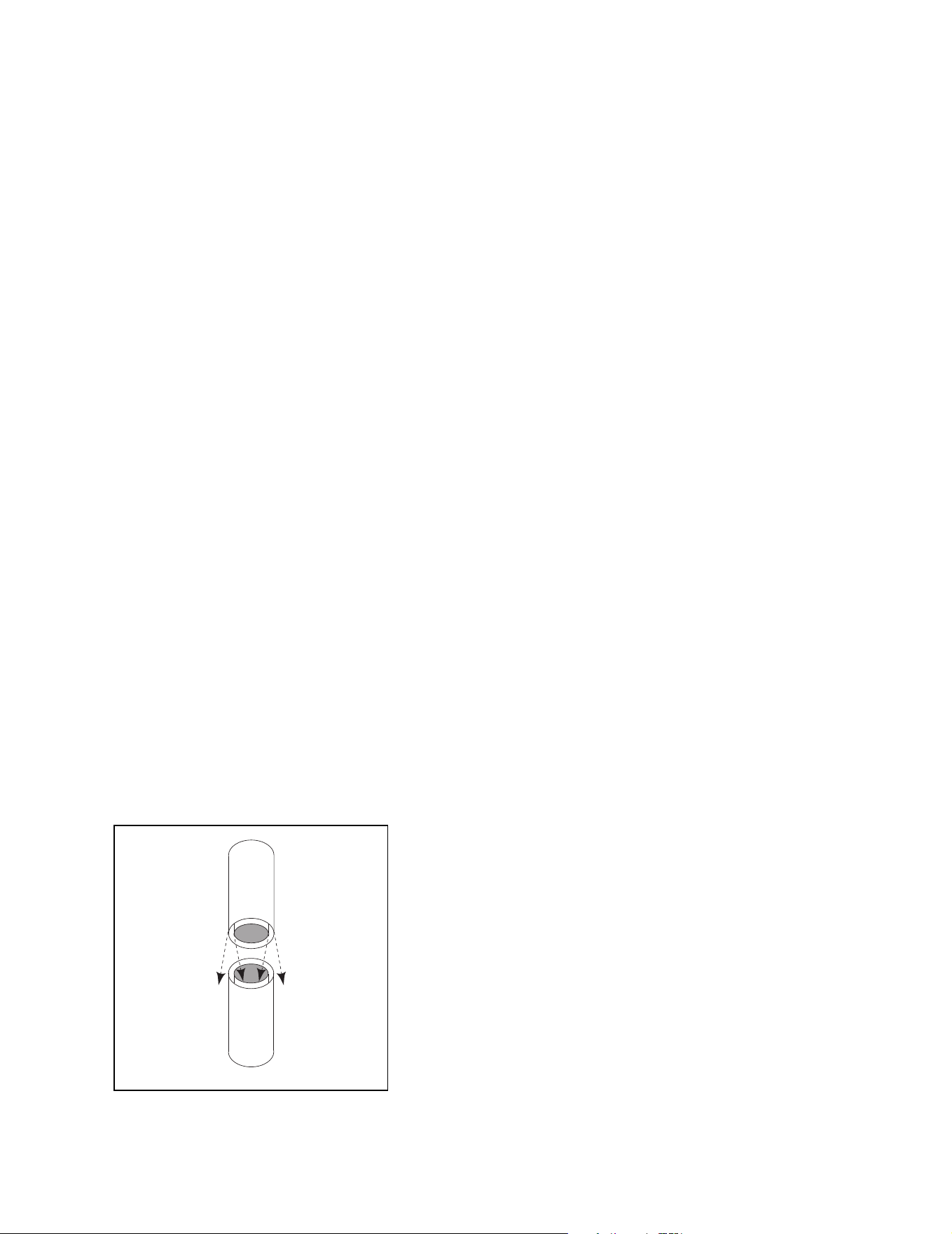

Figure 5.2 Assembling Chimney Sections
23
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

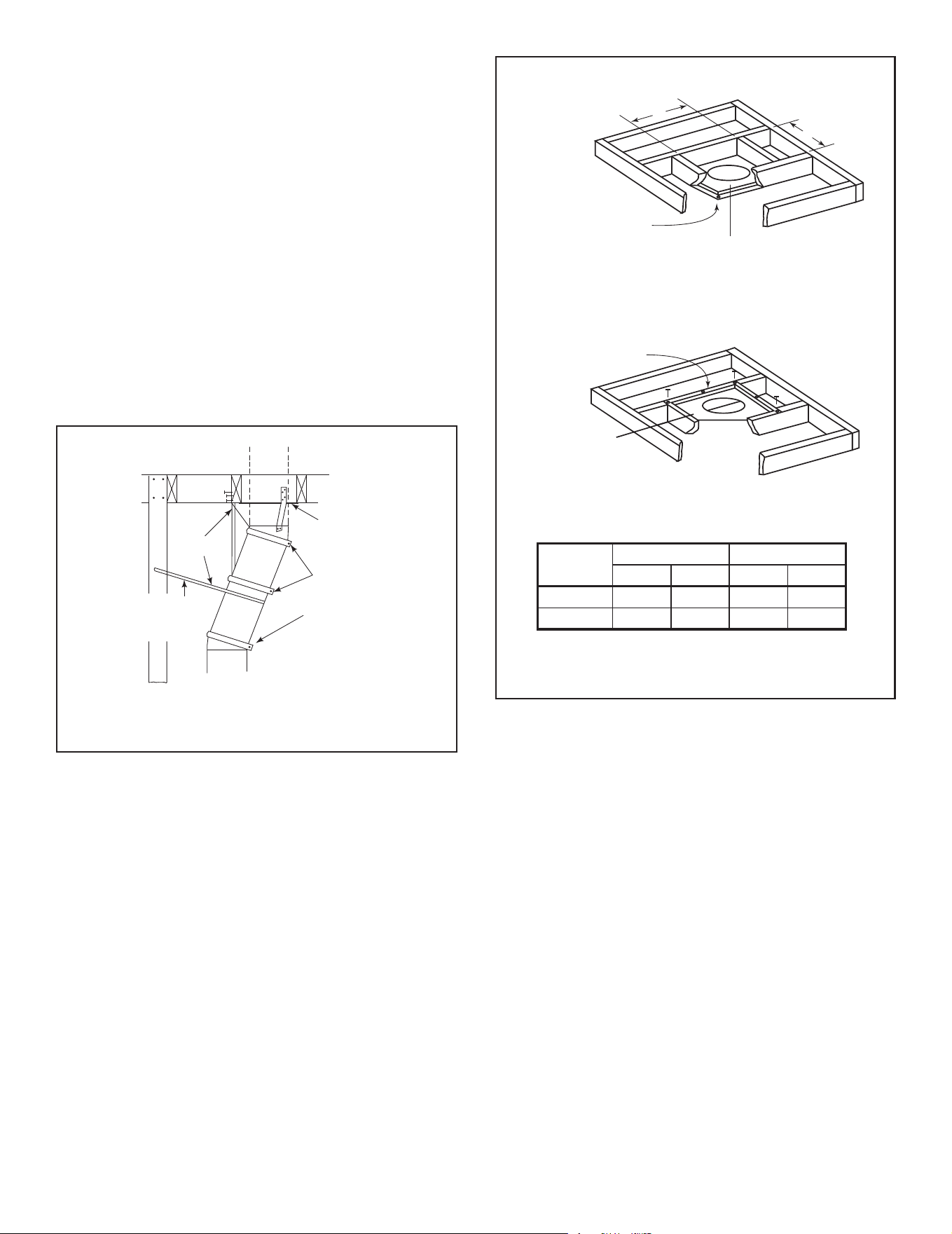

D. Secure Oset/Return
E. Install Ceiling Firestops
CAUTION! Risk of Fire! Ceilingrestopsmustbeused
wheneverthechimneypenetratesaceiling/oor.
• Chaseconstructionrequiresceilingrestopsateach
oororevery10ft.(3.05m)ofclearspace.
• Theceilingrestopslowsspreadofreandreduces
coldairinltration.
• Install a ceiling restop whenever chimney penetrates
ceiling/oor.
• Mark and cut an opening in ceiling as shown in Figure 5.4.
• Frame the opening with the same size lumber used in
the ceiling joists.
• Nail the ceiling restop to the bottom of the ceiling joists
when there is a room above.
• Use an attic insulation shield if the ceiling is insulated.
The ceiling restop may then be attached above or below
the joists.
ROOM ABOVE (non-insulated ceiling)
ATTIC ABOVE (insulated ceiling)
B
A
Ceiling firestop
attached to bottom
of framing
Ceiling firestop
attached to top of
framing
Note: Use same dimensional lumber for framing
ceiling firestop and joists.
2 in. (51mm)
clearance
2 in. (51mm)
clearance
WARNING! Risk of Fire! DO NOT seal area between
restopopeningandchimneypipeexceptwheretheyen-
ter the attic or leave the warm air envelope of the home
(use 600° F sealant).
Figure 5.4 Installing the Ceiling Firestop
When osets and returns are joined to straight pipe sec-
tions, they must be locked into position with the screws
(outer only). To prevent gravity from pulling the chimney
sections apart, the returns and the chimney stabilizers
have hanger straps for securing these parts to joists or
rafters. See Figure 5.3.
* Use # 6 or # 8 sheet metal screw, or larger, no longer
than 1/2 in. (13 mm).
WARNING! Risk of Fire!
• Secureosetswithscrews(nottoexceed1/2in./13mm
In length).
• Secure returns with strapping.
• Straight chimney sections may be secured with screw
(not to exceed 1/2 in./13 mm In length) at the joints.
• Keep chimney sections from separating or twisting.
Ceiling
Firestop
Straps
Optional
Additional
Support
Joint
Band
(Optional)
Figure 5.3 Secure the Chimney
Catalog #
A B
in. mm in. mm
FS538 17 432 17 432
FS540 17 432 26 660
24
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Insert three
screws
Pre-bend the tabs to
rest against pipe to
prevent insulation
from falling in.
(5)Tabs bent
in 90°
Figure 5.5 Prepare Attic Insulation Shield
Figure 5.6 Install Attic Insulation Shield (restop above ceiling)
Figure 5.7 Install Attic Insulation Shield (restop below ceiling)
5 Tabs bent
in 90°
Tabs bent in to
rest against pipe
Attic Insulation Shield
Ceiling Firestop
13 in.
(330 mm)
17 in. (432 mm)
diameter
InsulationInsulation
Pipe
Pipe
2 in. (51 mm)
air space
Seal with tape
5 Tabs bent
in 90°
Tabs bent in to
rest against pipe
Attic Insulation Shield
Ceiling Firestop
13 in.
(330 mm)
17 in. (432 mm)
diameter
InsulationInsulation
Pipe
Pipe
2 in. (51 mm)
air space
Seal with tape
Installation of a ceiling restop is required:
• Refer to Figures 5.5, 5.6, 5.7.
• If the attic shield is pre-rolled continue. If it is a at part,
try and roll it up to aid in wrapping it around the chimney.
• Pre-bend all the tabs in at the top to 45°.
• Wrap the shield (around the chimney if already installed)
until you have an overlap and the three holes on each
side match up (large holes on top).
• Insert three screws into the matching holes to form a
tube starting at the bottom.
• Bend the tabs on the bottom of the tube inward to 90° to
maintain chimney air space.
• Rest the insulation shield on the ceiling restop below.
• Tape o any opening around the bottom.
If you wish to make a custom shield or barrier, follow
these guidelines:
• Metal is preferred, although any material sti enough to
hold back the insulation can be used.
WARNING! Risk of Fire! Use of cardboard or other
materialsthatcandeectunderhumidityorotherenvi-
ronmental conditions is not recommended.
• The shield or barrier must be tall enough to extend
above the insulation and prevent blown-in insulation from
spilling into the cavity and accommodate the amount of
insulation as required by the National Building Code.
• Maintain specied air spaces around chimney.
• Check instructions and local codes for further details.
F. Install Attic Insulation Shield
WARNING! Risk of Fire! You MUST install an attic insu-
lation shield when there is any possibility of insulation or
other combustible material coming into contact with the
chimney.
• DO NOT pack insulation between the chimney and the
attic insulation shield.
• Failure to keep insulation and other materials away from
chimneypipecouldcausere.
• DO NOTosetchimneyinsideinsulationshield.
• Combustible material may come in contact with the attic
insulation shield as long as the required clearances are
maintained to the chimney pipe.
Double-check the Chimney Assembly
Continue assembling the chimney sections up through
the ceiling restops as needed. While doing so, be
aware of the height and unsupported chimney length
limitations given under Section 5.
Check each section by pulling up slightly from the top
to ensure proper engagement before installing the suc-
ceeding sections. If they have been connected correct-
ly, they will not disengage when tested.
25
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
G. Roof Penetration
• Refer to Figure 5.8.
• Plumb from roof to center of chimney.
• Drive a nail up through roof to mark center of pipe.
• Measure to either side of nail and mark the 17 in. x 17
in. (432 mm x 432 mm) opening required.
• Measure opening on the horizontal; actual length may
be larger depending on roof pitch.
• Cut out and frame opening.
Figure 5.8 Ceiling/Attic Construction
Install Flashing
• Assemble chimney so it passes through the framed
opening.
• Slip the ashing over the chimney.
NOTICE: Roongshinglesmustbebelowtheashing
plate on the lower side of a sloped roof and over the
ashingplateonthesidesandtop.
• Nail the ashing to the roof. Keep gaps between the
ashing plate and the roof to a minimum.
• Caulk the ashing plate and roof junction as well as
the vertical seam on the ashing. All nail heads must
be caulked with a roong sealant.
• Caulk the overlap seam of any exposed pipe sections
that are located above the roof line to prevent leaks.
Slope Downward
(1/4 in. per foot
minimum)
Turn-down
Drip Edge
Chase
2 in. (51 mm) Collar
on Chase Top
.018 (26 ga) min.
Galvanized
Chase Top
Figure 5.9 Chase Top Construction
H. Install Chase/Chase Top
• You MUST use a chase top in a chase installation.
Chase tops may be eld constructed.
• Include a turndown and drip edge to prevent water
from seeping into the chase.
• Include a 2 in. (51 mm) soldered, welded or spun
collar around pipe opening to keep water out.
• Provide a 1/8 in. (3 mm) gap around the ue pipe.
• Slope the chase top downward away from the
opening.
WARNING! Risk of Fire! DO NOT caulk the pipe to the
chase top collar.
• Caulk all seams to prevent leaks.
26
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
I. Termination Cap Requirements
• Install a cap approved and listed for this replace system.
• Locate cap where it will not become plugged by snow
or other materials.
• Locate cap away from trees or other structures.
• The bottom of the termination cap must be at least 3 ft
(.91 m) above the roof AND at least 2 ft (.61 m) above
any portion of roof within 10 ft (3.05 m).
J. Install Termination Cap
Install the chimney sections up through the chase enclo-
sure.
• Caulk the overlap seam of any exposed pipe sections
that are located above the roof line to prevent leaks.
• Refer to termination cap instructions.
WARNING! Risk of Fire! The minimum overlap of cap
to pipe (as shown in the following illustrations) MUST
be met or chimney may separate from cap. Separation
allows sparks, heat and embers to escape.
NOTICE: Paint the termination cap with a rust-resistant
painttoprotectagainsttheeectsofcorrosiononthose
parts exposed to the weather.
Storm
Collar
Chimney
Pipe
Chase Top
Termination
Cap
Chase
6 in. (153 mm)
Minimum top of
chase to top of
chimney pipe
Collar
2 in. (51 mm)
Minimum Height
Do NOT
block air holes
Caulk gaps between
storm collar & pipe,
and storm collar
& chase top.
Termination cap pipe and chimney section must be snapped
together to maintain an overlap of 1-1/2 in. (38 mm).
Slip
storm collar
around chimney pipe
before termination
cap pipe is snapped
into the chimney
pipe.

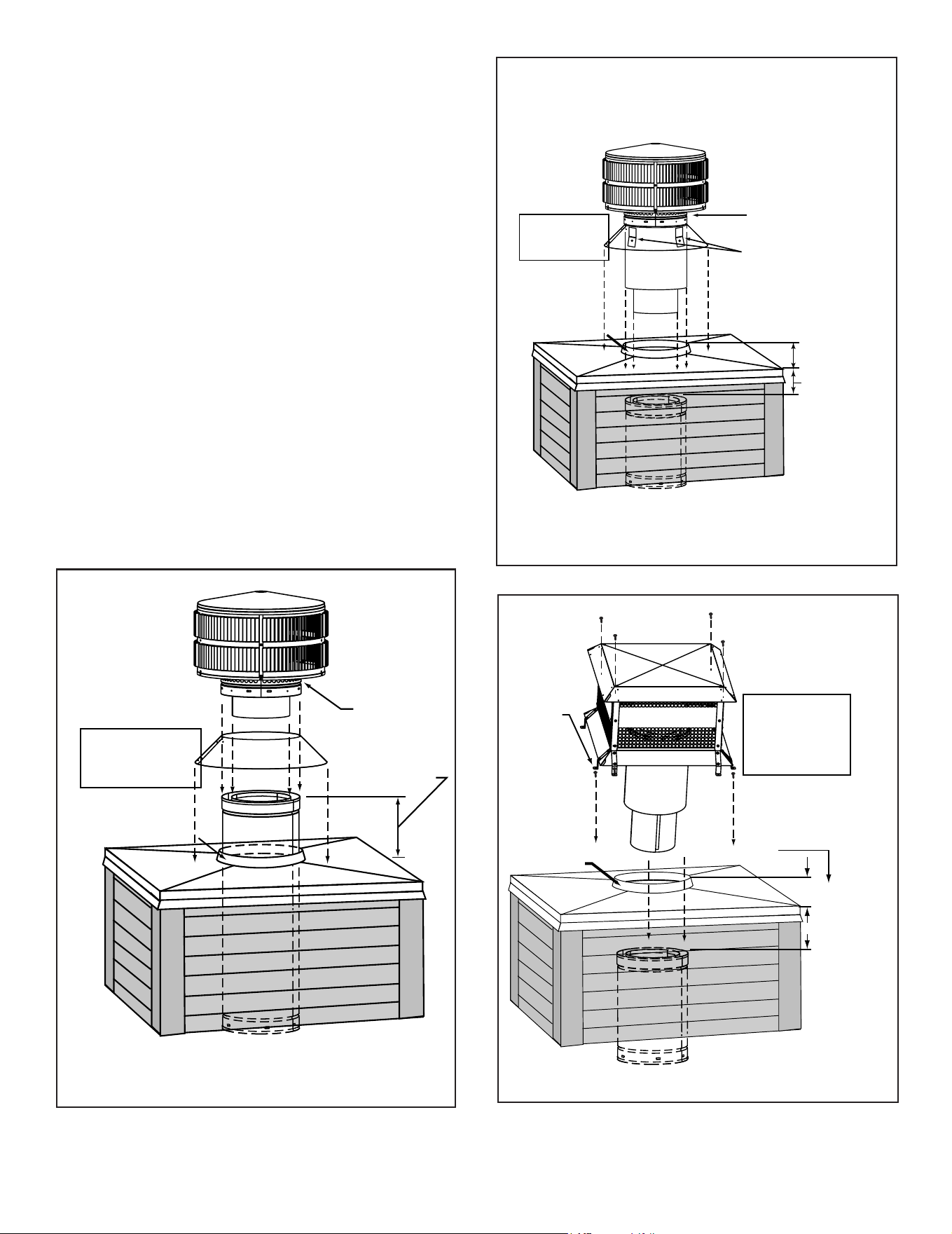

Figure 5.10 Installing a TR11 Round Termination Cap
Figure 5.11 Installing a TR11T Round Telescoping Termination
Cap
Figure 5.12 Installing an ST1175 Square Termination Cap
Storm
Collar
Chimney
Pipe
Chase Top
Termination
Cap
Chase
4 3/4 in. (121 mm)
Maximum
Collar
2 in. (51 mm)
Minimum Height
Caulk gaps between
storm collar & pipe,
and storm collar
& chase top.
Do NOT
block air
holes
3 clip brackets.
Slip over chase collar
and attach with screws
provided.
Assemble
storm collar
around extended
termination cap
pipe
once cap is
installed.
The last section of pipe must
stop between 2 in. (51 mm)
above the top of the chase and
4 3/4 in. (121 mm) below the
top of the chase.
2 in. (51 mm)
maximum
Chimney
Pipe
Chase Top
Termination Cap
Chase
Collar
2 in. (51 mm)
Minimum Height
Place waterproof
caulk or sealer under
each flange of the
termination cap and
on top of each screw
to help prevent leaks.
Flange
2 in. (51 mm)
maximum
4 3/4 in. (121 mm)
maximum
The last section of pipe
must stop between 2 in. (51
mm) above the top of the
chase and 4 3/4 in. (121
mm) below the top of the
chase.
27
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Figure 5.13 Installing a TCT1175 Terra Cotta Cap
Figure 5.14 Installing a DTO134/DTO146/DTS134/DTS146 Cap
Chimney
Pipe
Chase Top
Termination Cap
Chase
Collar
2 in. (51 mm)
Minimum Height
Remove 2 screws
from front & back
to lift the top off
Place waterproof sealer
under each flange of the
termination cap and on
top of each screw to
help prevent leaks.
The last section of pipe
must stop between 2 in.
(51 mm) above top of
chase and 4-3/4 in. (121
mm) below top of chase
2 in. (51 mm)
4-3/4 in. (121 mm)
Storm Collar
Chimney
Pipe
Chase Top
Termination
Cap (not shown)
Chase
Collar
2 in. (51 mm)
Minimum Height
Caulk gaps between
storm collar & pipe,
and storm collar
& chase top.
Do NOT block
air holes
3 clip brackets.
Slip over chase collar
and attach with screws
provided.
Assemble
storm collar
around extended
termination cap
pipe
once cap is
installed.
CT-11A-B
4-3/4 in. (121 mm)
2 in. (51 mm)
The last section of pipe must stop
between 2 in. (51 mm) above the
top of the chase and 4 3/4 in. (121
mm) below the top of the chase.
28
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

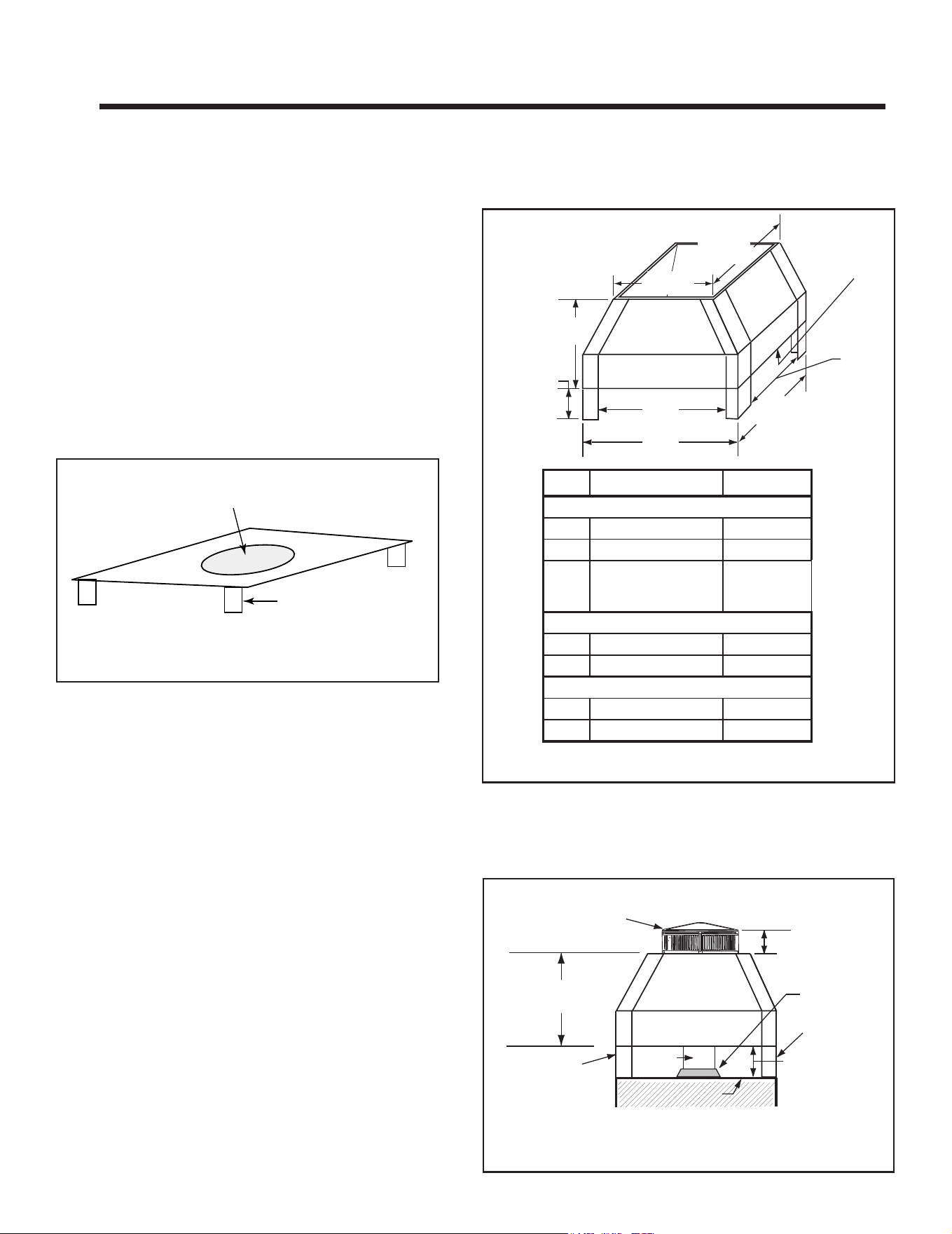

6 6
Shrouds
3 in. (76 mm) tall legs
Ø 17-1/2 in. (445 mm) Round Hole to fit over cap
Length x Width to fit inside shroud
Figure 6.1 Radiation Shield
WARNING! Risk of Fire! Shrouds must be constructed
asspecied.Improperconstructionmayoverheat
chase top.
NOTICE: Some regional codes require an agency-Listed
shroud.Consultyourlocalbuildingocials.
Shrouds may be eld constructed where permitted by
regional building codes.
The shrouds must be constructed from minimum .018
in. (26 ga) thick aluminzed steel.
Some shrouds require a radiation shield. Use where
specied.
A. Radiation Shield
Radiation shield must be constructed of minimum 26 ga
thick sheet metal.
B. Field Constructed Shrouds
The following eld constructed shroud designs have
been tested for HHT replace systems and termination
caps.
3 in (76 mm)
minimum
Min.
Base Dim.
Min.
Base Dim.
Min.
Top Dim.
Min.
Top Dim.
Min. Opening
Width
Min. Opening
Width
Radiation
Shield
14 1/2 in. (368 mm)
maximum height
Figure 6.2 Open Top Shroud Dimensions (with Radiation Shield)
Figure 6.3 Shroud & TR Series cap with no Radiation Shield
TR11/11T TR11/11T TV
Min. Base Dims.
in 32 x 32 26 x 26
mm 813 x 813 660 x 660
Radiation Shield
Required
Radiation
Shield Not
Required
Min. Top Dims.
in 29 x 29 23 x 23
mm 737 x 737 584 x 584
Min. Opening Width
in 26 x 26 20 x 20
mm 660 x 660 508 x 508
1. Open Top Shroud
TR11/TR11T TV (top vented) caps do not require radia-
tion shield.
TR11 and TR11T caps require radiation shield unless in-
stalled partially above the shroud. The TR cap must be
raised to the minimum dimensions (or greater) above the
shroud or install a TR-TVK. Refer to Figure 6.3.
6" Min.
Above the
Shroud.
Storm
Collar
Shroud
Leg
(SHROUD)
(TR Series)
Flue
Shroud
Leg
3 in (76 mm)
air space from
bottom of shroud
to top of chase.
Maximum Height
14 1/2 in. (368 mm)
Chase Top
29
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
3 in. (76 mm)
Min. Opening Height
Min, Base Dim
Min. Height
above bottom of
termination
cap
Min.
Base Dim
3 in. (76 mm) Min.
Radiation Shield Height
from top of Chase
Min, Opening Width
Radiation
Shield
Minimum
Opening Height

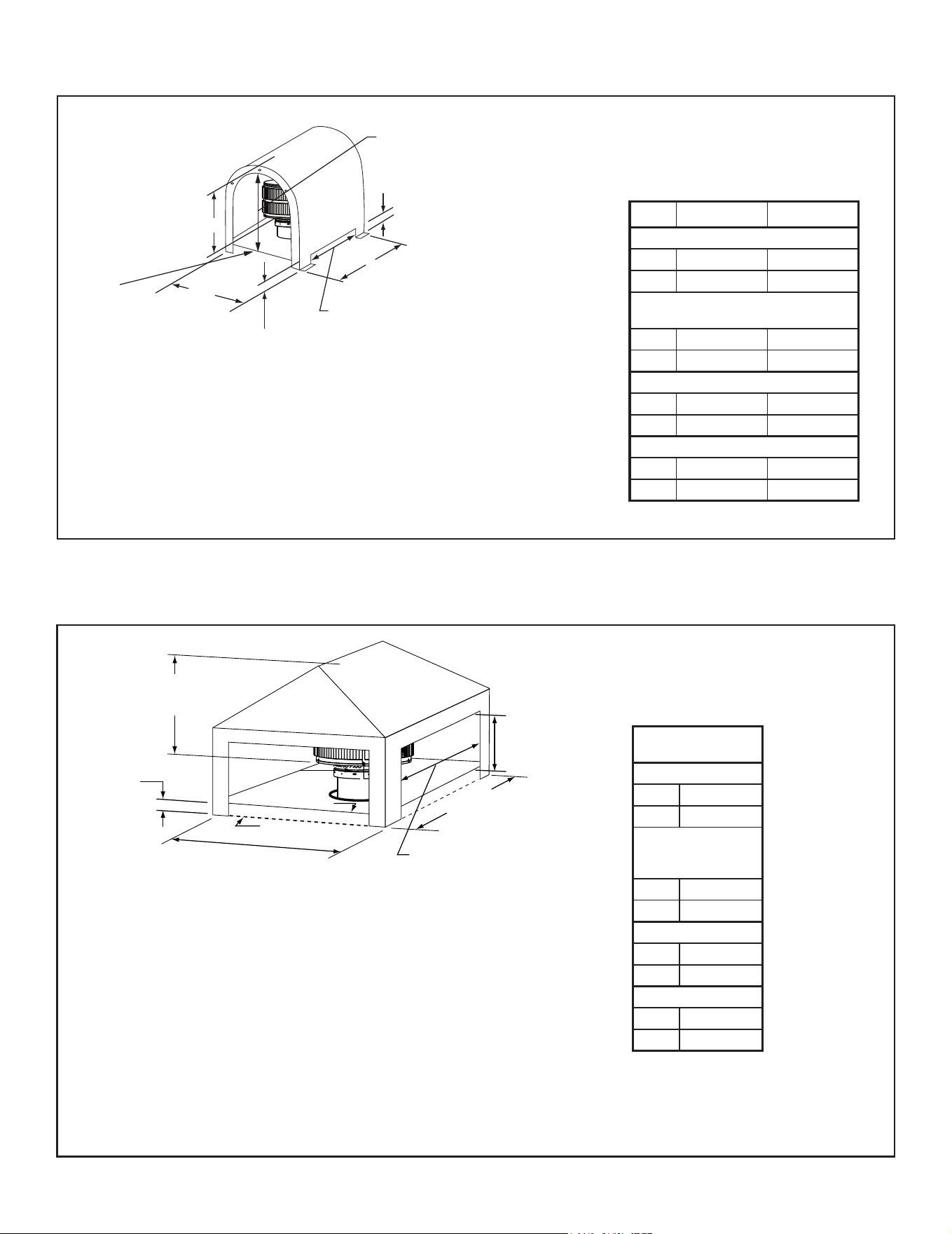

Figure 6.4 Mailbox Style Shroud Dimensions
Minimum
Opening
Height
Minimum
Base Dimension
Min. Opening Width
Min. Base Dimension
Minimum
Height above
Bottom of Termination Cap
Chase Top
Radiation Shield
3 in. (76 mm)
Radiation
Shield Height
Termination
Cap
Figure 6.5 Roofed Style Shroud Dimensions
3. Roofed Style Shroud
Radiation shield required
2. Mailbox Style Shroud
Radiation shield required
TR11/11T
TR11/11T TV
Min. Base Dims.
in 34 x 34
mm 864 x 864
Min. Height
Above Bottom of
Termination Cap
in 23
mm 584
Min. Opening Width
in 28
mm 711
Min. Opening Height
in 12
mm 305
TR11/11T TR11/11T TV
Min. Base Dims.
in 34 x 34 28 x 30
mm 864 x 864 711 x 762
Min. Height Above Bottom of
Termination Cap
in 28-1/4 27-1/2
mm 718 698
Min. Opening Width
in 28 22
mm 711 559
Min. Opening Height
in 18-1/4 17-1/2
mm 464 445
30
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
7 7
Finishing
A. Finishing Material
Refer to Sections 1.B. and Sections 1.C. for combustible/
non-combustible materials. Refer to Figure 7.1 for non-
combustible zone.
WARNING! Risk of Fire! You must maintain clear-
ances.
• DoNOTcovermetalreplacefrontwithcombustible
materials.
• Install combustible materials only to specified
clearances on top front and side edges.
• Complete framing and apply drywall over framing.
• Only non-combustible materials may be used to cover
the metal replace front.
• A bead of 300-deg F minimum non-combustible sealant
must be used to close o any gaps at the top and sides
between the replace and drywall to prevent cold air
leaks.
Metal strips are placed 2 in. (51 mm)
under the front of the fireplace and must
extend beyond the front and sides of
fireplace opening by 2 in. (51 mm)
Continuous,
non-combustible sealant
Floor constructed of wood or
other combustible material
HX4 Hearth
Ext
or equivilent
insulation
Hearth
Refractory
Finished combustible wall
Combustible material
Non-combustible
decorative facing
2 x 4 header, flush with
front of stand-offs
Non-combustible material
Tile, stone or other
non-combustible material
Flat 2 x 4 stud wall
Figure 7.2 Decorative Facing
These metal surfaces
may be covered
with non-combustible
material.
Non-combustible
sealant around edge
of fireplace and drywall.
Figure 7.1 Non-combustible Facing
Note:
If Lintel Bar is used make sure
it does not cover combustible
material.
31
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
B. Hearth Extension, Building and Fin-
ishing
Table 7.1
R = 1/k x inches of thickness
Table 7.2
WARNING! Risk of Fire! High temperatures, sparks,
embersorotherburningmaterialfallingfromthere-
place may ignite ooring or concealed combustible
surfaces.
• Protective metal hearth strips MUST be installed.
• Hearth extensions MUST be installed exactly as
specied.
A hearth extension must be installed with all re-
places to protect the combustible oor in front of the
replace from both radiant heat and sparks.
• You MUST use a hearth extension with this
replace.
• Refer to Figure 7.3 for minimum dimensions.
• This replace has been tested and approved for use
with a hearth extension insulated to a minimum R
value of 1.03.
• The hearth extension material MUST be covered
with tile, stone or other non-combustible material.
• Manufactured hearth materials will usually have a
published R value (resistance to heat) or k value
(conductivity of heat). Refer to the formula in Table
7.1 to convert a k value to an R value,
• Refer to Table 7.2 for hearth extension insulation
alternatives.
WARNING! Risk of Fire!
Hearth extensions are to be installed only as illustrated to prevent
high tempertures from occurring on concealed combustible
materials.
WARNING! Risk of Fire!
• Maintain clearances.
• Useonlynon-combustiblematerialbelowstandos,material
such as cement board is acceptable.
• Framingornishingmaterialusedonthefrontofthereplace
closer than the minimums listed, must be constructed entirely
of non-combustible materials (i.e., steel studs, concrete board,
etc.).
WARNING! Risk of Fire!
Hearth & Home Technologies is not responsible for
discoloration, cracking or other material failures of
nishingmaterialsduetoheatexposureorsmoke.
• Choosenishingmaterialscarefully.

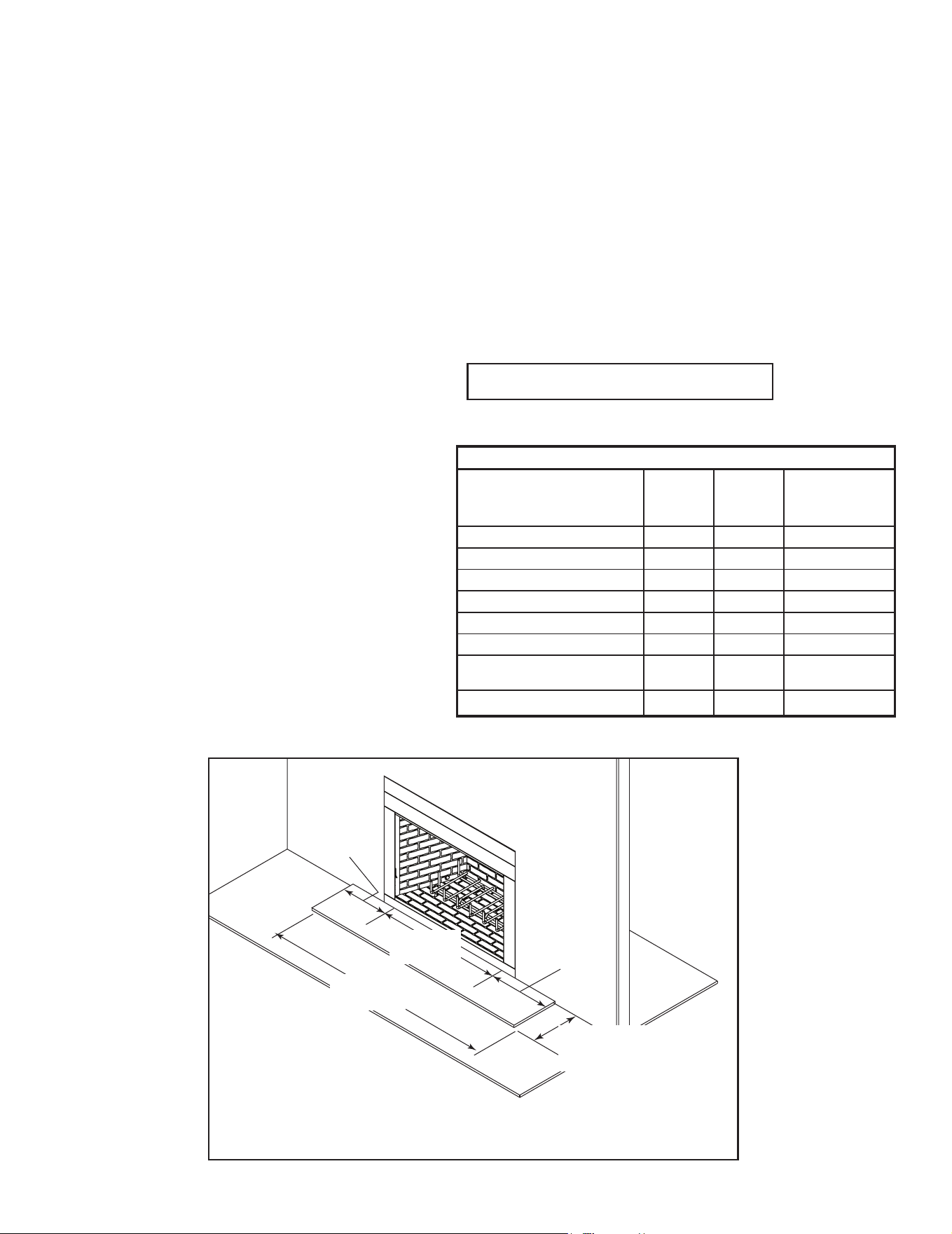

Figure 7.3 Hearth Extension Dimensions
74 in.
(1880 mm)
50 in.
(1270 mm)
12 in.
(305 mm)
12 in.
(305 mm)
20 in. (508 mm)
minimum
Hearth Extension Insulation Alternatives, R Value = 1.03
Material
k per inch
thick
r per inch
thick
Minimum
thickness
required
Hearth & Home HX3, HX4 0.49 2.06 1/2 in.
USG Micore 300™ 0.49 2.06 1/2 in.
USG Durock™ Cement Board 1.92 0.52 2 in.
Cement Mortar 5.0 0.20 5 1/8 in.
Common Brick 5.0 0.20 5 1/8 in.
Ceramic Tile 12.50 0.08 12 1/4 in.
Armstrong™ Privacy Guard Plus 0.46 2.18 1/2 in.
Marble 14.3-20.0 0.07-0.05 14 5/8 in. - 20 3/8 in.
32
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Noncombustible
Framing Material
HX4 or
equivalent
Figure 7.6 Raised Platform Hearth Extension-Framing
Non-combustible
Finishing Materials
Figure 7.7 Raised Platform Hearth Extension-Finishing
Floor
Noncombustible
Framing Material
Noncombustible
Finishing Material
Protective Metal
Hearth Strips
1/2 in. Micore
or equivalent
insulation
20 in. Min.
Hearth Extension
Note: The bottom of the fireplace
opening is 8 3/4 in. (222 mm)
above the bottom of the
fireplace. Finished hearth must
NOT extend above this level.
Figure 7.5 Raised Platform Hearth Extension Detail
1. Fireplace Installed Flush on the Floor and
Hearth Extension Raised to Bottom of Firebox
Opening
Non-combustible ooring a minimum of 20 in. (508
mm) in front of and 12 in. (305 mm) to each side of the
fuel opening is required.
The hearth framing must be constructed of non-com-
bustible materials (such as metal framing or equivalent
material) and placed on HX4, or equivalent material.
When creating the platform, allow for the thickness
of the non-combustible nishing materials.
Seal gaps between the hearth extension and the front
of the replace with a bead of non-combustible sealant
or grout.
2 in. (51 mm)
required
Floor constructed of wood or
other combustible material
Protective
Metal Hearth
Strip
1/2 in. Micore
or equivalent
insulation
Continuous,
non-combustible sealant
Tile, stone or other
non-combustible material
Note: Maximum height from floor under fireplace to
top of finished hearth extension is 8 3/4 in. (222 mm).
Bottom of fireplace opening
Figure 7.4 Hearth Extension Construction
Note: For installations
with vinyl ooring, special
clearance recommenda-
tions apply.
Vinyl Flooring is sensitive to heat. A 48 inch minimum
depth hearth extension is recommended when using
vinyl ooring up to the wall. See Figure 7.4.
Notice: Clearances that do not meet the minimum
guidelines could result in damage or buckling to the
vinyl ooring and is done at the installer’s or home-
owner’s risk.
Hearth and Home Technologies does not recommend
adhesive based vinyl ooring due to thermal expan-
sion. Floating-style ooring can be used, but will reach
temperatures up to 110°F in a room with ambient tem-
peratures of 70°F. Consult ooring specications to
ensure compatibility.
Vinyl Flooring
33
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

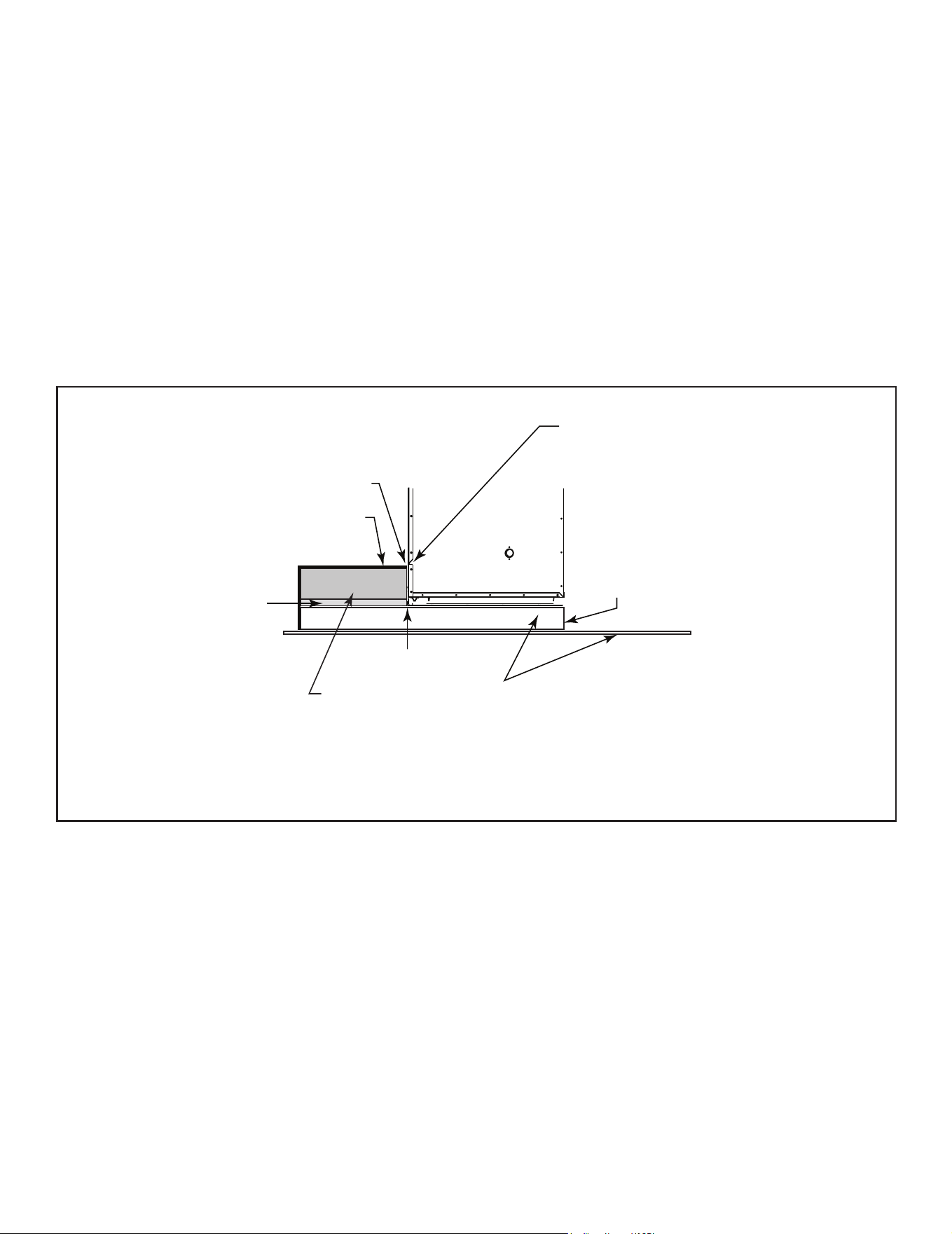

2. Raised Hearth Extension and Raised Fire-
place
Non-combustible ooring a minimum of 20 in. (508 mm)
in front of and 12 in. (305 mm) to each side of the fuel
opening is required.
The hearth framing must be constructed of non-com-
bustible materials (such as metal framing or equivalent
material) and placed on HX3(s), HX4(s) or equivalent
material. See Figure 7.8.
When creating the platform, allow for the thickness
of the non-combustible nishing materials.
Seal gaps between the hearth extension and the front
of the replace with a bead of non-combustible sealant
or grout.
Platform must be built
to raise the bottom of
the fireplace opening
to the level of the
desired hearth height.
Protective Metal
Hearth Strips
Floor and platform constructed of
wood or other combustible material
Continuous,
non-combustible sealant
Tile, stone or other
non-combustible finishing
material
Non-combustible
Framing Material
20 in. minimum
Hearth Extension
1/2 in. Micore
or equivalent
insulation
Note: The bottom of the fireplace
opening is 8 3/4 in. (222 mm)
above the bottom of the
fireplace. Finished hearth must
NOT extend above this level.
Figure 7.8 Raised Hearth Extension and Fireplace Framing Materials
34
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

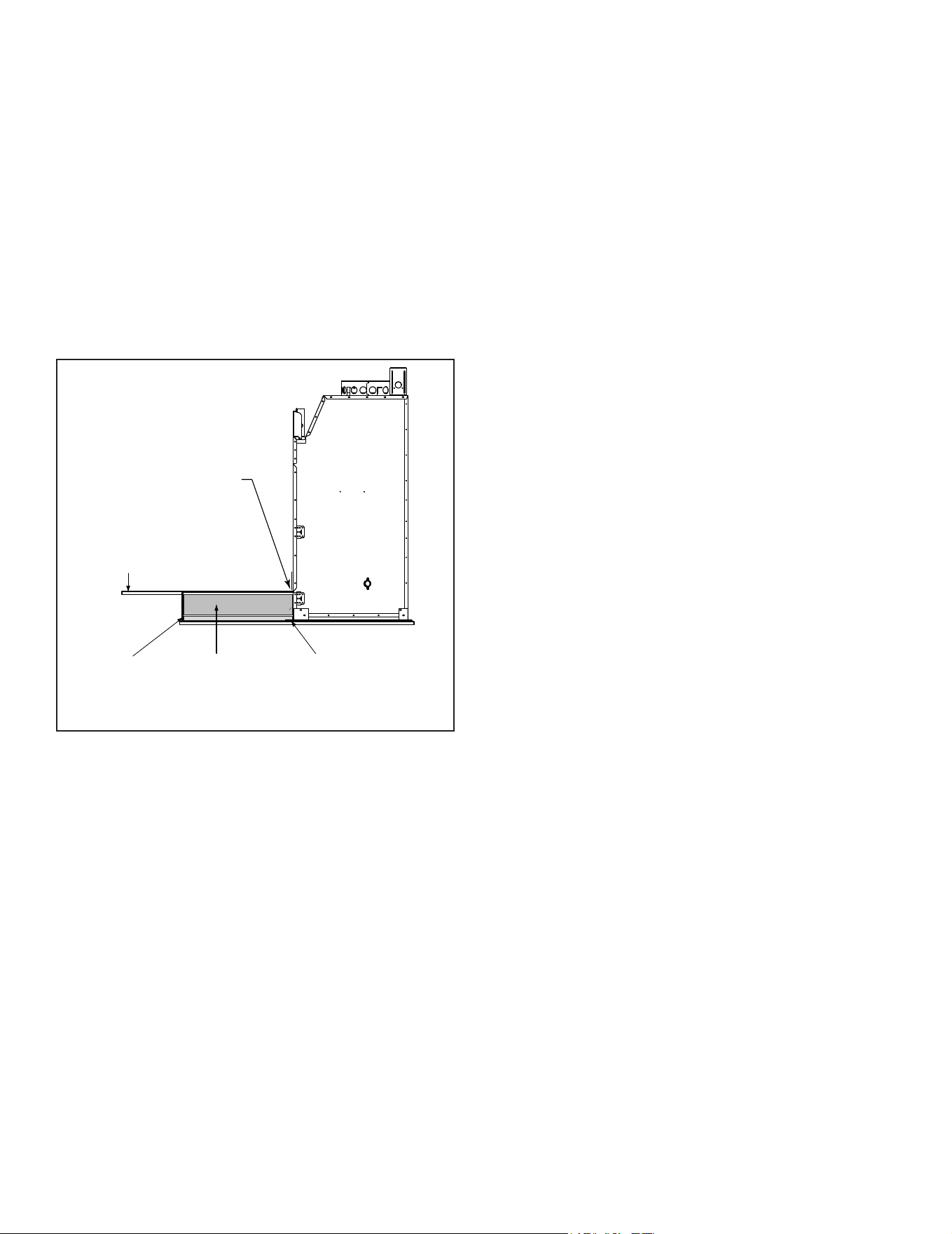

3. Fireplace Opening and Hearth Extension
Flush with the Floor
Non-combustible ooring a minimum of 30 in. (762 mm)
in front of and 12 in. (305 mm) to each side of the fuel
opening is required.
The hearth framing must be constructed of non-com-
bustible materials (such as metal framing or equivalent
material) and placed on HX3(s), HX4(s) or equivalent
material.
When creating the platform, allow for the thickness
of the non-combustible nishing materials.
Seal gaps between the hearth extension and the front
of the replace with a bead of non-combustible sealant
or grout.
Noncombustible Material
Protective Metal
Hearth Strip
30 in. Min.
Hearth Extension
1/2 in. Micore
or equivalent
insulation
Finished
Floor
Note: The bottom of the
fireplace opening is 8 3/4 in.
(222 mm) above the bottom
of the fireplace. Finished
hearth must NOT extend
above this level.
Figure 7.9 Flush Hearth Extension Side View
35
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

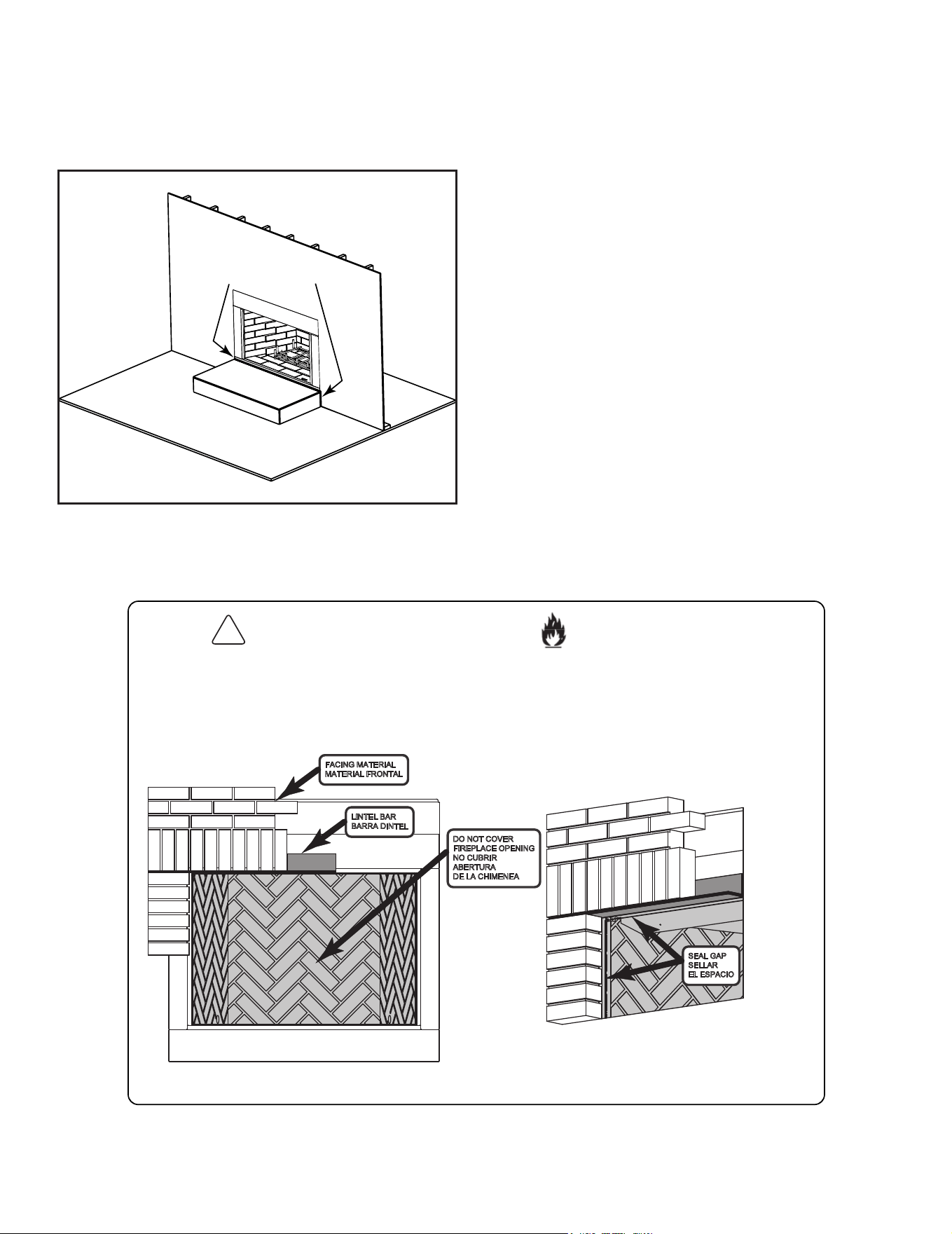

C. Non-Combustible Sealant Material
After completing the framing and applying the facing
materials over the framing, a bead of non-combustible
sealant must be used to close o any gaps at the top
and sides between the replace and hearth.
WARNING! Risk of Fire!
Hearth & Home Technologies is not responsible for
discoloration, cracking or other material failures of
nishingmaterialsduetoheatexposureorsmoke.
• Choosenishingmaterialscarefully.
Non-combustible Sealant
Figure 7.11 Place Non-combustible Sealant
LINTEL BAR
BARRA DINTEL
DO NOT COVER
FIREPLACE OPENING
NO CUBRIR
ABERTURA
DE LA CHIMENEA
SEAL GAP
SELLAR
EL ESPACIO
FACING MATERIAL
MATERIAL FRONTAL
There must be NO GAPS OR VOIDS between facing
material and appliance front. Seal gaps or voids
with mortar, grout, or high temperature sealant.
NO debe haber ESPACIOS NI VACÍOS entre el
material de revestimiento y el frente del aparato.
Selle los huecos o vacíos con mortero, lechada o
sellador de alta temperatura.
4017-289 rev D
DO NOT COVER FIREPLACE OPENING with
finishing material.
No cubra el hueco de la chimenea con materiales
de acabado.
WARNING
ADVERTENCIA
!
Risk of Fire!
Riesgo de Incendio!
**REMOVE LABEL BEFORE APPLYING FINISHING**
**RETIRE LA ETIQUETA ANTES DE APLICAR EL ACABADO**
NON-COMBUSTIBLE label attached to rescreen by manufacturer.
36
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Non-Combustible Wall
Front Standoffs
Measured from top of fireplace opening
Combustible
Decorative Facing
Metal stud wall
above the fireplace
up to ceiling (7 ft. min.)
12 in./305 mm
Deep
20 in.
508 mm
Non-Combustible
Decorative Facing
to top of standoffs
Non-combustible
mantel or
non-combustible
finishing material
may be positioned
anywhere within
the shaded area.
7 ft (2134 mm)
minimum
base of fireplace
to ceiling
Non-combustible
Decorative Facing
such as: Steel, iron,
brick, tile, concrete,
slate, tile, plasters
DO NOT cover any
air openings in the
face of the fireplace.
WARNING:
Seal joint with non-combustible
sealant to prevent heat from
being drawn into the wall cavity.
Non-Combustile Mantel
Figure 7.13 Mantel Specications - Non-Combustible
D. Mantel and Wall Projections
The combustible mantel may have a maximum depth of
12 in. (305 mm) positioned 12 in. (305 mm) above the
replace opening. Combustible trim pieces that project no
more than 1 1/2 in. (38 mm) from the face of the replace
can be placed no closer than 6 in. (152 mm) from the top
of the decorative front. Combustible trim must not cover:
• the metal surfaces of the replace
• where the non-combustible board is placed over the
metal surfaces
• the space between the metal face of the replace and
framing members
WARNING! Risk of Fire!
Youmustsealaroundthenishingmaterialtoreplace.
Hearth & Home Technologies is not responsible for
discoloration,crackingorothermaterialfailuresofnishing
materials due to heat exposure or smoke.
• Choosenishingmaterialscarefully.
A non-combustible mantel can be placed lower than Figure
7.13, but all building materials that construct the wall must
be changed to non-combustible.
Combustible Wall
2 x 4 stud wall
Front Standoffs
Measured from top of fireplace opening
12 in./305 mm
Mantel
1 1/ 2 in./38 mm
maximum
6 in./152 mm
minimum
20 in./508 mm
minimum
12 in./305 mm
minimum
Combustible
Decorative Facing
Grid represents 1 in. squares
7 ft (2134 mm)
minimum
base of fireplace
to ceiling
Non-combustible
Decorative Facing
such as: Steel, iron,
brick, tile, concrete,
slate, tile, plasters
DO NOT cover any
air openings in the
face of the fireplace.
WARNING:
Seal joint with non-combustible
sealant to prevent heat from
being drawn into the wall cavity.
Figure 7.12 Mantel Specications - Combustible
37
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
E. Sidewalls/Surrounds
• Locate adjacent combustible sidewalls a minimum of 24
in. (610 mm) from replace opening.
• Mantle leg, surround, stub wall, whether combustible
or non-combustible, may be constructed as shown in
Figure 7.12.
60-5/8 in.
[1540 mm]
50 in.
[1270 mm]
24 in.
[610 mm]
19-3/4 in.
[502 mm]
24 in.
[610 mm]
22-3/8 in.
[568 mm]
FLUSH
FRONT
4 in.
[102 mm]
BRICK
FRONT
50° angle
39° angle
Grid represents
1 inch scale.
Figure 7.12 Mantel Leg, Surround or Wall Projection (acceptable on both sides of opening)
38
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
8 8
Fireplace Setup
• Position the bottom of the back refractory to the back of
the replace and center from side to side. See Figure 8.3.
Be sure to position it so the retainer notch is at the top.
REFRACTORY
RETAINER
Figure 8.4 Attach Back Refractory
Figure 8.3 Install Back Refractory
Front Face
Smoke Shield
Remove these screws.
Skip
Skip
Figure 8.2 Remove Smoke Shield
Figure 8.1 Remove Smoke Shield
• Fasten in place with the refractory retainer and screws
provided with replace. See Figure 8.4.
We recommend two installers for hearth stone and
refractory installation!
• Remove smoke shield by removing ve screws (starting
from one side: remove two, skip one, remove one, skip
one, remove two). See Figures 8.1 and 8.2.
A. Refractory Panel Kit in Crate
• The Refractory Panels are shipped in a sturdy crate with
3 to 4 trays for individual Refractory Panels.
• Remove the lid from crate to access Refractory Panels.
• Remove all corner brackets from the crate.
• Use a clean paint brush to remove any accumulated
dust from Refractory Panel before removing it from the
crate. See Figure 8.
Figure 8 Clean Refractory Panel
39
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Note: To ensure proper installation, gas knockouts in
the side refractories should be positioned towards back
of replace. See Figure 7.13.
Figure 8.5 Install Side Refractory
Figure 8.6 Side Refractory Installed
• Place side refractory into replace. Position towards
front of replace and slide to the rear. See Figures 8.5
and 8.6. Repeat for the second side refractory.
Figure 8.7 Slide Grate Retaining Bracket into Notch
• Slide grate retainers into notches in bottom of back
refractory on each side as shown in Figures 8.7 and
8.8. Place one on each side of back refractory.
Figure 8.8 Grate Retaining Bracket in Place
• Replace hearth stone.
• Place grate into fireplace and slide back legs into
brackets to hold grate in place.
• Repalce smoke shield and screen assemblies.
40
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

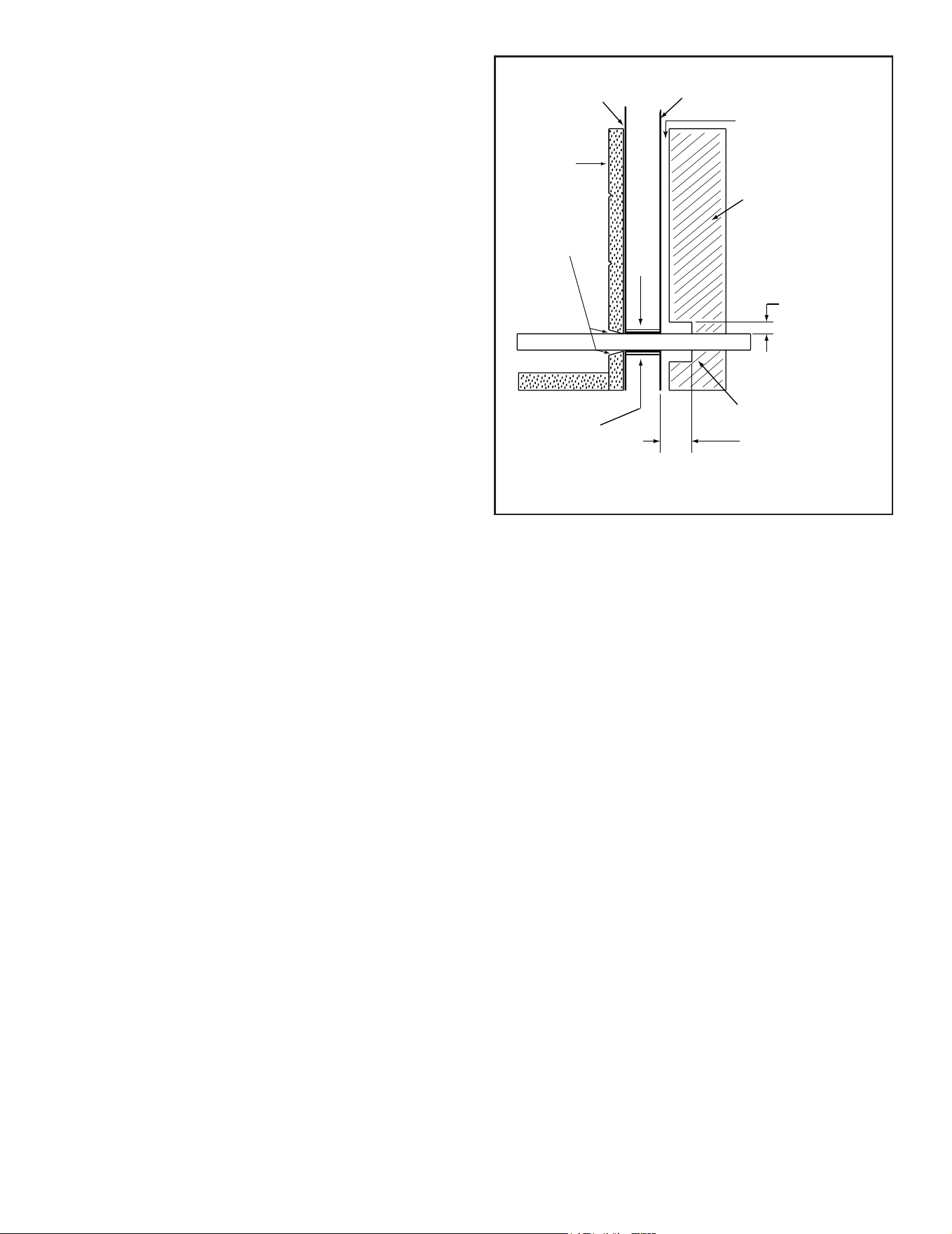

C. Wood Burning Inserts
WARNING! Risk of Fire! Improper installation of wood in-
sertsmaycausereplaceorchimneysystemtooverheat.
If a wood burning insert is being installed in this replace,
Hearth & Home Technologies recommends full reline of
the chimney.
• Cooling air openings at the top of the chimney must not
be obstructed in any manner.
• Hearth & Home Technologies recommends securing the
reline at the top of the ue and using the cap certied for
use with this replace system.
Firebox
Repack
insulation
knockout
Combustible
materials
Maintain air clearance
to combustibles.
Gas line
Combustible materials
may be located at zero
clearance to gas line
beyond 4 in. (102 mm)
from fireplace side.
Gas line
1 1/2 in. (38 mm)
air space around
pipe
Refractory
Seal with
fireplace mortar
or non-combust-
ible sealant
4 in.
(102 mm)
Outer shell
of fireplace
Figure 8.9 Gas Line Installation
B. Gas Log/Lighter Provision
WARNING! Fire and/or Asphyxiation Risk! Use with
solidwoodfuelordecorativegasapplianceonly.Gasre
generates fumes.
• Damper must be locked fully open when gas logs are
installed
A certied gas log lighter or decorative gas log set can be
installed in this replace.
Vented Gas Logs
Unvented Gas Logs
CAUTION! If an unvented gas appliance is installed in
the replace, the gas appliance must only be operated
with the replace glass door fully open (if included).
Only unvented gas log sets which have been found to
comply with the standard for unvented room heaters,
ANSI Z211.11.2, are to be installed in this replace. If
an unvented gas appliance is installed it must incorpo-
rate an automatic shuto device, and must be installed
in accordance with the National Fuel Gas Code Z223.1,
Latest edition.
• Maximum input is 100,000 BTU/hr.
• Decorative gas appliance must be certied to ANSI
Z21.60/CSA 2.26 “Standard for Decorative Gas
Appliances for Installation in Vented Fireplaces”.
• Must be installed in accordance with the National Fuel
Gas Code, ANSI Z223.1 and Natural Gas Installation
Code, CAN/CGA-B149.1-M95 or the Propane
Installation Code, CAN/CGA-B149.2-M95.
• A gas log set must incorporate a gas shuto.
• Gas Log set requires the damper to be locked fully open.
• A listed automatic damper system with safety interlock
may be used in this replace with only compatible,
listed gas log sets. See damper system manufacturer’s
instructions.
• Knockouts are provided on both sides of the replace
and in refractories for 1/2 in. (13 mm) iron pipe.
• Seal refractory around pipe with replace mortar or a
non-combustible sealant.
WARNING! Do Not operate an unvented gas log set in this
replacewiththechimneyremoved.
41
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
9 9
Reference Materials
A. Chimney Components
SL11 Chimney Stabilizer
Chimney Sections
A = Actual Length
B = Eective Length (length of
chimney part after it has
been snapped to another)
A
11 in.
(279 mm)
13 in.
(330 mm)
B
Outside Diameter
13 in.
(330 mm)
Inside
Diameter
11 in.
(279 mm)
20-3/4 in.
(527 mm)
Catalog # Description
CAK5A Chimney Air Kit
ID4/ID6 Insulated Duct/Outside Air
UD4/UD6 Uninsulated Duct/Outside Air
SL1106 Chimney Section - 6 in. (152 mm) long
SL1112 Chimney Section - 12 in. (305 mm) long
SL1118 Chimney Section - 18 in. (457 mm) long
SL1136 Chimney Section - 36 in. (914 mm) long
SL1148 Chimney Section - 48 in. (1219 mm) long
SL11 Chimney Stabilizer
SL1130 Chimney Oset/Return - 30 deg
FS538 Ceiling Firestop - Straight
FS540 Ceiling Firestop - 30 deg
AS10 Straight Attic Shield, 24 in. (610 mm)
JB577 Chimney Joint Band
CB576 Chimney Bracket
RF570 Roof Flashing - Flat to 6/12 Pitch
RF571 Roof Flashing - 6/12 to 12/12 Pitch
TR11 Round Termination Cap
TR11T-B Round Telescoping Termination Cap
TCT1175 Terra Cotta Termination Cap
ST1175 Square Termination Cap
TR-TVK TR Top Vent Kit
DTO134-BK Short Octagon Decorative Cap - Black
DTO134-CP Short Octagon Decorative Cap - Copper
DTO146-BK Tall Octagon Decorative Cap - Black
DTO146-CP Tall Octagon Decorative Cap - Copper
DTS134-BK Short Square Decorative Cap - Black
DTS134-CP Short Square Decorative Cap - Copper
DTS146-BK Tall Square Decorative Cap - Black
DTS146-CP Tall Square Decorative Cap - Copper
LDS33 Decorative Shroud - 3 ft x 3 ft (.91 m x .91 m)
LDS46 Decorative Shroud - 4 ft x 6 ft (1.22 m x 1.83 m)
LDS-BV Decorative Shroud - 26 in. x 26 in. (660 mm x 660 mm)
Field Constructed Shrouds (See “Woodburning Term. Cap”)
CT-11A-B Adapter-May be used with the following caps
Catalog #
A B
in mm in mm
SL1106 6 152 4-3/4 121
SL1112 12 305 10-3/4 273
SL1118 18 457 16-3/4 425
SL1136 36 914 34-3/4 883
SL1148 48 1219 46-3/4 1187
42
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

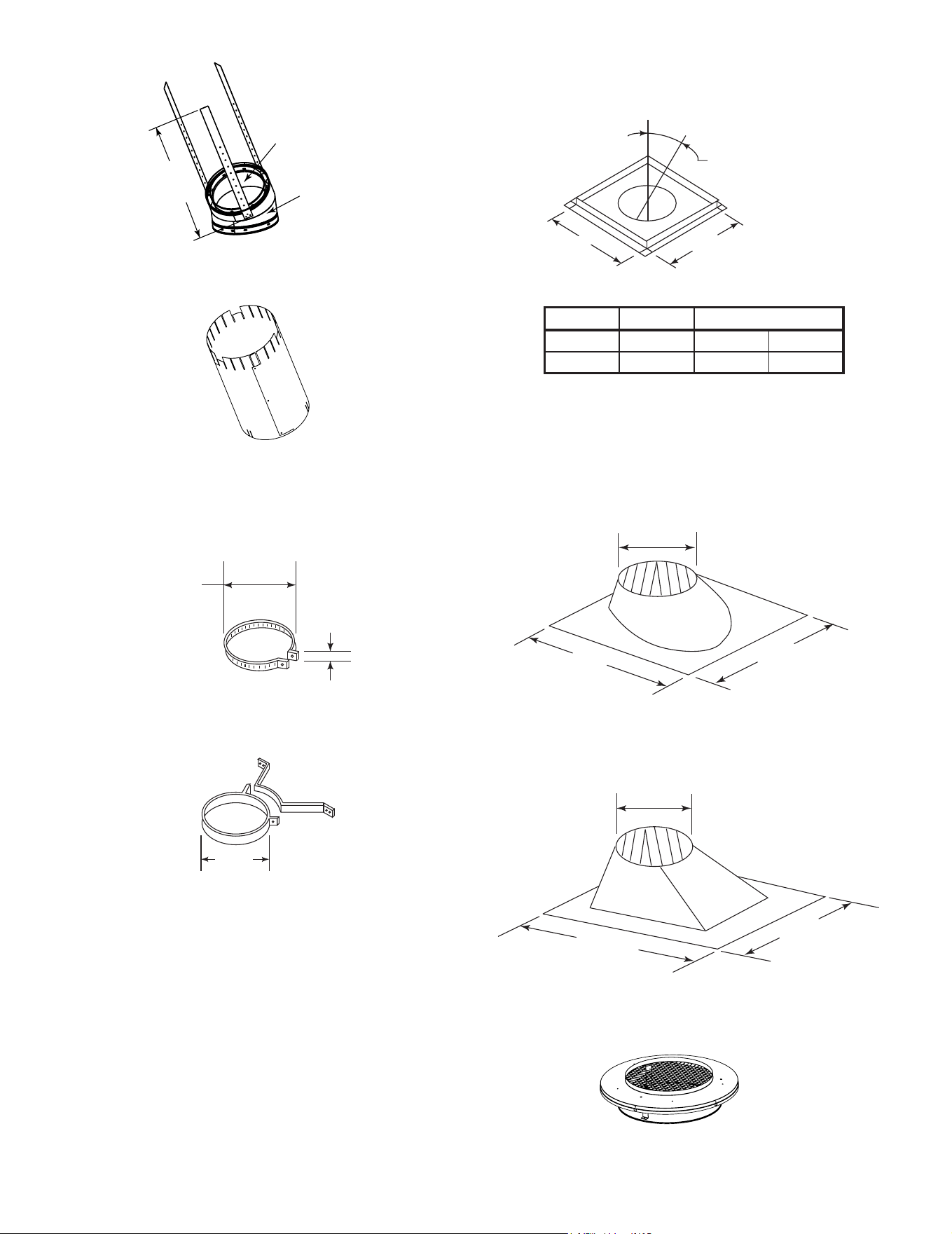

Assembled
Diameter: 17 in./432 mm
Height: 24 in./610 mm
AS10 Straight Attic Insulation Shield
CB576 Chimney Bracket
13 in.
(330 mm)
JB577 Chimney Joint Band
2 in.
(51 mm)
13 in.
(330 mm)
A
B
17 in. (432 mm)
RF570 Roof Flashing
RF571 Roof Flashing
39-7/8 in.
(1013 mm)
28 in.
(711 mm)
15-1/4in.
(387 mm)
25-1/4 in.
(641 mm)
29 in.
(737 mm)
15-1/4 in.
(387 mm)
SL1130 Oset/Return
21 in.
(533 mm)
Inside
Diameter
11 in.
(279 mm)
Outside
Diameter
13 in.
(330 mm)
TR-TVK
Catalog # A B
FS538 0-deg. 17 in. 432 mm
FS540 30-deg. 26 in. 660 mm
43
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

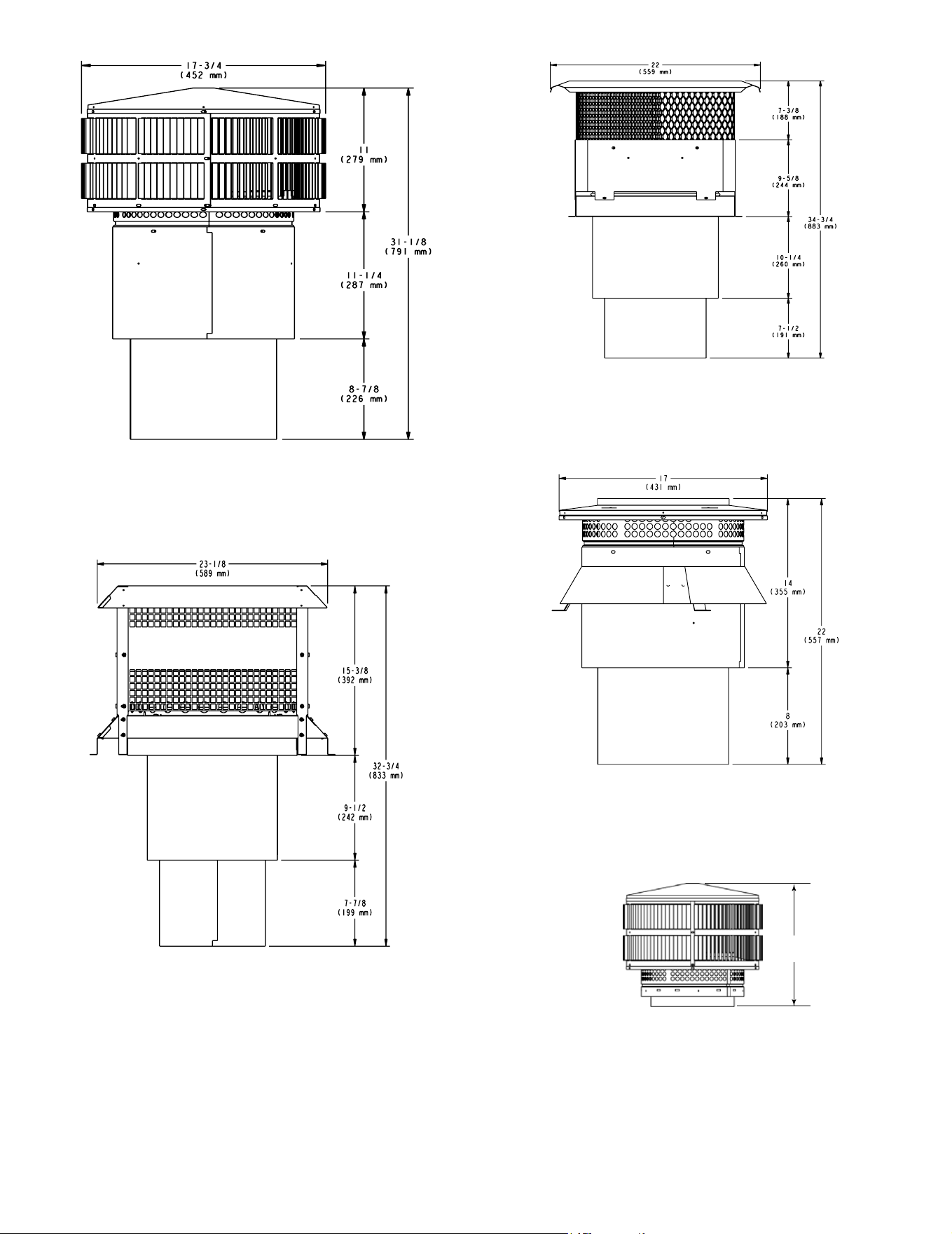

TR11 - Round Termination Cap
15-3/4 in.
(400 mm)
TR11T - Round Telescoping Termination Cap
ST1175 - Square Termination Cap
TCT1175 - Terra Cotta Cap
CT11-A Adapter
44
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
B. Optional Components
B
A
C
B
C
A
DTS134/146-BK/CP DTO134/146-BK/CP
Decorative Caps
DTO134-BK/CP
A B C
in
34 20 24
mm
864 508 610
DTO146-BK/CP
in
46 22-3/4 26
mm
1168 577 660
DTS134-BK/CP
A B C
in
34 21-3/16 24
mm
864 538 610
DTS146-BK/CP
in
46 21-3/16 26
mm
1168 538 660
45
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25

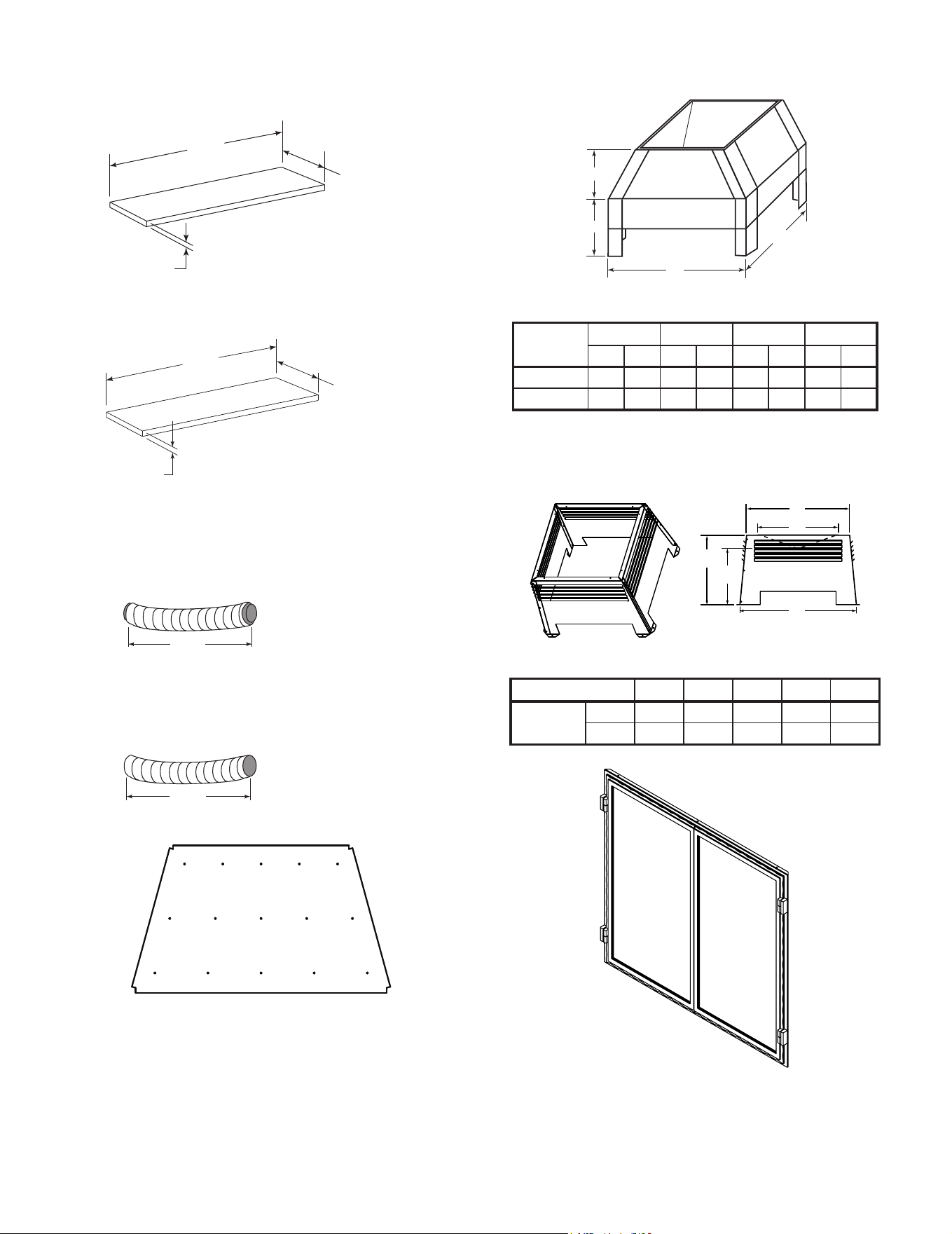

20 in.
(508 mm)
66 in.
(1676 mm)
1/2 in.
(13 mm)
HX4 Hearth Extension
16 in.
(406 mm)
52 in.
(1321 mm)
1/2 in.
(13 mm)
HX3 Hearth Extension
A
B
C
D
LDS33/LDS46 Decorative Shroud
E
D
A
C
B
LDS-BV Decorative Shroud
Catalog #
A B C D
in. mm in. mm in. mm in. mm
LDS33 36 914 36 914 8.5 216 11 279
LDS46 48 1219 72 1829 8.5 216 11 279
Catalog # A B C E E
LDS-BV
in. 26 12.5 15.5 22 23
mm 660 318 394 533 584
LDSCP-M - Corner Post Kit (for custom sizes)
ID4 Insulated Duct 4 in. (102 mm) i.d.
ID6 Insulated Duct 6 in. (152 mm) i.d.
42 in.
(1067 mm)
42 in.
(1067 mm)
UD4 Uninsulated Duct 4 in. (102 mm) i.d.
UD6 Uninsulated Duct 6 in. (152 mm) i.d.
DM100-S Glass Doors
(optional)
See your Outdoor Lifestyles dealer for a complete list of optional components.
ODCTGWD-DP50 Drain Pan
46
Outdoor Lifestyles • ODCTGWD-50 Install Manual • 4169-900 • Rev B • 12/25
Outdoor Lifestyles, a brand of Hearth & Home Technologies
7571 - 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Please contact your Outdoor Lifestyles dealer with any questions or concerns.
For the location of your nearest Outdoor Lifestyles dealer, please visit www.hearthnhome.com.
