1. Description

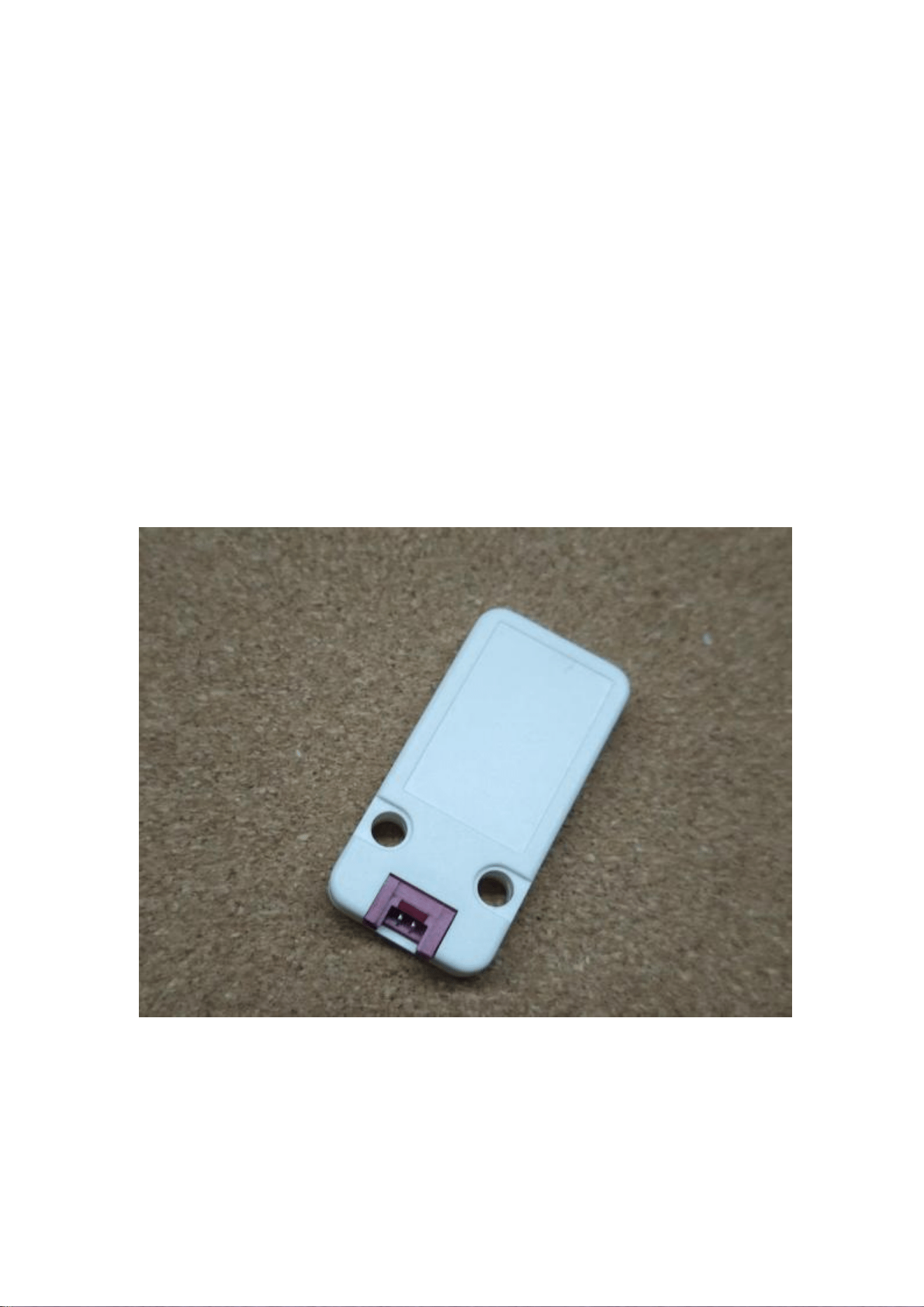

The Unit NFC is a high-performance universal NFC peripheral. It features the built-in
ST25R3916 chip, utilizes an I2C communication interface, and supports multiple operating
modes: reader/writer, card emulation, and active/passive peer-to-peer. It is compatible with
NFC-A/B (supporting ISO 14443A/B), NFC-F (FeliCam), and NFC-V (ISO 15693) for
reader/writer functionality, as well as NFC-A/NFC-F card emulation. Based on the AFE and
frame system, it offers special streaming and transparent modes, enabling the
implementation of other custom protocols in reader or card emulation modes. Integrated
technologies such as Dynamic Power Output (DPO), Active Wave Shaping (AWS), and Noise
Suppression Receiver (NSR) provide excellent anti-interference capabilities and performance.
It is suitable for applications such as identity recognition and pairing, as well as universal
handheld or desktop reader/writer devices.
Company Name：M5Stack Technology Co.,Ltd
Address: Block A10, Expo Bay South Coast, Fuhai Street, Bao'an District, Shenzhen,Guangdong,China
2. Specifications
Specification
Parameters
NFC Chip
ST25R3916
Communication Interface
I2C
Protocol Support
NFC-A/B (ISO 14443A/B),
NFC-F (FeliCam),
NFC-V (ISO 15693)
Operating Frequency
13.56 MHz
Operating Modes
Reader/writer, Card Emulation, Active &
Passive Peer-to-Peer
Frequency Range For CE
13.56MHz
Maximum EIRP For CE
11.17(dBµA/m) @3m
Hardware version NO.
V1.0
Software version NO.
V1.0
Company Name：M5Stack Technology Co.,Ltd
Address: Block A10, Expo Bay South Coast, Fuhai Street, Bao'an District, Shenzhen,Guangdong,China
3. Quick Start
3.1 NFC Test

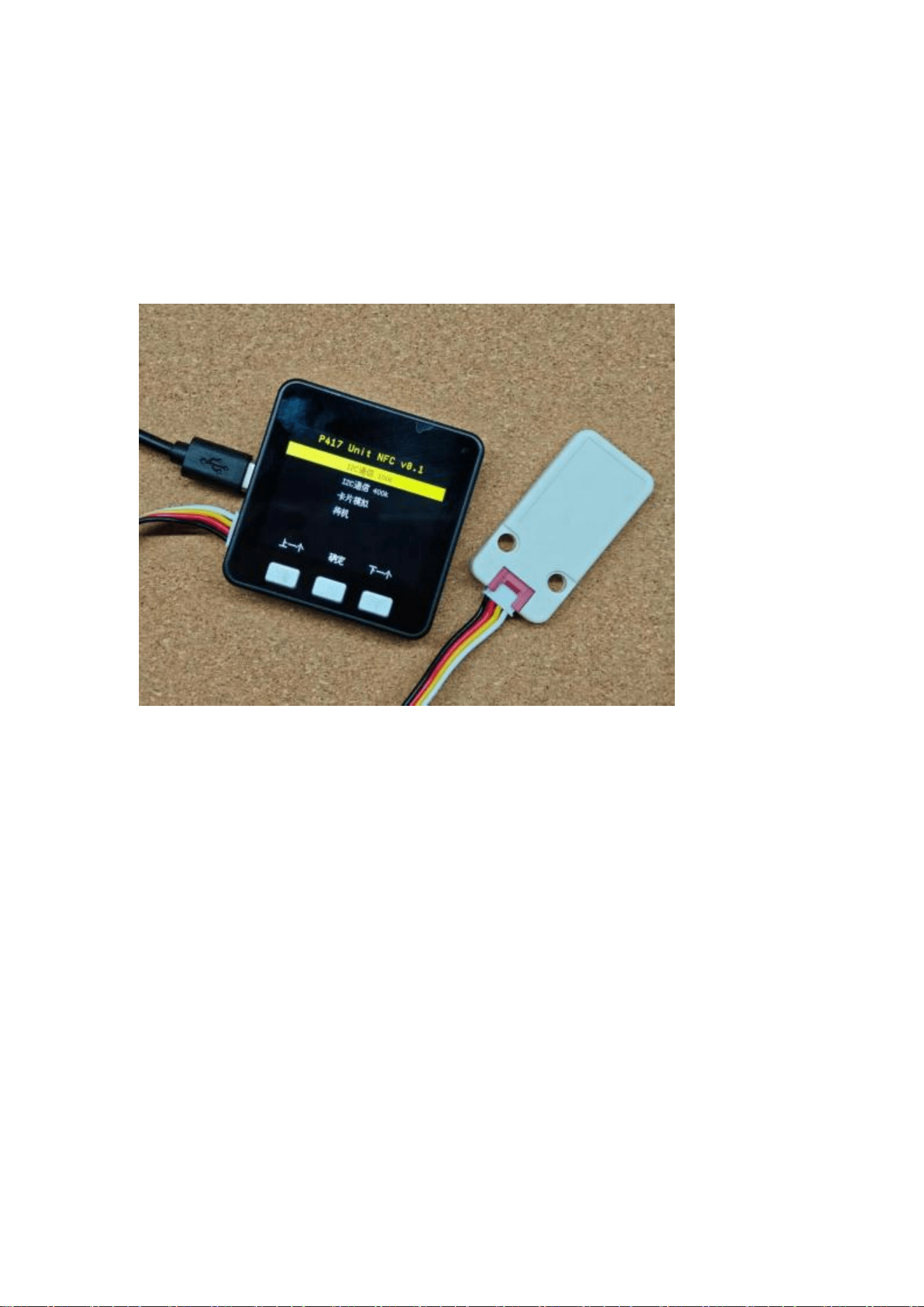

Connect the Unit NFC to the main testing control device Basic with the conversion board,
and burn the test firmware program for testing.
