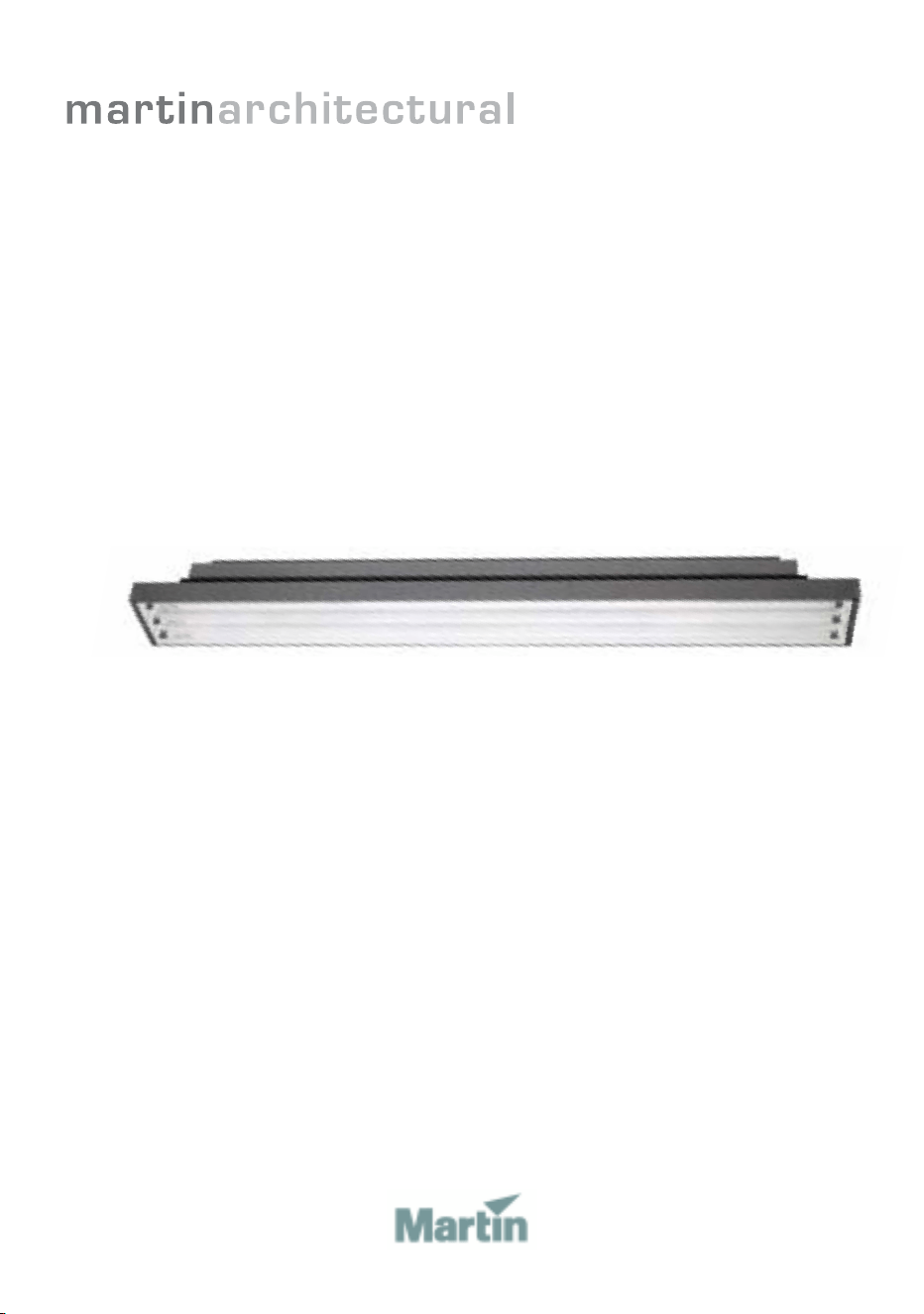

Cyclo DMX HO
High Output
user manual
Dimensions
Cyclo 03 DMX HO and Cyclo 04 DMX HO
94
Ø13
850
Ø5Ø4
1200
130
Measurements are in millimeters
© 2005 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be reproduced, in any form or by any means, with-
out permission in writing from Martin Professional A/S, Denmark.
Printed in Denmark.
P/N 35000172, Rev. A
3
Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Data linking multiple luminaires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting a DMX control device . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Burning in new tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Stand-alone operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

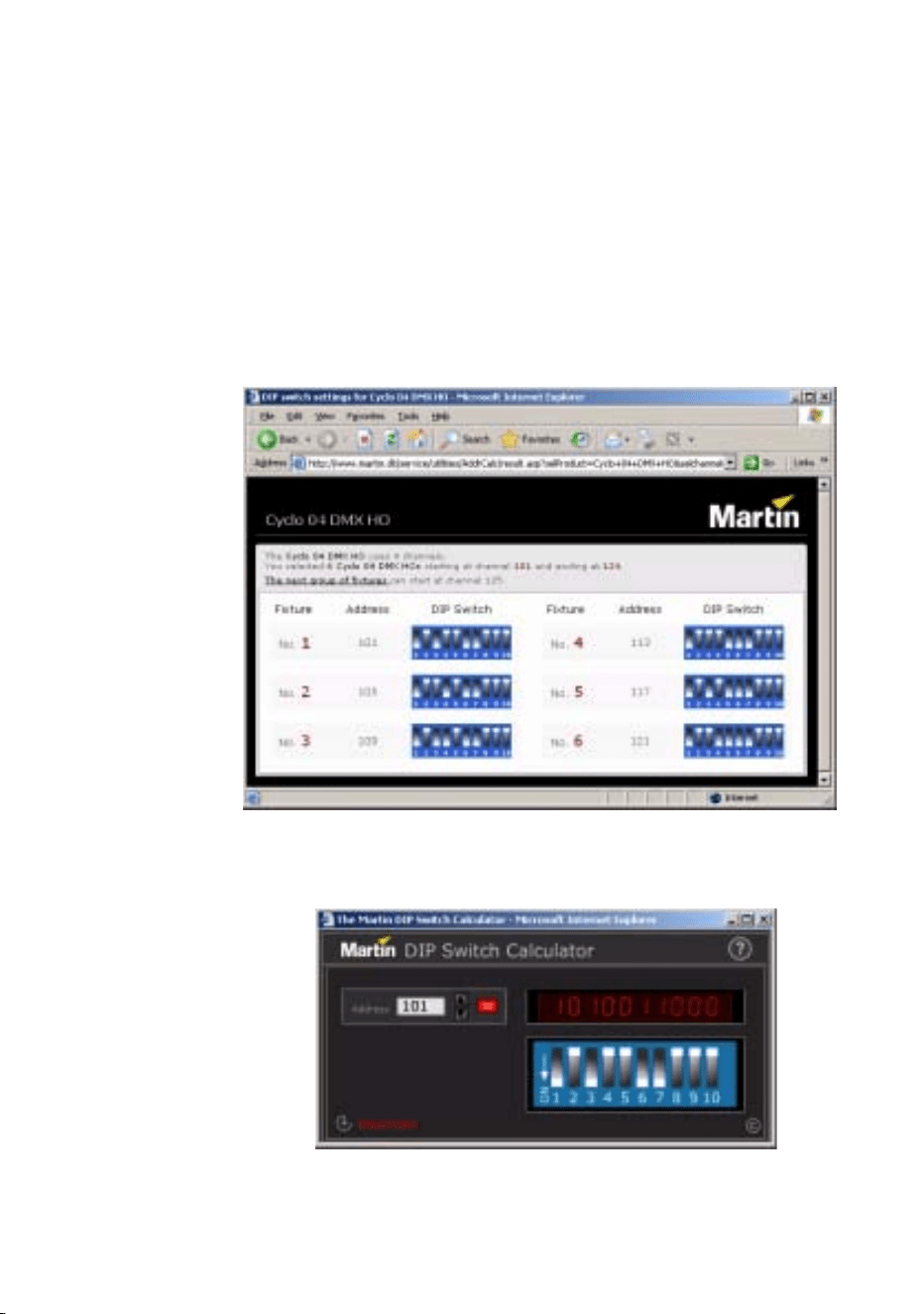

DIP-switch settings in stand-alone mode . . . . . . . . . . . . . . . . . . . . . . 12
Stand-alone operation settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Single stand-alone operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
host/client stand-alone operation. . . . . . . . . . . . . . . . . . . . . . . . . . 14
DMX controlled operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting the luminaire to DMX operation . . . . . . . . . . . . . . . . . . . . . . . 18
Controlling via DMX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Fluorescent tube replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DMX protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cyclo DMX HO Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4 Cyclo DMX HO user manual
Introduction
Thank you for selecting the Martin Cyclo DMX HO. This dynamic color-
changing luminaire can be programmed with a stand-alone light show
(which it can run alone or in a synchronized group), and is also DMX-
controllable. The luminaire is designed to be used for cove and perimeter
lighting, light walls, behind semi-transparent materials, or in any place
where space is restricted.
The Martin Cyclo DMX HO features:
• Full 0-100% intensity control of all tubes, allowing RGB color mixing and
color temperature correction.
• HIgh output 54 W T5 fluorescent tubes.
• Long tube life of 20,000 hours.
• Through-wired power and control data cables for easy installation.
This manual covers two models rated 230V, 50/60Hz:
• The Cyclo 03 DMX HO, with red, green and blue tubes.
• The Cyclo 04 DMX HO, with red, green, blue and white tubes.
Important! Read this manual before you attempt to install this product.
Updated user manuals for this and all other Martin products are available
from the Support area of the Martin Architectural website at
http://www.martin-architectural.com.
Safety information
Warning! This product is for professional use only. It is not for household
use.
This product present risks of lethal or severe injury due to fire and heat,
electric shock and falls. Read this manual before powering or installing this
luminaire, follow the safety precautions listed below and observe all
warnings in this manual and on the luminaire. If you have any questions
about how to operate this luminaire safely, please contact your Martin dealer
or call the Martin 24-hour service hotline at +45 70 200 201.
Introduction 5
Protection from electric shock
• Disconnect the luminaire from AC power before removing or installing a
tube, fuse, or any component and when not in use.
• Always ground (earth) the luminaire electrically.
• Do not operate the luminaire if any cover or component is damaged,
deformed or defective.
• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground fault (earth fault)
protection.
• Do not expose the luminaire to rain or moisture.
• Refer all service not described in this manual to a Martin service
technician.
Protection from burns and fire
• Provide a minimum clearance of 0.1 meters (4 inches) around the
luminaire.
• Never place filters or other materials over the clear polycarbonate cover.
• The exterior of the luminaire can become hot to the touch. Allow the
luminaire to cool for at least 5 minutes before handling.
• Do not modify the luminaire or install other than genuine Martin parts.
• Do not operate the luminaire if the ambient temperature (Ta) exceeds 40°
C (104° F).
Protection from injury due to falls
• Ensure that all external covers, fasteners and components are secure.
• Ensure that all supporting structures, surfaces and fasteners can bear the
weight of all devices installed.
• Block access below the work area whenever installing, servicing or
removing the luminaire.
6 Cyclo DMX HO user manual
Installation
This section describes in general terms how to install the luminaire and
connect it to power and control. These procedures must be performed by
qualified professionals.
To ensure adequate ventilation, install the Cyclo DMX HO with a minimum
of 25 mm (1 inch) of free space on each side.

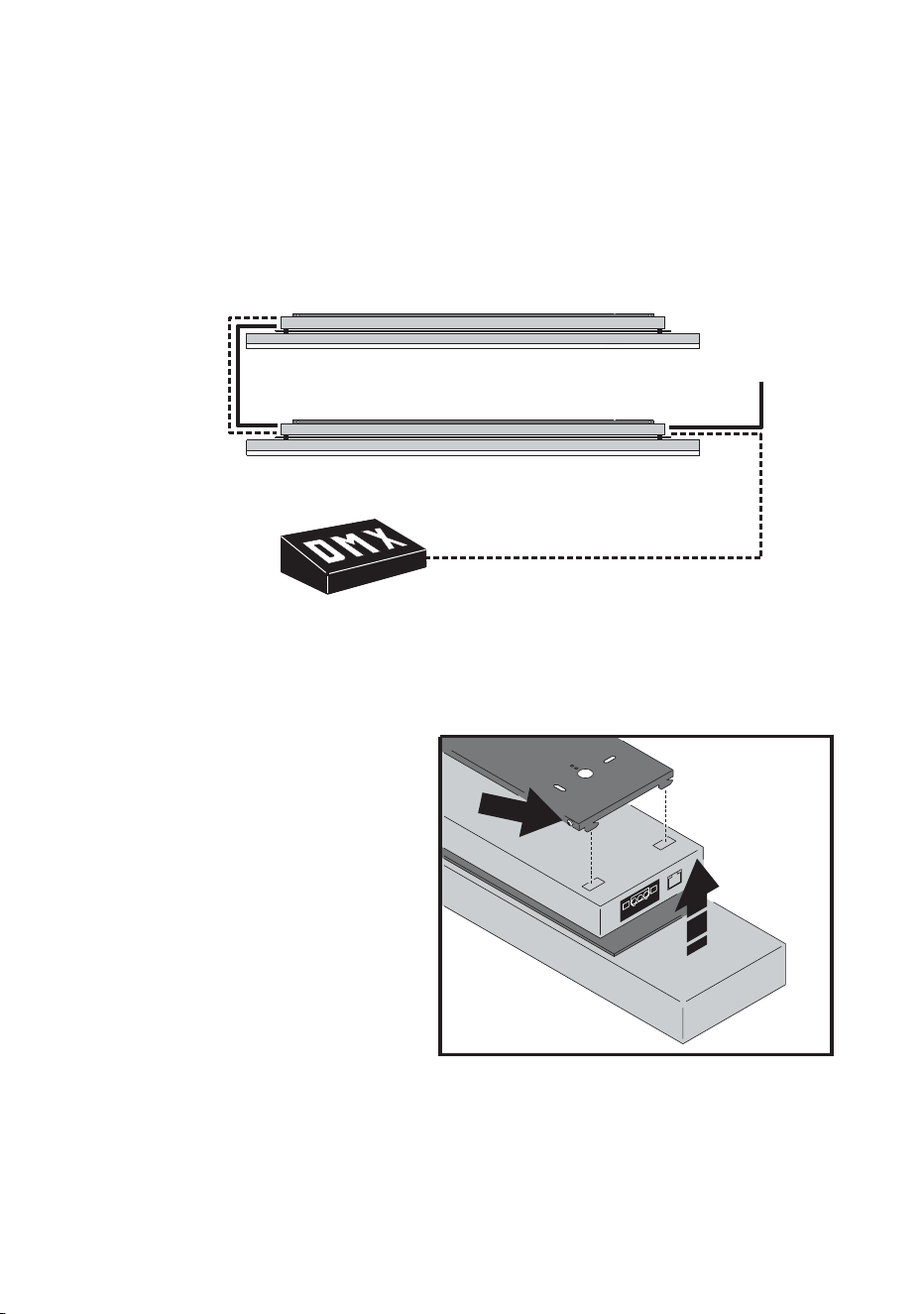

To mount the luminaire:.
1. Loosen the two screws
(see solid arrow in
illustration) holding the
mounting plate to the
luminaire
2. Remove the mounting
plate from the
luminaire.
3. Fasten the mounting
plate to the mounting
surface using four 4
mm (1/6th in) diameter
mounting screws or
bolts that can bear the weight of the luminaire.
4. Reattach the luminaire to the mounting plate and lock it into place by
tightening the two screws on the sides of the mounting plate.
Mains
200-250V AC
50/60 Hz
DMX control device
Category 5 DMX network
Installation 7
AC power
It is the installer’s responsibility to ensure that all local safety regulations
and legal requirements are observed when installing and powering the
Cyclo DMX HO.
AC mains power compatibility and consumption data are given in “Cyclo
DMX HO Specifications” on page 26.
Many fixed installations use common neutral conductors in branch circuit
distribution boxes. To avoid unintentional tripping of the RCD (ground fault
circuit breaker), ensure that the Cyclo DMX HO’s neutral conductor is
connected to AC power via the same RCD as the live conductor.
Important! Cyclo DMX HO luminaires contain electronic ballasts that “leak”
a total current of between 0.8mA and 4mA to ground (earth).
Make sure that luminaires are correctly connected to ground
(earthed) so that this “leakage” current can be absorbed.
Because of the “leakage” current, we recommend connecting a
maximum of seven Cyclo DMX HO luminaires per circuit where
each circuit is protected by a 30mA RCD. This should avoid
unintentional tripping of RCDs. Bear in mind that some RCDs
rated at 30mA may trip when leakage to ground is as low as
20mA.
Depending on the type of installation, electrical regulations in
some countries may permit the use of RCDs with a trip current
rating higher than 30mA. When considering this option, the
installer must ensure that all local safety, building and electrical
regulations are respected.
Connecting to power
Warning! Check that your local AC power voltage matches the voltage
specified on the serial number label before applying power.
8 Cyclo DMX HO user manual
Calculate the total current draw
of all devices to be connected
and use a power cable with a
suitable rating.

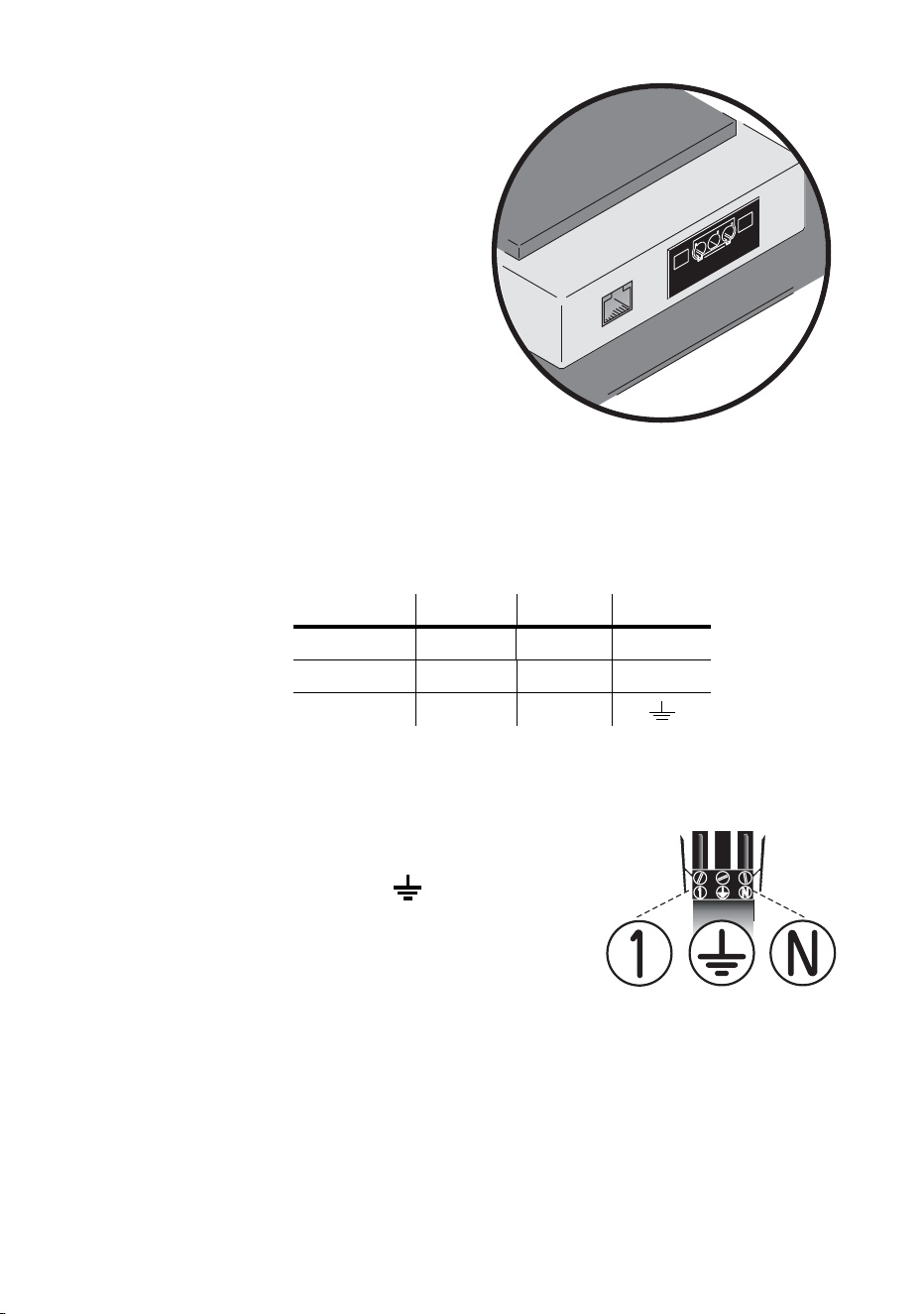

Cyclo DMX HO luminaires have
an ENSTO male connector for
AC power input built into the
casing (see illustration). A
female ENSTO cable connector
is supplied with the luminaire
for installation on your power
cable.
You can power Cyclo DMX HO
luminaires by wiring them in
series. The internal wiring
carries AC power through the
luminaire from the power input
to the power output connector.
Some common color-coding systems for AC power wiring are given below:
When installing the female ENSTO cable connector on the power cable,
note the markings next to the screw terminals:
• The terminal marked
1 must be connected
to the live wire.
• The terminal marked must be
connected to the ground (earth) wire.
• The terminal marked
N must be connected
the neutral wire.
The following connectors and cables are
available from your Martin dealer:
ENSTO 3-pole 16A/250V male connector. . . . . . . . . . . . . . P/N 05347202
ENSTO 3-pole 16A/250V female connector . . . . . . . . . . . . P/N 05327202
ENSTO male/female cable (15 cm/5.9in.) . . . . . . . . . . . . . . P/N 11501019
Wire (EU) Wire (US) Pin Marking
brown black live “L” or “1”
blue white neutral “N”
yellow/green green ground
Power Input (male ENSTO
connector)
Female ENSTO cable
connector
Installation 9
Data linking multiple luminaires
You need to create a serial data link to:
• Operate two or more Cyclo DMX HOs in host/client stand-alone mode,
where all luminaires run a synchronized light show without a separate
DMX control device
• Control luminaires with a DMX control device.
Luminaires on a serial data link must be daisy-chained in one single line,
maximum 500 meters (1640 ft.) long, with maximum 32 luminaires. To
exceed 32 luminaires or 500 meters, or to add branches, use an optically
isolated amplifier-splitter such as the Martin RS-485 Opto-Splitter (P/N
90758060).
A reliable data connection requires suitable cable. CAT 5 (category 5) UTP
(unshielded twisted pair) network cable is suitable for this purpose.
Recommended minimum wire sizes are 0.25 mm
2
(24 AWG) for runs up to
300 meters (1000 ft.) and 0.34 mm
2
(22 AWG) for longer cable runs. Your
Martin Architectural dealer can advise and supply suitable cable.
The: RJ-45 sockets in the Cyclo DMX HO are wired as follows: pins 7 & 8 to
ground, pin 2 to signal - (cold), and pin 1 to signal + (hot).
Data connections are through-wired in the luminaire, so it is not important
which RJ-45 socket is used for input and which for output.
To connect the data link:
1. Use suitable cable to connect one of the RJ-45 sockets on the first Cyclo
DMX HO to an RJ-45 socket on the next luminaire.
2. Continue connecting up to 32 luminaires using the RJ-45 sockets.
host/client link
DMX control link
Termination plug
DMX controller
Termination plug
10 Cyclo DMX HO user manual
3. Terminate the link by inserting a an RJ-45 DMX termination plug (P/N
TIp!
91613028) in the RJ-45 data output of the las
t luminaire.
Random “flicker” and other unexplained control problems
during stand-alone host/client operation can often be cured
by inserting an RJ-45 DMX termination plug into the unused
socket of the first luminaire.
Connecting a DMX control device
If using a DMX control device, use suitable cable to connect the controller’s
DMX output to an RJ-45 socket on the first Cyclo DMX HO. If your control
device has an XLR data output socket, you will need a male XLR-to-RJ45
converter, available from your Martin Architectural dealer (P/N 11840087).
For details of data link wiring and polarity, see “Data linking multiple
luminaires” on page 9.
Burning in new tubes
For optimum tube life and performance, burn in new fluorescent tubes by
running them for 100 hours at full power.
Stand-alone operation 11
Stand-alone operation
In stand-alone operation, the Cyclo DMX HO can be used without a DMX
controller. Static single colors or two-color mixes can be displayed, or
luminaires can be programmed to change colors in cycles. Changes can be
programmed at 1, 5, 10 or 30 second intervals.
Two stand-alone operation modes are available:
•In single stand-alone operation, luminaires run independently of each
other. No data link is required.
•Inclient
, luminaires must be linked. Synchronized action in all
luminaires is triggered by one “host luminaire.
Programming s
ingle and host/client stand-alone operation involves
setting the pins on the luminaire’s DIP switch. The DIP switch is protected
behind a sliding cover on the side of the power/control module housing. To
access the switch, loosen the cover screw but do not remove it completely,
then slide open the cover (see illustration).
An overview of the DIP switch settings is provided on the next page. A quick
reference table covering DIP switch functions is also provided on the back
cover of this manual.
12 Cyclo DMX HO user manual
DIP-switch settings in stand-alone mode
Cyclo DMX HO 03
Cyclo DMX HO 04
Pin Function
1 Red active
2 Green active
3 Blue active
4 Not used
5 & 6 Program speed
Pin 6 Pin 5 Speed
OFF OFF 1 sec. steps (fastest setting)
OFF ON 5 sec. steps
ON OFF 10 sec. steps
ON ON 30 sec. steps (slowest setting)
7 OFF = Blackout fading, ON = Crossfading
8 OFF = Run program, ON = Pause program
9
OFF = host, ON = c
lient (Note: do not set more than one luminaire as host)
10 ON = Stand-alone mode.
Pin Function
1 White active
2 Red active
3 Green active
4 Blue active
5 & 6 Program speed
Pin 6 Pin 5 Speed
OFF OFF 1 sec. steps (fastest setting)
OFF ON 5 sec. steps
ON OFF 10 sec. steps
ON ON 30 sec. steps (slowest setting)
7 OFF = Blackout fading, ON = Crossfading
8 OFF = Run program, ON = Pause program
9
OFF = host, ON = c
lient (Note: do not set more than one luminaire as host)
10 ON = Stand-alone mode.
Stand-alone operation 13
Stand-alone operation settings
Activating colors
DIP switch pins 1 to 3 (1 to 4 in Cyclo DMX HO 04 models) each activate a
color in the stand-alone program.
Setting program speed
Combinations of DIP switch pins 5 and 6 allow one of four different speeds
to be set.
Fading between colors
If DIP switch 7 is set to OFF (blackout fading), colors fade to almost
blackout before the next color fades in.
If DIP switch 7 is set to ON (crossfading), color fading overlaps. If two or
more colors are active, one color fades in while another is fading out, giving
a color mixing effect. For example, if red and blue are activated and
crossfading is selected, colors will crossfade from red through purple to
blue, then back through purple to red in a continuous cycle (see example).
Setting a static color display
In stand-alone operation, a static (non-changing) color display can be set by
pausing the program at the point where it is showing the desired color.
Either one color or a mix of two colors can be “frozen” in this way.
Red
Blue
100%
Time
Purple
Blue
100% Blue
100% Blue
0% Red
0% Red
50% Blue
50% Blue
50% Red
50% Red
0% Blue
0% Blue
100% Red
100% Red
Red
0%
50%

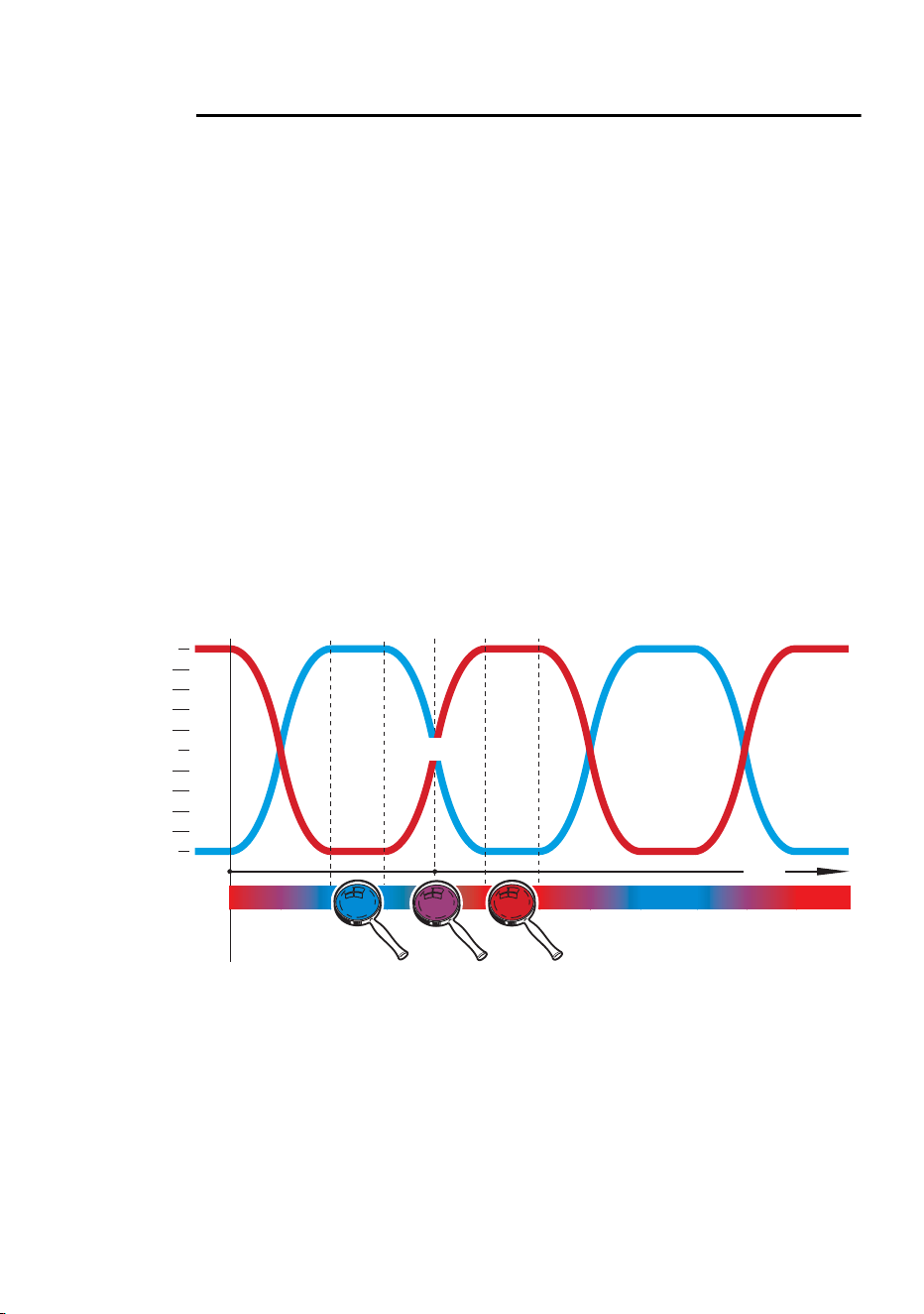

Example: crossfading between red and blue
14 Cyclo DMX HO user manual
To set a static color display:
1. Activate the color you wish to display (if you wish to display a two-color
mix, activate these two colors) on DIP switch pins 1 to 3 (1 to 4 on 04
models).
2. Set the luminaire as host by setting DIP switch pin 9 to OFF.
3. Set DIP switch pins 5 and 6 to ON to activate the slowest program speed.
4. Set DIP switch pin 7 to OFF to activate crossfading and DIP switch pin 8
to OFF to activate the program.
5. When the desired color or color mix appears, pause the program by
moving DIP switch 8 to ON. This color will remain “frozen” until DIP
switch 8 is moved to OFF.
Note that the paused color is lost when the luminaire is powered off. When
powering the luminaire on again, DIP switch pin 8 must be moved to OFF
before the program will start.
Single stand-alone operation
In single stand-alone operation, a luminaire runs its own program
independently of all other luminaires. To do this
, the luminaire must be set
as a host.
Activating single stand-alone operation
To activate single stand-alone operation:
1. Set DIP switch pin 10 to ON (activates stand-alone mode).
2. Set DIP switch pin 9 to OFF (activates host mode).
3. Apply power and program the luminaire using DIP switch pins 1 - 8 (see “
DIP-switch settings in stand-alone mode” on page 12).
client
Important! Do not set more than one luminaire on a data link as host,
and do not set a luminaire as host on a data link with a DMX
controller. Doing so may cause damage to the electronics that is
not covered by the product warranty.
In host/client stand-alone operation, one host luminaire transmits a
synchronizing signal to client luminaires over the data link each time it starts
a new action. client luminaires start their next programmed action when
they receive this signal from the host luminaire. Programs can be
Stand-alone operation 15
identical on all luminaires, or luminaires can – subject to certain practical
constraints – run programs that are synchronized but not identical.
Note that:
• Colors are always displayed in the order: red, green, then blue (white, red,
green, then blue on 04 models). This means for example that if red is
activated, it will always be first in the program. If red is not activated but
green is activated, green will be first in the program.
• Each luminaire follows the program set on its own DIP switch as
described in “DIP-switch settings in stand-alone mode” on page 12.
More sophisticated light shows can be programmed using a DMX controller
(see “DMX controlled operation” on page 18).
The synchronization signal used by Cyclo DMX HO luminaires is identical to
that used in other Cyclo luminaires with the same number of tubes, allowing
these products to be combined in host/client operation on one data link.
Luminaires that do not have the same number of tubes cannot be linked in
host/client operation. Consult your Martin Architectural dealer if you need
advice on combining and controlling products.
I d e n t i c a l l i g h t s h o w s
host and client luminaires can be set to behave identically. In this mode, the
host sends synchronizing signals to the clients, and all luminaires run the
same light show. Each client luminaire follows the program set on its own
DIP switch, so for identical operation, all luminaires’ DIP switch settings
must be the same apart from pin 9, which is set to ON for hosts and OFF
for the host.
S y n c h r o n i z e d n o n - i d e n t i c a l l i g h t s h o w s
It is also possible to synchronize changes but program client luminaires to
behave differently from the host. To use this feature effectively, you need to
plan your light show using scenes as building blocks and set the
luminaires’ DIP switches accordingly.
A scene is a change from one output to another. When a luminaire is in
client mode, it starts a scene when it receives a synchronization signal from
the host. The time taken by the scene is determined by the speed setting of
the client luminaire’s DIP switch. A client will not respond to new
synchronization signals until its scene is complete.
When crossfading is selected, each color takes up one scene (fade in only).
When blackout fading is selected, each color takes up two scenes (fade in
and fade out). This means that a maximum of 8 scenes can be programmed
with all 4 tubes activated (6 scenes with all 3 tubes activated on 03 models)
and blackout fading selected.
16 Cyclo DMX HO user manual
Each time the host luminaire starts at scene 1, it sends a signal to all the
c
lient luminaires to start at scene 1. This means that if a client luminaire has:
1. Fewer scenes than the host luminaire, it will run these in a cycle until
the host luminaire signals that the program should start from the
beginning again.
2. More scenes than the host, the additional scenes will never run,
because the program will reset to the first scene when the host starts its
program from the beginning.
Her
e is an example of what will happen if a client luminaire has fewer
scenes than the host luminaire:
Program examples
The following
examples show how
an individual
luminaire’s program
is made up of
scenes.
The symbols on the
right are used in
program diagrams.
Example 1
DIP switch 7 is set to ON (crossfading) and only red is activated:
Example 2
DIP switch 7 is set to OFF (blackout fading) and only red is activated:
Luminaire setting Scene pattern
123456 123456 123456 ...
host with 6 scenes
client with 4 scenes
123412 123412 123412 ...
Tube turned fully off
Fade in
Fade out
Fade to 50% and back to 100% in one scene
1 1 11 111 1 111 1
Red
Scene
21 21 21 21 21 21
Red
Scene
Stand-alone operation 17
Example 3
DIP switch 7 is set to ON (crossfading) and red and blue are activated:
Example 4
DIP switch 7 is set to OFF (blackout fading) and red and blue are activated:
Example 5
To achieve a rainbow effect, activate red, green and blue and set DIP switch
pin 7 to ON (crossfading).
client
To activate host/client stand-alone operation:
1. Power all luminaires off.
2. Set all luminaires as hosts and put them into stand-alone mode by setting
DIP switch pins 9 and 10 to ON.
3. Decide which luminaire to use as host and set this luminaire’s DIP switch
pin 9 to OFF. Note that any luminaire can be set as host, but you will
obtain the most reliable data signal by either setting the first luminaire on
the link as host or using RJ-45 DMX termination plugs at both ends of the
data link.
4. When power is applied, client luminaires will go to the next scene in their
program each time the host goes to its next scene. client luminaires will
also start scene 1 of their programs each time the host starts scene 1 of
its program.
1 2 21 211 2 21 21
Red
Blue
Scene
21 43 421 3 421 3
Red
Blue
Scene
1 2 3 1 2 3 1 2 3 1 2 3
Red
Green
Blue
Scene
18 Cyclo DMX HO user manual
DMX controlled operation
The Cyclo DMX HO may be operated with any USITT DMX (1990) lighting
control device. This section describes how to operate the system with a
controller. See also “Troubleshooting” on page 24.
Setting the luminaire to DMX operation
DMX operation is enabled by setting pin 10 on the luminaire’s DIP switch to
OFF. The DIP switch can be accessed by loosening the DIP-switch cover
screw (do not remove it completely) and sliding open the cover (see
illustration.)
Setting a DMX control address
The Cyclo DMX HO 03 uses 3 DMX control channels, and the Cyclo DMX
HO 04 uses 4 DMX control channels.
The DMX address, also known as the start channel, is the first of these
channels. It must be set on the luminaire and selected on the DMX
controller before the controller can send commands to the luminaire via a
DMX link.
The Cyclo DMX HO responds to commands sent to the DMX address and
the channels immediately above it. This means that if the DMX address is
set to 101:
• The Cyclo DMX HO 03 uses channels 101, 102 and 103.
• The Cyclo DMX HO 04 uses channels 101, 102, 103 and 104.
Allow enough channels when setting the DMX address. If control channels
for two luminaires overlap, one of the luminaires will receive the wrong
commands.
DMX controlled operation 19
If two or more Cyclo DMX HOs share the same DMX address, they will
receive the same commands and respond identically. Individual control will
be impossible.
The default factory-set control address is ‘1’.
To set the Cyclo DMX HO’s DMX address:
1. Set DIP switch pin 10 to OFF to enable DMX operation.
2. Decide on a DMX address for the luminaire. If you are calculating the
DMX addresses for multiple luminaires, save time by using the online
Martin Address Calculator at
http://www.martin.dk/service/utilities/AddrCalc/index.asp (see example).
3. You can also look up DIP-switch settings using the Martin DIP Switch
Calculator, available for online use and download at
http://www.martin.dk/service/dipswitchpopup.htm
4. If you do not have Internet access, refer to "Table 1: DMX address DIP-
switch settings" on page 20. Set DIP switch pins 1 through 9 to ON (1) or
OFF (0) with reference to the table.
20 Cyclo DMX HO user manual
To use this table, first find the DMX address in the main block in the table.
Then read the settings for pins 1 - 5 to the left and read the settings for pins
6 - 9 above the address. “0” means OFF and “1” means ON.
For example, to set the DMX address to 101, you need to set DIP-switch
pins 1, 3, 6 and 7 to ON, as highlighted in the table.
DIP switch pins setting
0 = OFF
1 = ON
#9 0 0 0 0 000011111111
#8 0 0 0 0 111100001111
#7 0 0 1 1 001100110011
#6 0 1 0 1 010101010101
#1 #2 #3 #4 #5
0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480
1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481
0 1 0 0 0 2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482
1 1 0 0 0 3 35 67 99 131 163 195 227 259 291 323 355 387 419 451 483
0 0 1 0 0 4 36 68 100 132 164 196 228 260 292 324 356 388 420 452 484
1 0 1 0 0 5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485
0 1 1 0 0 6 38 70 102 134 166 198 230 262 294 326 358 390 422 454 486
1 1 1 0 0 7 39 71 103 135 167 199 231 263 295 327 359 391 423 455 487
0 0 0 1 0 8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488
1 0 0 1 0 9 41 73 105 137 169 201 233 265 297 329 361 393 425 457 489
0 1 0 1 0 10 42 74 106 138 170 202 234 266 298 330 362 394 426 458 490
1 1 0 1 0 11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491
0 0 1 1 0 12 44 76 108 140 172 204 236 268 300 332 364 396 428 460 492
1 0 1 1 0 13 45 77 109 141 173 205 237 269 301 333 365 397 429 461 493
0 1 1 1 0 14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494
1 1 1 1 0 15 47 79 111 143 175 207 239 271 303 335 367 399 431 463 495
0 0 0 0 1 16 48 80 112 144 176 208 240 272 304 336 368 400 432 464 496
1 0 0 0 1 17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497
0 1 0 0 1 18 50 82 114 146 178 210 242 274 306 338 370 402 434 466 498
1 1 0 0 1 19 51 83 115 147 179 211 243 275 307 339 371 403 435 467 499
0 0 1 0 1 20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500
1 0 1 0 1 21 53 85 117 149 181 213 245 277 309 341 373 405 437 469 501
0 1 1 0 1 22 54 86 118 150 182 214 246 278 310 342 374 406 438 470 502
1 1 1 0 1 23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503
0 0 0 1 1 24 56 88 120 152 184 216 248 280 312 344 376 408 440 472 504
1 0 0 1 1 25 57 89 121 153 185 217 249 281 313 345 377 409 441 473 505
0 1 0 1 1 26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506
1 1 0 1 1 27 59 91 123 155 187 219 251 283 315 347 379 411 443 475 507
0 0 1 1 1 28 60 92 124 156 188 220 252 284 316 348 380 412 444 476 508
1 0 1 1 1 29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509
0 1 1 1 1 30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510
1 1 1 1 1 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511
Table 1: DMX address DIP-switch settings
DMX controlled operation 21
Controlling via DMX
The Cyclo DMX HO’s advanced fluorescent tubes can be dimmed from
maximum output right down to zero on a DMX controller using one channel
per tube. This allows a wide range of color shades with almost infinitely
variable intensity to be obtained using additive color mixing. The color
temperature of white light can be fine-tuned by running the white tube at
high power and adding blue or red at low power. Replacement white tubes
with various color temperatures are also available (see “Accessories” on
page 27).
Depending on the functions available on the controller, sophisticated light
shows on the Cyclo DMX HO can be programmed over time, allowing
constantly and rapidly shifting color mixes, or color displays which change
slowly according to the time of day, or even year, for example. See your
DMX controller manual for details.
Your Martin Architectural dealer can advise about available controllers and
control options.
22 Cyclo DMX HO user manual
Service
With long-life fluorescent tubes and virtually no moving parts, the Cyclo
DMX HO is almost service-free.
Fluorescent tube replacement
The Osram high output T5 tubes fitted as standard meet color specifications
for at least 10 000 hours. Average tube life is 20 000 hours, but note that
tube life will vary depending on operating conditions.
To change a tube:
1. Isolate the luminaire from the power supply and ensure that power
cannot be reapplied, even accidentally.
2. Ensure that the luminaire is securely mounted and block access below
the work area before beginning any servicing work.
3. Remove the two retaining screws and remove the front cover.
Front cover removal (03 model illustrated)
Service 23
4. Pressing on the metal caps at both
ends of the tube, rotate the tube 1/4
turn in whichever direction is
easiest, and slide the tube’s
terminal pins out of their sockets.
Support the tube at both ends as it
is released.
5. To install a new tube, line it up so
that the manufacturer’s markings
on all tubes are at the same end of
the luminaire. Slide the tube’s
terminal pins fully into their sockets
and rotate the tube 1/4 turn to
engage the pins.
6. Reinstall the front cover before reapplying power.
Identifying tube positions
Tube positions are identified in the Cyclo DMX HO as follows:
The burning positions of fluorescent tubes affect their warm-up times,
operating temperature, light output and tube life. For best results:
• Install tubes so that the manufacturer’s markings are all at the same end
of the luminaire.
• If the luminaire is installed in a vertical position or at an angle from the
horizontal, locate the ends of the tubes that carry the manufacturer’s
markings at the lower end of the luminaire (in a cold environment, i.e.
where temperatures are generally around or below freezing point, locate
the markings at the upper end of the luminaire).
Cleaning
Switch off power to the luminaire and use a damp cloth to wipe clean.
Marking in
luminaire Marking on tube Color Reference illustration
R OSRAM 54/60 Red
G OSRAM 54/66 Green
B OSRAM 54/67 Blue
No marking
(Cyclo DMX HO
04 only)
OSRAM 54/827
OSRAM 54/840
OSRAM 54/860
2700K white
4000K white
6000K white
Tube removal
(03 model illustrated)
R G B
24 Cyclo DMX HO user manual
Troubleshooting
Problem Probable cause(s) Remedy
No response from luminaire
when power is applied.
No power to luminaire. Check power connections.
Ground fault protection circuit
breaker (RCD) has tripped.
Reset RCD. If problem
persists, have an electrician
replace the RCD or reduce the
number of luminaires powered
via one RCD.
Luminaire does not respond
correctly to DMX control.
Controller not connected. Check DMX data link. Inspect
connections and test cables.
Repair or replace as
necessary.
Incorrect DMX addressing. Check address setting on
luminaire and controller.
Data link not terminated. Insert DMX termination plug in
unused socket of last
luminaire on data link.
Luminaire on link set
as host.
Check that all luminaires are
set as hosts (DIP switch pin 9
ON).
Defective luminaire. Bypass luminaires one at a
time until normal operation is
regained.
Luminaires do not behave
correctly in host/client mode
Two luminaires operating as
masters.
Check that only one
luminaire is set as host.
Data link not terminated. Insert DMX termination plug in
unused socket of last
luminaire on data link.
If problem persists, insert
DMX termination plug in
unused socket of first
luminaire on data link.
Defective luminaire. Bypass luminaires one at a
time until normal operation is
regained.
Poor quality light output and/or
color rendering.
Tube or tubes not burnt in. Run luminaire for at least 100
hours to burn in tubes.
Tube defective. Disconnect luminaire and
replace tube.
DMX protocols
Cyclo 03 DMX HO protocol
Cyclo 04 DMX HO protocol
Start code = 0
Channel Value Percent Function
1
0-2
3-252
253-255
0
1 - 99
100
Red intensity
Tube off
Intensity 1
→100%
Intensity 100%
2
0-2
3-252
253-255
0
1 - 99
100
Green intensity
Tube off
Intensity 1
→100%
Intensity 100%
3
0-2
3-252
253-255
0
1 - 99
100
Blue intensity
Tube off
Intensity 1
→100%
Intensity 100%
Start code = 0
Channel Value Percent Function
1
(not used for
Cyclo 03 DMX)
0-2
3-252
253-255
0
1 - 99
100
White intensity
Tube off
Intensity 1
→100%
Intensity 100%
2
0-2
3-252
253-255
0
1 - 99
100
Red intensity
Tube off
Intensity 1
→100%
Intensity 100%
3
0-2
3-252
253-255
0
1 - 99
100
Green intensity
Tube off
Intensity 1
→100%
Intensity 100%
4
0-2
3-252
253-255
0
1 - 99
100
Blue intensity
Tube off
Intensity 1
→100%
Intensity 100%
Cyclo DMX HO Specifications
PHYSICAL
L x W x H . . . . . . . . . . . . . . . . . . 1200 x 130x 94 mm (47.2 x 5.1 x 3.7 in.)
Finish . . . . . . . . . . . . . . . . . . . . . . . . . . .electrostatic powder coated, gray
Cyclo 03 DMX HO
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.8 kg (19.4 lbs)
Cyclo 04 DMX HO
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5 kg (23.1 lbs)
SOURCE
Approved lamp type . . . . . . . . . . . OSRAM T5 HO 54 W fluorescent tubes
Expected lamp life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 000 hours
DYNAMIC EFFECTS
Dimmable tubes . . . . . . . . . . . . . . . . . . . . . red, green & blue (03 models)
red, green, blue & white (04 models)
Independent dimming of each tube via DMX control device
CONTROL AND PROGRAMMING
Control options . . . . . . . . . . . . . . . . . DMX 512, stand alone, host/c
lient
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RS-485, 1 unit load
Setting and addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DIP switch
Data input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RJ-45
Data output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RJ-45
DMX channels (Cyclo 03 HO DMX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
DMX channels (Cyclo 04 HO DMX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INSTALLATION
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . any
Minimum free space around luminaire when installed . . . . 25 mm (1 inch)
POWER
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .198 - 250 V, 50 / 60 Hz
AC input . . . . . . . . . . . . . . . . . . . EnstoNet Installation System connectors
Typical power and current
Cyclo 03 DMX HO @ 230 V / 50 Hz . . . . . . . . . . . . . . . . . . 0.80 A,181 W
Cyclo 04 DMX HO @ 230 V / 50 Hz . . . . . . . . . . . . . . . . . . .1.02 A, 234 W
Note: Allow for a deviation of +/- 10% from typical figures listed above.
Measurements made at nominal voltage. Local supply voltages can vary by
+/- 10%.
THERMAL
Maximum ambient temperature (T
a
) . . . . . . . . . . . . . . . . . . 40° C (104° F)
Minimum ambient temperature (T
a
), started at full power. . . -20° C (-4° F)
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . convection
LISTINGS & APPROVALS
CE approved
INCLUDED ITEMS
Tube (installed, all models) . . . . . . . . . . . . . . OSRAM T5 FQ 54W/60 (red)
Tube (installed, all models) . . . . . . . . . . . . OSRAM T5 FQ 54W/66 (green)
Tube (installed, all models) . . . . . . . . . . . . . OSRAM T5 FQ 54W/67 (blue)
Tube (installed, 04 model only) . . . . OSRAM T5 FQ 54W/840 (cool white)
User manual
ACCESSORIES
Diffuser front for Cyclo 04 . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 91611078
Diffuser front for Cyclo 03 . . . . . . . . . . . . . . . . . . . . . . . . . . .P/N 91611077
Warm white tube (2700 K, Osram T5 FQ 54W/827) . . . . . . .P/N 97020009
Daylight white tube (6000 K, Osram T5 FQ 54W/860) . . . . .P/N 97020011
ENSTO 3-pole 16A/250V male connector . . . . . . . . . . . . . .P/N 05347202
ENSTO 3-pole 16A/250V female connector . . . . . . . . . . . . .P/N 05327202
ENSTO Male/female power cable (15 cm/5.9in.) . . . . . . . . .P/N 11501019
RJ-45 data link termination plug . . . . . . . . . . . . . . . . . . . . . .P/N 91613028
3-pin XLR female to RJ-45 converter . . . . . . . . . . . . . . . . . .P/N 11840086
3-pin XLR male to RJ-45 converter. . . . . . . . . . . . . . . . . . . .P/N 11840087
CAT5 patch cable, RJ-45, 250 mm (9.8 in.) . . . . . . . . . . . . .P/N 11840088
CAT5 patch cables, RJ-45, 2 m (6.5 ft) x 50 pcs. . . . . . . . . .P/N 91611044
CAT5 patch cables, RJ-45, 5 m (16.4 ft) x 30 pcs . . . . . . . .P/N 91611045
CAT5 patch cables, RJ-45, 10 m (32.8 ft) x 15 pcs . . . . . . .P/N 91611046
ORDERING INFORMATION
Cyclo 03 DMX HO, EU model. . . . . . . . . . . . . . . . . . . . . . . .P/N 90550114
Cyclo 04 DMX HO, EU model. . . . . . . . . . . . . . . . . . . . . . . .P/N 90550003
1 2 3 4 5 6 7 8 910
ON
1. Red
2. Green
3. Blue
4. Not used
5/6. Pr
ogram speed
8. ON = Pause
OFF = Play
9. ON = client or DMX
OFF = host
10. ON = Stand-alone
OFF = DMX
7. ON = Crossfading
OFF = Blackout fading
Quick reference
Cyclo DMX HO 03 DIP switch settings
1 2 3 4 5 6 7 8 910
ON
1. White
2. Red
3. Green
4. Blue
5/6. Pr
ogram speed
8. ON = Pause
OFF = Play
9. ON = client or DMX
OFF = host
10. ON = Stand-alone
OFF = DMX
7. ON = Crossfading
OFF = Blackout fading
Quick reference
Cyclo DMX HO 04 DIP switch settings
www.martin-architectural.com • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark
Tel: +45 8740 0000 •
Fax +45 8740 0010
