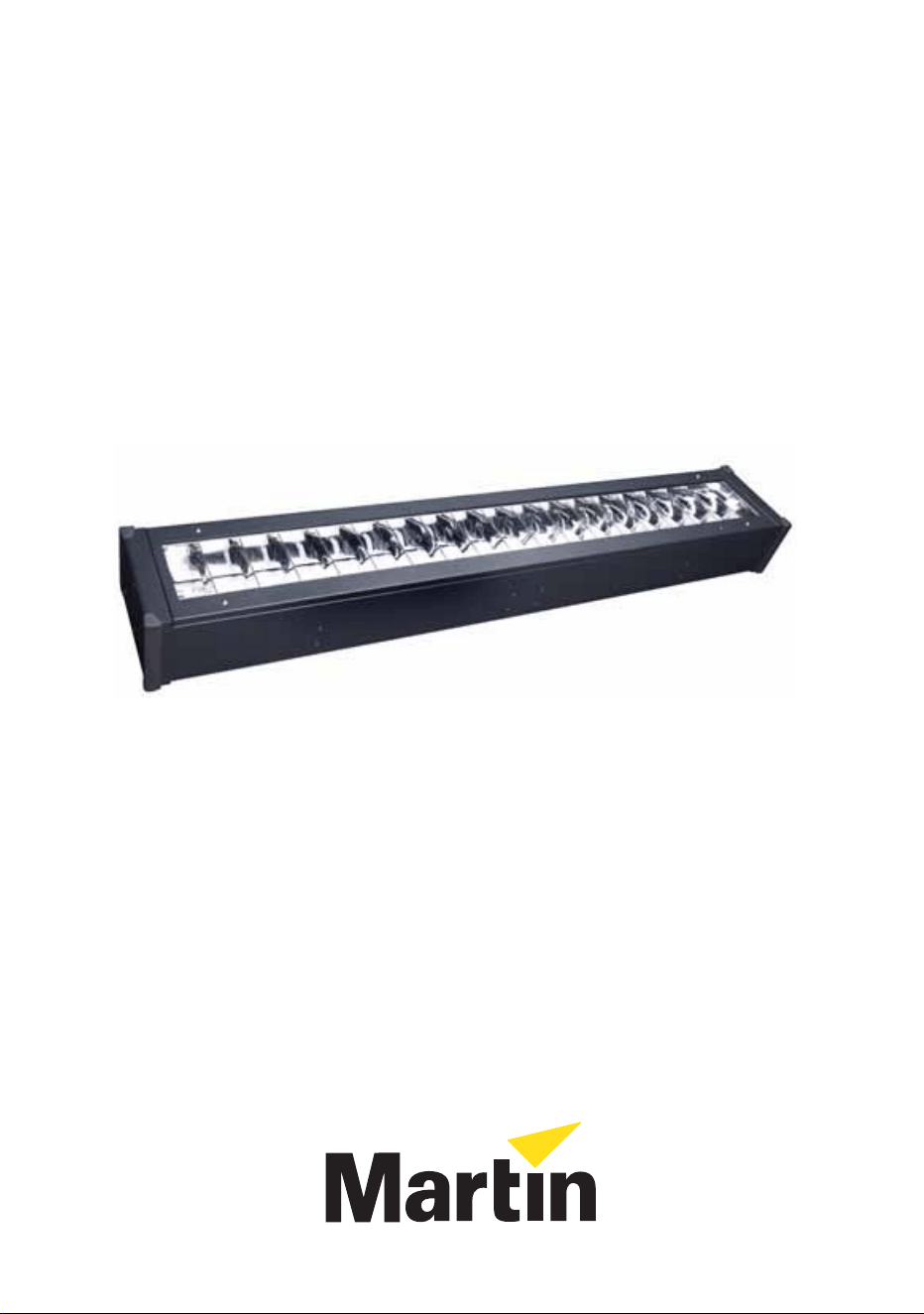

Stage Cyclo
User manual
© 2005-2007 Martin Professional A/S. All rights reserved. No part of this manual may be repro-
duced, in any form or by any means, without permission in writing from Martin Professional A/S.
Information subject to change without notice. Martin Professional A/S and all affiliated companies
disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or
any other loss occasioned by the use of, inability to use or reliance on the information contained
in this manual.
P/N 35000167, Rev. C
1272
209
135

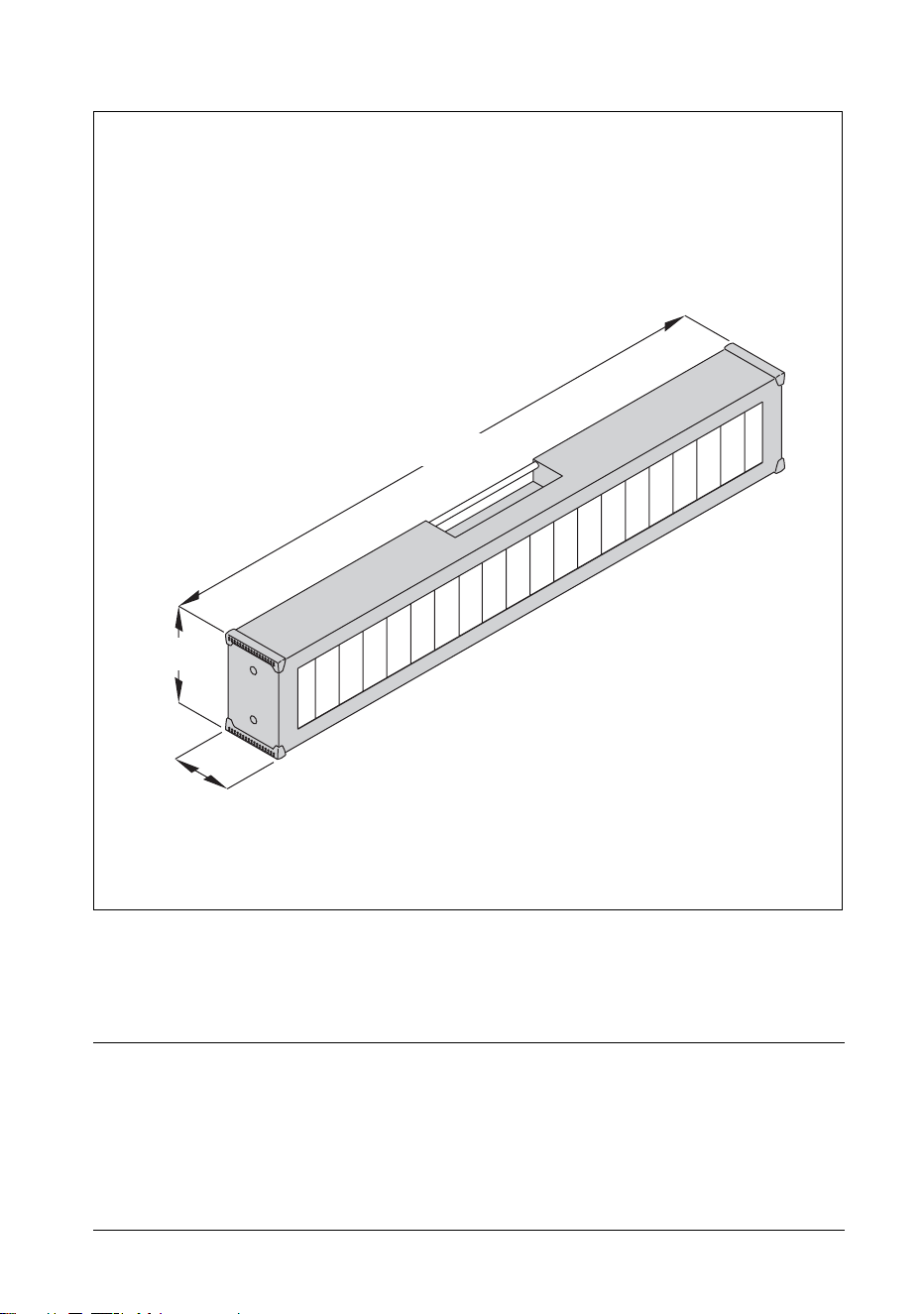

Dimensions
Measurements are in millimeters
Contents
Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AC power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting to a data link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Burning in fluorescent tubes . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Stand-alone operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DIP-switch settings in stand-alone mode . . . . . . . . . . . . . . . . 15
Stand-alone operation settings . . . . . . . . . . . . . . . . . . . . . . . . 15
Single stand-alone operation. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Master/slave stand-alone operation . . . . . . . . . . . . . . . . . . . . 17
DMX-controlled operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting a DMX control address . . . . . . . . . . . . . . . . . . . . . . . . 21
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fluorescent tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Main fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Stage Cyclo Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4 Stage Cyclo user manual
Product overview
A
B
C
D
E
F
G
D
M
X
IN
DMX
IN
D
M
X
O
U
T
DMX
OUT
R
J45
RJ45
D
M
X
O
U
T
DMX
OUT
D
M
X
IN
DMX
IN
D
M
X
IN
DMX
IN
D
M
X
O
U
T
DMX
OUT
FUSE
MAINS INPUT
MAINS
INPUT
R
J45
RJ45
H I J K L M N O

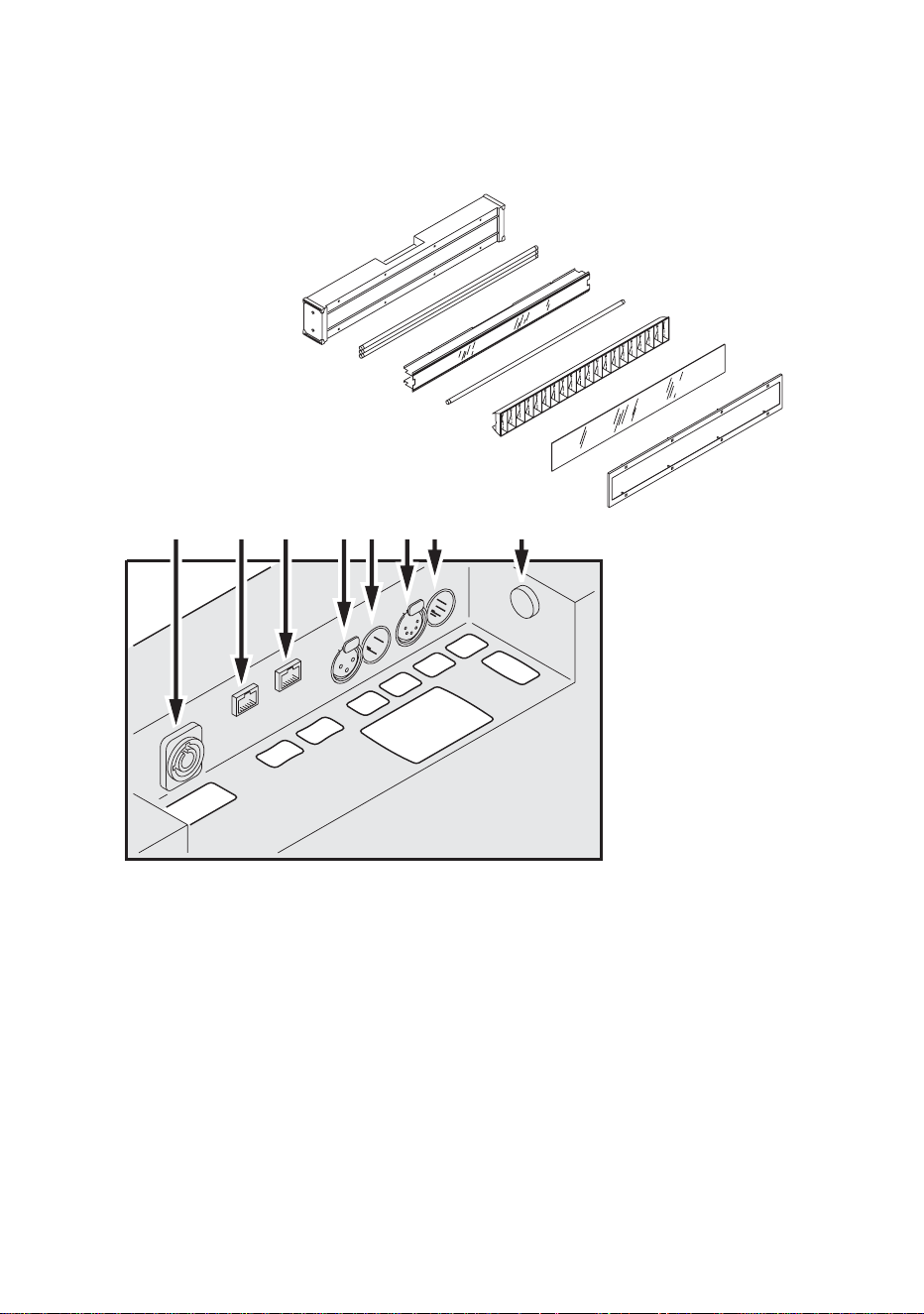

Main assembly
A Housing
B Colored tubes
C Diffuser
D White tube
E Reflector
F Clear plastic cover
GFront frame
Connections panel
H AC power input
I DMX in (RJ-45)
J DMX out (RJ-45)
K DMX out (3-pin XLR)
L DMX in (3-pin XLR)
M DMX out (5-pin XLR)
N DMX in (5-pin XLR)
O Main fuseholder
Introduction 5
Introduction
Thank you for selecting the Martin Stage Cyclo. The Stage Cyclo is
designed for wash illumination of sets, features, and artists. A patented
optical system ensures effective color mixing, allowing the fixture to be
positioned close to illuminated surfaces without color hot-spots.
The Stage Cyclo can be controlled via DMX or programmed with a stand-
alone light show (which it can run alone or in a synchronized group). It has a
wide range of mounting options, including stacking to form dynamic color-
changing light walls. Four dimmable T5 high-output fluorescent tubes
combine high efficiency, bright color and long lamp life.
The Stage Cyclo features:
• Full 0-100% intensity control of red, green, blue and white tubes to give
RGB color mixing and fine-tuned color temperature
• High output, long life T5 fluorescent tubes
• Tough steel case with rubber corner protectors and carrying handle
• XLR 3-pin, XLR 5-pin and RJ-45 DMX connectors.
• One-tenth peak angle 107° x 121°
• Optional accessories include an adjustable bracket that allows flexible
rigging options.
Important! Read this manual before attempting to install this product.
Updated user manuals for this and all other Martin products are available
from the Support area of the Martin website at http://www.martin.com.
Safety information
Warning! This product is for professional use only. It is not for household
use.
This product presents risks of lethal or severe injury due to fire and heat,
electric shock and falls. Read this manual before powering or installing this
fixture, follow the safety precautions listed below, and observe all warnings
in this manual and on the fixture. If you have any questions about how to
operate this fixture safely, contact your Martin dealer or call the Martin 24-
hour service hotline at +45 70 200 201.
6 Stage Cyclo user manual
Protection from electric shock
• Disconnect the fixture from AC power before removing or installing a tube
or any component, and when not in use.
• Always ground (earth) the fixture electrically.
• Do not operate the fixture if any cover or component is damaged,
deformed or defective.
• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground fault (earth fault)
protection.
• Use only an approved power cable with three 0.75 mm
2
(18 AWG)
conductors and cable jacket rated SJT or better.
• Do not operate the fixture if the power cable or power connections are
damaged, deformed or defective.
• Do not expose the fixture to rain or moisture.
• Refer all service not described in this manual to a Martin service
technician.
Protection from burns and fire
• Provide a minimum clearance of 25 mm (1 inch) around the fixture.
• Never place filters or other materials over the clear polycarbonate cover.
• The exterior of the fixture can become hot to the touch. Allow the fixture to
cool for at least 5 minutes before handling.
• Do not modify the fixture or install other than genuine Martin parts.
• Do not operate the fixture if the ambient temperature (T
a
) exceeds 40°C
(104°F).
Protection from injury due to falls
• Ensure that all fasteners and components are secure and use an
approved means of secondary attachment such as a safety cable.
• Ensure that all supporting structures, surfaces and fasteners can bear ten
times the weight of all fixtures installed.
• Block access below the work area whenever installing, servicing or
removing the fixture.
• Secure stacked fixtures with safety attachments so that they cannot fall or
be pushed over.
Installation 7
Installation
This section describes in general terms how to install the fixture, connect it
to AC power and connect to a DMX controller. These procedures must be
performed by qualified professionals.
Mounting
The Stage Cyclo features a range of
mounting and stacking options when
used in combination with Martin
Omega clamps.
Warning! Check that all fasteners,
structures and surfaces used to
mount the Stage Cyclo can bear
at least ten times the total
weight of all devices installed.
A maximum of 8 Stage Cyclos
may be hung vertically using
the Stage Cyclo mounting
bracket and Martin omega
clamps.
Work from a stable platform and
block access below the work
area when installing or
servicing fixtures above head-
height.
Rigging options
The clamp attachment points on the top, ends and back of the fixture
provide a range of rigging options.
An adjustable mounting bracket is available as an optional accessory (P/N
91611206).

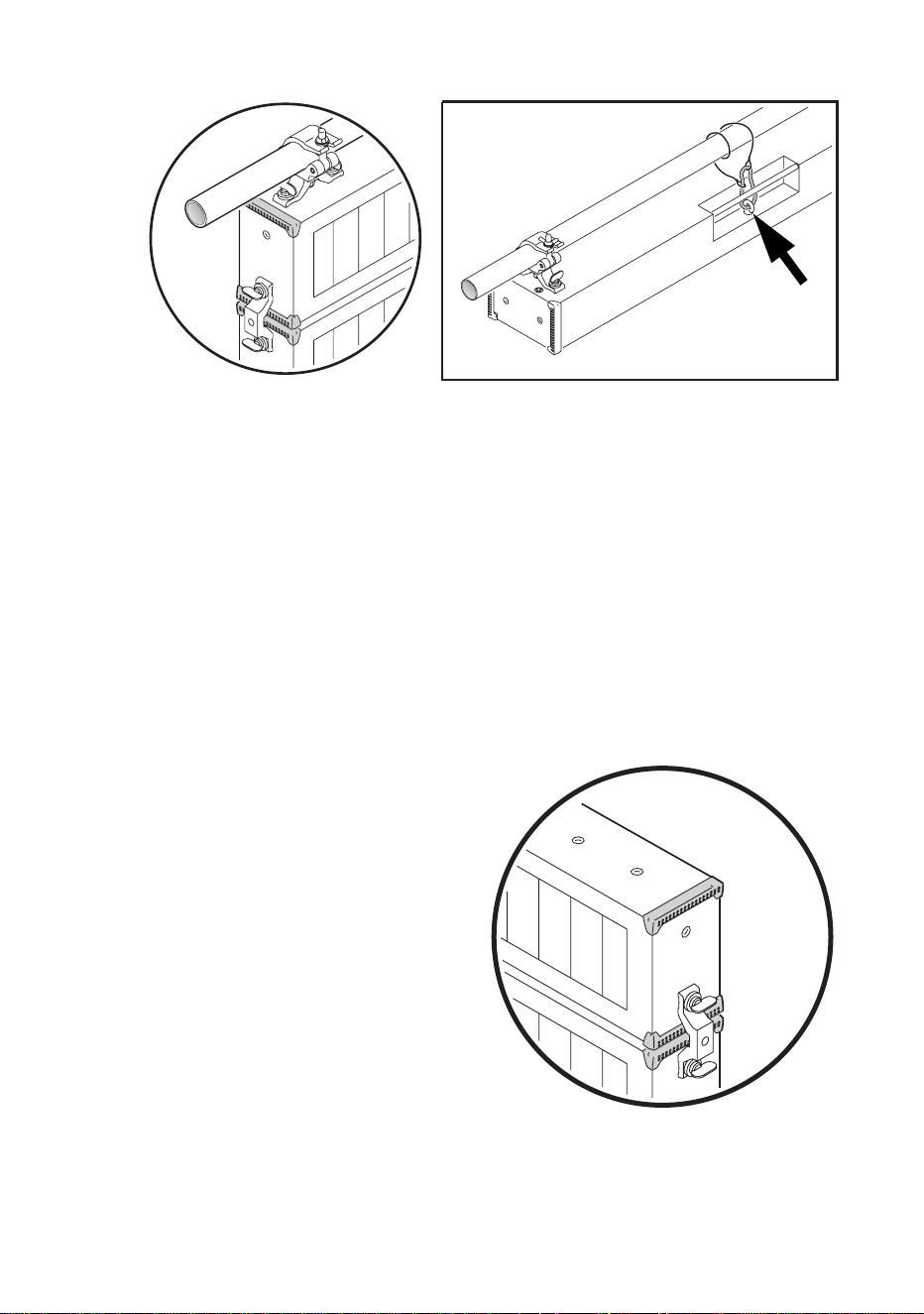

Figure 1: Mounting bracket
Max. 8 fixtures
8 Stage Cyclo user manual
Ensure that mounting hardware can bear at least ten times the total weight
of the fixtures installed. Using the mounting bracket or Martin half-coupler
(P/N 90602005) and Martin omega clamps (P/N 91602001), a maximum of
eight fixtures may be flown in one connected stack.
Anchor fixtures securely to the supporting structure with safety cables that
can bear at least 10 times the weight of all suspended fixtures. Attach safety
cables to every fixture using the eyebolts on the fixtures’ connections panels
(see Figure 2). Do not use mounting brackets or clamps as attachment
points, as this will leave fixtures unsecured.
Stacking
The quarter-turn clamping
points allow multiple Stage
Cyclos to be clamped together
with omega clamps to form
light walls.
Ensure that stacked fixtures
are secured with a safety
attachment so that they cannot
fall over.
Figure 2: Rigging with a Martin half-coupler and safety wire attachment
Figure 3: Stacking with omega clamps
Installation 9
Important! Make sure that all
quarter-turn fasteners are
turned fully clockwise
until they lock.
Placing on a surface
The Stage Cyclo can be placed flat or at an angle on a level surface and
used as an uplight. The adjustable support rods allow the fixture to be
placed at various angles.
Release the support rods by
pushing the clips on the ends
of the housing.

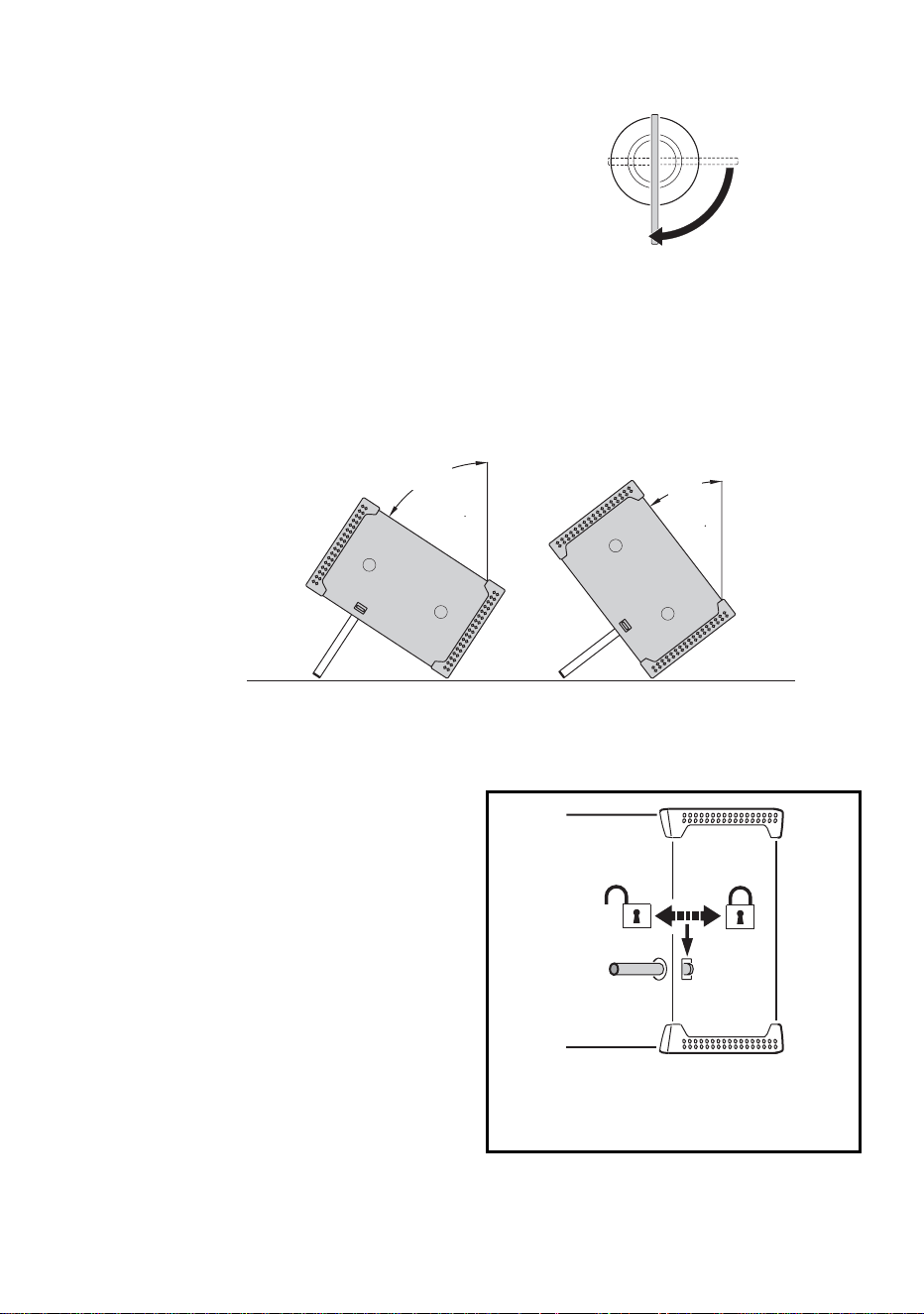

Figure 4: Quarter-turn fasteners
38°
57°
Figure 5: Placing on a level surface
Figure 6: Support rod release
10 Stage Cyclo user manual
AC power
It is the installer’s responsibility to ensure that all local regulations and legal
requirements are observed when installing and powering the Stage Cyclo.
The Stage Cyclo is available in two models, one for 100-130 V, 60 Hz AC
power only, and one for 208-250 V, 50/60 Hz AC power only. Full power
compatibility and consumption data are given in the Specifications section
on page 29.
Many fixed installations use common neutral conductors in branch circuit
distribution boxes. To avoid unintentional tripping of the RCD (ground fault
circuit breaker), ensure that the Stage Cyclo’s neutral conductor is
connected to AC power via the same RCD as the live conductor.
Important! Stage Cyclos contain electronic ballasts that “leak” a total
current of between 0.8mA and 4mA to ground (earth). Make sure
that fixtures are correctly connected to ground (earthed) so that
this “leakage” current can be absorbed.
Because of the “leakage” current, we recommend connecting a
maximum of seven Stage Cyclo fixtures per circuit where each
circuit is protected by a 30mA RCD. This should avoid
unintentional tripping of RCDs. Bear in mind that some RCDs
rated at 30mA may trip when leakage to ground is as low as
20mA.
Depending on the type of installation, electrical regulations in
some countries may permit the use of RCDs with a trip current
rating higher than 30mA. When considering this option, the
installer must ensure that all local safety, building and electrical
regulations are respected.
Connecting to mains power
Warning! Check that your local AC power voltage matches the voltage
specified on the serial number label before applying power.
The Stage Cyclo is supplied with a Neutrik PowerCon NAC3FCA power
cable connector that must be installed on a power cable with cable jacket
type SJT or better and three conductors that are 0.75 mm
2
cross-section
(18 AWG) minimum. The cable connector accepts power cable from 5 mm
(0.20 in.) to 11 mm (0.43 in.) diameter when fitted with a white chuck, or
from 9.5 mm (0.38 in.) to 15 mm (0.59 in.) diameter when fitted with a black
chuck.
Installation 11
Some common color-coding systems for AC power wiring are given below:
To install the connector:

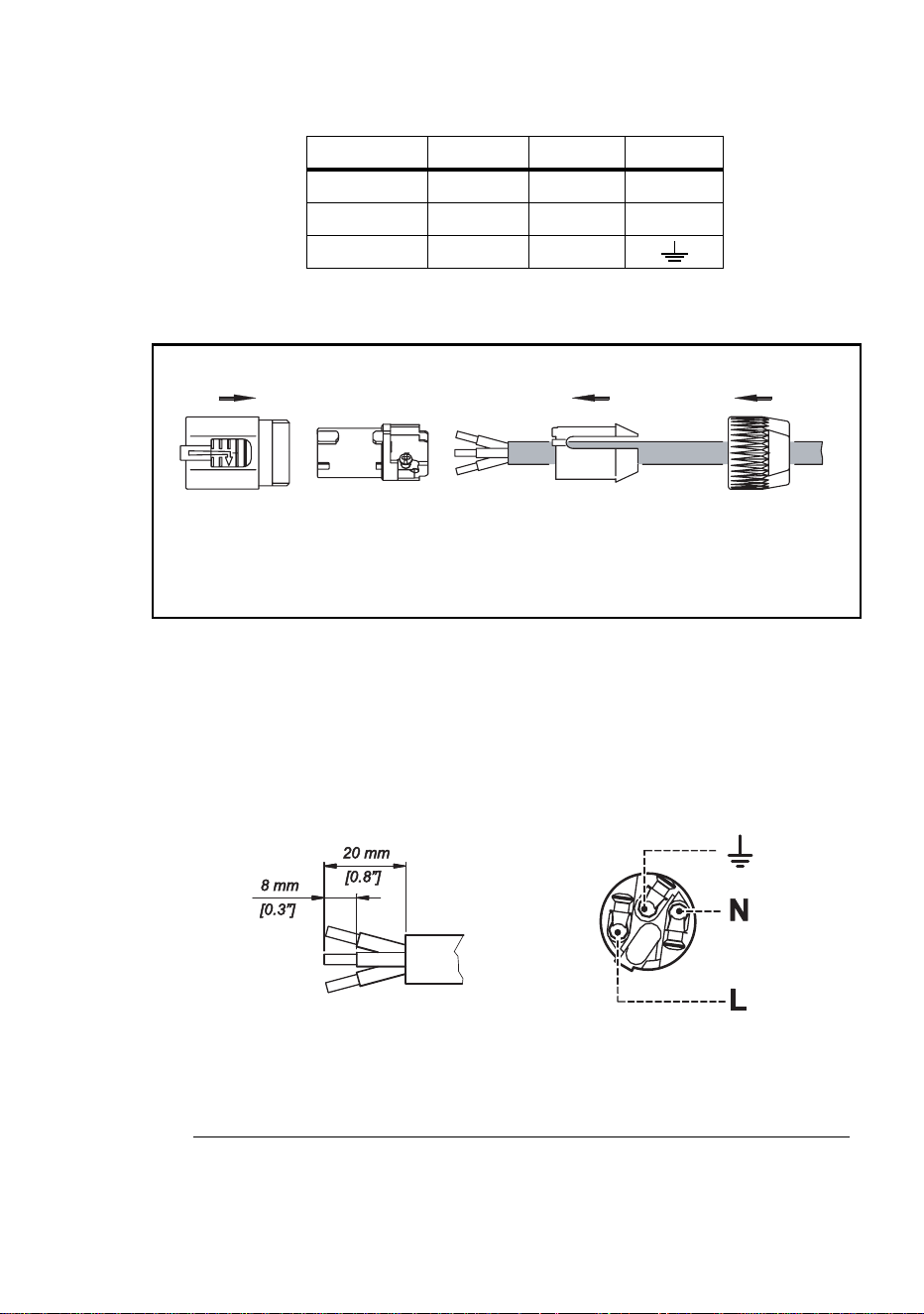

1. Assemble the bushing and chuck on your power cable as shown in
Figure 7.
2. Prepare the power cable and use a screwdriver to clamp the wires in the
appropriate terminals in the insert as shown in Figure 8.
3. Slide the insert and chuck into the housing, making sure that the raised
tabs engage in the keyways inside the housing.
Wire (EU) Wire (US) Pin Marking
brown black live L
blue white neutral N
yellow/green green ground
Table 1: Wiring codes
Figure 7: Cable connector assembly
Bushing
ChuckInsertHousing
Figure 8: Cable connector wiring
Content in the line drawings on this and the previous page is copyright ©2003 Neutrik
AG and used by permission. These illustrations may not be reproduced in any form
without the written permission of Neutrik AG.
12 Stage Cyclo user manual
4. Use an open-ended wrench (spanner) to fasten the bushing onto the
housing (max. torque: 2.5 Nm /1.8 ft-lbs).
To plug the power cable in, line up the raised tab on the cable connector
with the keyway in the chassis connector, push the cable connector in and
twist clockwise to lock.
To remove the cable connector, pull back the latch to release the lock, twist
the connector counterclockwise and pull out.
Additional connectors can be obtained from Martin dealers (P/N 05342804)
and Neutrik stockists
Connecting to a data link
Important! Never use more than one data input and one data output on one
fixture.
Fixtures on a serial data link must be daisy-chained in one single line,
maximum 500 meters (1640 ft.) long, with maximum 32 fixtures. To exceed
32 fixtures or 500 meters, or to add branches, use an optically isolated
splitter-amplifier such as the Martin RS-485 Opto-Splitter (P/N 90758060).
A reliable data connection requires suitable cable. Standard microphone
cable is unsuitable. For touring applications, use DMX cable designed for
RS-485 devices. For fixed installations, Category 5 network cable is an
acceptable alternative. Recommended minimum wire sizes are 24 AWG
(0.25mm
2
) for runs up to 300 meters (1000 ft) and 22 AWG (0.32 mm
2)
for
longer cable runs. Your Martin Architectural dealer can advise and supply
suitable cable.
The Stage Cyclo has RJ-45 as well as 3-pin and 5-pin XLR sockets for DMX
input and output. To avoid damage to the fixture, use only one input and one
output at the same time.
• XLR connectors are wired pin 1 to shield, pin 2 to cold (-), and pin 3 to hot
(+). There is no connection to pins 4 and 5 on 5-pin XLR connectors.
• RJ-45 connectors are wired pins 7 & 8 to shield, pin 2 to signal - (cold)
and pin 1 to signal + (hot).
Some older fixtures have reversed polarity XLR sockets (pin 2 hot and pin 3
cold). Socket polarity is normally labelled on products and specified in user
manuals. Use a phase-reversing cable between the Stage Cyclo and any
device with reversed XLR connector polarity.
Installation 13
To connect the data link:
1. Connect the DMX data output from the controller to one of the DMX input
sockets of the nearest fixture.
2. Connect one DMX output of this fixture to the DMX input of the next
fixture, and continue connecting output to input.
3. Terminate the link by inserting a male XLR DMX termination plug (P/N
91613017) or RJ-45 DMX termination plug (P/N 91613028) in the data
output of the last fixture.
Burning in fluorescent tubes
For optimum tube life and performance, burn in new fluorescent tubes for
100 hours at full power.
Ambient temperature
Do not operate the Stage Cyclo if ambient temperature (T
a
) exceeds 40°C
(104°F).
The Stage Cyclo can be started at full intensity from -20°C (-4°F), but needs
to be at operating temperature for best dimming characteristics. When
operating at extremely low ambient temperatures, start the fixture at full
power and allow it to warm up for approximately 10 minutes before
dimming. If dimming characteristics are impaired when running tubes at low
intensity in extreme cold conditions, the fixture may need to be warmed up
by periodically running tubes at higher intensity.
14 Stage Cyclo user manual
Stand-alone operation
In stand-alone operation, the Stage Cyclo can be used without a DMX
controller. Static single colors or two-color mixes can be displayed, or
fixtures can be programmed to change colors in cycles. Changes can be
programmed at 1, 5, 10 or 30 second intervals.
Two stand-alone operation modes are available:
•In single stand-alone operation, fixtures run independently of each
other. No data link is required.
•In master/slave stand-alone operation, fixtures must be linked.
Synchronized action in all fixtures is triggered by one “master” fixture.
Programming single and
master/slave stand-alone
operation involves setting the
pins on the fixture’s DIP
switch. The DIP switch is
protected behind a sliding
cover on the back of the
fixture’s housing. To access
the switch, pull the knob in
the connections panel recess
(see illustration) and slide
open the cover.
An overview of the DIP switch settings is provided on the next page. A quick
reference table covering DIP switch functions is also provided on the back
cover of this manual.
Figure 9: Dip switch access
Stand-alone operation 15
DIP-switch settings in stand-alone mode
Stand-alone operation settings
Activating colors
DIP switch pins 1 to 4 each activate a color in the stand-alone program.
Setting program speed
Combinations of DIP switch pins 5 and 6 allow one of four different speeds
to be set.
Fading between colors
If DIP switch 7 is set to OFF (blackout fading), colors fade to almost
blackout before the next color fades in.
If DIP switch 7 is set to ON (crossfading), color fading overlaps. If two or
more colors are active, one color fades in while another is fading out, giving
a color mixing effect. For example, if red and blue are activated and
crossfading is selected, colors will crossfade from red through purple to
Pin Function
1 White active
2 Red active
3 Green active
4 Blue active
5 & 6 Program speed
Pin 6 Pin 5 Speed
OFF OFF 1 sec. steps (fastest setting)
OFF ON 5 sec. steps
ON OFF 10 sec. steps
ON ON 30 sec. steps (slowest setting)
7 OFF = Blackout fading, ON = Crossfading
8 OFF = Run program, ON = Pause program
9 OFF = Master, ON = Slave (Note: do not set more than one fixture as master)
10 ON = Stand-alone mode.
16 Stage Cyclo user manual
blue, then back through purple to red in a continuous cycle (see example in
Figure 10).
Setting a static color display
In stand-alone operation, a static (non-changing) color display can be set by
pausing the program at the point where it is showing the desired color.
Either one color or a mix of two colors can be “frozen” in this way.
To set a static color display:
1. Activate the color you wish to display (if you wish to display a two-color
mix, activate these two colors) on DIP switch pins 1 to 4.
2. Set the fixture as master by setting DIP switch pin 9 to OFF.
3. Set DIP switch pins 5 and 6 to ON to activate the slowest program speed.
4. Set DIP switch pin 7 to OFF to activate crossfading and DIP switch pin 8
to OFF to activate the program.
5. When the desired color or color mix appears, pause the program by
moving DIP switch 8 to ON. This color will remain “frozen” until DIP
switch 8 is moved to OFF.
Note that the paused color is lost when the fixture is powered off. When
powering the fixture on again, DIP switch pin 8 must be moved to OFF
before the program will start.

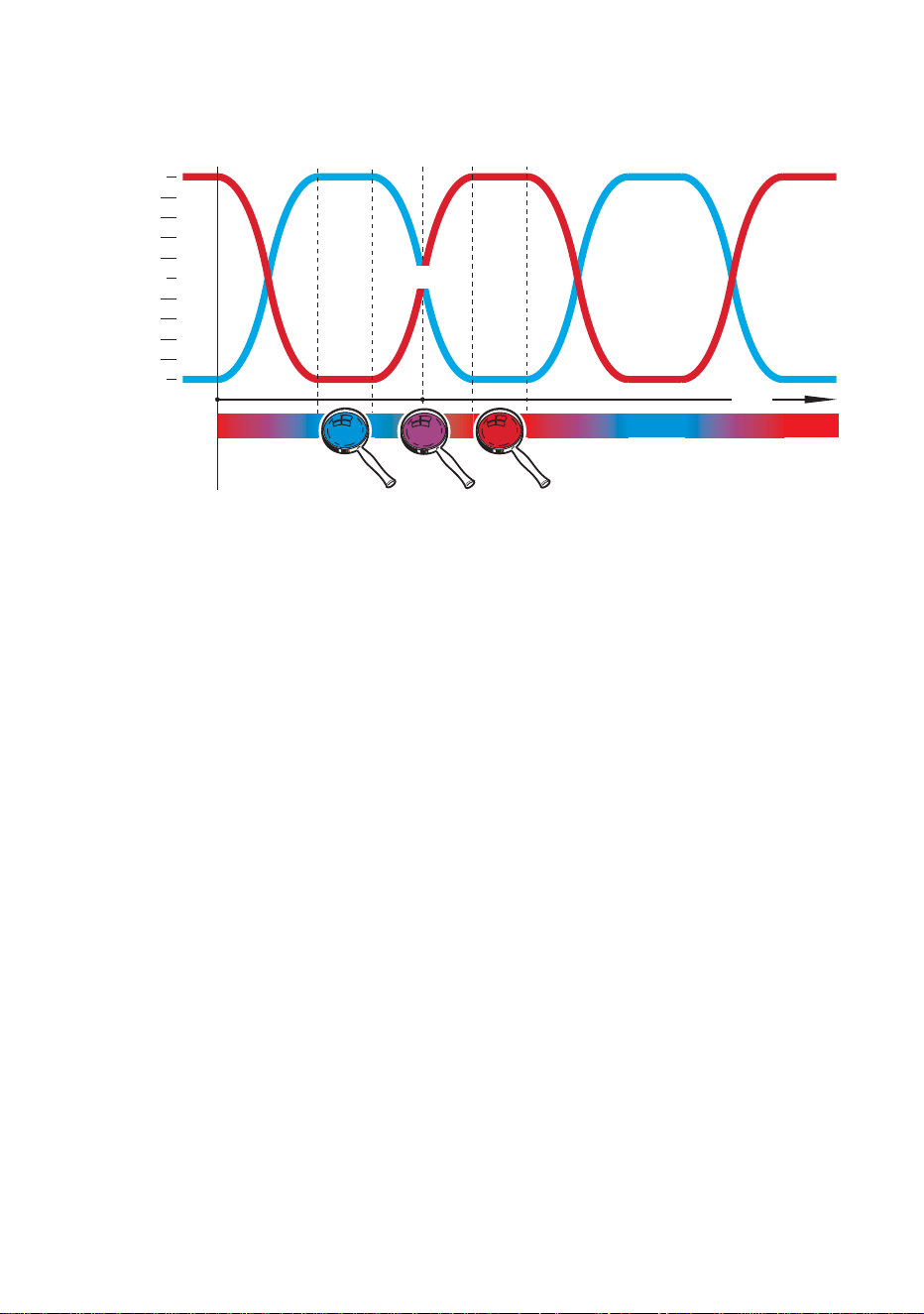

Red
Blue
100%
Time
Purple
Blue
100% Blue
100% Blue
0% Red
0% Red
50% Blue
50% Blue
50% Red
50% Red
0% Blue
0% Blue
100% Red
100% Red
Red
0%
50%
Figure 10: Crossfading between red and blue
Stand-alone operation 17
Single stand-alone operation
In single stand-alone operation, a fixture runs its own program
independently of all other fixtures. To do this, the fixture must be set as a
master.
Activating single stand-alone operation
To activate single stand-alone operation:
1. Set DIP switch pin 10 to ON (activates stand-alone mode).
2. Set DIP switch pin 9 to OFF (activates master mode).
3. Apply power and program the fixture using DIP switch pins 1 - 8 (see
“DIP-switch settings in stand-alone mode” on page 15).
Master/slave stand-alone operation
Important! Do not set more than one fixture on a data link as master, and
do not set a fixture as master on a data link with a DMX
controller. Doing so may cause damage to the electronics that is
not covered by the product warranty.
In master/slave stand-alone operation, one master fixture transmits a
synchronizing signal to slave fixtures over the data link each time it starts a
new action. Slave fixtures start their next programmed action when they
receive this signal from the master fixture. Programs can be identical on all
fixtures, or fixtures can – subject to certain practical constraints – run
programs that are synchronized but not identical.
Note that:
• Colors are always displayed in the order: white, red, green then blue. This
means for example that if red is activated, it will always be first in the
program. If red is not activated but green is activated, green will be first in
the program.
• Each fixture follows the program set on its own DIP switch as described in
“DIP-switch settings in stand-alone mode” on page 15.
More sophisticated light shows can be programmed using a DMX controller
(see “DMX-controlled operation” on page 21).
The synchronization signal used by Stage Cyclo fixtures is identical to that
used in other DMX-controllable Cyclo fixtures with the same number of
tubes, allowing these products to be combined in master/slave operation on
one data link.
18 Stage Cyclo user manual
Identical light shows
Master and slave fixtures can be set to behave identically. In this mode, the
master sends synchronizing signals to the slaves, and all fixtures run the
same light show. Each slave fixture follows the program set on its own DIP
switch, so for identical operation, all fixtures’ DIP switch settings must be the
same apart from pin 9, which is set to ON for slaves and OFF for the master.
Synchronized non-identical light shows
It is also possible to synchronize changes but program slave fixtures to
behave differently from the master. To use this feature effectively, you need
to plan your light show using scenes as building blocks and set the fixtures’
DIP switches accordingly.
A scene is a change from one output to another. When a fixture is in slave
mode, it starts a scene when it receives a synchronization signal from the
master. The time taken by the scene is determined by the speed setting of
the slave fixture’s DIP switch. A slave will not respond to new
synchronization signals until its scene is complete.
When crossfading is selected, each color takes up one scene (fade in only).
When blackout fading is selected, each color takes up two scenes (fade in
and fade out). This means that a maximum of 8 scenes can be programmed
with all 4 tubes activated and blackout fading selected.
Each time the master fixture starts at scene 1, it sends a signal to all the
slave fixtures to start at scene 1. This means that if a slave fixture has:
1. Fewer scenes than the master fixture, it will run these in a cycle until the
master fixture signals that the program should start from the beginning
again.
2. More scenes than the master, the additional scenes will never run,
because the program will reset to the first scene when the master starts
its program from the beginning.
Here is an example of what will happen if a slave fixture has fewer scenes
than the master fixture:
Program examples
The following examples show how an individual fixture’s program is made
up of scenes.
Fixture setting Scene pattern
Master with 6 scenes 123456 123456 123456 ...
Slave with 4 scenes 123412 123412 123412 ...
Stand-alone operation 19
The following symbols are used in program diagrams:
Example 1
DIP switch 7 is set to ON (crossfading) and only red is activated:
Example 2
DIP switch 7 is set to OFF (blackout fading) and only red is activated:
Example 3
DIP switch 7 is set to ON (crossfading) and red and blue are activated:
Example 4
DIP switch 7 is set to OFF (blackout fading) and red and blue are activated:
Tube turned fully off
Fade in
Fade out
Fade to 50% and back to 100% in one scene
(applies when only one color is active and
crossfading is selected)
1 1 11 111 1 111 1
Red
Scene
21 21 21 21 21 21
Red
Scene
1 2 21 211 2 21 21
Red
Blue
Scene
21 43 421 3 421 3
Red
Blue
Scene
20 Stage Cyclo user manual
Example 5
To achieve a rainbow effect, activate red, green and blue and set DIP switch
pin 7 to ON (crossfading).
Activating master/slave stand-alone operation
To activate master/slave stand-alone operation:
1. Power all fixtures off.
2. Set all fixtures as slaves and put them into stand-alone mode by setting
DIP switch pins 9 and 10 to ON.
3. Decide which fixture to use as master and set this fixture’s DIP switch pin
9 to OFF. Note that any fixture can be set as master, but you will obtain
the most reliable data signal by either setting the first fixture on the link as
master or using RJ-45 DMX termination plugs at both ends of the data
link.
4. When power is applied, slave fixtures will go to the next scene in their
program each time the master goes to its next scene. Slave fixtures will
also start scene 1 of their programs each time the master starts scene 1
of its program.
1 2 3 1 2 3 1 2 3 1 2 3
Red
Green
Blue
Scene
DMX-controlled operation 21
DMX-controlled operation
The Stage Cyclo may be operated with any USITT DMX (1990) lighting
control device. The fluorescent tubes can be dimmed from maximum output
right down to zero using four channels on a DMX controller. This allows a
wide range of color shades with almost infinitely variable intensity to be
obtained using additive color mixing. The color temperature of white light
can be fine-tuned by running the white tube at high power and adding blue
or red at low power. Replacement white tubes with various color
temperatures are also available (see “Accessories” on page 31).
The four DMX channels are used to control the tubes as follows:
Setting a DMX control address
The DMX address, also known as the start channel, is the first of the four
DMX control channels used. It must be set on the fixture’s DIP switch before
the controller can send commands to the fixture. The Stage Cyclo responds
to commands sent to the DMX address and the next three channels. For
example, if the DMX address is set to 100, the Stage Cyclo uses channels
100, 101, 102 and 103.
Allow enough channels when setting the DMX address. If control channels
for two fixtures overlap, one of the fixtures will receive the wrong
commands.
If two or more Stage Cyclos
share the same DMX address,
they will receive the same
commands and respond
identically. Individual control
will be impossible.
To access the fixture’s DIP
switch, slide the hatch open
by pulling on the pin in the
connections panel recess (see
Figure 11)
• First channel: white
• Second channel: red
• Third channel: green
• Fourth channel: blue
Figure 11: DIP switch access
22 Stage Cyclo user manual
The default factory-set control address is ‘1’. To reset the Stage Cyclo’s
DMX address:

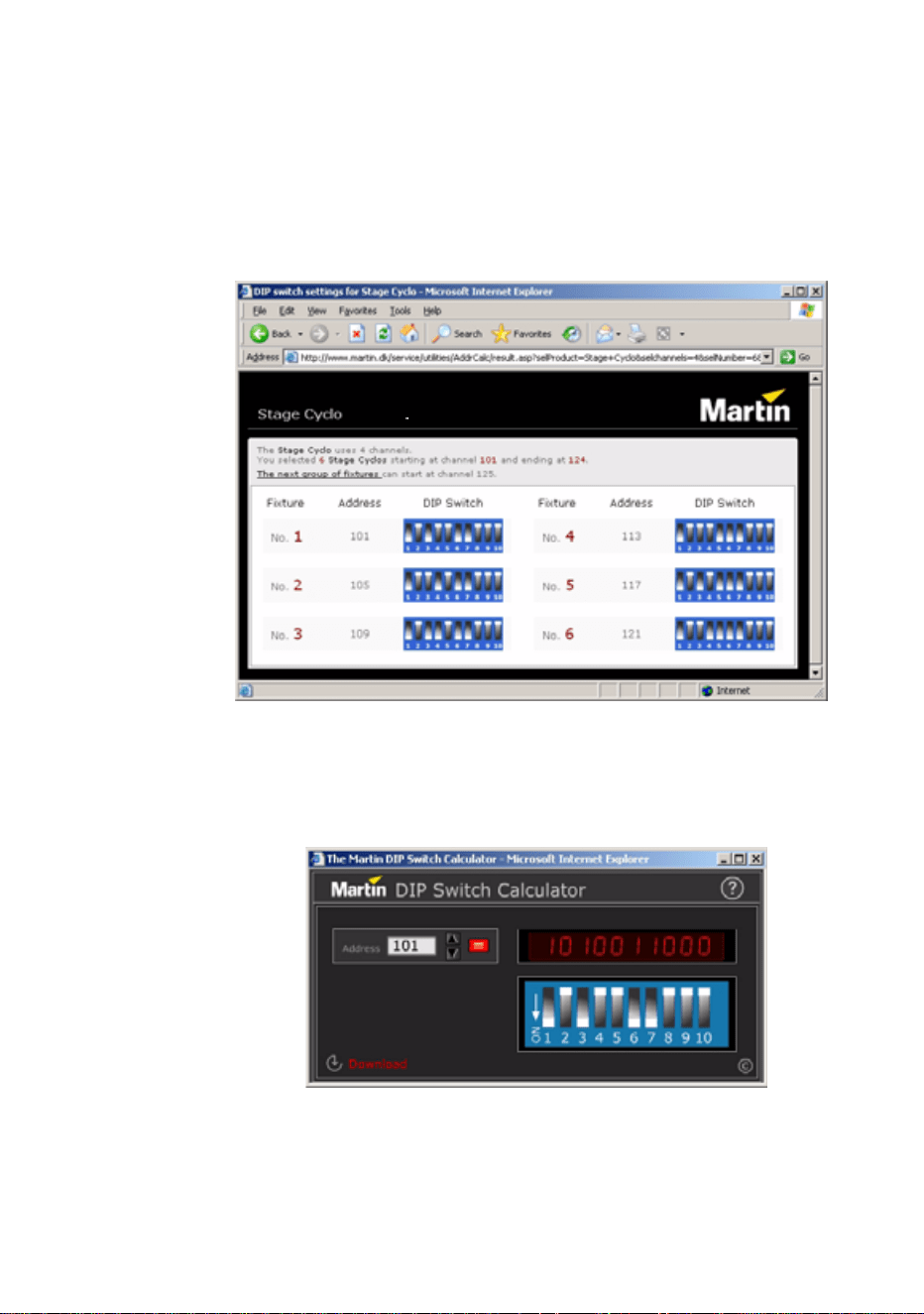

1. Decide on a DMX address for the fixture. If you are calculating the DMX
addresses for multiple fixtures, save time by using the online Martin
Address Calculator at
http://www.martin.dk/service/utilities/AddrCalc/index.asp (see illustration
below).
2. You can also look up DIP-switch settings using the Martin DIP Switch
Calculator, available for use and downloadable free at
http://www.martin.dk/service/dipswitchpopup.htm
If you do not have Internet access, refer to "Table 2: DMX address DIP-
switch settings" on page 23.
3. Set DIP switch pins 1 through 9 to ON (1) or OFF (0) to set the address.
DMX-controlled operation 23
To use this table, first find the DMX address in the main block in the table.
Then read the settings for pins 1 - 5 to the left and read the settings for pins
6 - 9 above the address. “0” means OFF and “1” means ON.
For example, to set the DMX address to 101, you need to set DIP-switch
pins 1, 3, 6 and 7 to ON, as highlighted in the table.
DIP switch pins setting
0 = OFF
1 = ON
#9 0 0 0 0 000011111111
#8 0 0 0 0 111100001111
#7 0 0 1 1 001100110011
#6 0 1 0 1 010101010101
#1 #2 #3 #4 #5
0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480
1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481
0 1 0 0 0 2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482
1 1 0 0 0 3 35 67 99 131 163 195 227 259 291 323 355 387 419 451 483
0 0 1 0 0 4 36 68 100 132 164 196 228 260 292 324 356 388 420 452 484
1 0 1 0 0 5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485
0 1 1 0 0 6 38 70 102 134 166 198 230 262 294 326 358 390 422 454 486
1 1 1 0 0 7 39 71 103 135 167 199 231 263 295 327 359 391 423 455 487
0 0 0 1 0 8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488
1 0 0 1 0 9 41 73 105 137 169 201 233 265 297 329 361 393 425 457 489
0 1 0 1 0 10 42 74 106 138 170 202 234 266 298 330 362 394 426 458 490
1 1 0 1 0 11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491
0 0 1 1 0 12 44 76 108 140 172 204 236 268 300 332 364 396 428 460 492
1 0 1 1 0 13 45 77 109 141 173 205 237 269 301 333 365 397 429 461 493
0 1 1 1 0 14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494
1 1 1 1 0 15 47 79 111 143 175 207 239 271 303 335 367 399 431 463 495
0 0 0 0 1 16 48 80 112 144 176 208 240 272 304 336 368 400 432 464 496
1 0 0 0 1 17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497
0 1 0 0 1 18 50 82 114 146 178 210 242 274 306 338 370 402 434 466 498
1 1 0 0 1 19 51 83 115 147 179 211 243 275 307 339 371 403 435 467 499
0 0 1 0 1 20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500
1 0 1 0 1 21 53 85 117 149 181 213 245 277 309 341 373 405 437 469 501
0 1 1 0 1 22 54 86 118 150 182 214 246 278 310 342 374 406 438 470 502
1 1 1 0 1 23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503
0 0 0 1 1 24 56 88 120 152 184 216 248 280 312 344 376 408 440 472 504
1 0 0 1 1 25 57 89 121 153 185 217 249 281 313 345 377 409 441 473 505
0 1 0 1 1 26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506
1 1 0 1 1 27 59 91 123 155 187 219 251 283 315 347 379 411 443 475 507
0 0 1 1 1 28 60 92 124 156 188 220 252 284 316 348 380 412 444 476 508
1 0 1 1 1 29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509
0 1 1 1 1 30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510
1 1 1 1 1 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511
Table 2: DMX address DIP-switch settings
24 Stage Cyclo user manual
Service
With long-life fluorescent tubes and virtually no moving parts, the Stage
Cyclo is almost service-free.
Fluorescent tubes
The Osram high output T5 tubes fitted as standard meet color specifications
for at least 10 000 hours, after which color intensity may gradually fall.
Average tube life is 20 000 hours, but note that tube life will vary depending
on operating conditions.
Tube positions
Tube positions in the Stage Cyclo are identified as shown below:
The burning positions of fluorescent tubes affect their warm-up times,
operating temperature, light output and tube life. For best results:
• Install tubes so that the manufacturer’s markings are all at the same end
of the fixture.
• If the fixture is mounted in a vertical position or at an angle from the
horizontal, place the ends of the tubes that carry the manufacturer’s
markings at the lower end of the fixture (in a cold environment, i.e. where
temperatures are generally around or below freezing point, locate the
markings at the upper end of the fixture).
Marking in
fixture
Marking on
tube Reference illustration
R
OSRAM FQ
54W/60 RED
G
OSRAM FQ
54W/66 GREEN
B
OSRAM FQ
54W/67 BLUE
No marking. Tube
located above
diffuser.
OSRAM FQ
54W/865 Daylight
R
G
B
Service 25

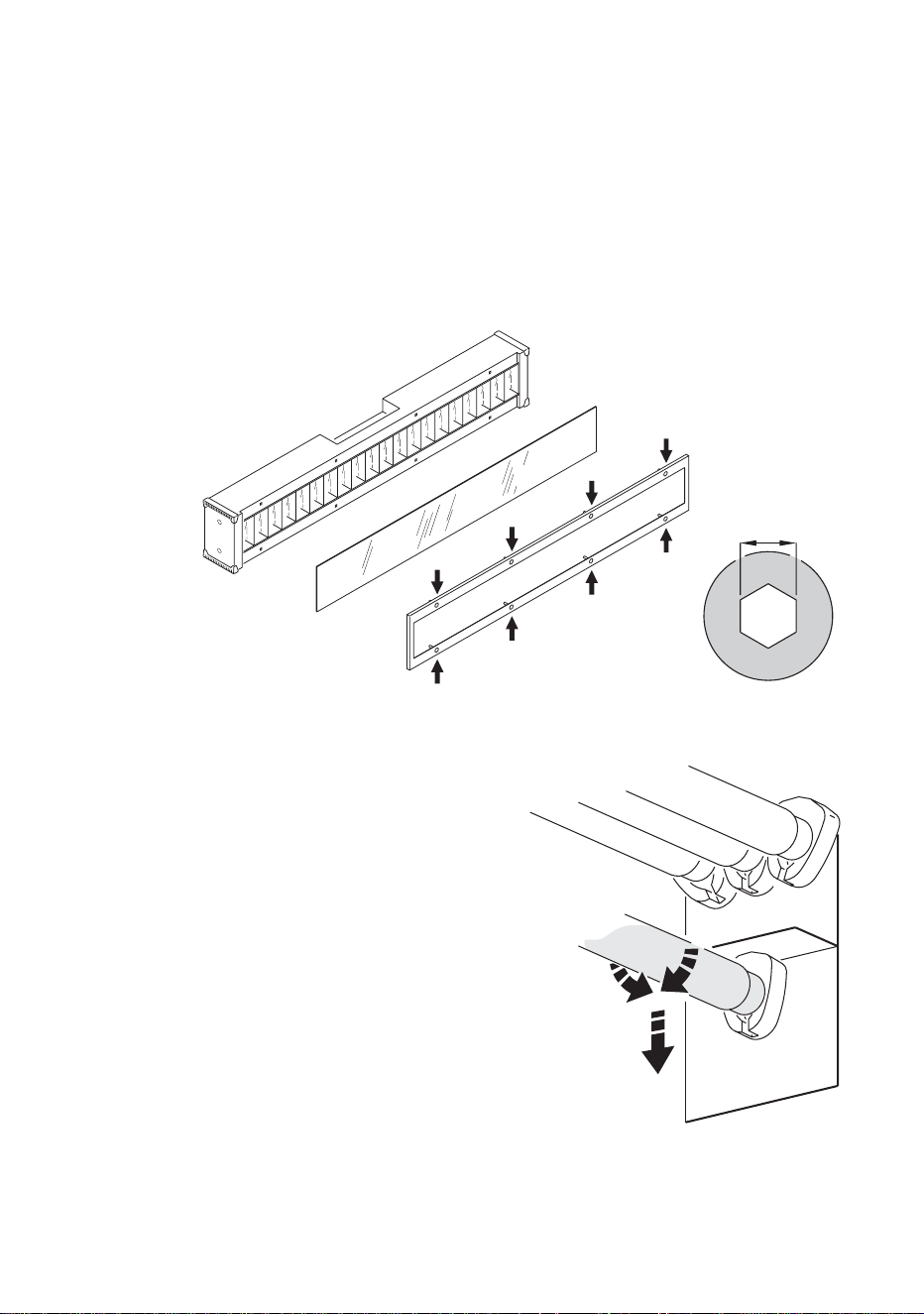

Changing a tube
To change a tube:
1. Disconnect the fixture from AC power and allow to cool for 5 minutes.
2. For access to the white tube, use a 3mm Allen key to remove the 8
retaining screws and remove the front frame (G) and clear plastic cover
(F). Be ready to catch the reflector, as this is a loose fit in the housing, but
note that a ground (earth) lead connects the reflector to the housing.
Disconnect this lead and remove the reflector.
3. To remove a tube, press on
the metal caps at both ends of
the tube and rotate the tube
1/4 turn in whichever direction
is easiest. Then slide the
tube’s terminal pins out of their
sockets. Support the tube at
both ends as it is released.
3
mm
G
F
Figure 12: Access to white tube
Figure 13: Tube removal
26 Stage Cyclo user manual

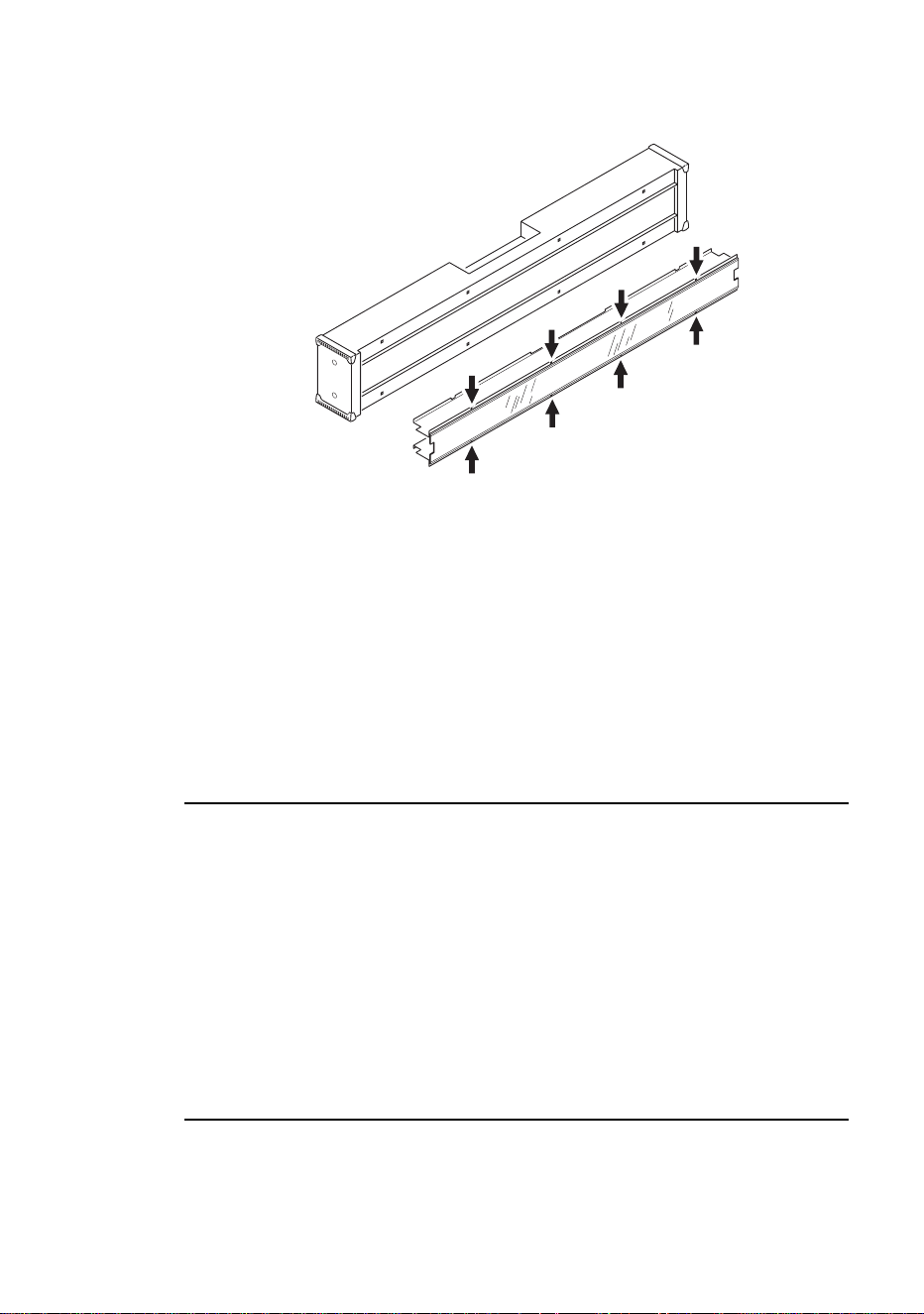

4. For access to the colored tubes, remove the eight Pozidriv PZ2 screws
and remove the diffuser.
5. When installing new tubes, line them up so that the manufacturer’s
markings on all tubes are at the same end of the fixture. Slide the tube’s
terminal pins fully into their sockets and rotate the tube 1/4 turn to
engage the pins. Check that the tube is held securely in the sockets.
6. Replace all components – remembering to attach the earth strap to the
reflector – before reapplying power.
Main fuse
The main fuseholder is located in the connections panel recess (see
“Product overview” on page 4´). Using a flat-head screwdriver, turn the
fuseholder cover approximately 1/8 turn to release the cover and main fuse.
Isolate the fixture from power and make sure power cannot be reapplied
accidentally before changing the fuse.
Never replace a fuse with one of a different type or rating. See “Power” on
page 30 for main fuse details.
Cleaning
Turn off power to the fixture before cleaning, and use a damp cloth to wipe
clean.
Figure 14: Access to colored tubes
Troubleshooting 27
Troubleshooting
Problem Probable cause(s) Remedy
No response from fixture when
power is applied.
No power to fixture. Check power connections.
Ground fault protection circuit
breaker (RCD) has tripped.
Reset RCD. If problem
persists, have an electrician
replace the RCD or reduce the
number of fixtures powered
via one RCD.
Fixture does not respond
correctly to DMX control.
Controller not connected. Check DMX data link. Inspect
connections and test cables.
Repair or replace as
necessary.
Incorrect DMX addressing. Check address setting on
fixture and controller.
Data link not terminated. Insert DMX termination plug in
unused socket of last fixture
on data link.
Fixture on link set as master. Check that all fixtures are set
as slaves (DIP switch pin 9
ON).
Defective fixture. Bypass fixtures one at a time
until normal operation is
regained.
Fixtures do not behave
correctly in master/slave mode
Two fixtures operating as
masters.
Check that only one fixture is
set as master.
Defective fixture. Bypass fixtures one at a time
until normal operation is
regained.
Poor quality light output and/or
color rendering.
Tube or tubes not burnt in. Run fixture for at least 100
hours to burn in tubes.
Tube defective. Disconnect fixture and replace
tube.
28 Stage Cyclo user manual
DMX protocol
Start code = 0
Channel Value Percent Function
1
0-2
3-252
253-255
0
1 - 99
100
White intensity
Tube off
Intensity 1
→100%
Intensity 100%
2
0-2
3-252
253-255
0
1 - 99
100
Red intensity
Tube off
Intensity 1
→100%
Intensity 100%
3
0-2
3-252
253-255
0
1 - 99
100
Green intensity
Tube off
Intensity 1
→100%
Intensity 100%
4
0-2
3-252
253-255
0
1 - 99
100
Blue intensity
Tube off
Intensity 1
→100%
Intensity 100%
Stage Cyclo Specifications 29
Stage Cyclo Specifications
PHYSICAL
L x W x H. . . . . . . . . . . . . . . . . . . 1272 x 209 x 135 mm (50 x 8.2 x 5.3 in.)
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5 kg (23.1 lbs)
Shipping weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.5 kg (25.3 lbs)
Shipping dimensions . . . . . . . . . . . 1300 x 350 x 210 mm (52 x 14 x 8,4 in.)
Fixture color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gunmetal
SOURCE
Light source. . . . . . . . . . . . . . . . . . . . . . . . . T5 fluorescent tubes (4 x 54W)
Approved lamp type . . . . . . . . . . . . . . . . . . . . OSRAM T5 high output 54W
Color authenticity . . . . . . . . . . . . . . . . . . . . . . Guaranteed to 10 000 hours
Average tube life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 000 hours
PHOTOMETRICS
Efficiency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28%
Total Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3976 lumens
Half peak angle C0 (horizontal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95°
Half peak angle C90 (vertical). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83°
One-tenth peak angle C0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107°
One-tenth peak angle C90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121°
Illuminance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2066/distance
2
[lux]
Measurement conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230V, 50Hz
Measurement source . . . . . . . . . . . . . . . . . . . . . .Osram T5 FQ 54W tubes
DYNAMIC EFFECTS
0-100% dimmable tubes . . . . . . . . . . . . . . . . . . Red, green, blue and white
CONTROL AND PROGRAMMING
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USITT DMX512 (1990)
Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RS-485
DMX addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIP switch
Data input/ output . . . . . . . . . . . . . . . . . . . . . . . 3-pin and 5-pin XLR, RJ-45
Number of DMX channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
INSTALLATION
Floor or surface mounting with adjustable legs
Stacking/side-by-side/end-to-end: lockable with Martin omega brackets
Rigging with optional adjustable mounting bracket and omega brackets
Orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Any
Minimum free space around fixture . . . . . . . . . . . . . . . . . . .25 mm (1 inch)
30 Stage Cyclo user manual
POWER
AC power, 230 V model. . . . . . . . . . . . . . . . . . . . . . . 198 - 250 V, 50/60 Hz
AC power, 110 V model. . . . . . . . . . . . . . . . . . . . . . . . . .100 - 120 V, 60 Hz
AC input. . . . . . . . . . . . . . . .Neutrik PowerCon (A-type) lockable connector
Main fuse, 230 V model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 AT
Main fuse, 110 V model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 AT
Maximum current and power
@ 100 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 A, 218 W, PF 0.998
@ 120 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 A, 235 W, PF 0.999
@ 208 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 A, 235 W, PF 0.993
@ 230 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 A, 234 W, PF 0.988
@ 240 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 A, 233 W, PF 0.986
@ 250 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 A, 231 W, PF 0.983
PF = power factor
THERMAL
Maximum ambient temperature (T
a
) . . . . . . . . . . . . . . . . . . . . 40°C (104°F)
Minimum ambient temperature (started at full power). . . . . . . . -20°C (-4°F)
Maximum total heat dissipation (calculated) . . . . . . . . . . . . . . . 737 BTU/hr.
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Convection
CONSTRUCTION
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mild steel
Optics . . . . . . . . . . . . . . . . . . . . . . . . . . . . .High specular 99.9% aluminum
Protection factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP20
APPROVALS
European safety: EN 60598-1,
EN 60598-2-17 + Corr + A2-1997
US safety . . . . . . . . . . . . ANSI/UL 1573
Canadian safety . . .CSA C22.2, No 166
INCLUDED ITEMS
Red T5 tube. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OSRAM T5 FQ 54W/60
Green T5 tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OSRAM T5 FQ 54W/66
Blue T5 tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OSRAM T5 FQ 54W/67
Daylight white (6500 K) T5 tube . . . . . . . . . . . . . .OSRAM T5 FQ 54W/865
2 x omega brackets incl. 1/4 turn fasteners. . . . . . . . . . . 2 x P/N 91602001
Neutrik PowerCon NAC3FCA power cable connector . . . . . P/N 05342804
User manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 35000167
Stage Cyclo Specifications 31
ACCESSORIES
Stage Cyclo mounting bracket . . . . . . . . . . . . . . . . . . . . . . . P/N 91611206
Omega bracket with 1/4 turn fasteners . . . . . . . . . . . . . . . . . P/N 91602001
Barndoors kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611234
Frost filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611235
Warm white tube (2700 K, Osram T5 FQ 54W/827) . . . . . . . P/N 97020009
Cool white tube (4000 K, Osram T5 FQ 54W/840) . . . . . . . . P/N 97020010
DMX link termination plug RJ-45 . . . . . . . . . . . . . . . . . . . . . P/N 91613028
DMX link termination plug male XLR 3-pin . . . . . . . . . . . . . P/N 91613017
RJ-45 patch cable (250 mm/ 9.8 in.) . . . . . . . . . . . . . . . . . . P/N 11840088
XLR male to RJ-45 converter . . . . . . . . . . . . . . . . . . . . . . . . P/N 11840087
XLR female to RJ-45 connector . . . . . . . . . . . . . . . . . . . . . . P/N 11840086
50 x CAT5 network cables - 2 m (6.5 ft) . . . . . . . . . . . . . . . . P/N 91611044
30 x CAT5 network cables - 5 m (16.4 ft) . . . . . . . . . . . . . . . P/N 91611045
15 x CAT5 network cables - 10 m (32.8 ft) . . . . . . . . . . . . . . P/N 91611046
SPARE PARTS
Red OSRAM T5 FQ 54W/60 tube. . . . . . . . . . . . . . . . . . . . . P/N 97020006
Green OSRAM T5 FQ 54W/66 tube . . . . . . . . . . . . . . . . . . . P/N 97020007
Blue OSRAM T5 FQ 54W/67 tube . . . . . . . . . . . . . . . . . . . . P/N 97020008
Daylight white (6500 K) OSRAM T5 FQ 54W/865 tube . . . . P/N 97020011
2 AT main fuse (230 V model). . . . . . . . . . . . . . . . . . . . . . . . P/N 05020009
2.5 AT main fuse (110 V model) . . . . . . . . . . . . . . . . . . . . . . P/N 05020010
ORDERING INFORMATION
Stage Cyclo, 208-250 V, 50/60 Hz . . . . . . . . . . . . . . . . . . . . P/N 90350000
Stage Cyclo, 100-130 V, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . P/N 90350100
Disposing of this product
Martin products are supplied in compliance with Directive
2002/96/EC of the European Parliament and of the Council of the
European Union on WEEE (Waste Electrical and Electronic
Equipment), as amended by Directive 2003/108/EC, where
applicable.
Help preserve the environment! Ensure that this product is
recycled at the end of its life. Your supplier can give details of local
arrangements for the disposal of Martin products.
1 2 3 4 5 6 7 8 9 10
ON
1. White
2. Red
3. Green
4. Blue
5/6. Program speed
8. ON = Pause
OFF = Play
9. ON = Slave or DMX
OFF = Master
10. ON = Stand-alone
OFF = DMX
7. ON = Crossfading
OFF = Blackout fading
Quick reference
Stage Cyclo DIP switch settings
Martin Professional A/S - Olof Palmes Allé 18 - DK-8200 Aarhus N - Denmark
Phone: +45 87 40 00 00 Internet: www.martin.com
