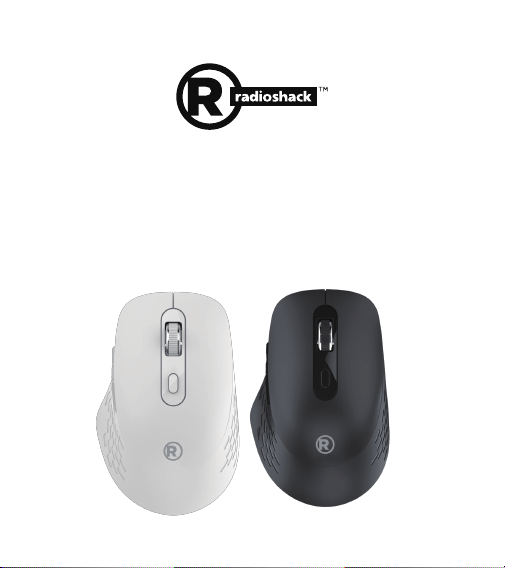

2.4 GHz AND BLUETOOTH MOUSE
USER MANUAL
model 2604804 / 2604805
2
1.
Product Descrip�on:
. The function of the buttons is shown in the following figur
Images are for reference only.
A：Left Key B：Right key C：Middle key D：DPI ke
y
E：Forward
F：Back off
G: Power switch H：BT1 indicator I：BT2 indicator J：2.4G indicator K：�ode switch
* 7 bu�ons 2.4G +BT Wireless Mouse
*
Black ABS
* haracteris�c curve, be�er grip
*
Op�cal technology
* DPI: 800-1200-1600
* Size: 108MM（L）*69MM（W）*40MM（H）
* Powered by 500mAh lithium ba�ery
* Bo�om with Mode switch
* Working distance ：10M
A
H I J
G
K
B
C
D
E
F
2.4G mode: take the mouse out of the package, turn the mouse power switch to the "ON" posi�on,
insert the receiver into the USB port of the computer, and then use it a�er the connec�on is successful.
BT mode:Open the package, take out the mouse, switch the power switch to the "ON" posi�on, and then
switch the mouse to BT1 or BT2 mode, hold down the "mode switch" key (more than 3 seconds), at this �me
the BT1 or BT2 indicator light flashes quickly, then the mouse is in the pairing state, take the Win10 system
as an example: set - Bluetooth - ON, search for the Bluetooth name of the mouse. Click to pair and use it.
Note: lf the mouse cursor cannot move normally during use, please ensure that the ba�ery is
normal, if the ba�ery is insufficient, please charge the ba�ery in �me!
3. Simple operation instructions
The functions of the buttons are as follow
A. Le� bu�on: Executes a le�-click opera�on with the mouse cursor.
B. Right bu�on: Executes a right-click opera�on with the mouse cursor.
C. Middle bu�on: Executes a middle-click opera�on with the mouse cursor and allows for scrolling
up and down on web pages or documents.
D. DPl bu�on: Allows for switching between different DPl se�ngs (e.g. 800-1200-1600) in a cycle.
E. Forward bu�on: In an open folder or webpage, executes a forward naviga�on ac�on.
F. Backward bu�on: In an open folder or webpage, executes a backward naviga�on ac�on.
G. Power switch: Turns the power on/off.
H. BT1 mode indicator light.
I. BT2 mode indicator light.
J. 2.4 G mode indicator.
K. �ode switch
FCC Compliance:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1)This device may not cause harmful interference, and
2)this device must accept any interference received, including interference that may
cause undesired operation.
15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
15.105 Information to the user.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC RF Exposure Warning Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment can be used in portable exposure
conditions.
