INSTALLATION GUIDE
)

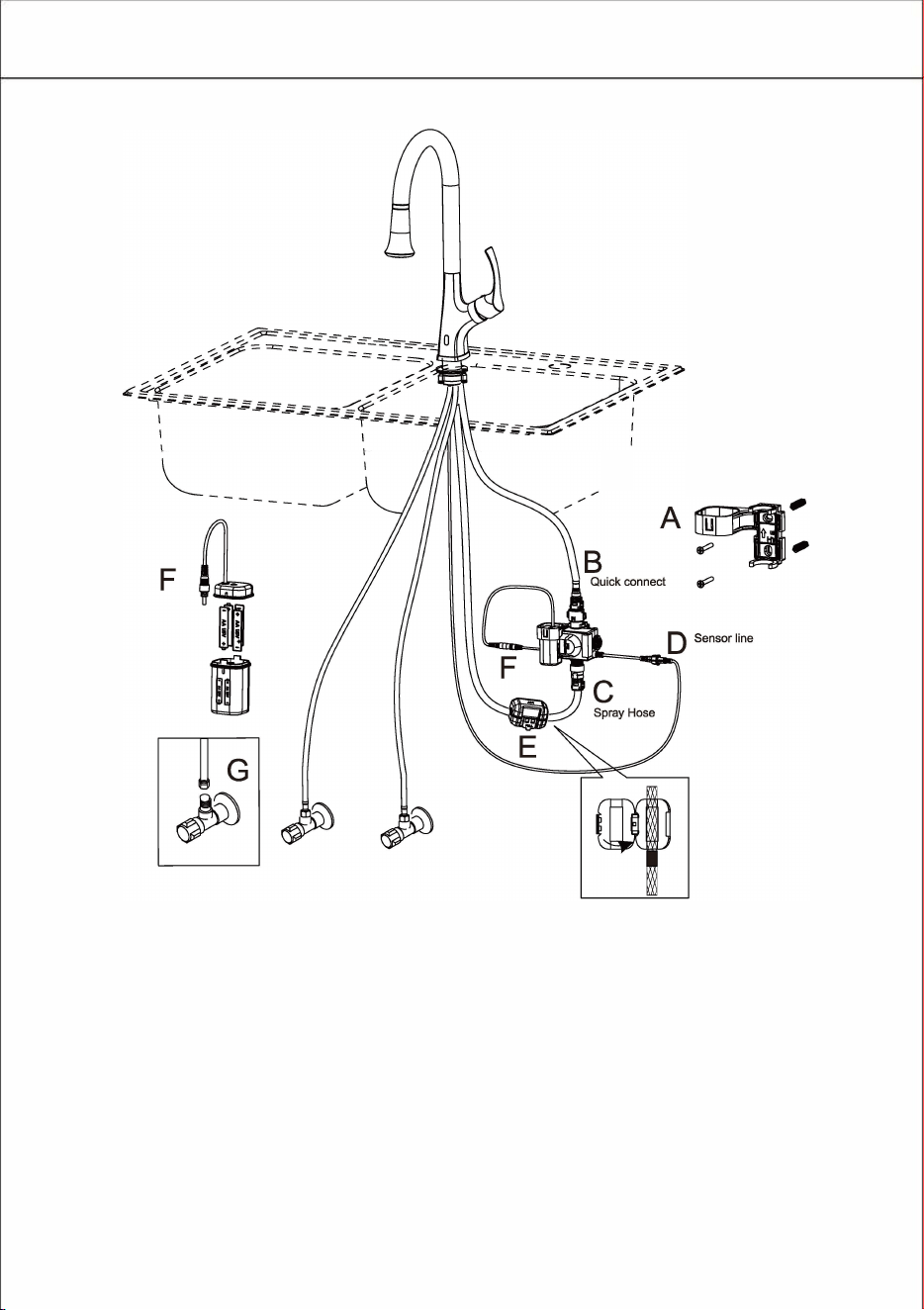

A. Fix the control box holder to the wall with the screws provided (partA in the picture). Then
attached the control box to the holder.
B. Insert the quick-connect to the control box (part Bin the picture).
C. Connect the spray hose to control box (part C in the picture).
D. Connect the sensor line to control box (part D in the picture).
E. Attach the weight to the spray hose (part E in the picture).
F. Put the batteries purchased from store into the battery holder correctly. Insert the battery pack
into the holder on the wall. Then connect the battery line to the control box (Part Fin the picture).
G. Connect the supply lines to water supplies (Part G in the picture).
5
OPERATION
How to operate the handle:
Right
Cold water
Open
Sensing area
1. Open the handle lever to turn water on. Push to turn off.
2. Turn the handle lever to the left to increase hot water flow
with higher water temperature. Lower the water
temperature by operating reversely.
Spray
The operation of the spray diverter:
1. The default mode is aerated flow.
2. By pressing the button, it will switch to spray mode. After
the faucet is closed, it will return back to aerated flow.
Press
